16.77


173911F

>>>>>>>>>>>>>> Southern Left Lane Signal Southern Right Lane Signal
Bell: WCH E-Bell None
Cantilever: Safetran Cantilever Safetran Cantilever
Mast Base: Safetran 5" Single Sided < Safetran 5" Single Sided ^
Lights: 2 - 12"x24" Safetran w/ GE Pixelated Look LEDs
2 - 12"x20" WCH w/ Electro-Tech's LEDs		 4 - 12"x24" WCH w/ GE Pixelated Look LEDs
Junction Boxes: 1 - Safetran
1 - WRRS		 1 - Safetran
1 - WRRS
Gate Lights: 3 - RECO 4" LEDs 3 - RECO 4" LEDs
Gate Mechanism: Safetran 2000s w/ Wishbone Mount Safetran 2000s w/ Wishbone Mount
Gate Striping: Vertical Striping Vertical Striping


>>>>>>>>>>>>> Northwestern Pedestrian Gate Northeastern Pedestrian Gate
Base: Safetran 5" Single Sided < Safetran 5" Single Sided V
Lights: 4 - 12"x24" Safetran w/ Electro-Tech's LEDs None
Junction Box: Safetran None
Gate Mechanism: Safetran 1990s w/ Wishbone Mount Safetran 1990s w/ Wishbone Mount
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-41 and the 1st video were taken on May 8, 2021, by Tommy McGowan.
The 2nd video was taken on July 5, 2025, by Rus.
Pictures 42-95 were taken on March 27, 2026, by Rus.
This crossing is located on the UP Harvard Sub or Metra UP Northwest Line.

1 2

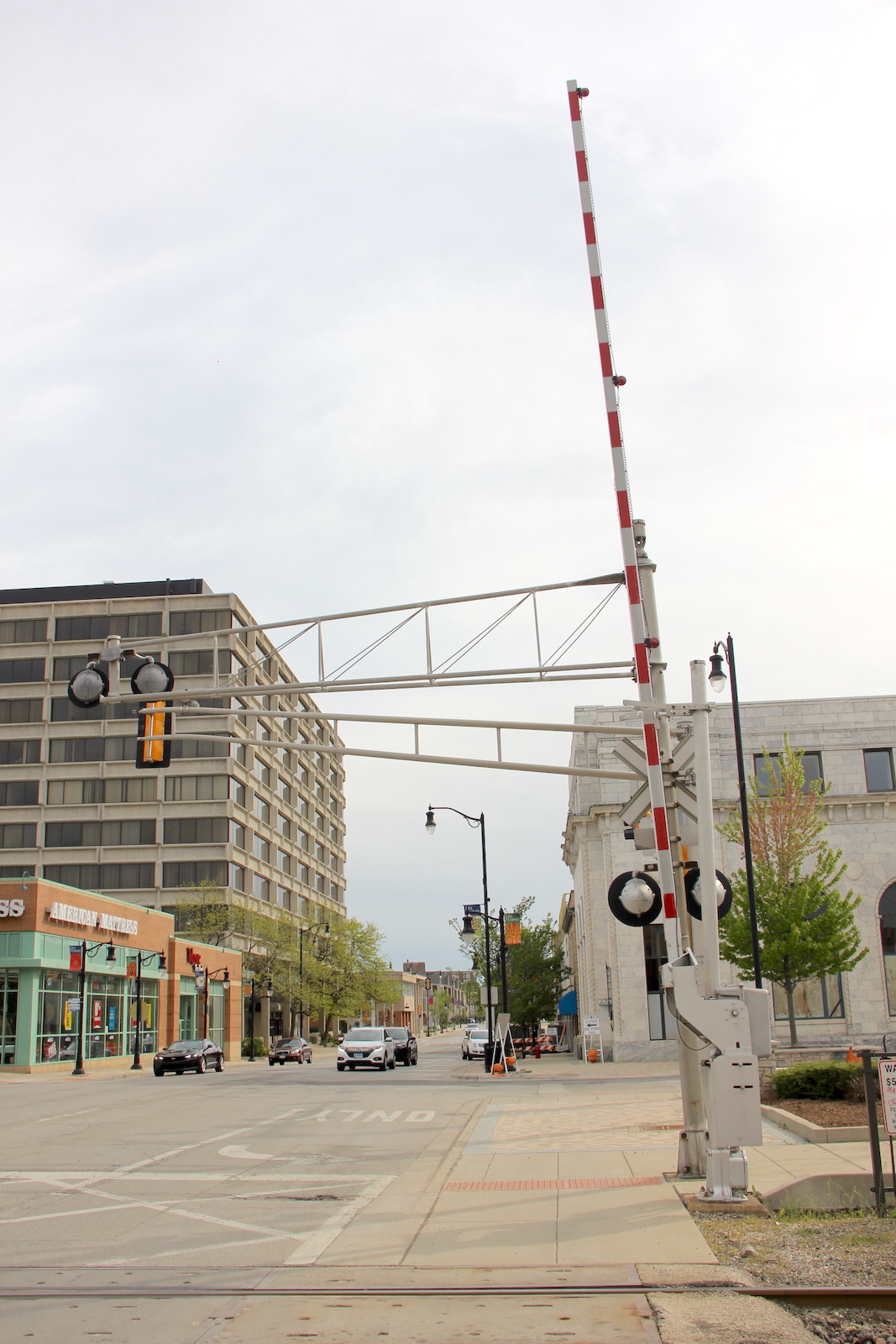

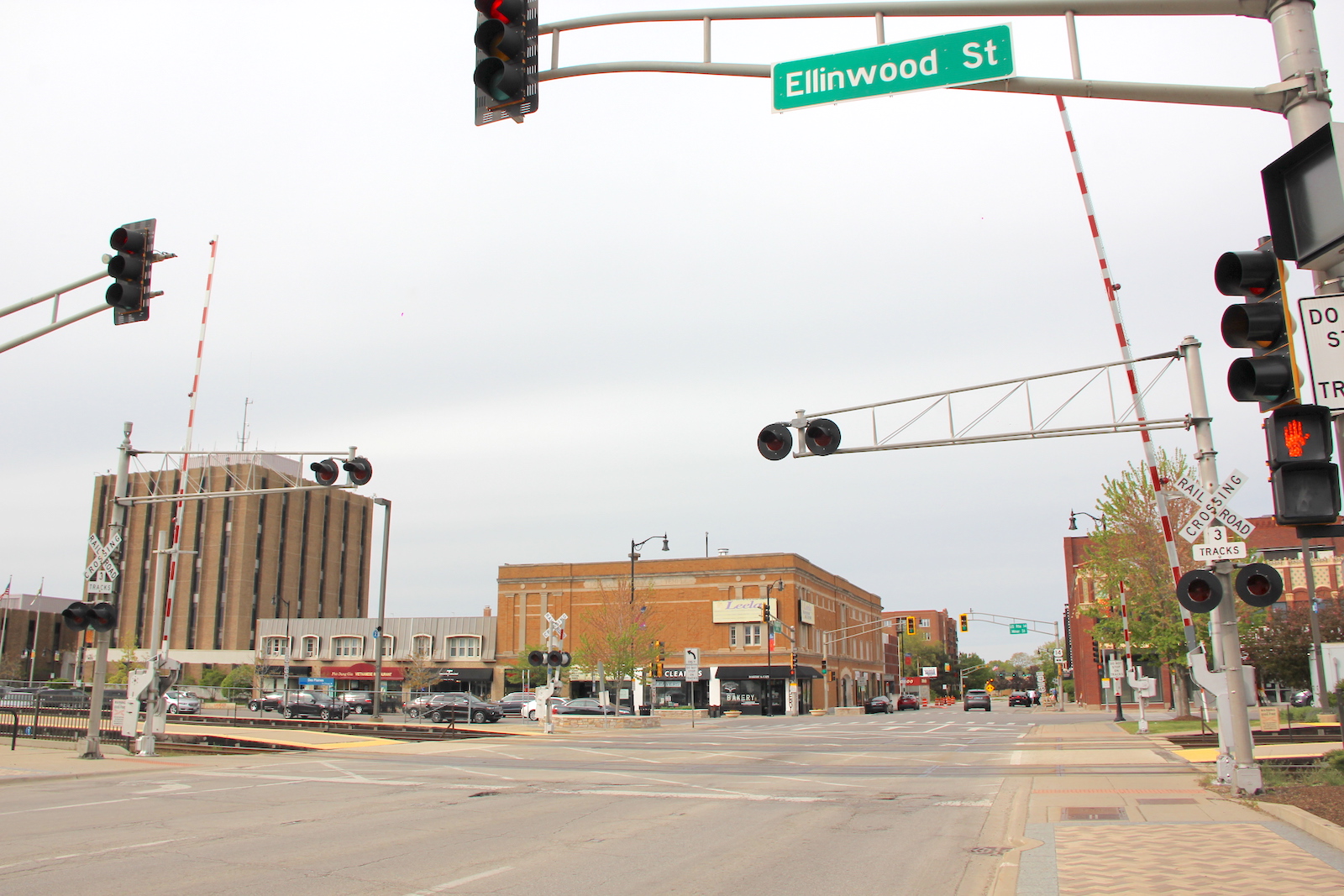

Overview of a very nice gated cantilever setup on a 1 way street facing north. Overview facing south.
3 4 5
6 7 8 9
10 11 12 13

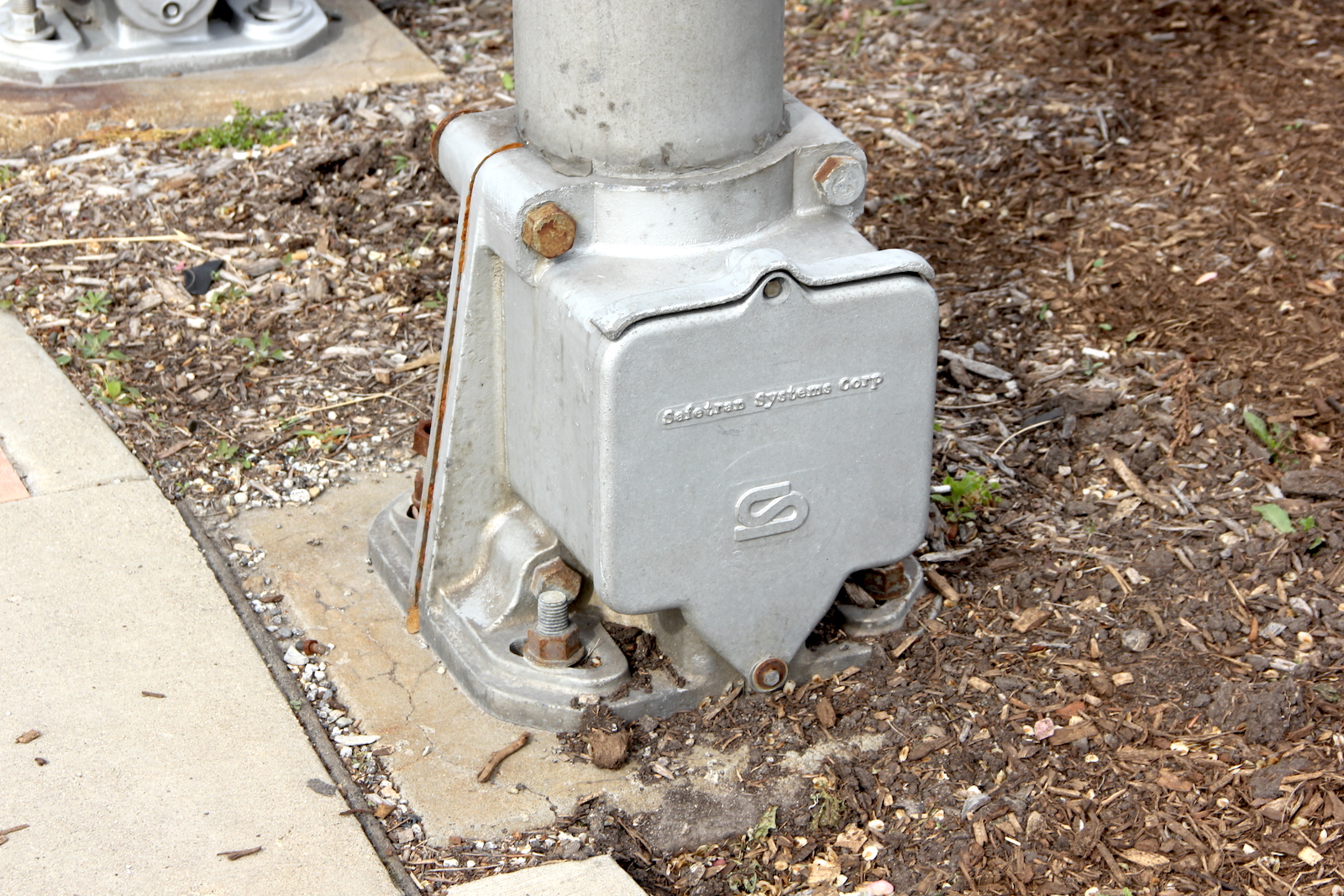

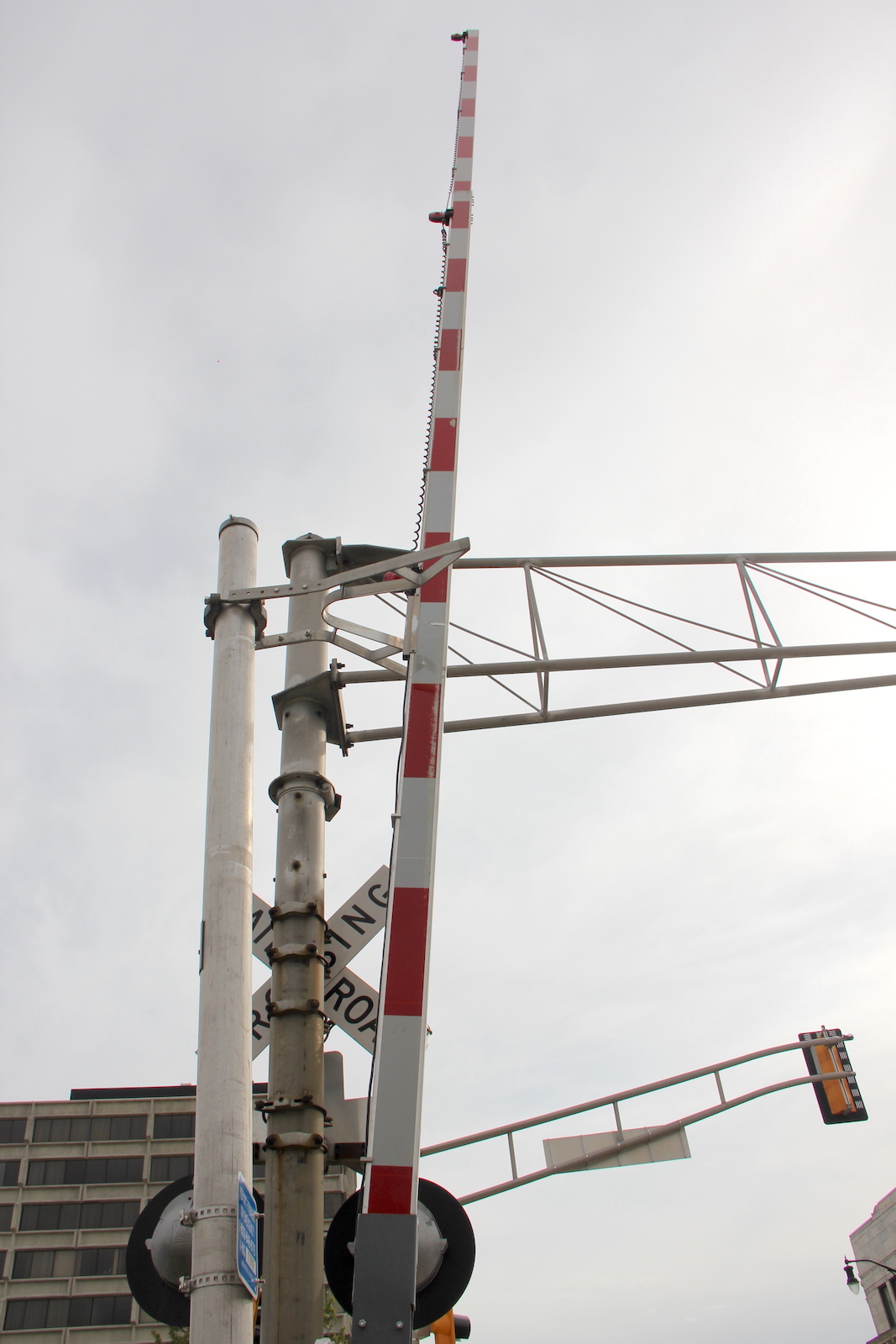

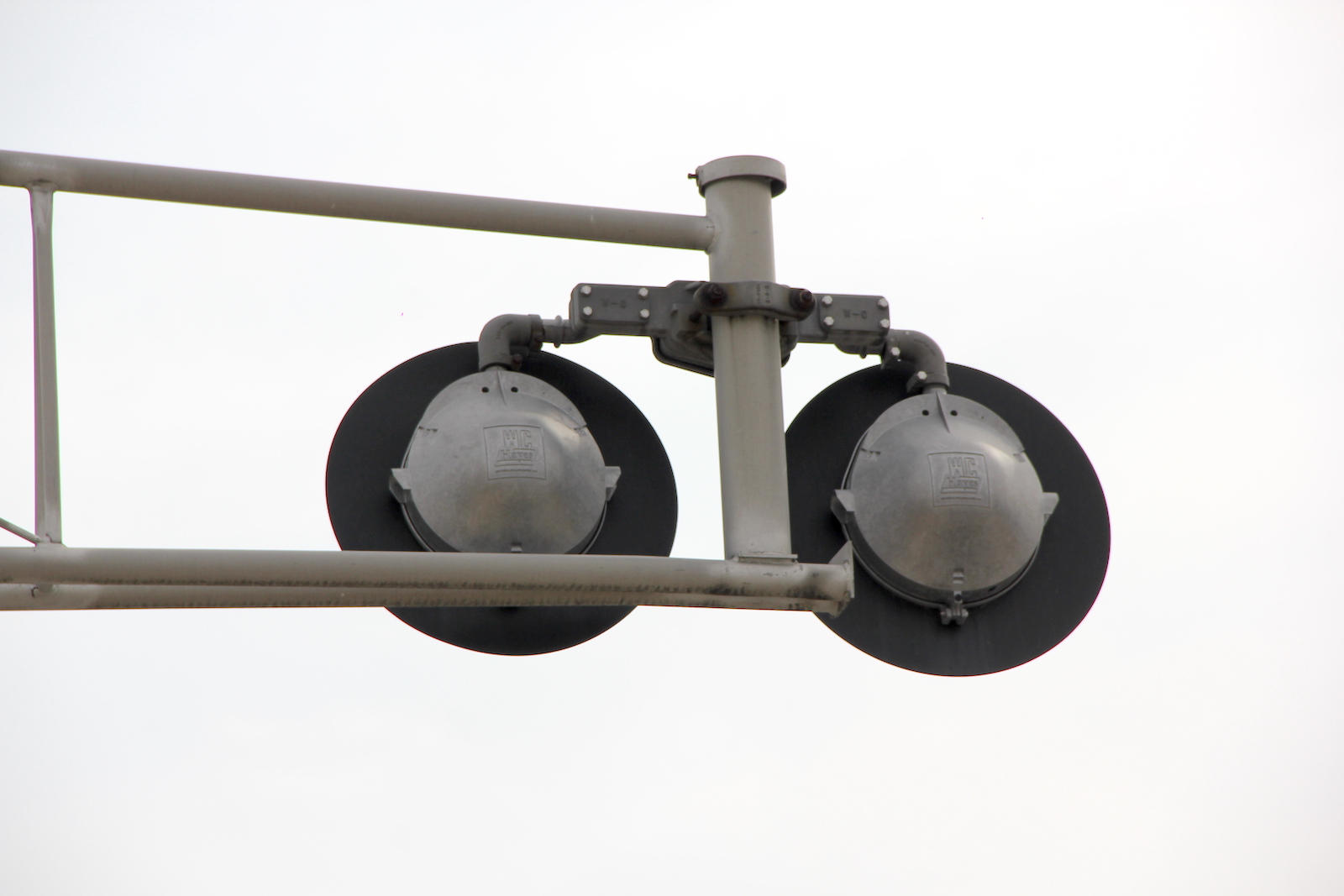

The southern right lane signal.
14 15 16
17 18 19 20
21 22 23 24
The southern left lane signal.
25 26 27
28 29 30
31 32 33

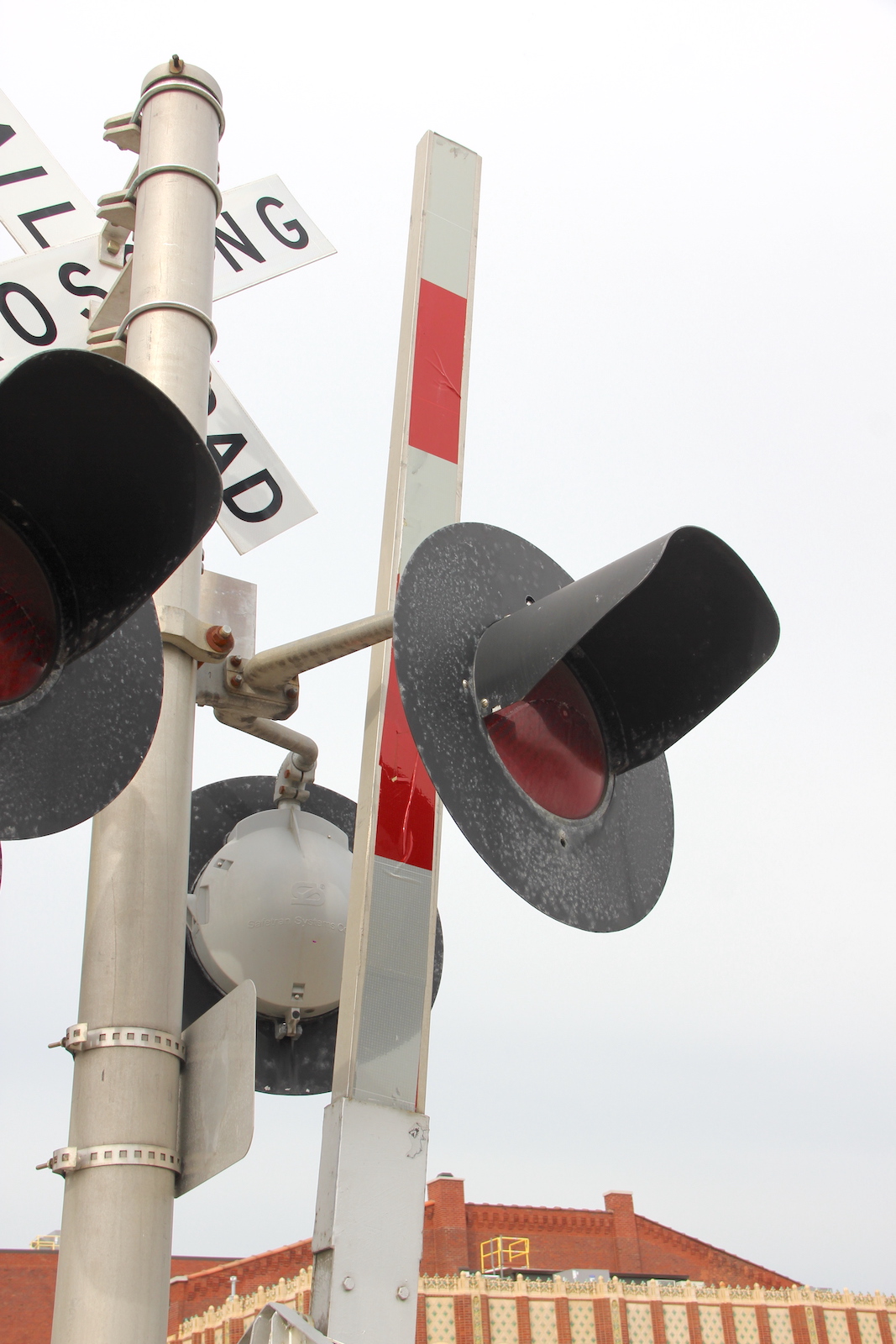

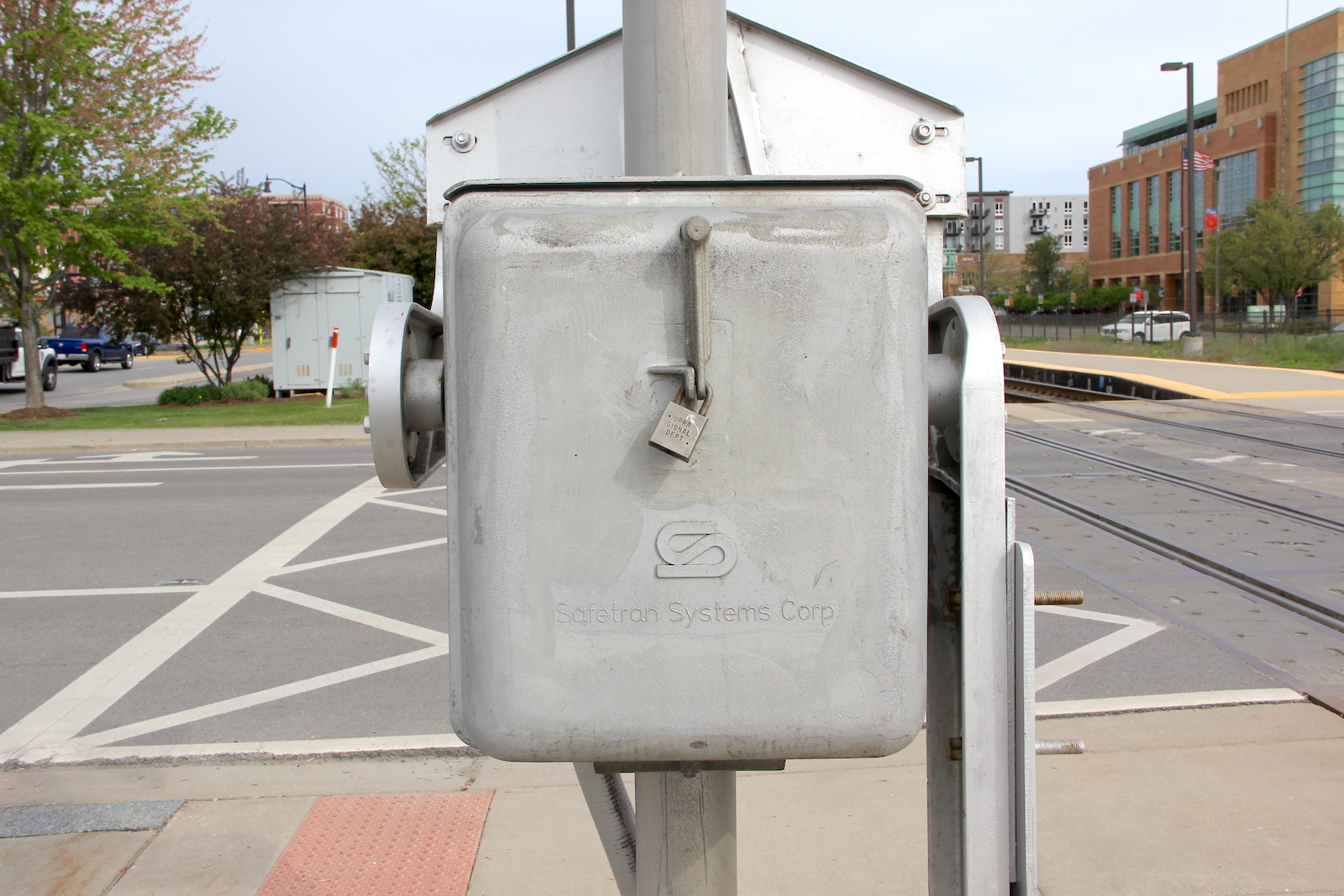

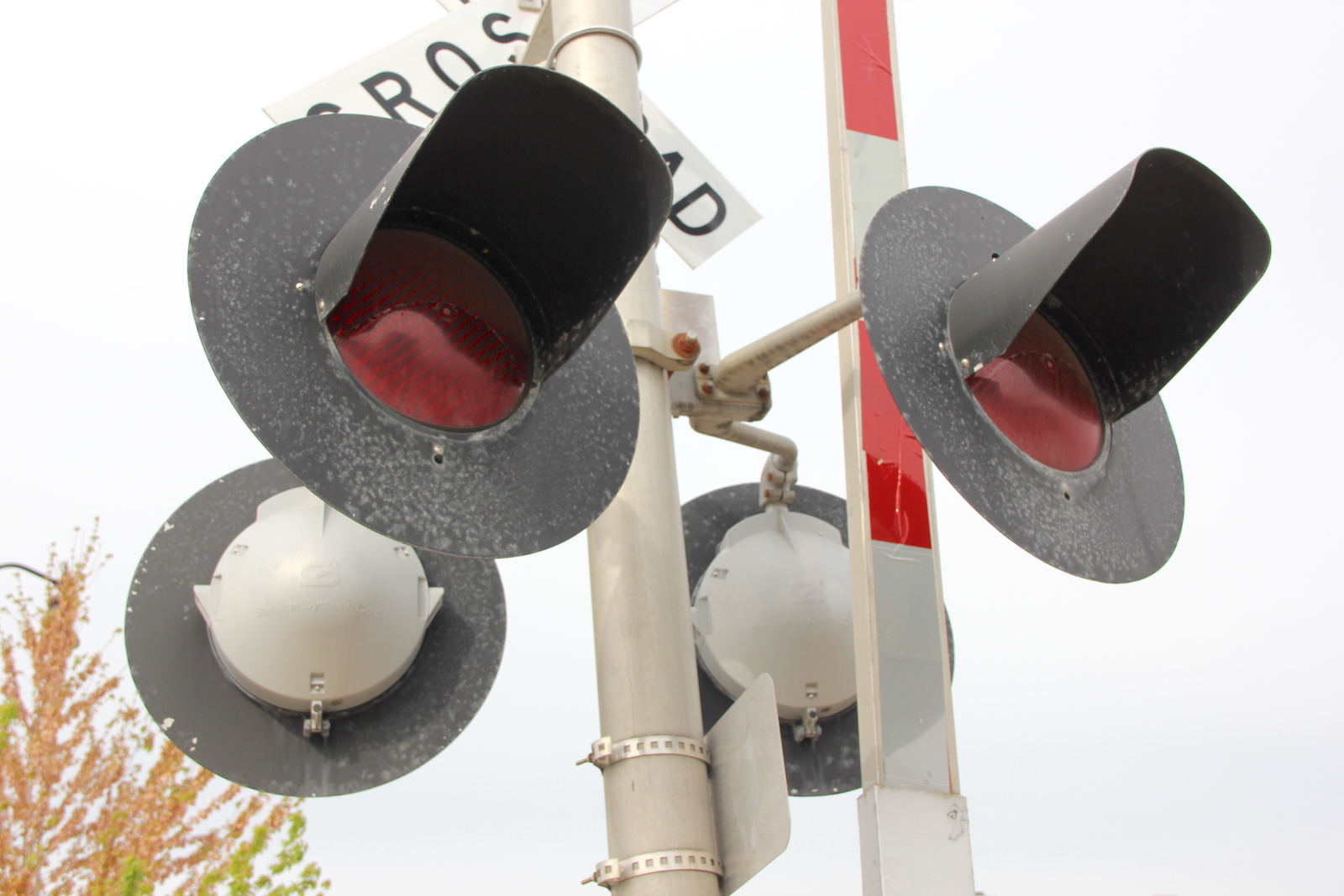

The northwestern pedestrian gate. This has main lights on it since the street is 1 way and these are the only lights that face the opposite direction.
34 35 36 37

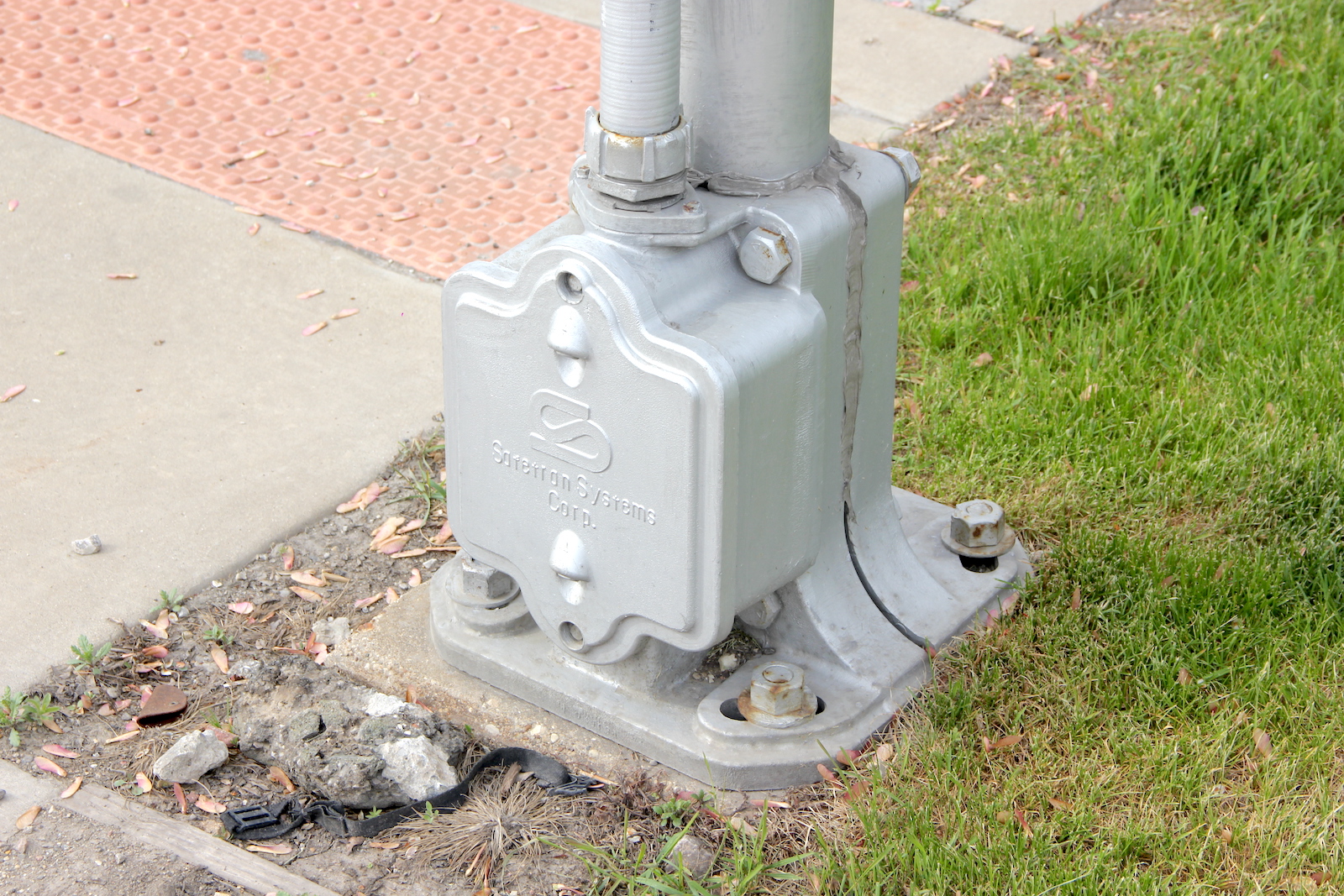

The northeastern pedestrian gate.
38 39 40 41
The relay bungalow in the northeast quadrant. The grade is all concrete. Track view facing west at Graceland Ave. #1. Track view facing east at Pearson St.

By 2026, the southern left lane signal's mast lights were retrofitted with GE Pixelated Look LEDs.

42
 43

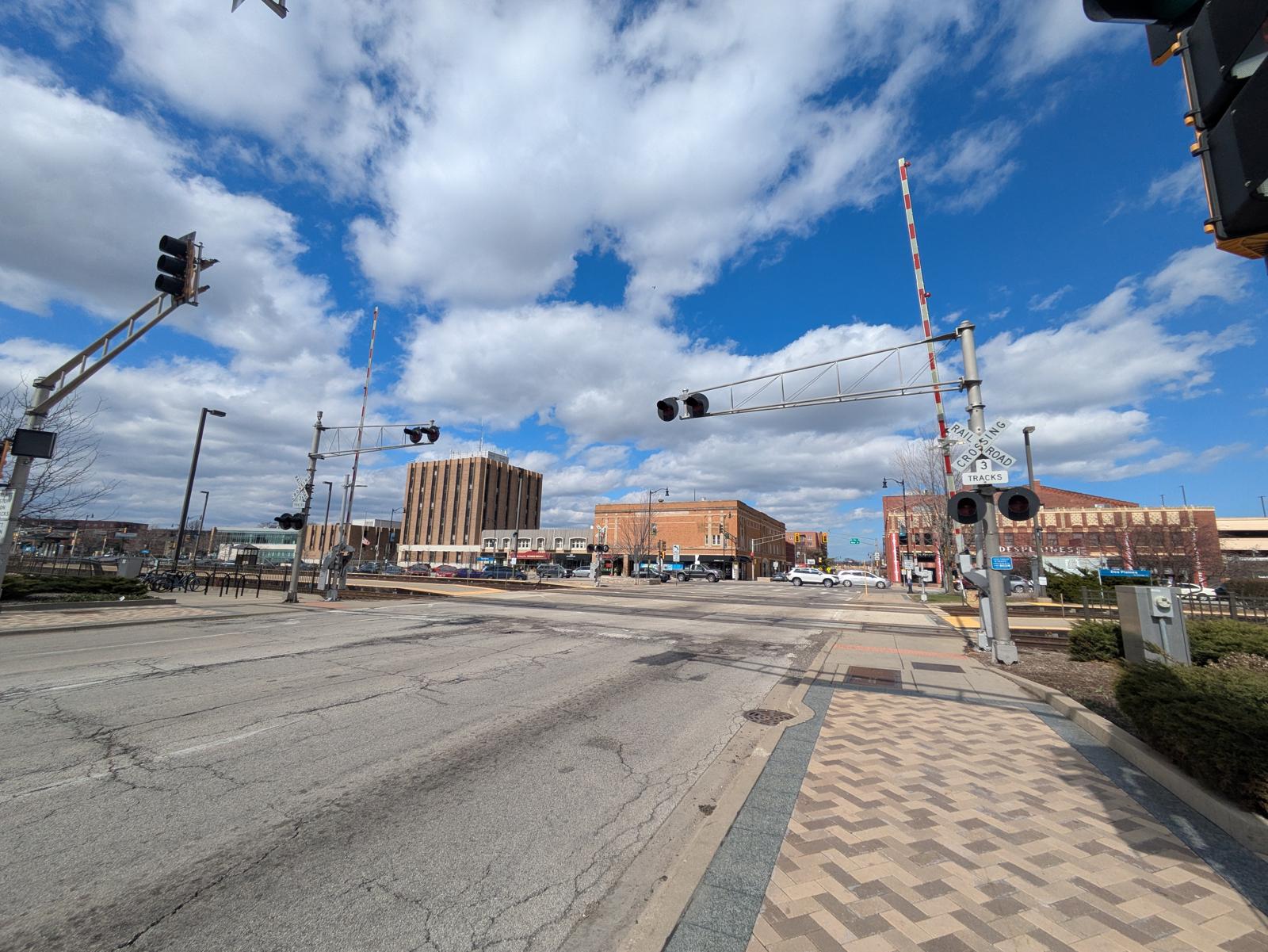

Overview facing north.Overview facing south.
44 45 46 47
48 49 50 51
52 53 54 55

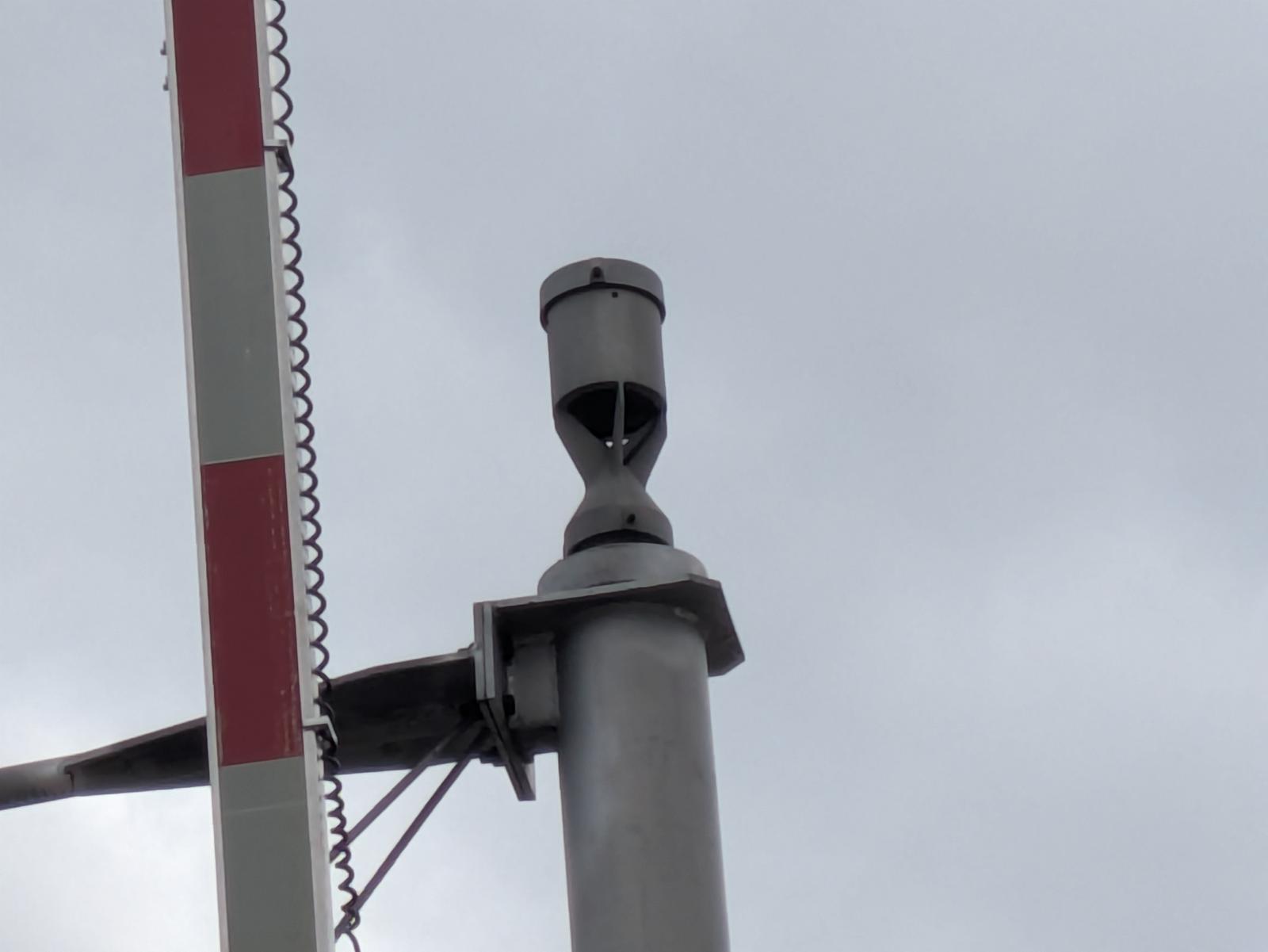

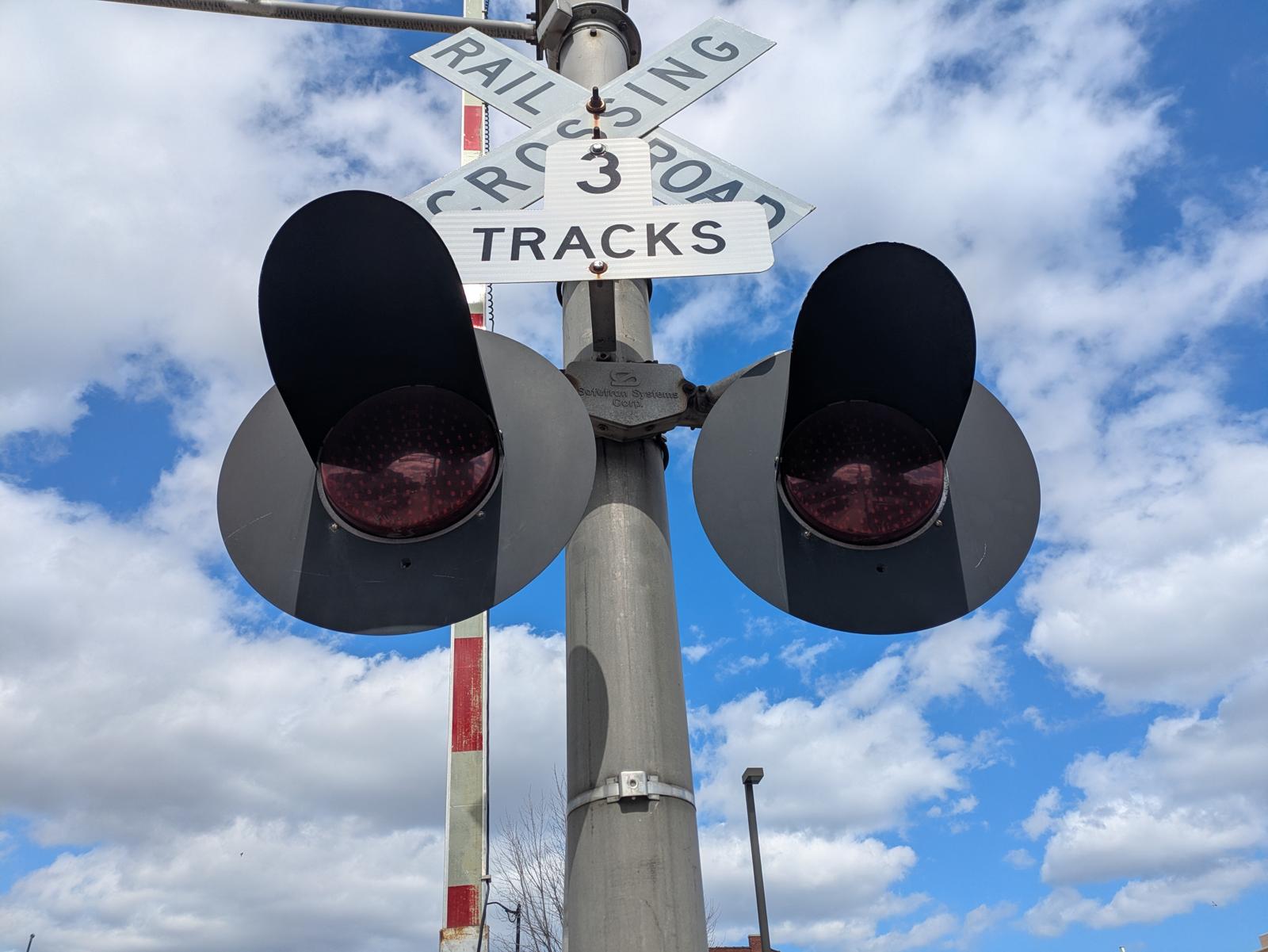

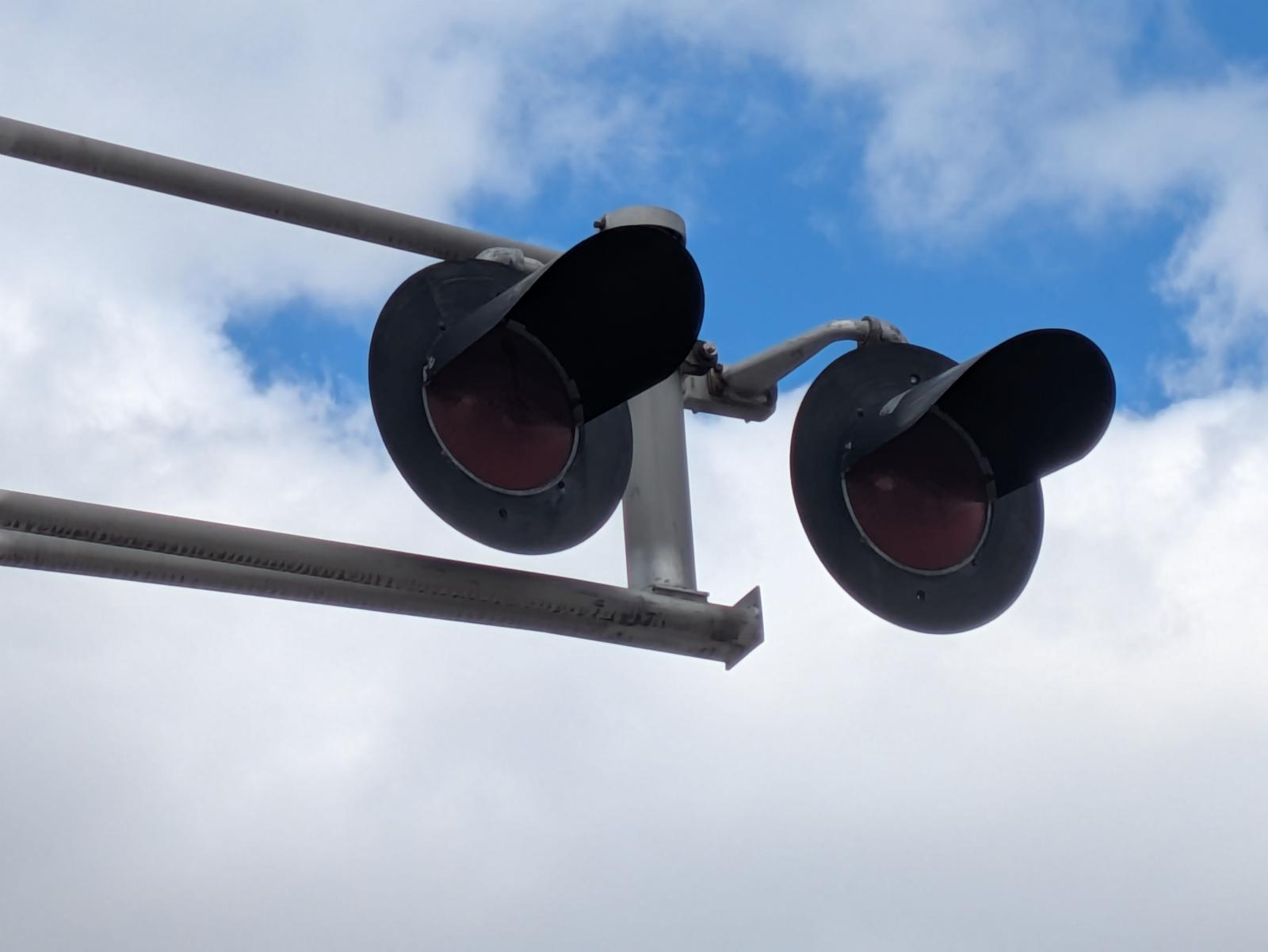

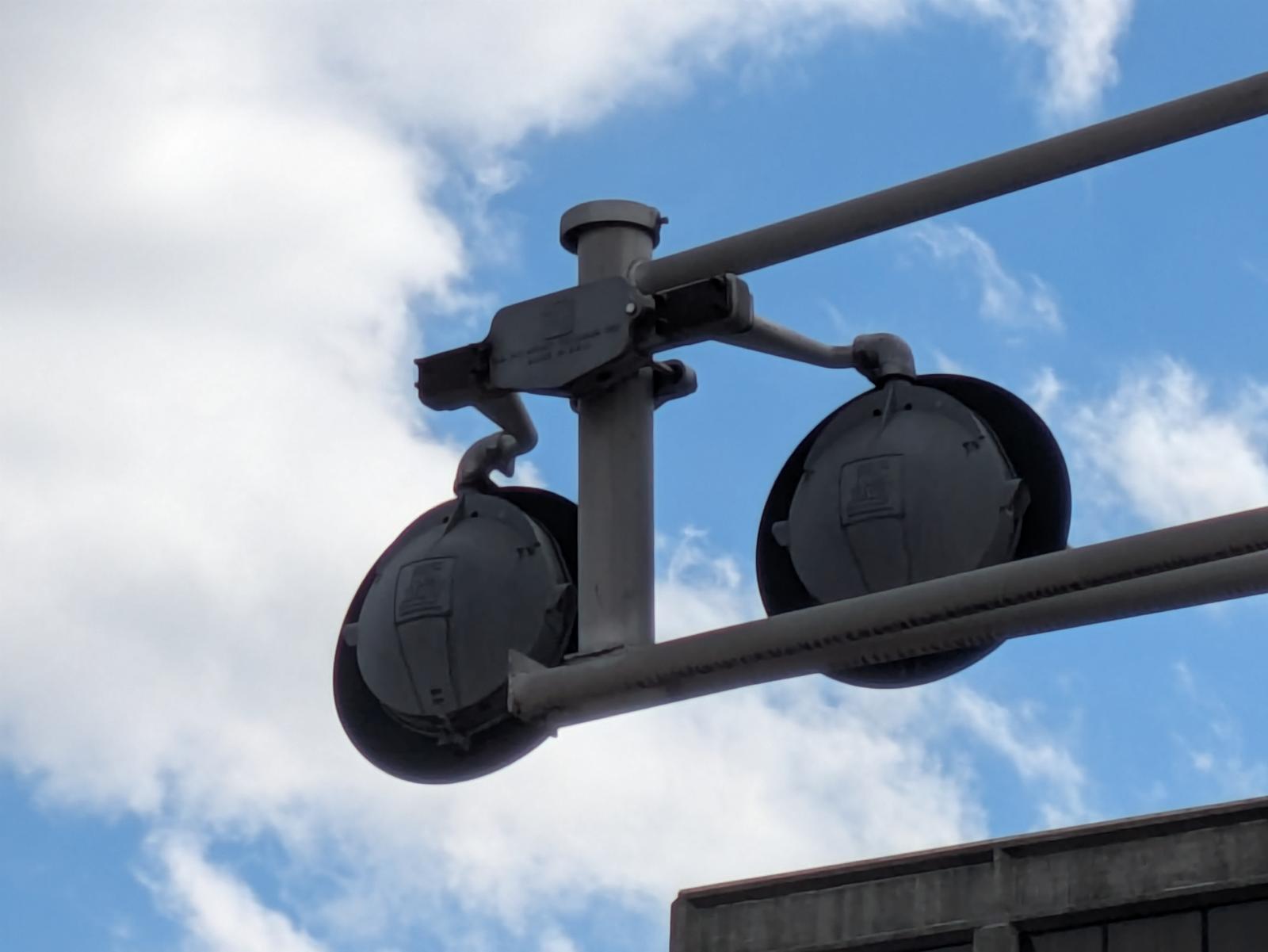

The southern left lane signal.
56 57 58 59
60 61 62 63
64 65 66 67

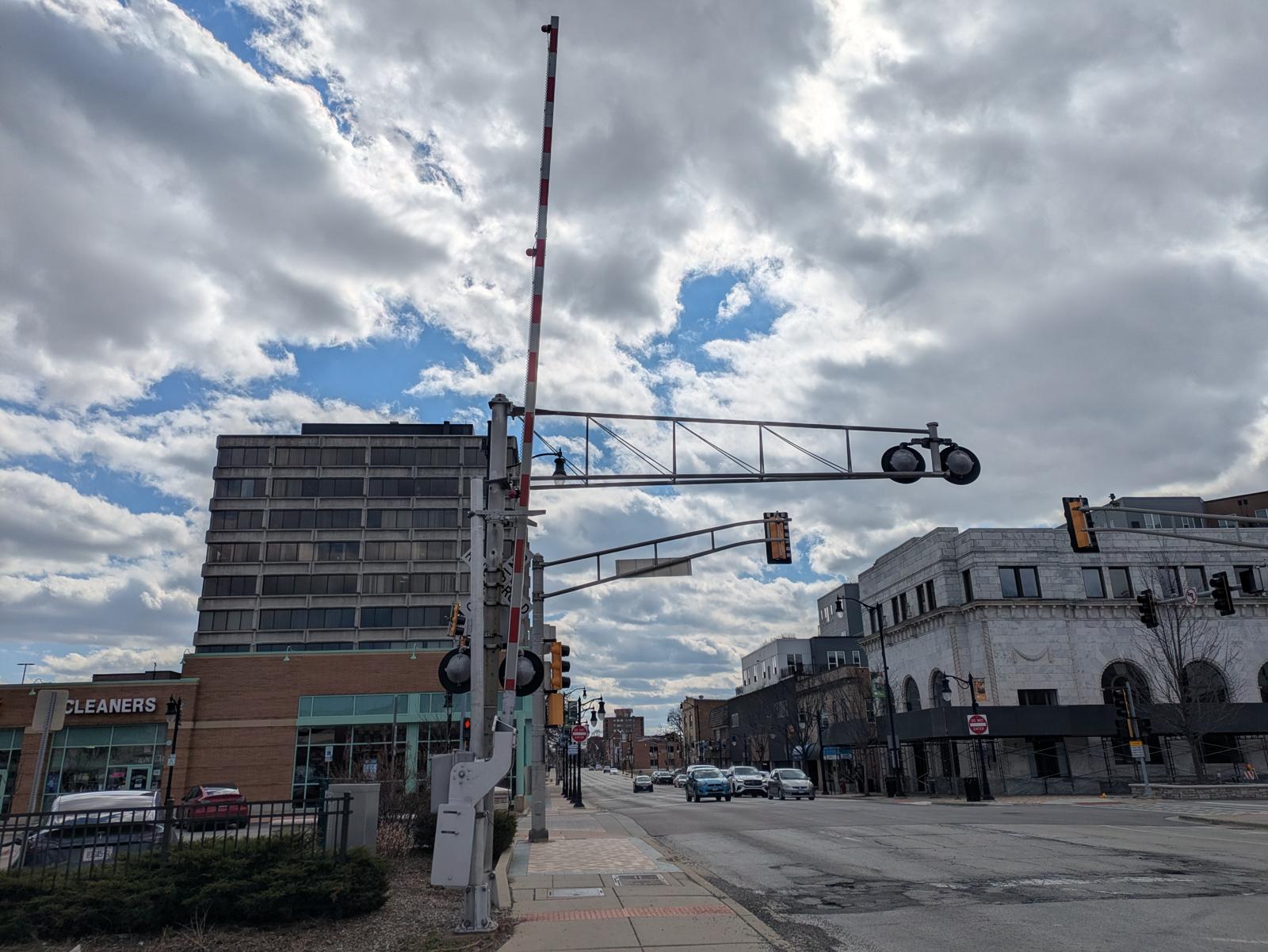

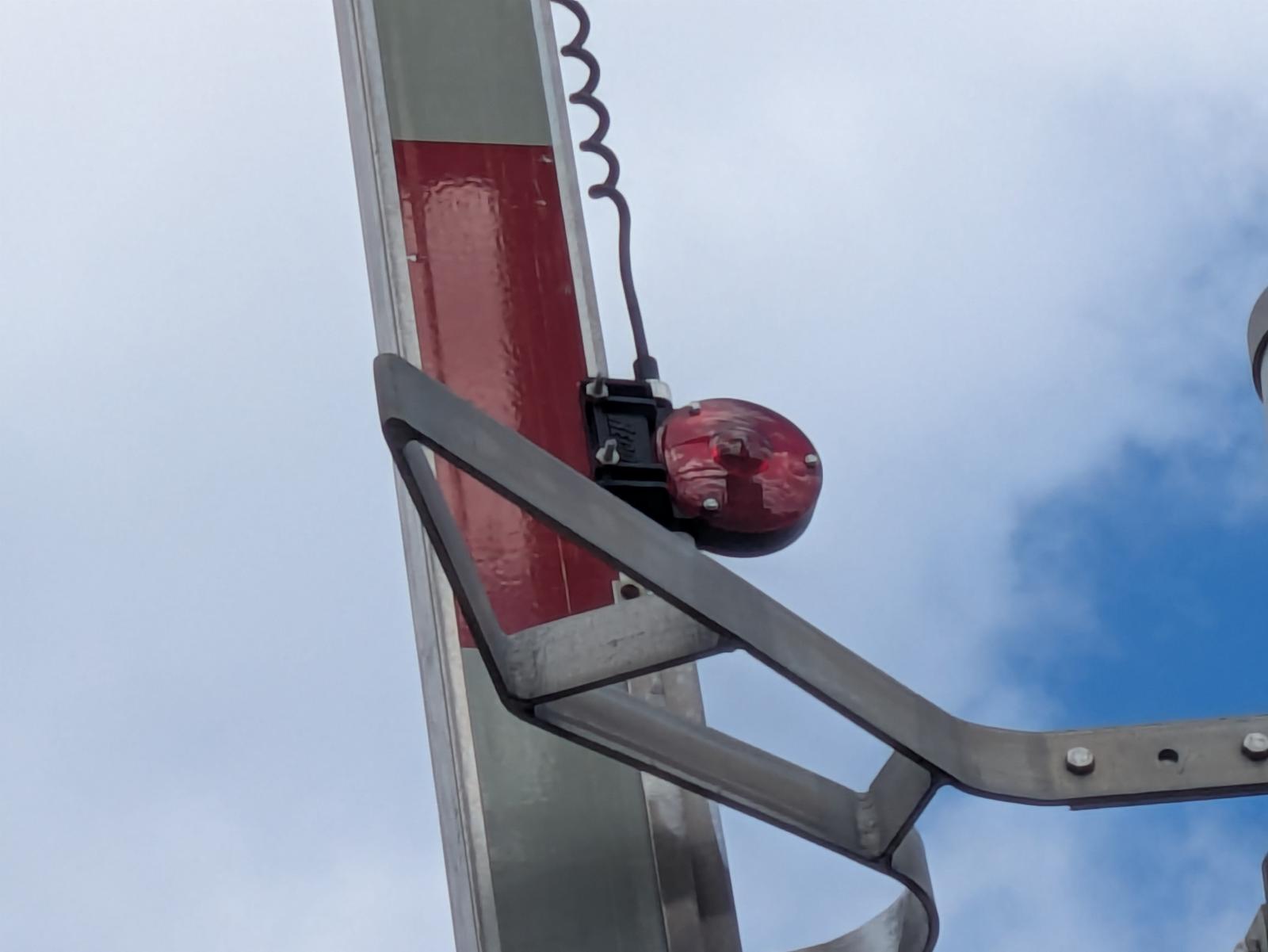

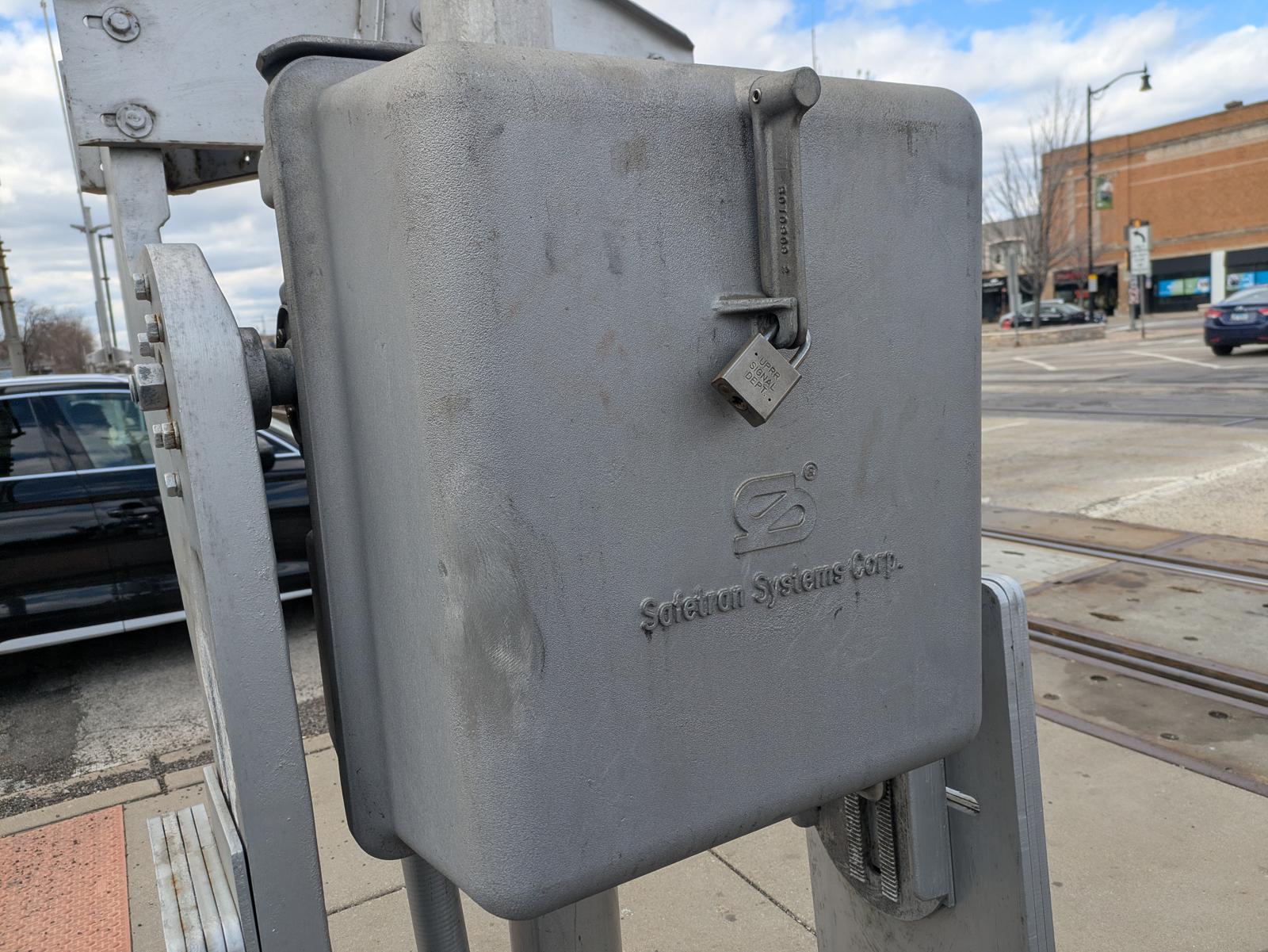

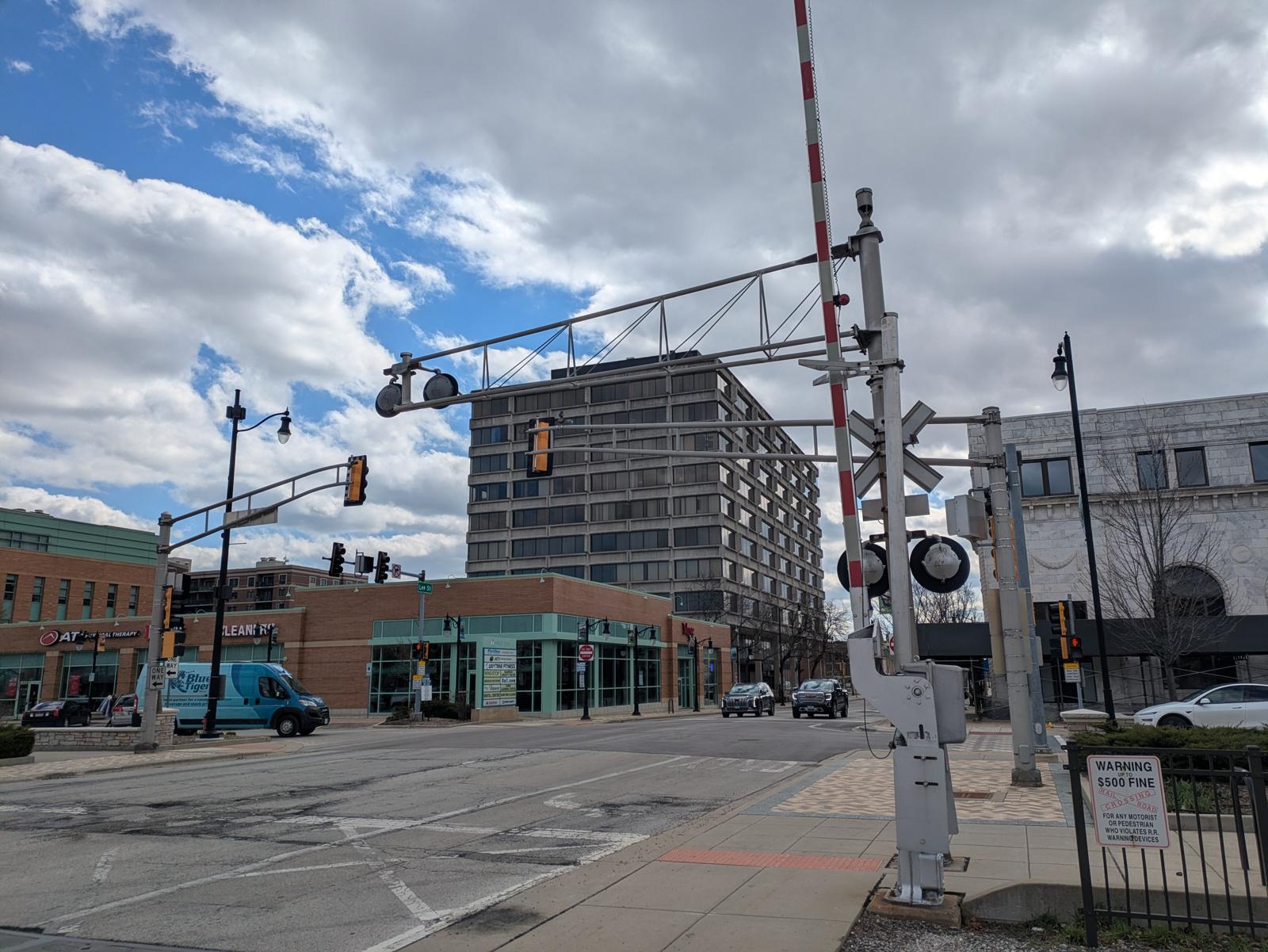

The southern right lane signal.
68 69
70 71 72

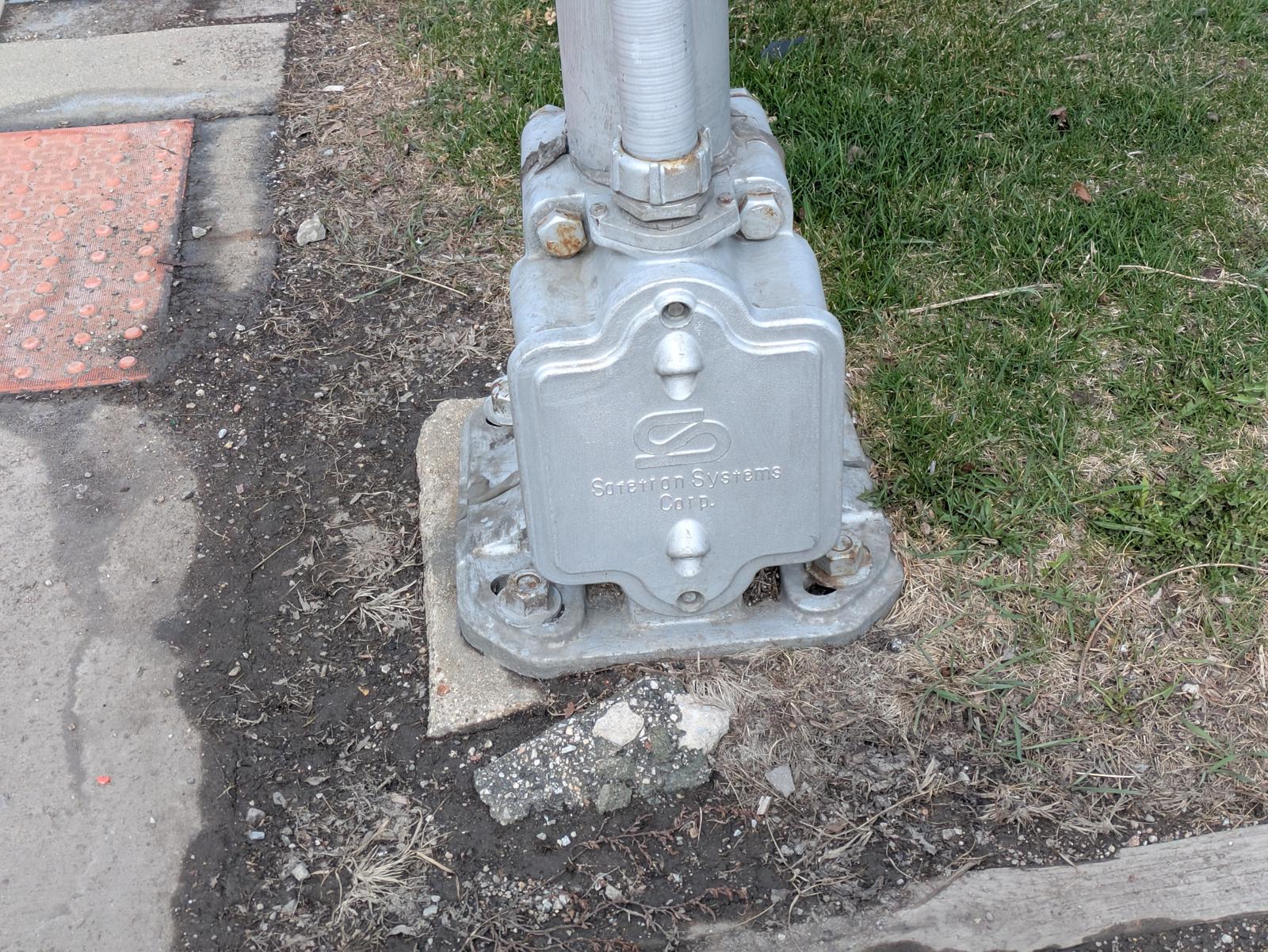

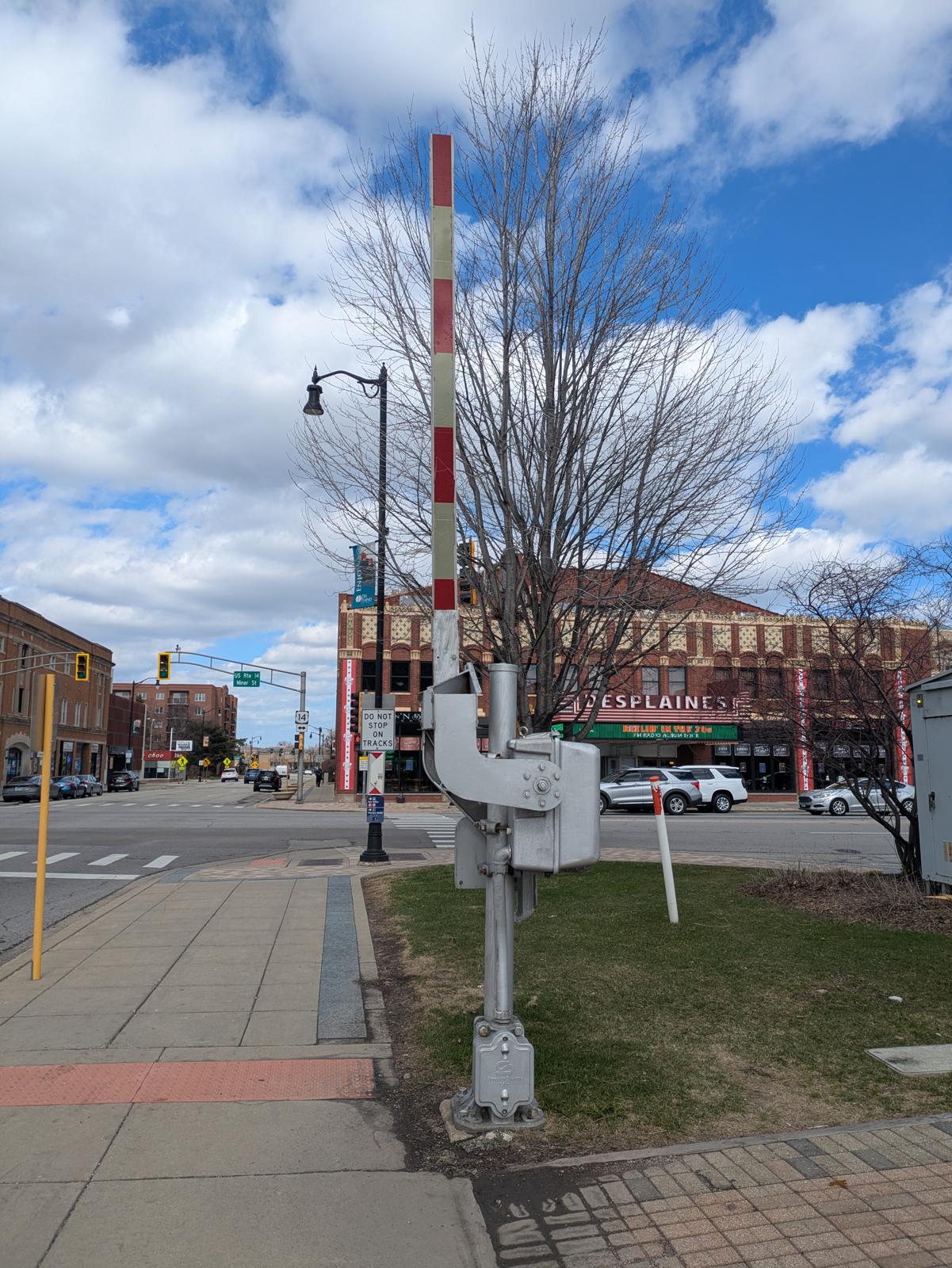

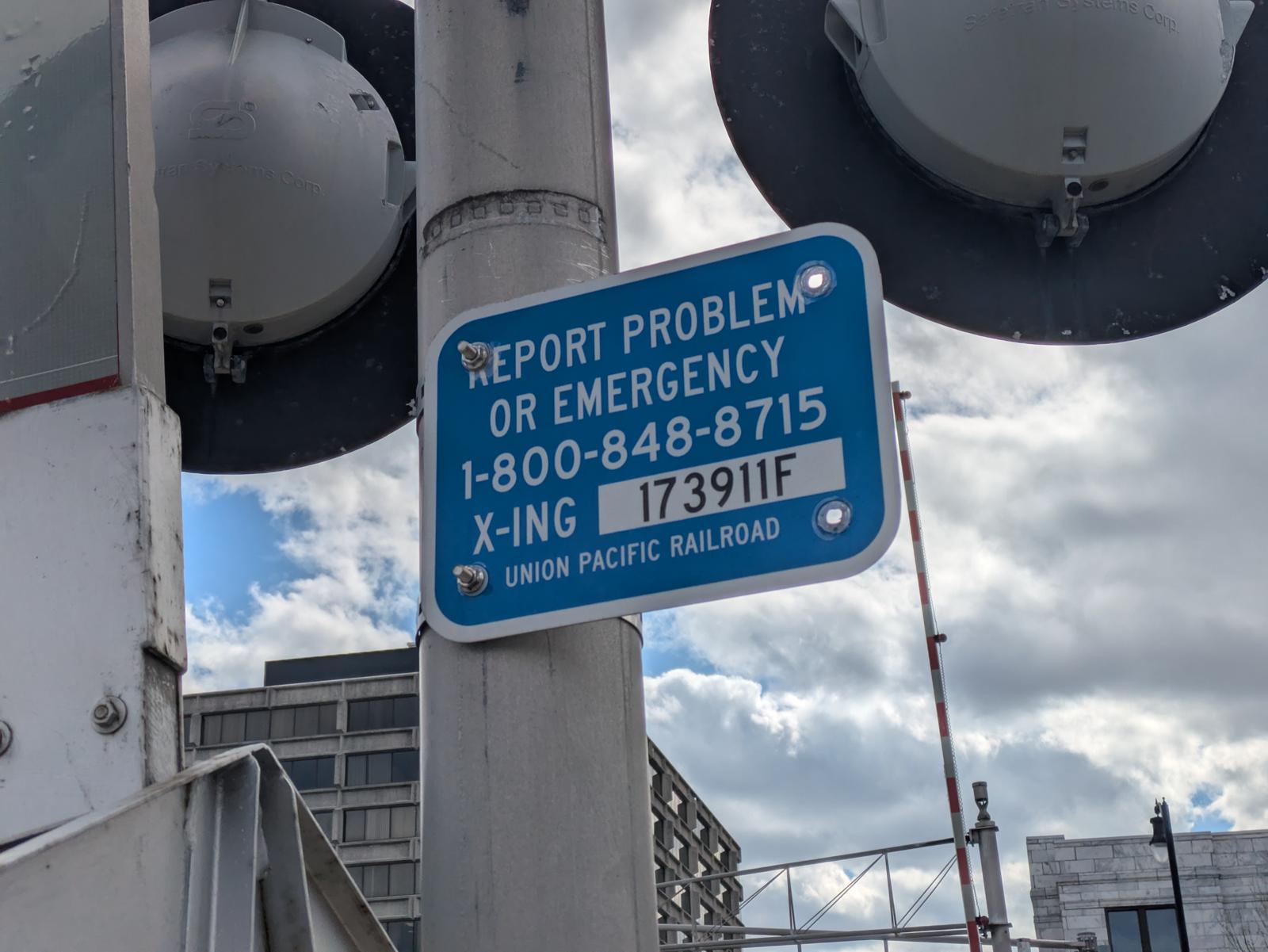

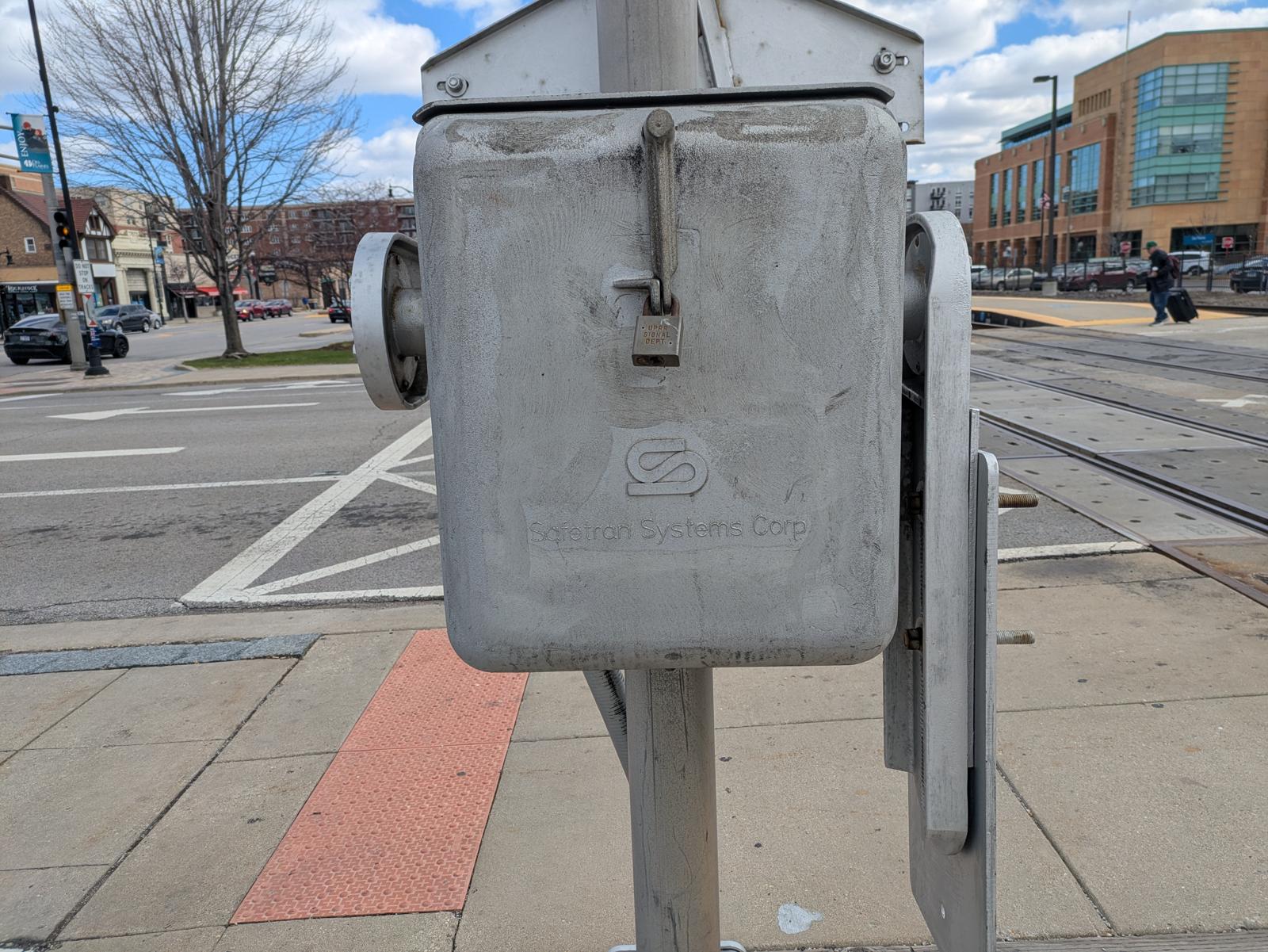

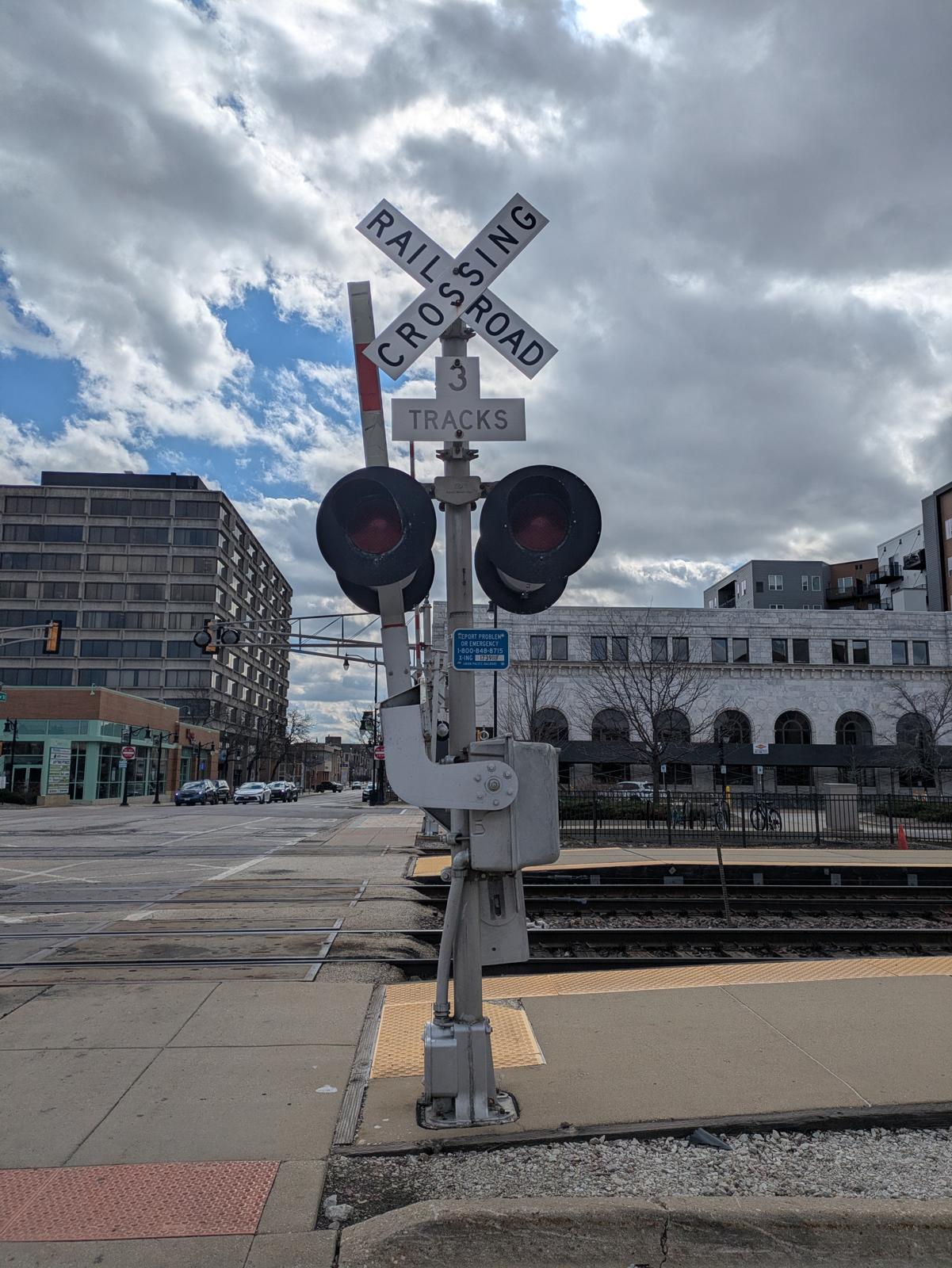

The northeastern pedestrian signal.
73 74 75 76
77 78 79 80

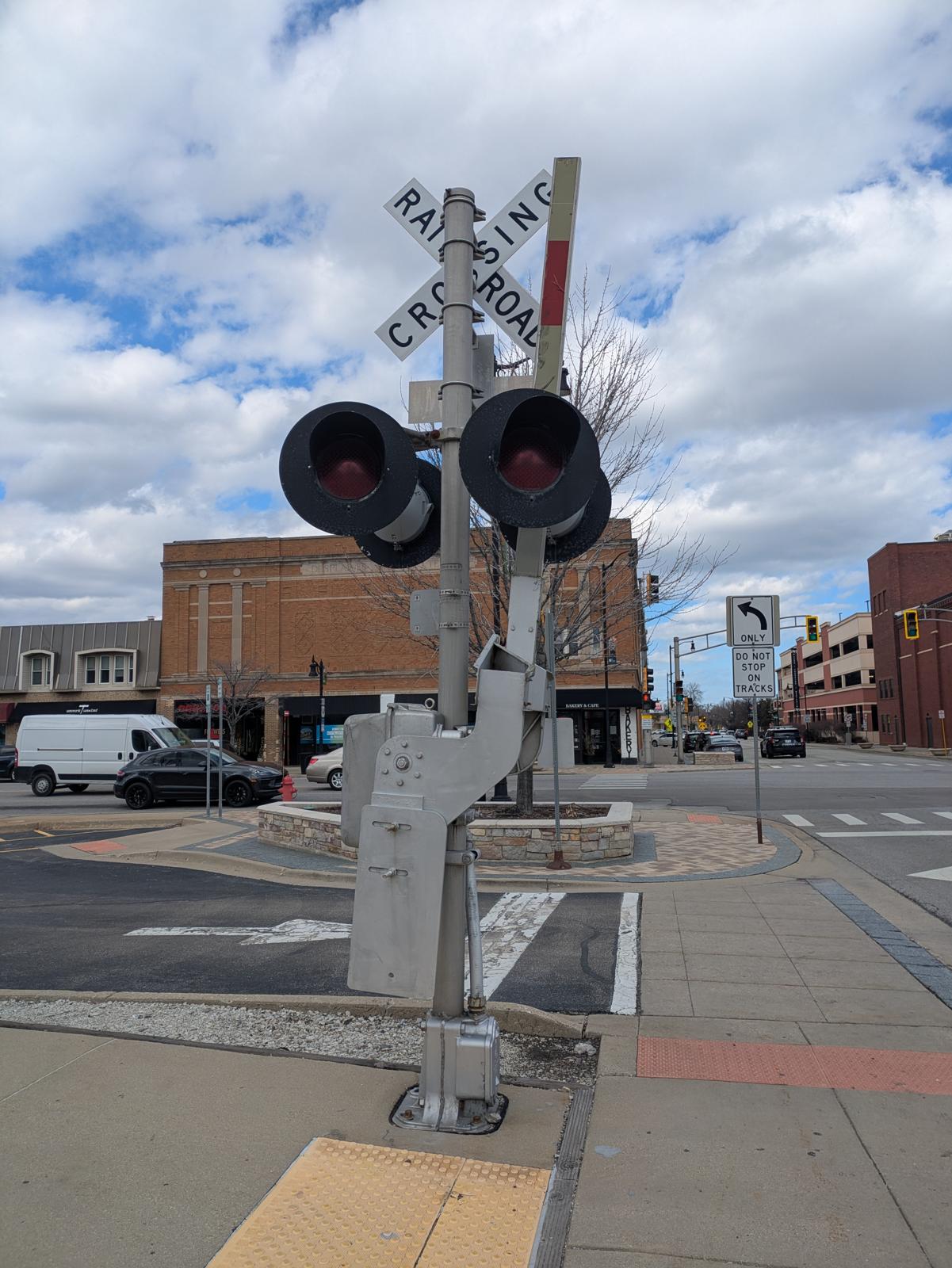

The northwestern pedestrian signal.
81
 82
 83
 84

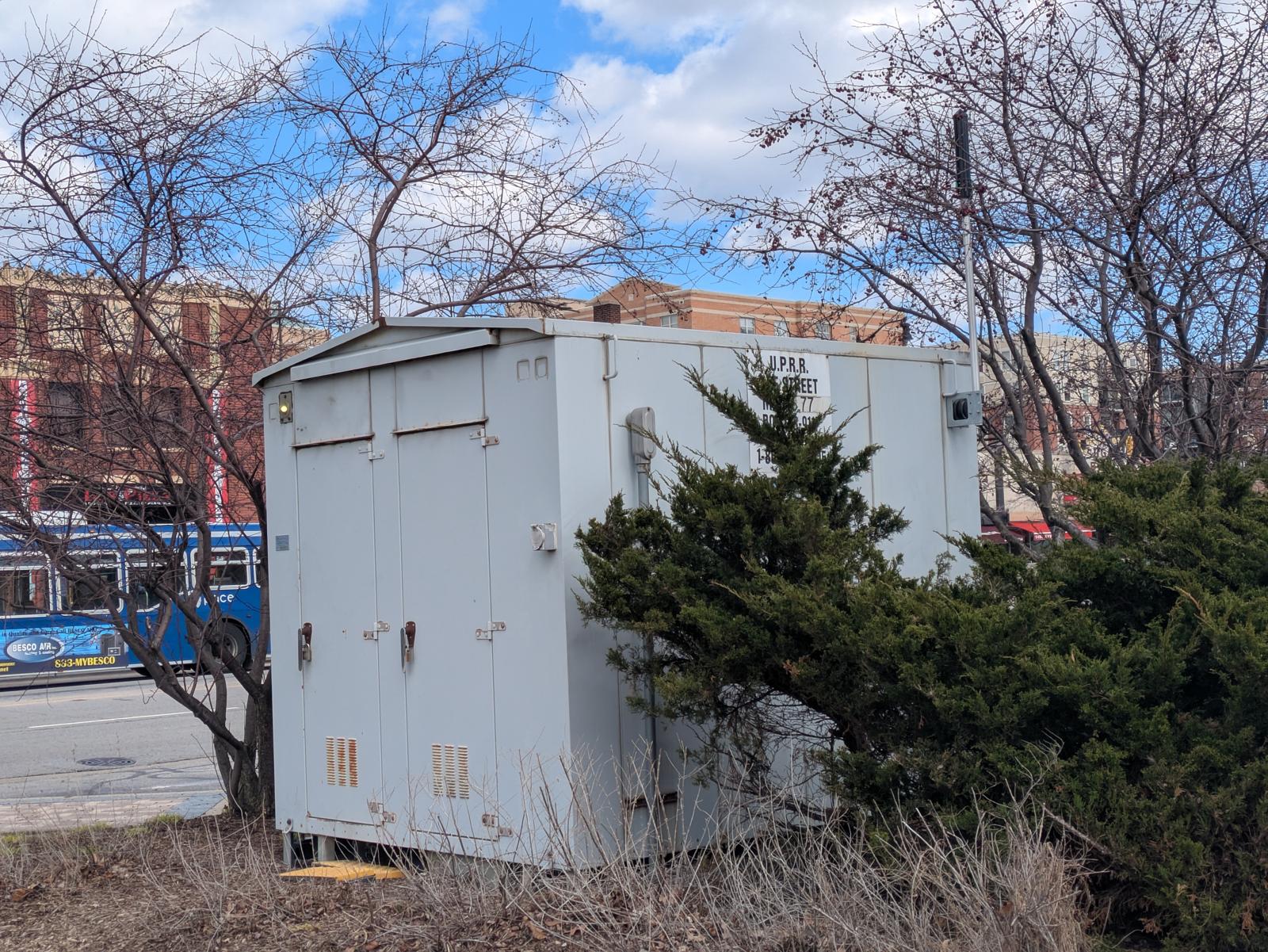

The relay bungalow in the northeast quadrant.The grade is all concrete.Track view facing east towards Pearson St.Track view facing west towards Graceland Ave. #1.
85 86 87
88 89 90 91
92 93 94 95

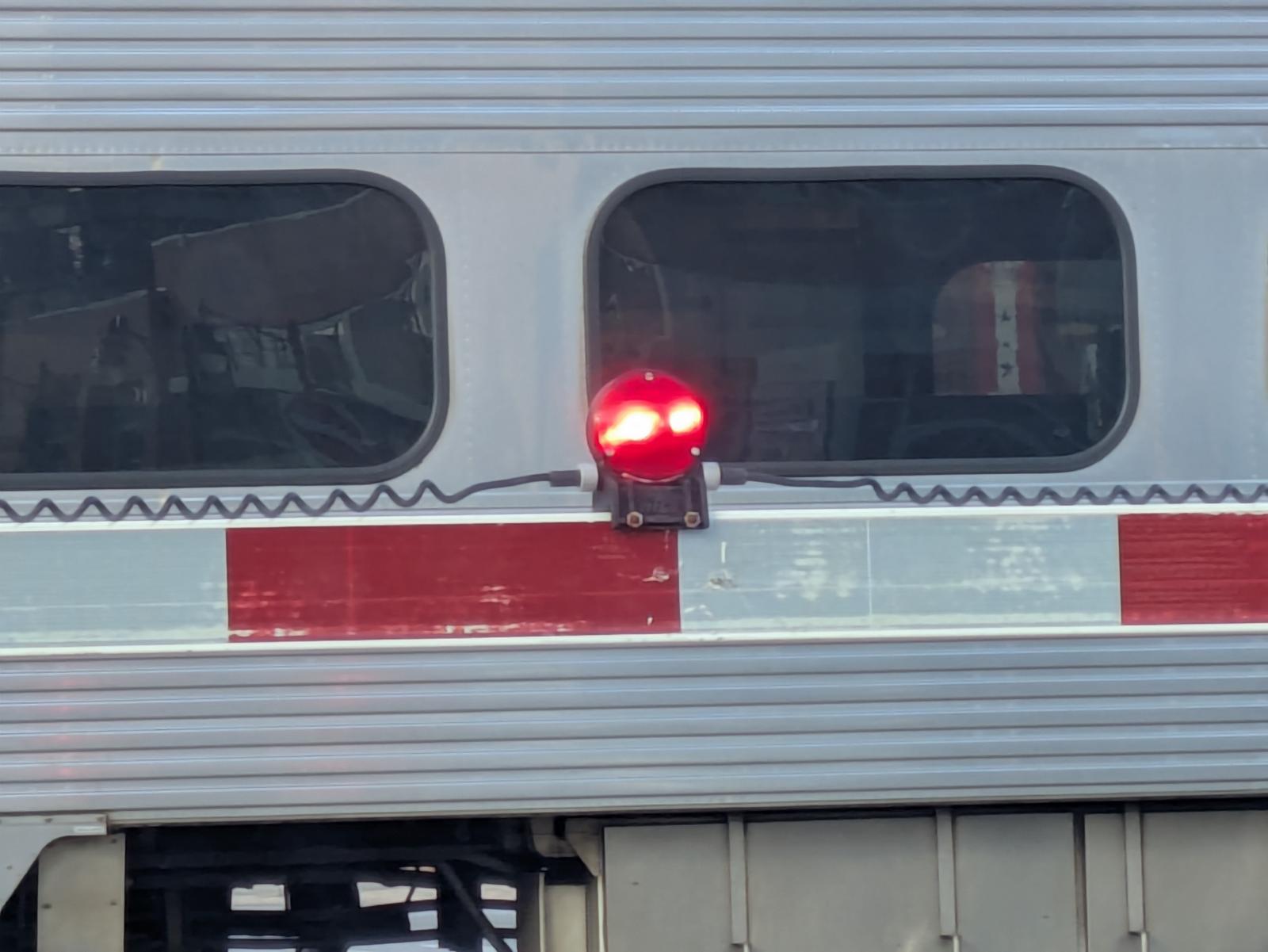

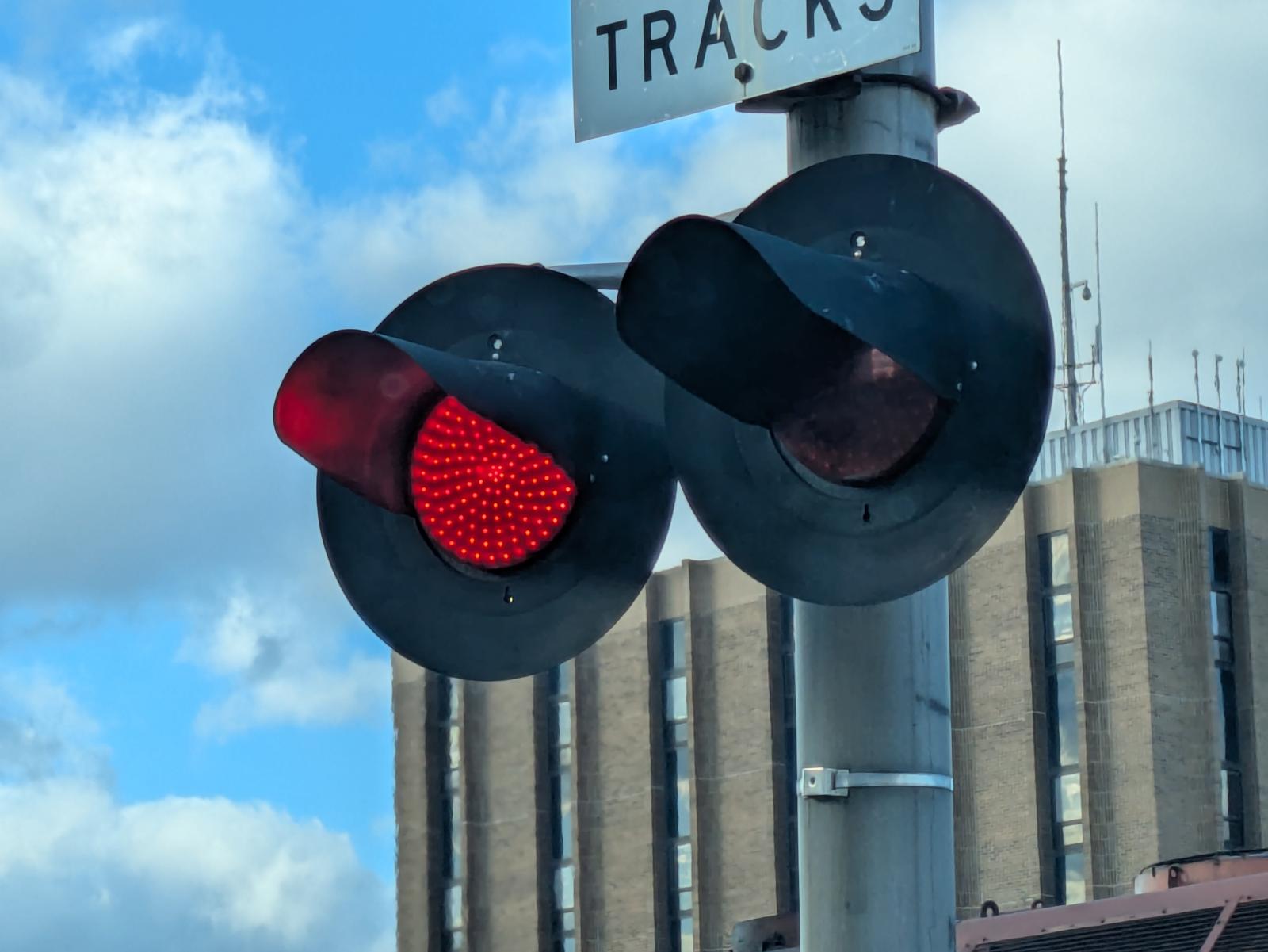

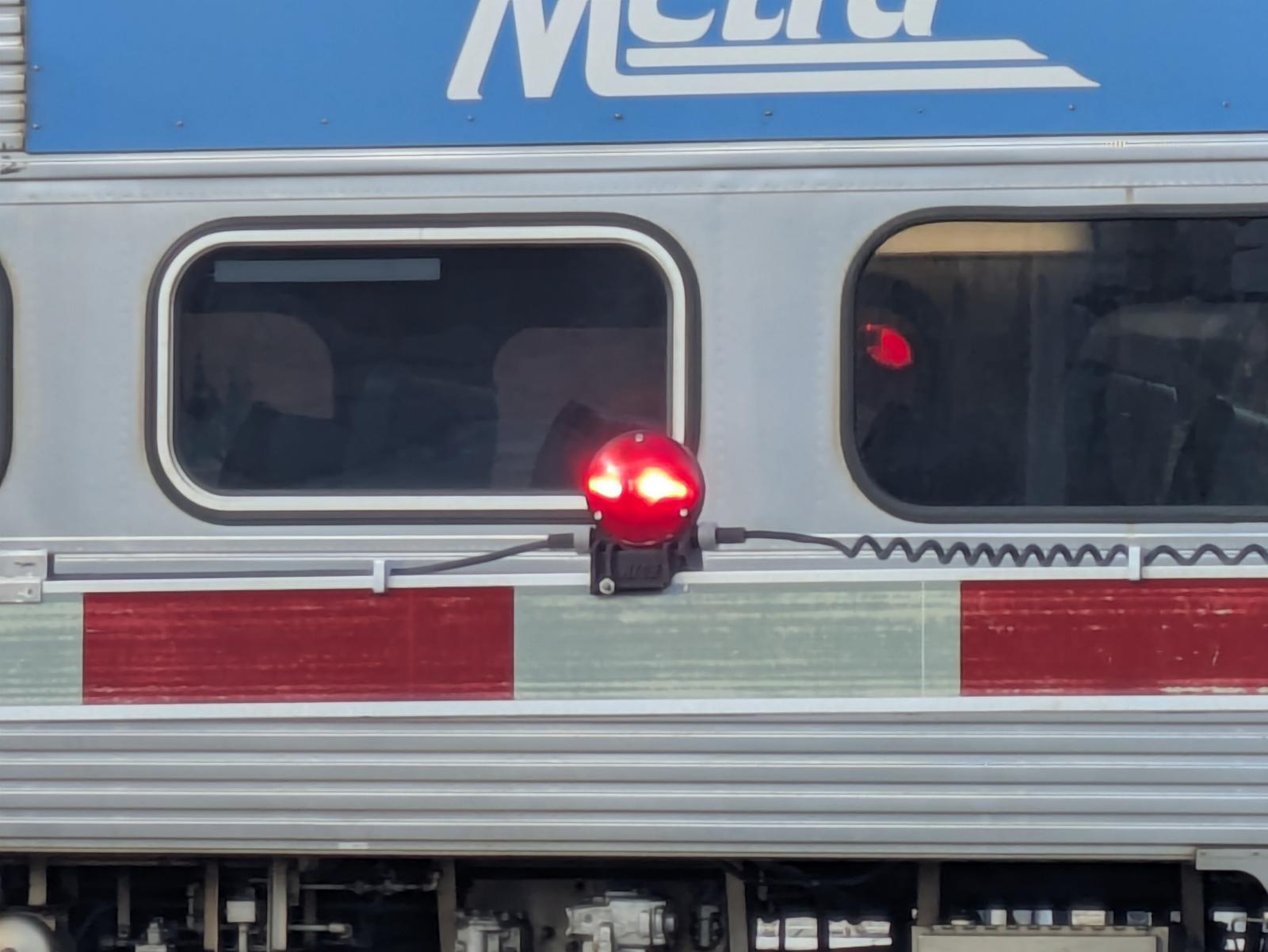

Action shots.
