1.97


070049A

>>>>>>>>>>>>>> Western Signal Eastern Signal
Bell: WCH E-Bell GS E-Bell
Base: Progress Rail 5" Single Sided ^ Progress Rail 5" Single Sided ^
Lights: 4 - 12"x24" WCH w/ 2nd Gen WCH LEDs 4 - 12"x24" WCH w/ 2nd Gen WCH LEDs
Junction Box: Progress Rail Progress Rail
Gate Lights: 4" RECO 4" RECO
Gate Mechanism: WCH Style 4 w/ GSI Gate Saver WCH Style 4 w/ GSI Gate Saver
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-29 were taken on May 15, 2019.
Pictures 30-34 were taken on June 3, 2025.
All pictures were taken by Tommy McGowan.
This crossing is located on the Illinois Railnet's Rockford Branch, and is next to where IR used to keep its engine when the local wasn't running.  Now they keep it in Rockford.

These signals were installed in 2014 replacing a pair of crossbucks.

1 2

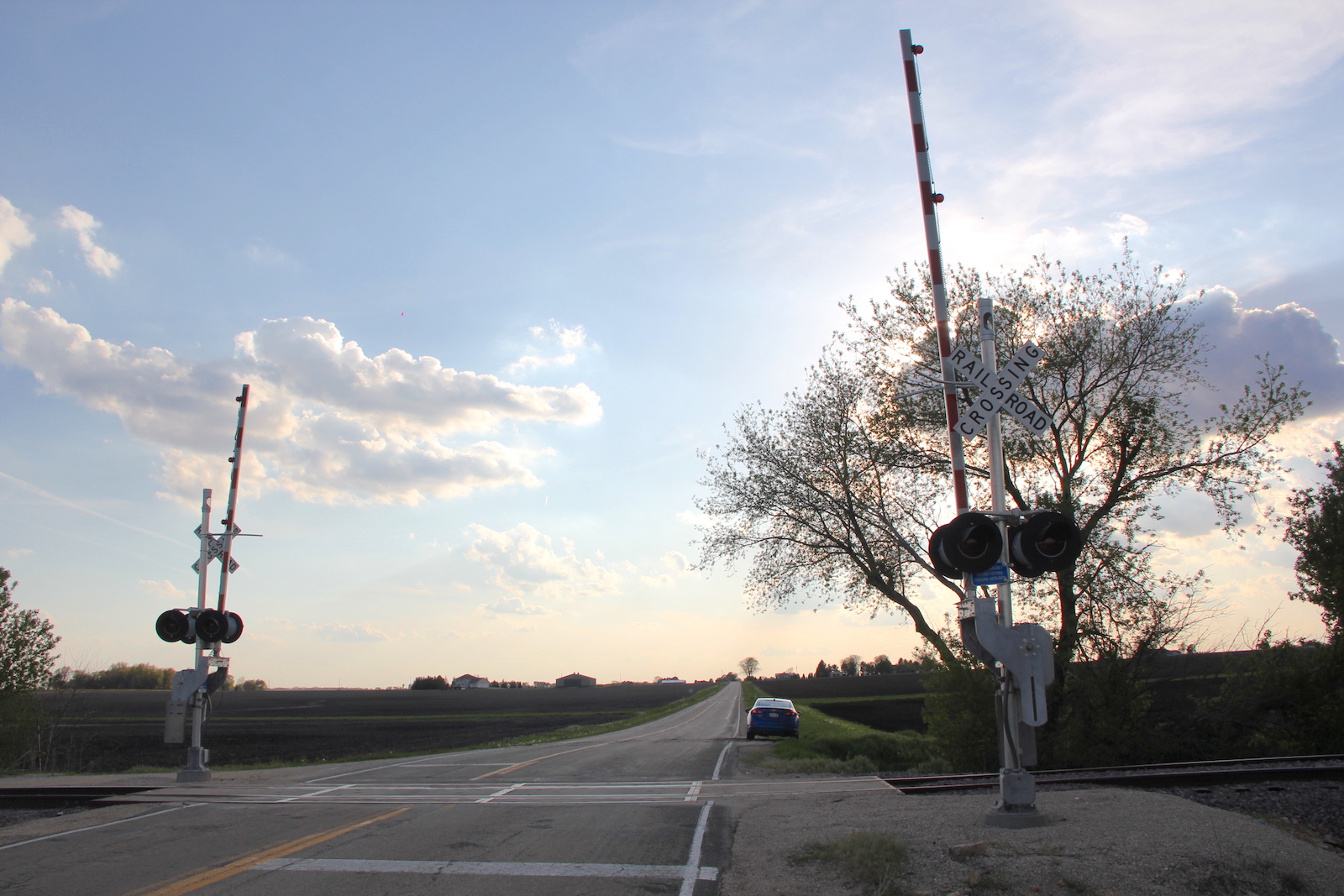

Overview of 2 newer gated signals facing east.
 Overview facing west.
3 4 5
6 7 8 9
10 11 12 13

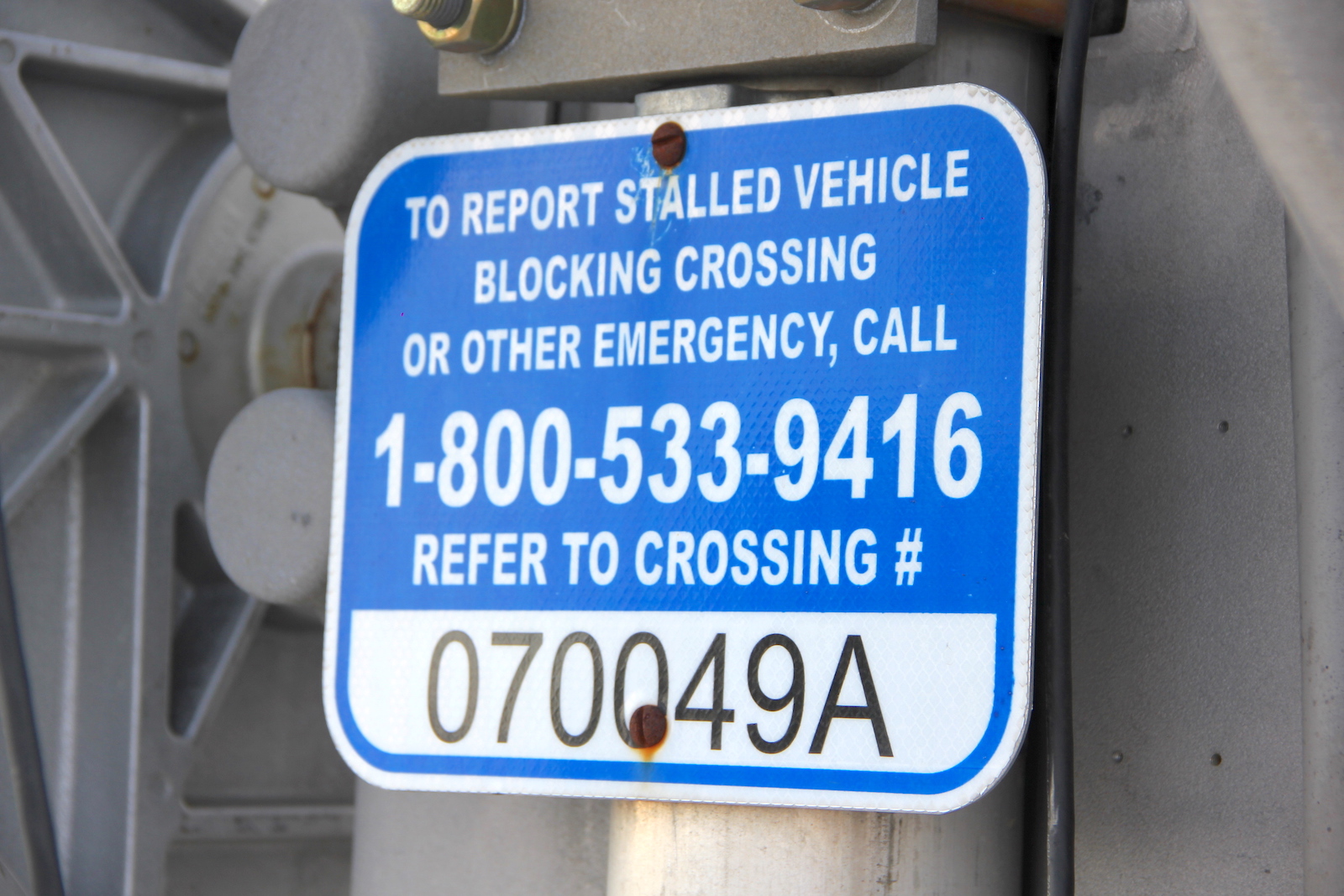

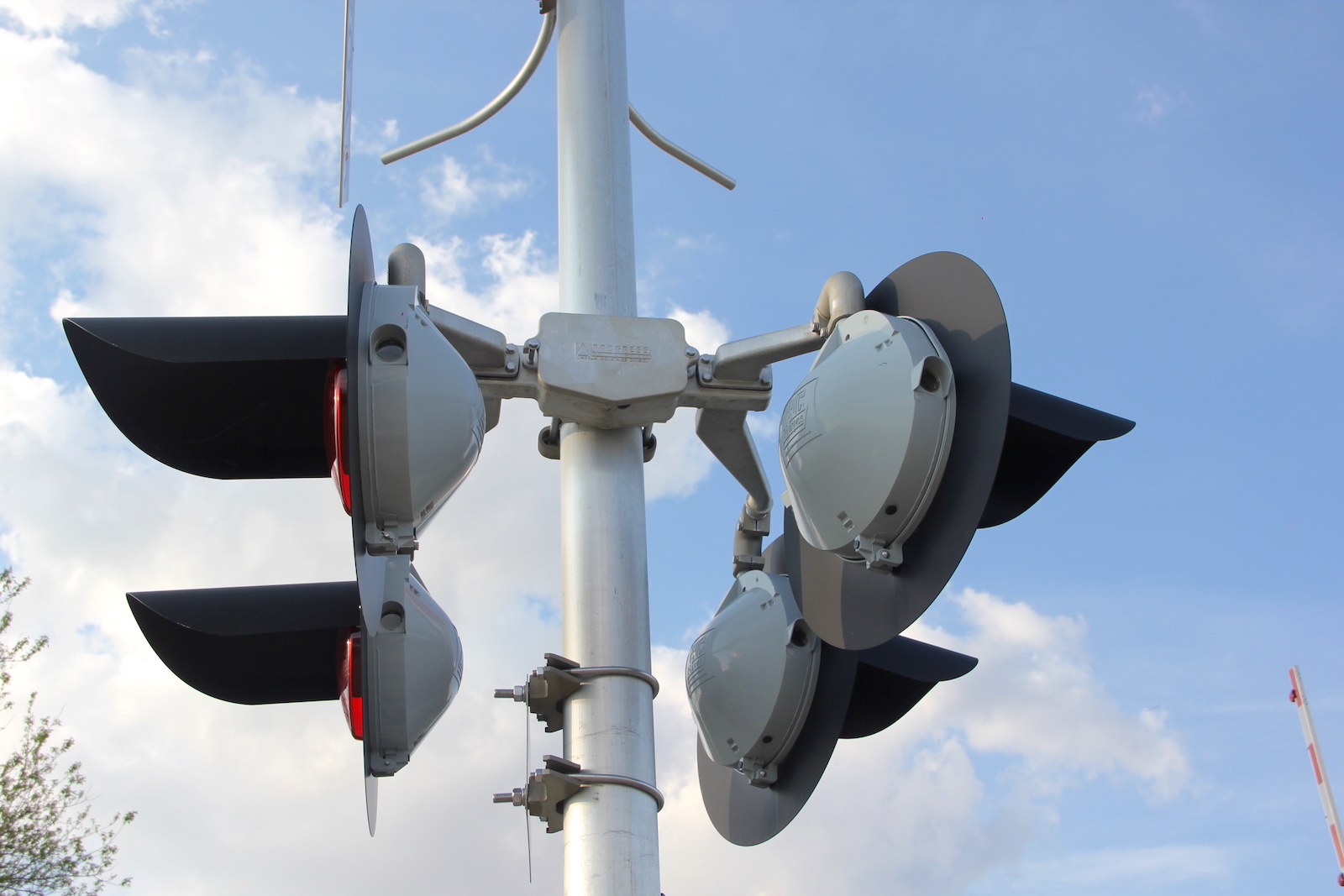

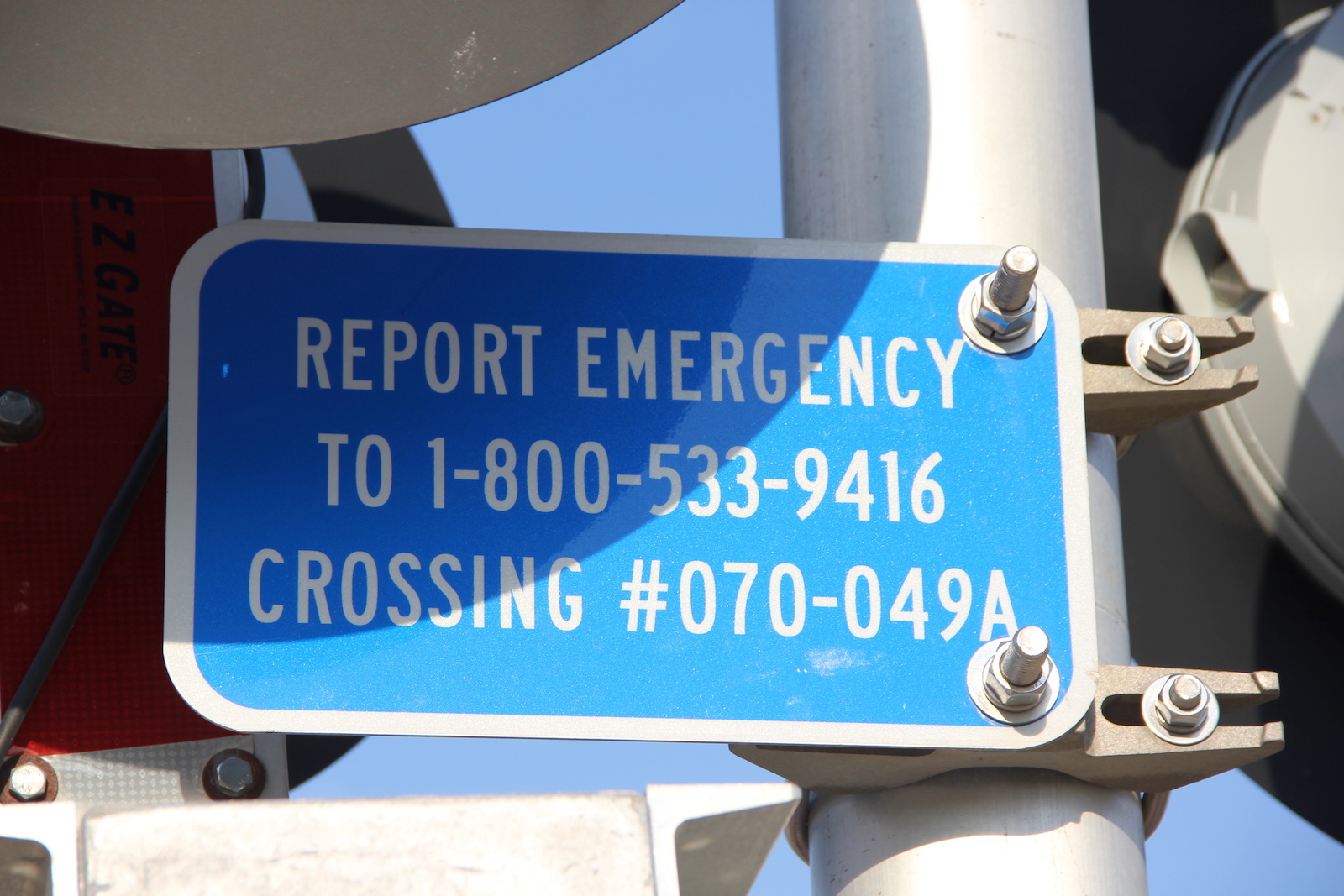

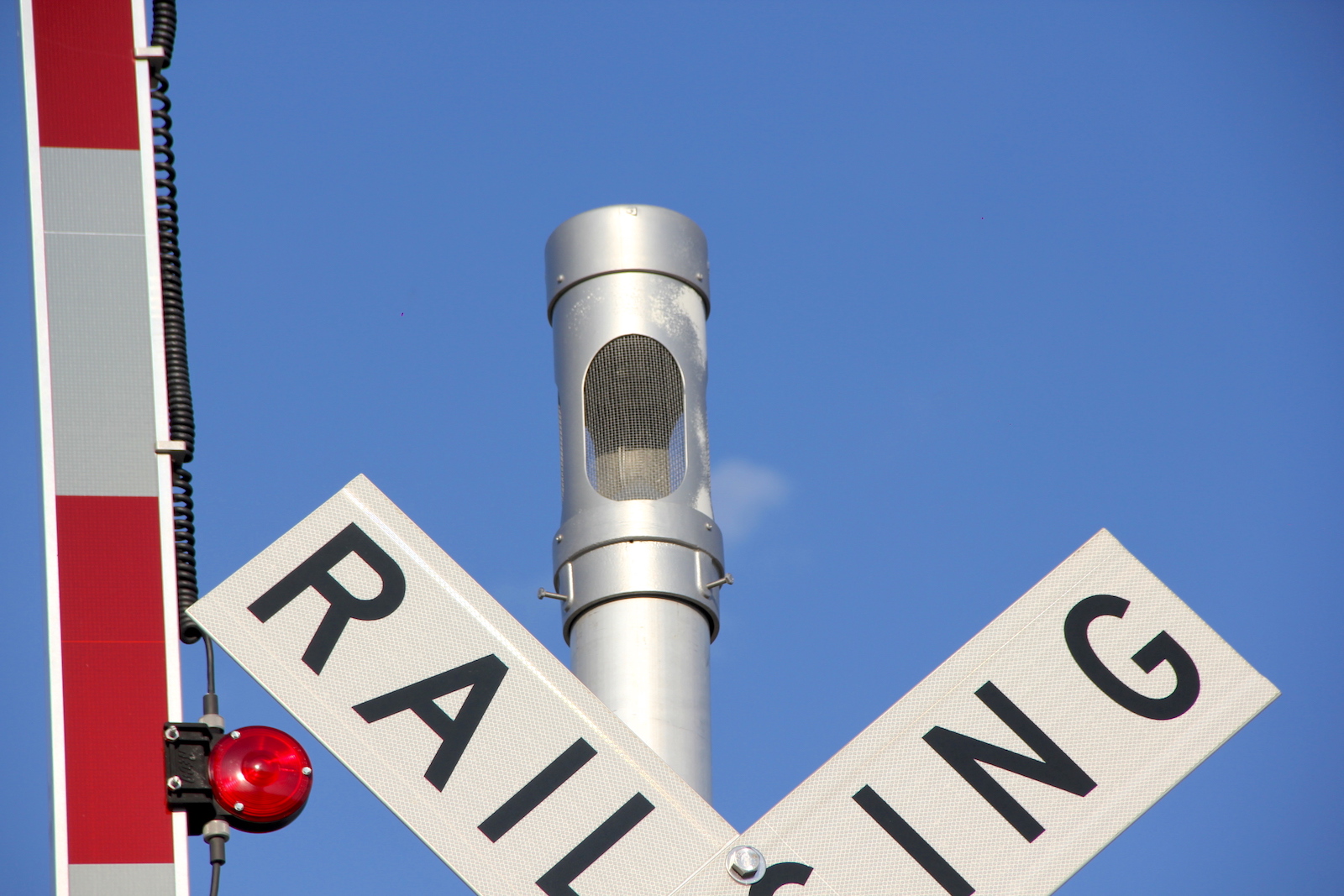

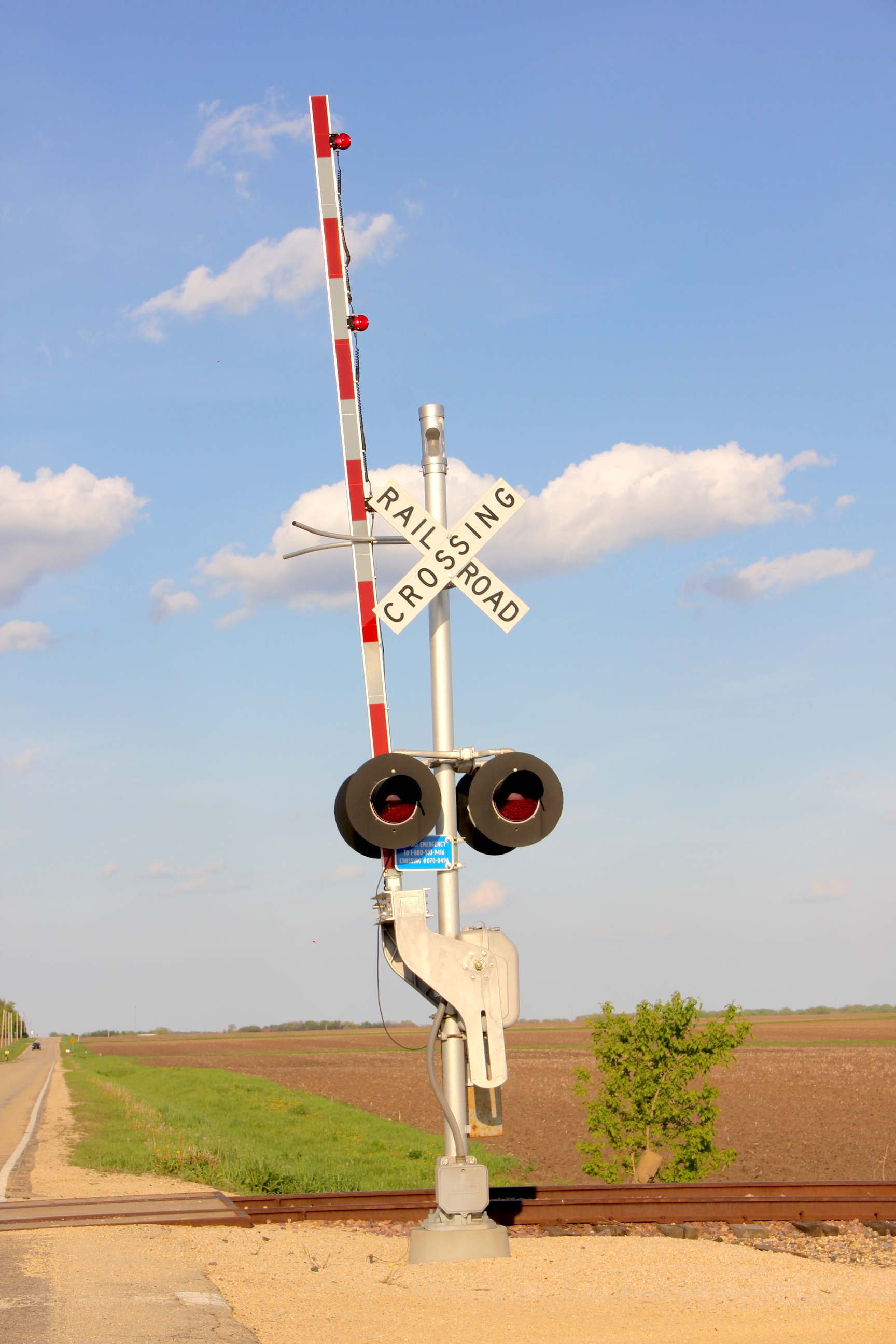

The western signal.
14 15 16
17 18 19 20
21 22 23 24

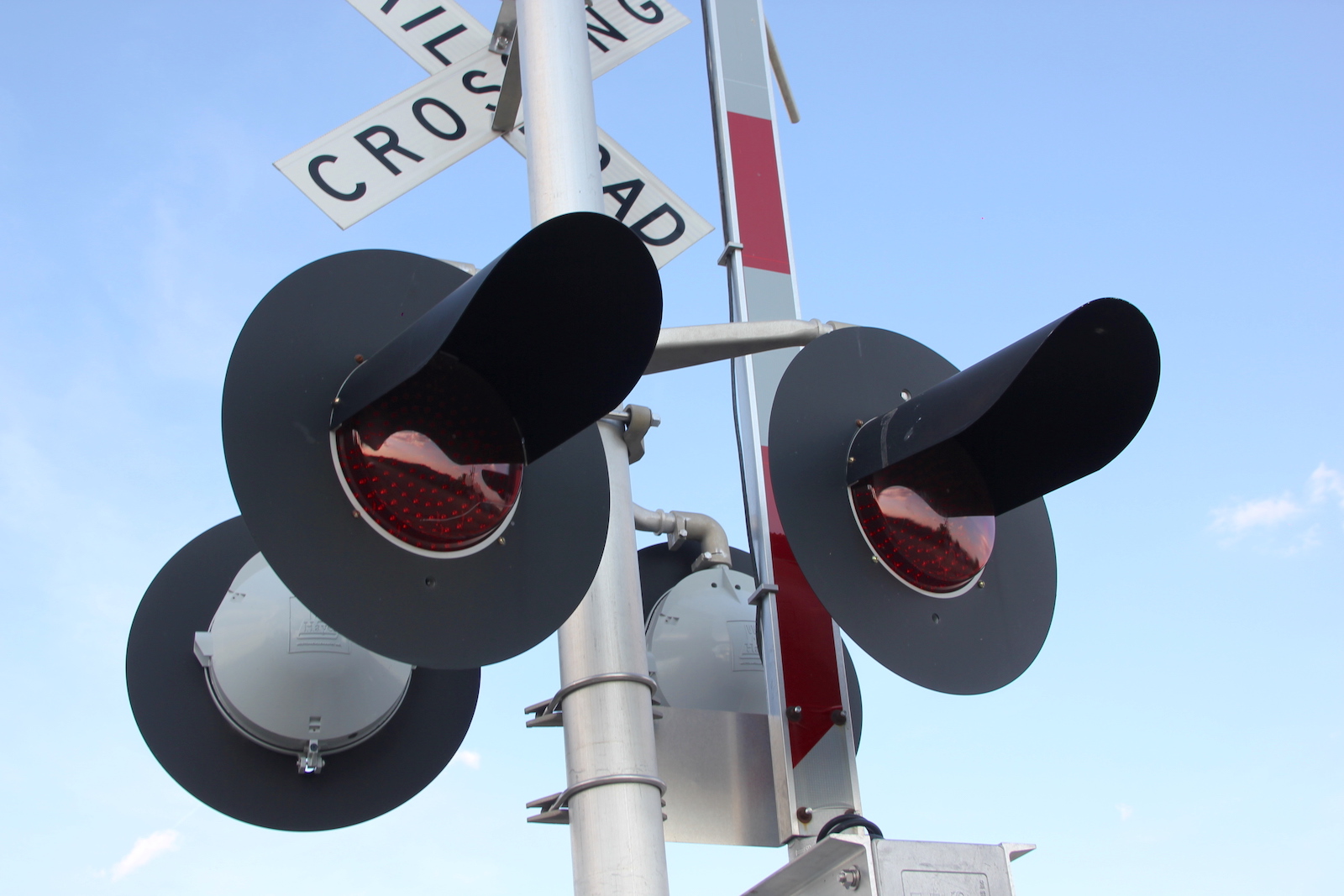

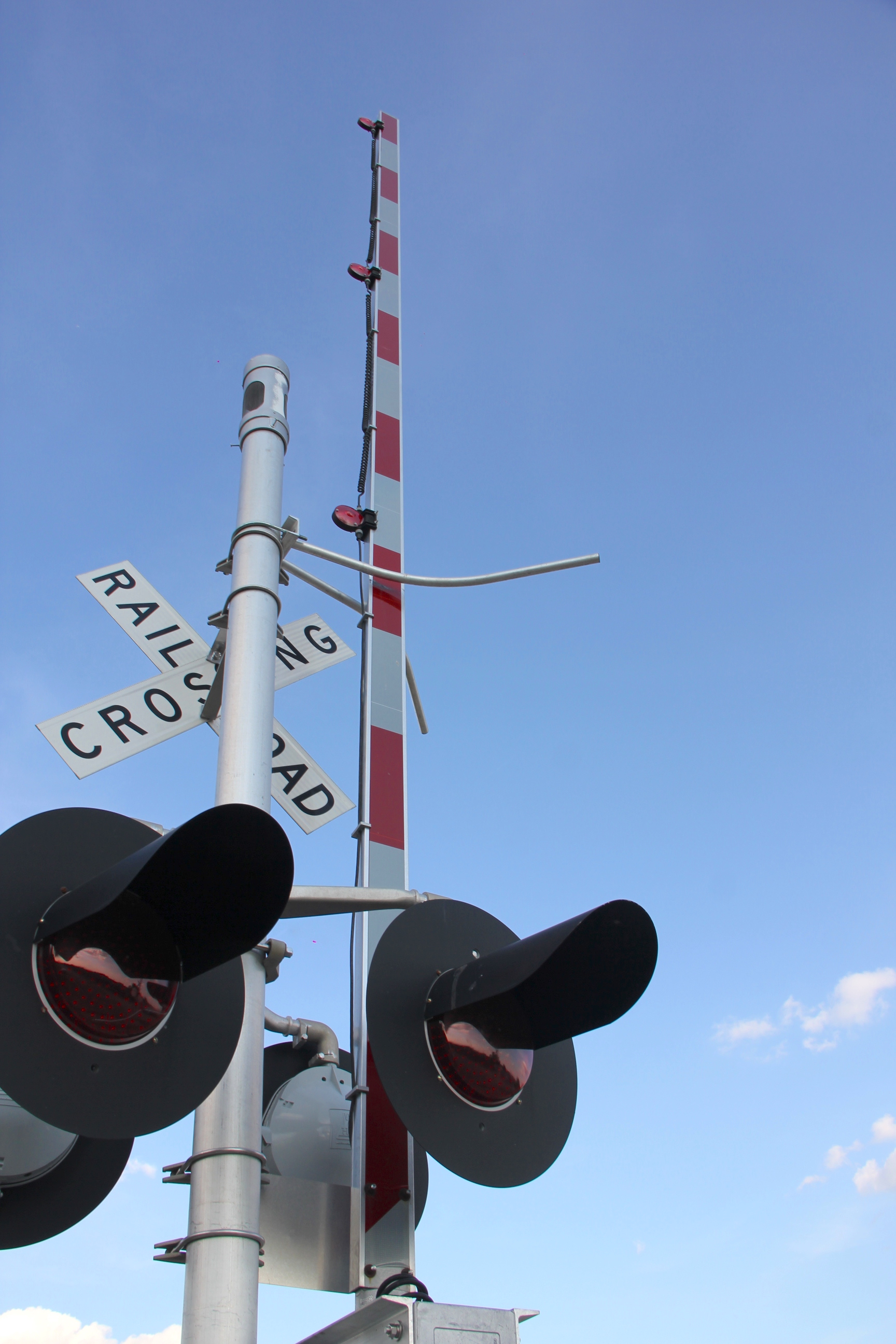

The eastern signal.
25 26 27 28
The relay bungalow in the southwest quadrant.

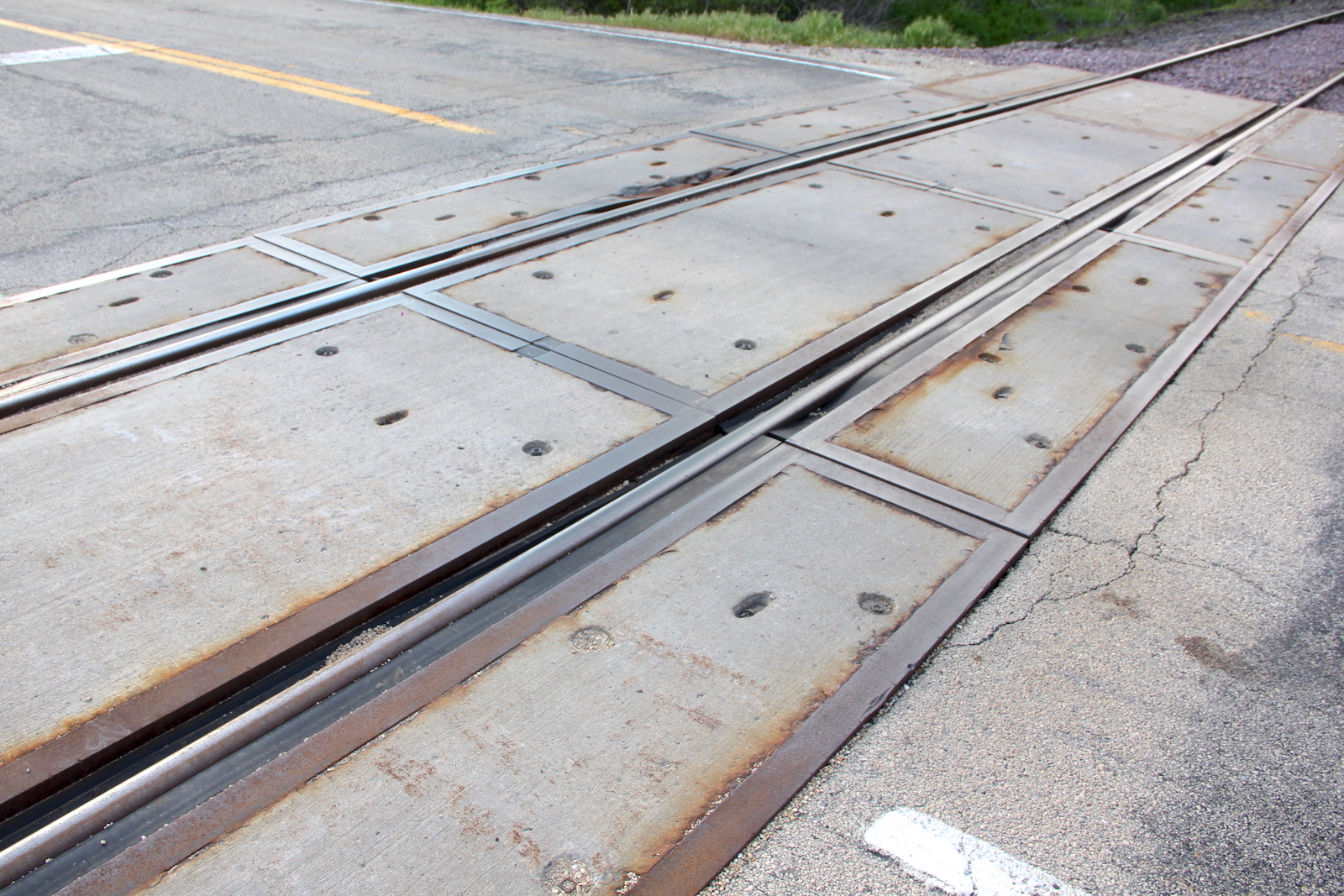

 The grade is all concrete.
 Track view facing north towards Bethel Rd. in Kings.
 Track view facing south towards Flagg Rd. #2.
29

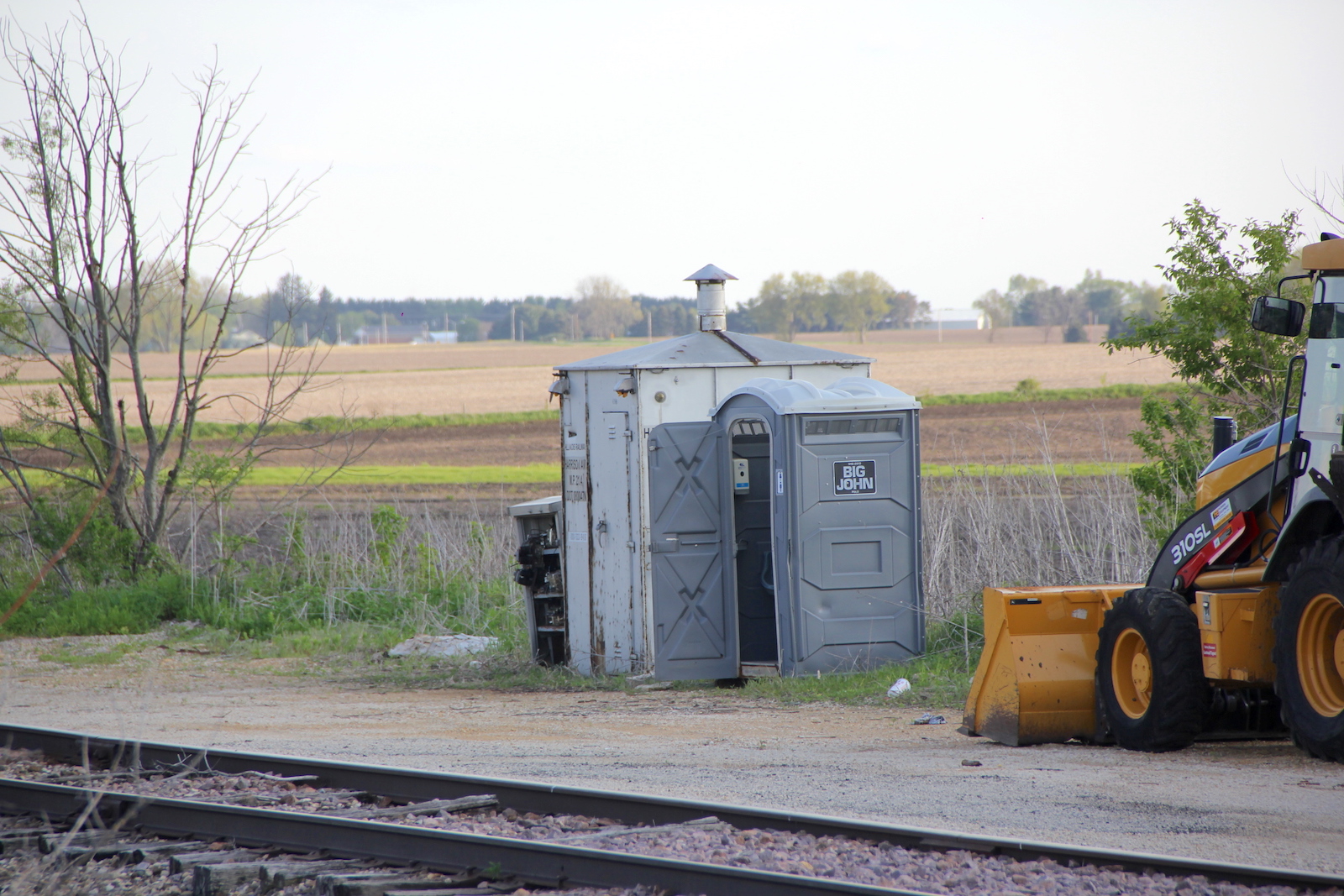

An old relay bungalow sitting just south of the crossing.  This came from Harrison Ave. in Rockford.

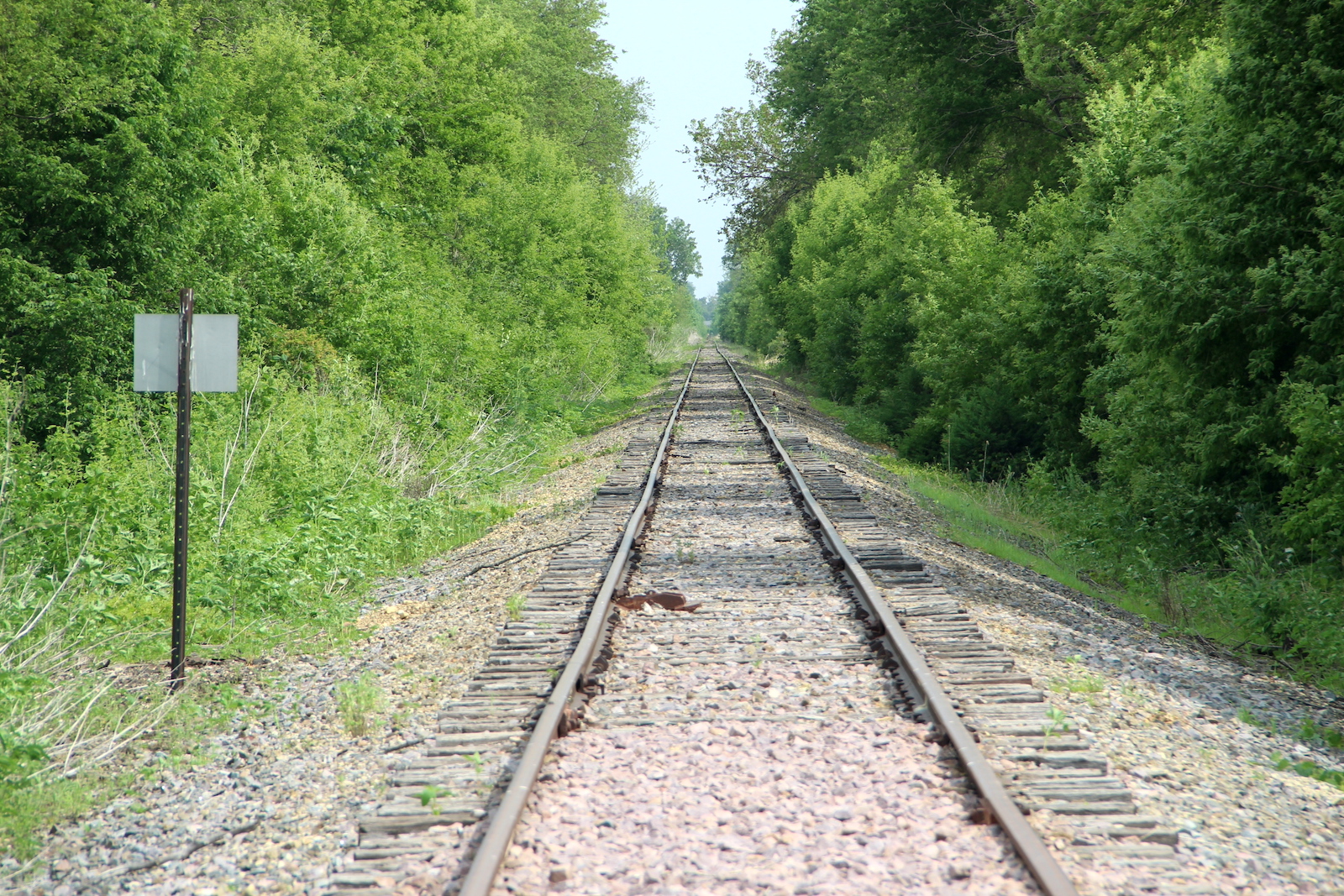

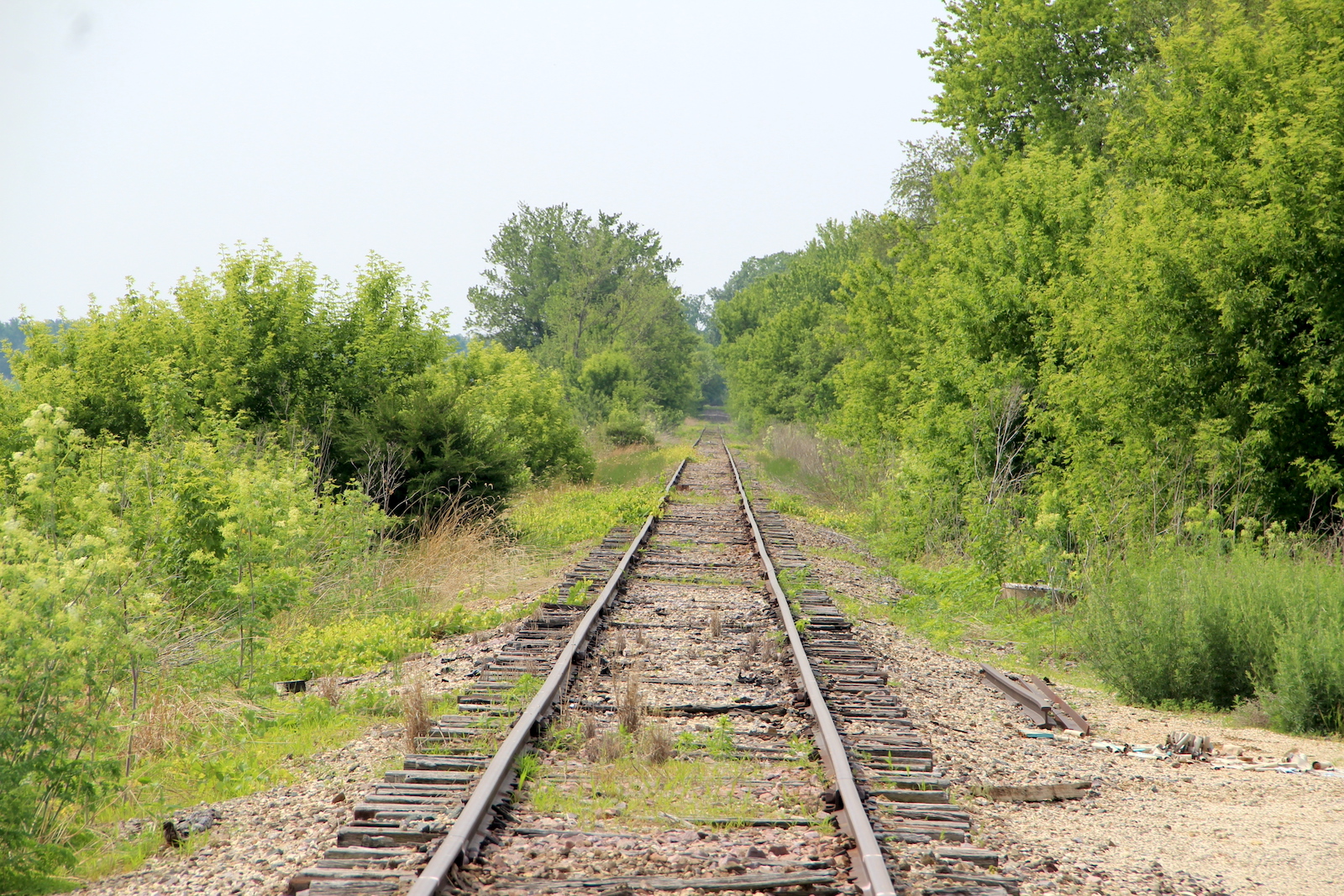

30 31 32 33

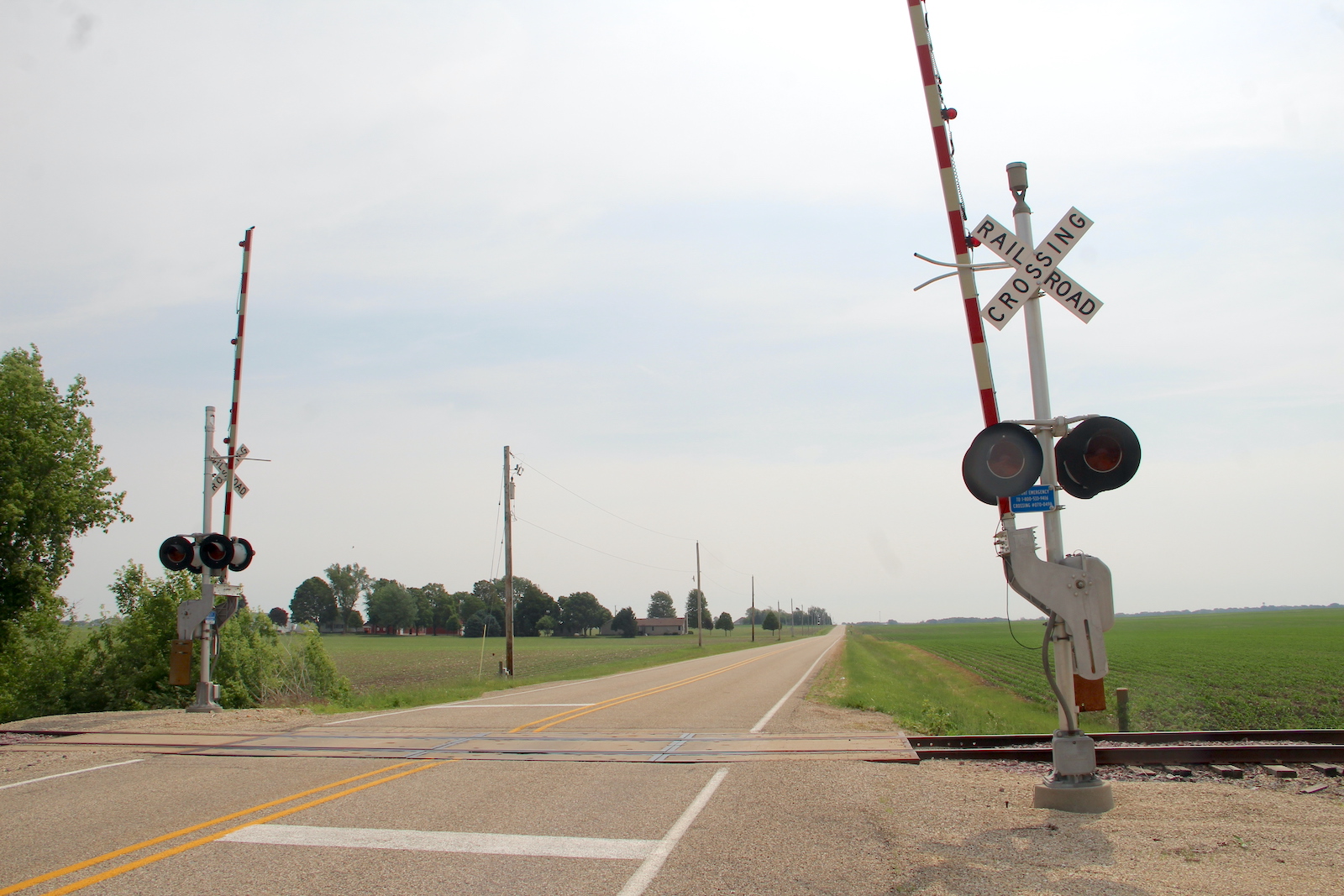

In June 2025, we see the western signal's GS E-Bell was replaced by a WCH E-Bell. Also by this point, this line was basically abandoned, as the line was cut south of Davis Junction.
34

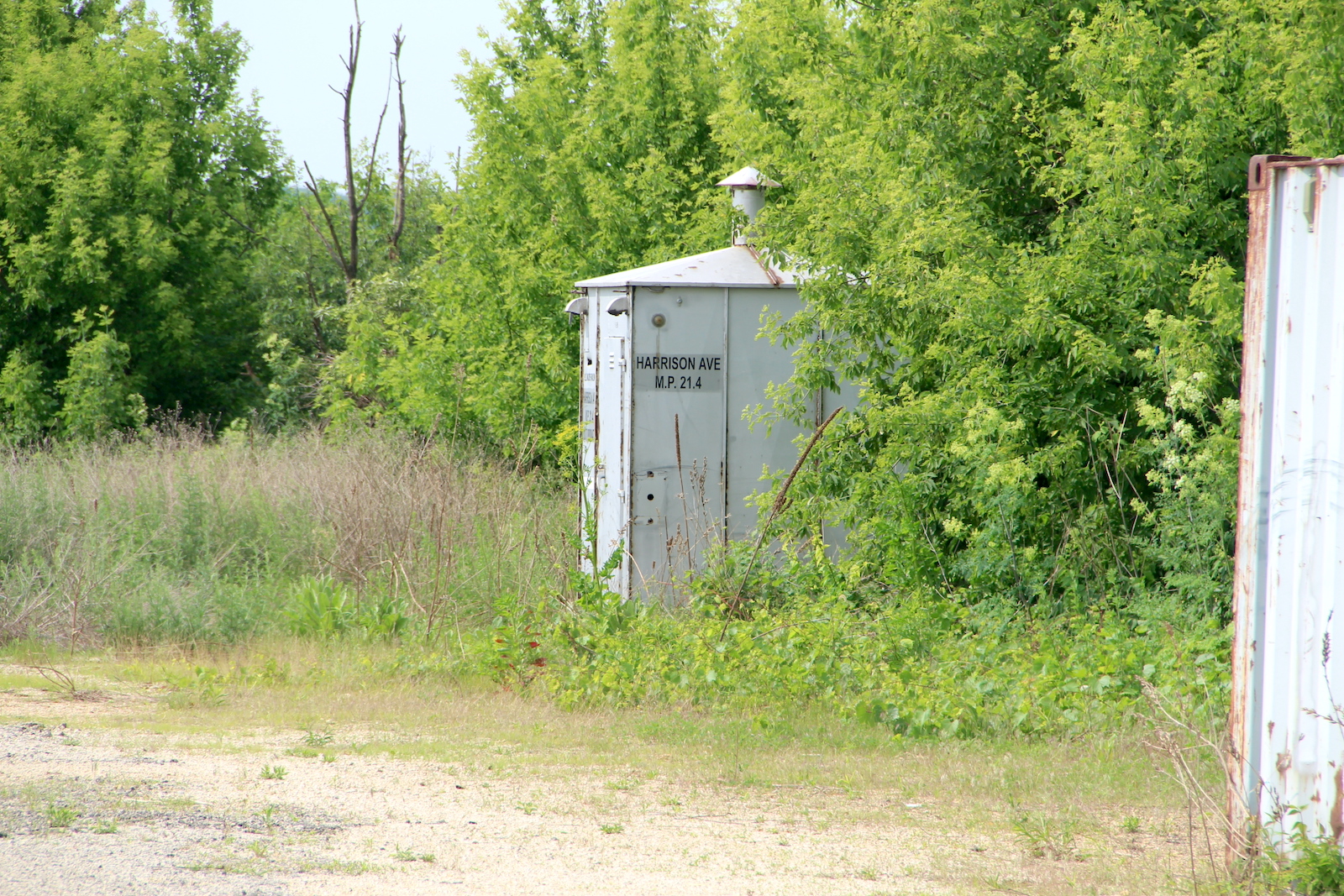

The relay bungalow from Harrison Ave. is also still sitting here.
