136.95

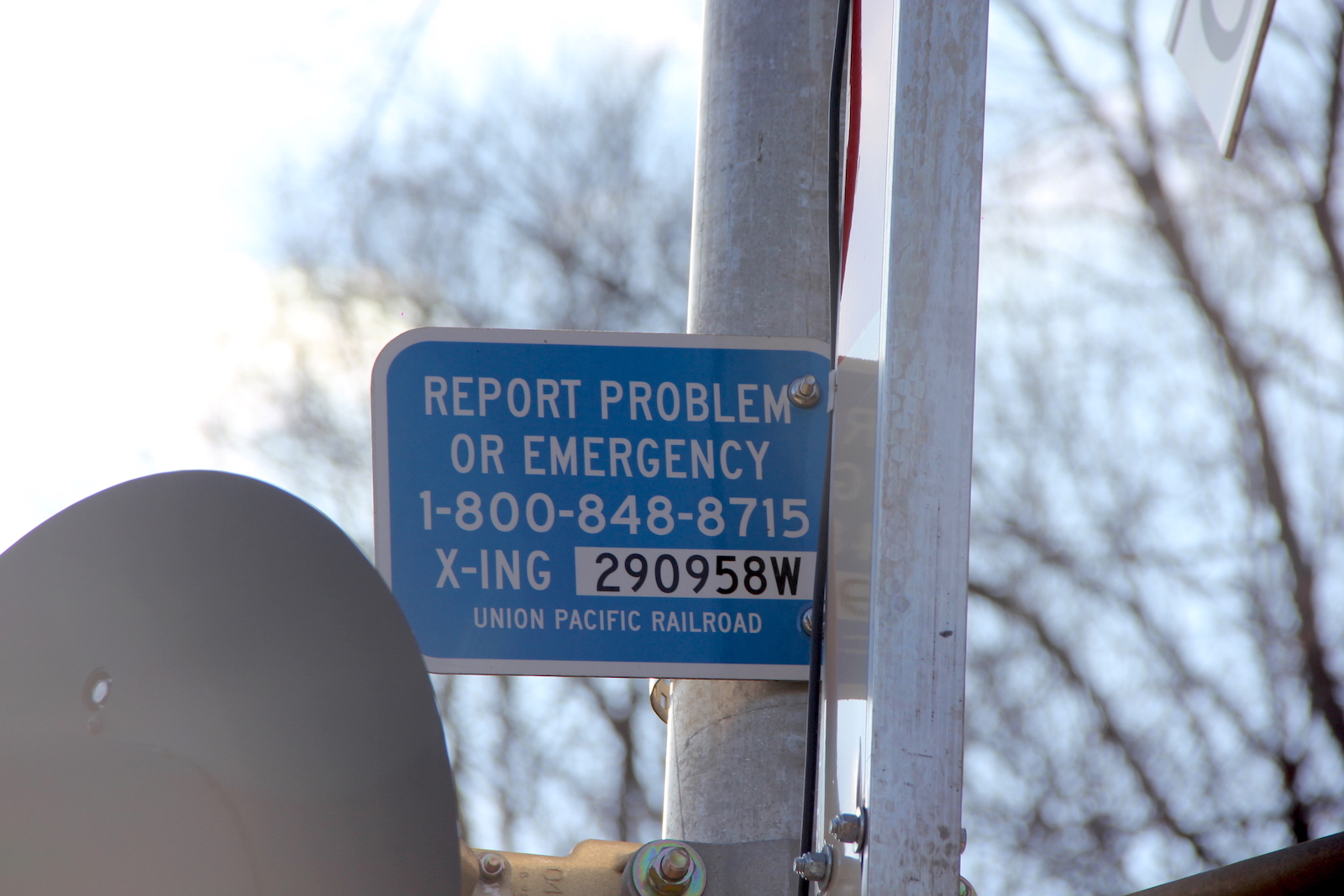

290958W

>>>>>>>>>>>>>> Western Signal Eastern Signal
Bell: NEG E-Bell NEG E-Bell

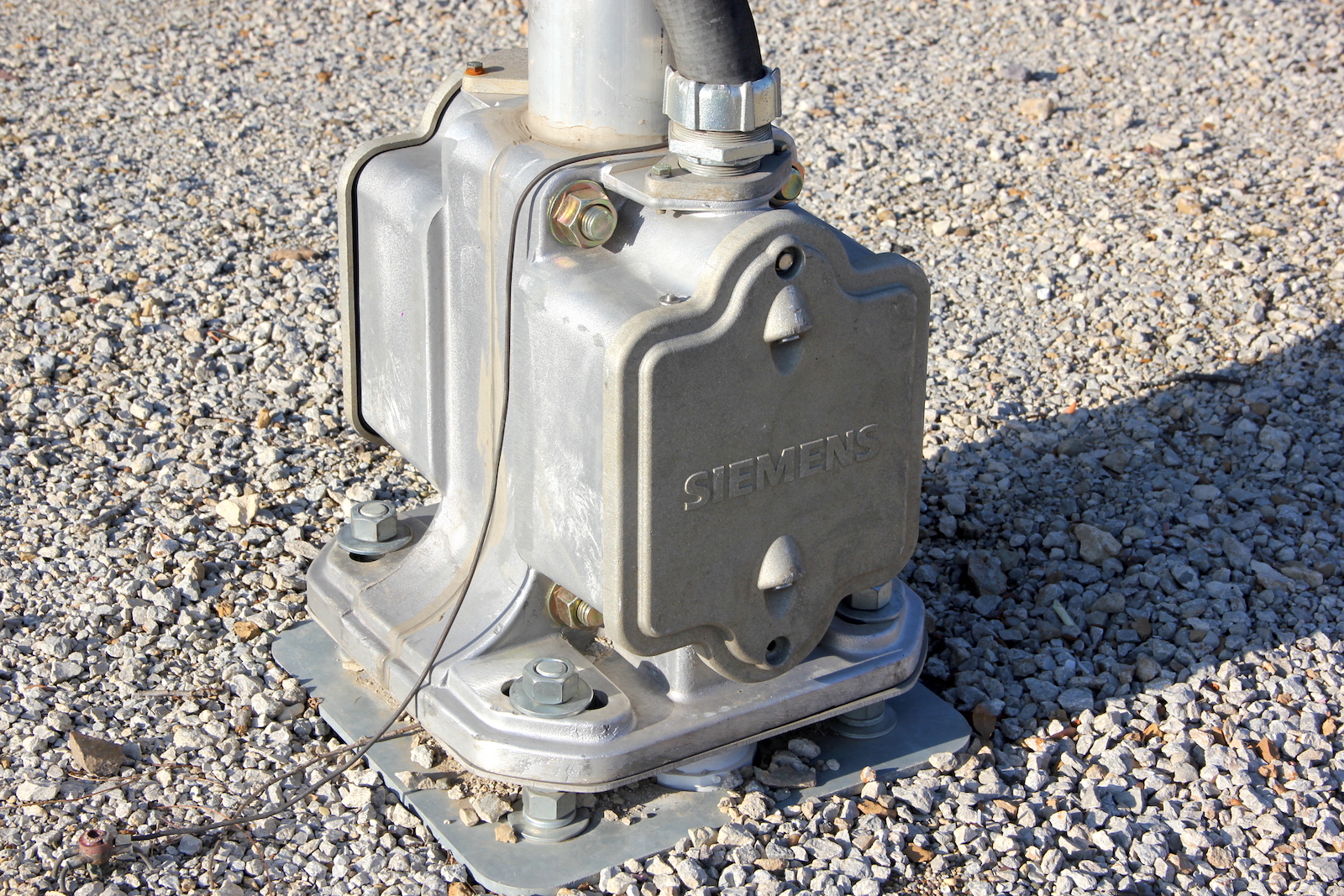

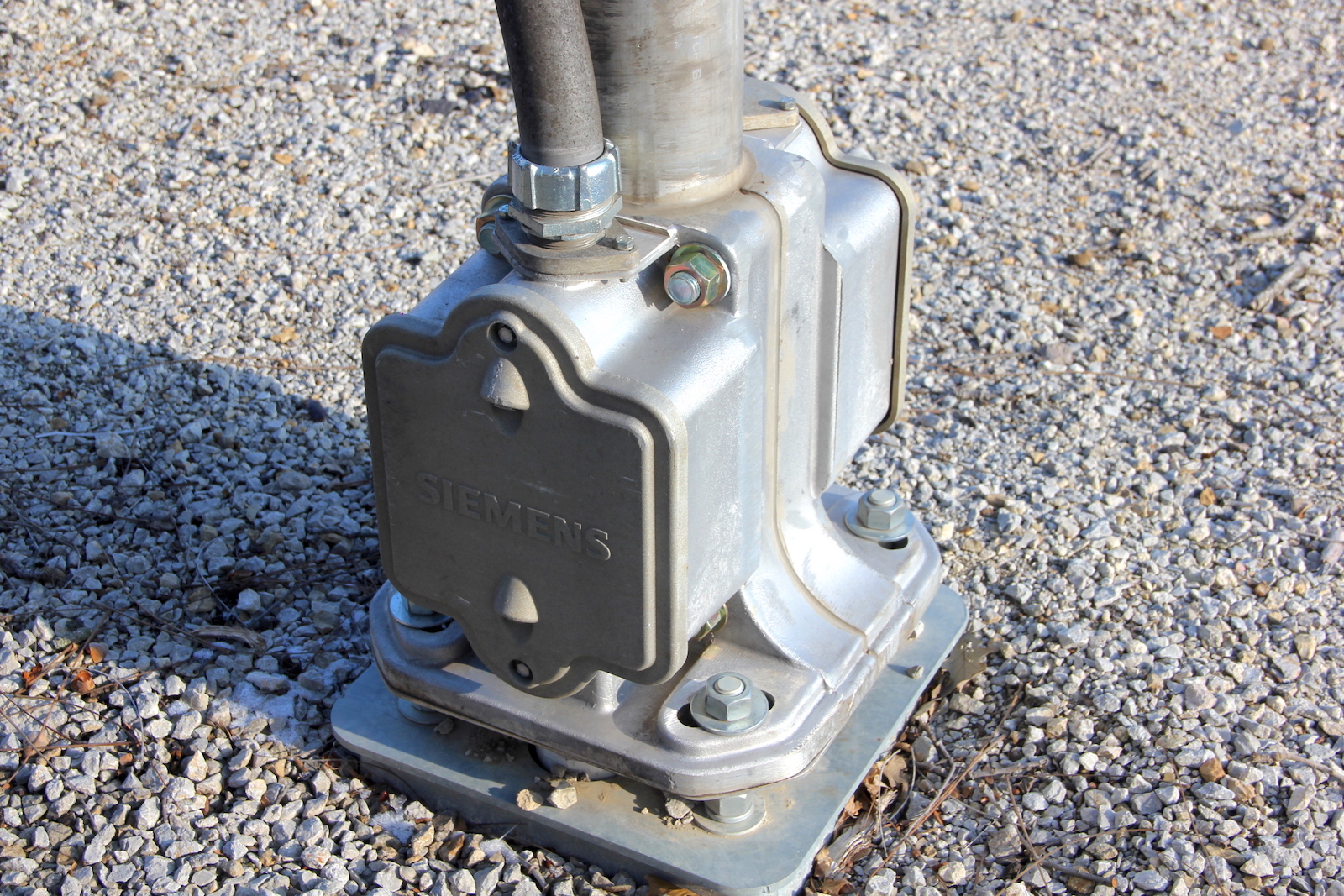

Base: Siemens 5" Double Sided ^ Siemens 5" Double Sided ^
Lights: 4 - 12"x24" Safetran w/ GE Dotted LEDs 4 - 12"x24" Safetran w/ GE Dotted LEDs
Junction Box: Safetran Safetran
Gate Lights: NEG Clear LEDs NEG Clear LEDs

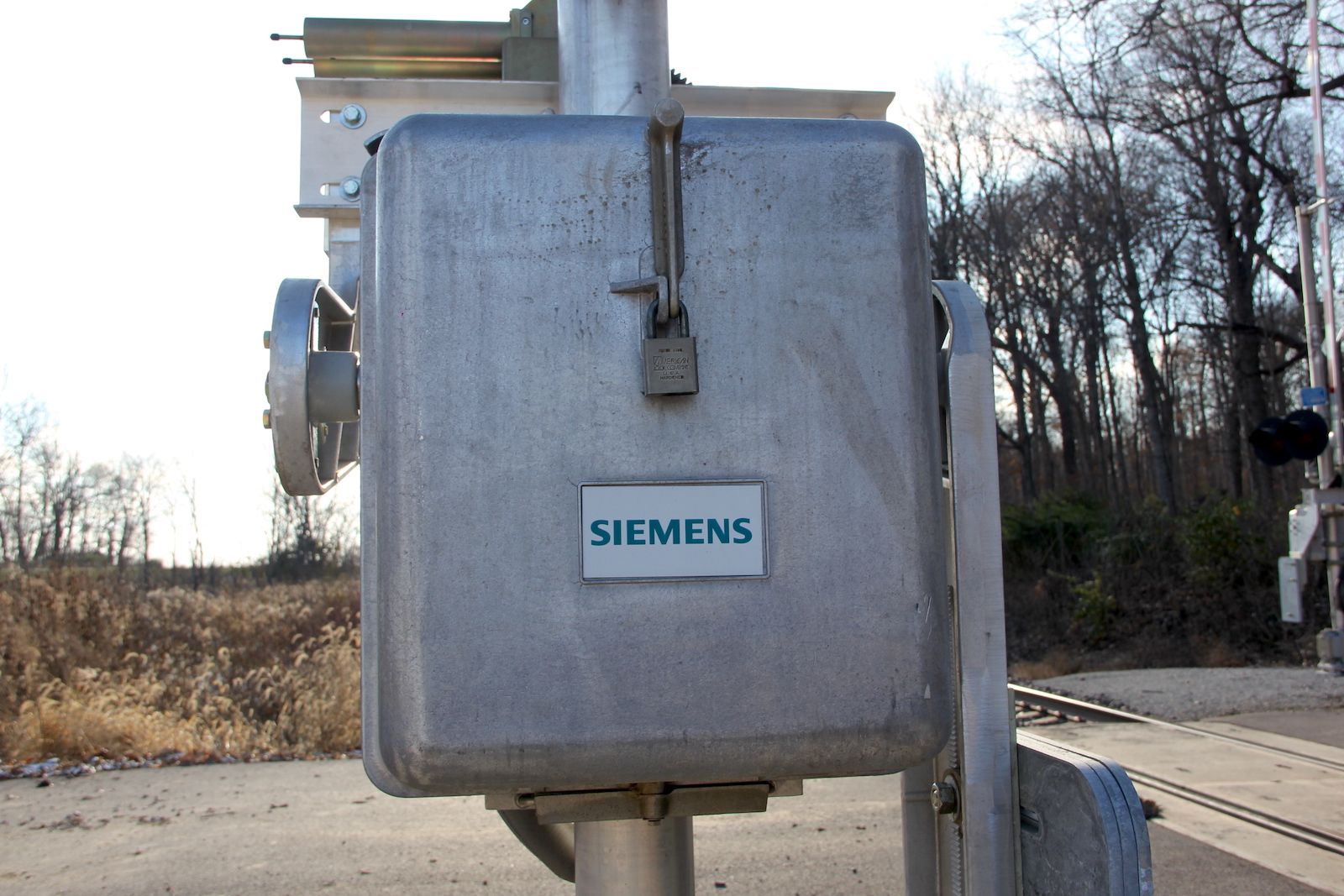

Gate Mechanism: Siemens Sticker Style 2 w/ Old NEG 2 Way Saver Siemens Sticker Style 2 w/ Old NEG 2 Way Saver
Gate Striping: Vertical Striping Vertical Striping

All pictures and the video were taken on November 13, 2018, by Tommy McGowan.
This crossing is located on the UP Springfield Sub.

These signals were installed in 2017 replacing a pair of early 2000s WCH signals.

1
 2
Overview of 2 new gated signals protecting a private entrance facing west.
 Overview facing east.
3 4 5
6 7 8
9 10 11
12

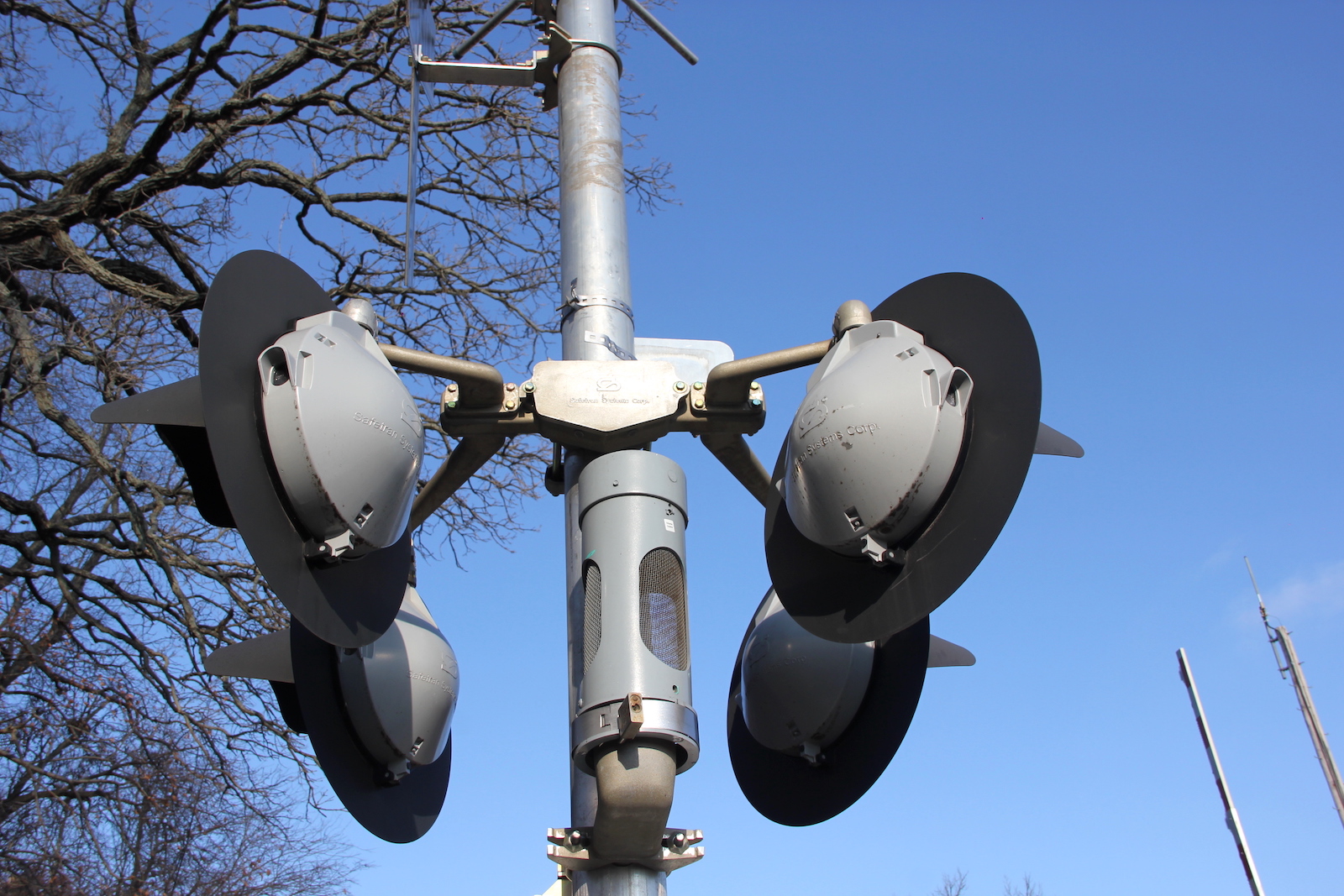

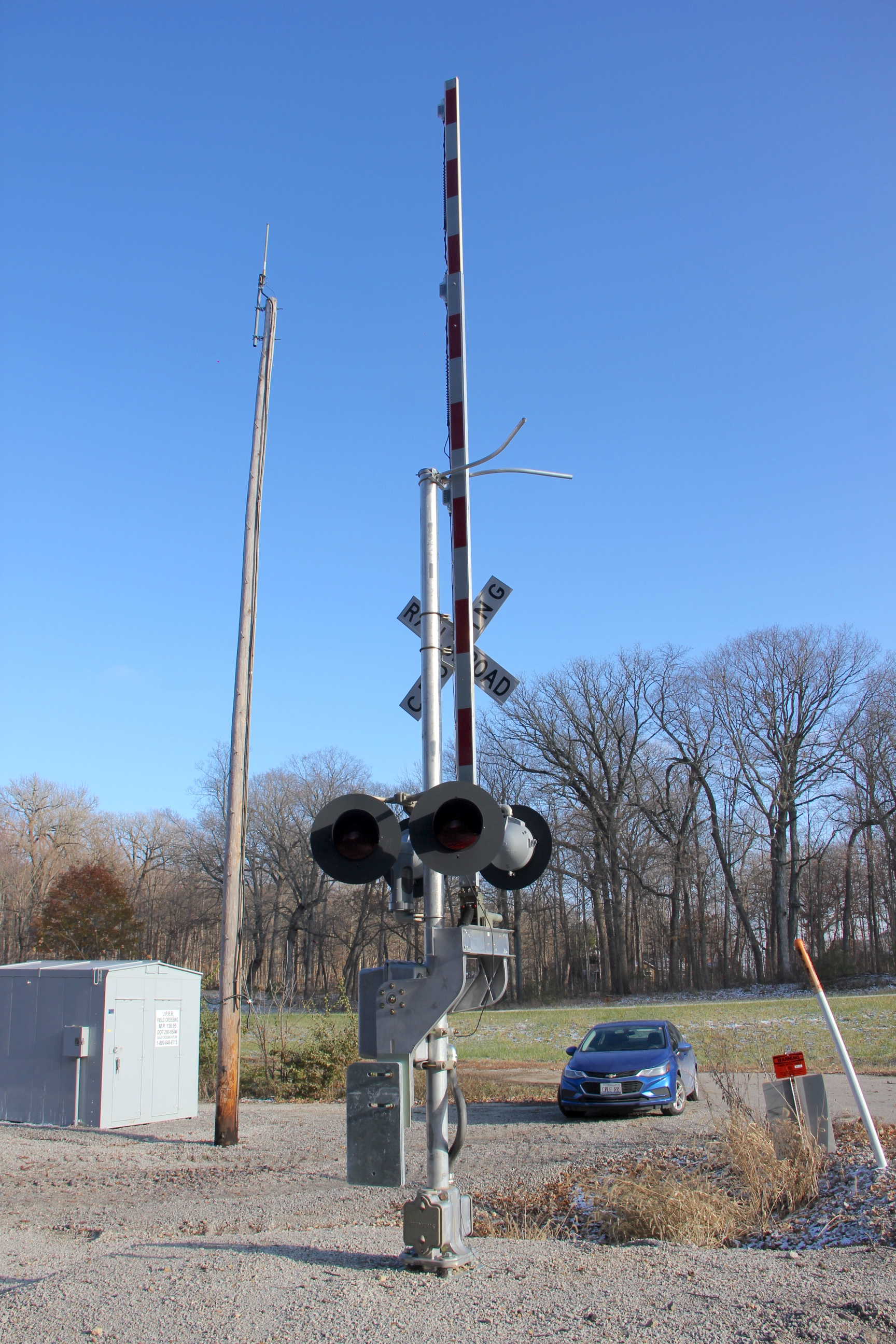

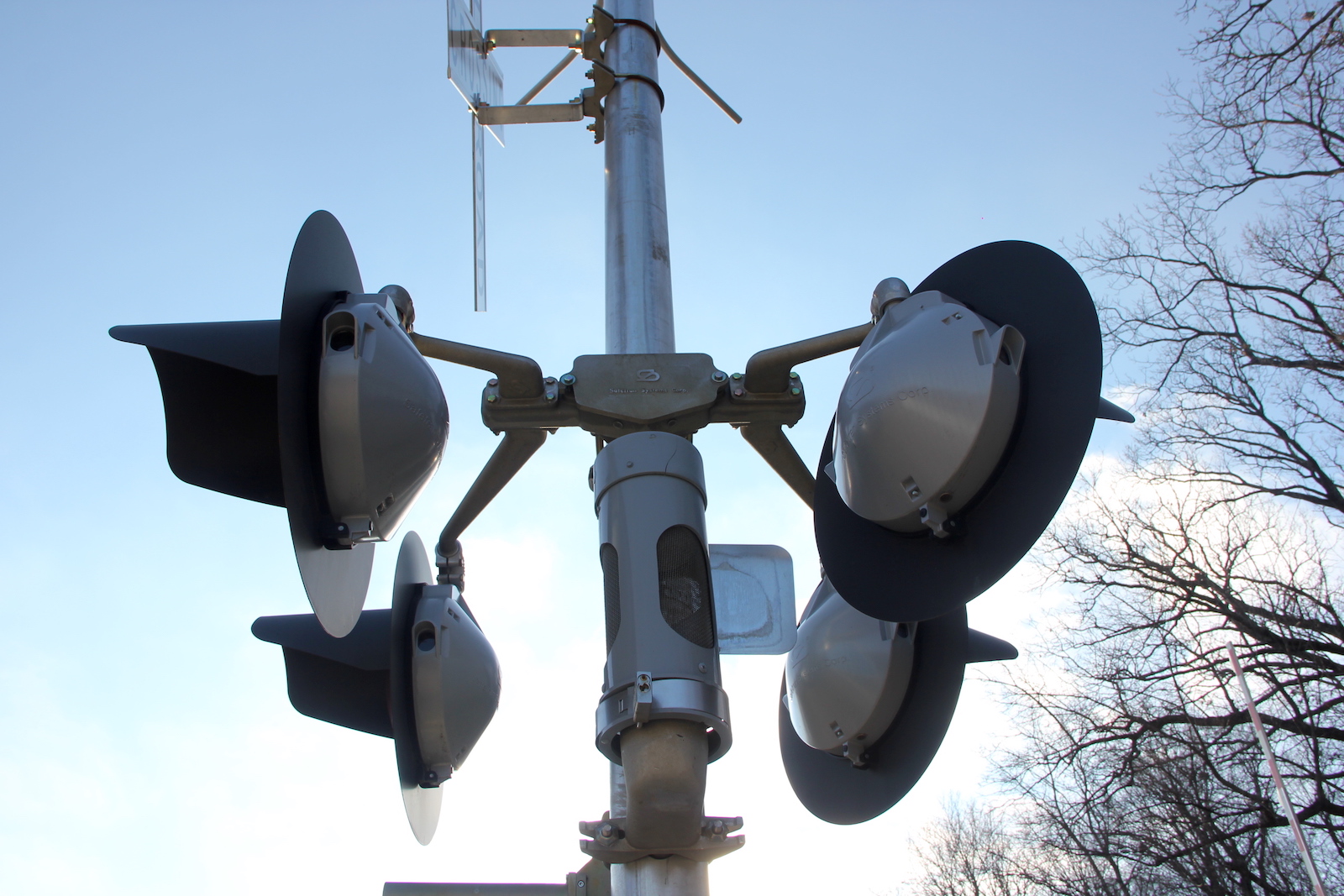

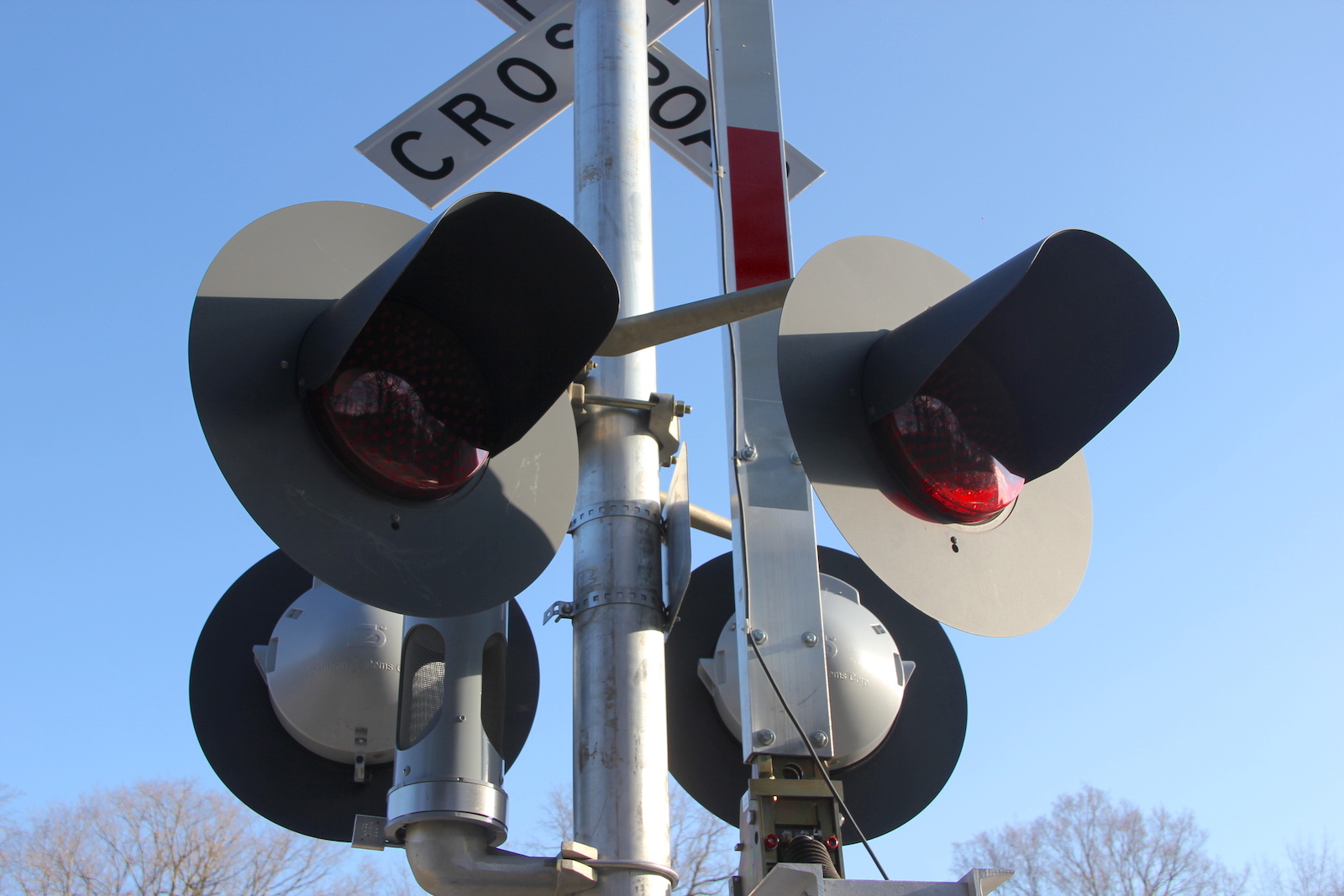

The eastern signal.
13 14 15
16 17 18
19 20 21
22

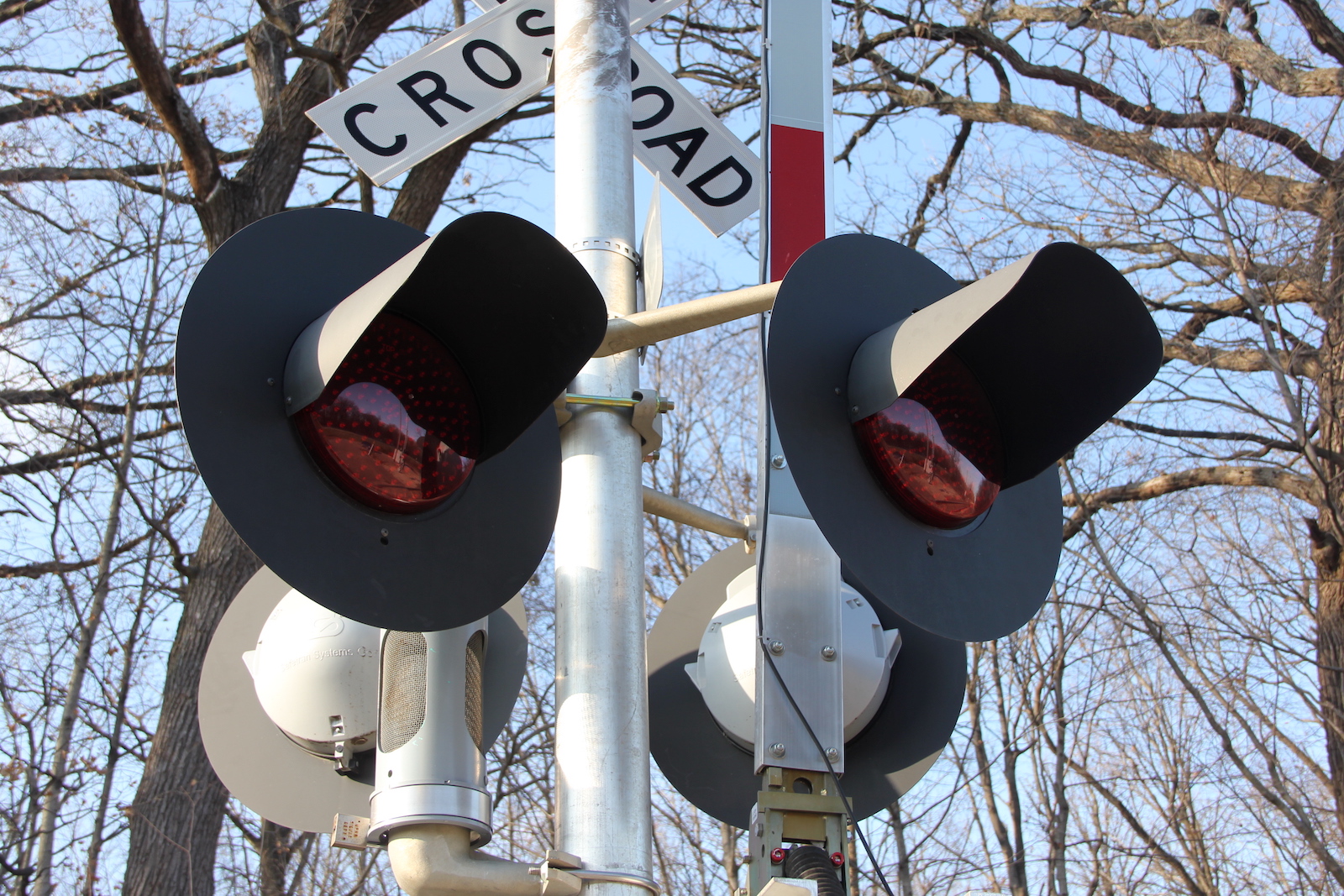

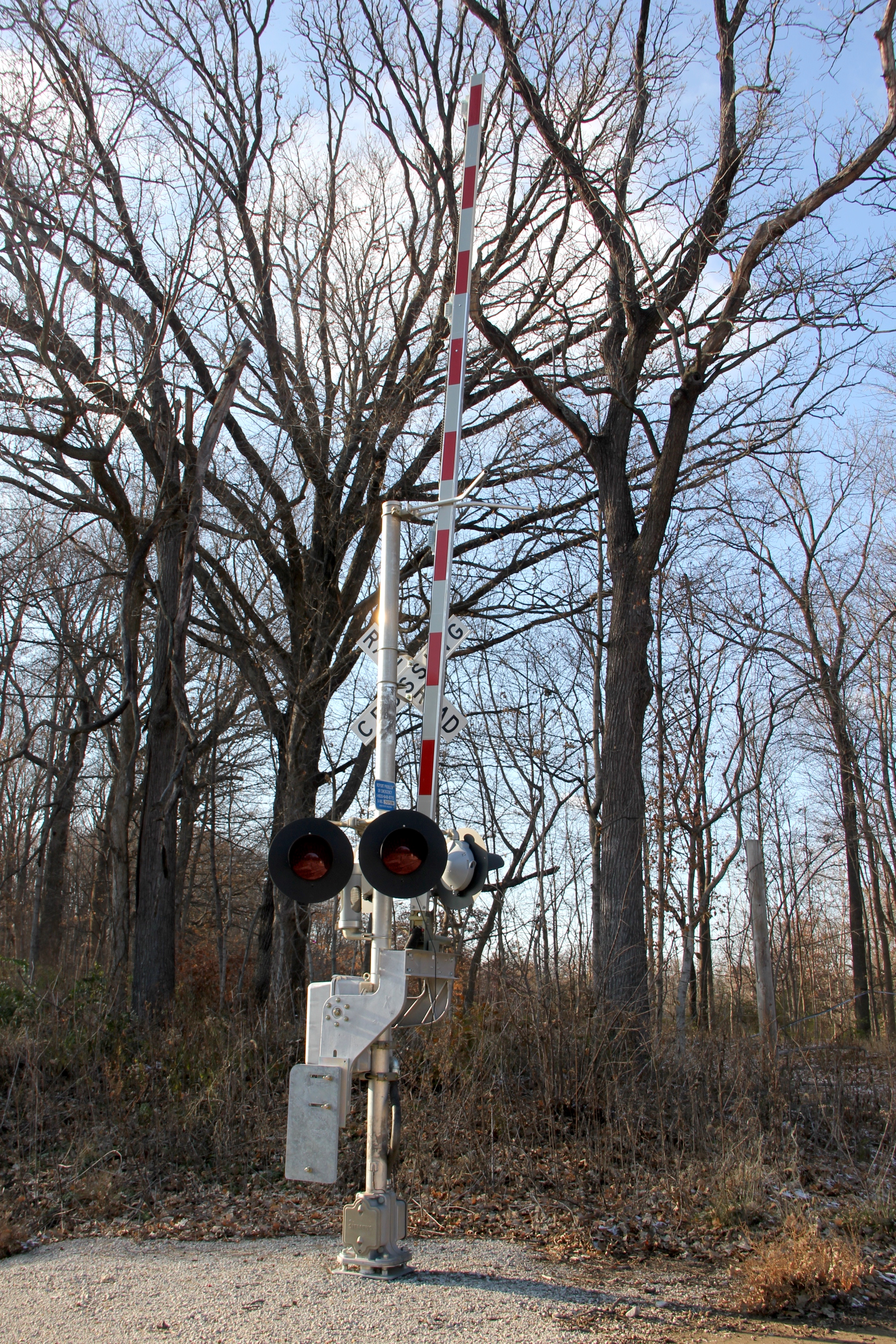

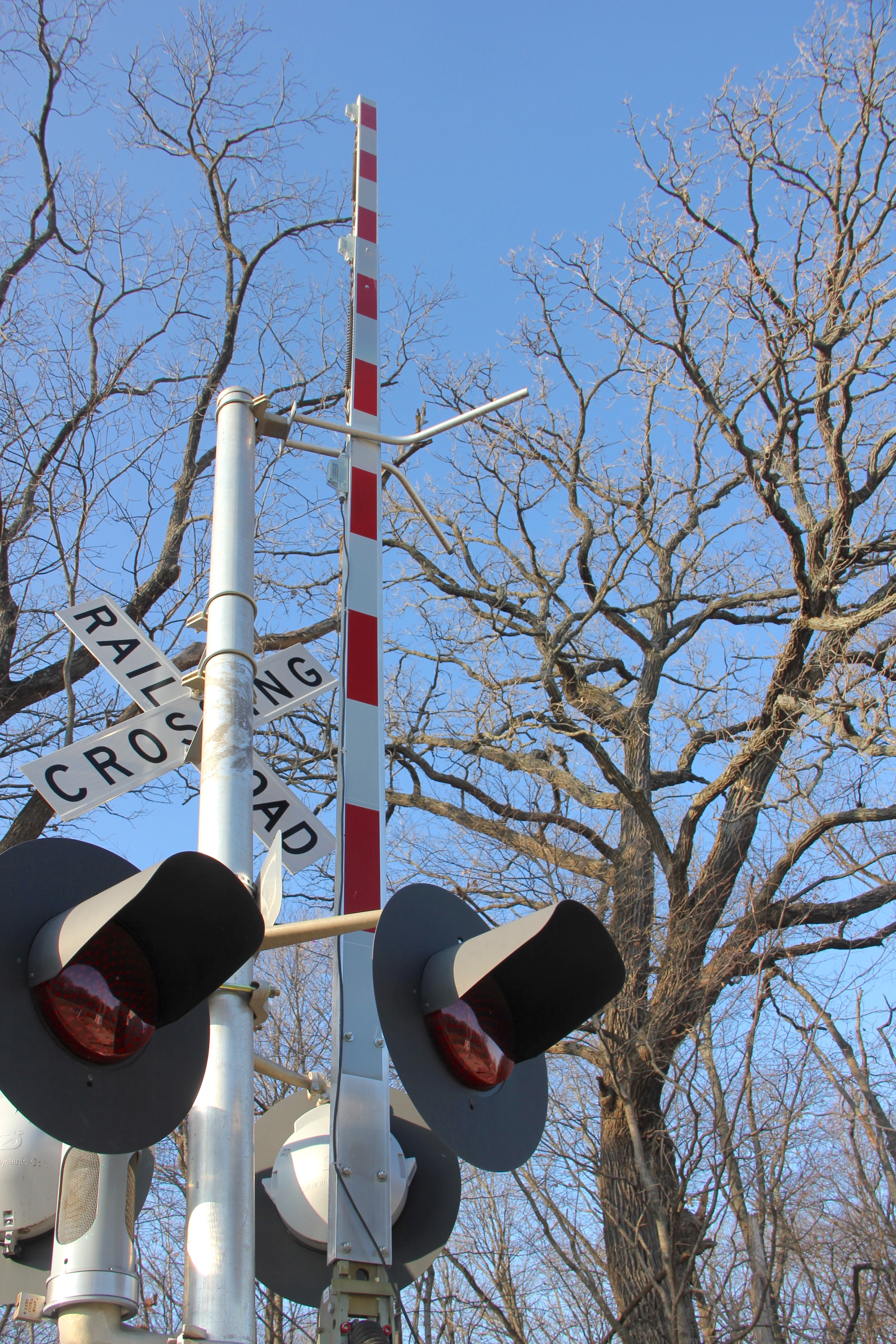

The western signal.
23 24 25 26
The relay bungalow in the northeast quadrant.
 The grade is all concrete.

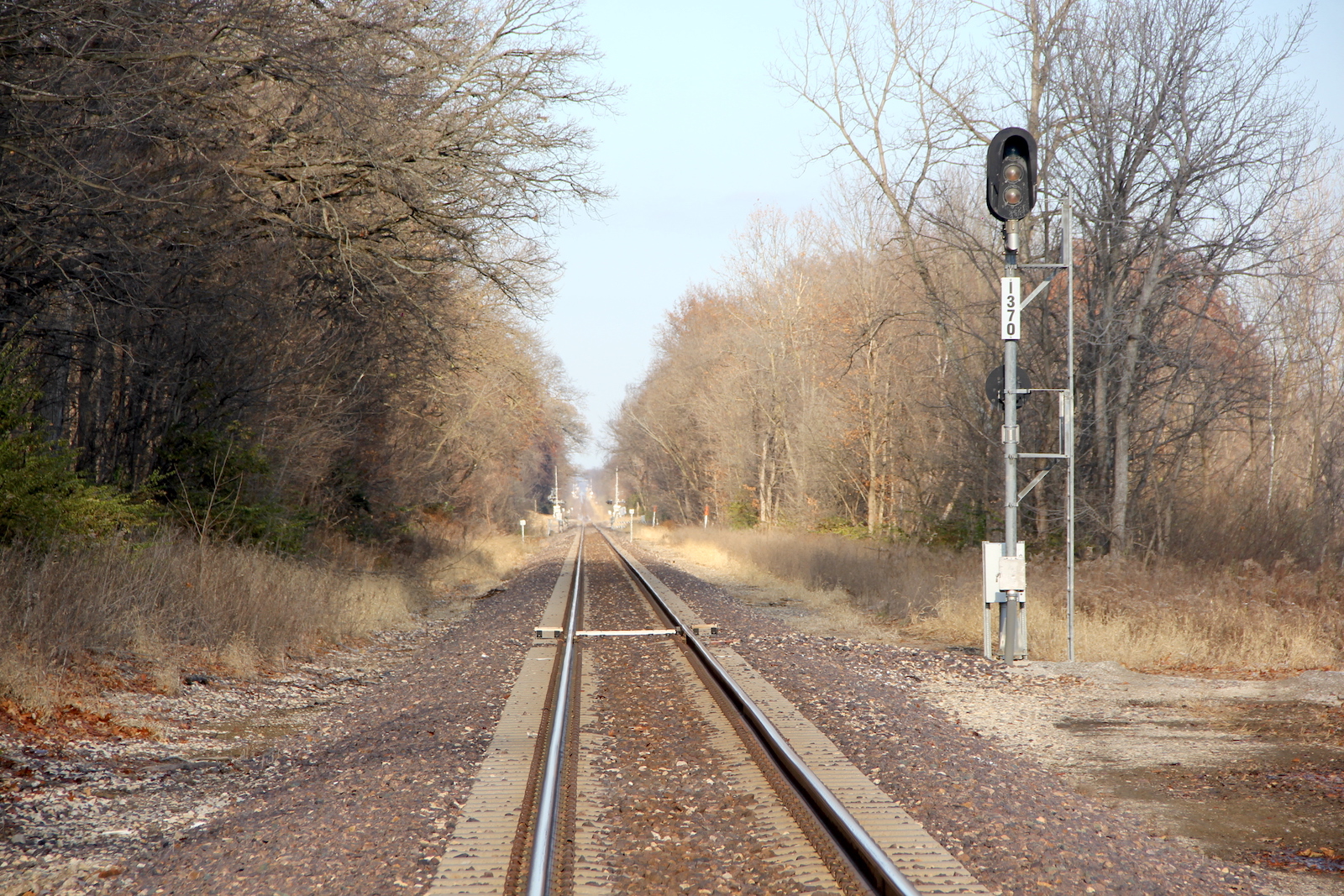

 Track view facing north towards Funks Rd.
 Track view facing south towards County Rd. 350 N. in McLean.
