>>>>>>>>>>>>>>> Western Entrance Signal Western Exit Signal Eastern Entrance Signal Eastern Exit Signal
Bell: WCH Type 1.5 E-Bell WCH Type 1.5 E-Bell WCH Type 1.5 E-Bell WCH Type 2 E-Bell
Base: WCH 5" Single Sided ^ WCH 5" Single Sided ^ WCH 5" Single Sided ^ WCH 5" Single Sided ^
Lights: 4 - 12"x24" WCH w/ Electro-Tech's LEDs 4 - 12"x24" WCH w/ Electro-Tech's LEDs 2 - 12"x24" WCH w/ Electro-Tech's LEDs
2 - 12"x24" WCH w/ GE Dotted LEDs		 4 - 12"x24" WCH w/ Electro-Tech's LEDs
Junction Boxes: WRRS WRRS WRRS WRRS
Gate Lights: Alstom Aurora LEDs 2 - NEG Clear LEDs
1 - Alstom Aurora LED		 2 - NEG Clear LEDs
1 - Alstom Aurora LED		 NEG Clear LEDs
Gate Mechanism: WCH Style 3.5 w/ Old WCH Gate Saver WCH Style 3.5 w/ Old WCH Gate Saver WCH Style 3.5 w/ Old WCH Gate Saver WCH Style 3.5 w/ Old WCH Gate Saver
Gate Striping: Vertical Striping Vertical Striping Vertical Striping Vertical Striping


>>>>>>>>>>>> Western Pedestrian Gate Eastern Pedestrian Gate
Base: Siemens 5" Single Sided ^ Safetran 5" Single Sided ^
Gate Light: 4" RECO LED 4" RECO ELD
Gate Mechanism: Siemens Sticker Style 2 Invensys Rail
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-24 were taken on December 22, 2010.
Pictures 25-72 and the 1st video were taken on December 14, 2014.
Pictures 73-82 were taken on November 22, 2017.
The 2nd video was taken on November 14, 2018.
The 3rd video was taken on July 3, 2019.
Pictures 83-88 were taken on December 1, 2019.
Pictures 89-112 were taken on August 8, 2024.
All pictures and videos were taken by Tommy McGowan.
This crossing is located on the UP Joliet Sub.

These quad gates replaced a pair of gateless signals with a mechanical bell in the early 2000s.
The gates originally had 4" WCH incandescent gates, but were replaced with Aurora LEDs around 2009.

1 2

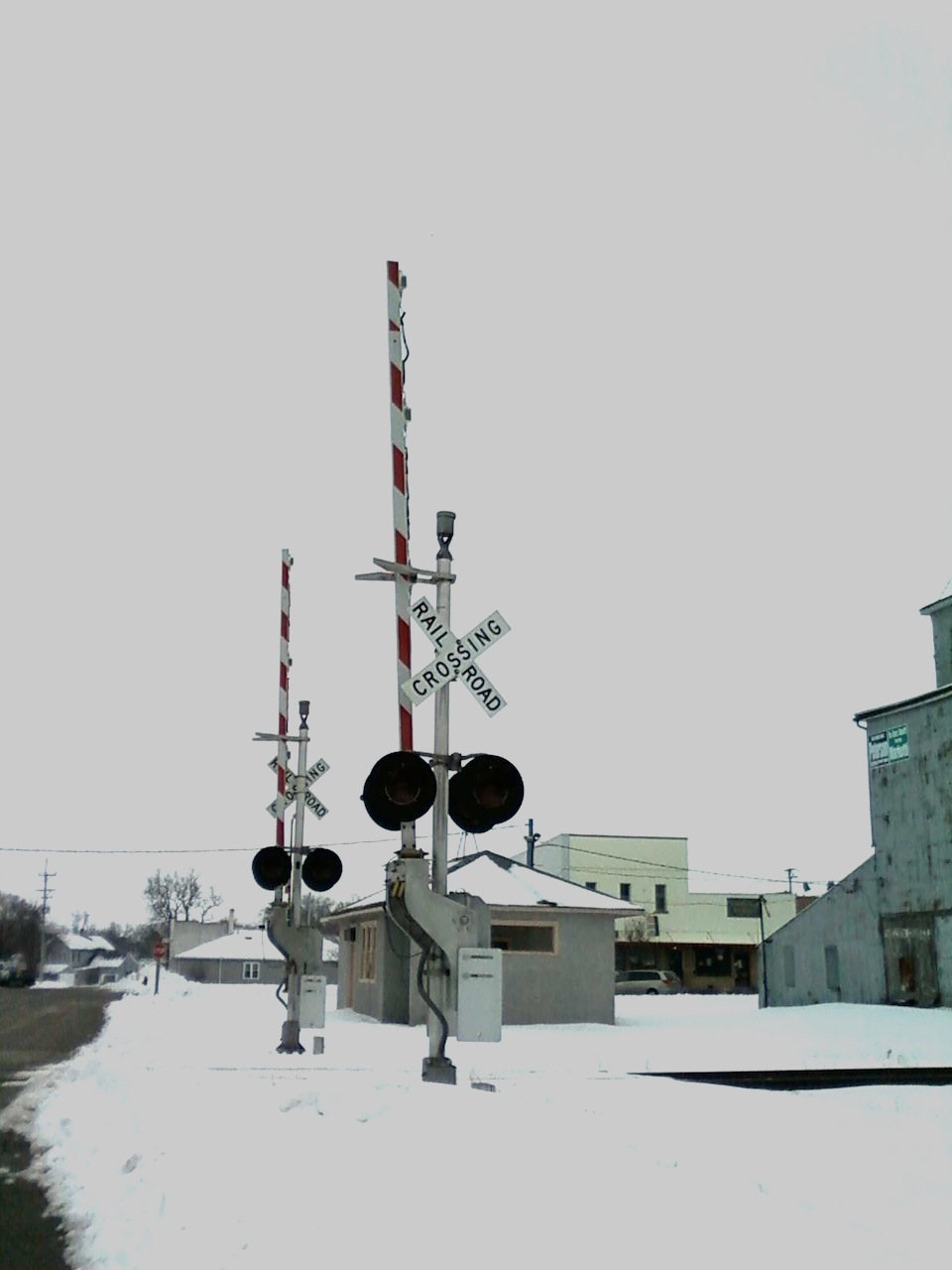

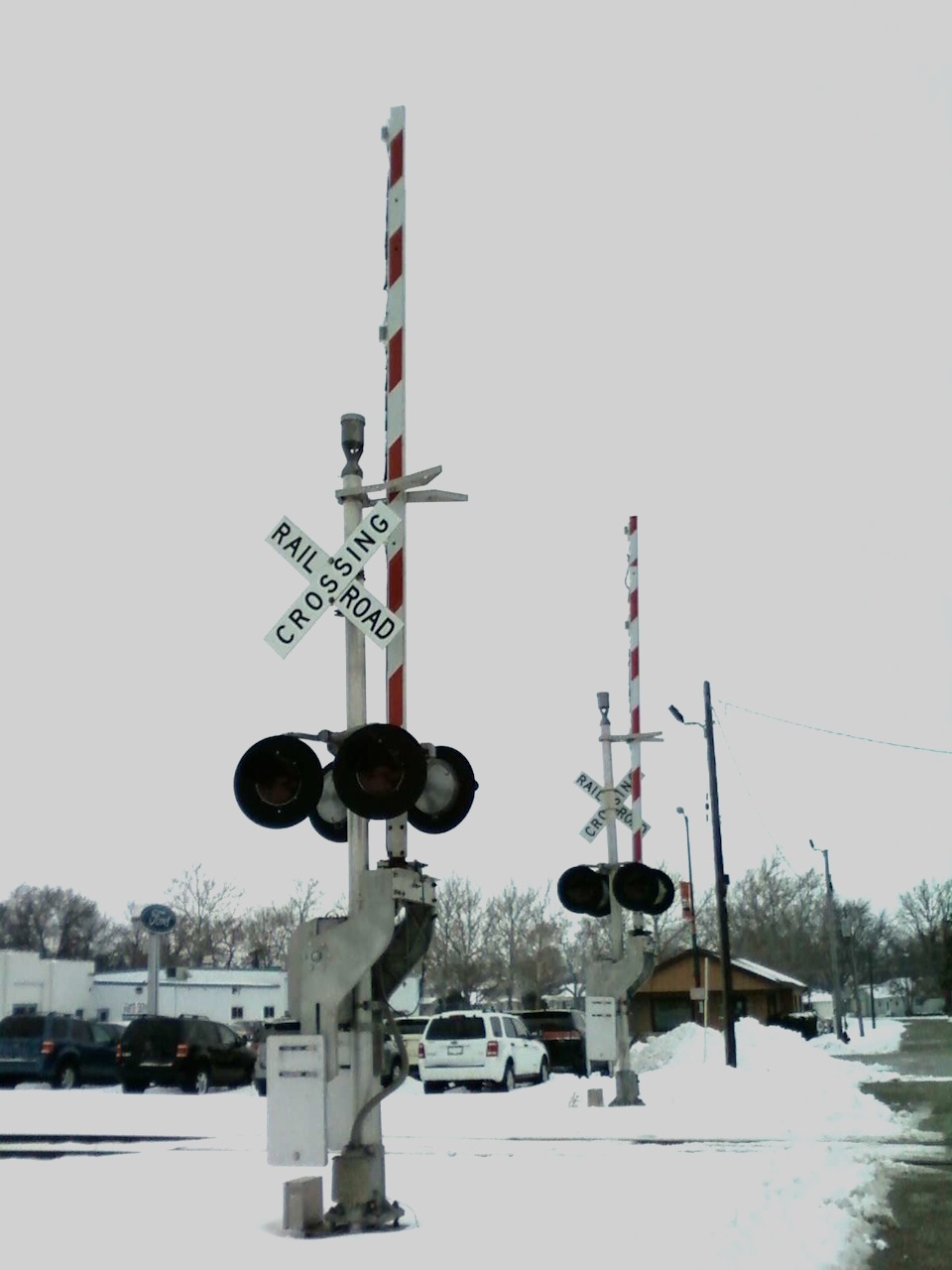

Overview of a WCH quad gate crossing facing east.
 Overview facing west.
3 4 5
6 7 8 9

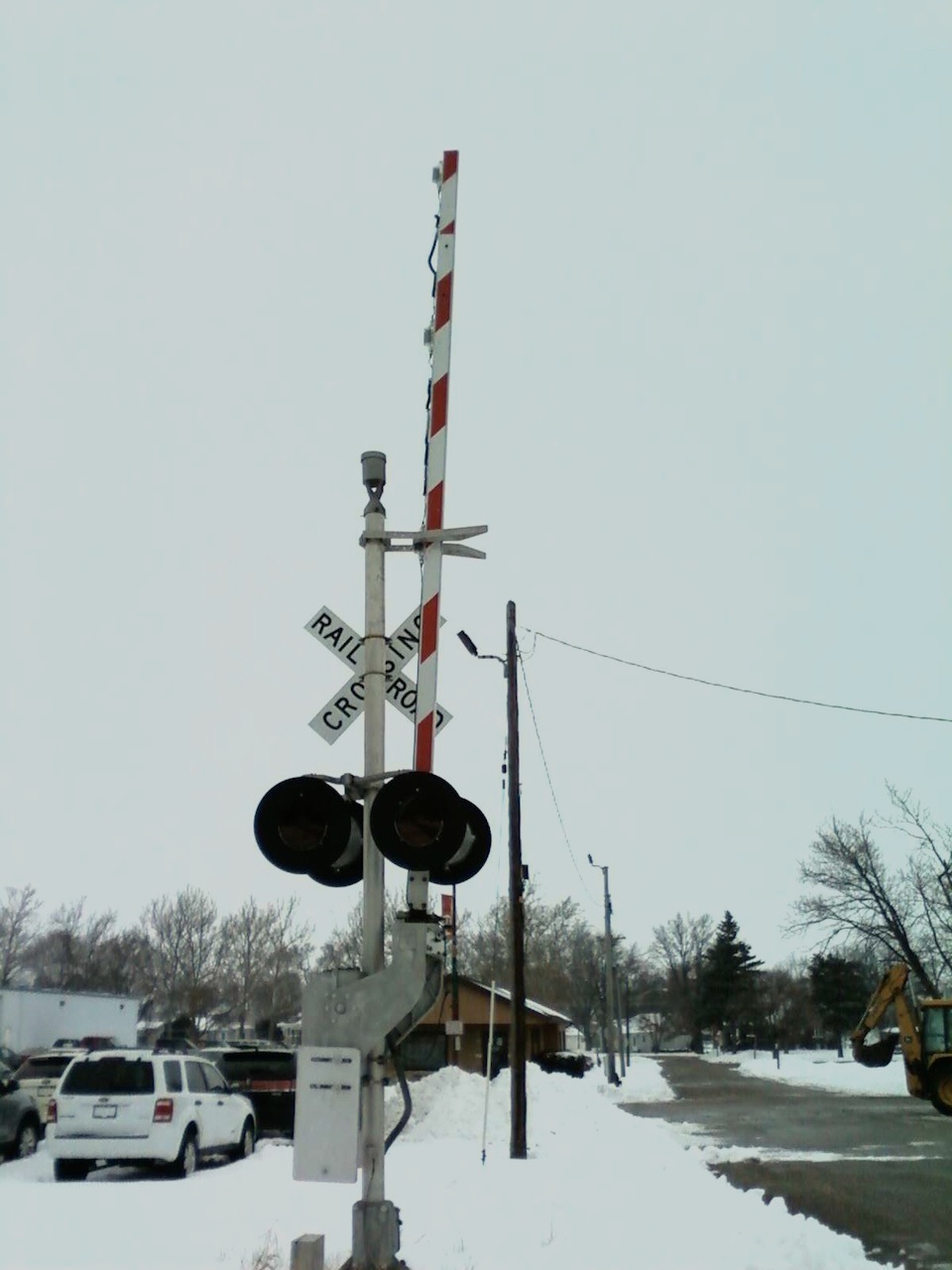

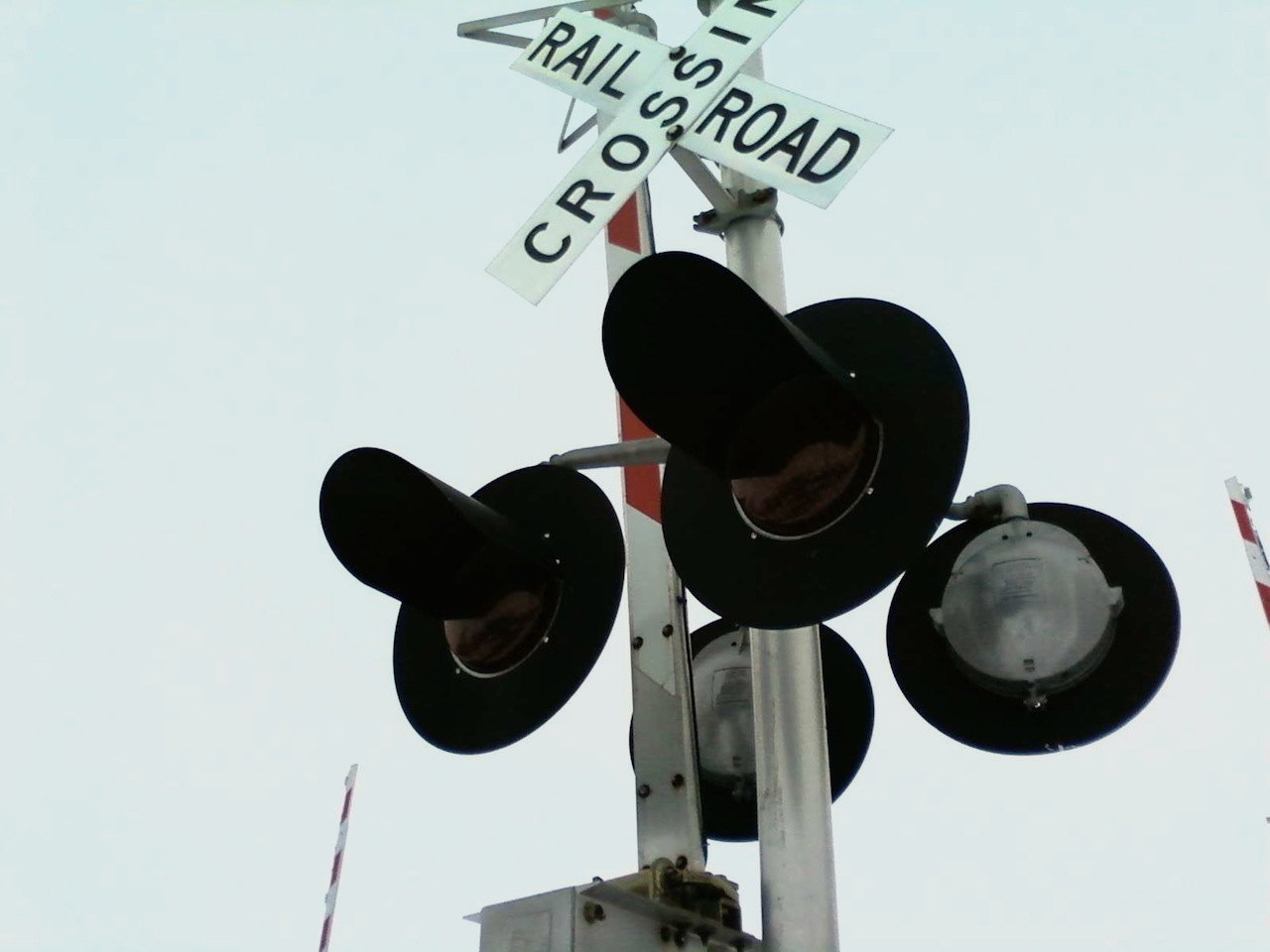

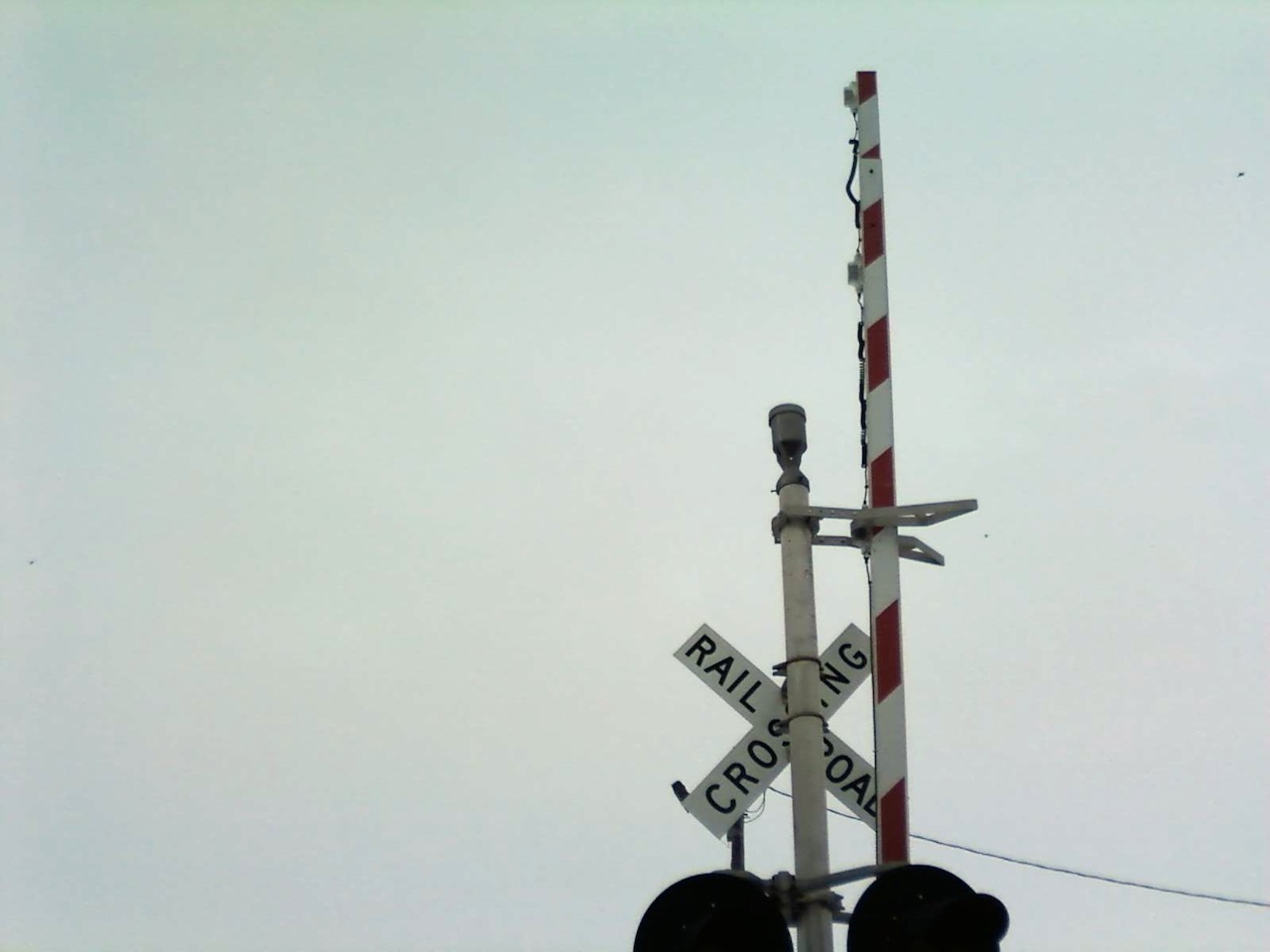

The western entrance signal.
10 11

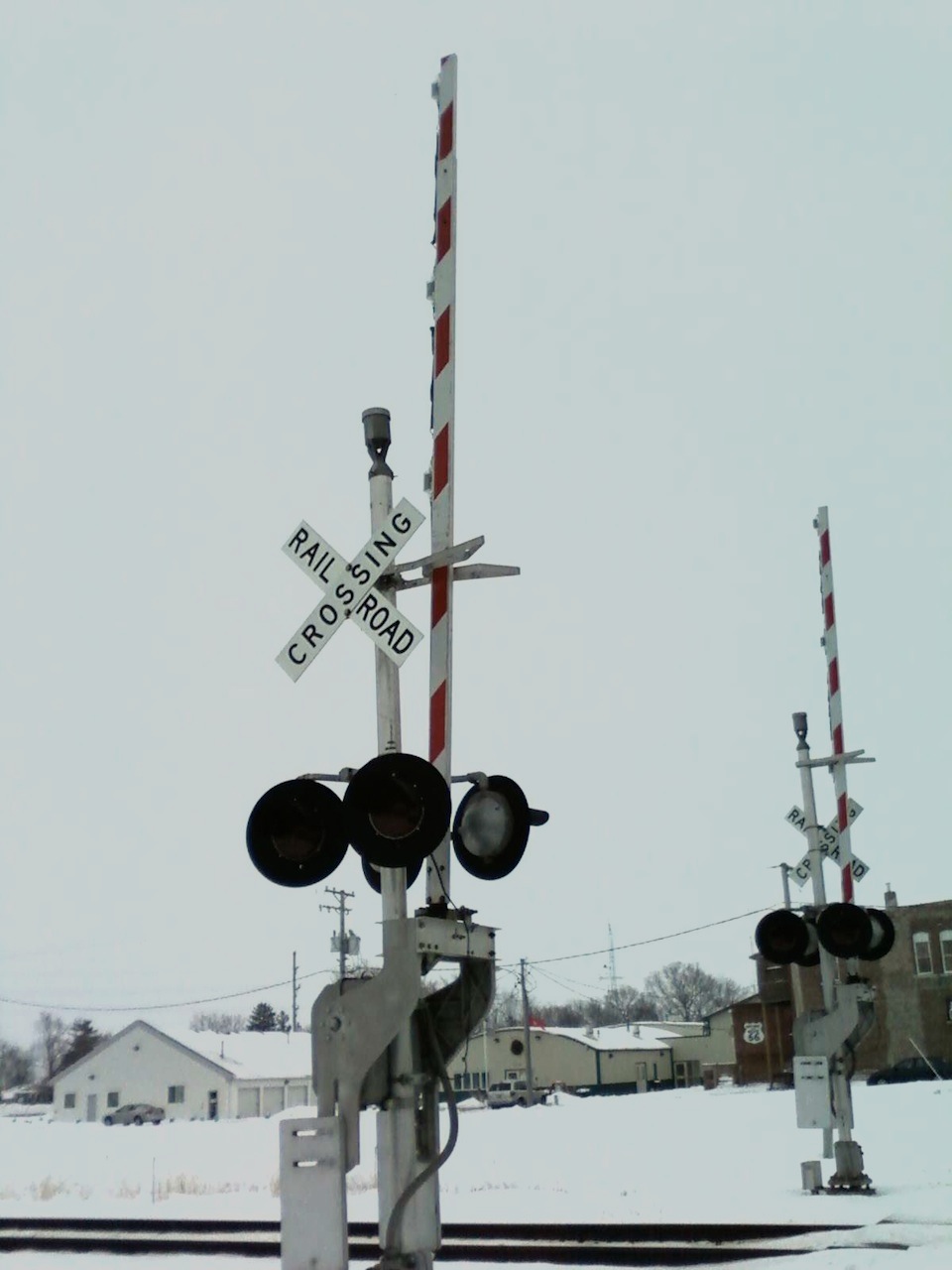

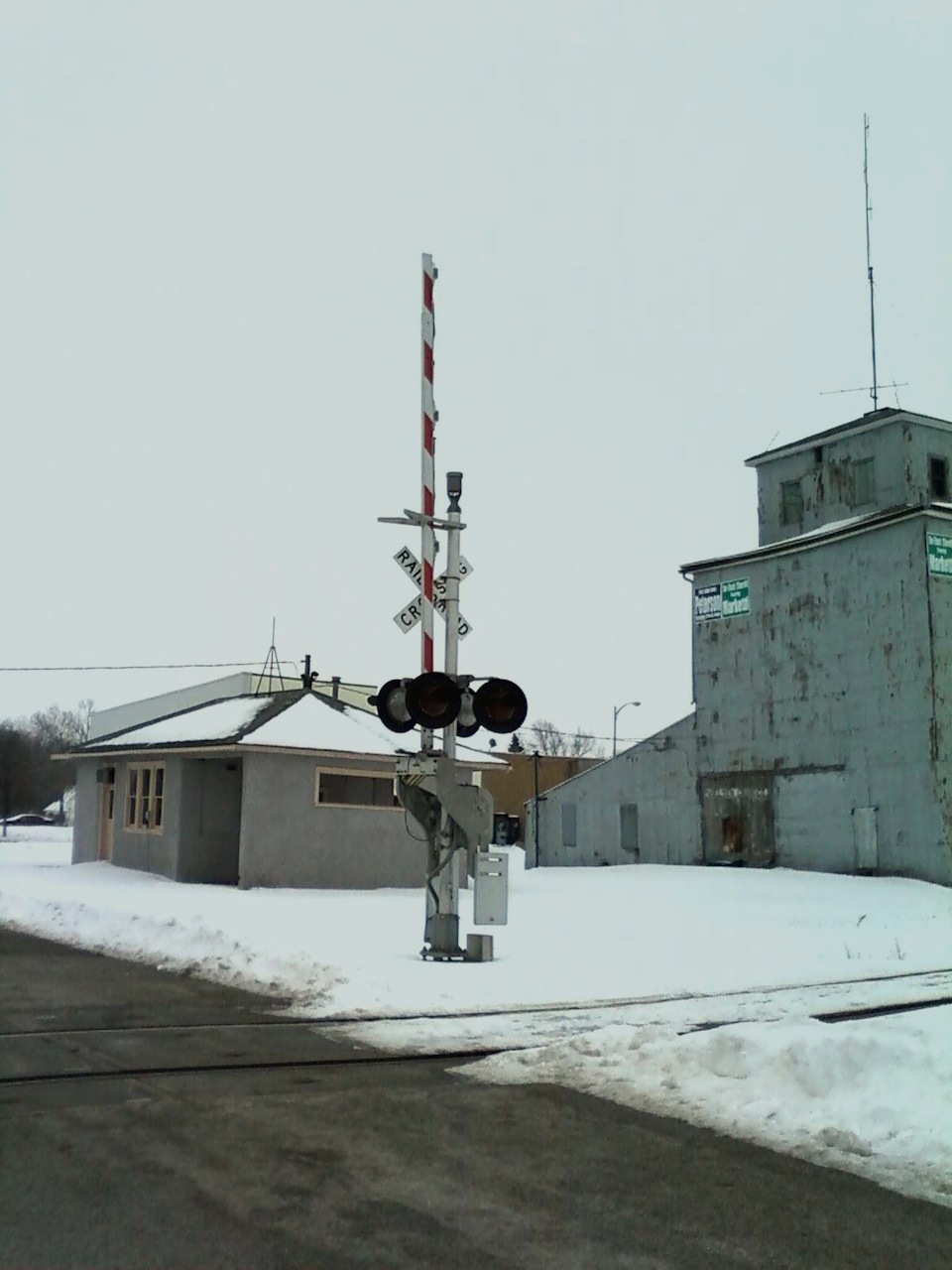

The eastern exit signal.
12 13 14
15 16 17 18

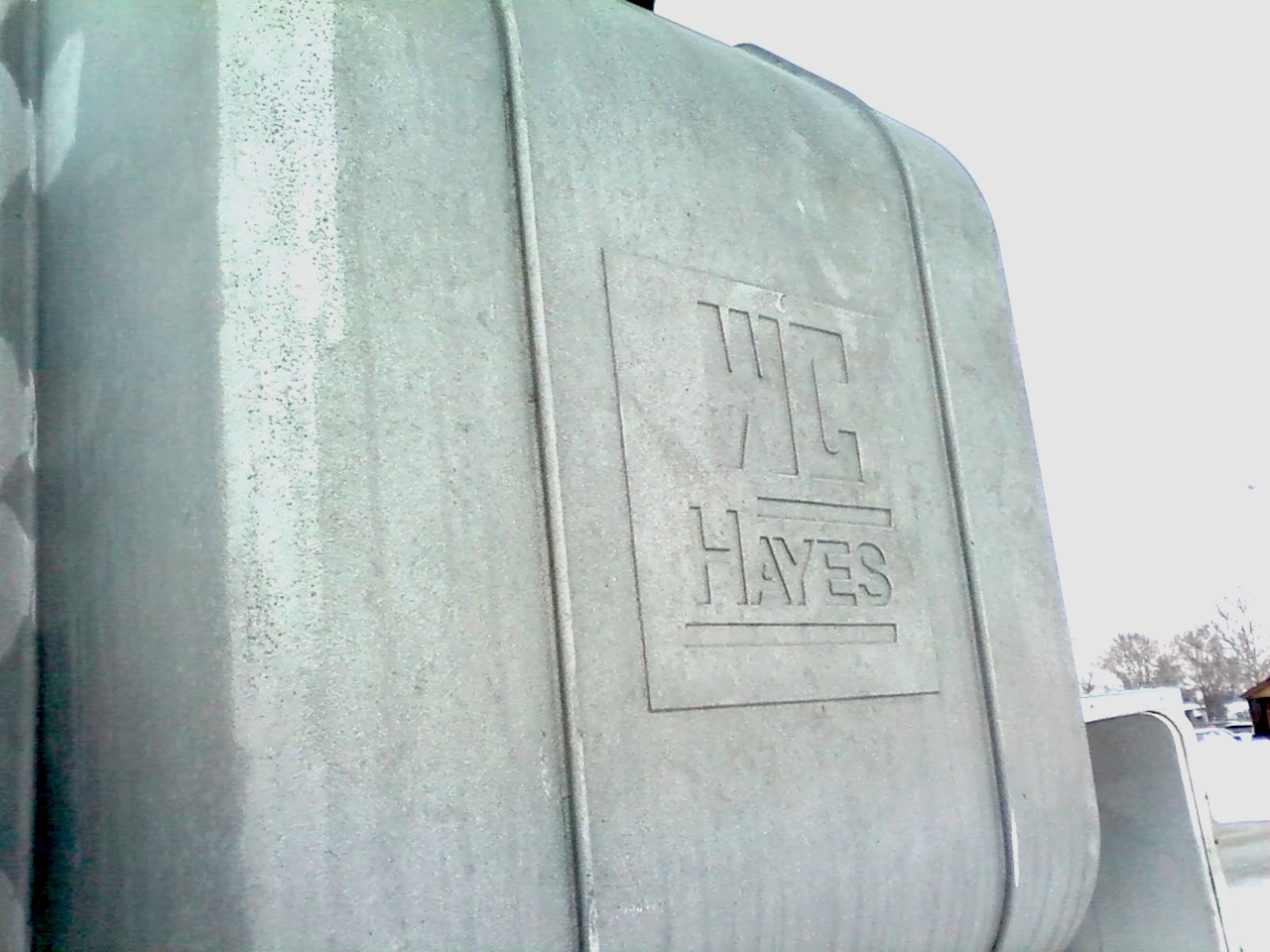

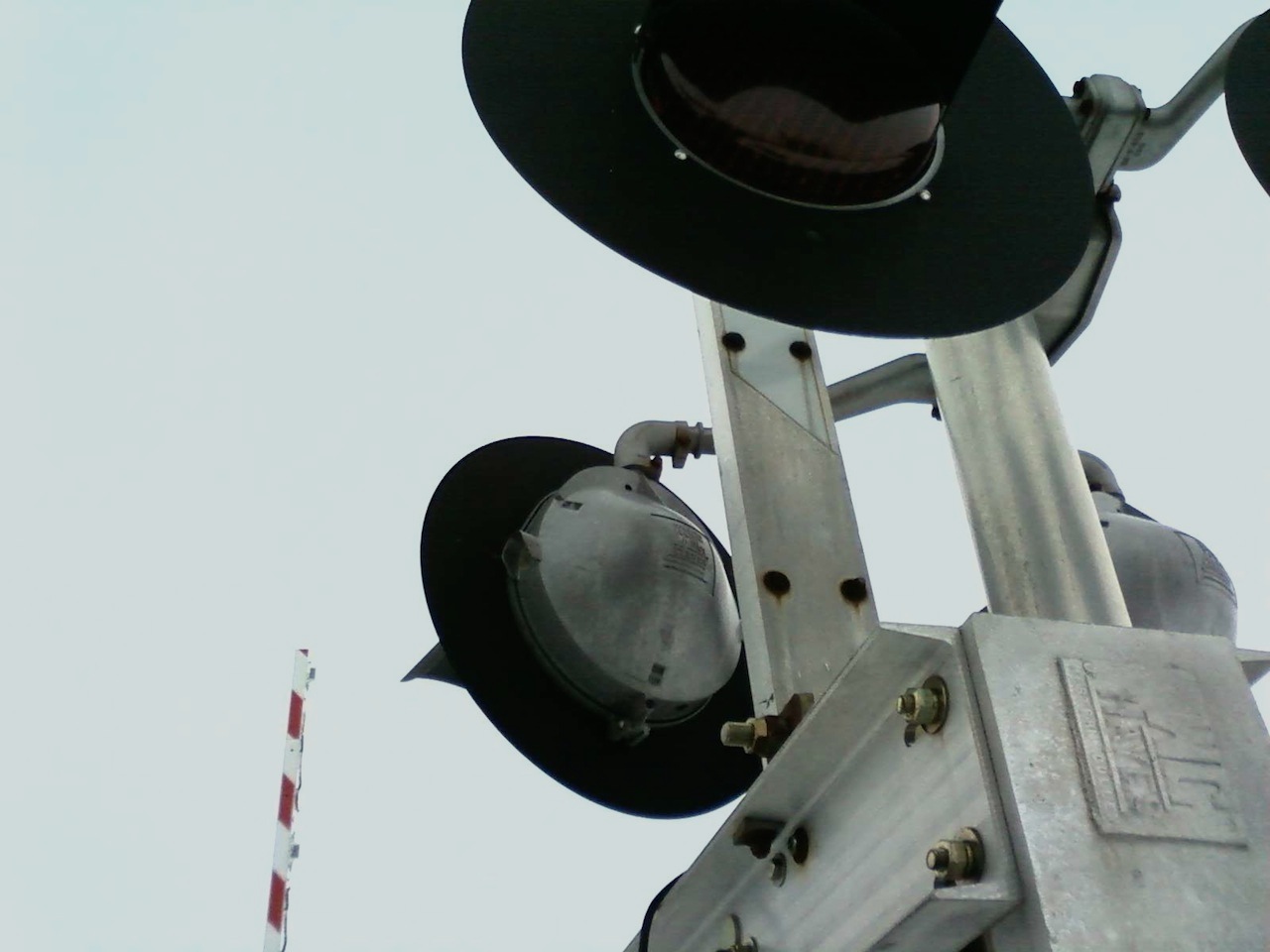

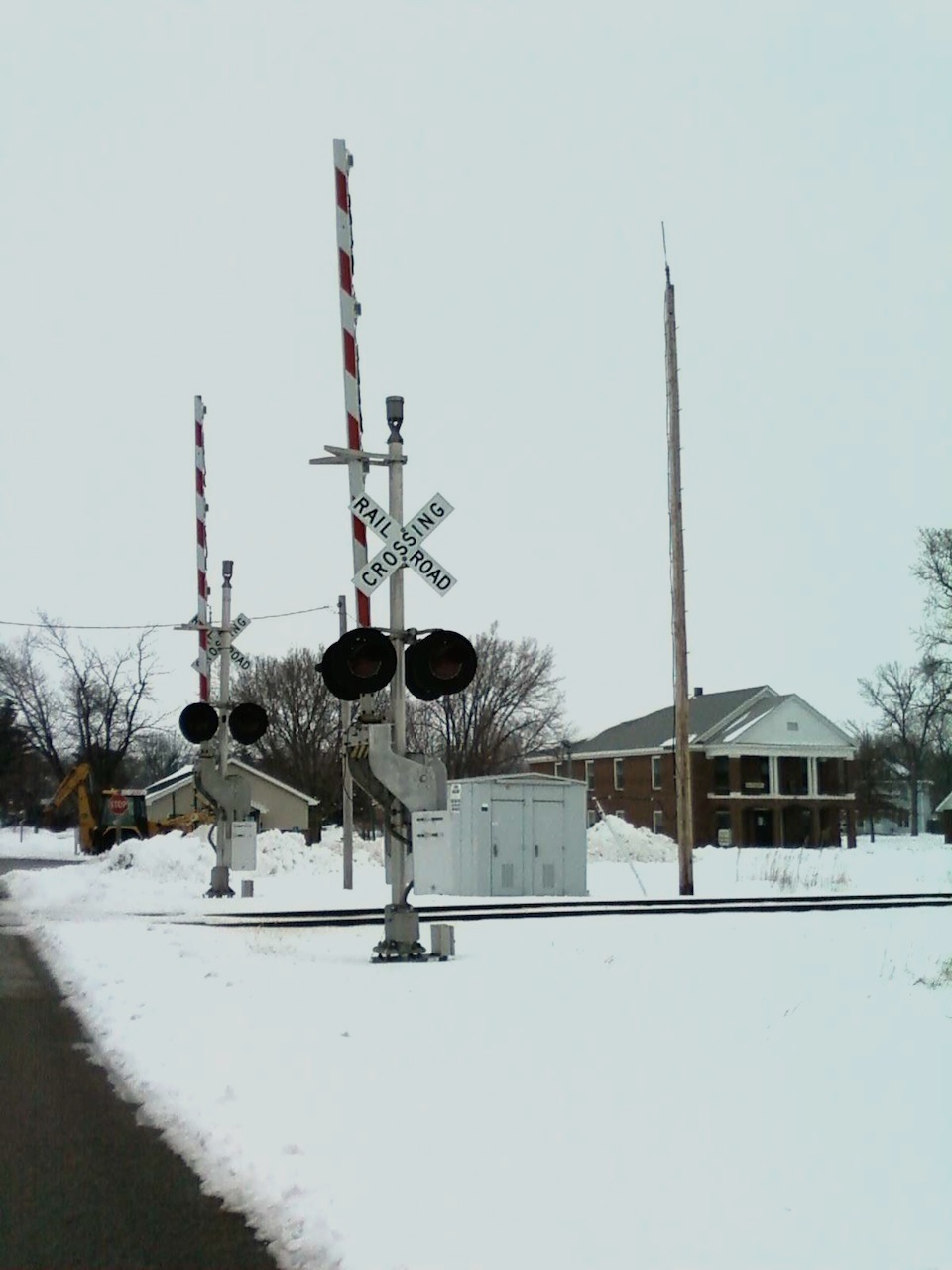

The eastern entrance signal.
19 20

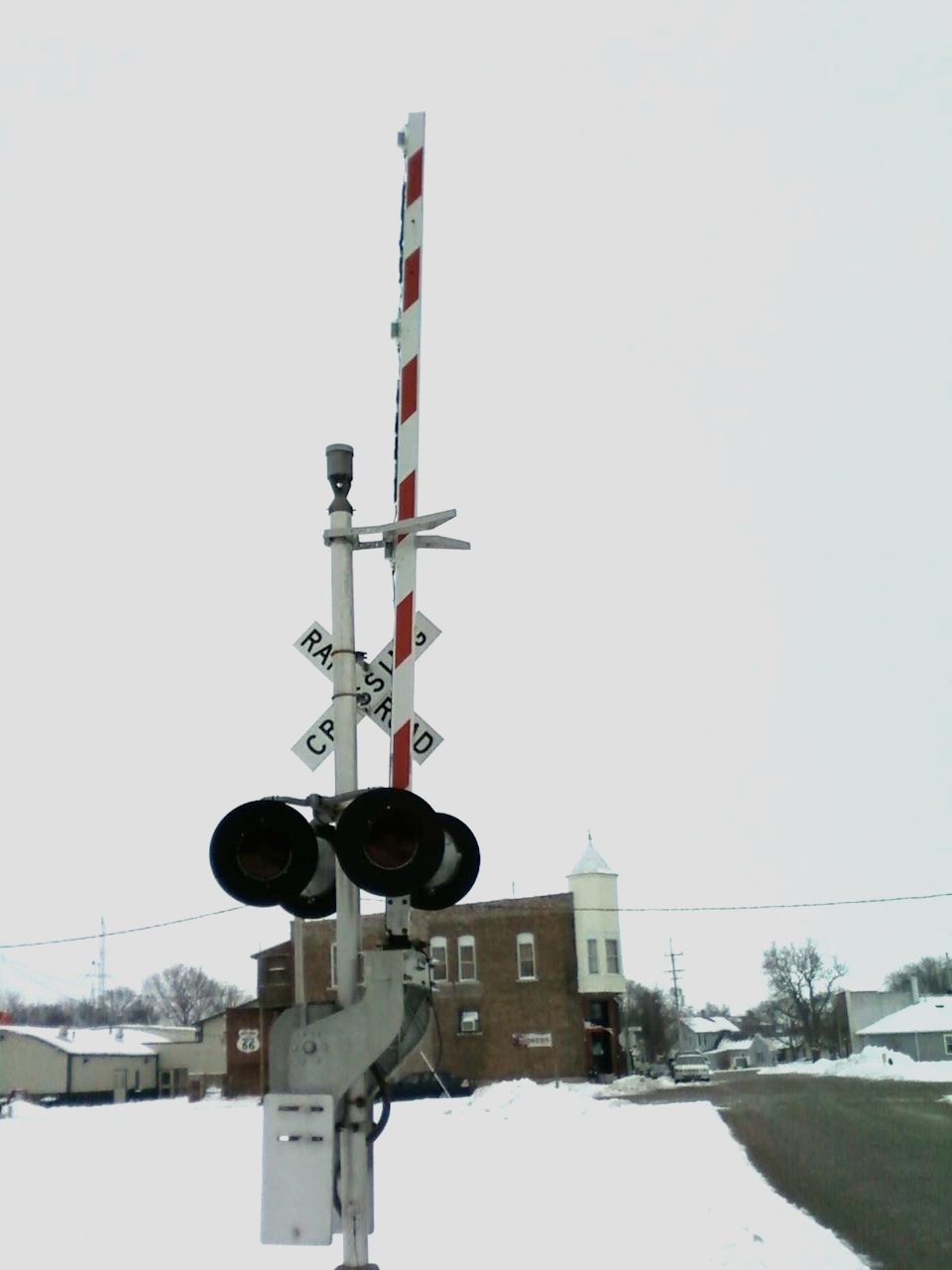

The western exit signal.
21 22 23 24
The relay bungalow in the northwest quadrant.

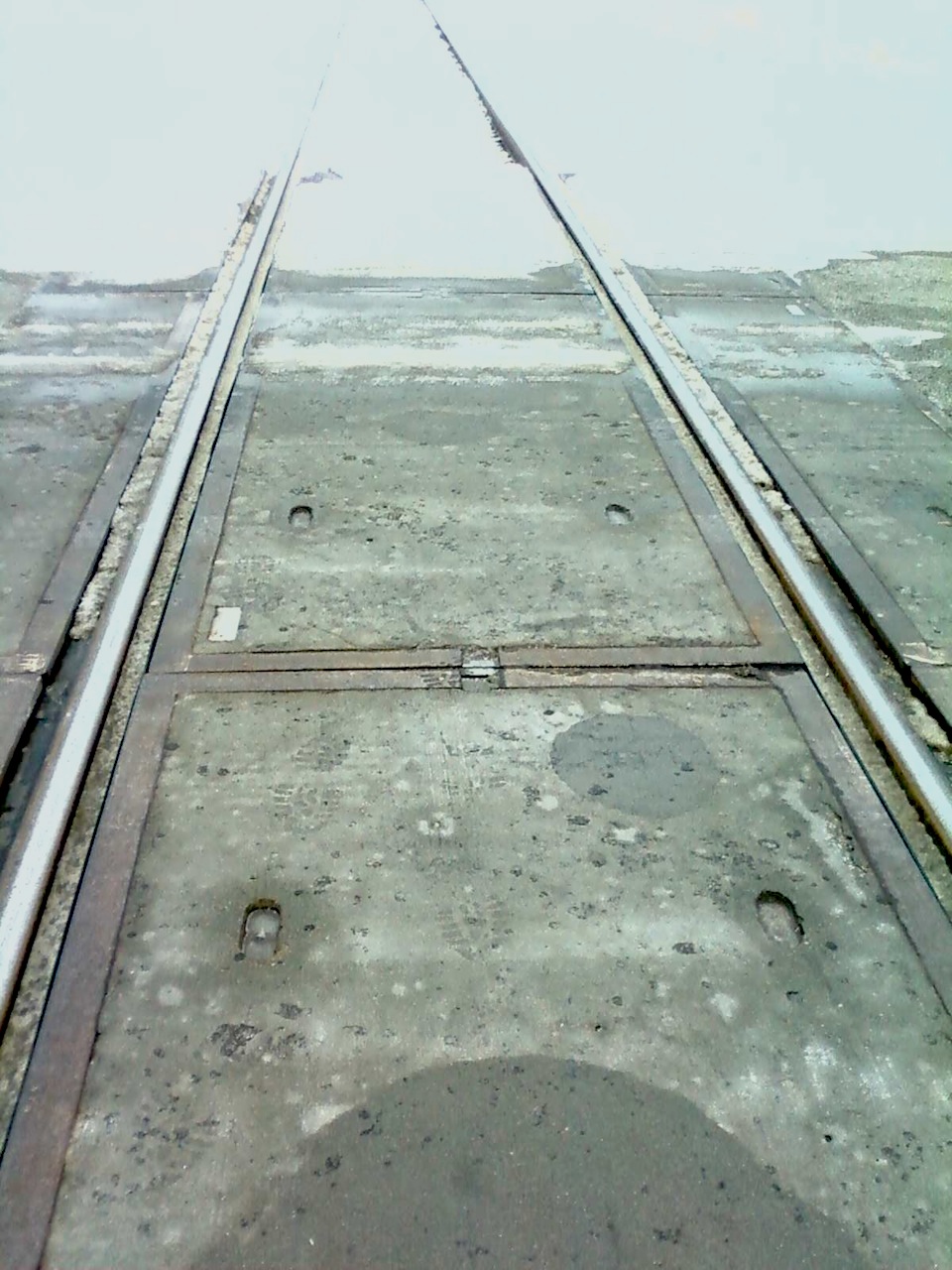

 The grade is all concrete. Track view facing north at Washington St.
 Track view facing south at Jackson St.

In 2012, the gate holders were replaced and the crossing was resurfaced when the track was upgraded to 110 mph standards.

25 26
Overview facing east.
 Overview facing west.
27 28 29
30 31 32
33 34 35

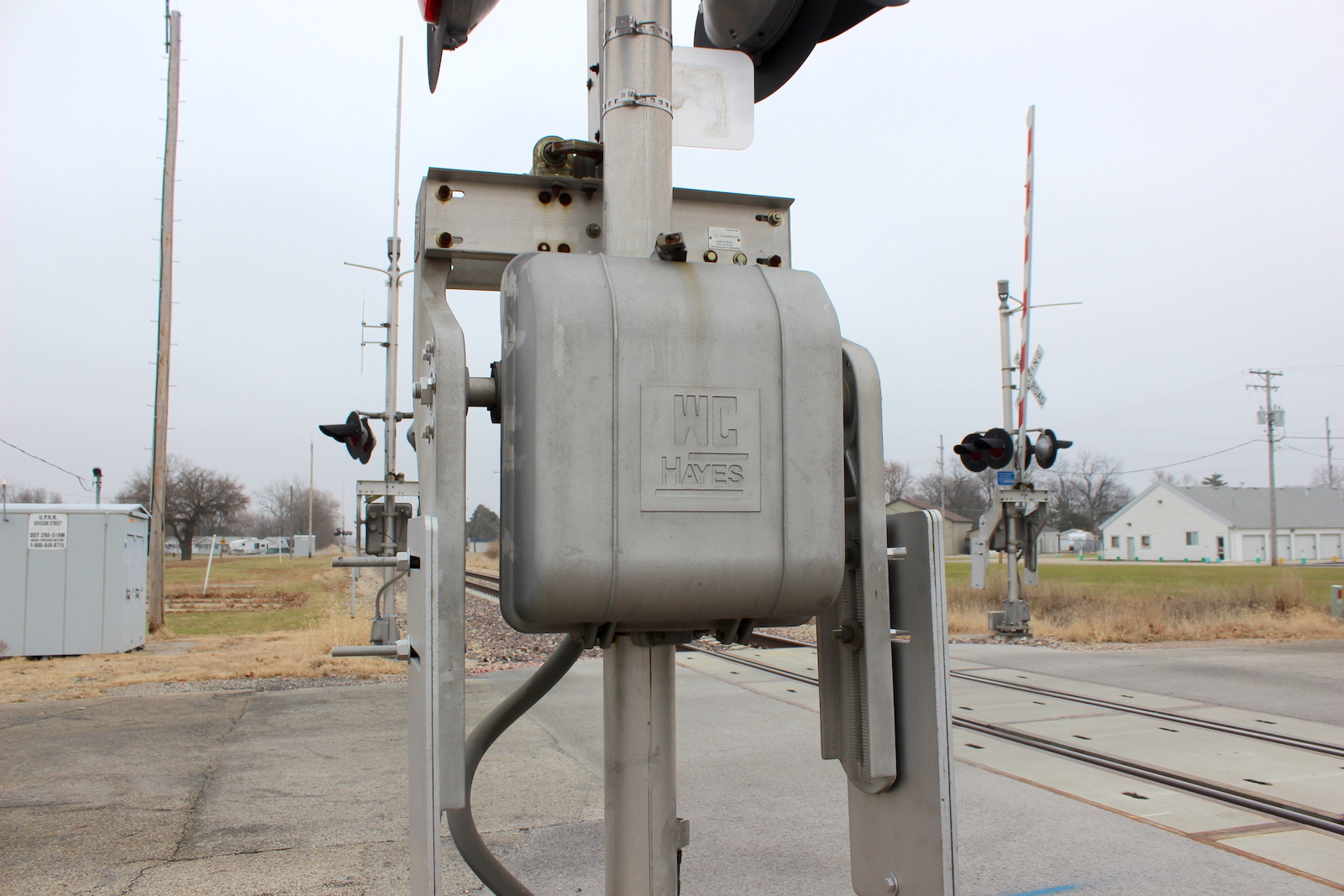

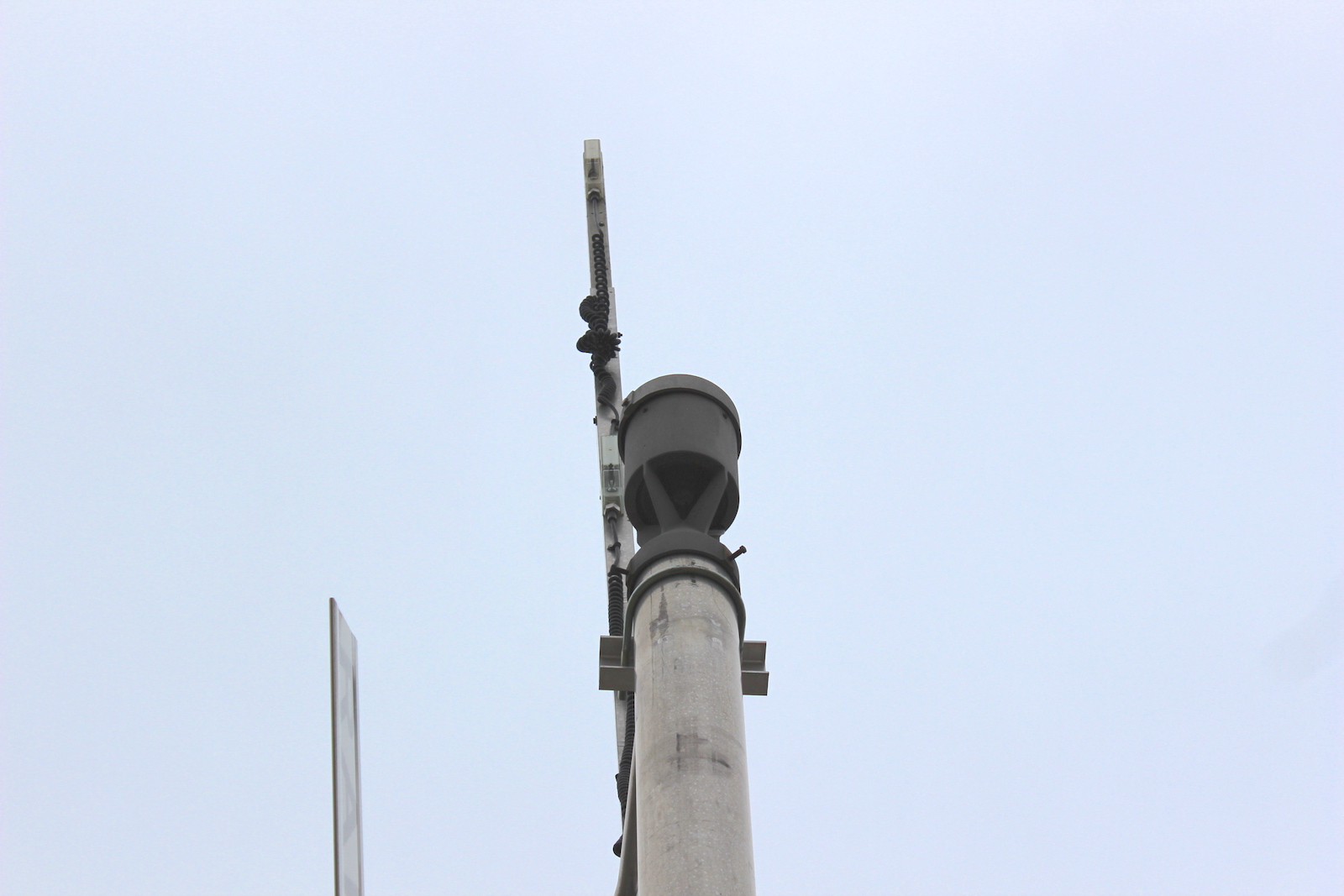

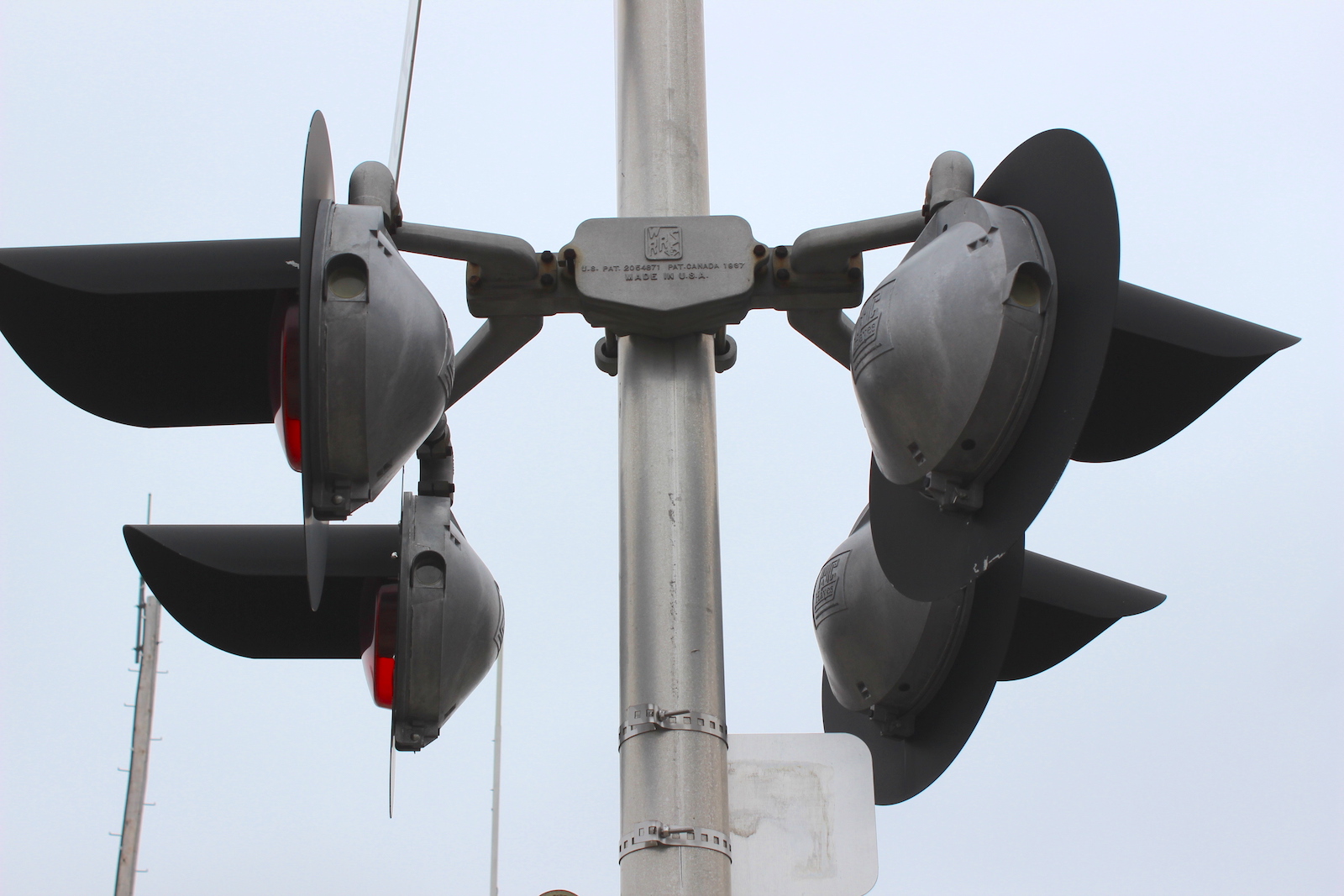

The western entrance signal. All of the main lights on the 4 signals were 1st Gen WCH LEDs at this point.
36 37 38
39 40 41
42 43 44

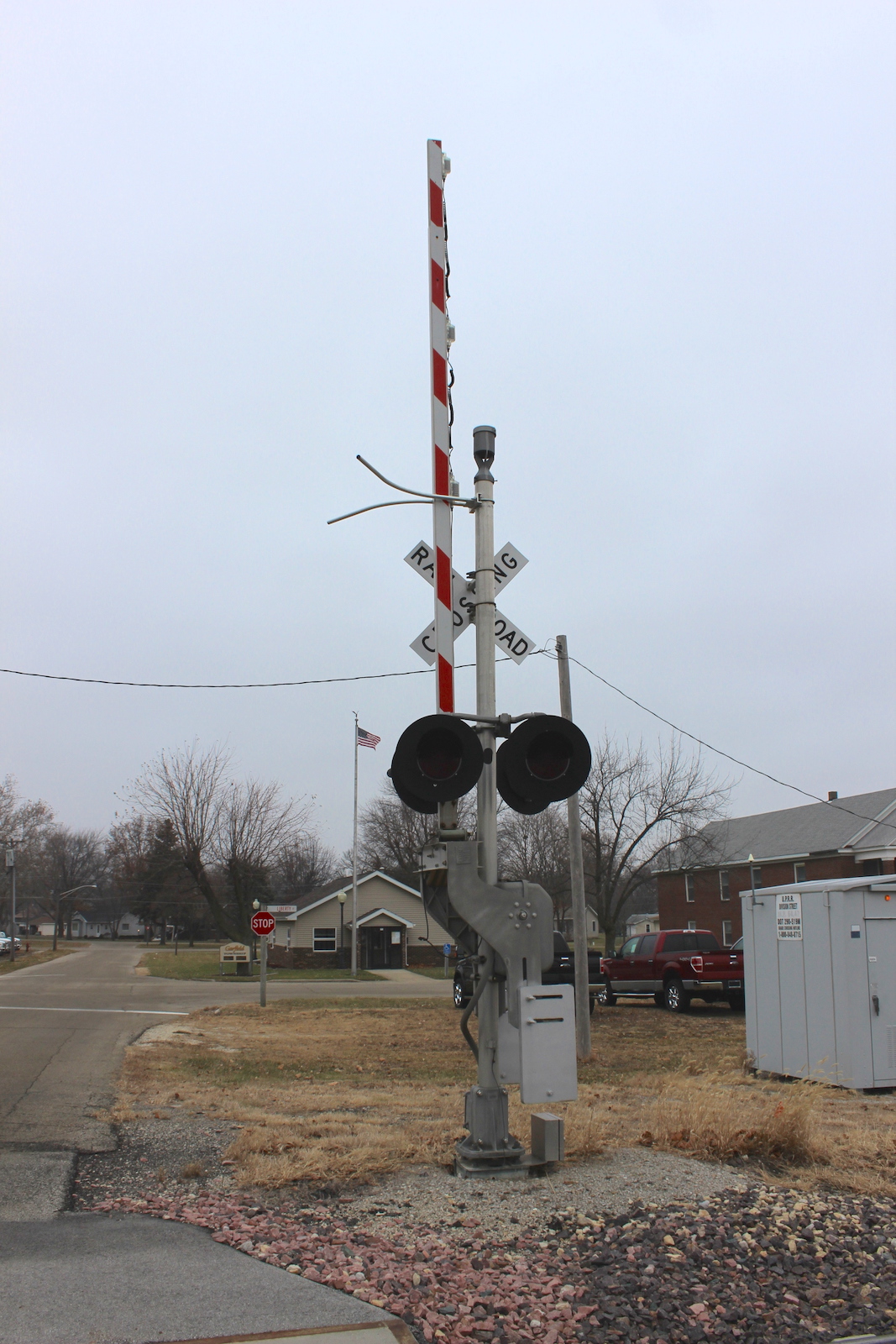

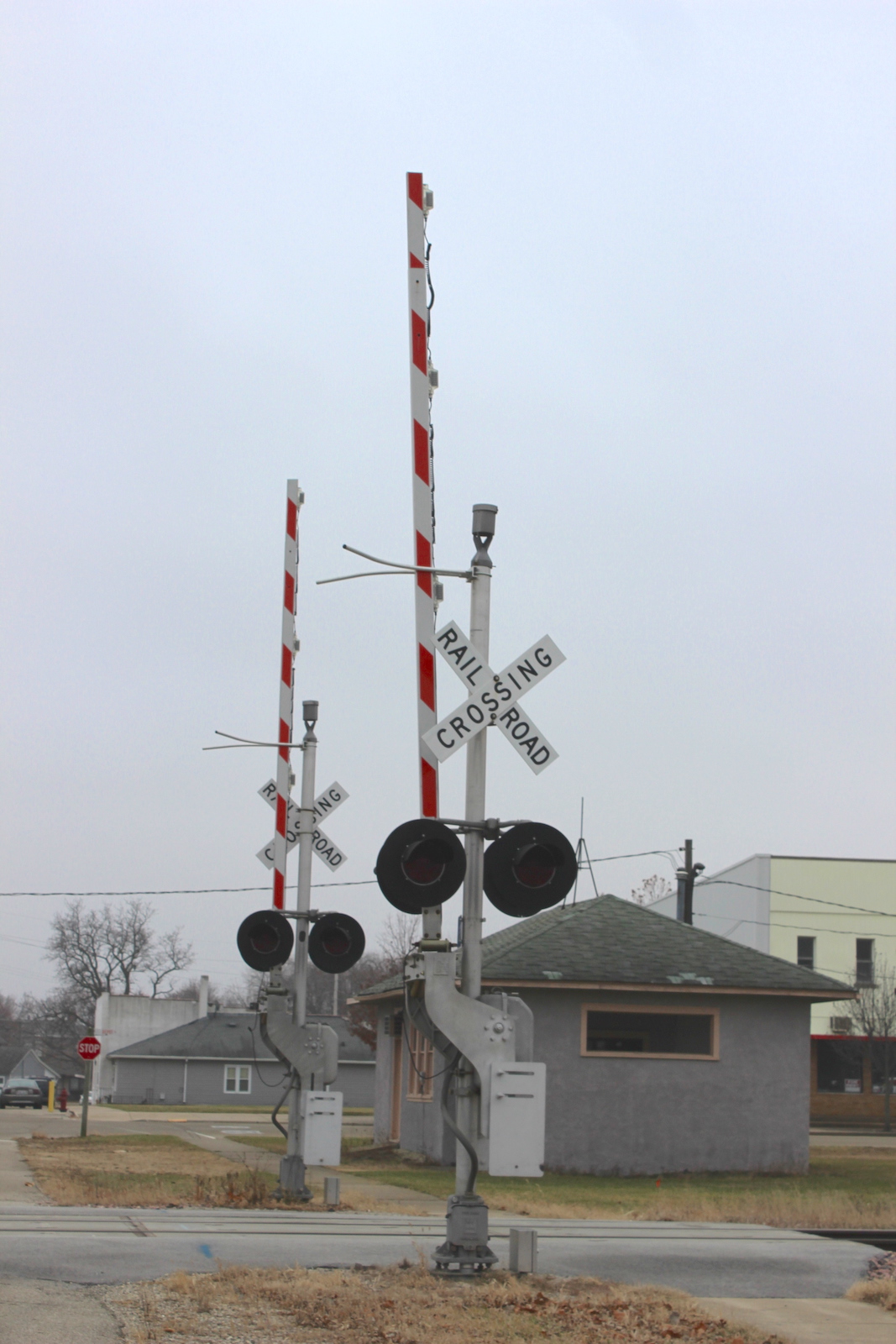

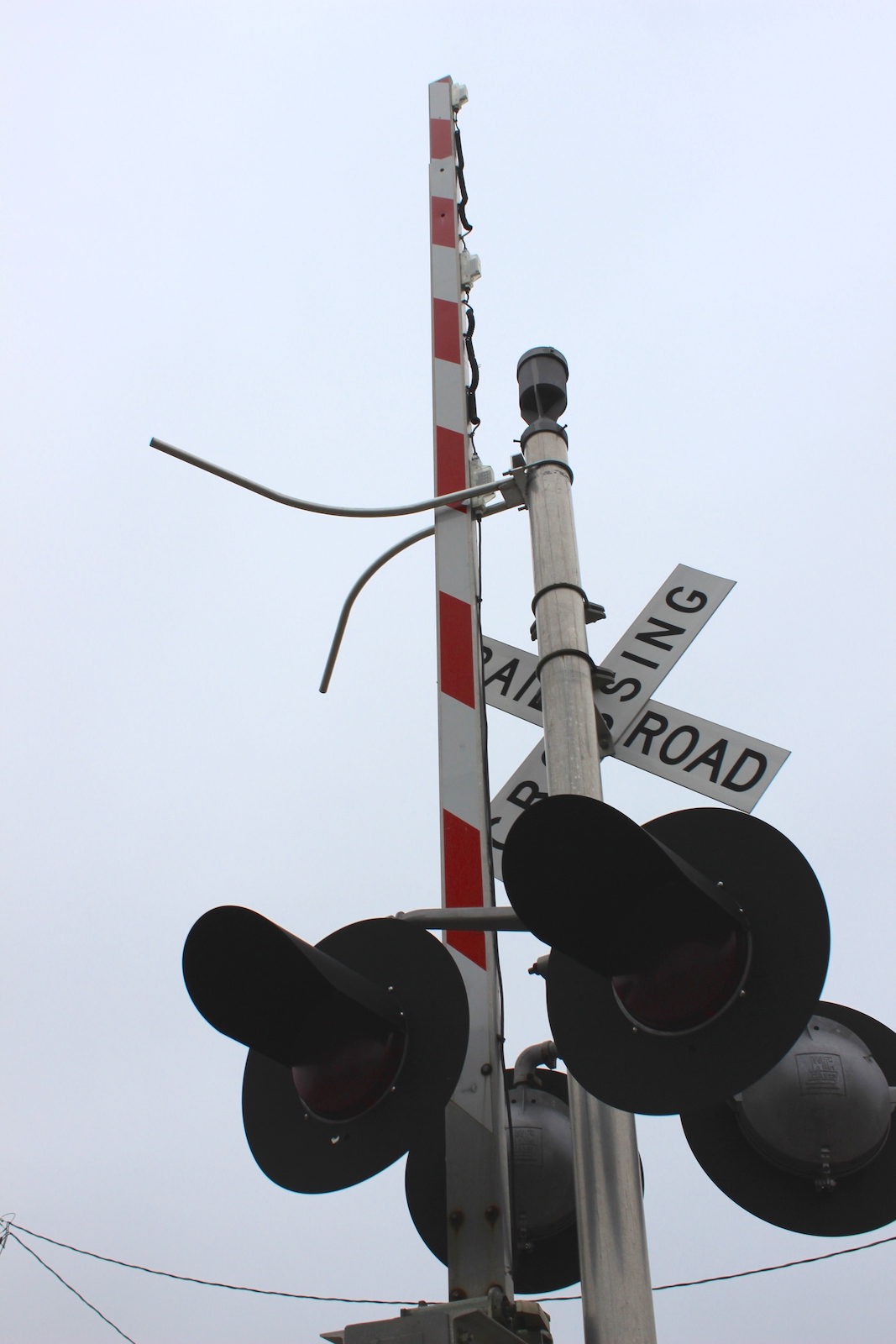

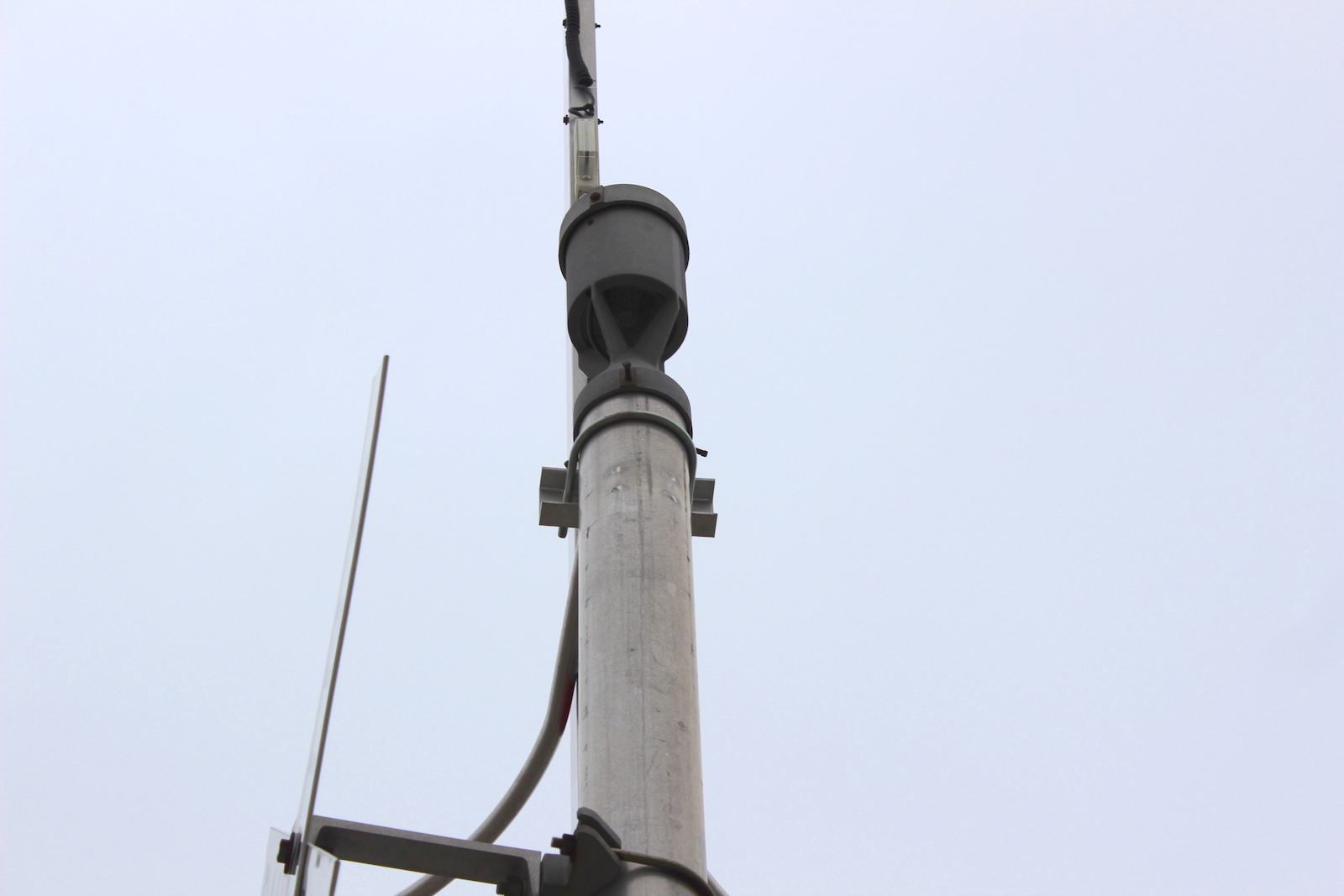

The western exit signal.
45 46 47
48 49 50
51 52 53

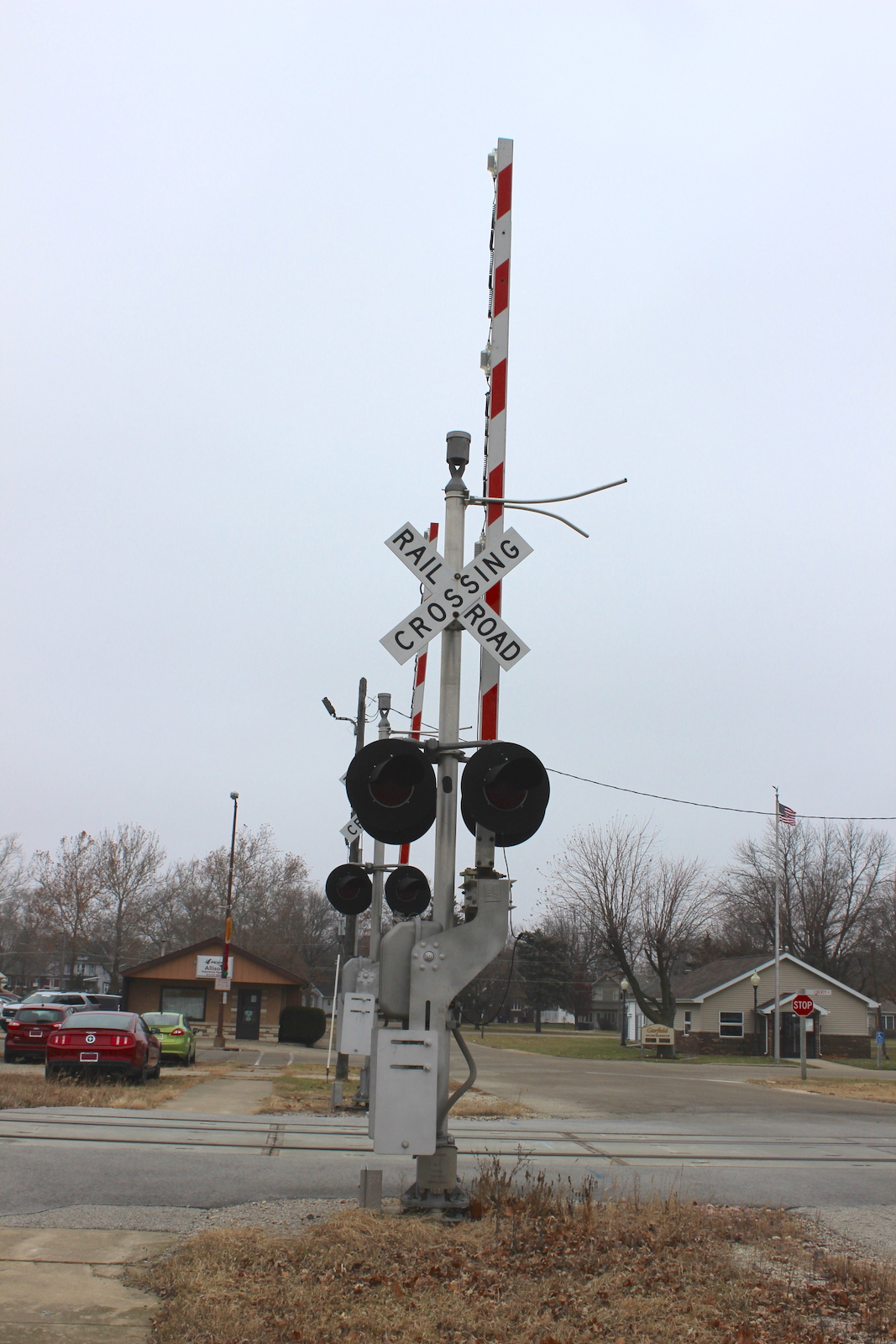

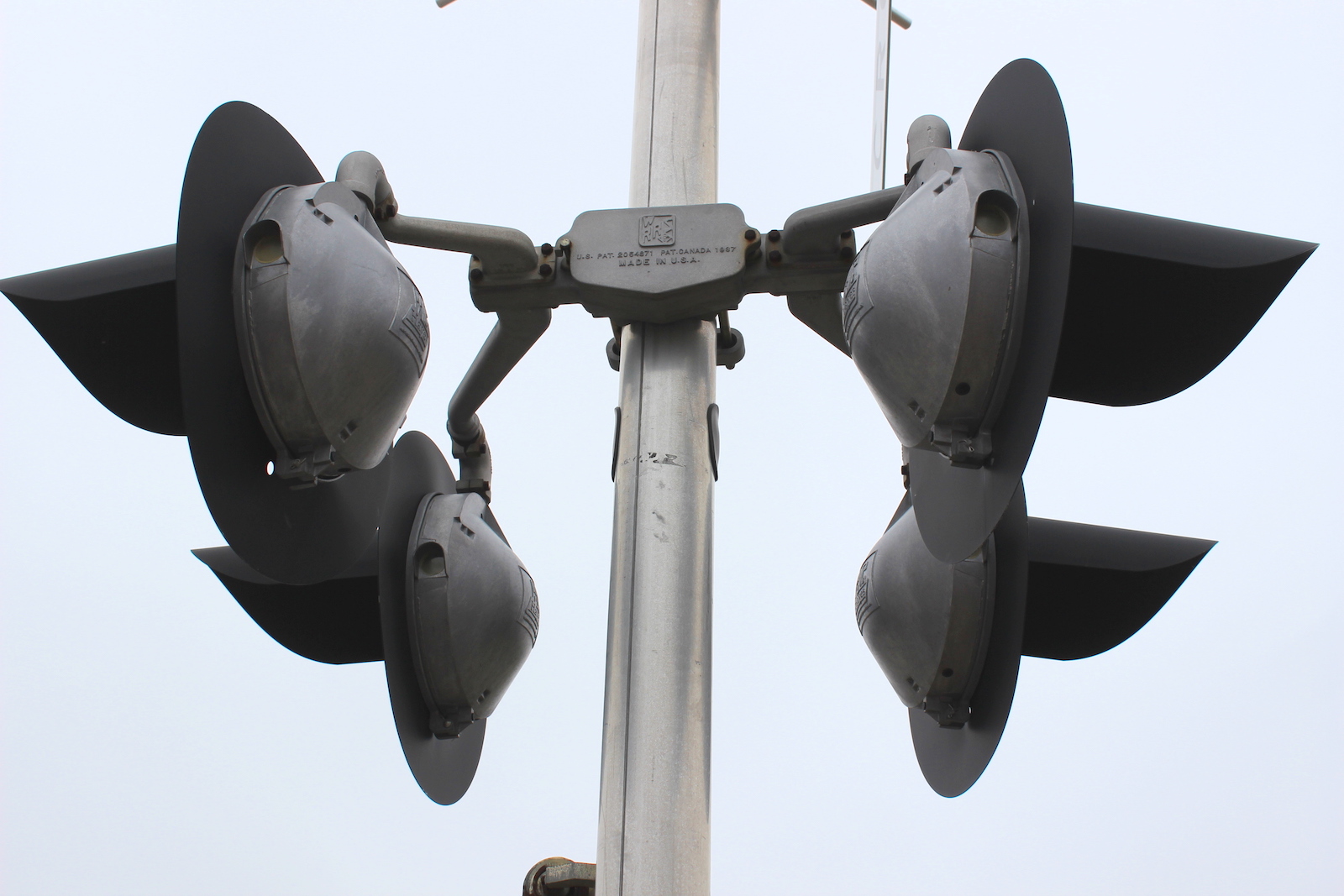

The eastern entrance signal.
54 55 56 57
58 59 60 61

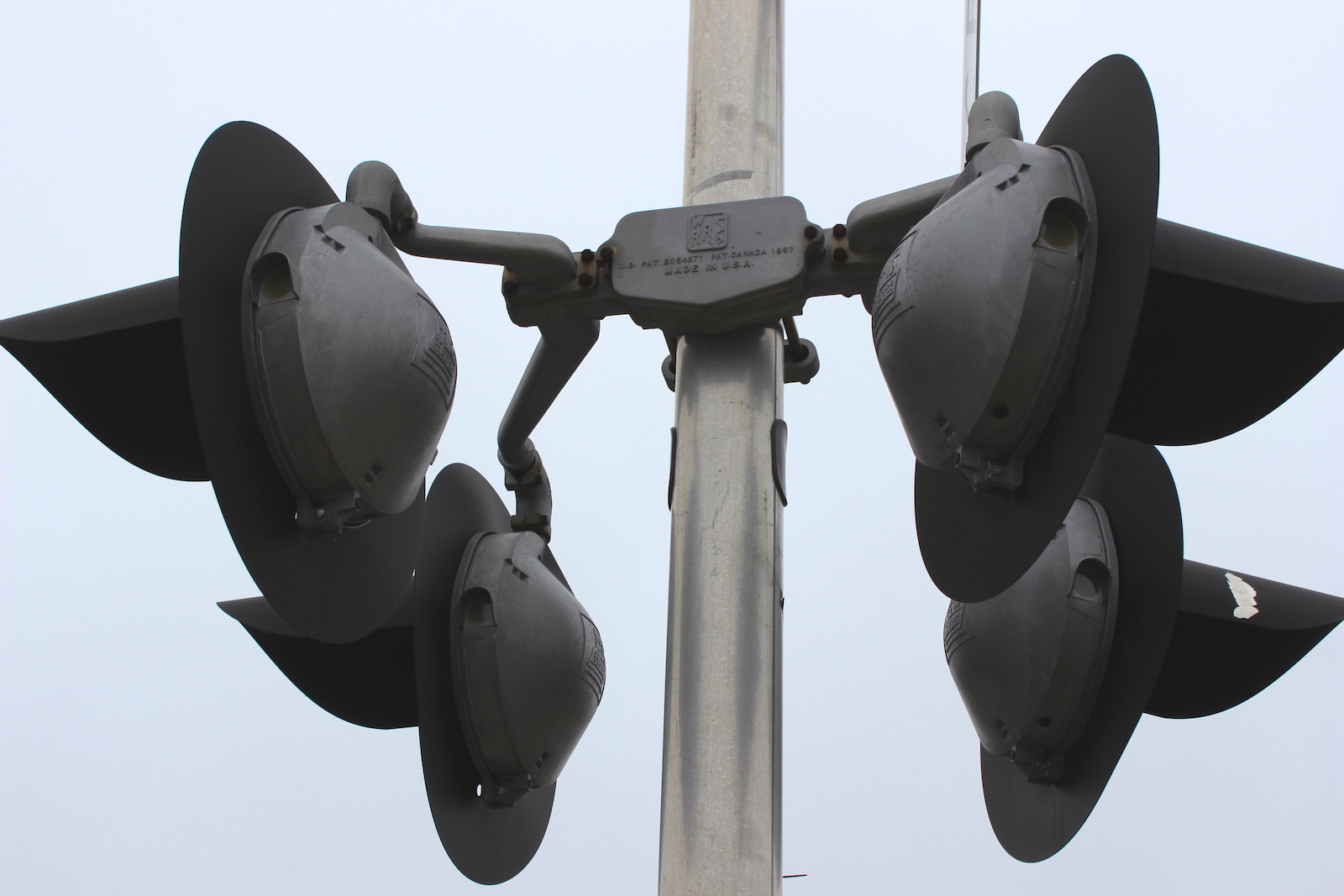

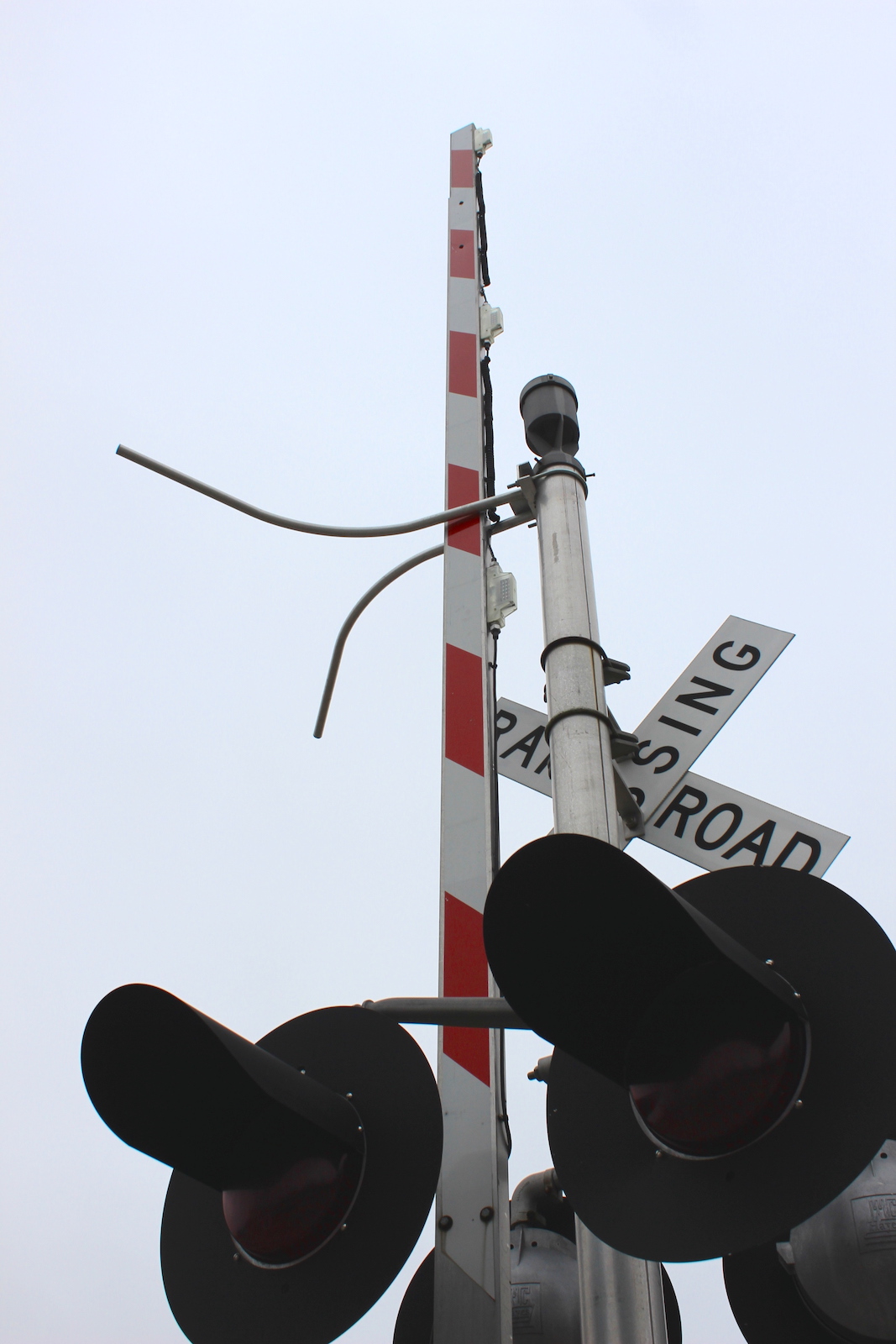

The eastern exit signal.
62 63 64 65
The relay bungalow in the northwest quadrant.

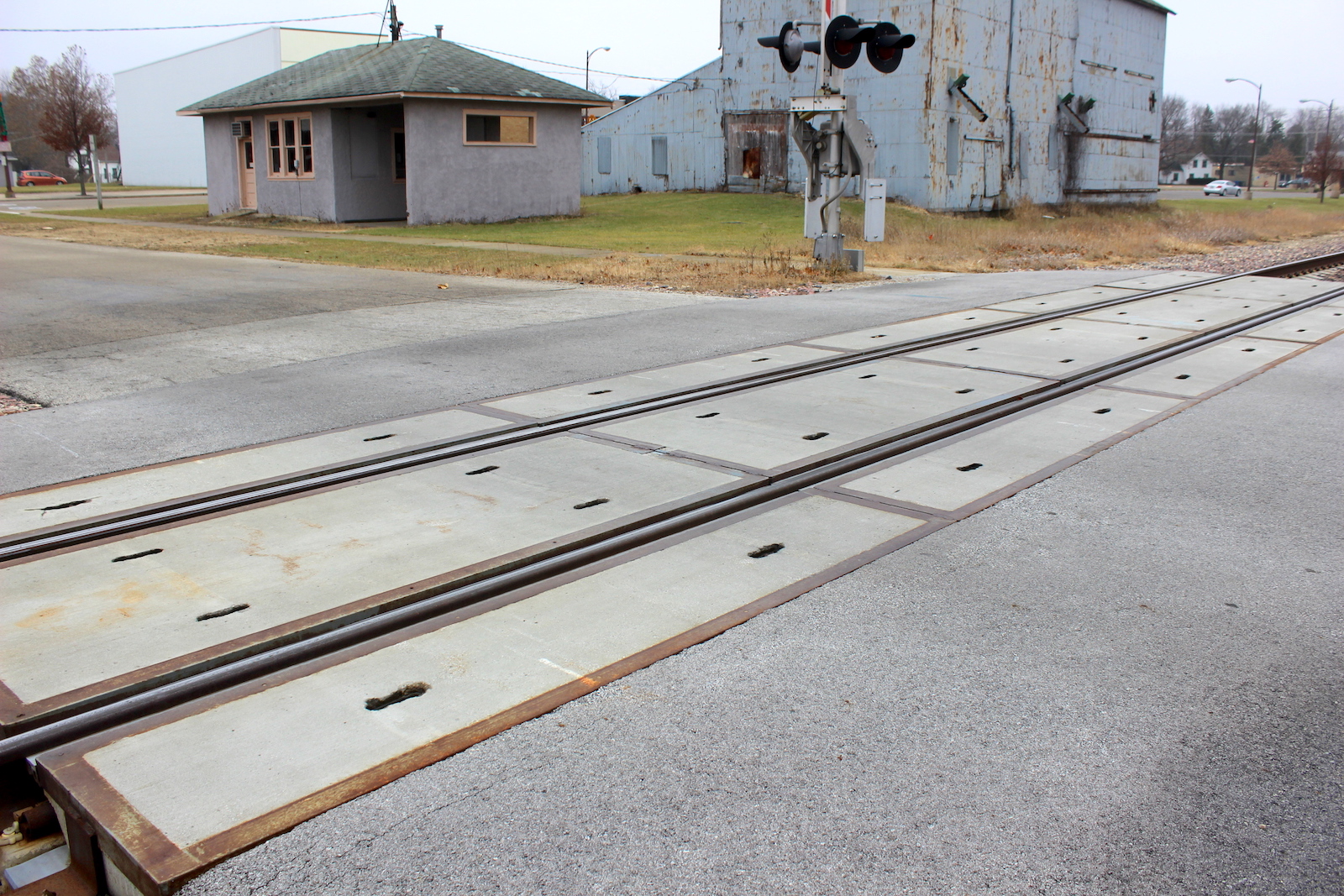

 The newer concrete grade.
 Track view facing north at Washington St.
 Track view facing south at Jackson St.
66 67 68
69 70 71 72

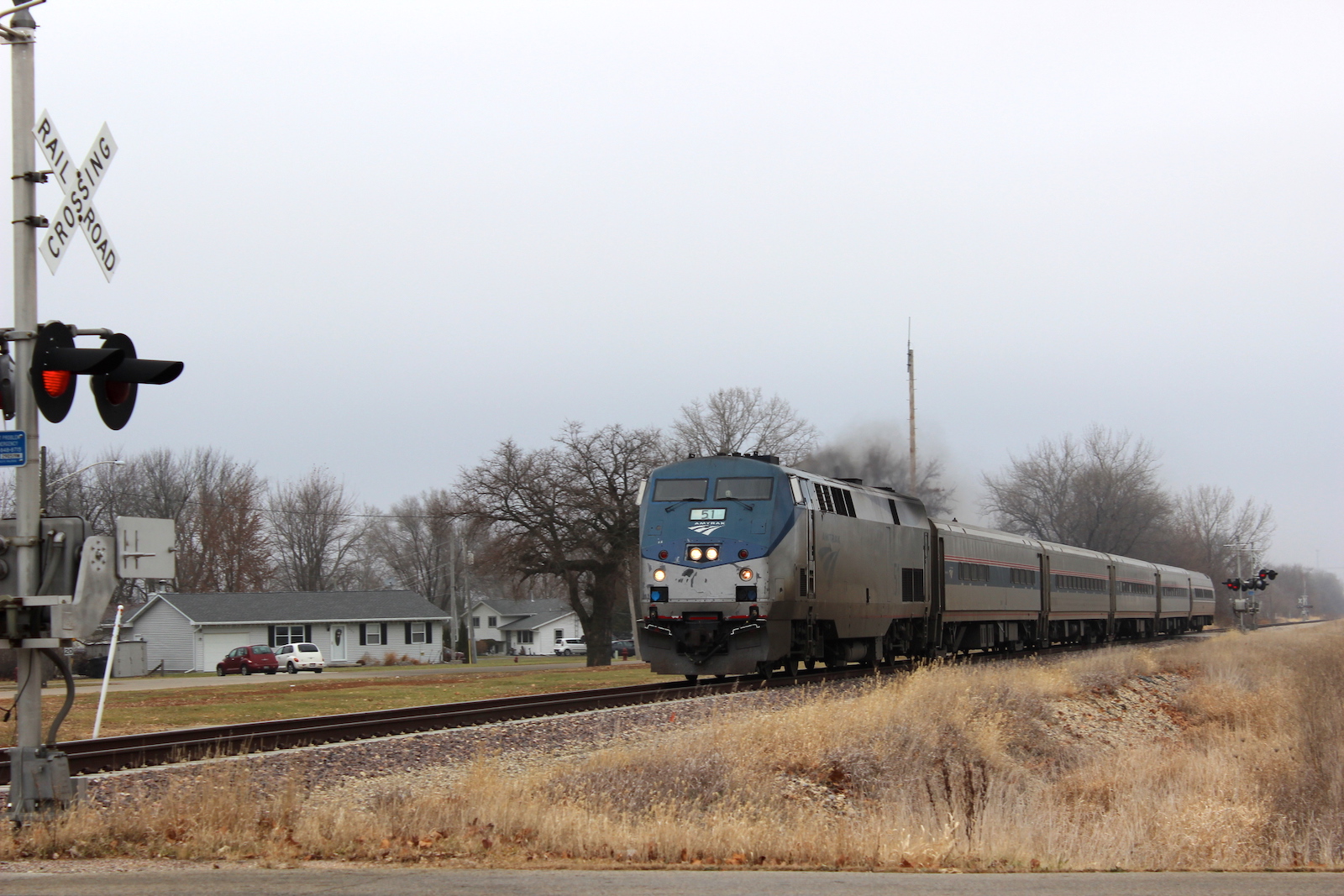

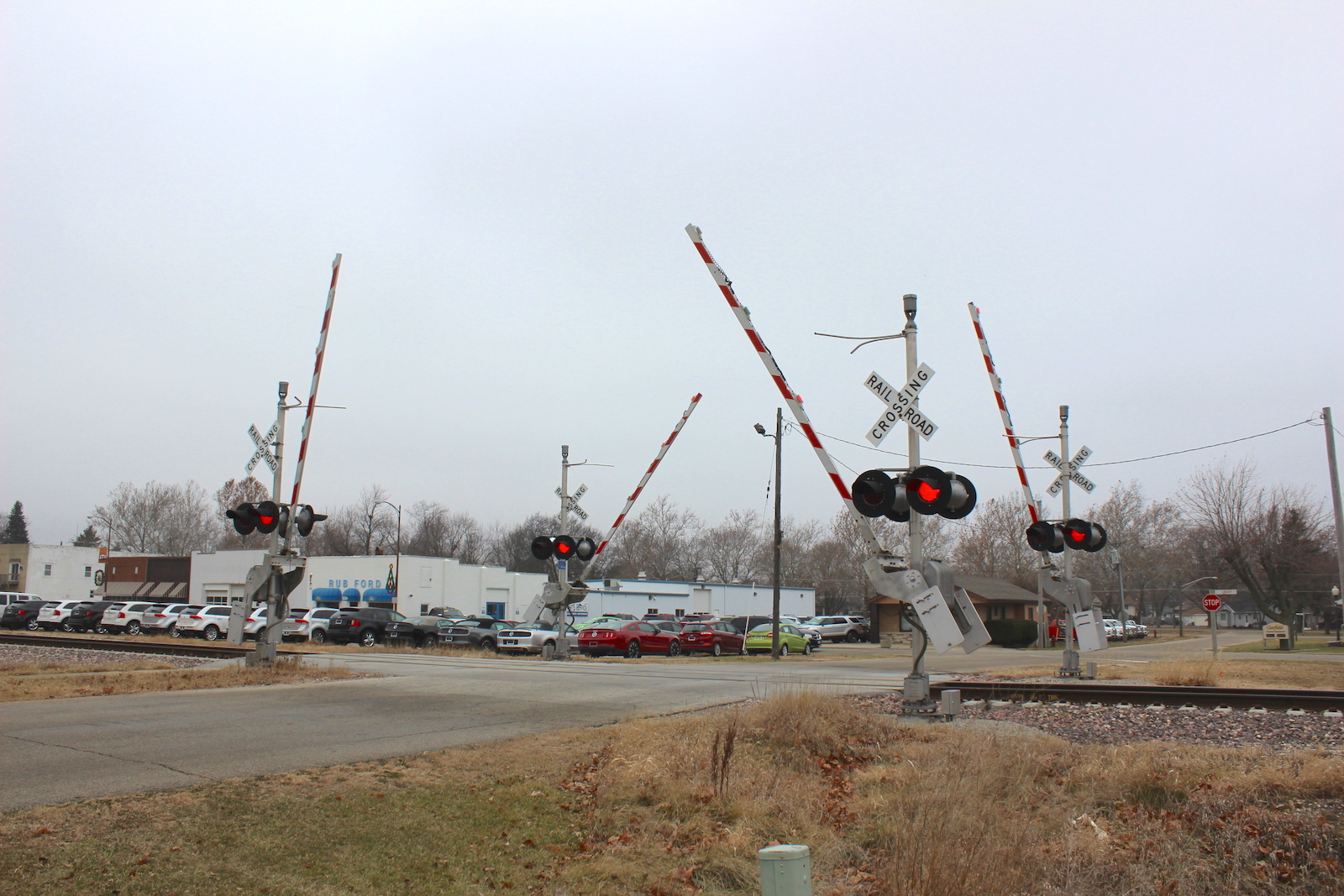

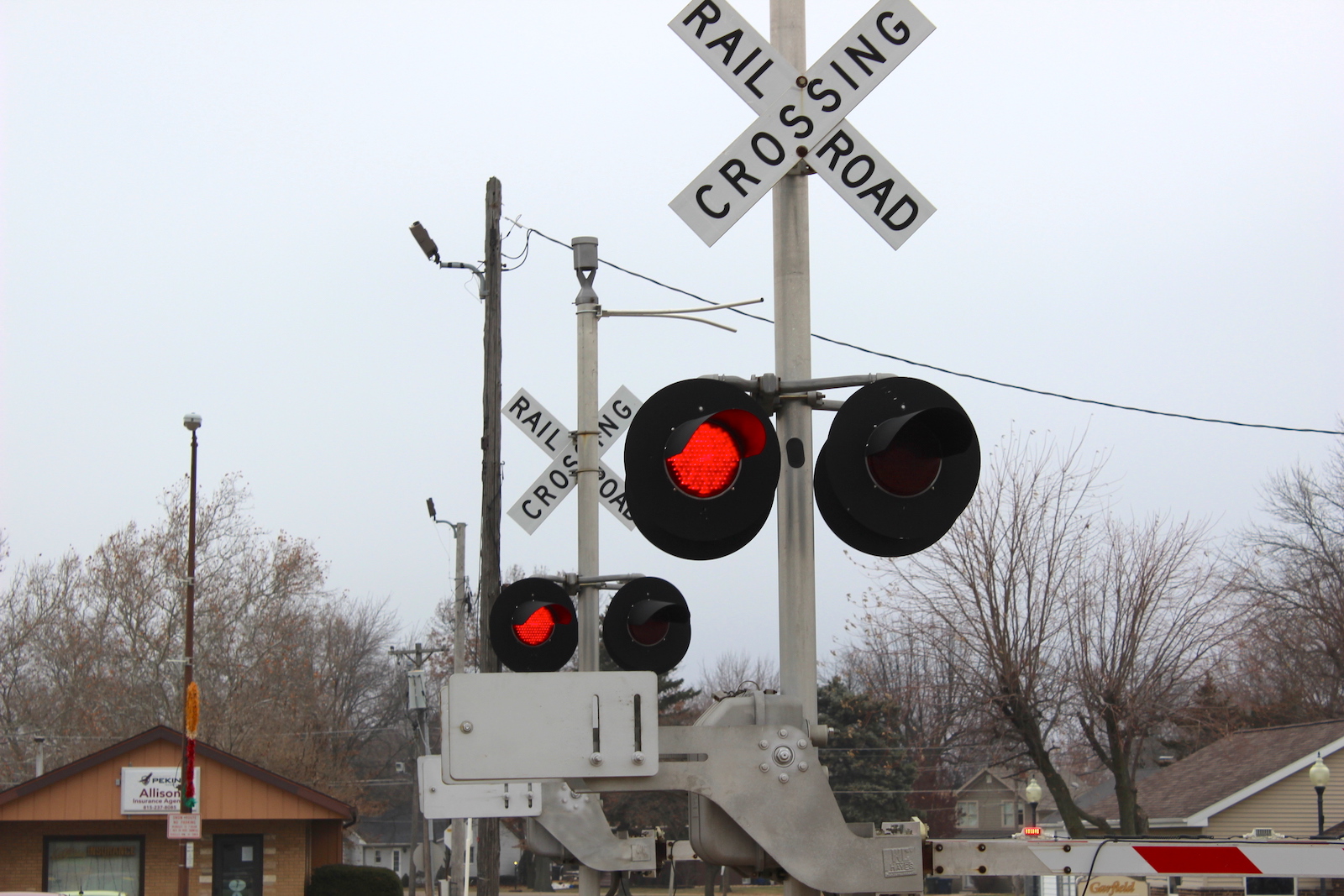

Action shots from southbound Amtrak #303.

In mid 2017, pedestrian gates were added to the crossing.  There have been no changes to the main signals.

73 74
Overview of the updated setup facing east.
 Overview facing west.
75 76 77 78

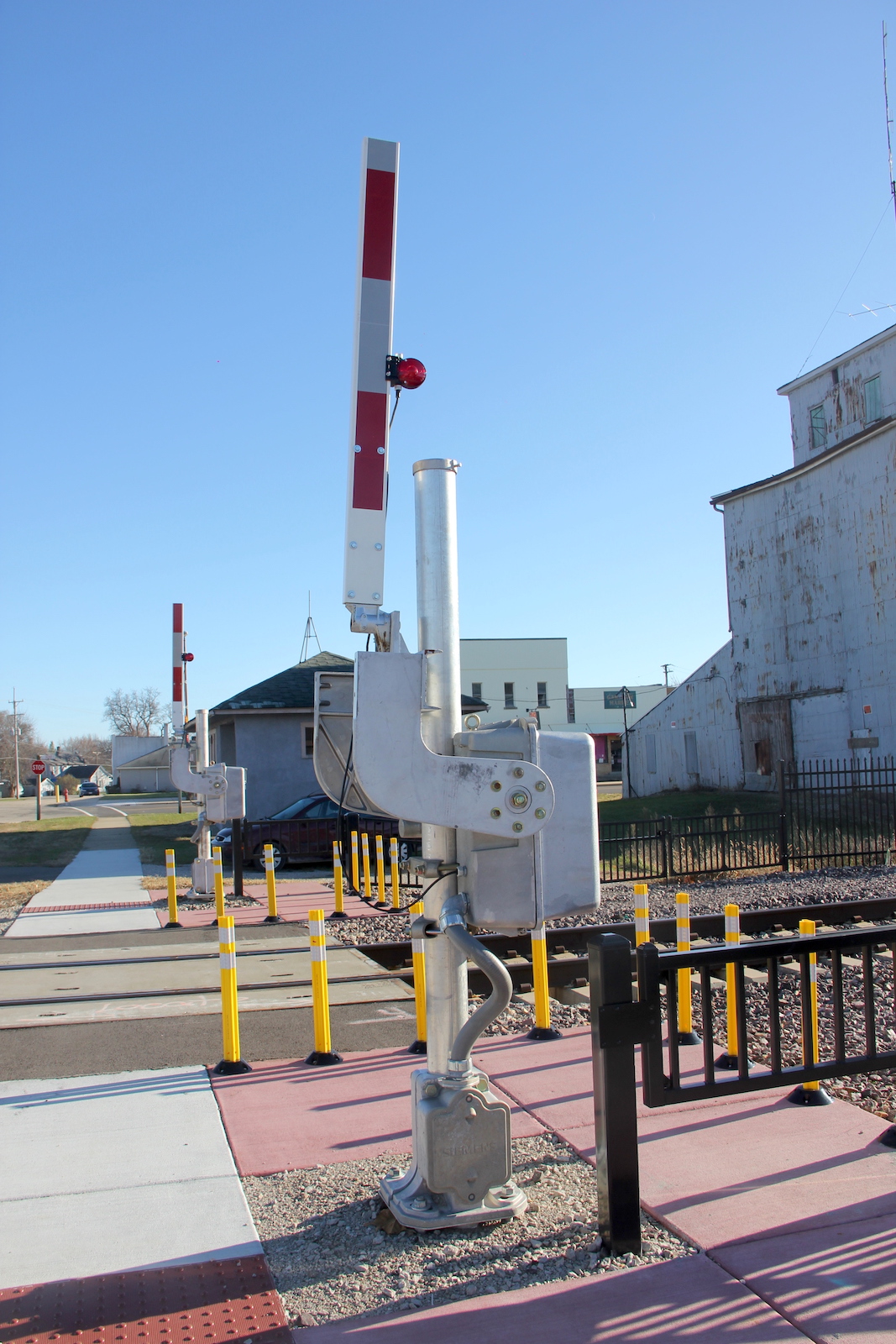

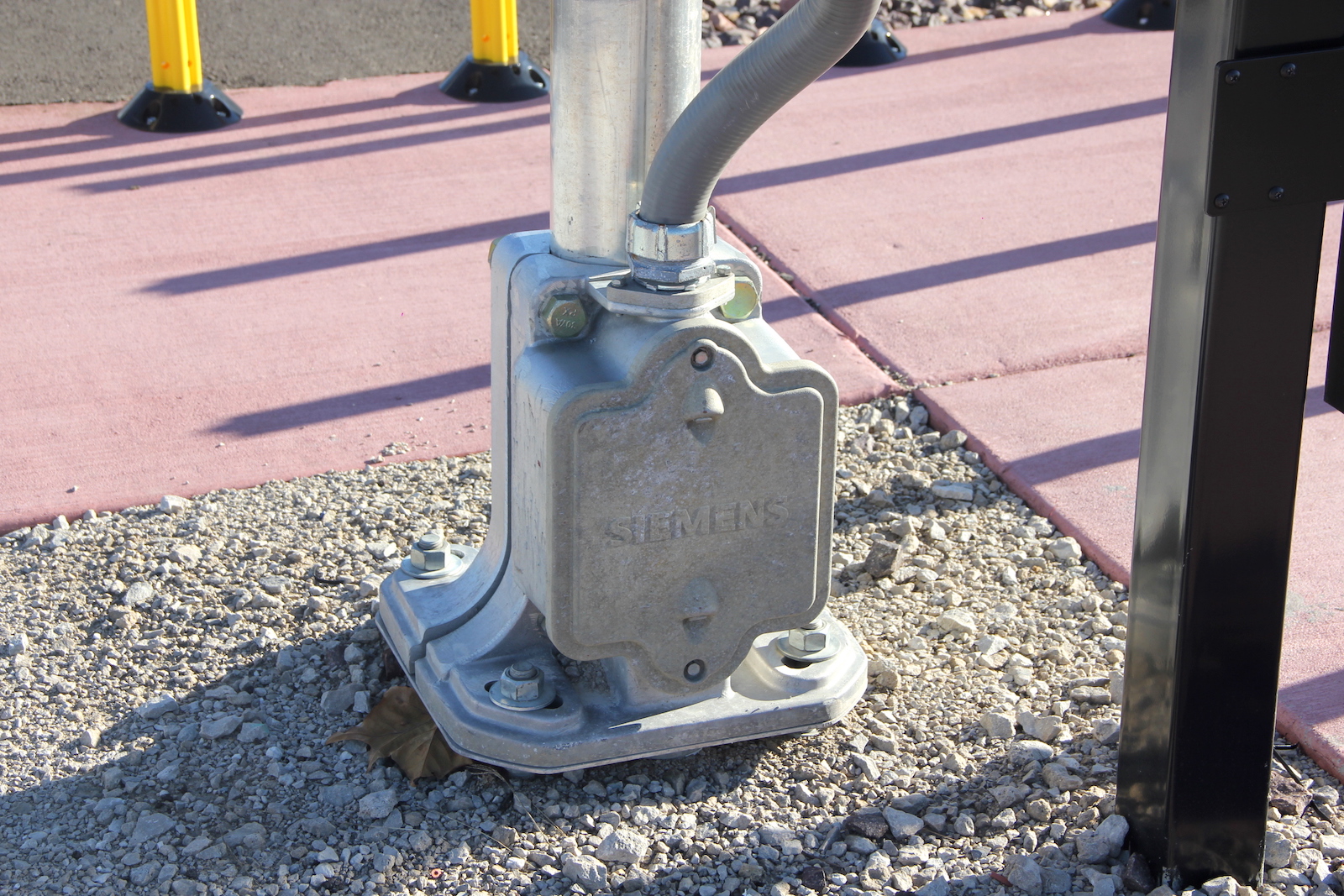

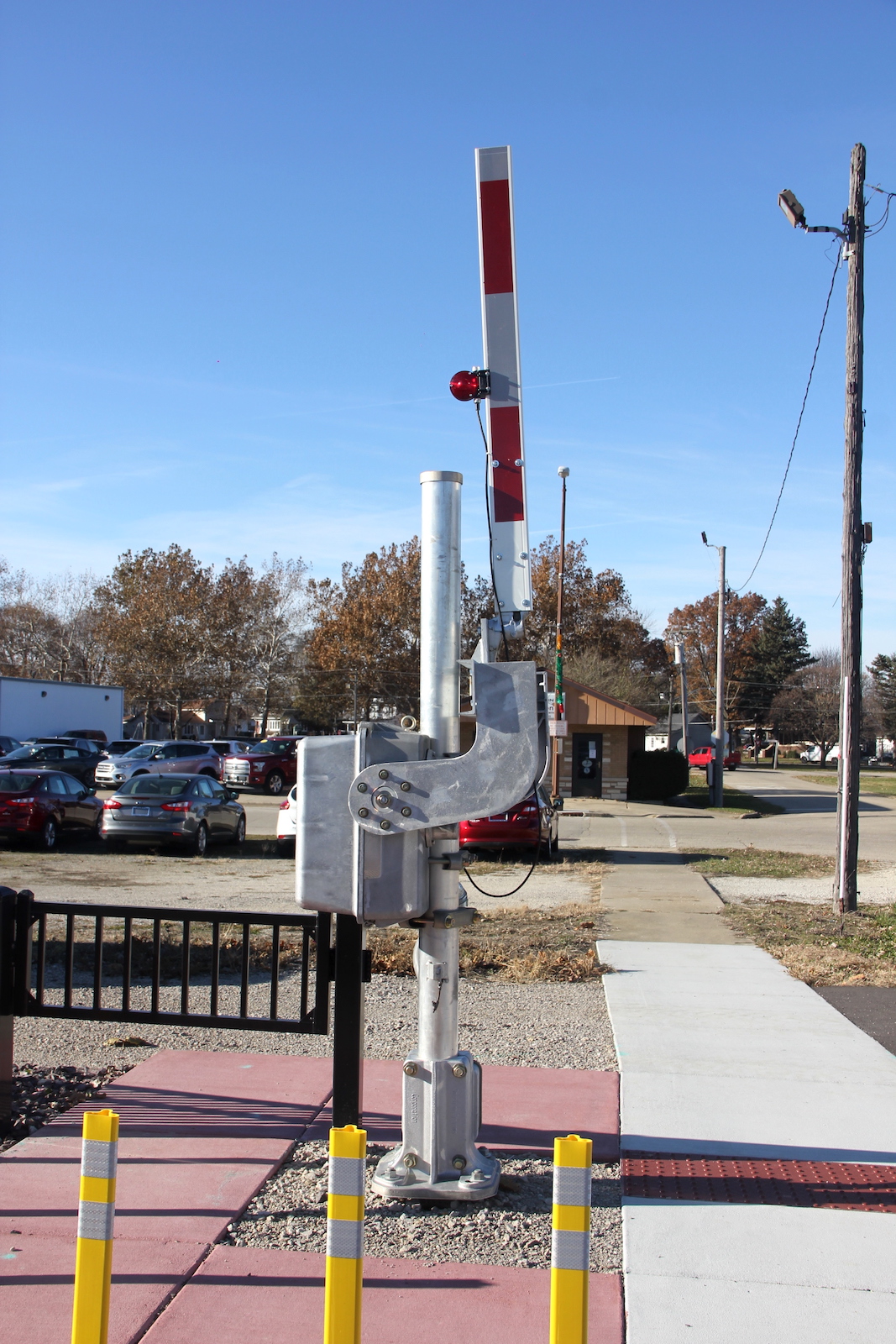

The new western pedestrain gate.
79 80 81 82

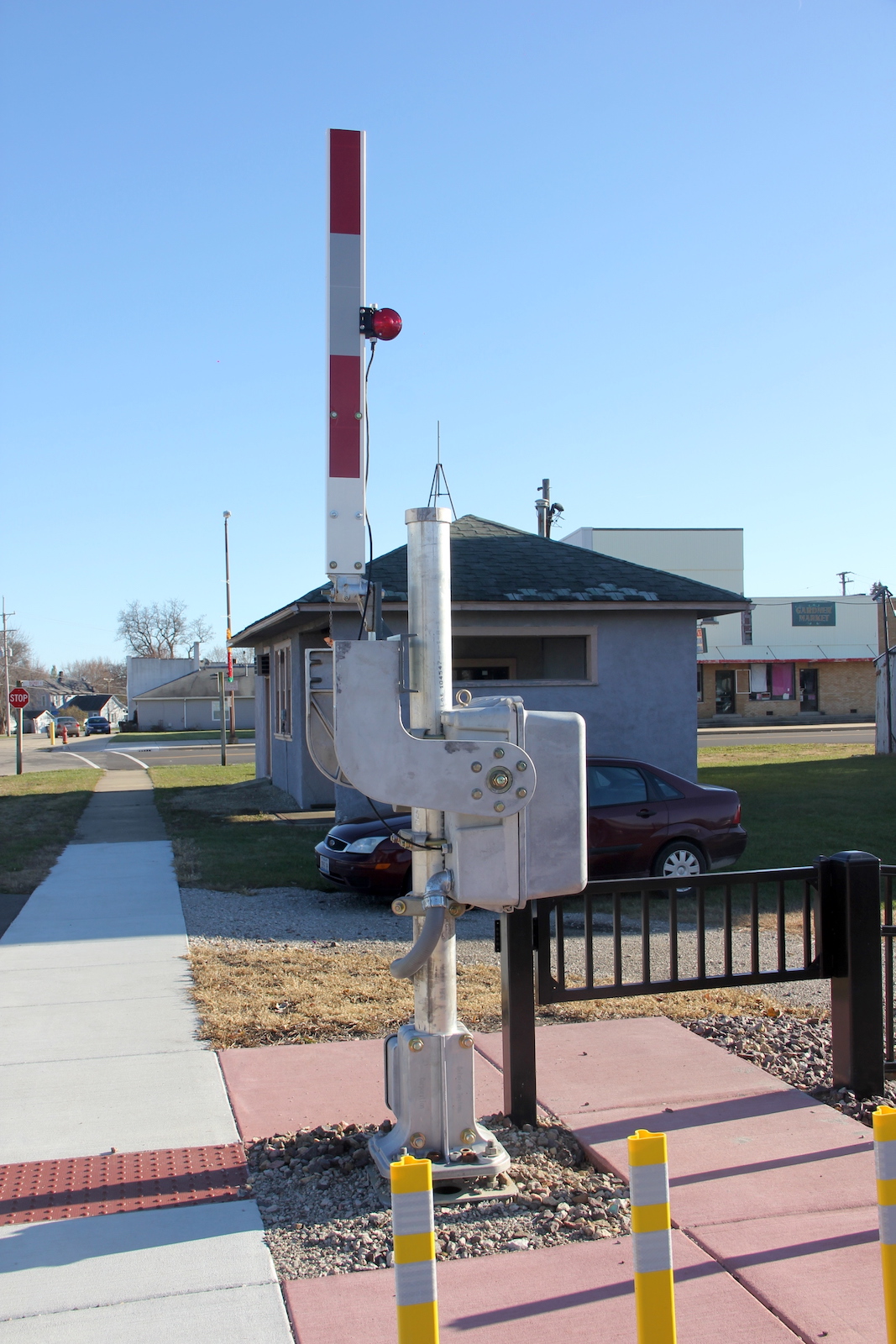

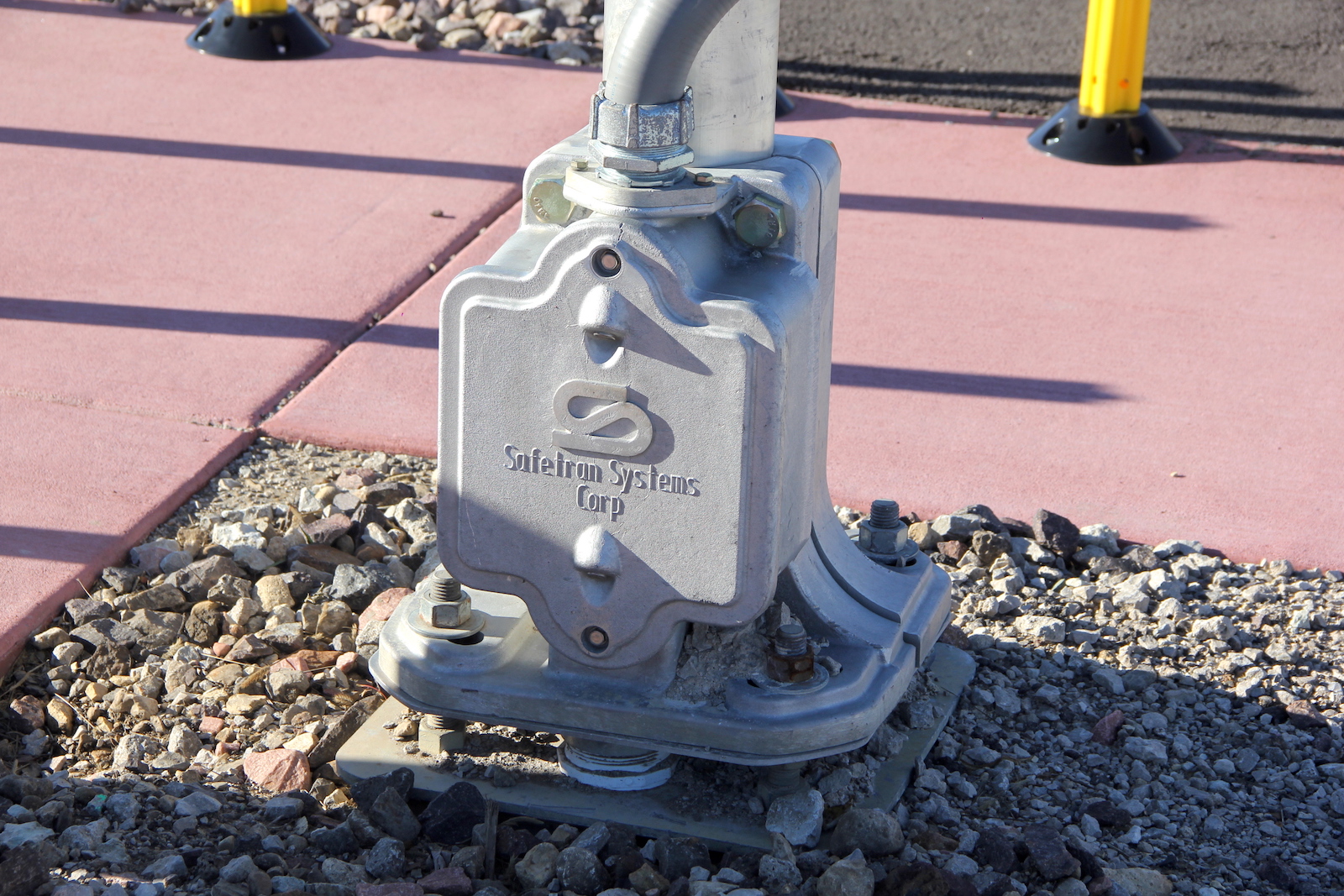

The new eastern pedestrian gate.
83 84
85 86 87 88

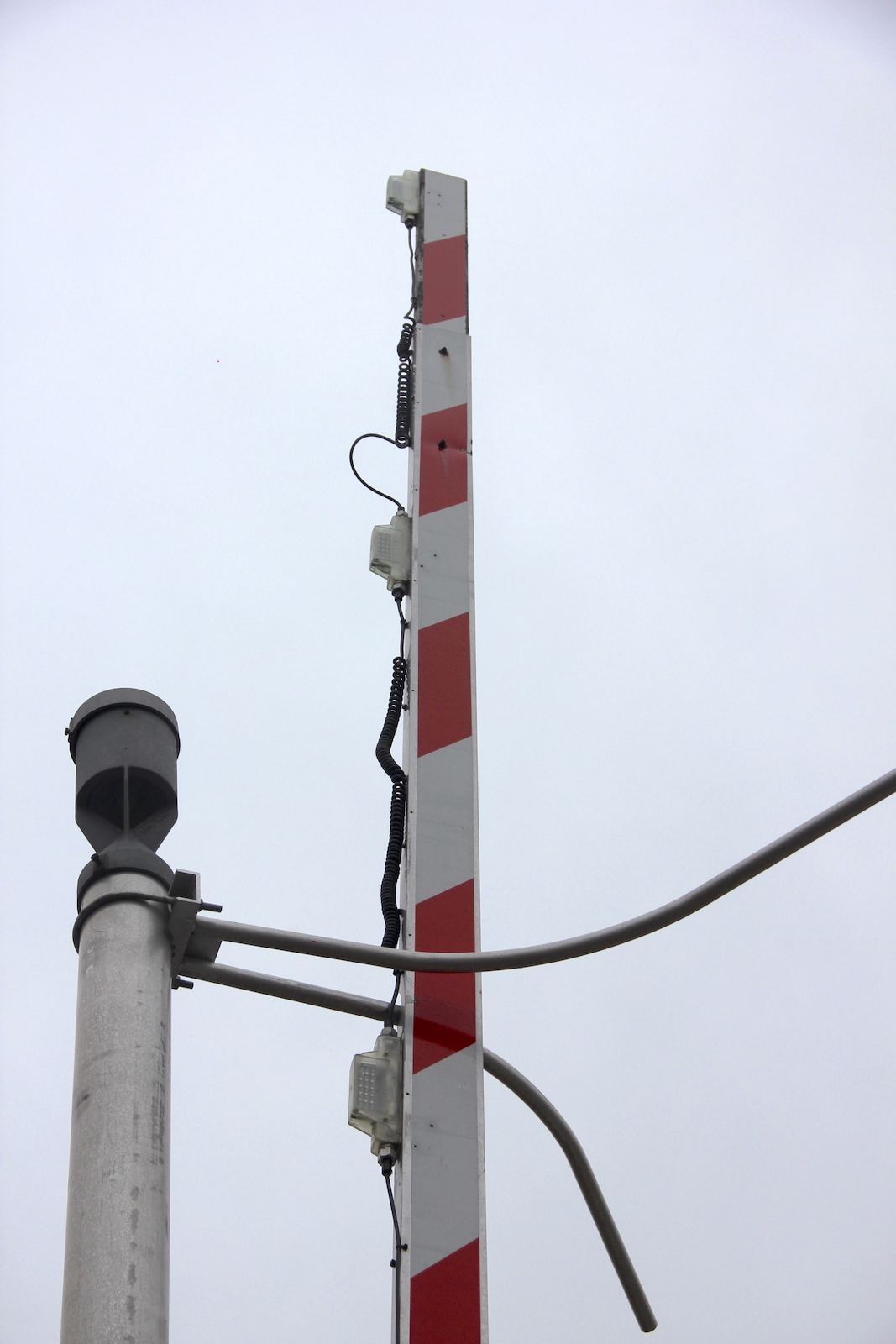

Update from December 2019 of all the gates.  In 2014, there were 2 NEG Clear LEDs, and now there are 7, with 5 Alstom Aurora LEDs remaining.
89 90
91 92 93
94 95 96
97 98
99 100 101
102 103
104 105 106
107 108
109 110 111

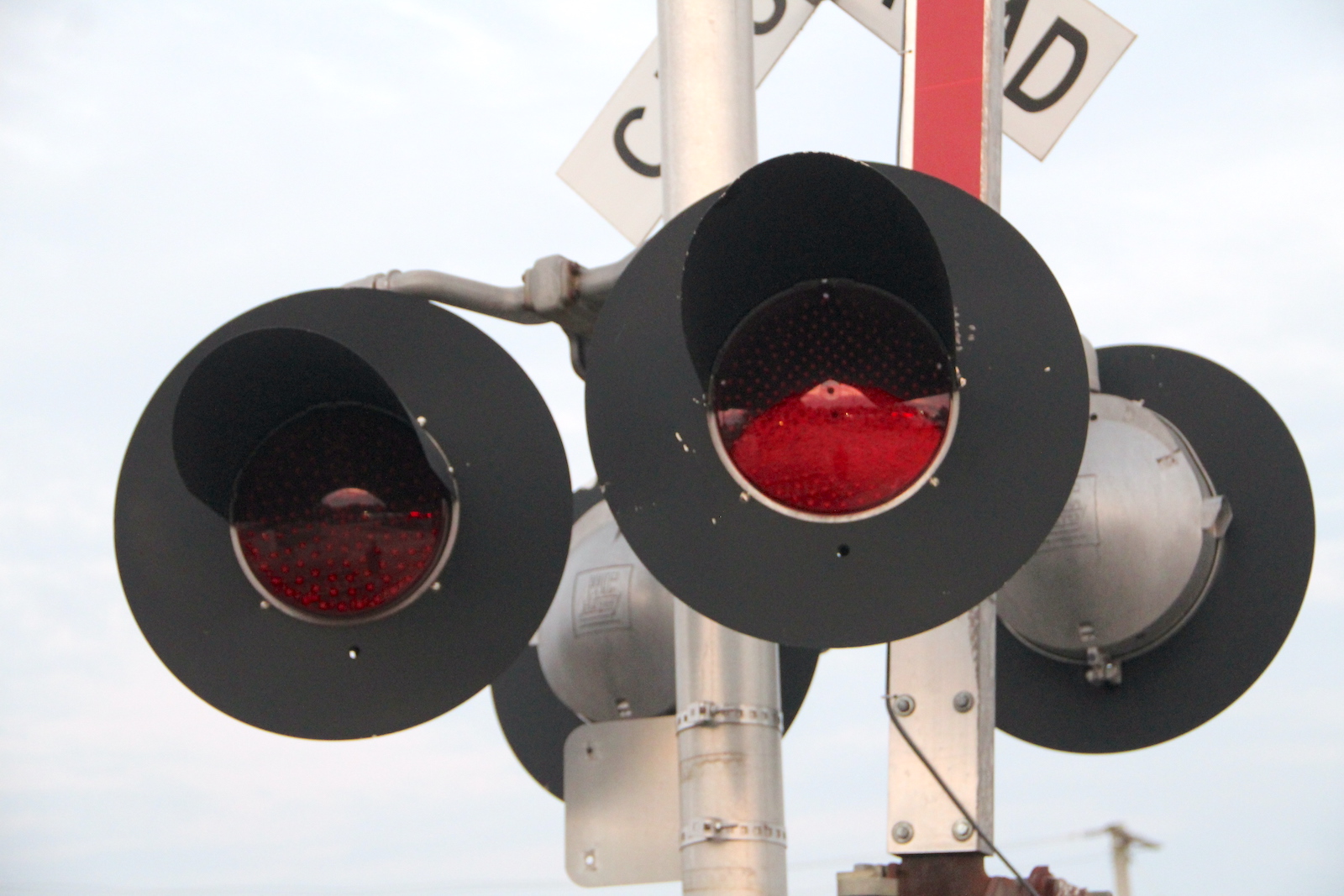

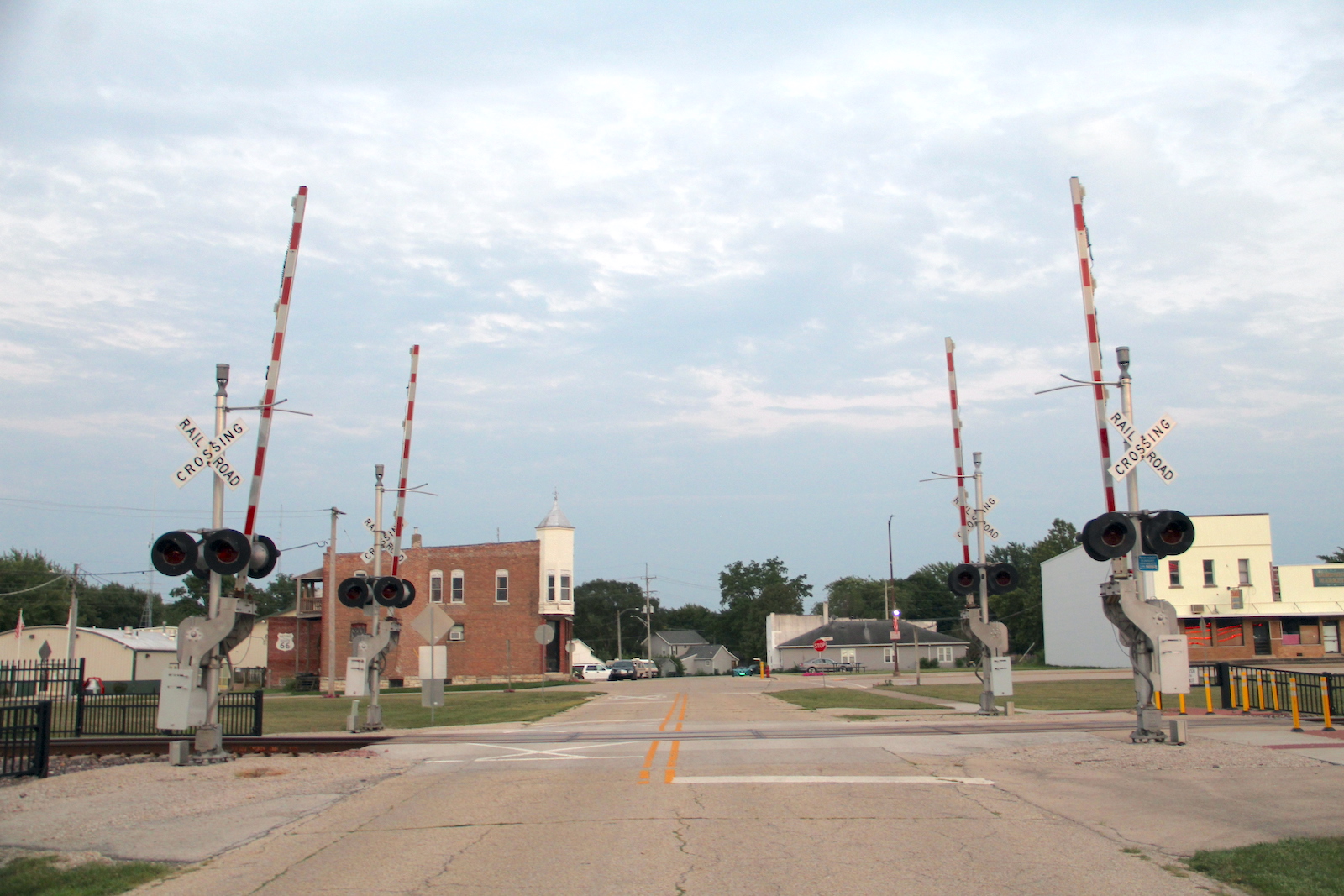

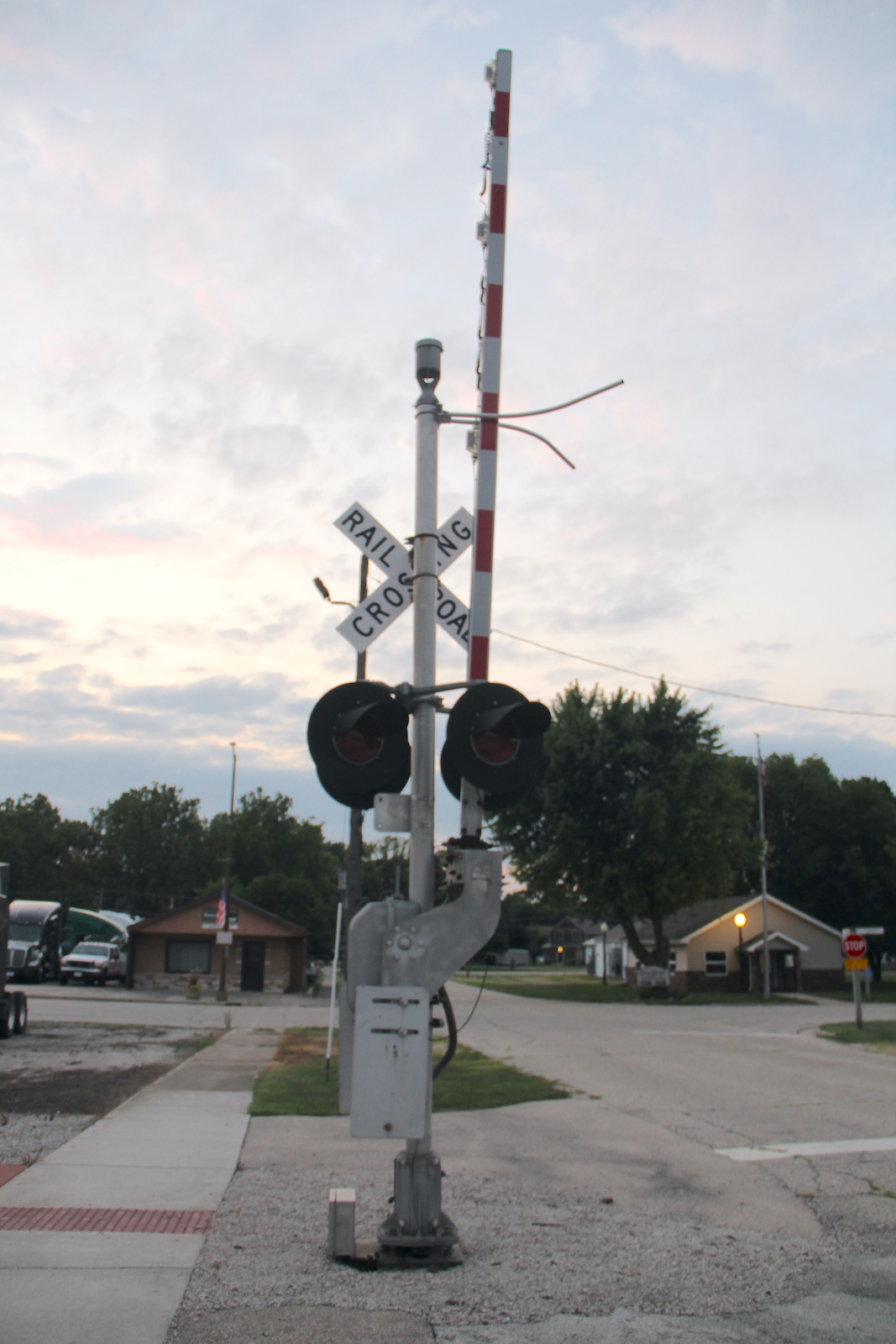

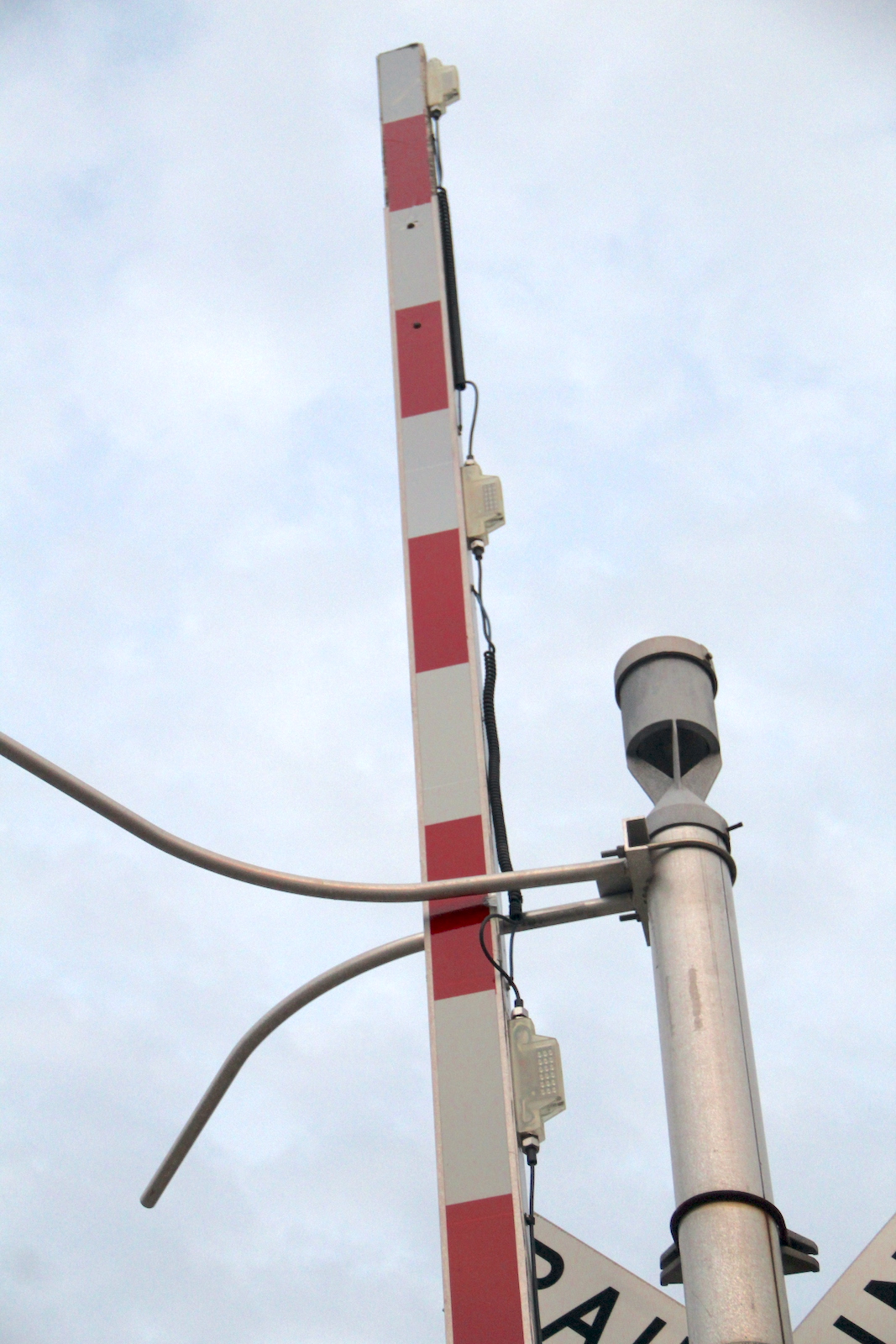

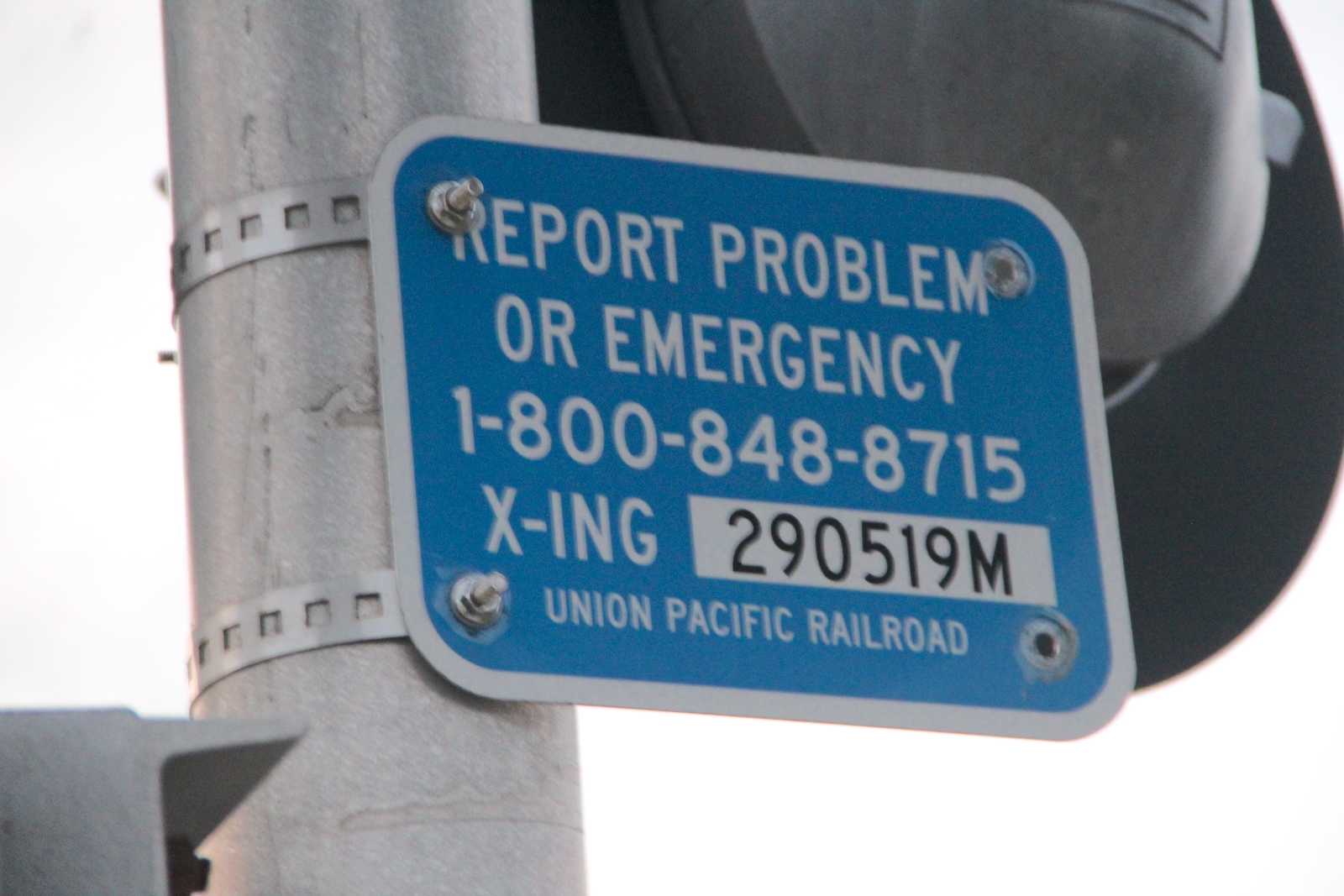

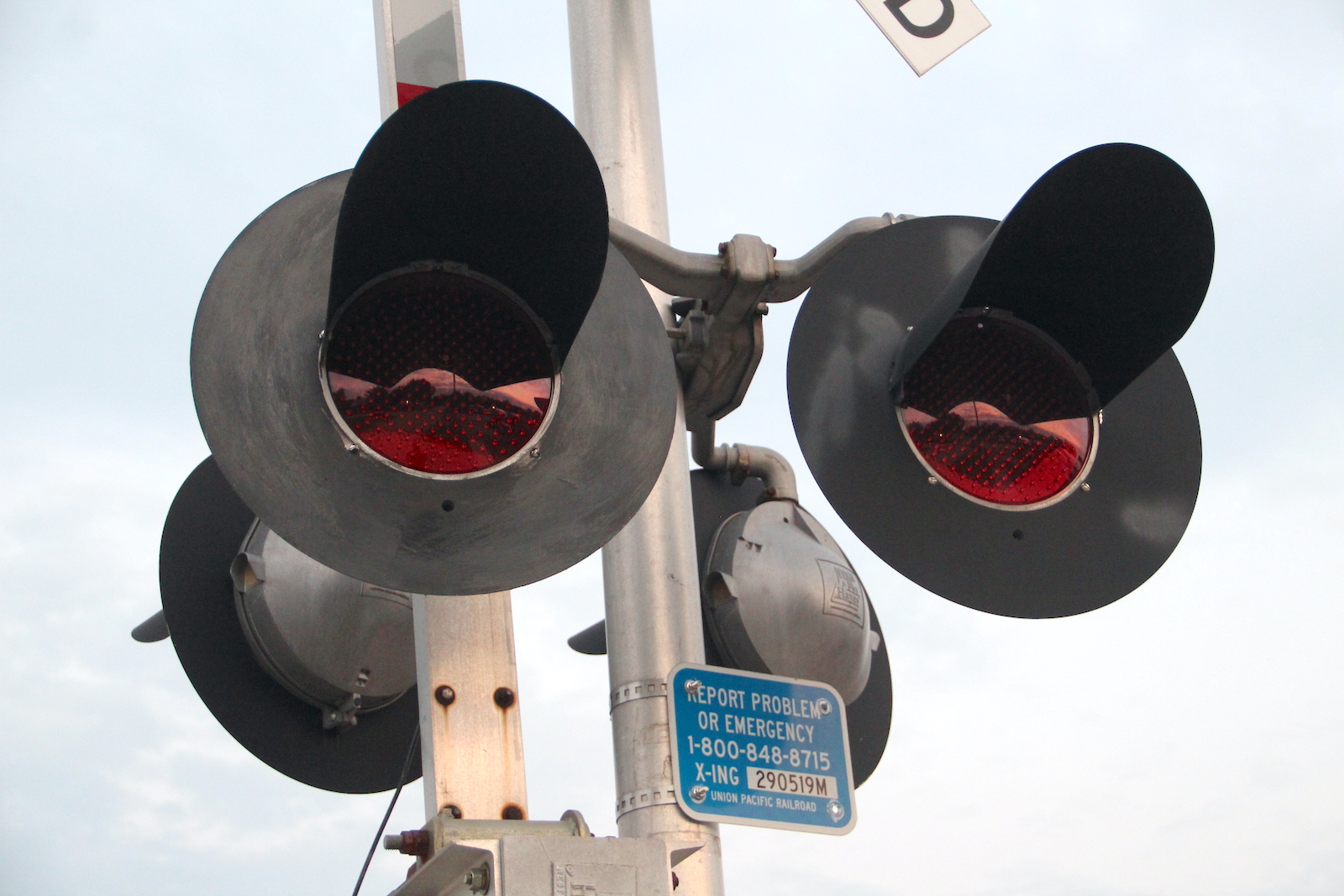

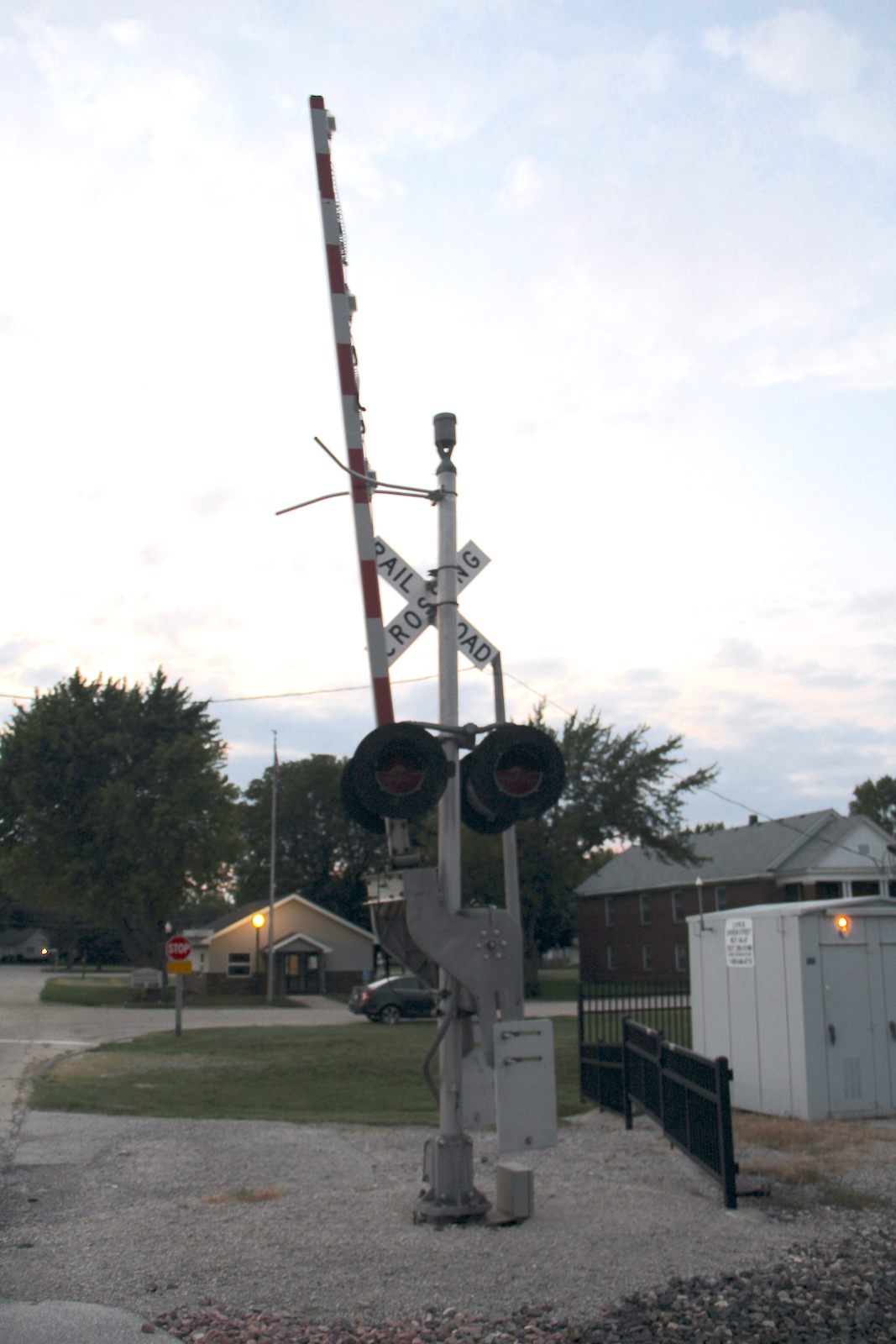

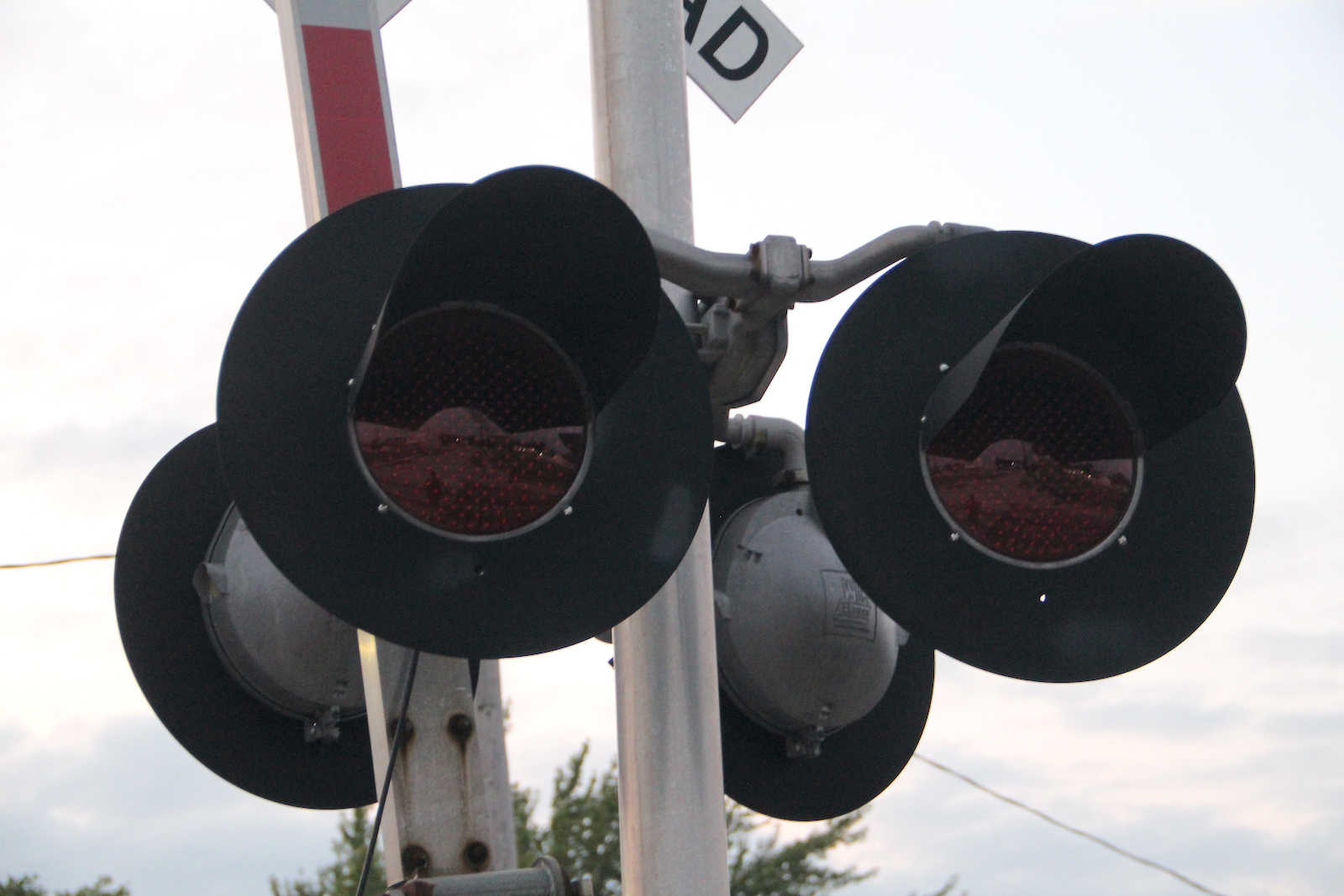

In August 2024, we see all of the WCH LEDs were replaced with mostly Electro-Tech's LEDs with a couple GE Dotted LEDs sprinkled in. The DOT tags were also turned forward, and all of the gates were restriped.
112
The relay bungalow also had its signs replaced and a PTC antenna added.
