>>>>>>>>>>>>>>> Western Entrance Signal Western Exit Signal Eastern Entrance Signal Eastern Exit Signal
Bell: Dying WCH Type 3 E-Bell Dead WCH E-Bell Dead WCH E-Bell Dead WCH E-Bell
Base: WCH 5" Single Sided ^ WCH 5" Single Sided ^ WCH 5" Single Sided ^ WCH 5" Single Sided ^
Lights: 3 - 12"x24" WCH w/ Electro-Tech's LEDs
3 - 12"x24" WCH w/ GE Dotted LEDs		 2 - 12"x24" WCH w/ Electro-Tech's LEDs
2 - 12"x24" WCH w/ GE Dotted LEDs		 6 - 12"x24" WCH w/ Electro-Tech's LEDs 3 - 12"x24" WCH w/ Electro-Tech's LEDs
1 - 12"x24" WCH w/ GE Dotted LED
Junction Boxes: WRRS WRRS 2 WRRS, 1 Harmon WRRS
Gate Lights: NEG Clear LEDs Alstom Aurora LEDs 2 - Alstom Aurora LEDs
1 - NEG Clear LED		 NEG Clear LEDs
Gate Mechanism: WCH Style 3.5 w/ Old WCH Gate Saver WCH Style 3.5 w/ Old WCH Gate Saver WCH Style 3.5 w/ Old WCH Gate Saver WCH Style 3.5 w/ Old WCH Gate Saver
Gate Striping: Vertical Striping Vertical Striping Vertical Striping Vertical Striping


>>>>>>>>>>>> Western Pedestrian Gate Eastern Pedestrian Gate
Base: Siemens 5" Single Sided ^ Siemens 5" Single Sided ^
Gate Light: 4" RECO LED 4" RECO LED
Gate Mechanism: Siemens Sticker Style 2 Siemens Sticker Style 2
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-22 were taken on December 22, 2010.
Pictures 23-71 and the 1st video were taken on December 14, 2014.
Pictures 72-81 were taken on November 22, 2017.
The 2nd video was taken on February 27, 2018.
The 3rd video was taken on November 14, 2018.
The 4th video was taken on November 15, 2018.
Pictures 82-87 were taken on December 1, 2019.
Pictures 88-114 were taken on August 8, 2024.
All pictures and videos were taken by Tommy McGowan.
This crossing is located on the UP Joliet Sub.

This massive setup replaced a pair of older gated signals in the early 2000s.  They both had mechanical bells.
The gates originally had 4" WCH incandescents, but were replaced with Aurora LEDs around 2009.

1 2

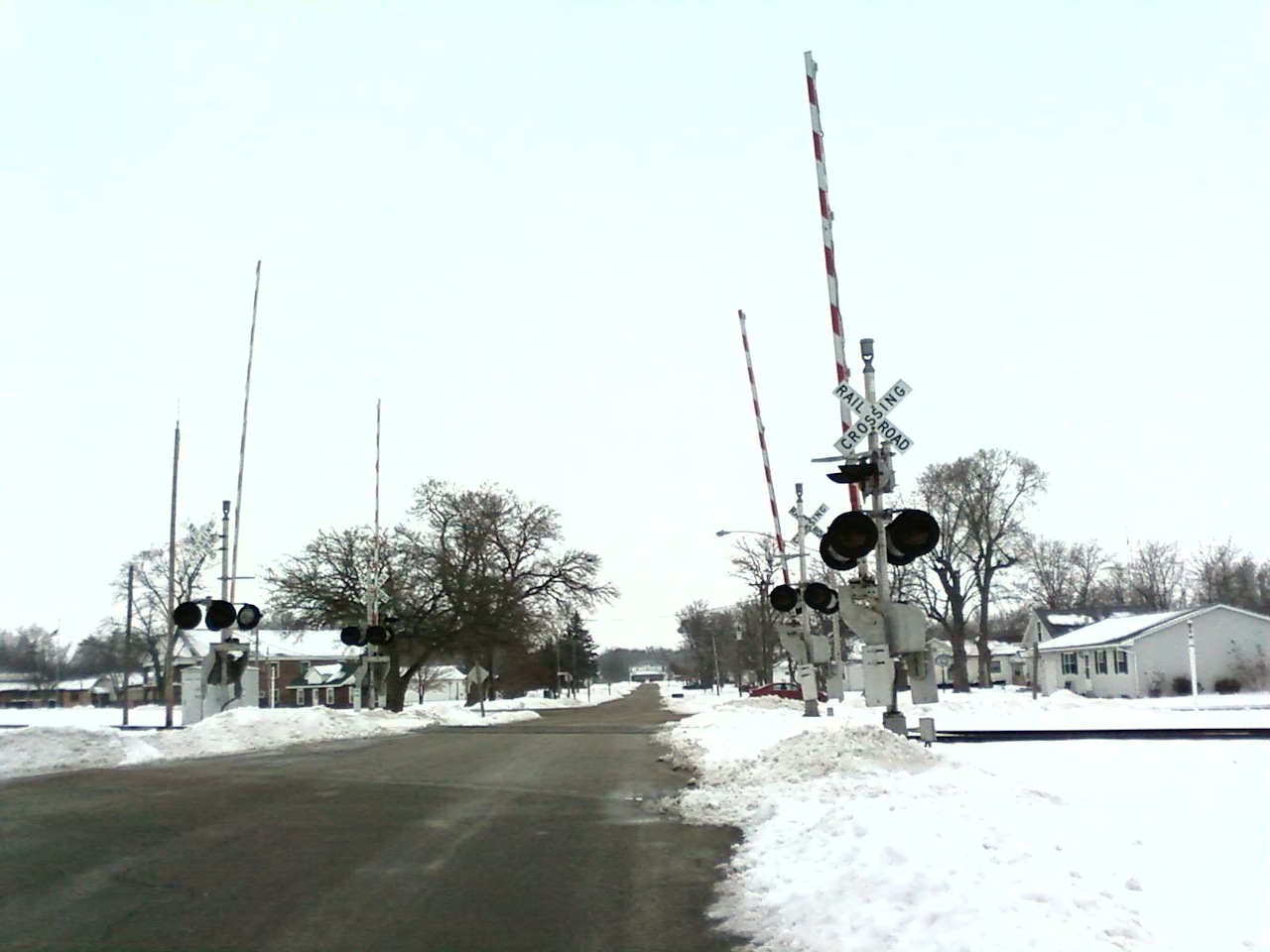

Overview of a WCH quad gate crossing facing east.
 Overview looking west.
3 4 5
6 7 8 9
The western entrance signal.
10 11

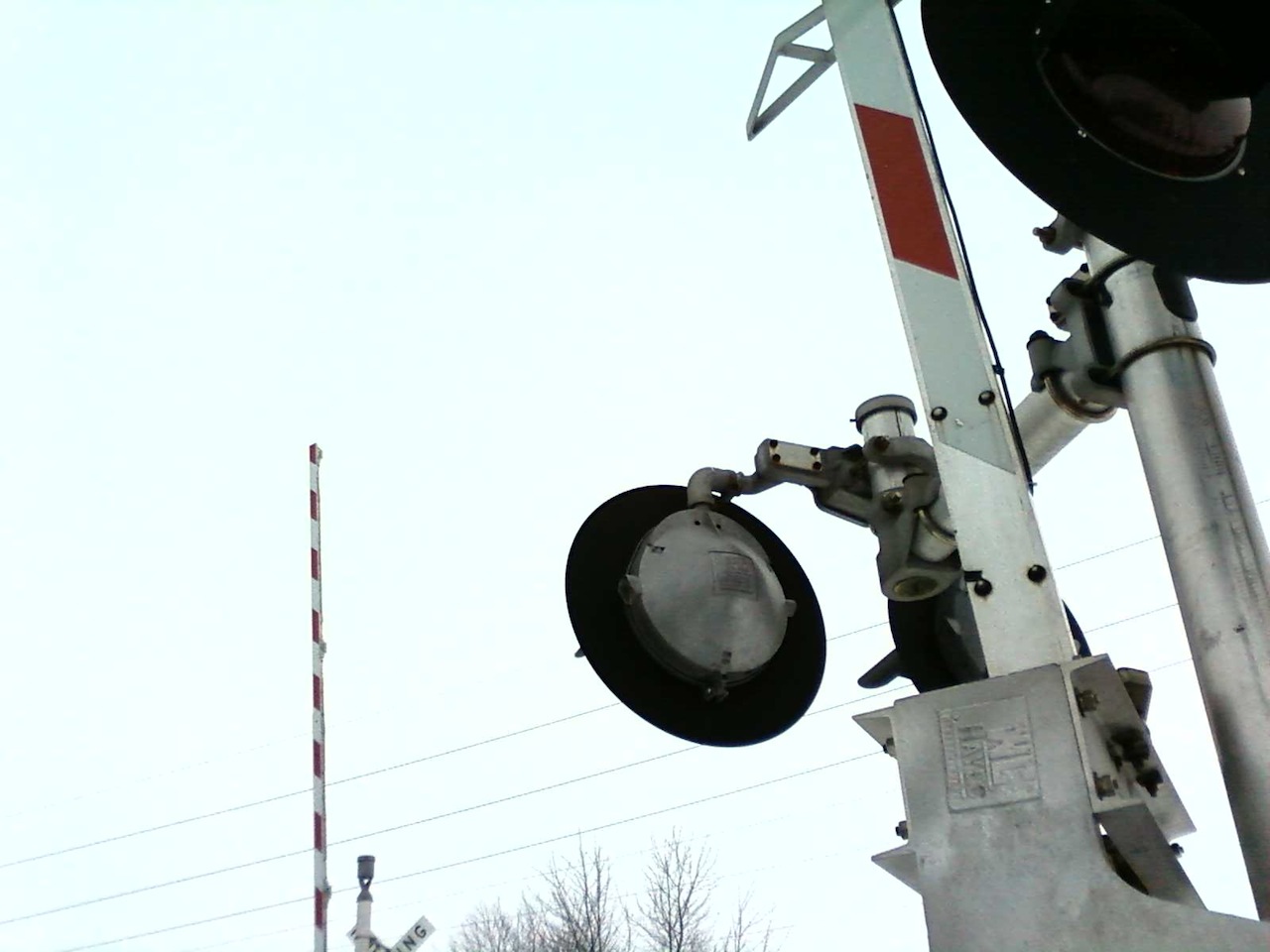

The western exit signal.
12 13
14 15 16
The eastern entrance signal.
17 18
The eastern exit signal.
19 20 21 22
The relay bungalow in the southwest quadrant. The grade is all concrete. Track view facing north towards Carbon Hill Rd.
 Track view facing south at Division St.

In 2012, the crossing was resurfaced during the 110 mph track upgrade and the gate holders were replaced.

23 24
Overview facing east.
 Overview facing west.
25 26 27
28 29 30
31 32 33 34

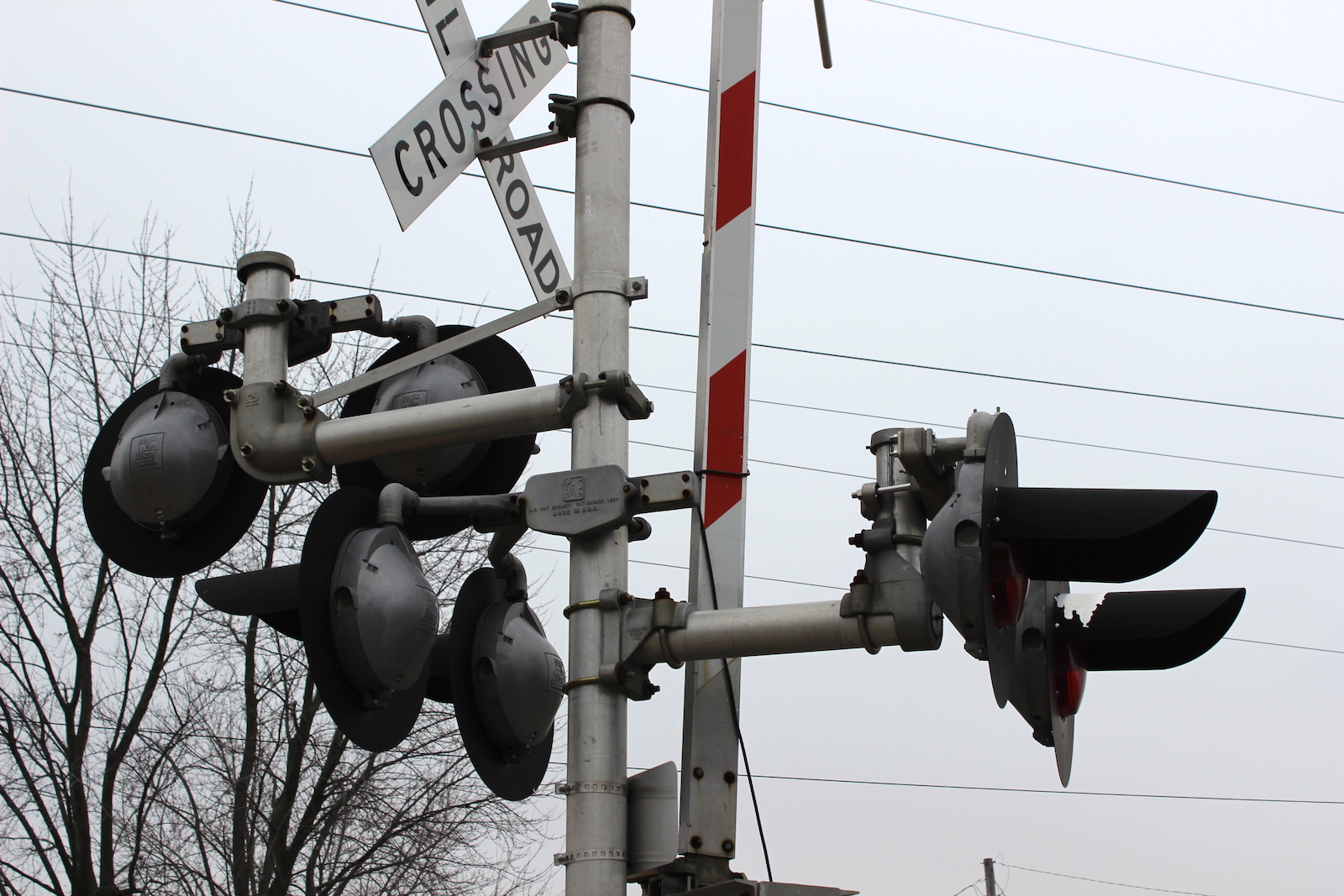

The western entrance signal. All of the main lights on the 4 signals were 1st Gen WCH LEDs at this point.
35 36 37
38 39 40
41 42 43
The western exit signal.
44 45 46
47 48 49
50 51 52 53
The eastern entrance signal.
54 55 56 57
58 59 60 61
The eastern exit signal.
62 63 64
The newer concrete grade.
 Track view facing north at Carbon Hill Rd.
 Track view facing south at Division St.
65 66 67
68 69 70 71
Action shots from the northbound Amtrak 302.

In mid 2017, pedestrian gates were added to the crossing.  The main signals have not been changed at all.

72 73

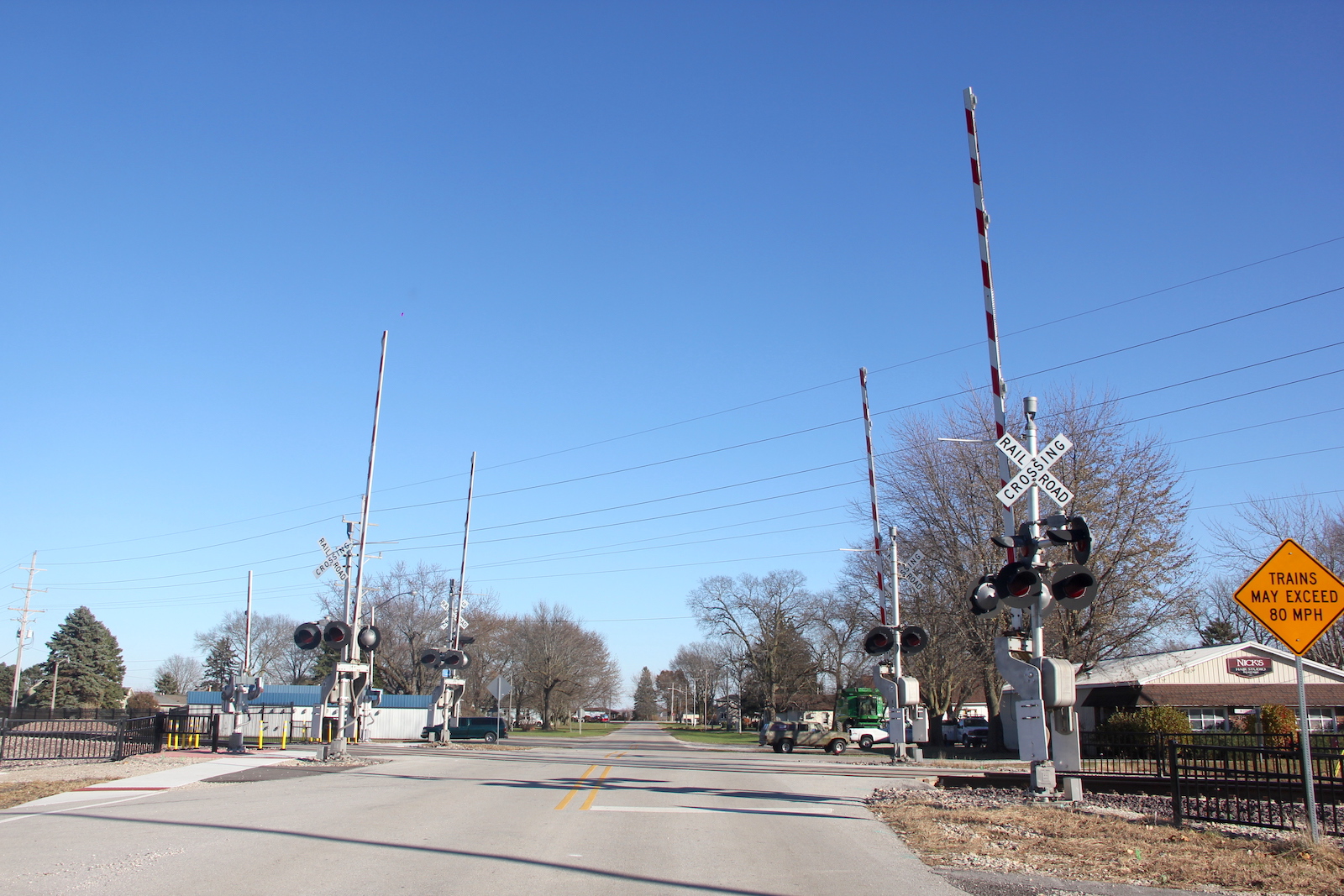

Overview of the updated setup facing east.
 Overview facing west.
74 75 76 77
The new western pedestrian gate.
78 79 80 81

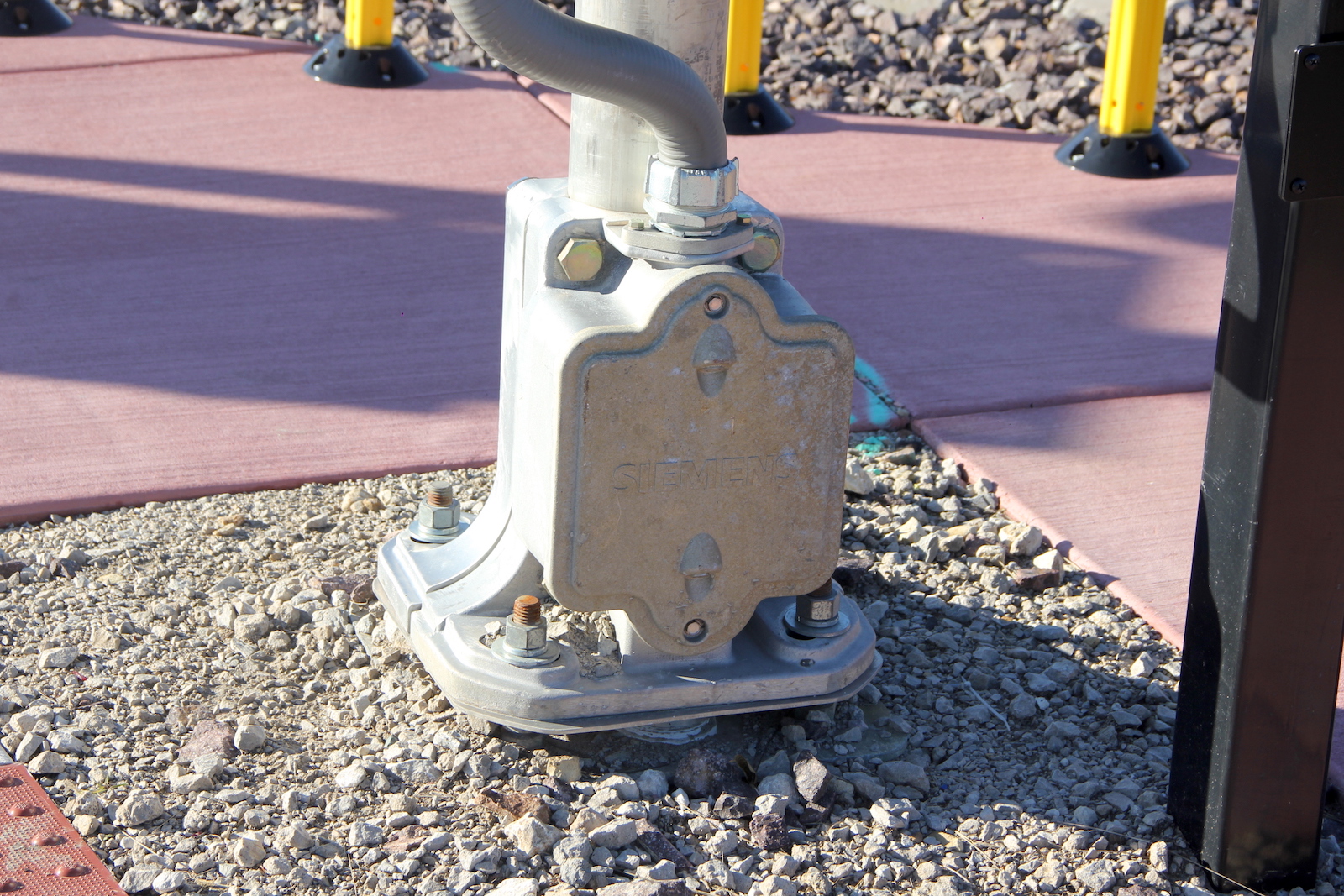

The new eastern pedestrian gate.
82 83
84 85 86 87

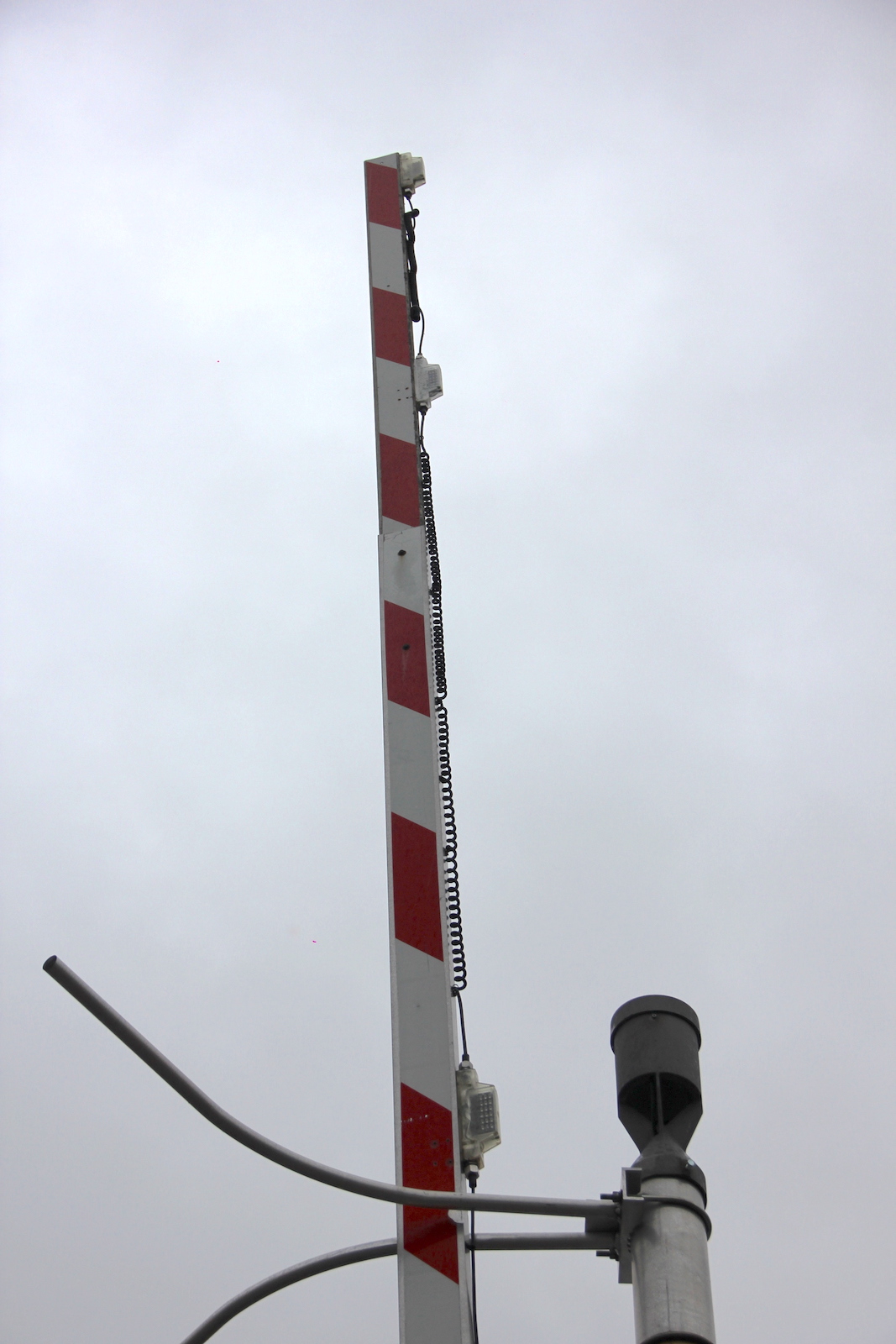

Updates to the main gates in December 2019.  In 2014, every gate light was Alstom Aurora.  Now, two of them were replaced by NEG Clear LEDs.
88 89
90 91 92
93 94 95 96
97 98
99 100 101
102 103 104
105 106 107 108
109 110
111 112 113

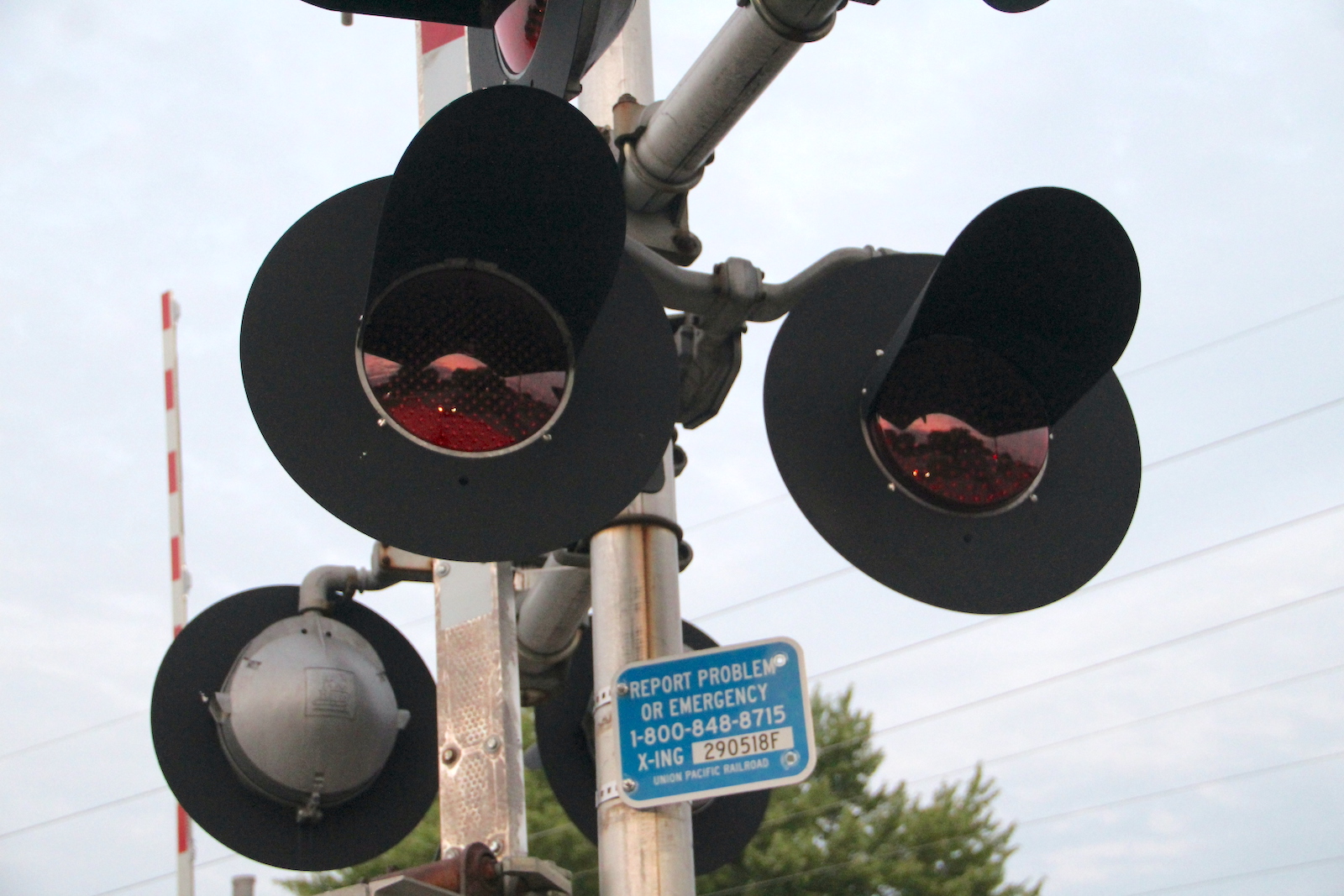

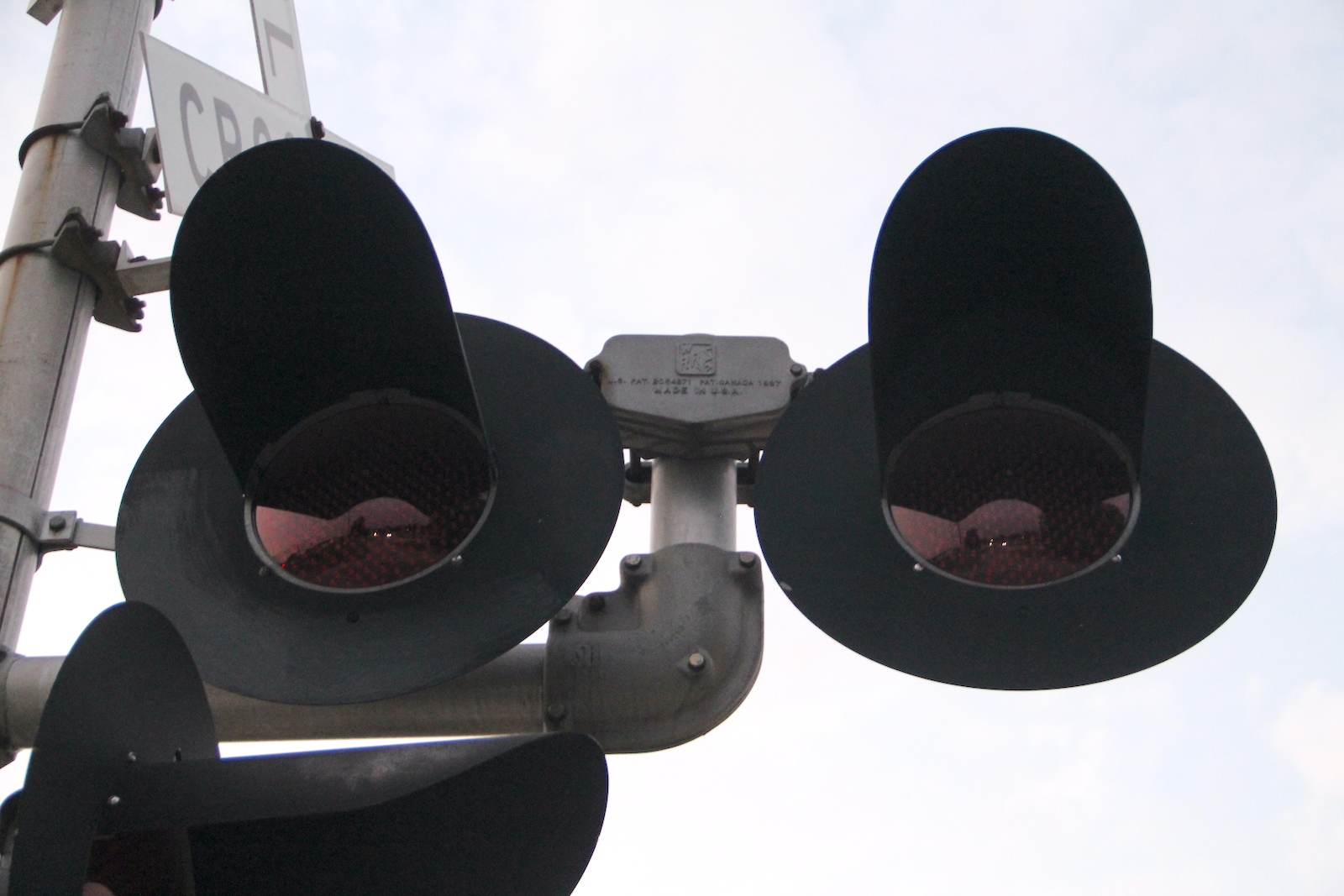

In August 2024, we see all of the WCH LEDs were replaced with Electro-Tech's LED and GE Dotted LEDs. The DOT tags were also turned forward and all of the gates were replaced or restriped. The western entrance signal and eastern exit signal also had its Alstom Aurora LEDs replaced with NEG Clear LEDs.
114
The relay bungalow also had its signs replaced and a PTC antenna added.
