| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | WCH Type 2 E-Bell | WCH Type 1.5 E-Bell |
| Cantilever: | MI Cantilever | None |
| Mast Base: | L&W 5" Single Sided ^ | Safetran 5" Single Sided ^ |
| Lights: | 6 - 12"x24" MI w/ Electro-Tech's LEDs 2 - 12"x20" old logo Safetran w/ Electro-Tech's LEDs |
6 - 12"x24" Safetran w/ Electro-Tech's LEDs |
| Junction Box: | 2 MI, 1 WRRS | Safetran |
| Gate Lights: | 4" RECO LEDs | 4" RECO LEDs |
| Gate Mechanism: | Safetran Late 1970s w/ GSI Gate Saver | Safetran Late 1970s w/ Standard Mount |
| Gate Striping: | Vertical and Diagonal Striping | Diagonal Striping |
1 | 2
|
| Overview of a gated mast signal and cantilever facing west. |
Overview facing east. |
3
| 4
| 5
| 6
|
7
| 8
| 9
| 10
|
11
| 12
| 13
| 14
|
| The eastern signal. |
15
| 16
| 17
|
18
| 19
| 20
|
21
| 22
| 23
| 24
|
25
| 26
| 27
| 28
|

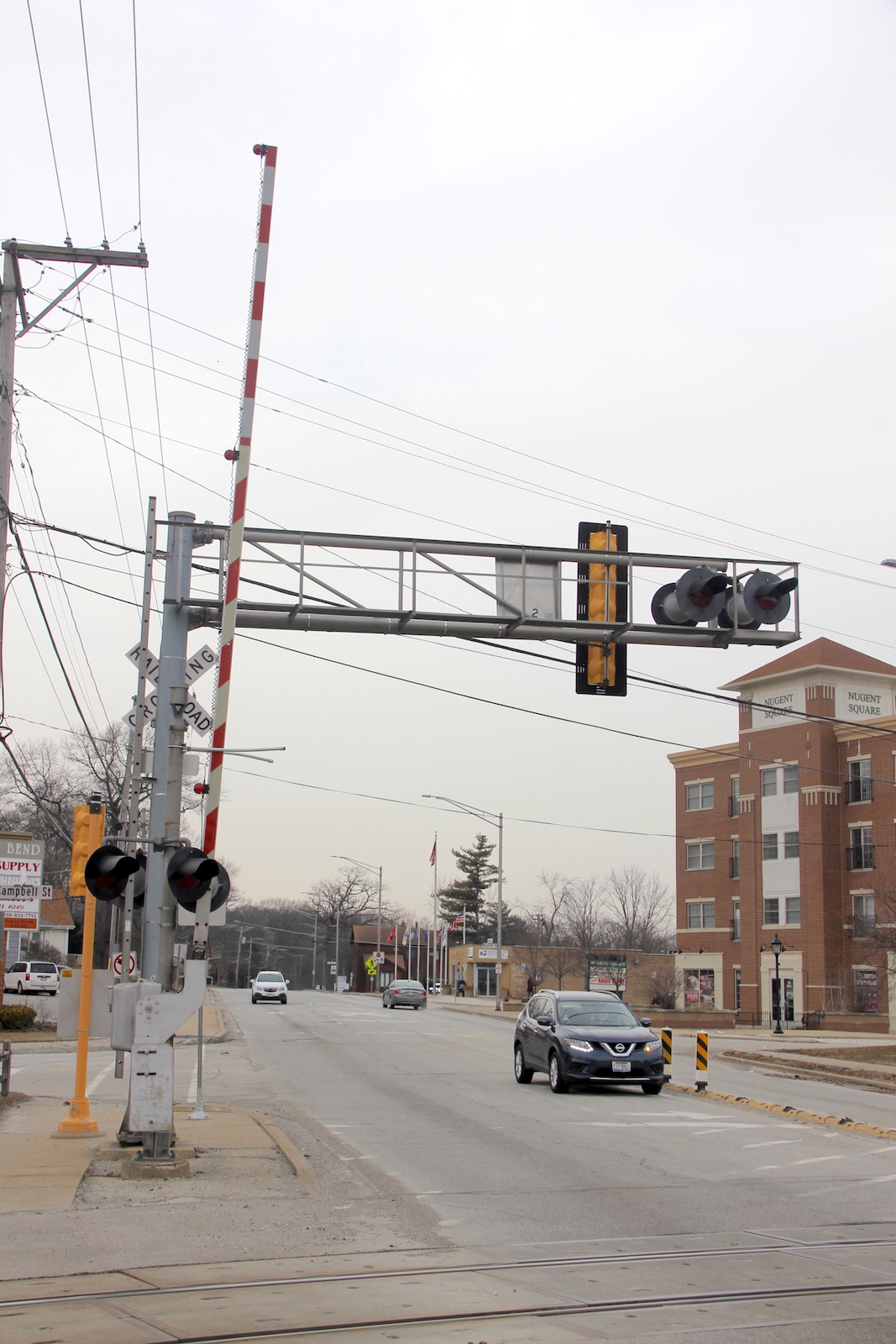

| The western signal. |
29
|
30
|
31
|
32
|
| The relay bungalow in the northwest quadrant. |
The grade is all concrete. |
Track view facing north towards Juliette St. in Thornton. |
Track view facing south towards 12th St. in Chicago Heights. |
