School Rd. (Green River, IL)

>>>>>>>>>>>>>>	Northern Signal	Southern Signal
Bell:	WCH Mechanical Bell 3rd Gen	None
Base:	Progress Rail 5" Single Sided ^	Progress Rail 5" Single Sided ^
Lights:	4 - 12"x24" WCH w/ GE Uniform Look LEDs	4 - 12"x24" WCH w/ GE Uniform Look LEDs
Junction Box:	WCH	WCH
Gate Lights:	4" RECO	4" RECO
Gate Mechanism:	WCH Style 4 w/ New NEG 1 Way Saver	WCH Style 4 w/ New NEG 1 Way Saver
Gate Striping:	Vertical Striping	Vertical Striping

All pictures were taken on July 31, 2021, by Tommy McGowan.
The video was taken on December 1, 2021, by Tommy McGowan.
This crossing is located on the IAIS Blue Island Sub.

1	2

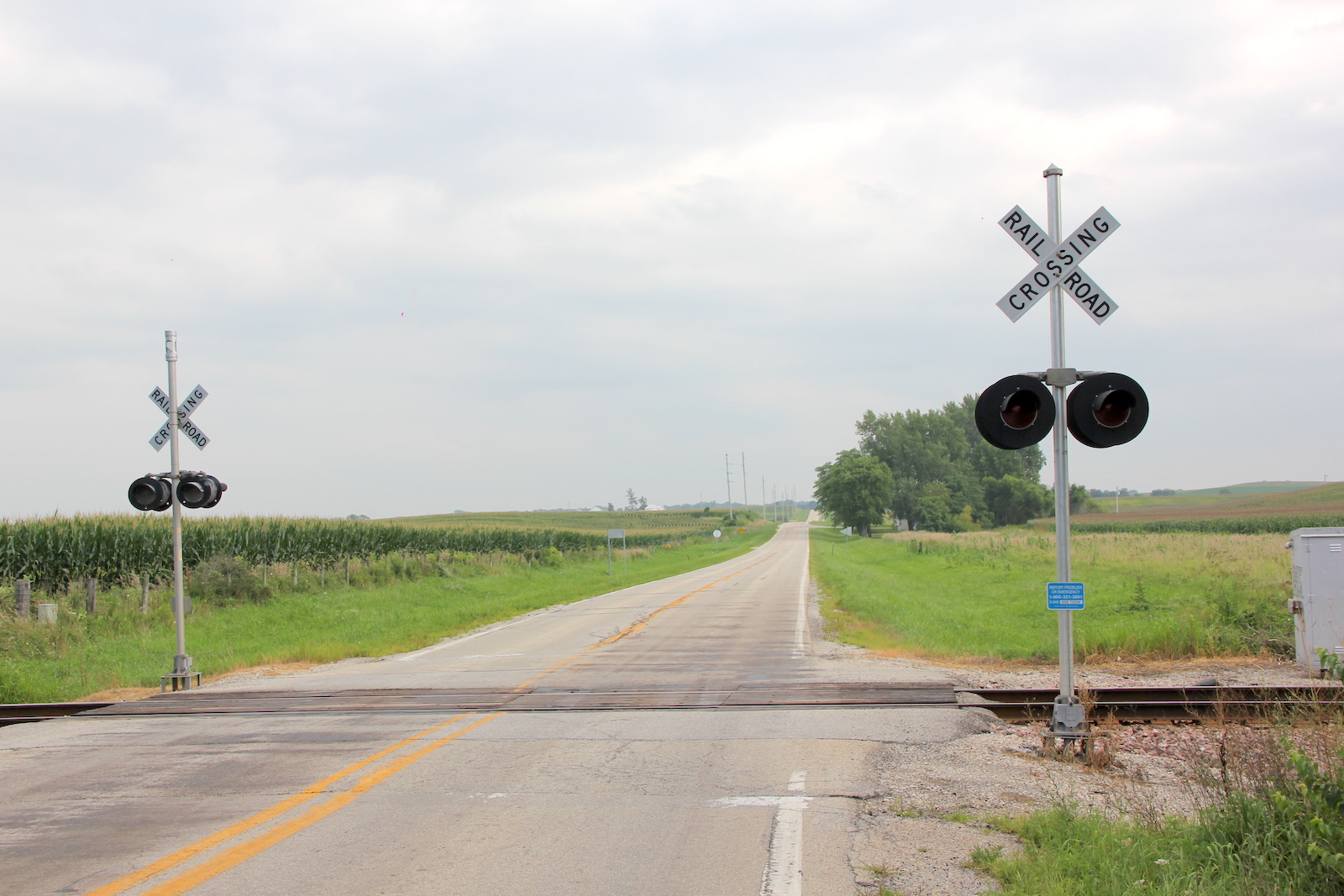

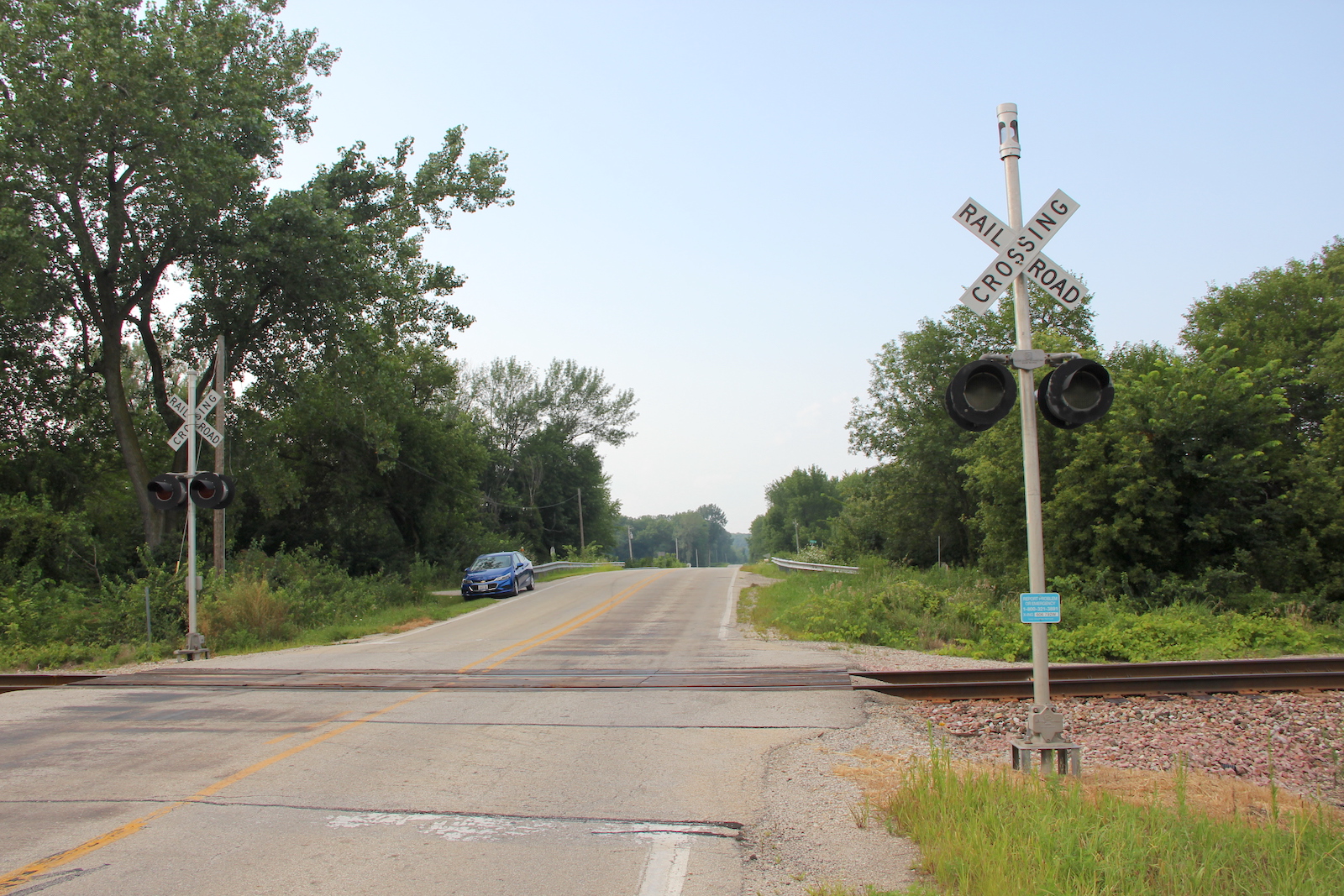

Overview of 2 gateless signals facing south.	Overview facing north.

3	4	5
6	7	8

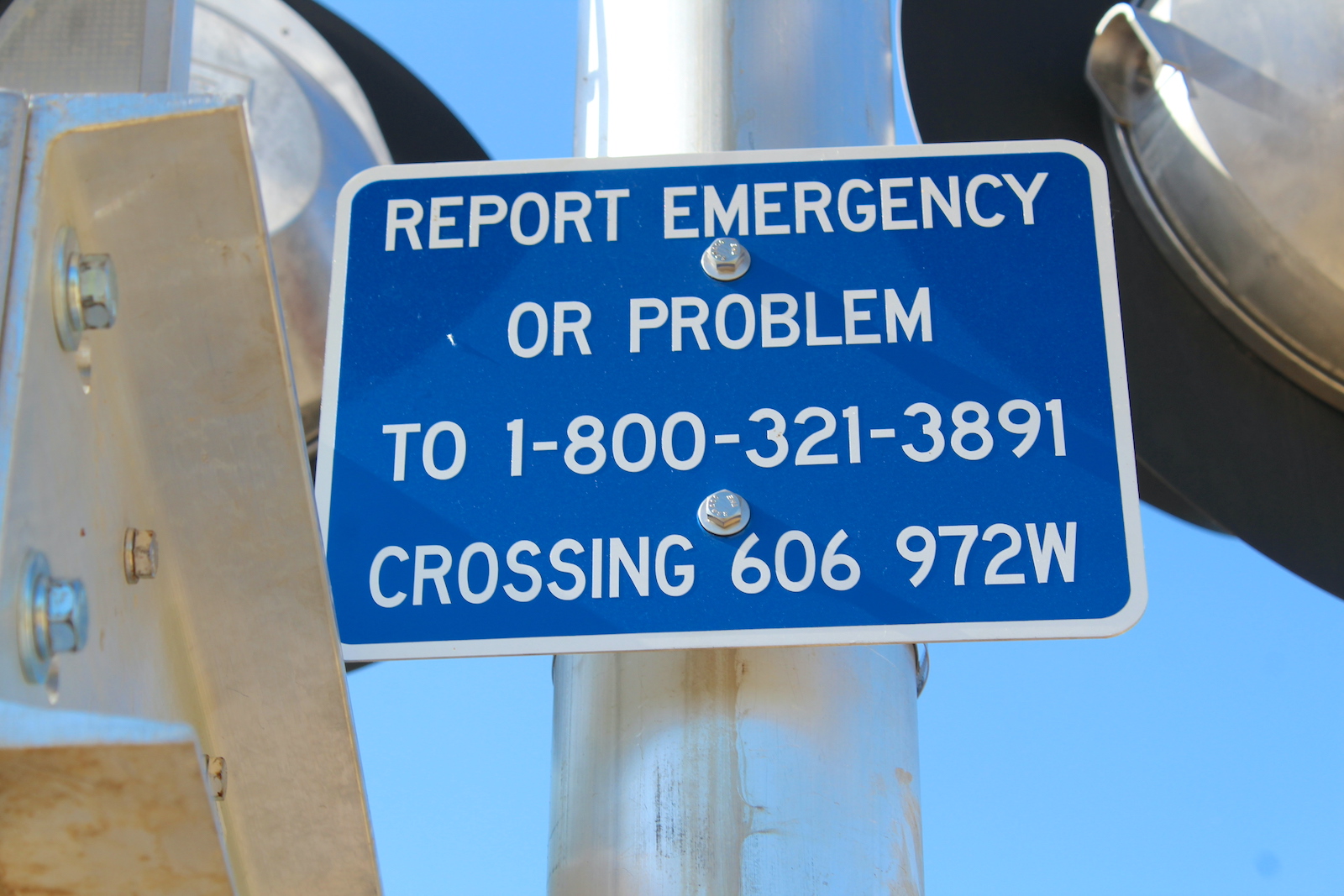

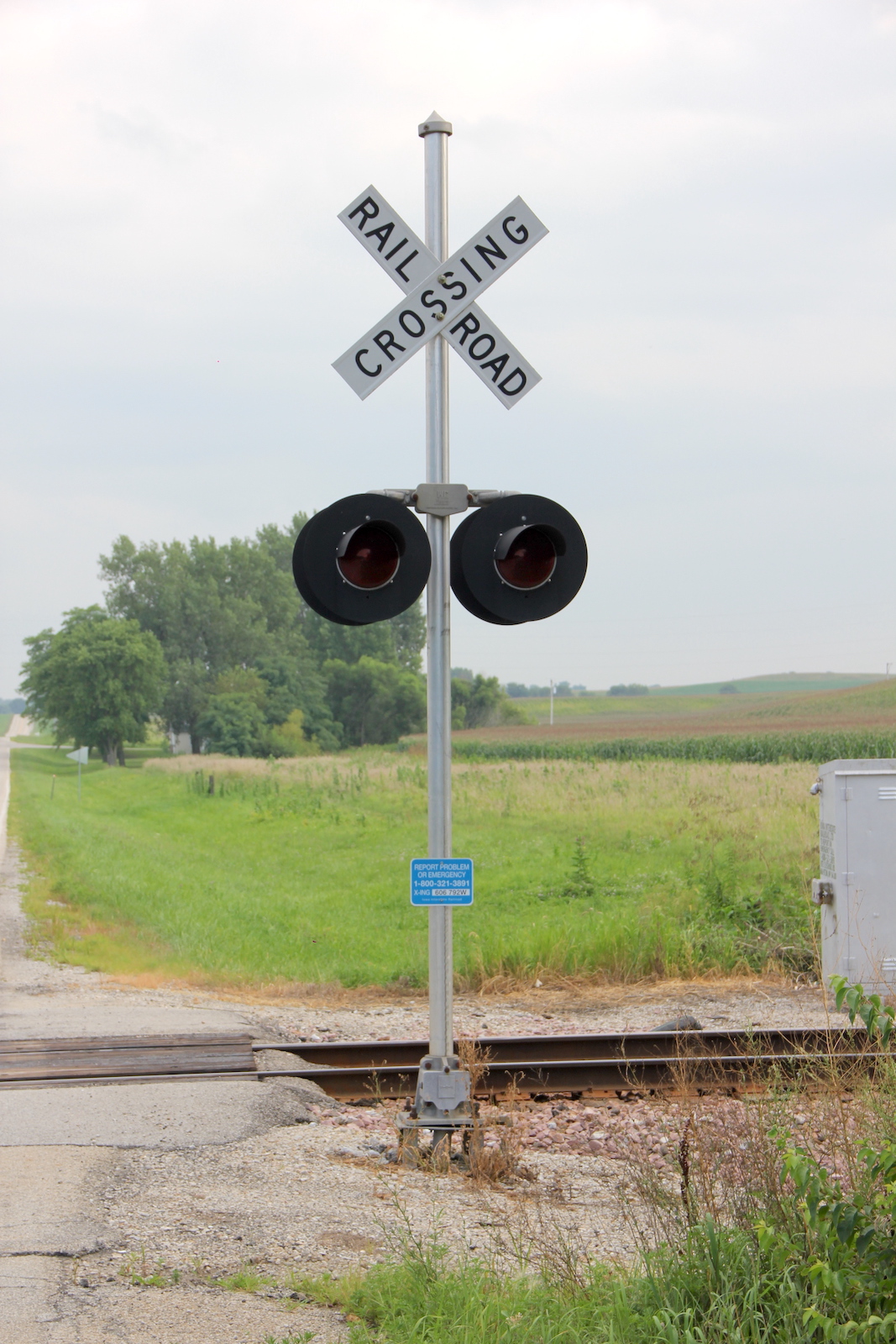

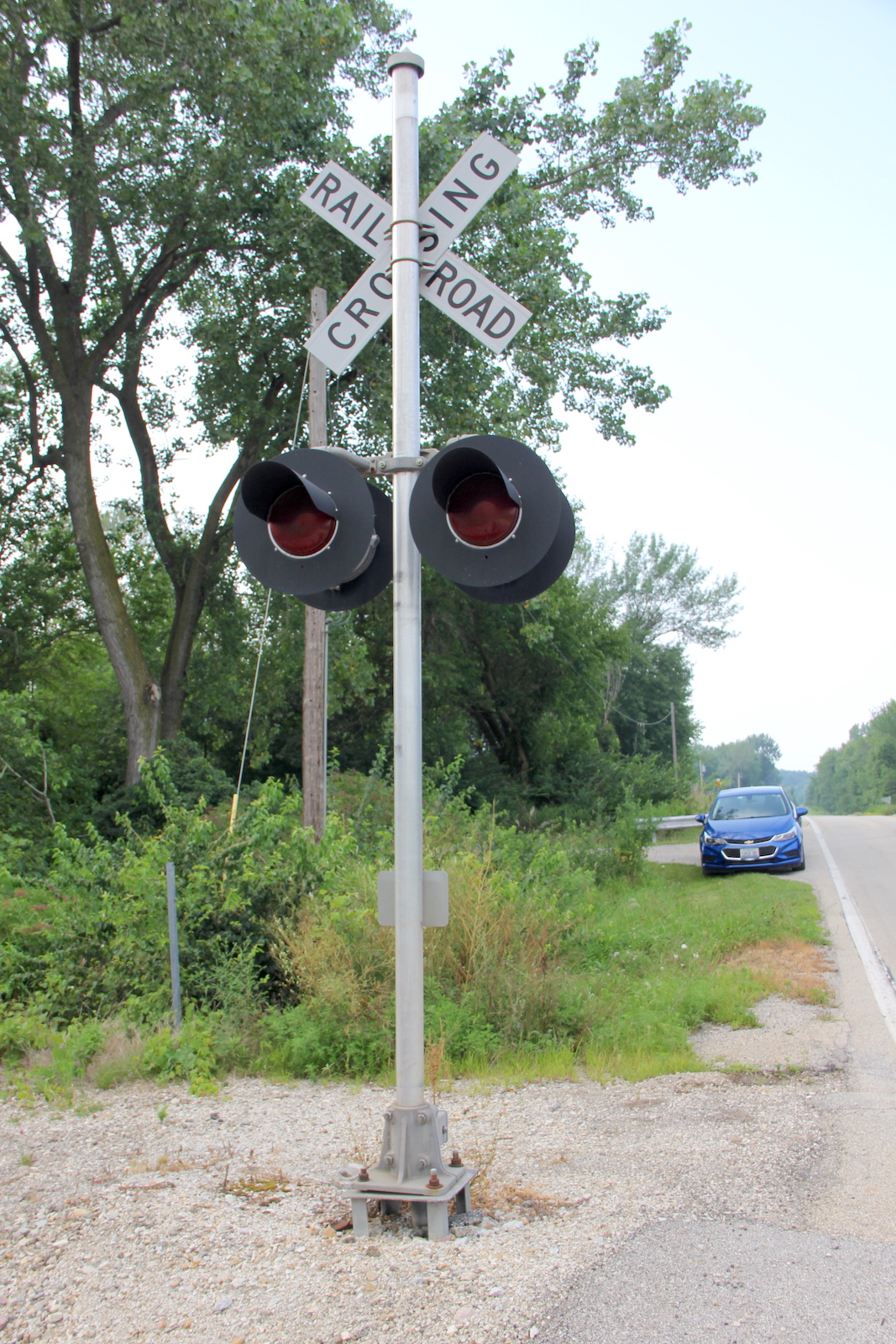

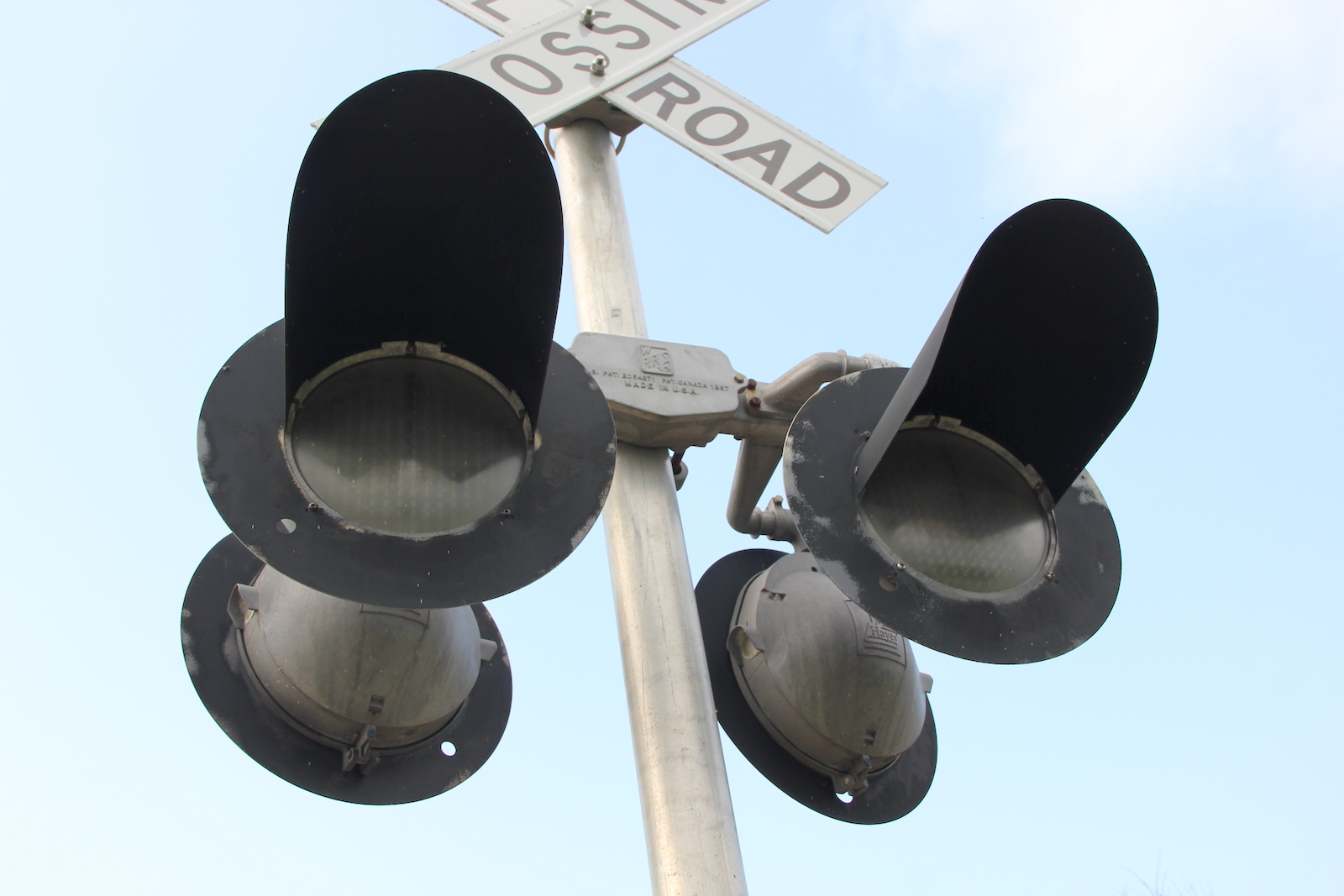

The northern signal. This is a newer one having been installed sometime in the early 2010s. Also both DOT tags are wrong. the correct DOT number is listed above.

9

10

11

12

13

14

15

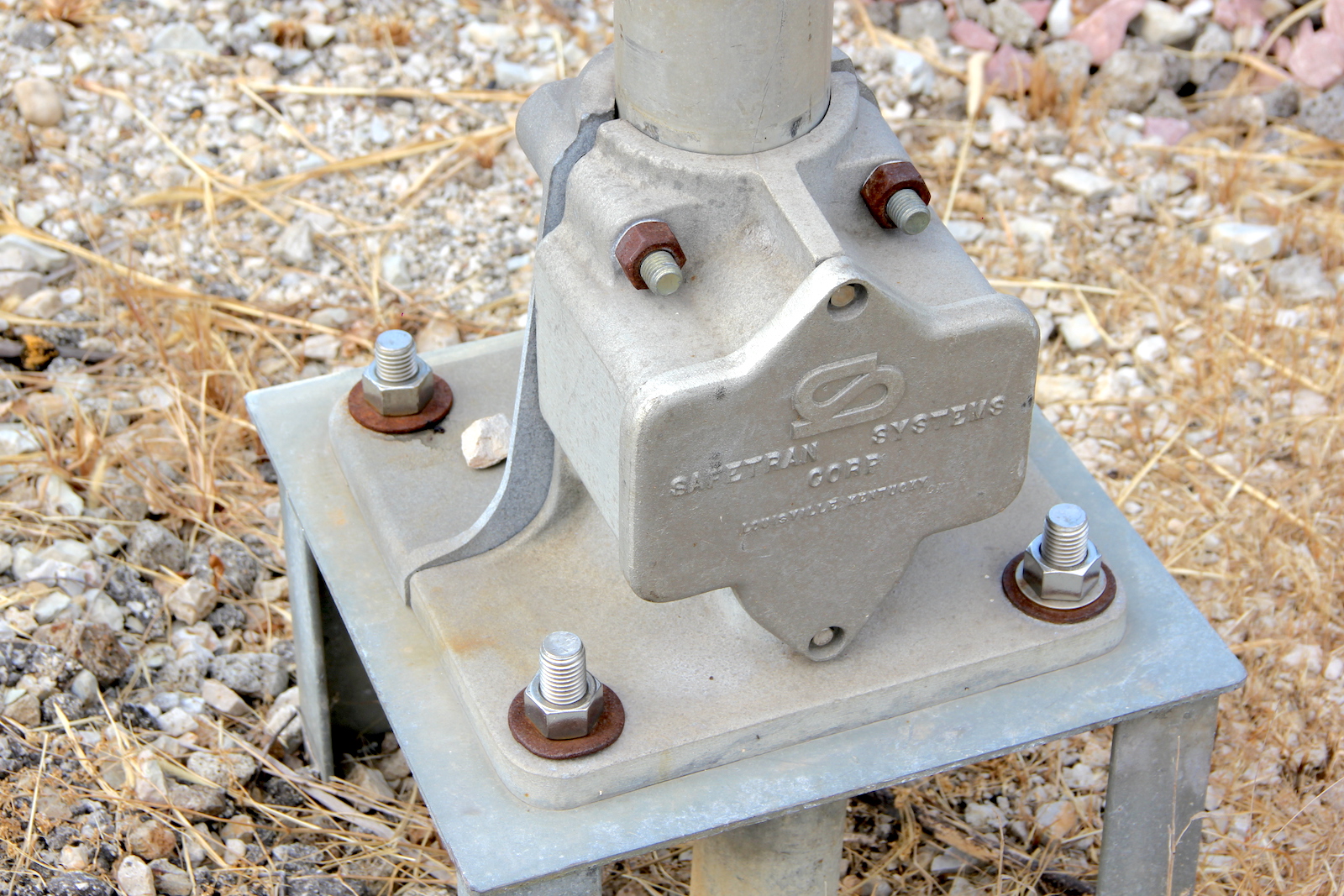

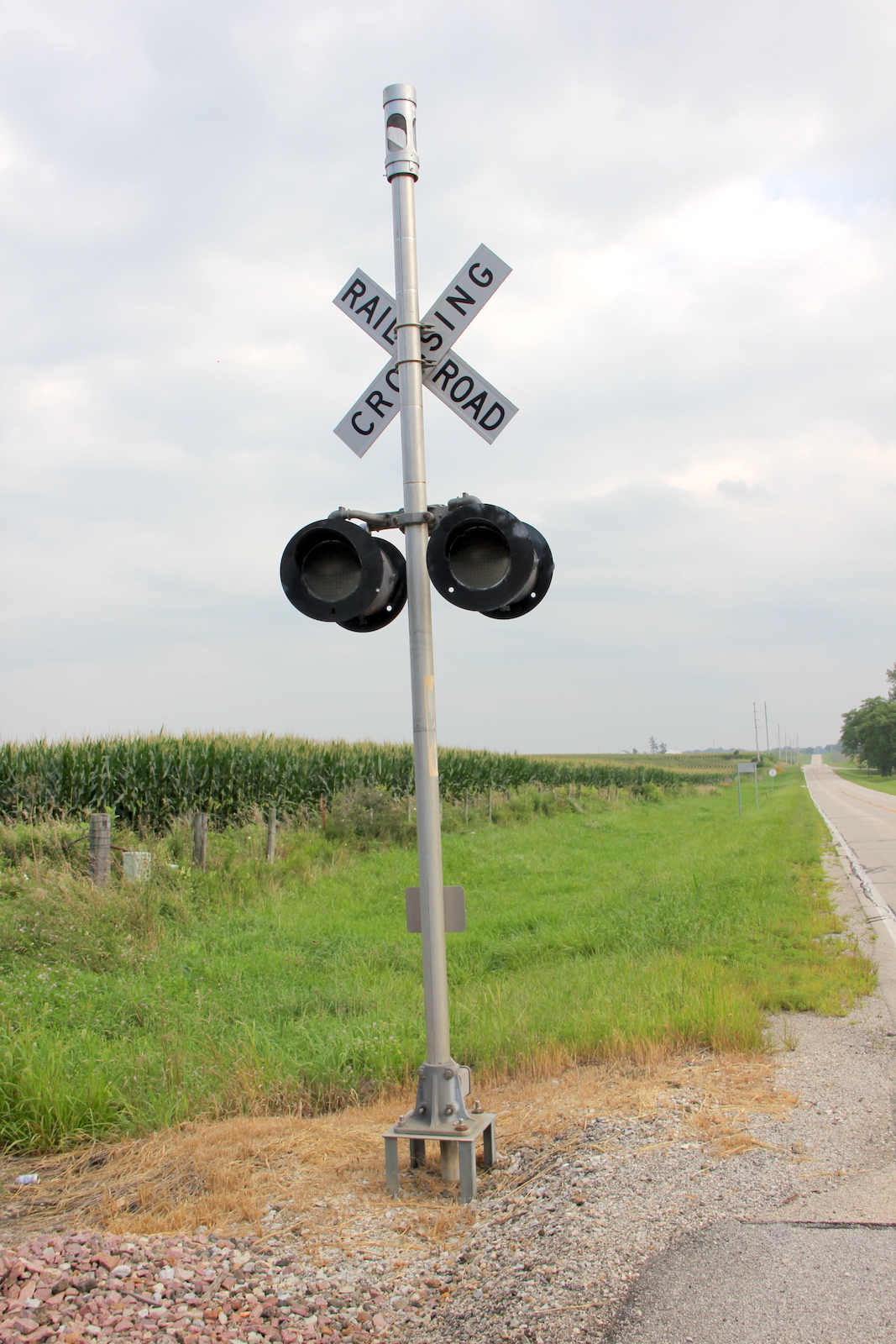

The southern signal. This one appears to be from the late 90s or early 2000s, and is the only IAIS signal I've ever seen with Clear LEDs.

16	17	18	19

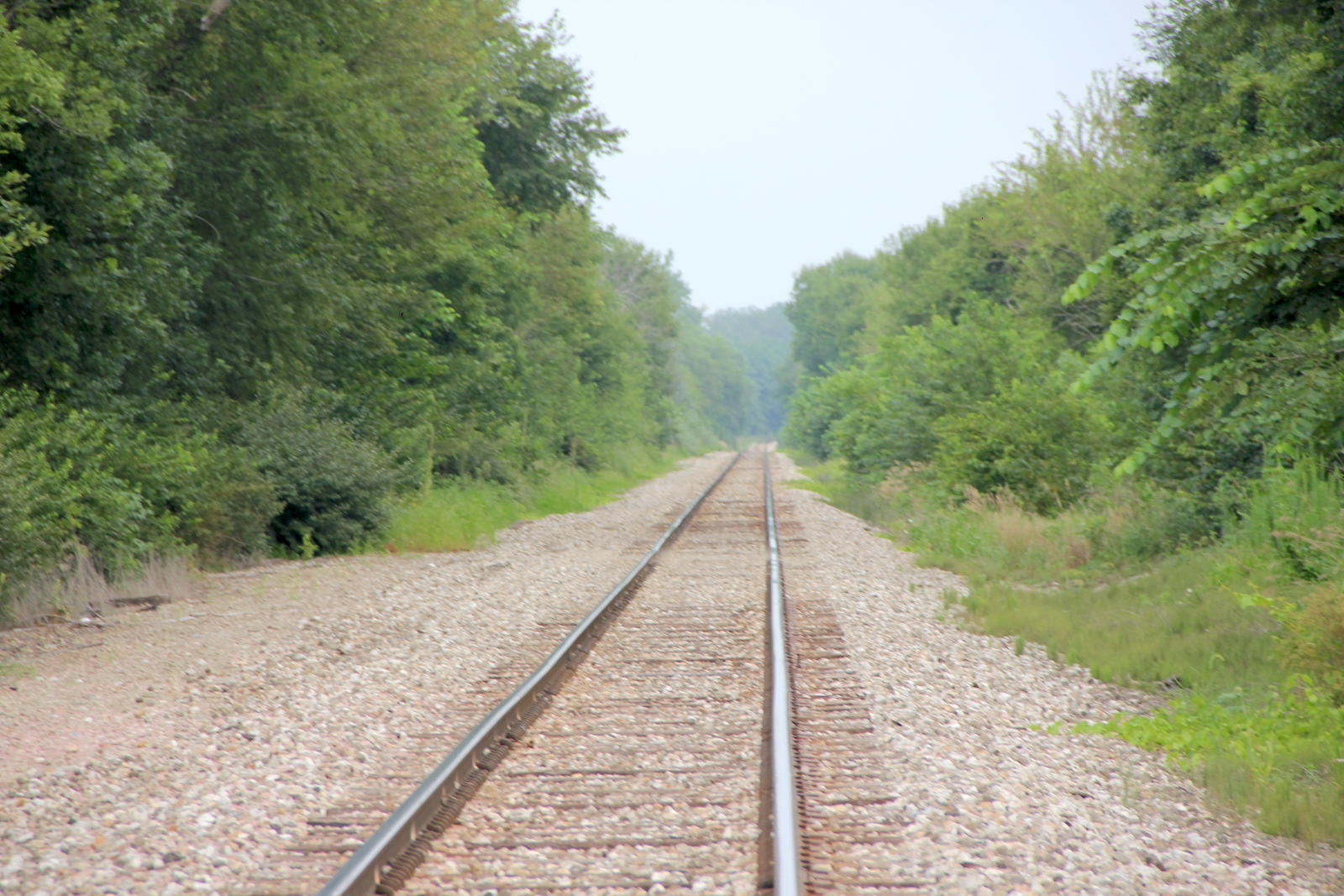

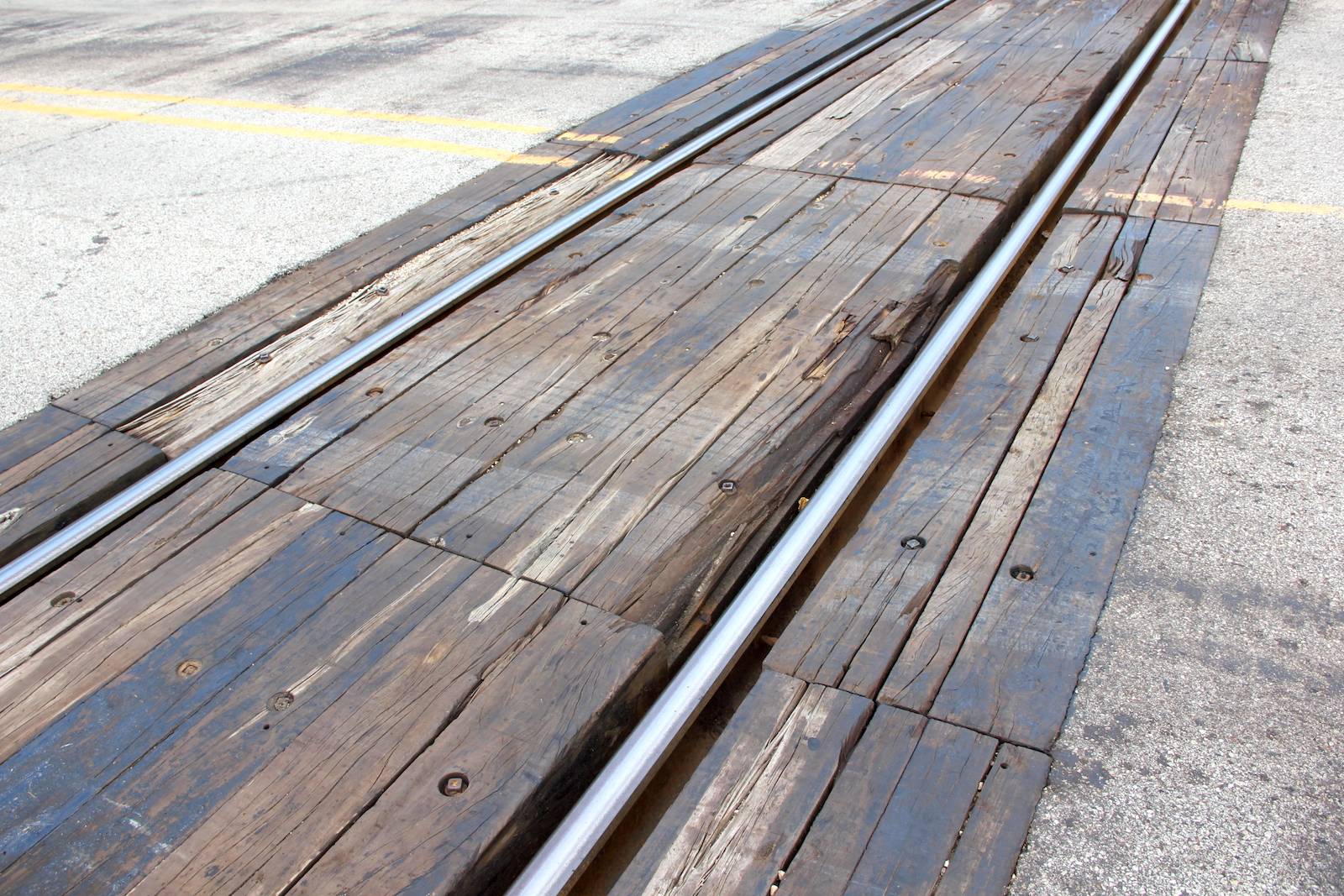

The relay case in the southwest quadrant.	The grade is all wood.	Track view facing west towards Green River Rd.	Track view facing east towards E. 1050th St.

In early 2023, new signals were installed here as part of a massive ICC project.

20	21

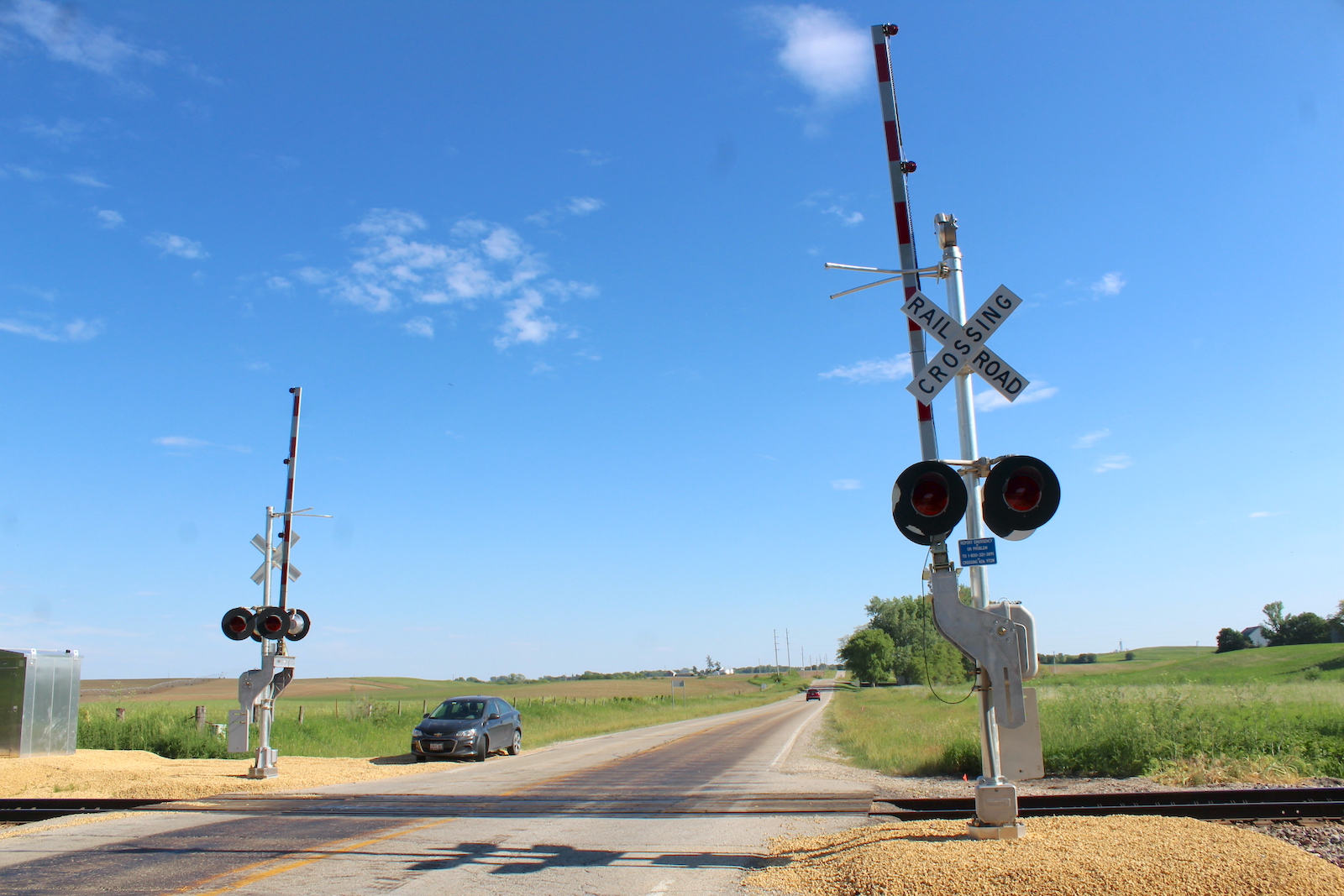

Overview of the new signals facing south.	Overview facing north.

22

23

24

25

26

27

28

29

30

31

32

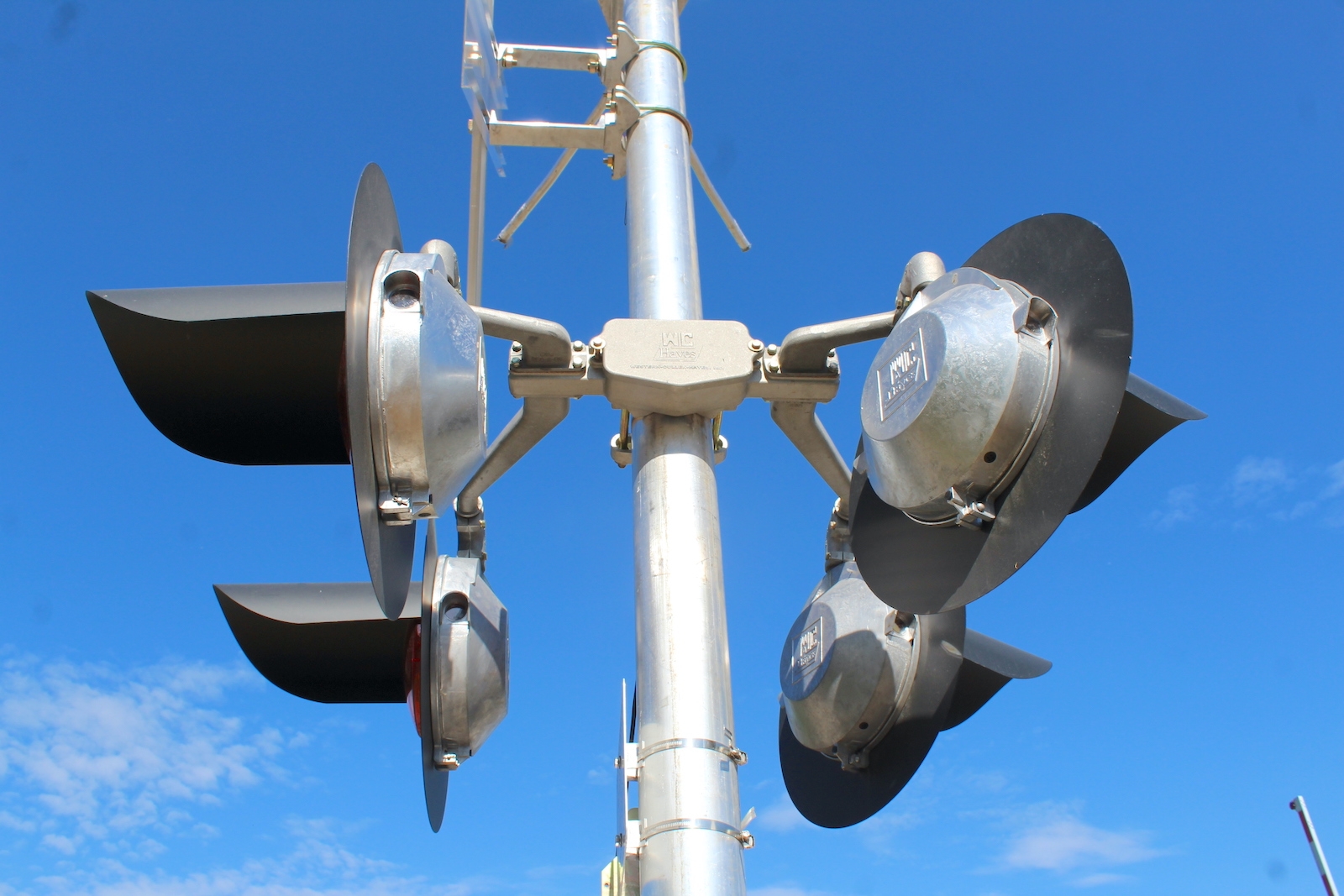

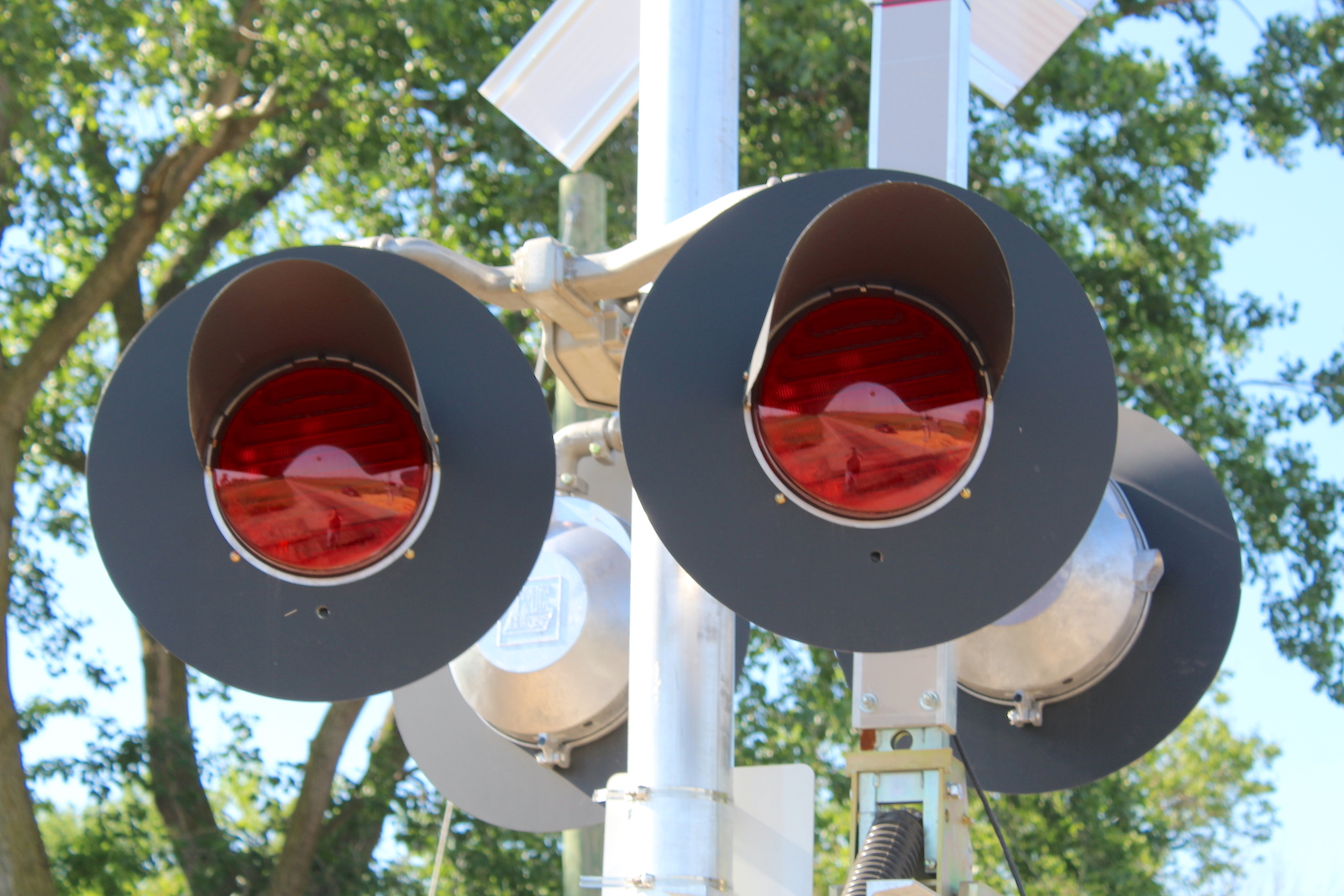

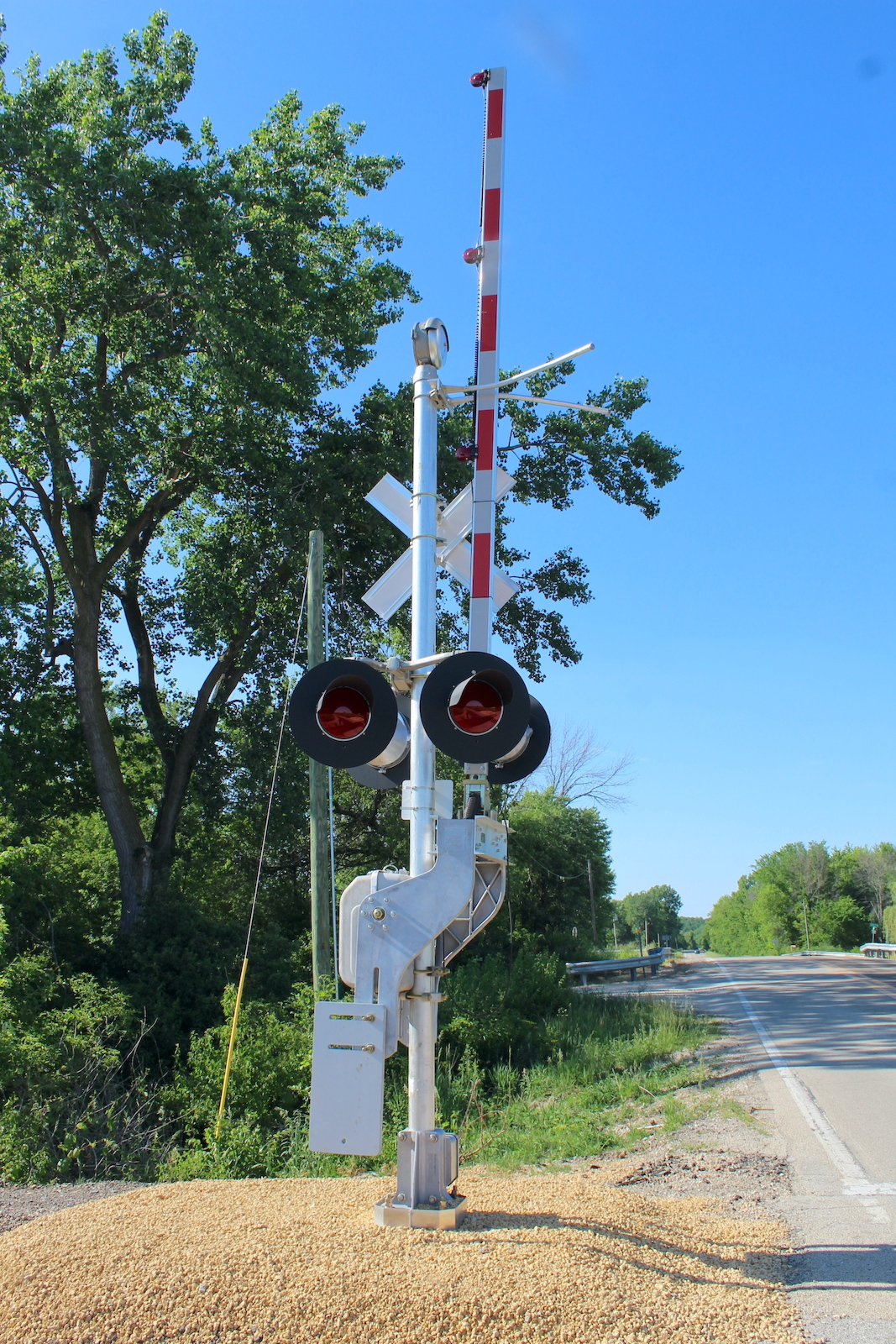

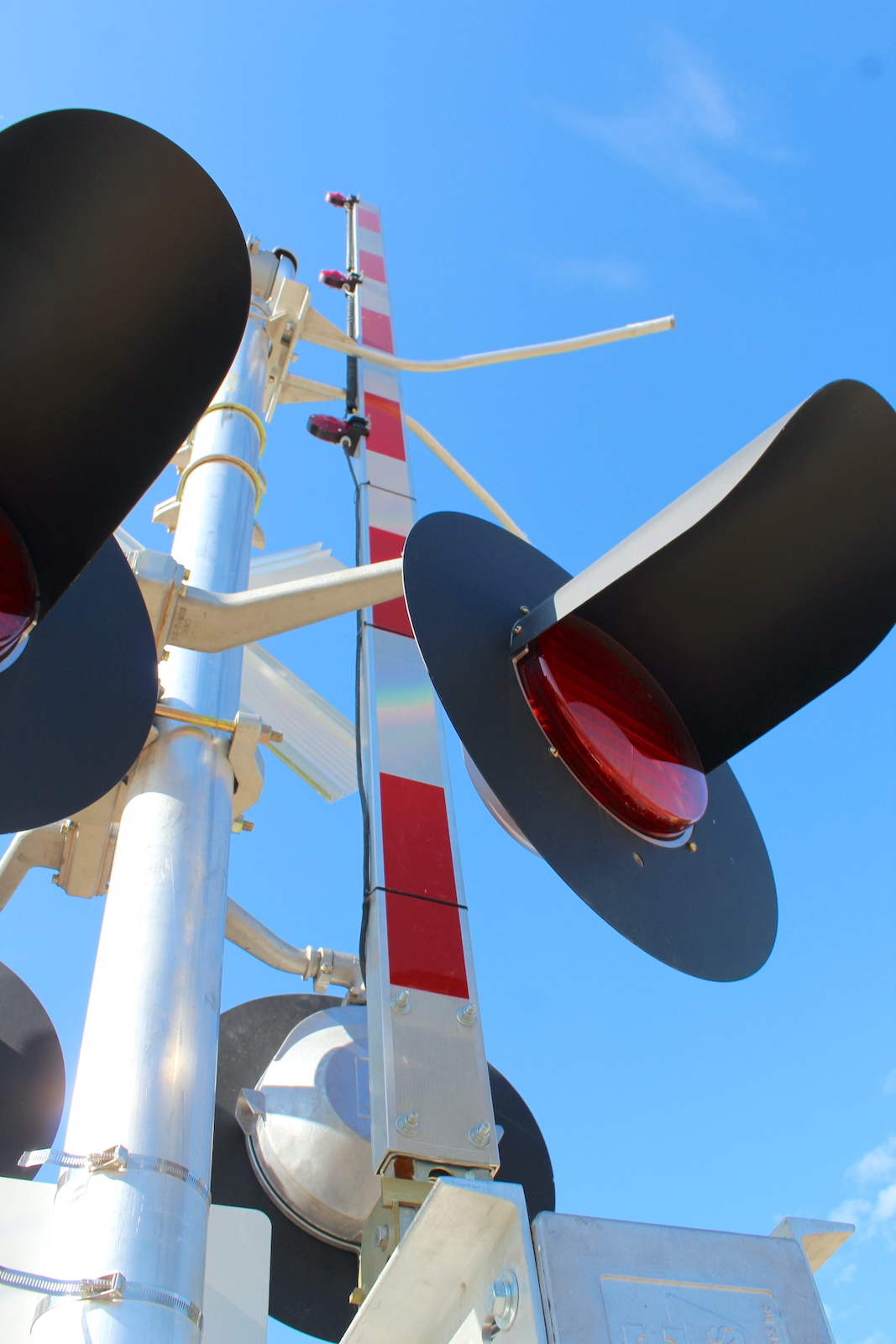

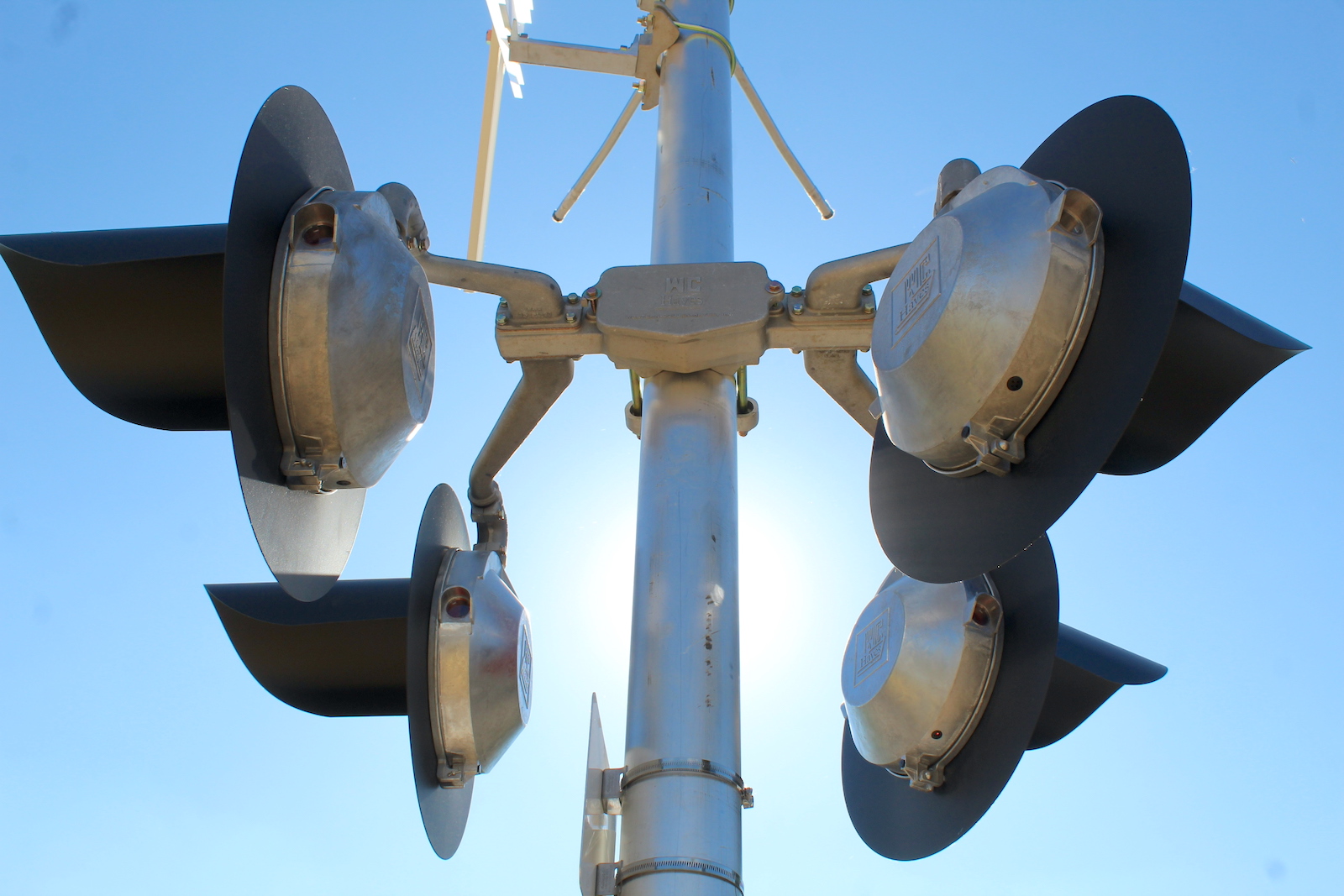

The new northern signal.

33

34

35

36

37

38

39

40

41

42

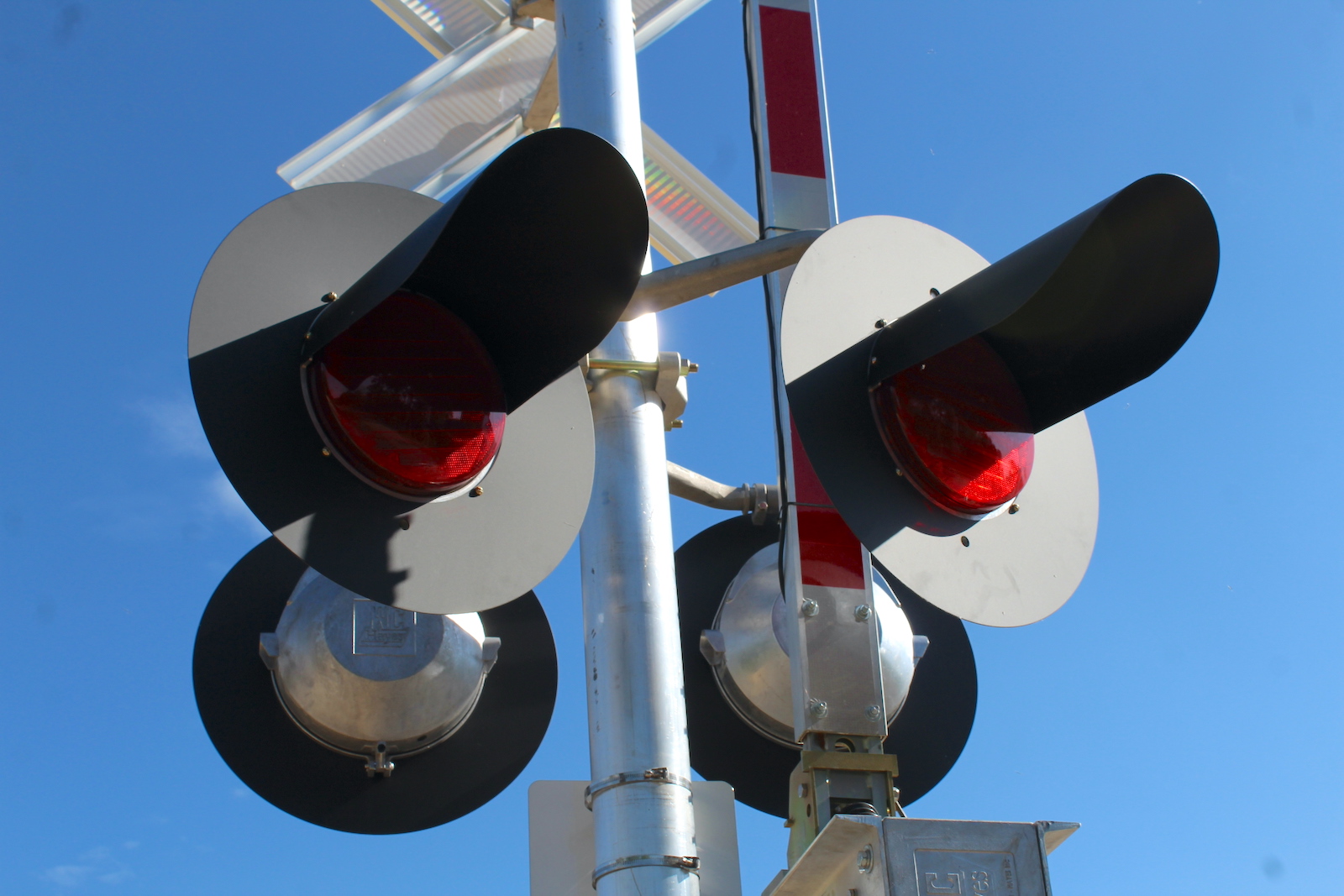

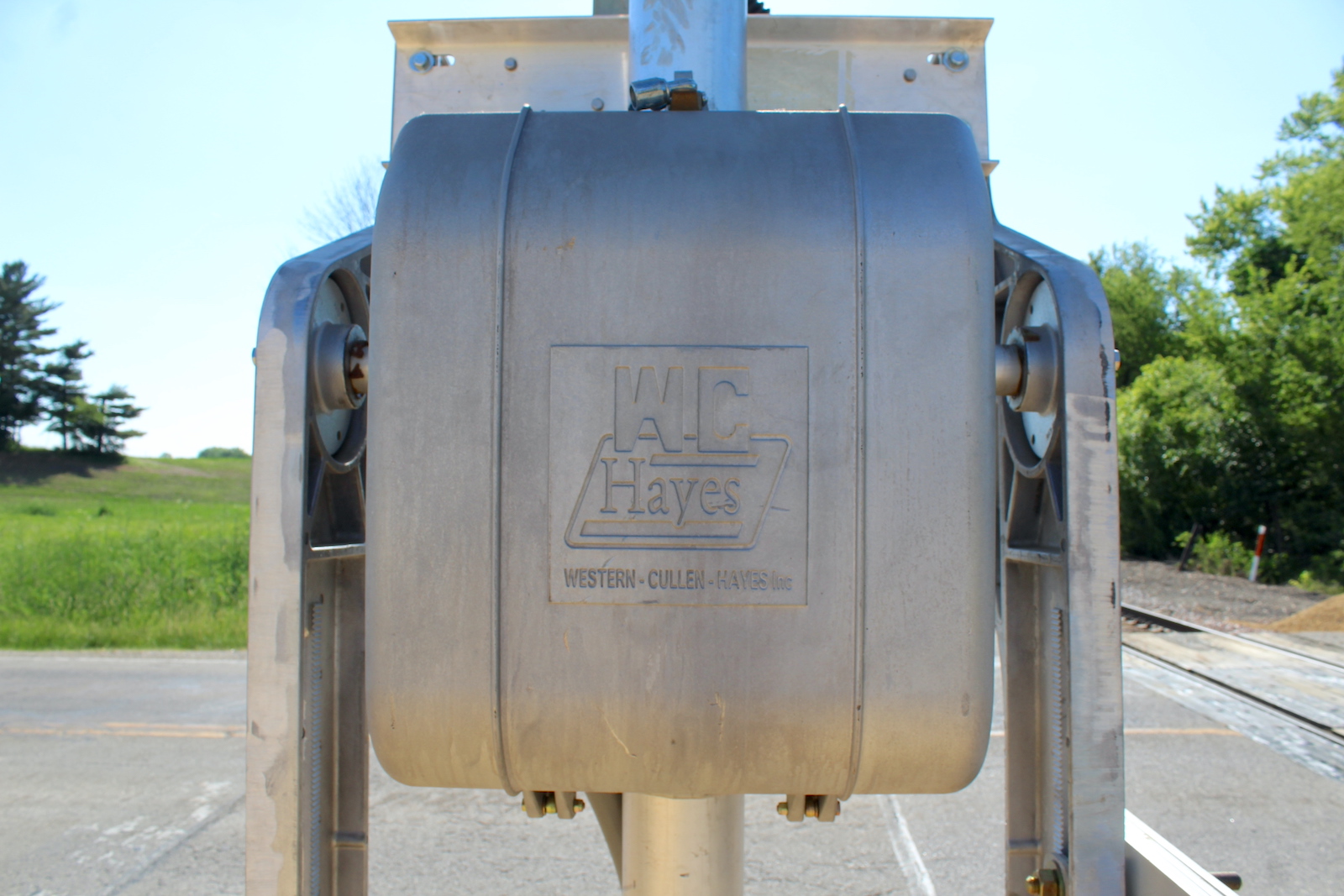

The new southern signal.

43	44	45	46

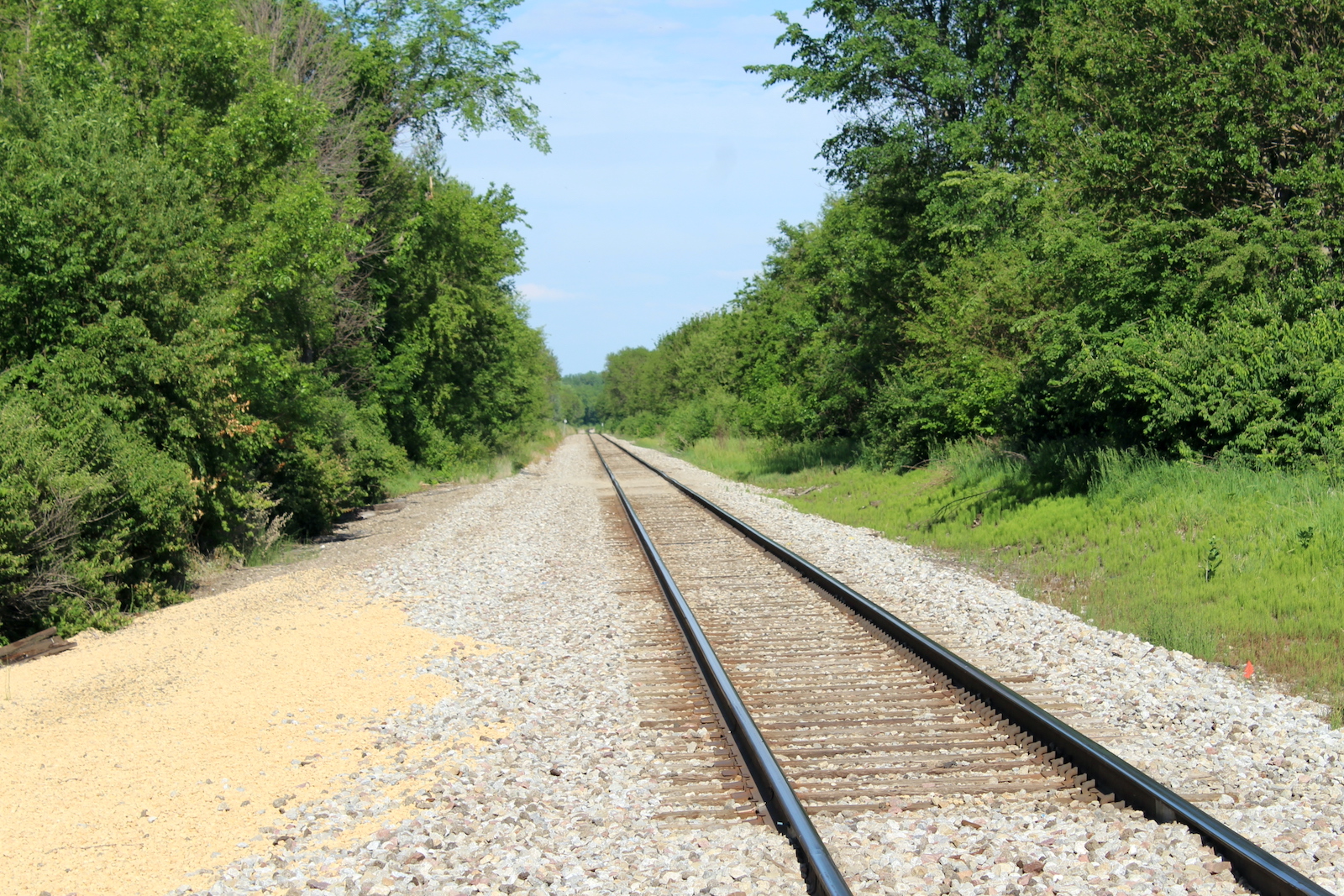

The new relay bungalow in the southeast quadrant.	The grade is all wood.	Track view facing west towards Green River Rd.	Track view facing east towards E. 1050th St.
