| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | Safetran Type 3 E-Bell Low Tone | Siemens E-Bell Low Tone |
| Cantilever: | None | Safetran Cantilever |
| Mast Base: | Safetran 5" Single Sided > | Safetran 5" Single Sided > |
| Lights: | 4 - 12"x24" Safetran w/ Harmon Fading LEDs | 10 - 12"x24" Safetran w/ GE Uniform Look LEDs |
| Junction Boxes: | Safetran | Safetran |
| Gate Lights: | 4" RECO LEDs | 4" RECO LEDs |
| Gate Mechanism: | Safetran 2000s w/ GSI Gate Saver | Invensys Rail w/ GSI Gate Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
All pictures were taken on March 19, 2015, by Tommy McGowan.
The video was taken on March 3, 2018, by Tommy McGowan.
This crossing is located on the CN Matteson Sub, formerly the EJ&E
Eastern Sub. UP and BNSF have trackage rights on this line as
well.
This is 1 of only 2 crossings near Joliet on the Eastern Sub not to be a quiet zone; Cherry Hill Rd. being the other.
These signals were not installed at
the same time. The signals here before were similar signals with
12"x24" Safetran incandescents, Safetran gate mechanisms, and a
Safetran mechanical bell. The northern signal was replaced first
when the double track was in the process of being put in in early
2011. In late 2011, the southern signal was replaced with the
gated signal and cantilever setup.
1 |
2
|

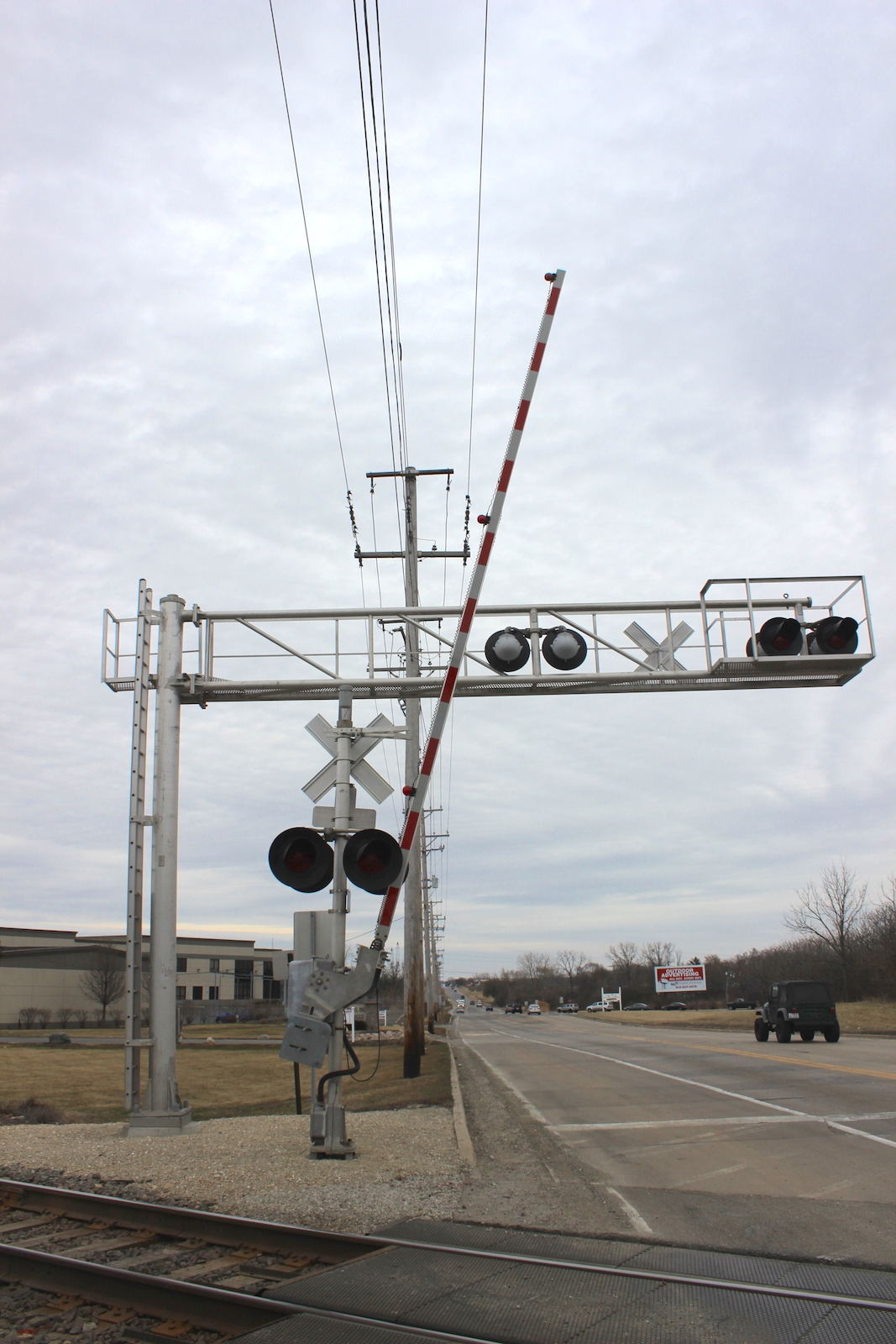

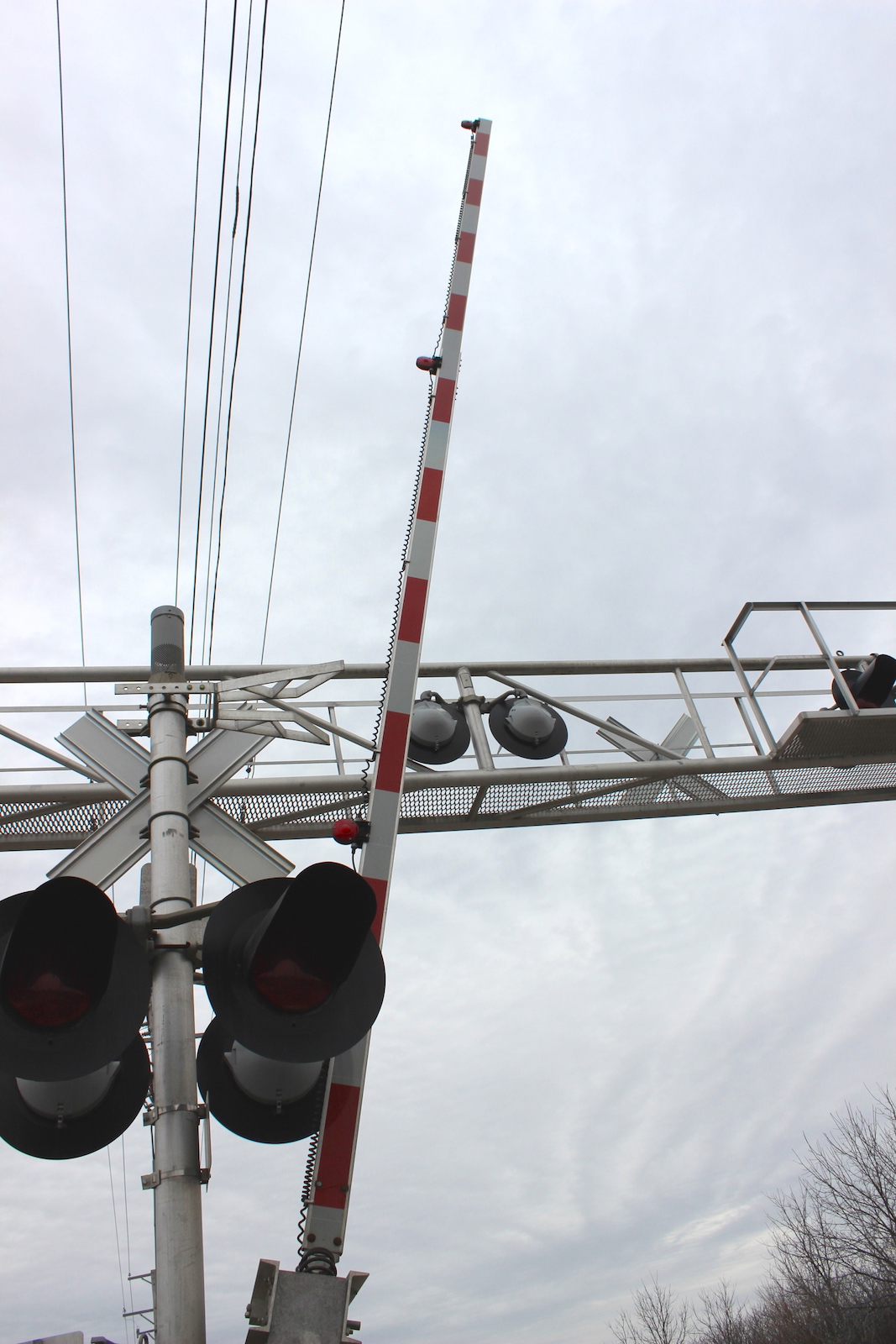

| Overview of 2 gated signals and 1 cantilever facing north. |
Overview facing south. |
3
| 4
| 5
|
6
| 7
| 8
|
9
| 10
| 11
|
12
| 13
| 14
| 15
|

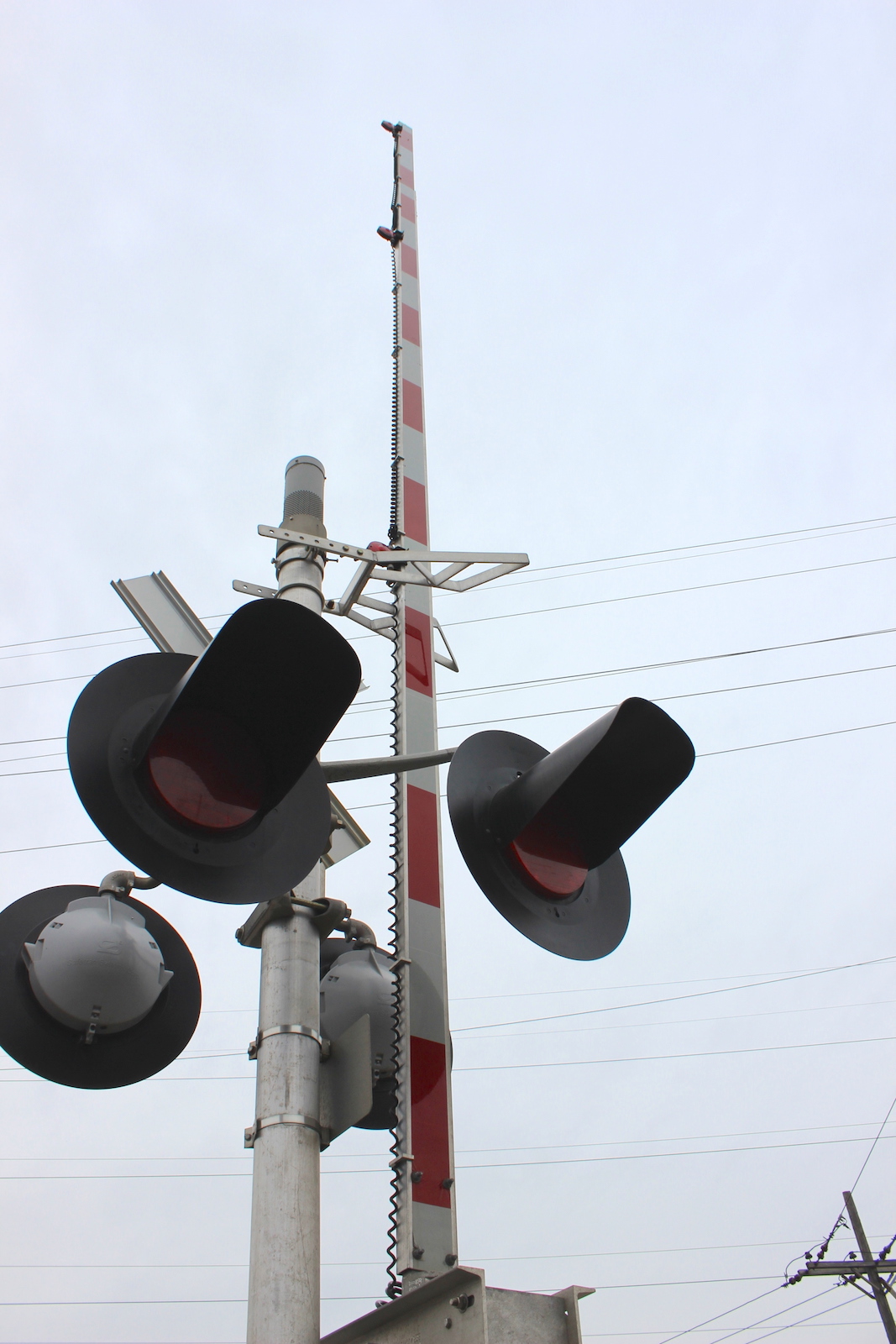

| The southern signal. |
16
| 17
| 18
|
19
| 20
| 21
|
22
|
23
|
24 |

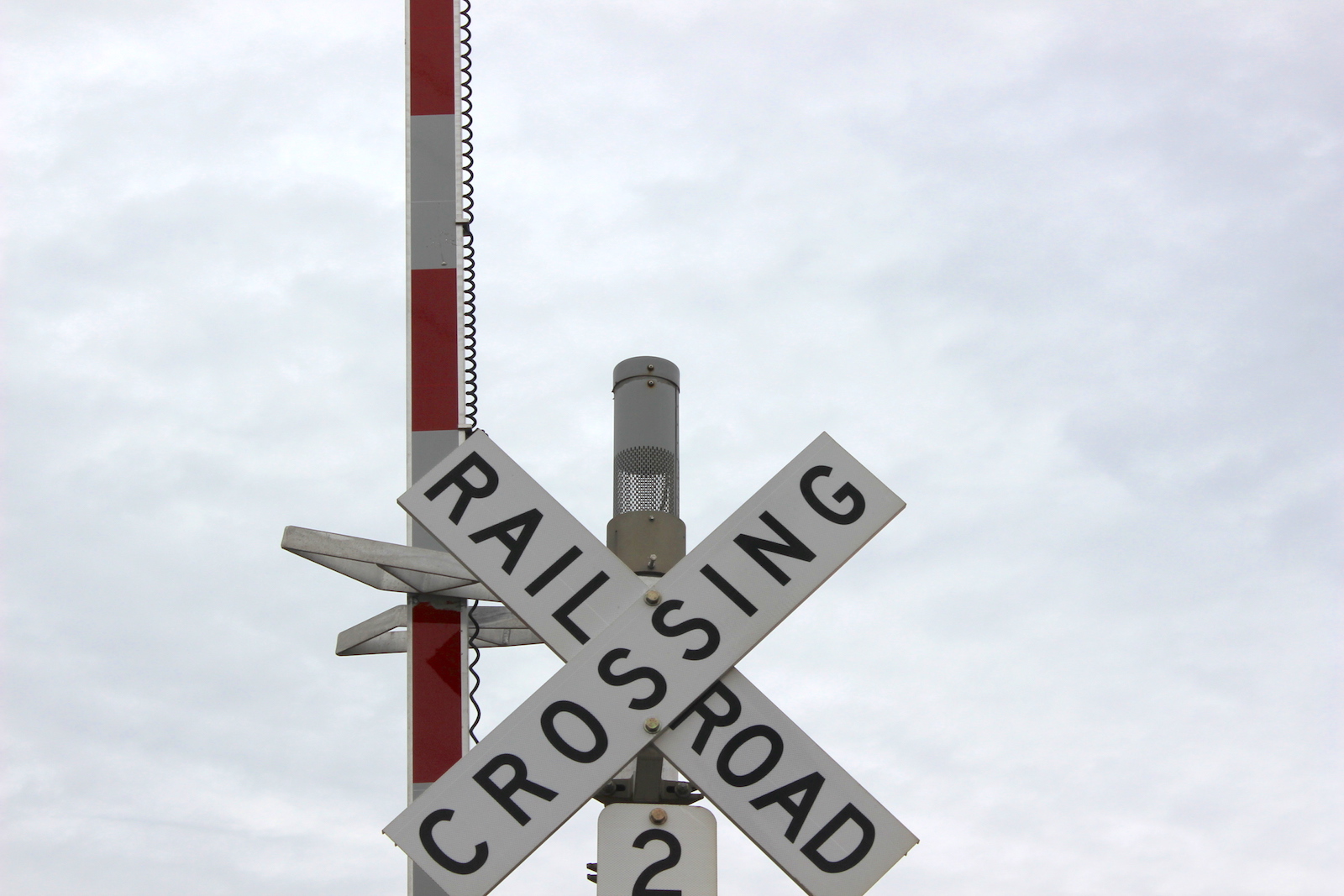

| The northern signal. | ||
25
|
26
|
27
|
28
|
| The relay bungalow in the northeast quadrant. |
The grade is all rubber. |

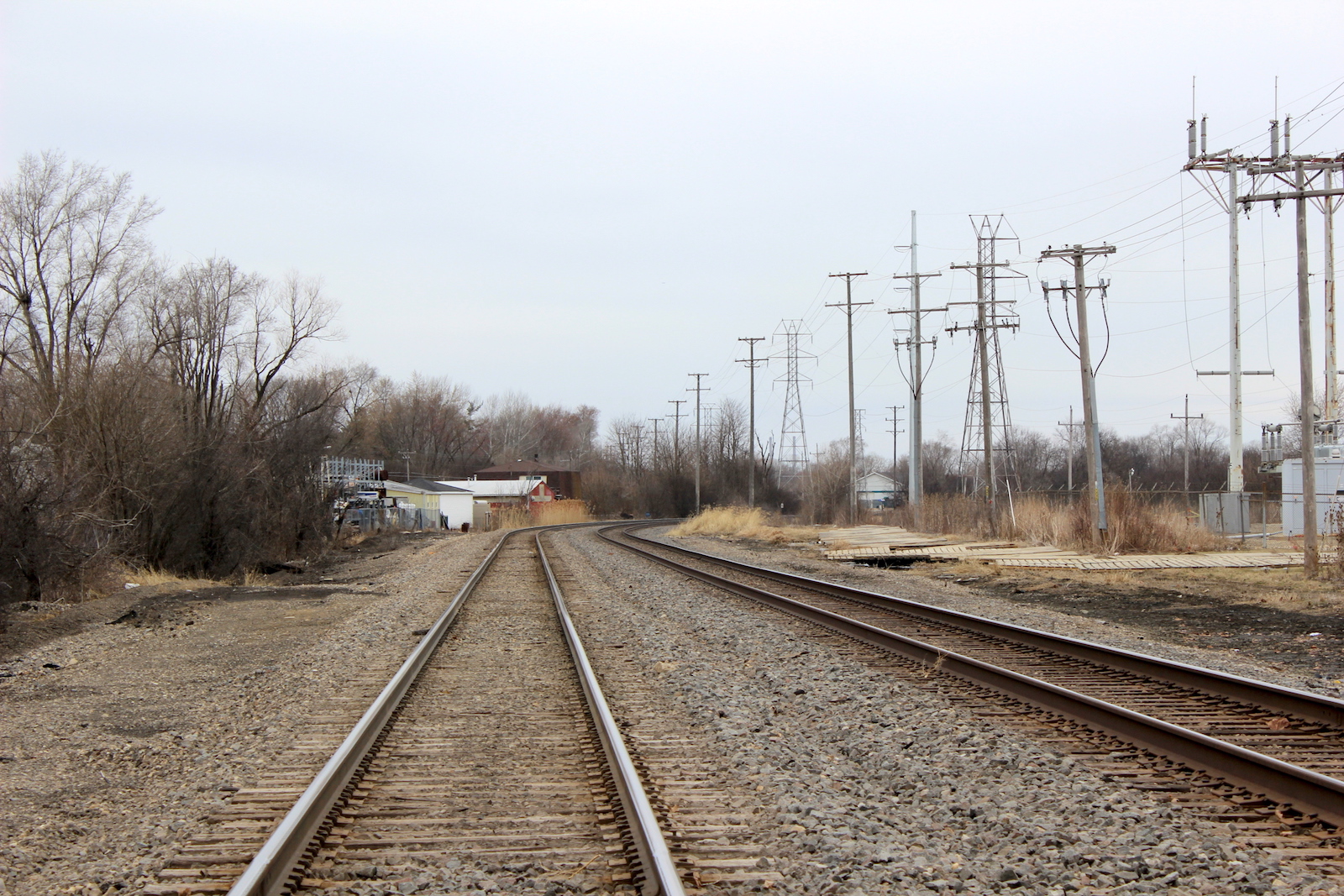

Track view facing west towards Spencer Rd. |
Track view facing east towards Cherry Hill Rd. |
