| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | GS E-Bell | GS E-Bell |
| Base: | Siemens 5" Single Sided > | Siemens 5" Single Sided > |
| Lights: | 4 - 12"x24" Safetran w/ Dialight Ball LEDs | 4 - 12"x24" Safetran w/ Dialight Ball LEDs |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 4" RECO | 4" RECO |
| Gate Mechanism: | Siemens Imprinted w/ New NEG 2 Way Saver | Siemens Imprinted w/ New NEG 2 Way Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
G1 |
G2 |
| Google Streetview pictures from 2019 showing two old gateless signals with 12"x20" LEDs and a WRRS mechanical bell. The WRRS bell was replaced with a GS E-Bell shortly after, however by late 2021, brand new gated signals were installed here. |
1 |
2 |

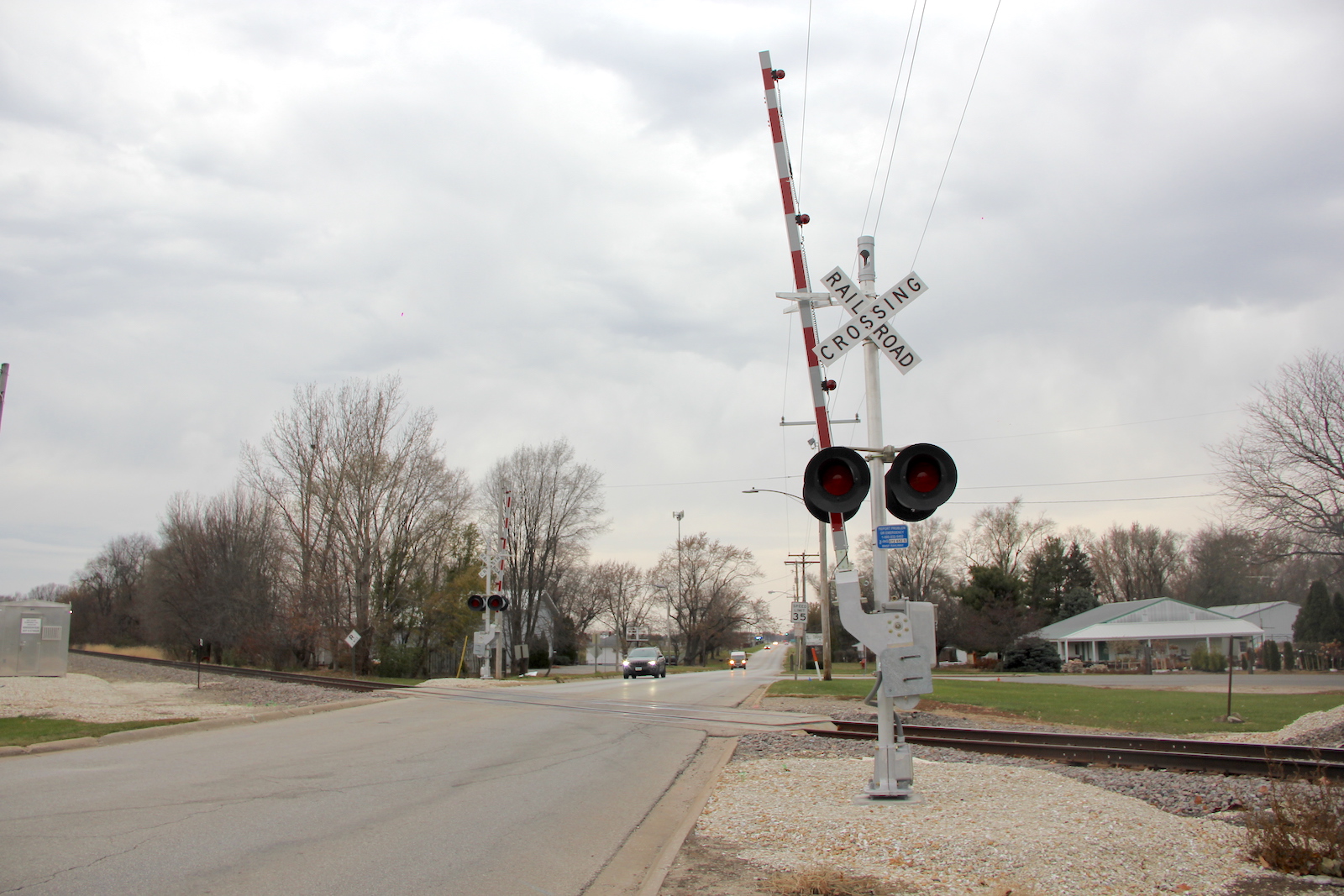

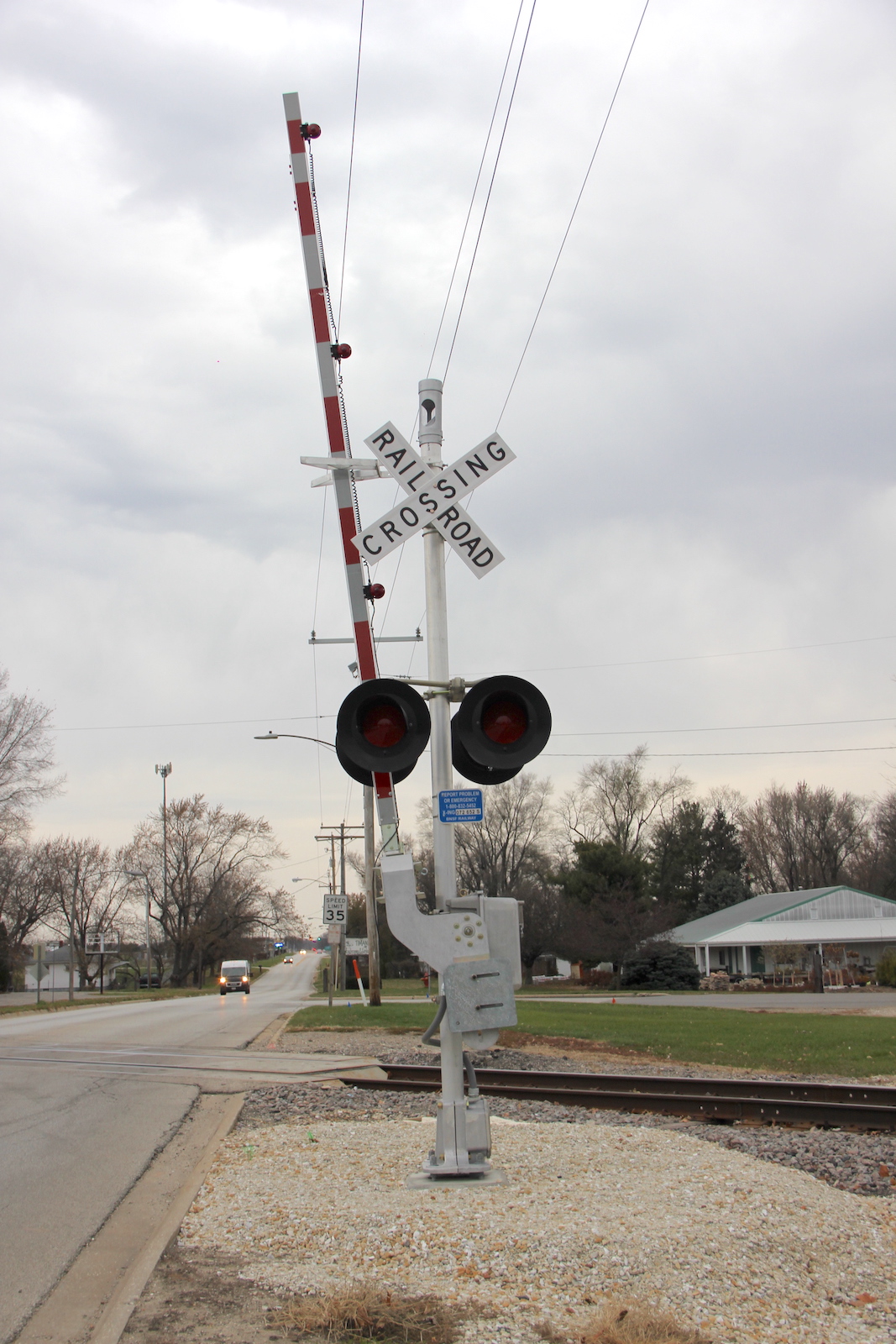

| Overview of the new signals facing north. | Overview facing south. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
| The southern signal. |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
| The northern signal. |
23 |
24 |
25 |
26 |
| The relay bungalow in the southwest quadrant. | The grade is all concrete. | Track view facing west towards Knox Highway 10. | Track view facing east towards Market St. |
27 |
| In February 2023, I discovered the old signals for this crossing are actually mounted in front a scrap yard north of Knoxville, and given their placement, they appear to be using these as decoration and won't be scrapping them anytime soon. You can also see that the WRRS bell was indeed replaced before the new signals went in. |
