150.07


290978H

>>>>>>>>>>>>>>> Northern Entrance Signal Northern Exit Signal Southern Entrance Signal Southern Exit Signal
Bell: WCH E-Bell WCH E-Bell WCH E-Bell WCH E-Bell
Base: Siemens 5" Double Sided ^ Siemens 5" Double Sided ^ WCH 5" Double Sided ^ WCH 5" Double Sided ^
Lights: 4 - 12"x24" WCH w/ GE Dotted LEDs 4 - 12"x24" WCH w/ GE Dotted LEDs 4 - 12"x24" WCH w/ GE Dotted LEDs 4 - 12"x24" WCH w/ GE Dotted LEDs
Junction Boxes: WRRS WRRS WRRS WRRS
Gate Lights: NEG Clear LEDs NEG Clear LEDs NEG Clear LEDs NEG Clear LEDs
Gate Mechanism: WCH Style 3.5 w/ Old WCH Gate Saver Siemens Imprinted w/ New NEG 2 Way Saver WCH Style 3.5 w/ Old WCH Gate Saver WCH Style 3.5 w/ Old WCH Gate Saver
Gate Striping: Vertical Striping Vertical Striping Vertical Striping Vertical Striping

Pictures 1-45 were taken on July 15, 2019.
Pictures 46-72 were taken on October 28, 2024.
All pictures were taken by Tommy McGowan.
This crossing is located on the UP Springfield Sub, part of the Illinois High Speed Rail Corridor.

1 2

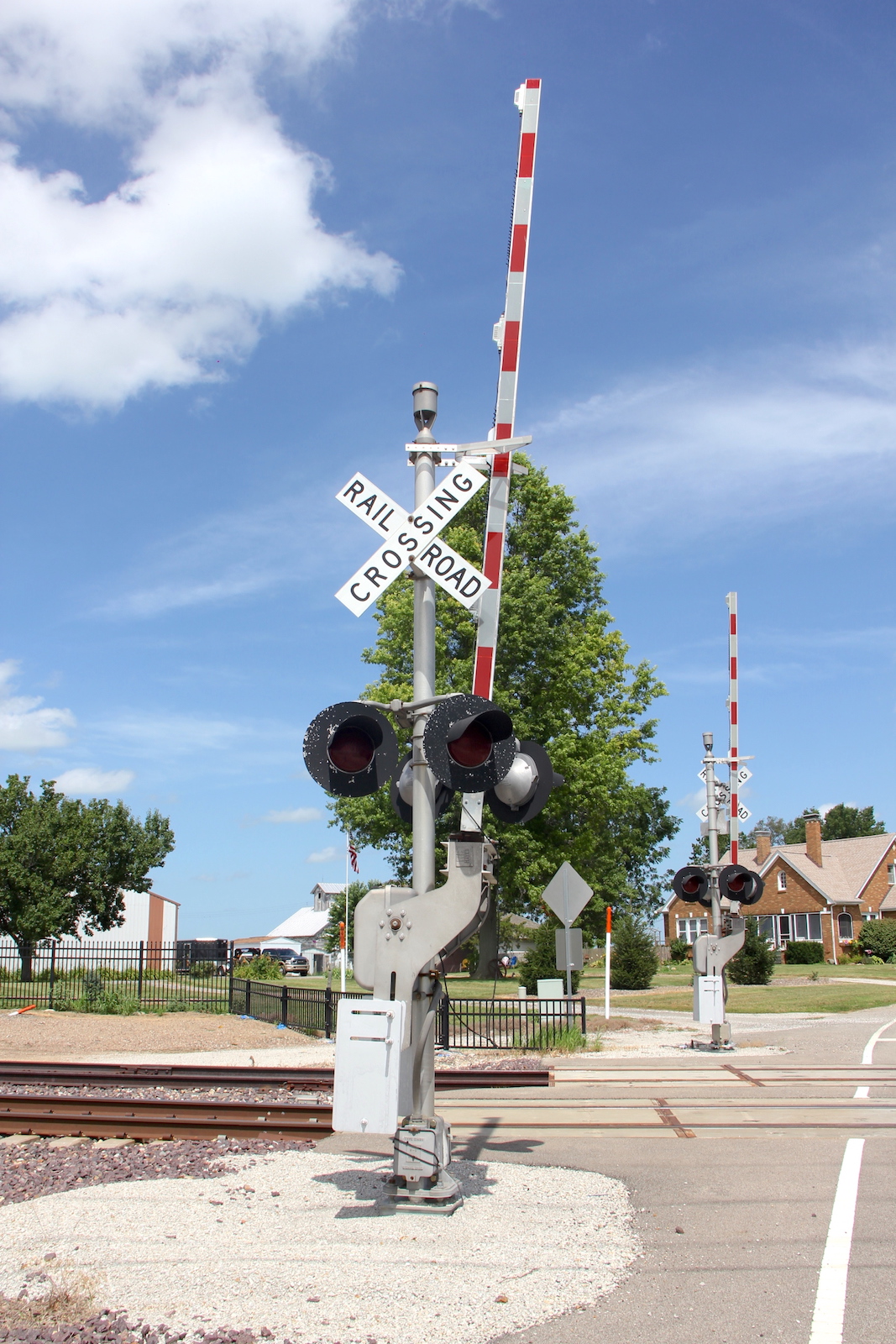

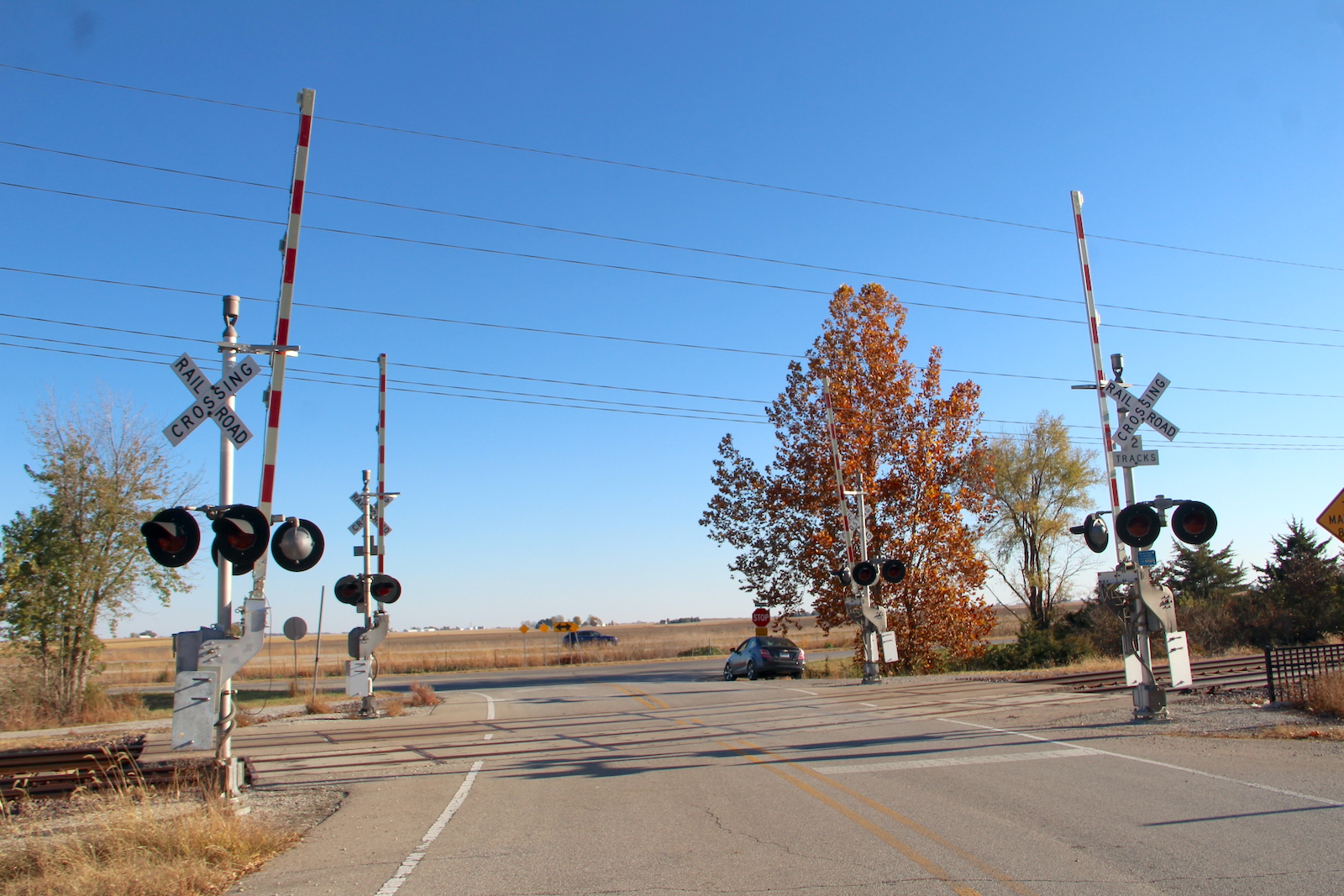

Overview of a 2000s WCH quad gated setup facing south. Overview facing north.
3 4 5
6 7 8
9 10 11 12

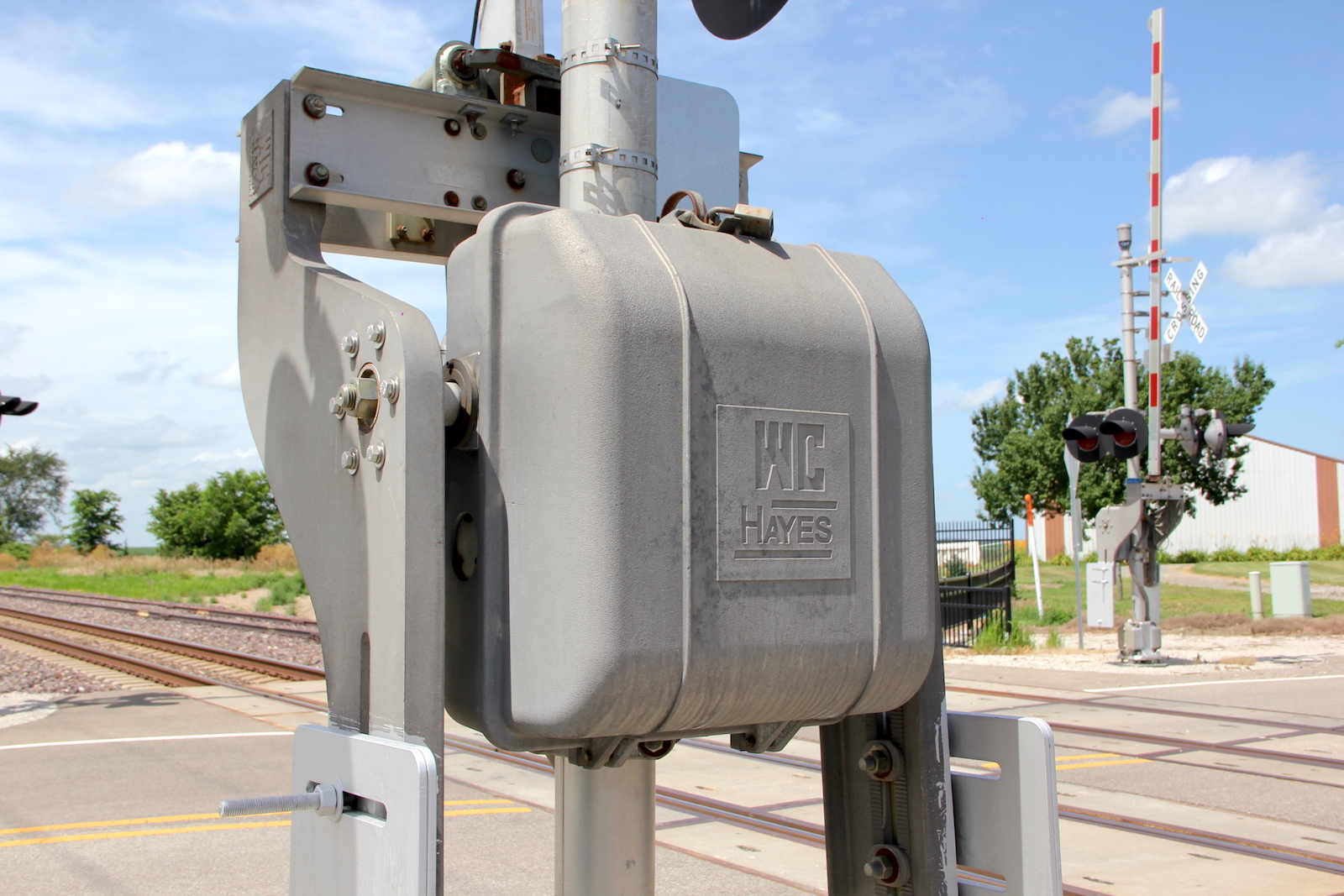

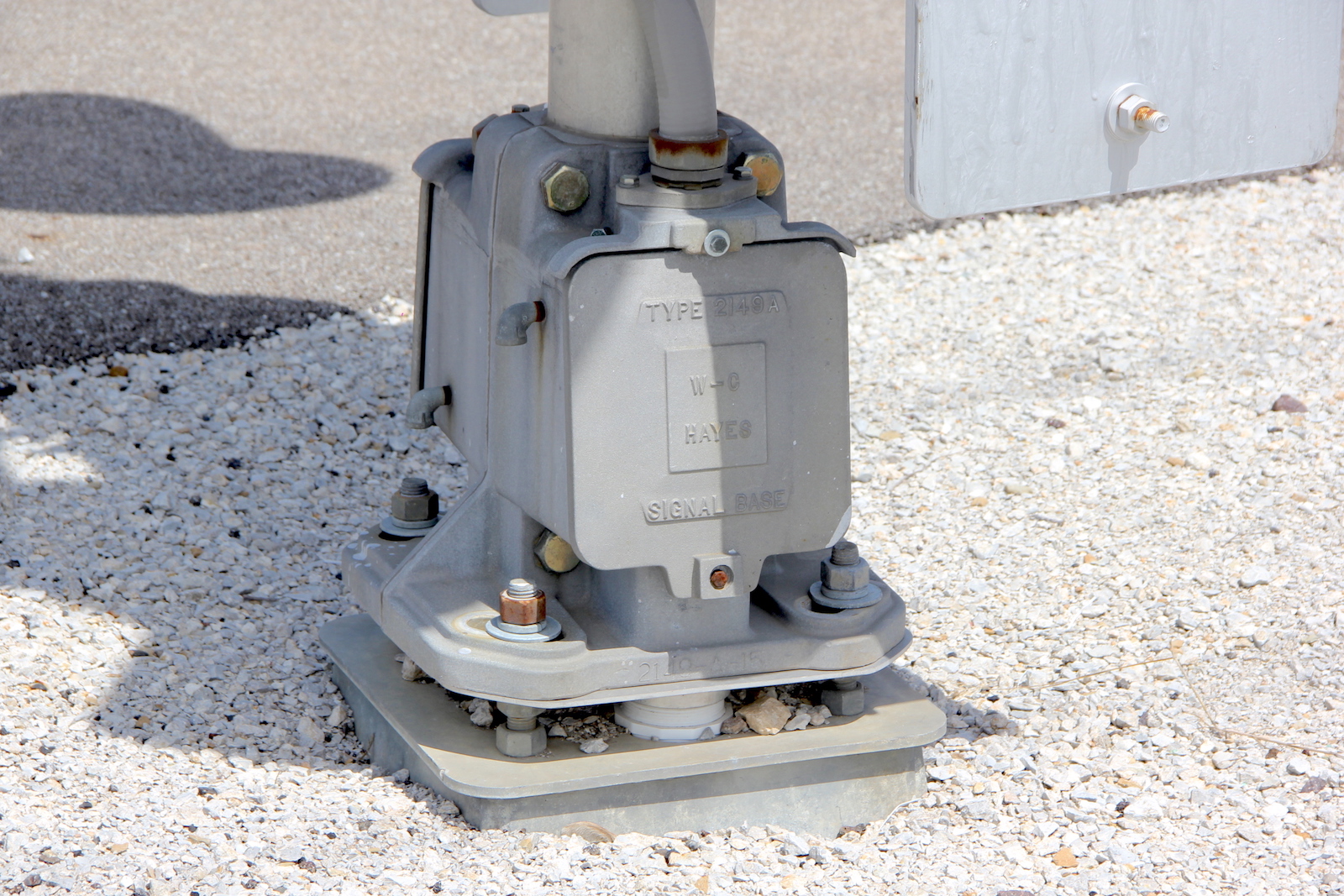

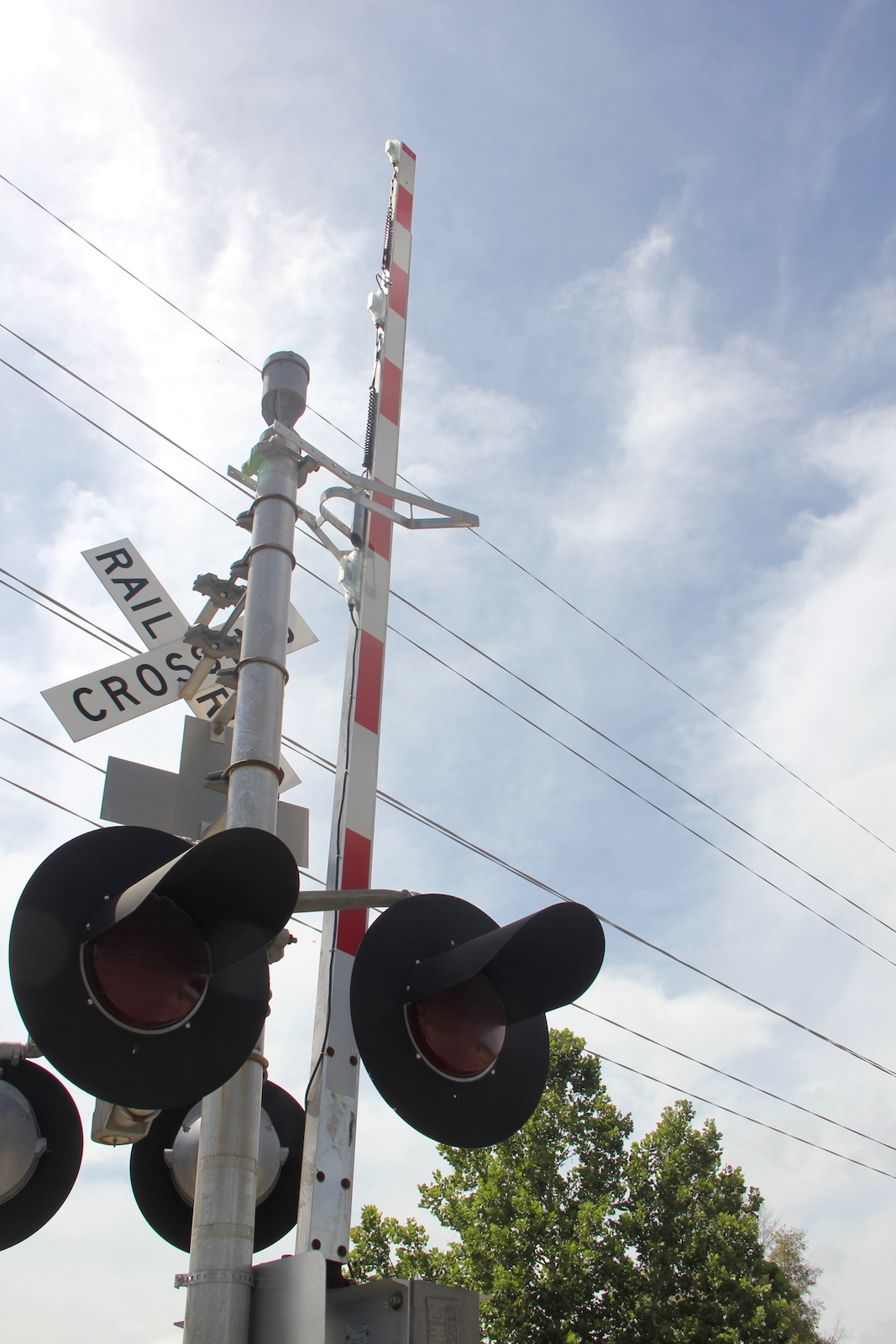

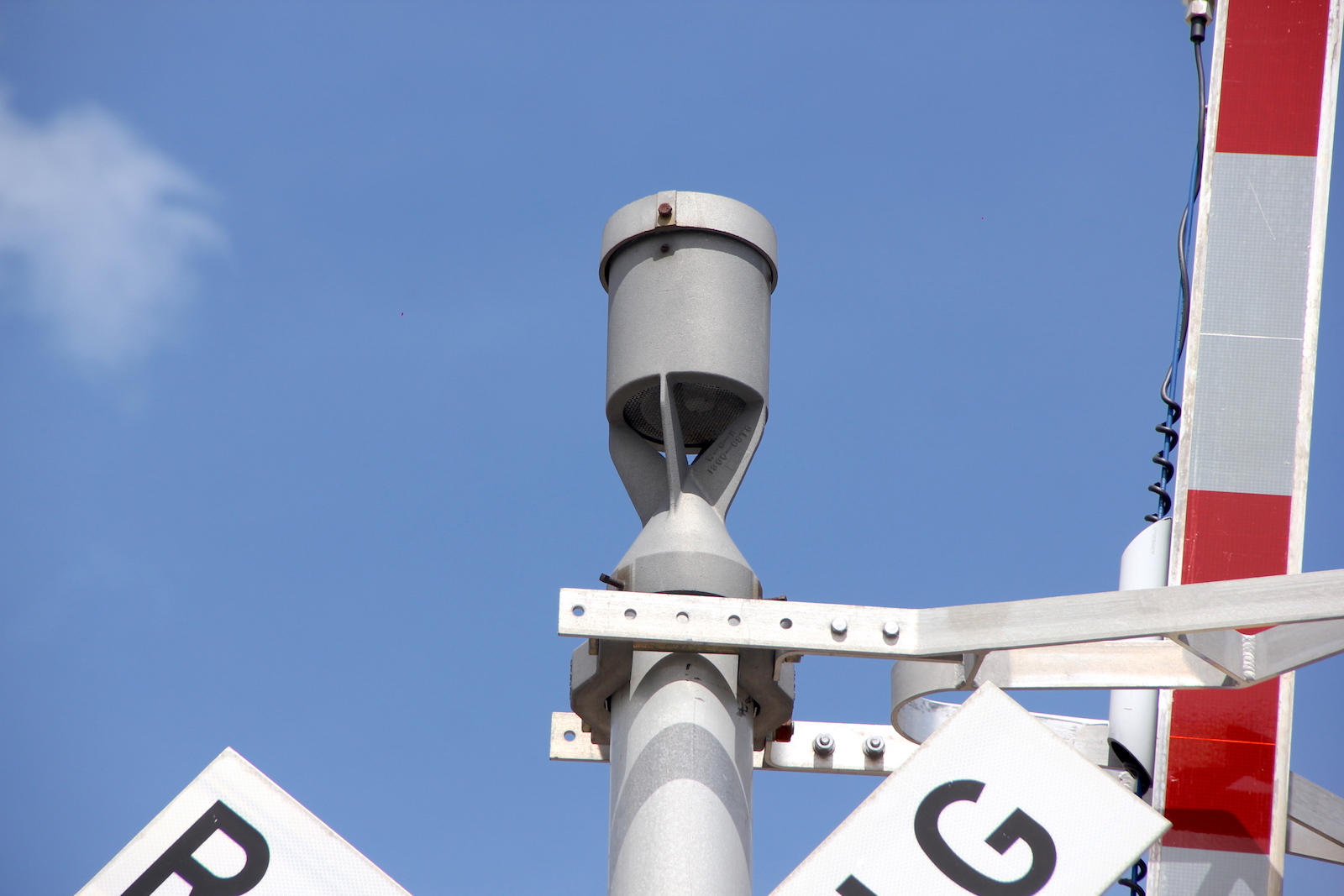

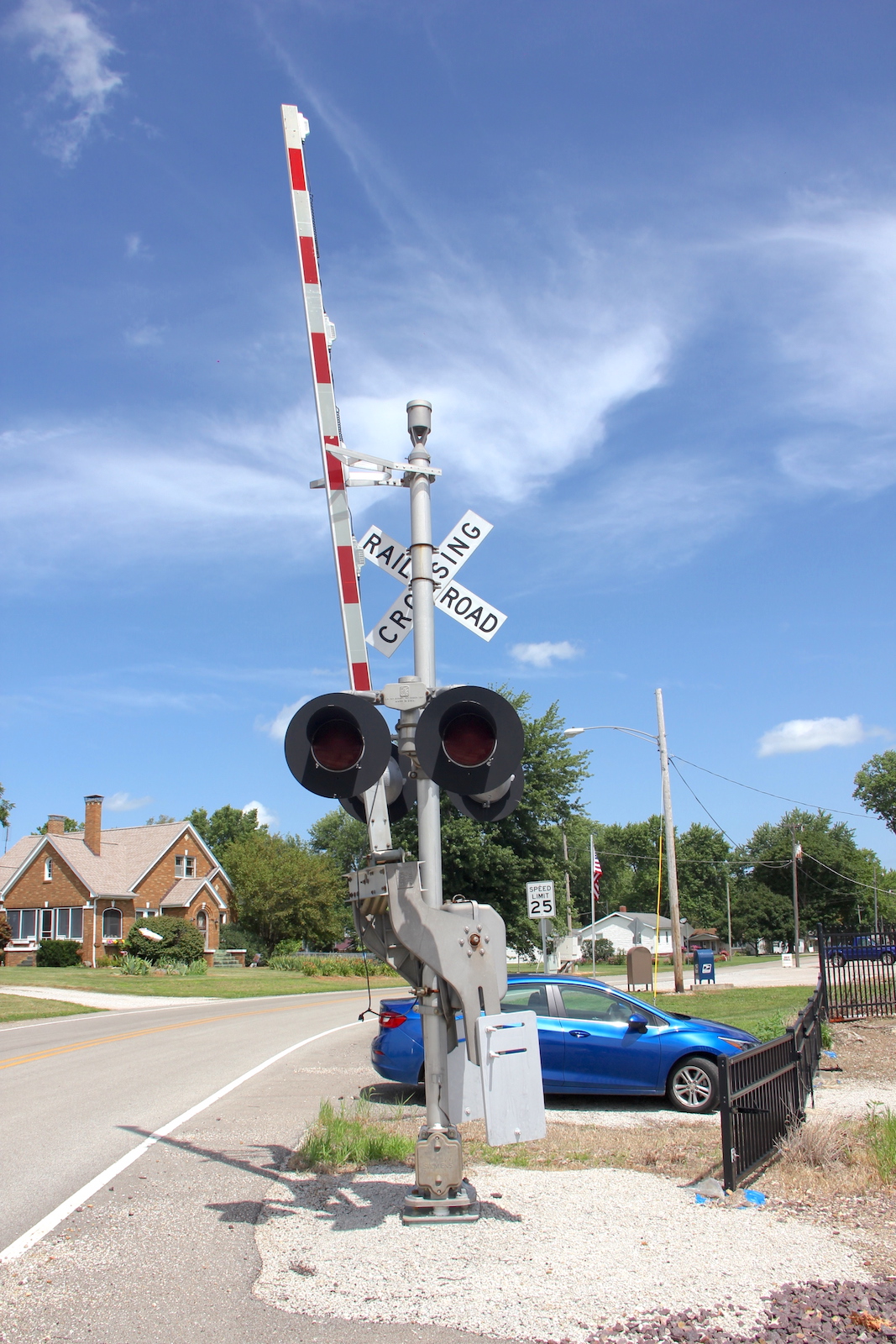

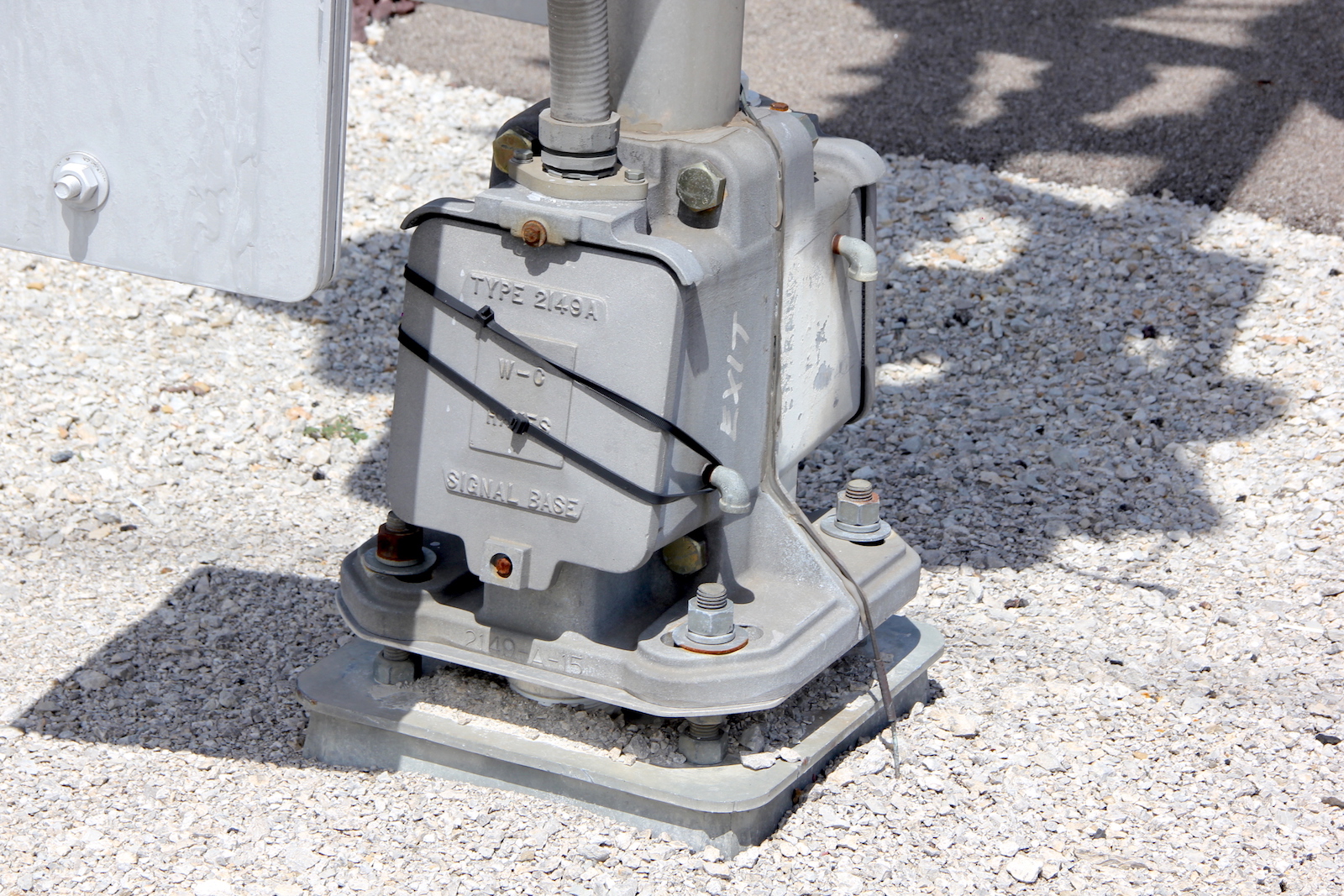

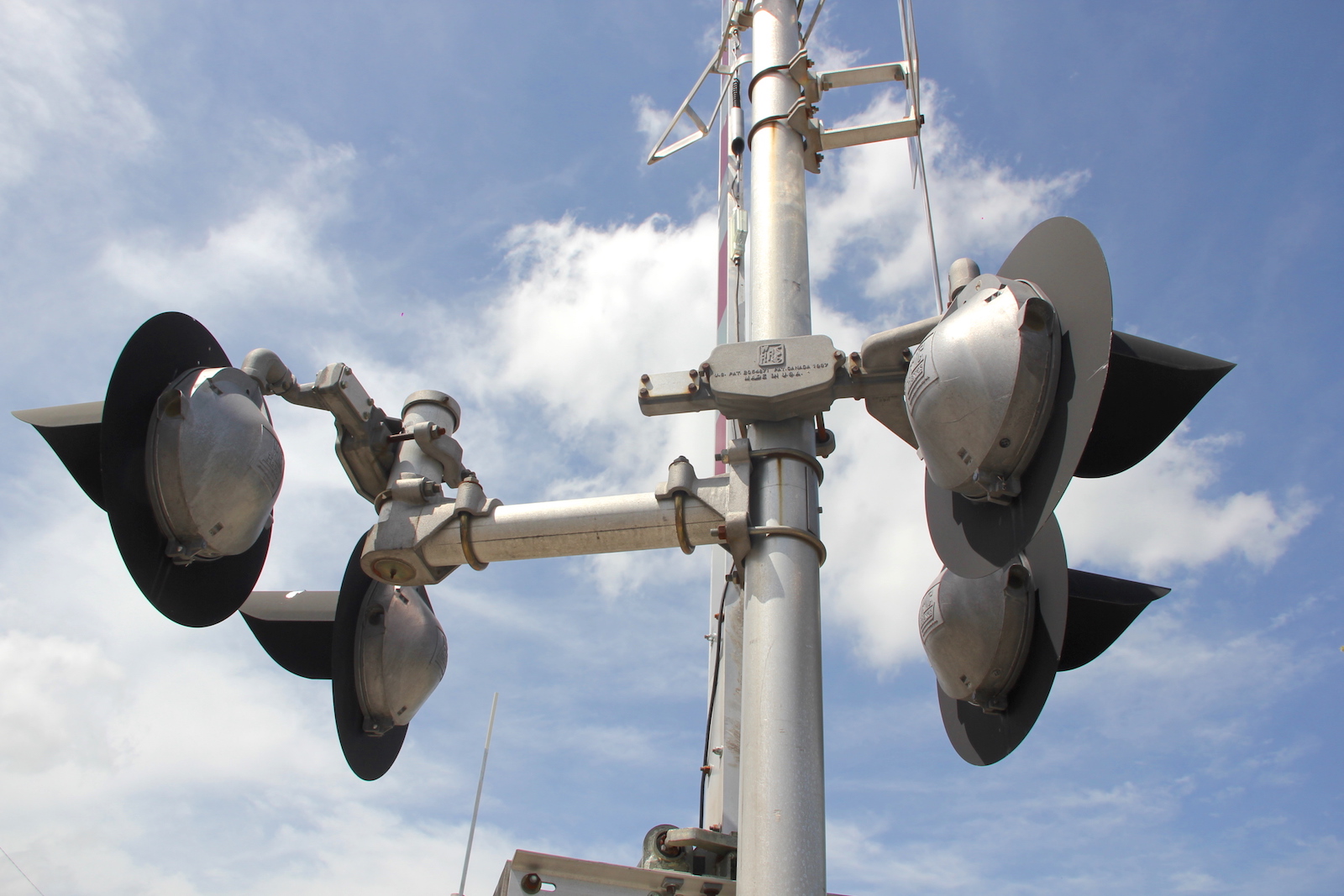

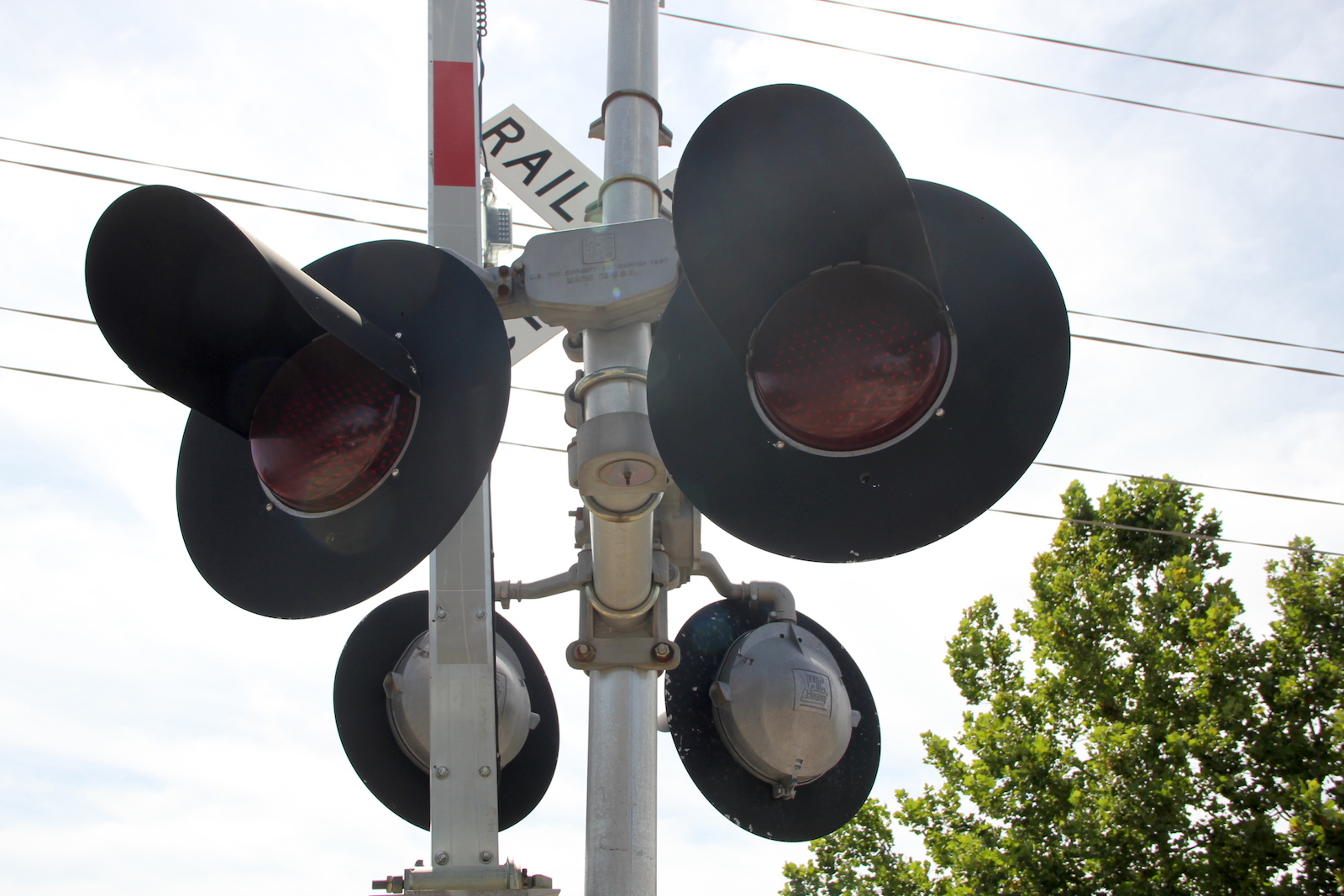

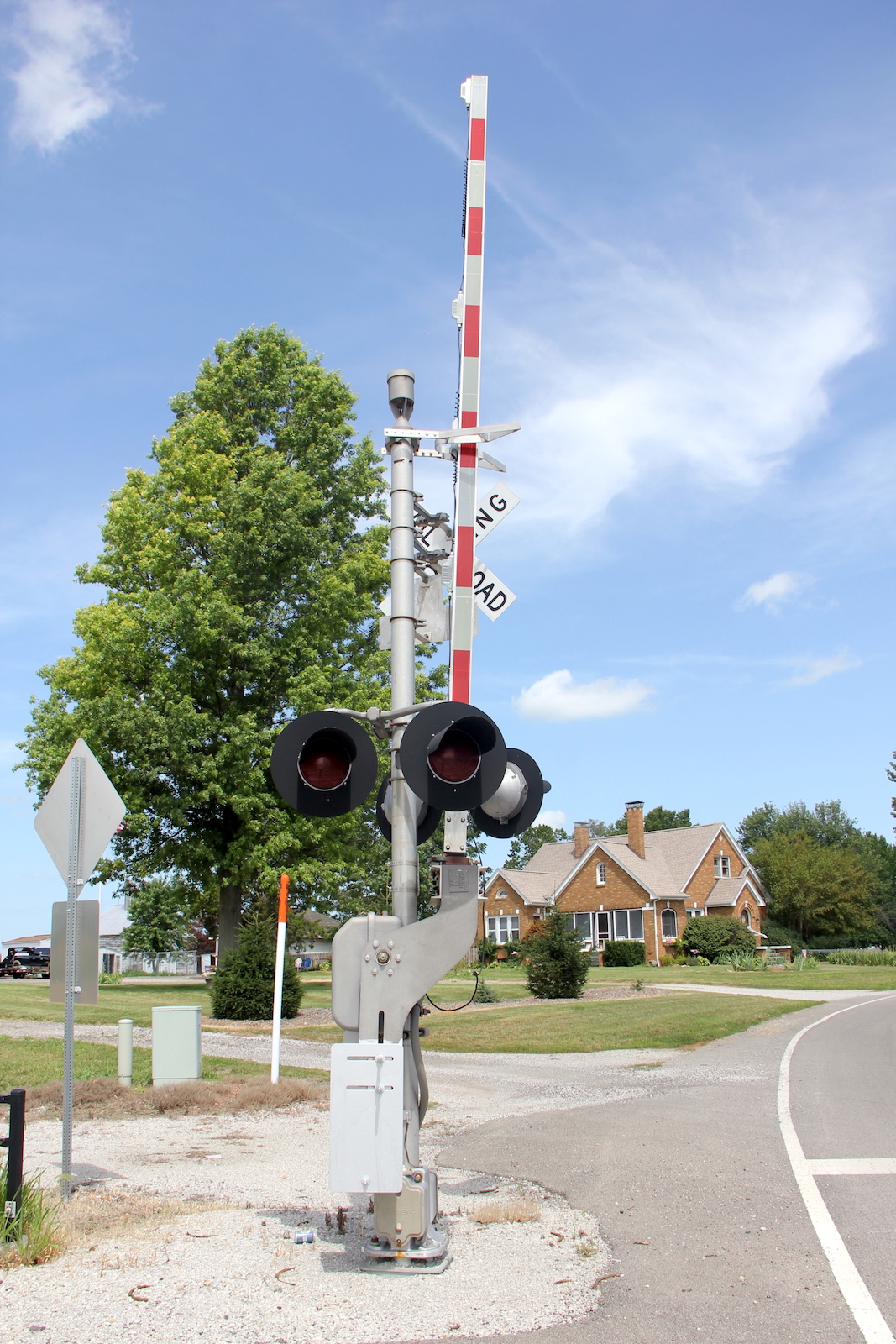

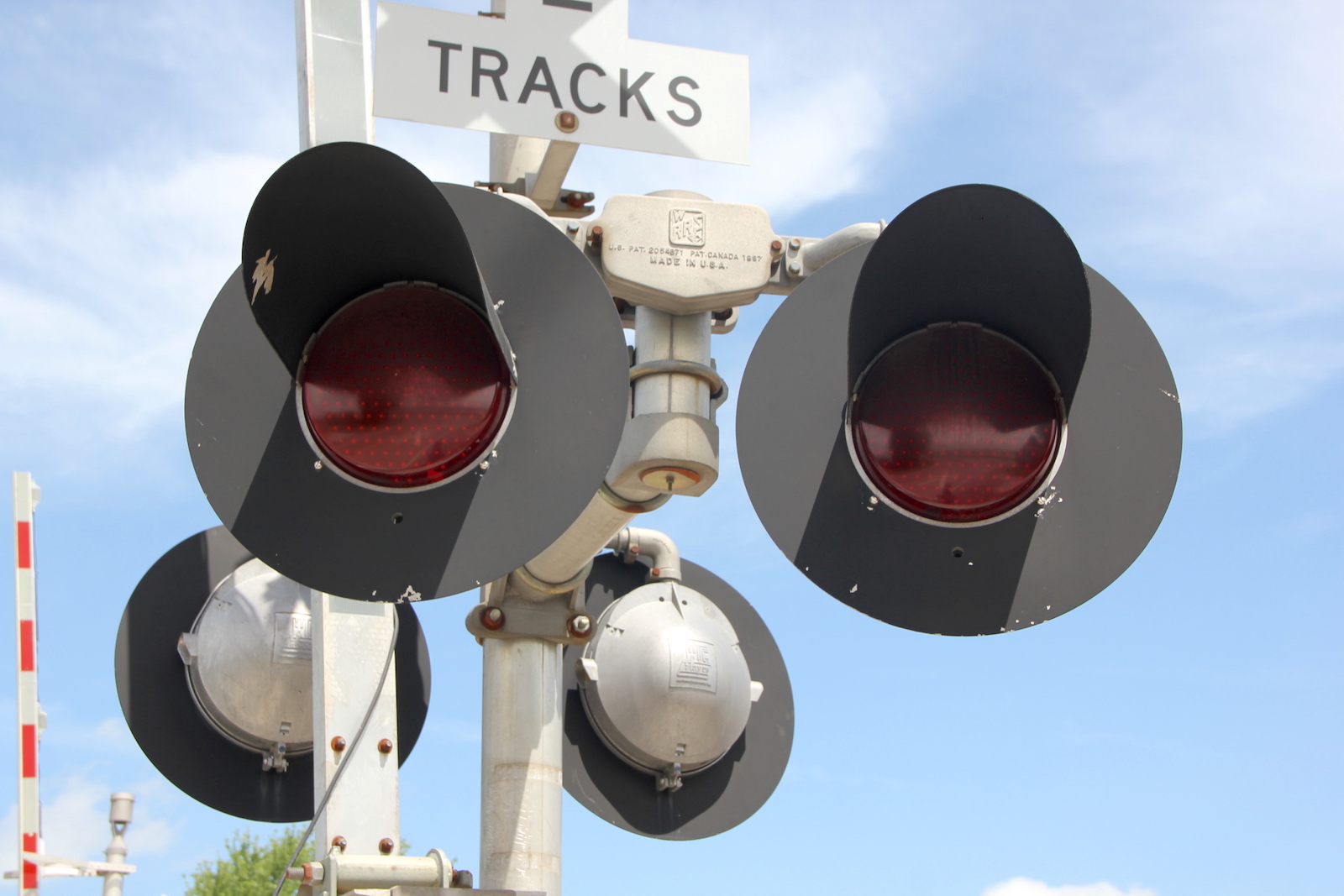

The northern entrance signal. All 4 signals had 1st Gen WCH LEDs at this time.
13 14 15
16 17 18
19 20 21 22

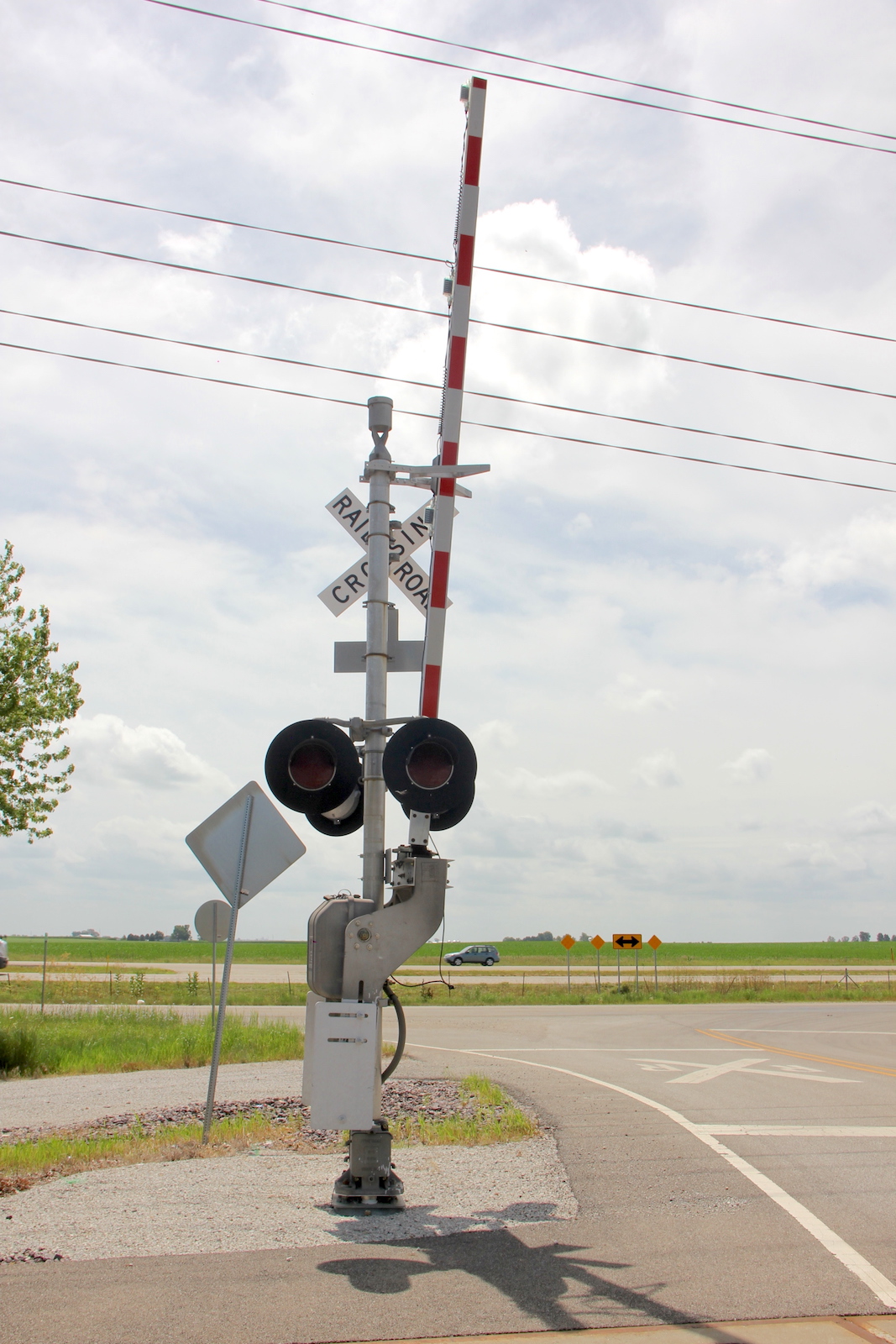

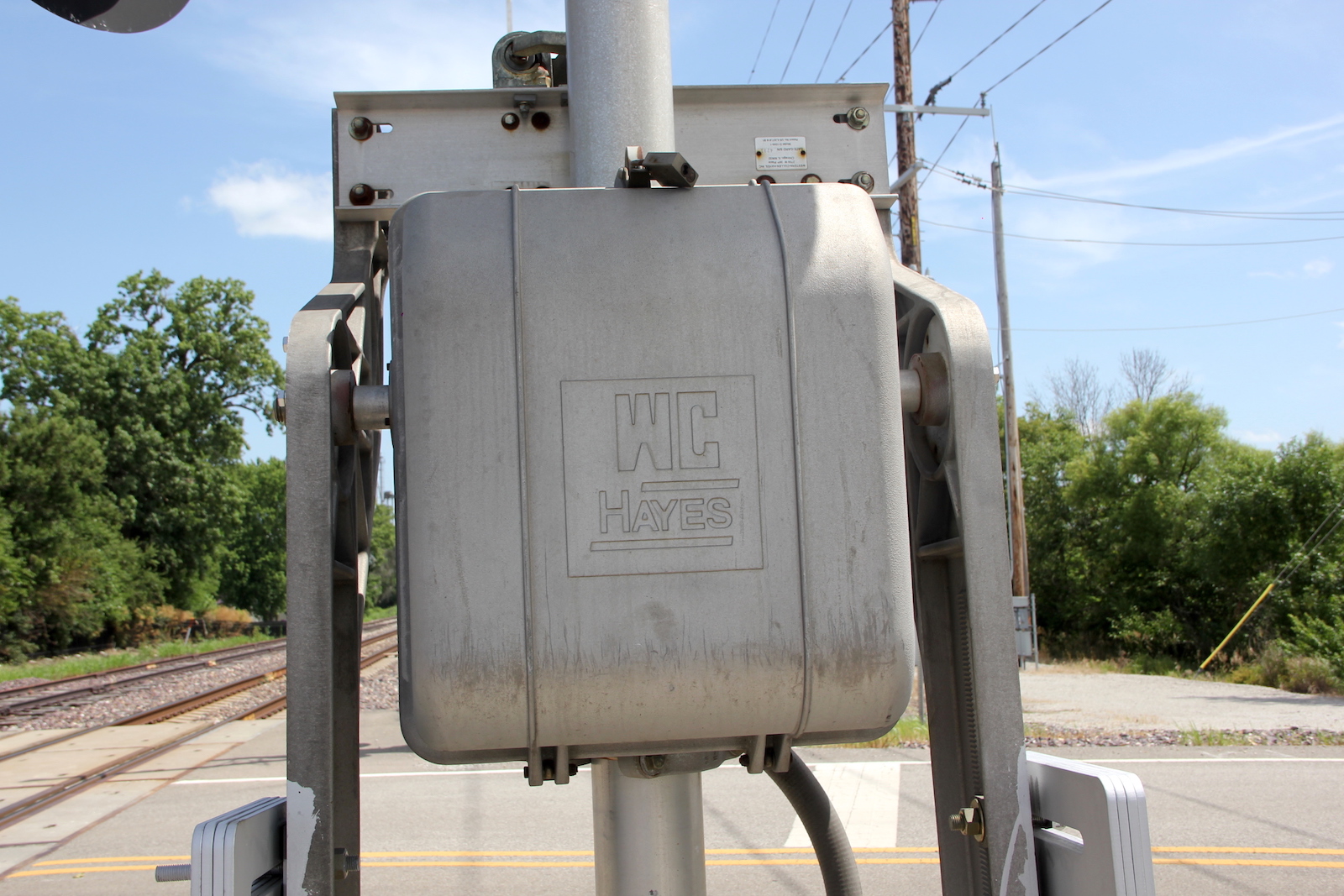

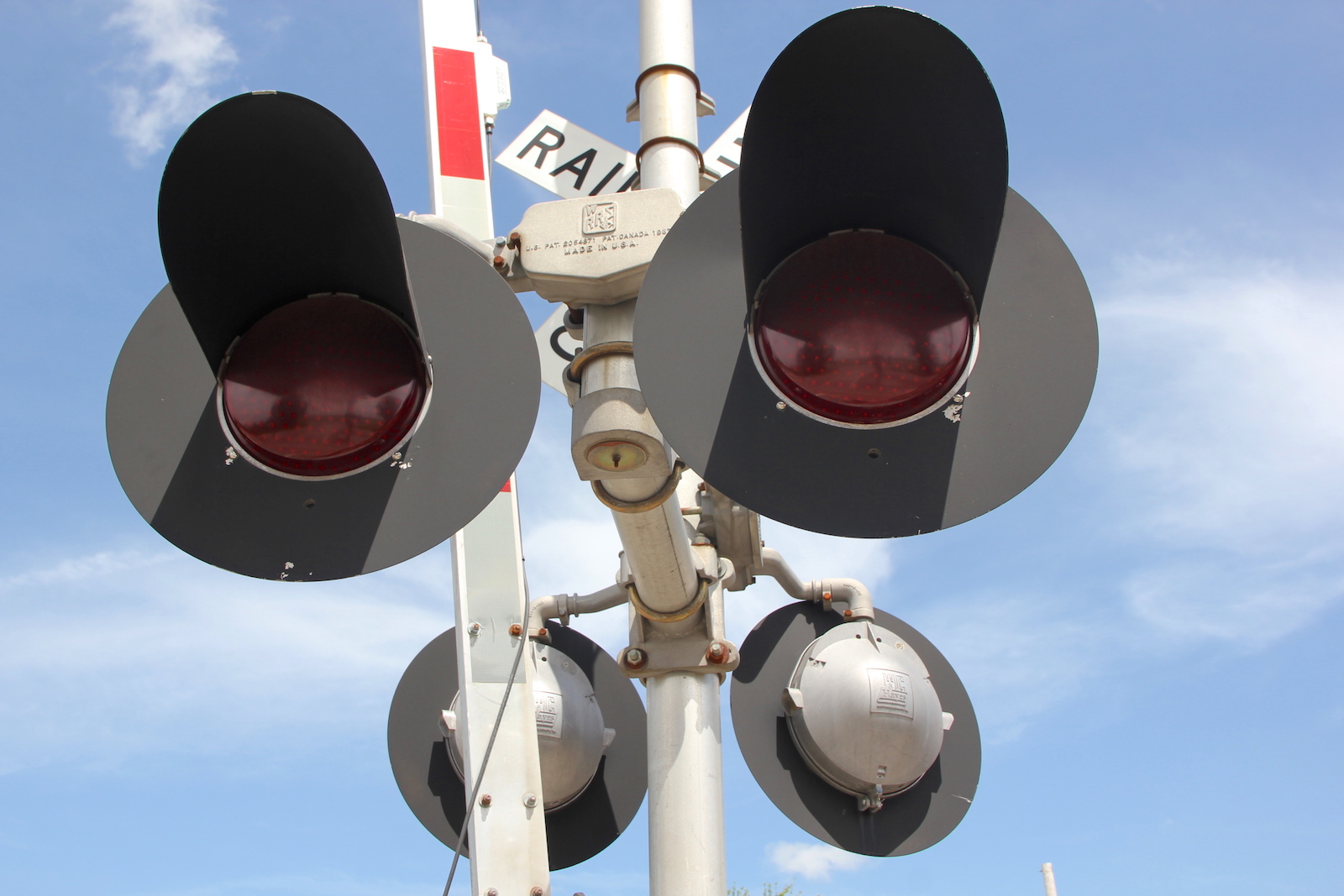

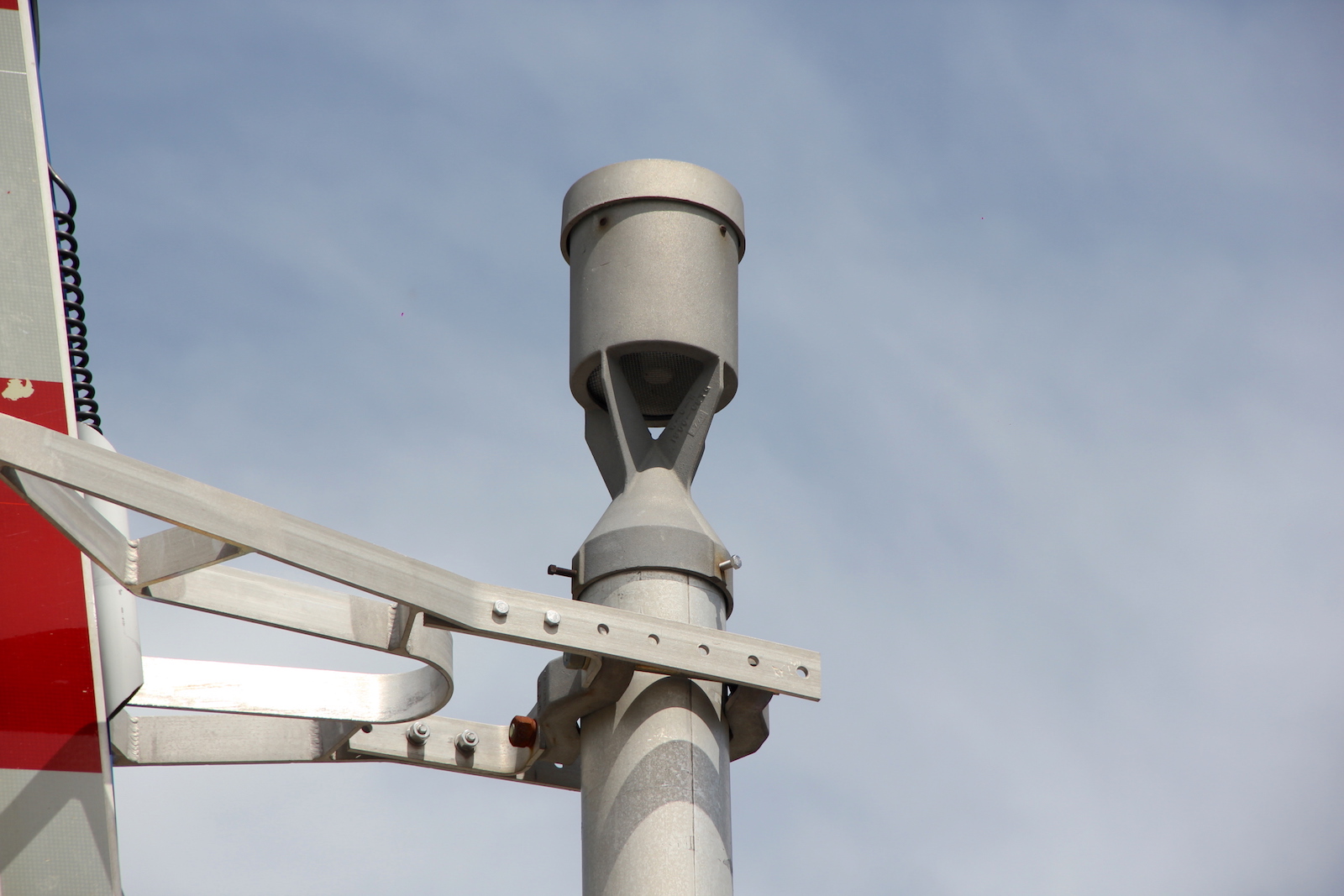

The southern entrance signal.
23 24 25
26 27 28
29 30 31

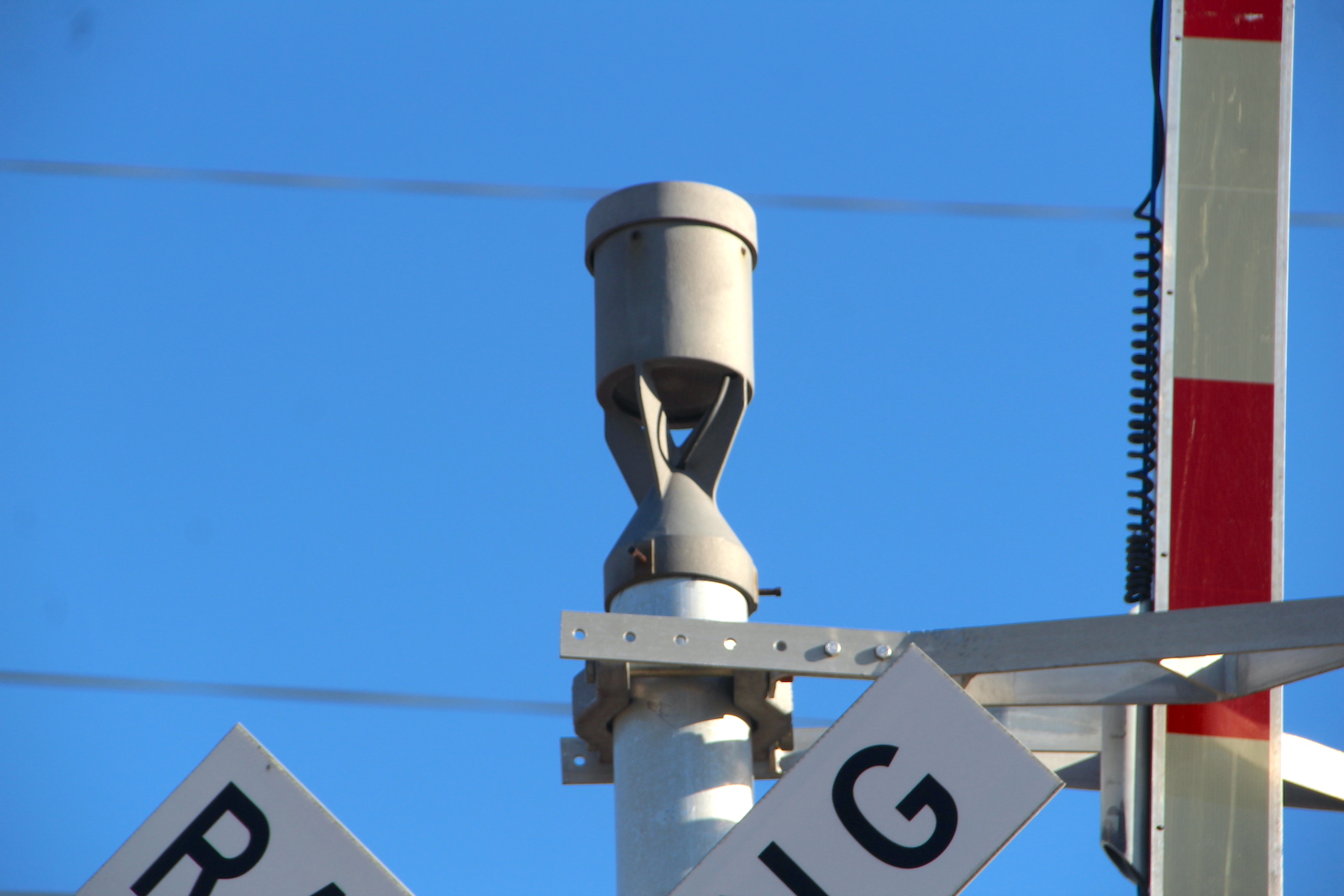

The northern exit signal.
32 33 34
35 36 37
38 39 40
The southern exit signal.
41 42 43 44

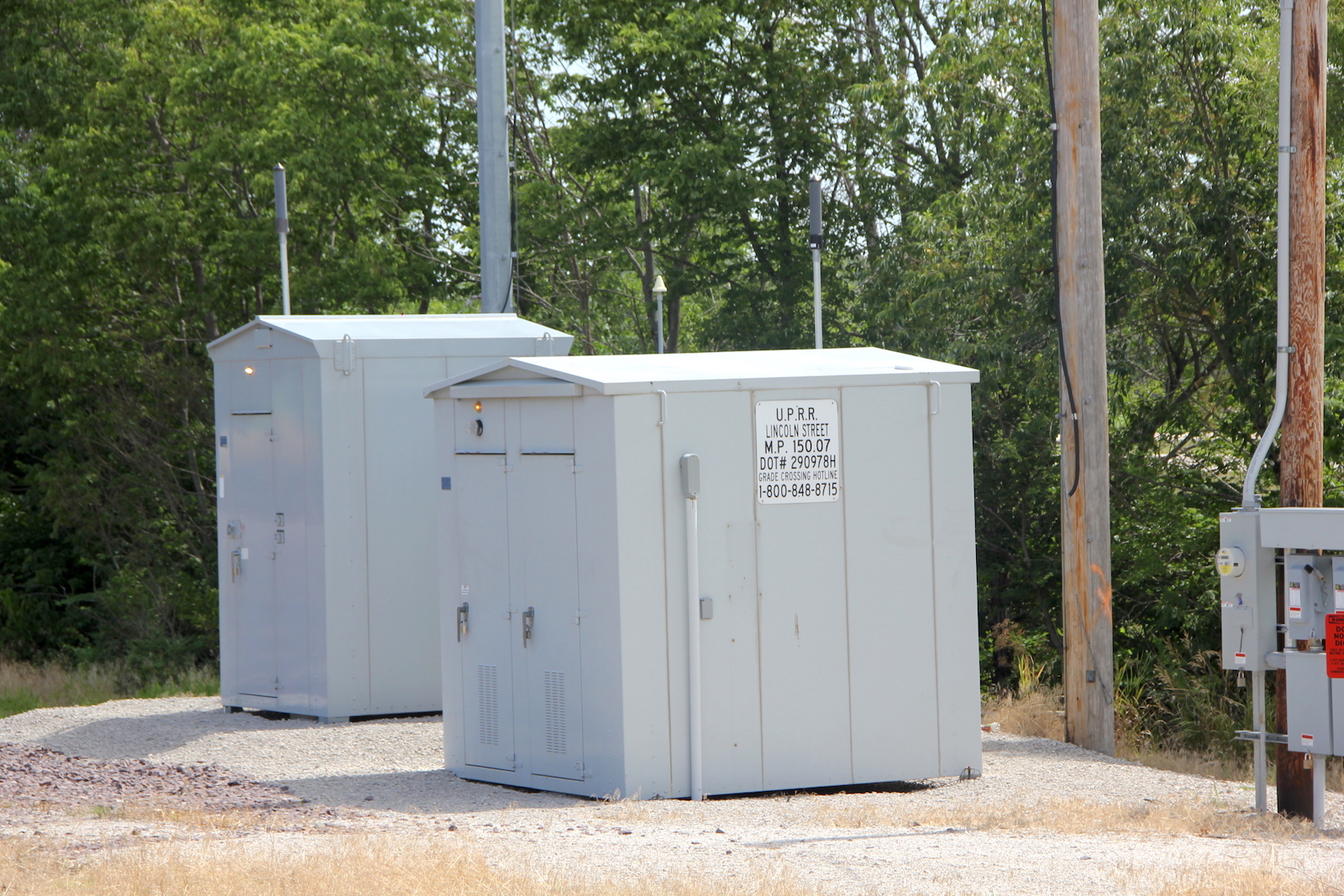

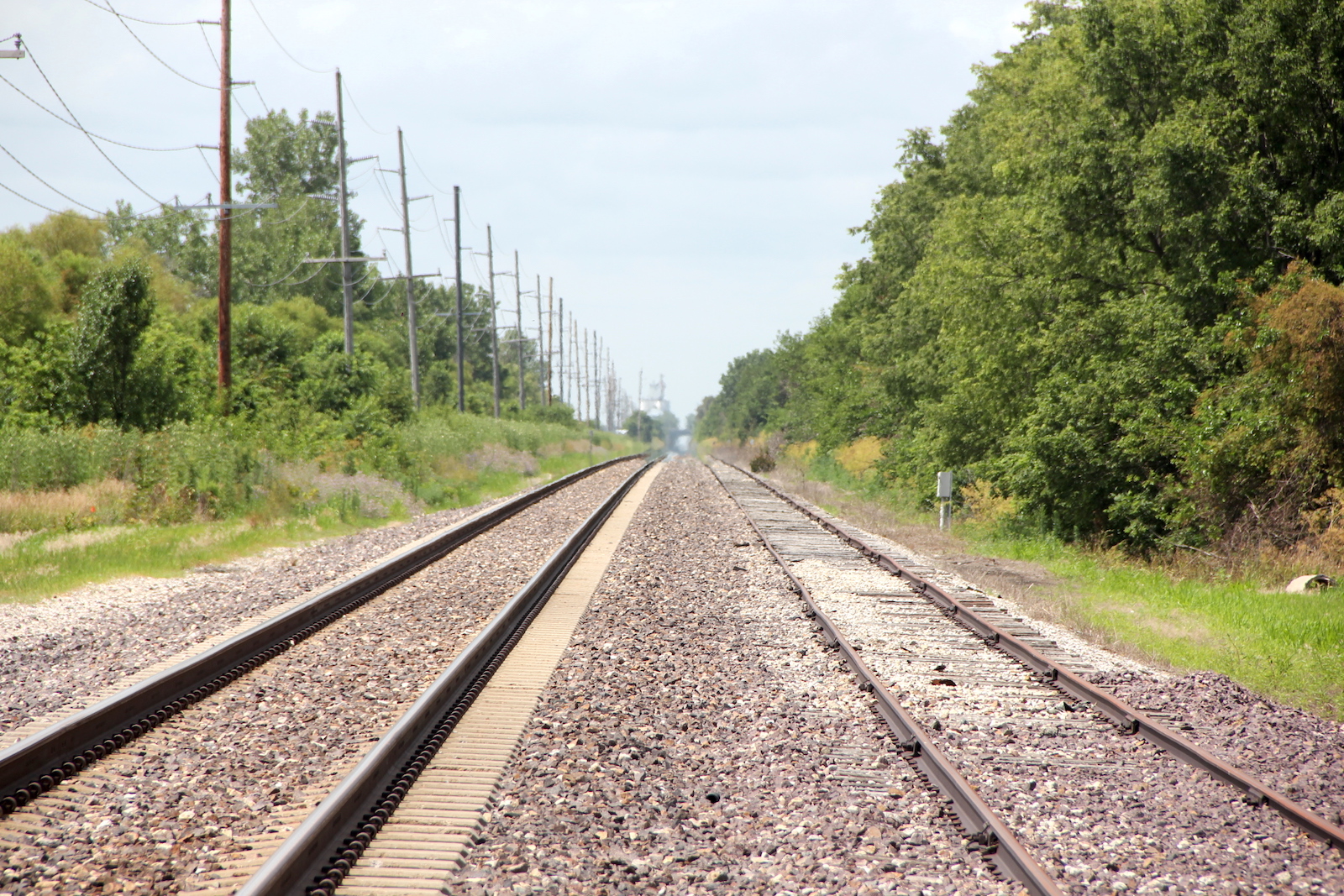

The relay bungalow in the southeast quadrant. The grade is all concrete. Track view facing north towards Main St. Track view facing south towards 1500 Ave.
45

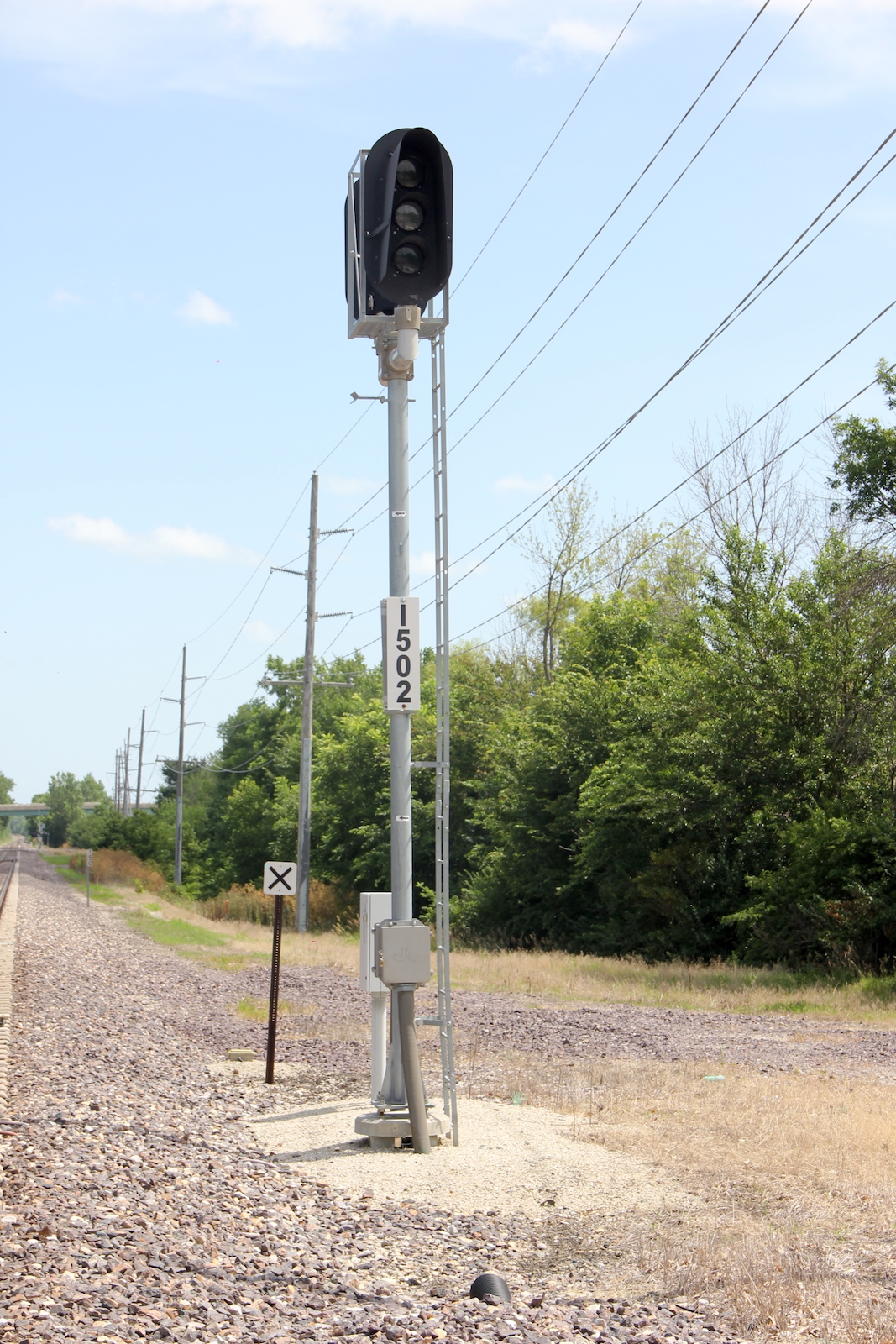

Newer wayside signal next to the crossing.
46 47
48 49 50 51 52
53 54 55 56 57
58 59 60 61 62 63
64 65 66 67 68
69 70 71 72

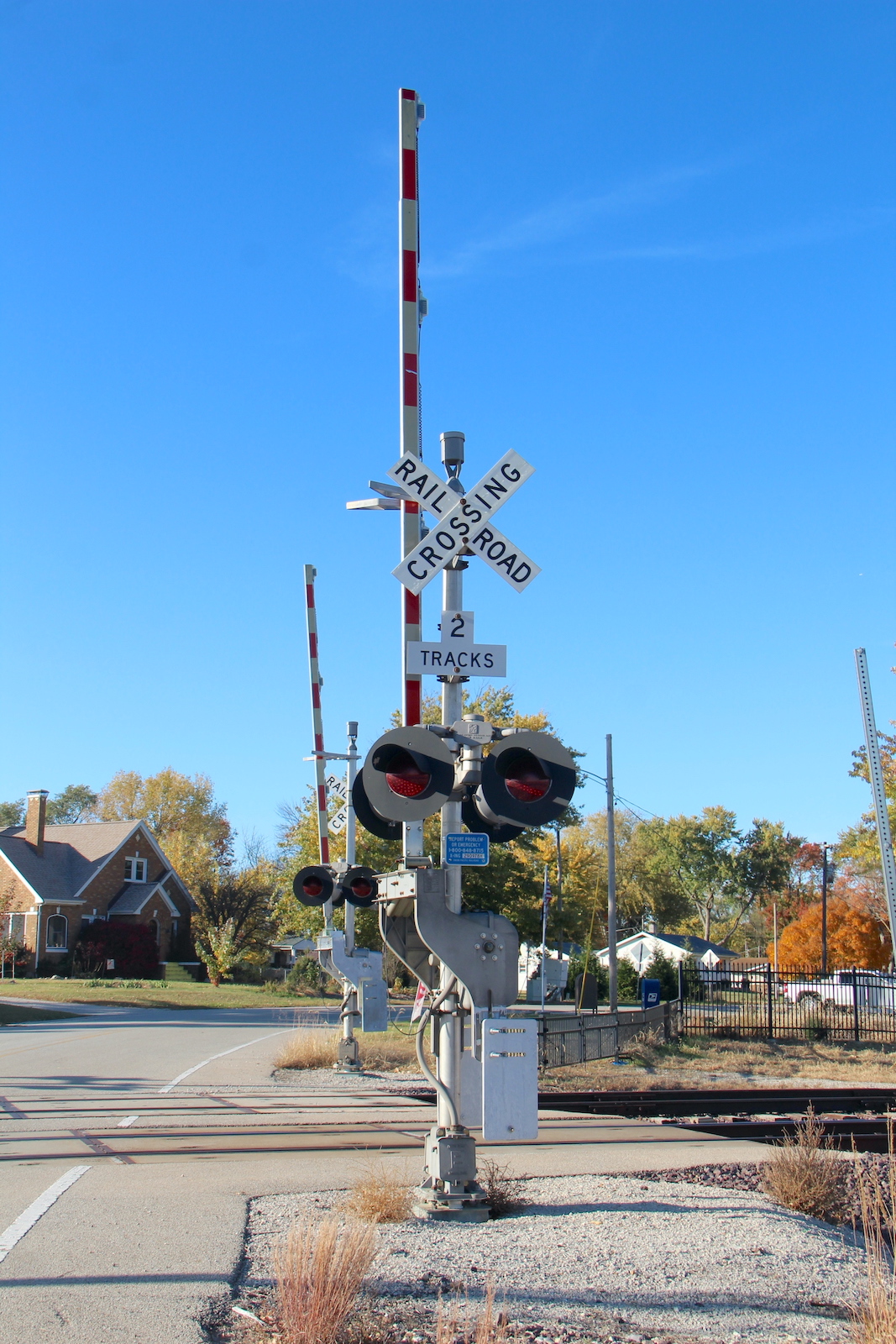

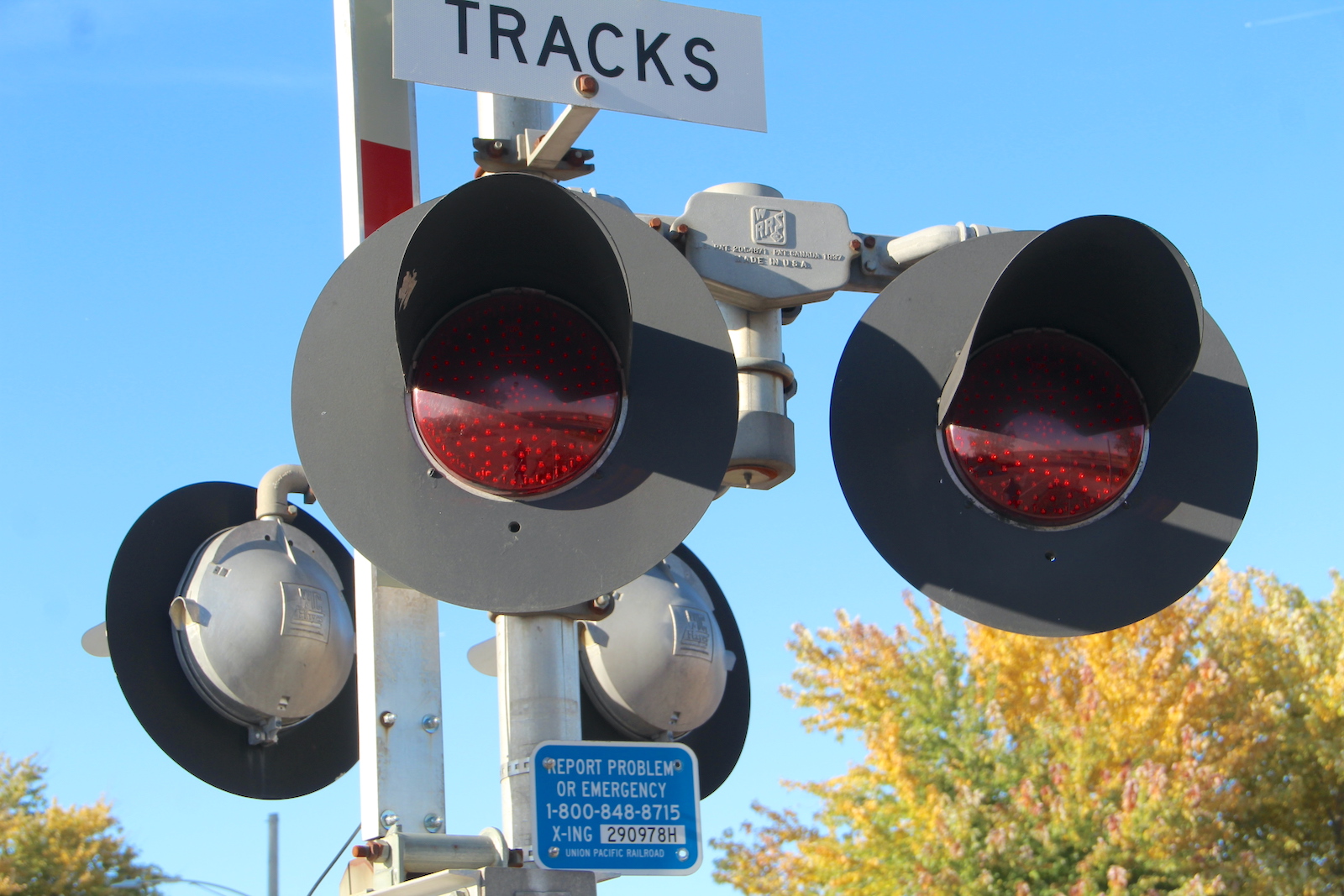

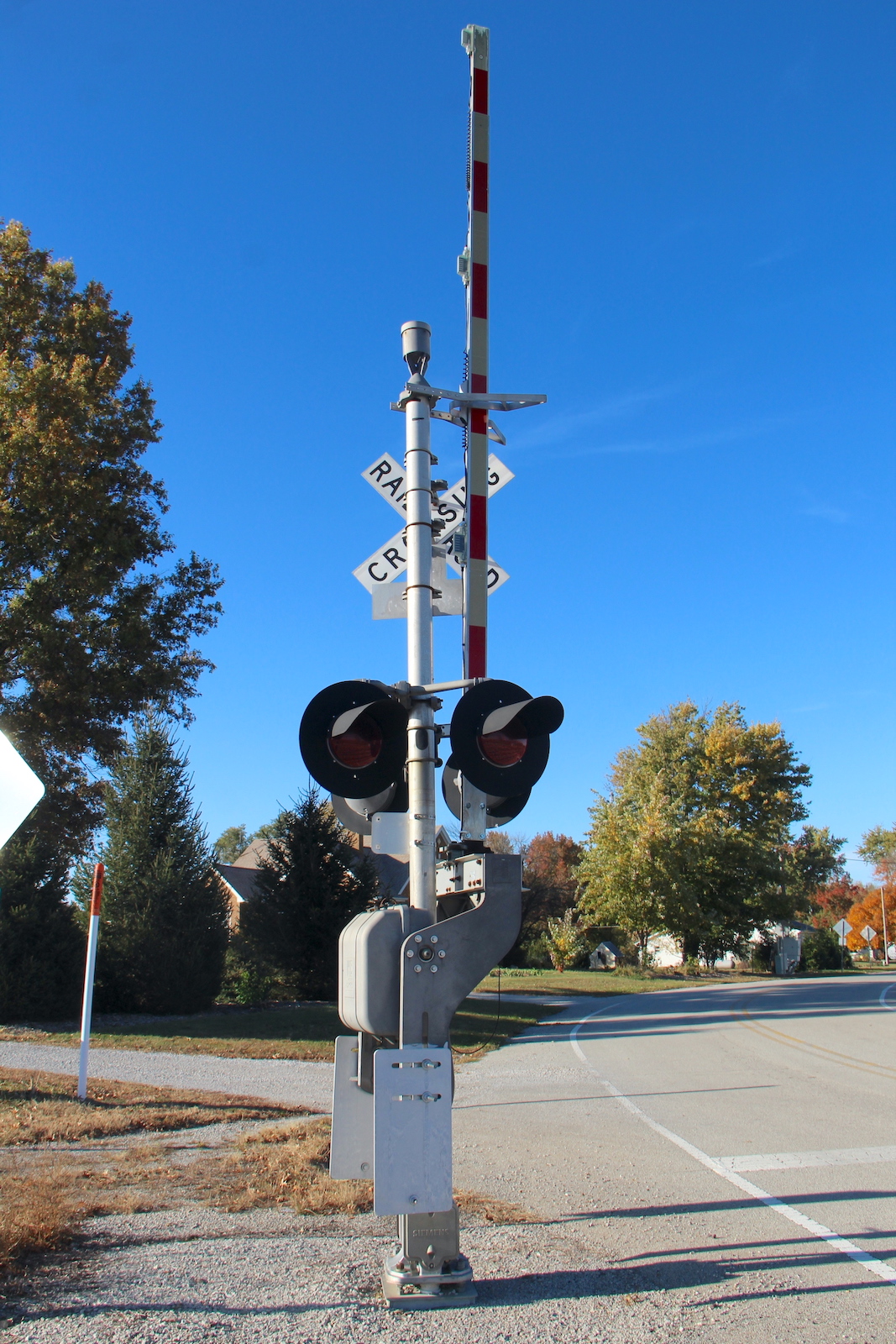

In October 2024, we see all of the 1st Gen WCH LEDs were replaced with GE Dotted LEDs. The northern exit signal also had its WCH gate mechanism replaced with a Siemens mechanism. The ENS tags were also turned forward.
