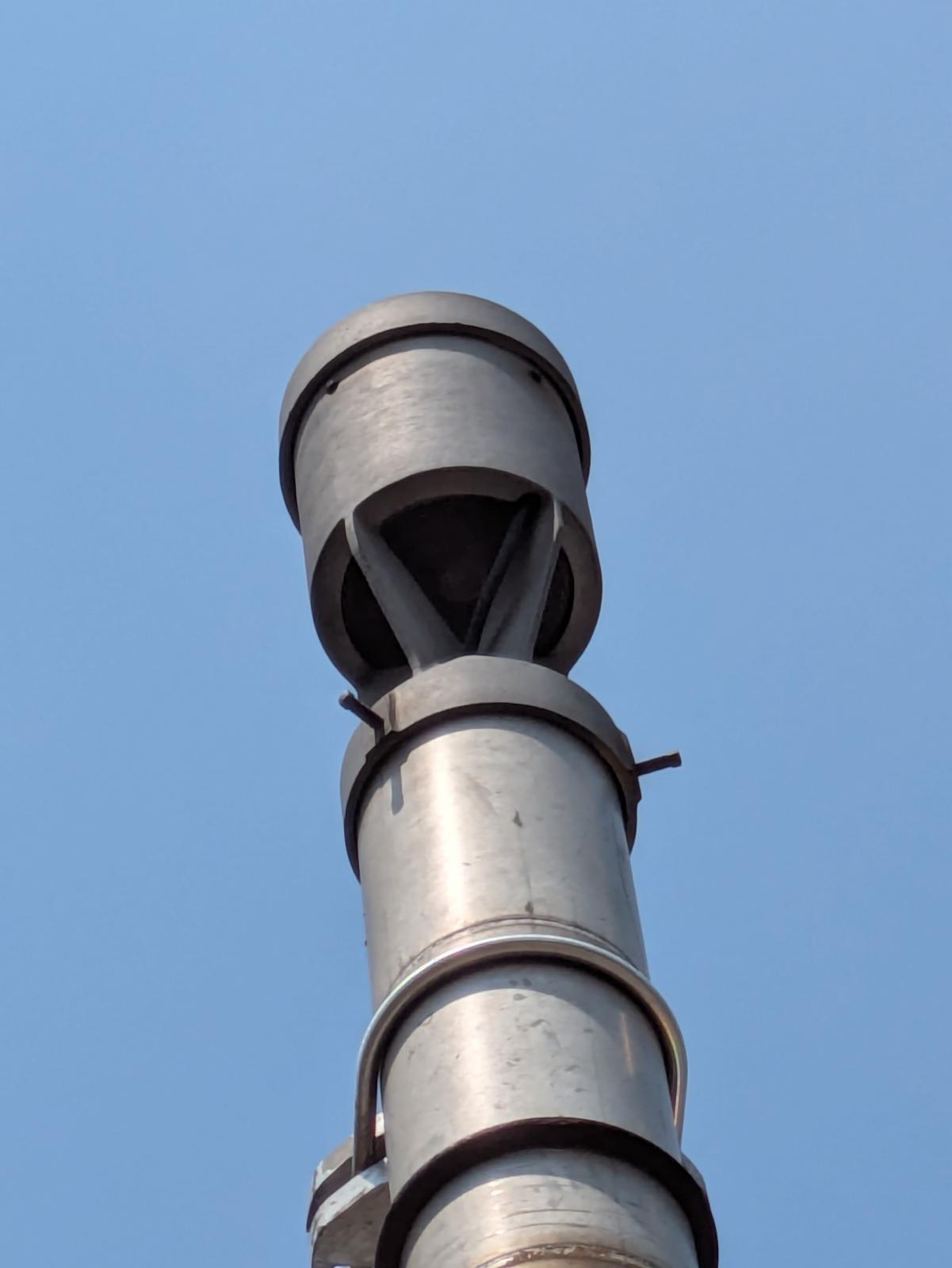

| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | WCH E-Bell | GS Type 2 E-Bell |

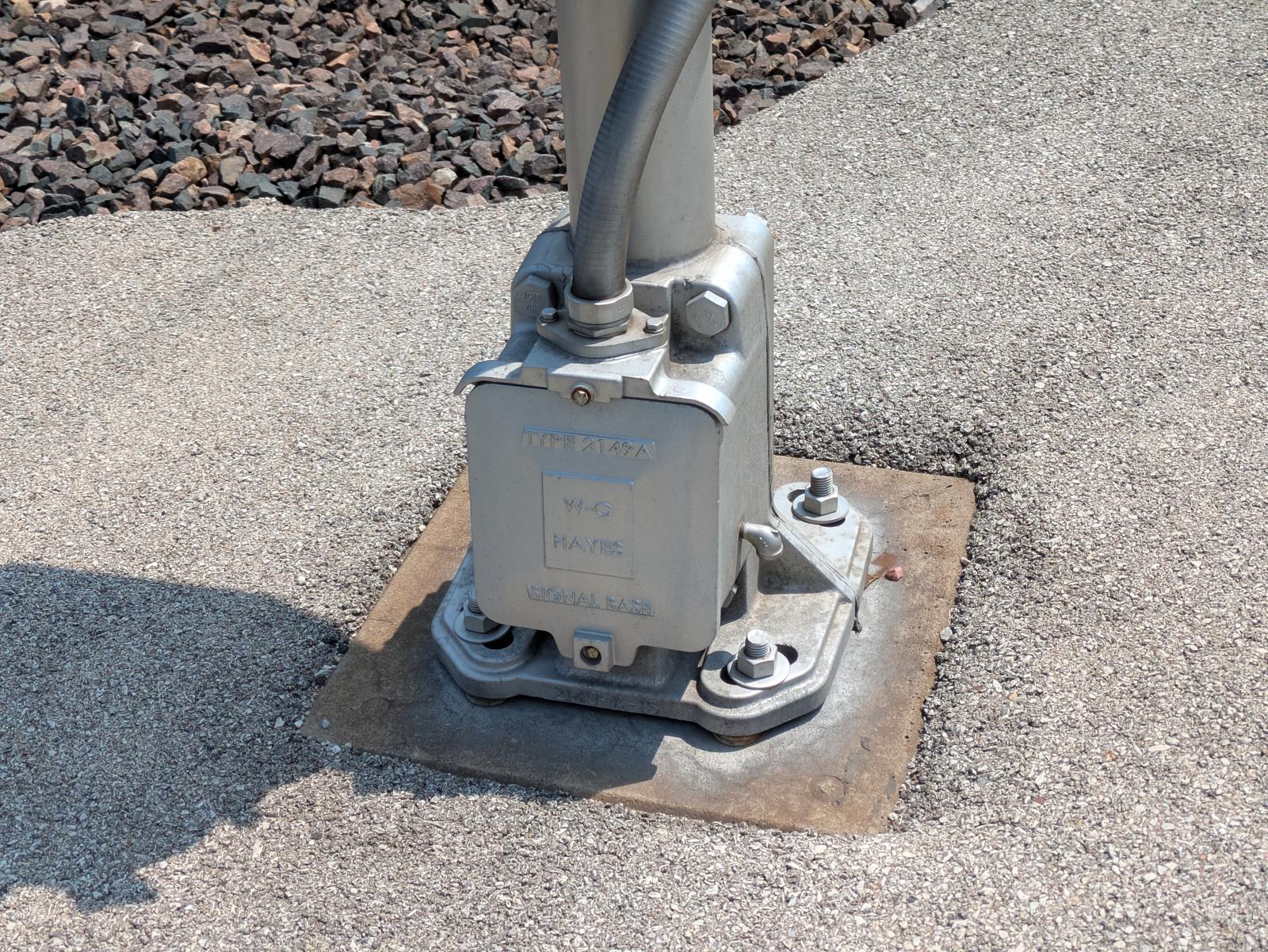

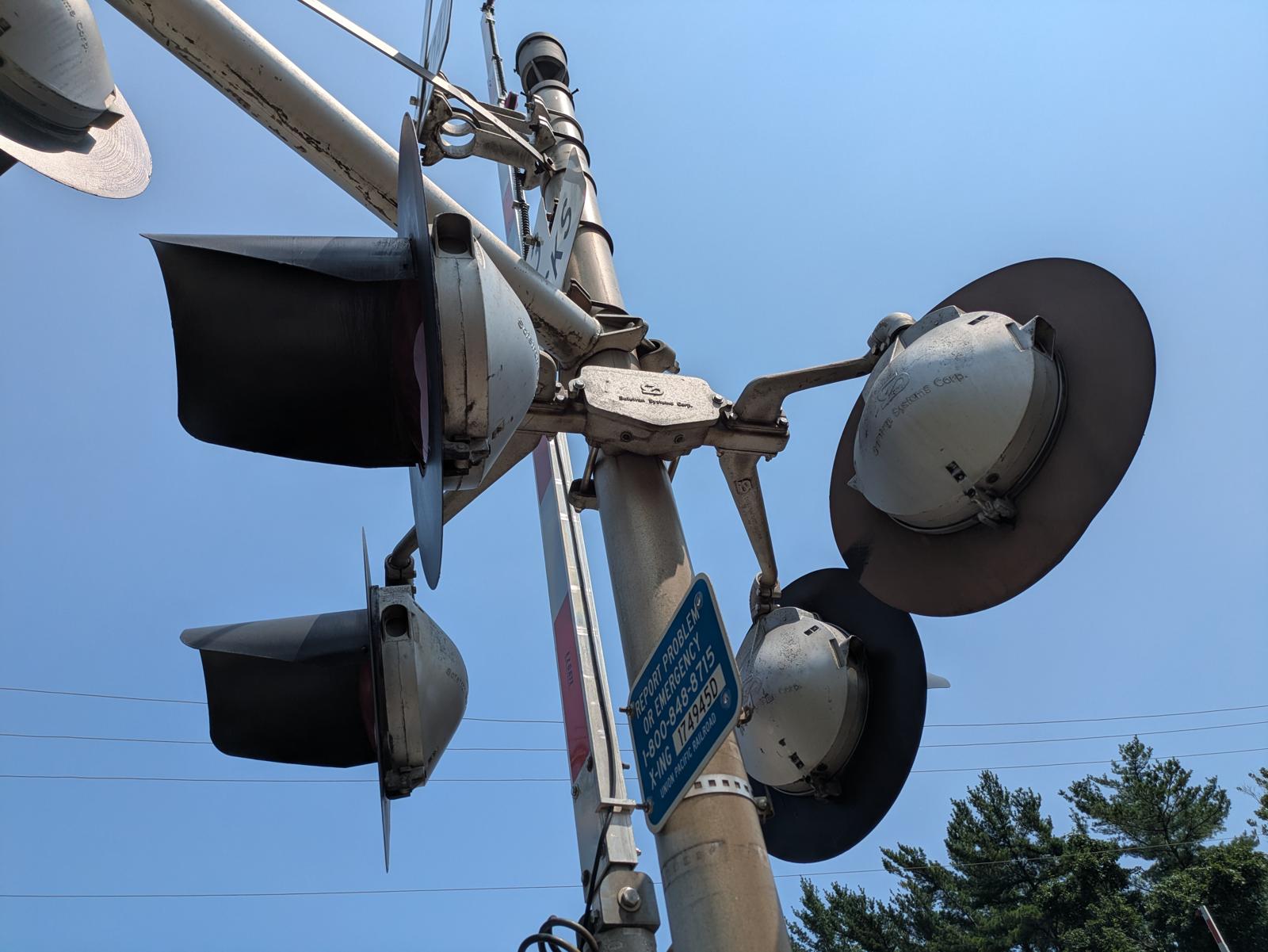

| Base: | Safetran 5" Single Sided | Safetran 5" Single Sided |
| Light Brackets: | 2 - Safetran | 2 - Safetran |

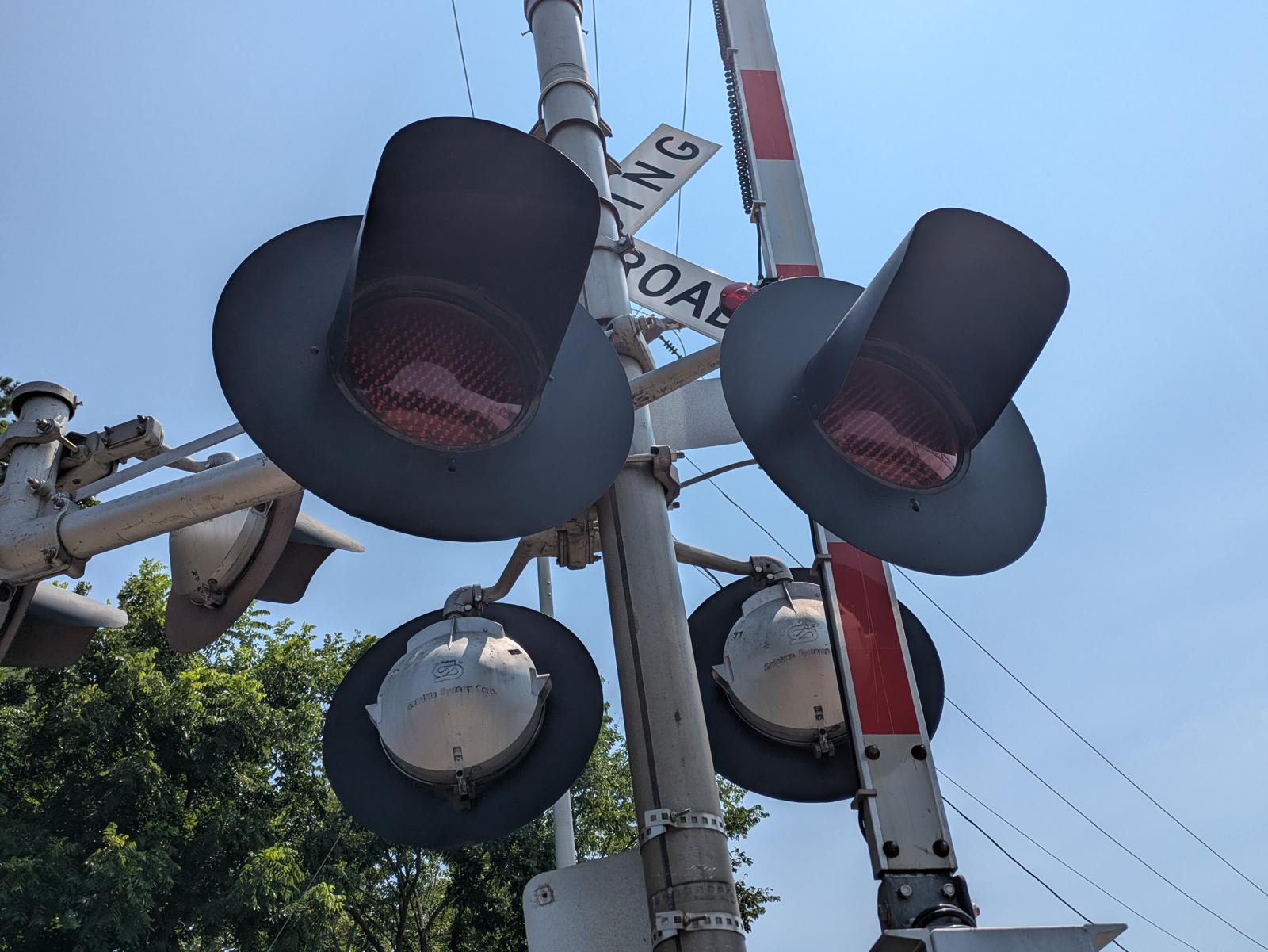

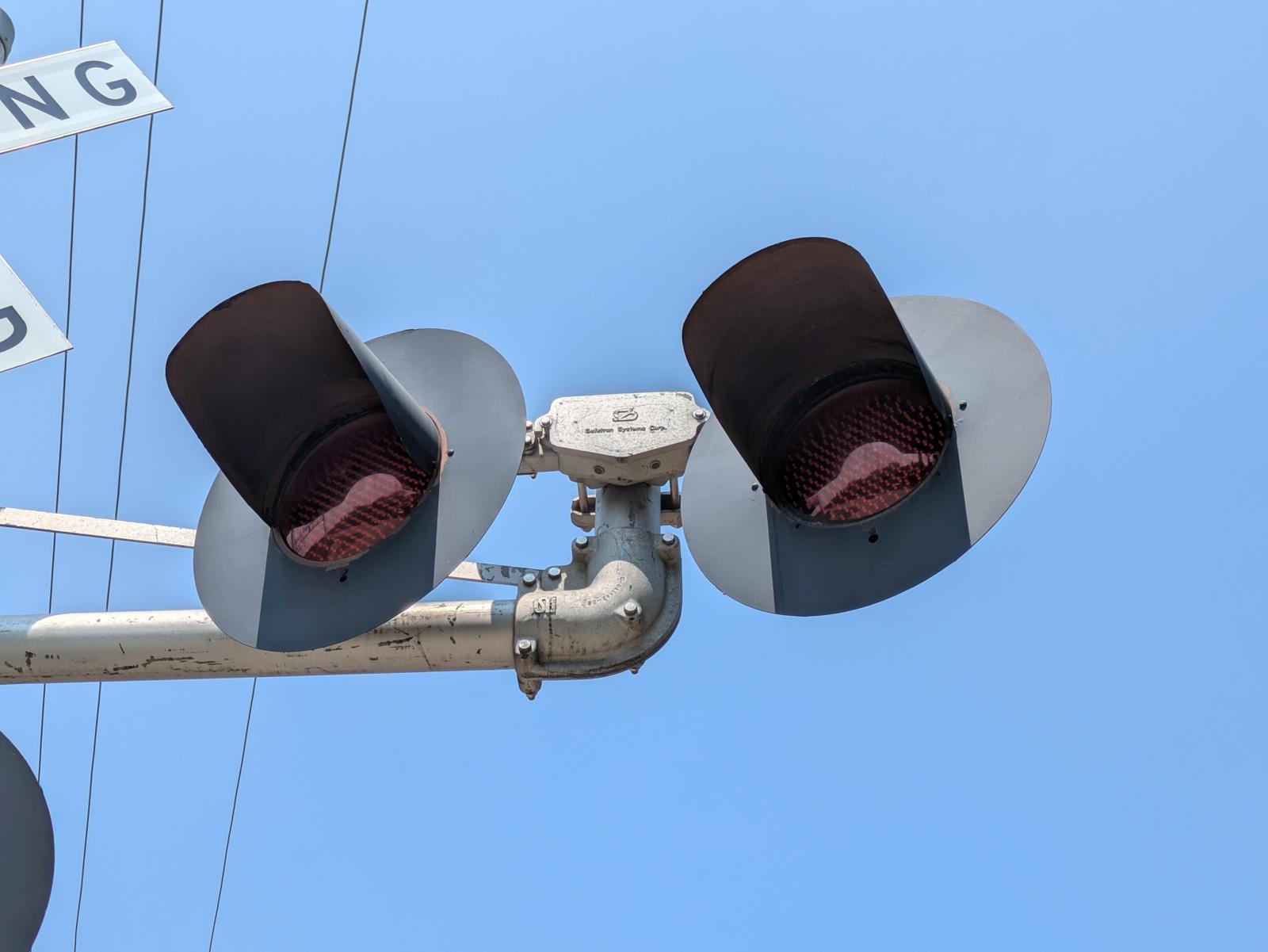

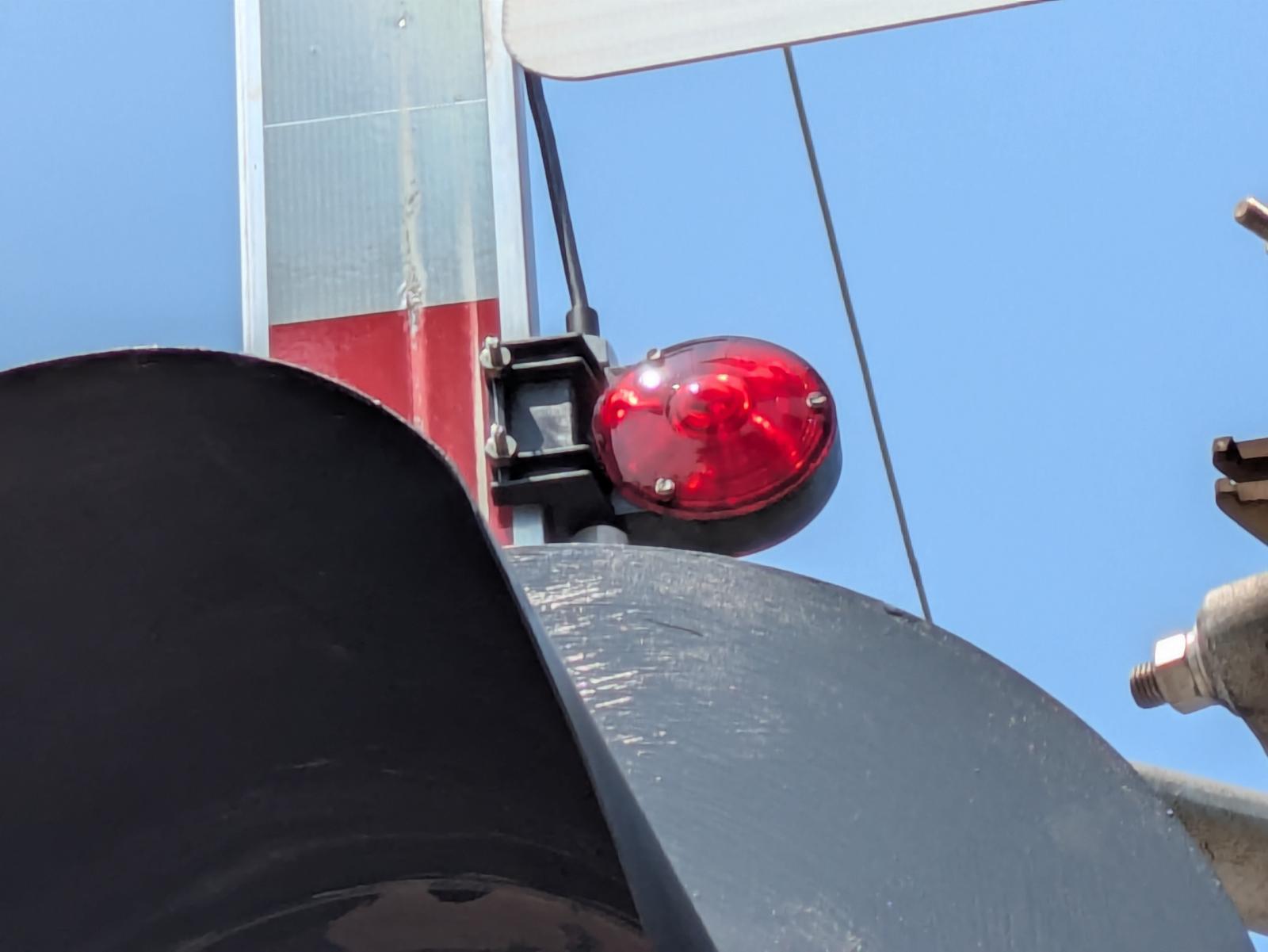

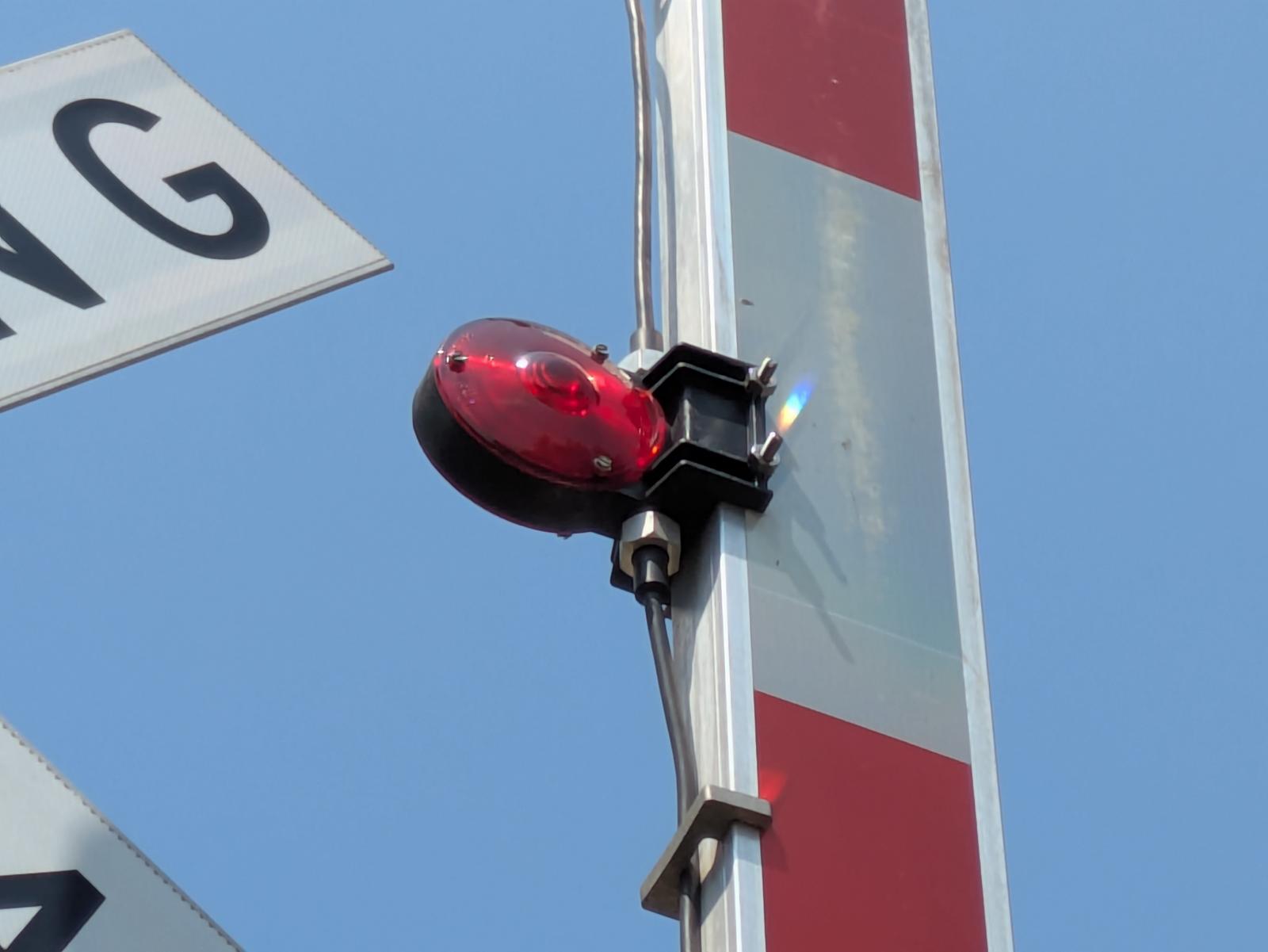

| Lights: | 6 - 12"x24" Safetran w/ Electro-Tech's LEDs | 6 - 12"x24" Safetran w/ Electro-Tech's LEDs |
| Gate Lights: | 3 - NEG 4" LEDs | 3 - NEG 4" LEDs |

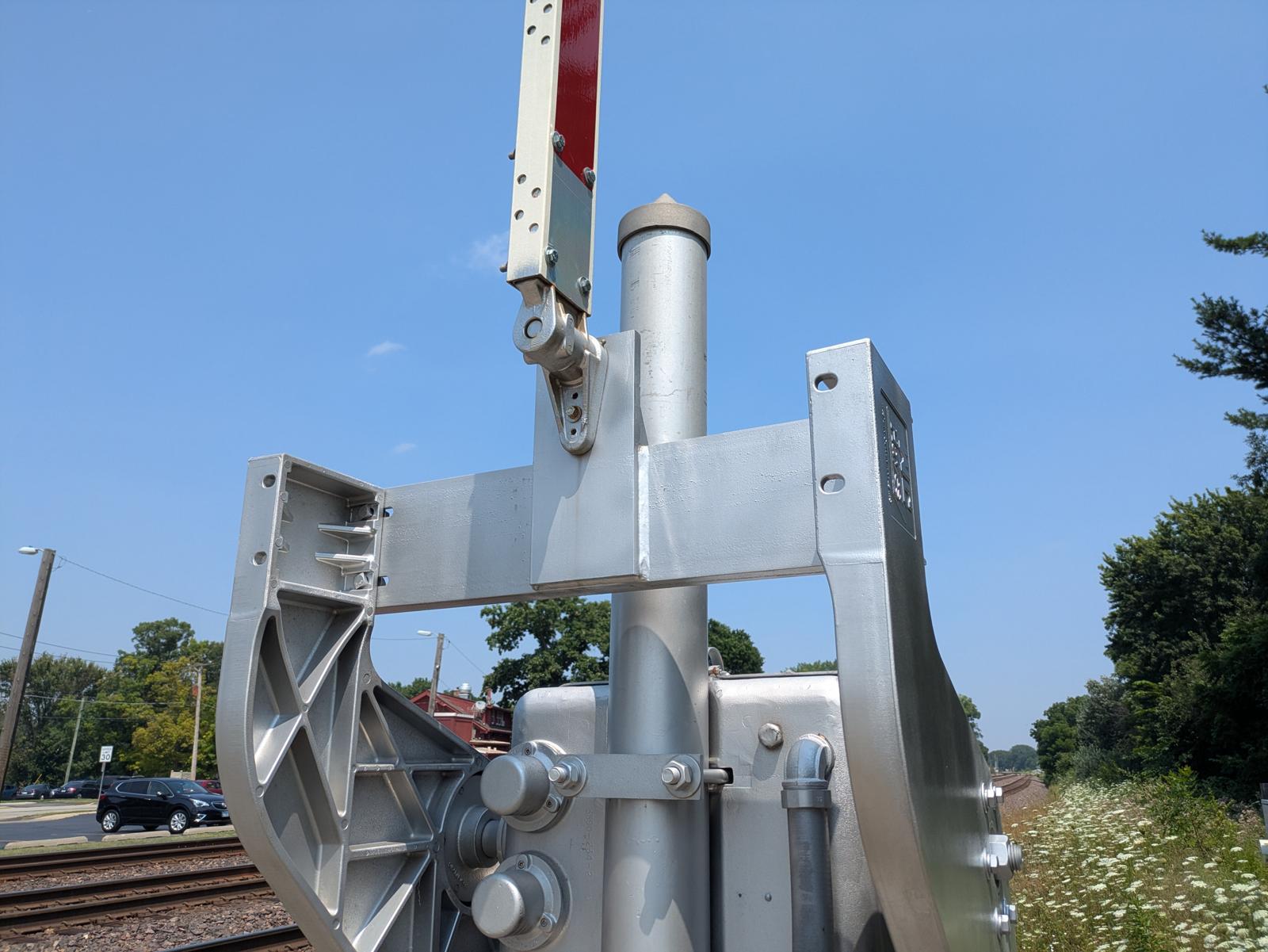

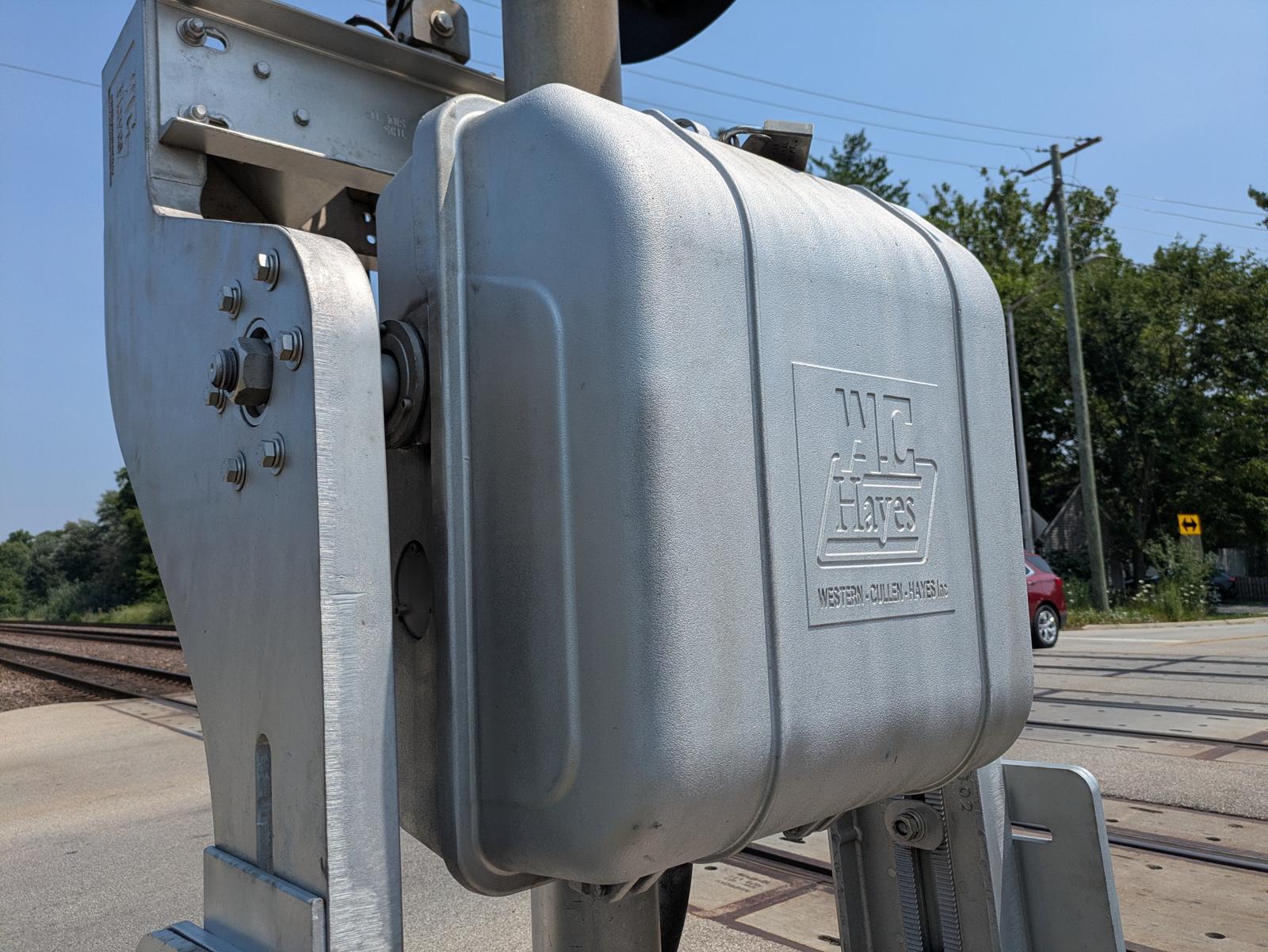

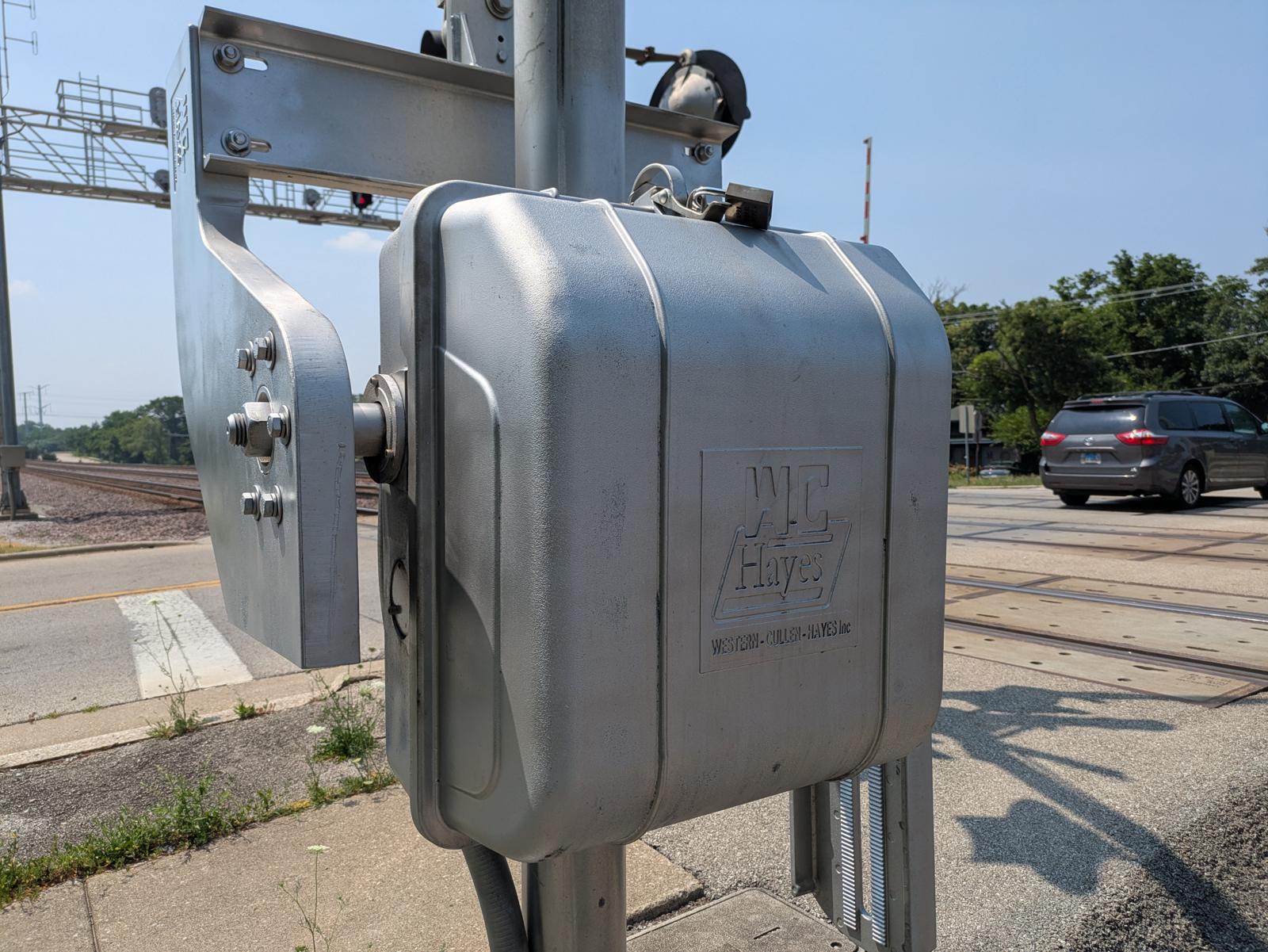

| Gate Mechanism: | WCH Style 4 w/ GSI Gate Saver | WCH Style 4 w/ GSI Gate Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
| >>>>>>>>>>>>>> | Northern Pedestrian Gate | Southern Pedestrian Gate |
| Base: | WCH 5" Single Sided | WCH 5" Single Sided |
| Gate Mechanism: | WCH Style 4 | WCH Style 4 |
| Gate Striping: | Vertical Striping | Vertical Striping |
1 |
2 |

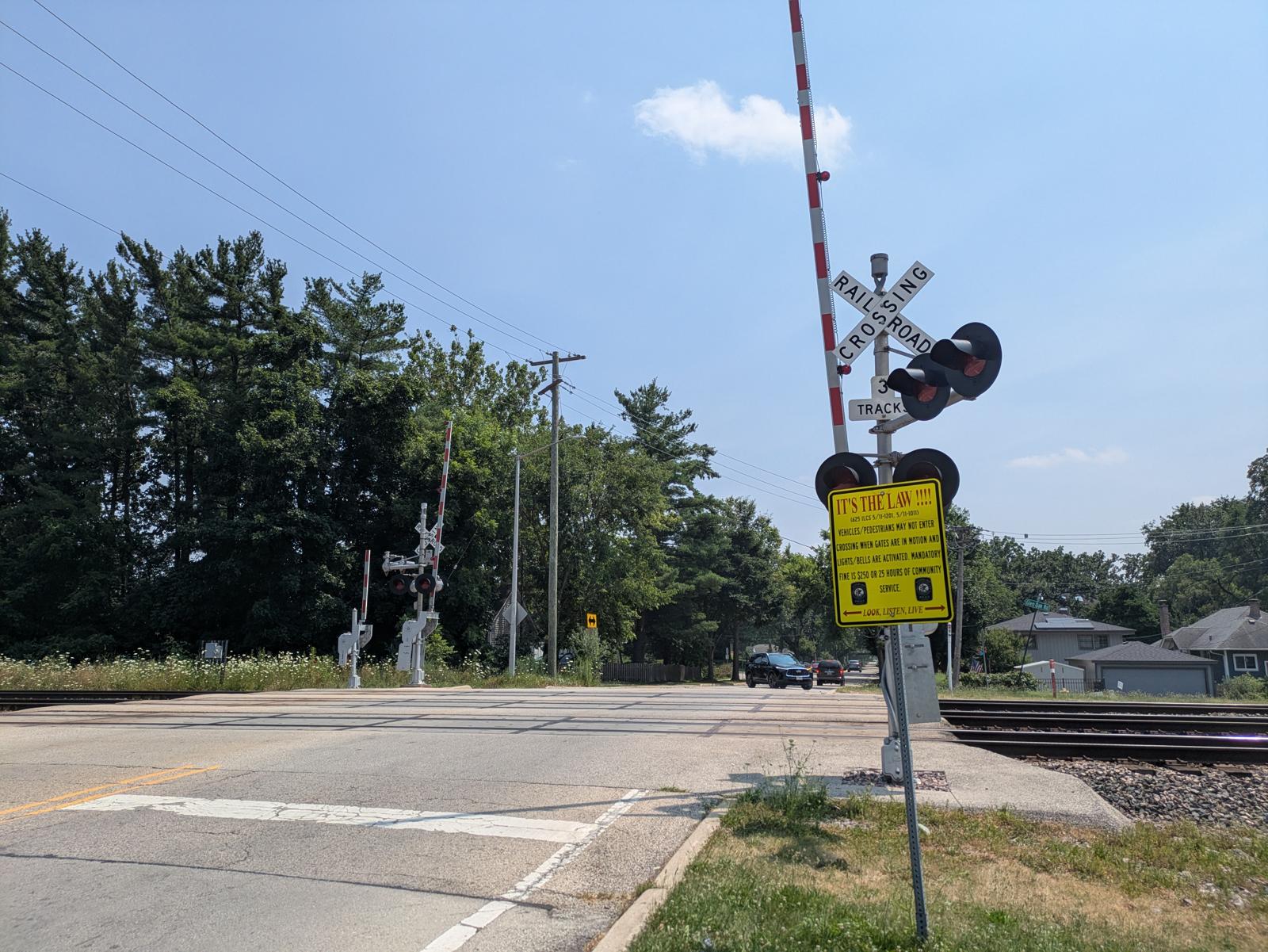

| Overview of 2 gated signals and 2 pedestrian gates facing north. | Overview facing south. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |

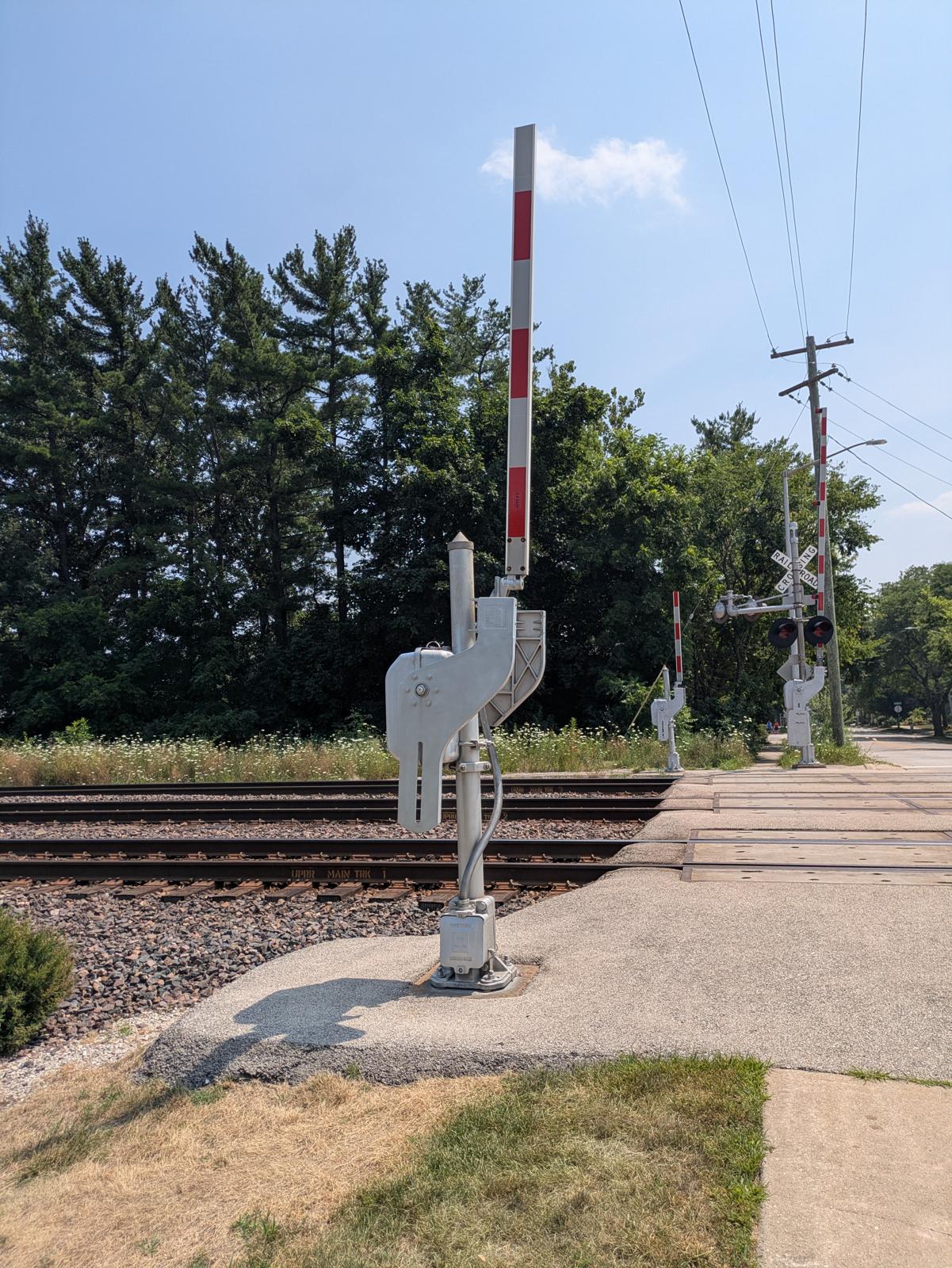

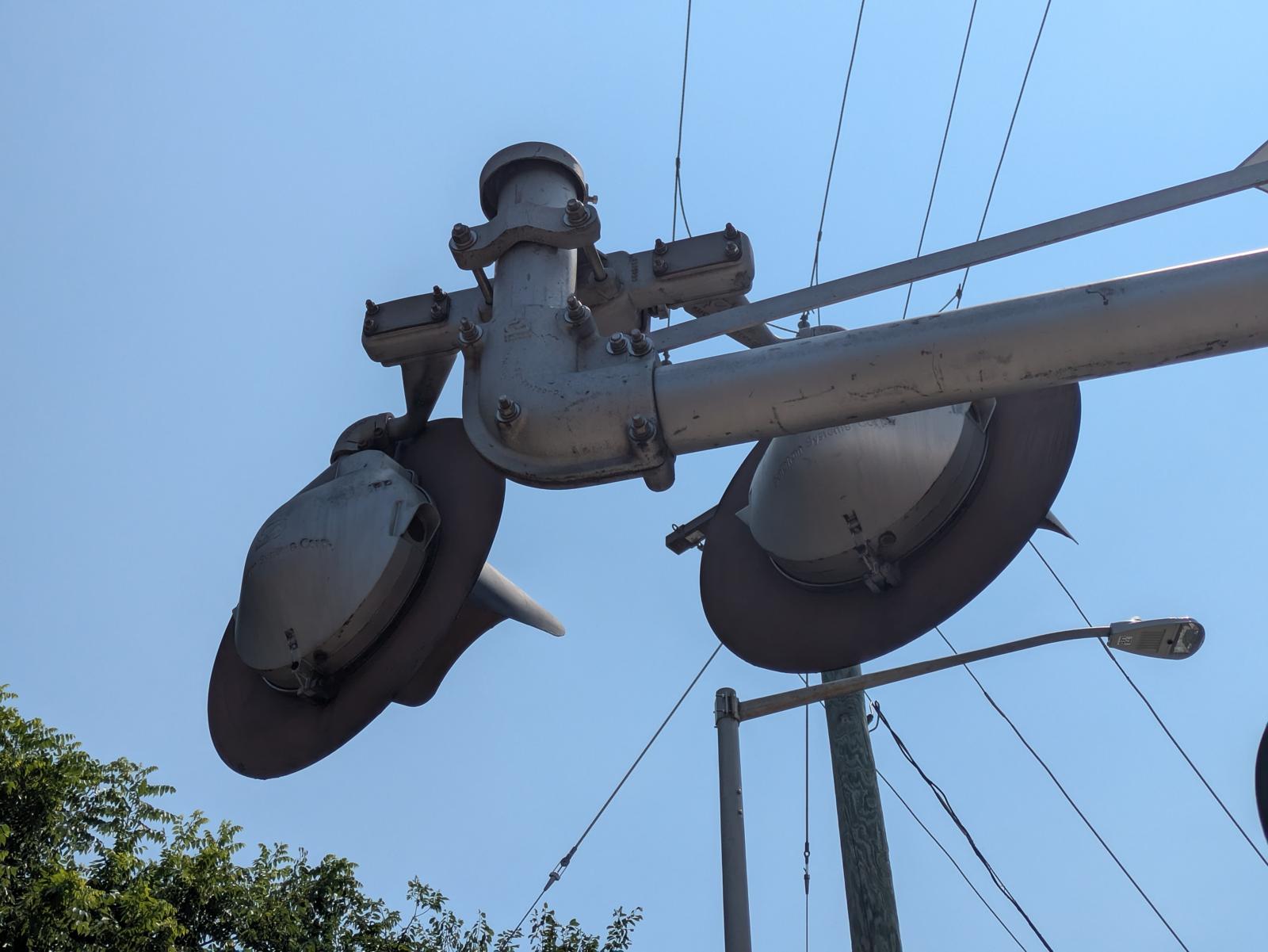

| The northern signal. | |||
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |
28 |
| The southern signal. | |||
29 |
30 |
31 |
32 |
33 |

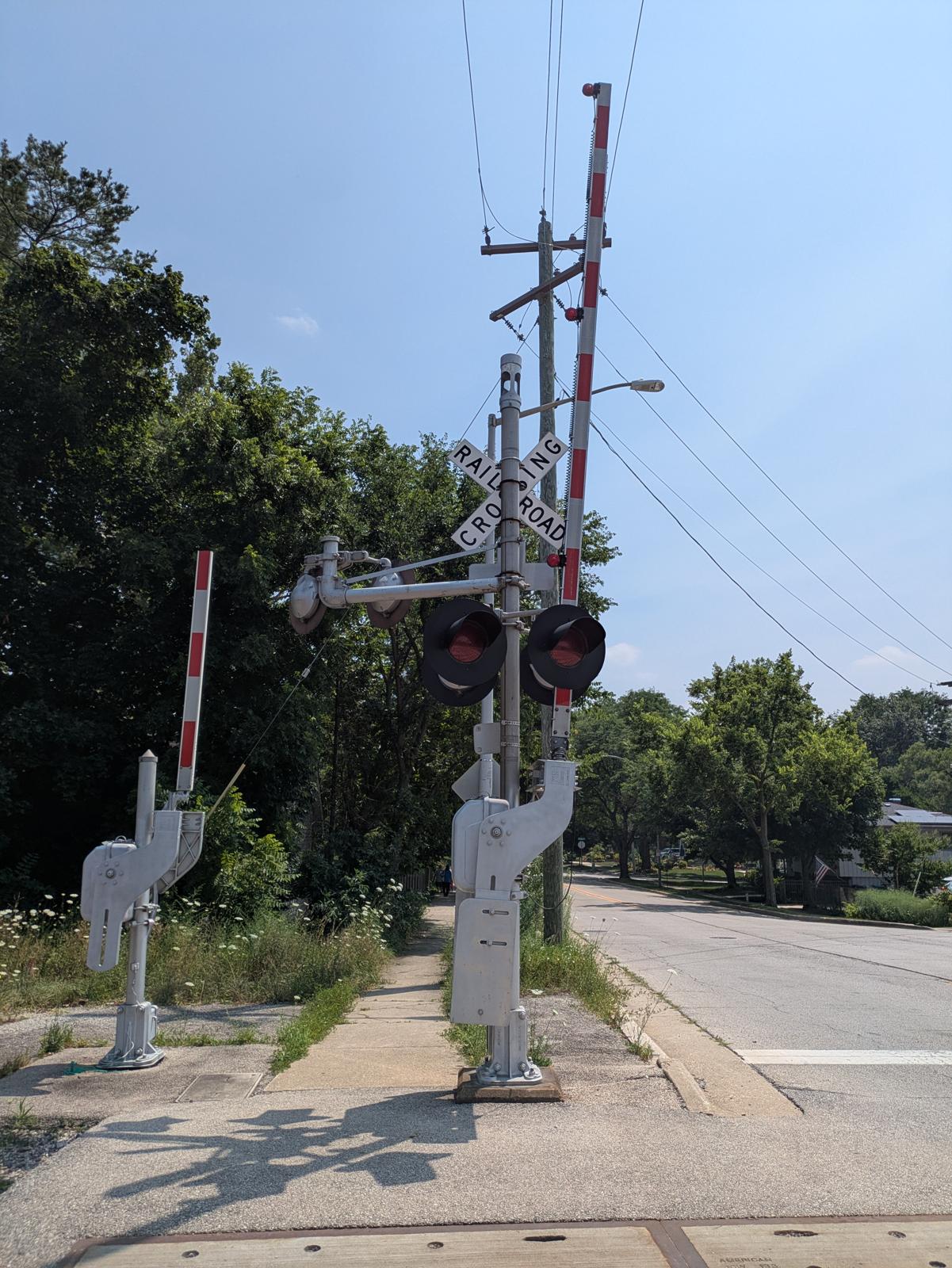

| The northern pedestrian gate. | ||
34 |
35 |
36 |
37 |
38 |
| The southern pedestrian gate. | ||
39 |
40 |
41 |
42 |

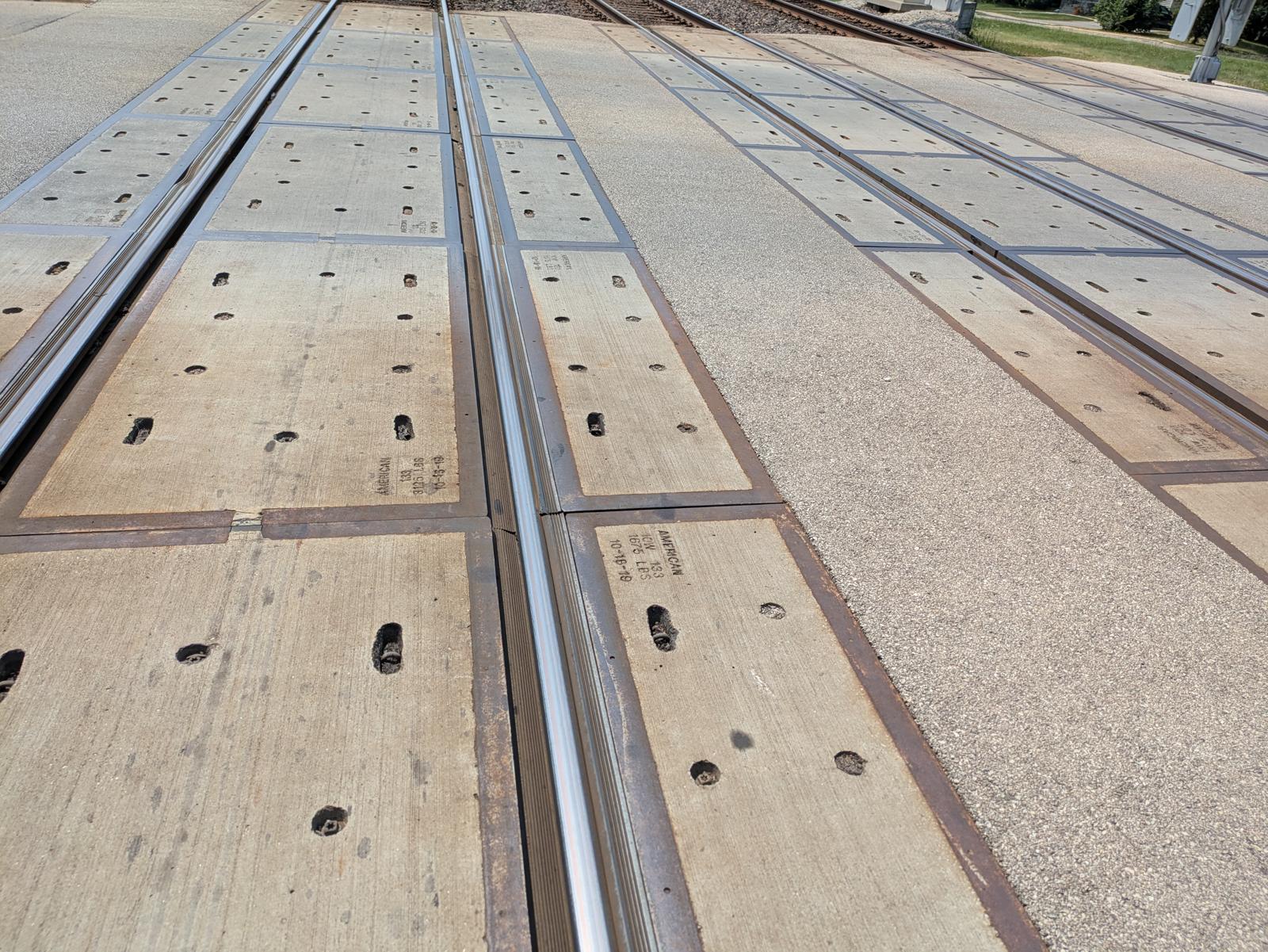

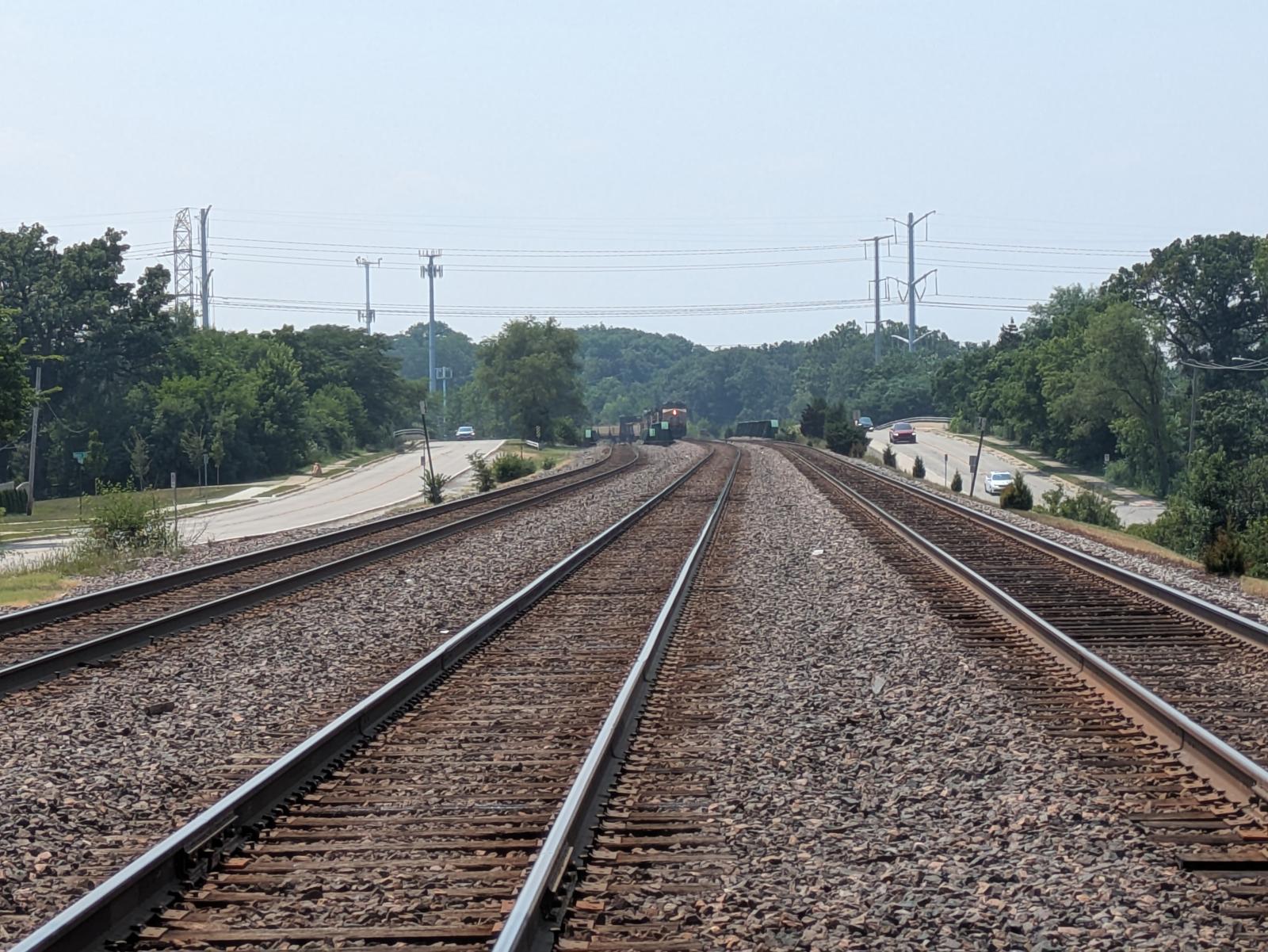

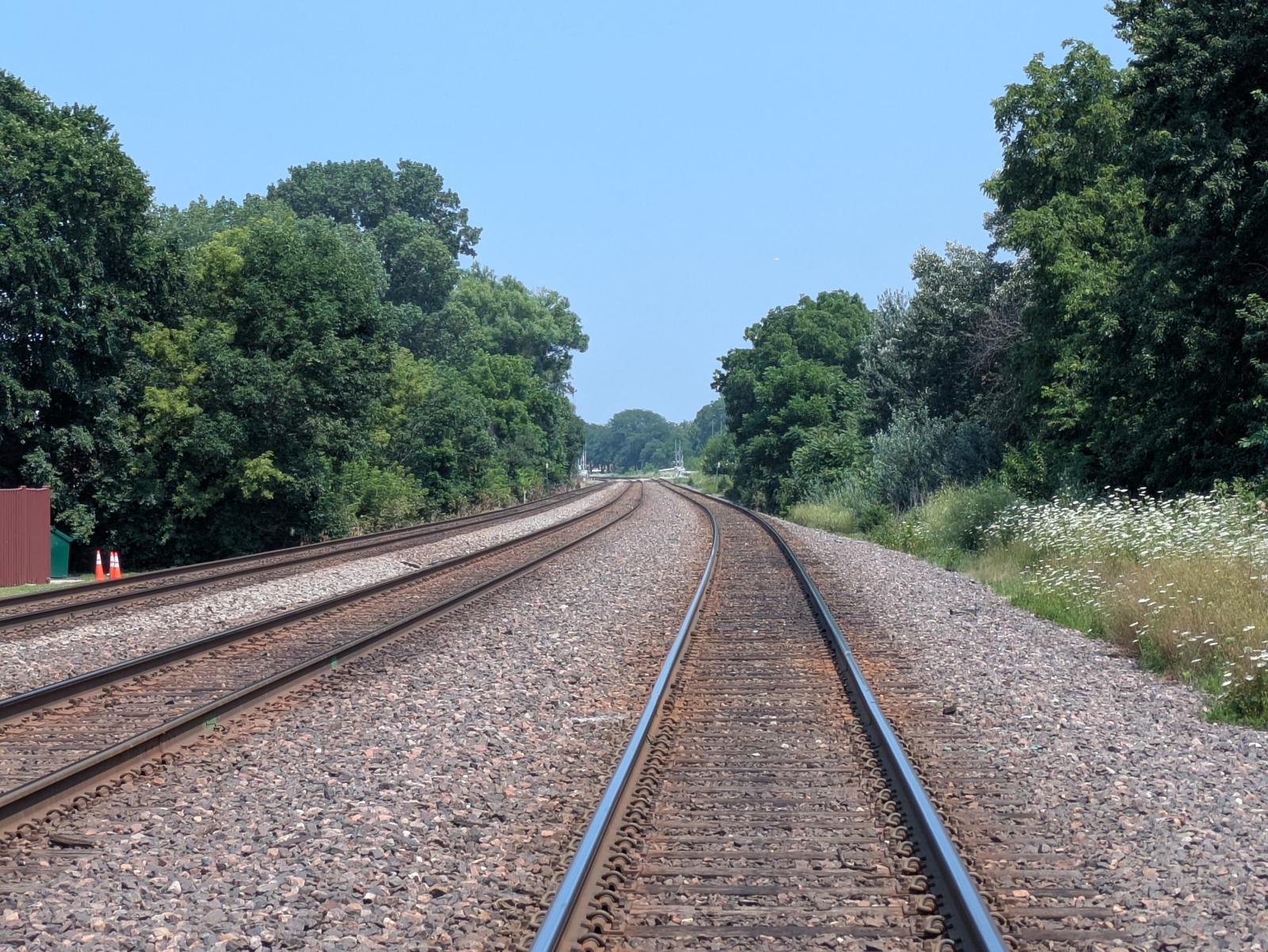

| The relay bungalow in the southwest quadrant. | The grade is all concrete. | Track view facing east towards Elizabeth St. | Track view facing west towards Park Blvd. in Glen Ellyn. |
43 |
| A wayside signal bridge west of the crossing. |
