65.49

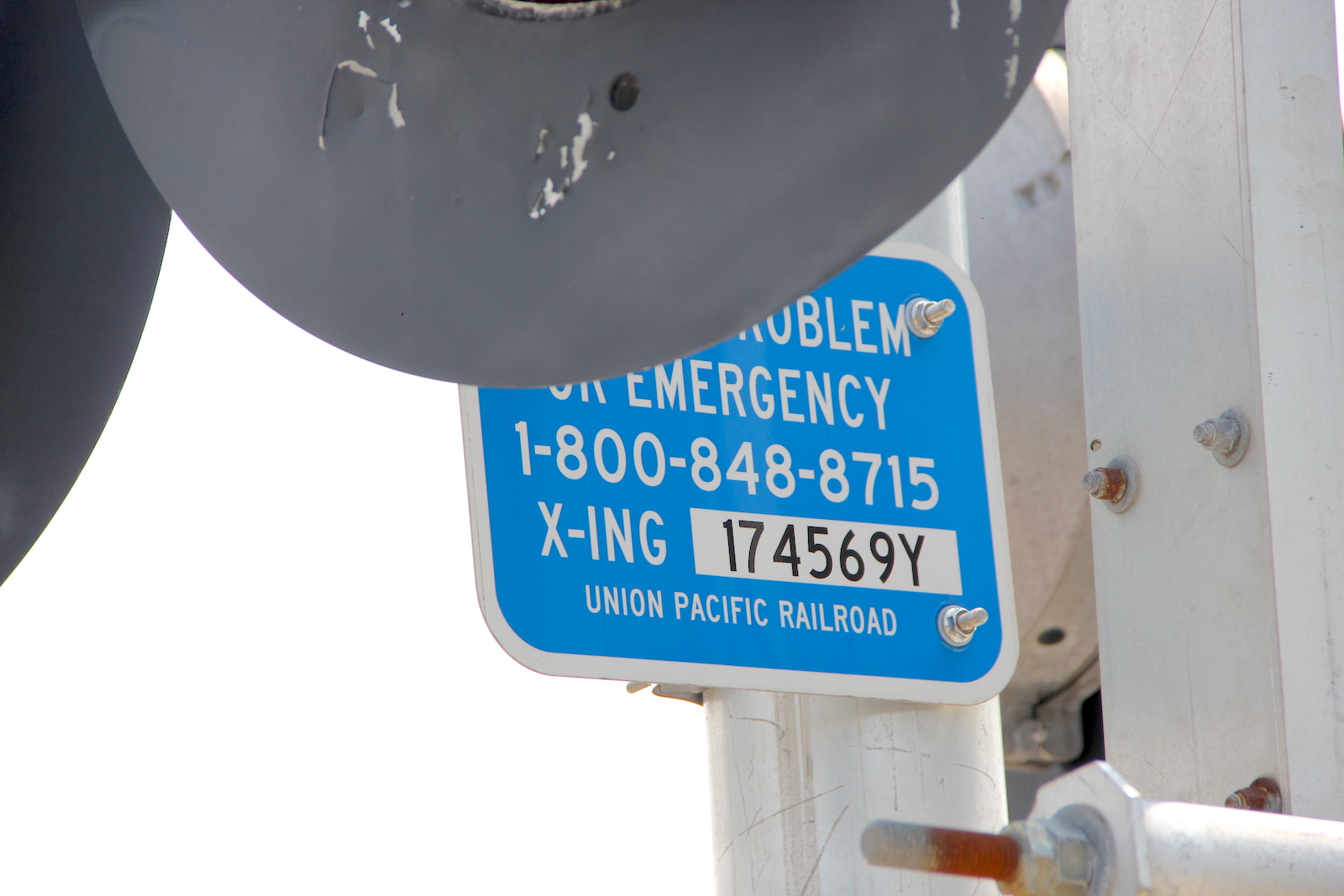

174569Y

>>>>>>>>>>>>>> Northern Signal Southern Signal

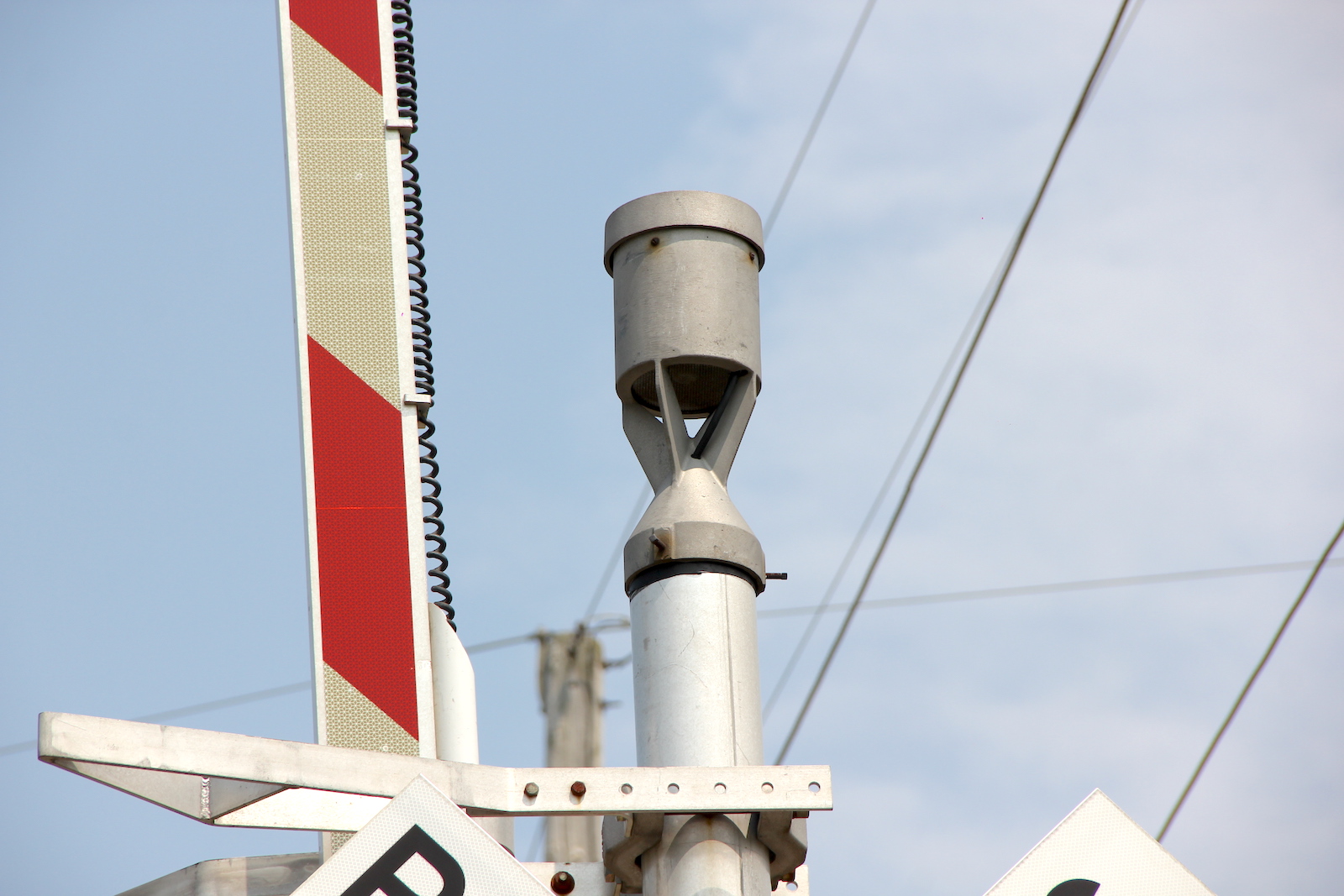

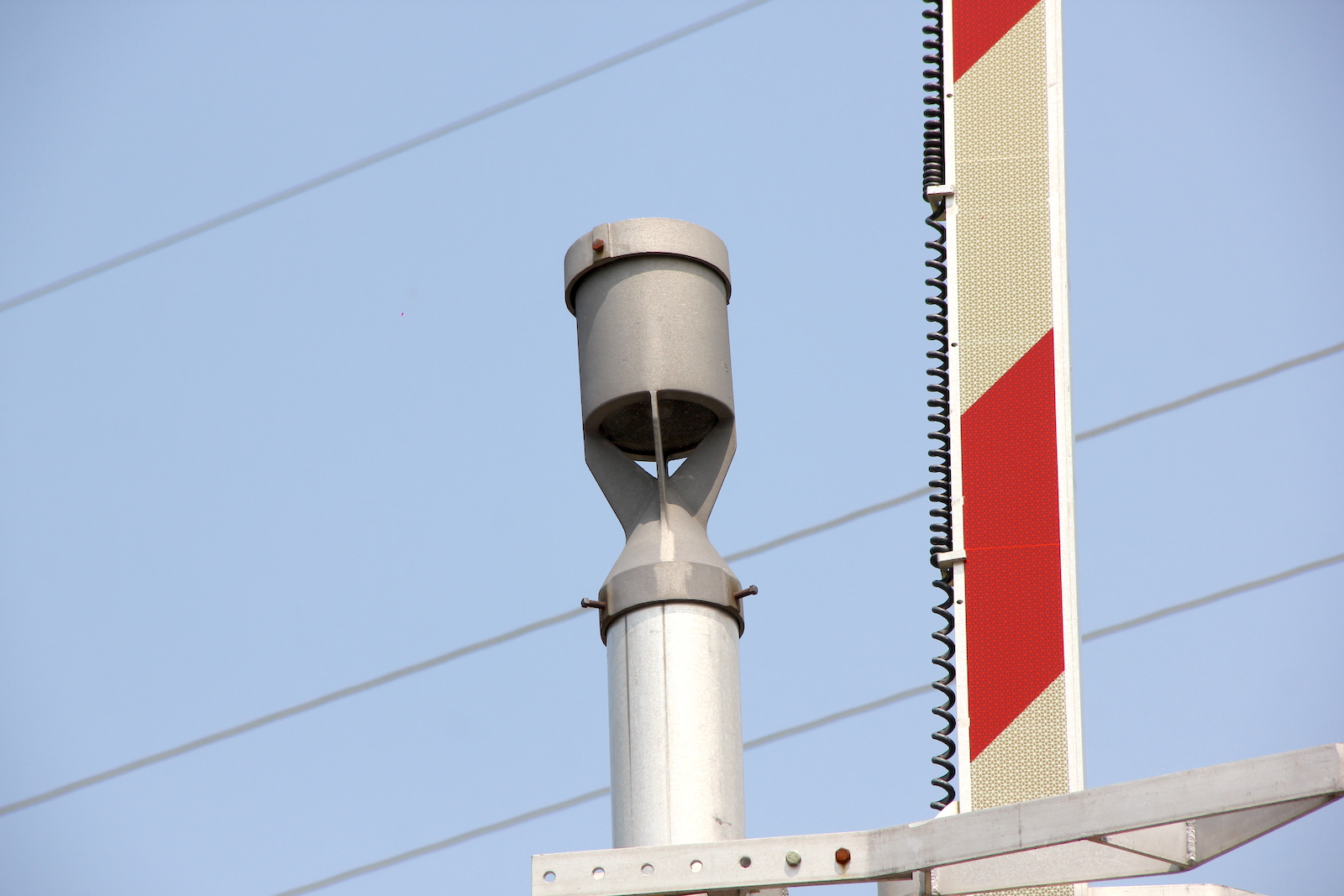

Bell: WCH E-Bell WCH E-Bell
Base: WCH 5" Single Sided ^ WCH 5" Single Sided ^

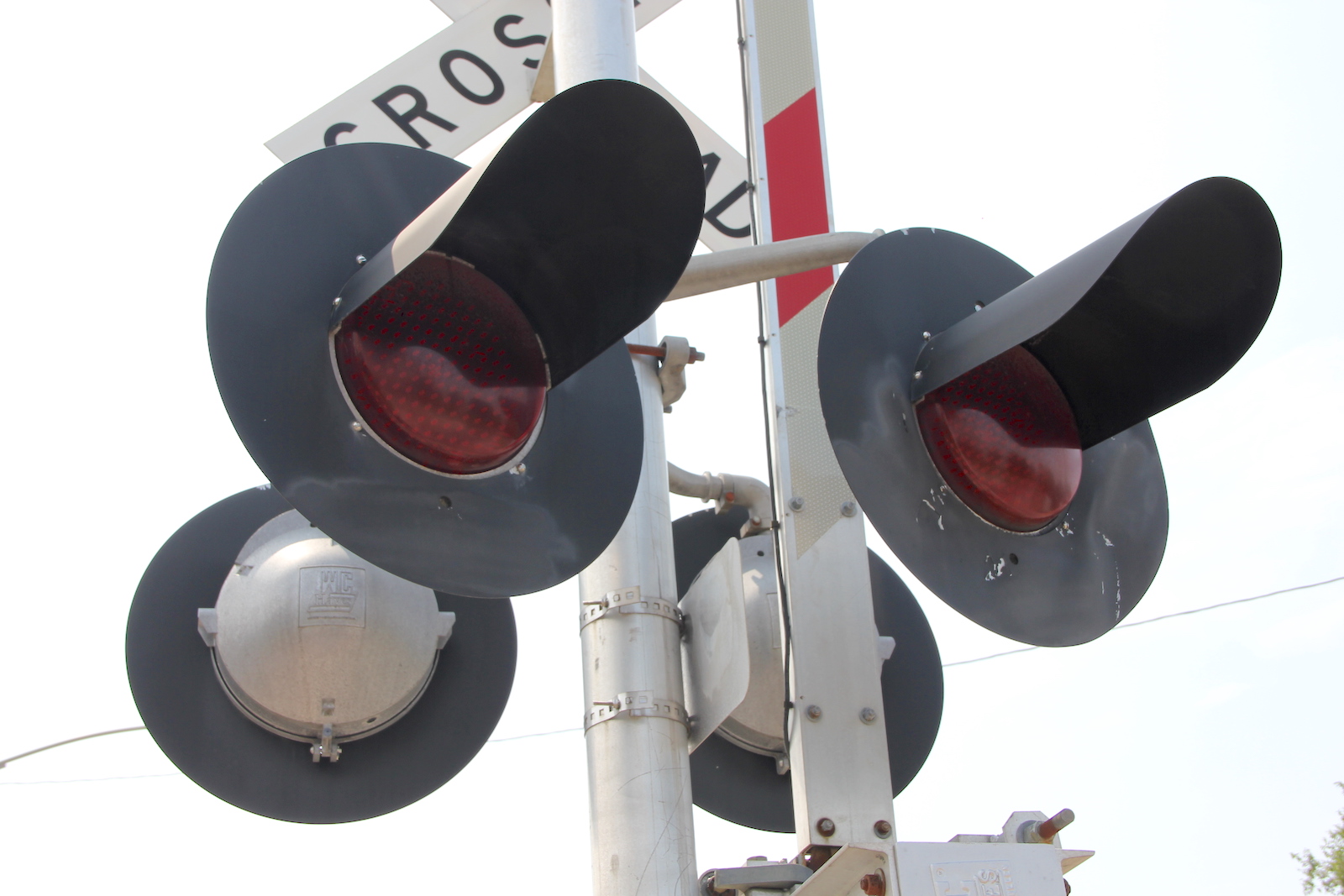

Lights: 4 - 12"x24" WCH w/ 1st Gen WCH LEDs 4 - 12"x24" WCH w/ 1st Gen WCH LEDs
Junction Box: WRRS WRRS
Gate Lights: 4" RECO 4" RECO

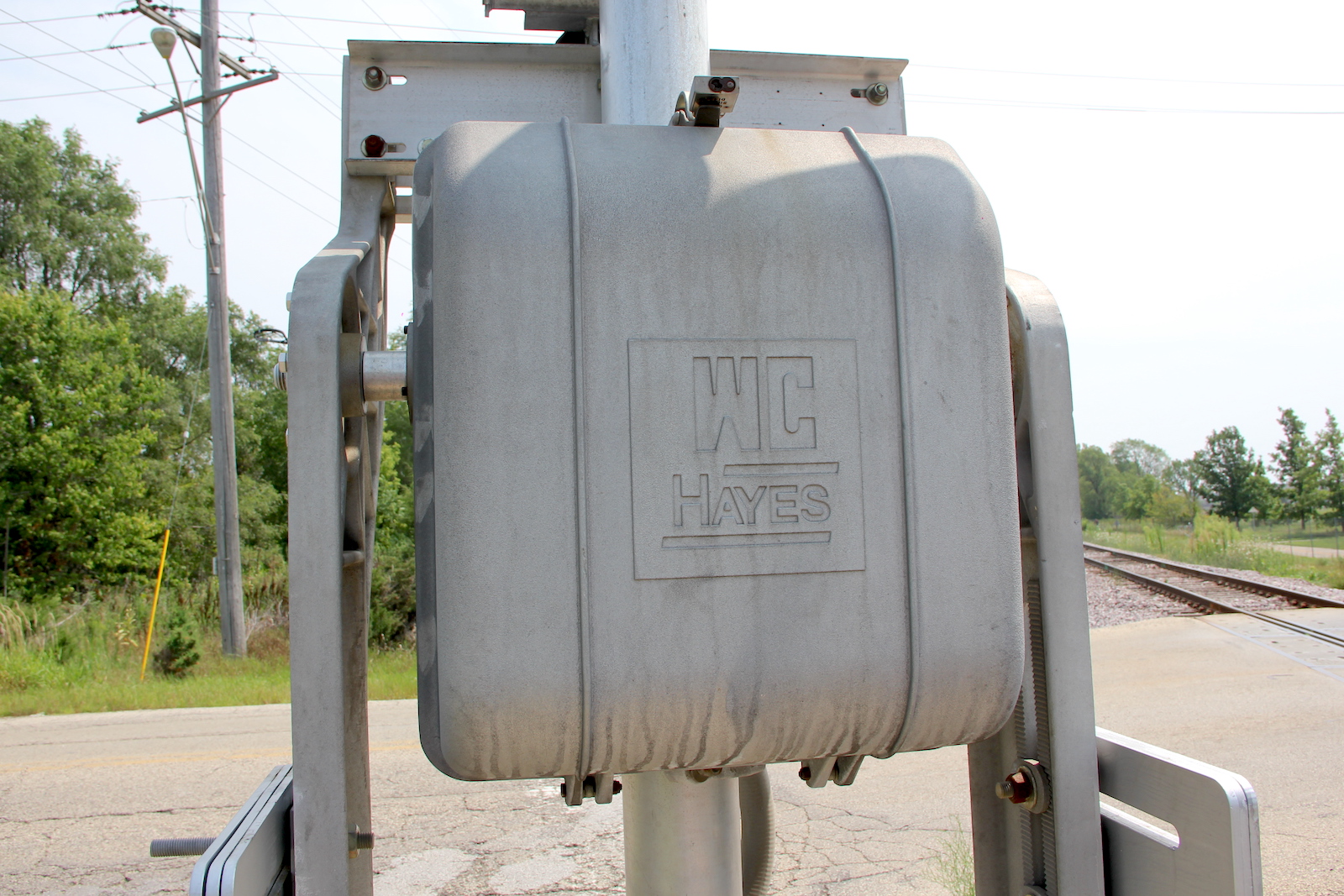

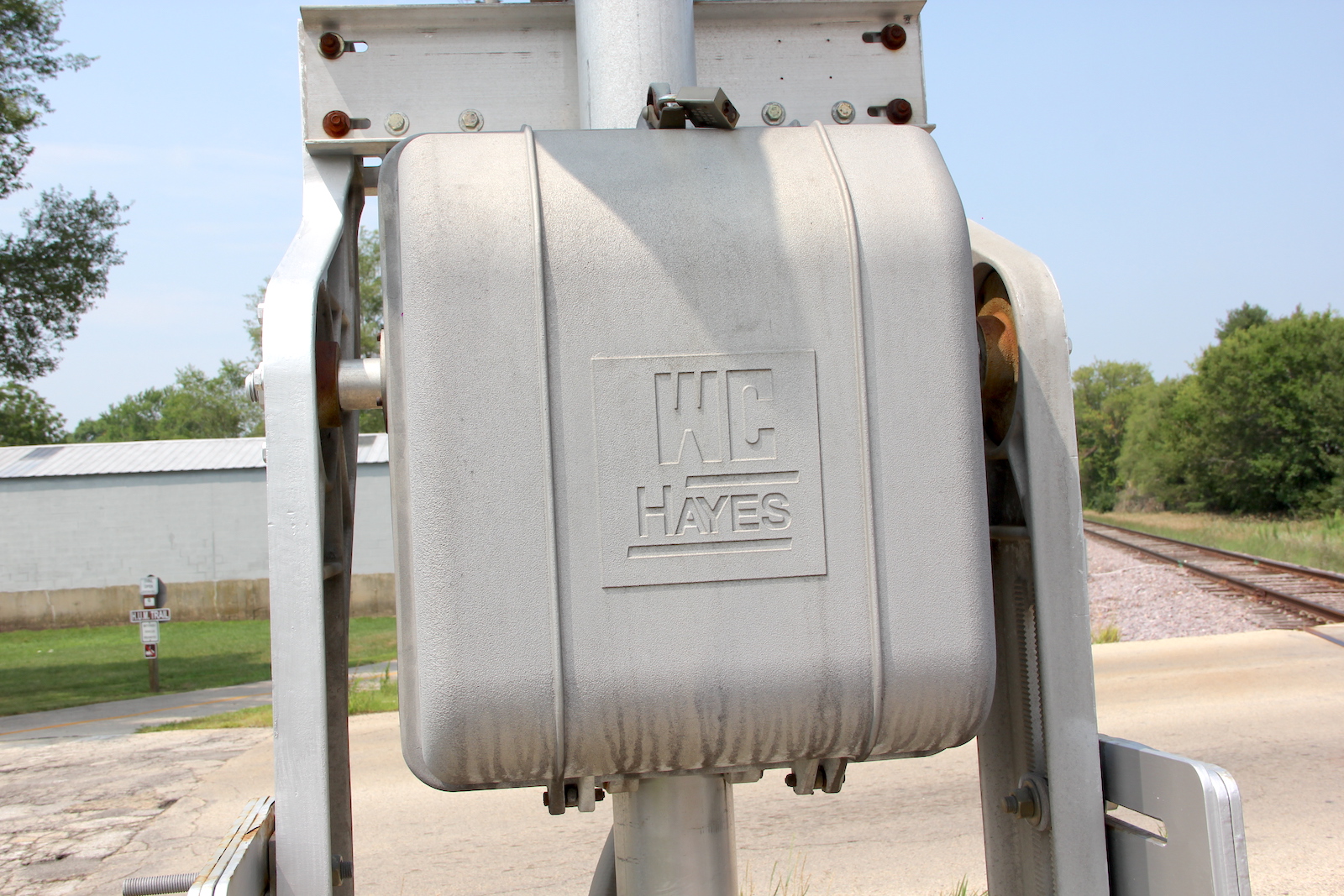

Gate Mechanism: WCH Style 3.5 w/ WCH Gate Saver WCH Style 3.5 w/ WCH Gate Saver
Gate Striping: Diagonal Striping Diagonal Striping

Pictures 1-26 were taken on August 6, 2021.
Pictures 27-30 were taken on July 7, 2024.
All pictures wer etaken by Tommy McGowan.
This crossing is located on the UP Belvidere Sub.

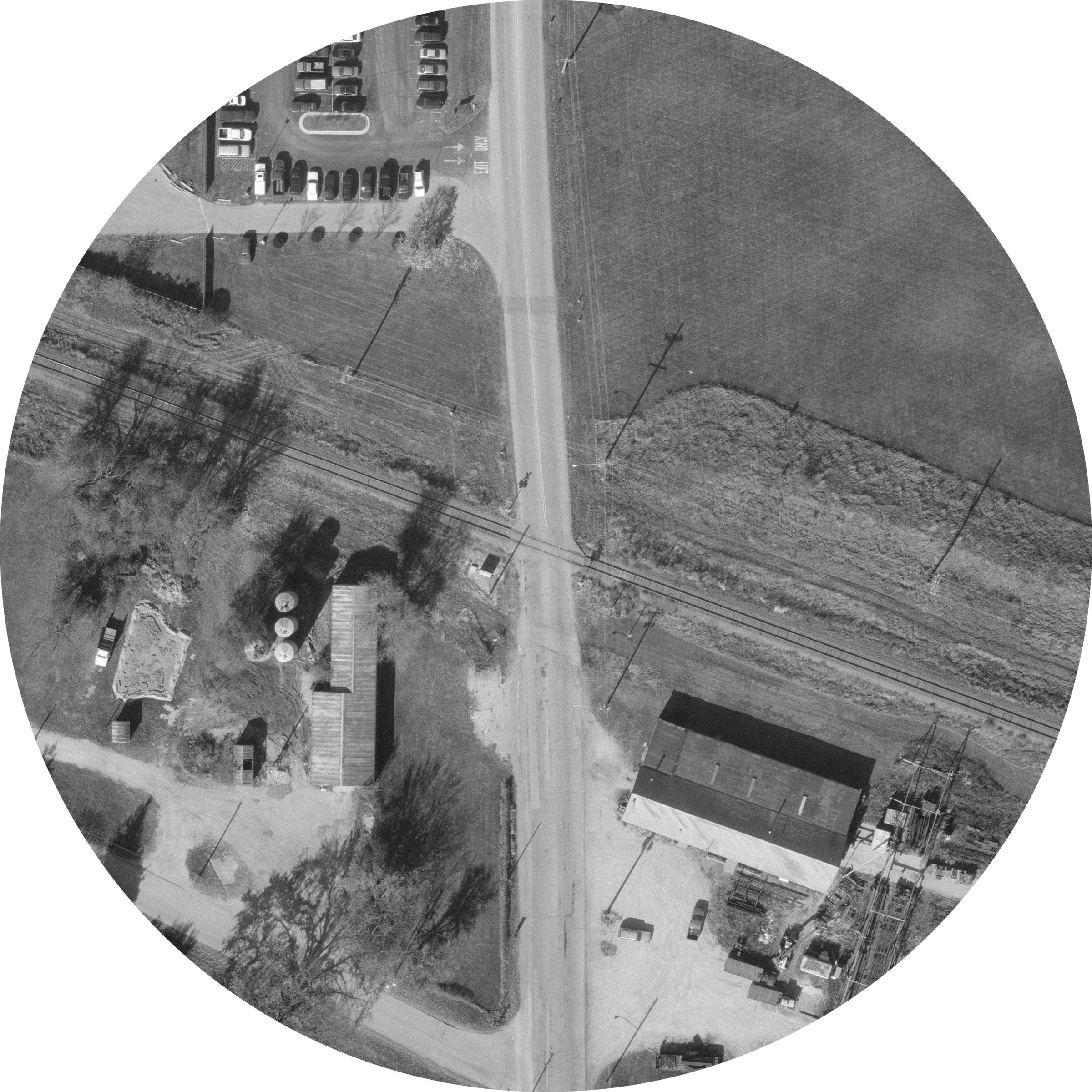

These signals were installed in the mid 2000s replacing gateless signals. Click here to see an overhead picture of the old signals.

1
2

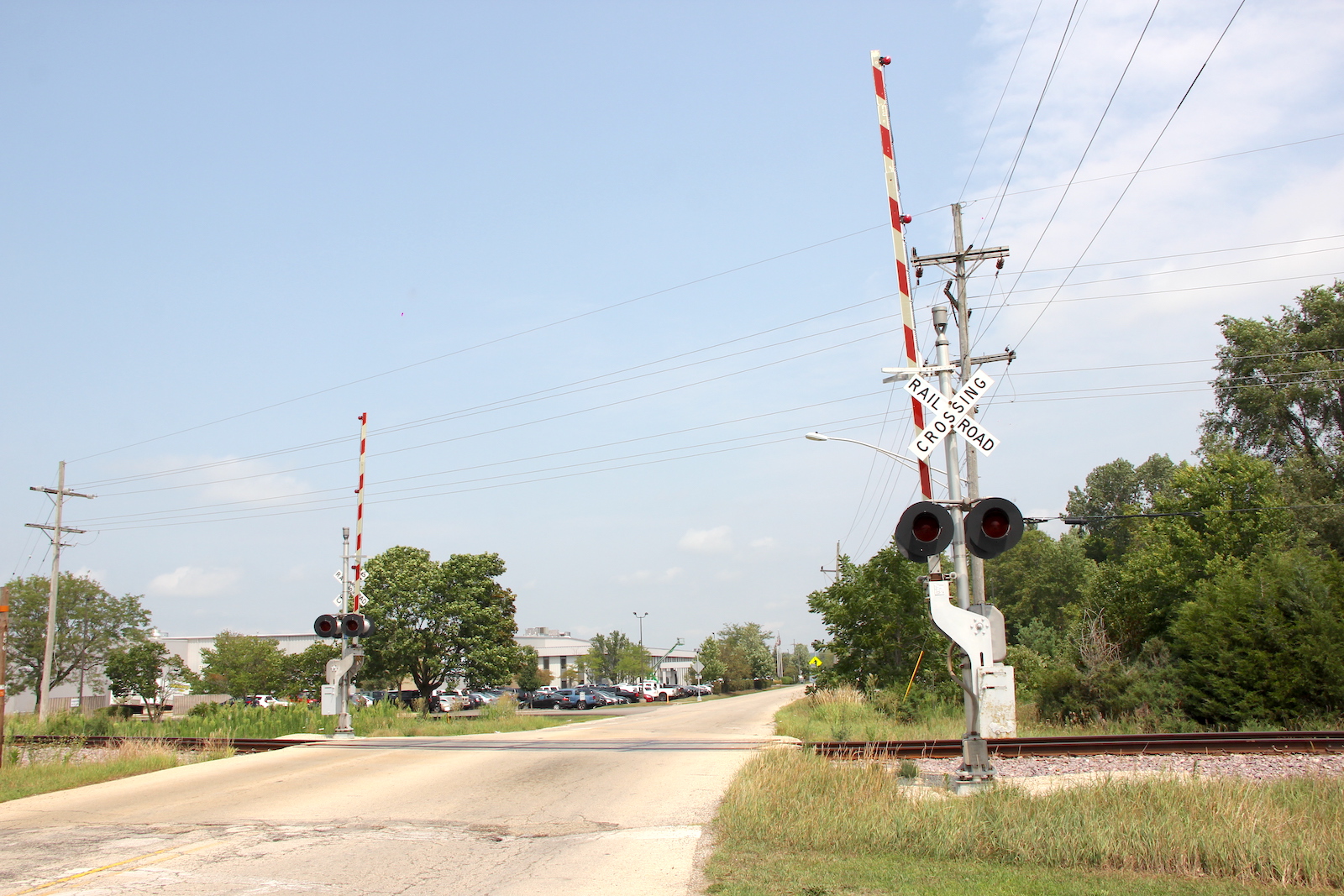

Overview of 2 WCH signals facing north. Overview facing south.
3 4 5
6 7 8
9 10 11
12

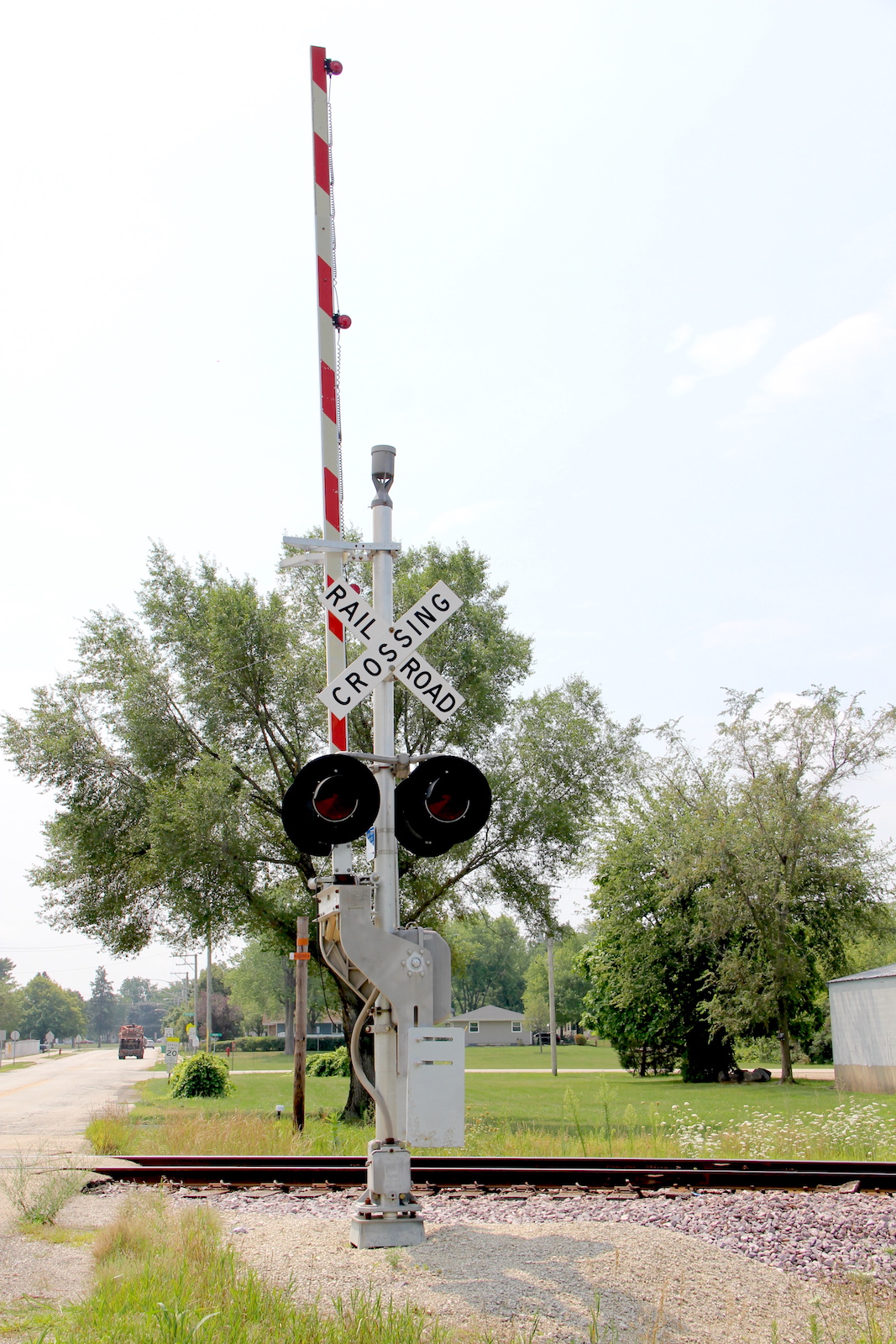

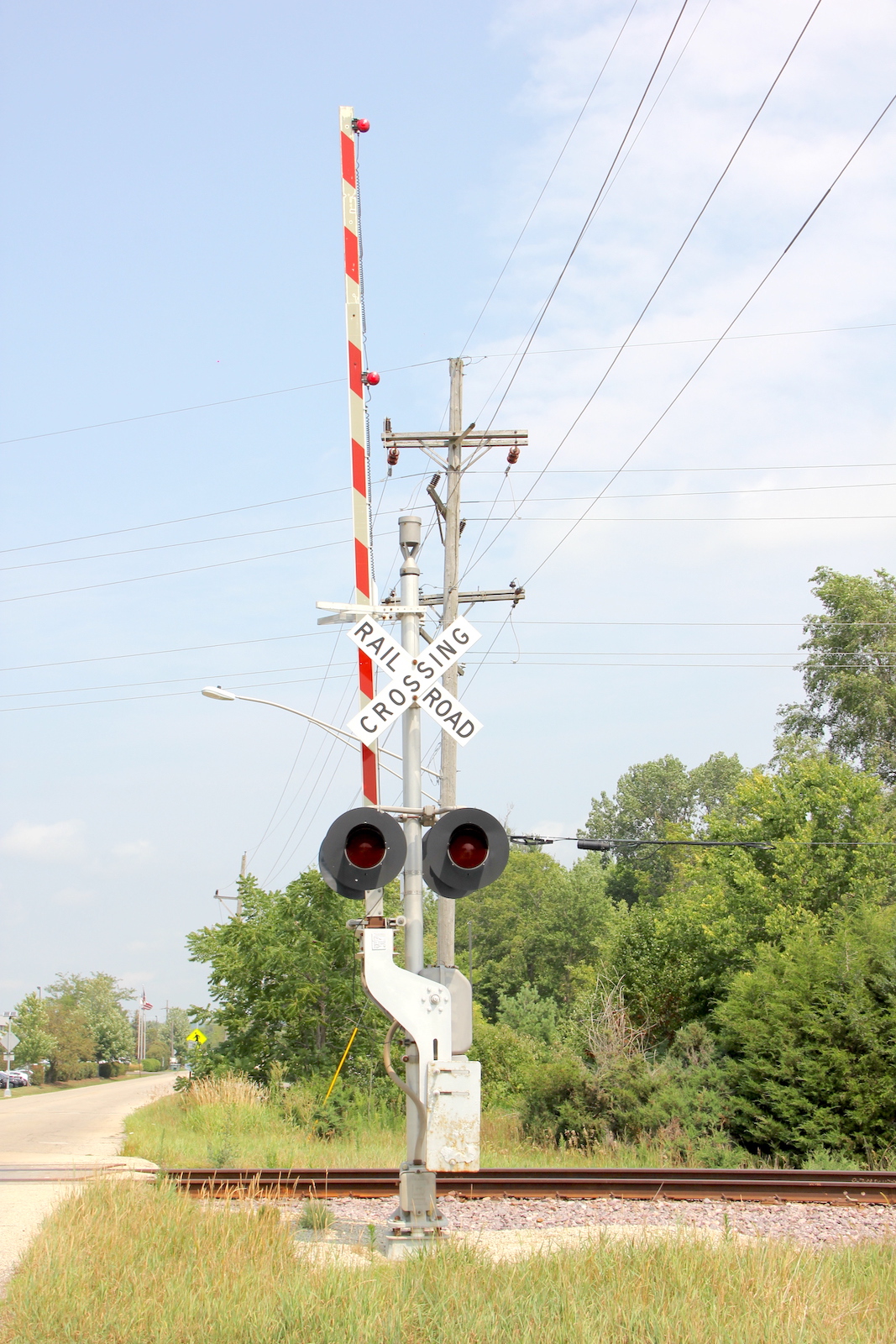

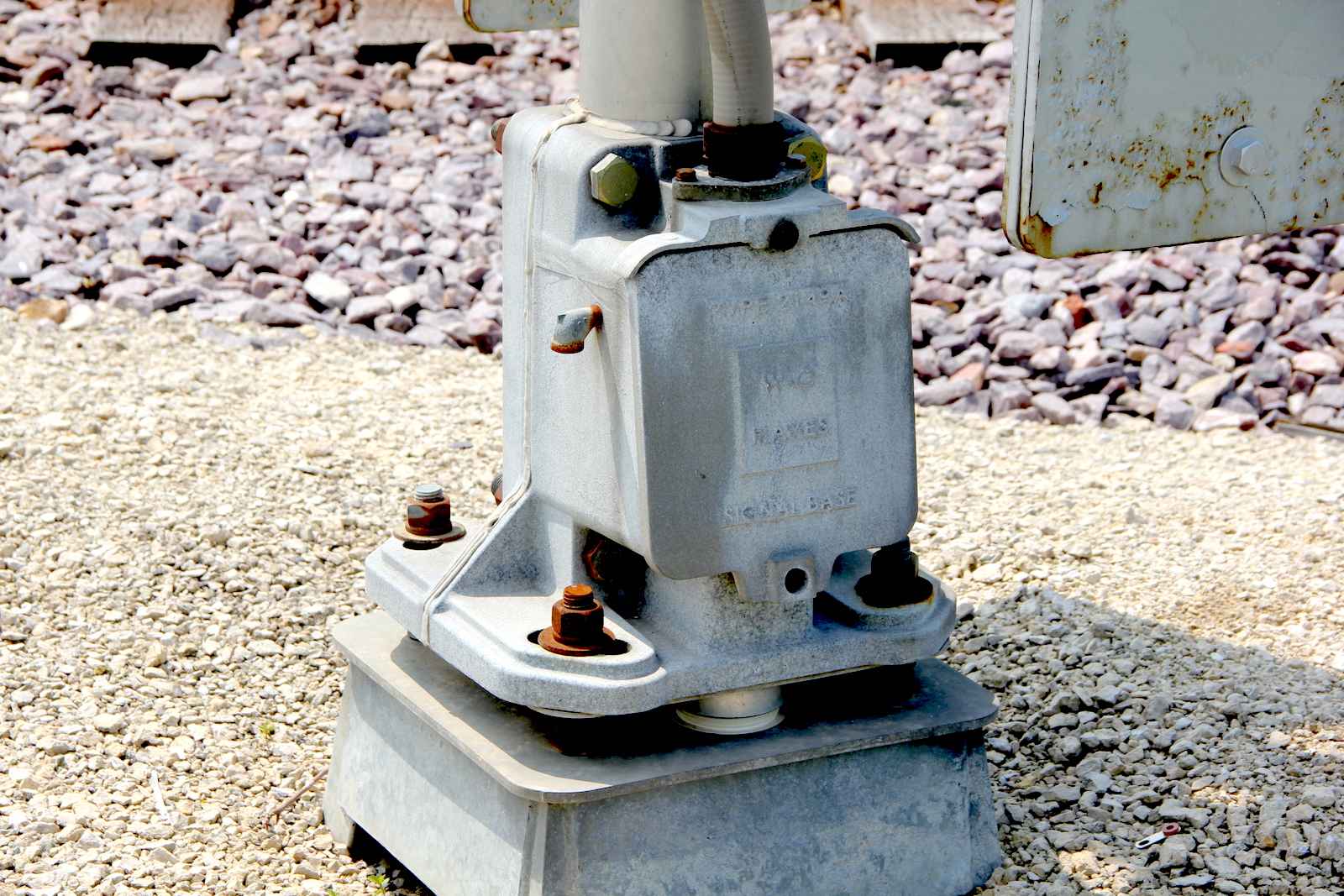

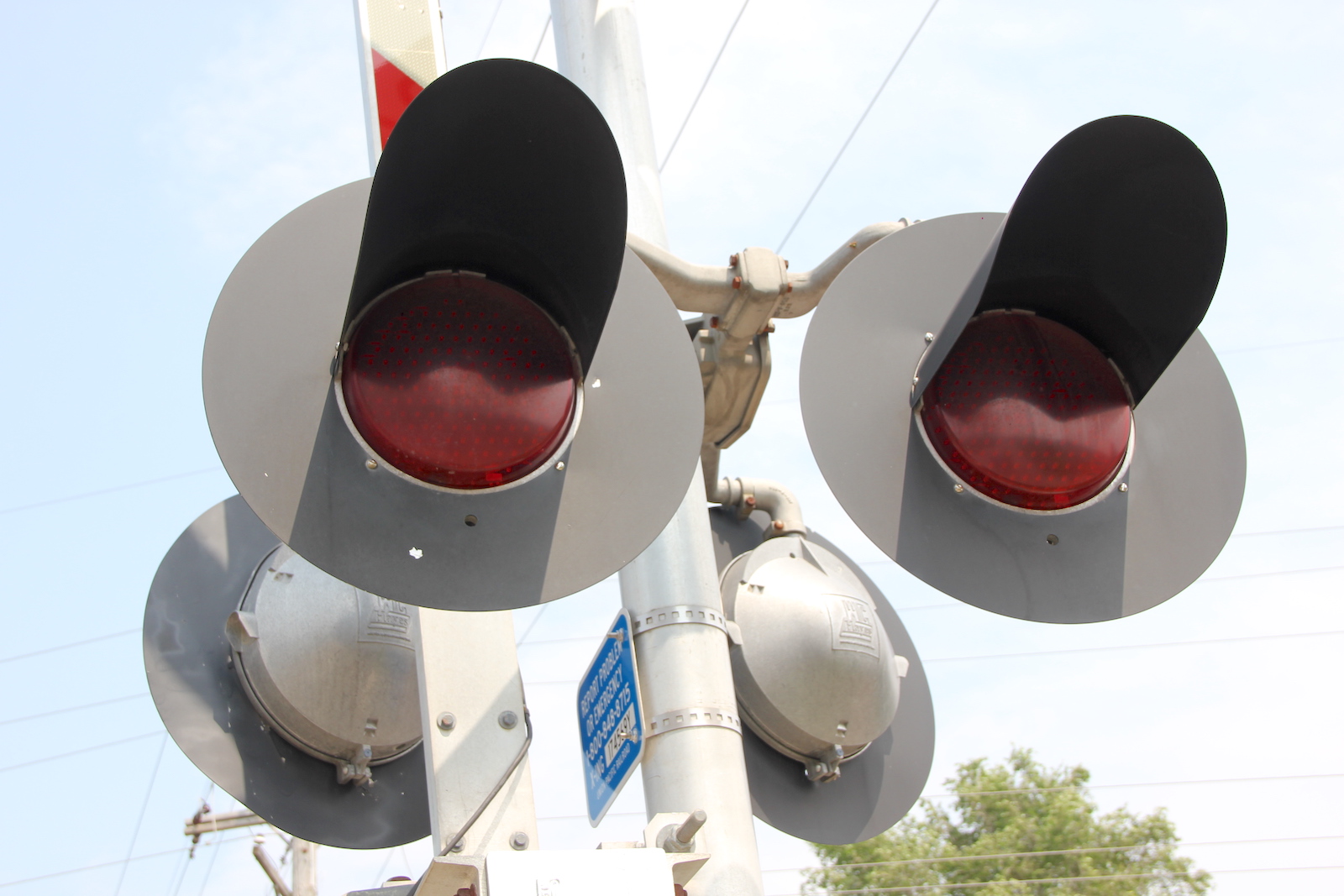

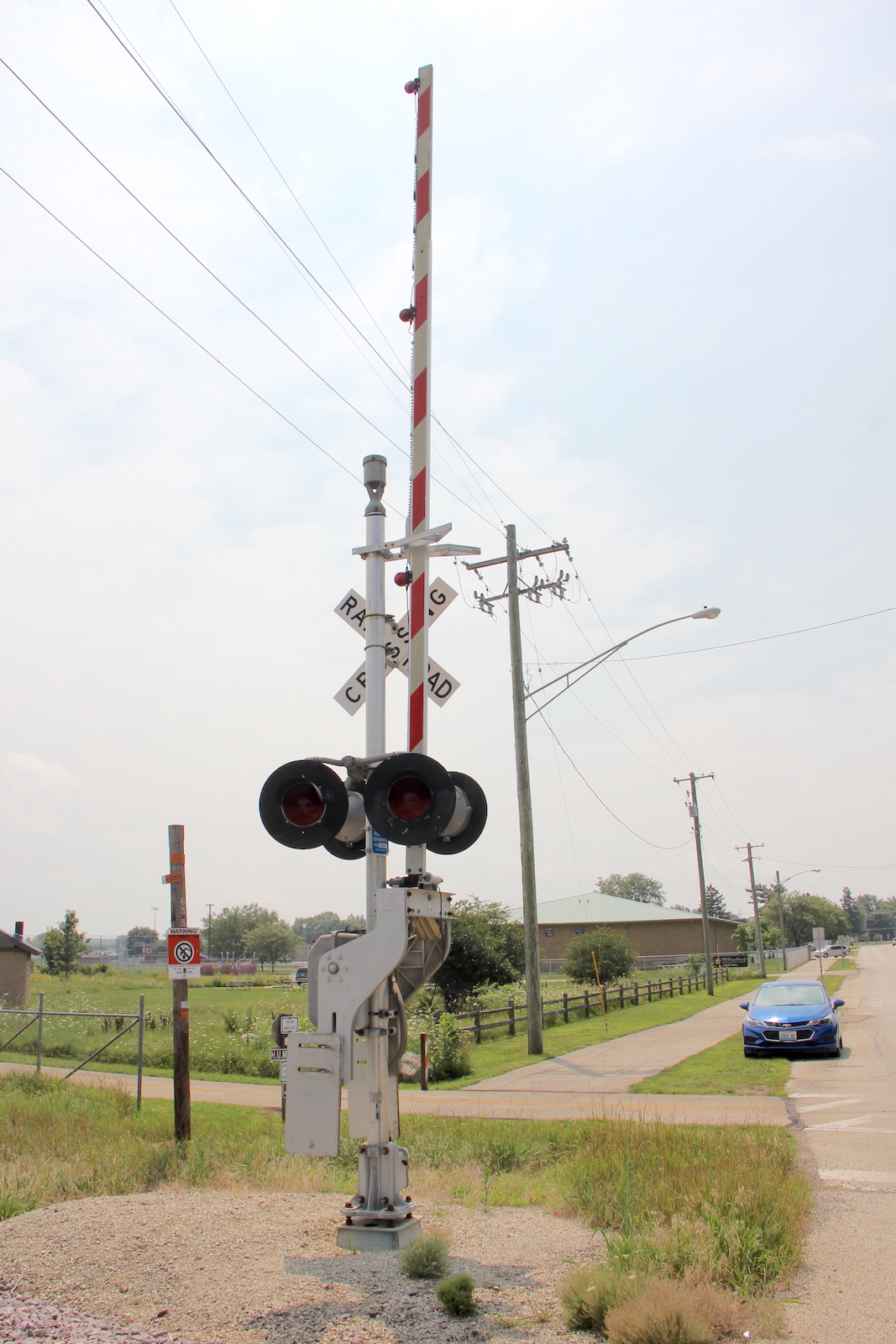

The southern signal.
13 14 15
16 17 18
19 20 21
22

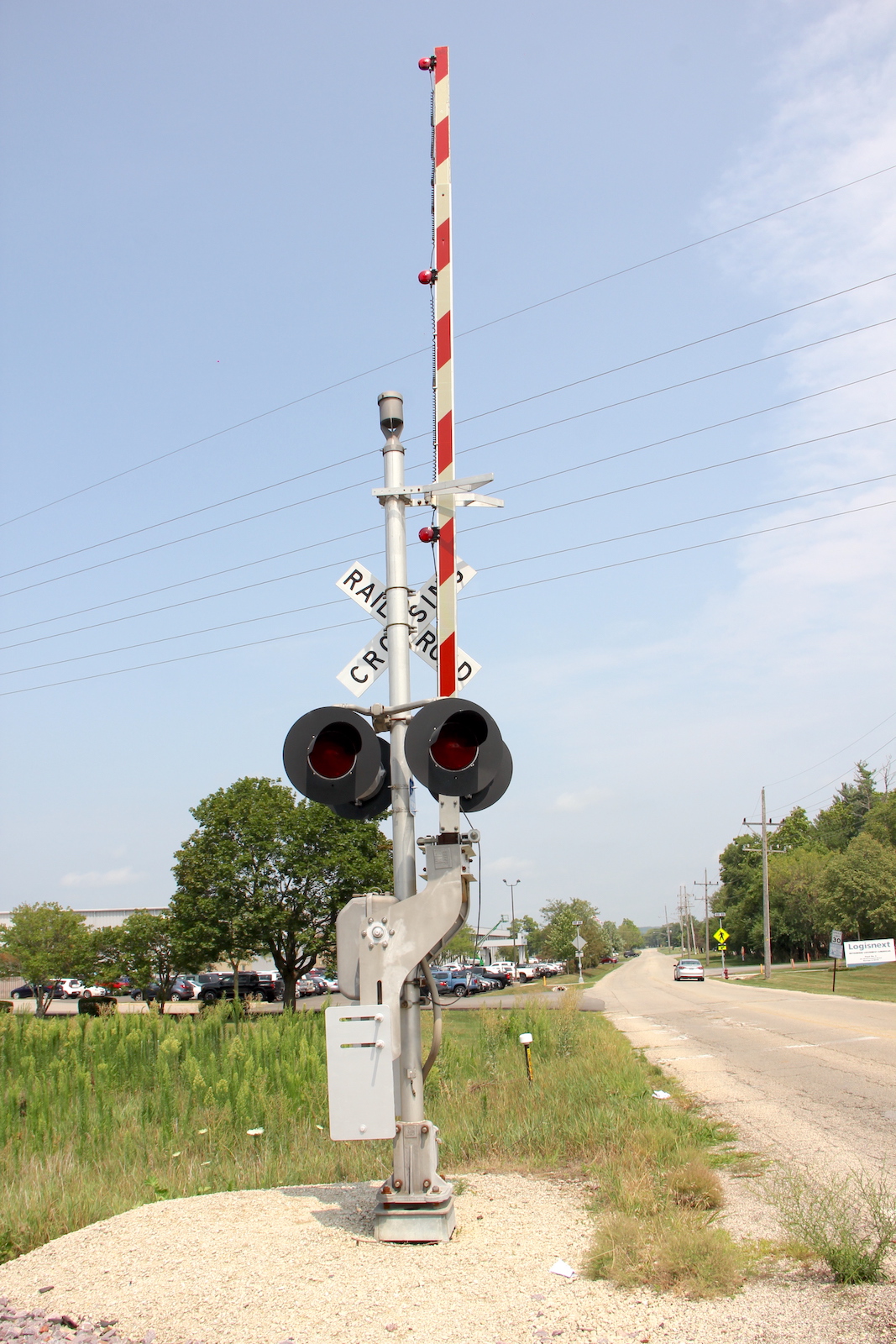

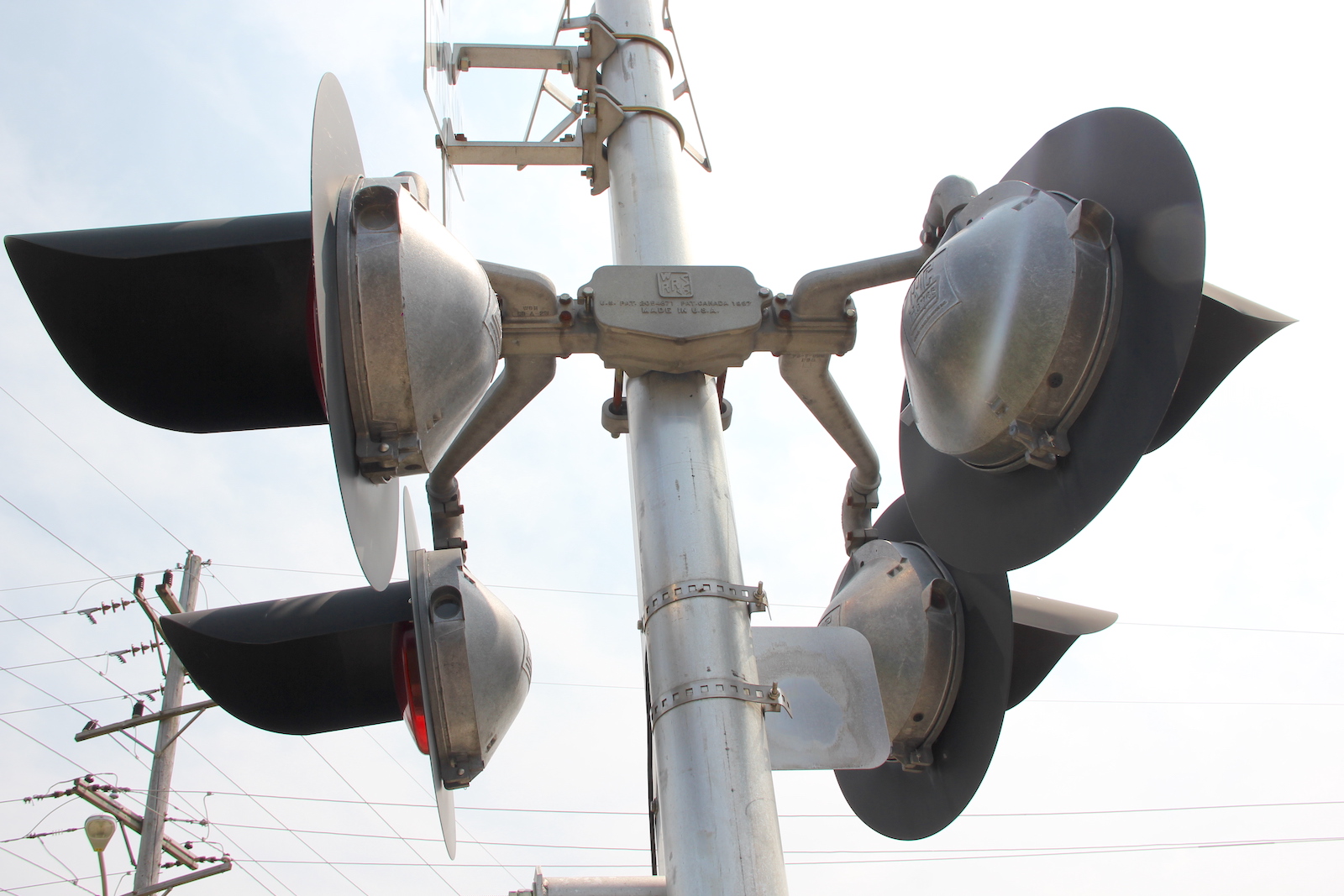

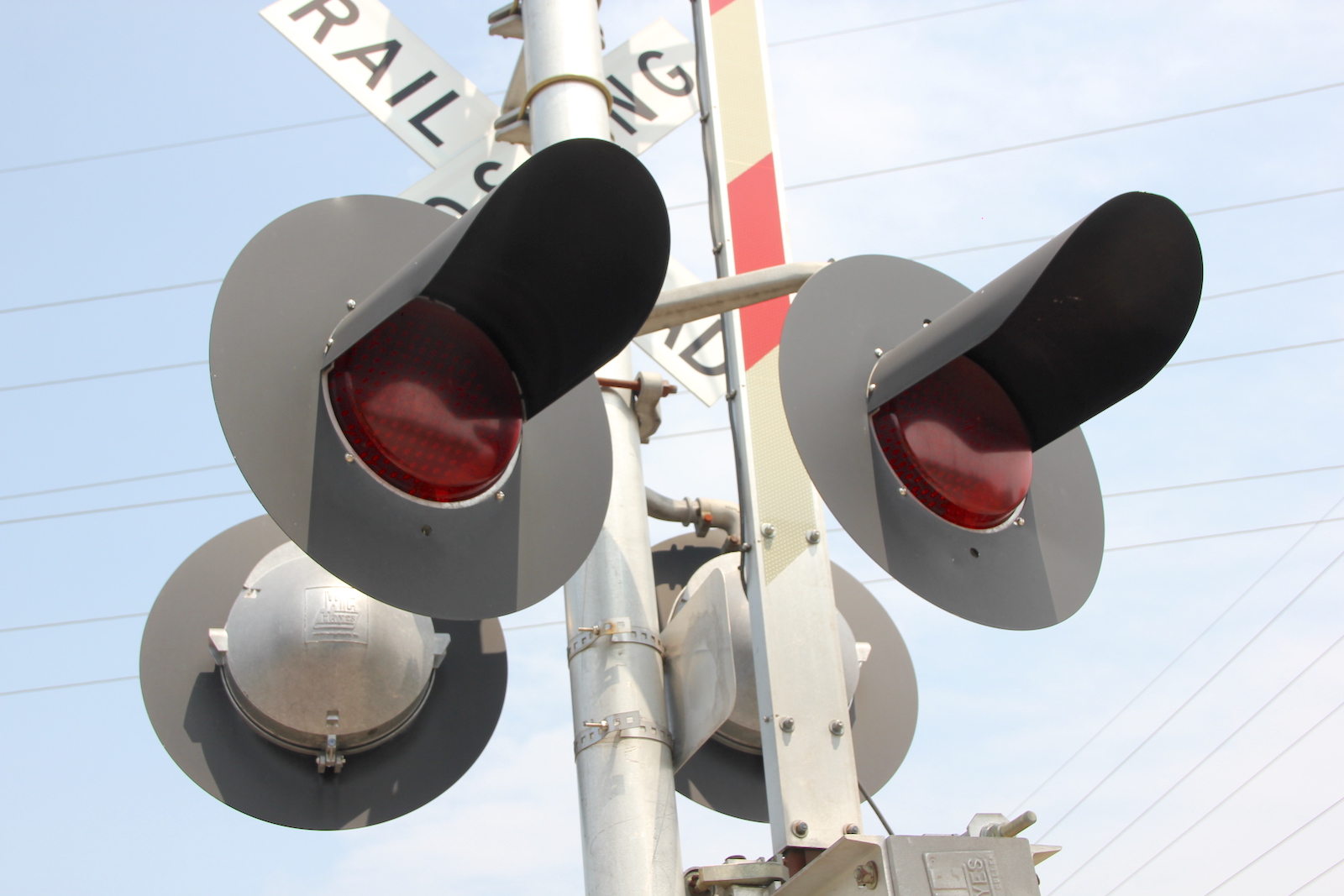

The northern signal.
23 24 25 26

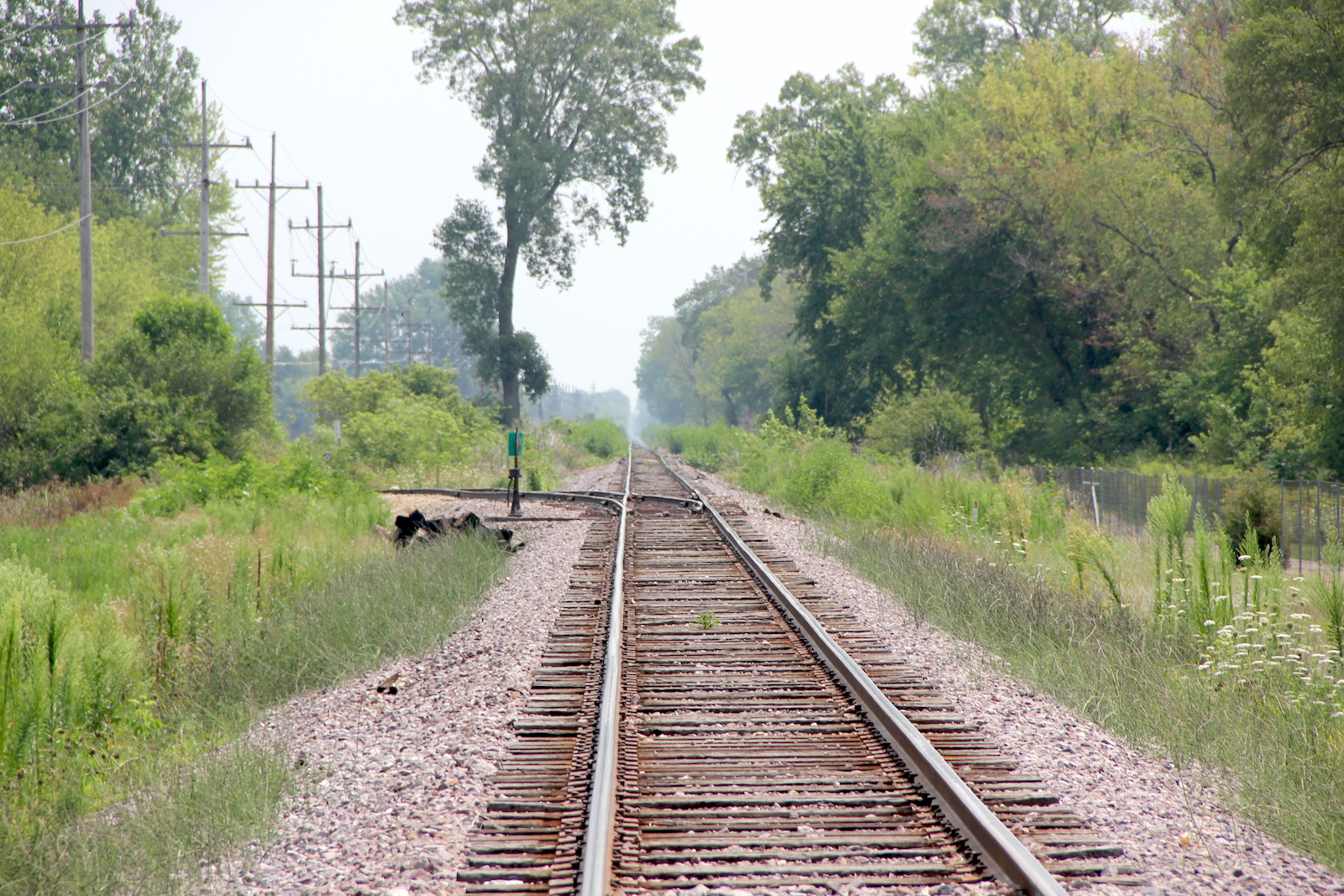

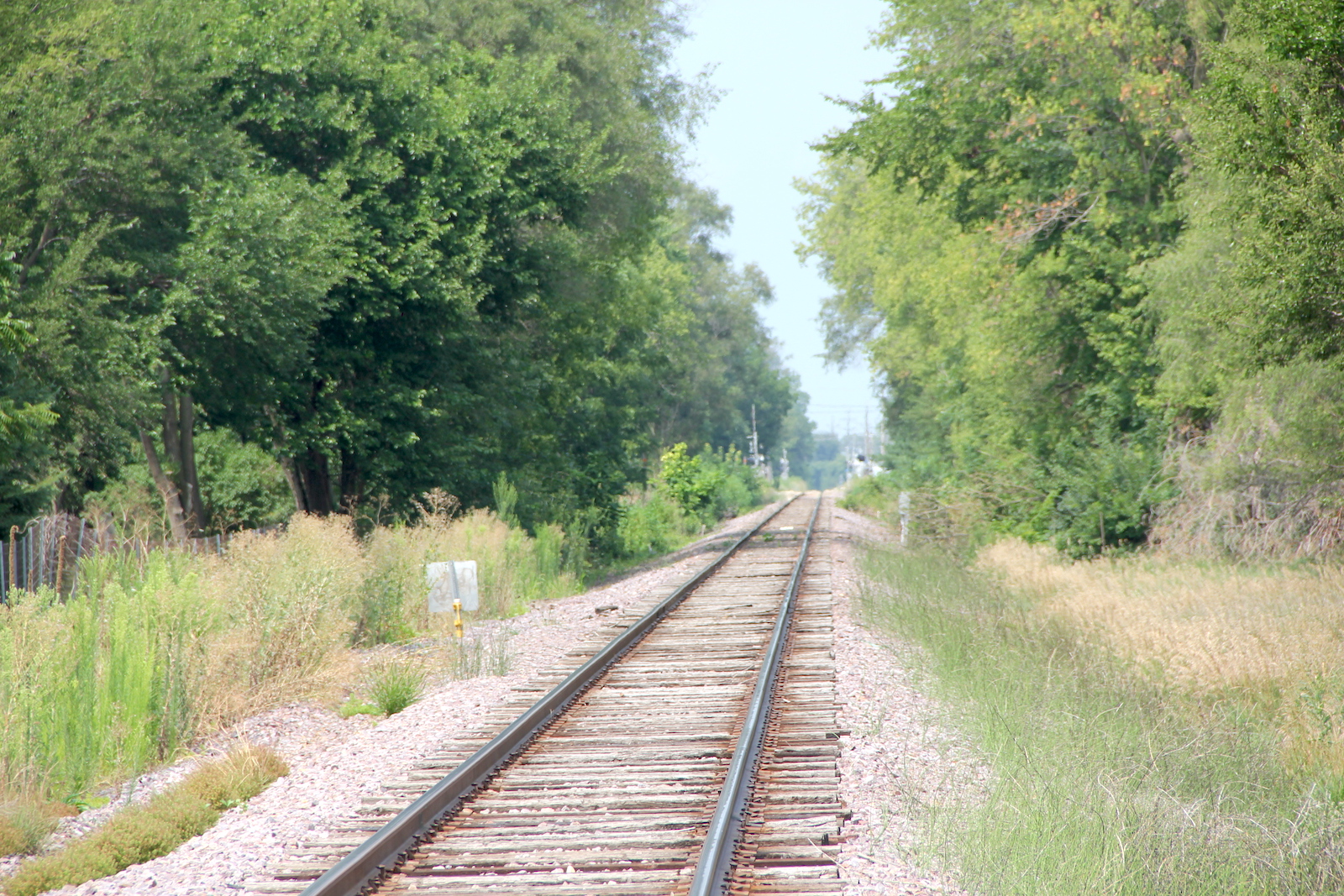

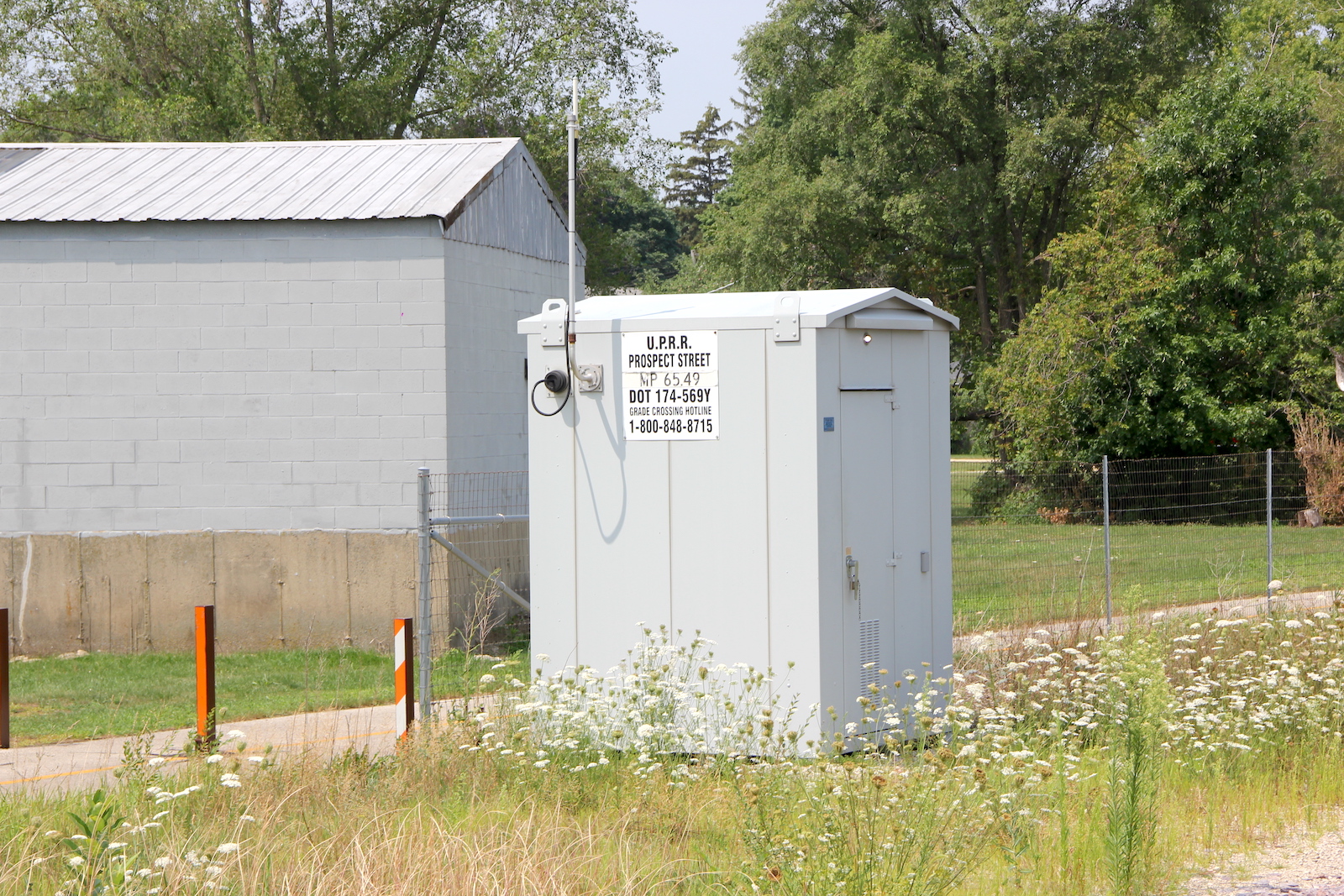

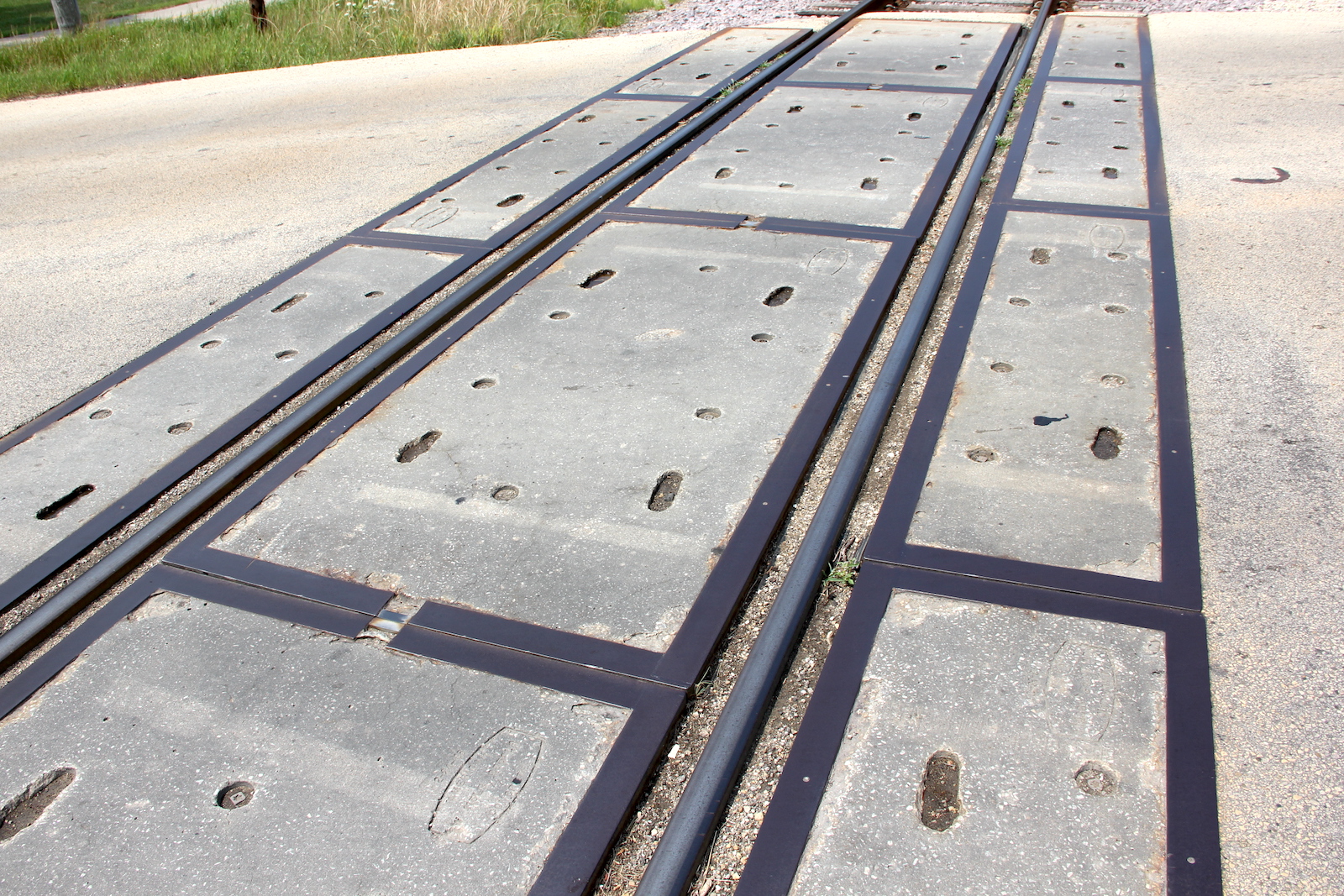

The relay bungalow in the southwest quadrant. The grade is all concrete. Track view facing west towards East St. Track view facing east towards Dunham Rd. in Union.
27 28 29
30

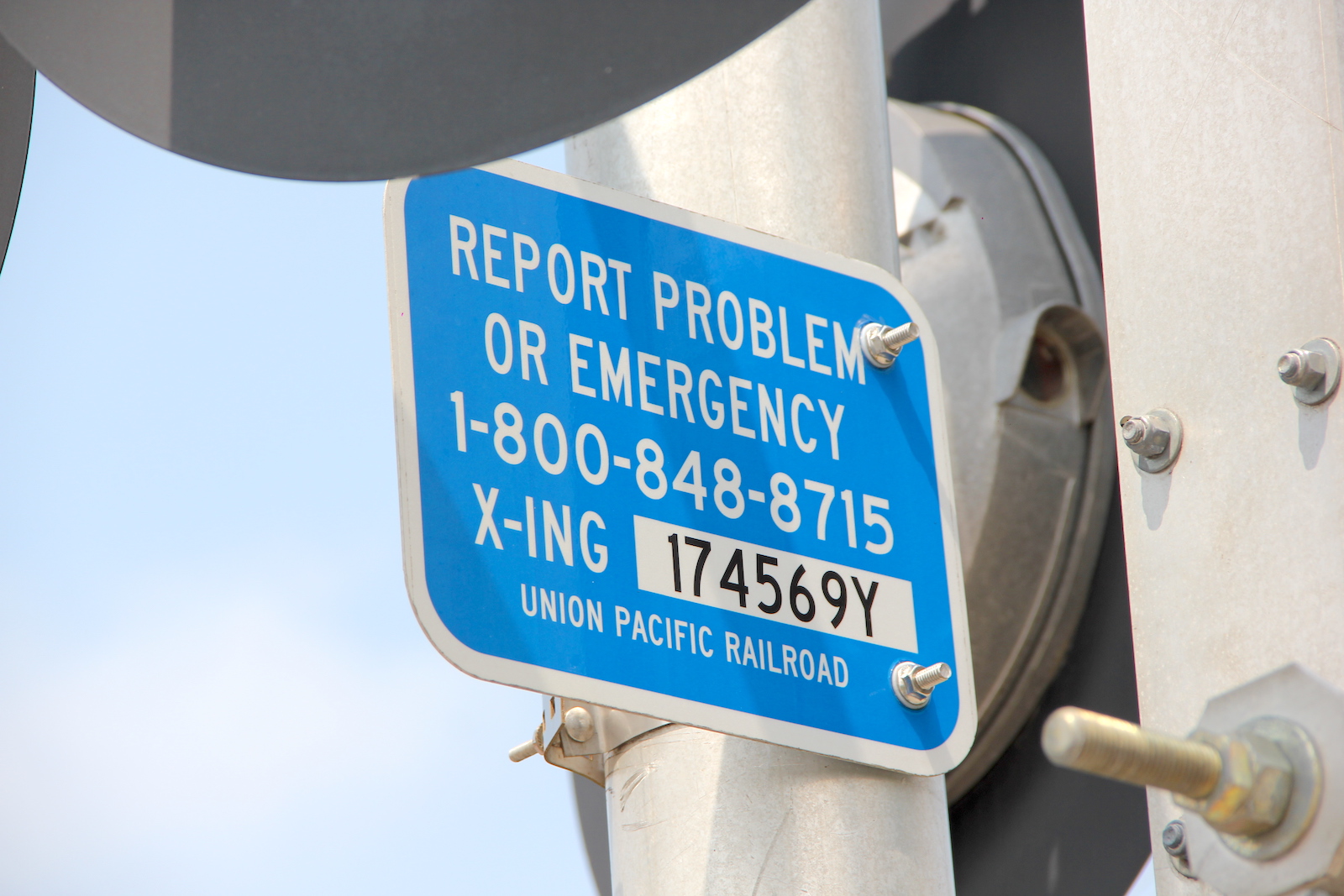

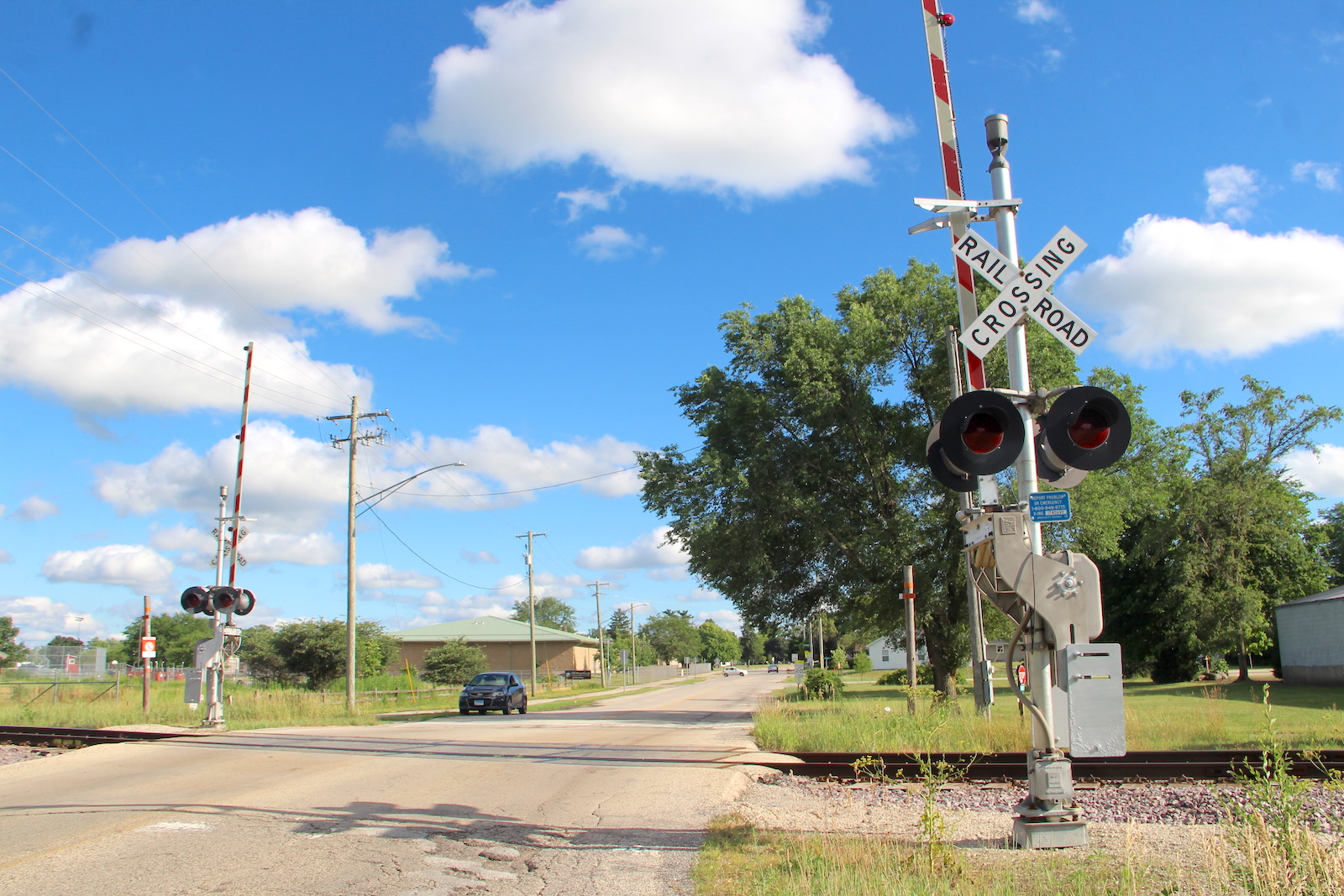

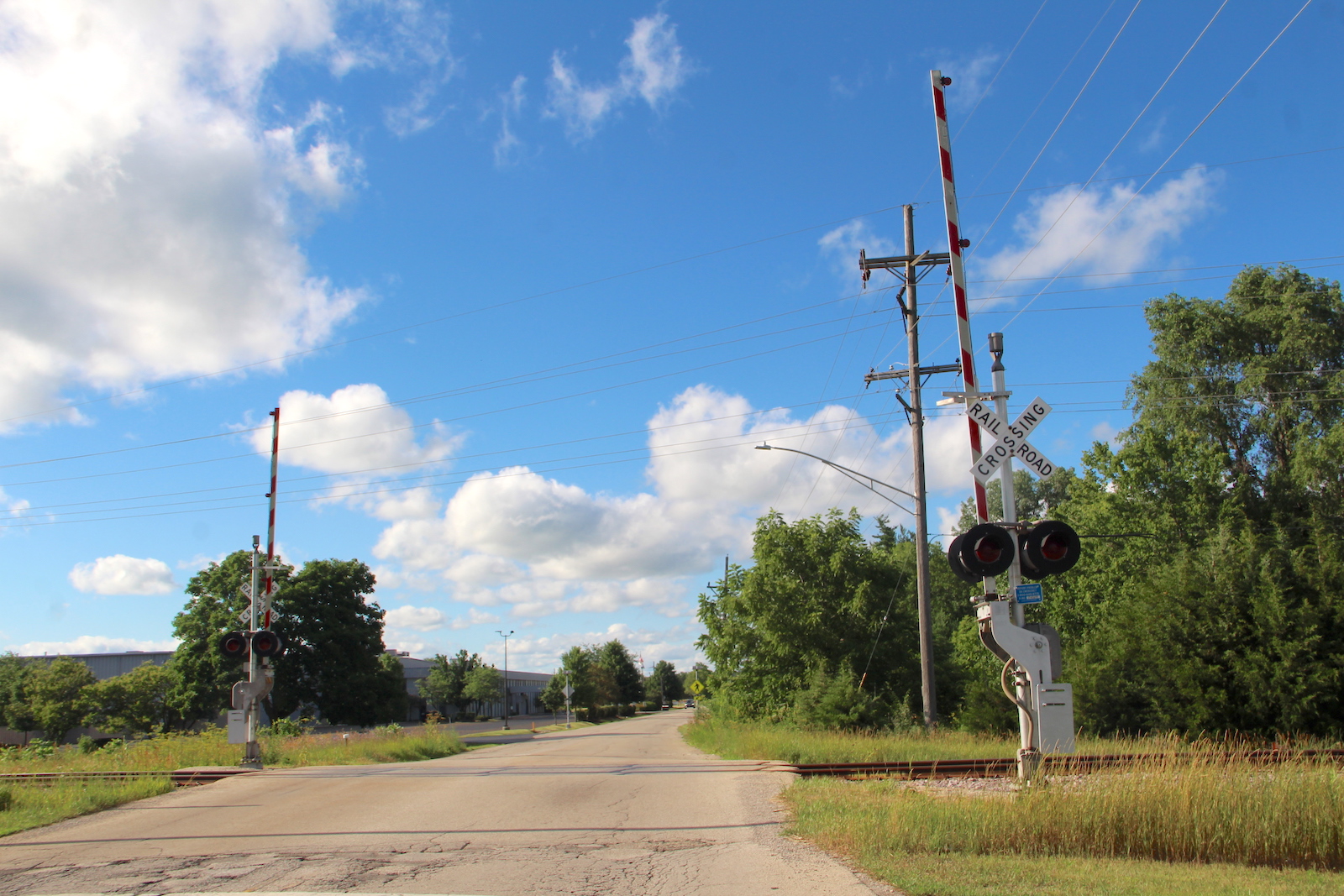

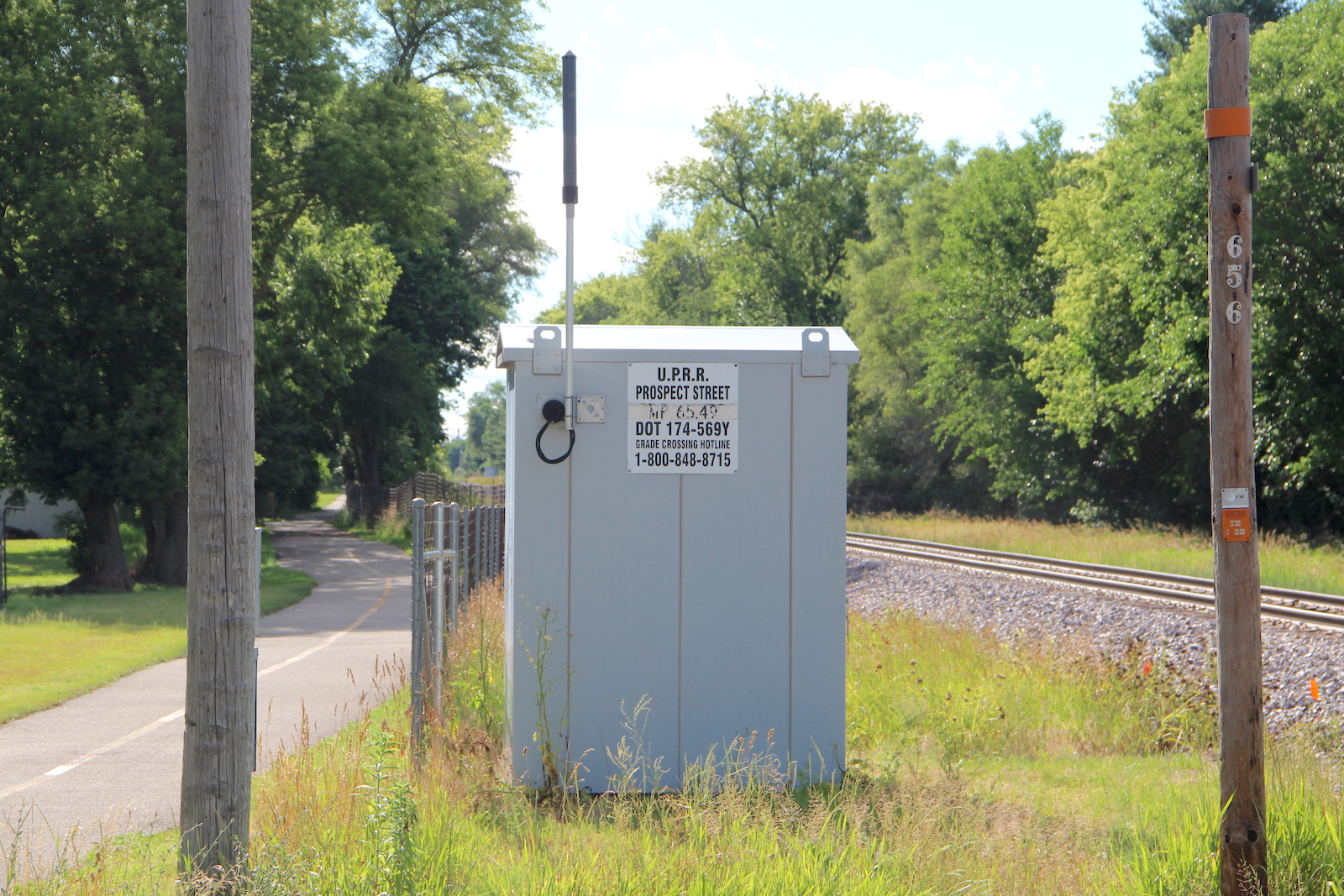

In June 2024, we see the DOT tags were turned forward and the PTC antenna on the bungalow was replaced.
