MP: 150.66
|
MP: 150.66 |
| Updated August 2024 |
| Total Accidents:

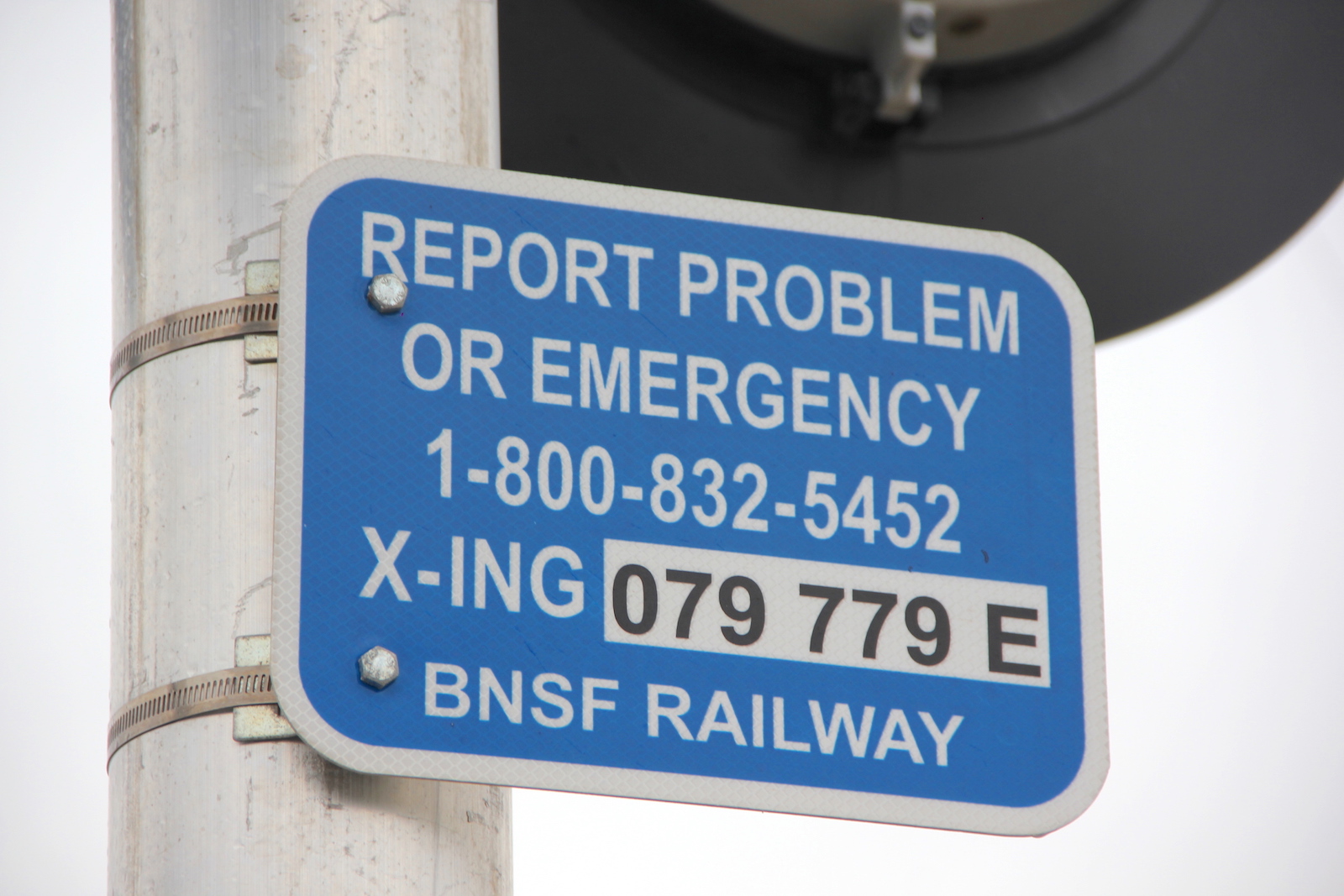

0 Crossing DOT #: 079779E TOTAL DAILY TRAINS: 28 (AS OF 2013) |
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |

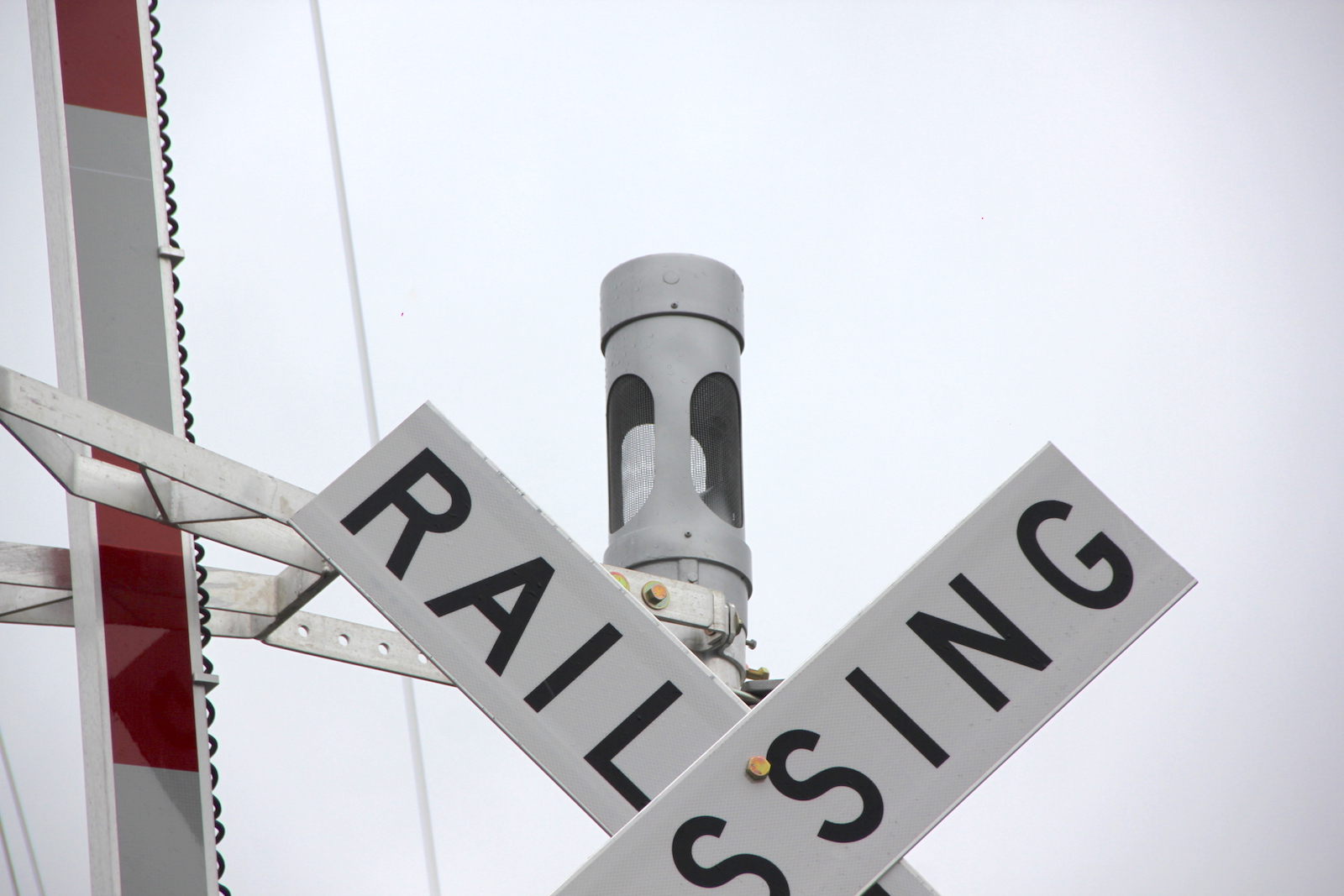

| Bell: | GS Type 3 E-Bell | GS Type 3 E-Bell |

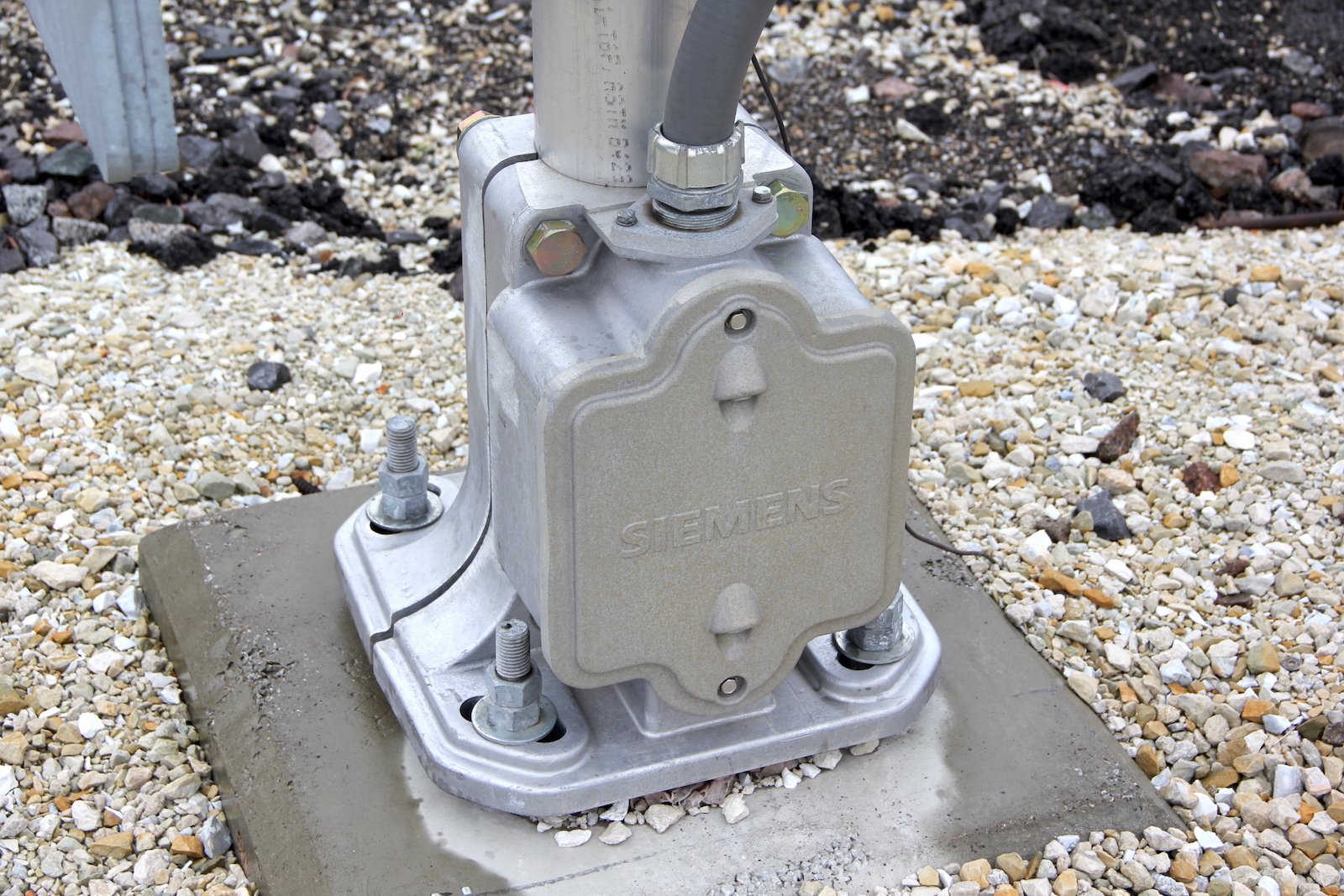

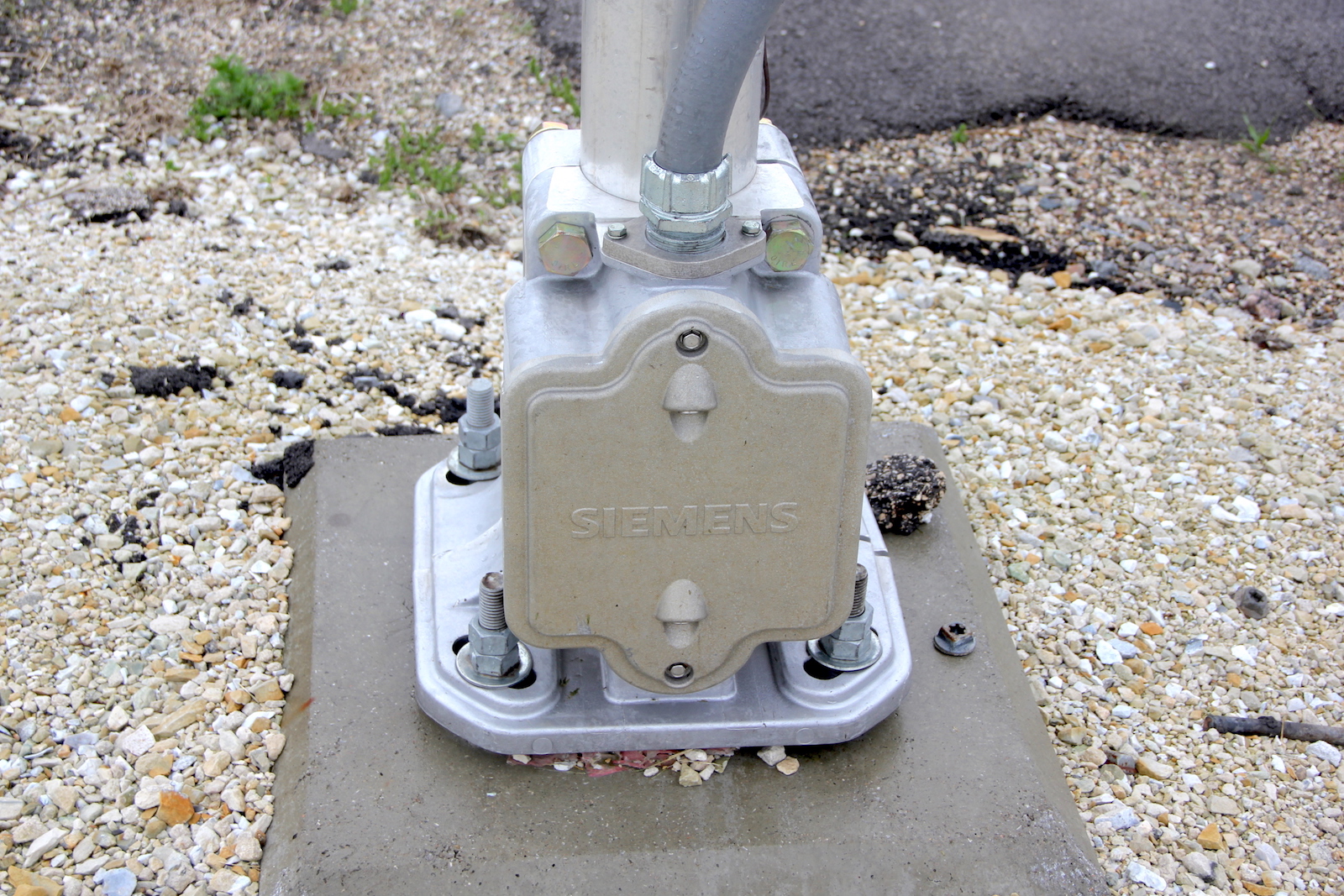

| Base: | Siemens 5" Single Sided > | Siemens 5" Single Sided > |
| Lights: | 8 - 12"x24" Safetran w/ Dialight Ball LEDs | 4 - 12"x24" Safetran w/ Dialight Ball LEDs |
| Junction Boxes: | Safetran | Safetran |
| Gate Lights: | 3 - 4" RECO LEDs | 3 - 4" RECO LEDs |
| Gate Mechanism: | Refurbished Safetran 2000s w/ GSI Gate Saver | Refurbished Safetran 2000s w/ GSI Gate Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
I1 |
I2 |
I3 |
I4 |

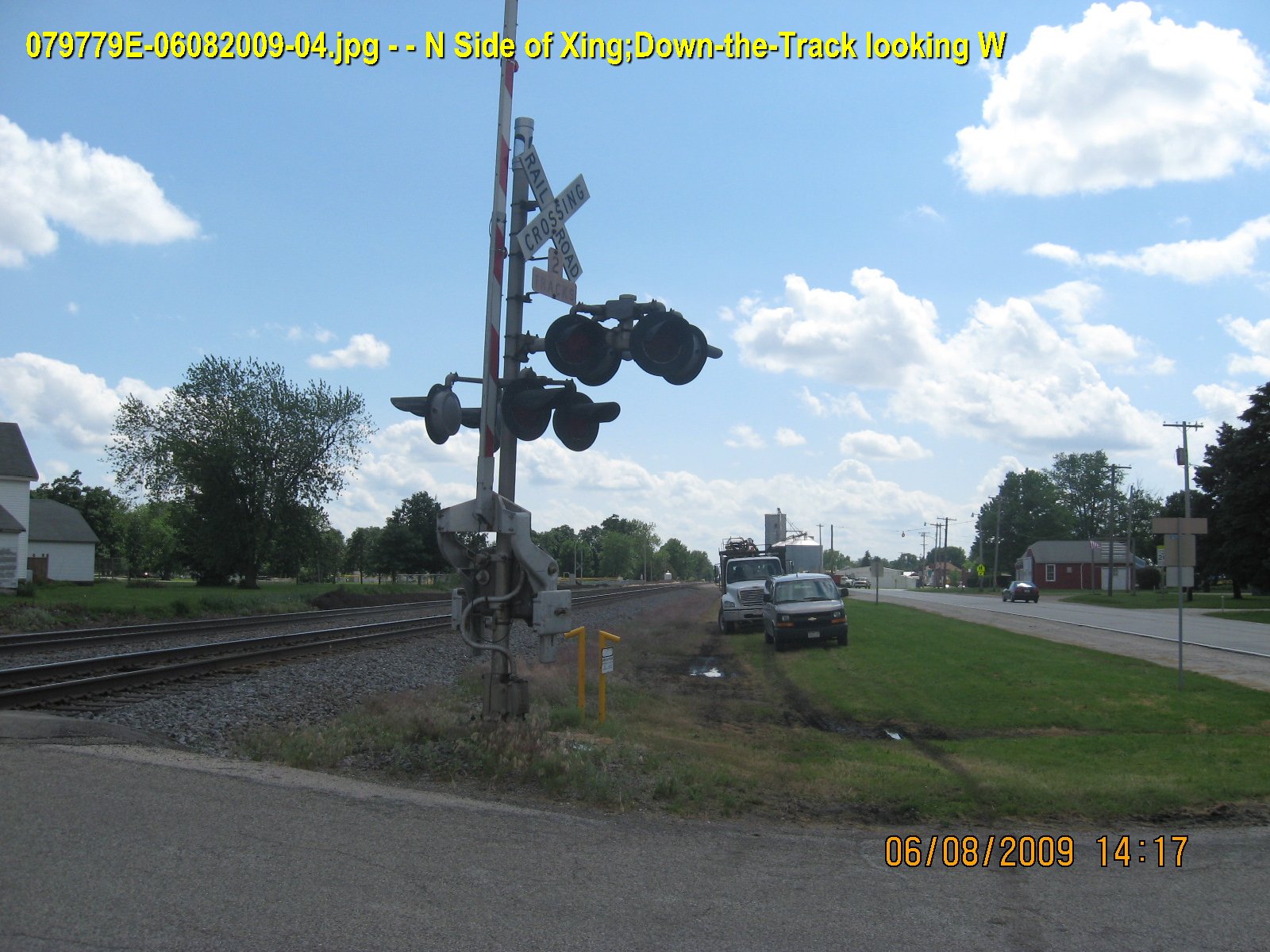

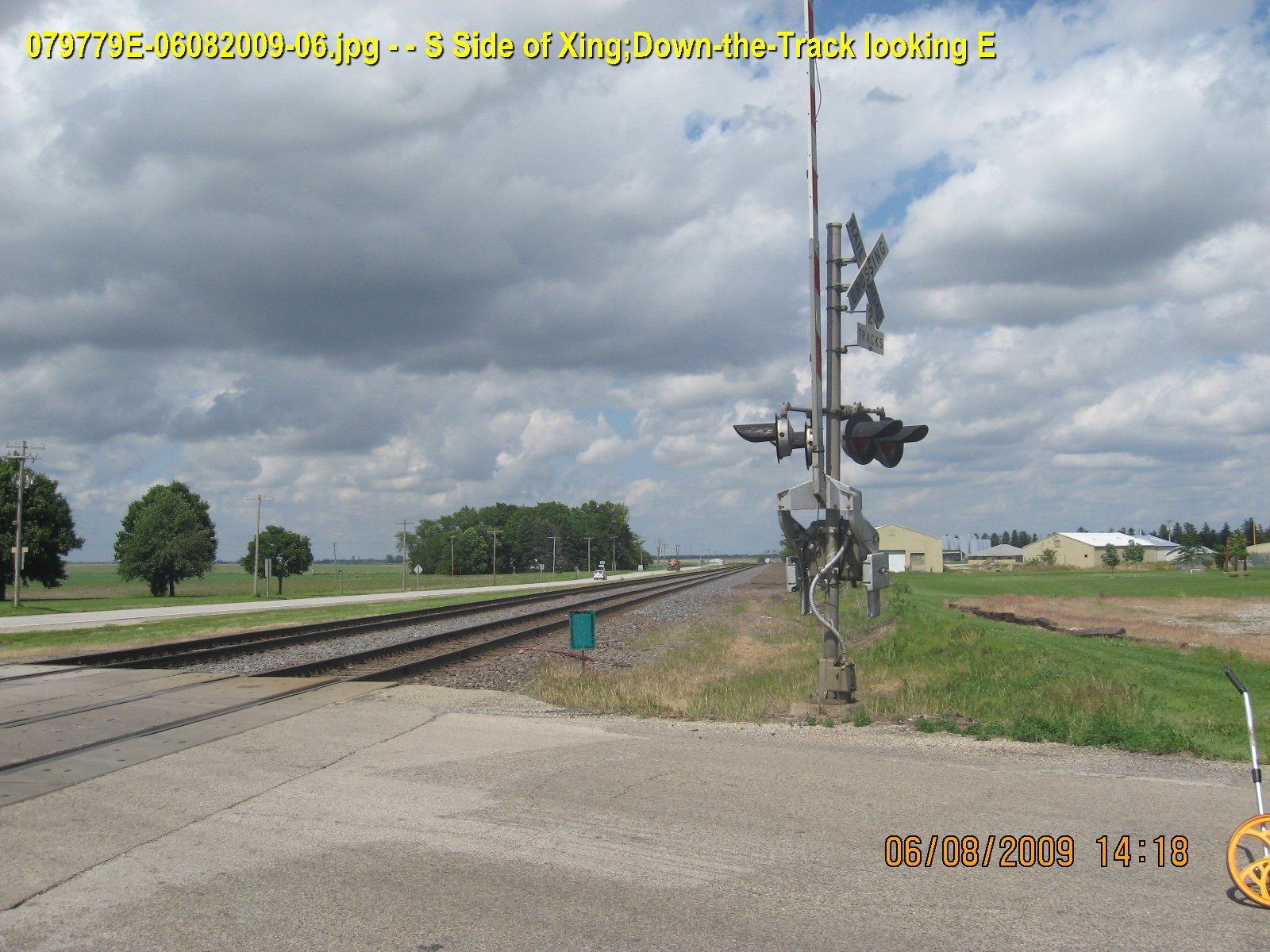

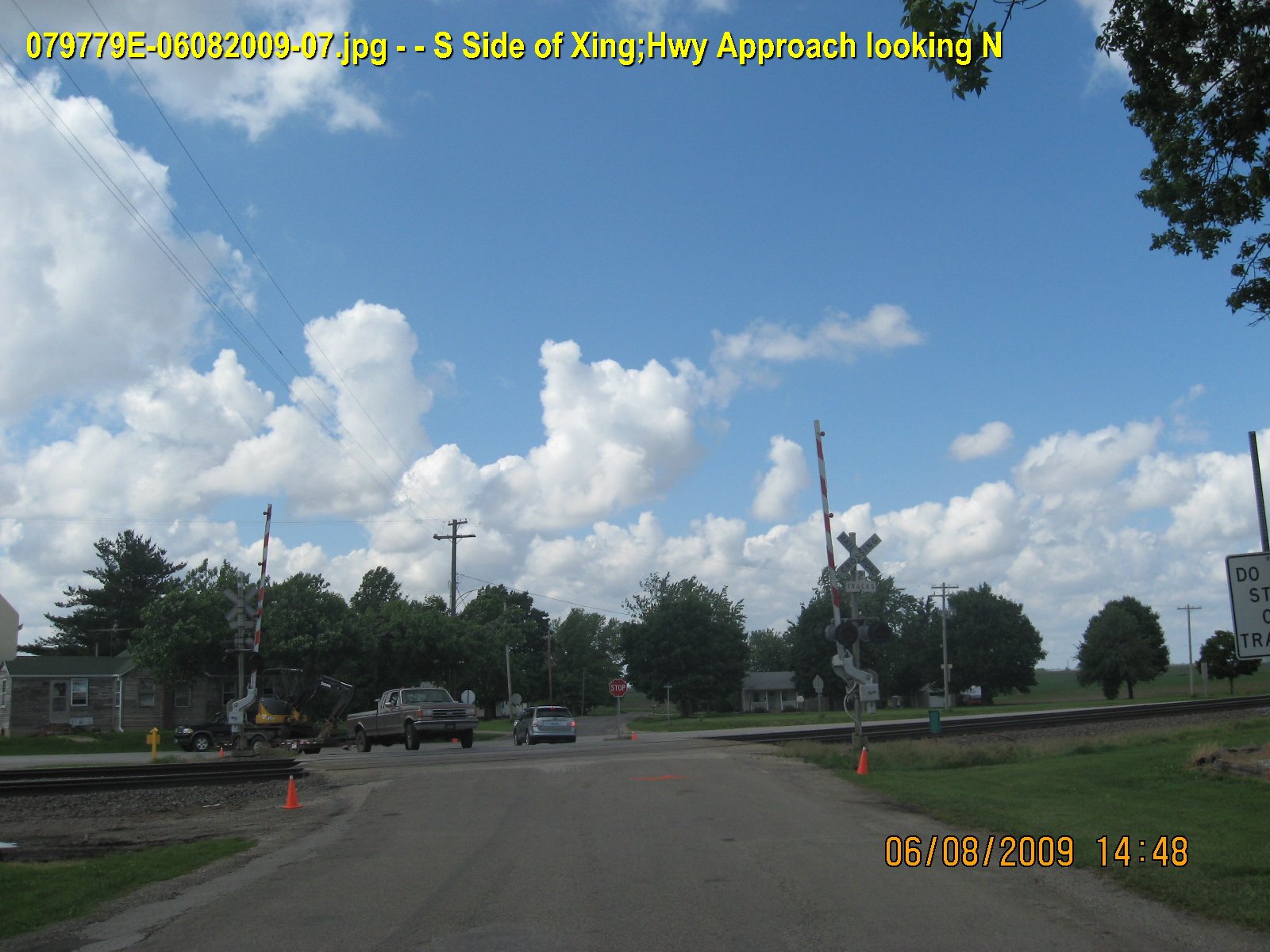

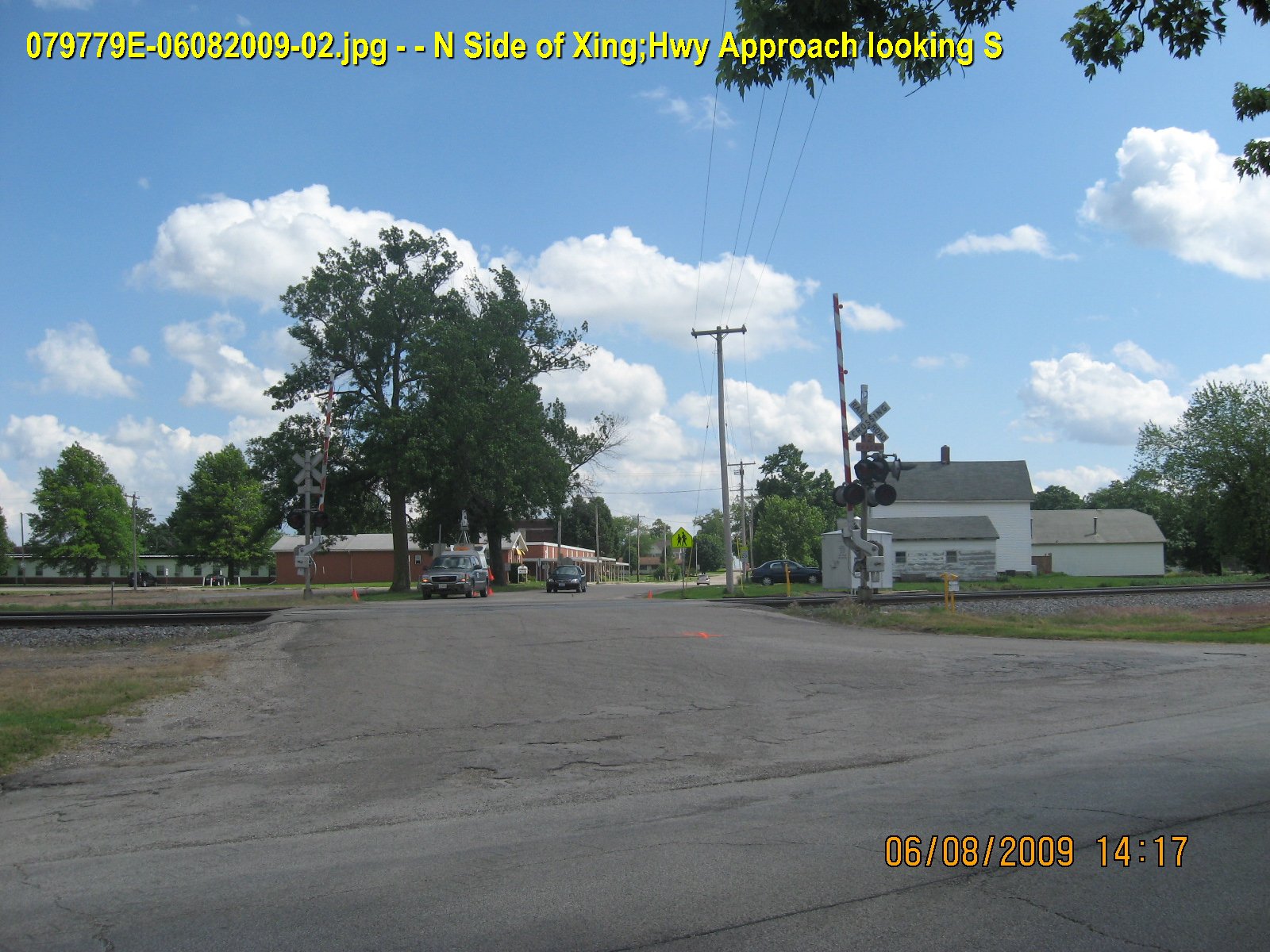

| ICC photos from 2009 showing two WCH signals with 12"x20" WCH or FS incandescents, WCH gate mechanisms, and a GS E-Bell. |
G1 |
G2 |

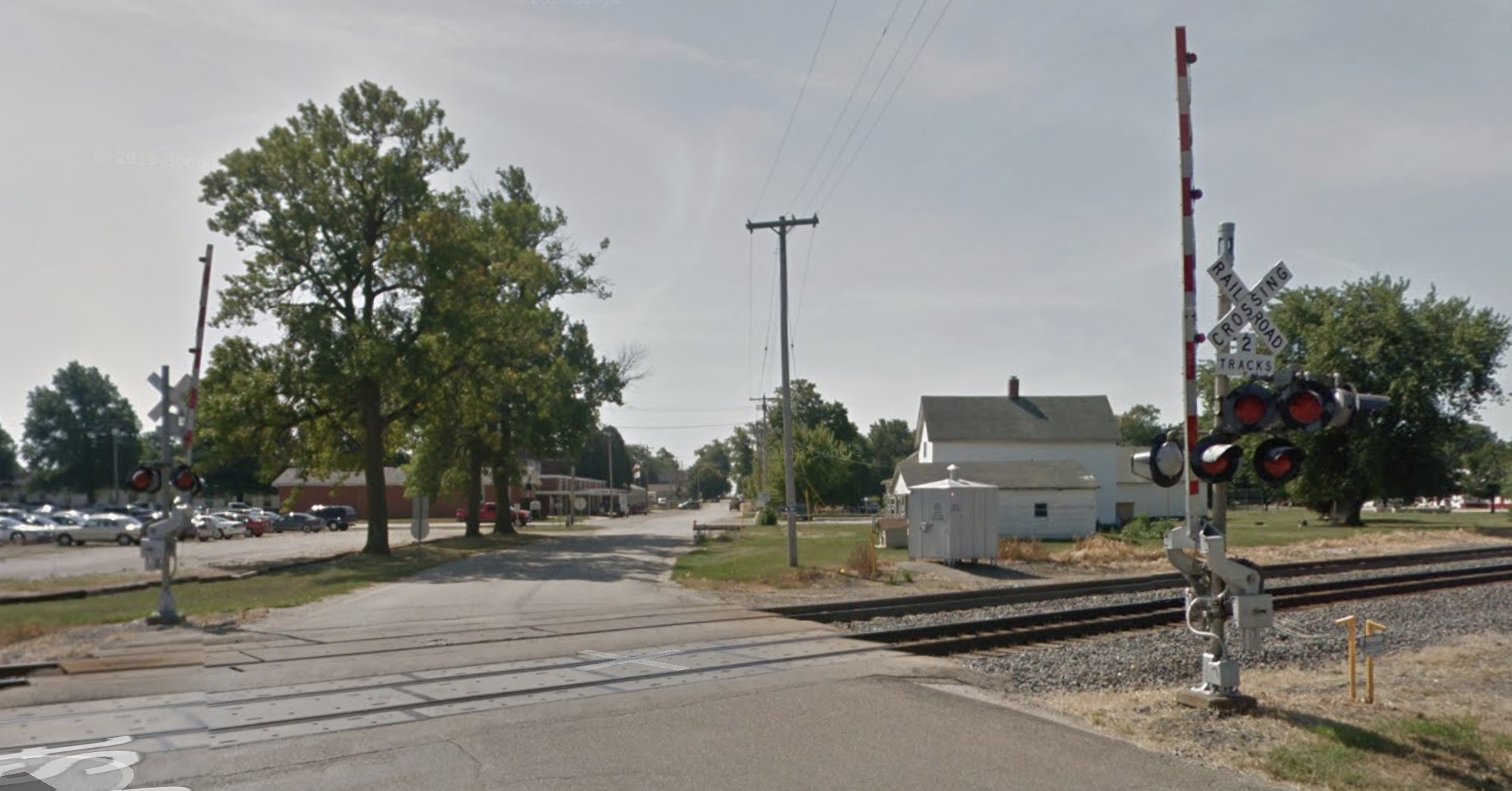

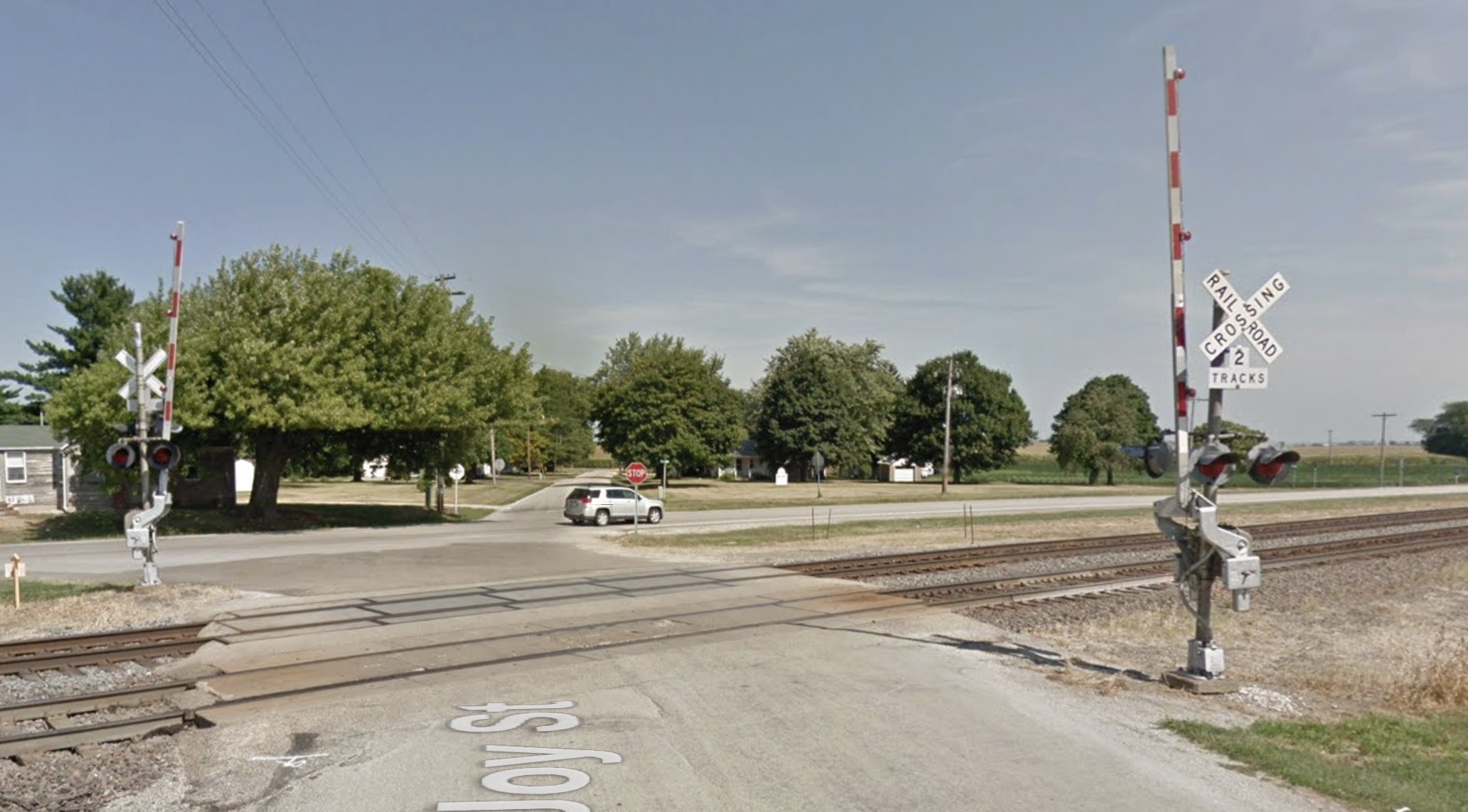

| Google Streetview photos from 2013 showing that the signals had gotten an LED upgrade, and the gates were restriped. In 2017, these were replaced with new Siemens signals. |
1 |
2 |

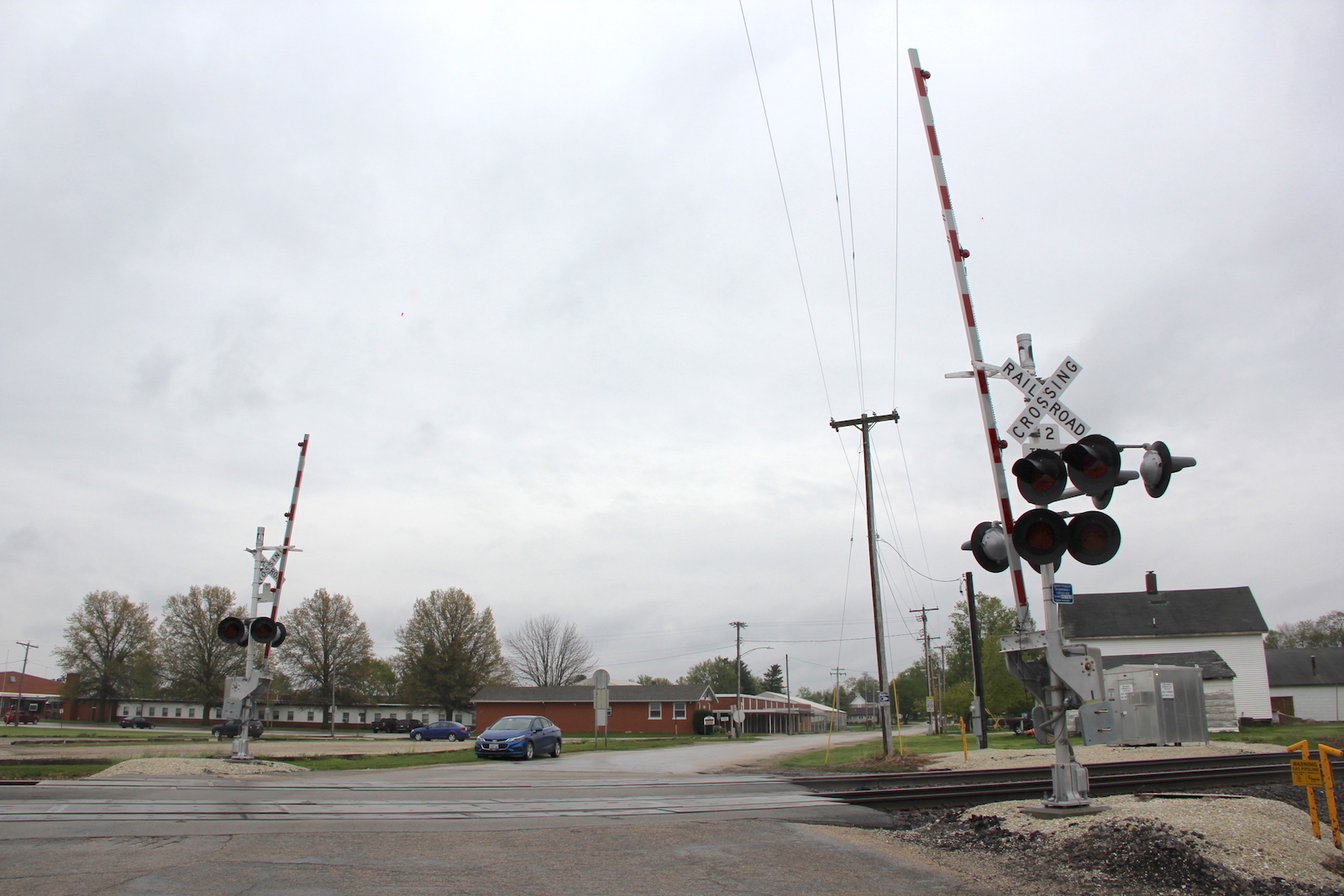

| Overview of the new gated signals facing south. |

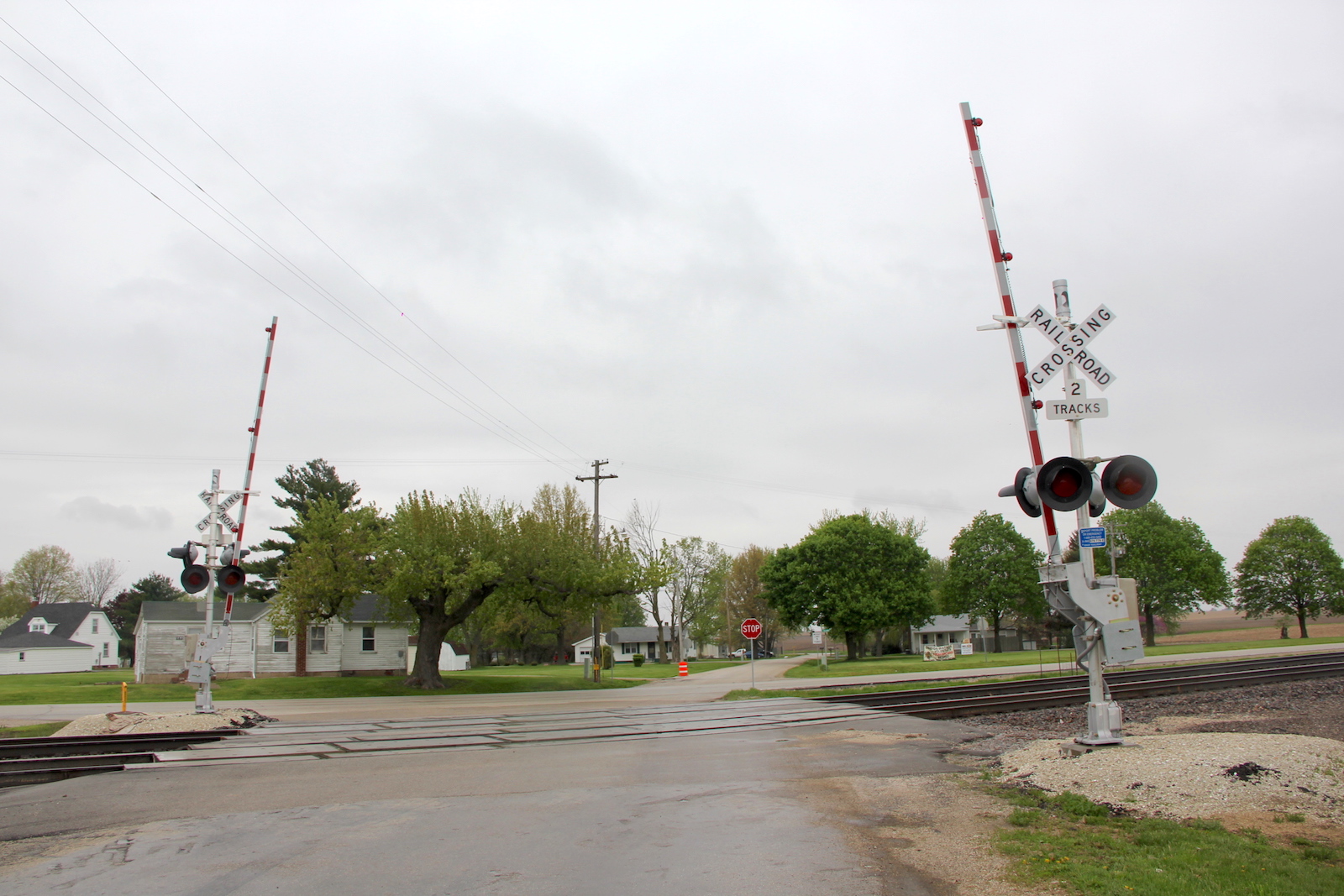

Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |

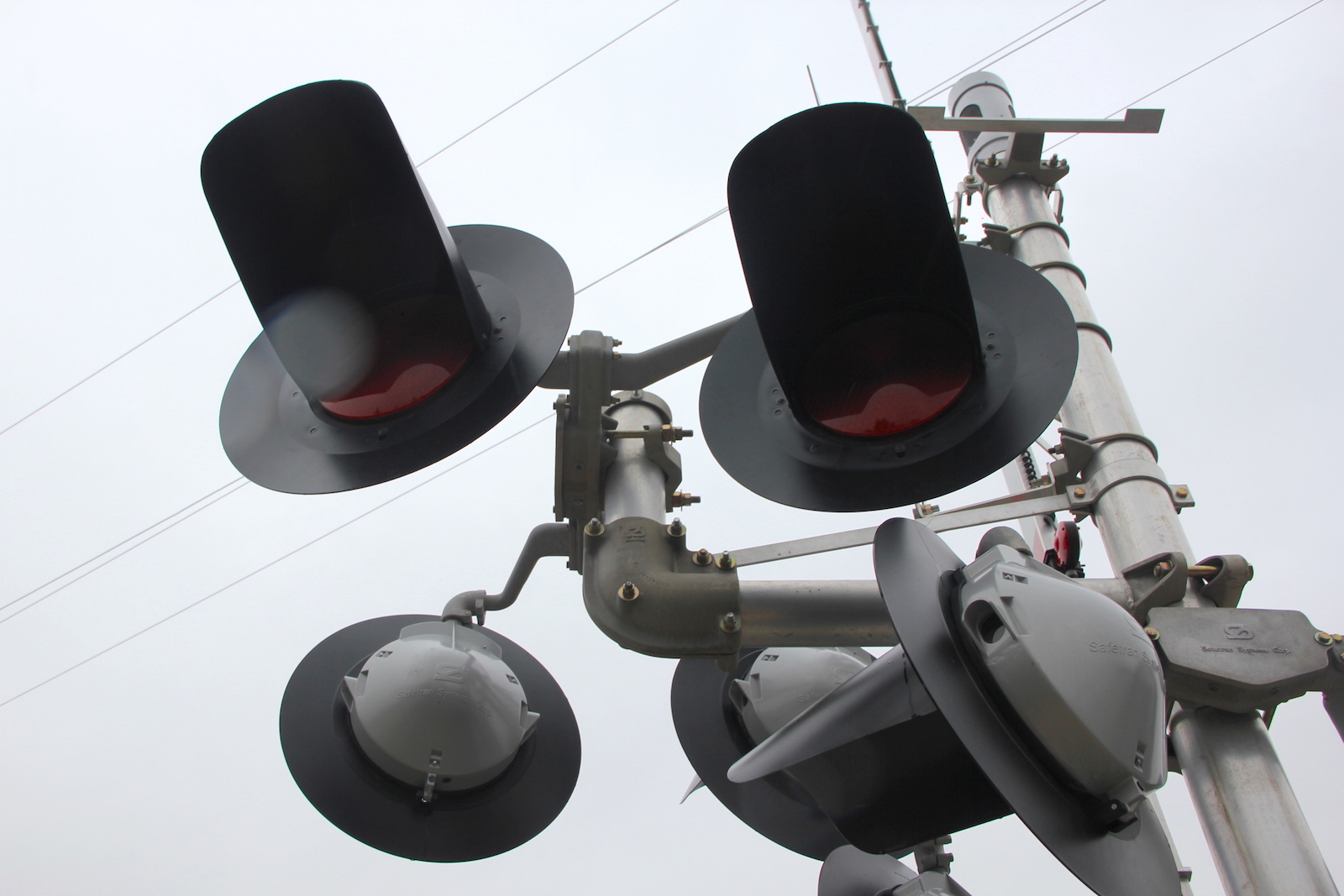

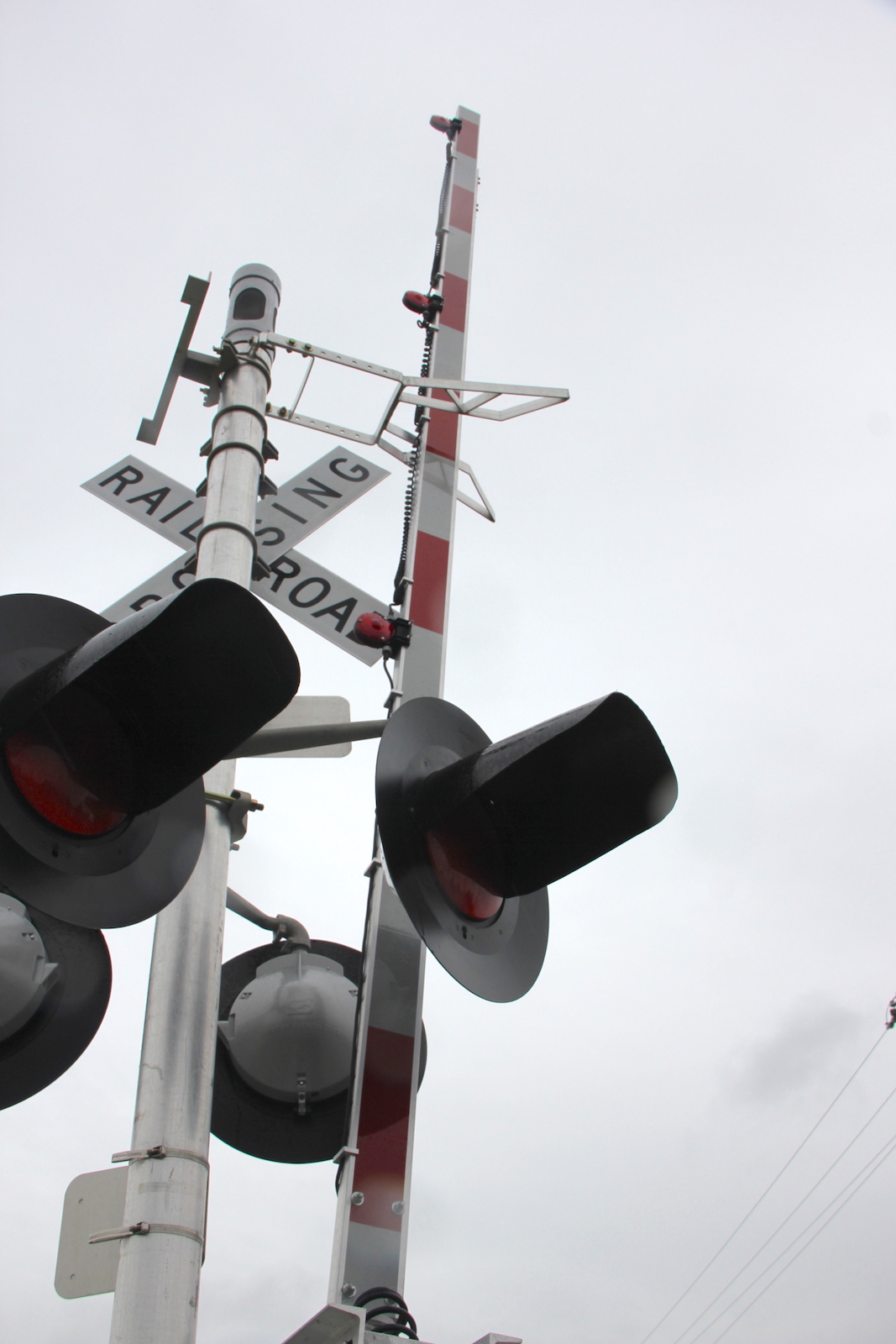

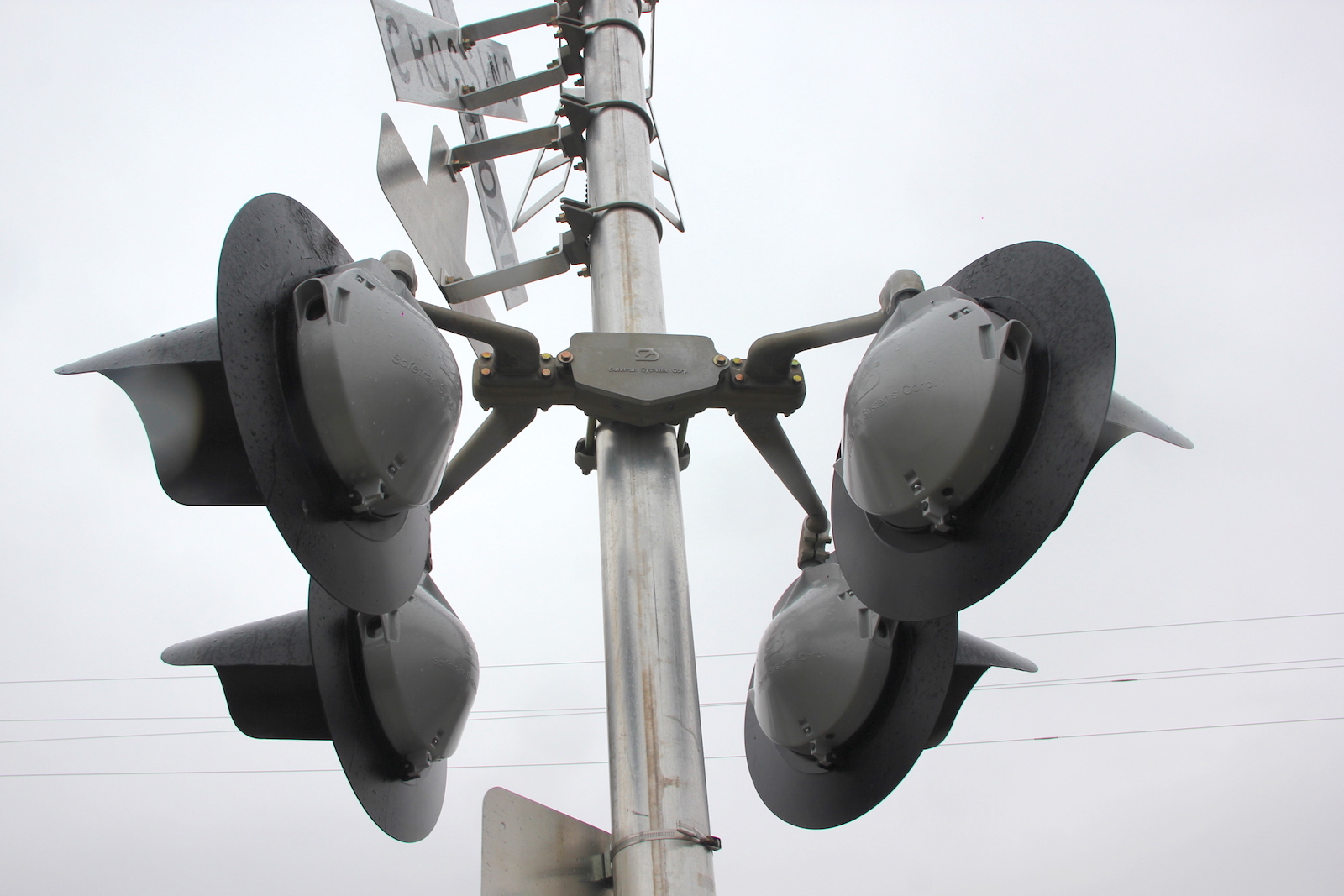

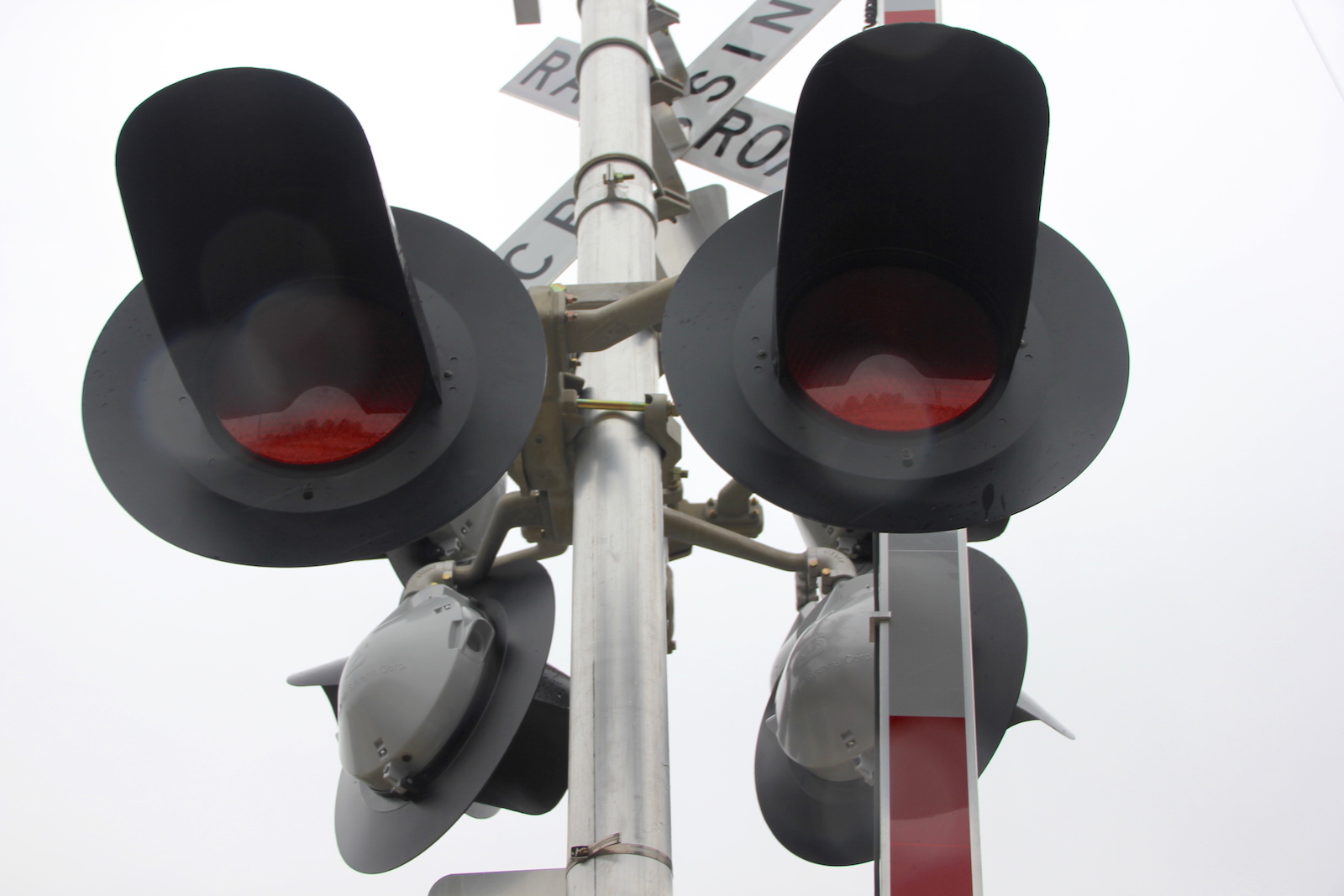

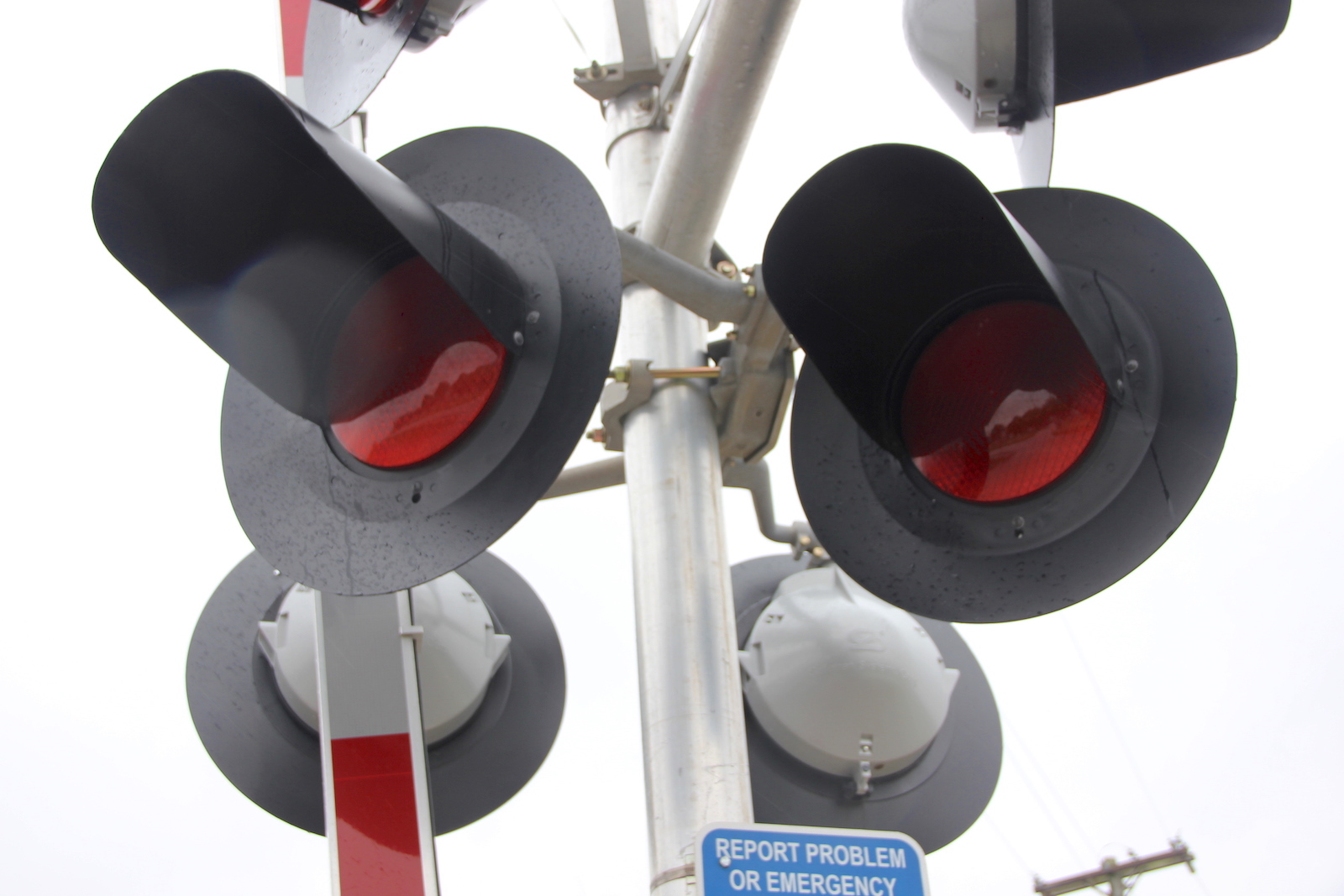

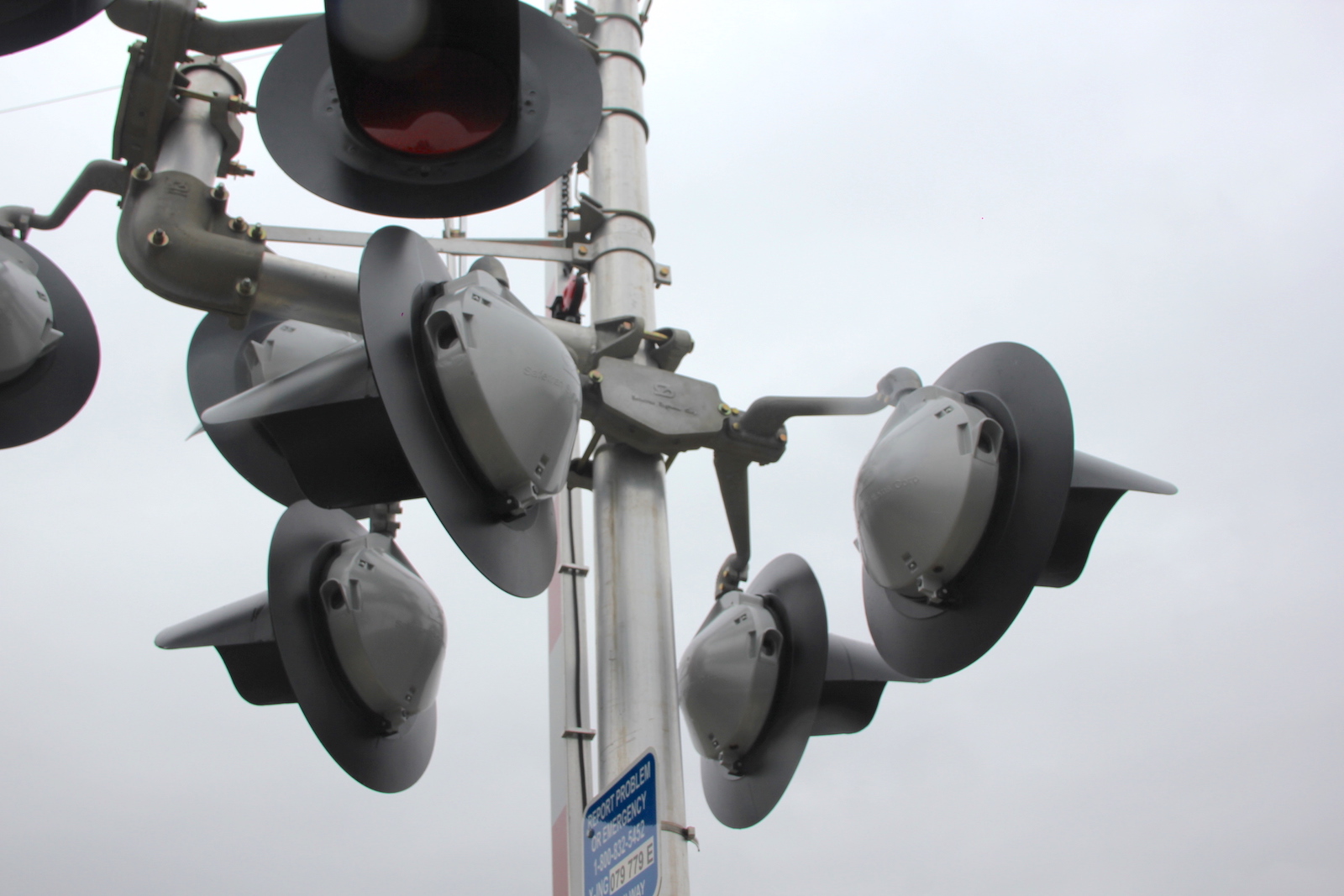

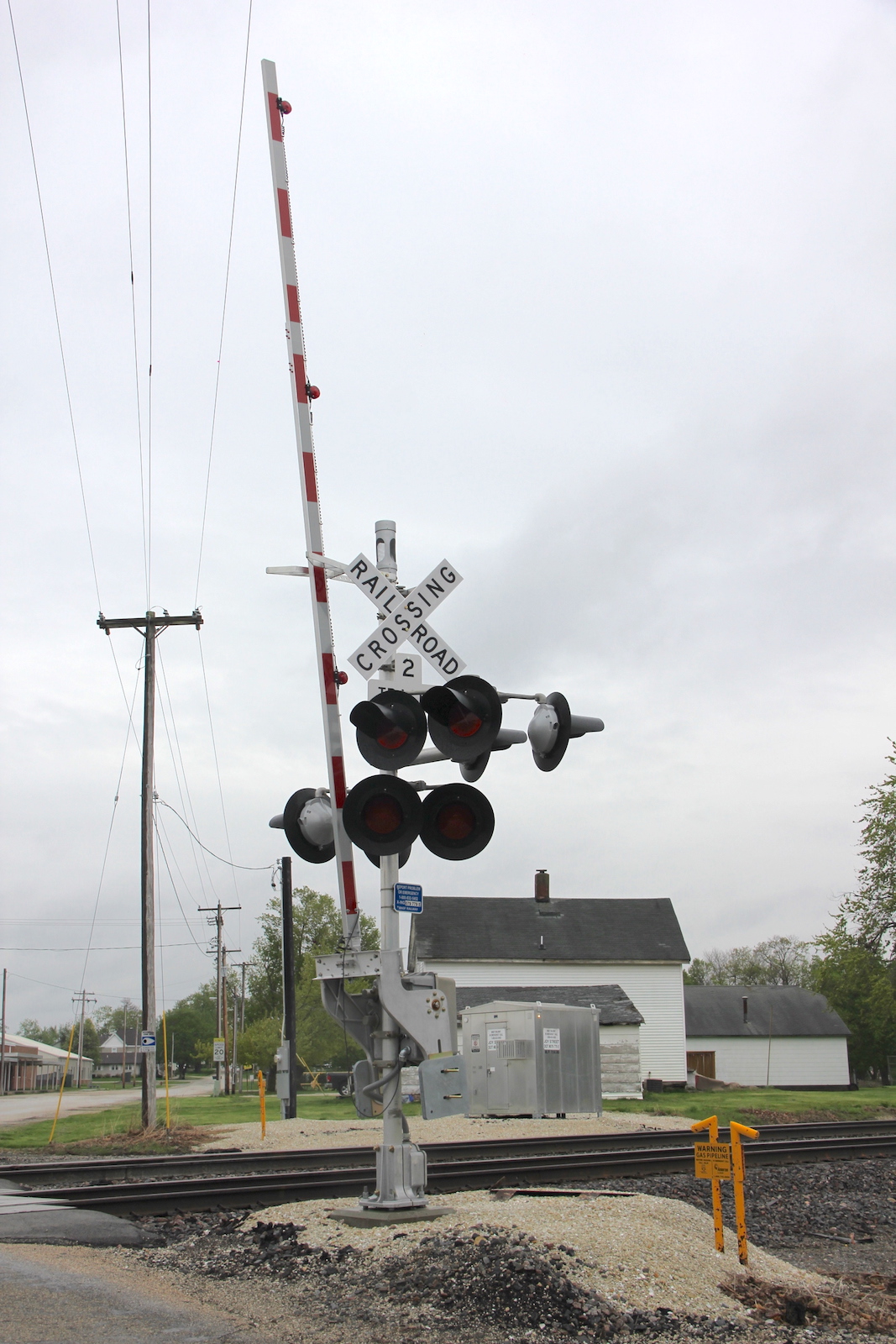

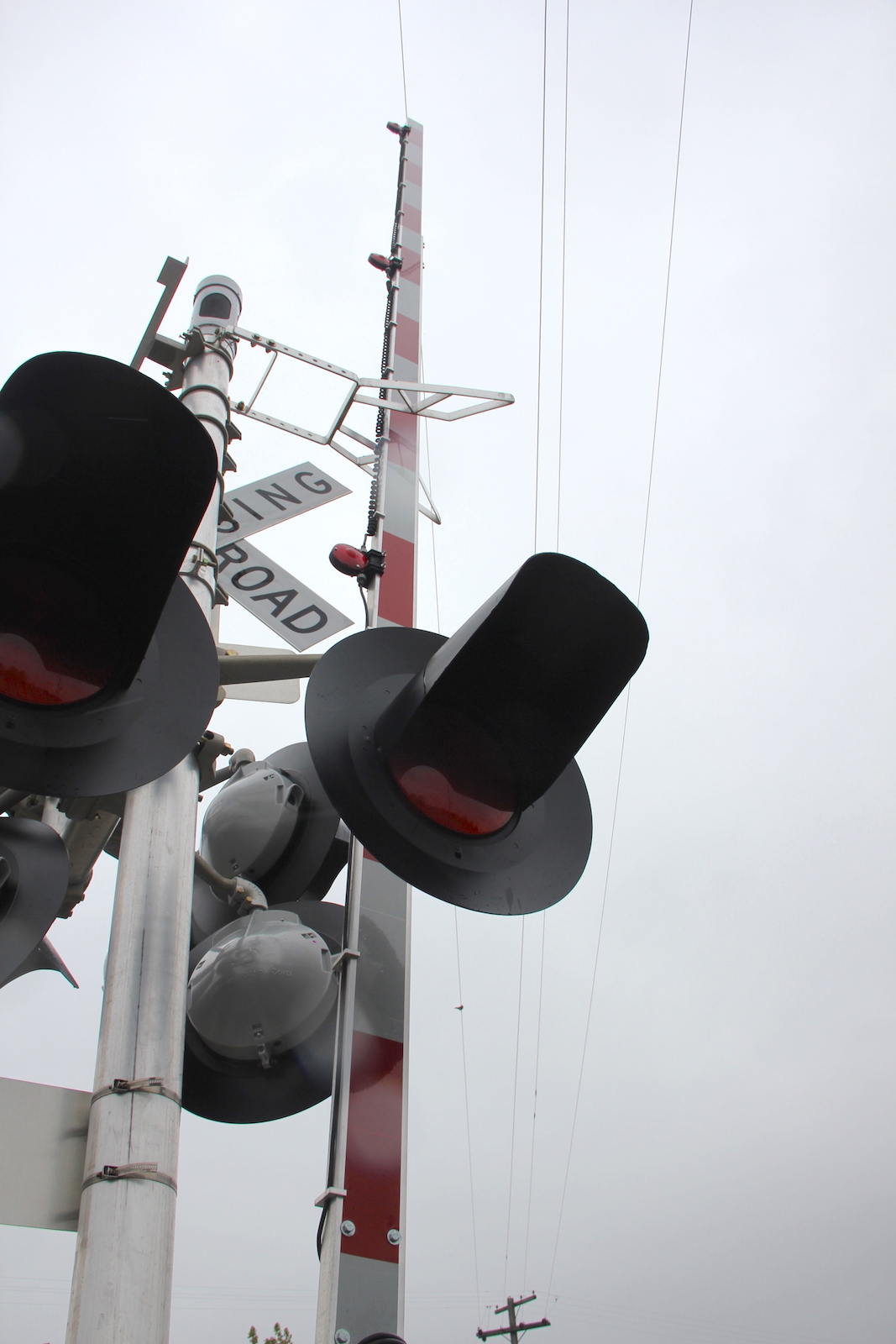

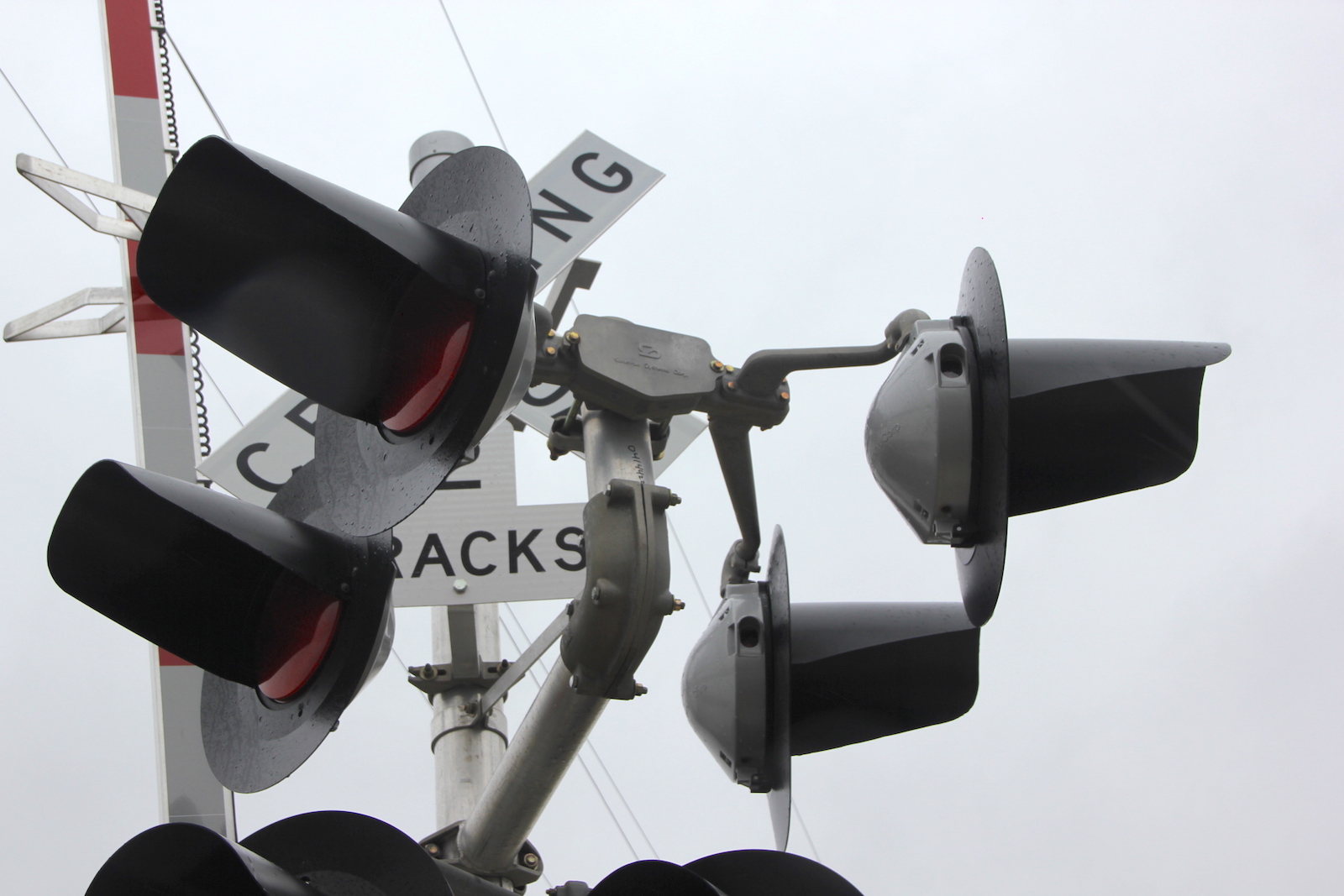

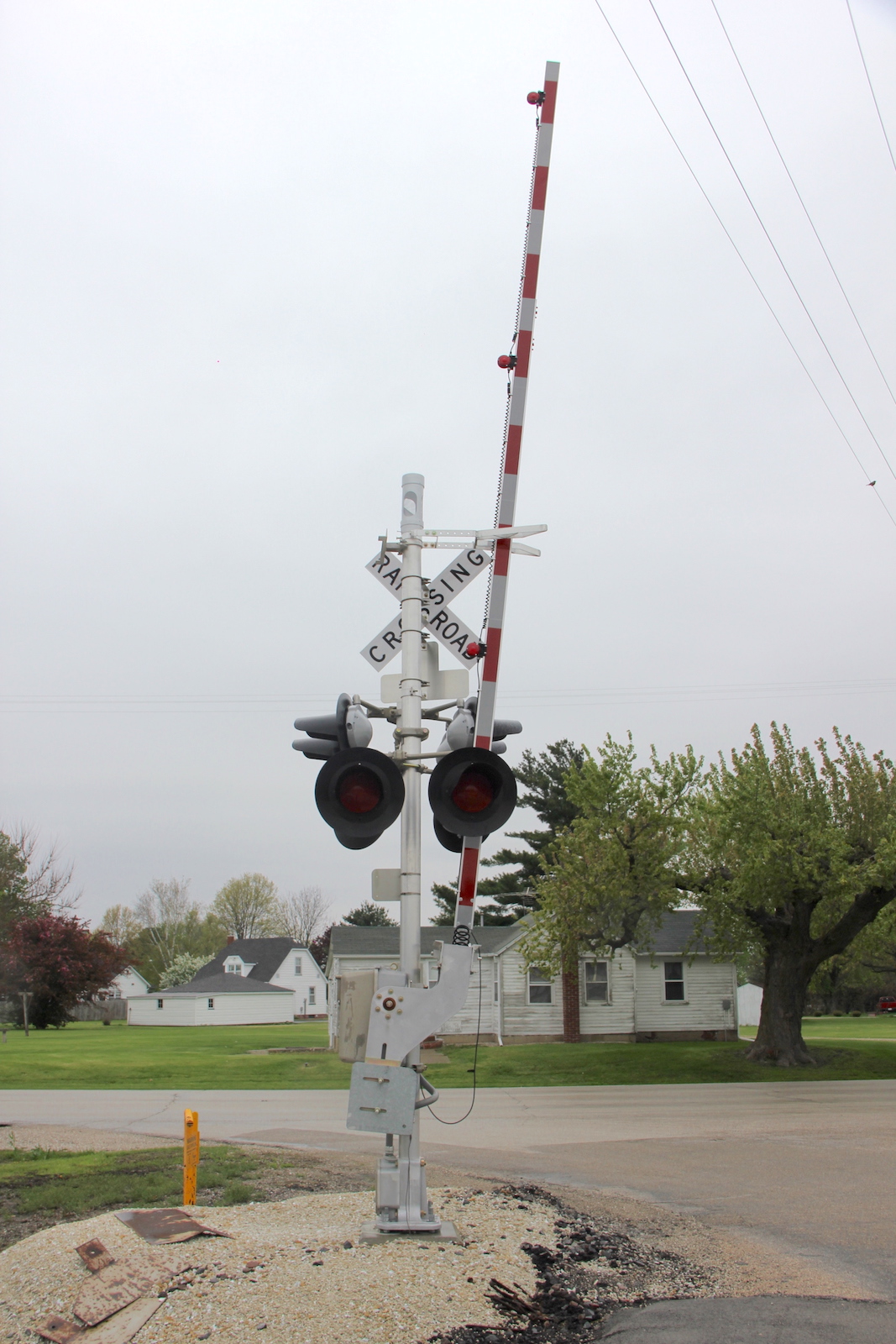

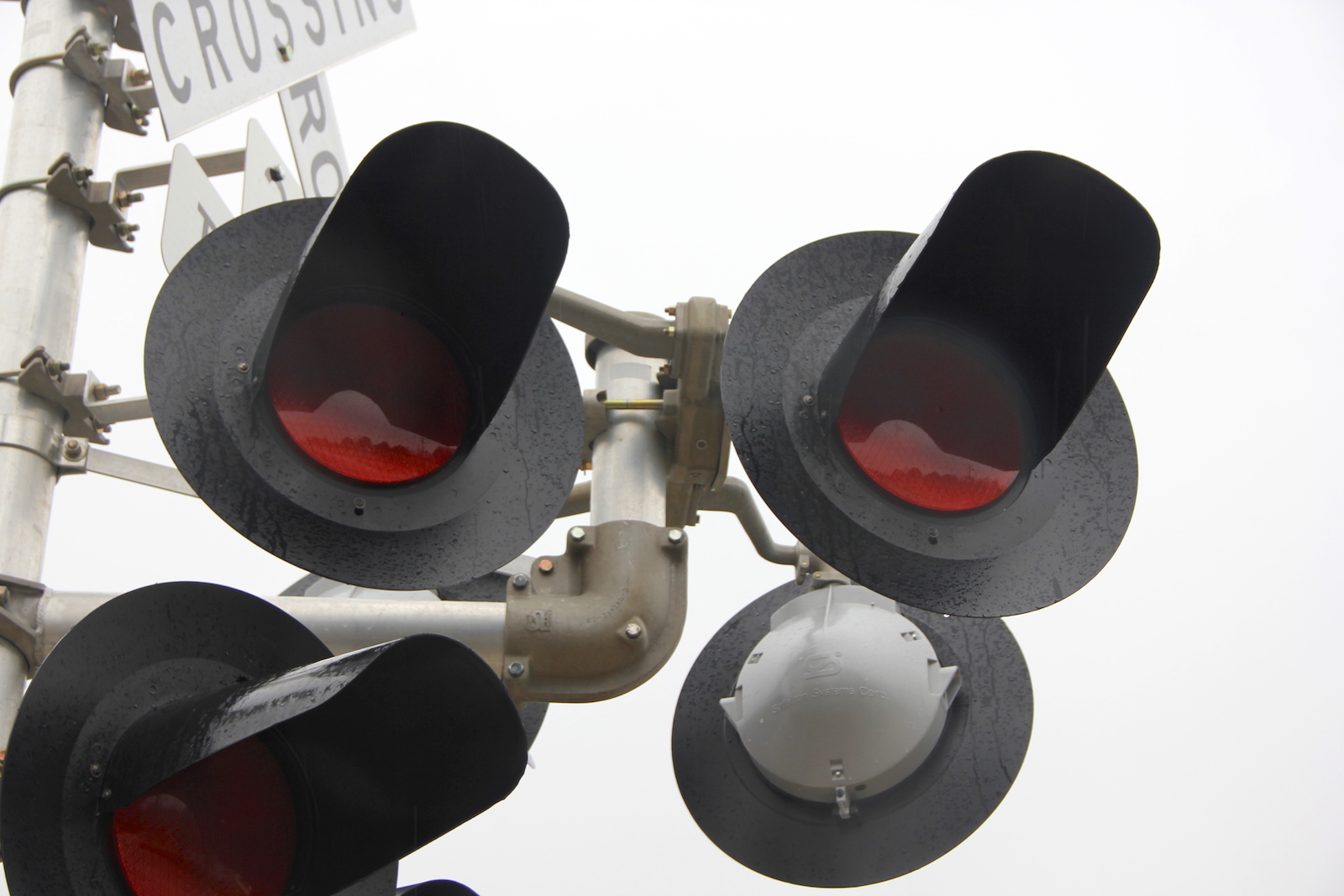

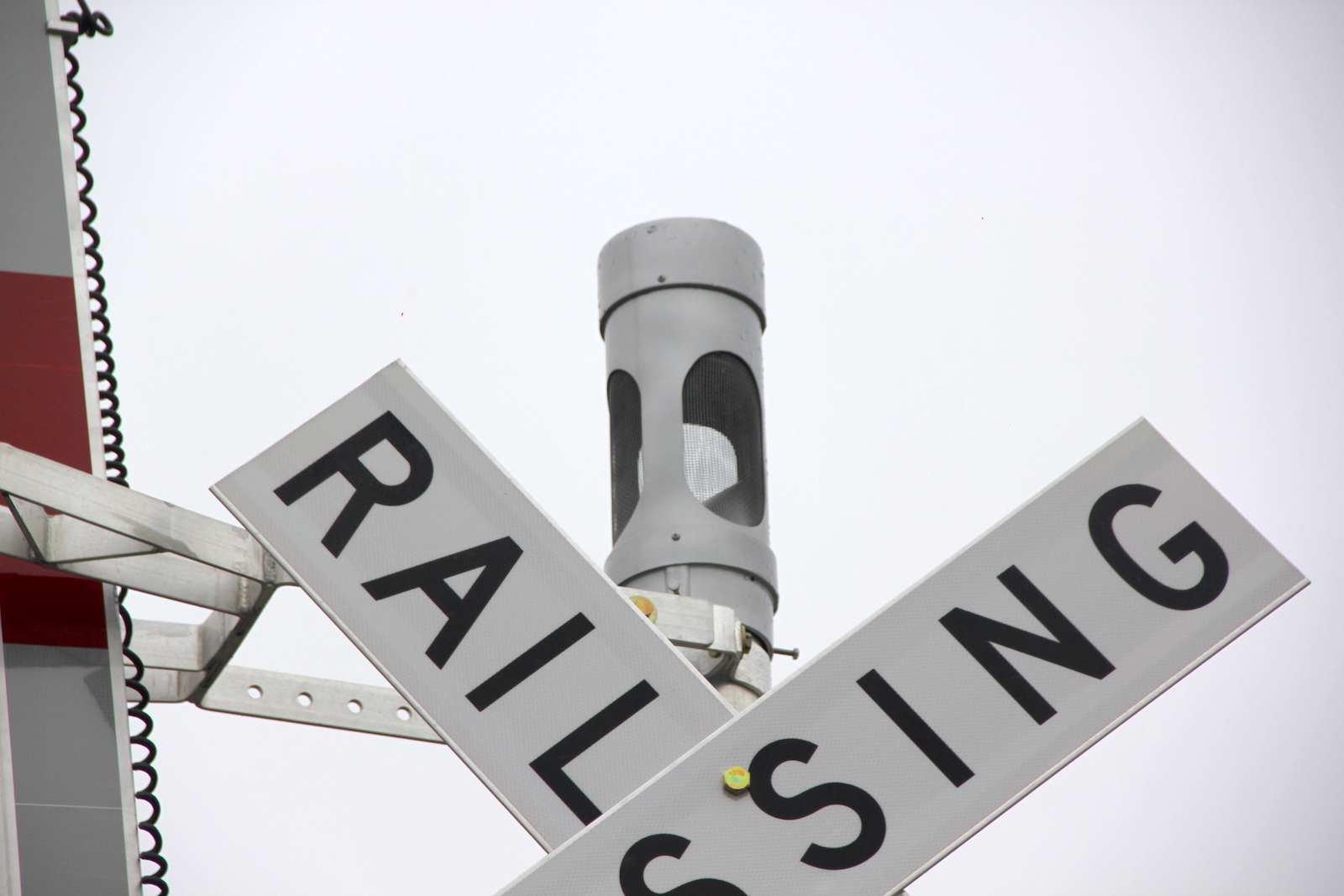

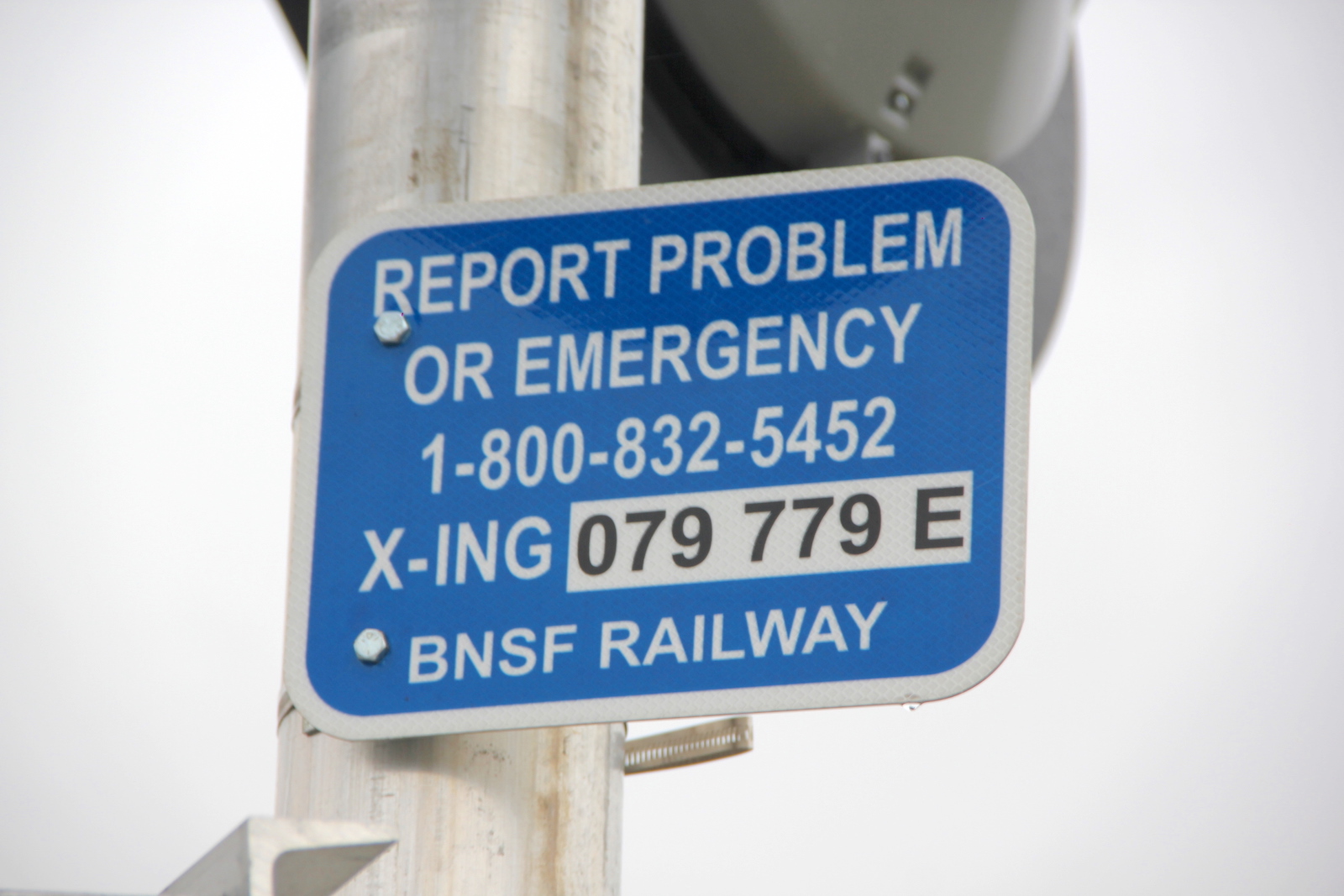

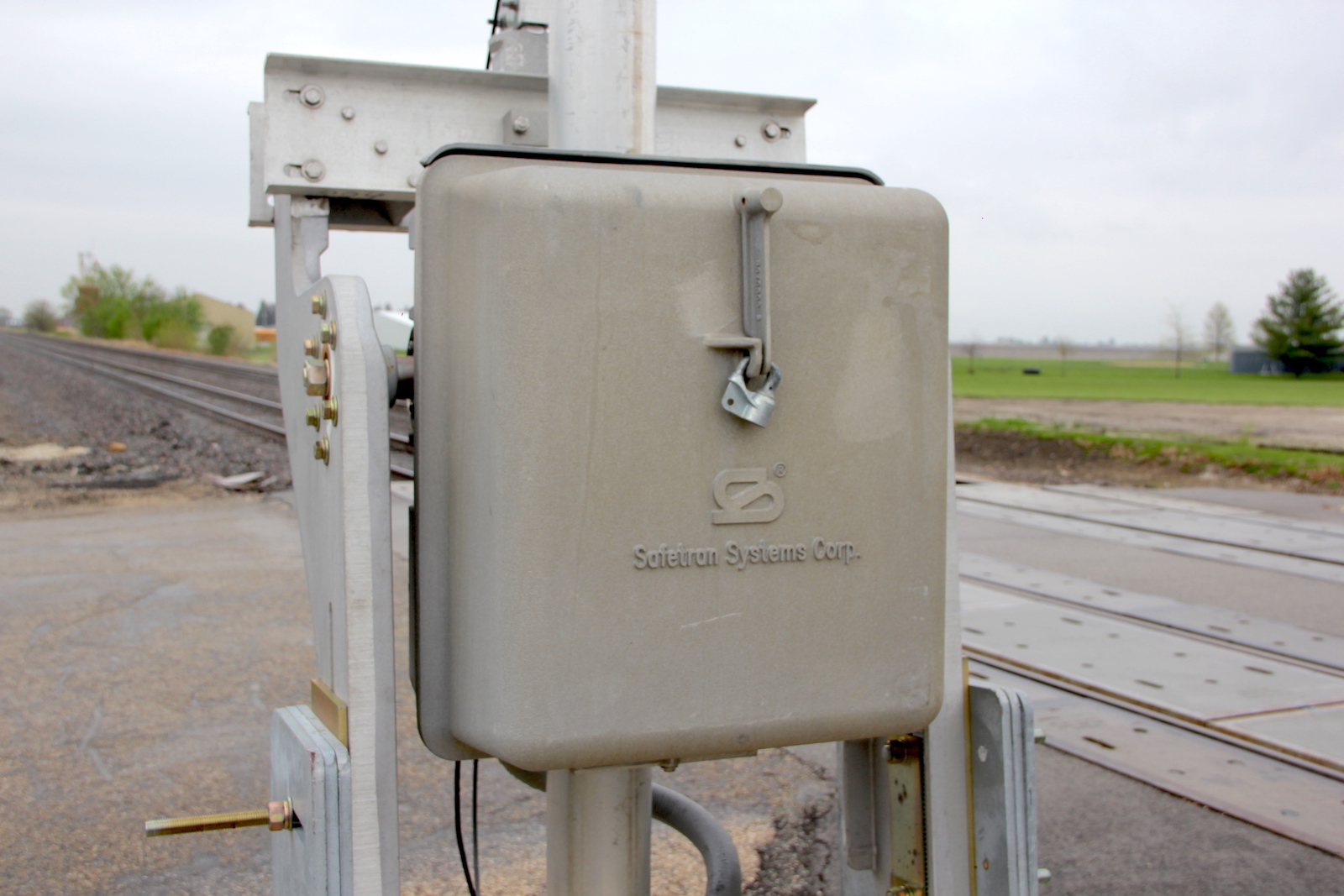

| The northern signal. |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |

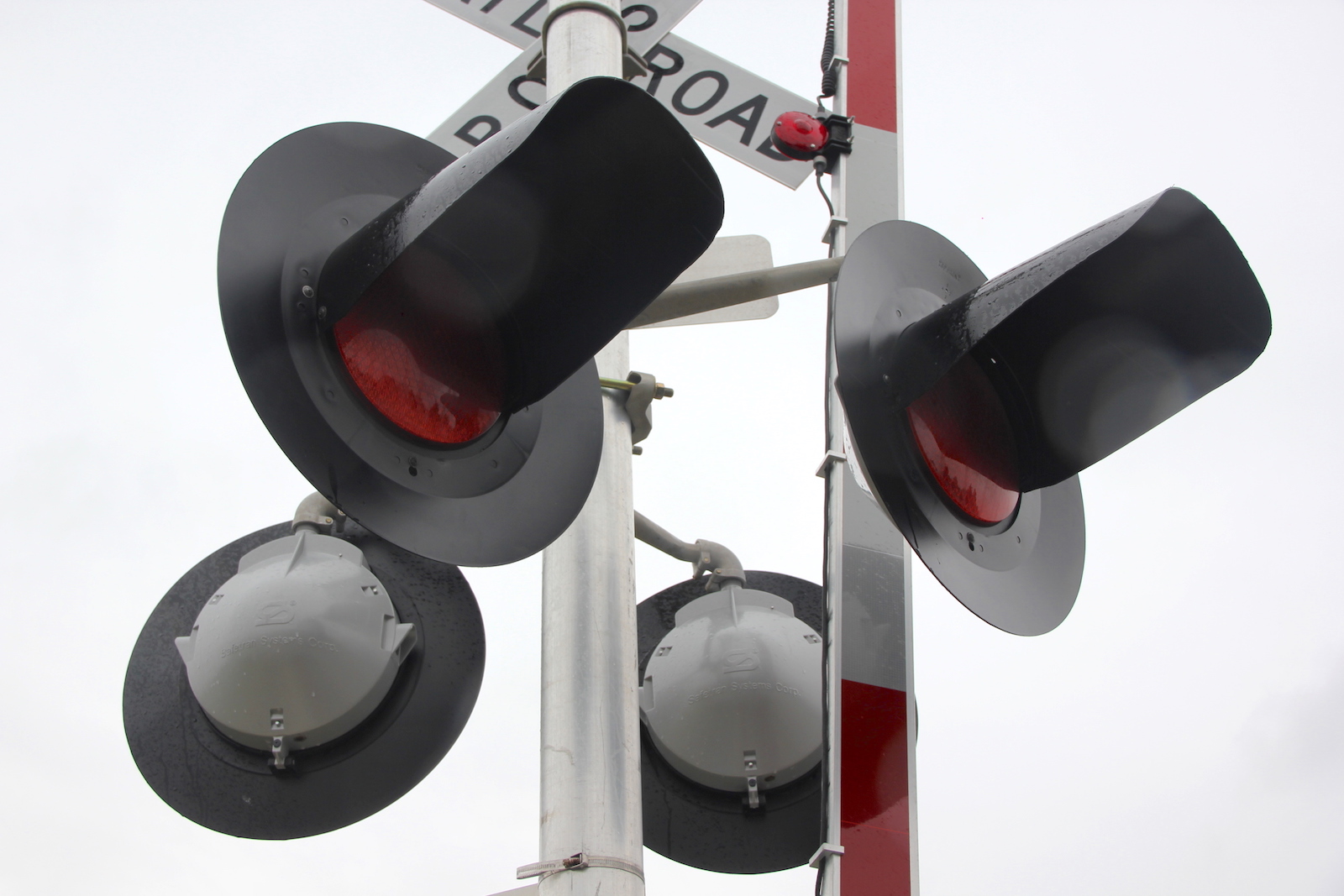

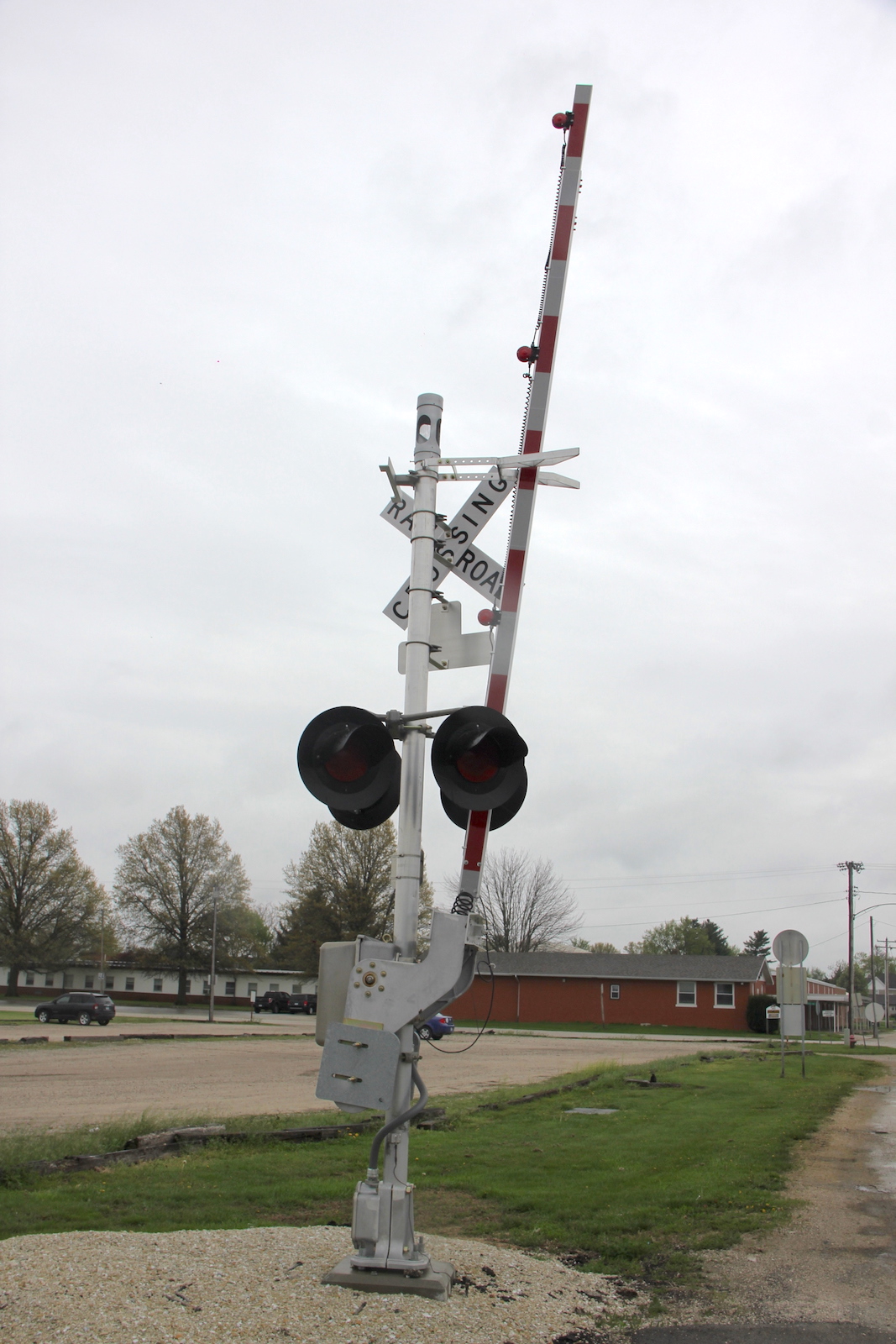

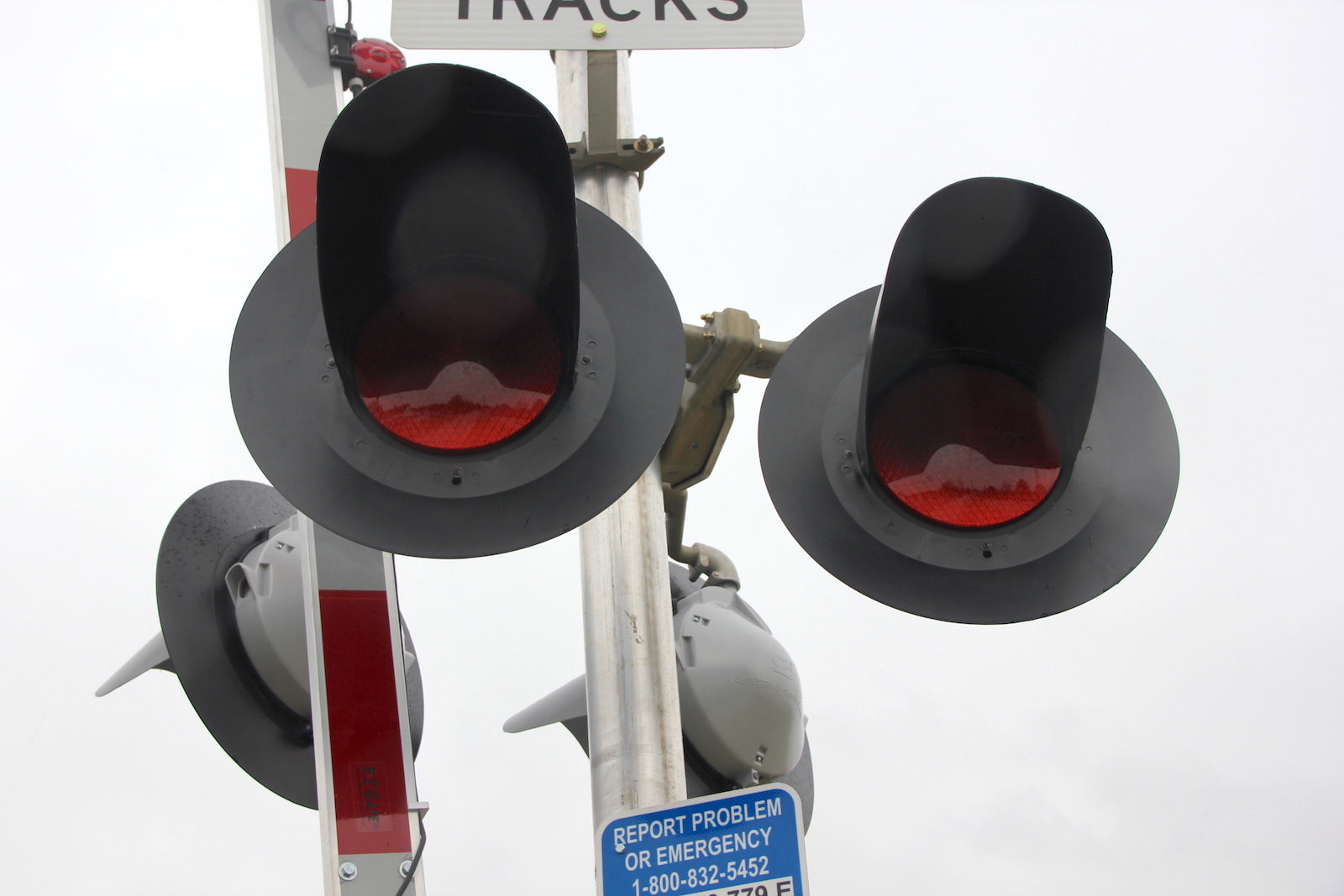

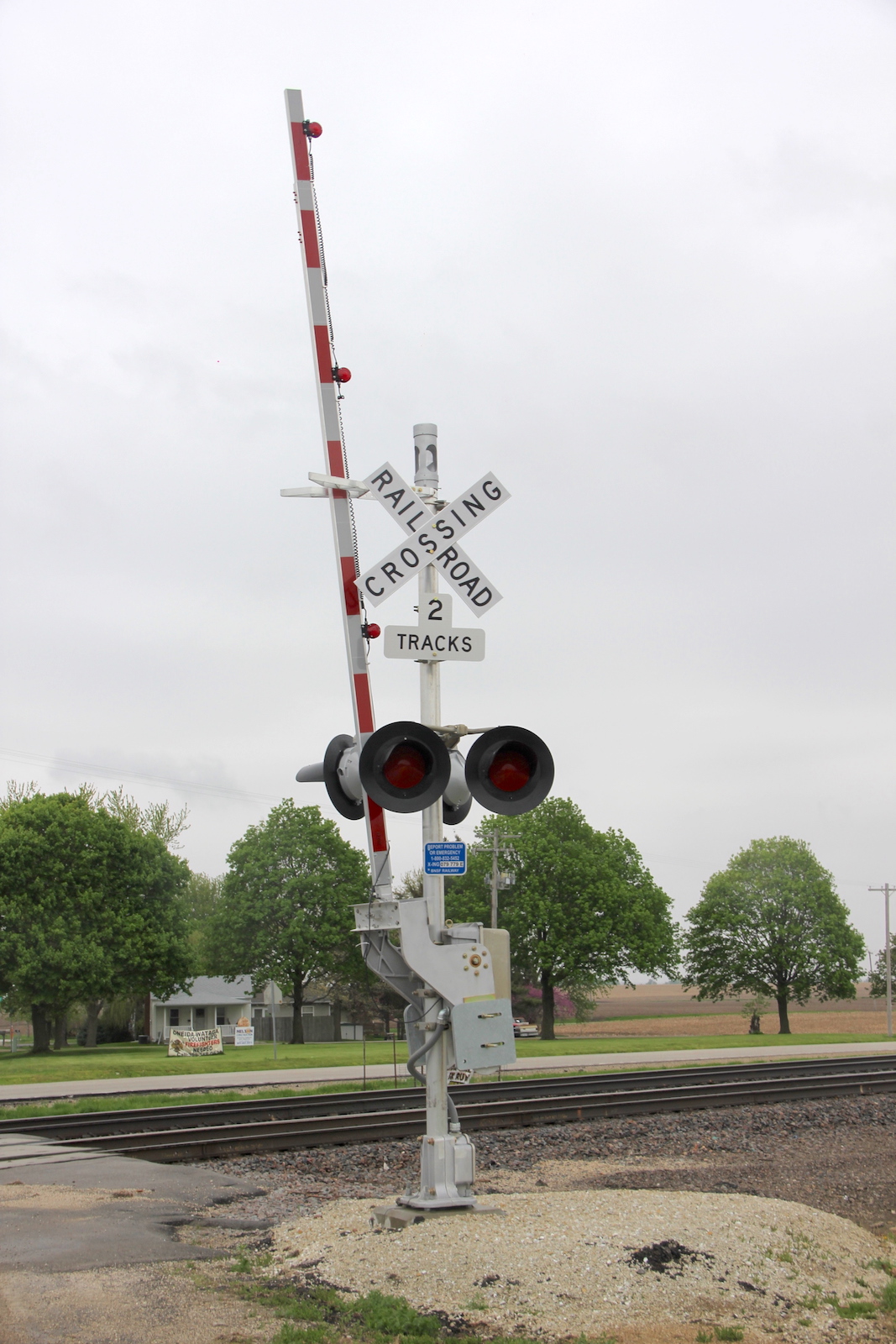

| The southern signal. |
26 |
27 |
28 |
29 |

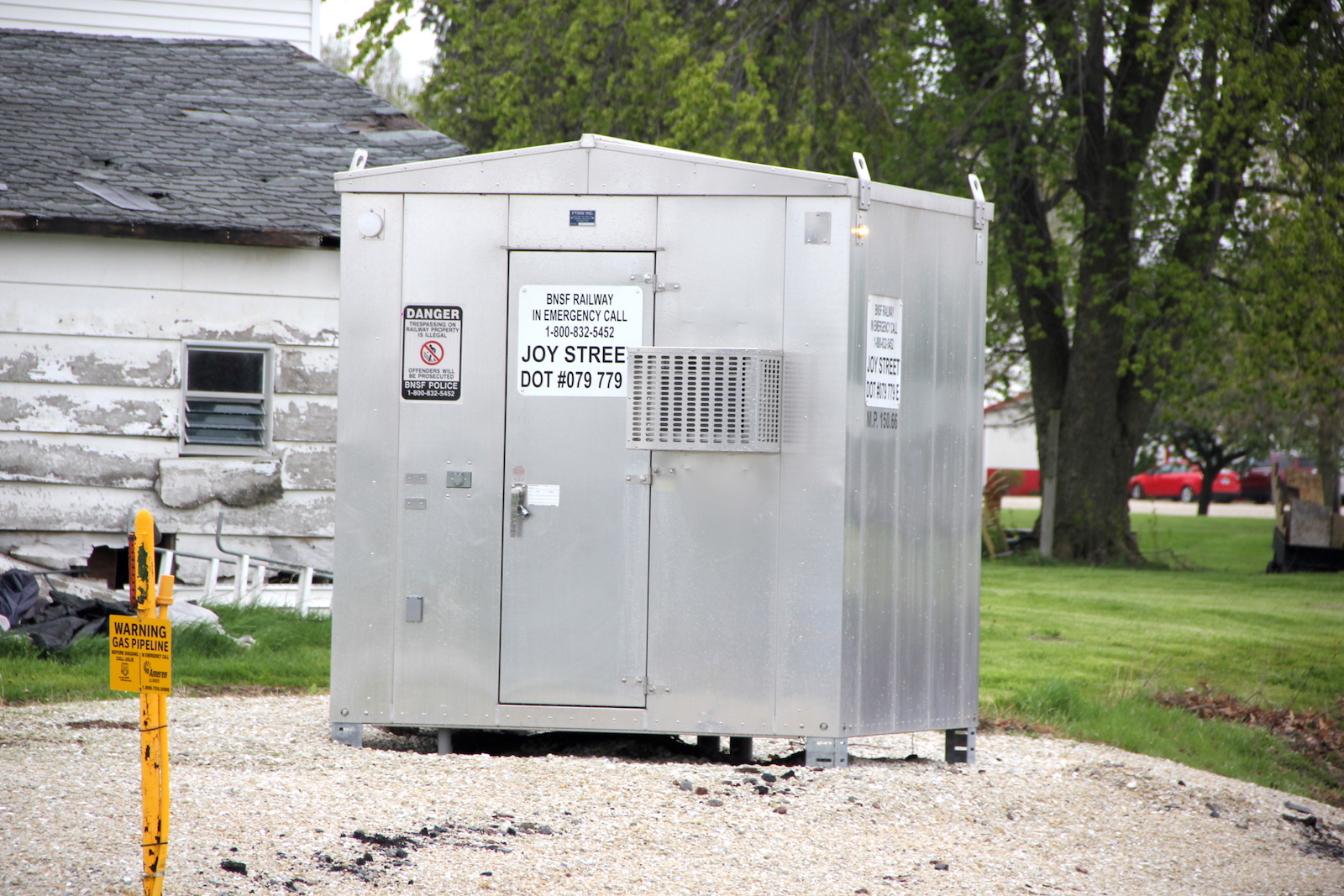

| The relay bungalow in the southwest quadrant. |

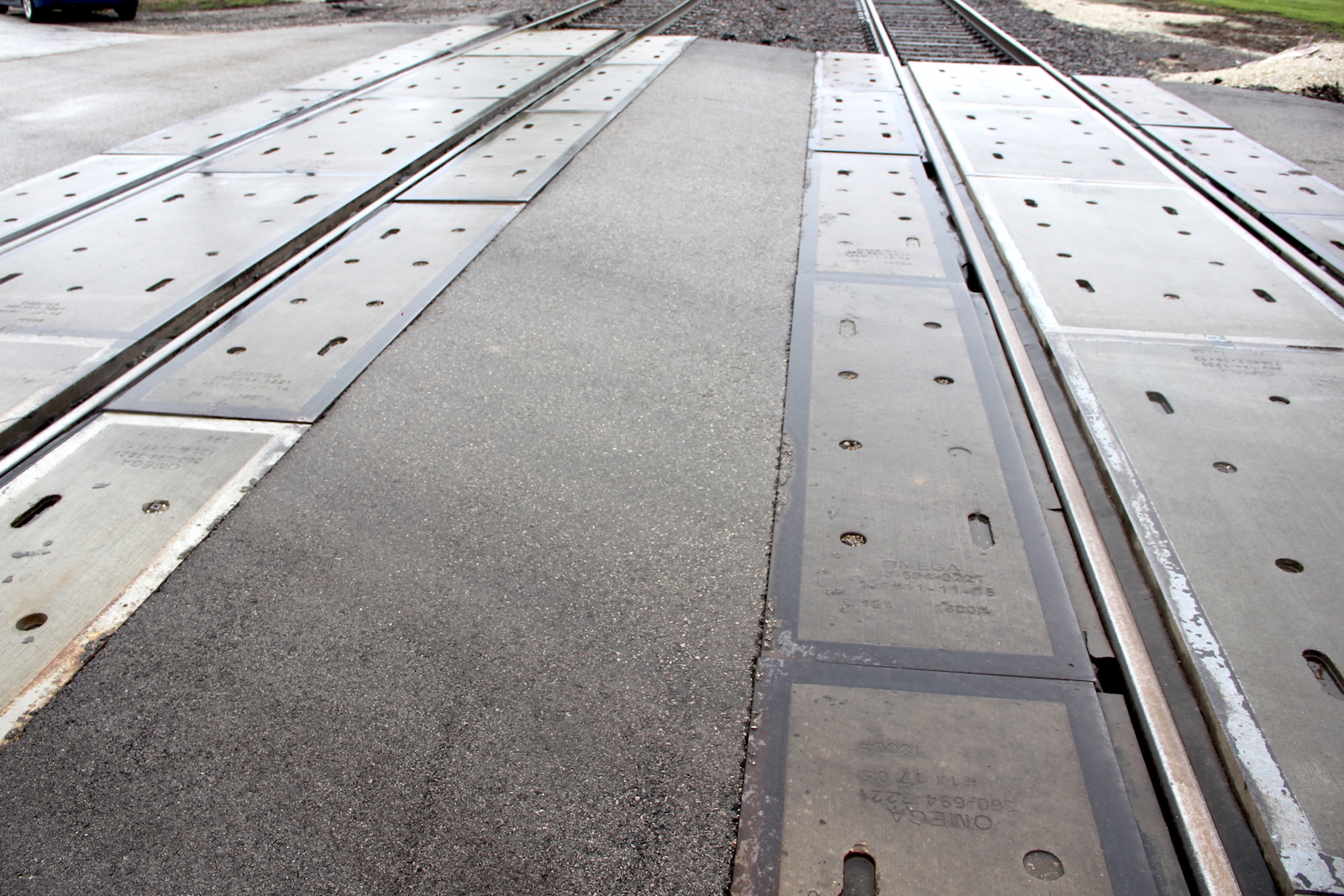

The grade is all concrete. |

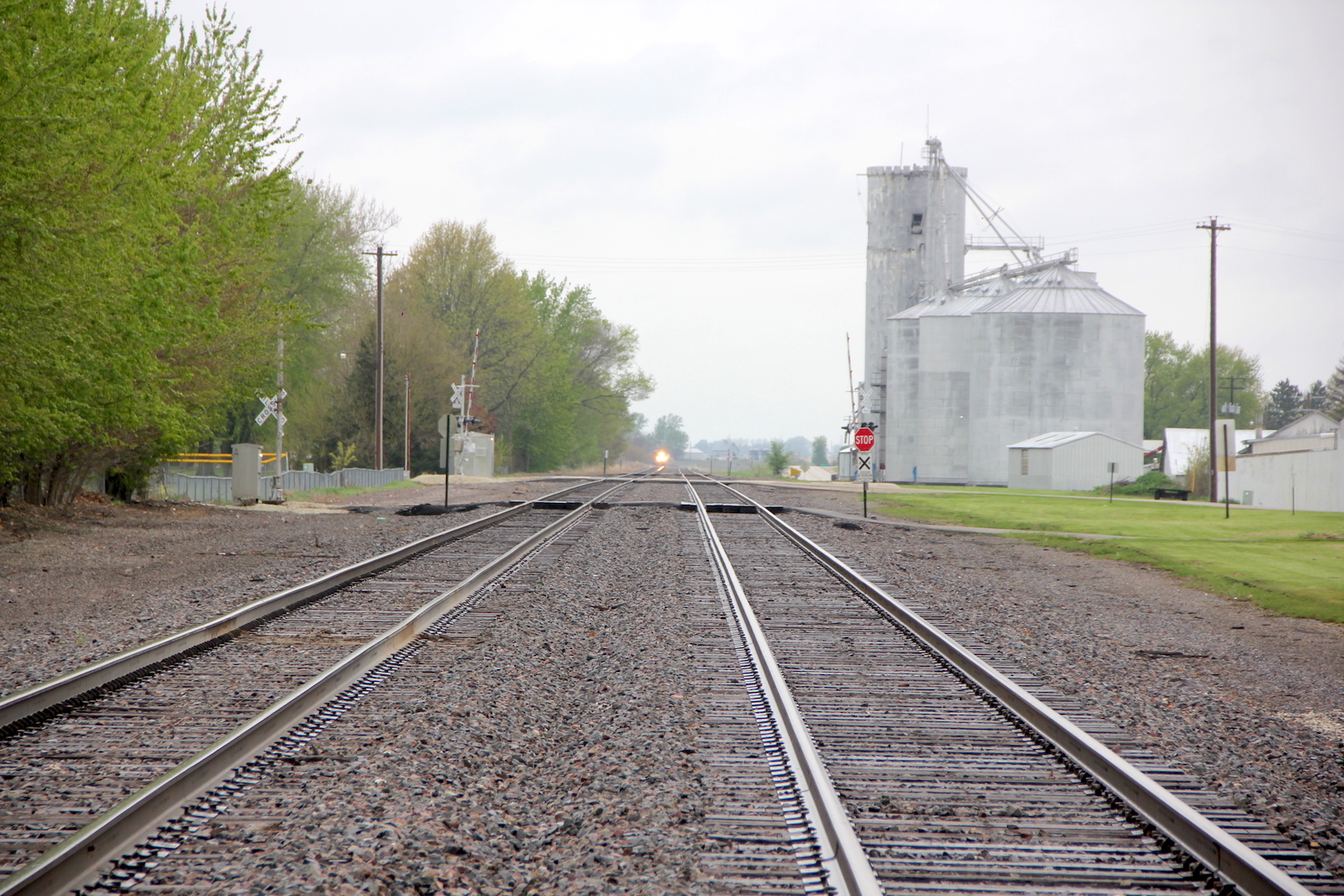

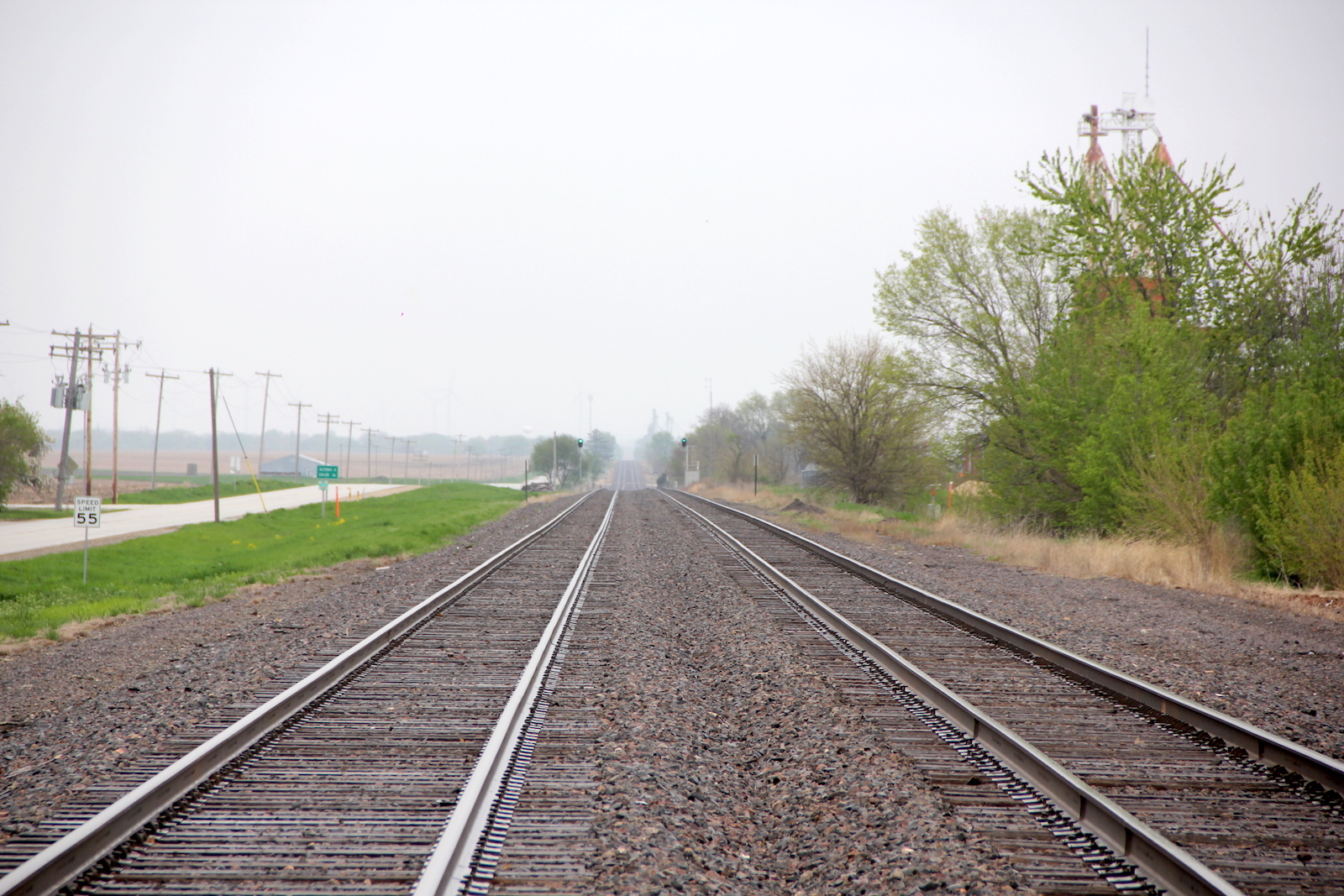

Track view facing west at Pedestrian Crossing. |
Track view facing east towards Knox Rd. 1240 E. |
