| >>>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | GS E-Bell | GS E-Bell |
| Cantilever: | Walpar Cantilever | Walpar Cantilever |
| Mast Base: | Progress Rail 5" Double Sided ^ | Progress Rail 5" Double Sided ^ |
| Lights: | 8 - 12"x24" WCH w/ GE Uniform Look LEDs | 8 - 12"x24" WCH w/ GE Uniform Look LEDs |

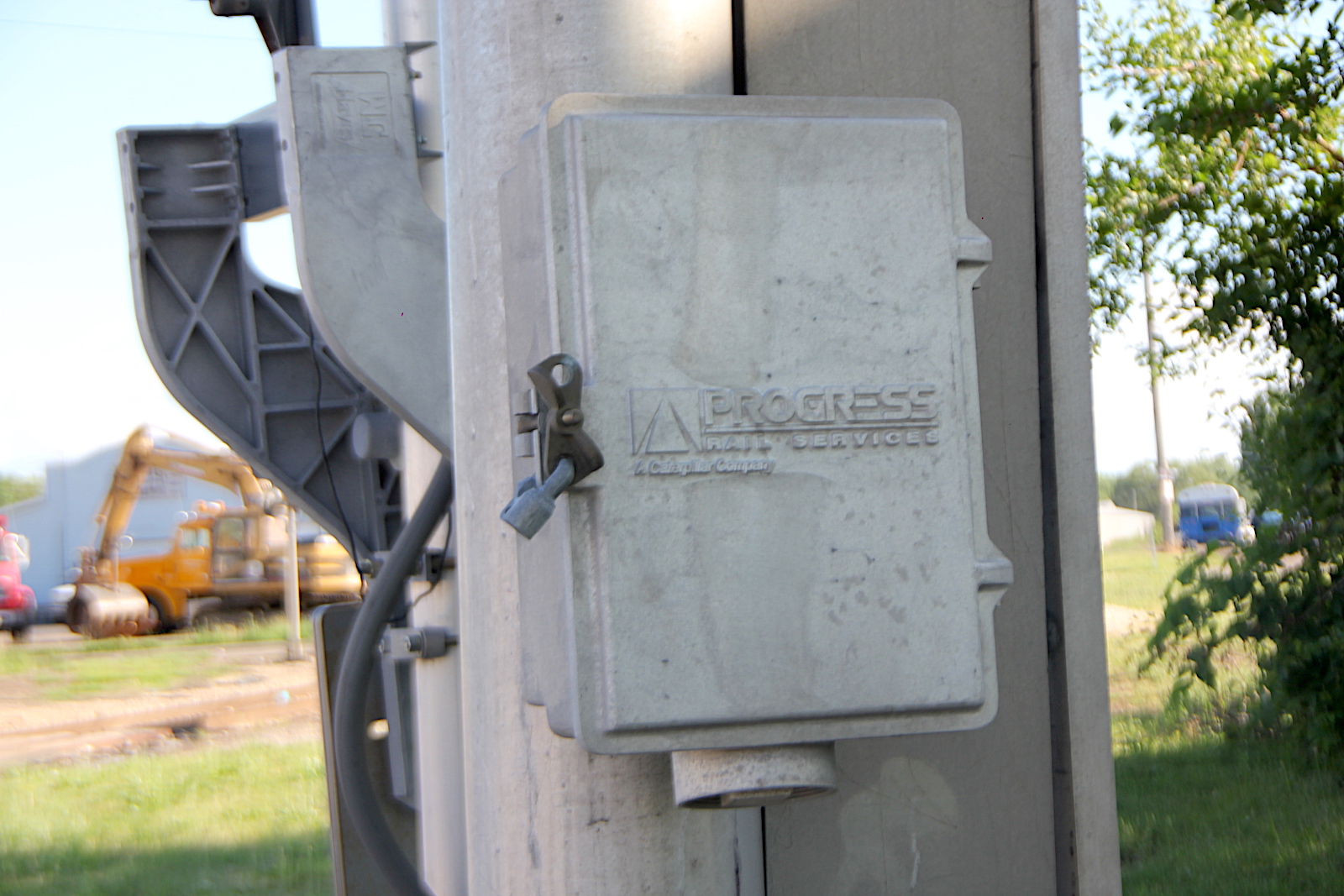

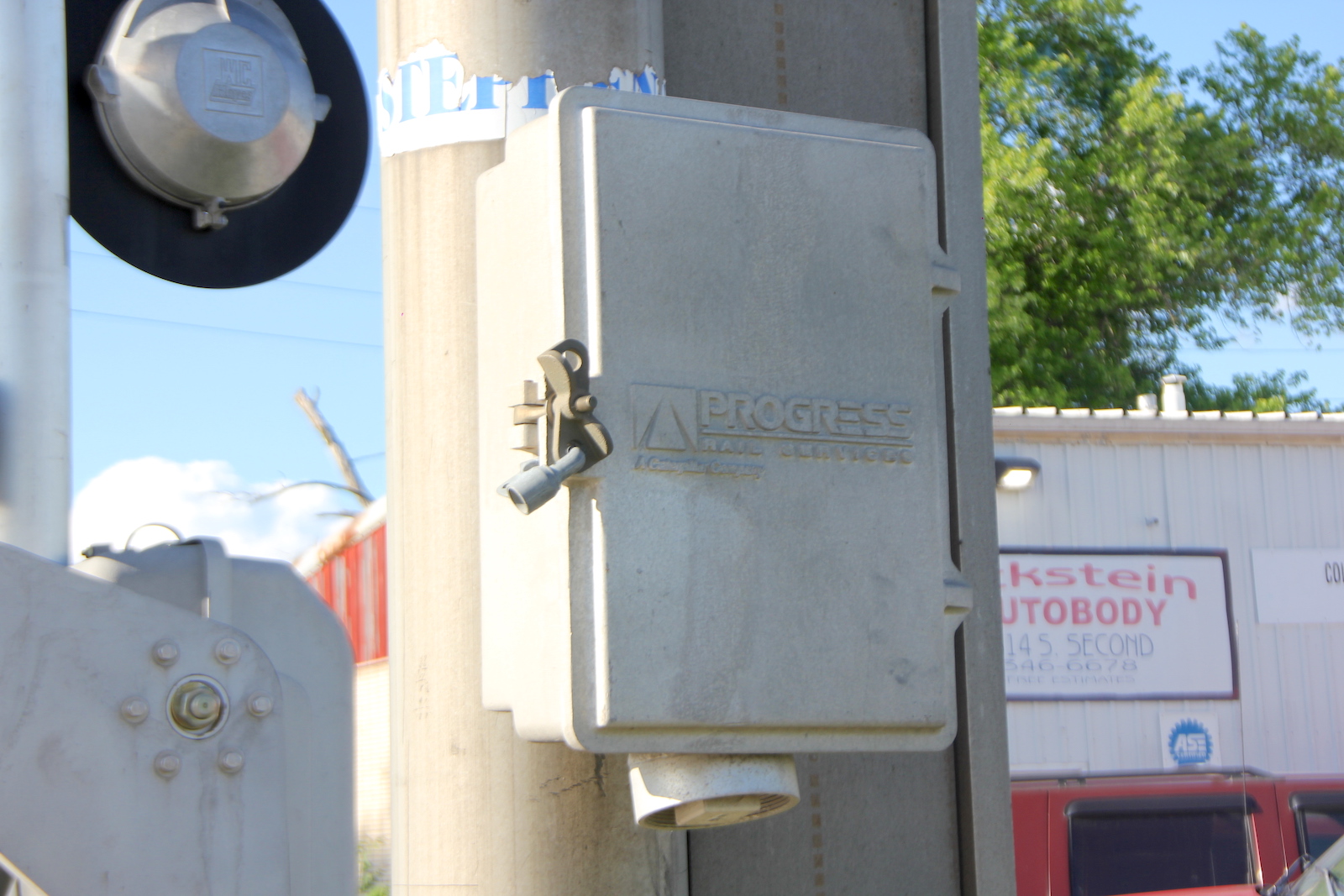

| Junction Boxes: | Progress Rail | Progress Rail |
| Gate Lights: | 4" RECO | 4" RECO |
| Gate Mechanism: | WCH Style 4 w/ Standard Mount | WCH Style 4 w/ Standard Mount |
| Gate Striping: | Vertical Striping | Vertical Striping |
G1 |
G2 |

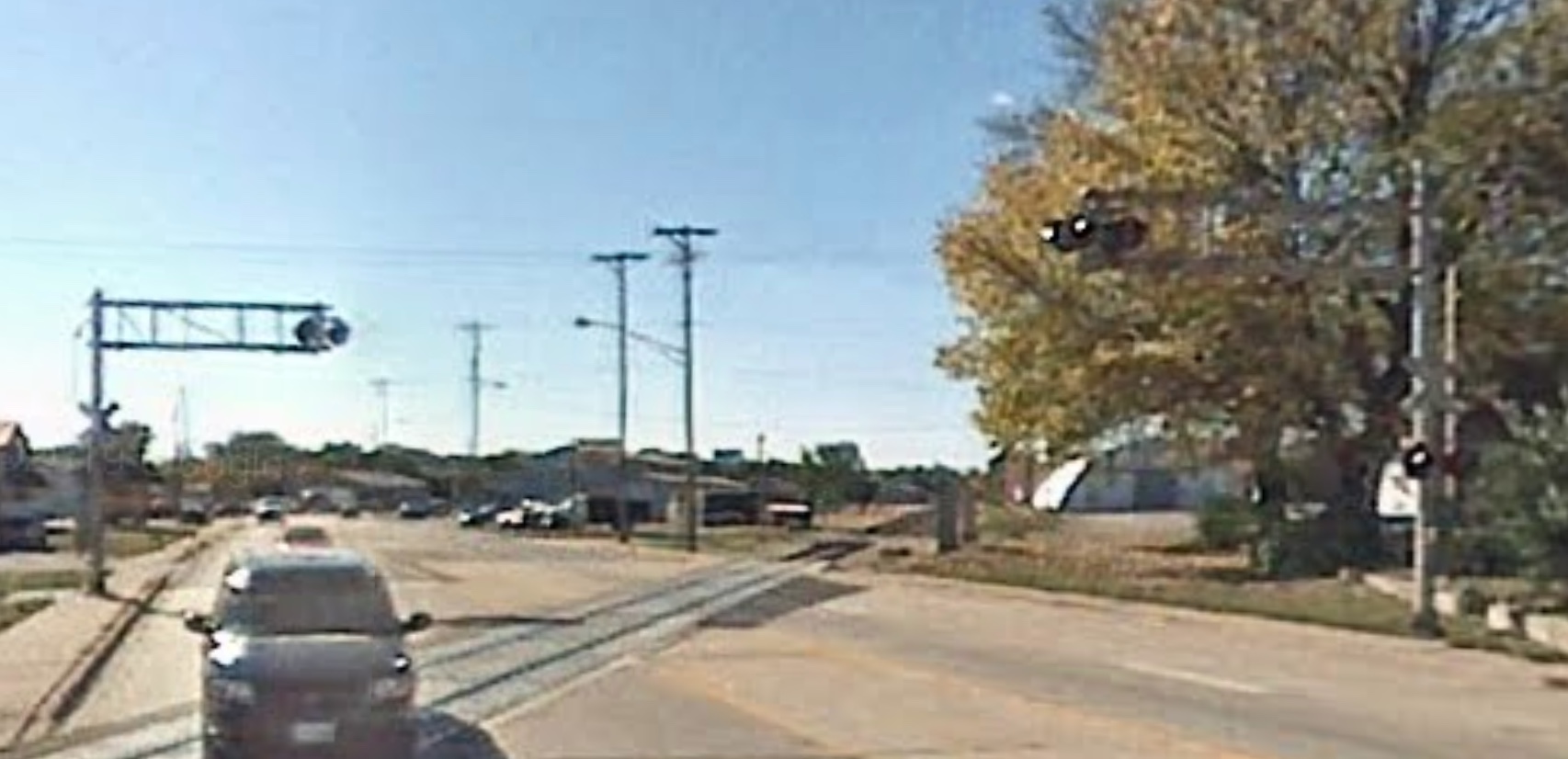

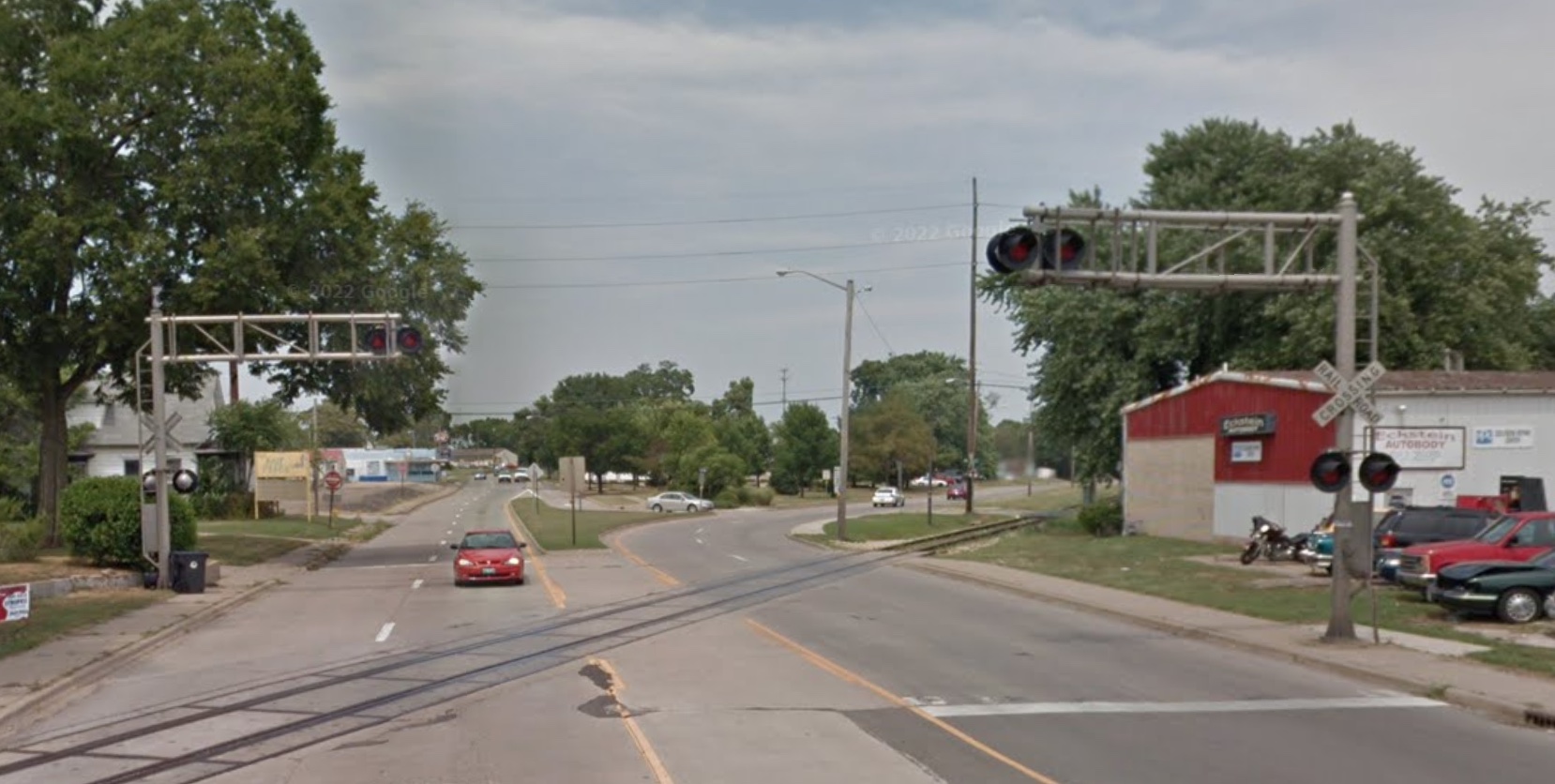

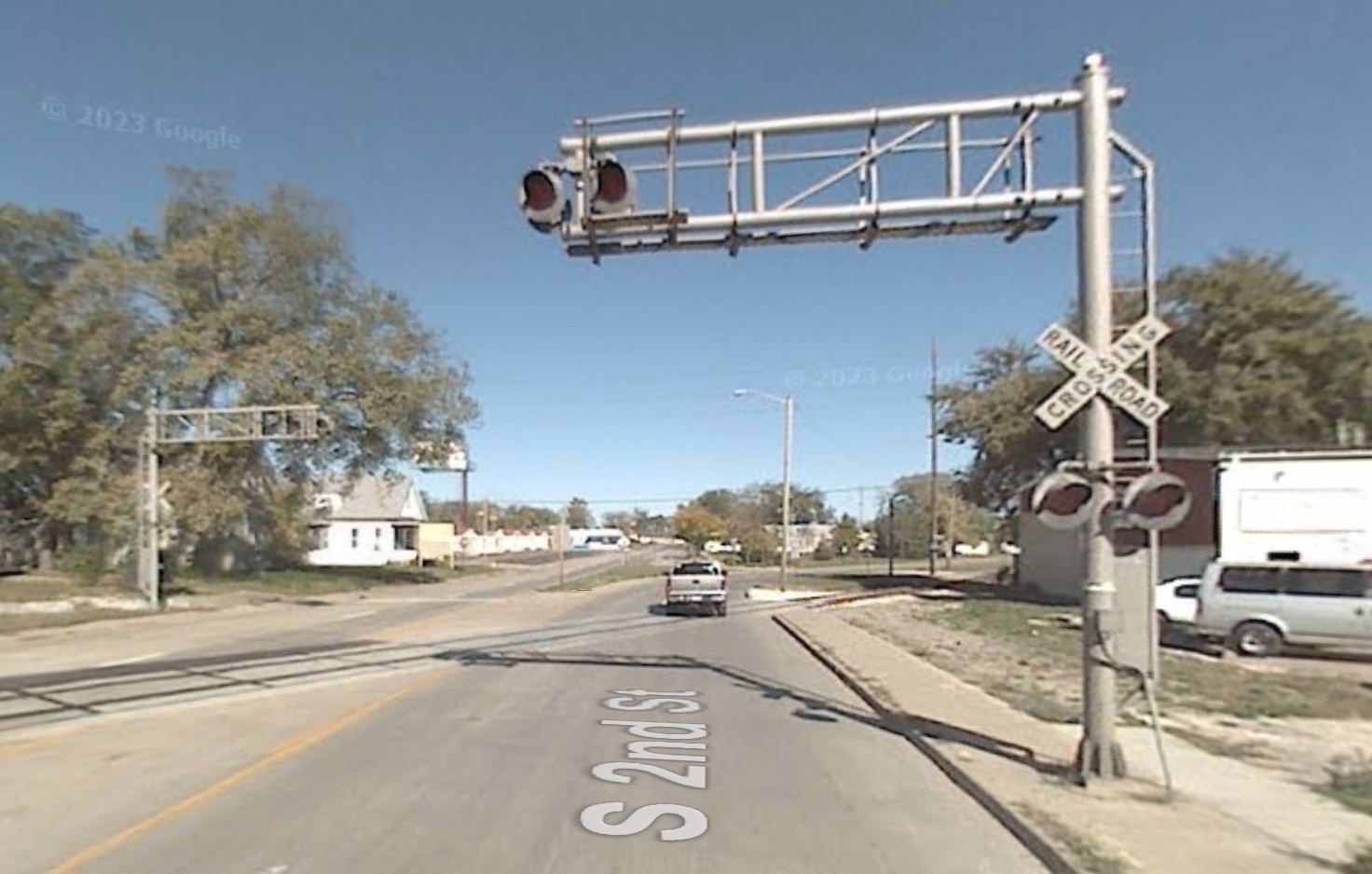

| Low quailty Streetview images from 2007 showing two Walpar cantilevers with 12"x20" L&W incandscents and a GS E-Bell. |
G3 |
G4 |
G5 |

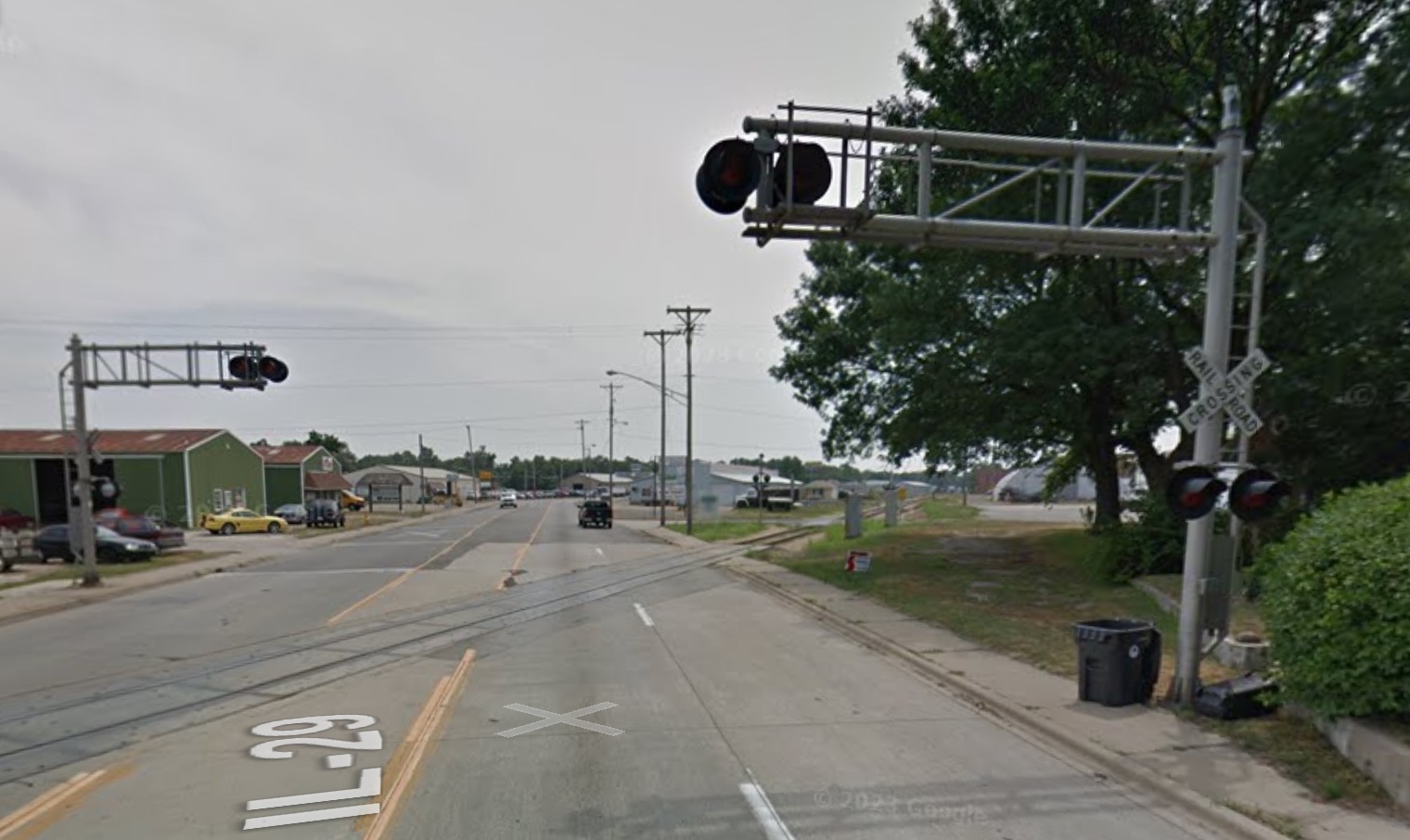

| By 2011, the lights were upgraded to 12"x24" Safetran frames with Dialight Ball LEDs. In 2019, new WCH gate masts were added, a 2nd GS E-Bell was added, and the lights were replaced with newer LEDs. |
1 |
2 |

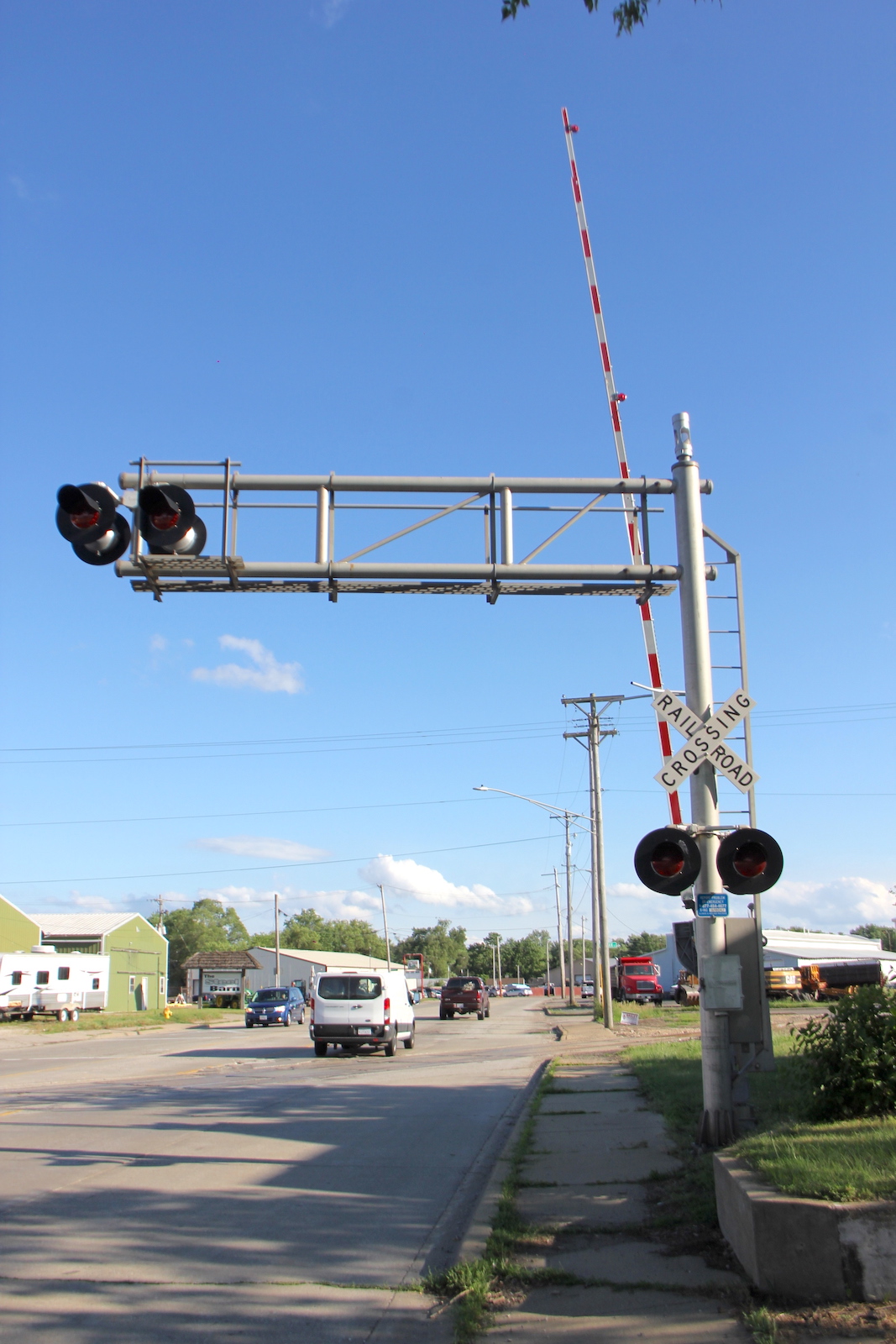

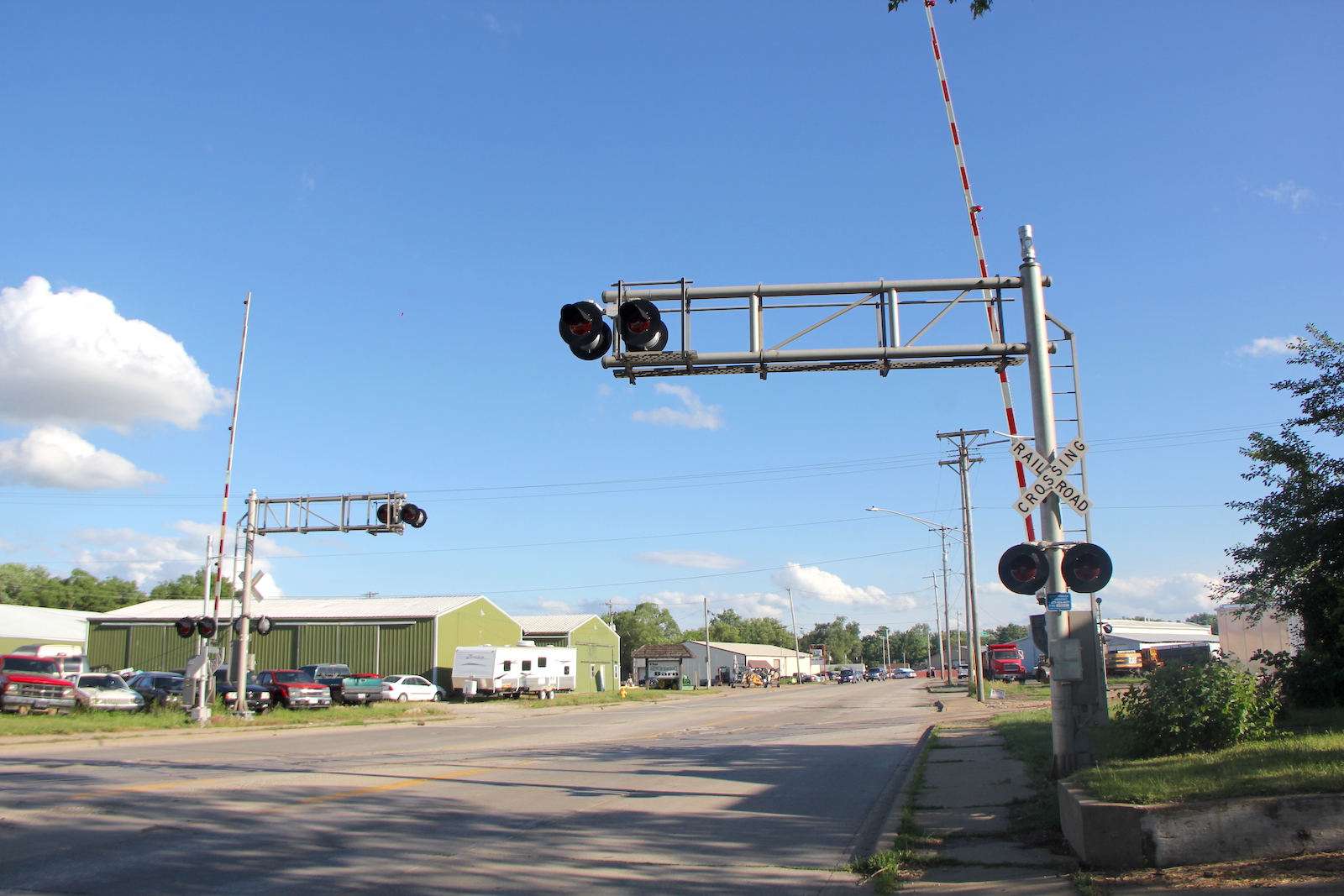

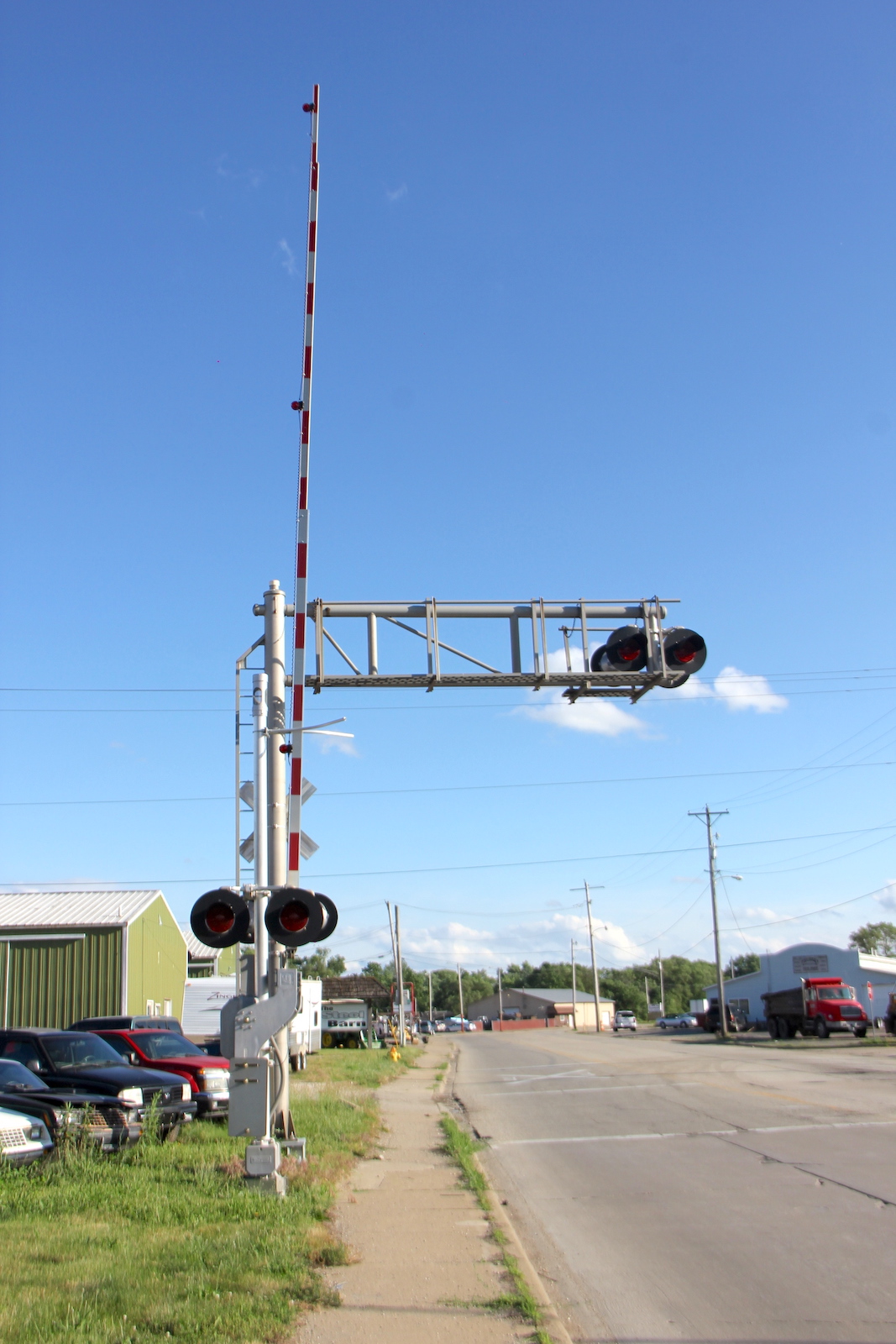

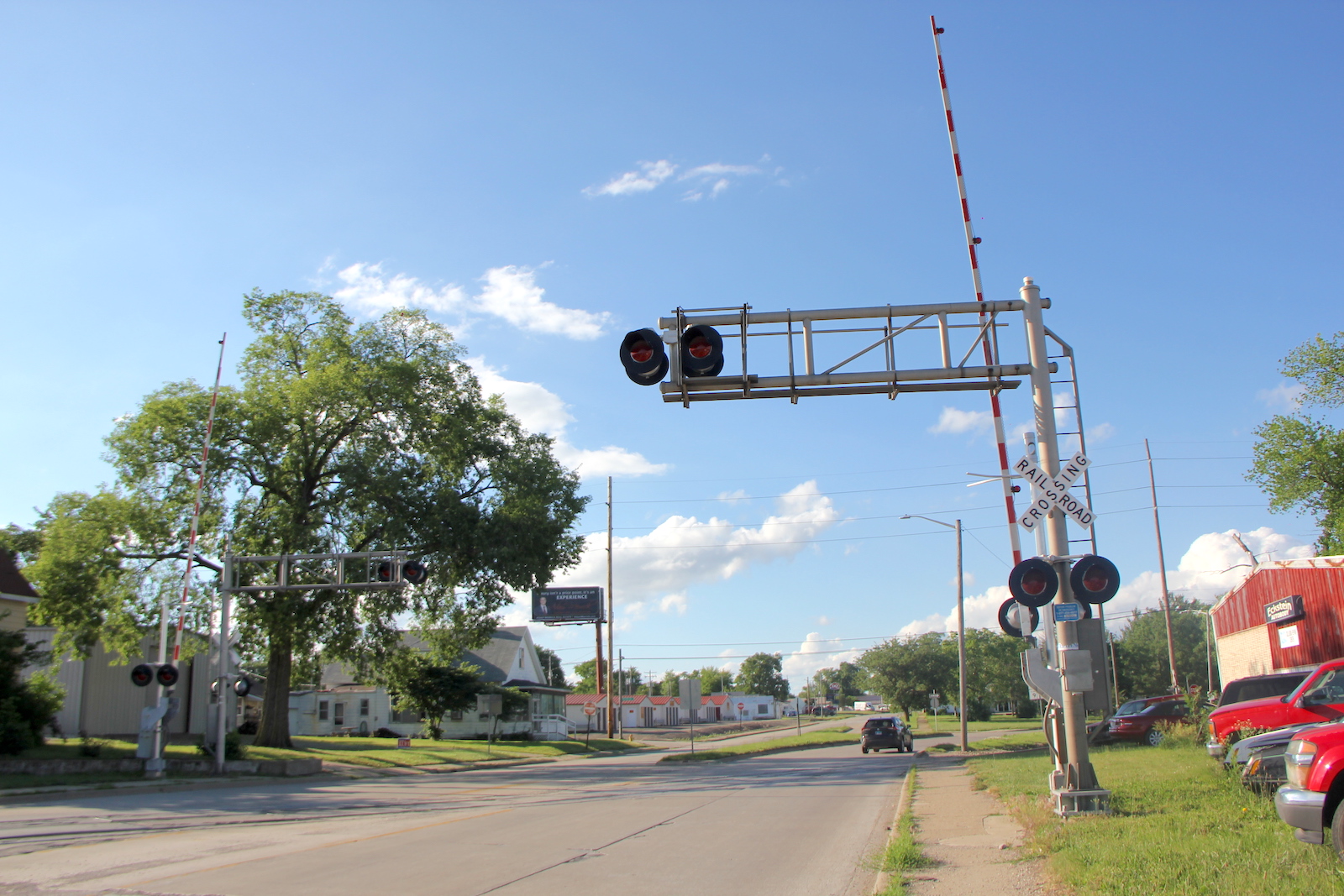

| Overview of the newer setup facing south. | Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |

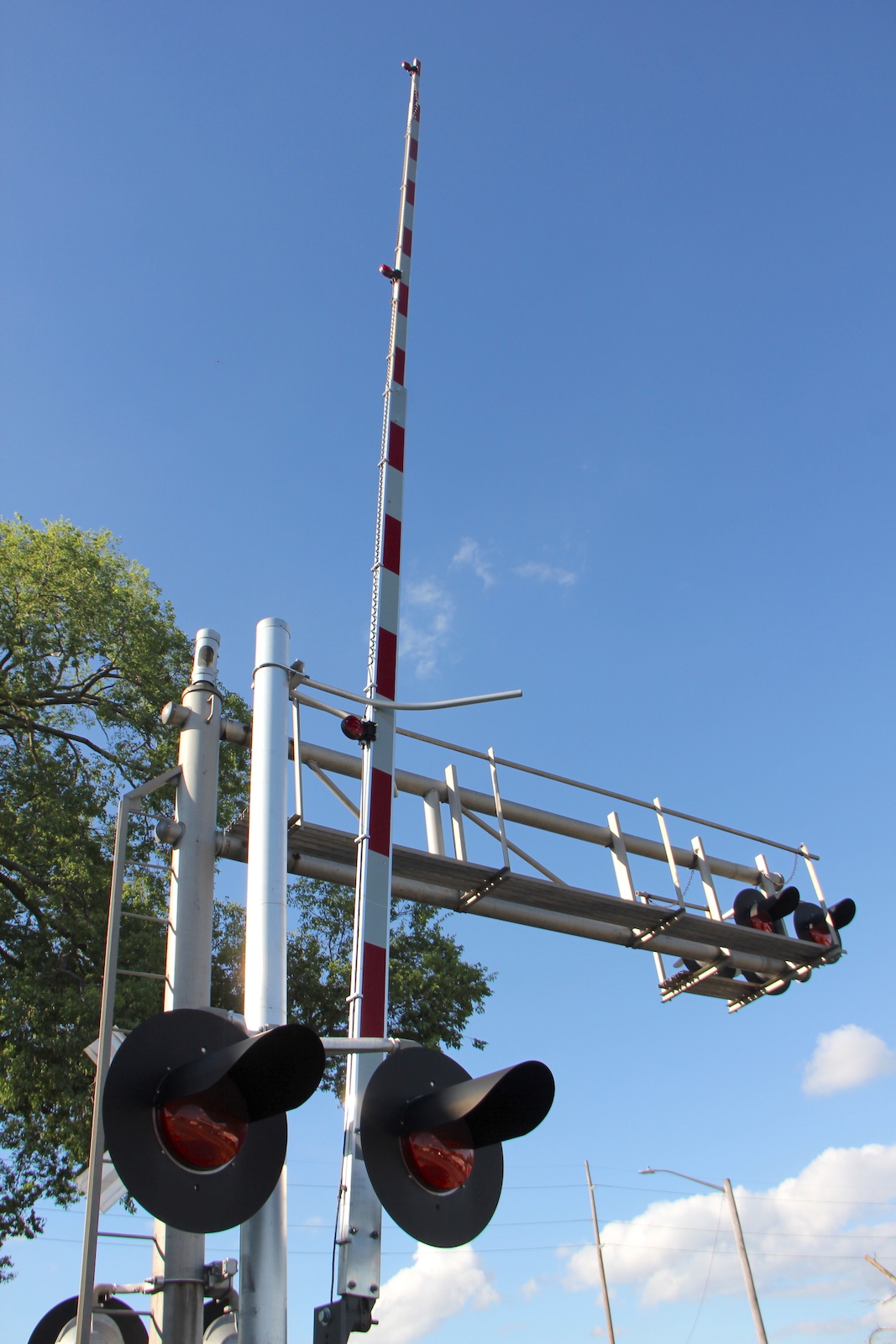

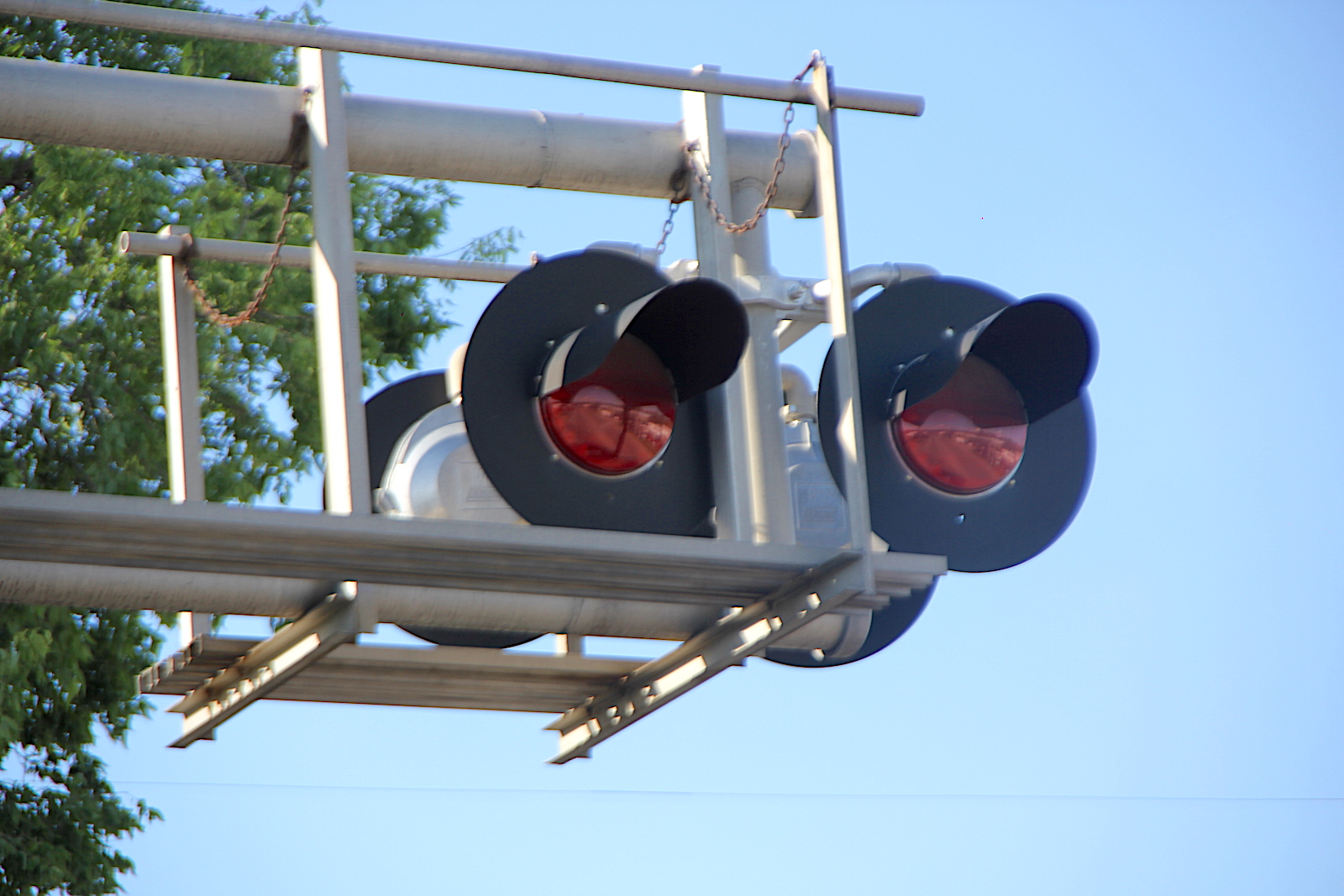

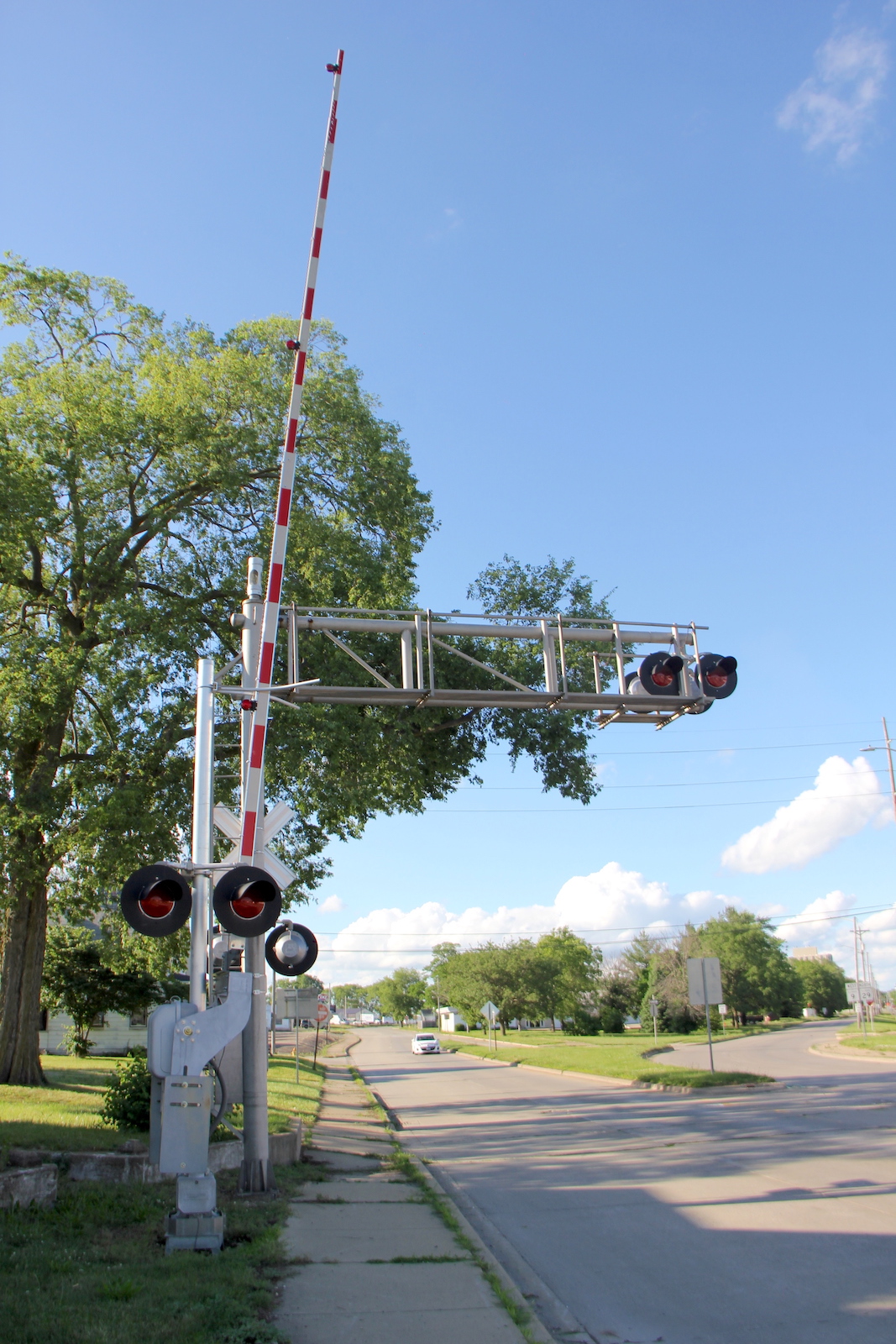

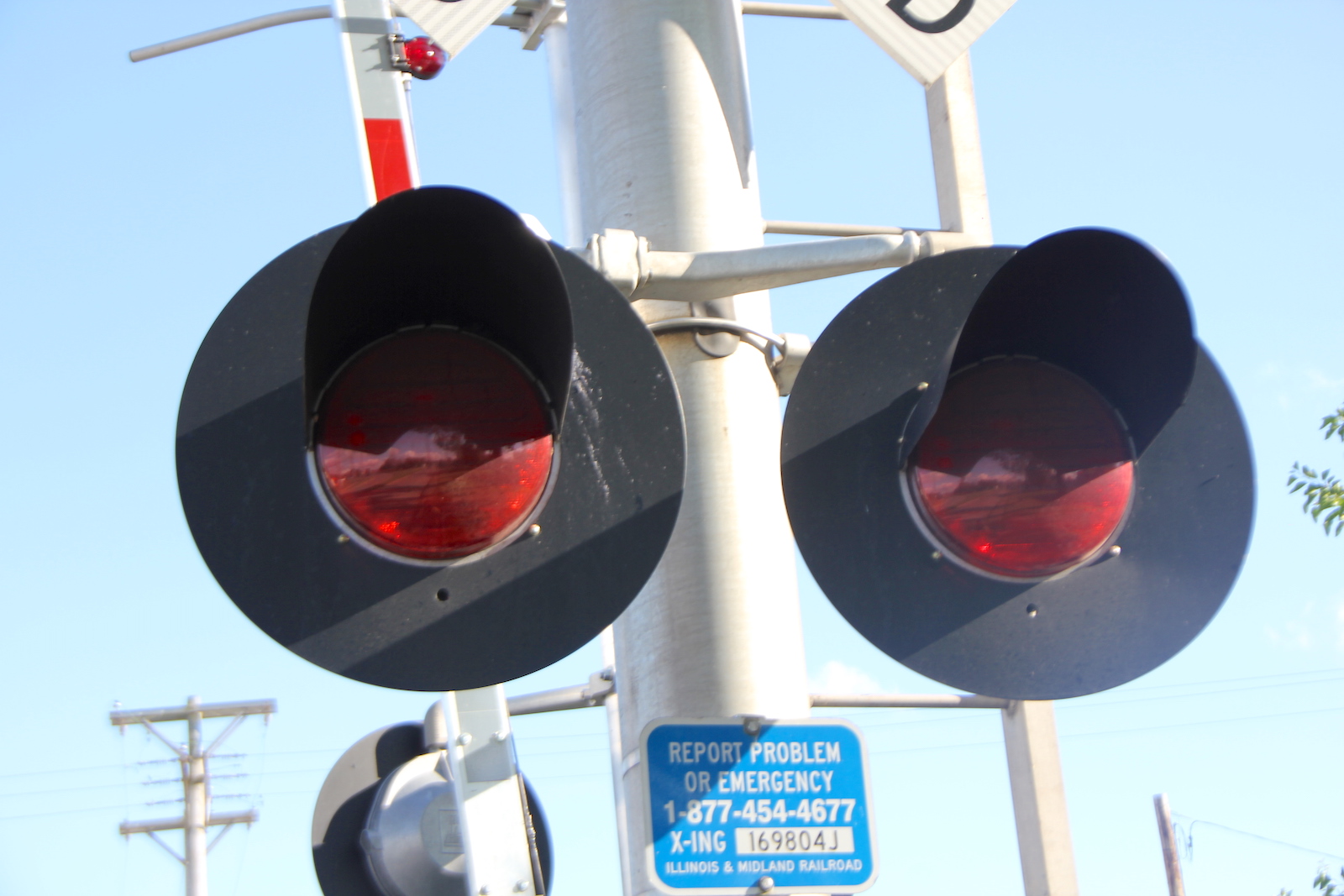

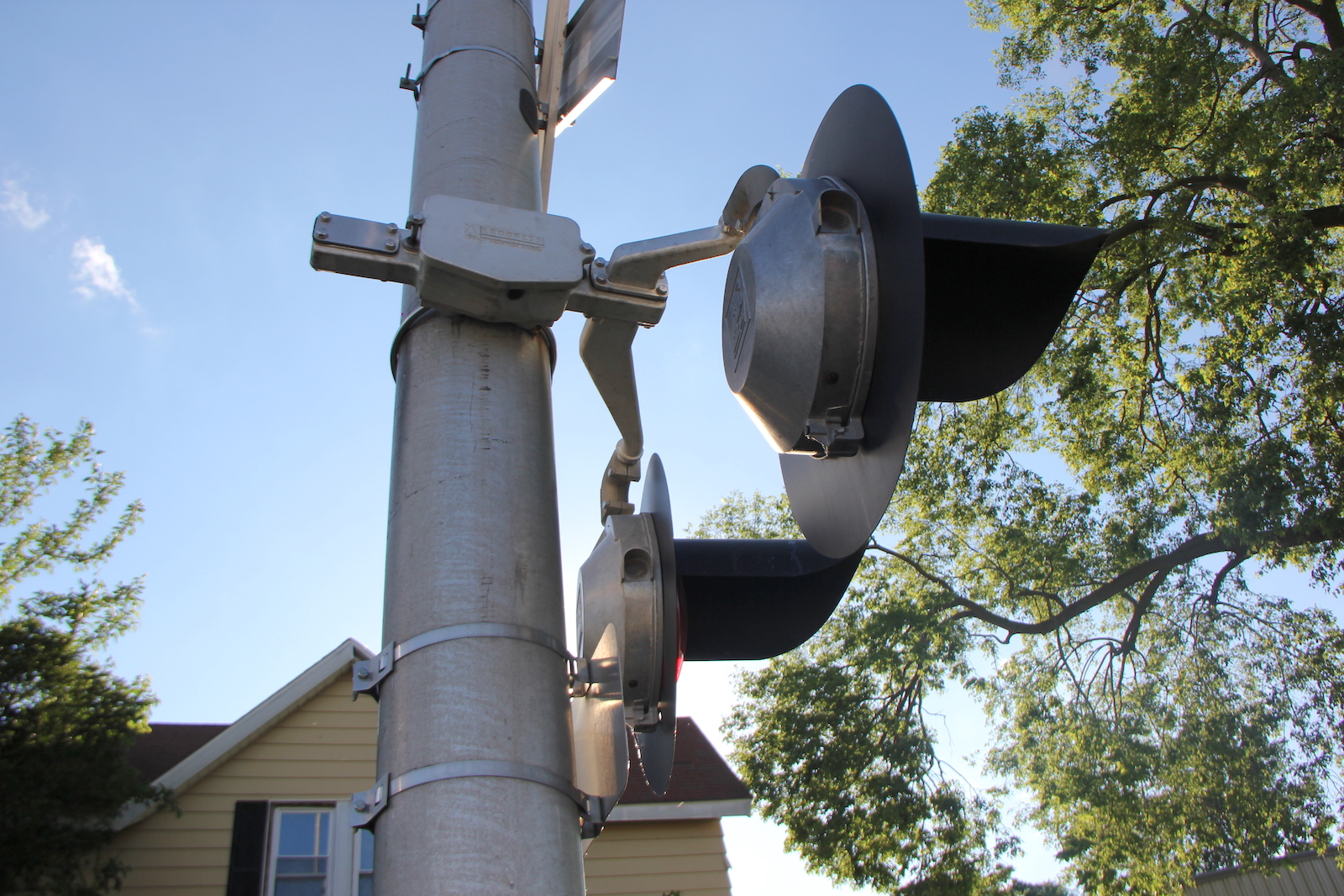

| The northern signal. |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |
28 |
29 |
30 |

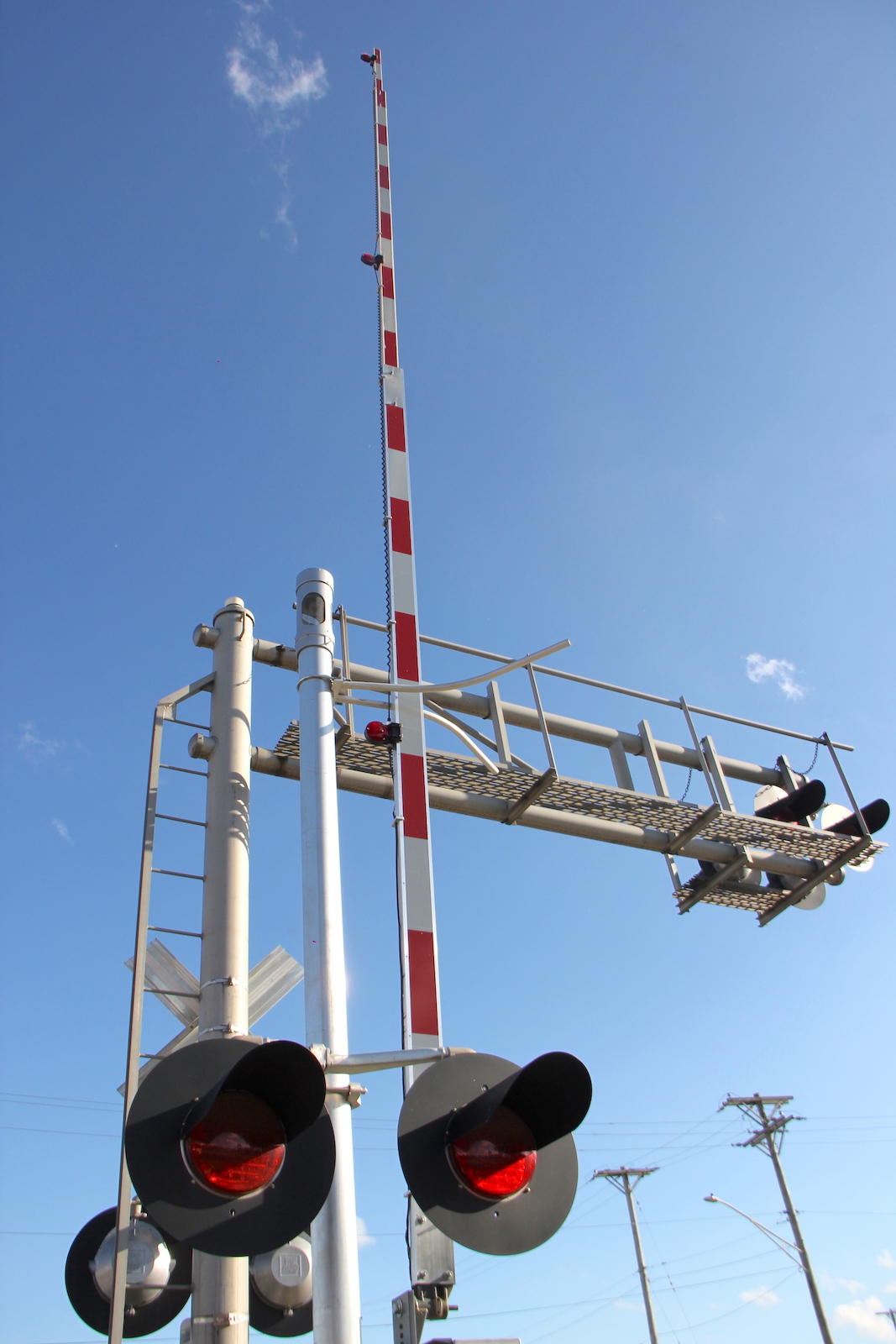

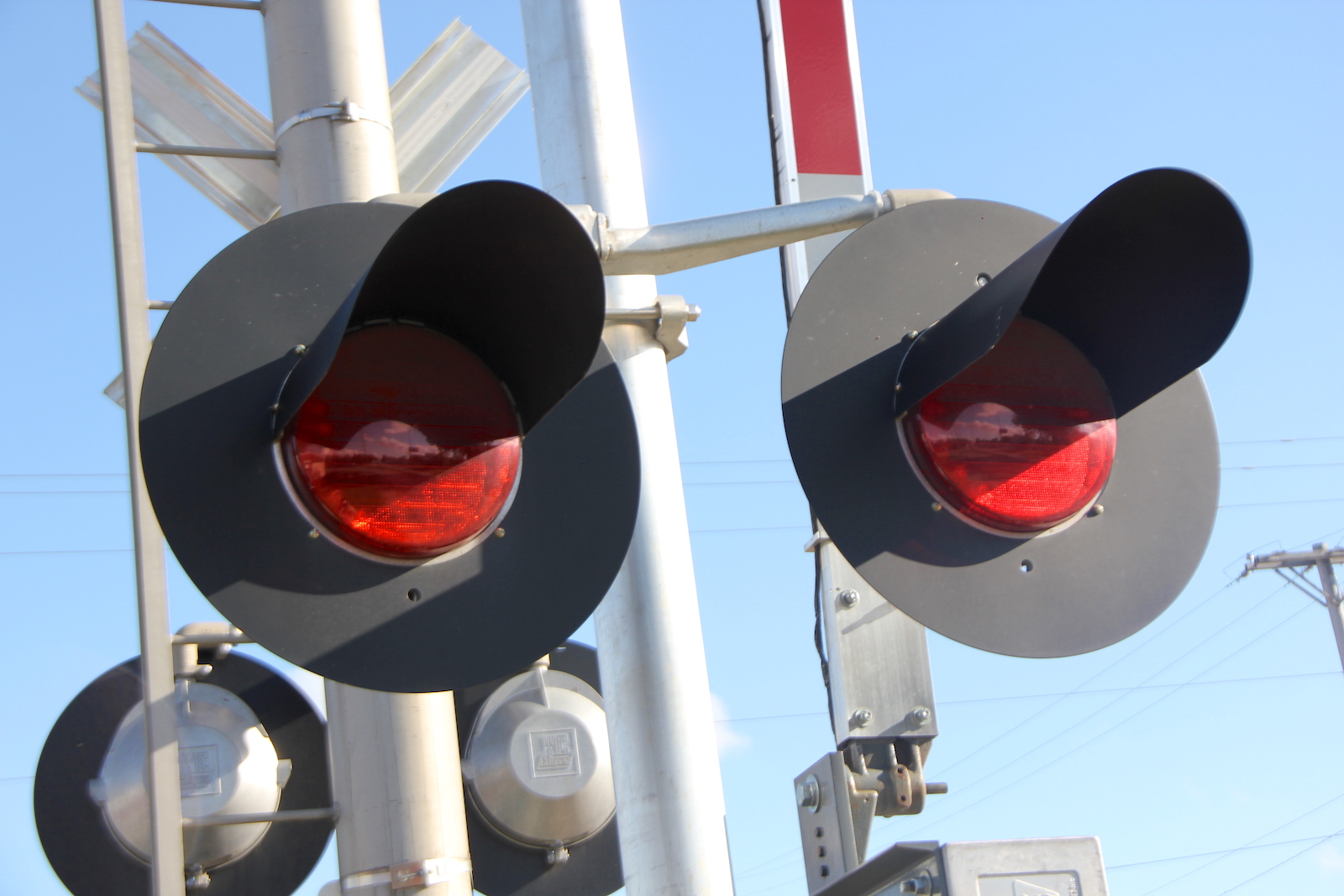

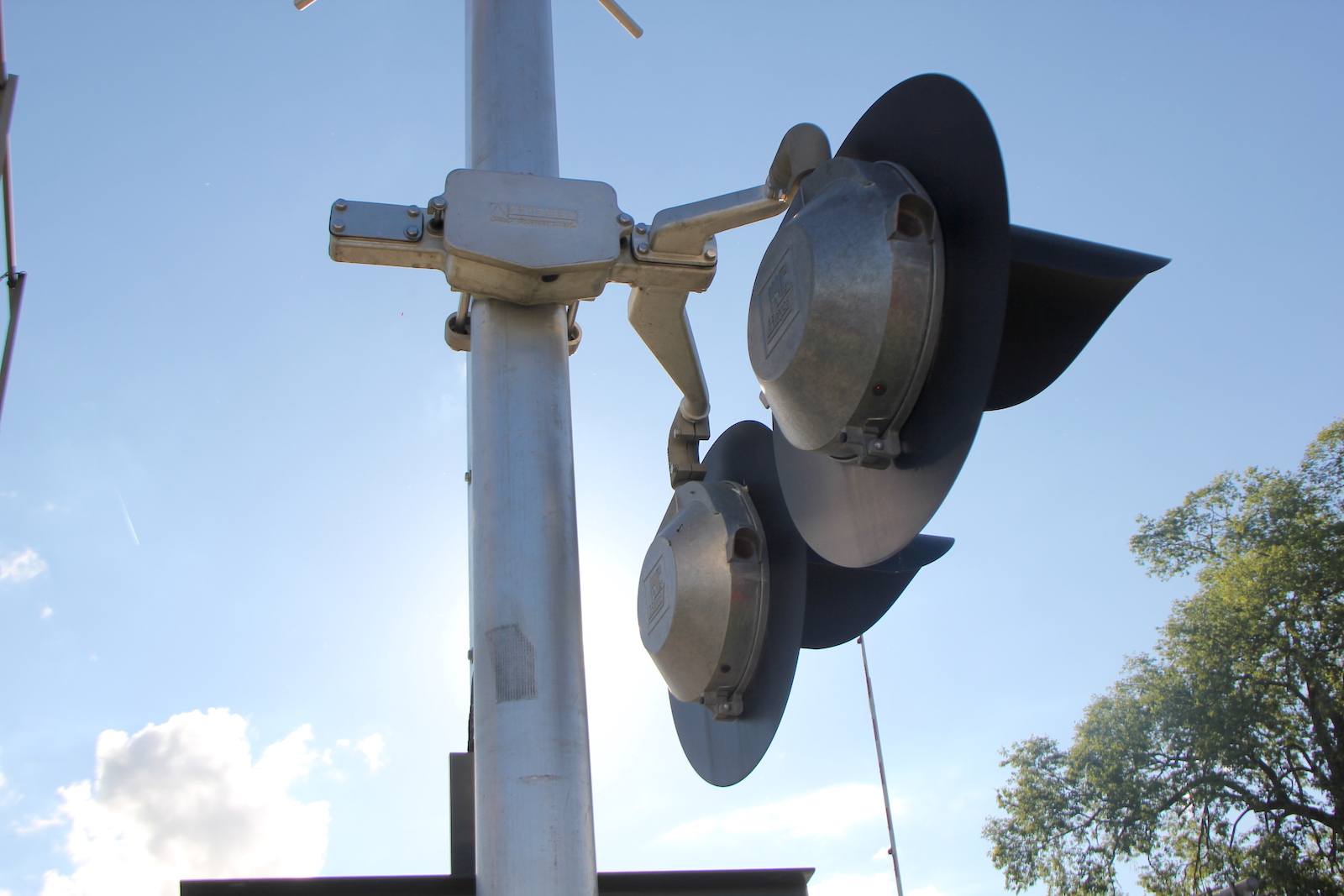

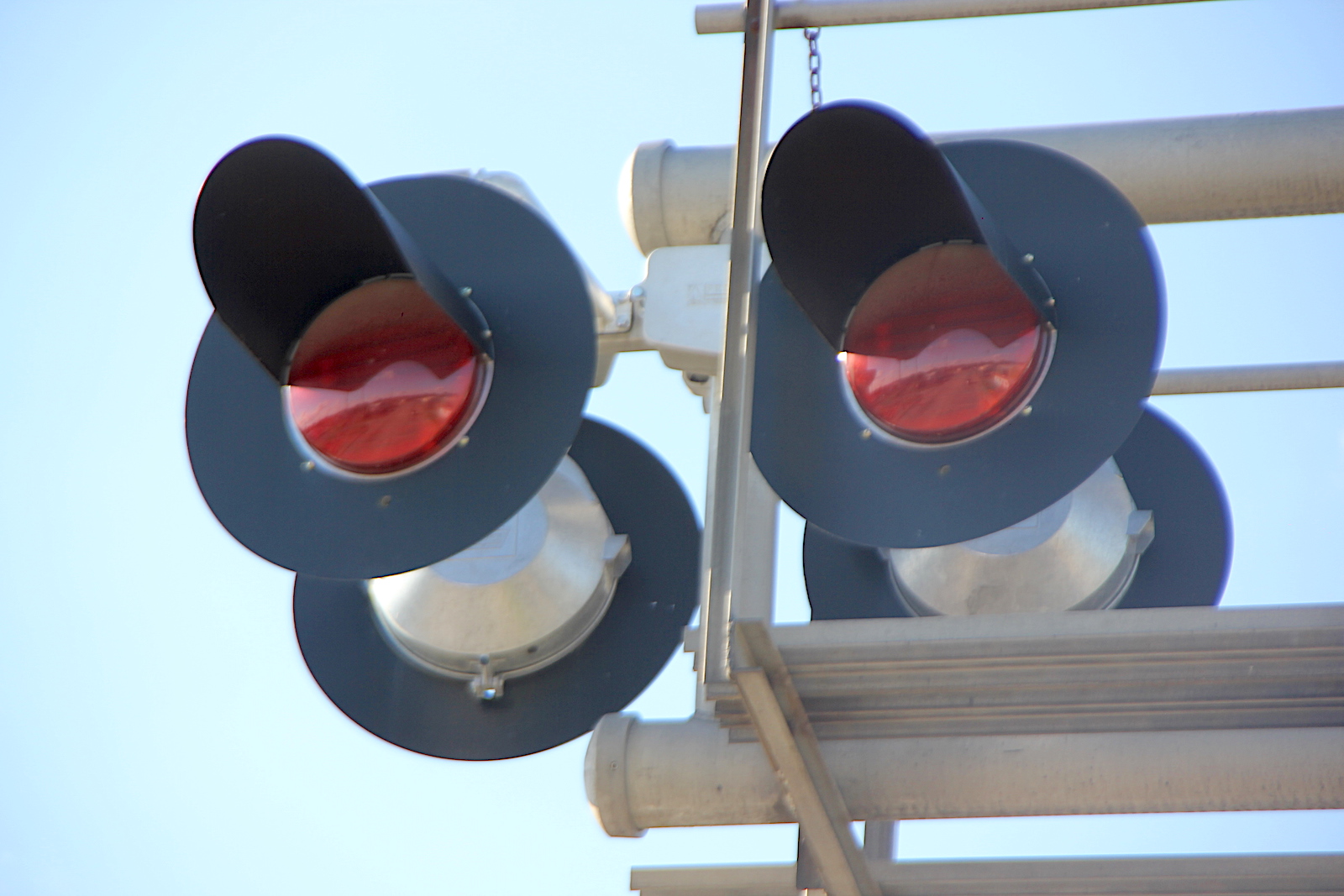

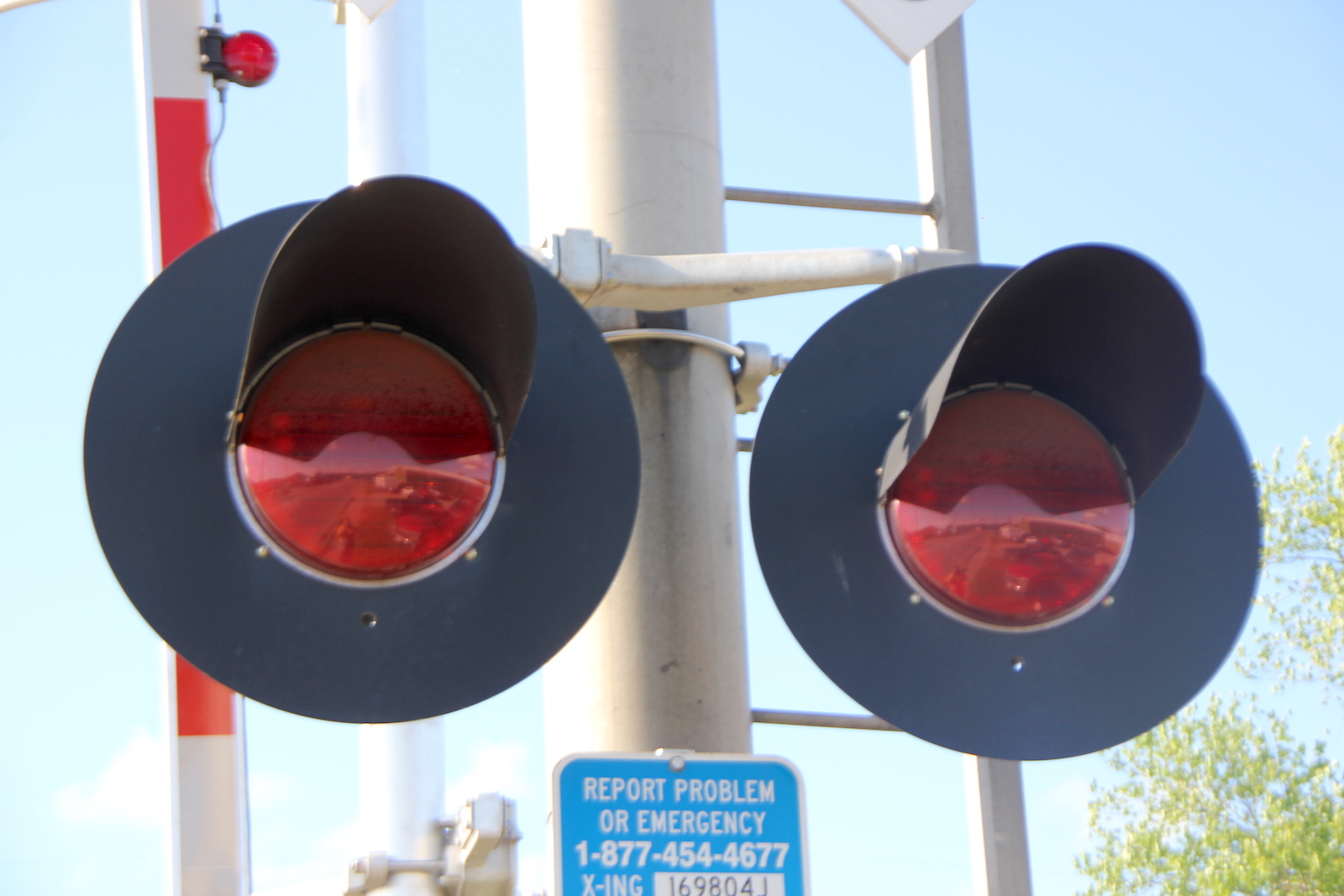

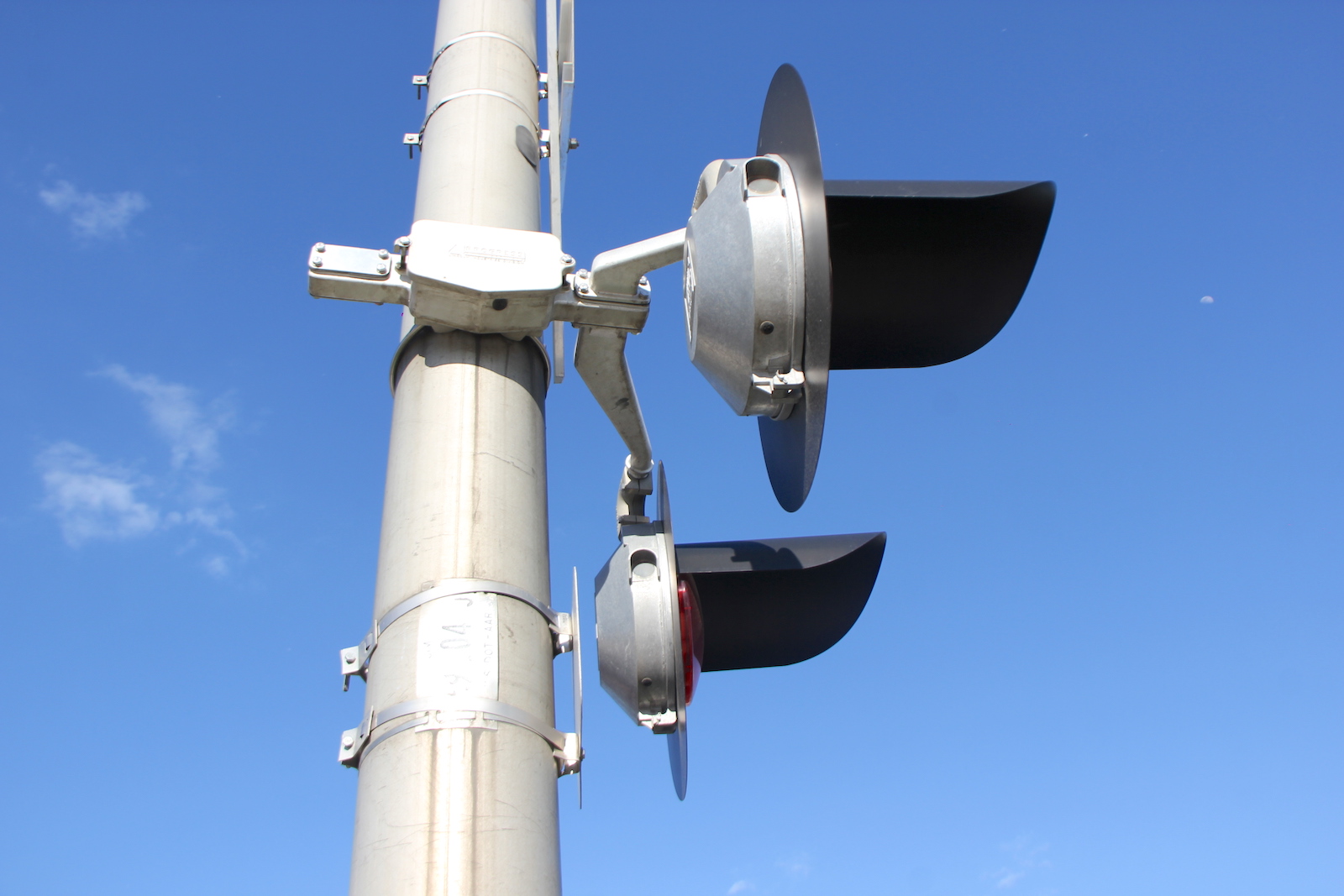

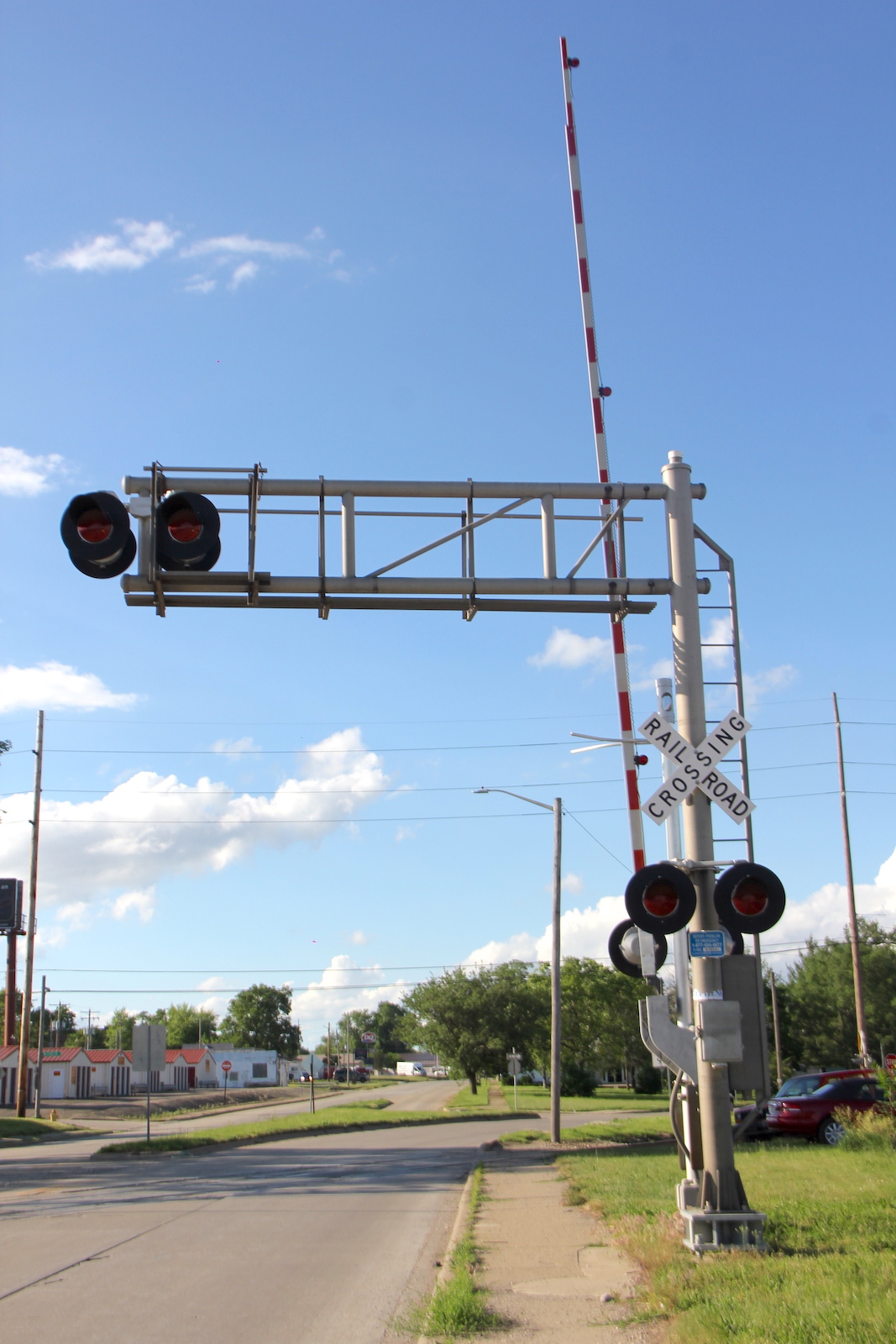

| The southern signal. |
31 |
32 |
33 |
34 |

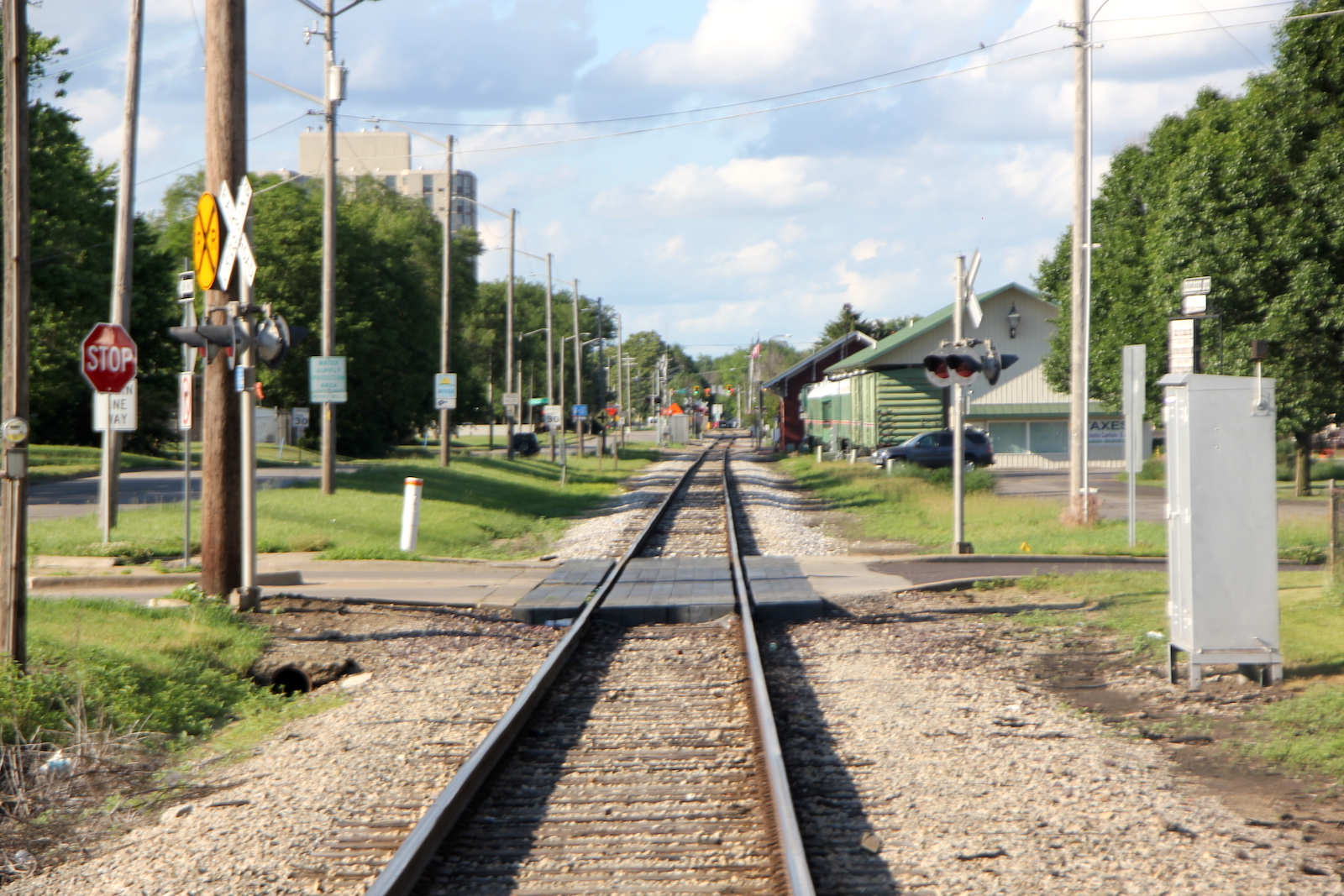

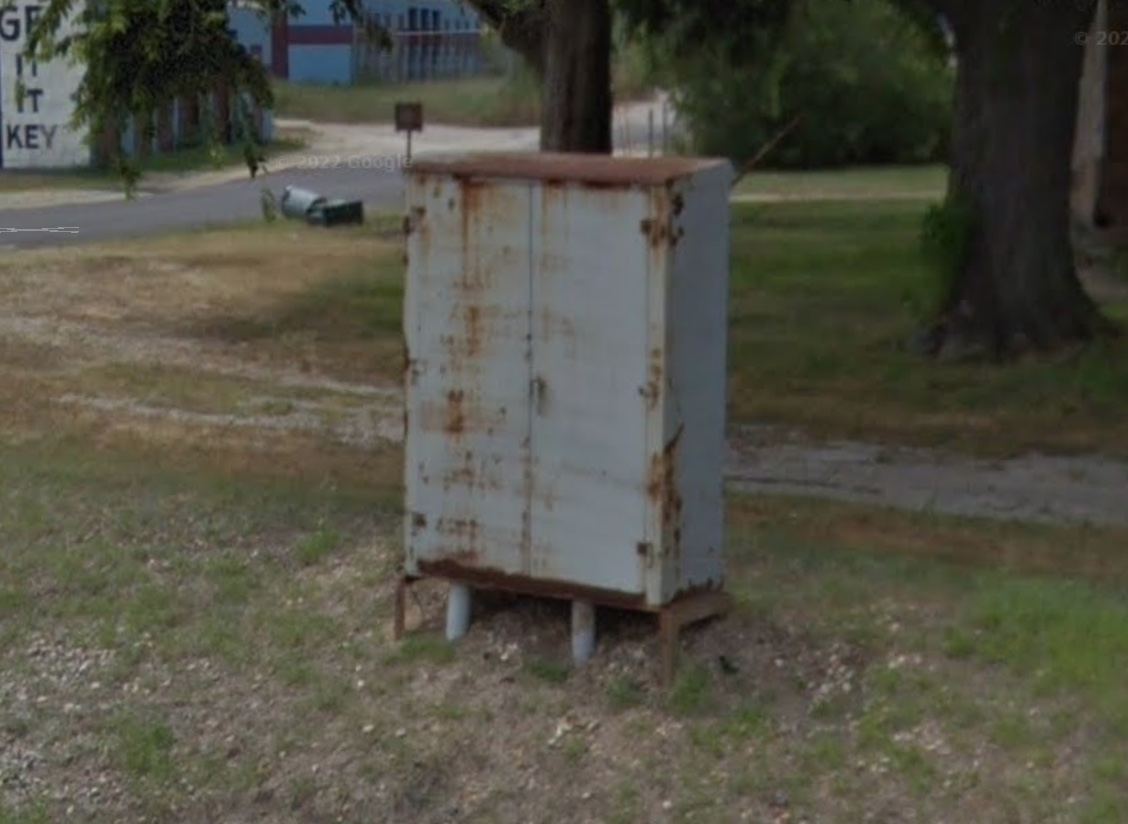

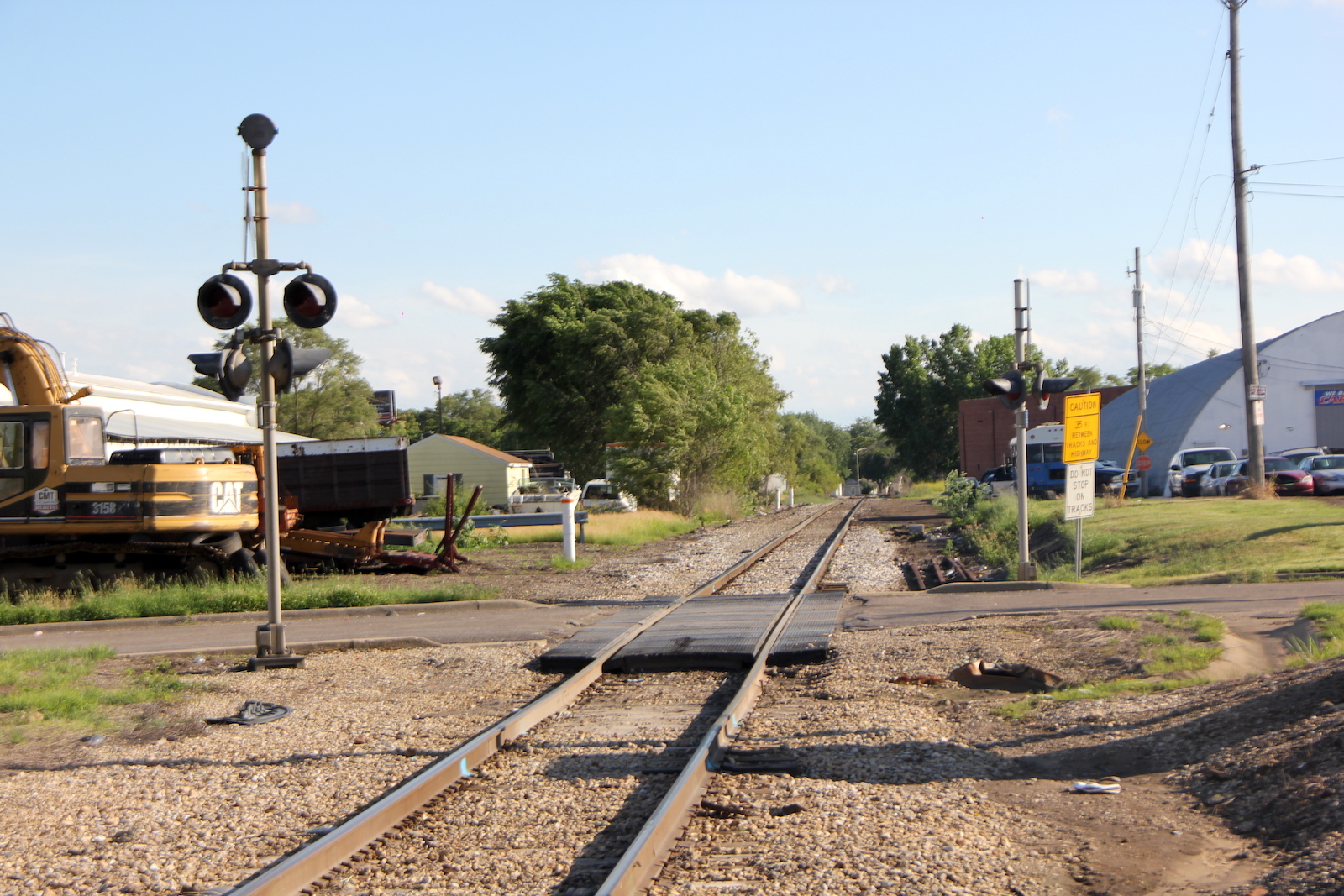

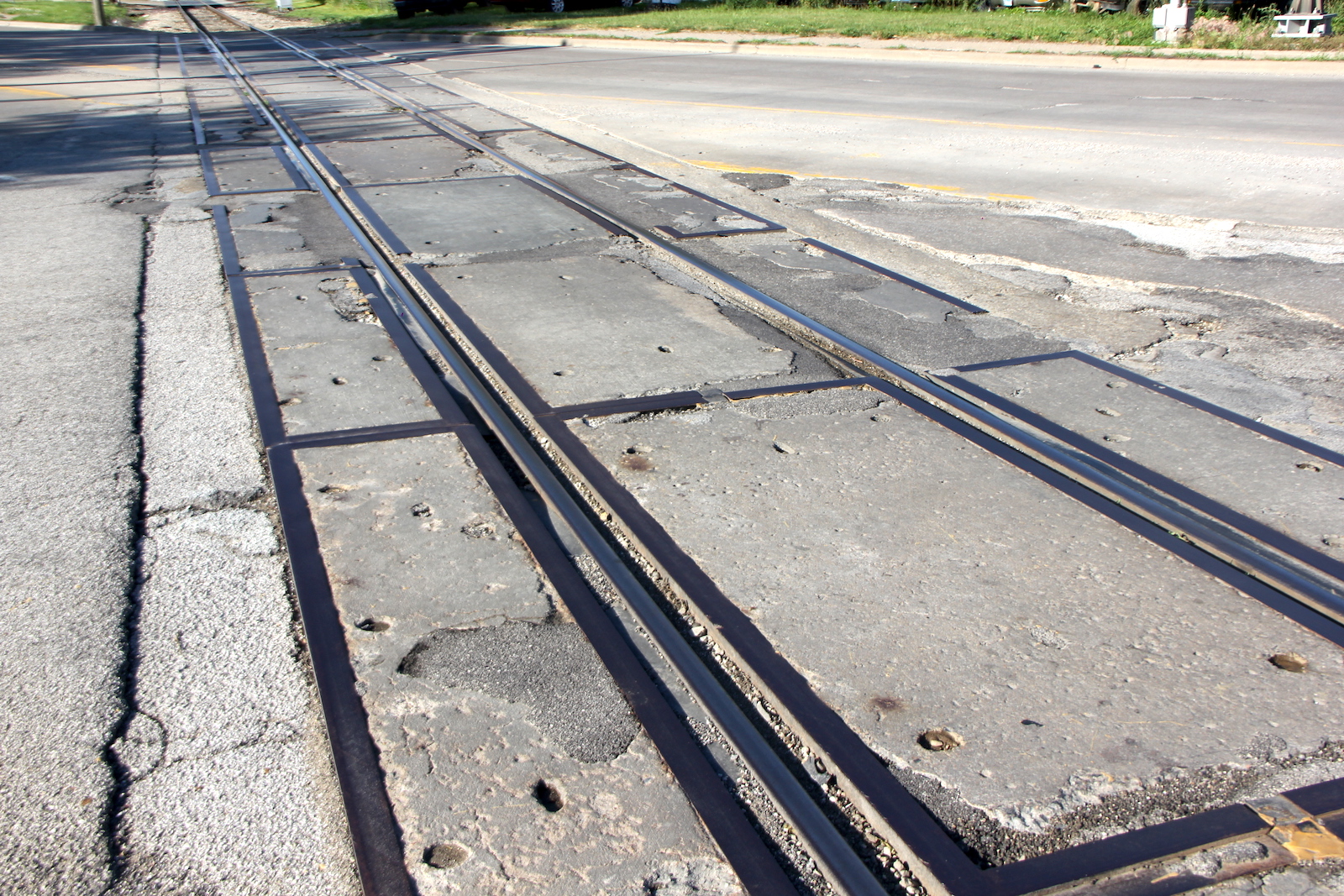

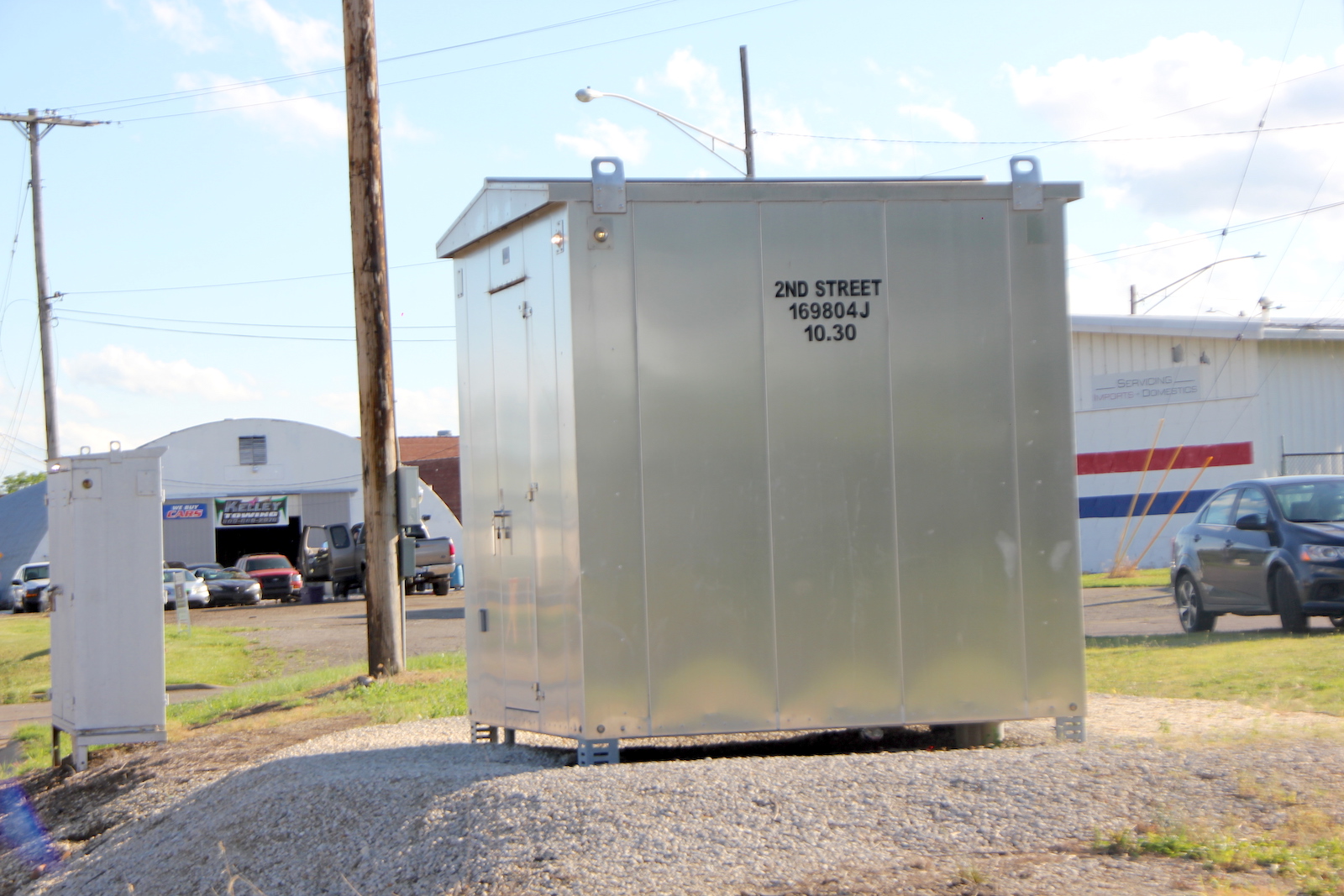

| The relay bungalow in the northwest quadrant. | The grade is all concrete. | Track view facing north at Washington St. #1. | Track view facing south at McLean St. |
