Western Signal |
Eastern Signal |
| Bell: |
Siemens E-Bell Low Tone |
Safetran Type 3 E-Bell Low Tone |
| Base: |

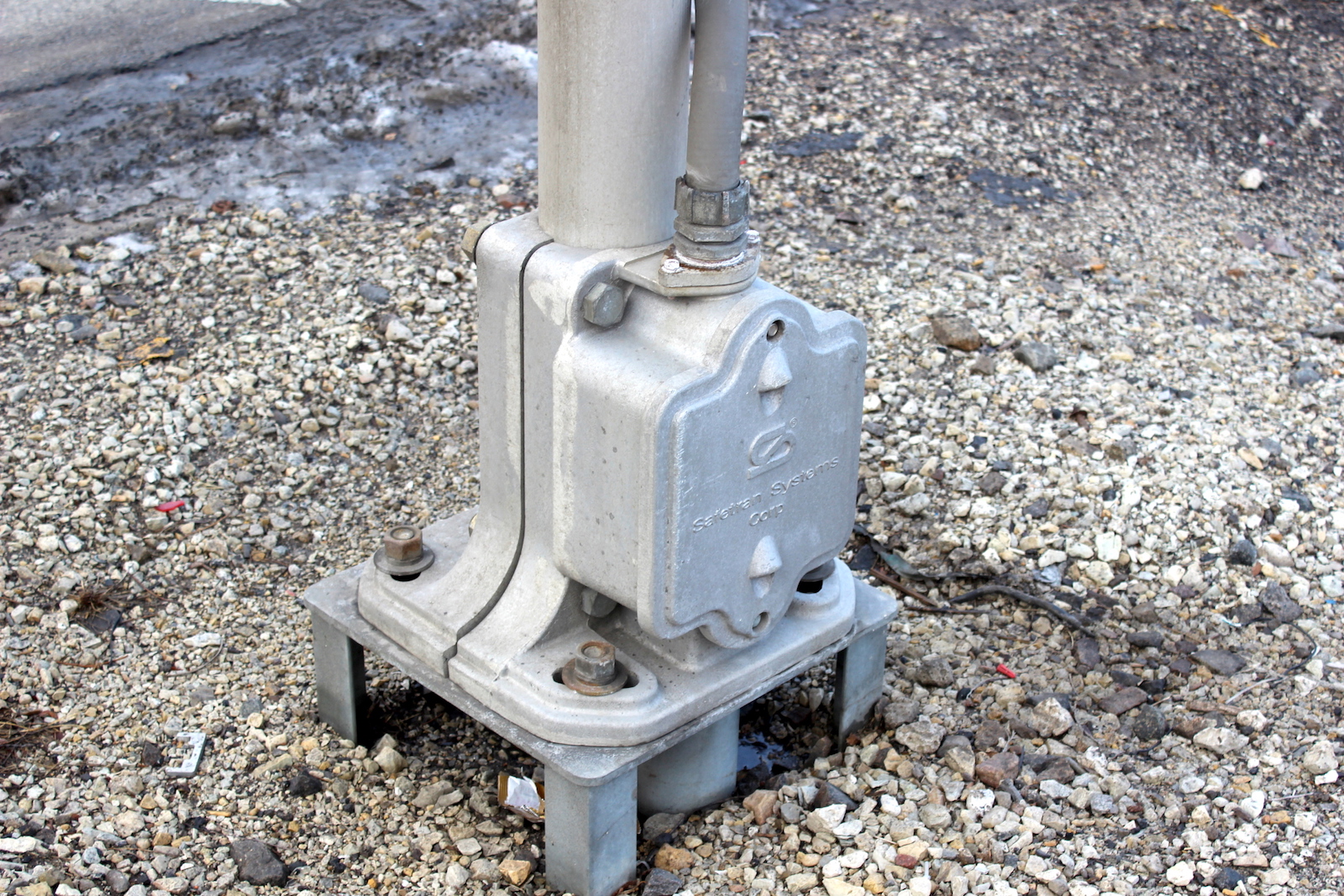

Safetran 5" Single Sided > |
WCH 5" Single Sided ^ |
| Lights: |

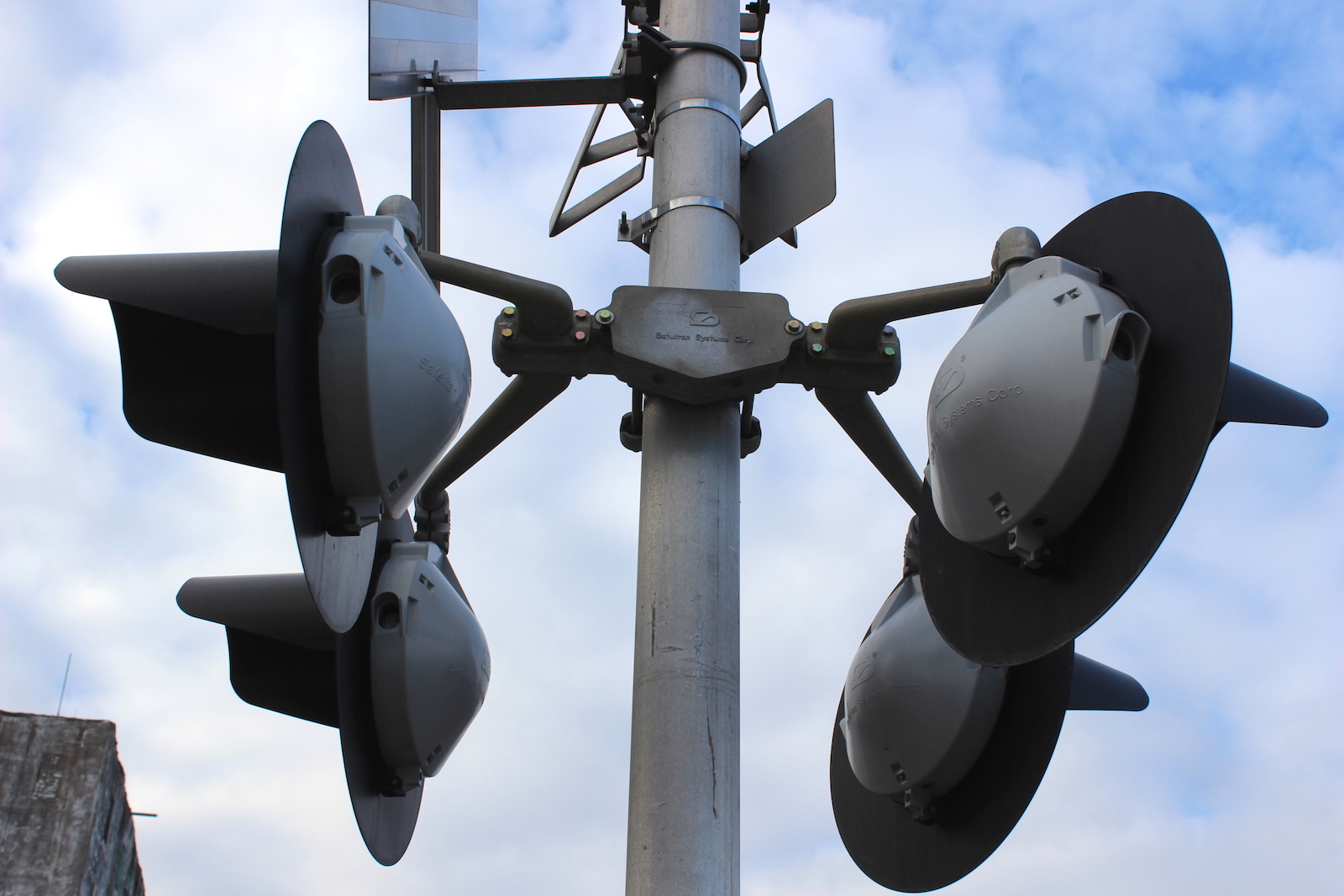

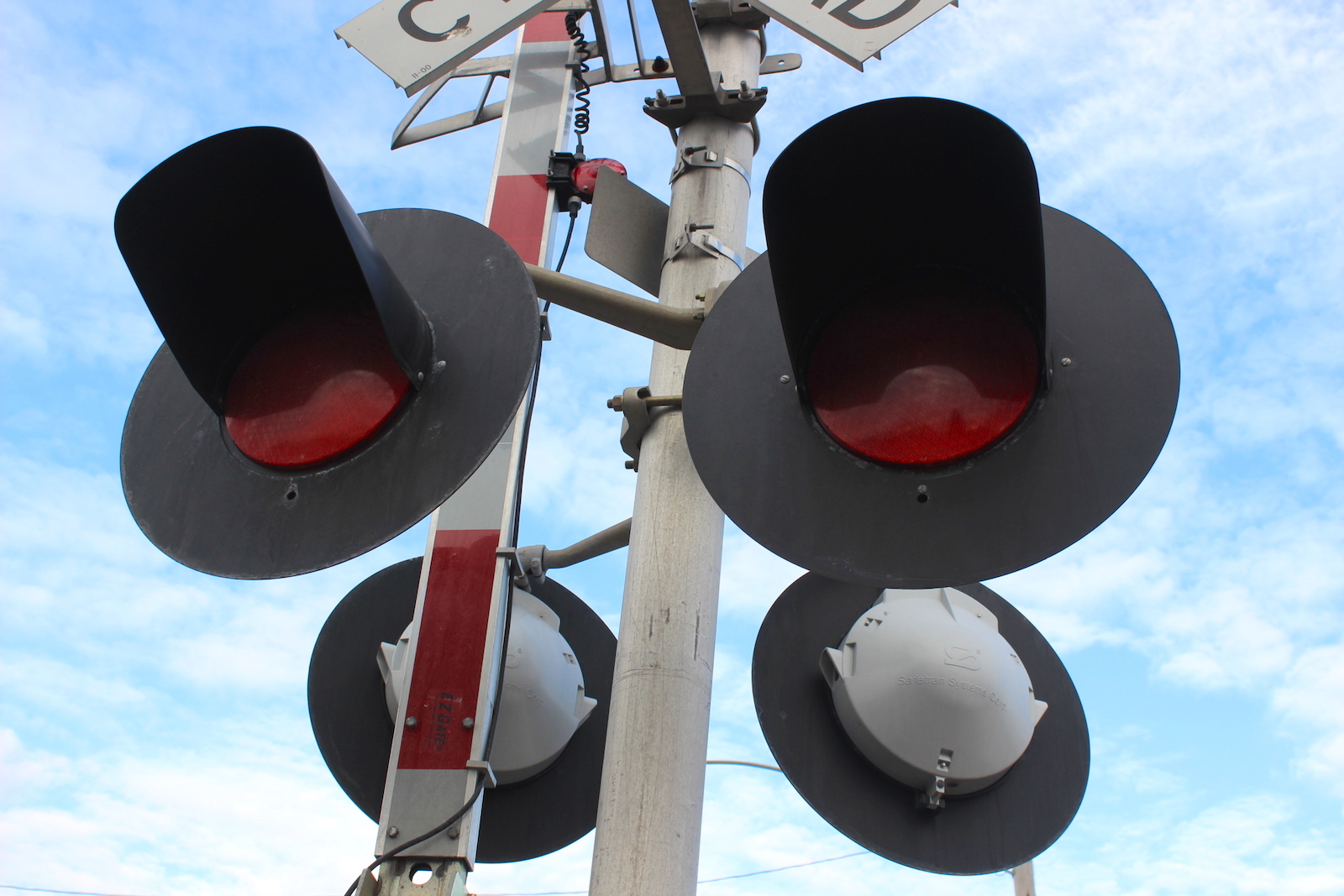

4 - 12"x24" Safetran w/ Dialight Ball LEDs |
4 - 12"x24" Harmon w/ 1st Gen Harmon Dotted LEDs |
| Junction Box: |
Safetran |
Harmon |
| Gate Lights: |
4" RECO |
4" RECO |

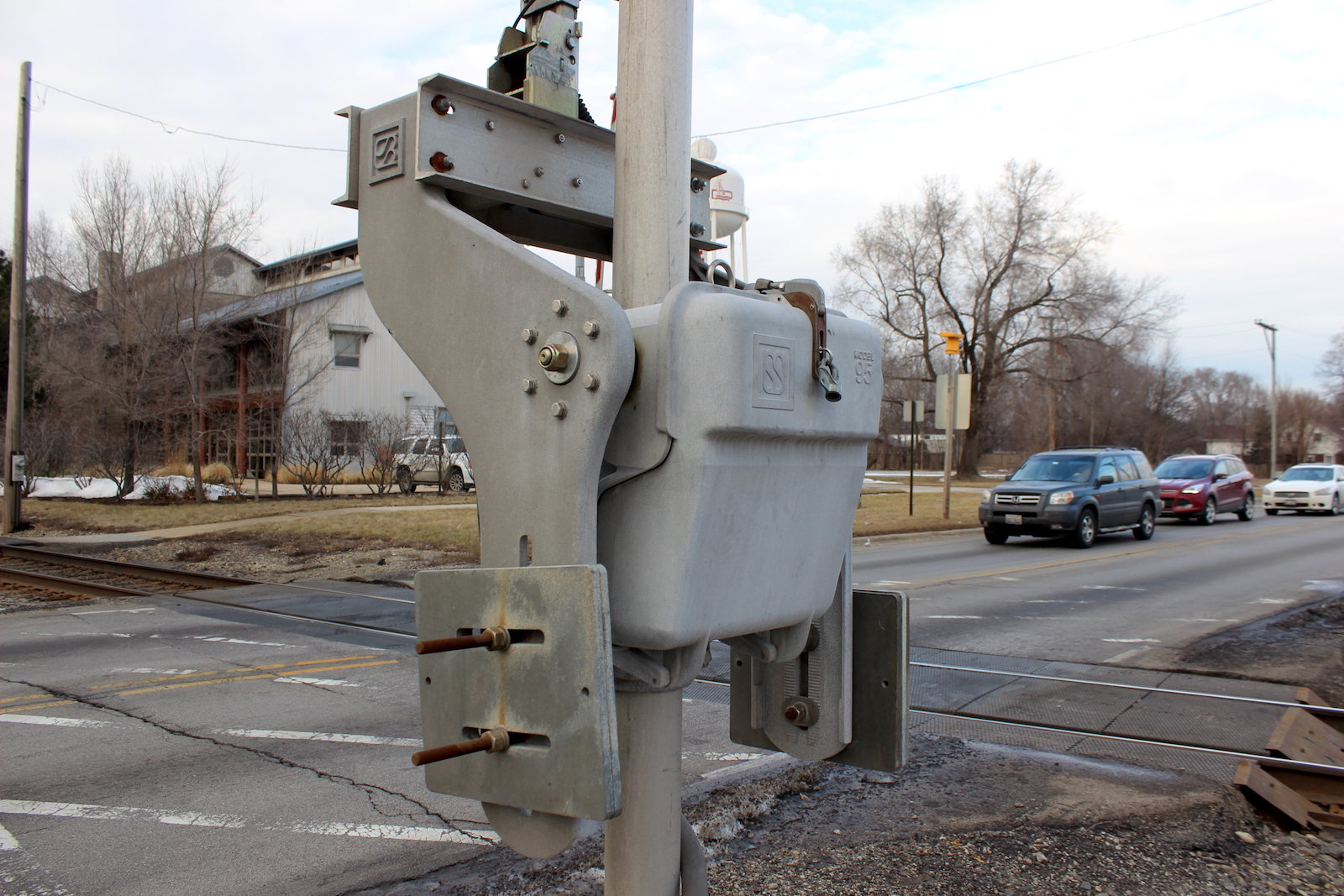

| Gate Mechanism: |
US&S Model 95 Style 3 w/ NEG 1 Way Saver |
US&S Model 95 Style 1 w/ NEG 1 Way Saver |
| Gate Striping: |
Vertical Striping |
Vertical Striping |
All pictures were taken on January 19, 2015, by Tommy McGowan.
This crossing is located on the CN Leithon Sub, formerly the EJ&E
Western Sub. UP and BNSF have trackage rights on this line as
well.
I don't know why CN installed a newer
signal on the west side. There used to be one like the eastern
signal on that side. I have a suspicion though. The 1
accident listed above was on 1/11/10 and that could've possibly knocked
down the old western signal, although there's nothing that says that
happened, so it might not've been it, but still; I can't think of any
other reason they would install a newer signal on that side.
The Safetran Type 3 on the eastern signal replaced a US&S E-Bell which replaced a GS E-Bell before that.
1
|
2
|

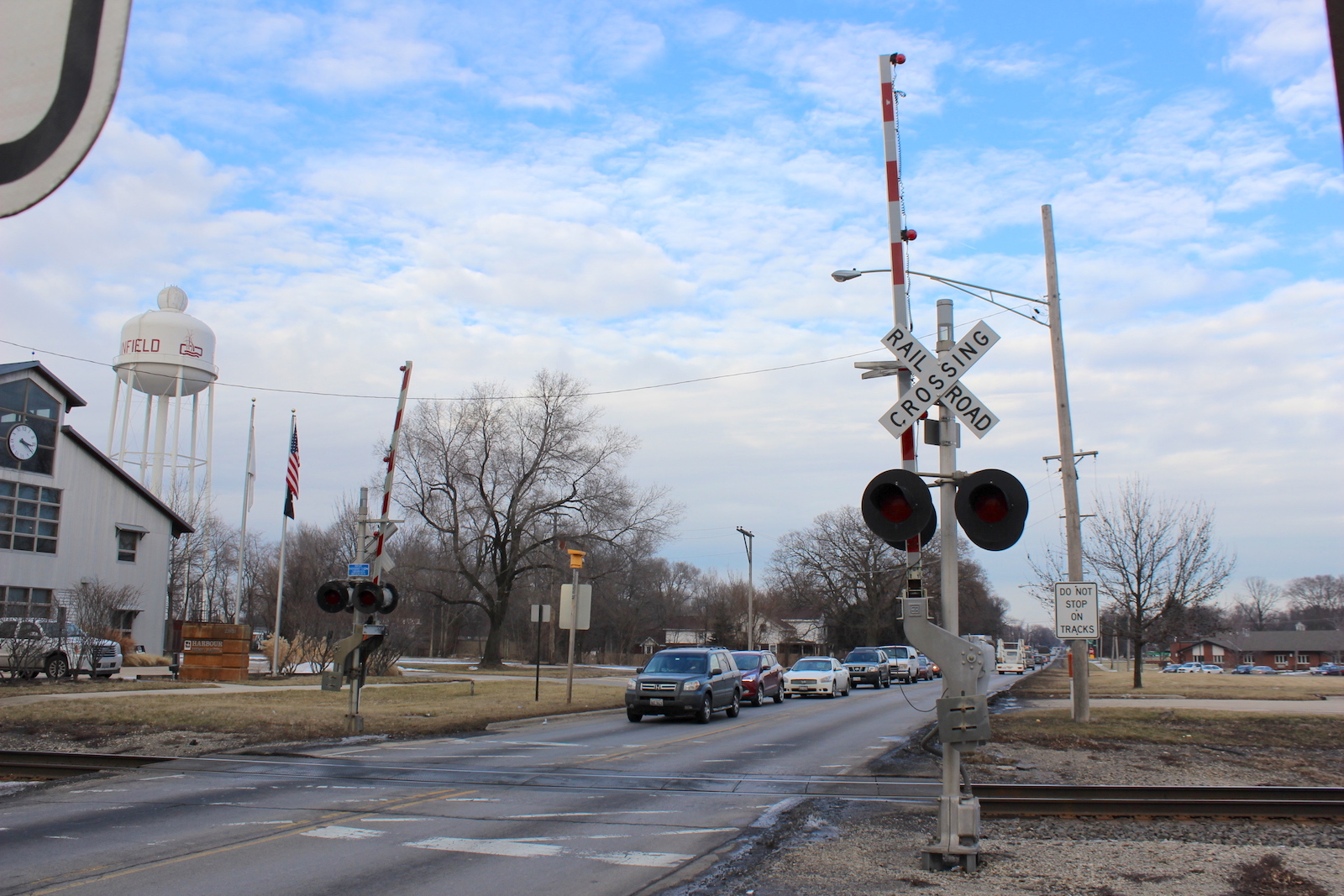

Overview of 2 differently aged but similar signals facing east.
|
Overview facing west.
|

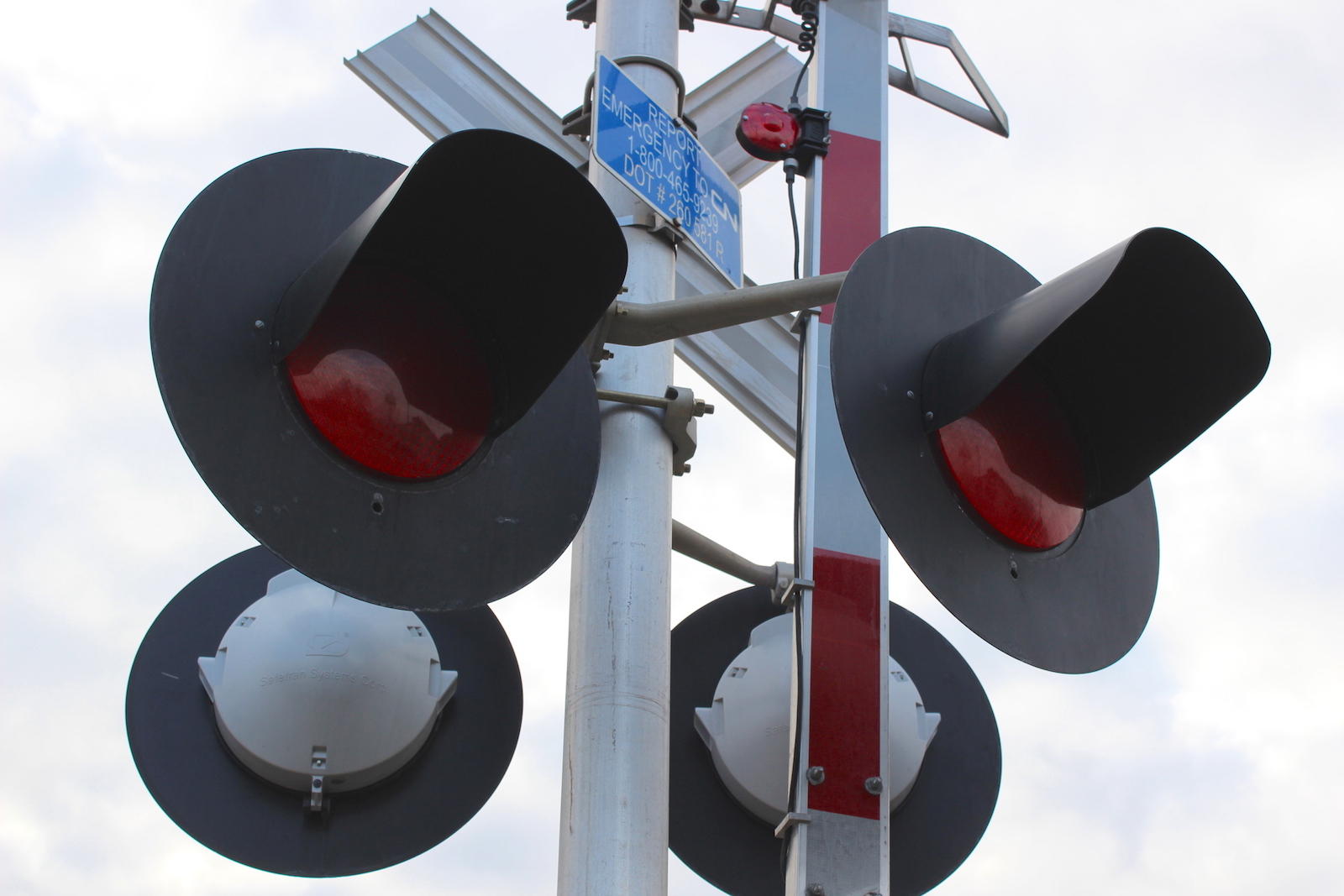

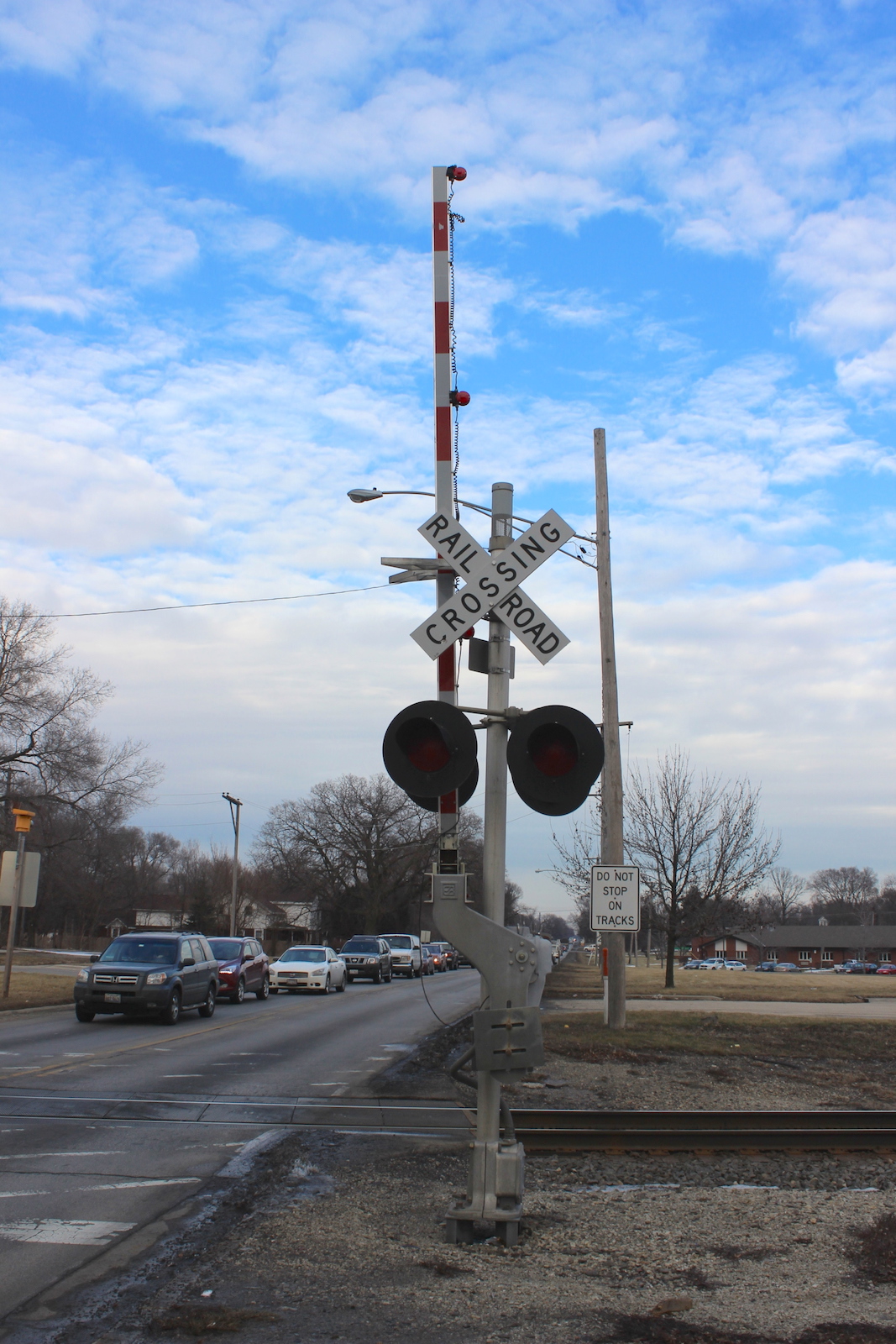

The western signal. This one is newer than the one on the east side.
|
18
|
19
|
20
|

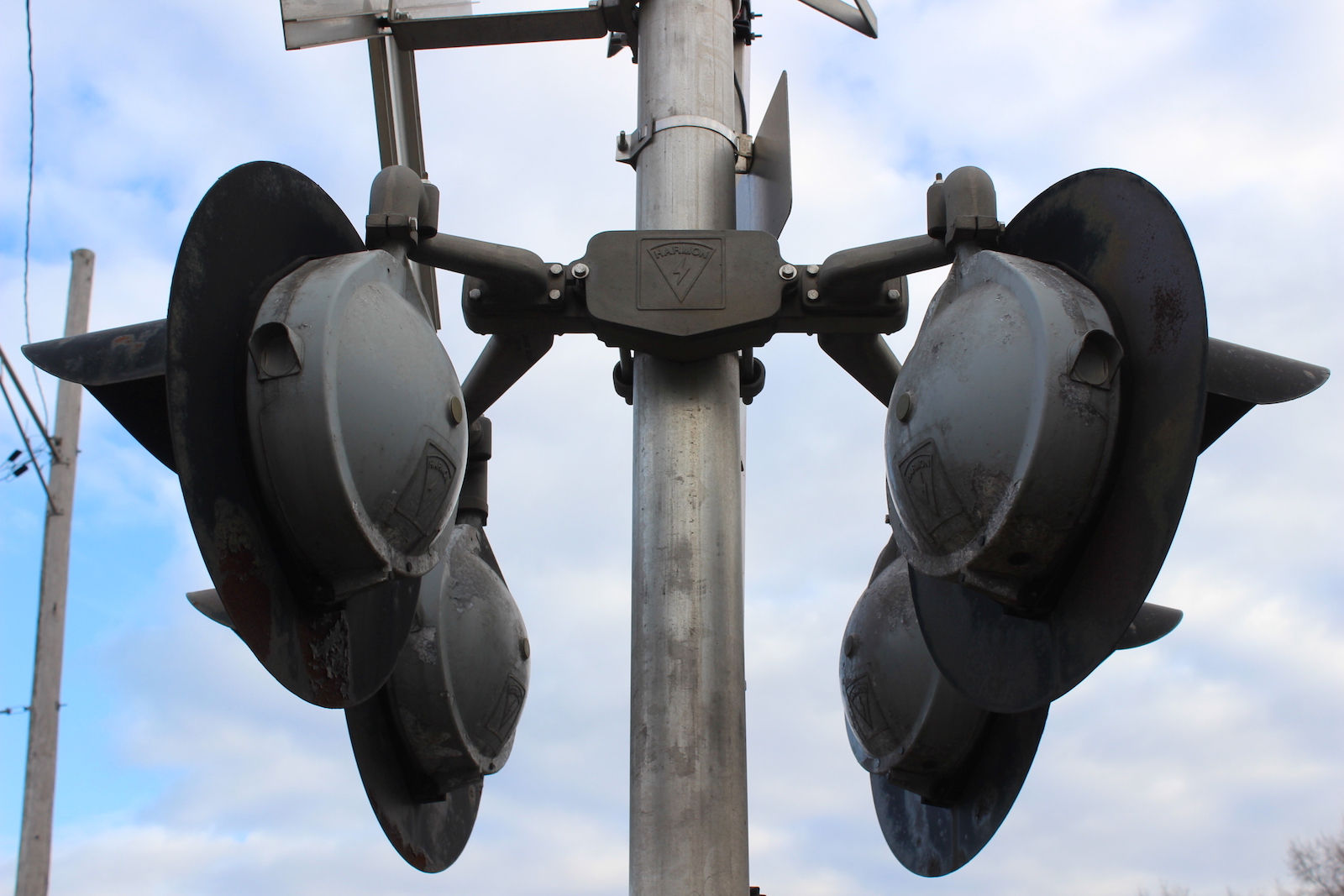

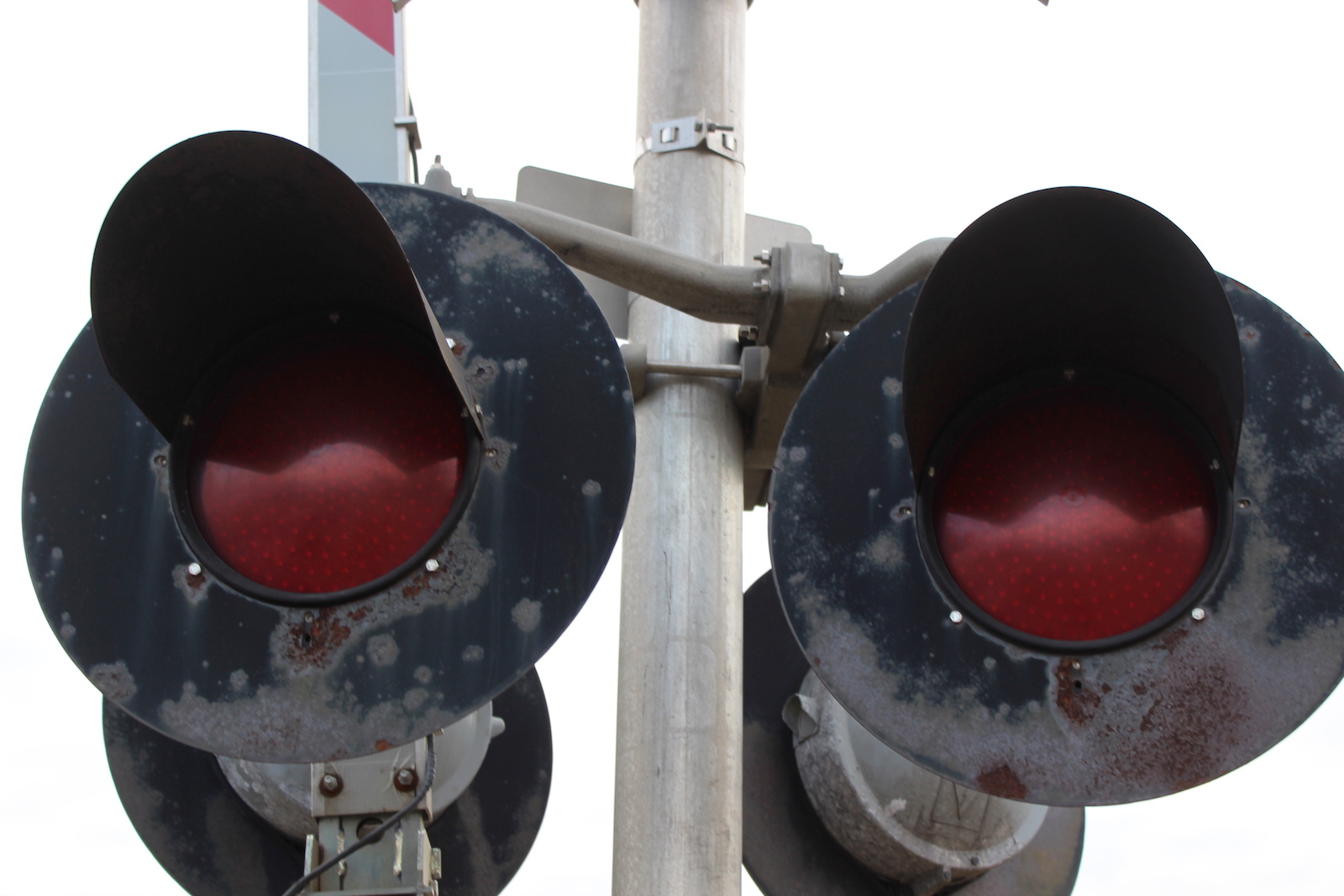

| The eastern signal. |
21
|
22
|
23
|
24
|
The relay bungalow in the northwest quadrant.
|

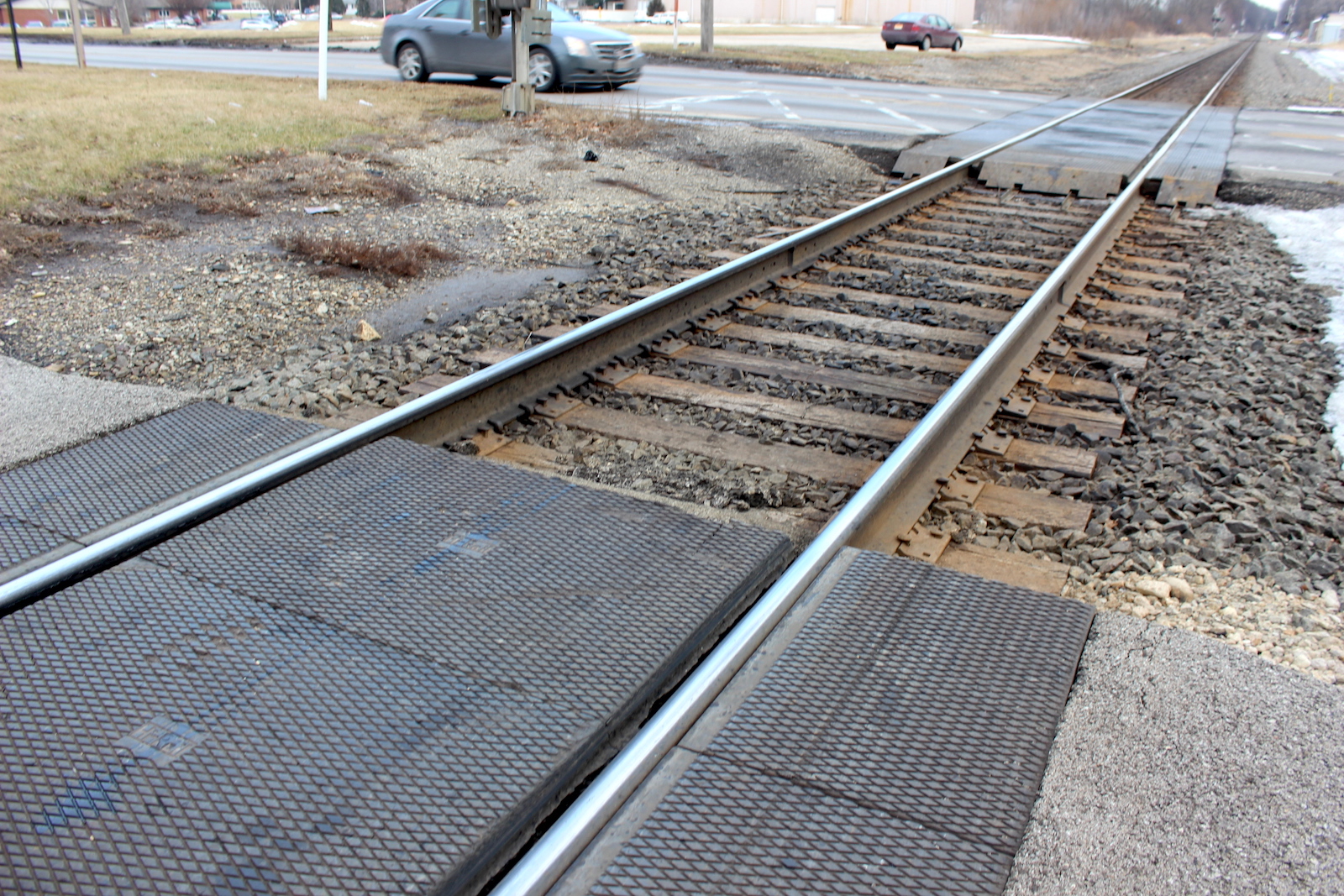

The grade is all rubber.
|
Track view facing south at Center St.
|
Track view facing north at Naperville Rd.
|
25
| 26
|
27
| 28
|

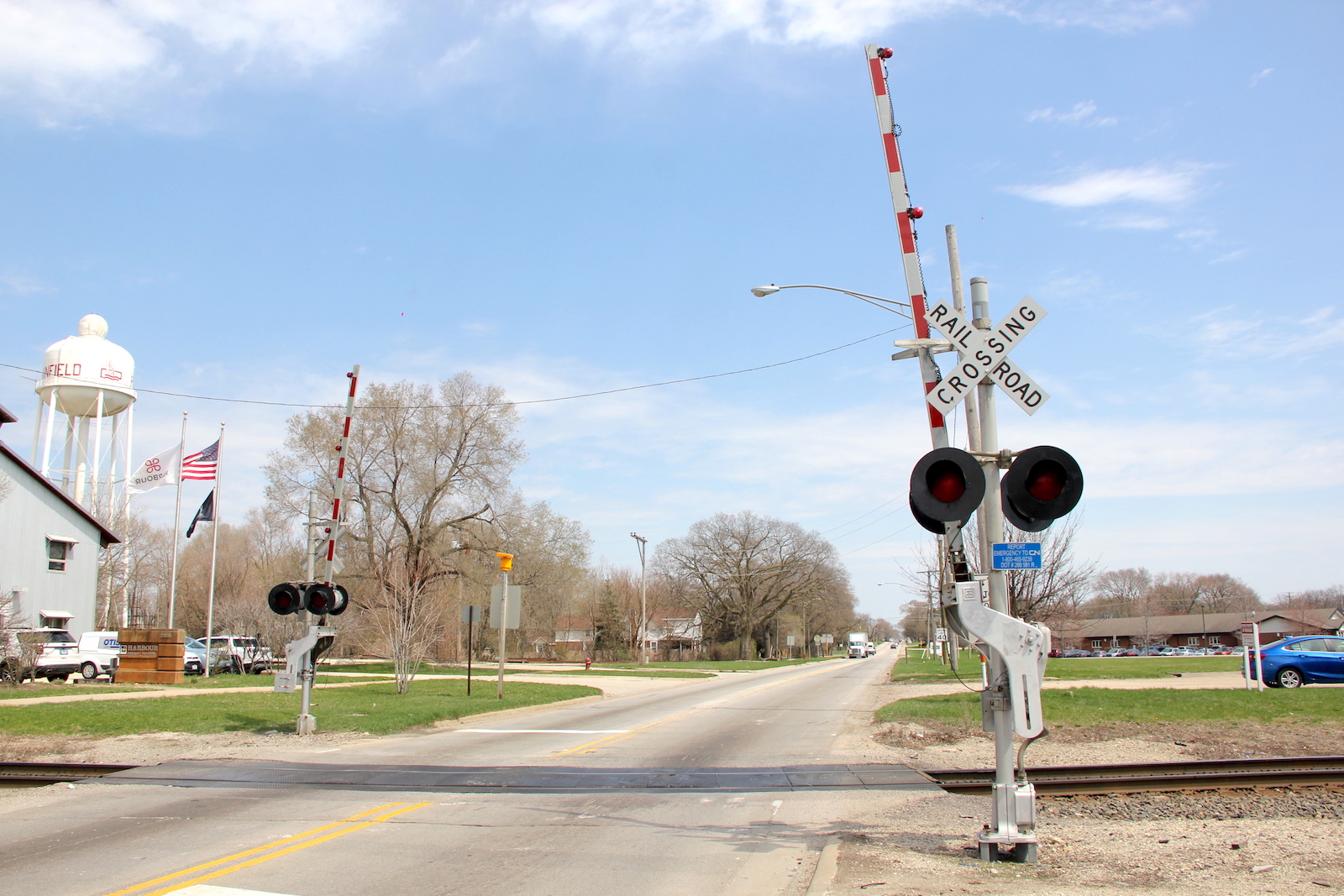

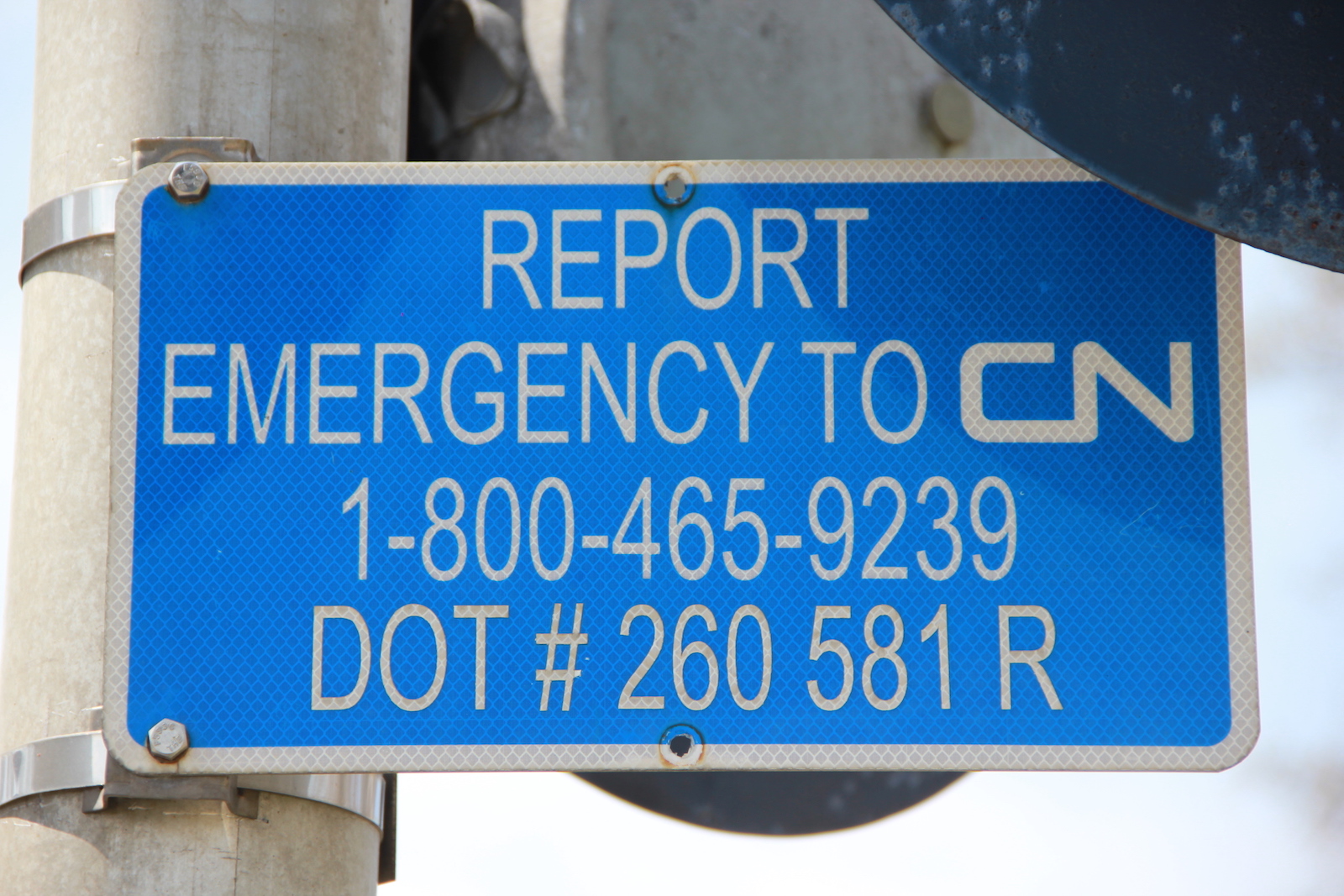

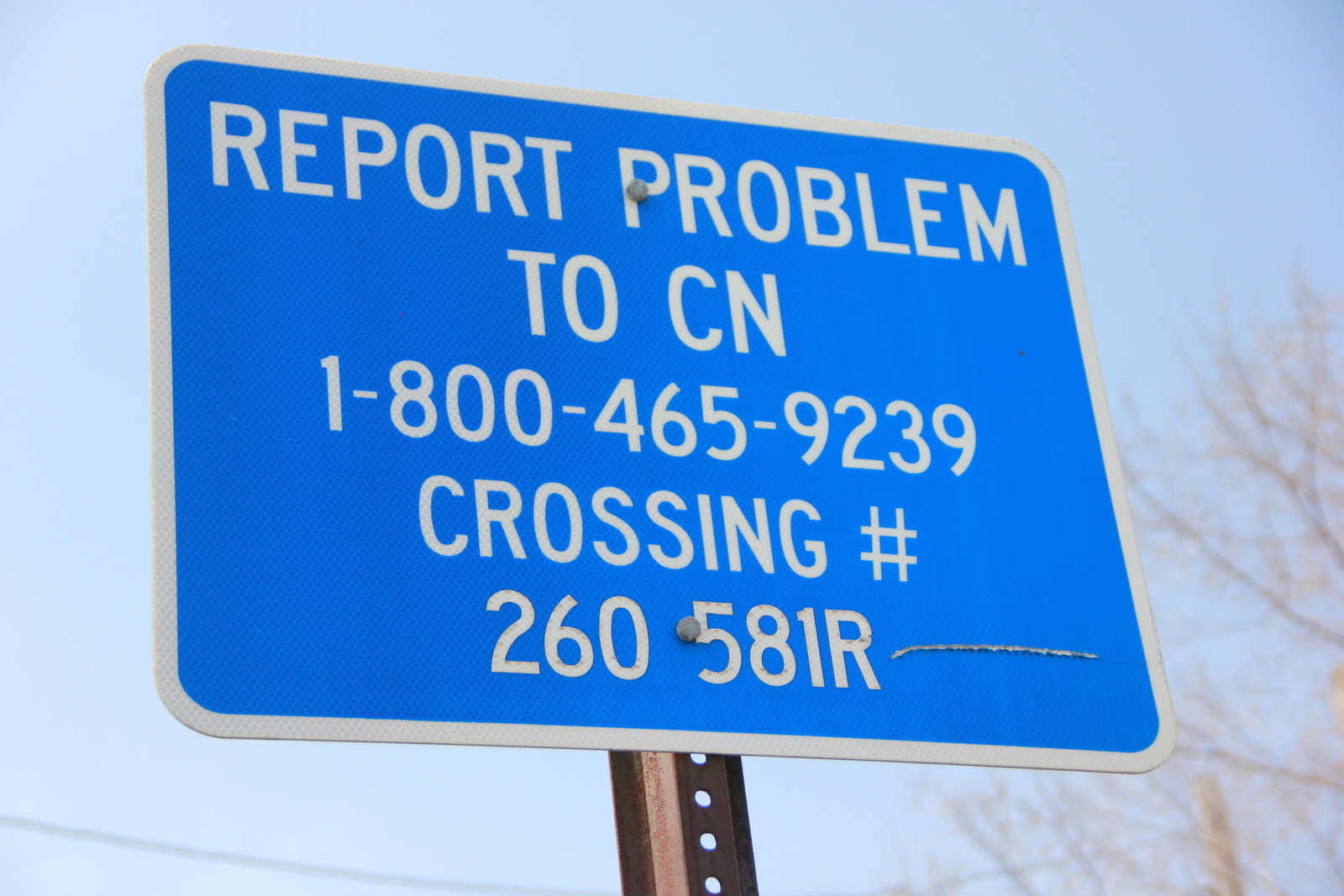

In April 2019, we see the DOT signs were turned to face forward, and the gate on the eastern signal was replaced.
|
