26.78


689682S

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: WCH E-Bell WCH E-Bell
Base: Siemens 5" Single Sided Siemens 5" Single Sided
Light Brackets: Safetran Safetran
Lights: 4 - 12"x24" Safetran w/ GE Uniform Look LEDs 4 - 12"x24" Safetran w/ GE Uniform Look LEDs
Gate Lights: 3 - NEG 4" LEDs 3 - NEG 4" LEDs
Gate Mechanism: Siemens S-80 w/ New NEG 2 Way Saver Siemens S-80 w/ New NEG 2 Way Saver
Gate Striping: Vertical Striping Vertical Striping


>>>>>>>>>>>>>> Northern Pedestrian Signal Southern Pedestrian Signal
Bell: WCH E-Bell WCH E-Bell

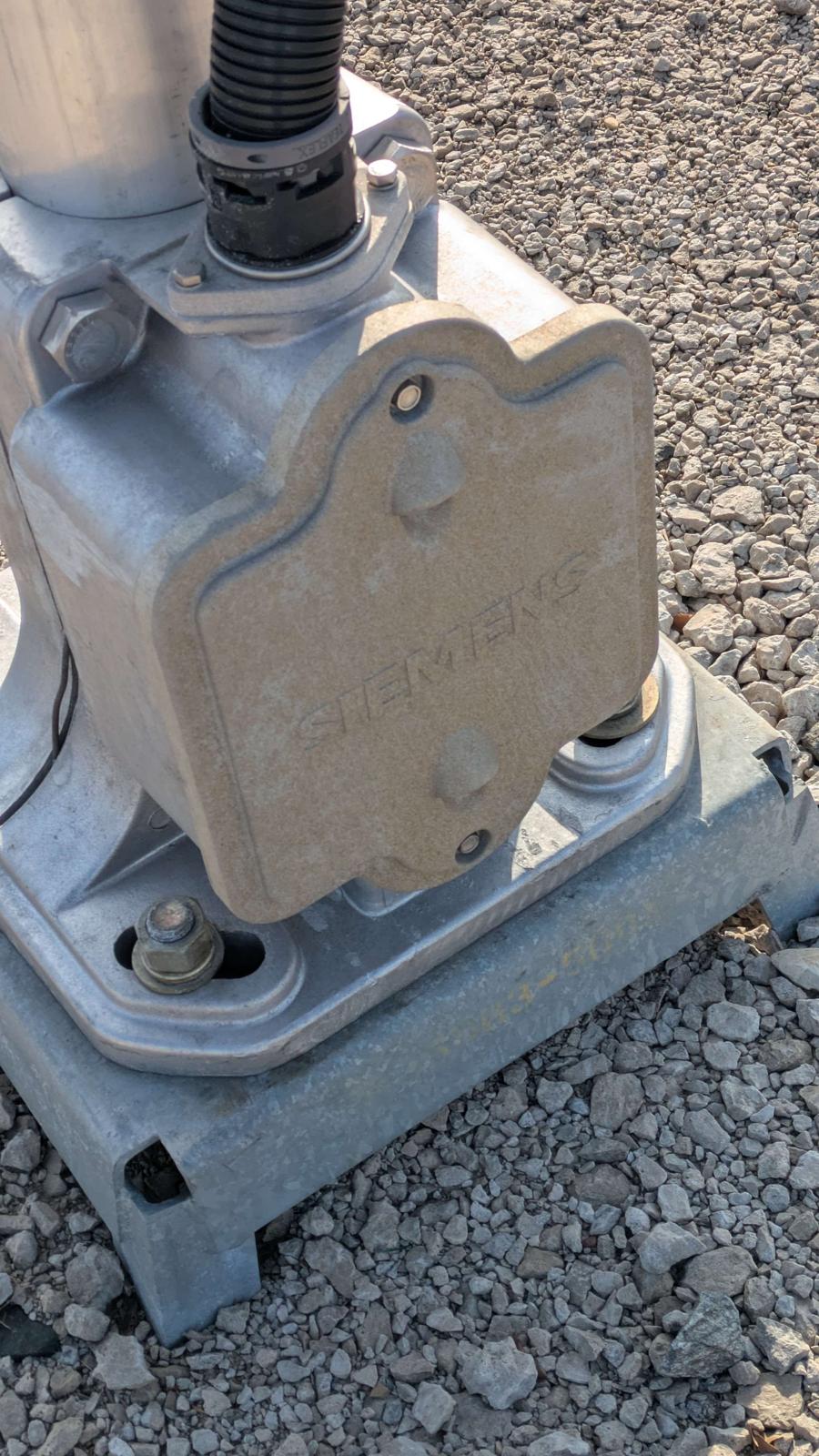

Base: Siemens 5" Single Sided Siemens 5" Single Sided

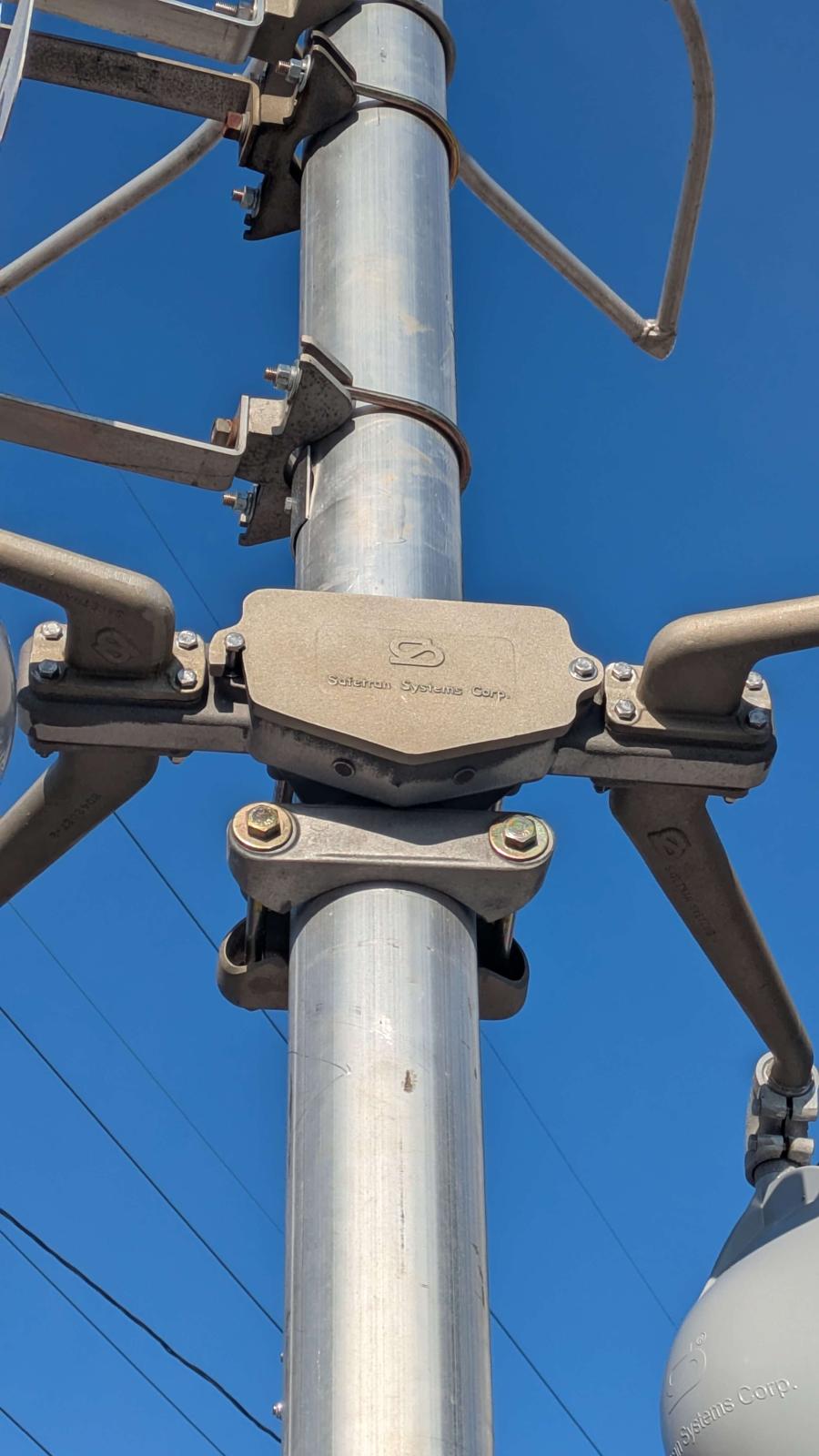

Light Brackets: Safetran Safetran
Lights: 4 - 12"x24" Safetran w/ GE Uniform Look LEDs 4 - 12"x24" Safetran w/ GE Uniform Look LEDs
Gate Lights: 1 - NEG 4" LEDs 1 - NEG 4" LEDs
Gate Mechanism: Siemens S-80 Siemens S-80
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-52 and the video were taken on January 5, 2026, by Rus.
This crossing is located on the CN Waukesha Sub or Metra North Central Service.
Page created by Rus (using HopenRXRTools 1.3.0).

SV1 SV2
Street view from October 2019 shows 2 older gated signals. By June 2025, these were replaced with the current signals.
1
 2
Overview of the new signals facing north.Overview facing south.
3 4 5
6 7 8
9 10 11 12

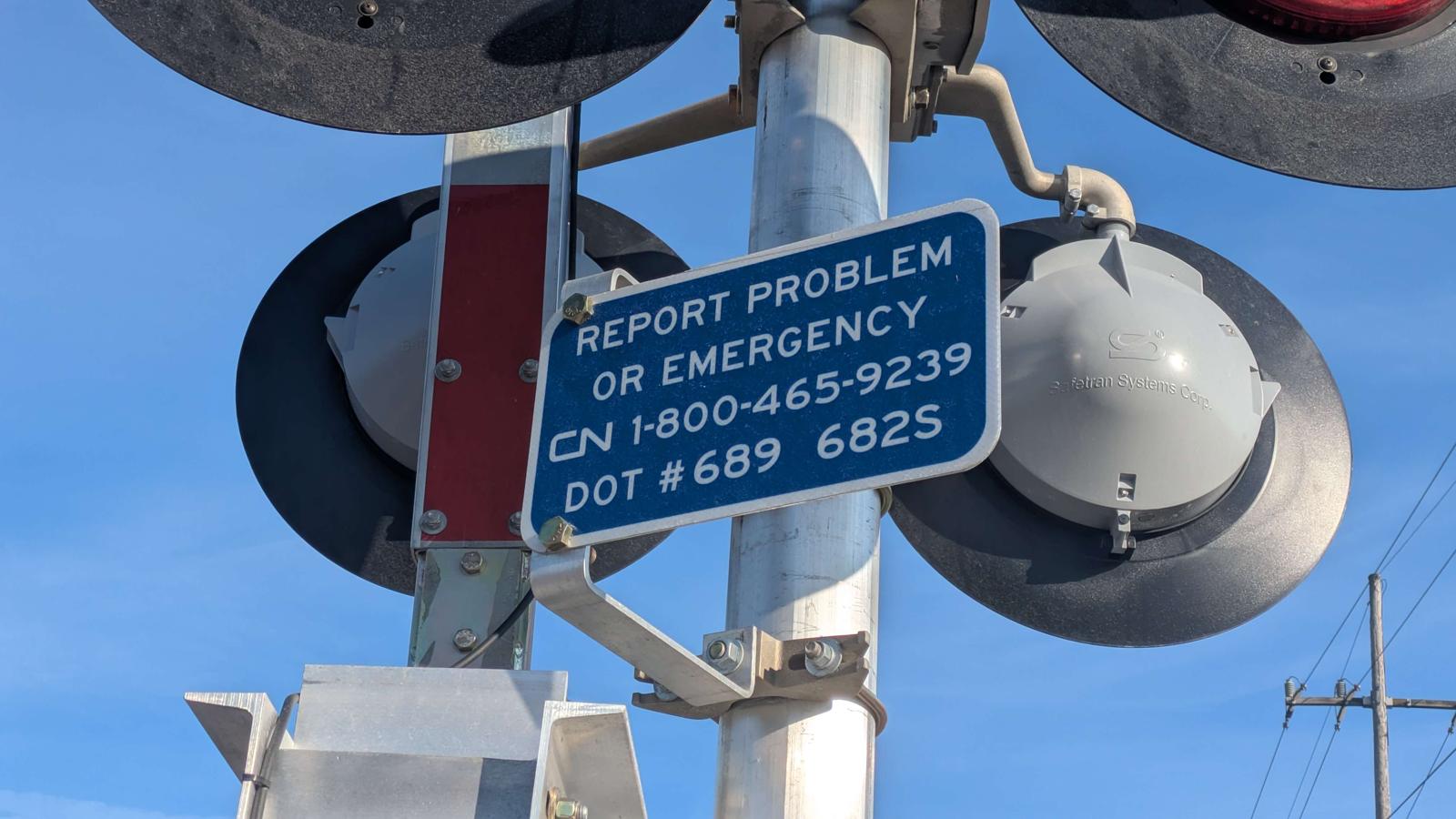

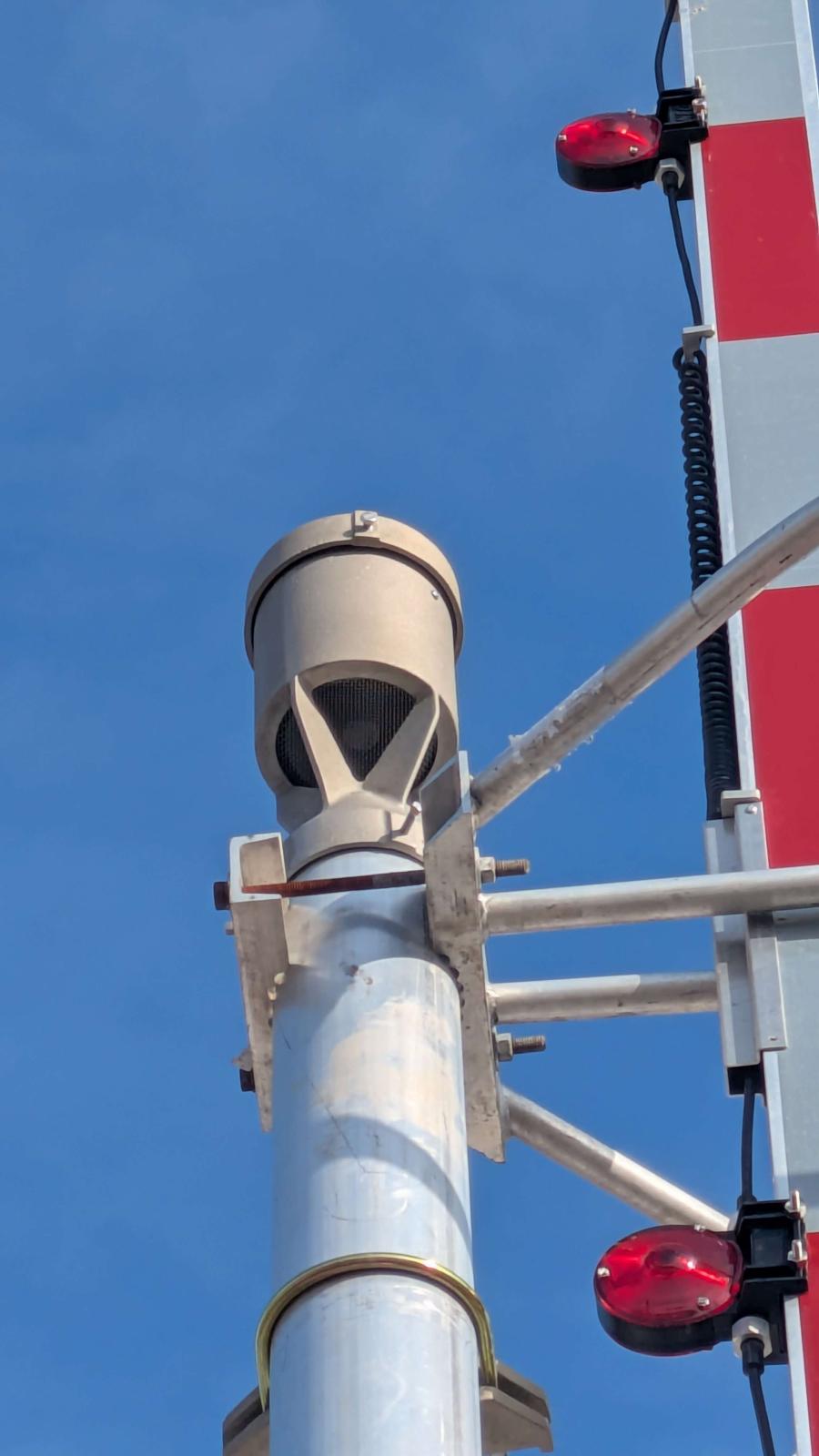

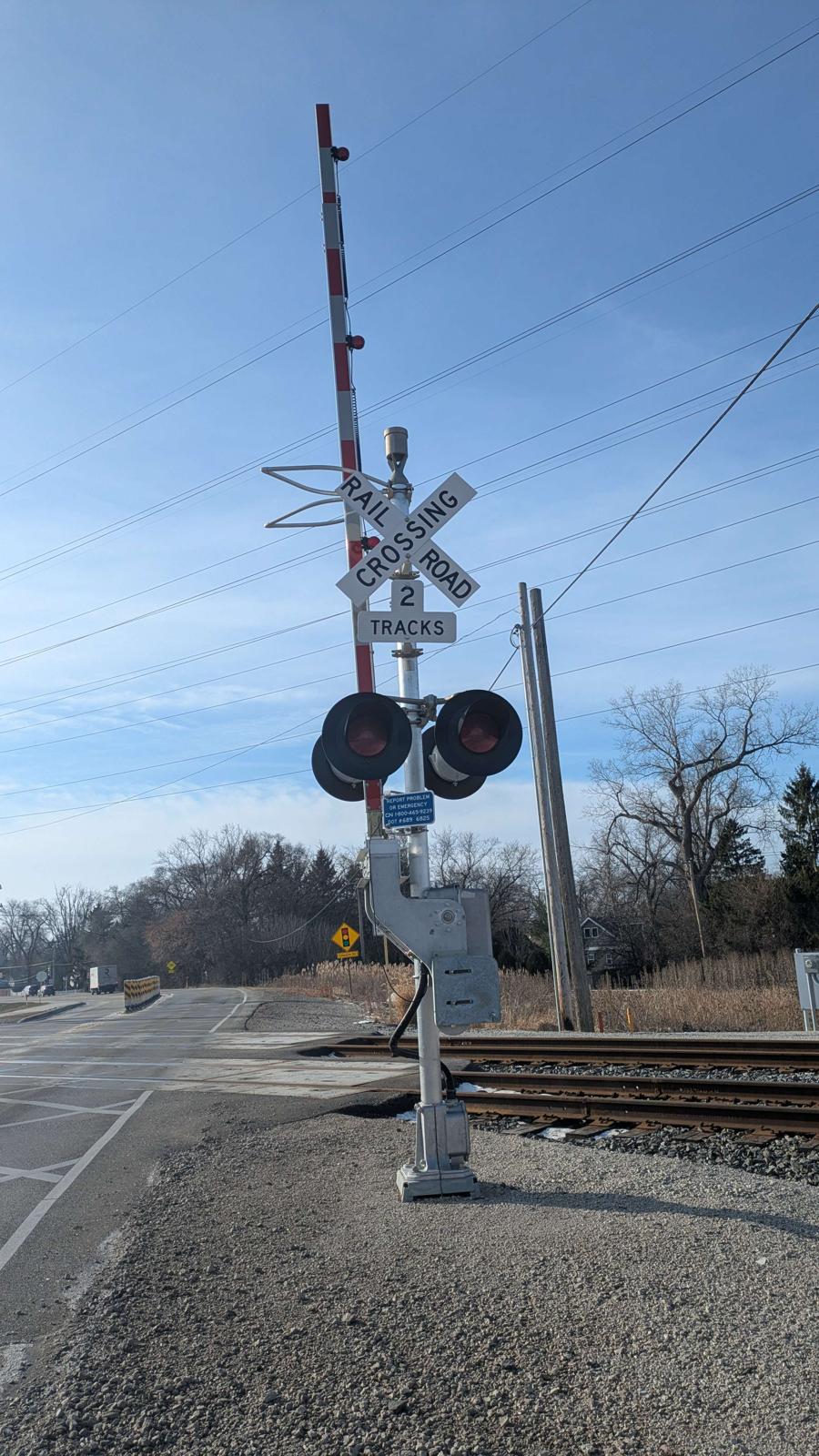

The northern signal.
13 14 15
16 17 18
19 20 21 22

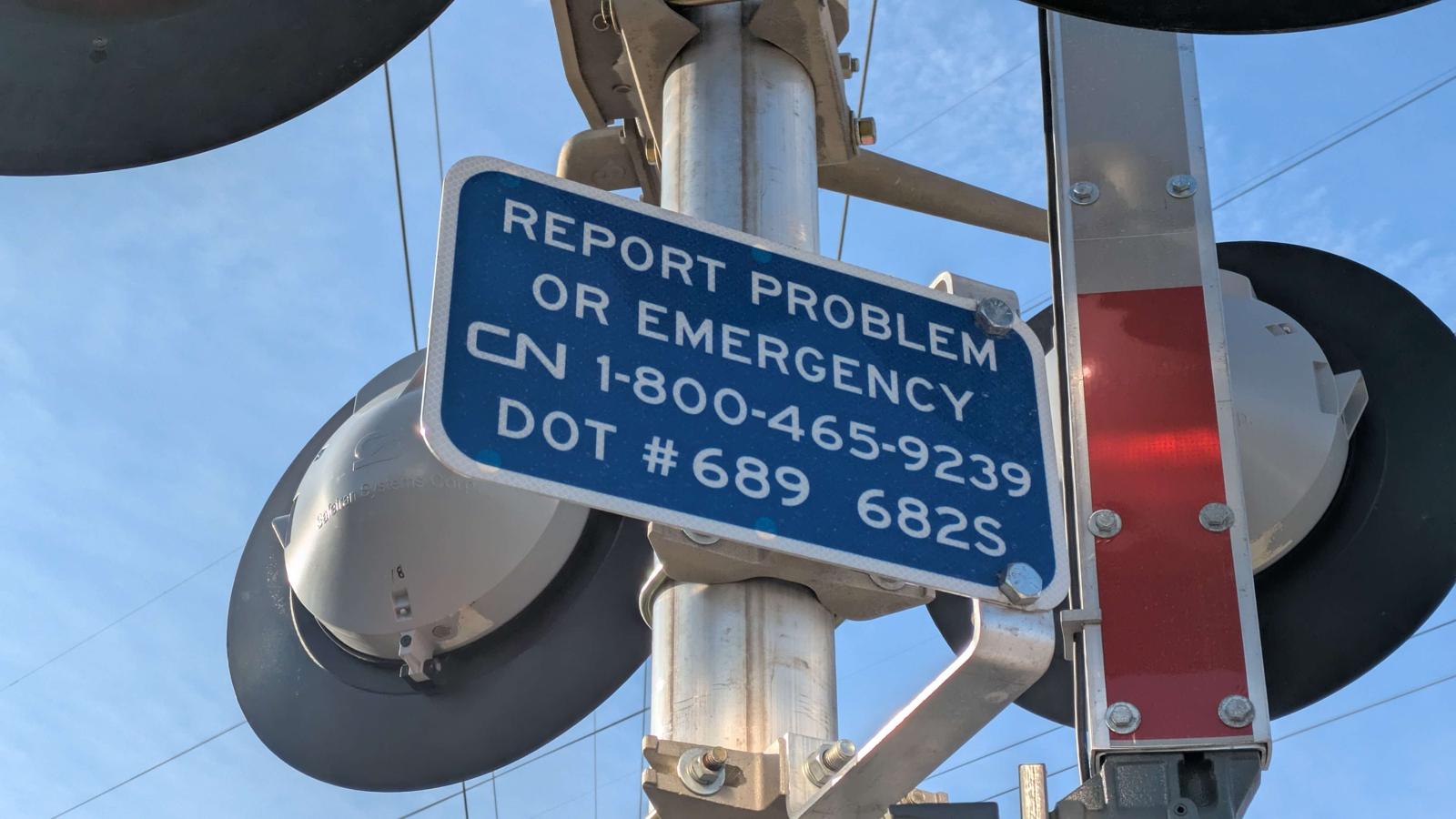

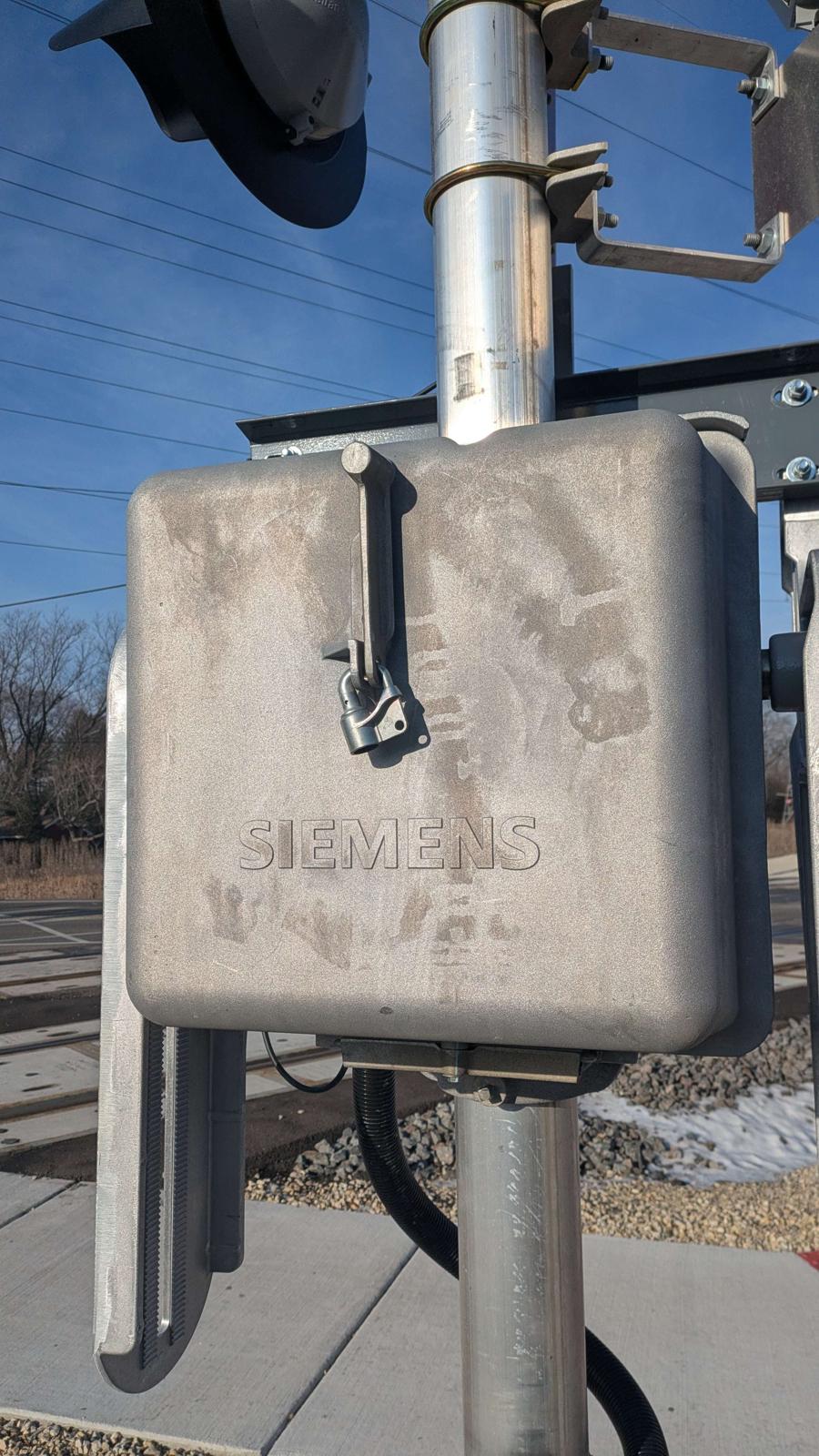

The southern signal.
23 24 25
26 27 28
29 30 31 32

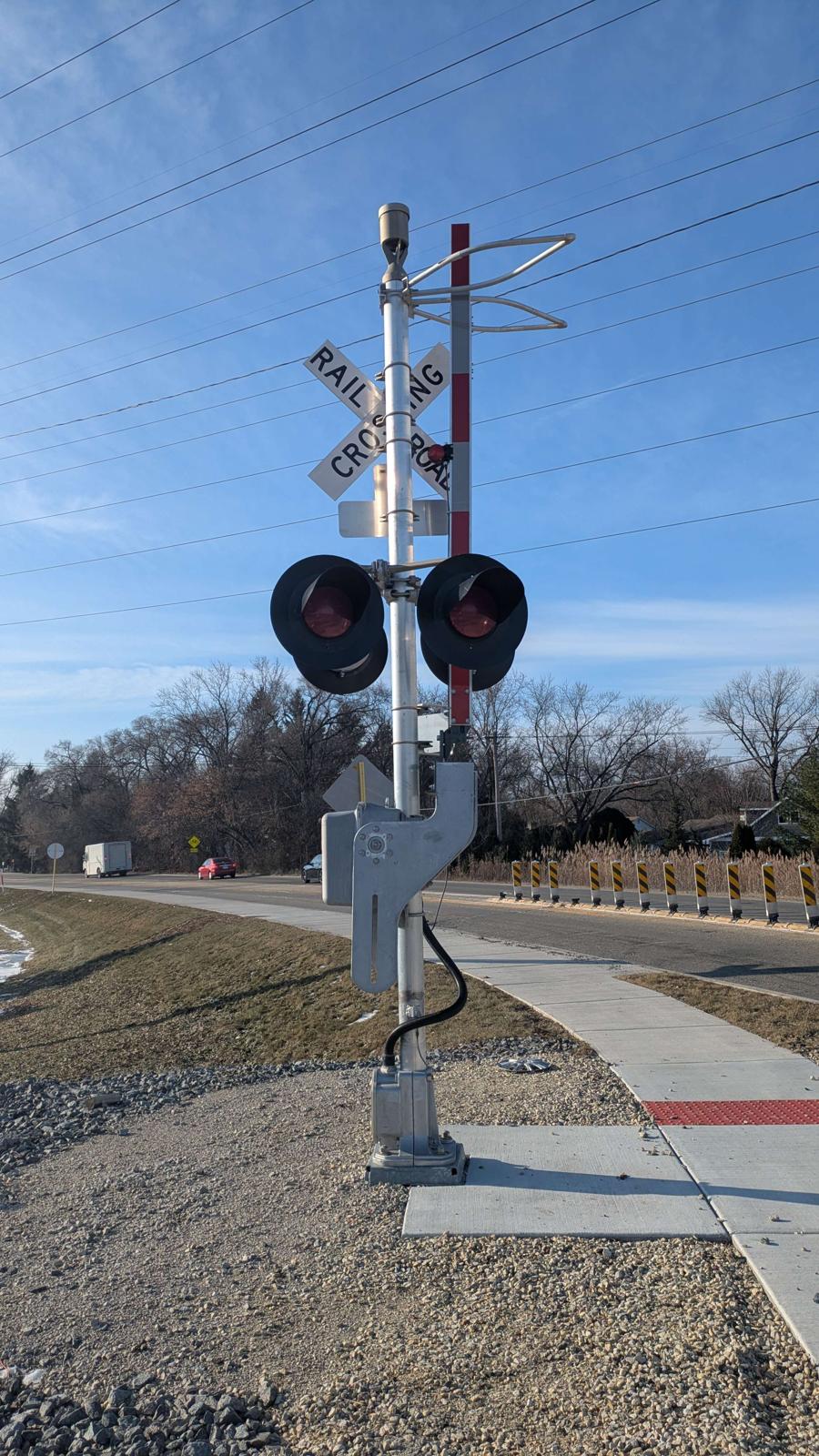

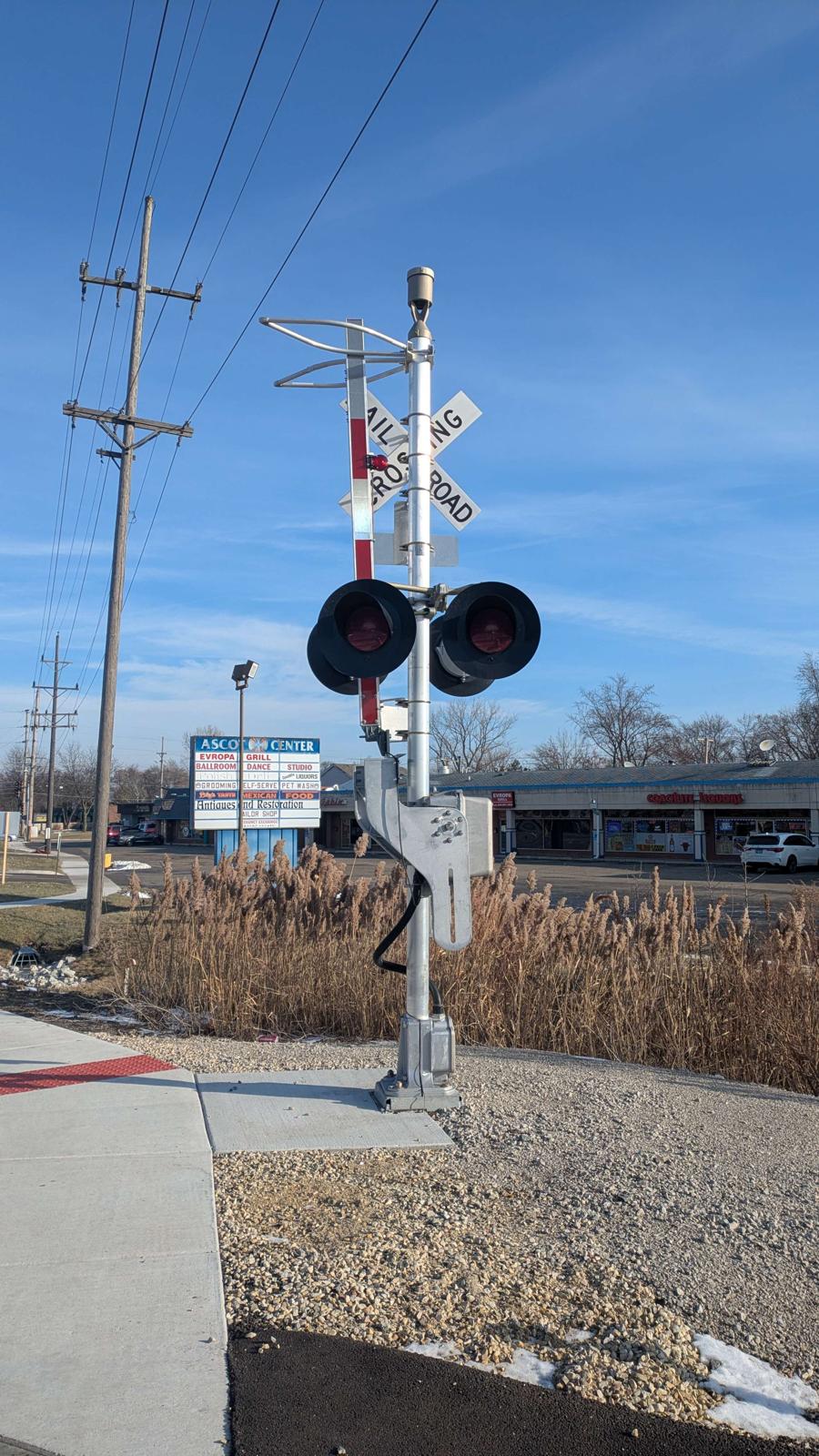

The northern pedestrian signal.
33 34 35
36 37 38
39 40 41 42

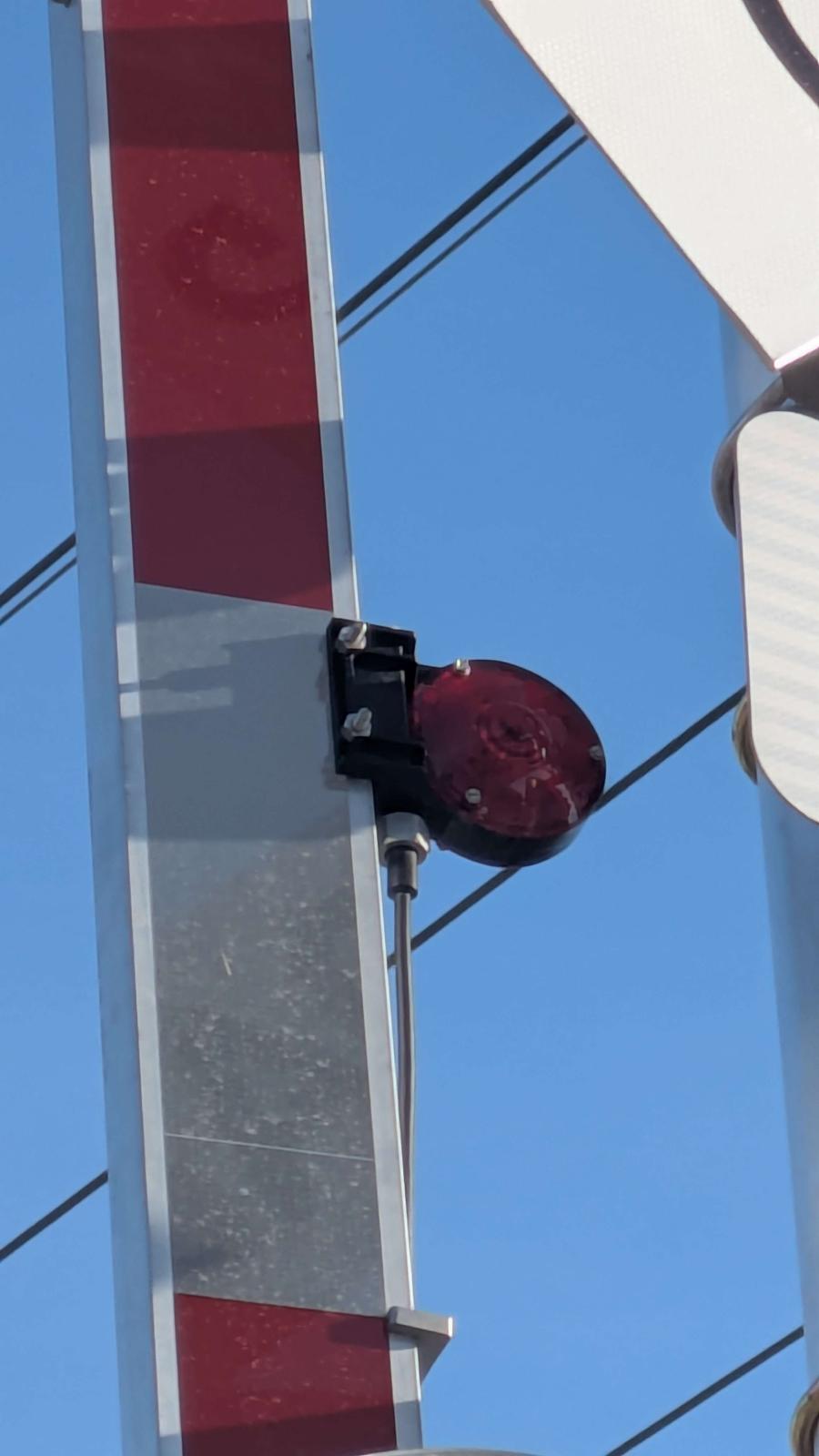

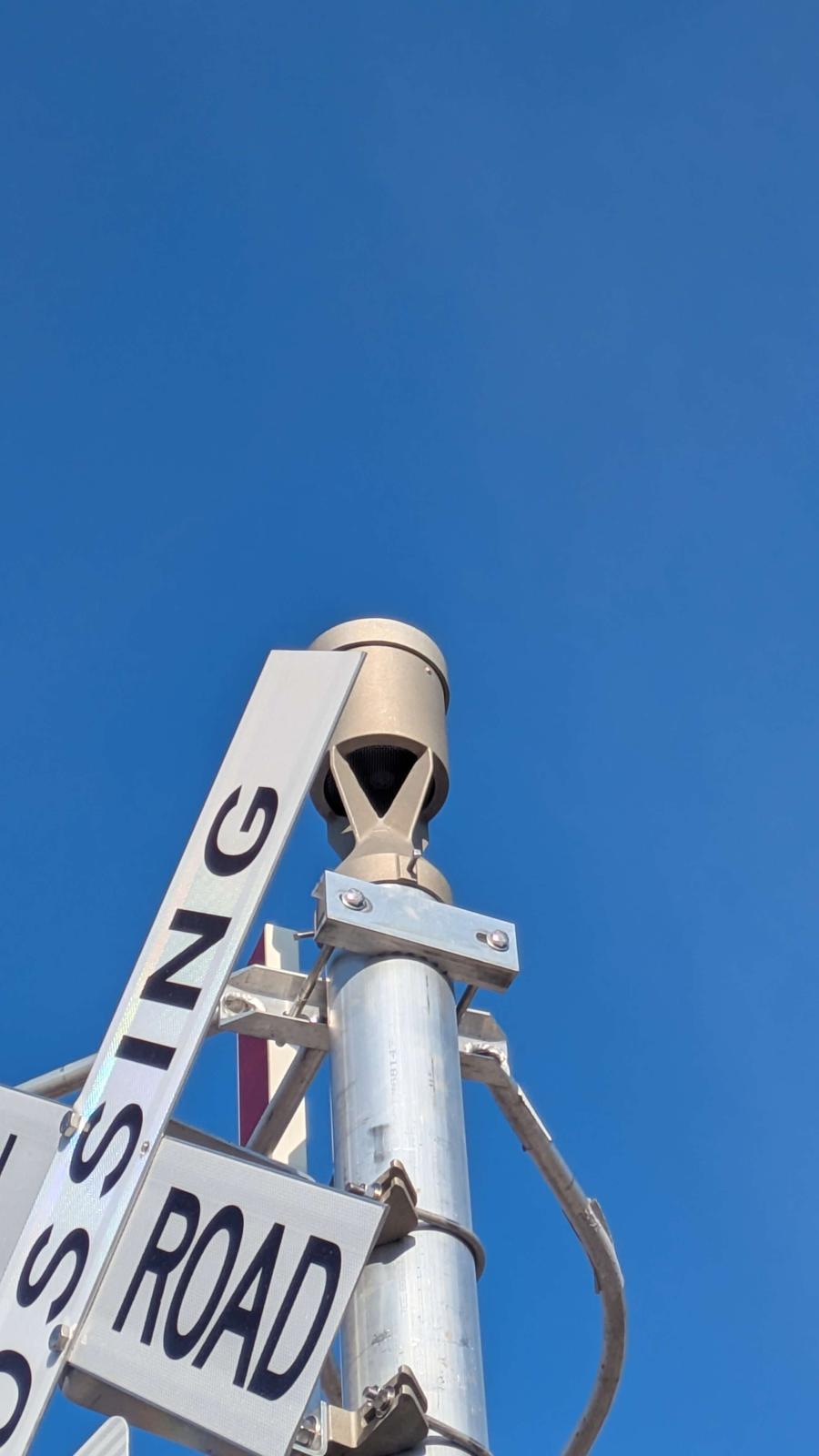

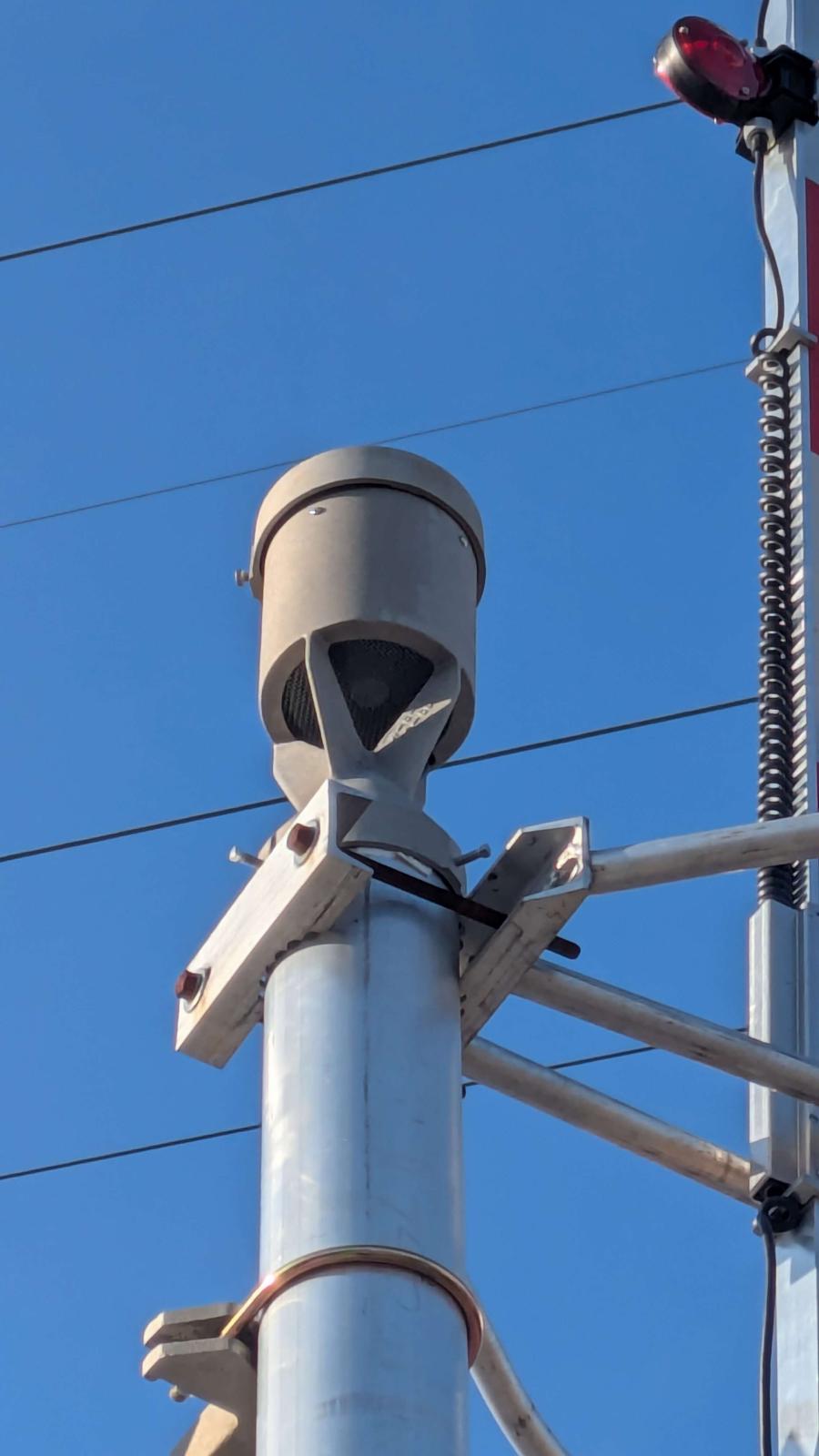

The southern pedestrian signal. All 4 signals have almost the exact same stuff, including the fast WCH E-Bells; although, I'm not sure if each bell is actually fast or they're just alternating so it sounds fast-paced.
43
 44
 45
 46

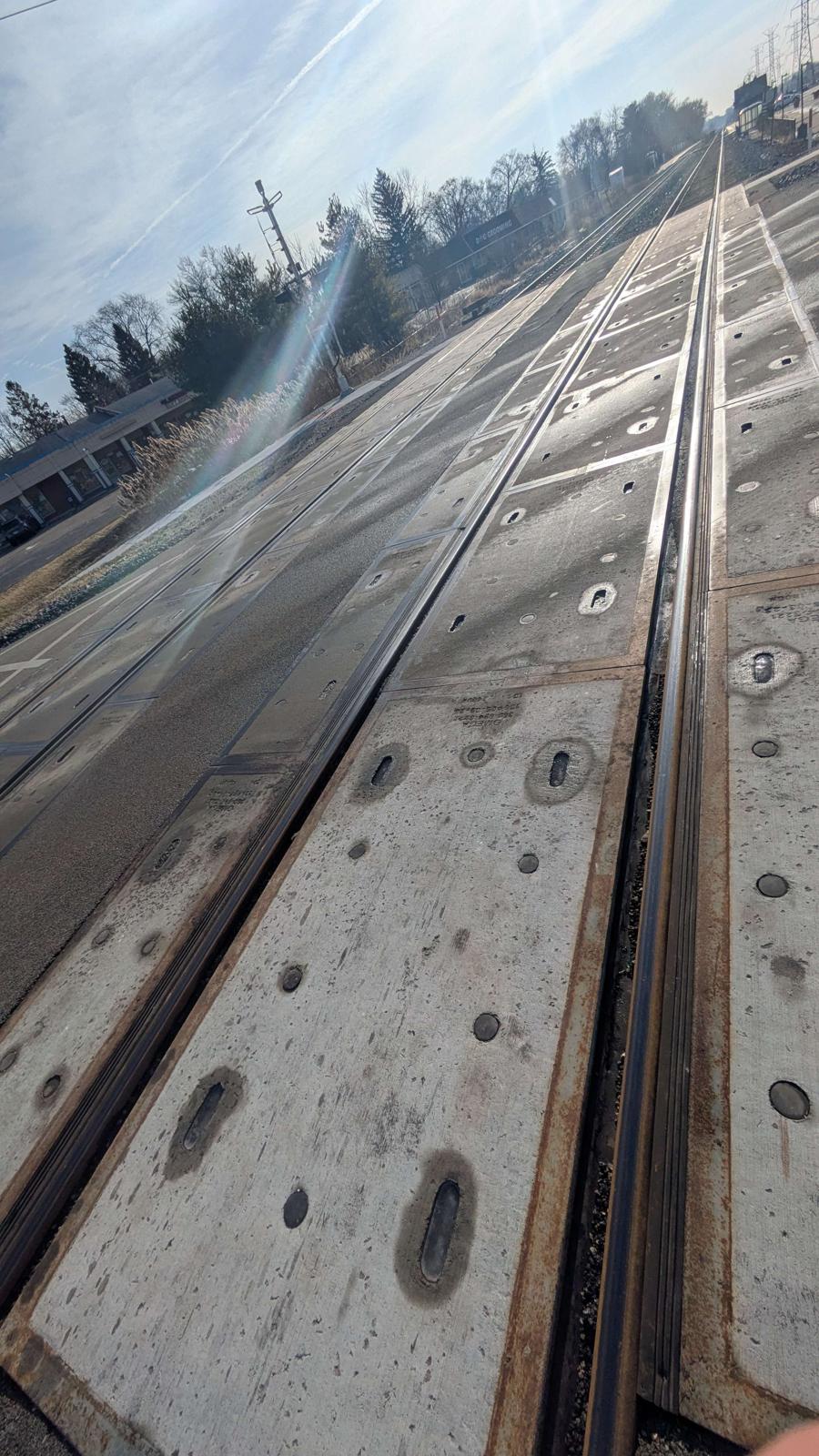

The relay bungalow in the northwest quadrant.The grade is all concrete.Track view facing north towards Camp McDonald Rd.Track view facing south towards Prospect Heights Station.
47
A flasher to warn motorists to avoid stopping on the tracks.
48 49
50 51 52

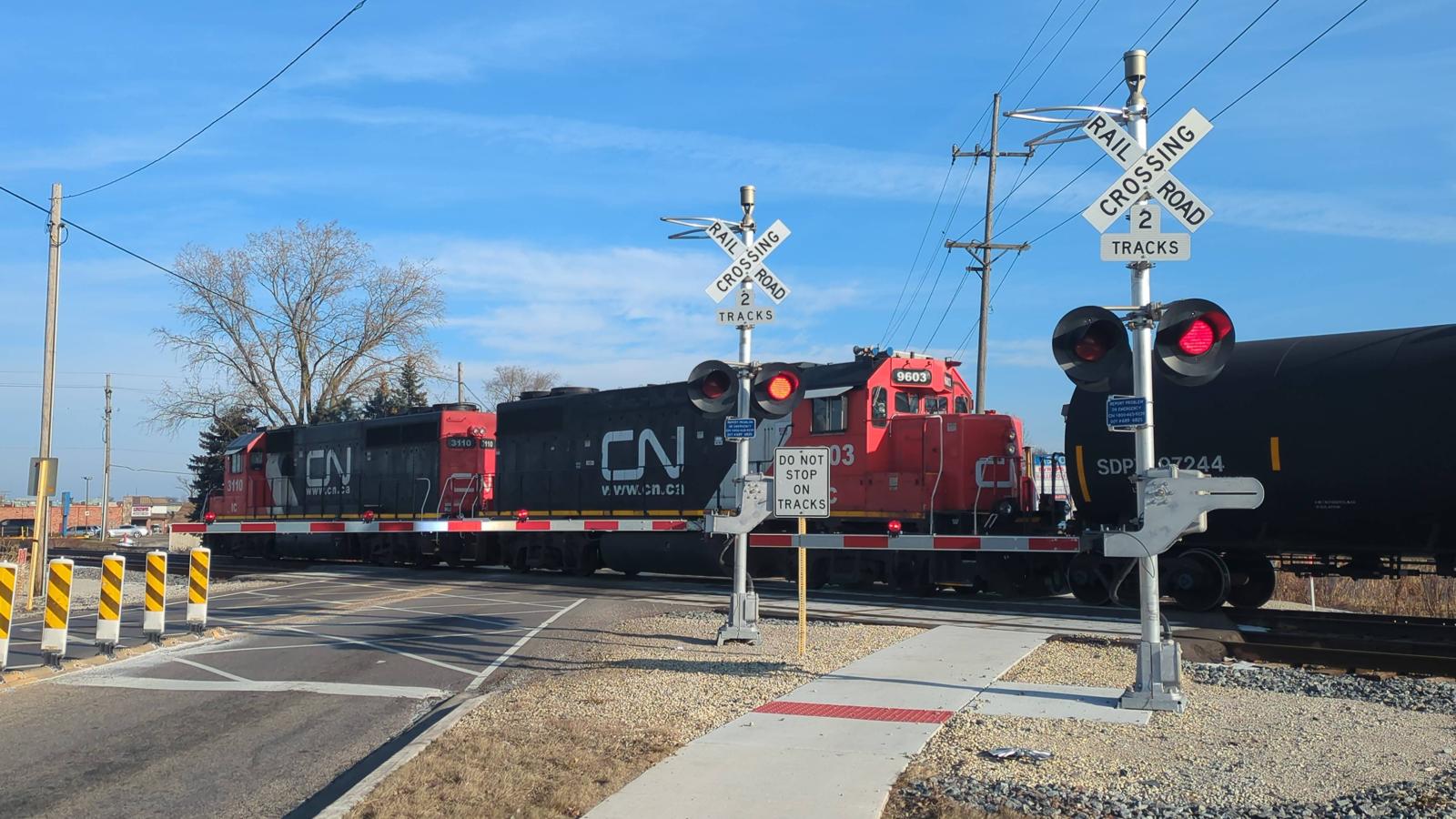

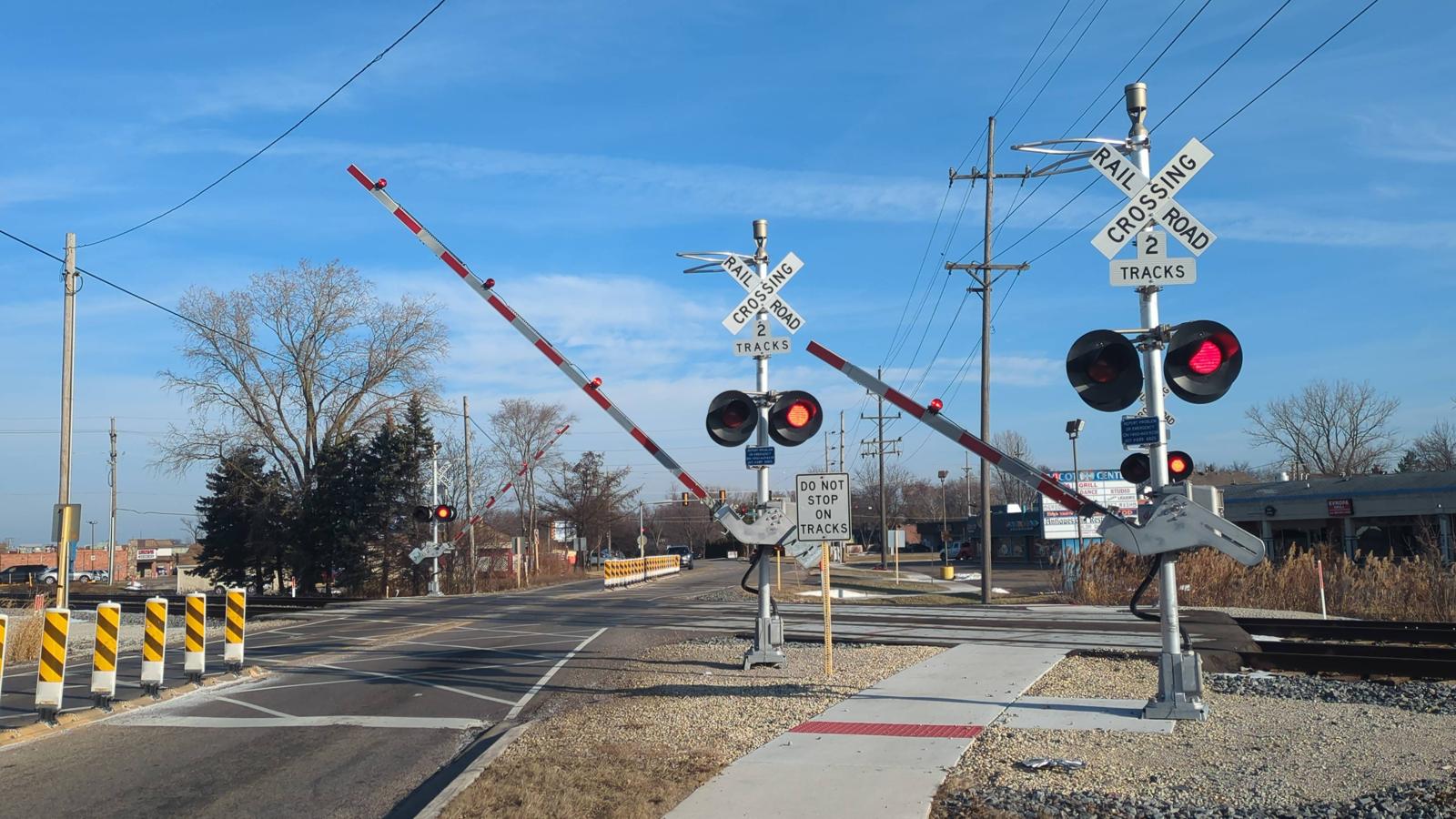

Action shots from the video below.
