100.64


167206N

>>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: NEG E-Bell NEG E-Bell
Base: Safetran 5" Single Sided > Safetran 5" Single Sided >
Lights: 4 - 12"x24" Safetran w/ 2nd Gen WCH LEDs 4 - 12"x24" Safetran w/ 2nd Gen WCH LEDs
Junction Box: Safetran Safetran
Gate Lights: NEG Clear LEDs NEG Clear LEDs
Gate Mechanism: Invensys Rail w/ Old NEG 2 Way Saver Invensys Rail w/ Old NEG 2 Way Saver
Gate Striping: Vertical Striping Vertical Striping

All pictures were taken on February 22, 2020, by Tommy McGowan.
This crossing is located on the UP Villa Grove Sub.

These signals were installed in the early 2010s replacing crossbucks.

1 2

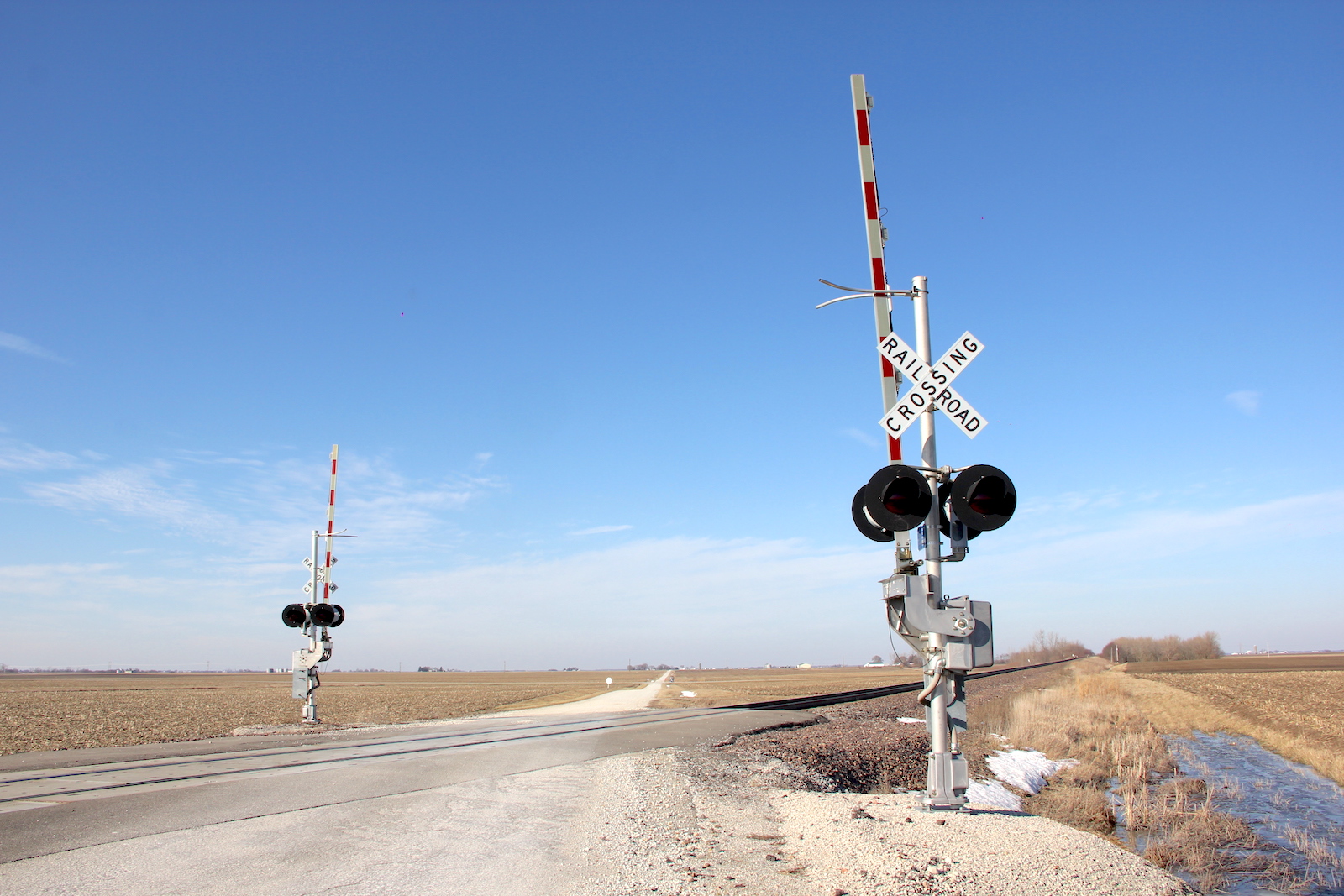

Overview of 2 early 2010s gated signals facing south.

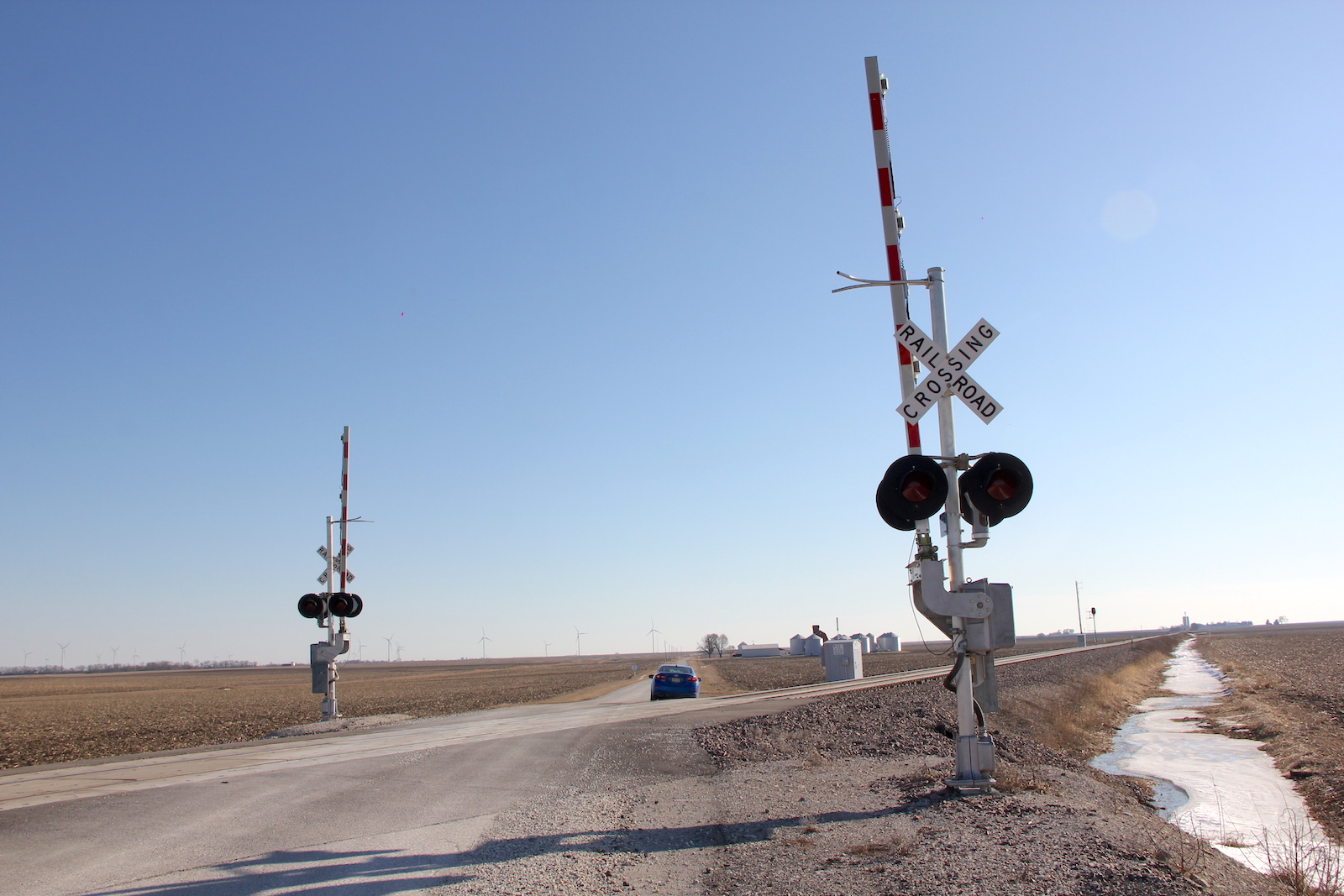

 Overview facing north.
3 4 5
6 7 8
9 10 11 12

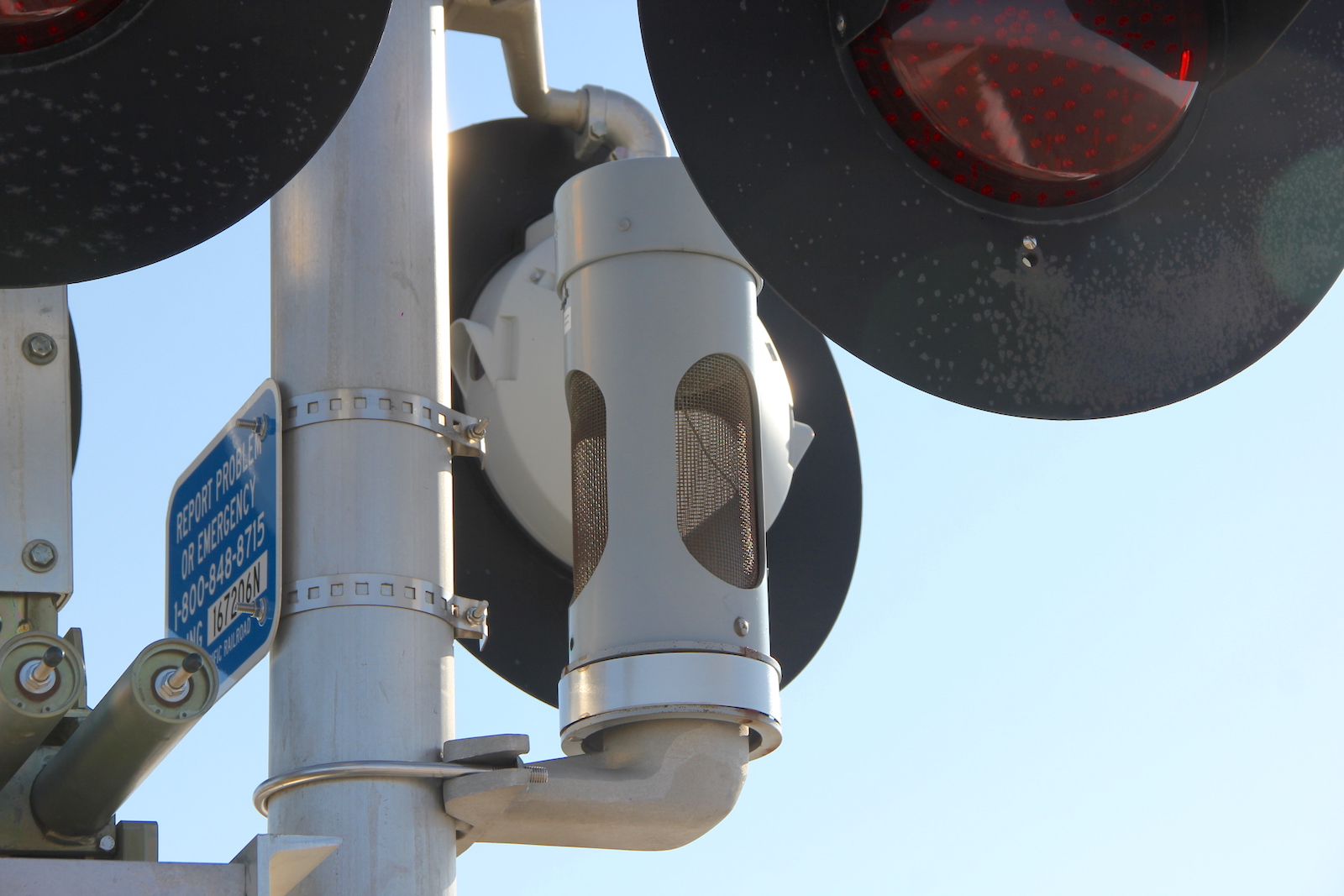

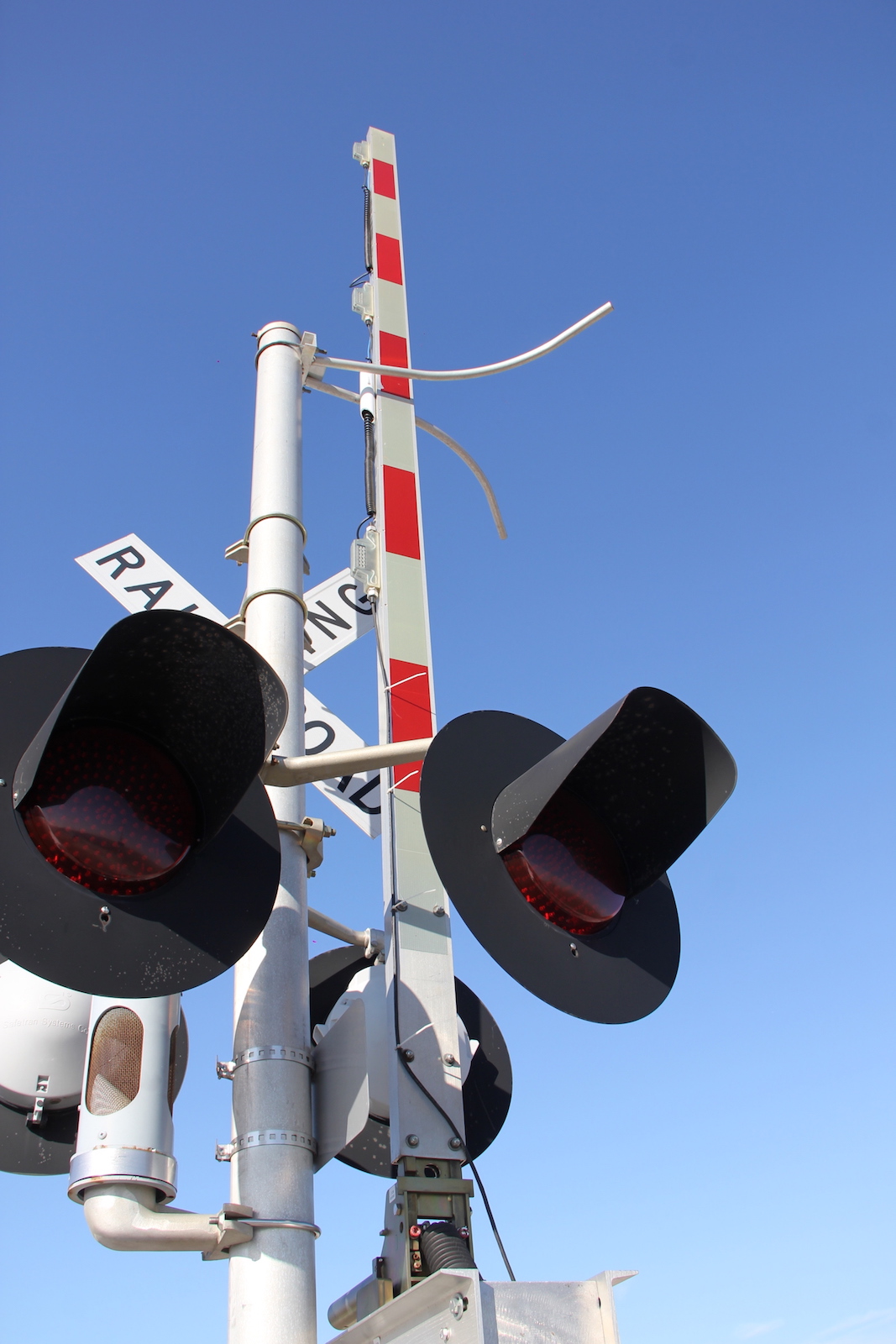

The northern signal.
13 14 15
16 17 18
19 20 21 22

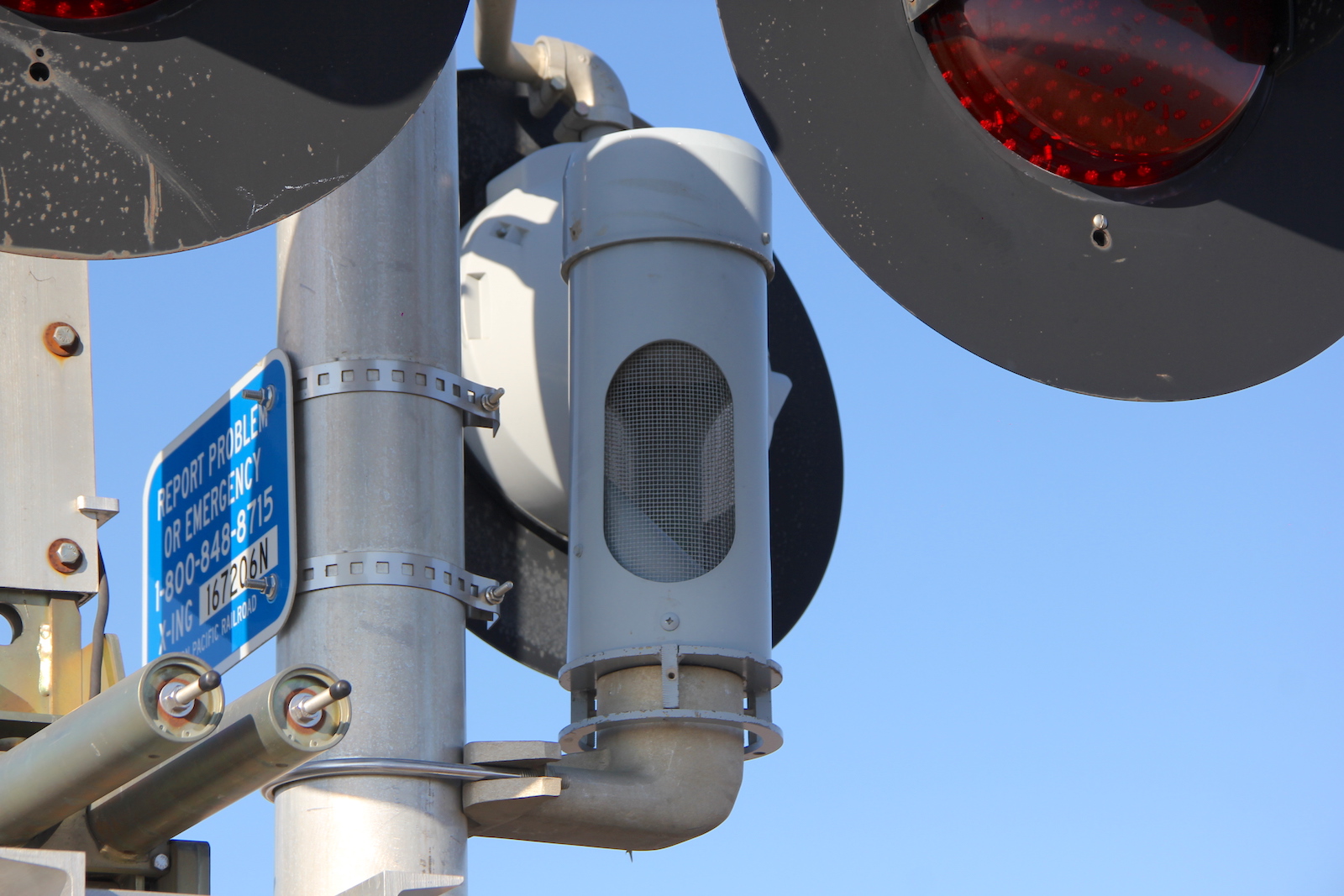

The southern signal.
23 24 25
The grade is all concrete.
 Track view facing north towards E. 4300 N. Rd.
 Track view facing south towards E. 4000 N. Rd.
