179.53


294284T

>>>>>>>>>>>>>>> Western Entrance Signal Western Exit Signal Eastern Entrance Signal Eastern Exit Signal
Bell: NEG E-Bell NEG E-Bell NEG E-Bell NEG E-Bell
Base: Safetran 5" Double Sided ^ Safetran 5" Double Sided ^ Siemens 5" Double Sided ^ Safetran 5" Double Sided ^
Lights: 4 - 12"x24" Safetran w/ GE Dotted LEDs 4 - 12"x24" Safetran w/ GE Dotted LEDs 4 - 12"x24" Safetran w/ GE Dotted LEDs 4 - 12"x24" Hawker Safetran w/ Electro-Tech's LEDs
Junction Box: Safetran Safetran Safetran Safetran
Gate Lights: NEG Clear LEDs NEG Clear LEDs NEG Clear LEDs NEG Clear LEDs
Gate Mechanism: Invensys Rail w/ Old NEG 2 Way Saver Siemens Sticker Style 2 w/ Standard Mount Siemens Sticker Style 2 w/ Old NEG 2 Way Siemens Sticker Style 1 w/ Standard Mount
Gate Striping: Vertical Striping Vertical Striping Vertical Striping Vertical Striping

All pictures were taken on July 15, 2019, by Tommy McGowan.
This crossing is located on the UP Springfield Sub, part of the Illinois High Speed Rail Corridor.

These signals were installed in 2016 or 2017 replacing a pair of 2000s WCH gated signals. Also, full disclosure, I don't know if I was allowed to be back here at this crossing or not, so I would not recommend coming here to get videos. I just got my pictures and got out immediately to be safe.

1
 2

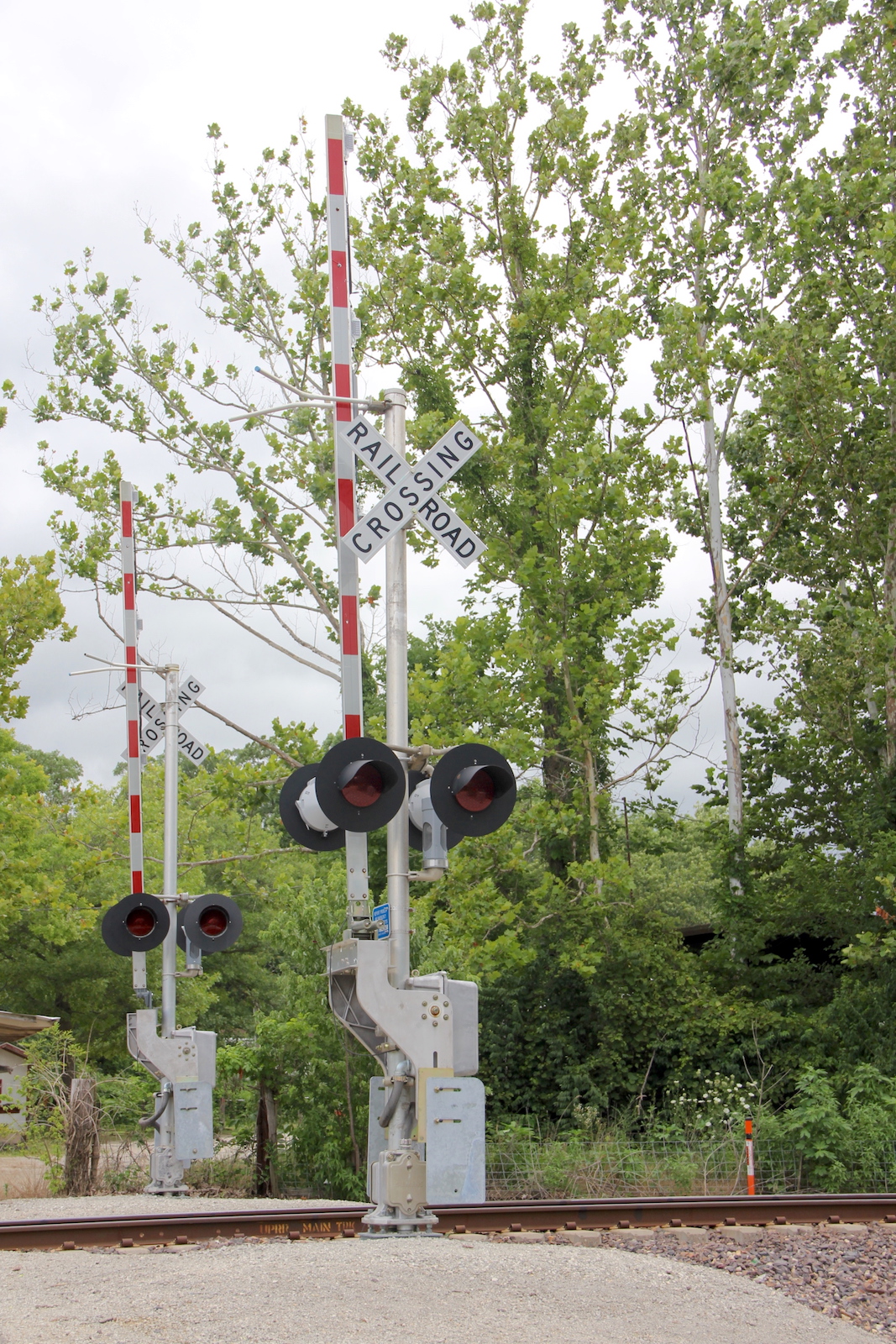

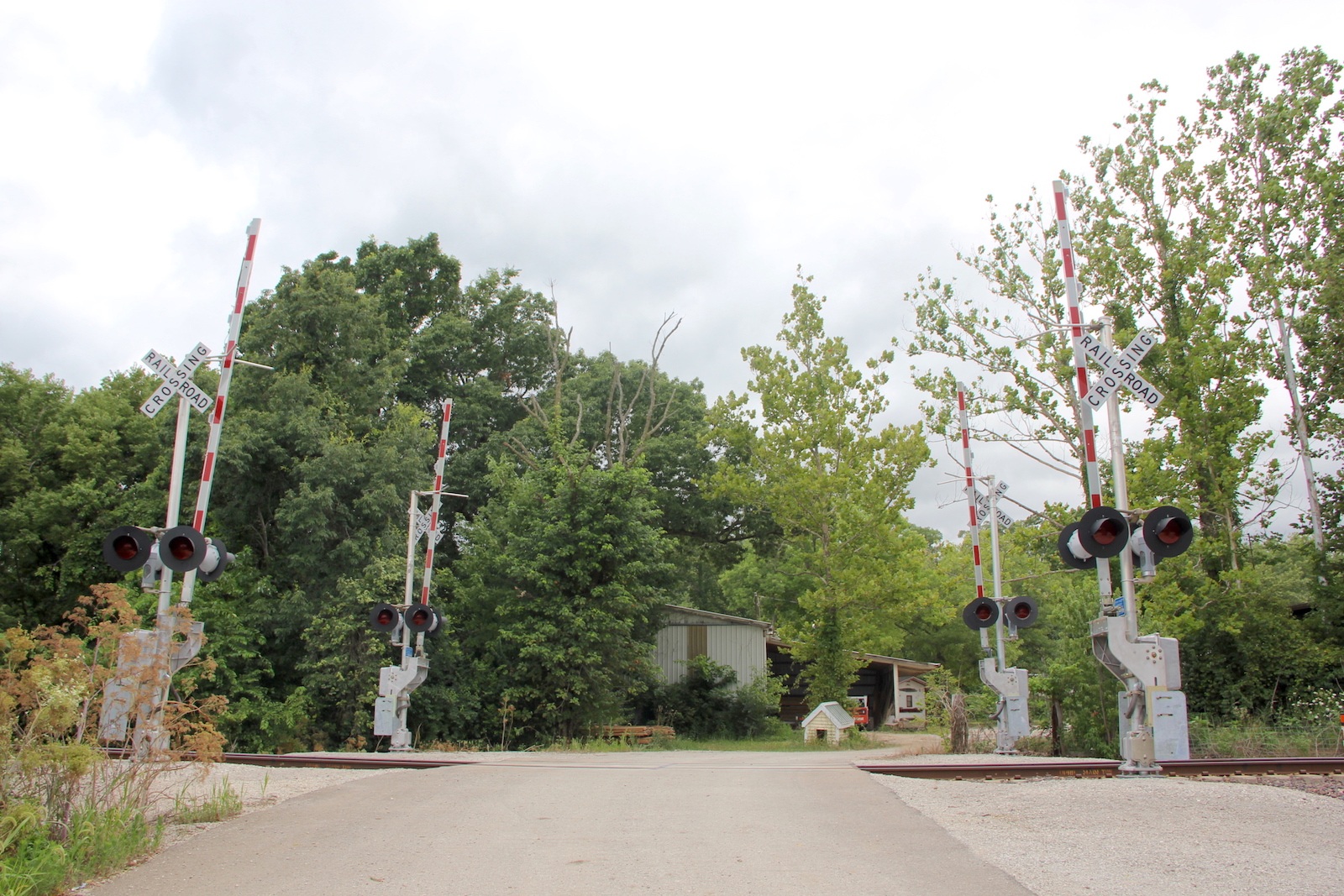

Overview of a newer Safetran/Siemens quad gated installed facing west. Overview facing east.
3 4 5
6 7 8
9 10 11 12

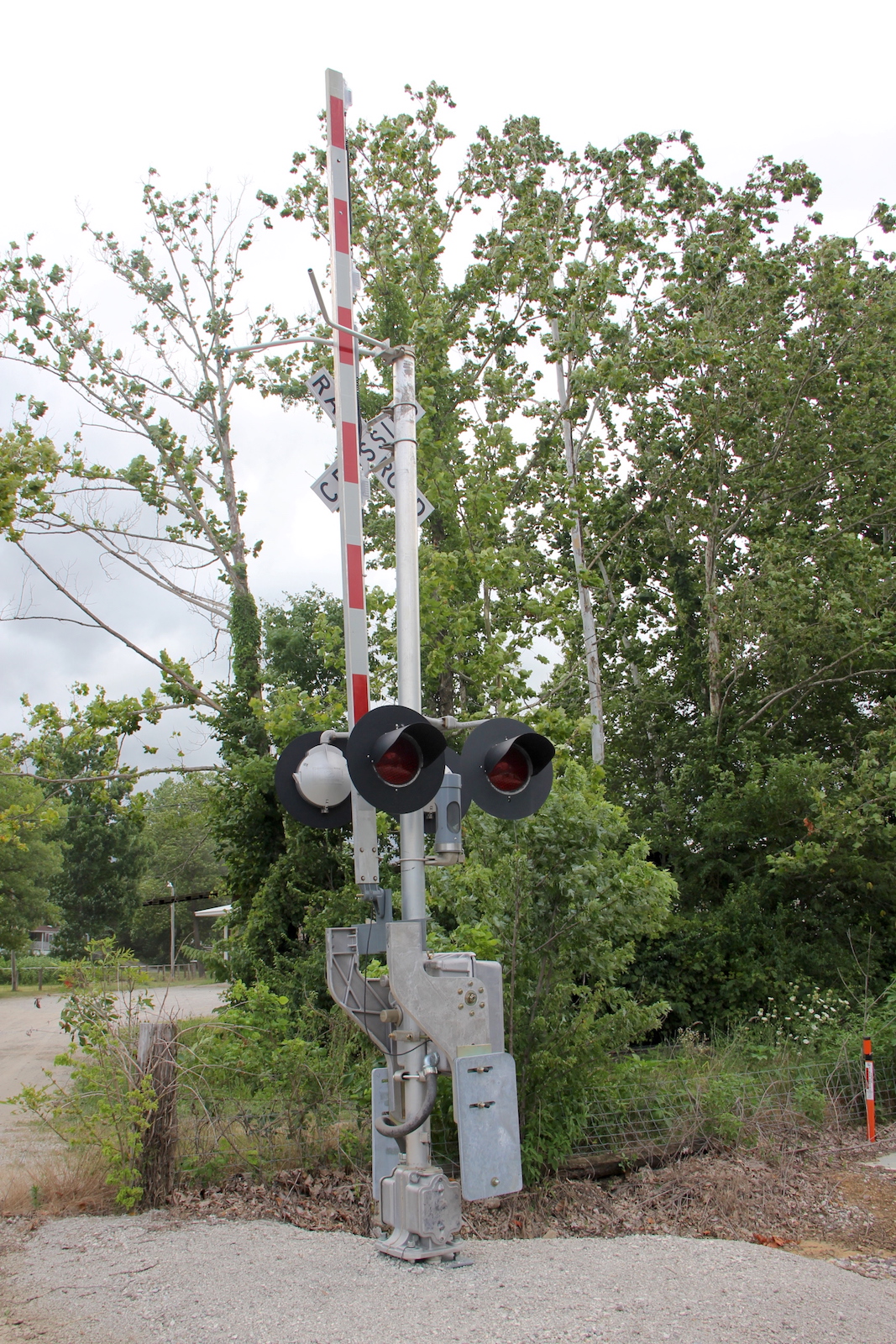

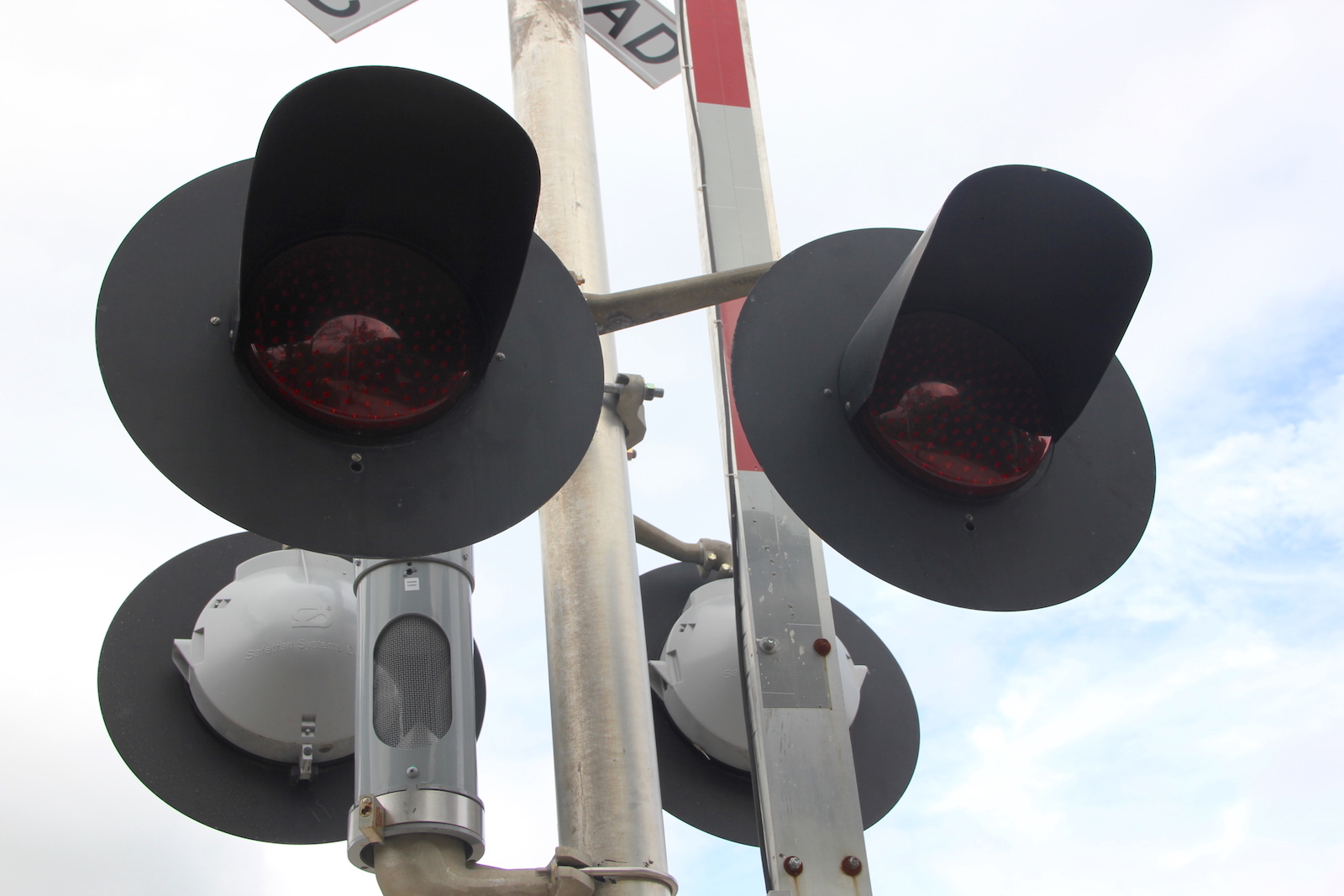

The eastern entrance signal.
13 14 15
16 17 18
19 20 21 22

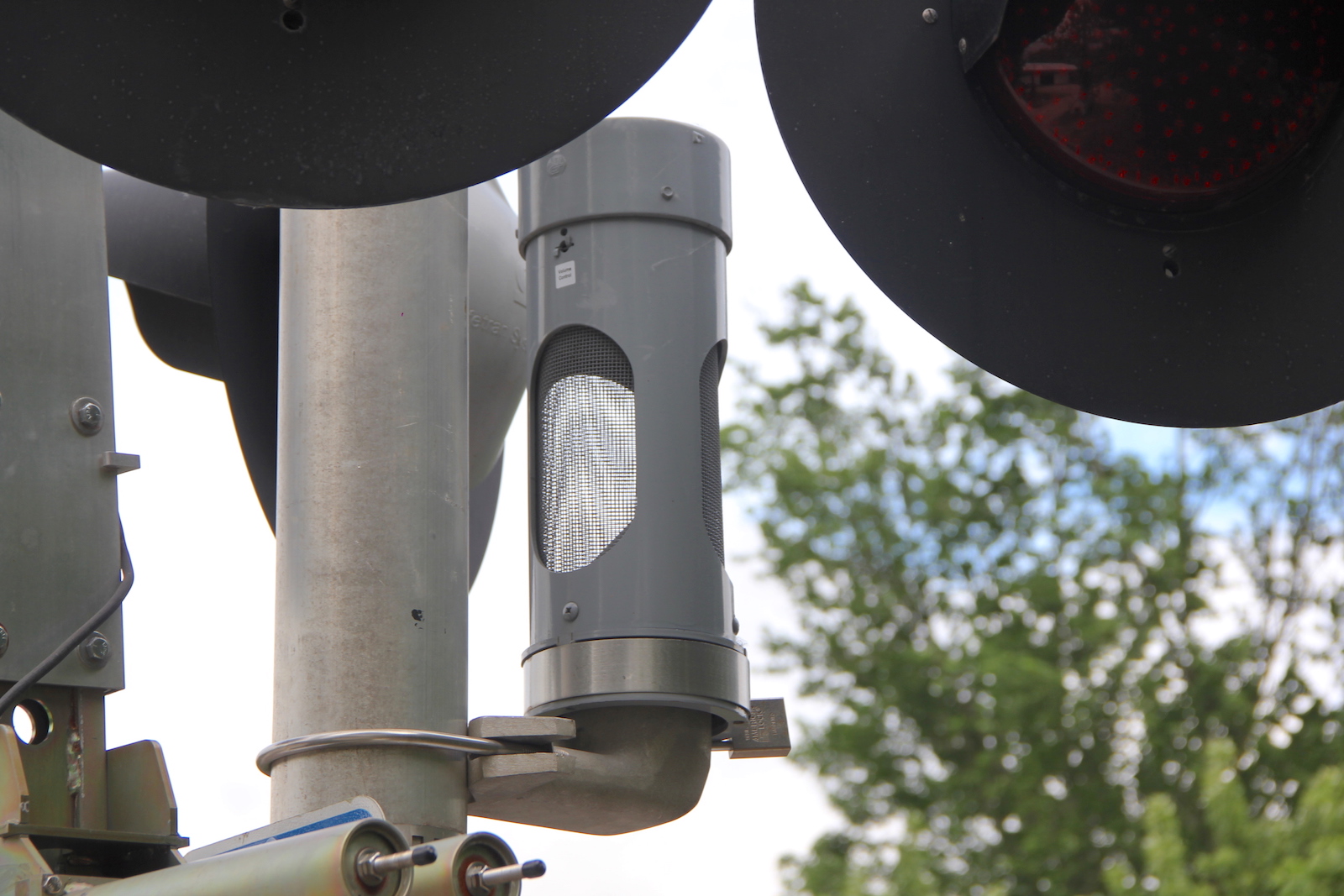

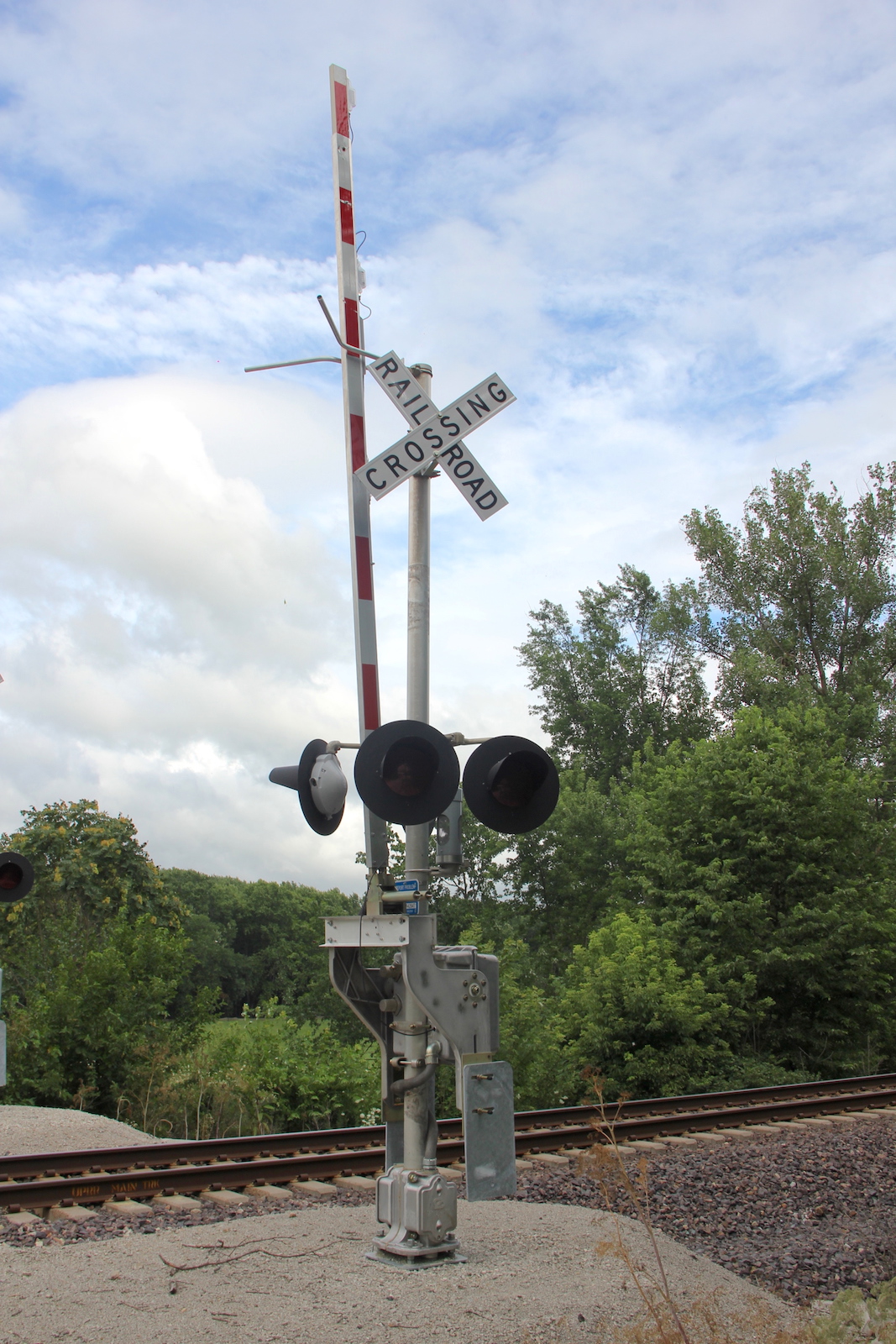

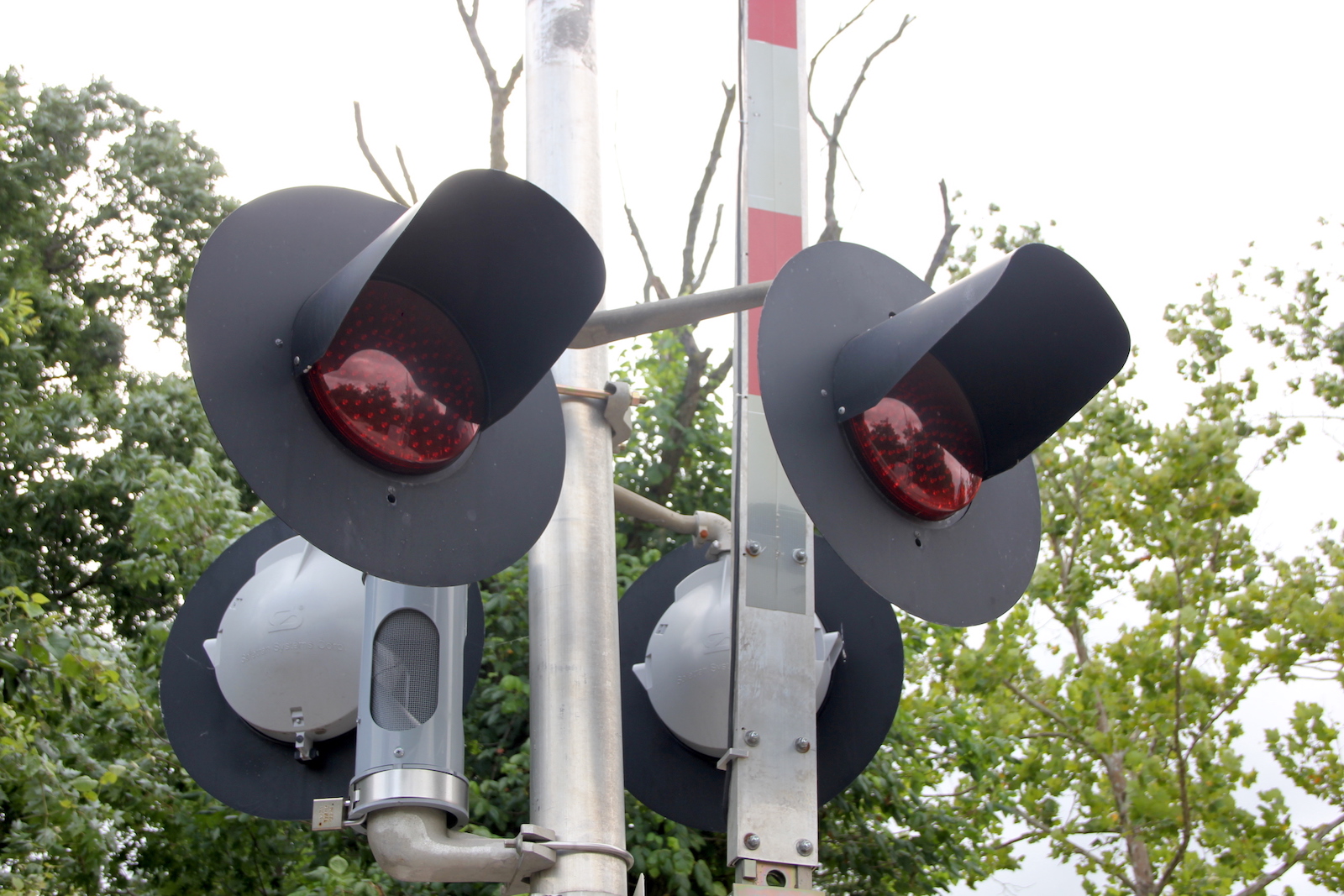

The western entrance signal.
23 24 25
26 27 28
29 30 31

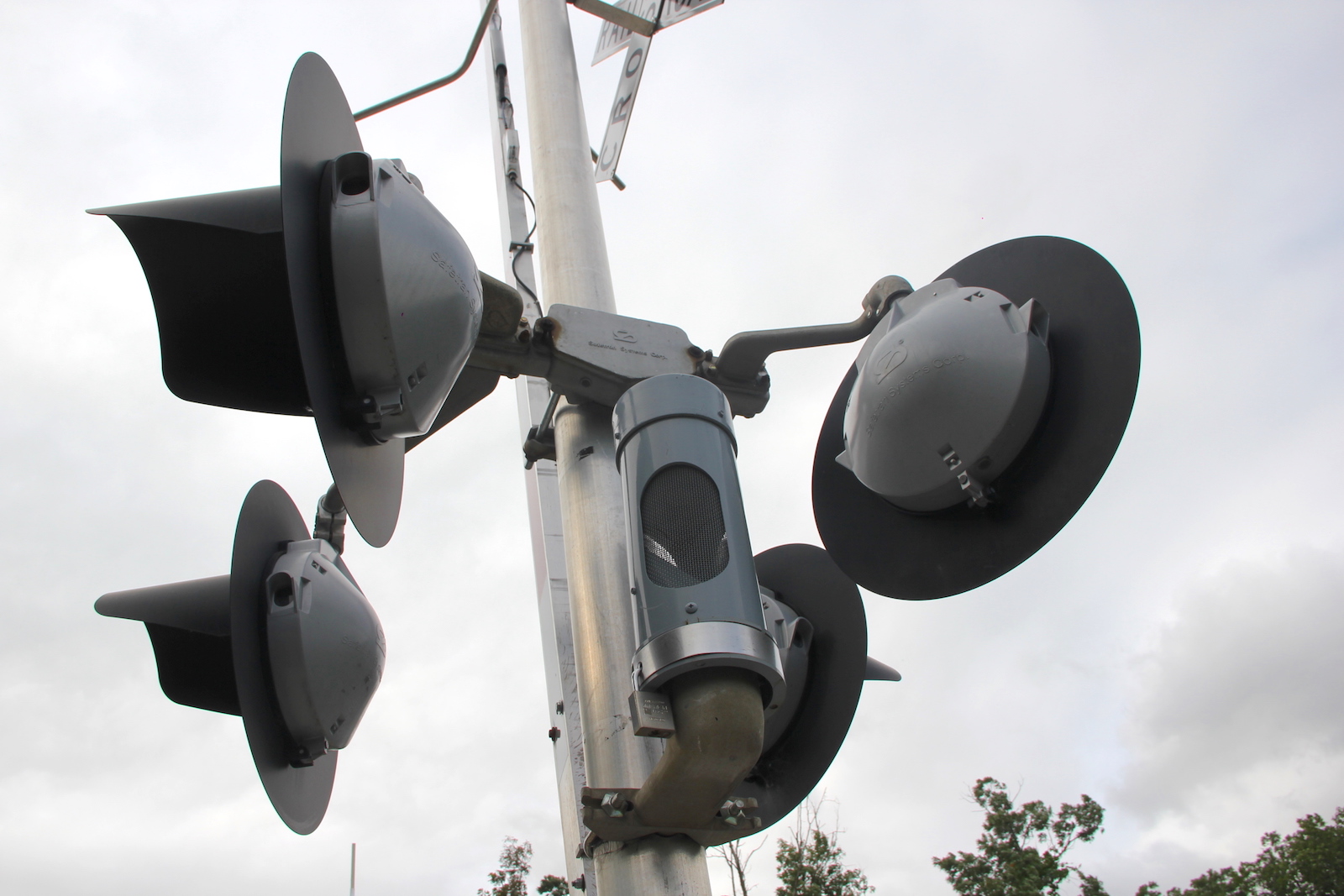

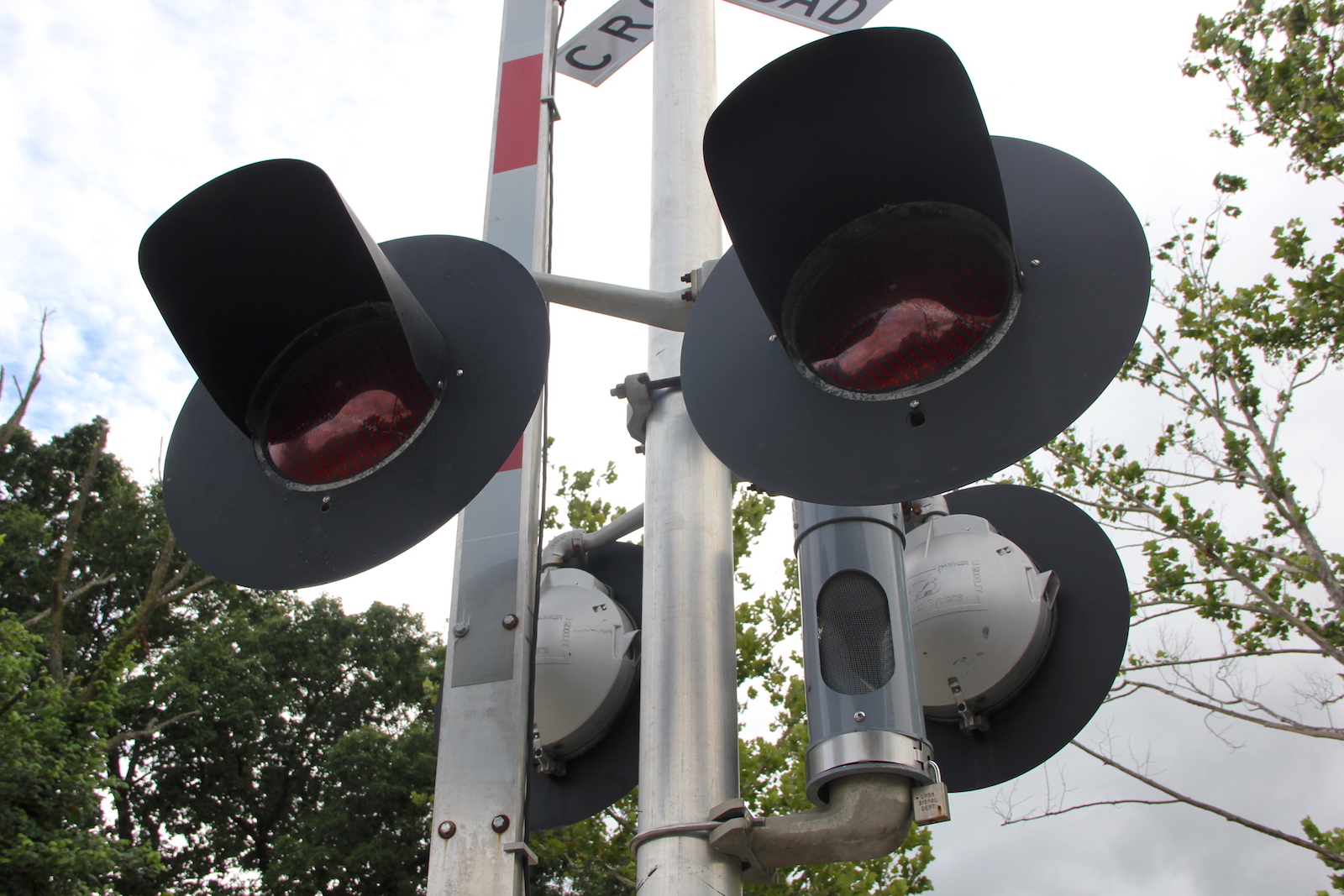

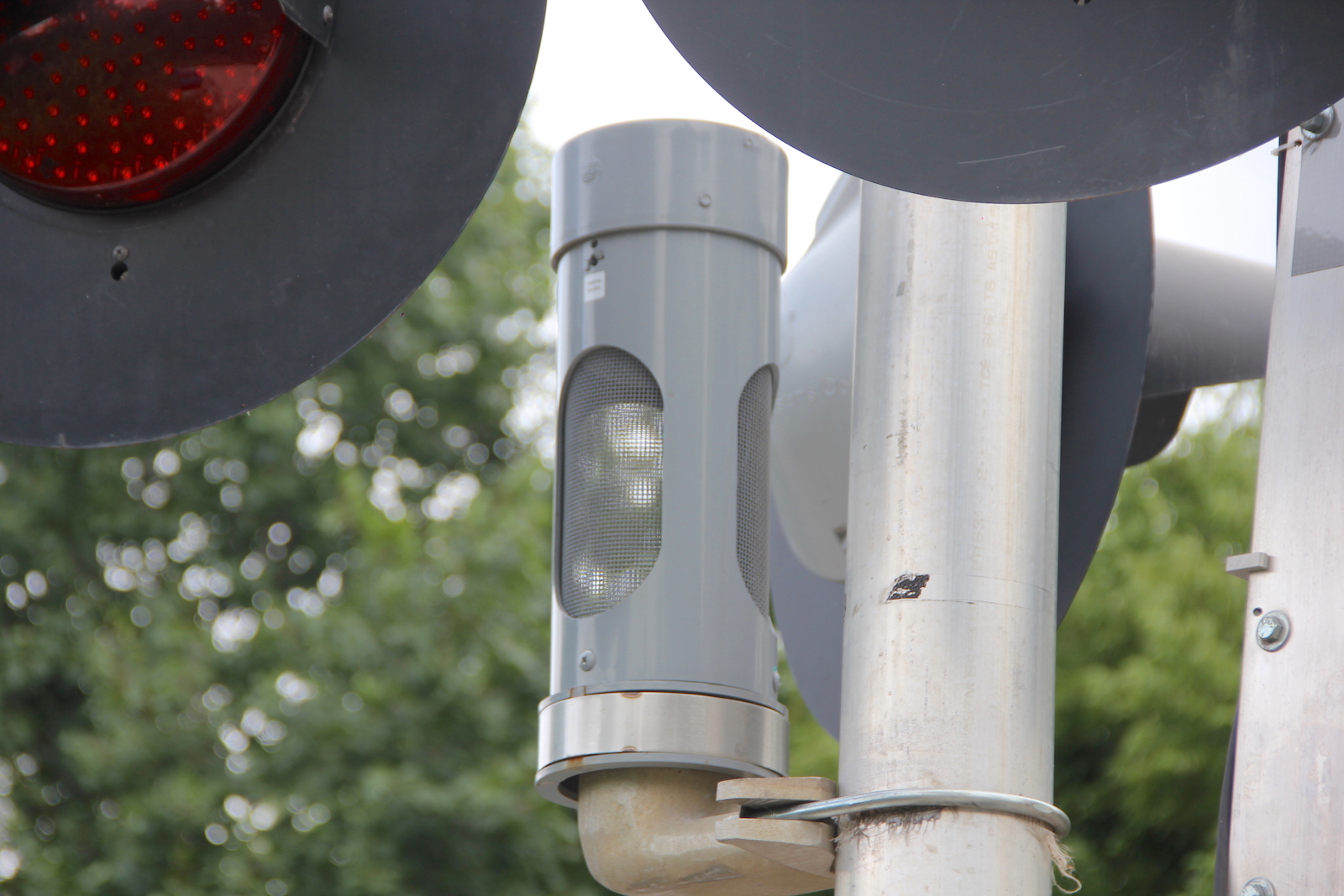

The eastern exit signal.
32 33 34
35 36 37
38 39 40

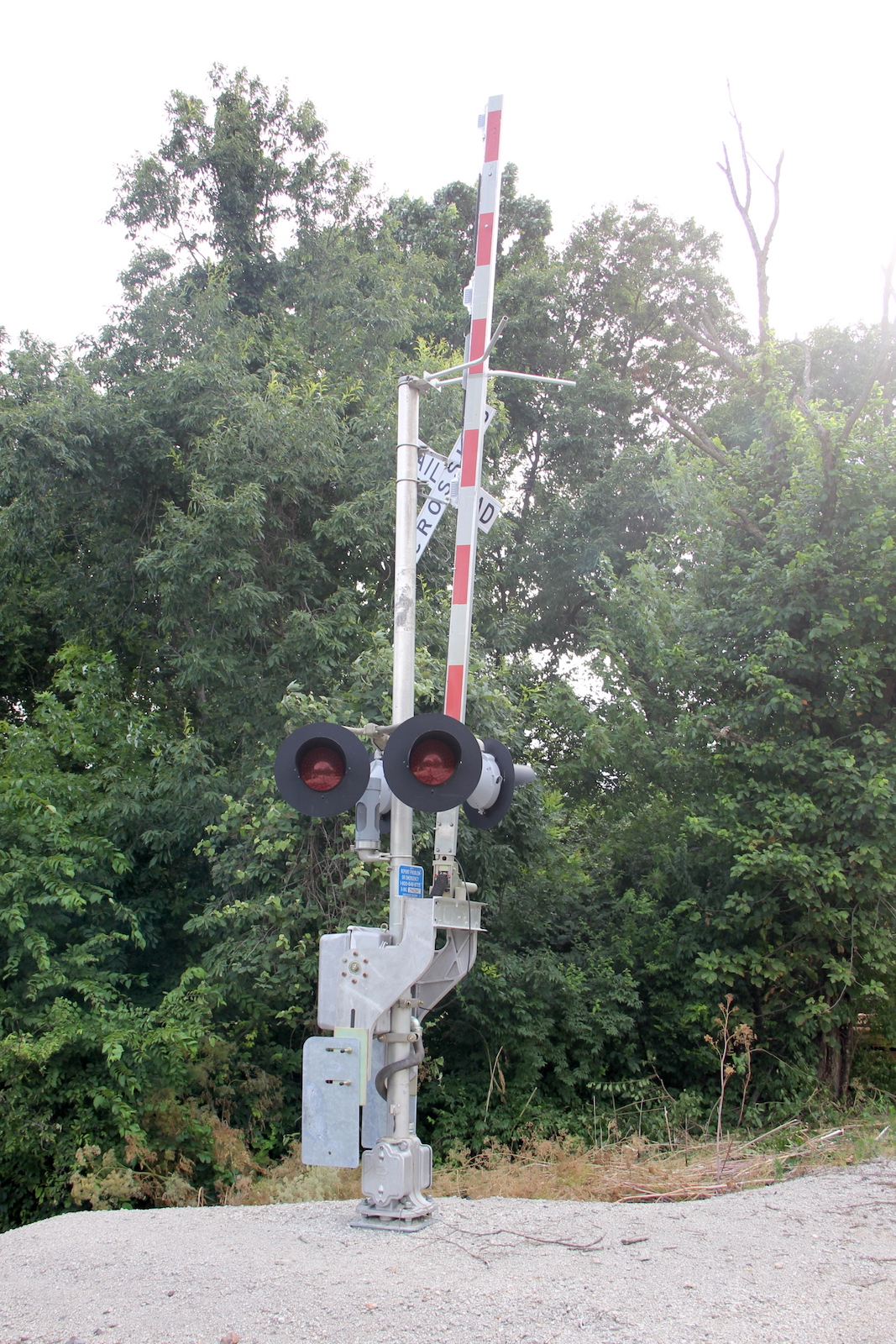

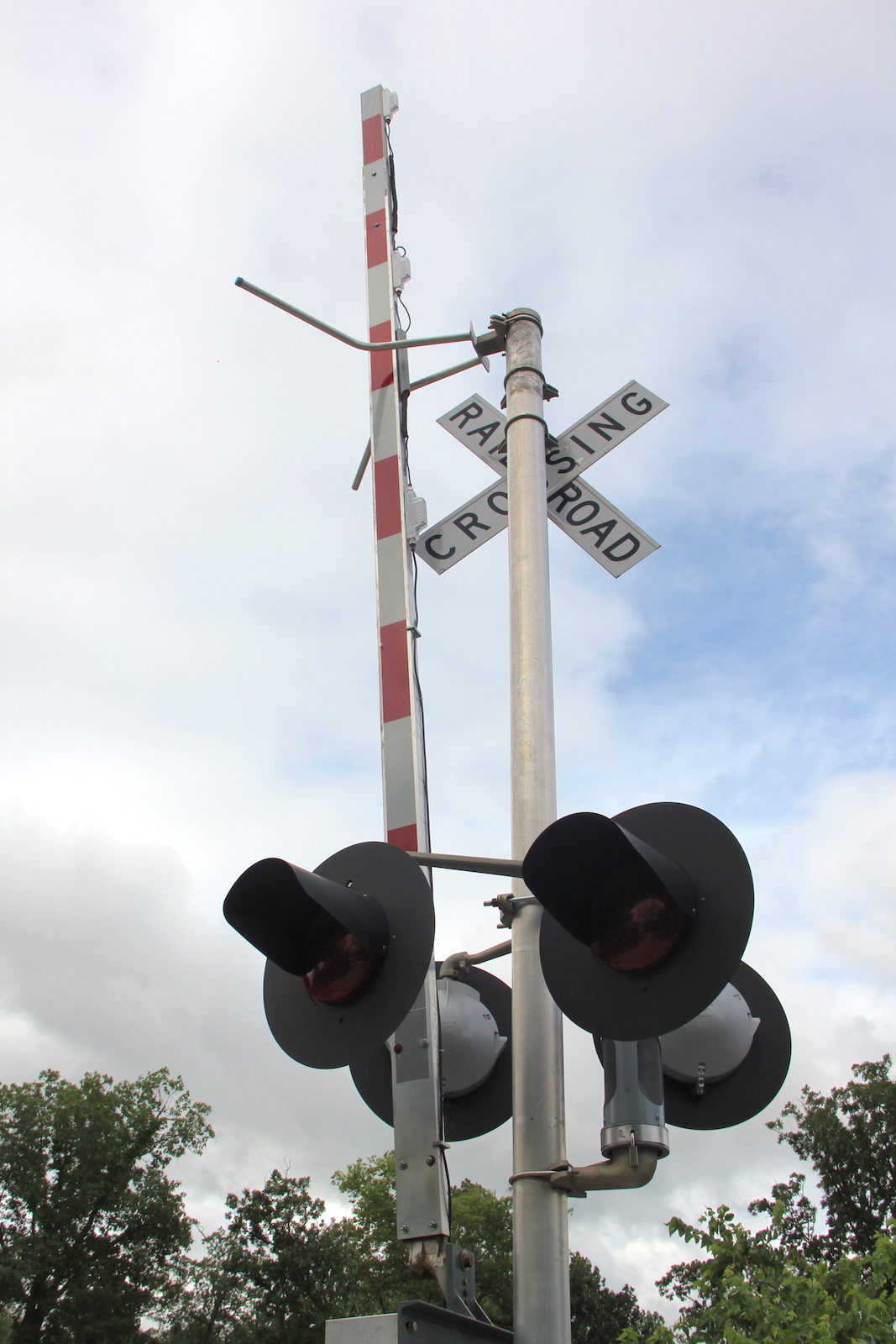

The western exit signal.
41 42 43 44

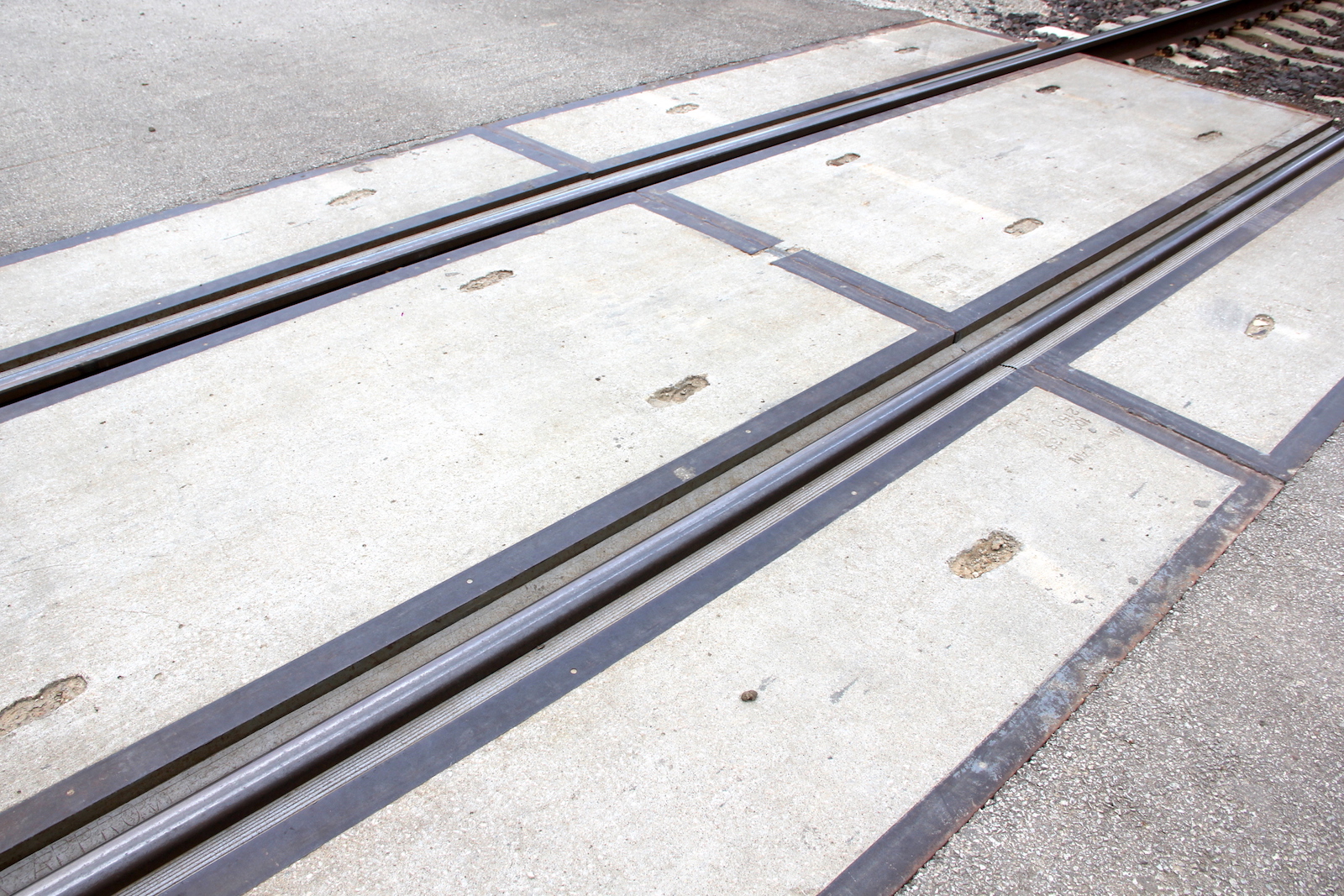

The relay bungalow in the northeast quadrant. The grade is all concrete. Track view facing north towards Sherman Rd. Track view facing south towards Sandhill Rd. in Springfield.
