177.87


294281X

>>>>>>>>>>>>>>> Western Entrance Signal Western Exit Signal Eastern Entrance Signal Eastern Exit Signal
Bell: WCH E-Bell WCH E-Bell WCH E-Bell WCH E-Bell
Base: WCH 5" Single Sided ^ WCH 5" Single Sided ^ WCH 5" Single Sided ^ WCH 5" Single Sided ^
Lights: 4 - 12"x24" WCH w/ 1st Gen WCH LEDs 4 - 12"x24" WCH w/ 1st Gen WCH LEDs 6 - 12"x24" WCH w/ 1st Gen WCH LEDs 4 - 12"x24" WCH w/ 1st Gen WCH LEDs
Junction Boxes: WRRS WRRS WRRS WRRS
Gate Lights: NEG Clear LEDs 2 - NEG Clear LEDs
1 - Alstom Aurora LED		 NEG Clear LEDs 2 - NEG Clear LEDs
1 - Alstom Aurora LED
Gate Mechanism: WCH Style 3.5 w/ Old WCH Gate Saver WCH Style 3.5 w/ Old WCH Gate Saver WCH Style 3.5 w/ Old WCH Gate Saver WCH Style 3.5 w/ Old WCH Gate Saver
Gate Striping: Diagonal Striping Diagonal Striping Diagonal Striping Diagonal Striping

All pictures were taken on July 15, 2019, by Tommy McGowan.
This crossing is located on the UP Springfield Sub, part of the Illinois High Speed Rail Corridor.

1
 2
Overview of a WCH quad gated setup facing east. Overview facing west.
3 4 5
6 7 8
9 10 11 12
The western entrance signal.
13 14 15 16
17 18 19 20
21 22 23 24
The eastern entrance signal.
25 26 27
28 29 30
31 32 33

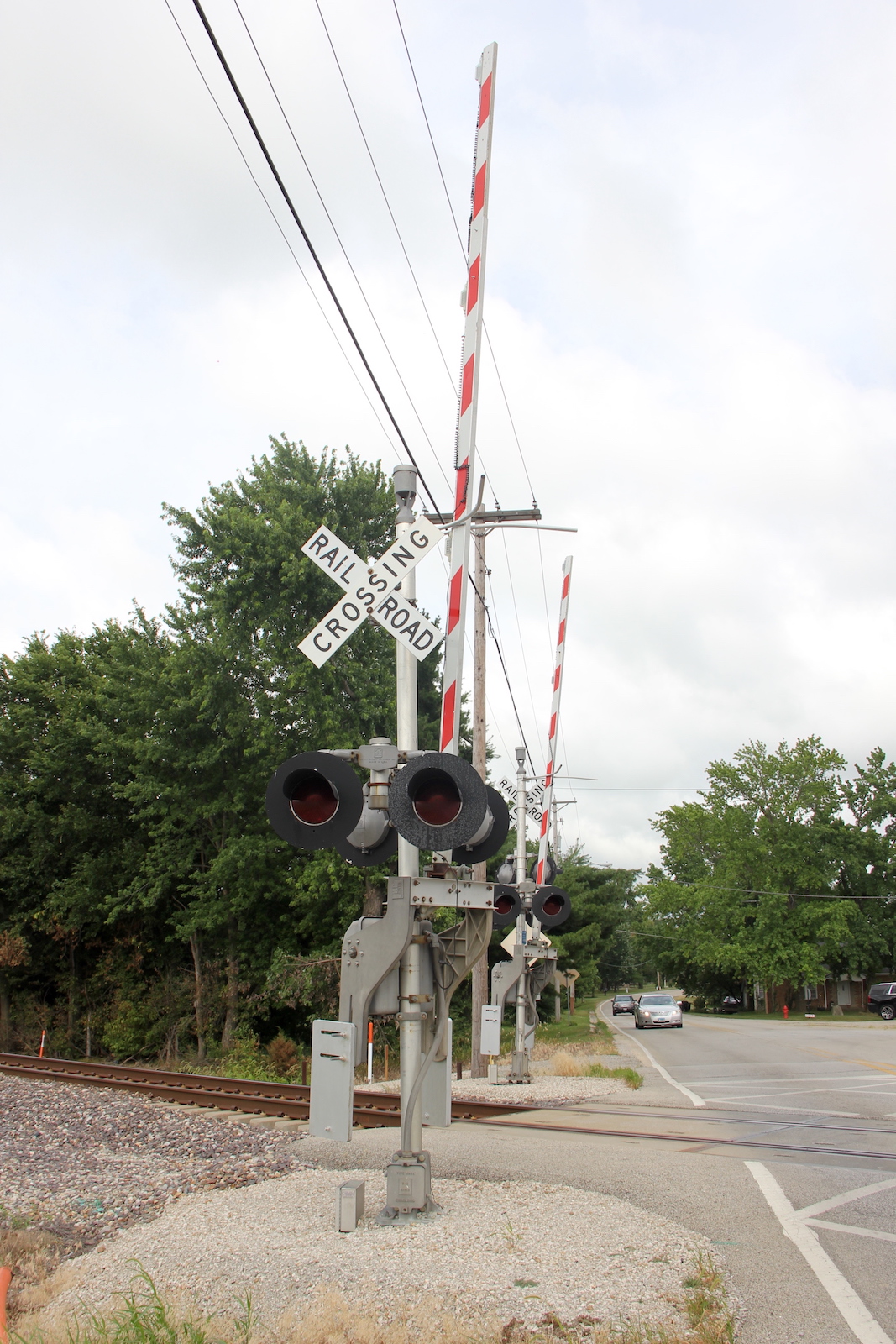

The western exit signal.
34 35 36
37 38 39
40 41 42
The eastern exit signal.
43 44 45 46
The relay bungalow in the southwest quadrant. The grade is all concrete. Track view facing north towards Wolf Creek Rd. Track view facing south towards Private Crossing.
