86.05


169960V

>>>>>>>>>>>>>> Western Signal Eastern Signal
Bell: GS Type 2 E-Bell None
Base: US&S 5" Single Sided ^ US&S 5" Single Sided ^
Lights: 4 - 12"x20" L&W w/ 2nd Gen WCH LEDs 4 - 12"x20" L&W w/ 2nd Gen WCH LEDs
Junction Box: L&W L&W
Gate Lights: 4" RECO incandescents 4" RECO incandescents
Gate Mechanism: WRRS Type 3564 w/ Standard Mount WRRS Type 3564 w/ Standard Mount
Gate Striping: Diagonal Striping Diagonal Striping

All pictures and the video were taken on March 14, 2018, by Tommy McGowan.
This crossing is located on the IMRR Springfield Sub.

1 2

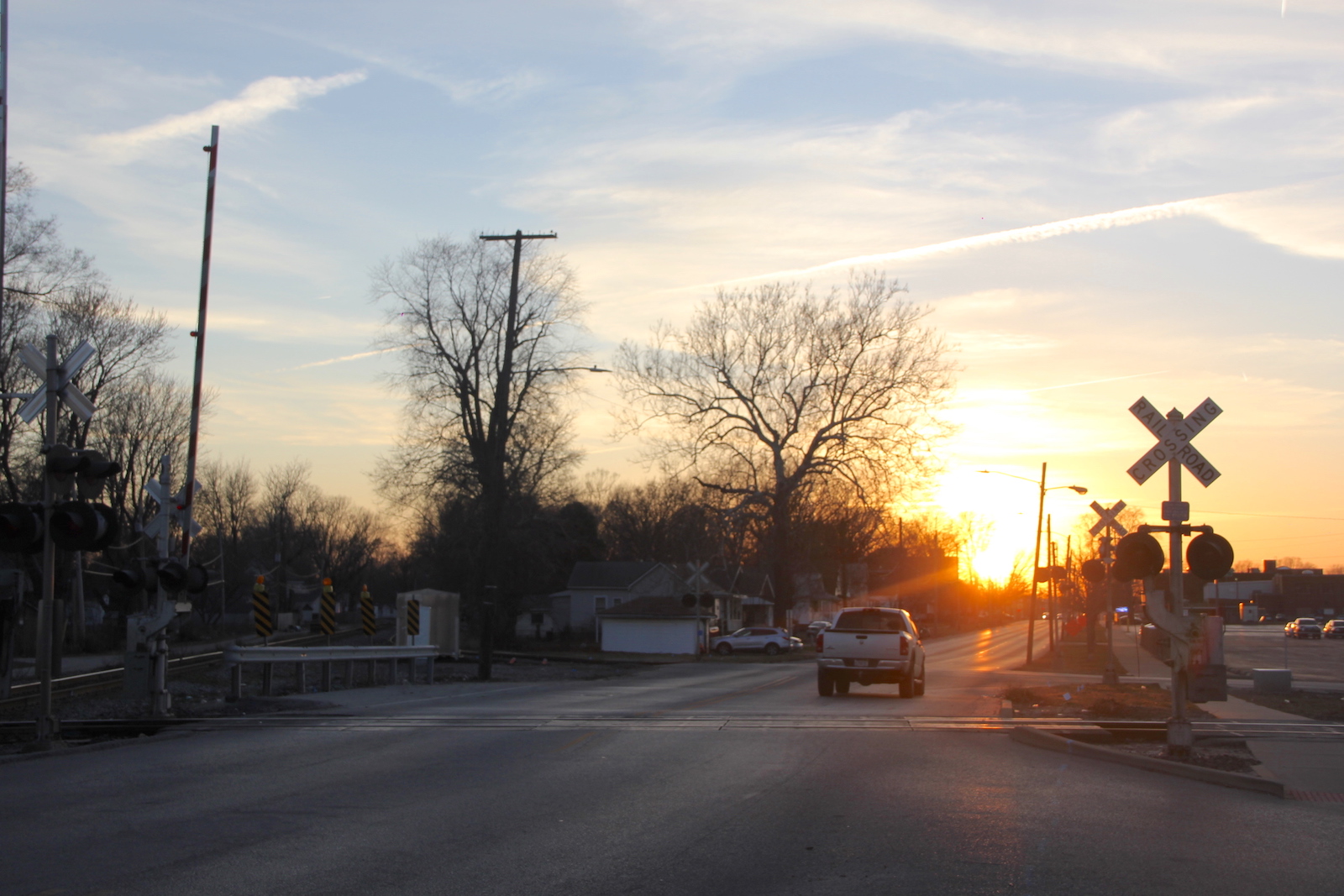

Overview of 2 very nice WRRS signals facing west. Overview facing east.
3 4 5 6
7 8 9 10

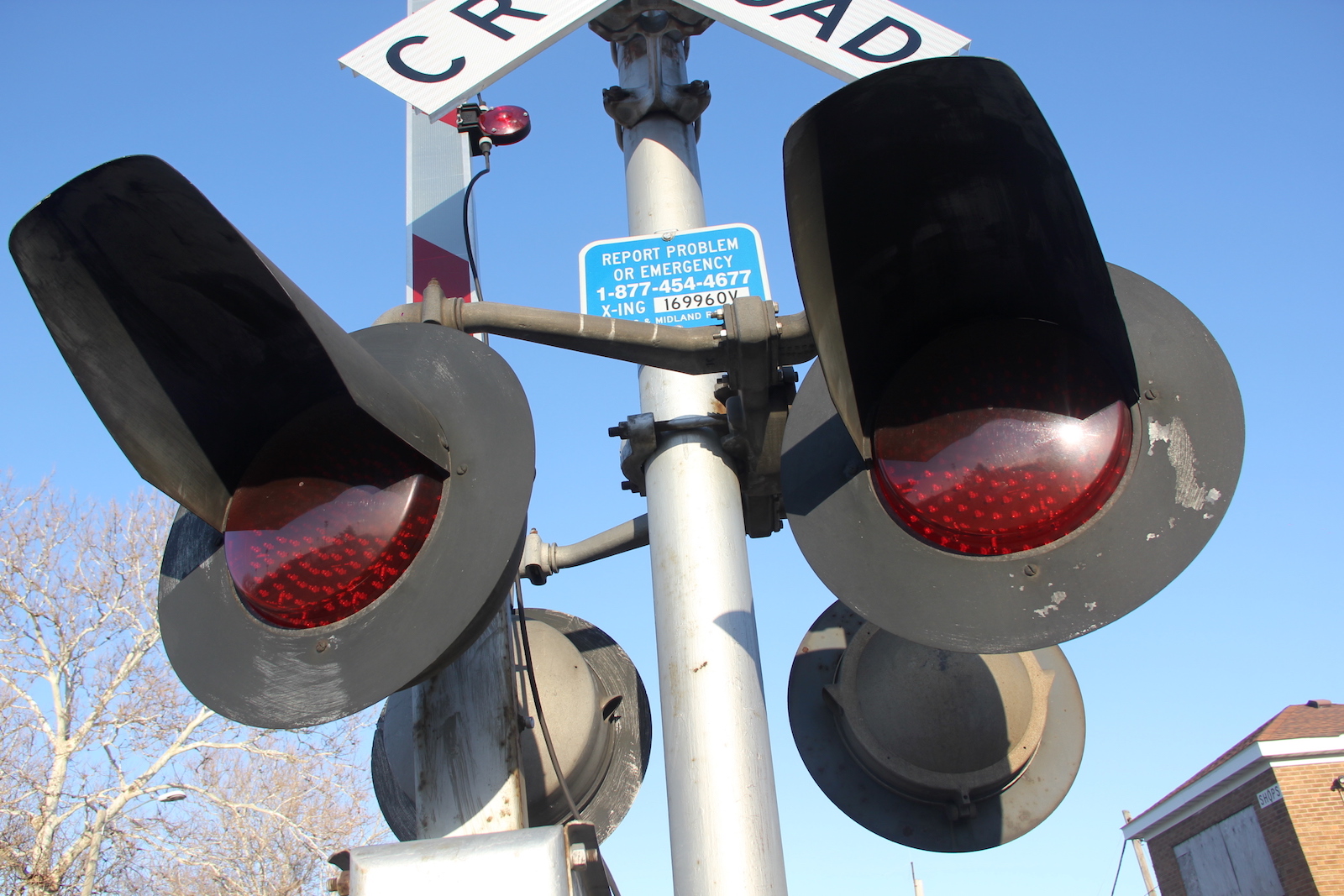

The eastern signal. The gate got knocked off while I was filming a UP train west of here. You can see how it's supposed to look in Picture 2.
11 12 13
14 15 16
17 18 19 20
The western signal.
21 22 23 24 25

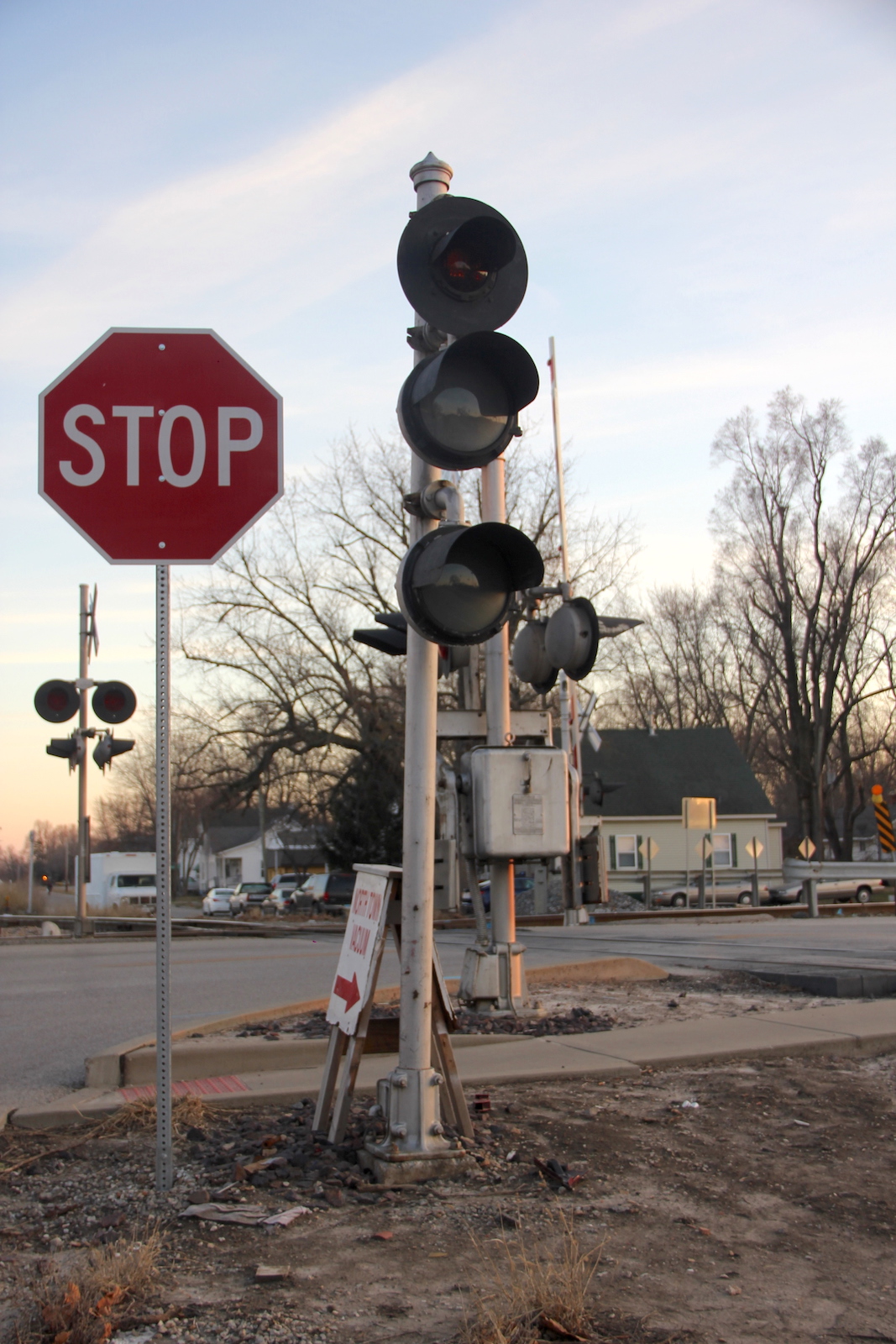

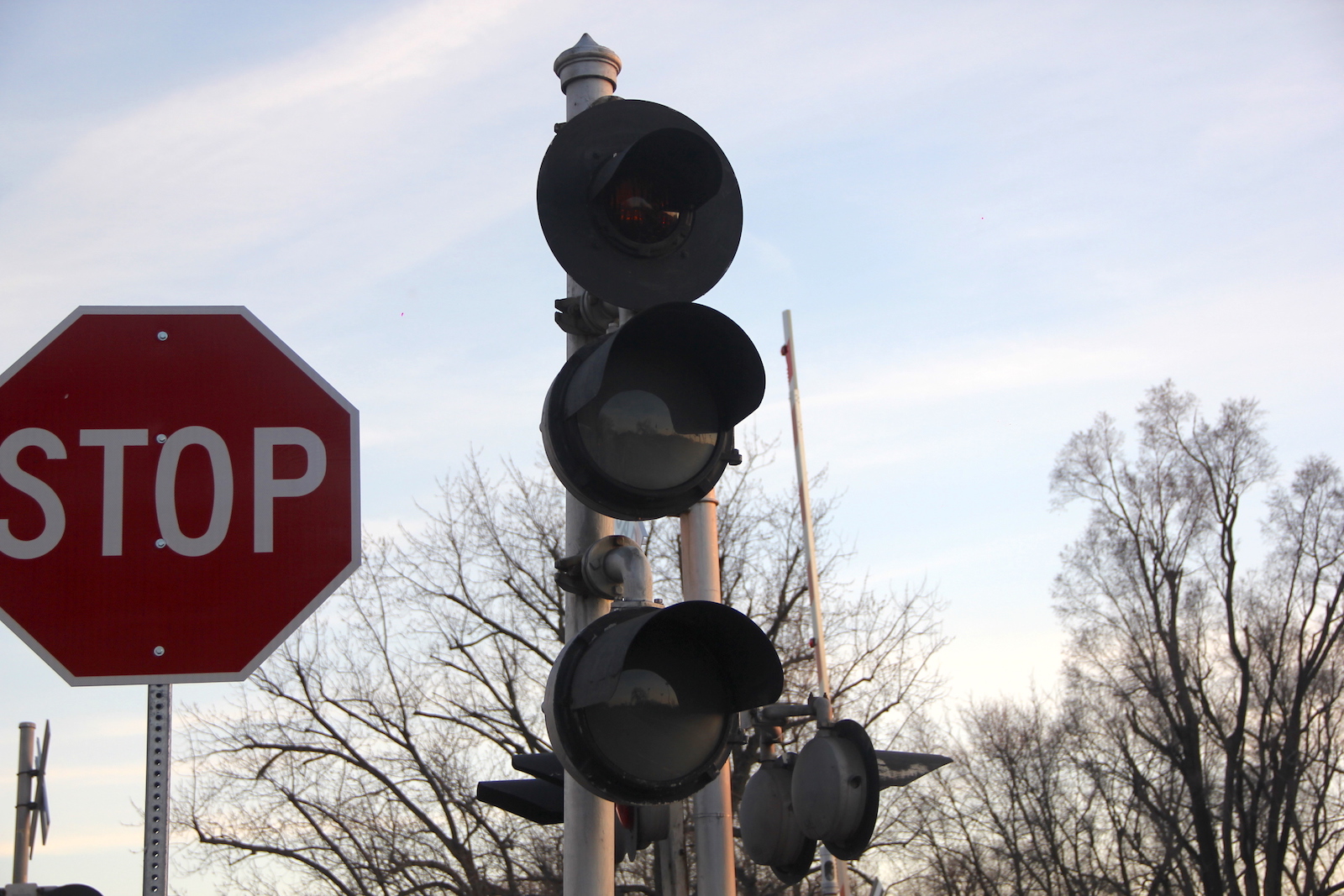

This light features both a No Right Turn light for IMRR, and a No Left Turn light for NS. This is entirely US&S.
26 27 28 29

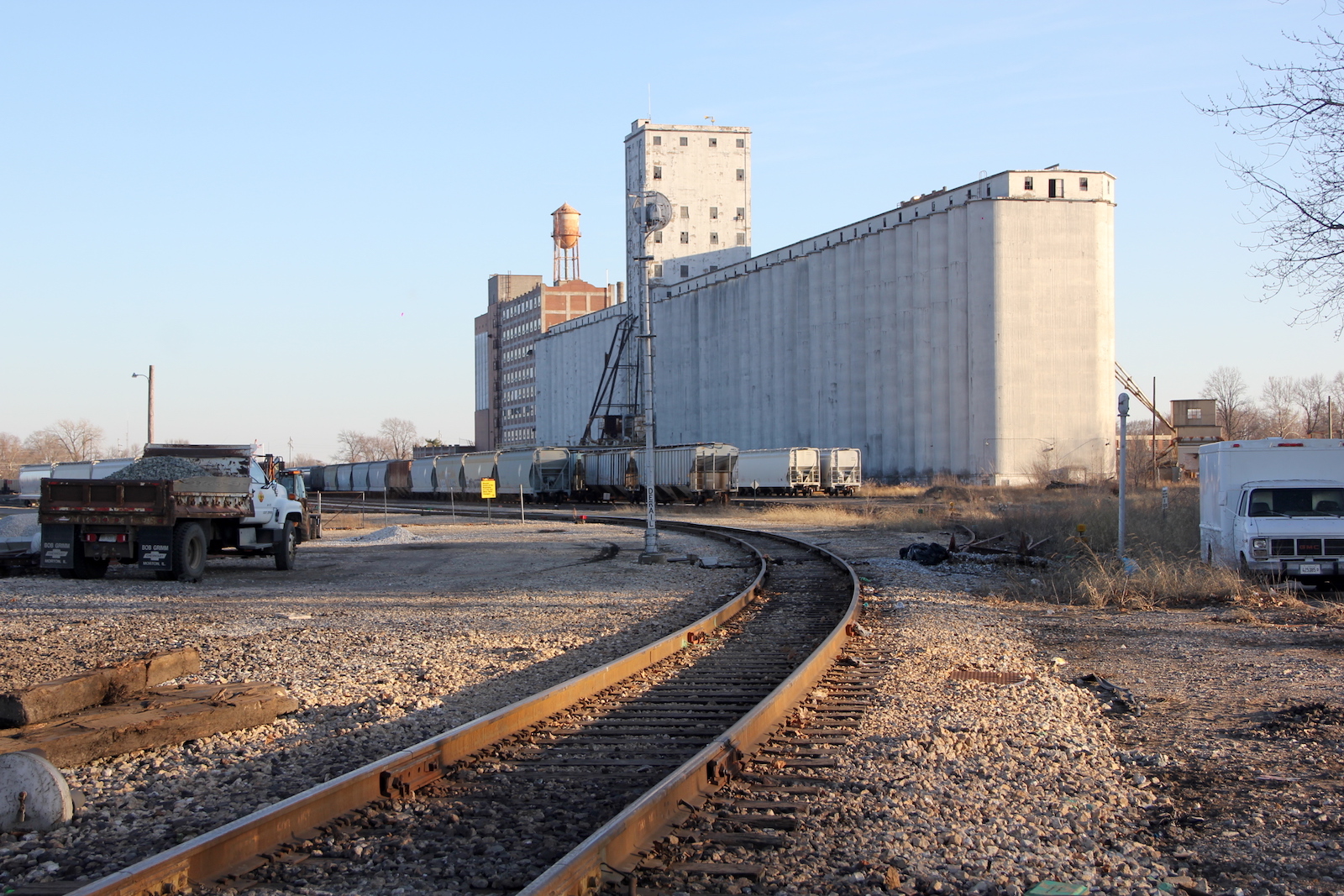

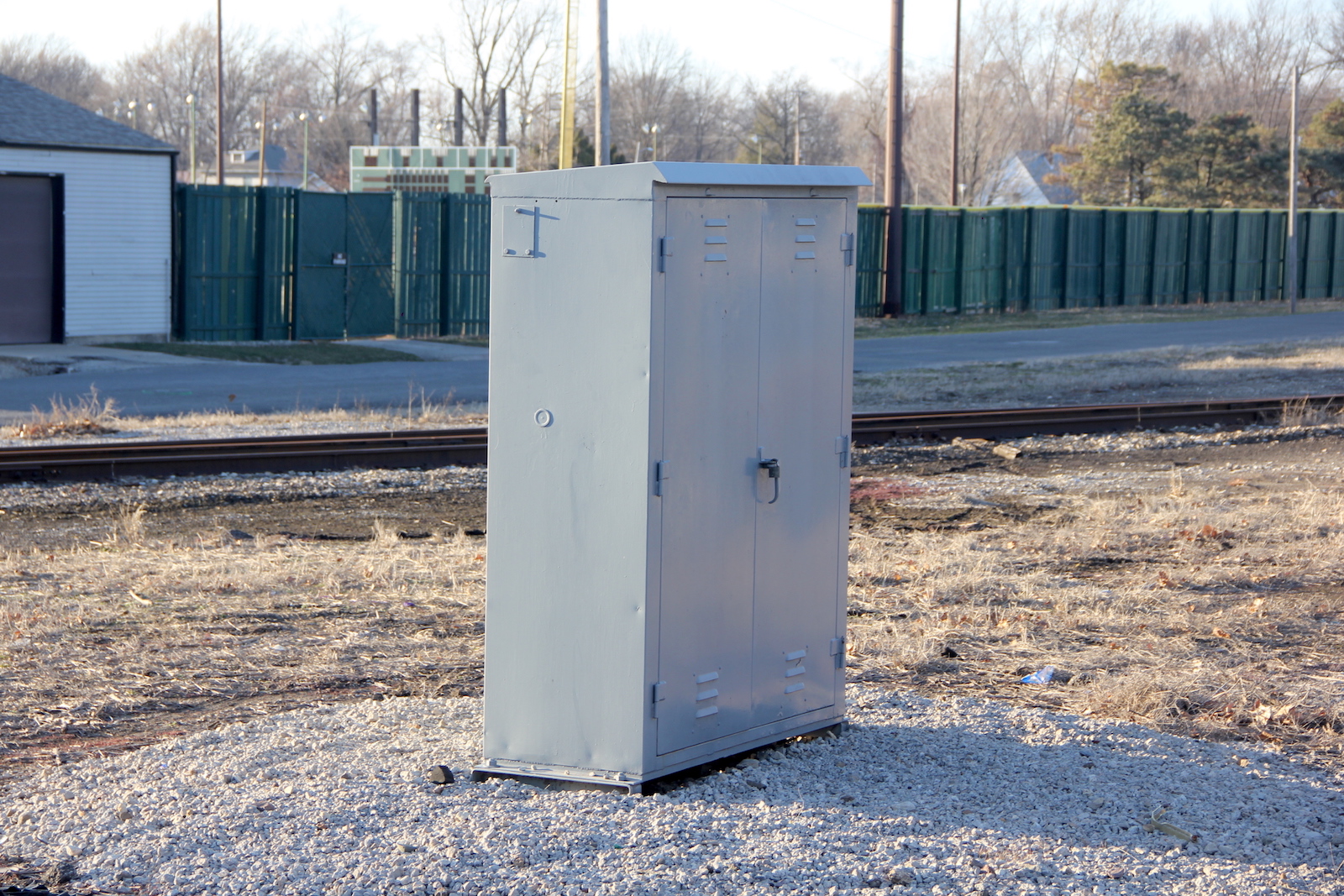

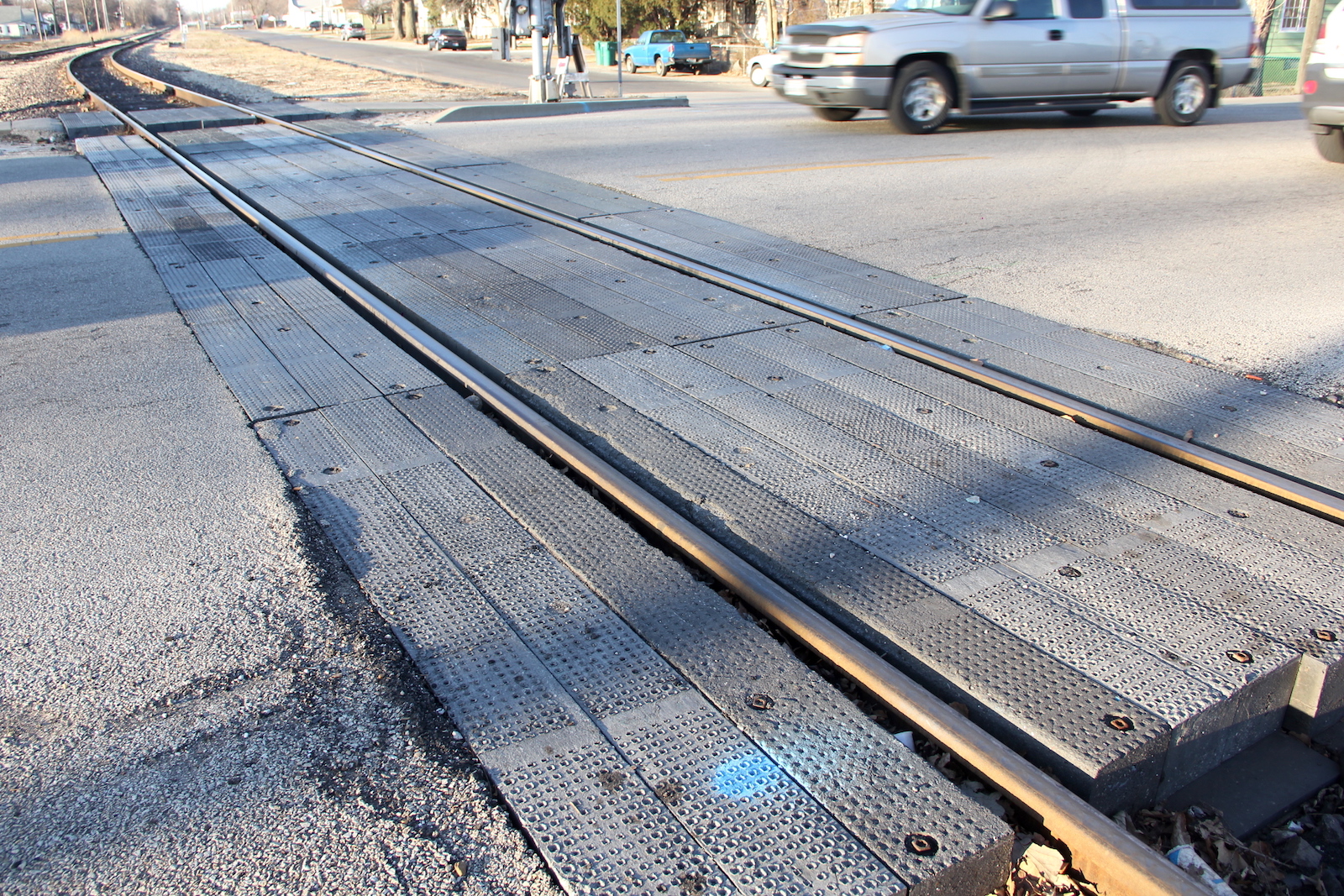

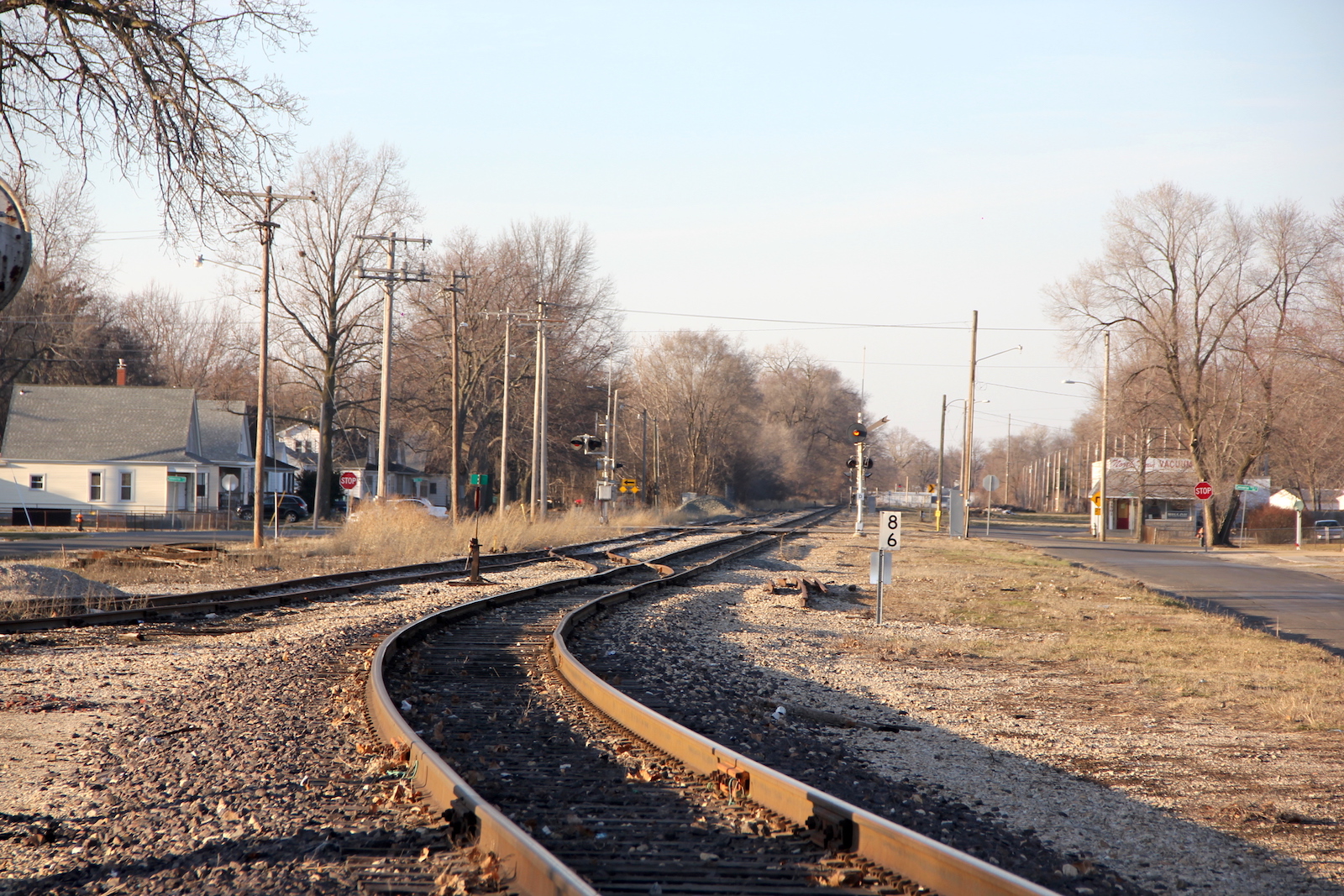

The relay case in the northwest quadrant. The grade is all rubber. Track view facing north at Converse St. Track view facing south towards Moffat Ave.
30 31

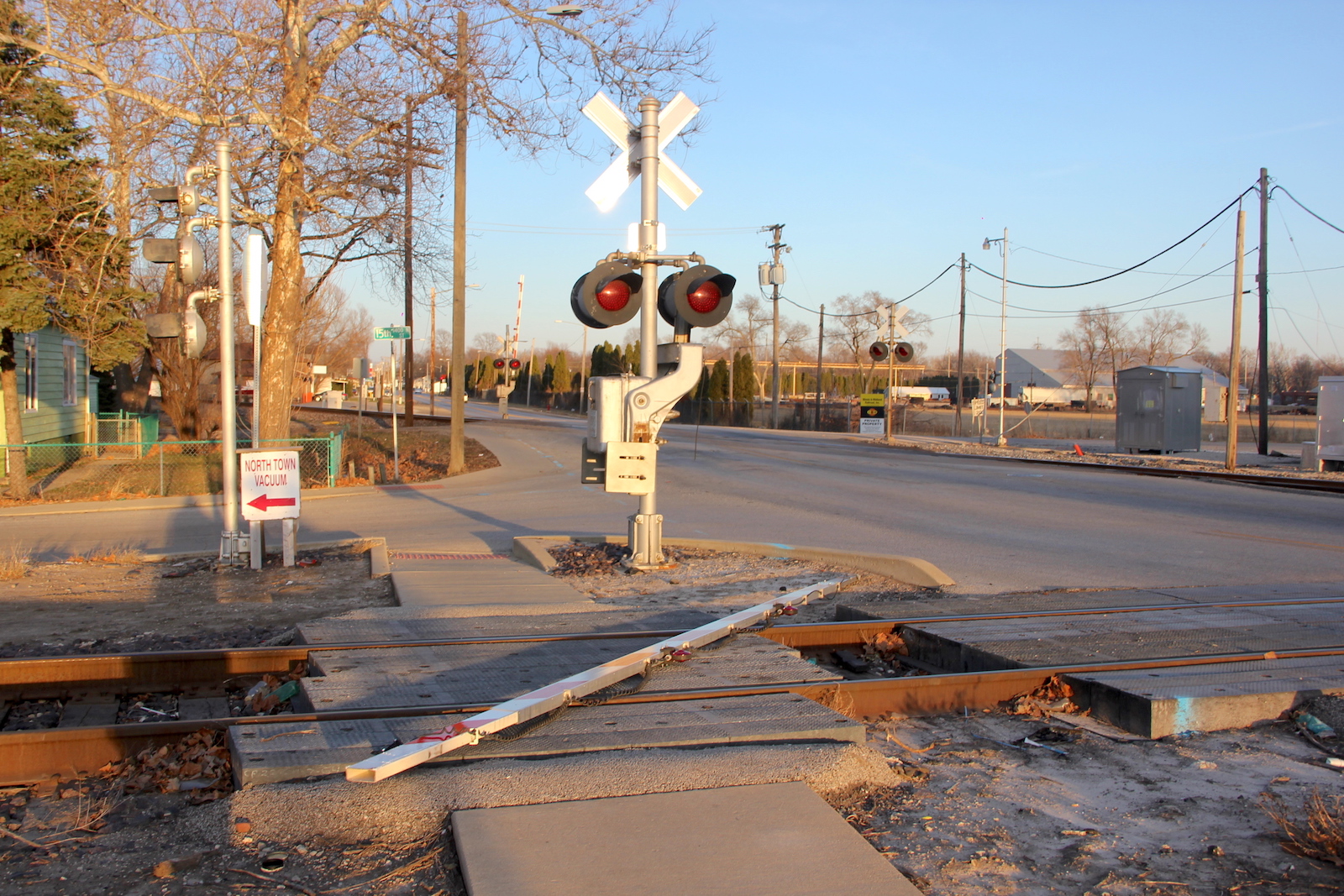

The gate for the eastern signal was sitting on the ground on the tracks. Presumably it got hit by a truck.
32 33
A very nice searchlight signal protects the diamond with NS. The diamond itself.

By 2019, the western signal was replaced with a new WCH signal. It had 2nd Gen WCH LEDs and a WCH E-Bell.
By 2022, the western signal was replaced again with another WCH signal. This one had GE Uniform Look LED and a GS E-Bell.
By 2024, the eastern signal was replaced with a new WCH signal as well.
