| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | Safetran Type 3 E-Bell | None |
| Base: | Safetran 5" Double Sided ^ | Safetran 5" Double Sided ^ |
| Lights: | 4 - 12"x20" Safetran w/ GE Uniform Look LEDs | 4 - 12"x20" Safetran w/ GE Uniform Look LEDs |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 4" RECO | 4" RECO |
| Gate Mechanism: | Safetran 2000s w/ NEG 1 Way Saver | Safetran 2000s w/ NEG 1 Way Saver |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
G1 |
G2 |
G3 |
G4 |
G5 |

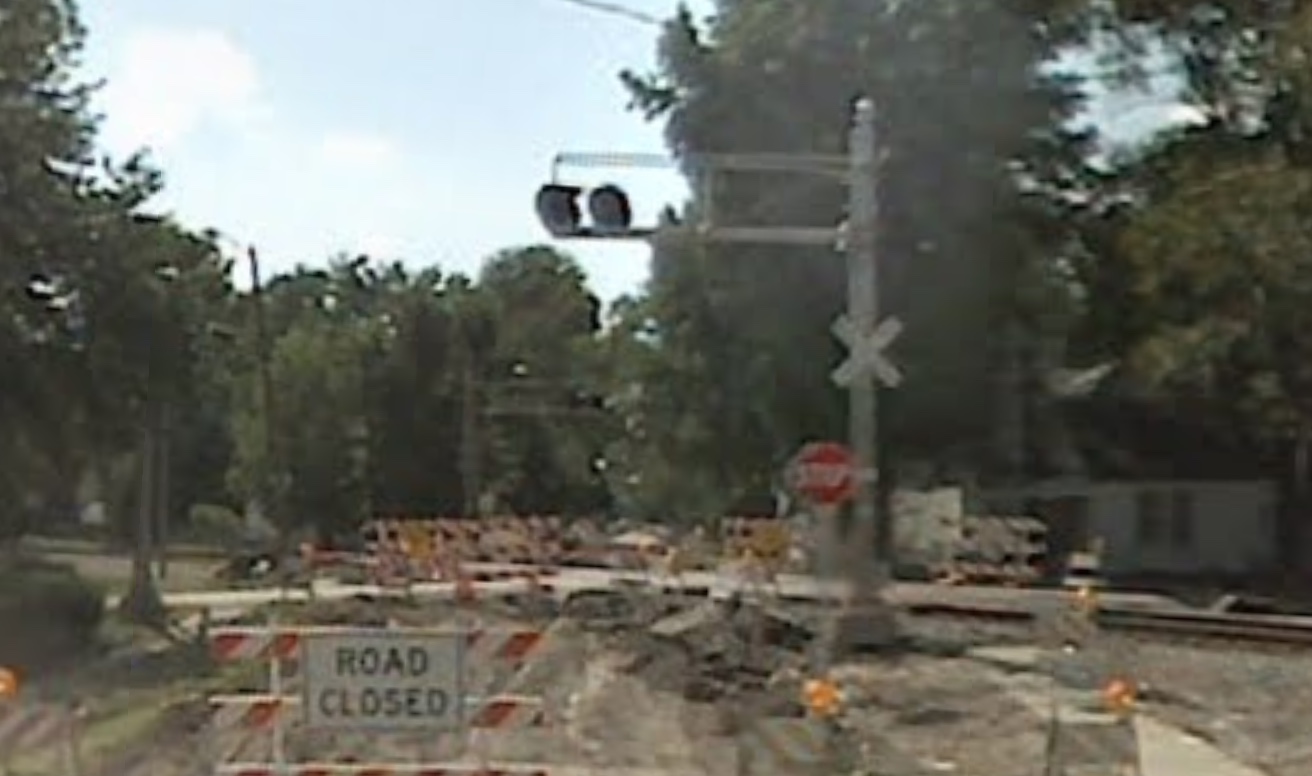

| Streetview images from 2007 showing 4 older Safetran cantilevers with 12"x24" incandescents and a GS E-Bell and Safetran M Bell. This crossing was originally in the middle of the intersection of 13th St. and Reservoir St. All images were taken in August 2007, but as you can see, work had started on completely rebuilding the crossing. The Reservoir St. section was closed off to the vehicle traffic, and the 13th St. section was left in place, and in the process, new Safetran signals were installed. |
1 |
2 |

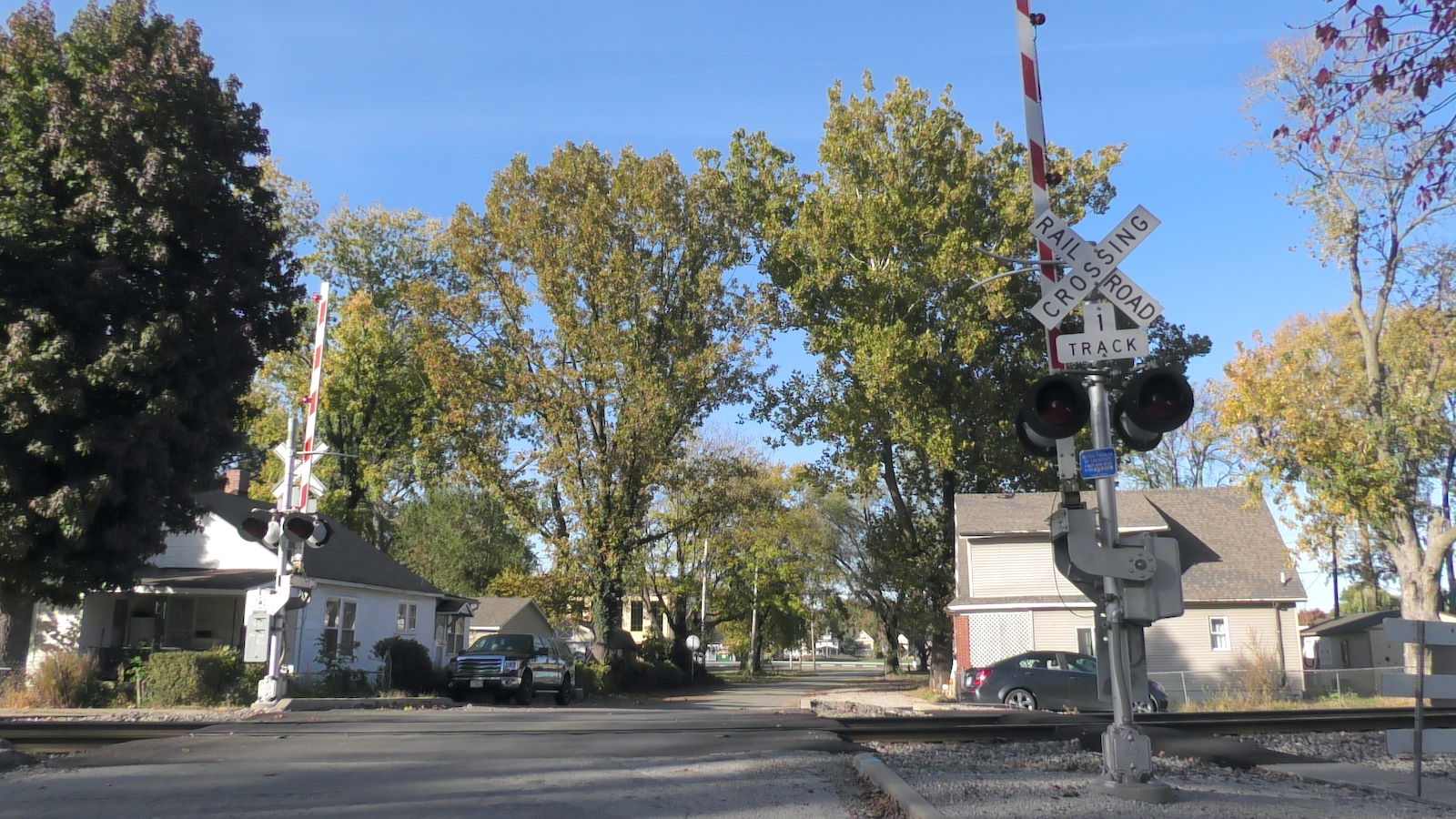

| Overview of the newer signas facing south. | Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |

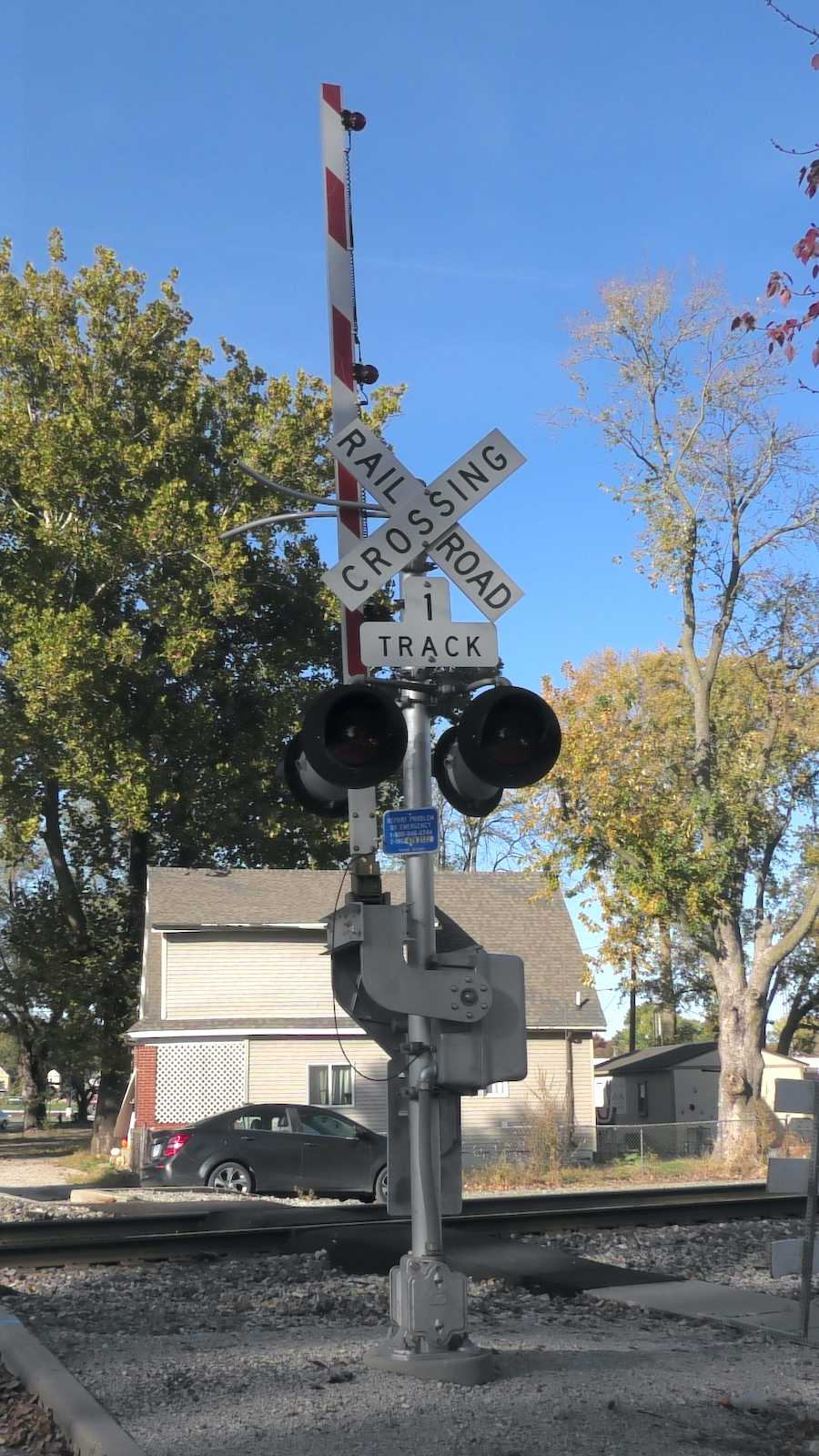

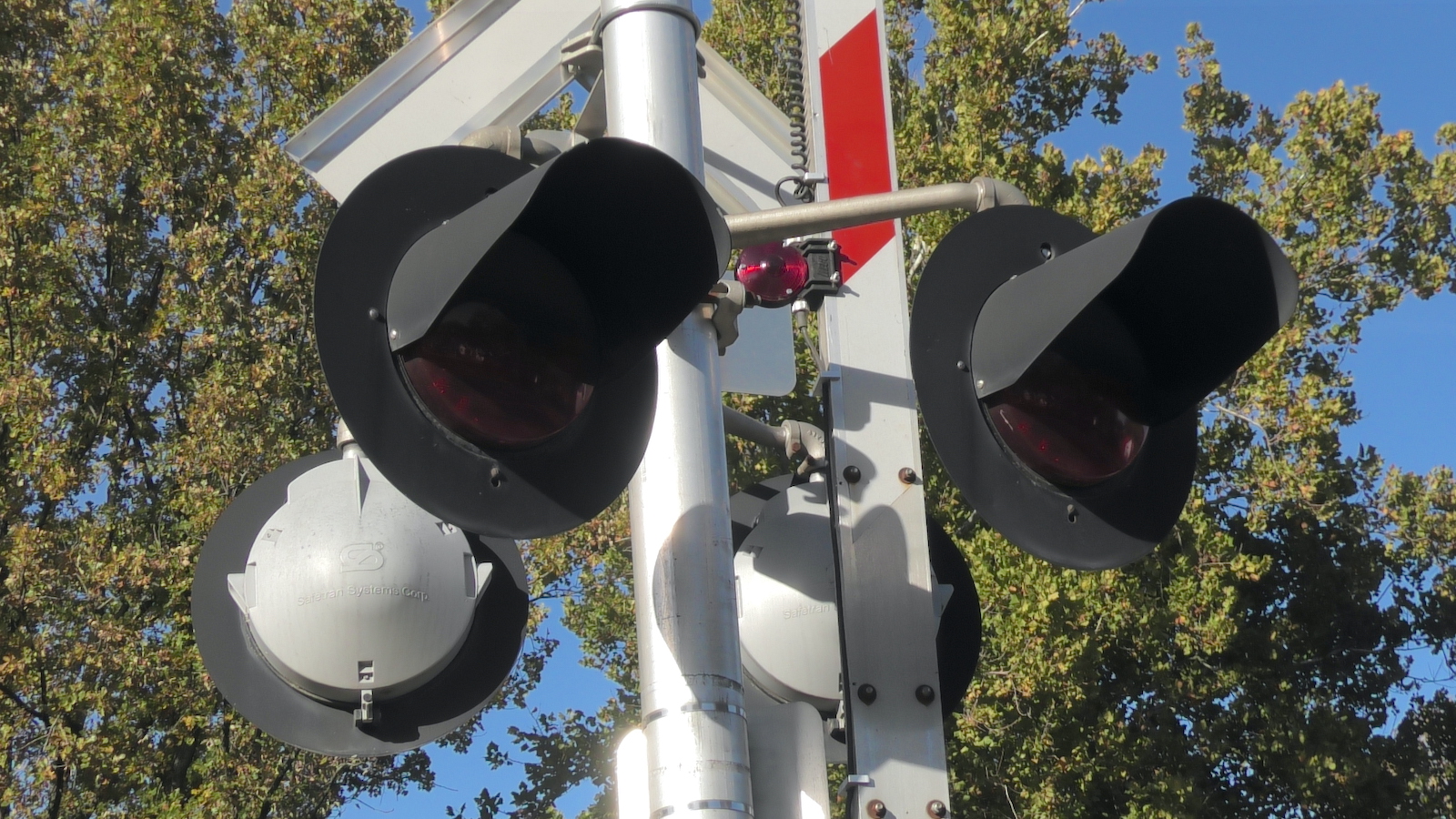

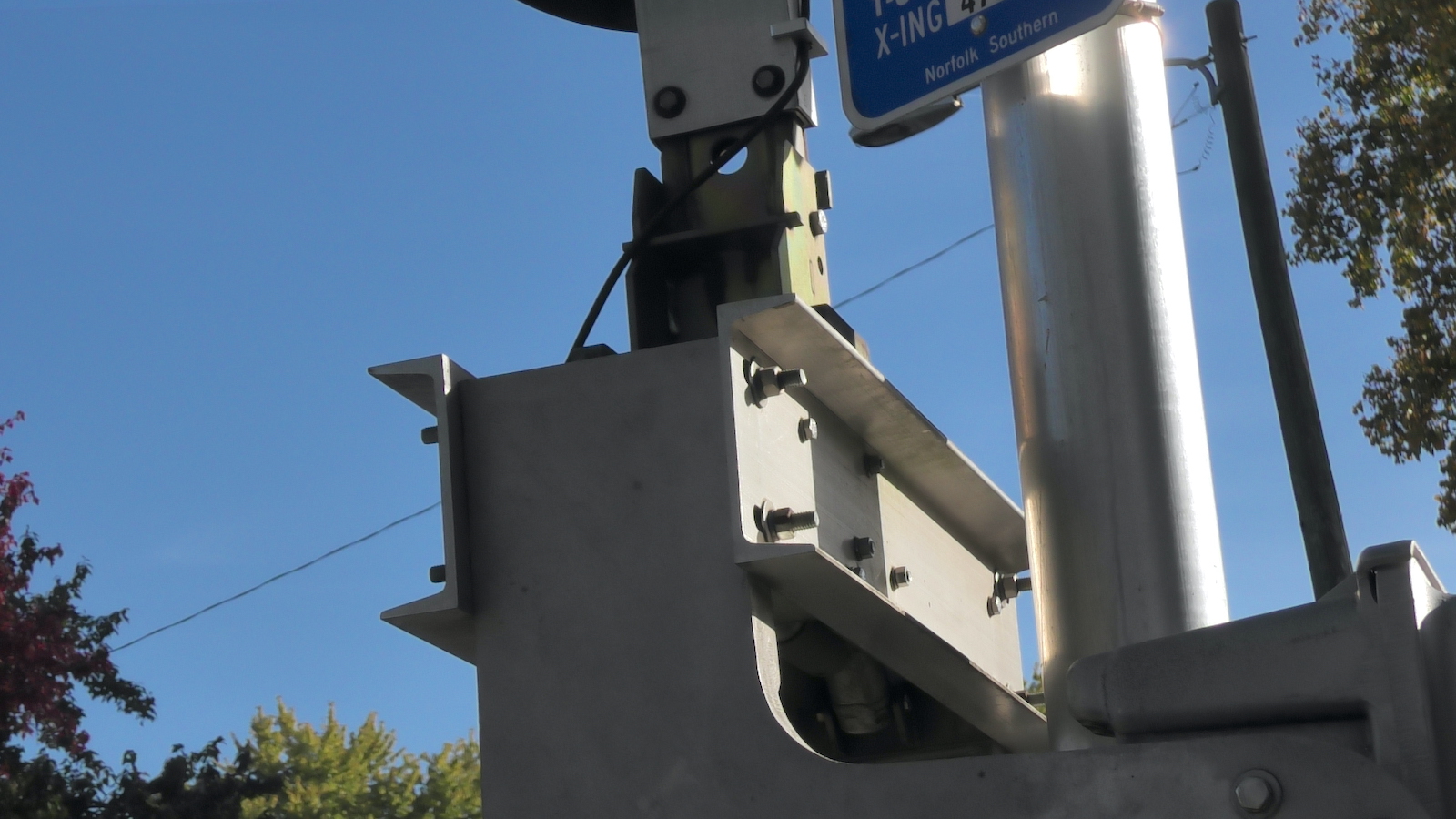

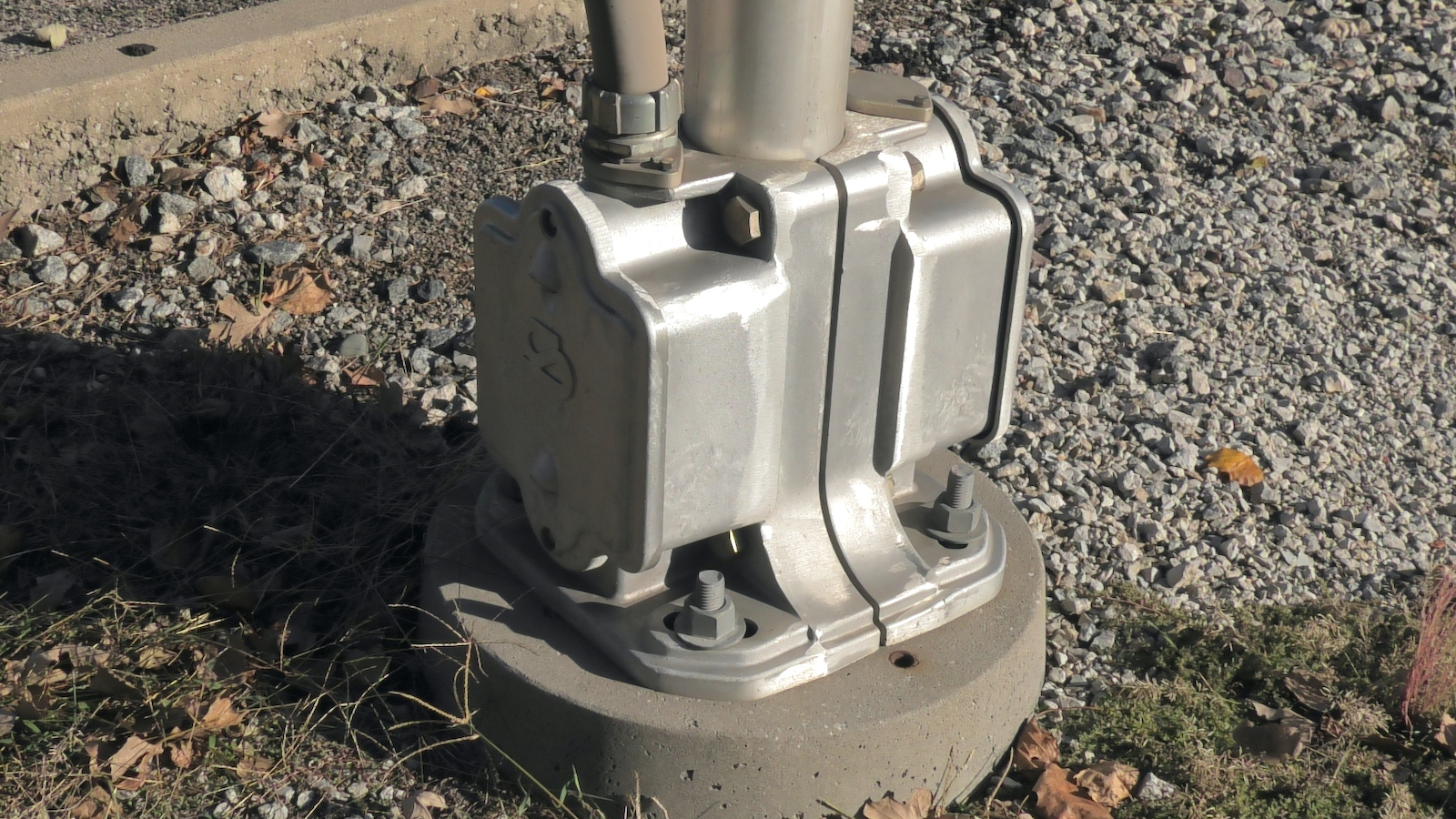

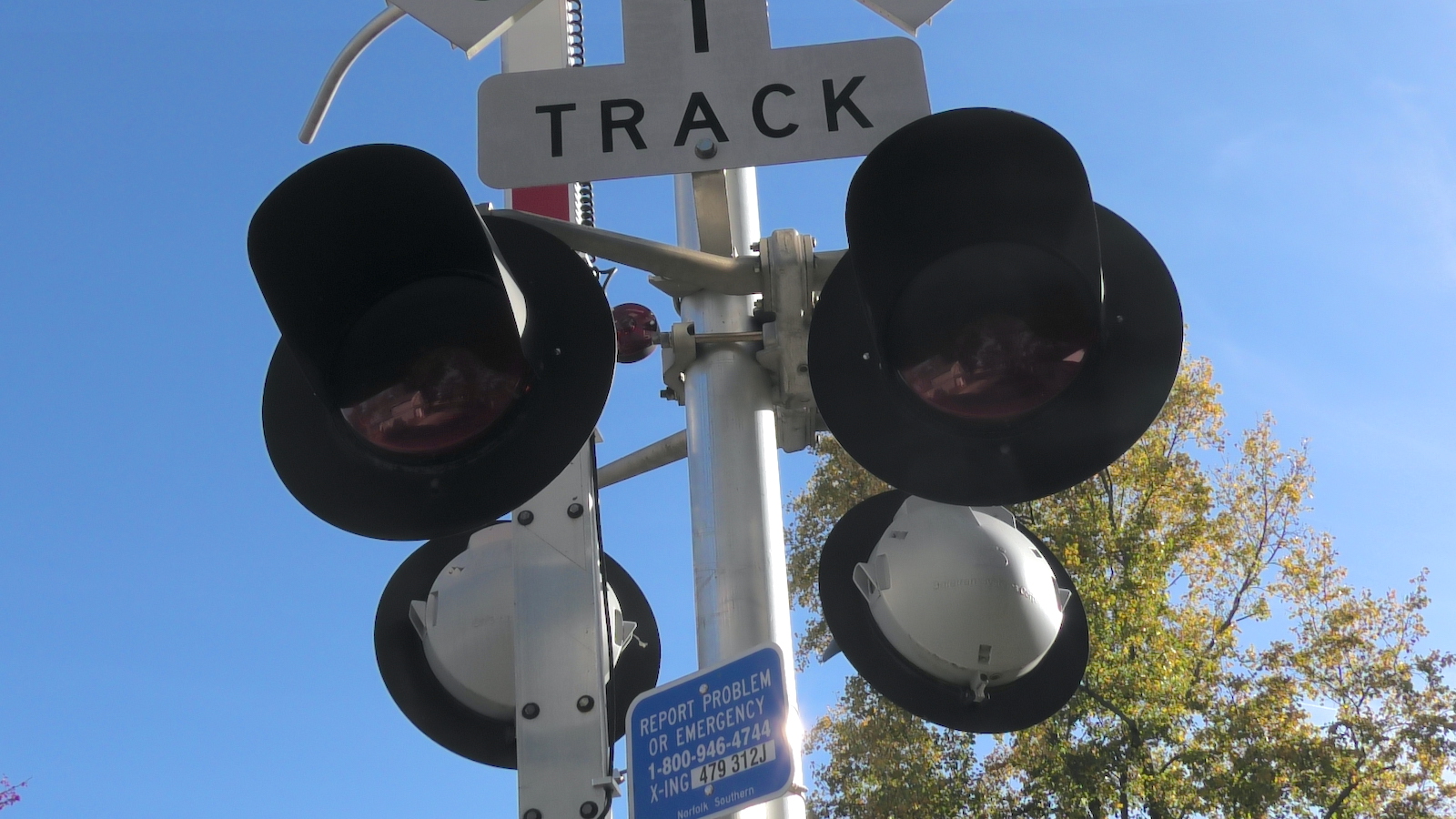

| The northern signal. All of the lights were originally incandescent. |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |

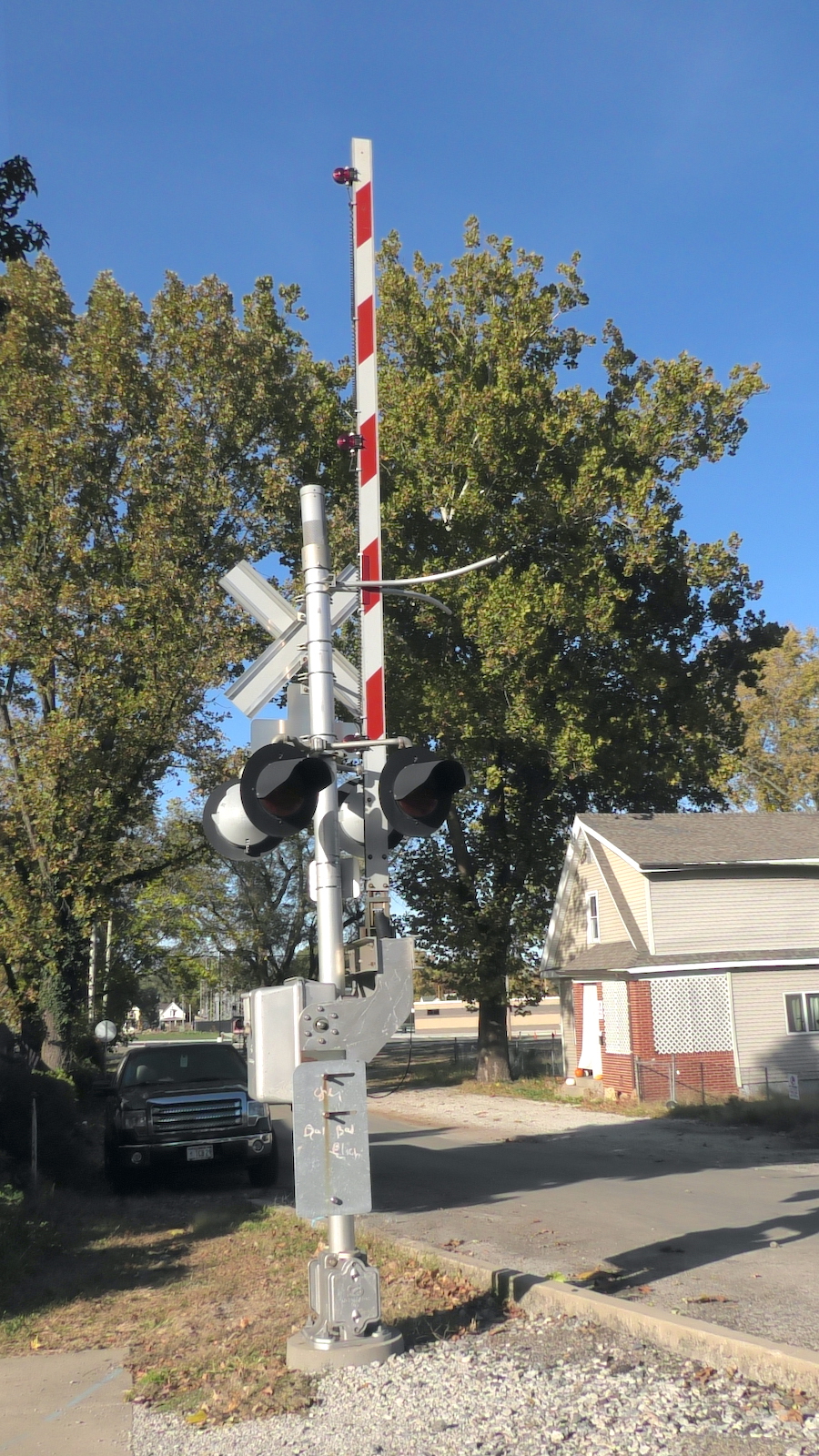

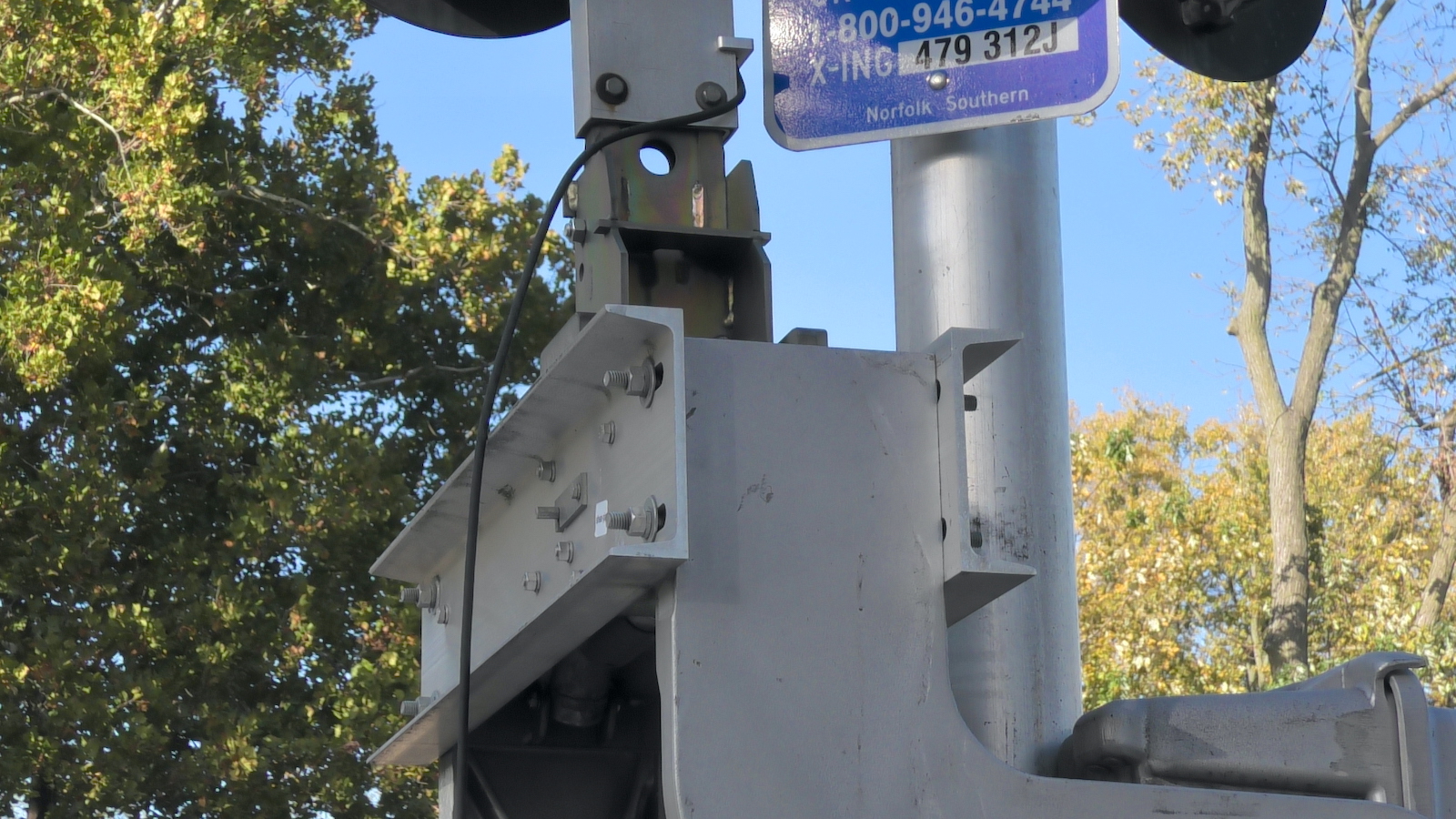

| The southern signal. |
26 |
27 |
28 |
29 |

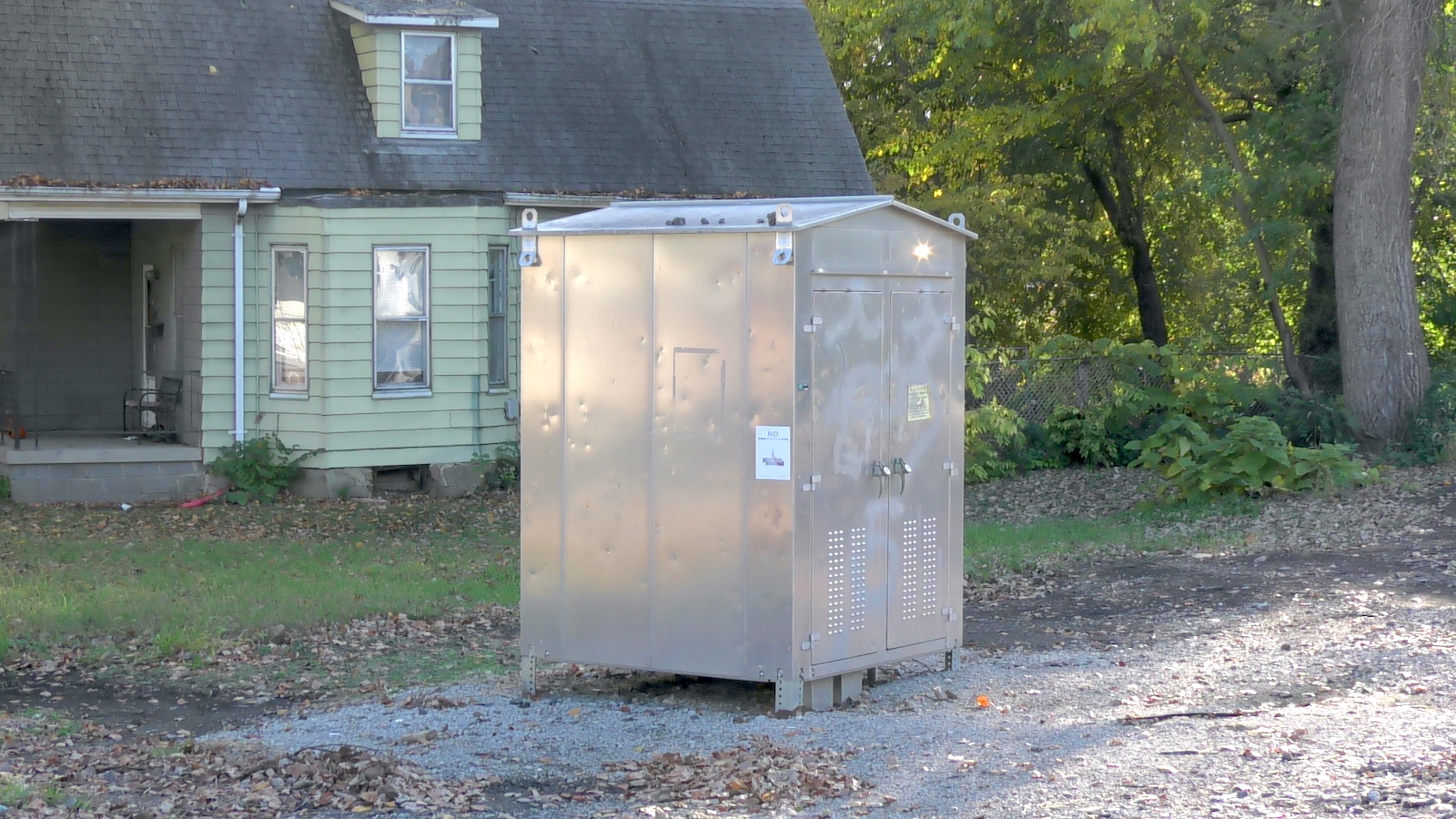

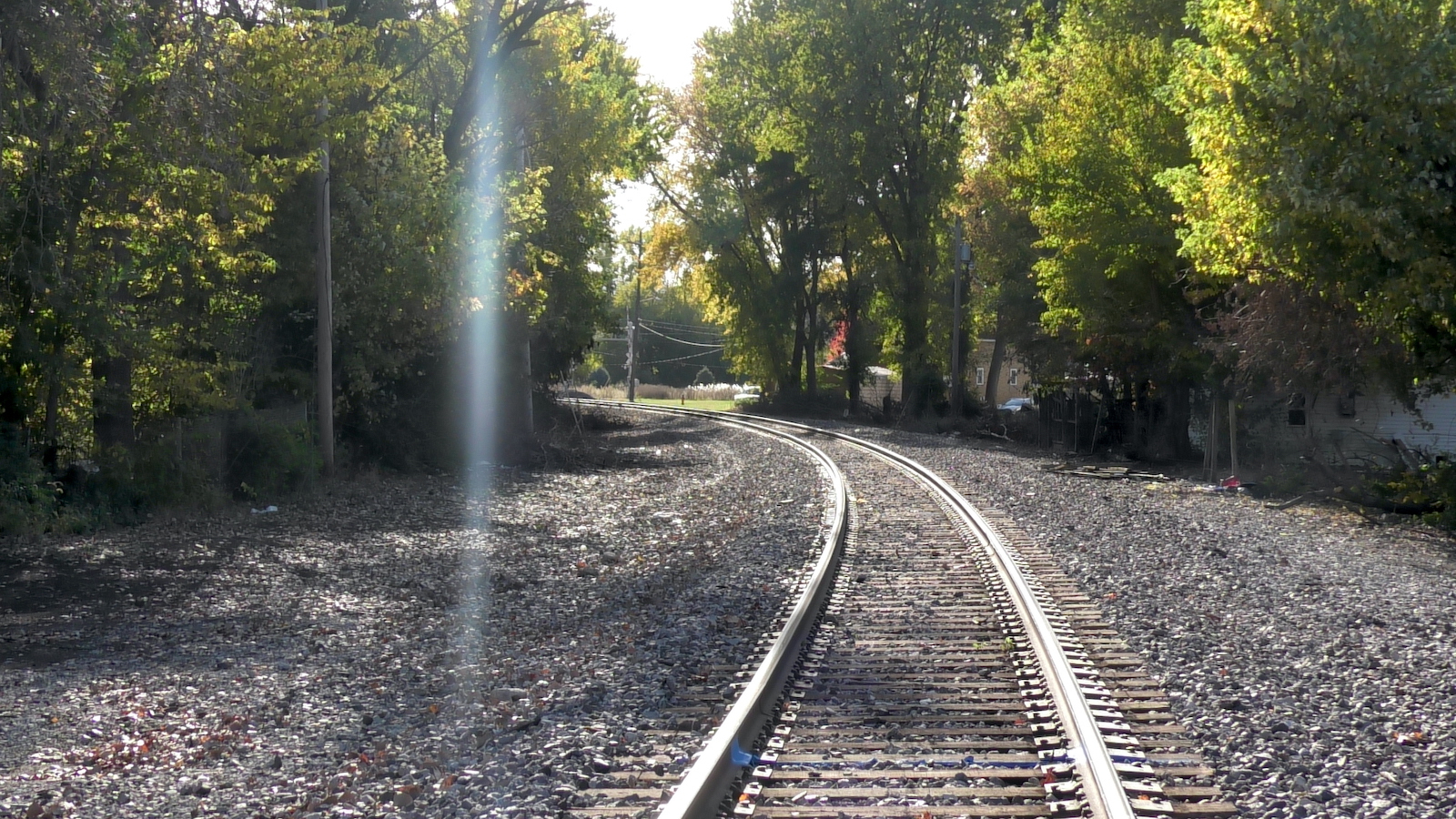

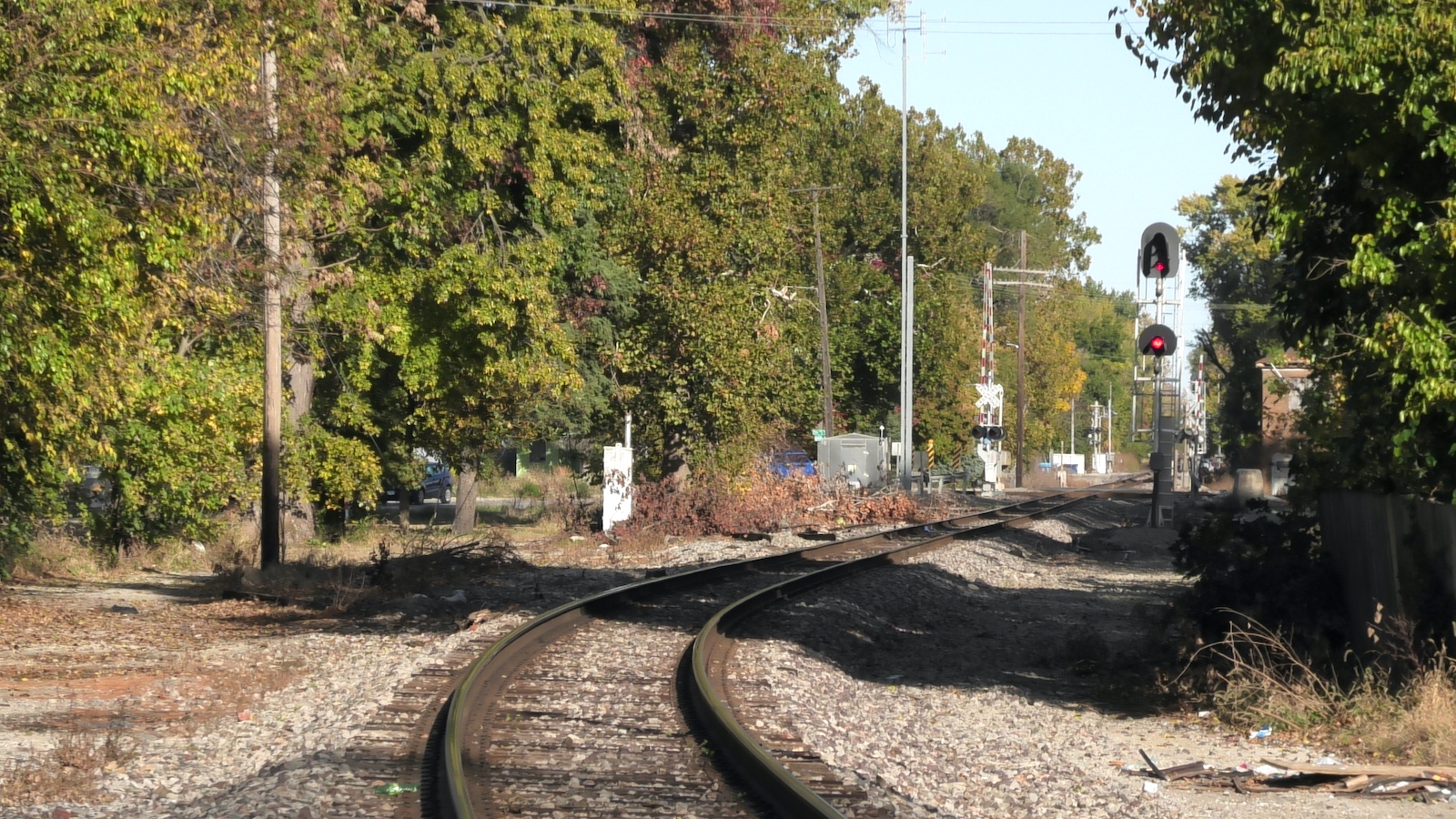

| The relay bungalow in the southwest quadrant. | The grade is rubber and asphalt. | Track view facing west towards 11th & Division St. | Track view facing east towards N. Grand Ave. #1. |
