| >>>>>>>>>>>>>>>> | Western Signal | Eastern Signal | Eastern Side Signal |
| Bell: | Safetran Type 3 E-Bell Low Tone | Safetran Type 3 E-Bell Low Tone | None |
| Gateless Mast Base: | SERRMI 4" Single Sided ^ | None | SERRMI 4" Single Sided ^ |
| Gate Mast Base: | Safetran 5" Double Sided ^ | Safetran 5" Single Sided ^ | None |
| Lights: | 6 - 12"x24" Safetran incandescents | 4 - 12"x20" Safetran incandescents | 4 - 12"x24" Safetran incandescents |
| Junction Boxes: | Safetran | Safetran | Safetran |
| Gate Lights: | 4" RECO incandescents | 4" NEG incandescents | None |
| Gate Mechanism: | Safetran 2000s w/ Standard Mount | Safetran 2000s w/ NEG 1 Way Saver | None |
| Gate Striping: | Vertical Striping | Vertical Striping | N/A |
1 |
2 |

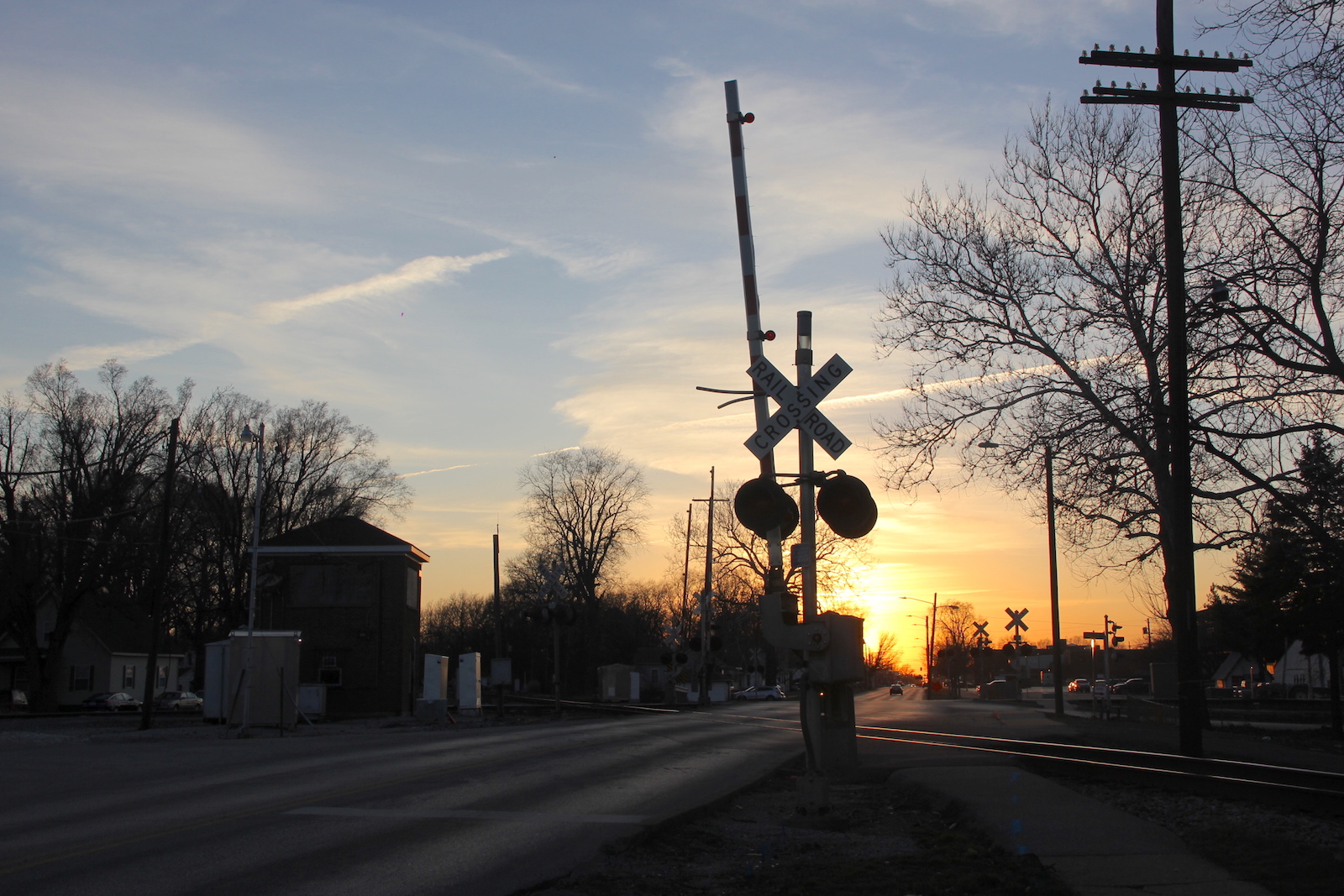

| Overview of a neat gated setup facing west. | Overview facing east. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
| The eastern signal. |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
| The western signal. |
25 |
26 |
27 |
28 |
29 |
| The eastern side signal. This protects the driveway that leads to the tower protecting the diamond here. |
30 |
31 |
32 |
33 |
34 |

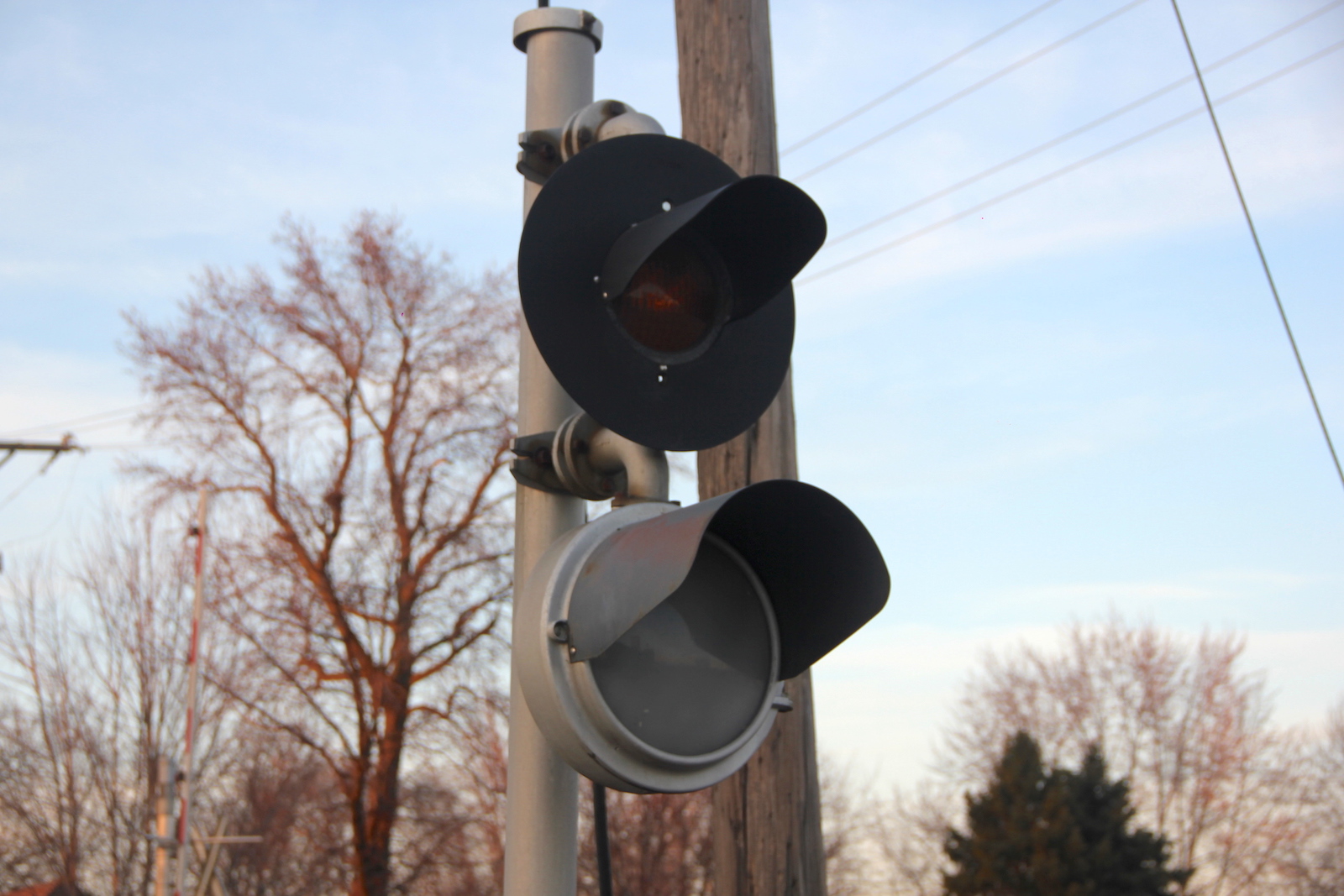

| A No Left Turn light also protects the tower driveway. This has a Safetran base and a Safetran 8" yellow incandescent. |
35 |
36 |
37 |
38 |

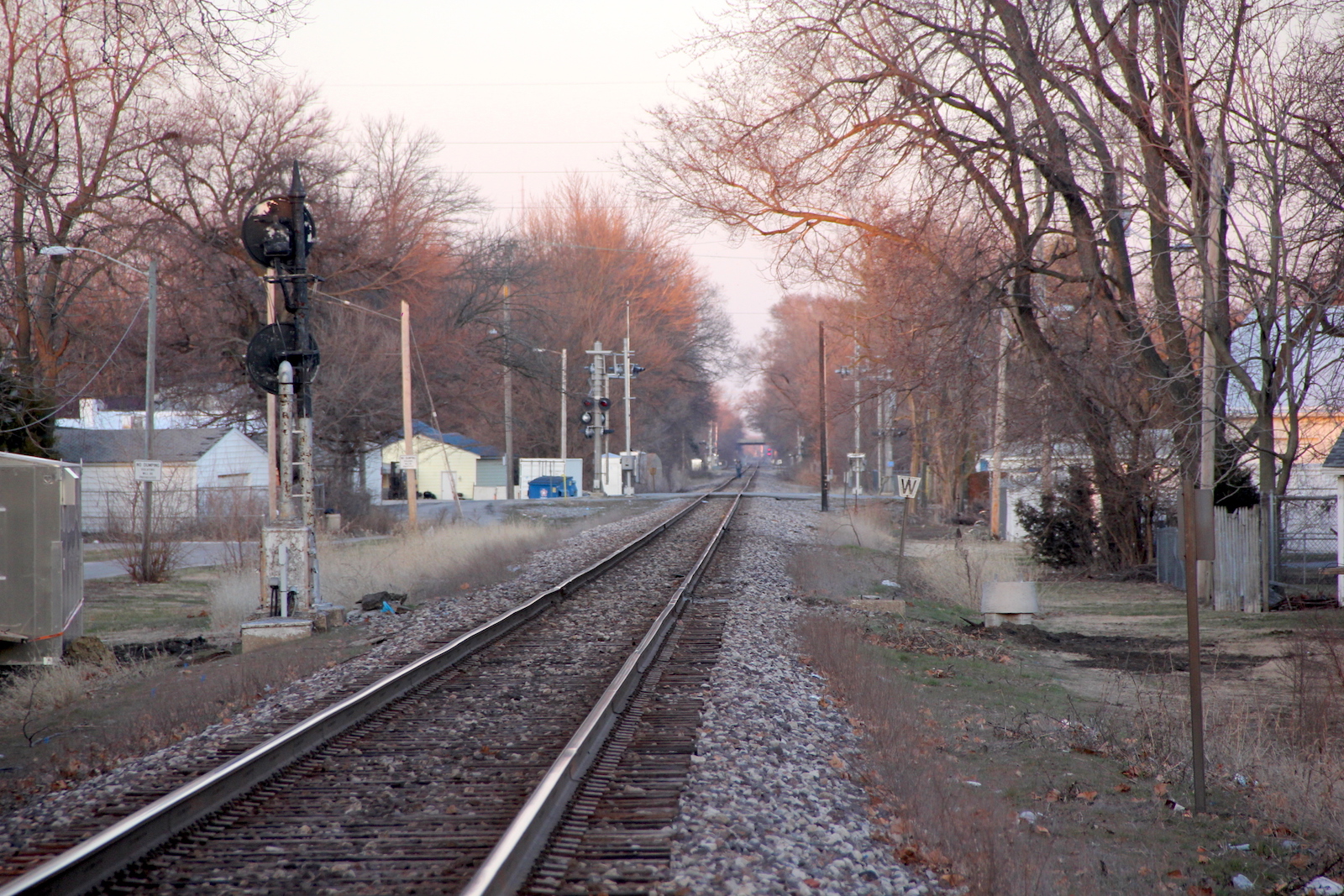

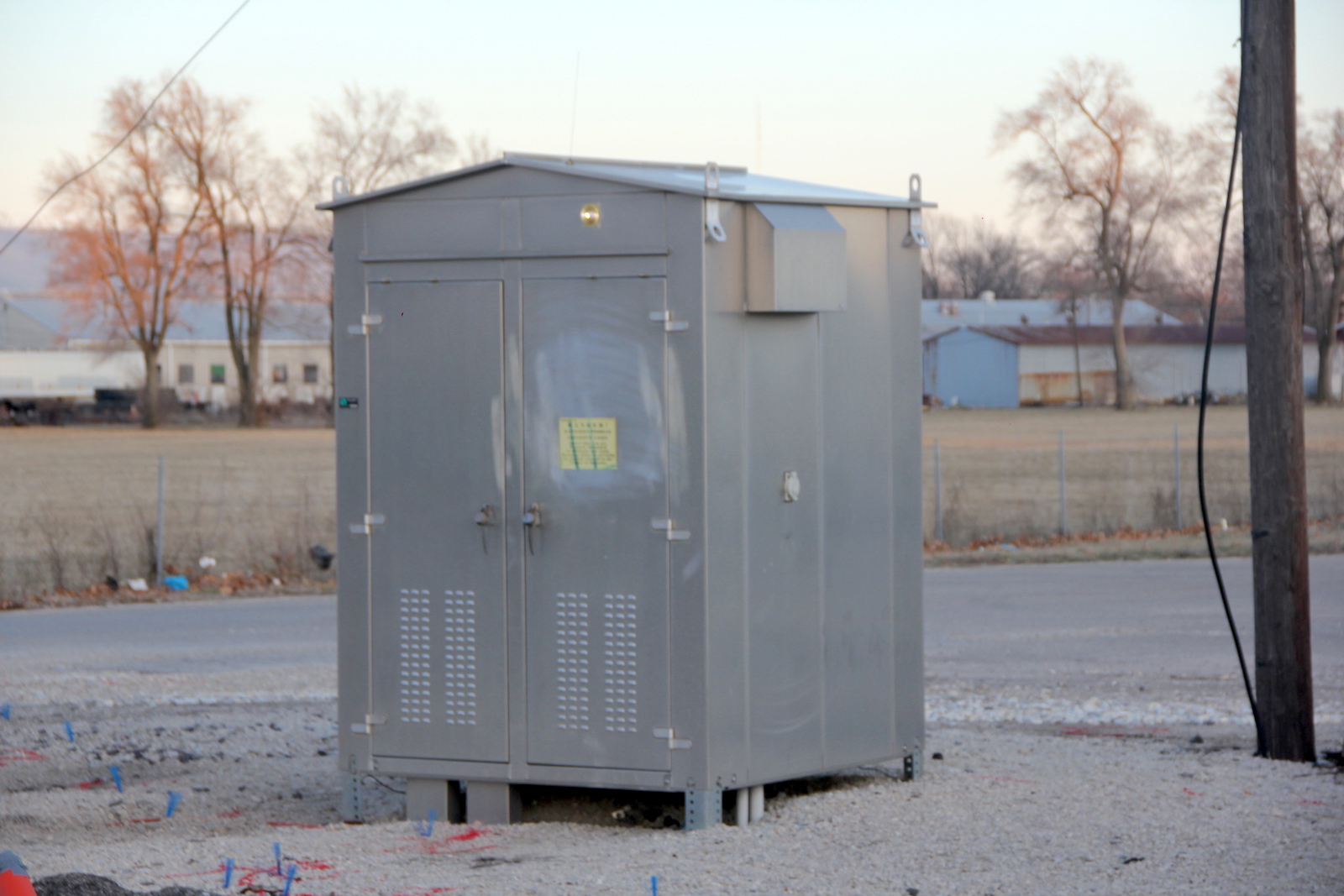

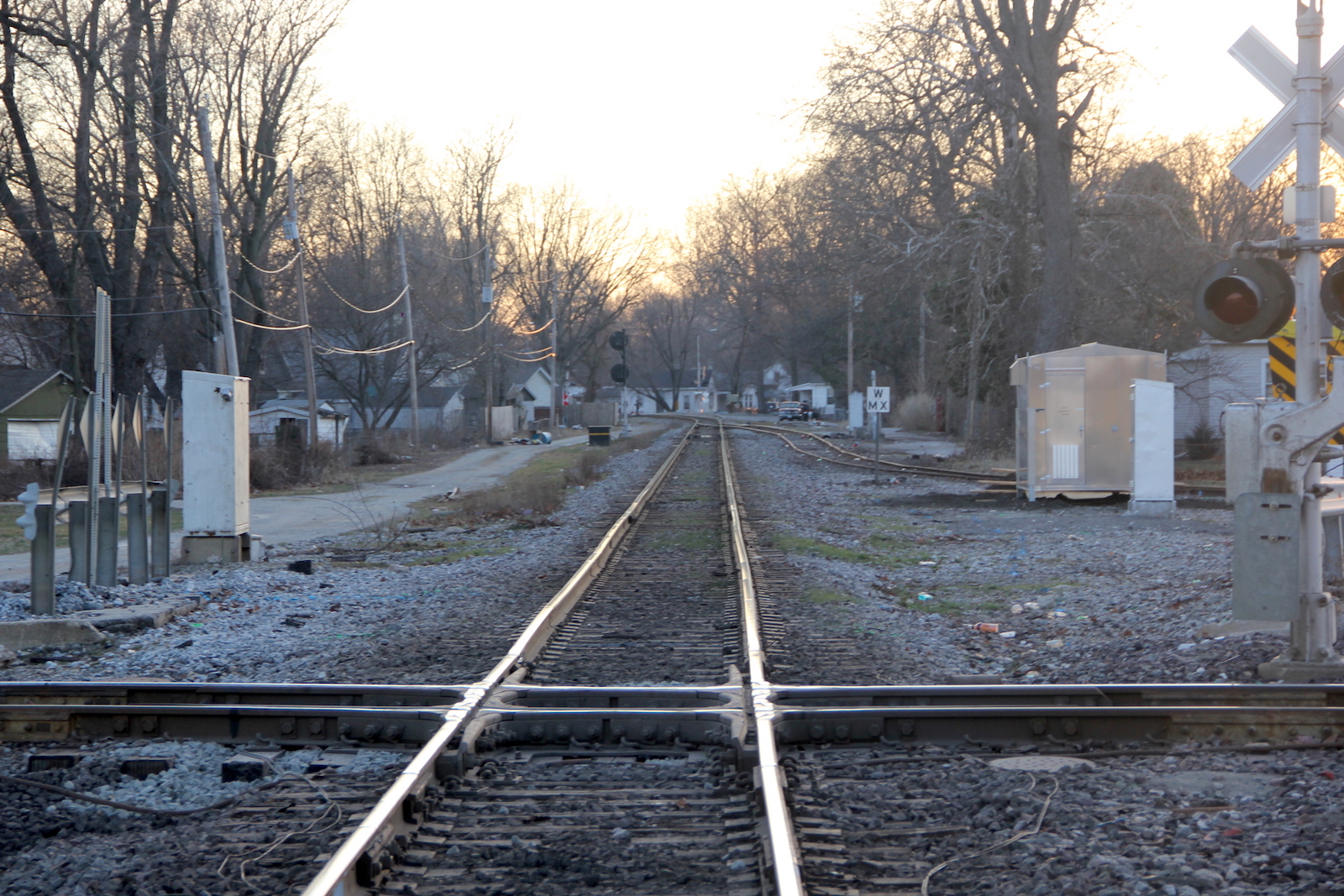

| The relay bungalow in the southeast quadrant. | The grade is rubber and asphalt. | Track view facing west towards 13th St. | Track view facing east towards 19th St. |
39 |

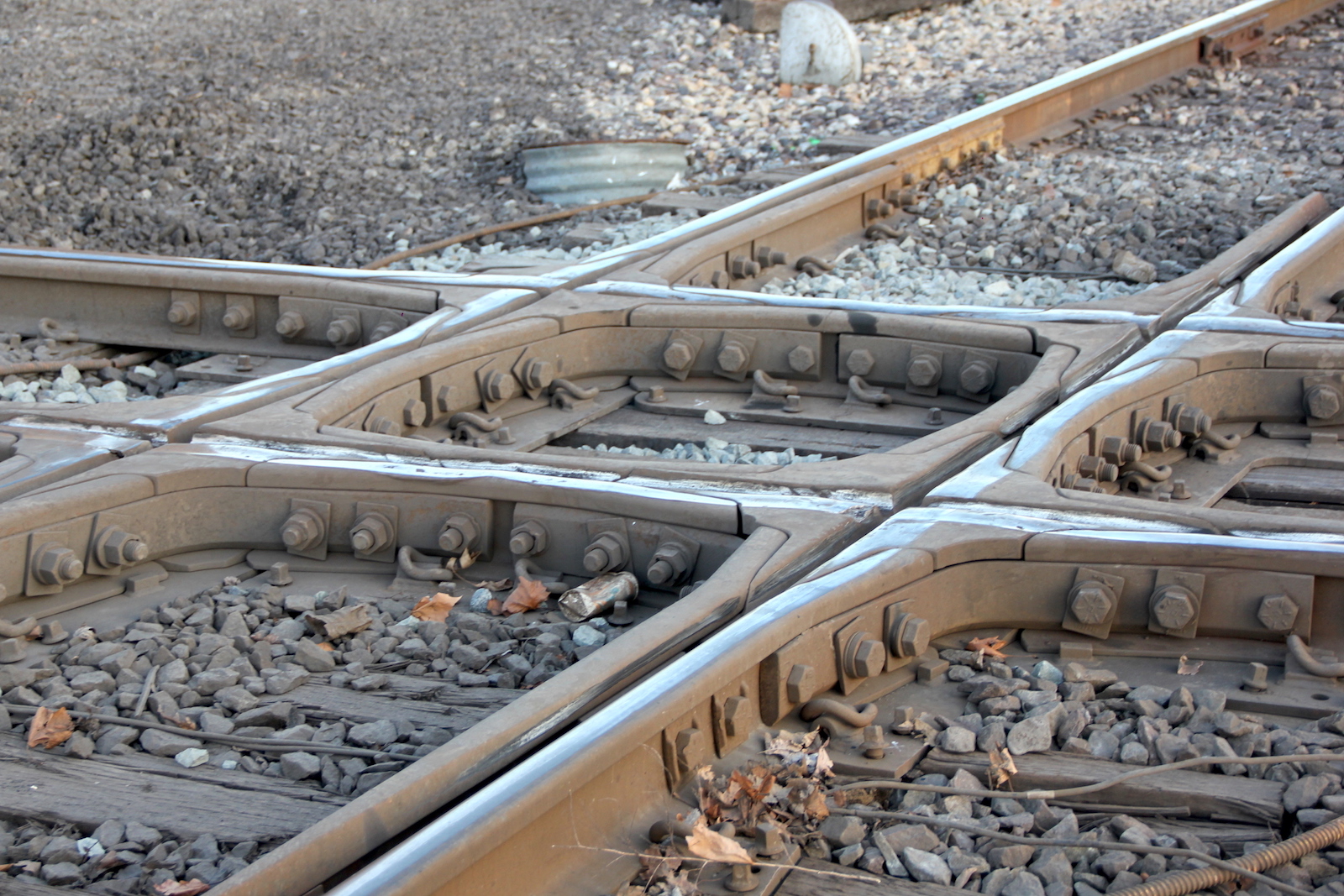

| The diamond with the IMRR Springfield Sub. |
