184.42


294299H

>>>>>>>>>>>>>> Southwestern Signal Southeastern Signal
Bell: GS Type 3 E-Bell NEG E-Bell
Base: Progress Rail Cantilever Siemens 5" Single Sided ^
Lights: 8 - 12"x24" WCH w/ GE Dotted LEDs 4 - 12"x24" Safetran w/ GE Dotted LEDs
Junction Boxes: Progress Rail Safetran
Gate Lights: NEG Clear LEDs NEG Clear LEDs
Gate Mechanism: Siemens Imprinted w/ Old NEG 2 Way Saver Siemens Imprinted w/ Old NEG 2 Way Saver
Gate Striping: Vertical Striping Vertical Striping


>>>>>>>>>>>>>> Northwestern Pedestrian Gate Northeastern Pedestrian Gate Southwestern Pedestrian Gate Southeastern Pedestrian Gate
Base: Siemens 5" Single Sided ^ Siemens 5" Single Sided ^ Siemens 5" Single Sided ^ Siemens 5" Single Sided ^
Gate Light: 4" RECO LED 4" RECO LED 4" RECO LED 4" RECO LED
Gate Mechanism: Siemens Imprinted Siemens Imprinted Siemens Imprinted Siemens Imprinted
Gate Striping: Vertical Striping Vertical Striping Vertical Striping Vertical Striping

Pictures 1-23 and the 1st video were taken on March 14, 2018.
Pictures 27- 69 and the 2nd video were taken on July 15, 2019.
All pictures and videos were taken by Tommy McGowan.
This crossing is located on the UP Springfield Sub.

1 2

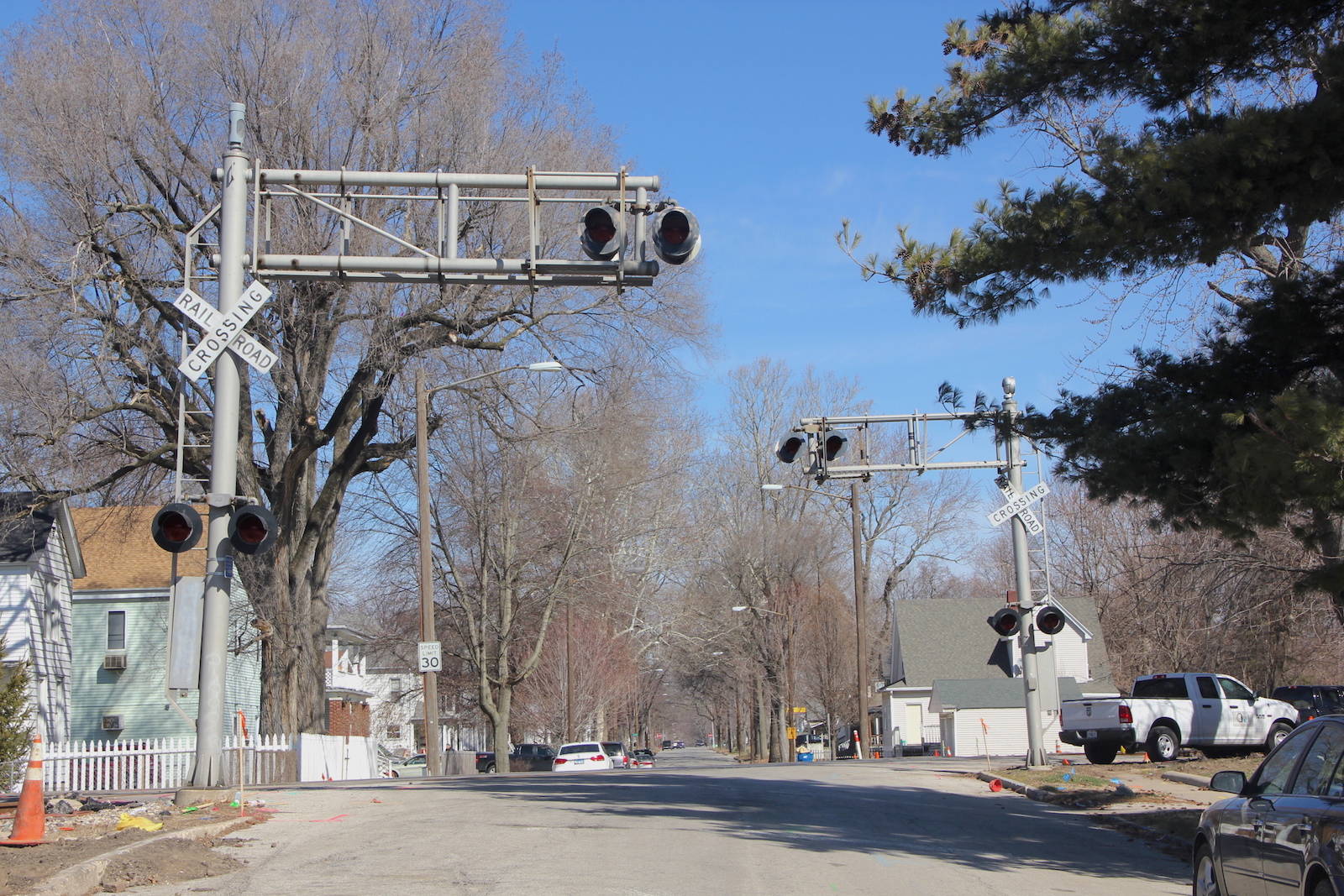

Overview of 2 endangered gateless cantilevers facing north.
 Overview facing south.
3 4 5 6
7 8 9 10

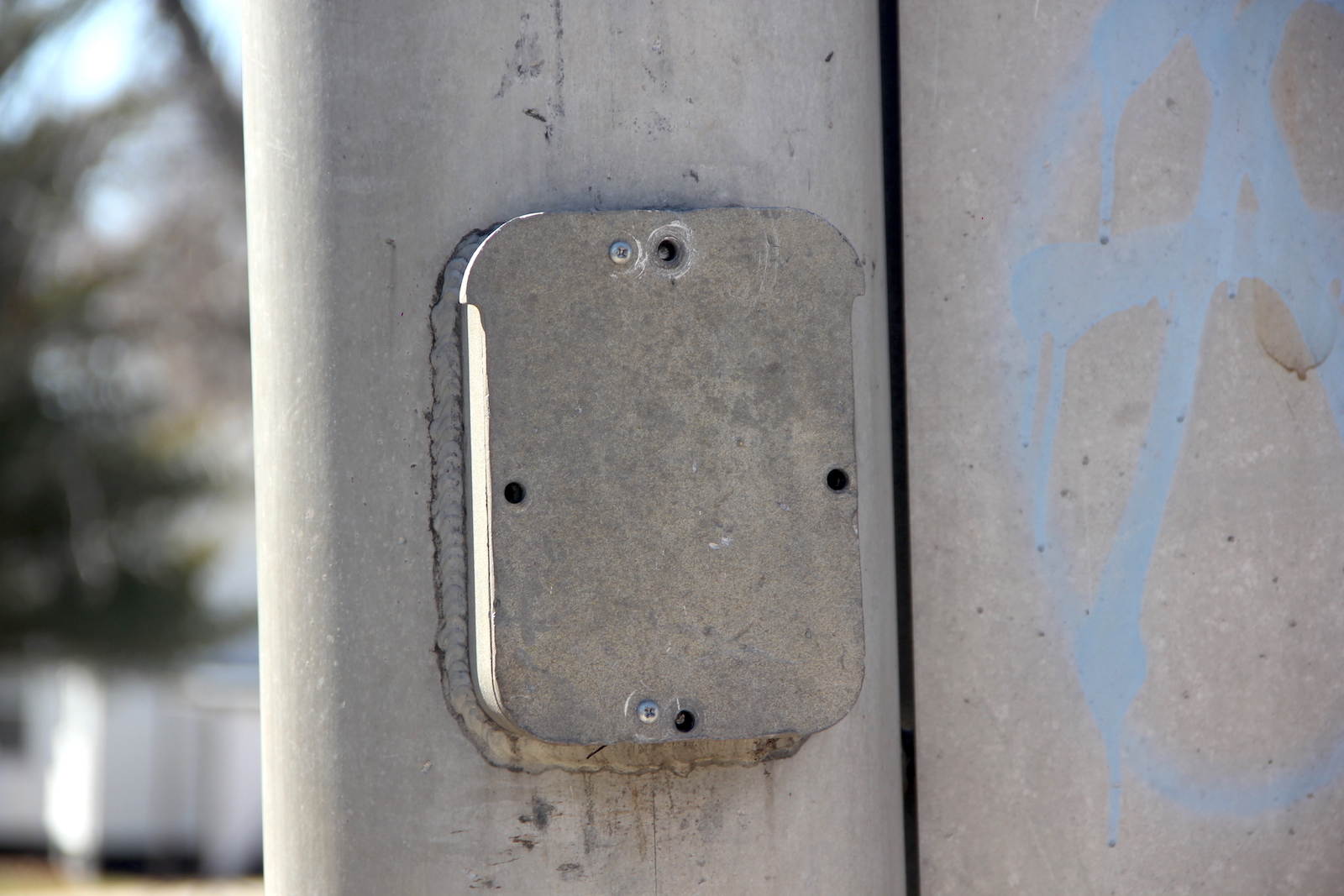

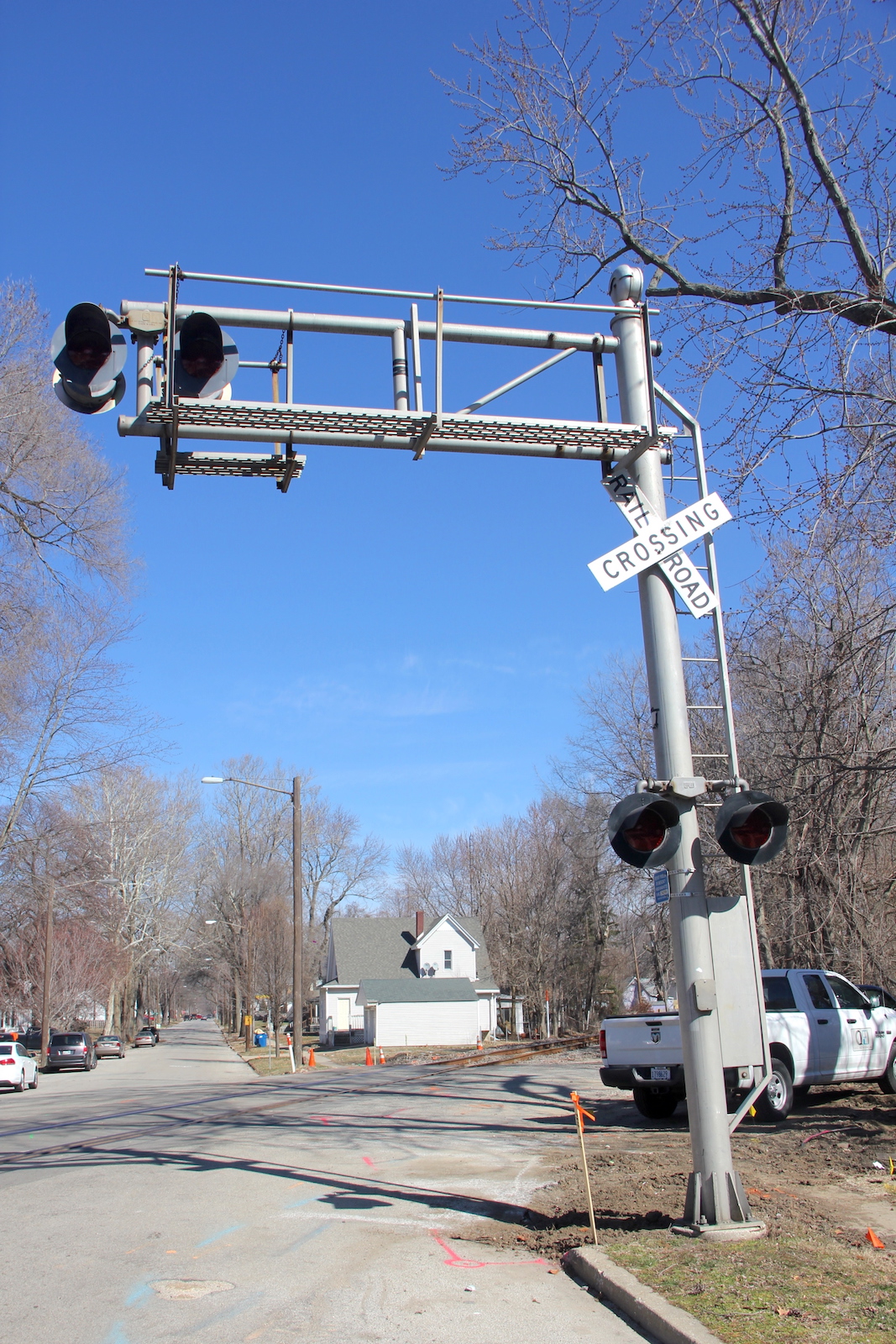

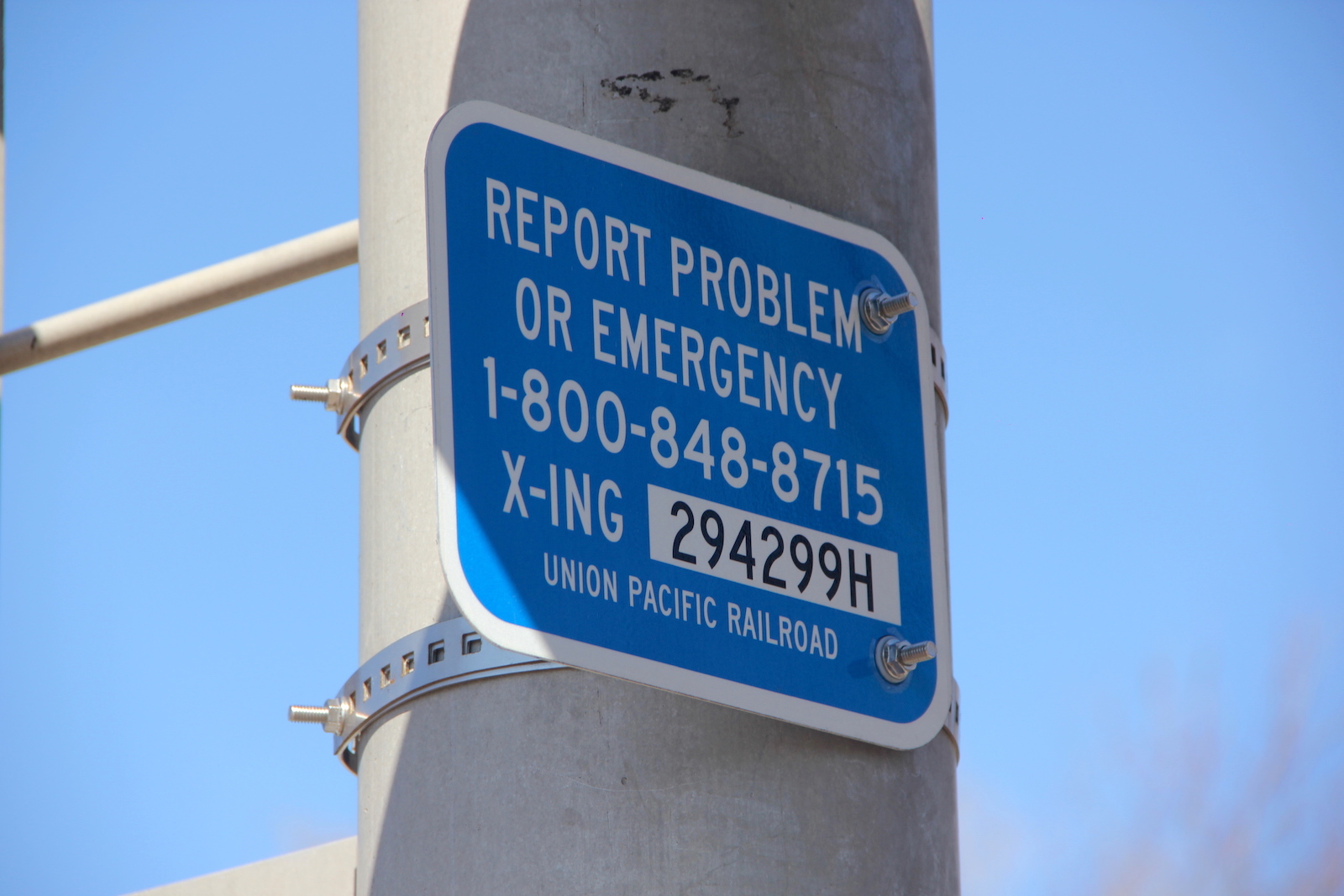

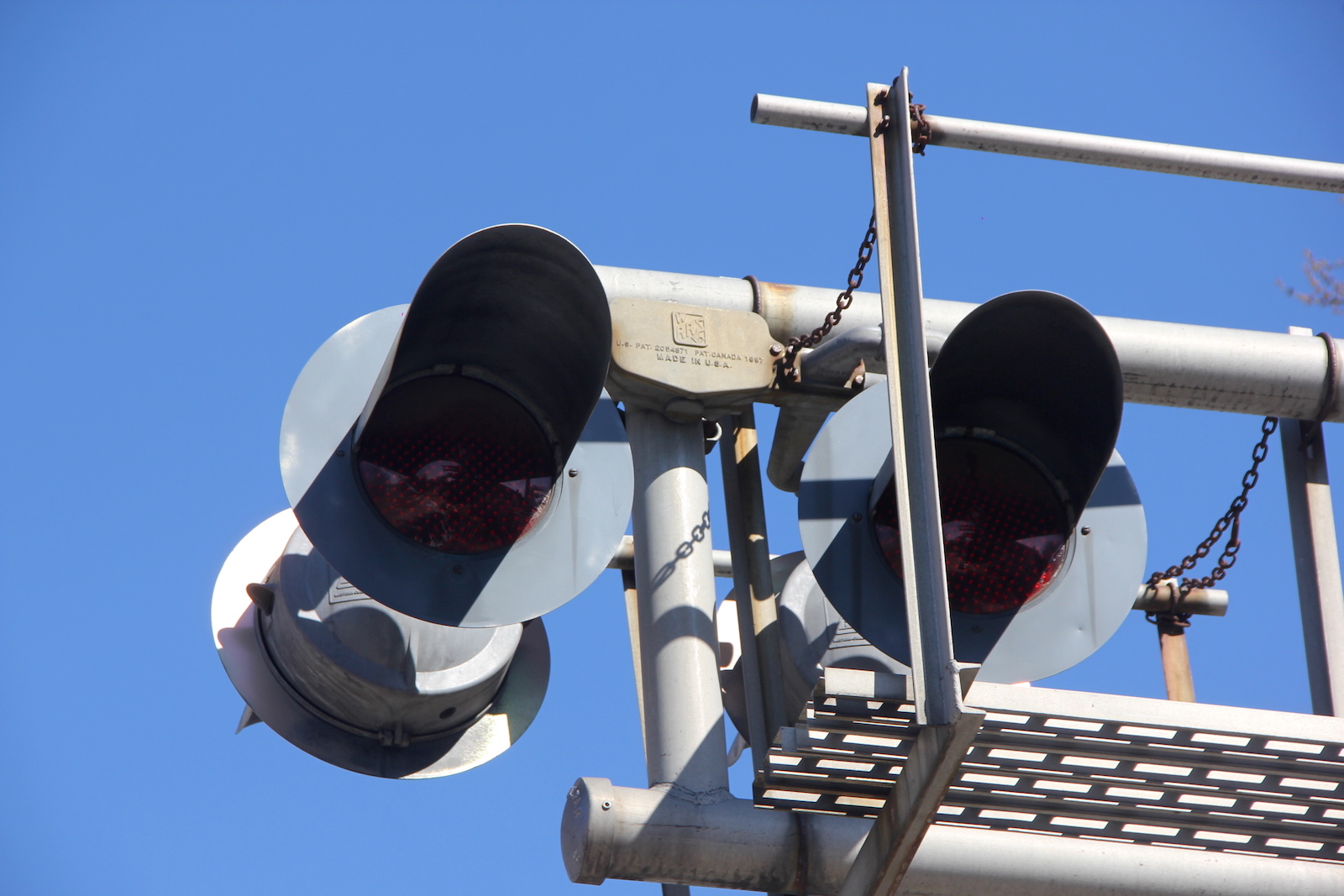

The southeastern signal.
11 12 13
14 15 16
17 18 19

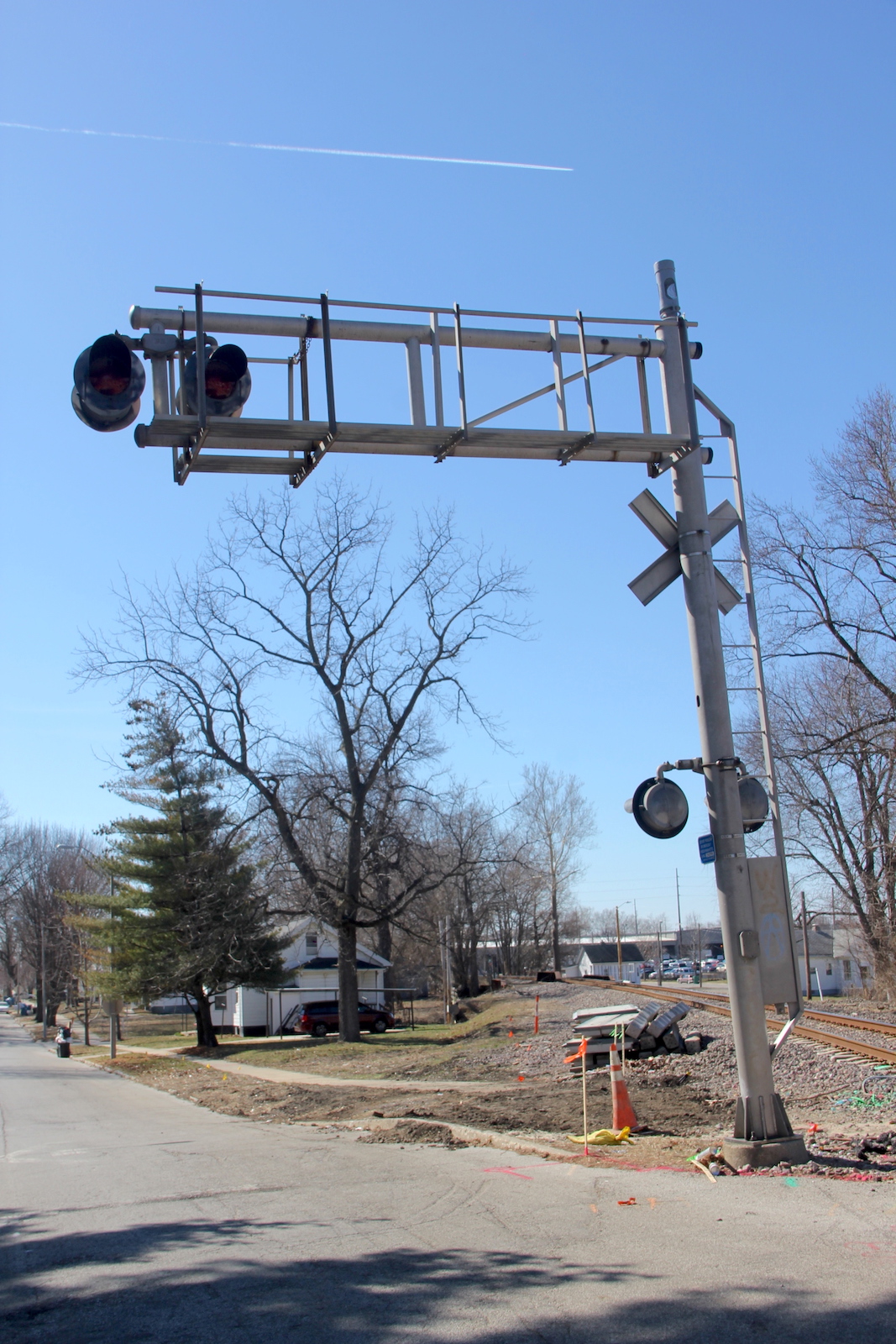

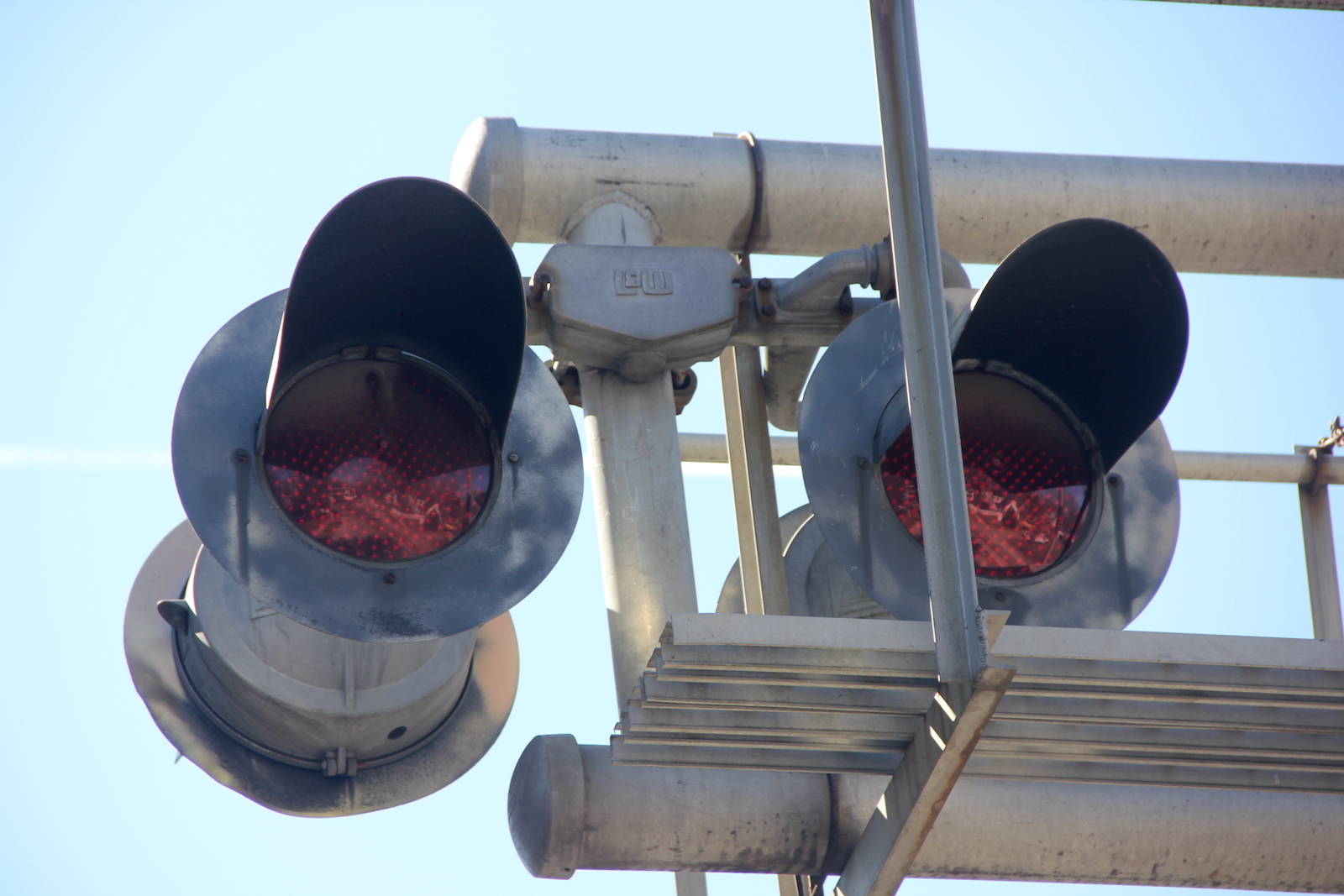

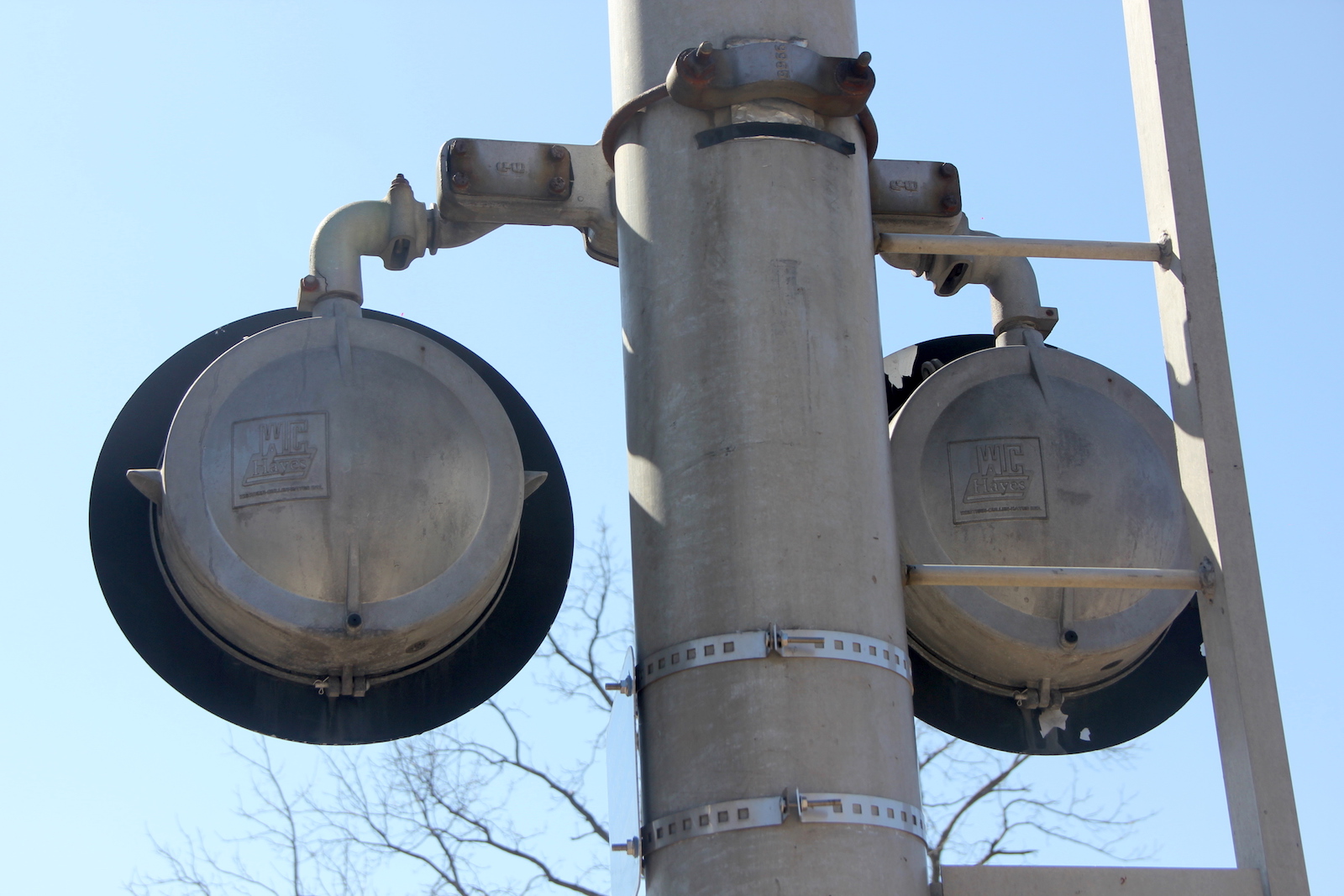

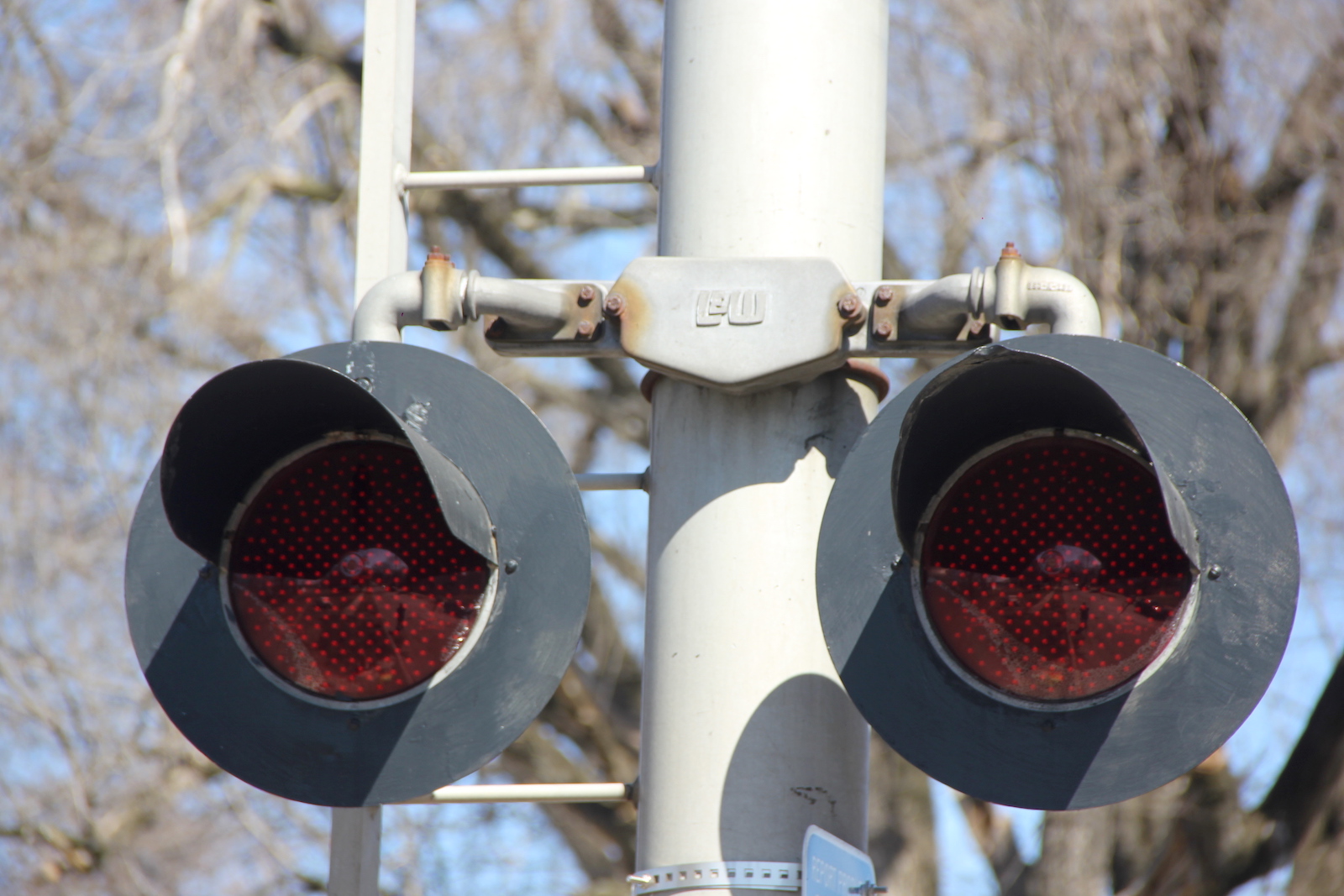

The southwestern signal.  The NEG bell was added on and didn't replace any older bells.
20 21
The old relay case in the southeast quadrant.

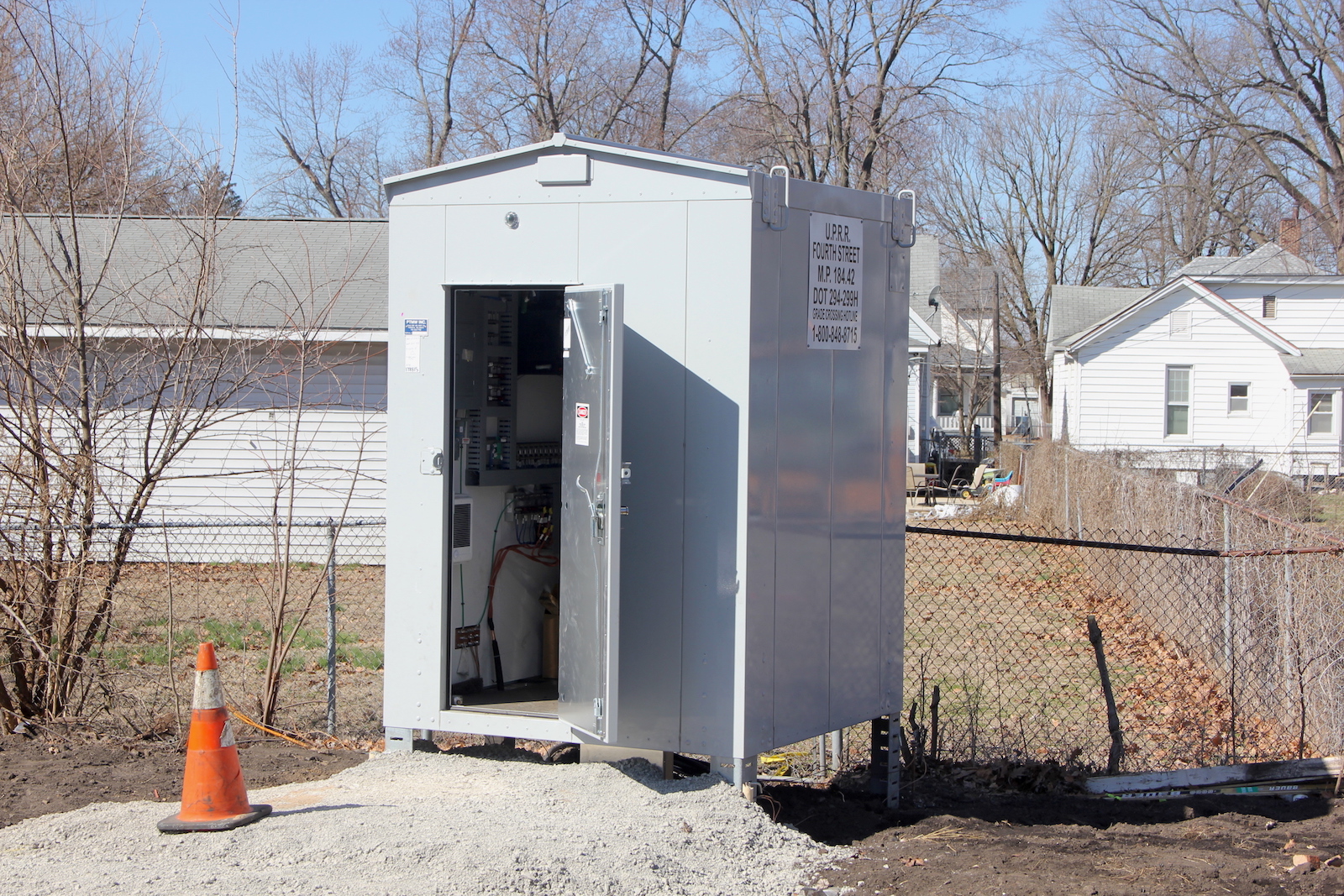

 The new relay bungalow in the northwest quadrant.
22 23 24
The grade is all concrete.
 Track view facing north at 5th St.

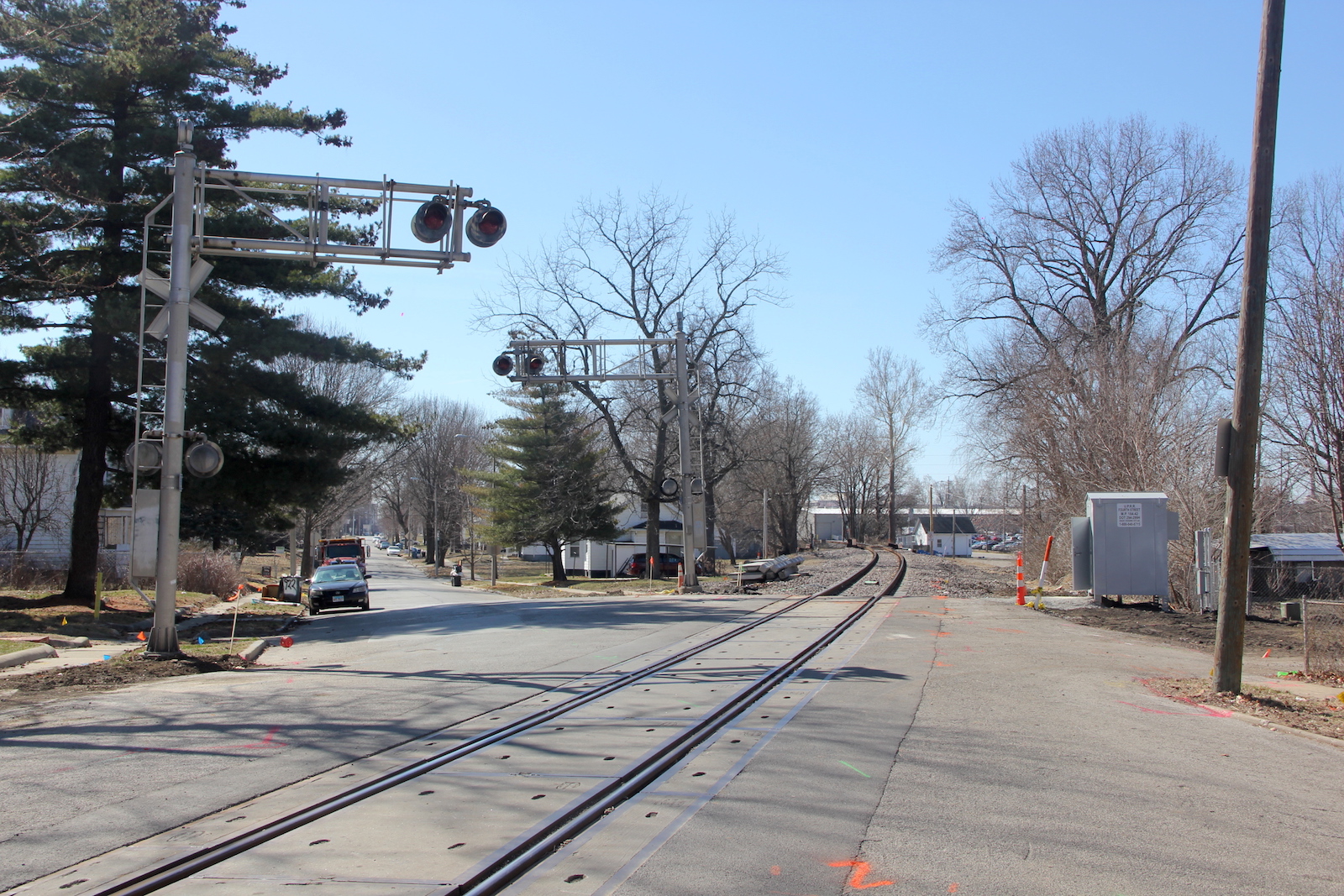

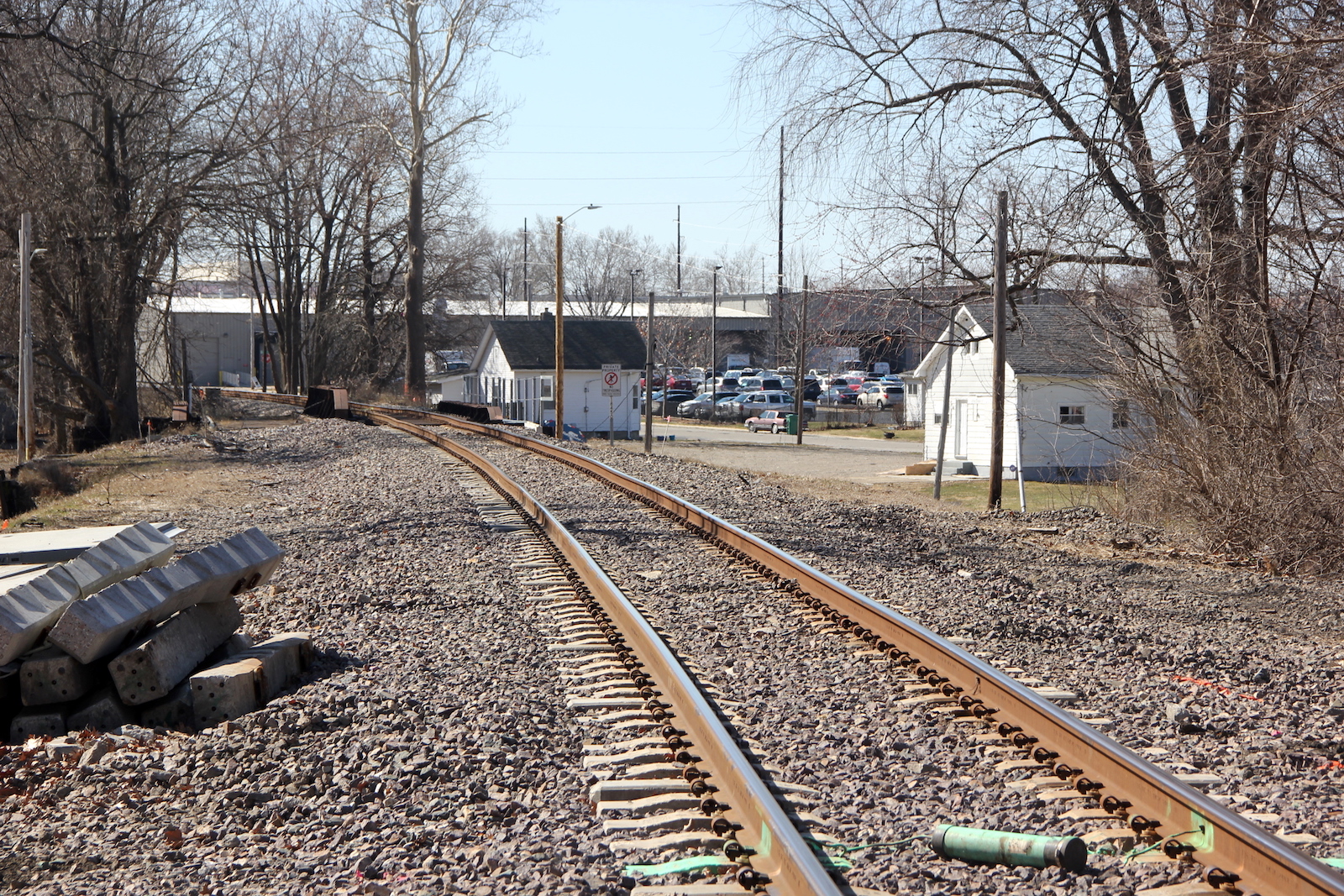

 Track view facing south towards Union St.
25 26
Another view facing south.

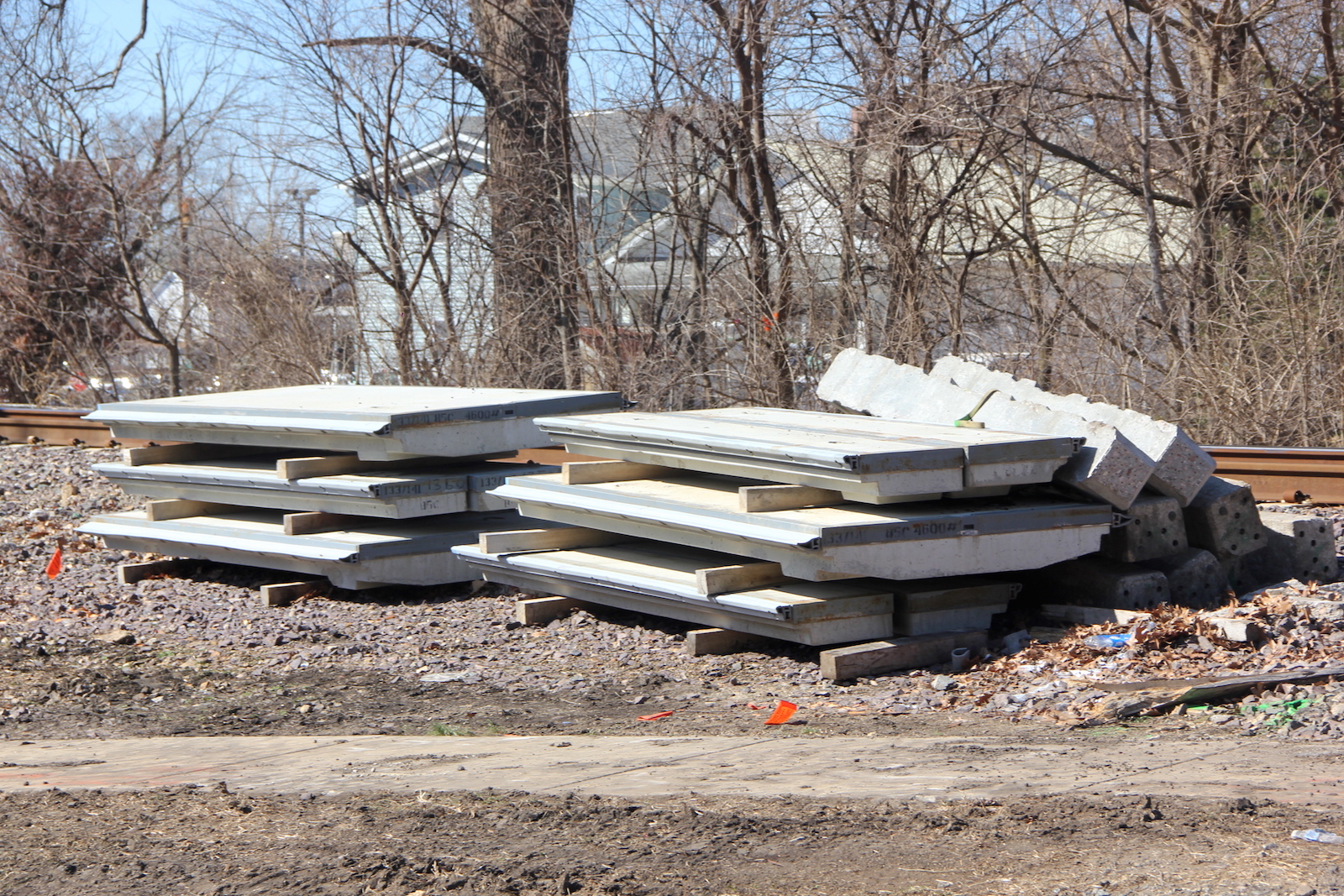

 New concrete pads waiting off to the side.

By Summer 2018, the cantilevers were replaced with a new cantilever and mast signal along with 4 pedestrian gates.

27 28
Overview of the overhauled setup facing north. Overview facing south.
29 30 31
32 33 34
35 36 37

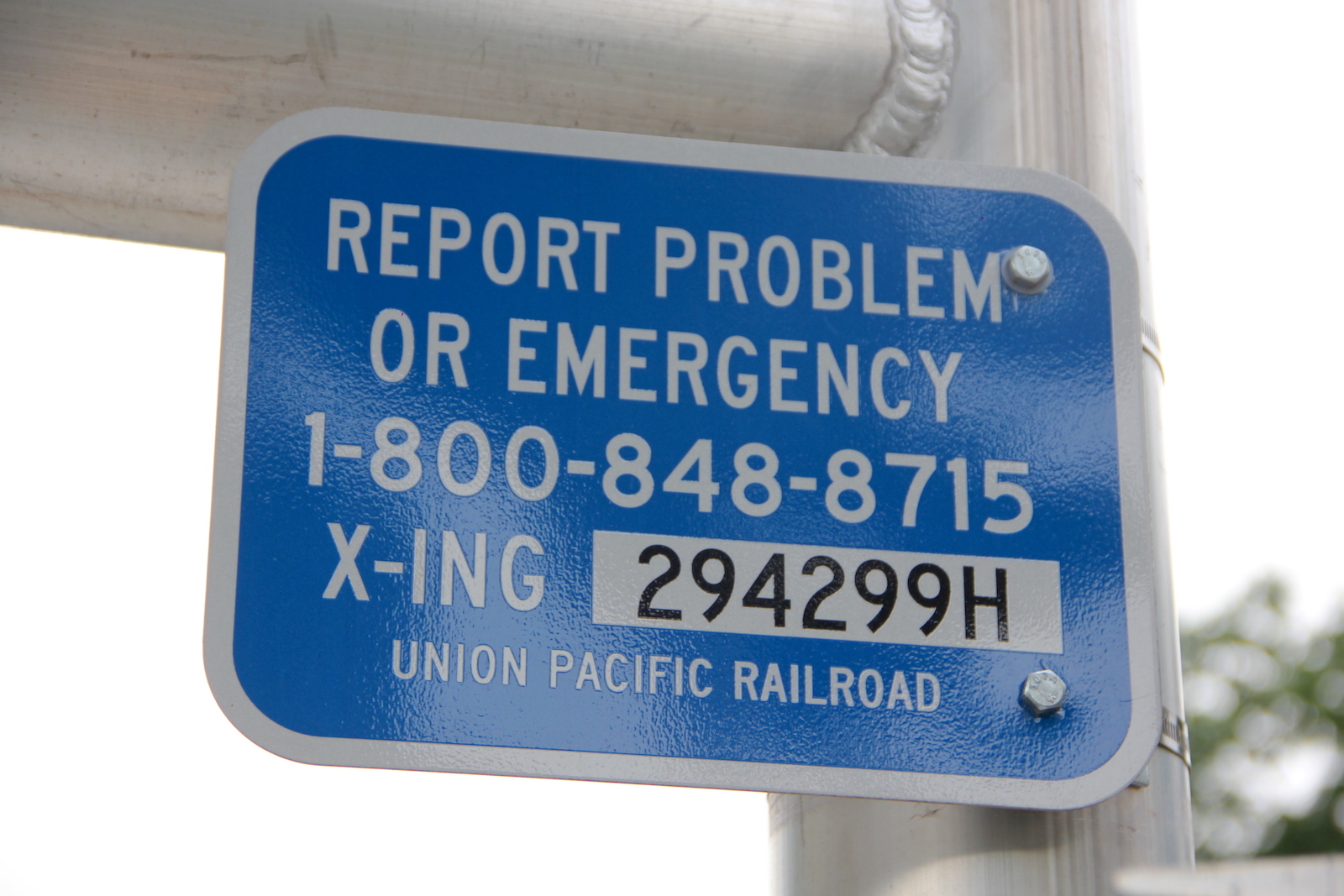

The new southeastern signal.
38 39 40 41
42 43 44 45
46 47 48 49

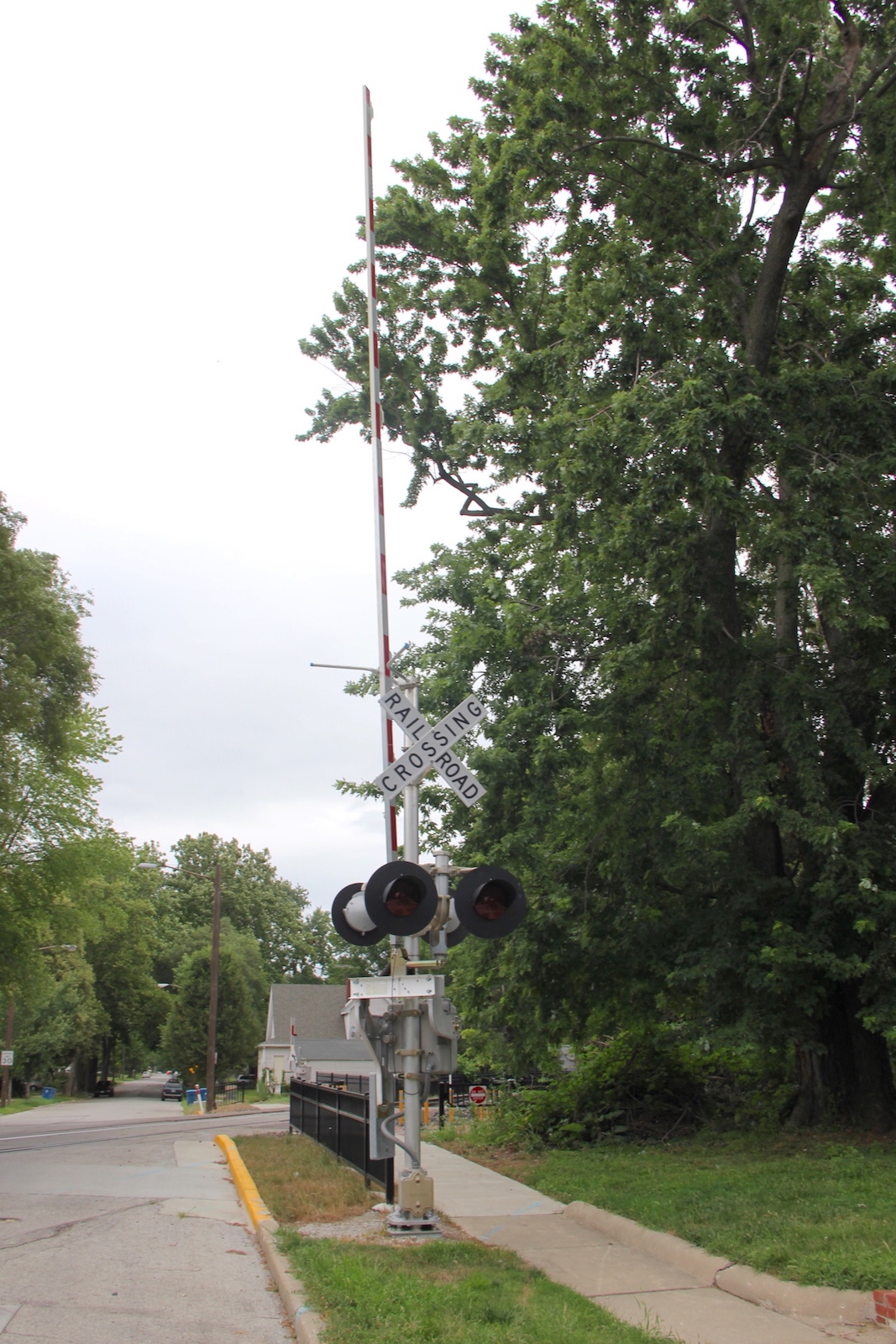

The southwestern signal.
50 51 52 53

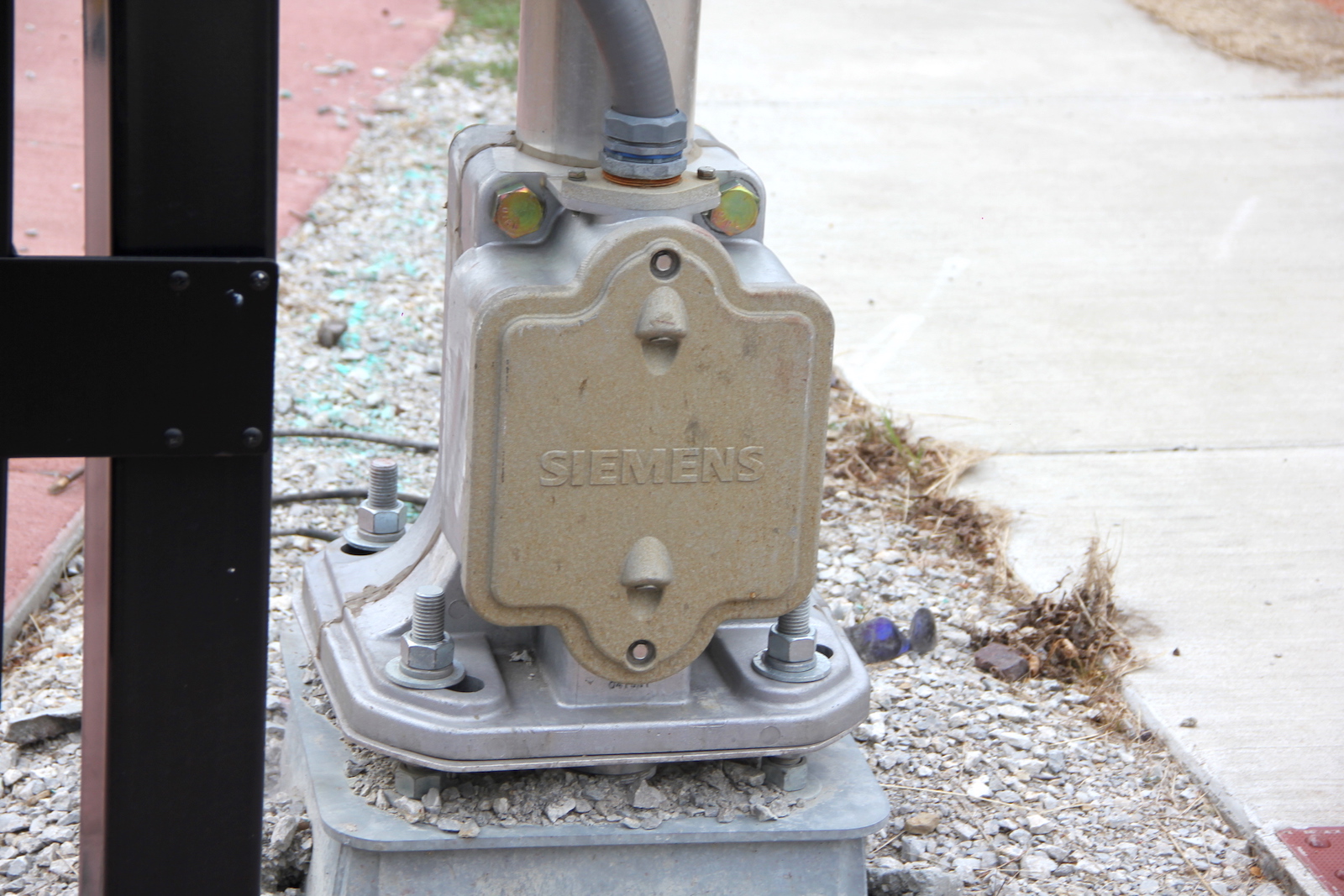

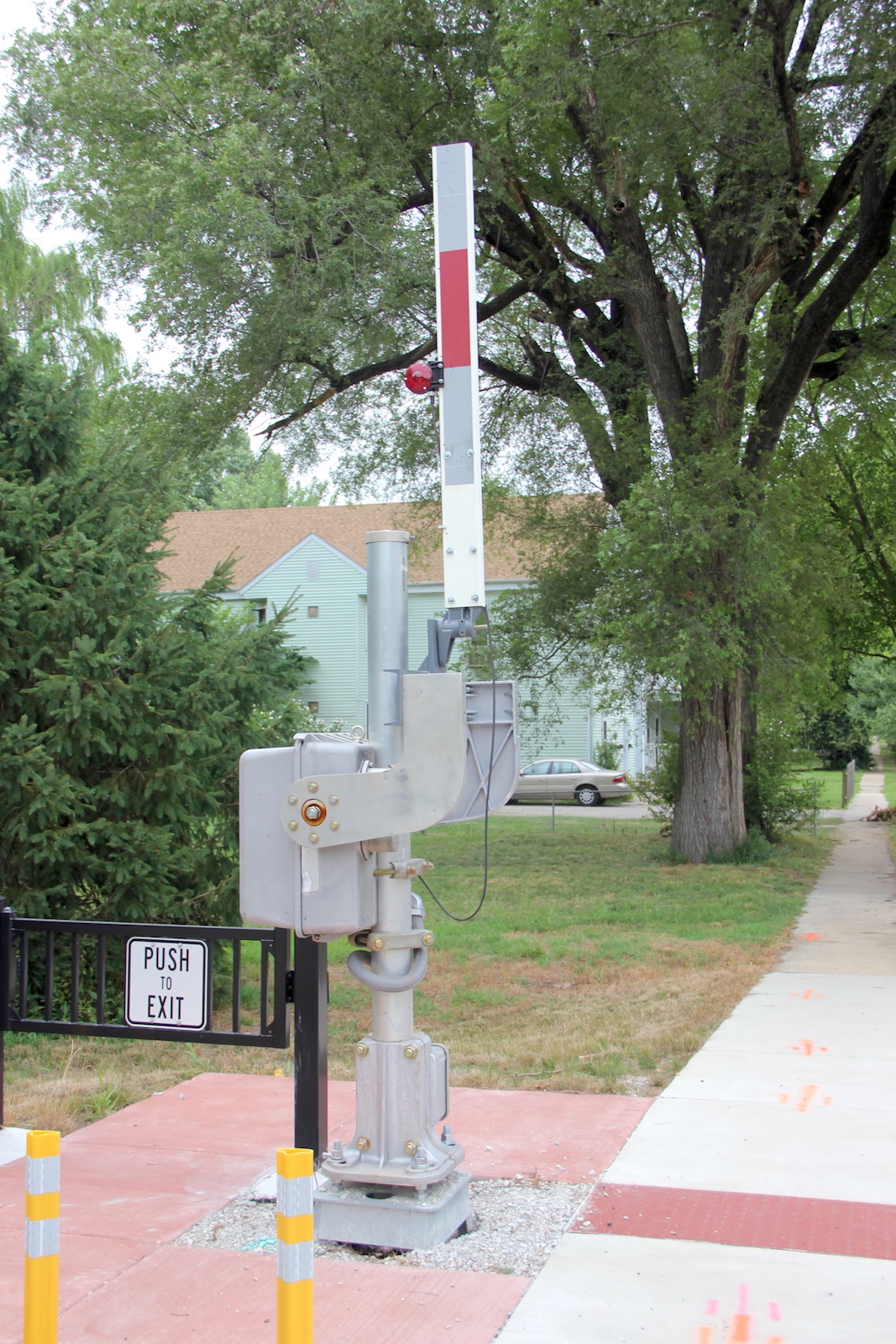

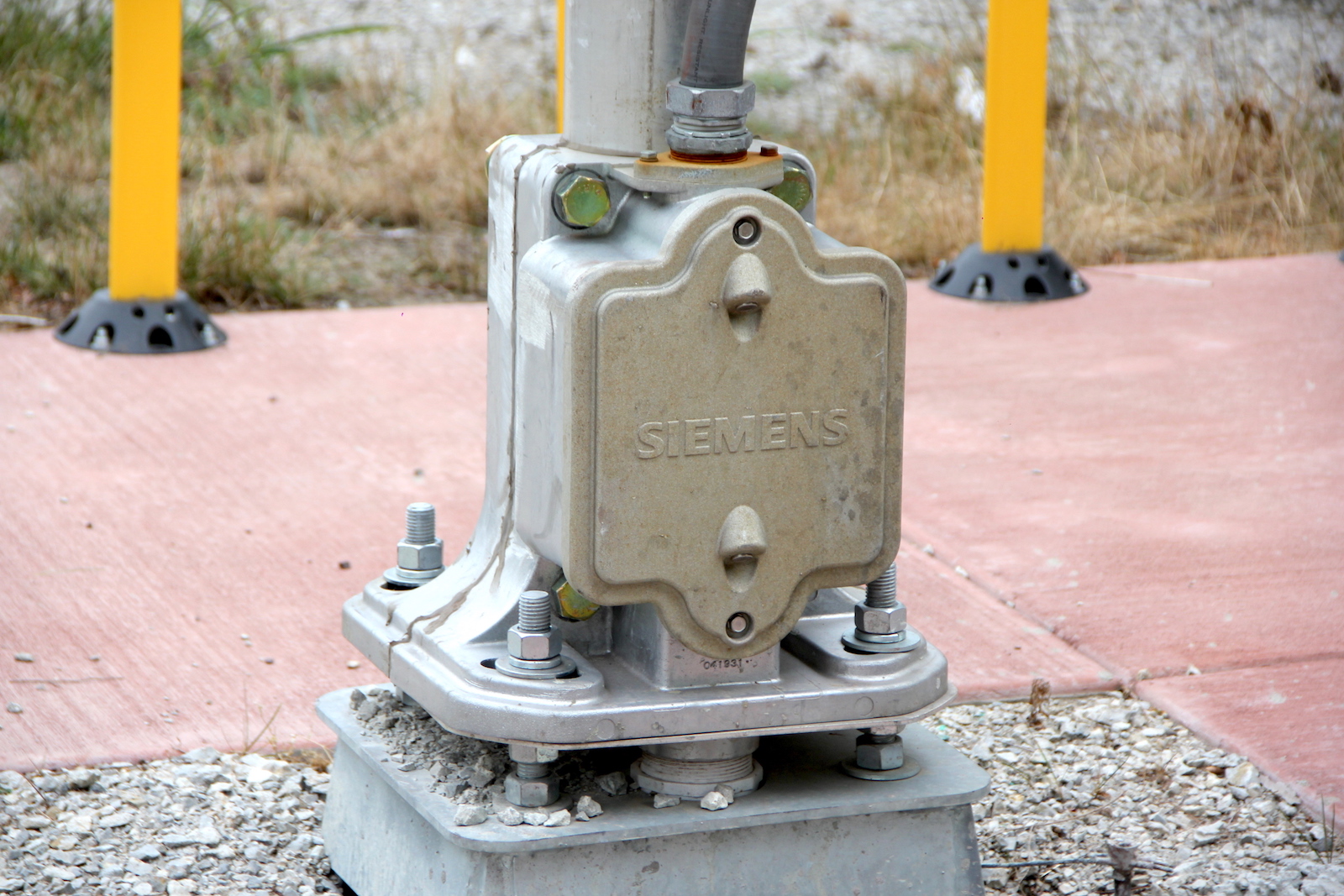

The northwestern pedestrian gate.
54 55 56 57

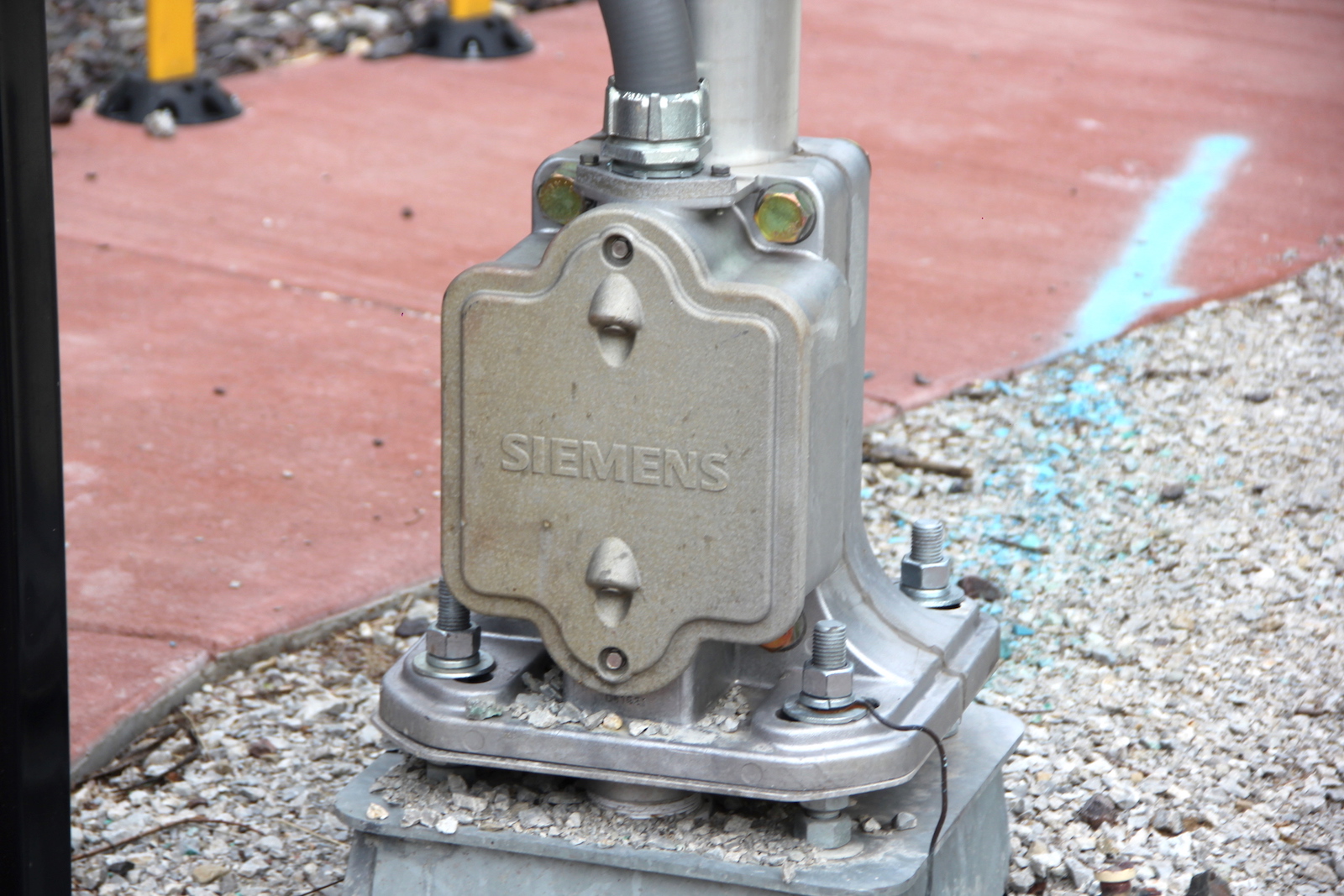

The northeastern pedestrian gate.
58 59 60 61

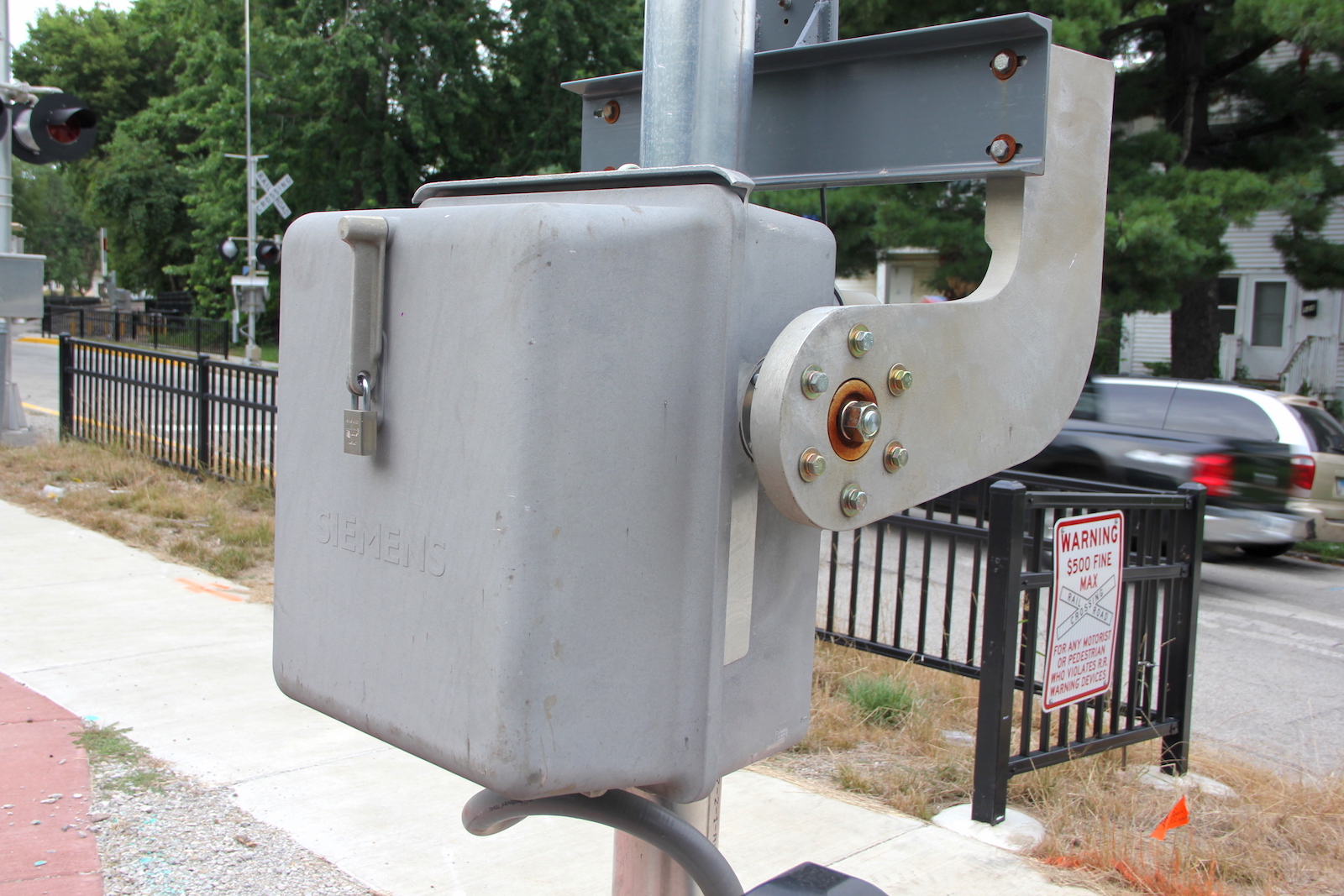

The southwestern pedestrian gate.
62 63 64 65
The southeastern pedestrian gate.
66 67 68 69
The new relay bungalow in the northwest quadrant. The grade is all concrete. Track view facing north at 5th St.

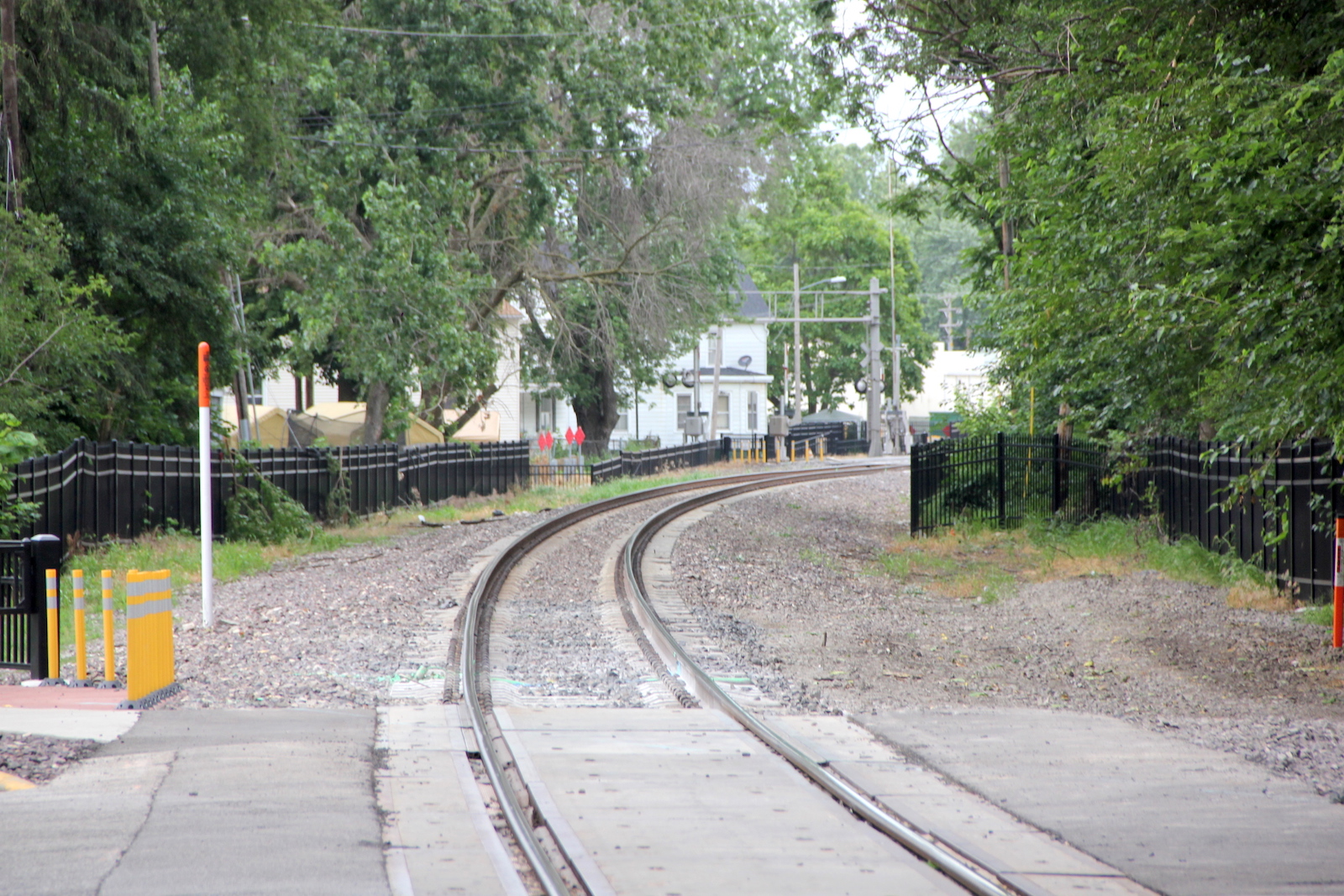

 Track view facing south towards Union St.
