Pictures 1-31 were taken on March 14, 2018.
The video was taken in February 2024 by Kyle B Videography.
Pictures 32-75 were taken on October 26, 2024.
All pictures were taken by Tommy McGowan.
This crossing is located on the UP Springfield Sub
G1
G2

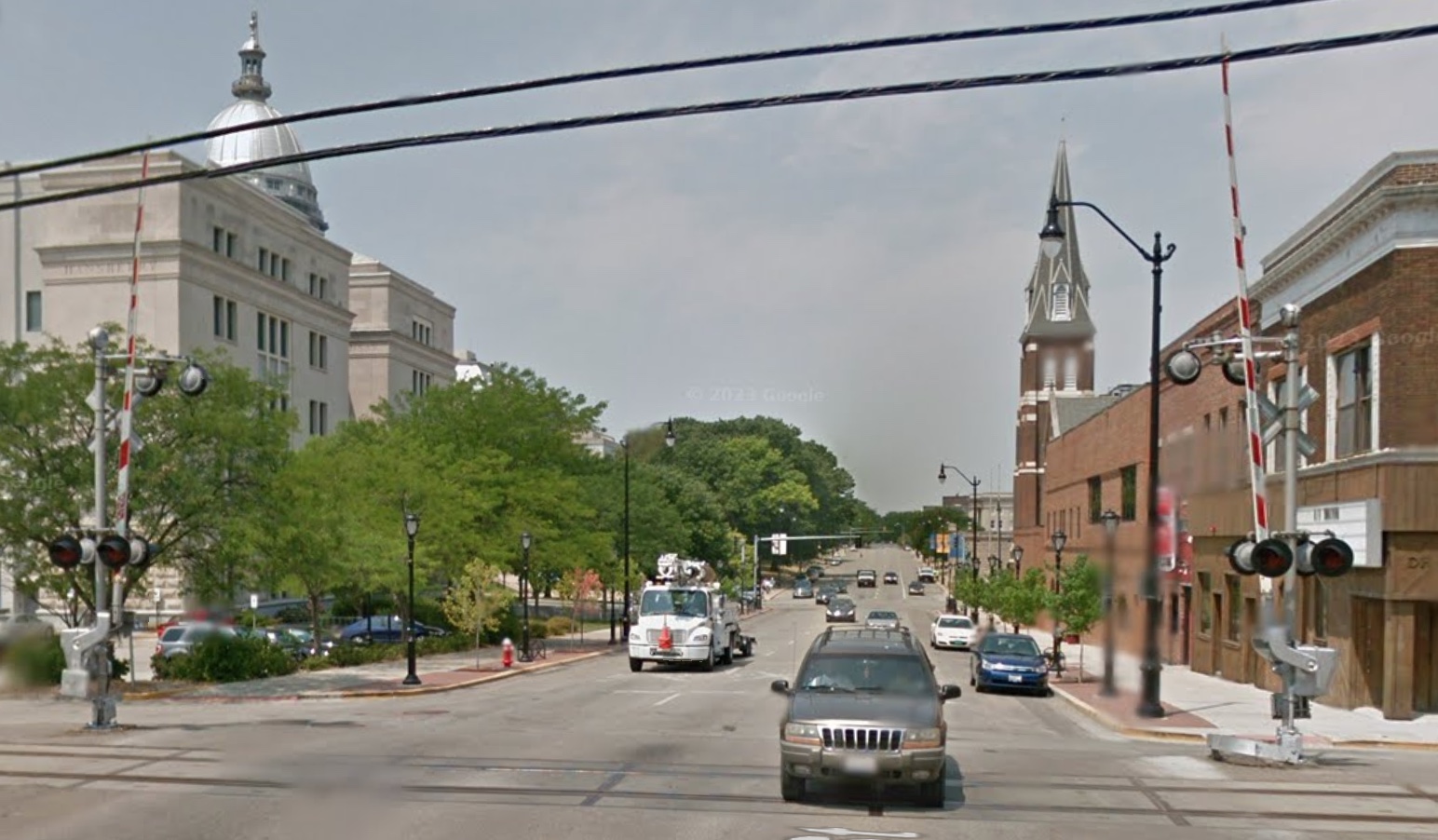

Streetview images from 2012 showing two classic gated signals with extra lights up top, making them look like mini cantilevers. Both signals had GRS Type B mechanisms, and there was a WRRS and Safetran M Bell. By 2014, both gate mechanisms and bells were replaced.
1
2

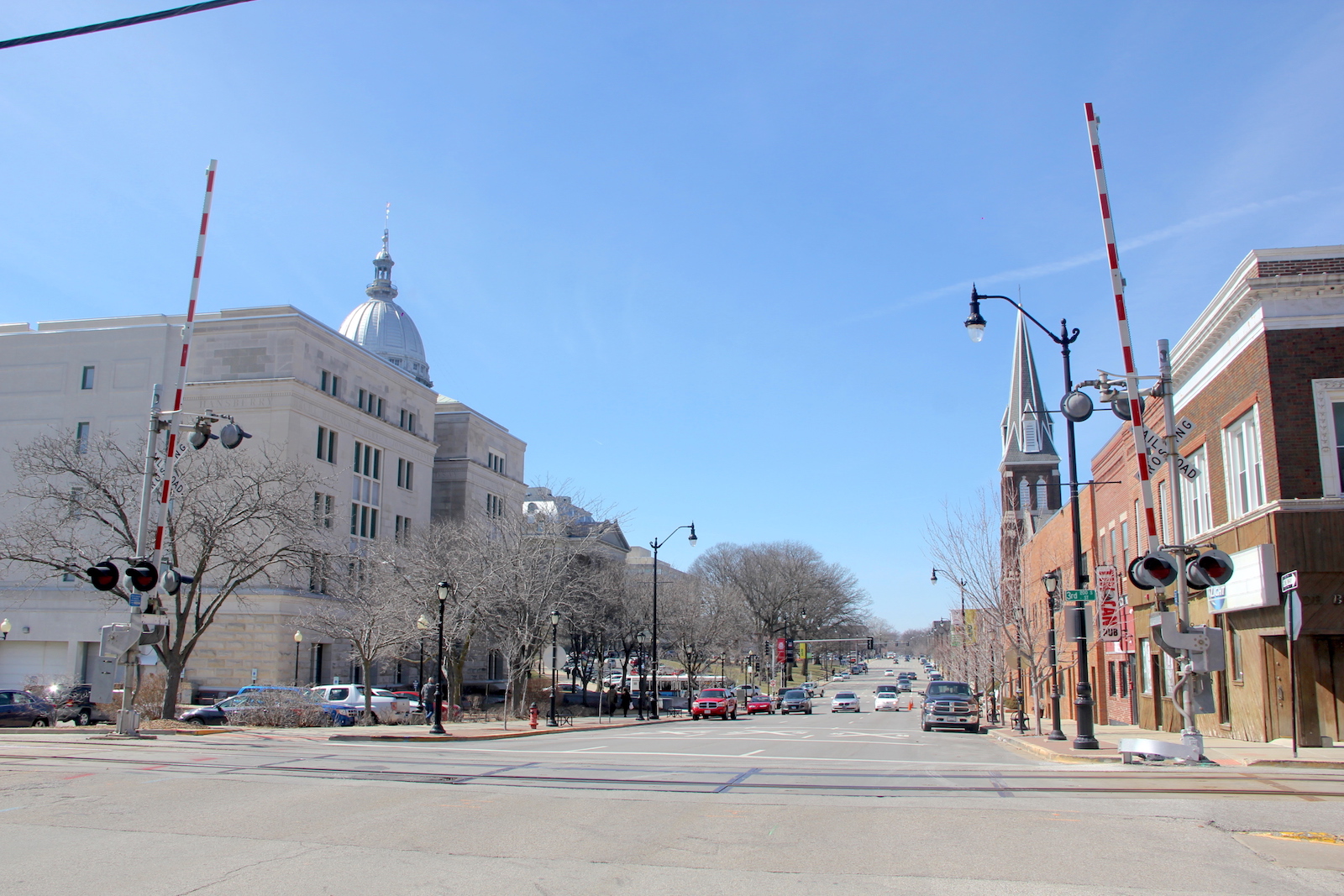

Overview of 2 gated mini cantilever-esque signals protecting a one way street facing east.
Overview facing west.
3
4
5
6
7
8
9
10
11
12
13
14

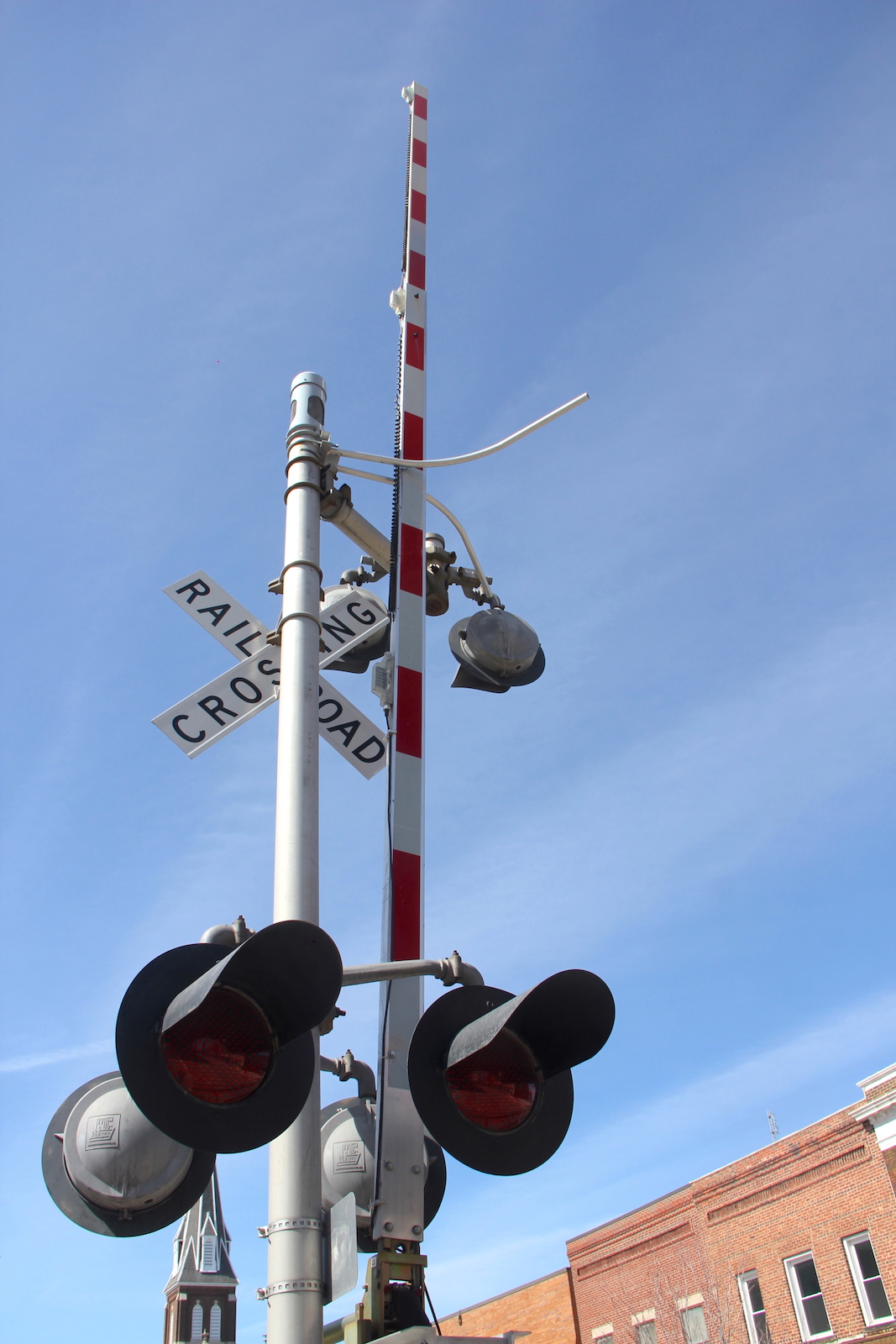

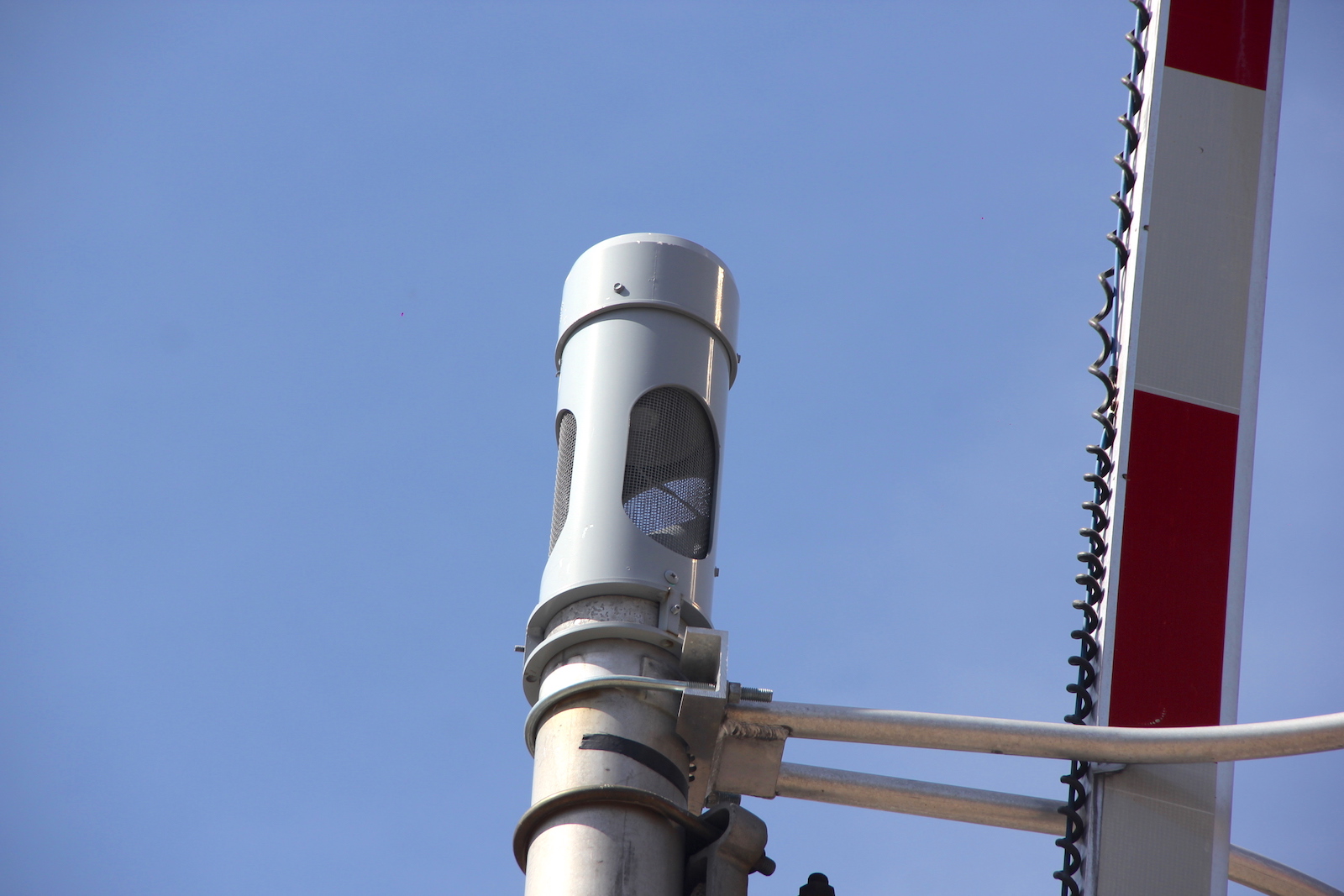

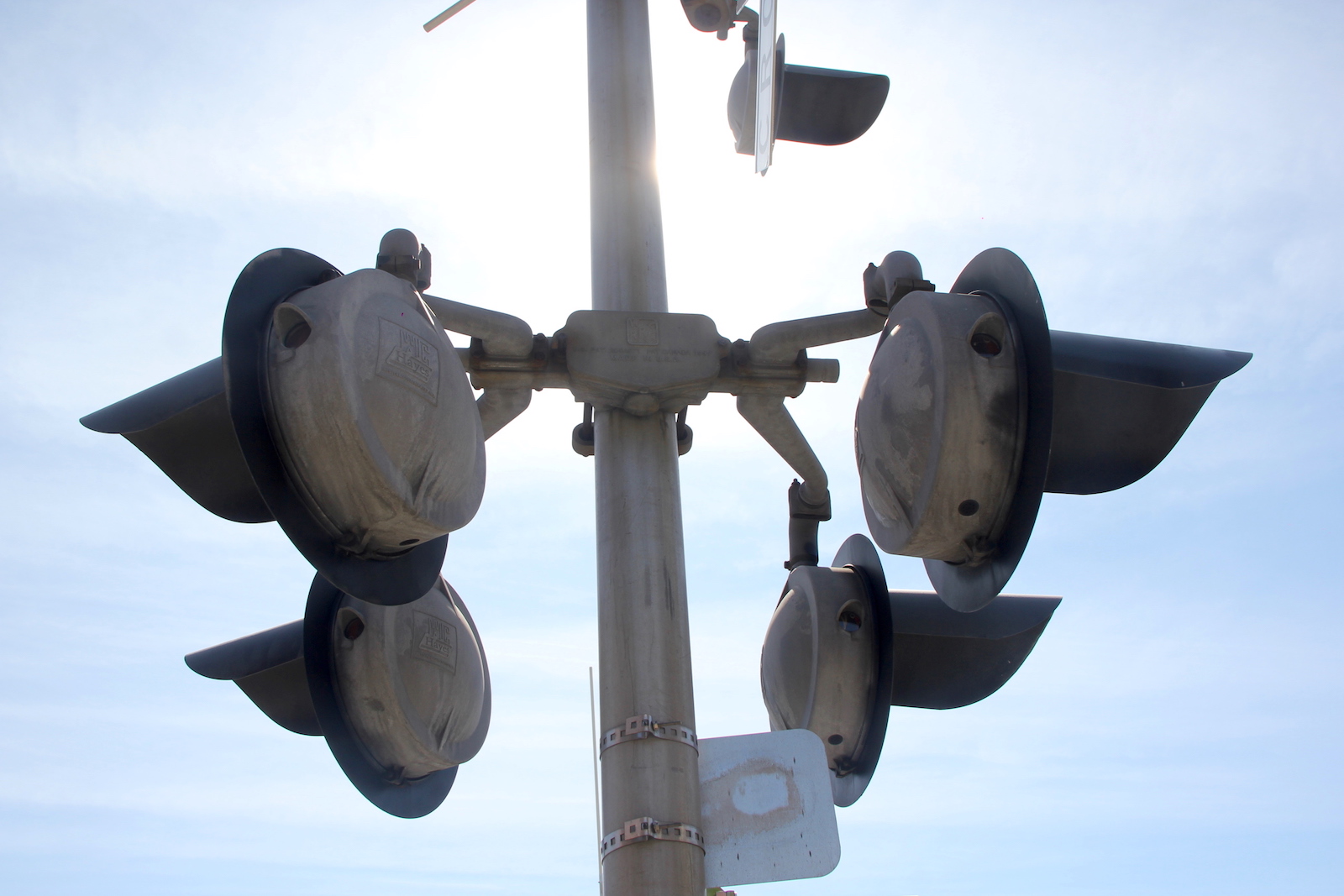

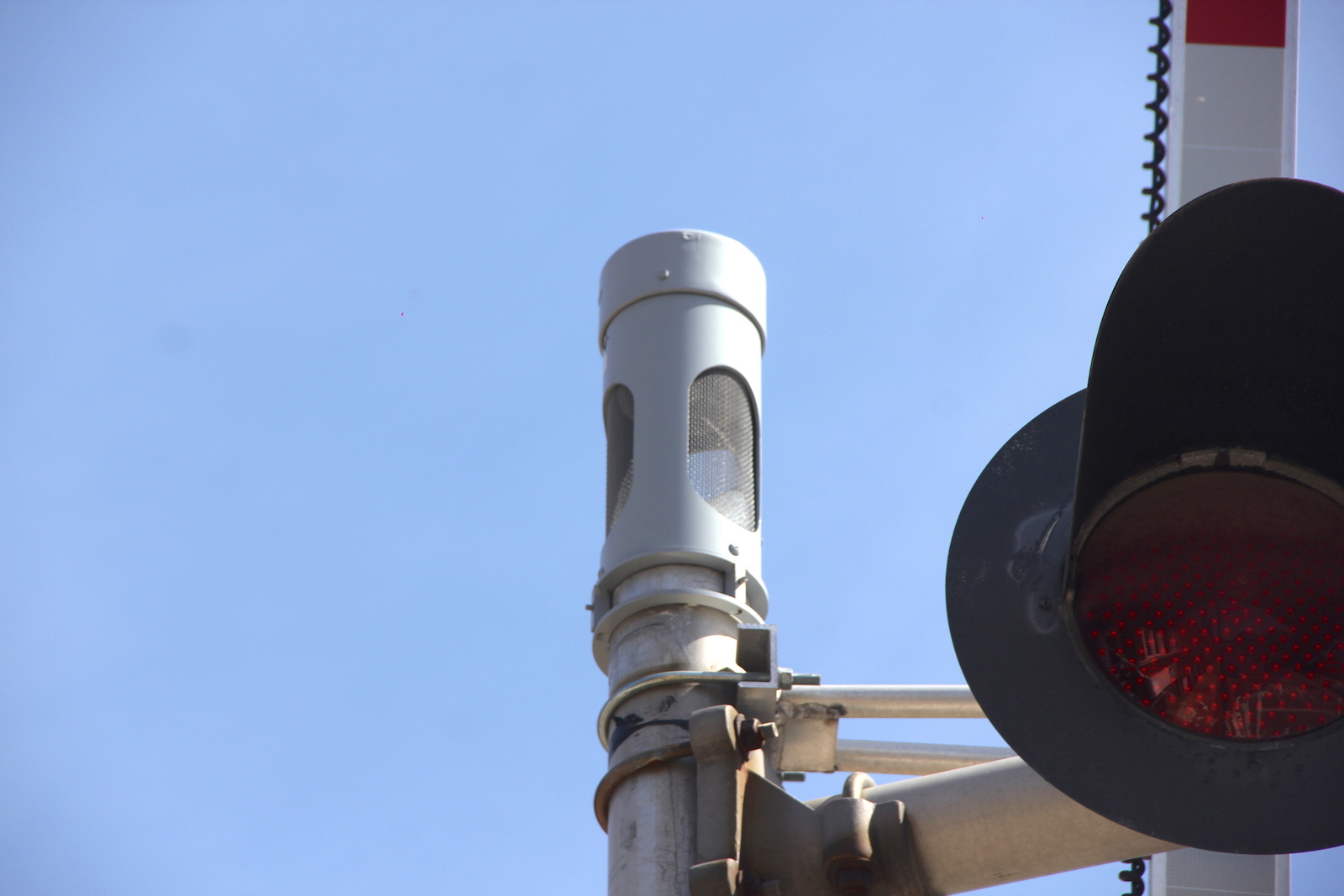

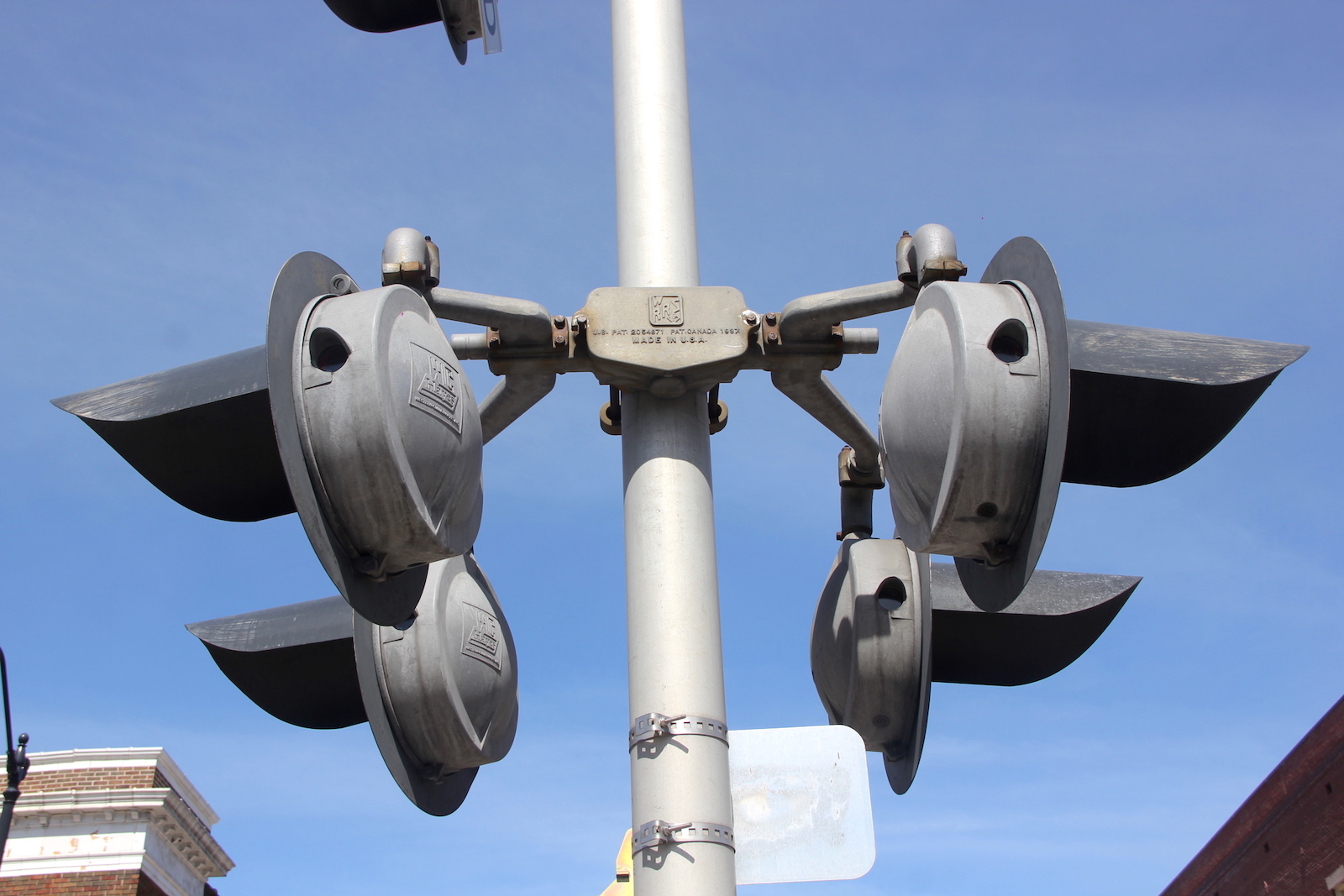

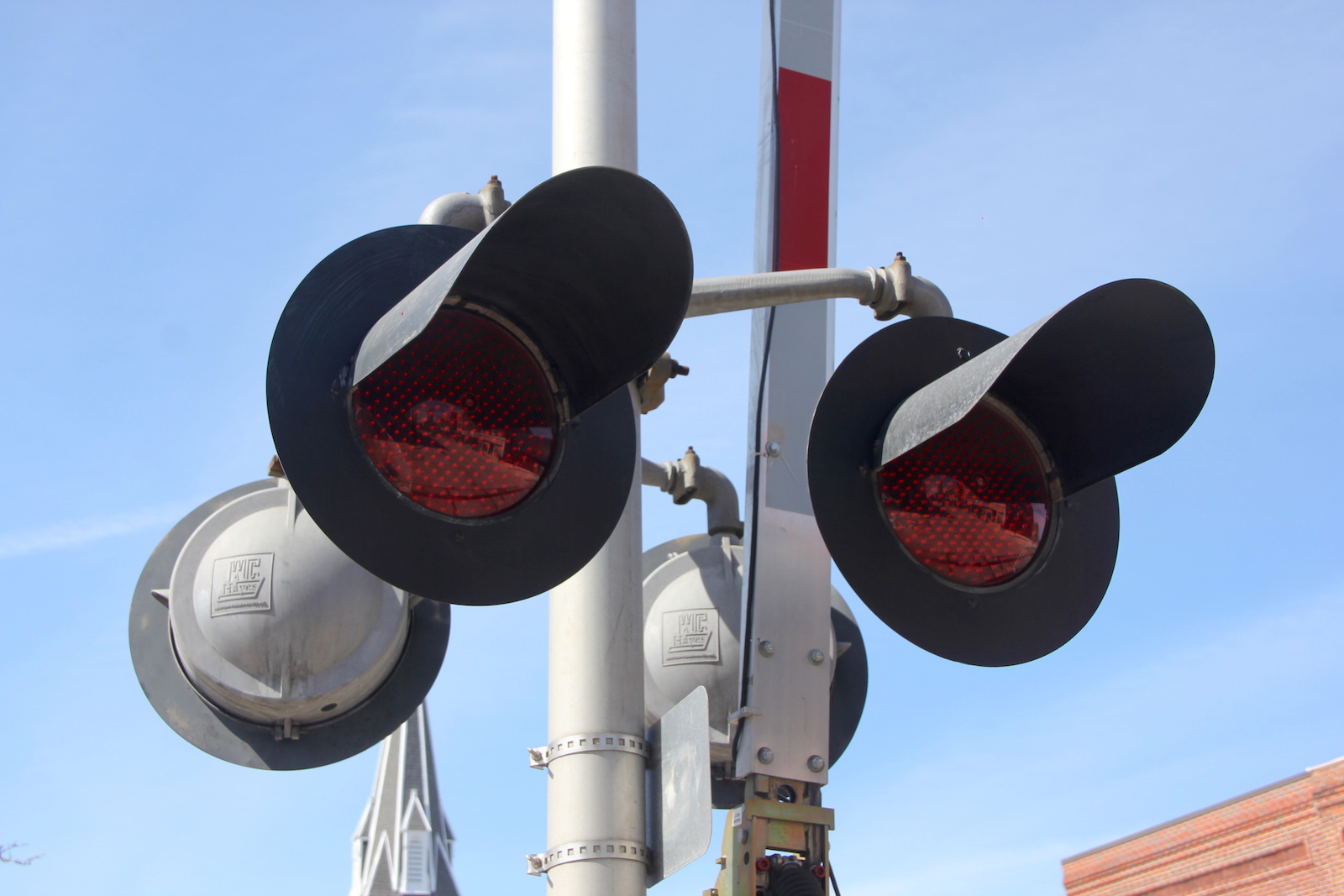

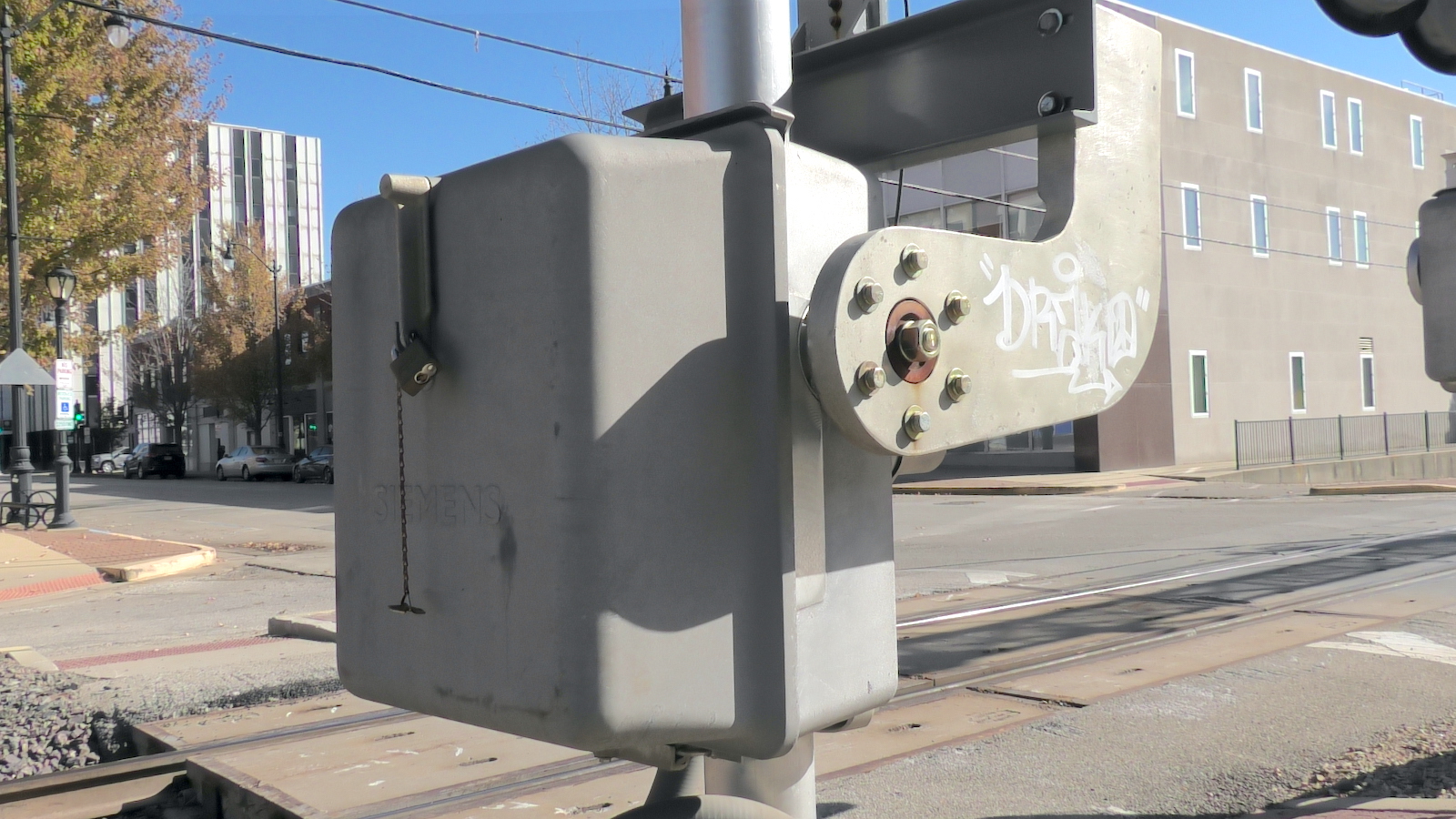

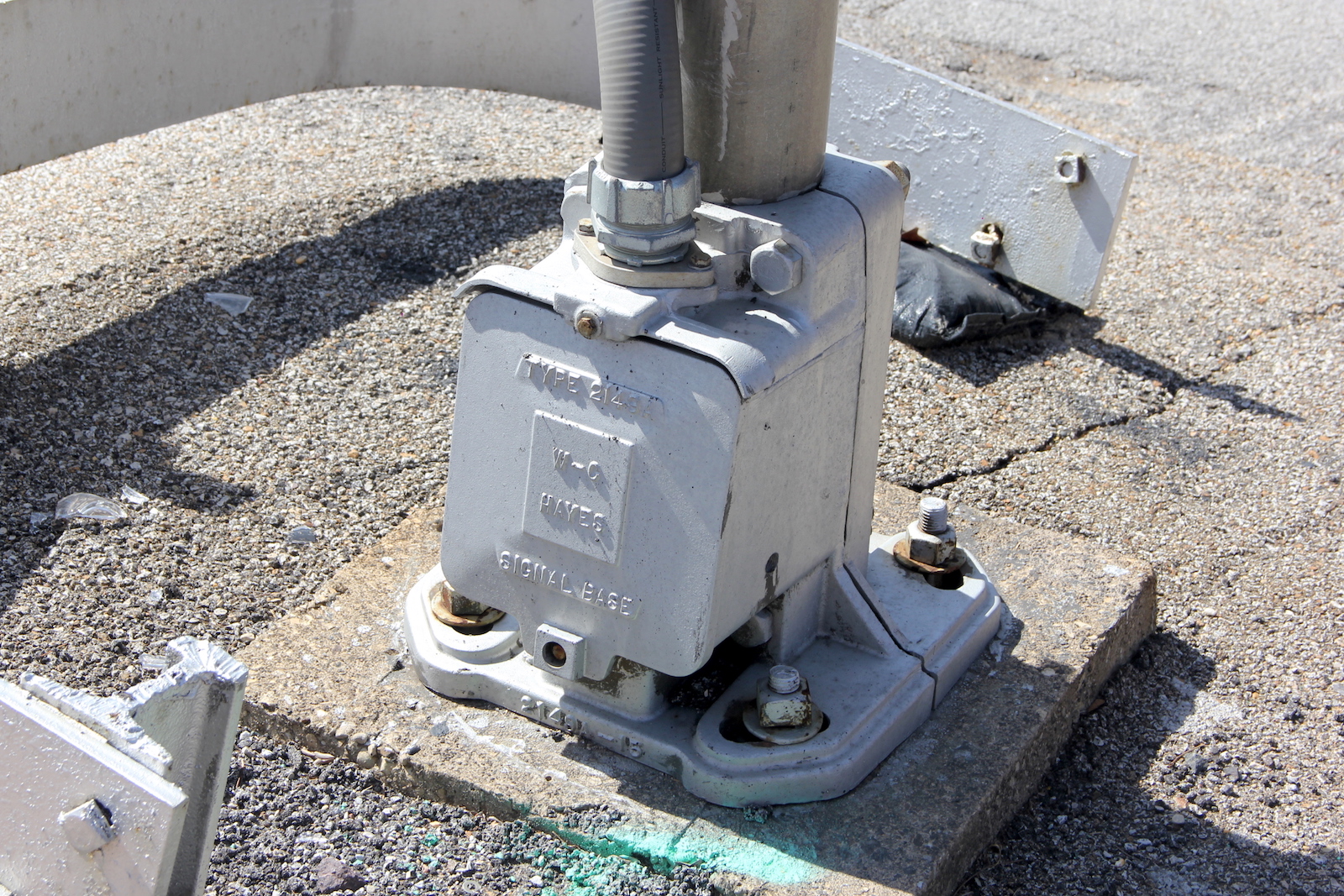

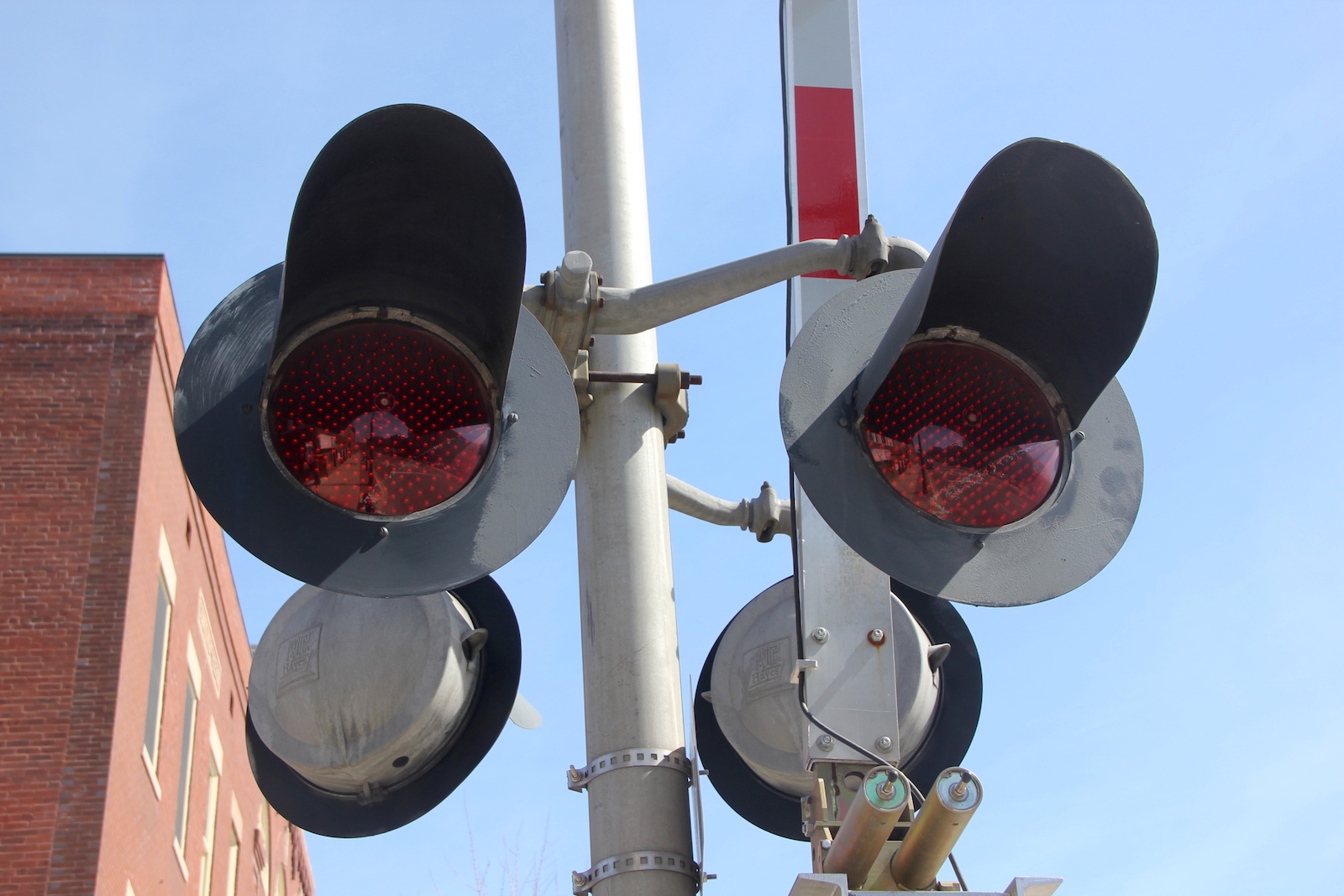

The western right lane signal. Both signals had NEG E-Bells, 12"x20" WCH frames with Electro-Tech's LEDs, and Invensys Rail mechanisms. This signal had a Safetran base and Alstom Aurora LEDs.
15
16
17
18
19
20
21
22
23
24
25
26

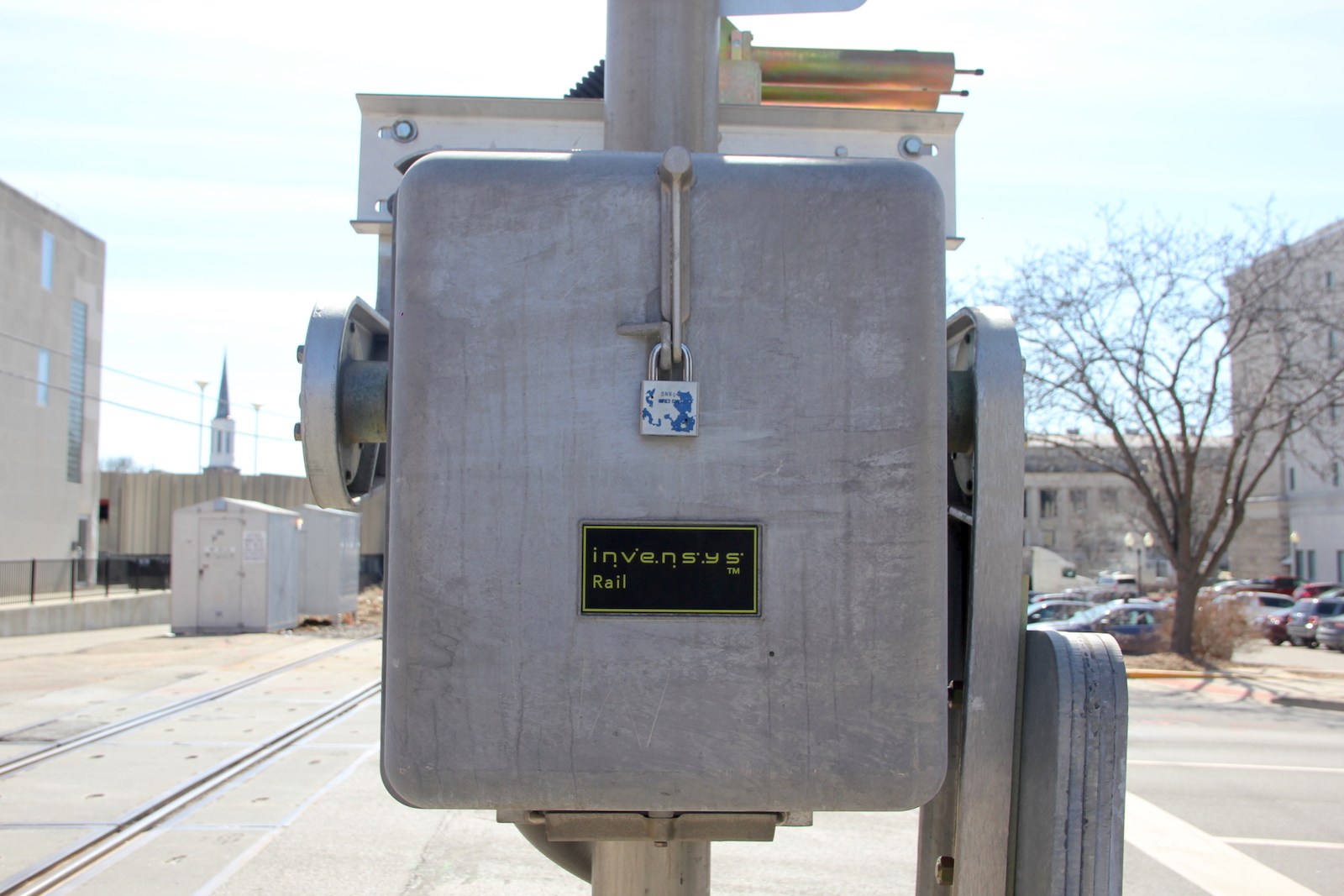

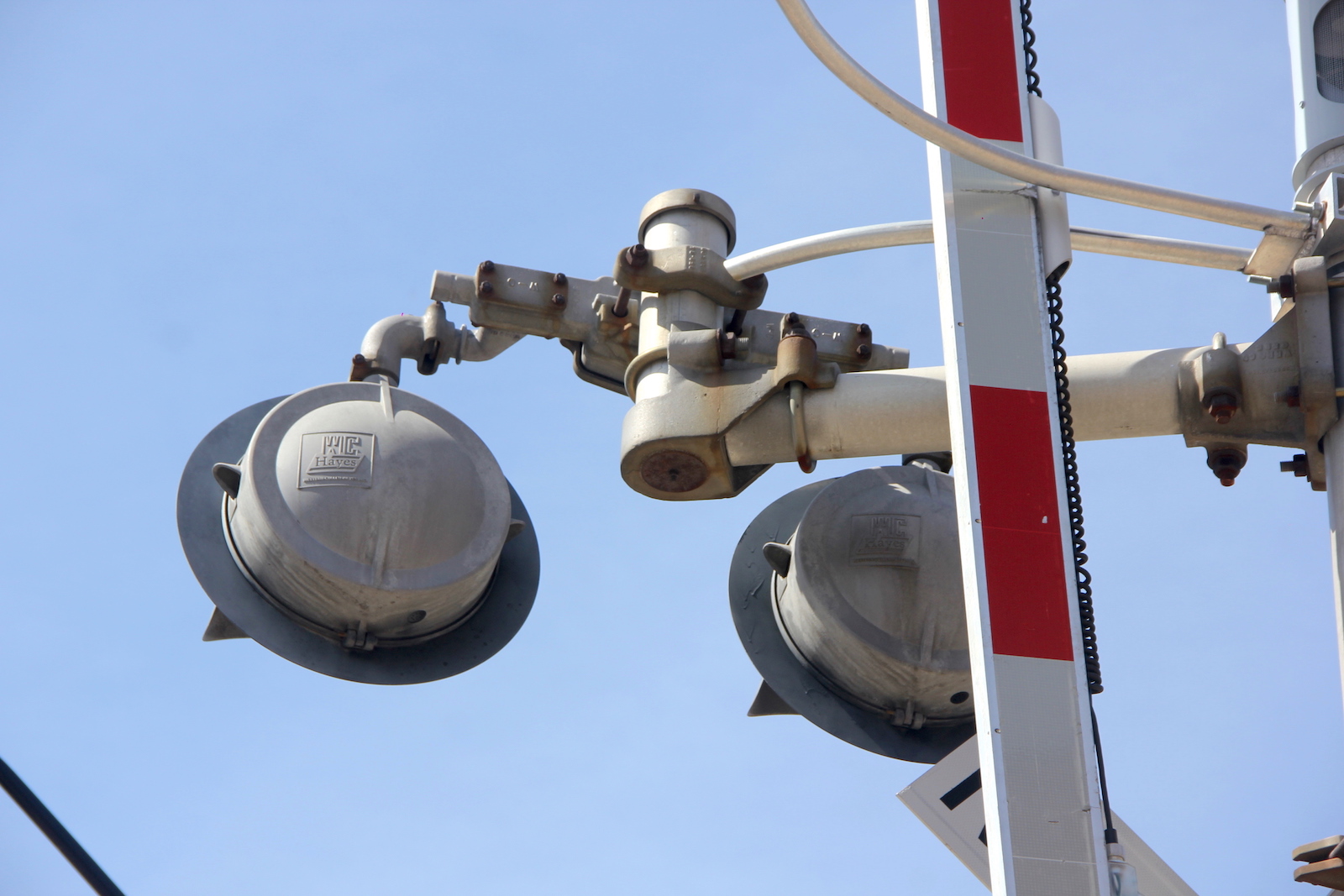

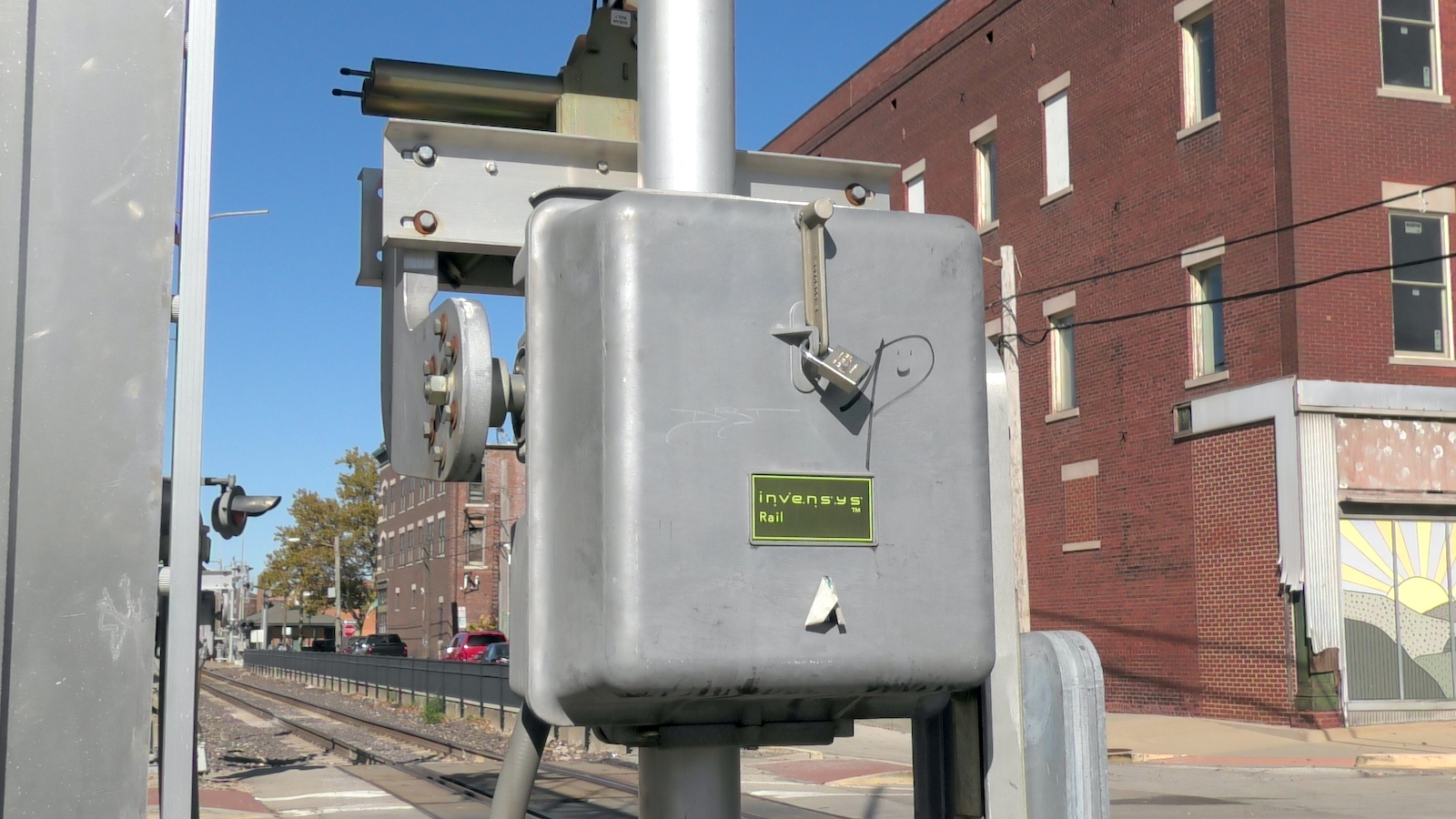

The western left lane signal. Both of the Invensys mechanisms replaced GRS Type Bs.
27
28
29
30
New and old relay bungalows in the southeast quadrant.

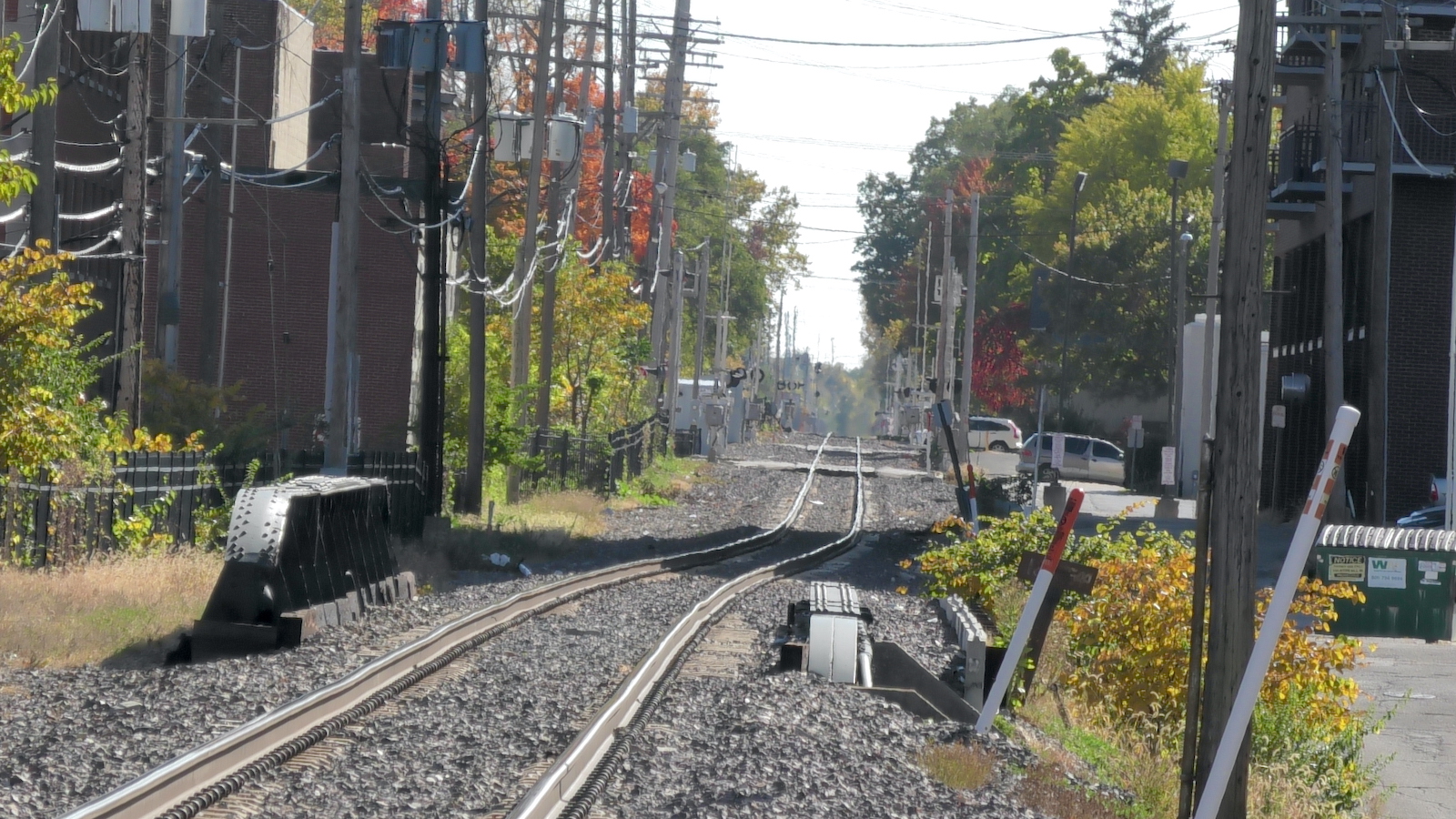

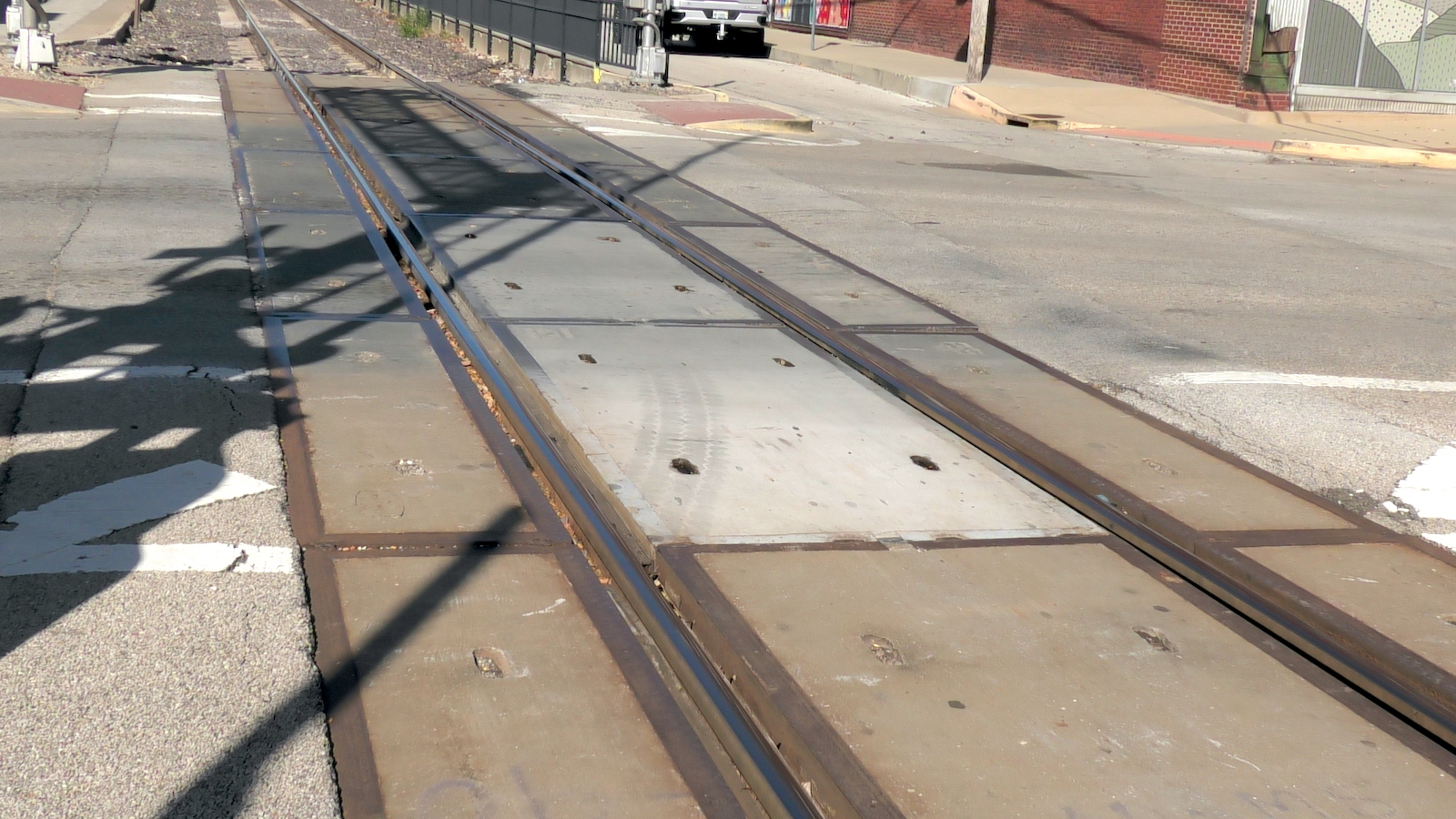

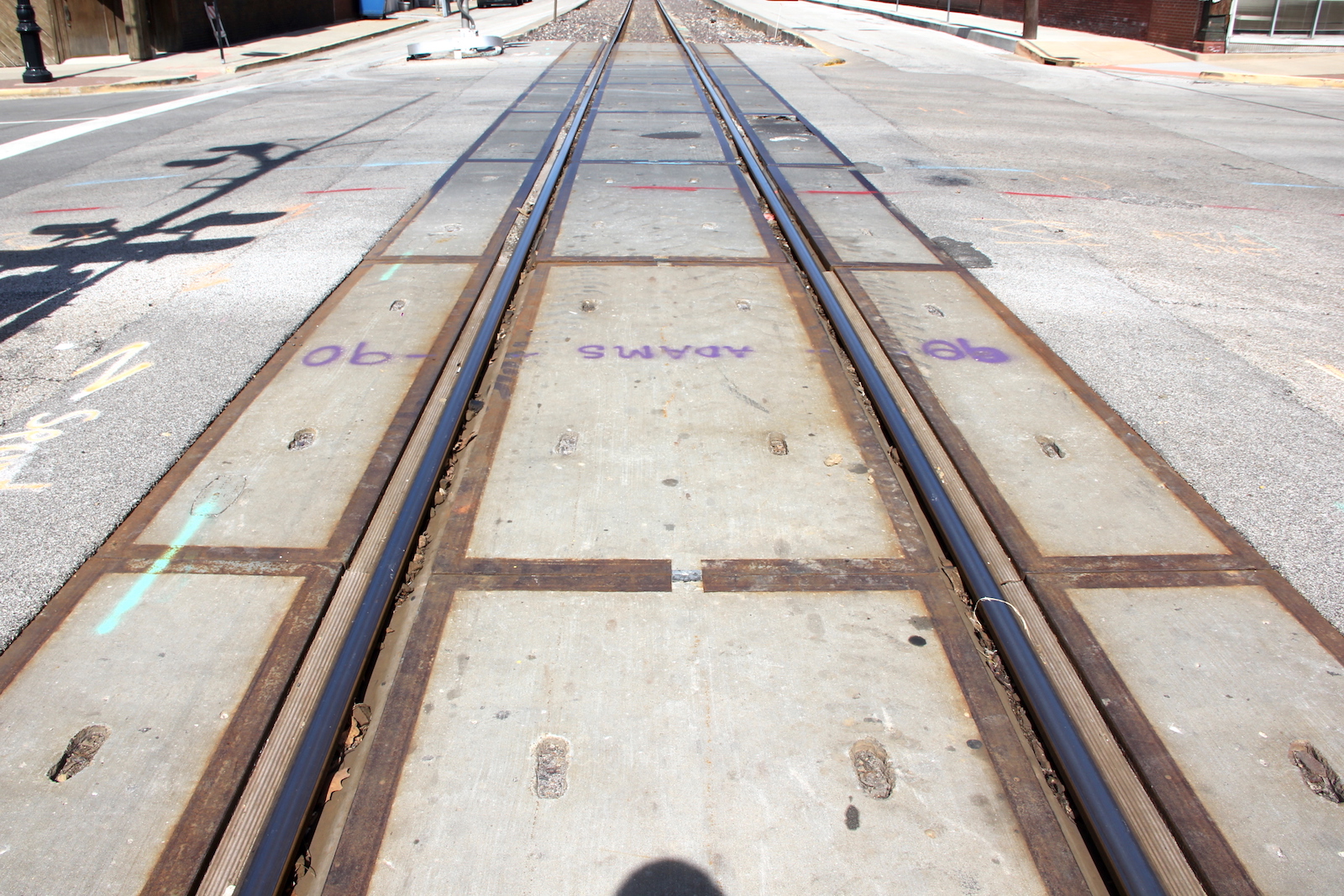

The tracks through basically run in between a divided street. Pretty neat.

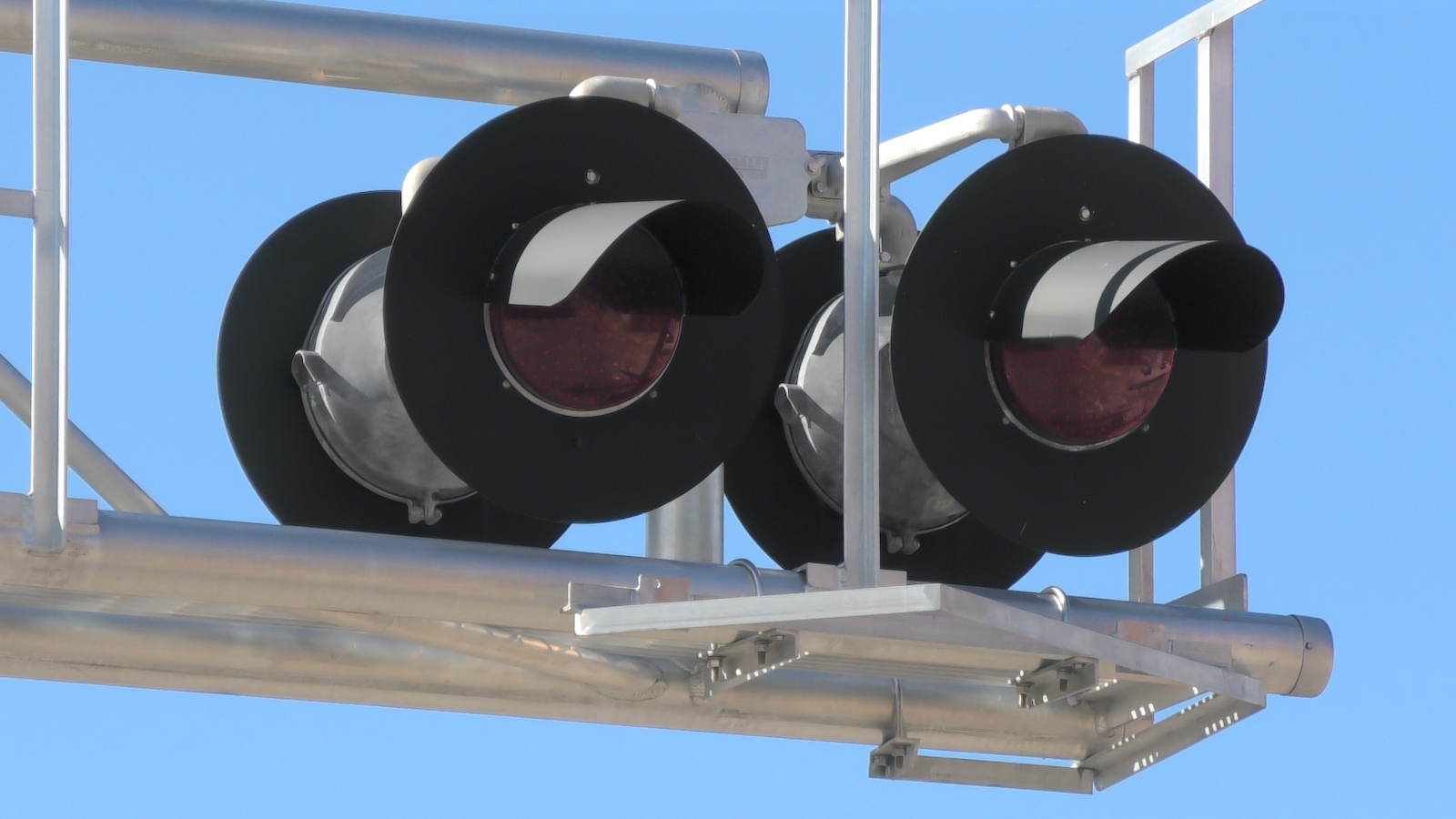

By Summer 2018, the western right lane signal was replaced by a full cantilever, and 4 pedestrian gates were added. The western left lane signal remains mostly the same.
32

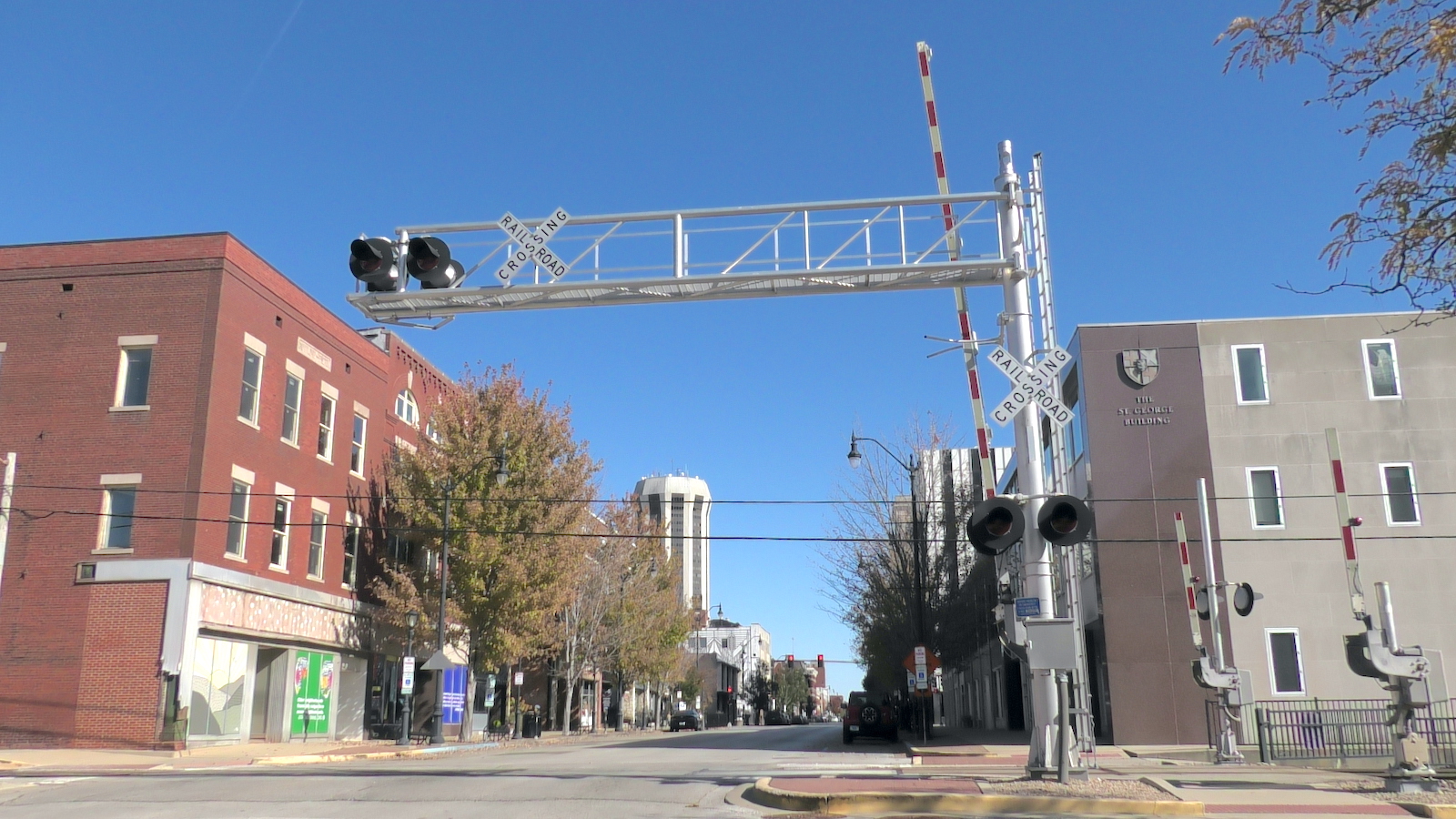

Overview of the overhauled setup facing east.
33
34
35
36
37

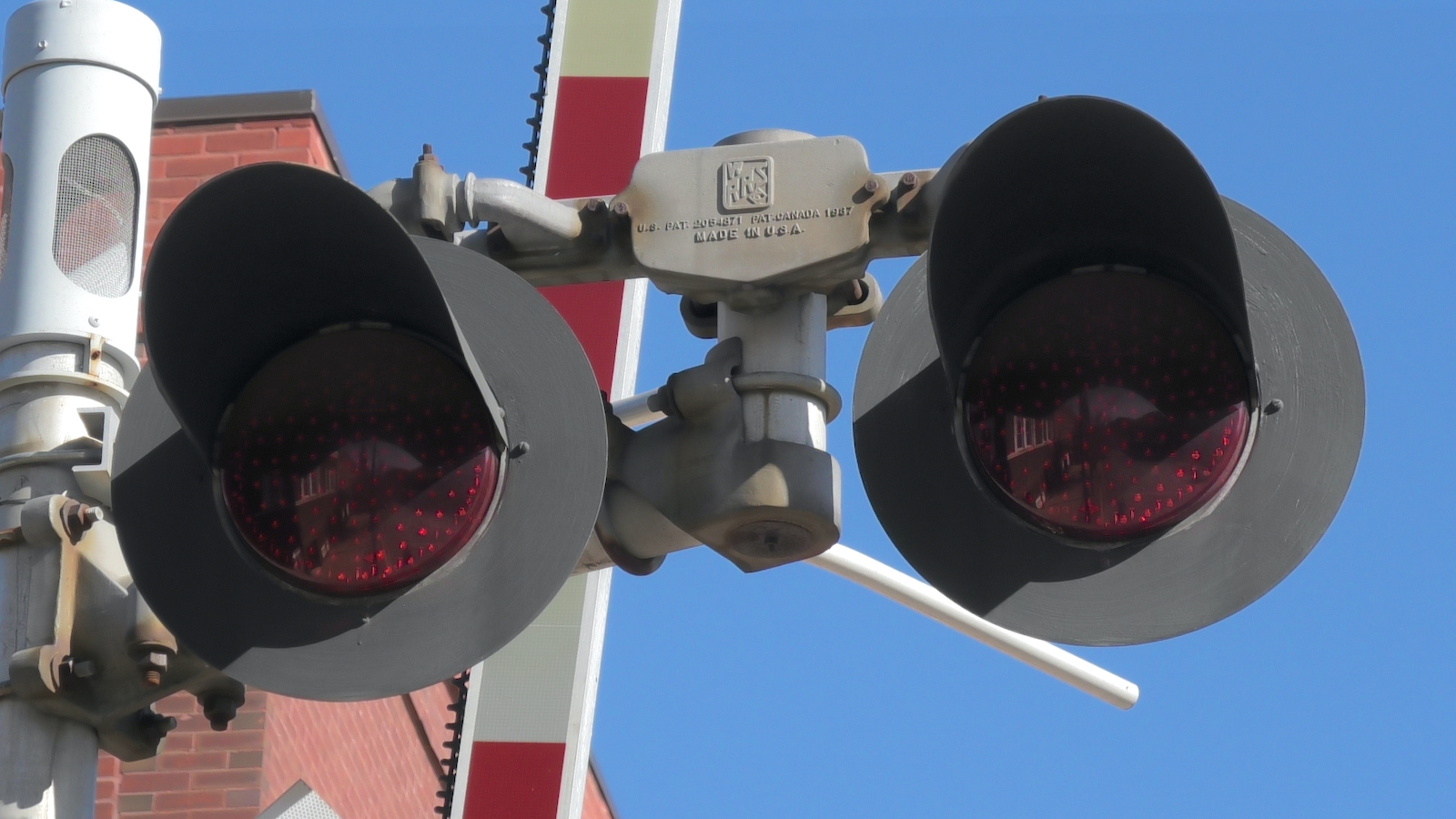

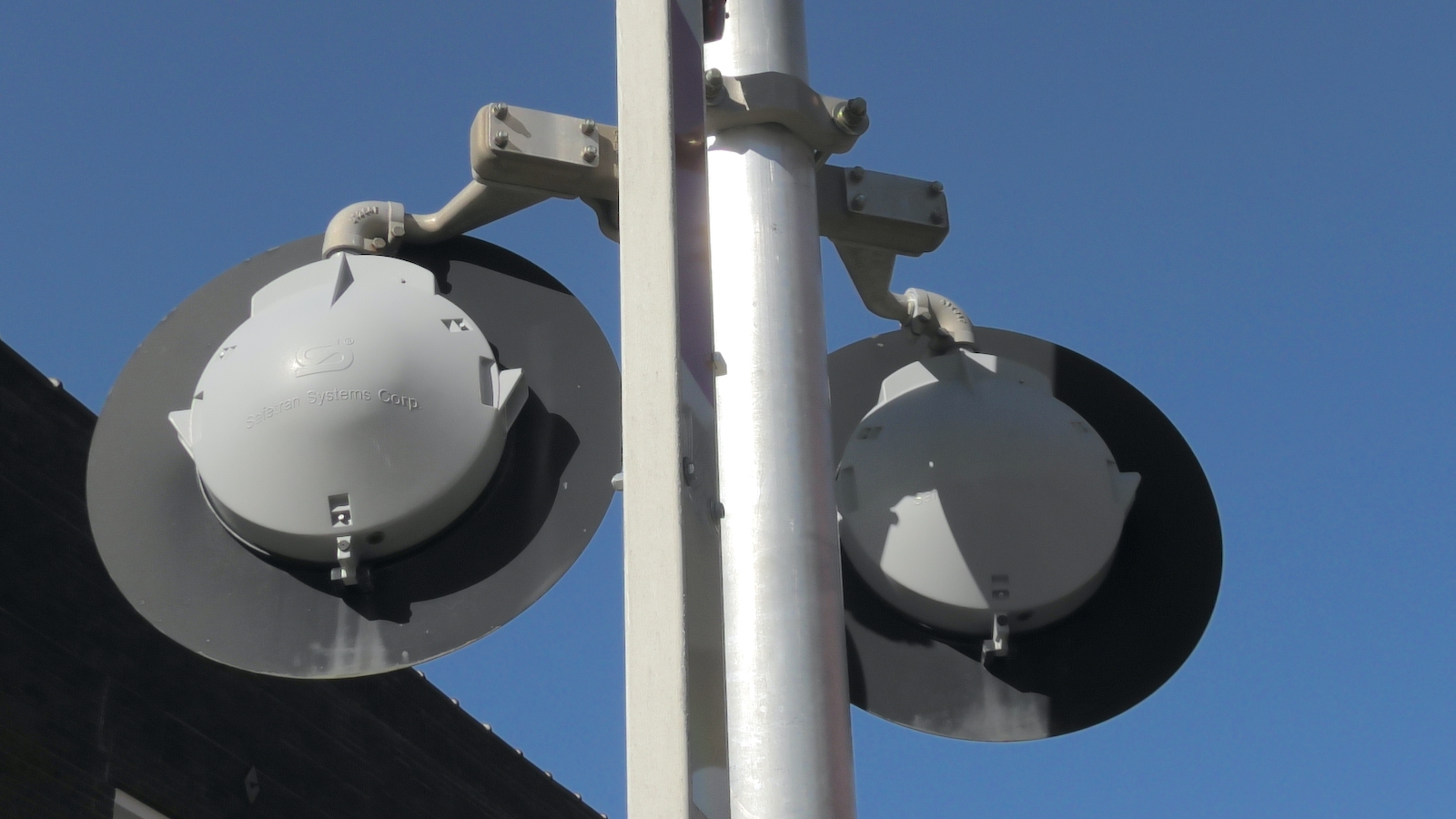

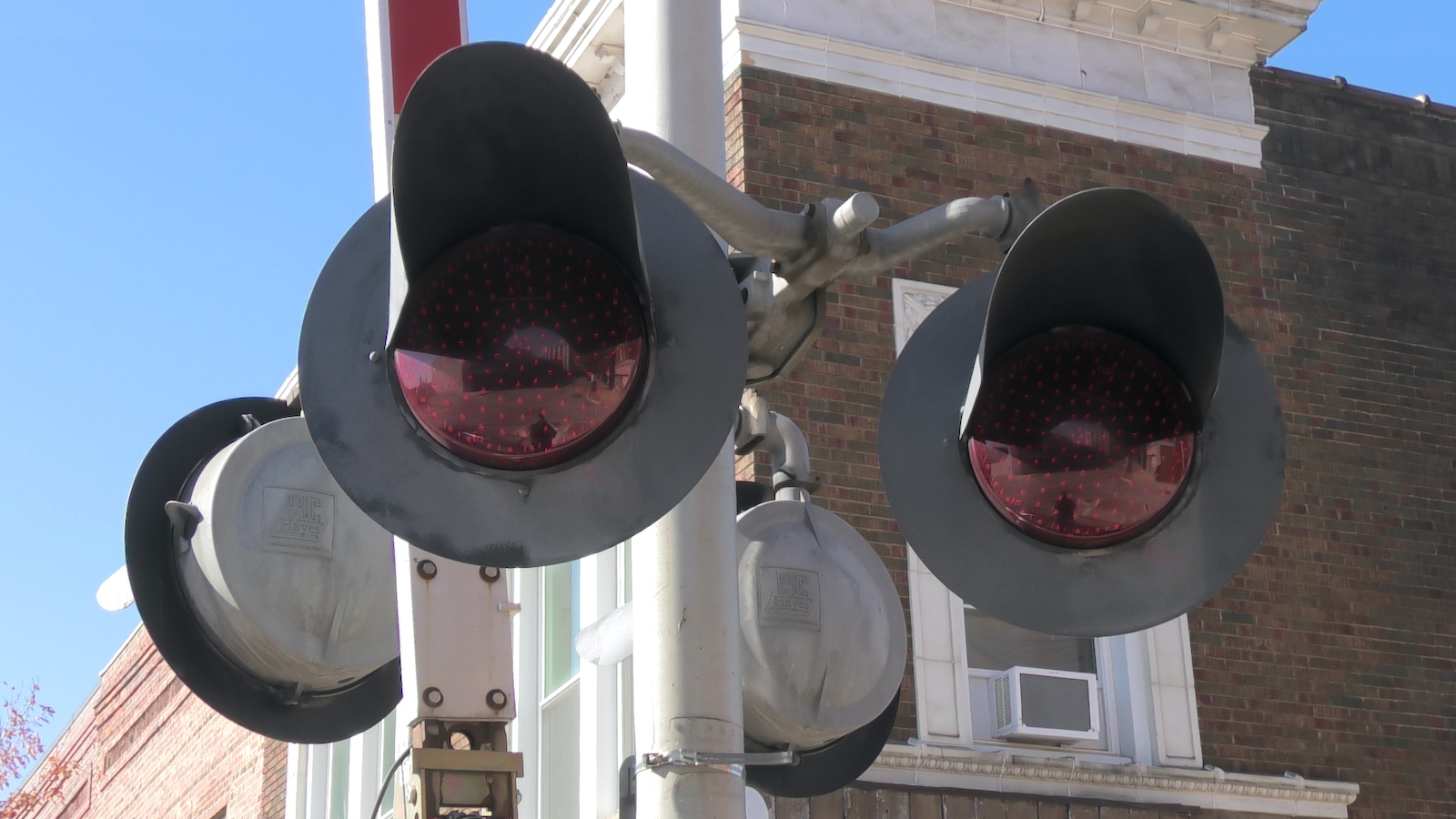

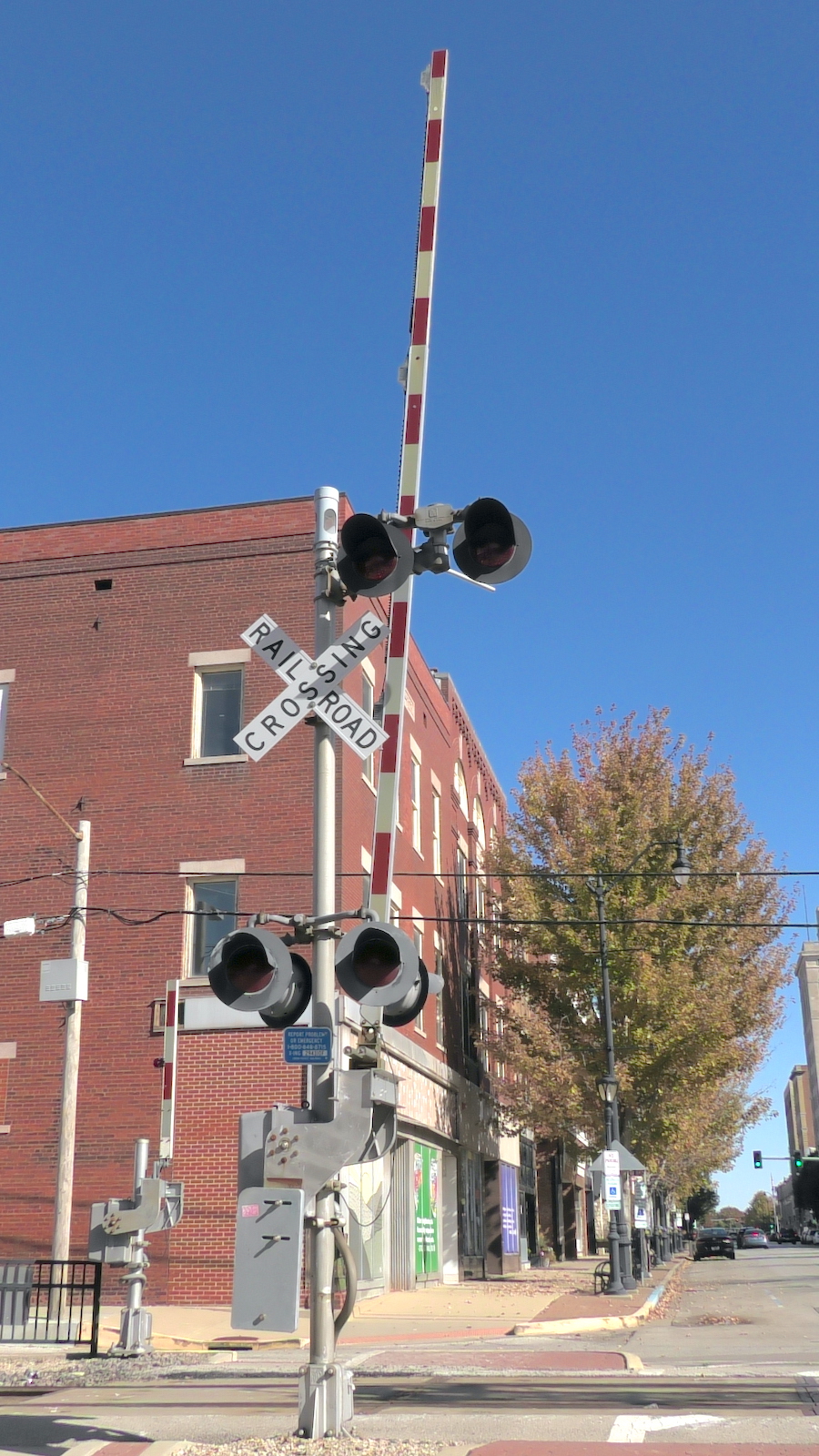

The updated western left lane signal. The upper lights and rear lights had its Electro-Tech's LEDs replaced with GE Dotted LEDs.
38
39
40
41
42
43
44
45
46
47
48
49
50
51

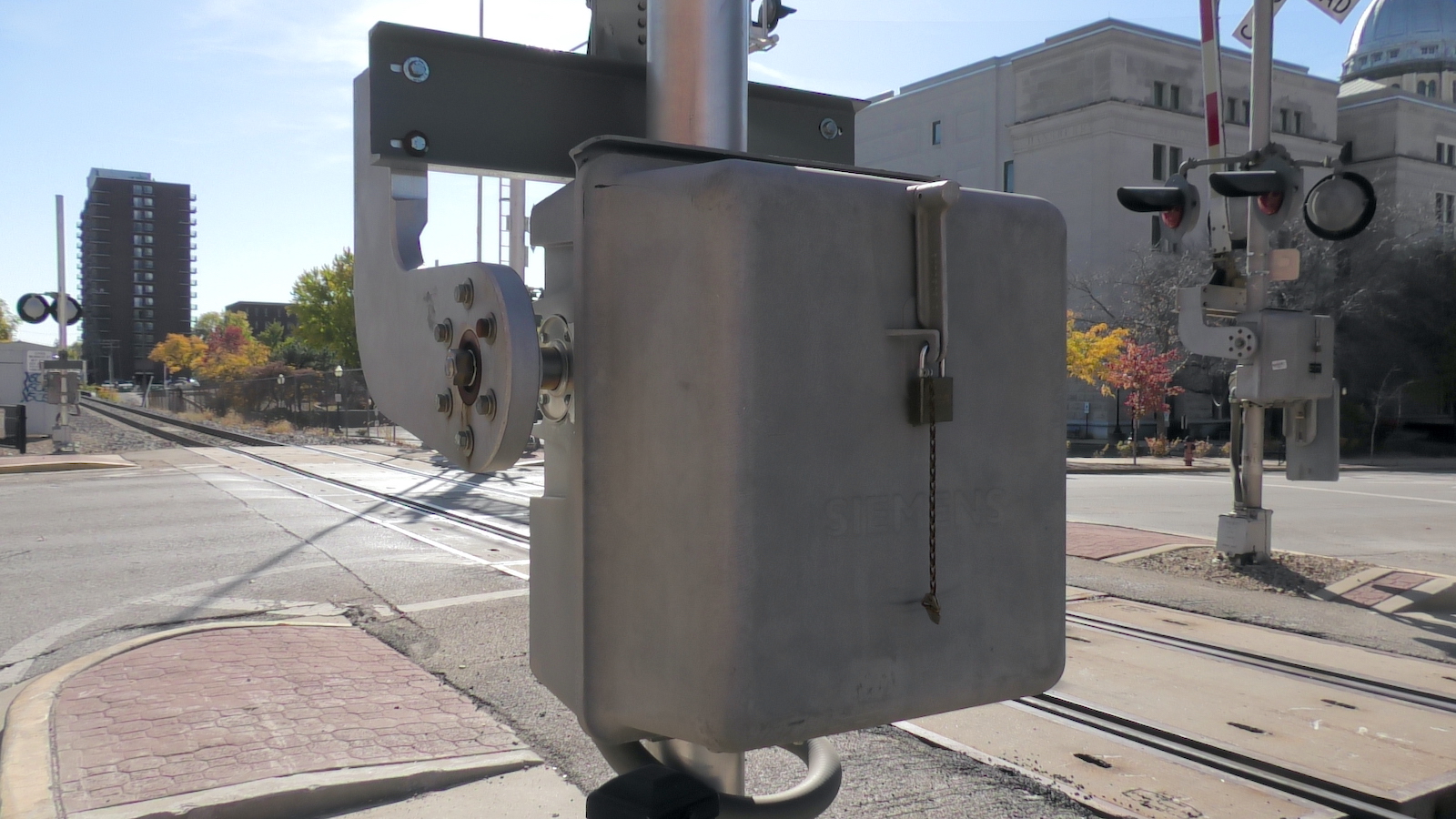

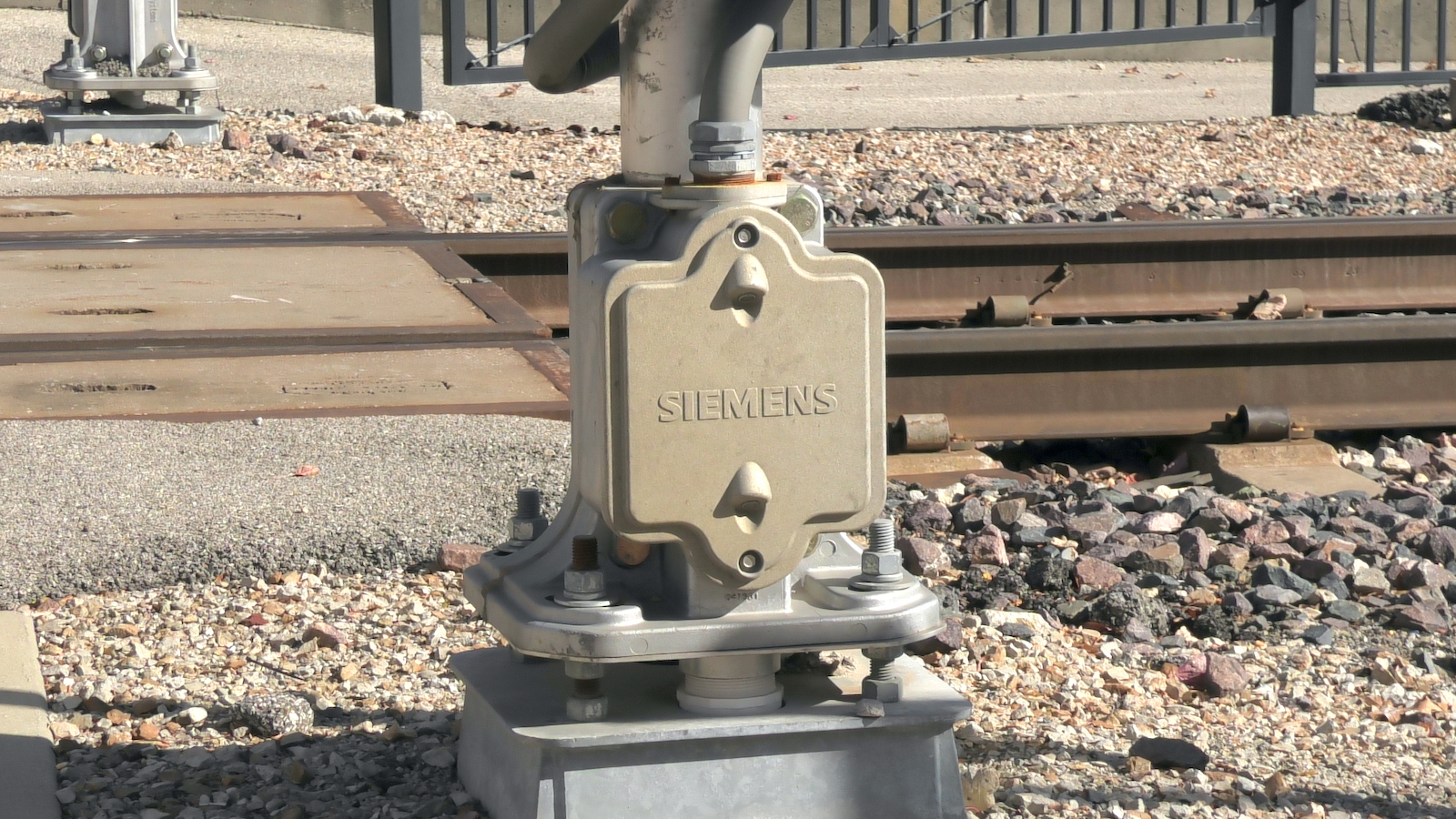

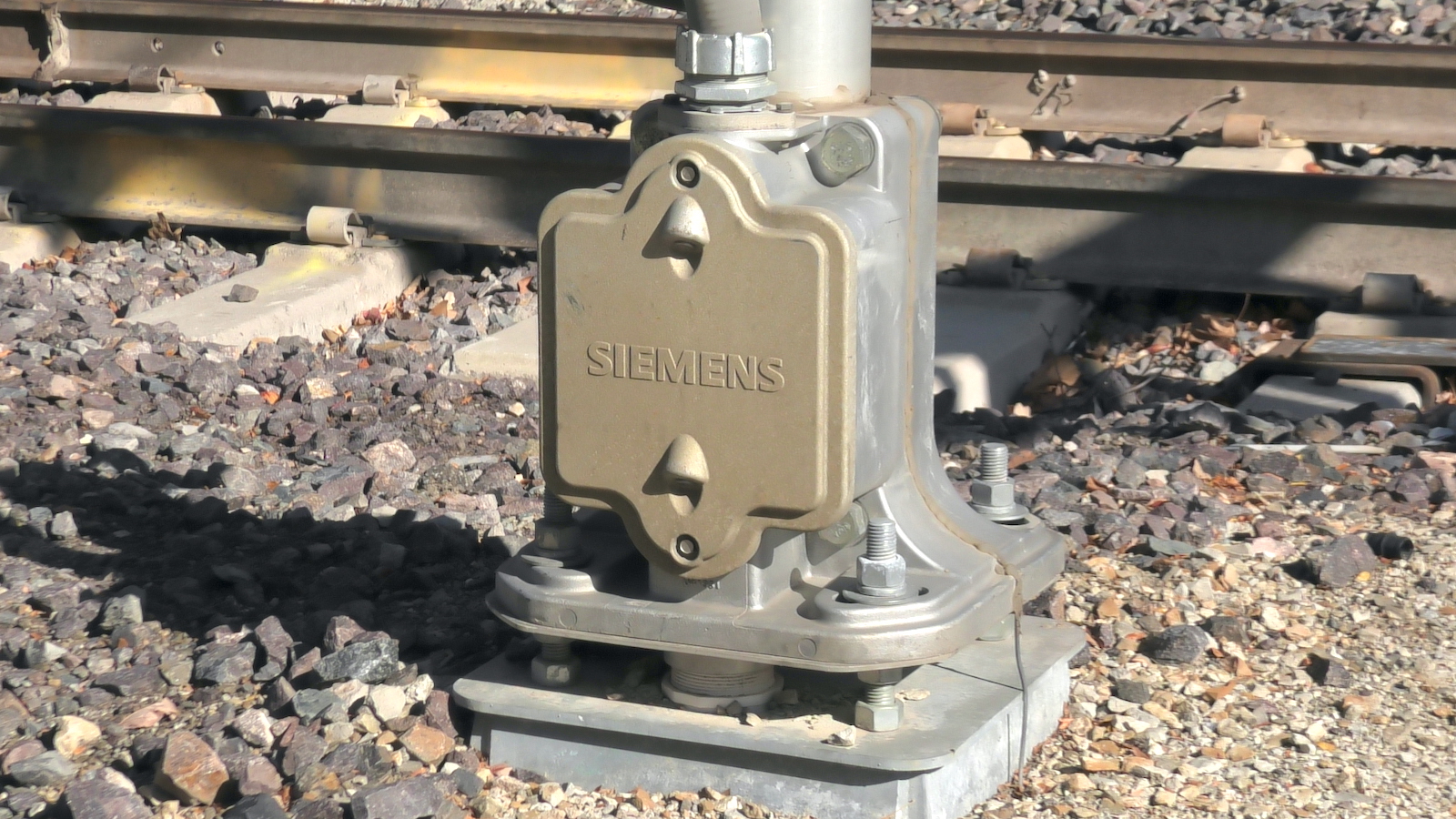

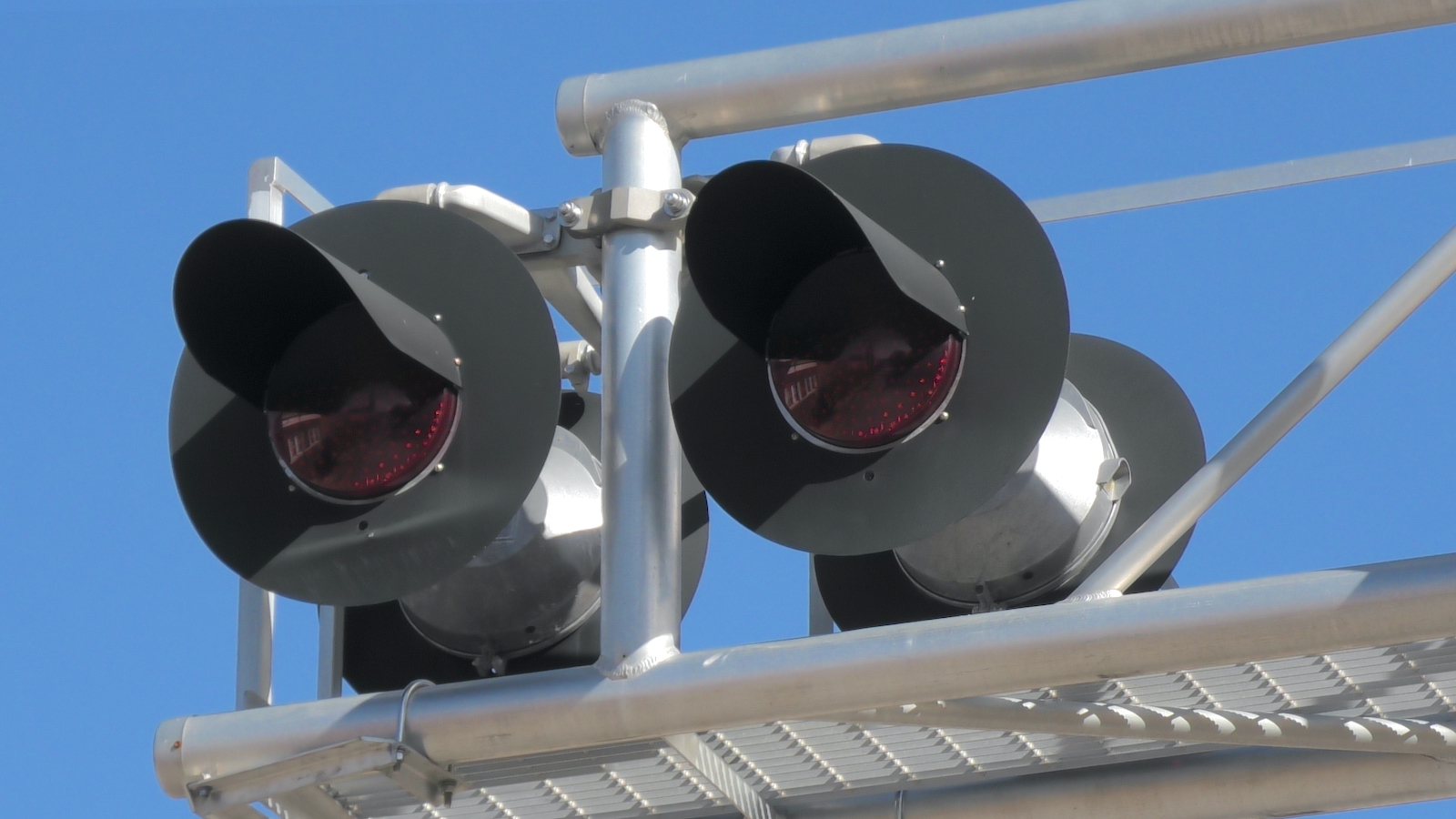

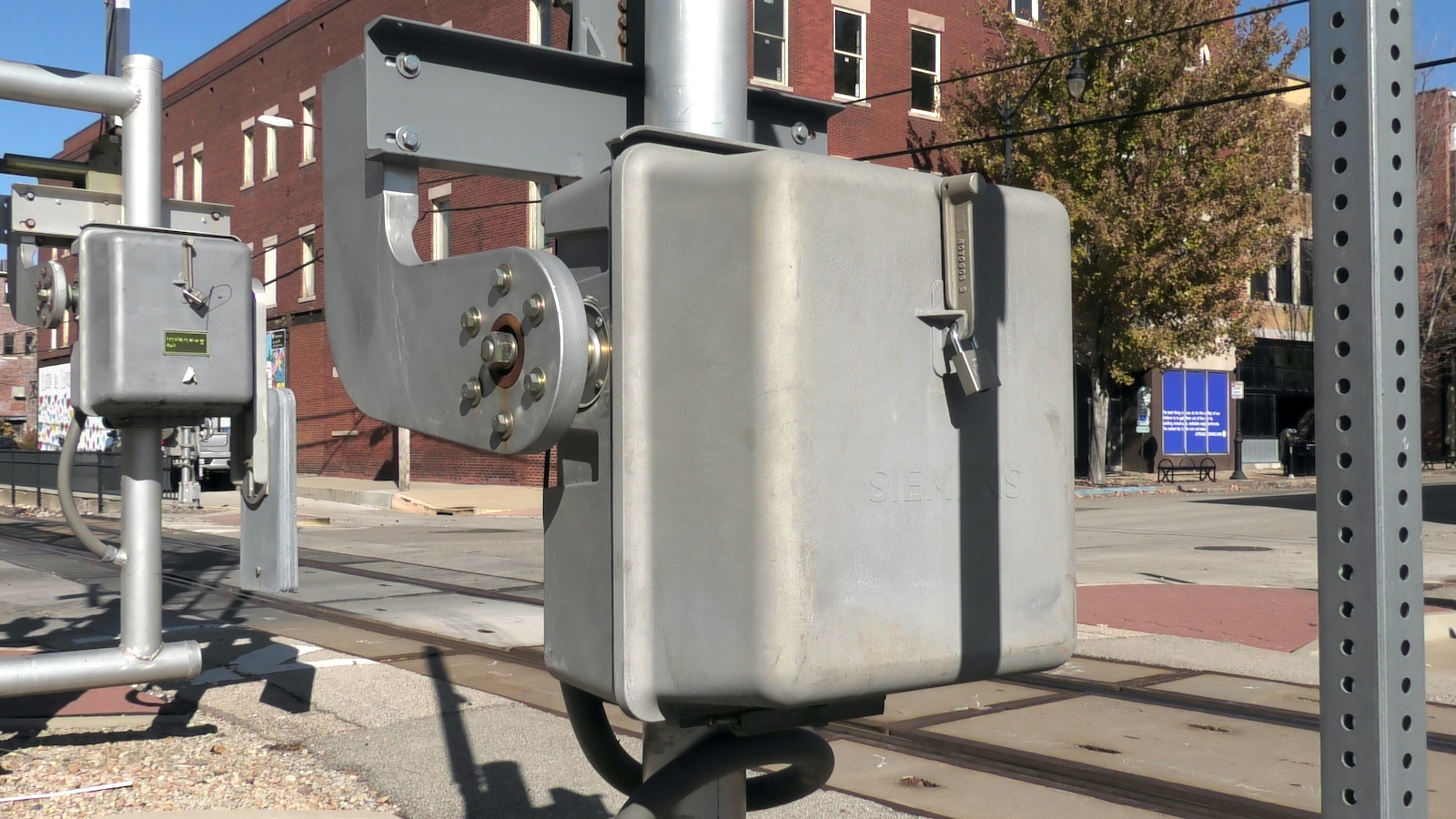

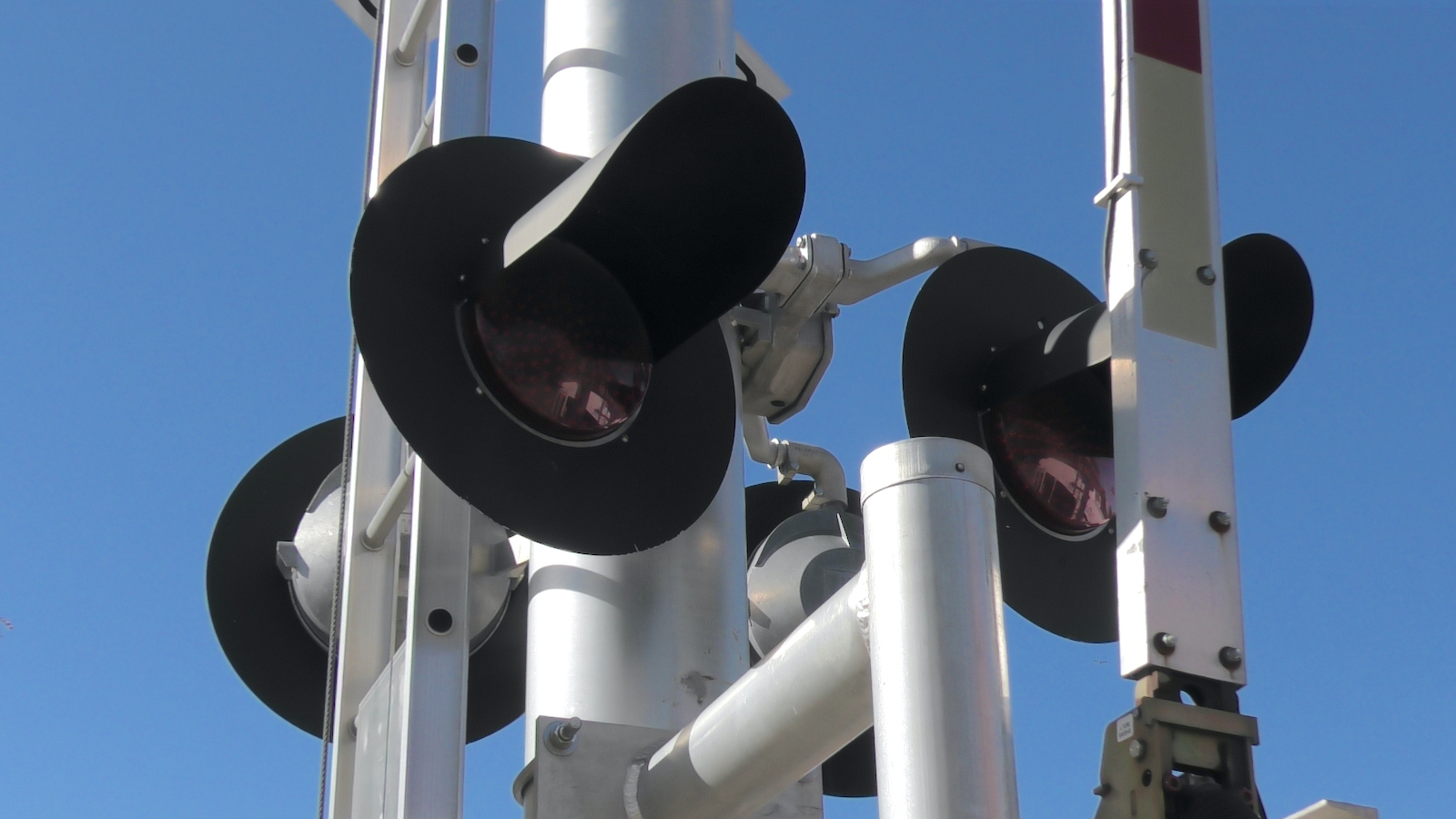

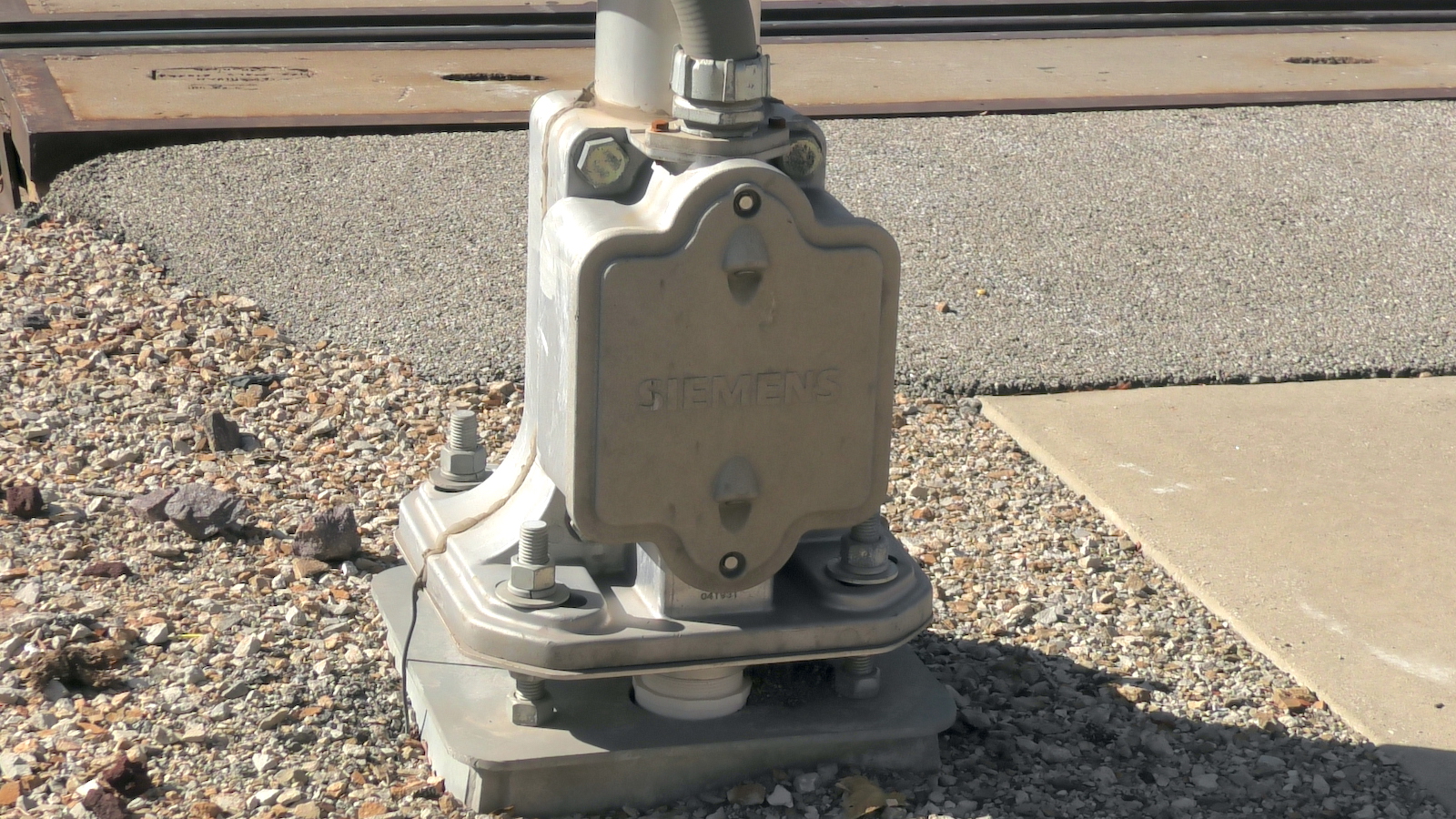

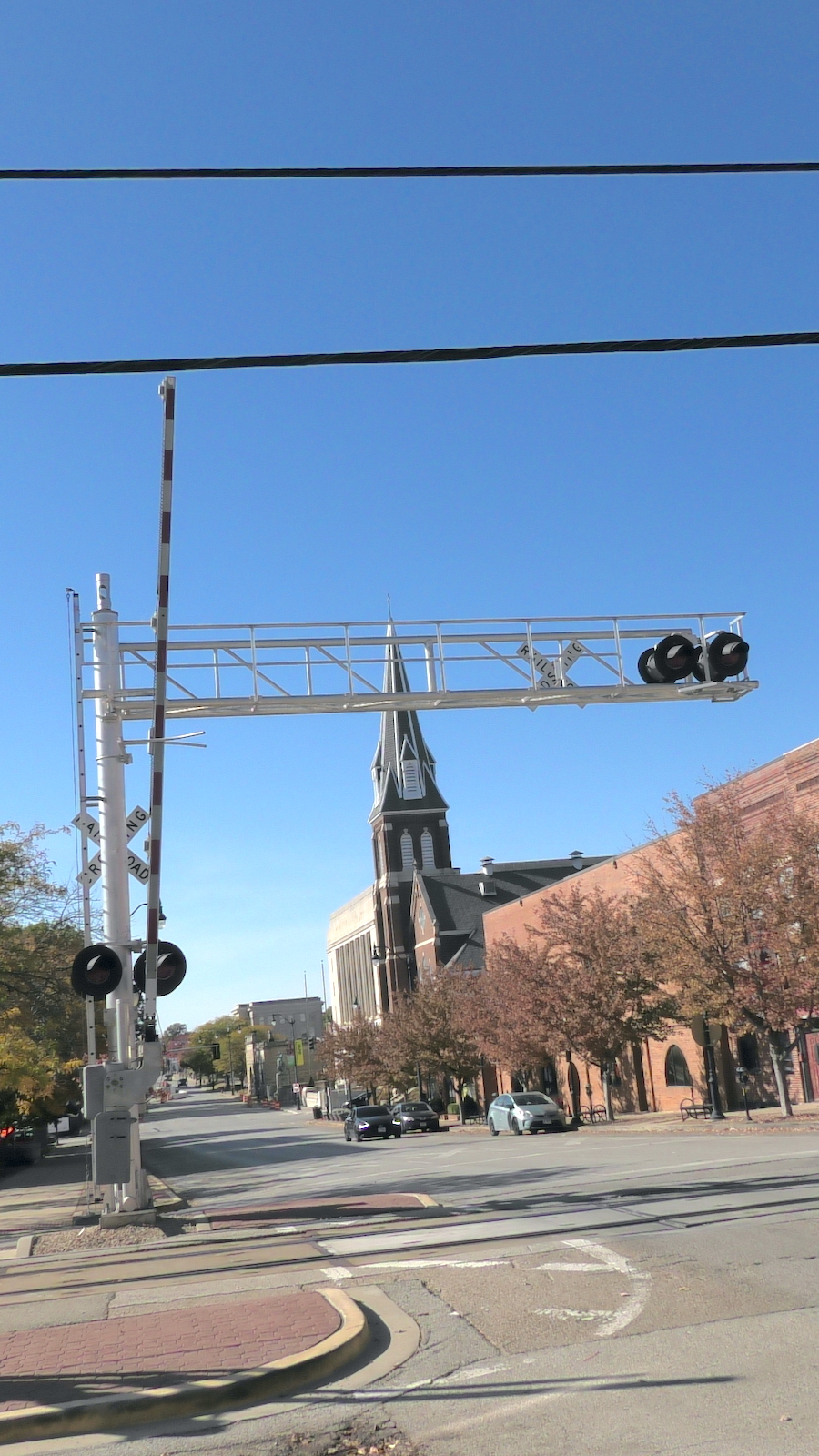

The new western right lane signal. This had the gate mechanism carried over from the prior signal.
