| >>>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | GS Type 2 E-Bell | None |

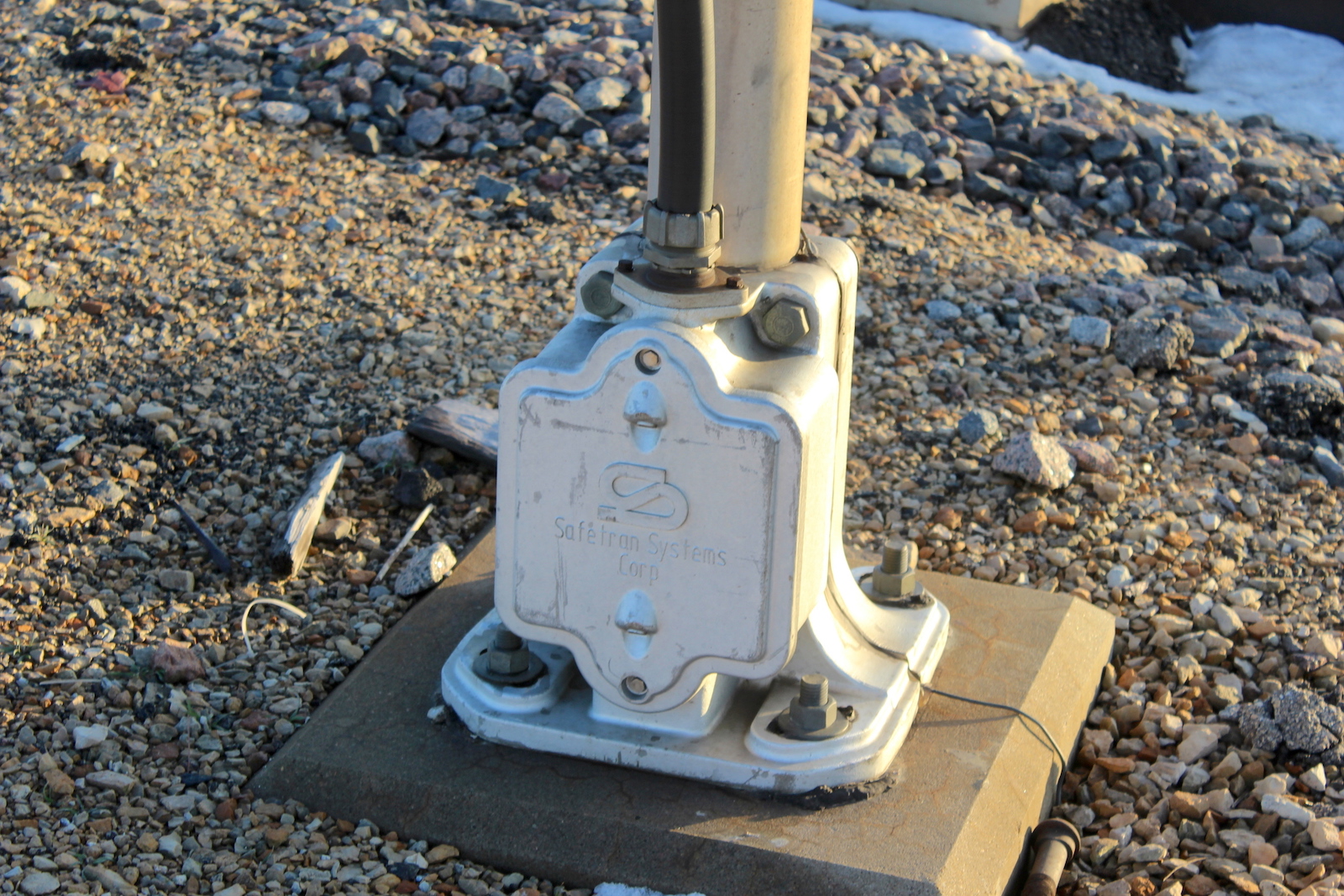

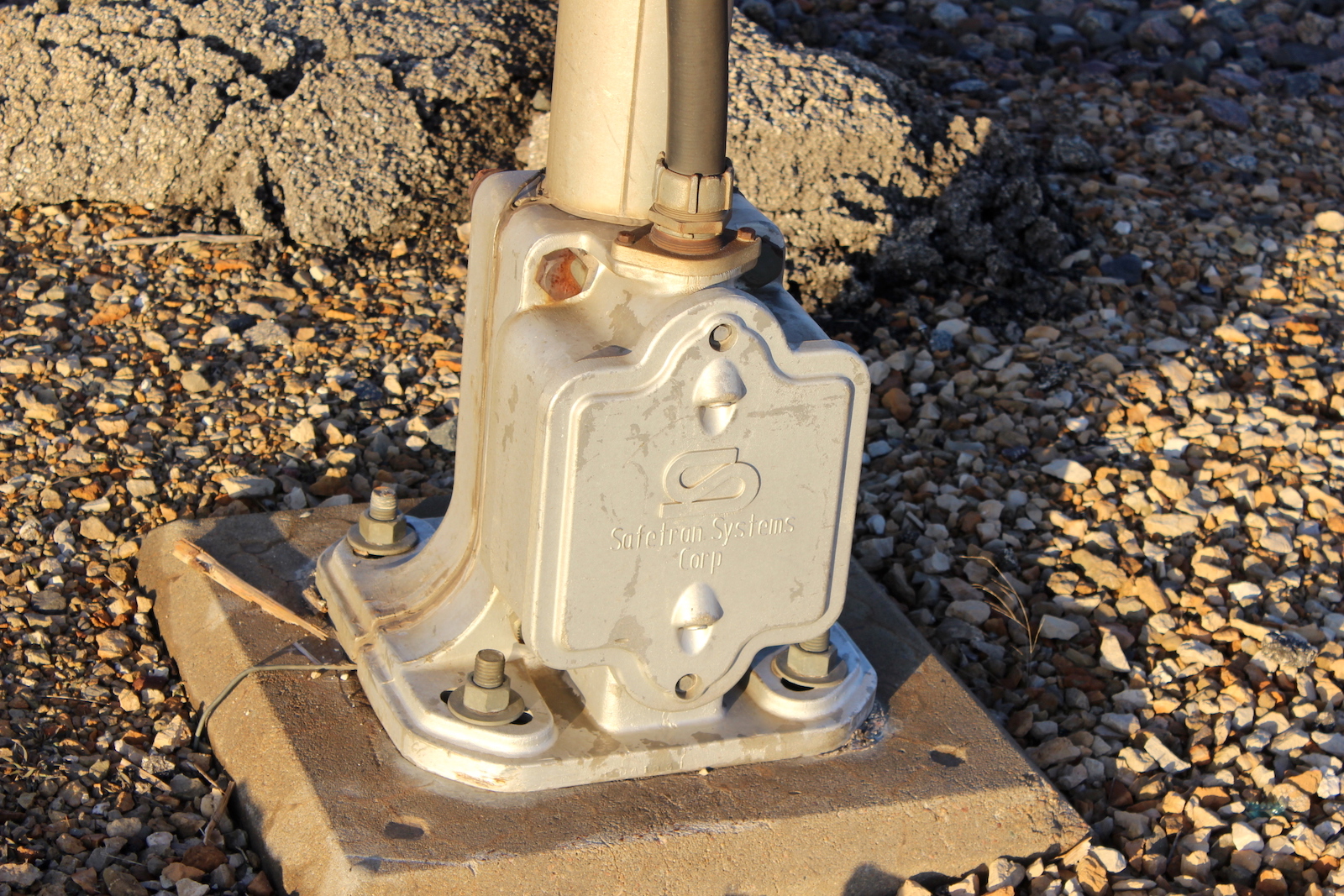

| Base: | Safetran 5" Single Sided ^ | Safetran 5" Single Sided ^ |

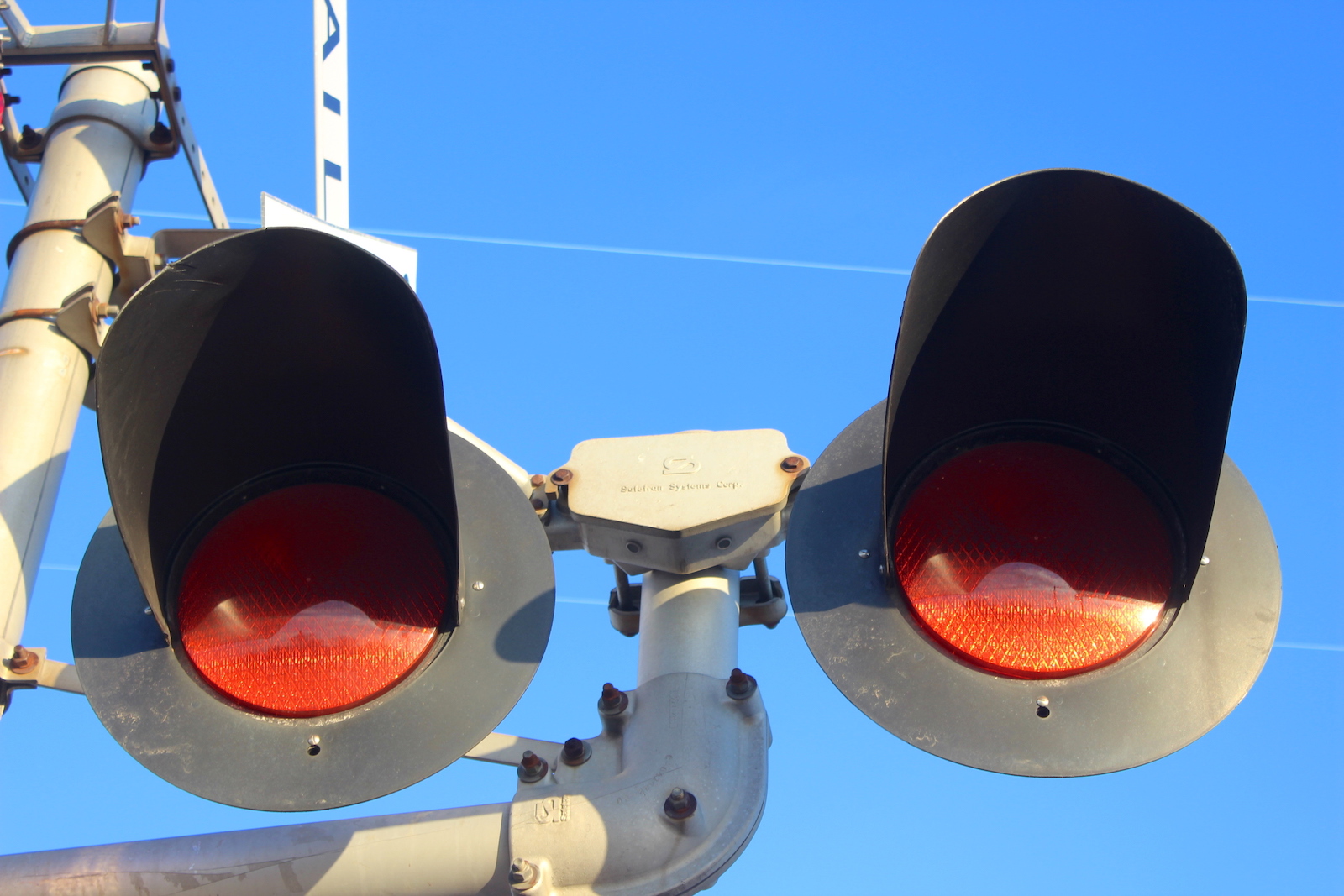

| Lights: | 4 - 12"x20" Hawker Safetran w/ Dialight Ball LEDs | 6 - 12"x20" Hawker Safetran w/ Dialight Ball LEDs |
| Junction Boxes: | Safetran | Safetran |
| Gate Lights: | 4" RECO LEDs | 4" RECO LEDs |
| Gate Mechanism: | Safetran 1990s w/ Standard Mount | Safetran 1990s w/ Standard Mount |
| Gate Striping: | Vertical Striping | Vertical Striping |
1 |
2
|

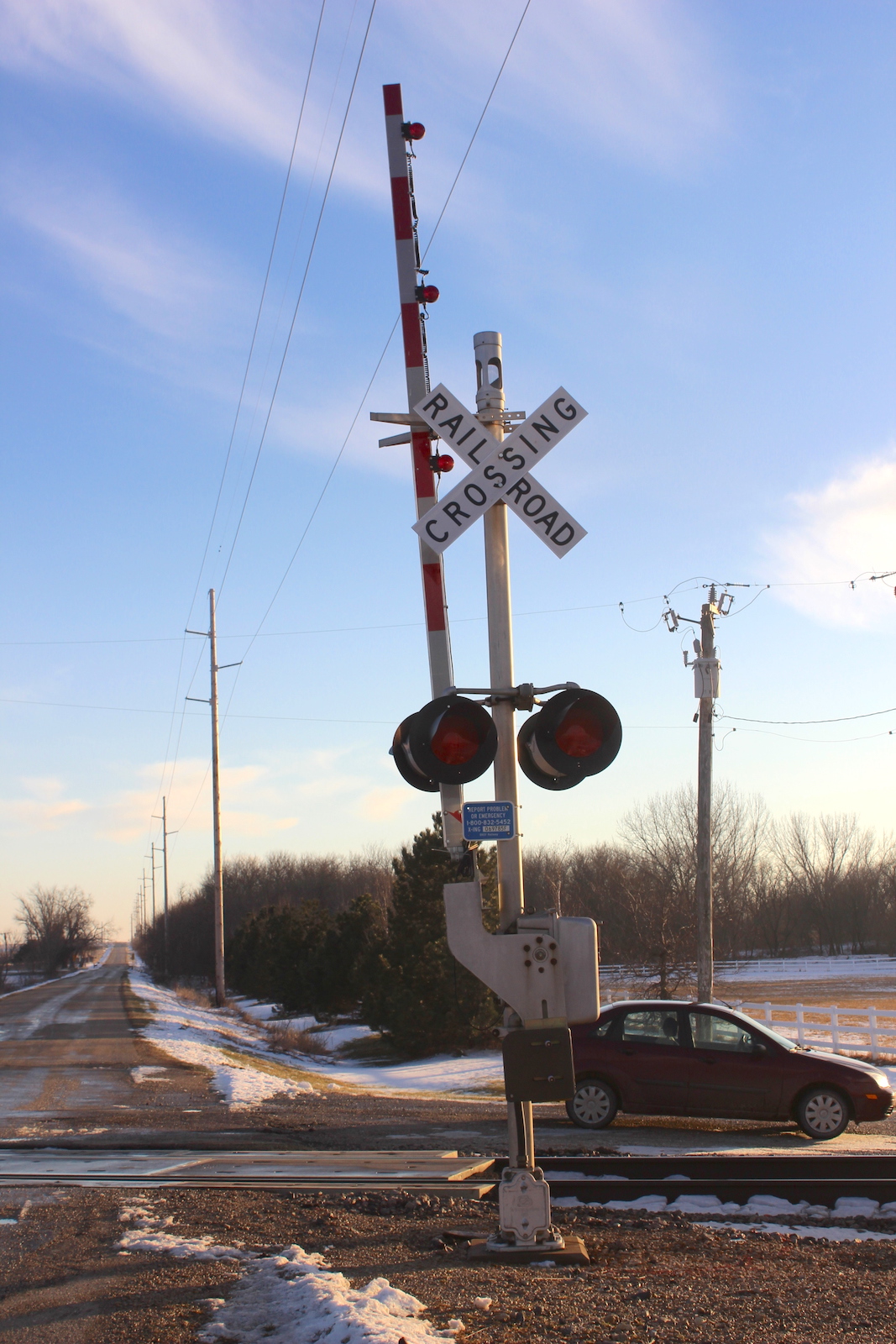

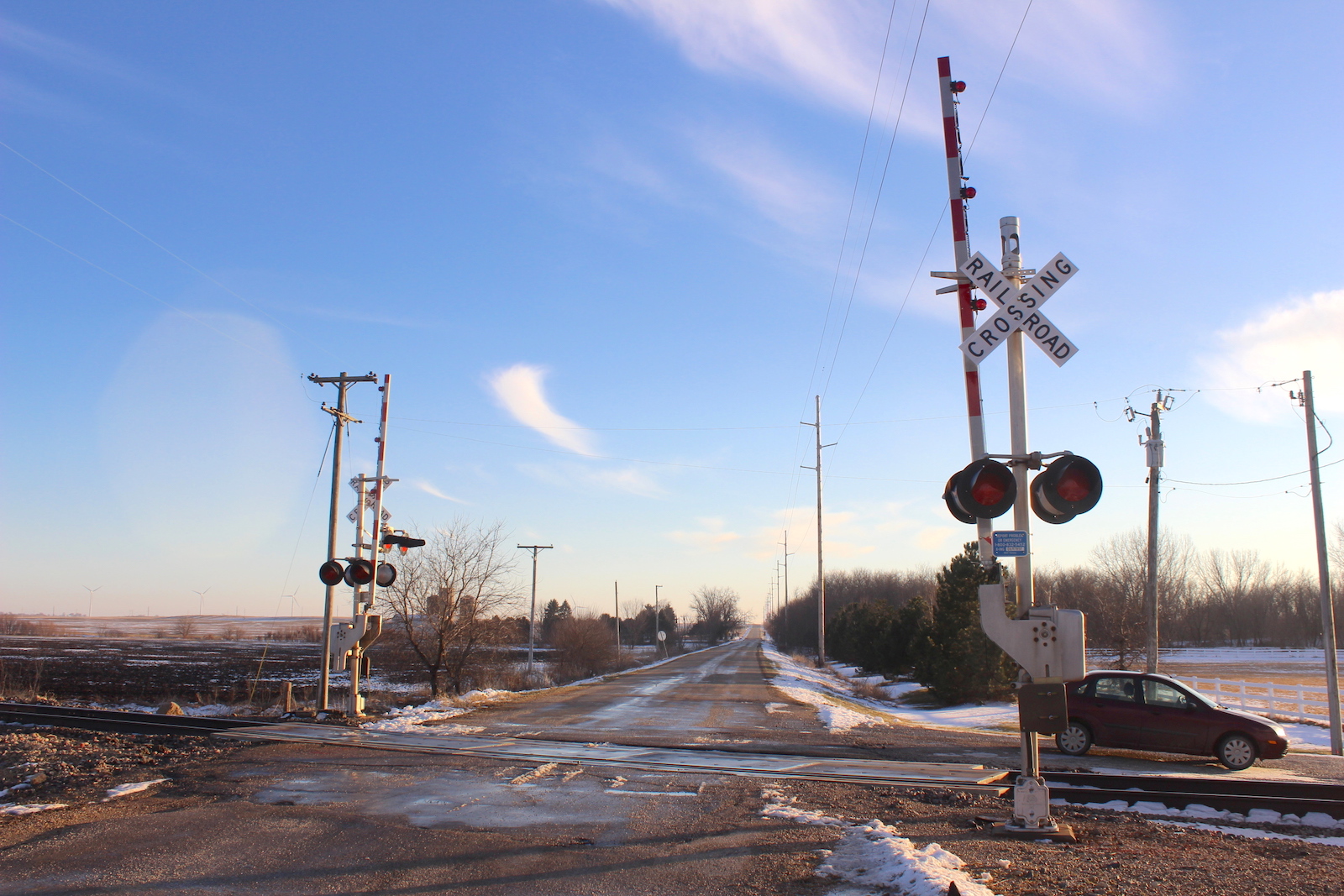

| Overview of 2 gated signals facing south. |

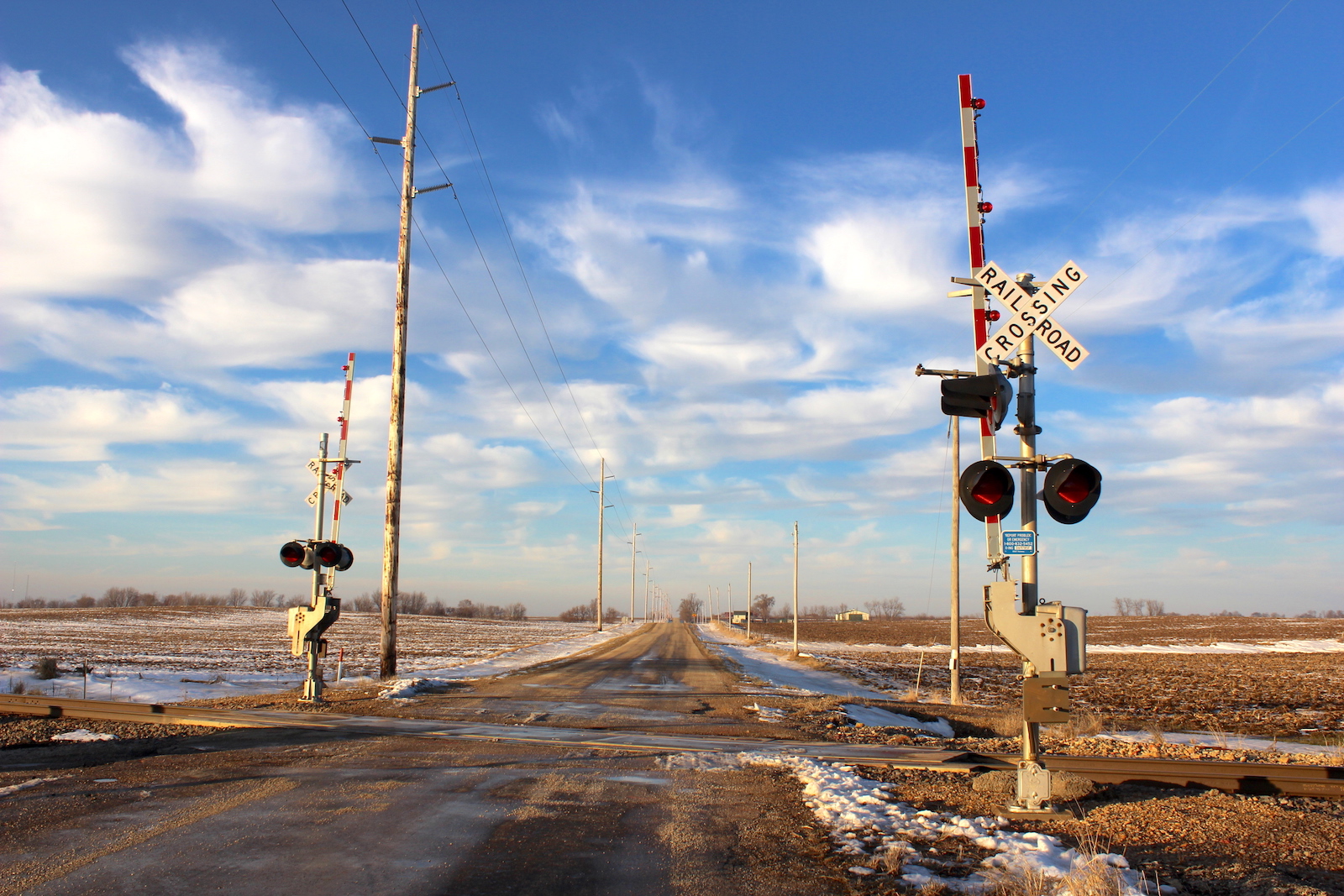

Overview facing north. |
3
| 4
| 5
|
6
| 7
| 8
|
9
| 10
| 11 | 12
|

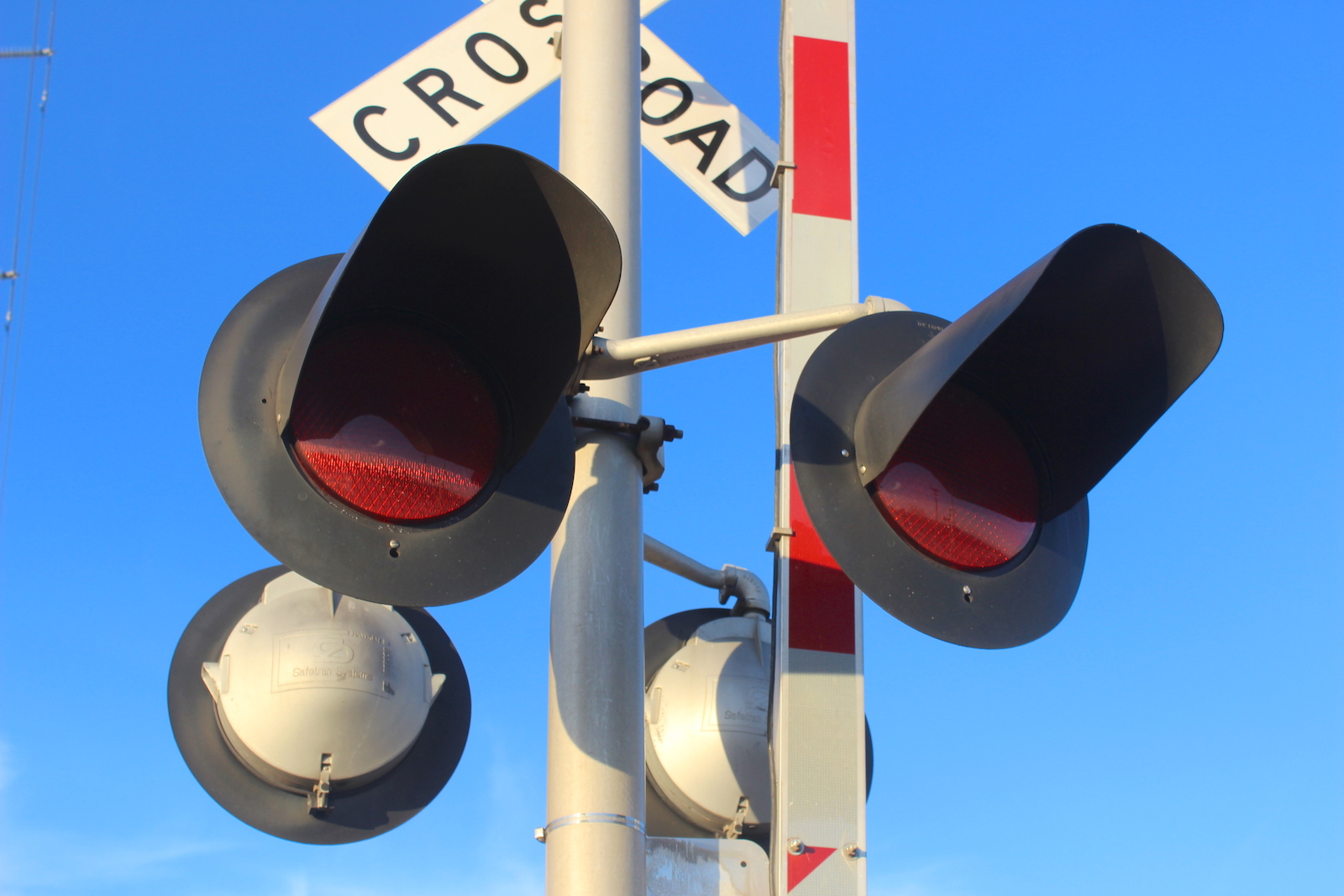

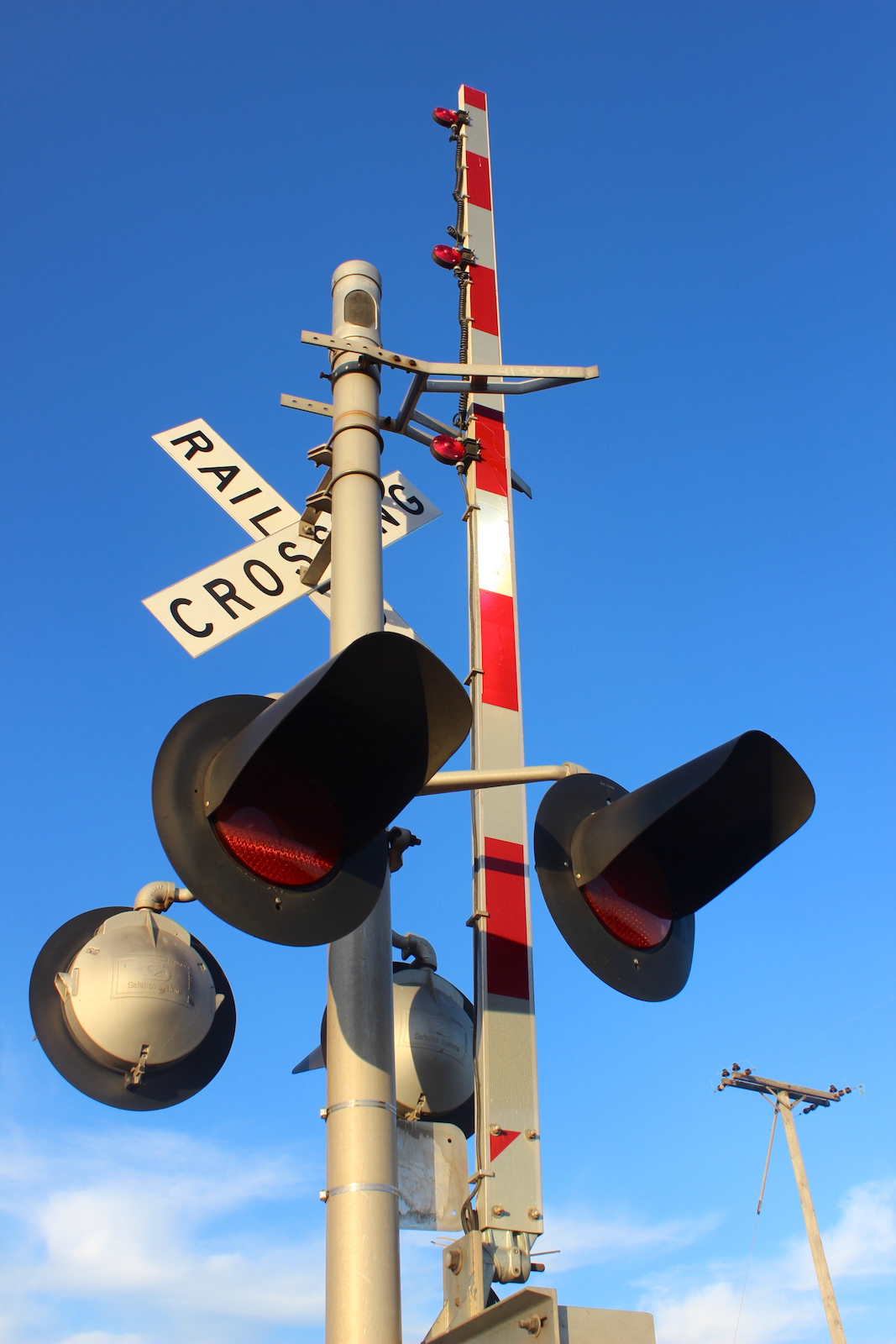

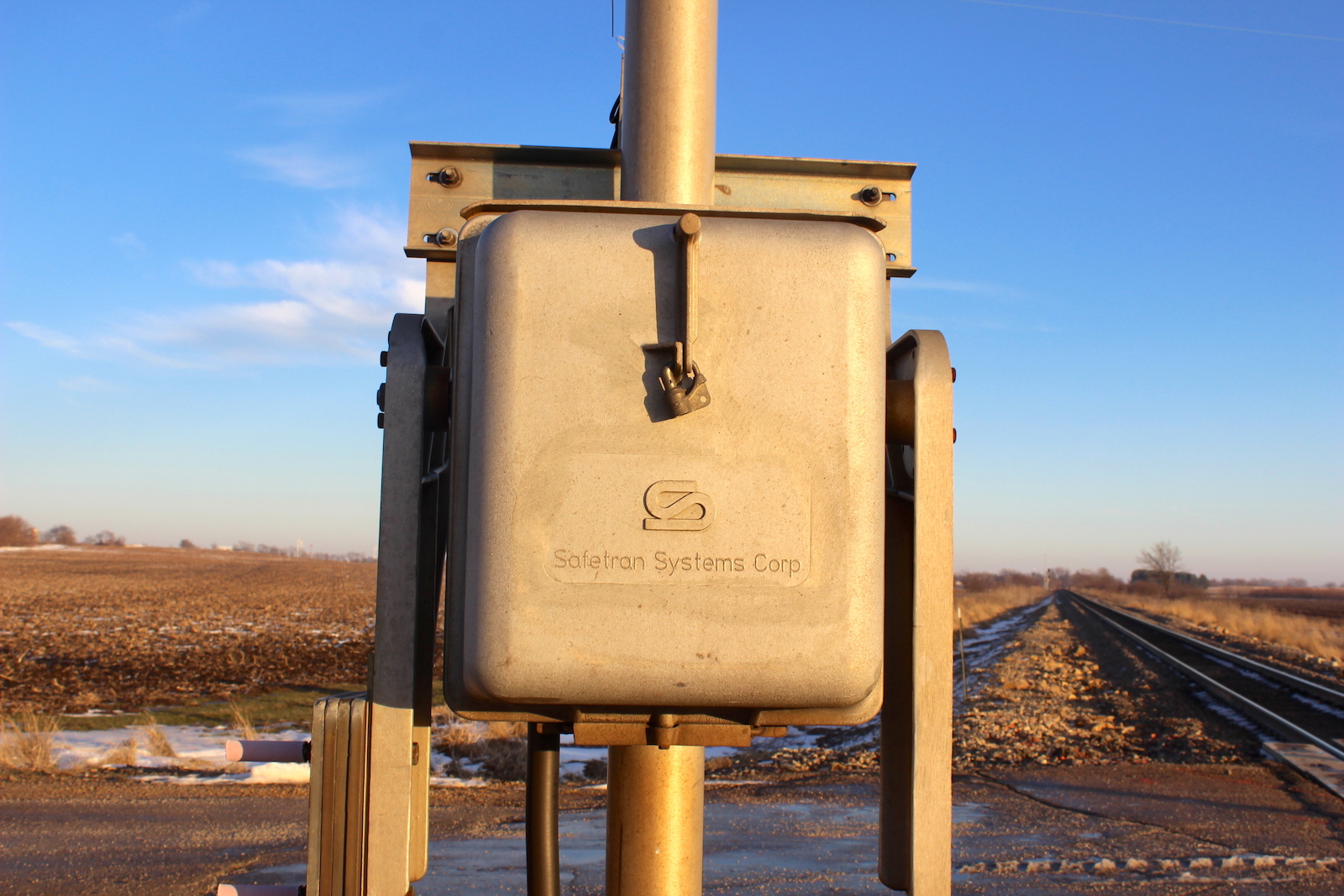

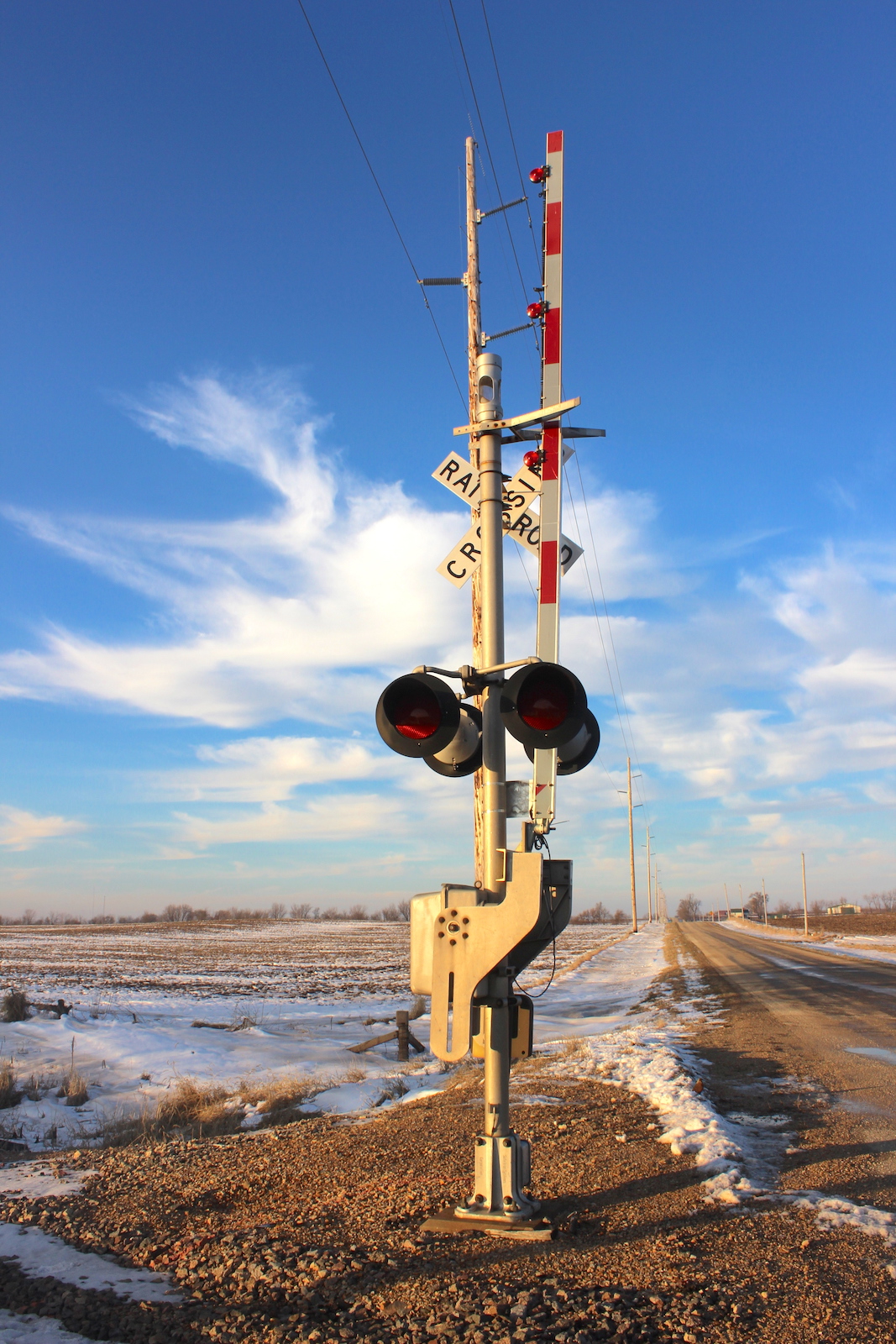

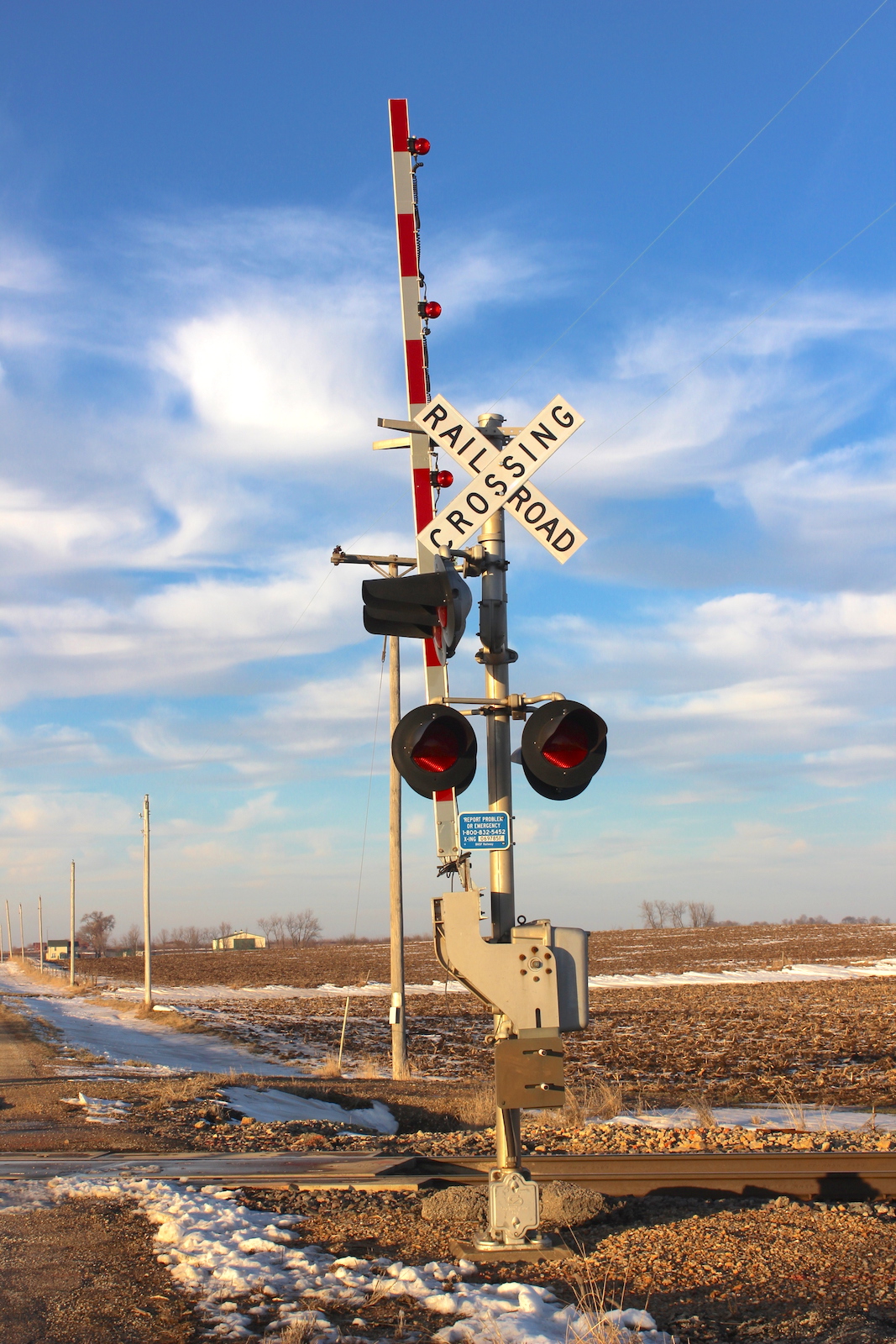

| The northern signal. |
13
| 14
| 15
|
16
| 17
| 18
| 19
|
20
| 21
| 22 | 23
|

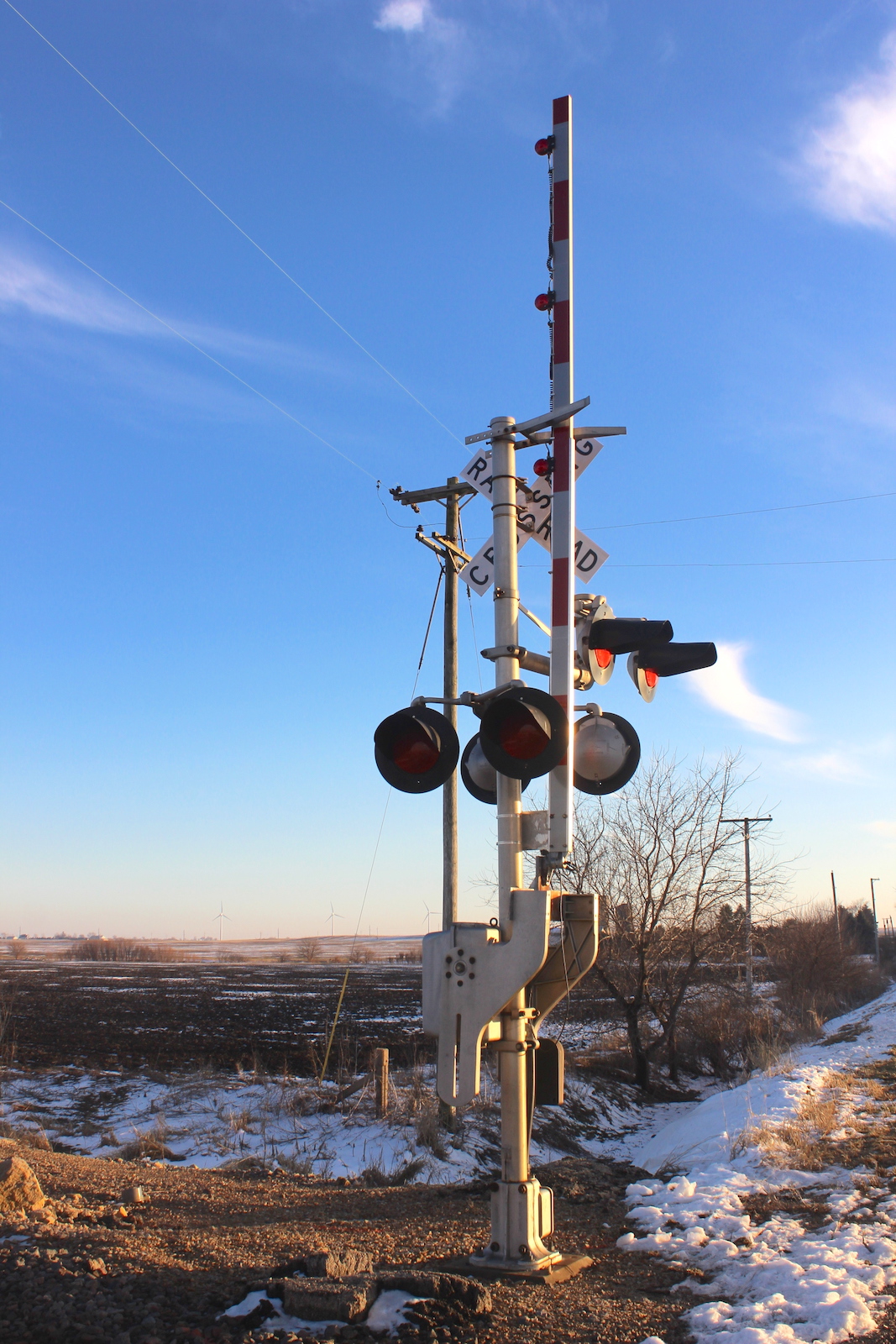

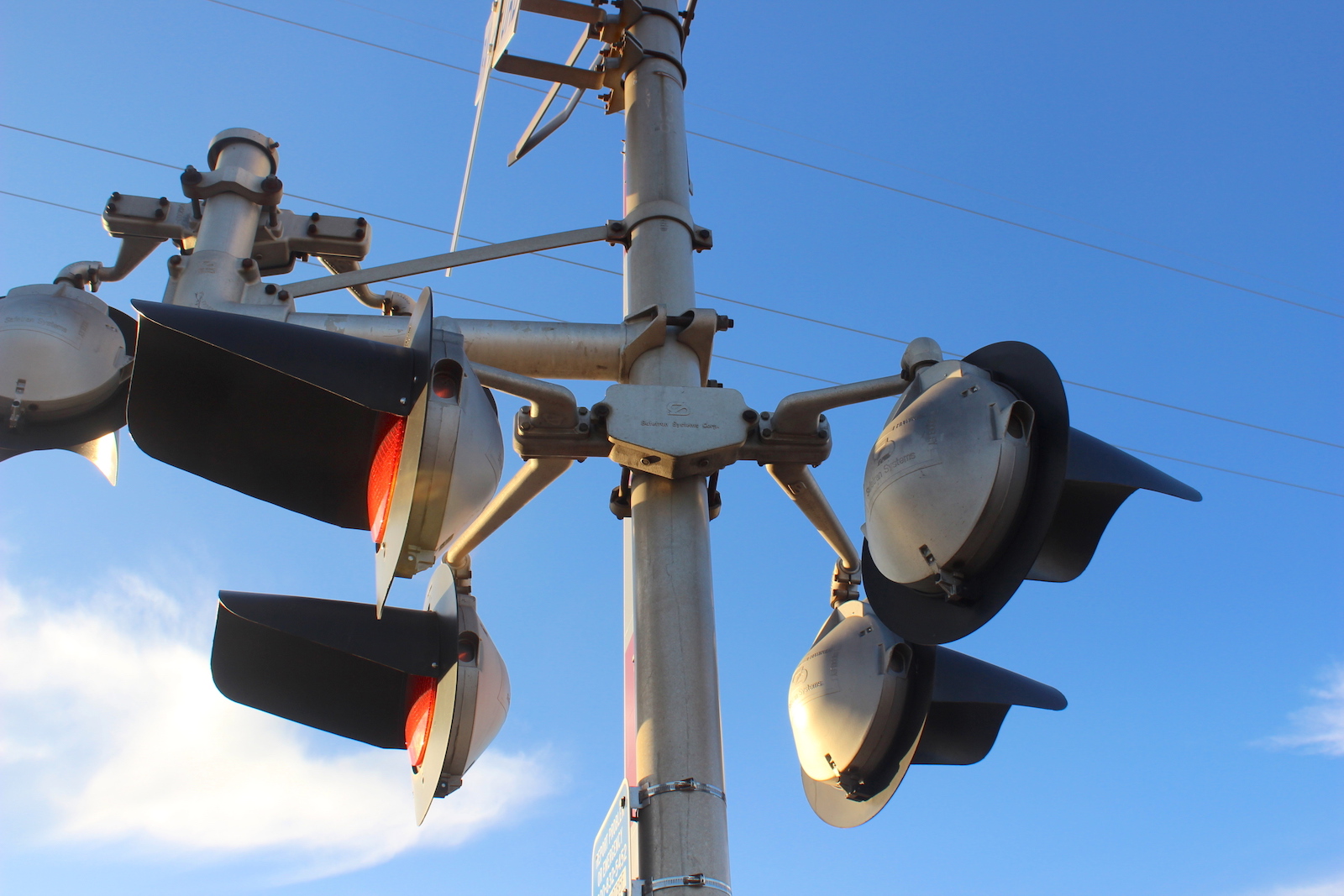

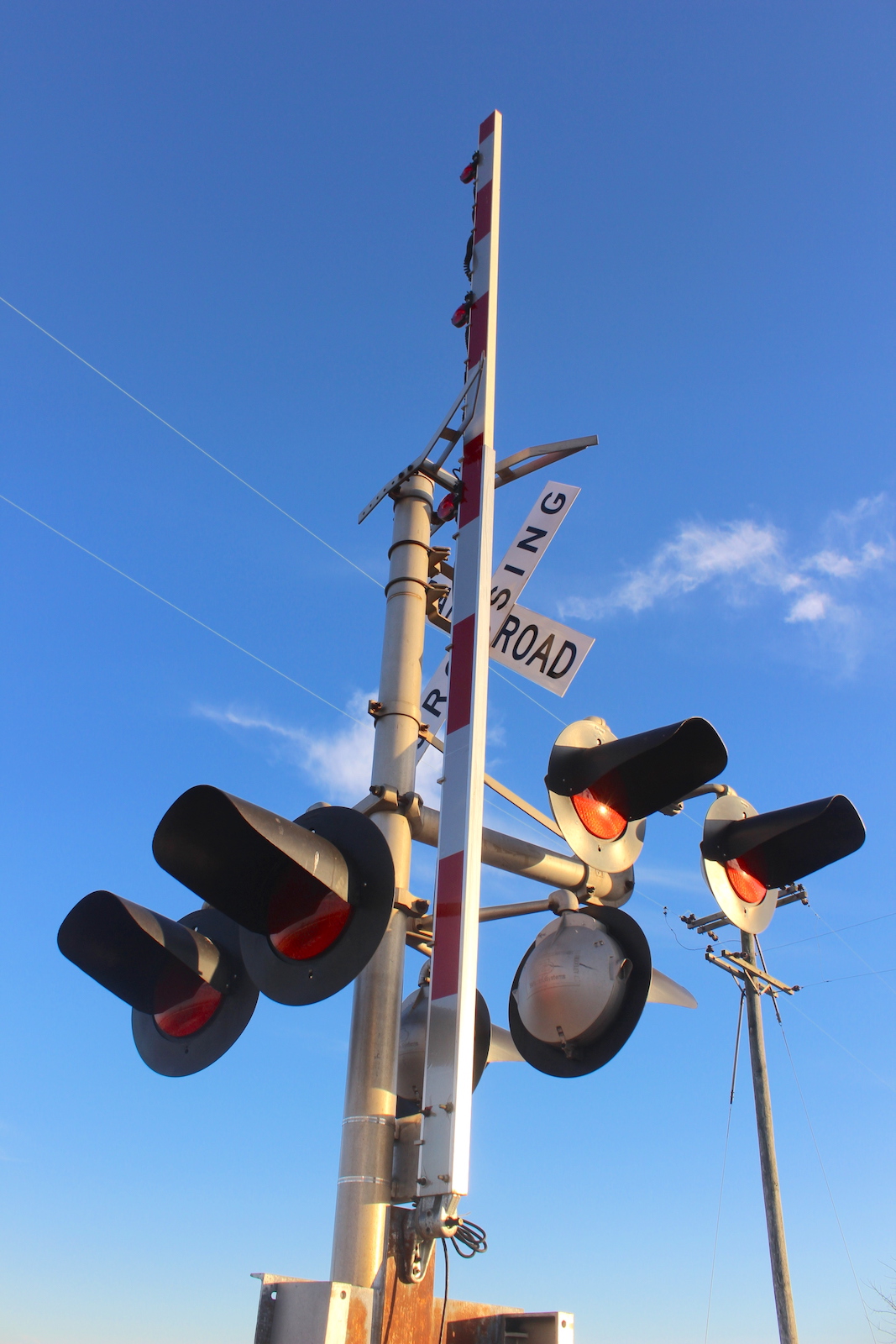

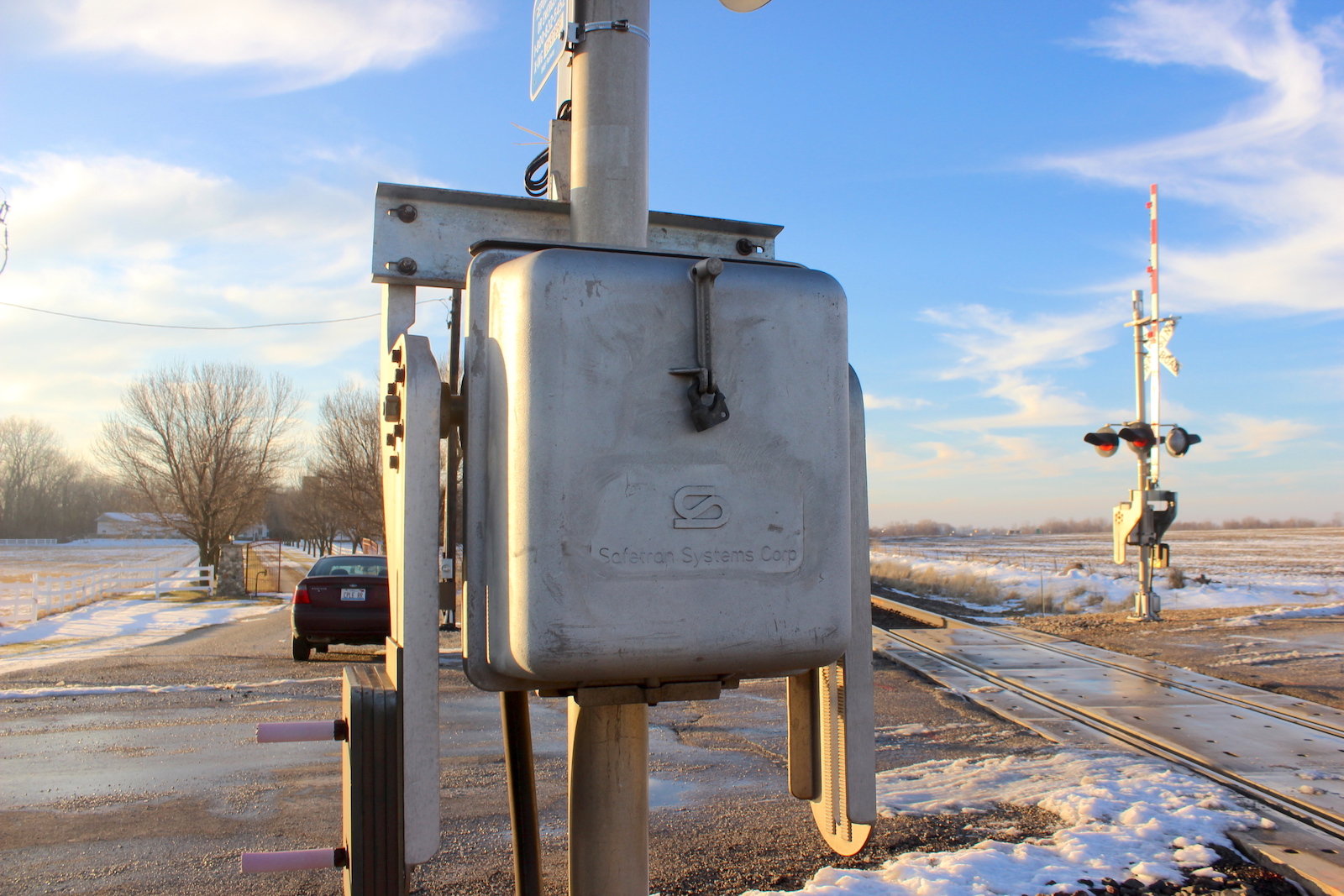

| The southern signal. |
24
|
25
|
26
|
27
|

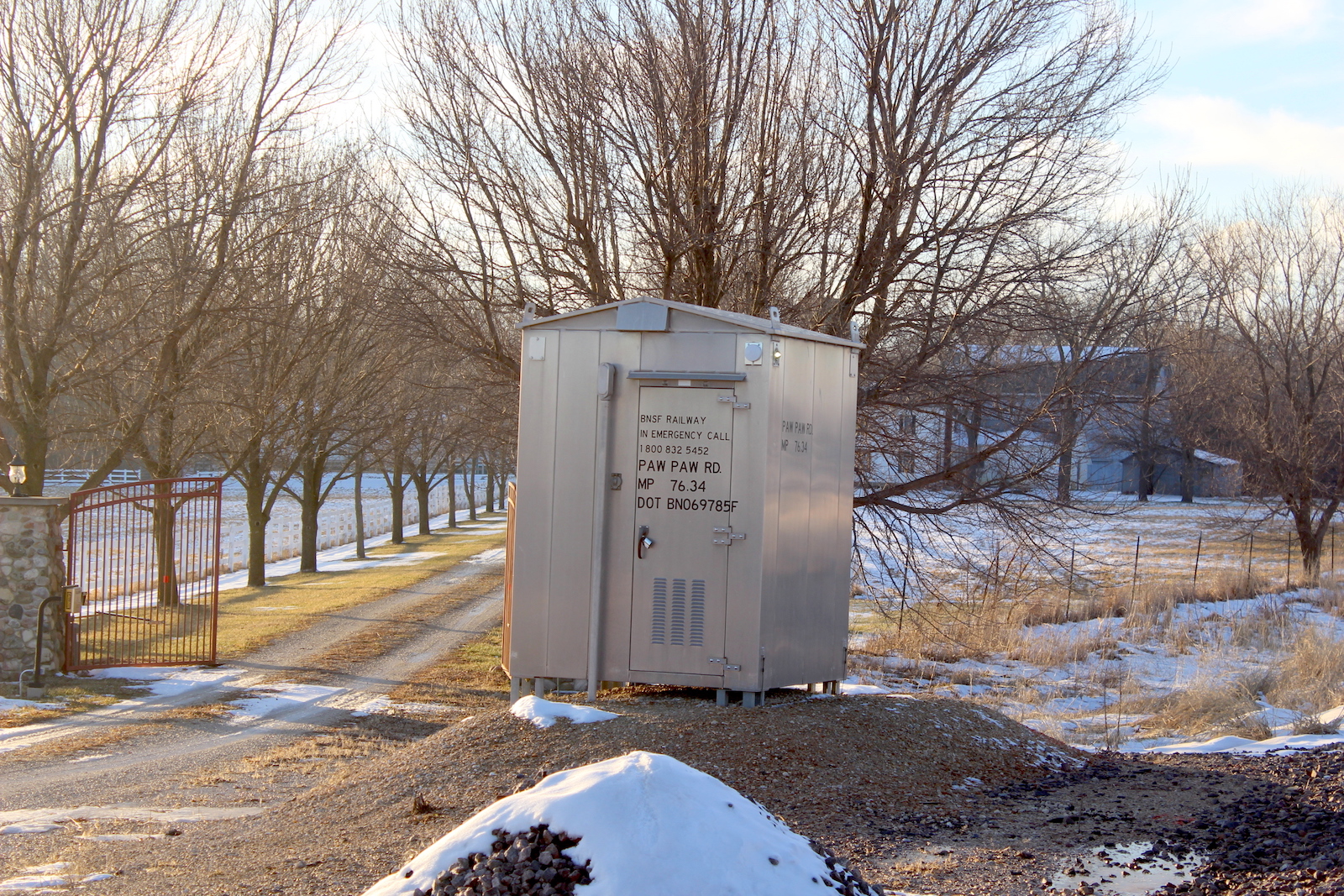

| The relay bungalow in the southwest quadrant. |

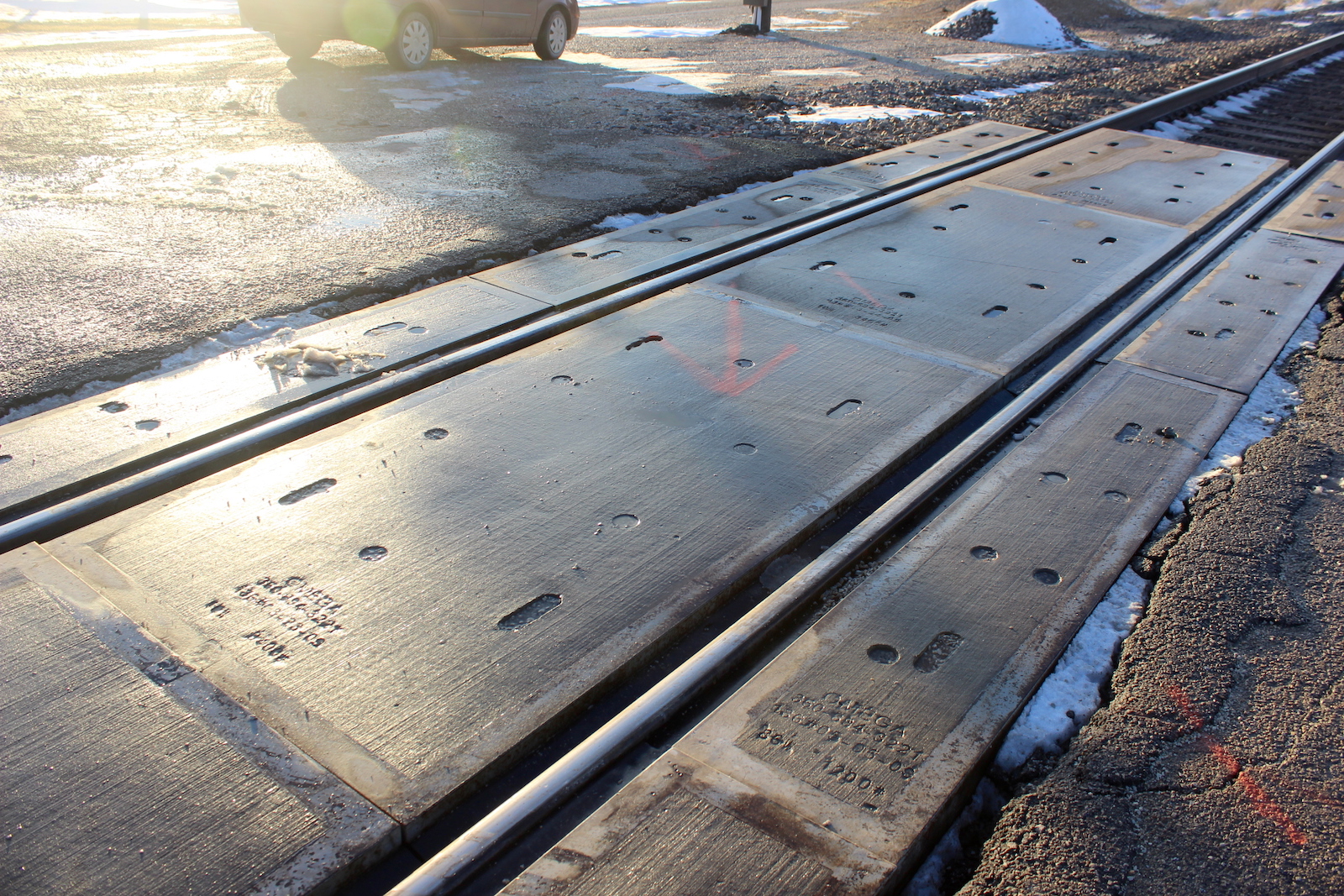

The grade is all concrete. |

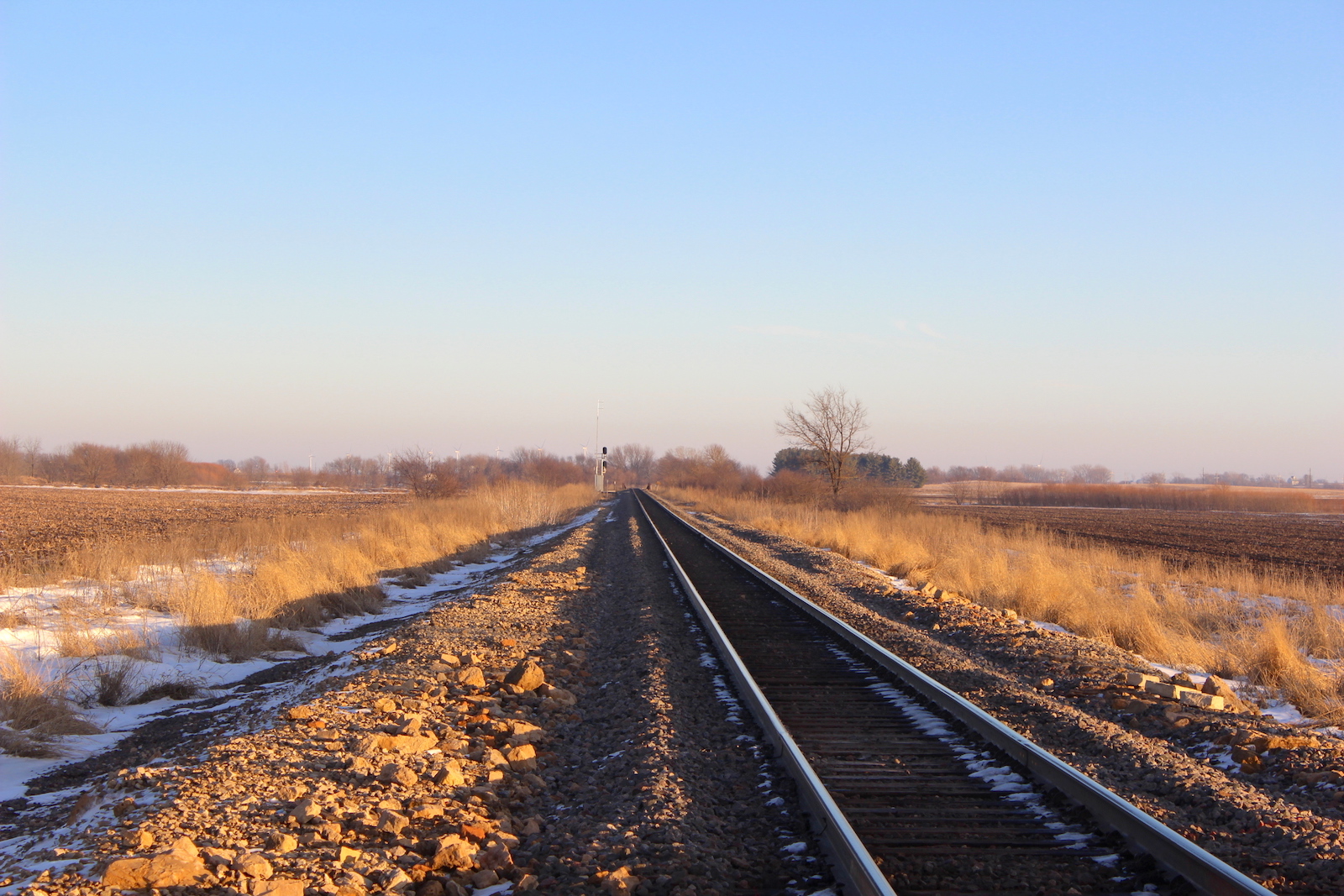

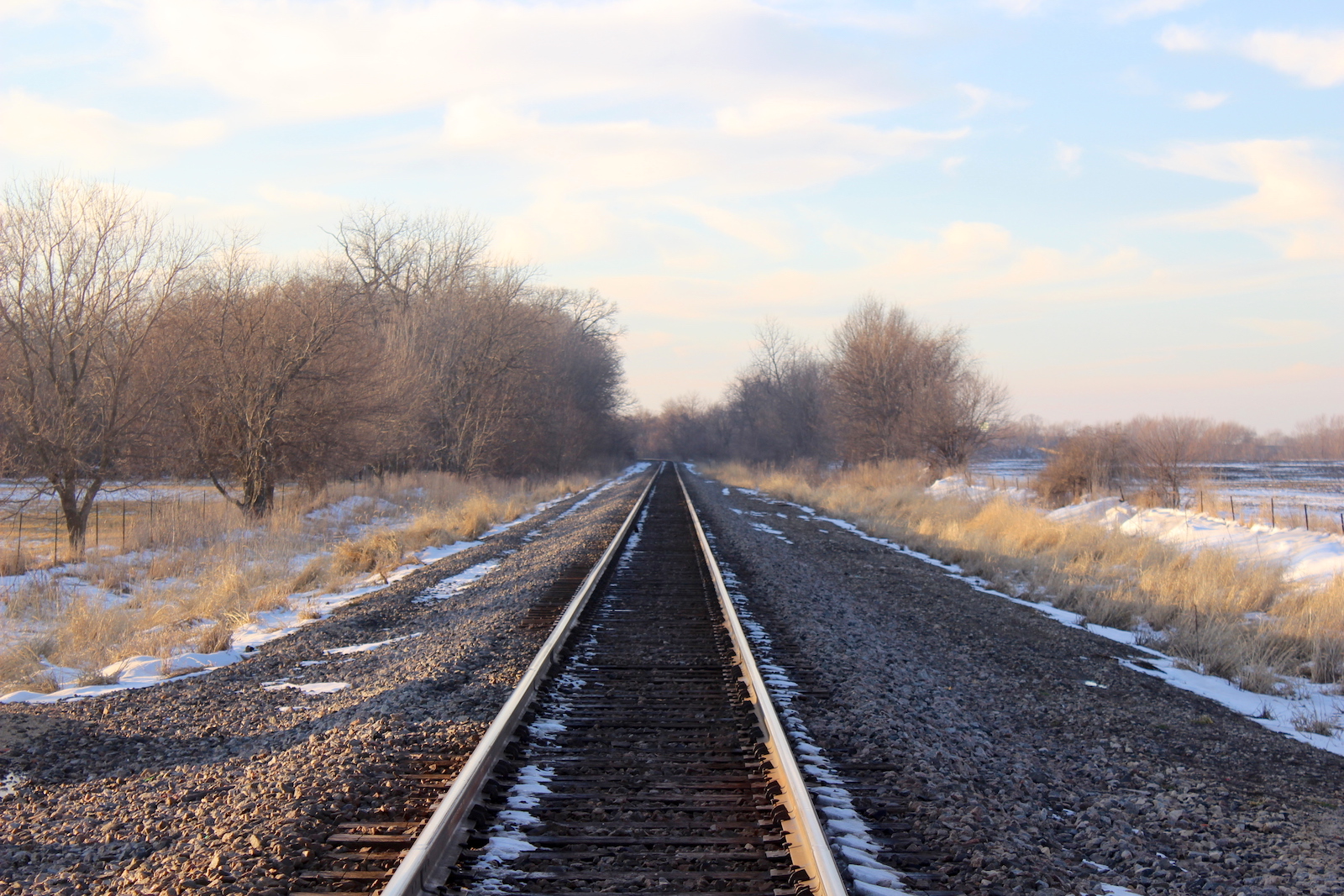

Track view facing east towards Reynolds Rd. |
Track view facing west towards Main St. |
