MP: 241.45

Created April 2021

Total Accidents:  1
Crossing DOT #:  154559N
TOTAL DAILY TRAINS:  20   (ESTIMATED)

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: WCH Type 3 E-Bell GS Type 2 E-Bell

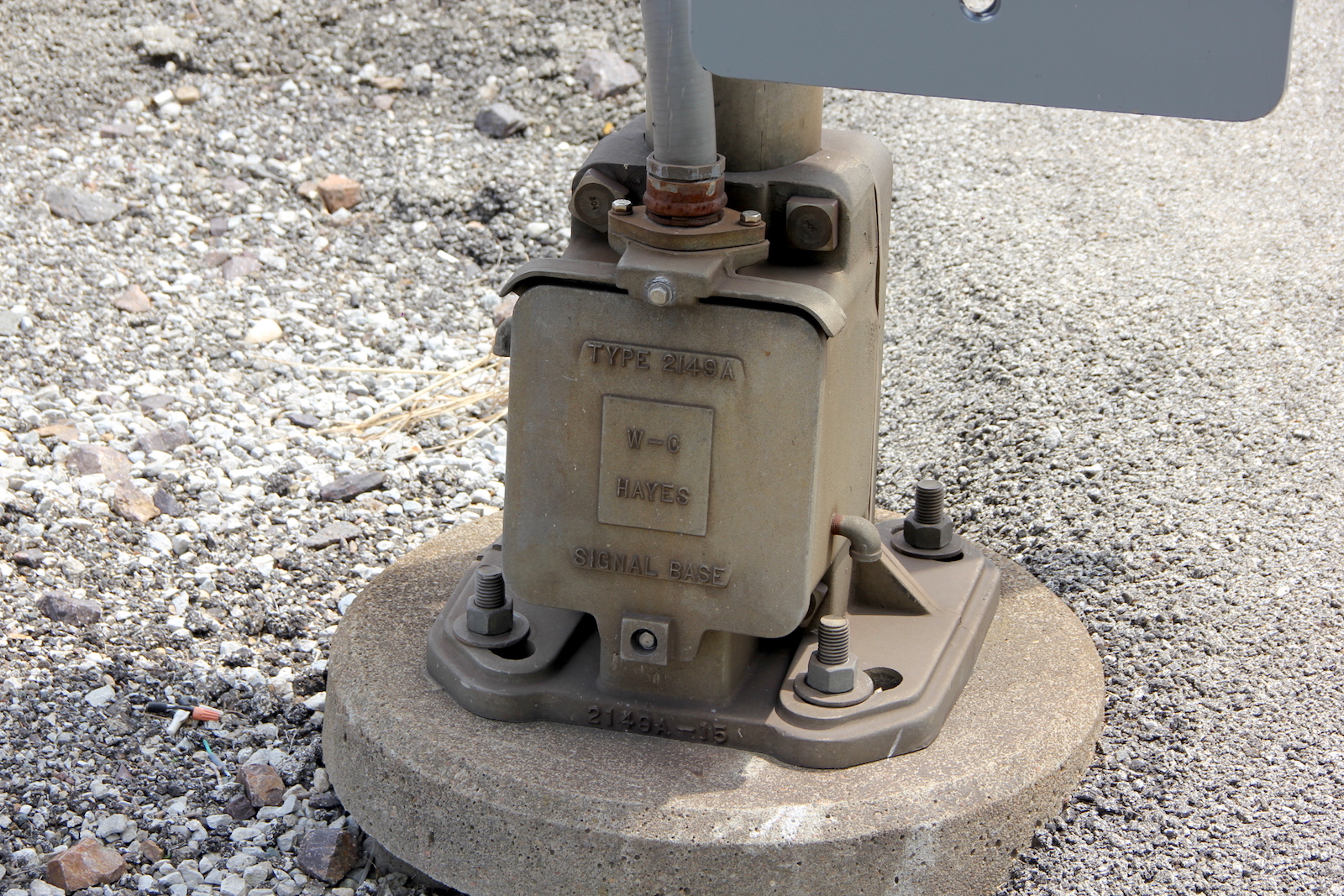

Base: WCH 5" Single Sided ^ Safetran 5" Single Sided ^
Lights: 8 - 12"x20" WCH w/ Electro-Tech's LEDs 4 - 12"x24" Hawker Safetran incandescents
Junction Boxes: WRRS Safetran
Gate Lights: 3 - Alstom Aurora LEDs 3 - 4" RECO LEDs
Gate Mechanism: WCH Style 3.5 w/ Old NEG 2 Way Saver Safetran 2000s w/ Standard Mount
Gate Striping: Vertical Striping Vertical Striping

All pictures and the 1st video were taken on June 4, 2019, by Tommy McGowan.
The 2nd video was taken on November 7, 2020, by Gametrain Productions.
This crossing is located on the UP Pana Sub and DREI Decatur Sub.

1 2

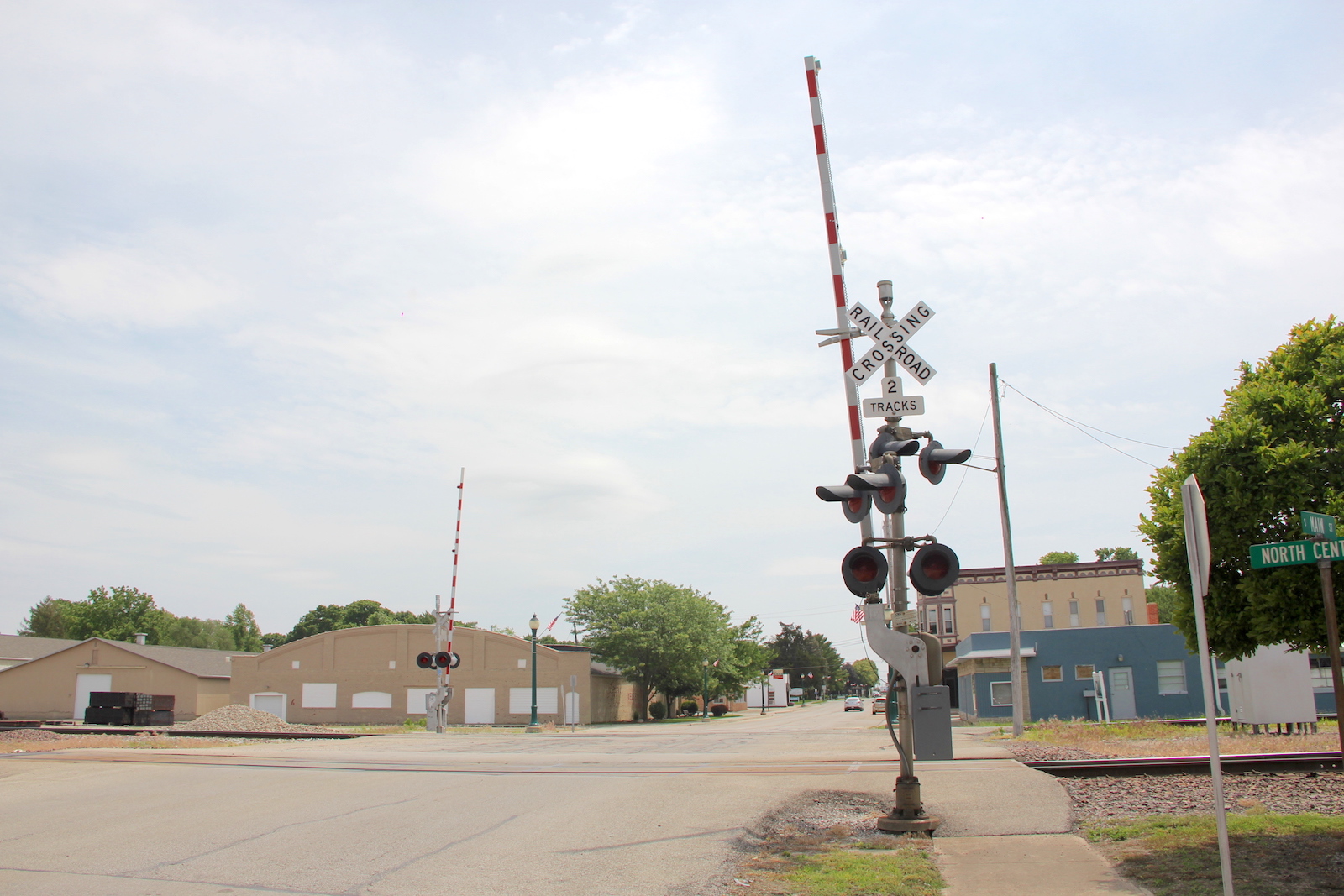

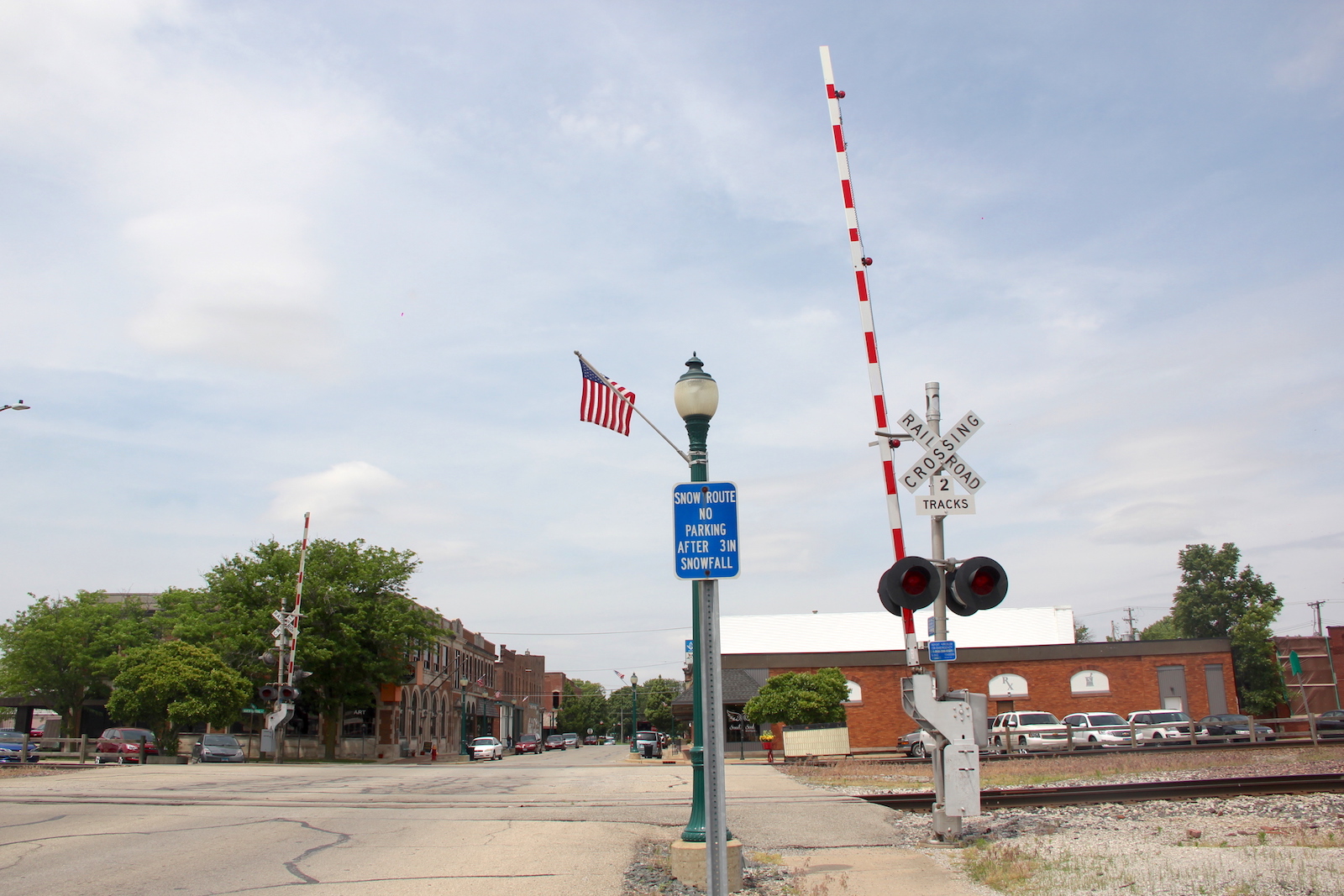

Overview of 2 gated signals from different railroads facing south. Overview facing north.
3 4 5
6 7 8 9
10 11 12 13
14 15 16 17

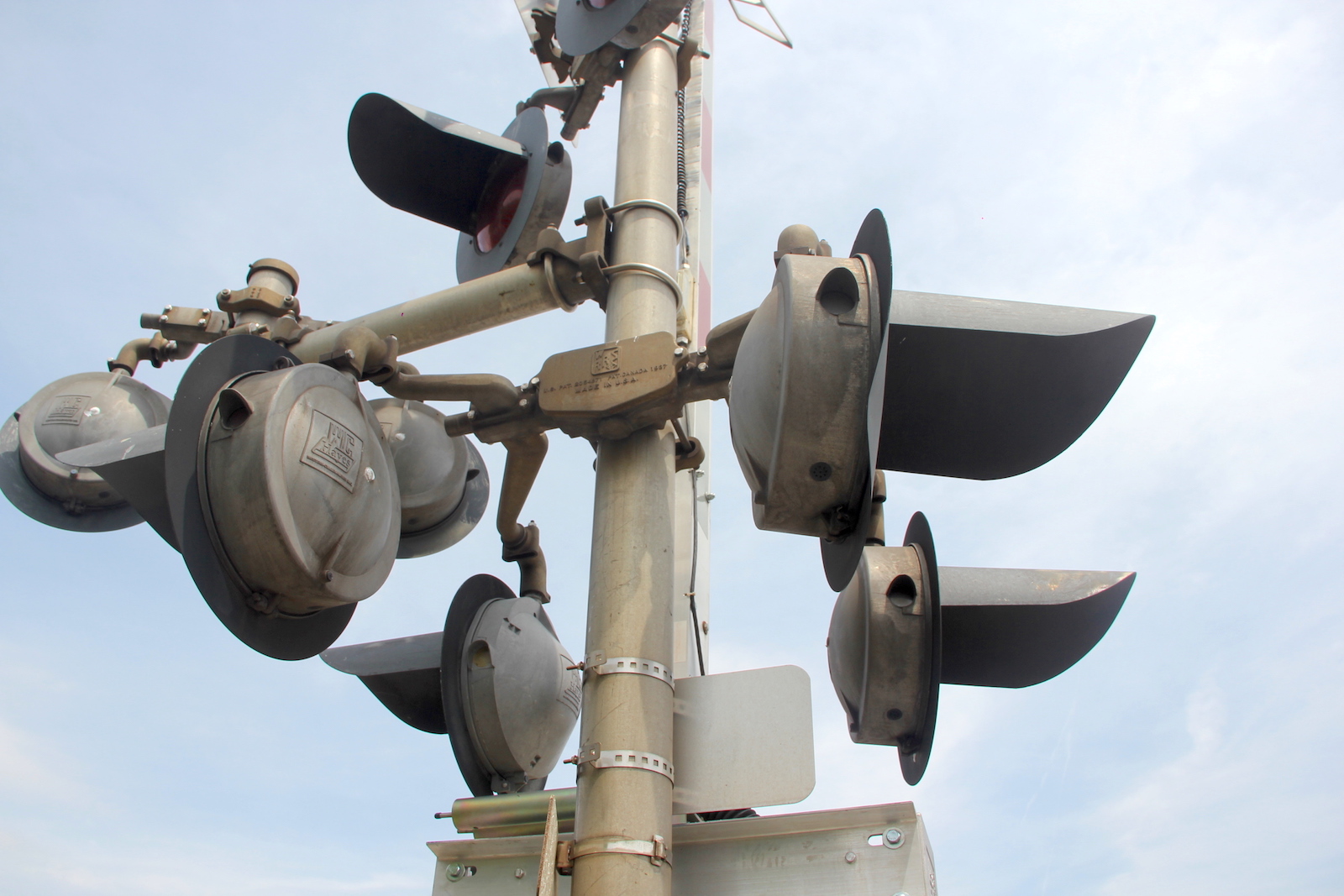

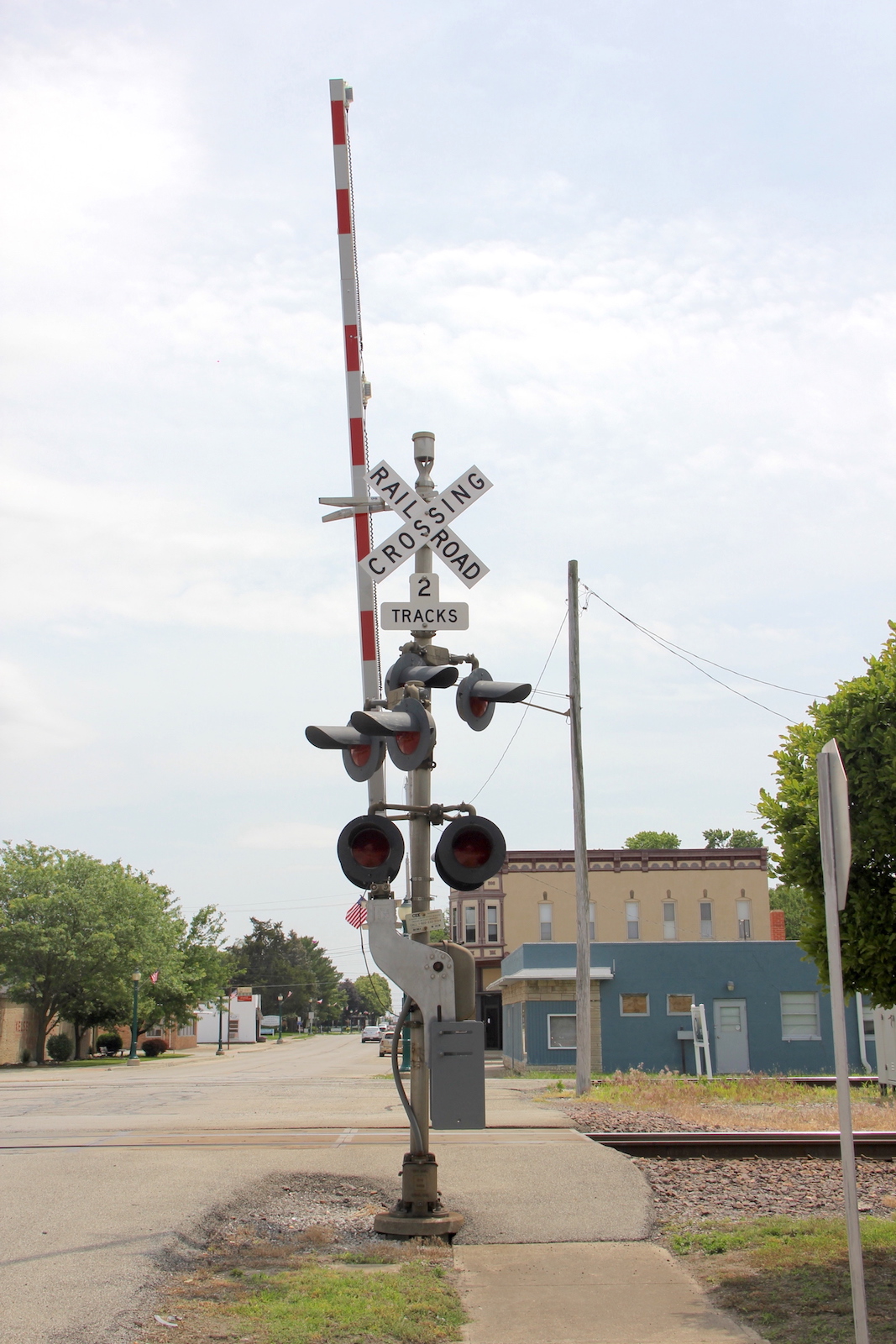

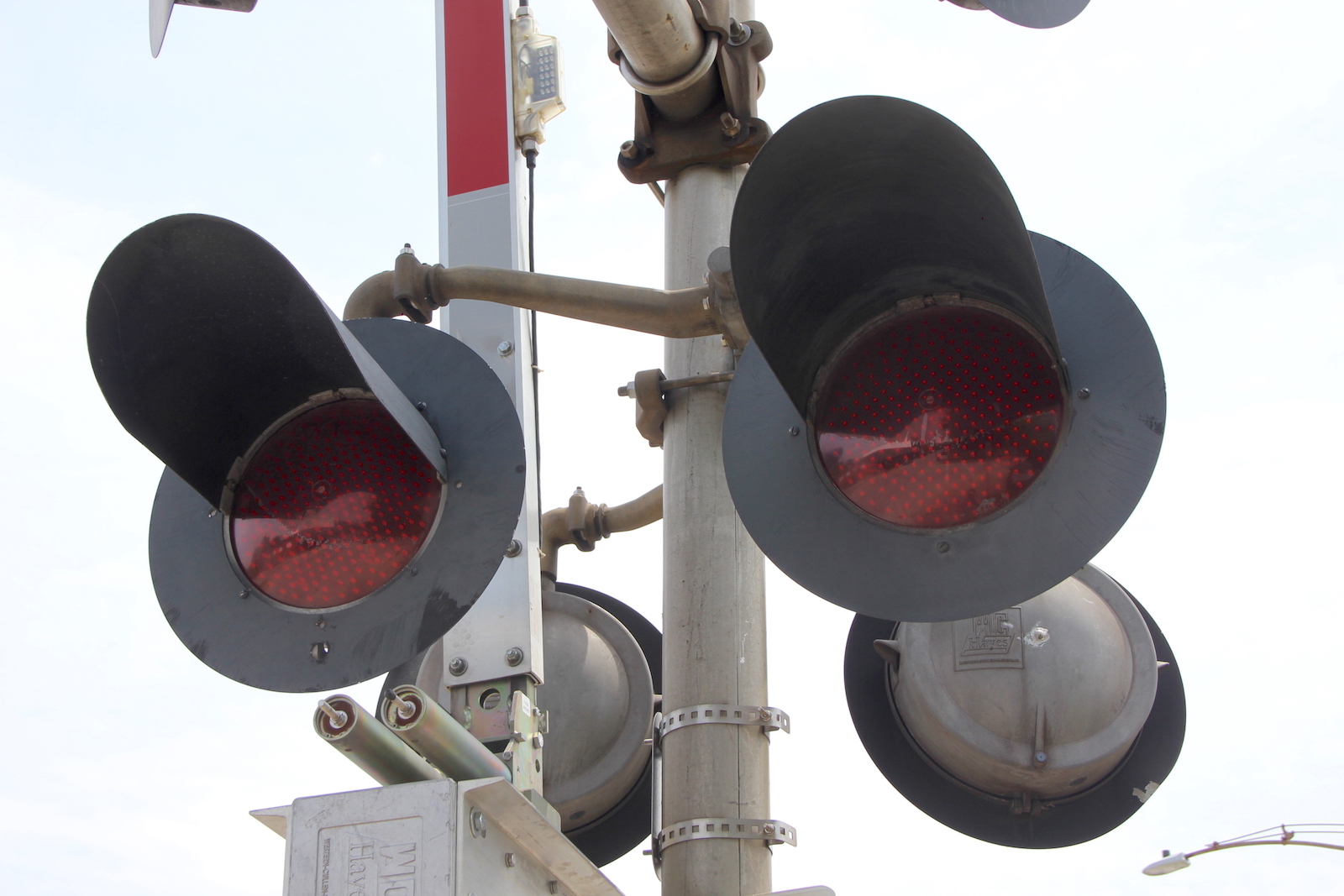

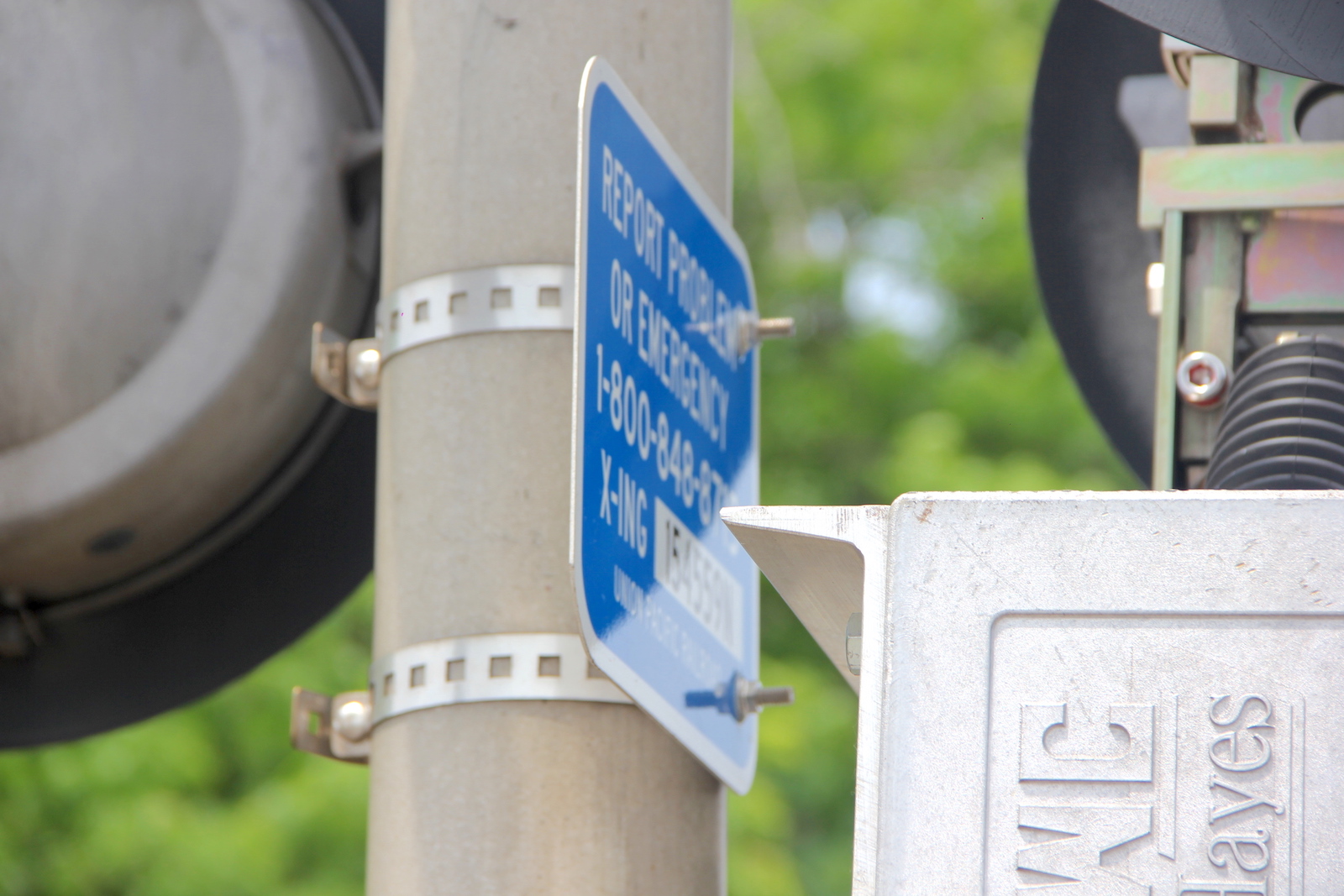

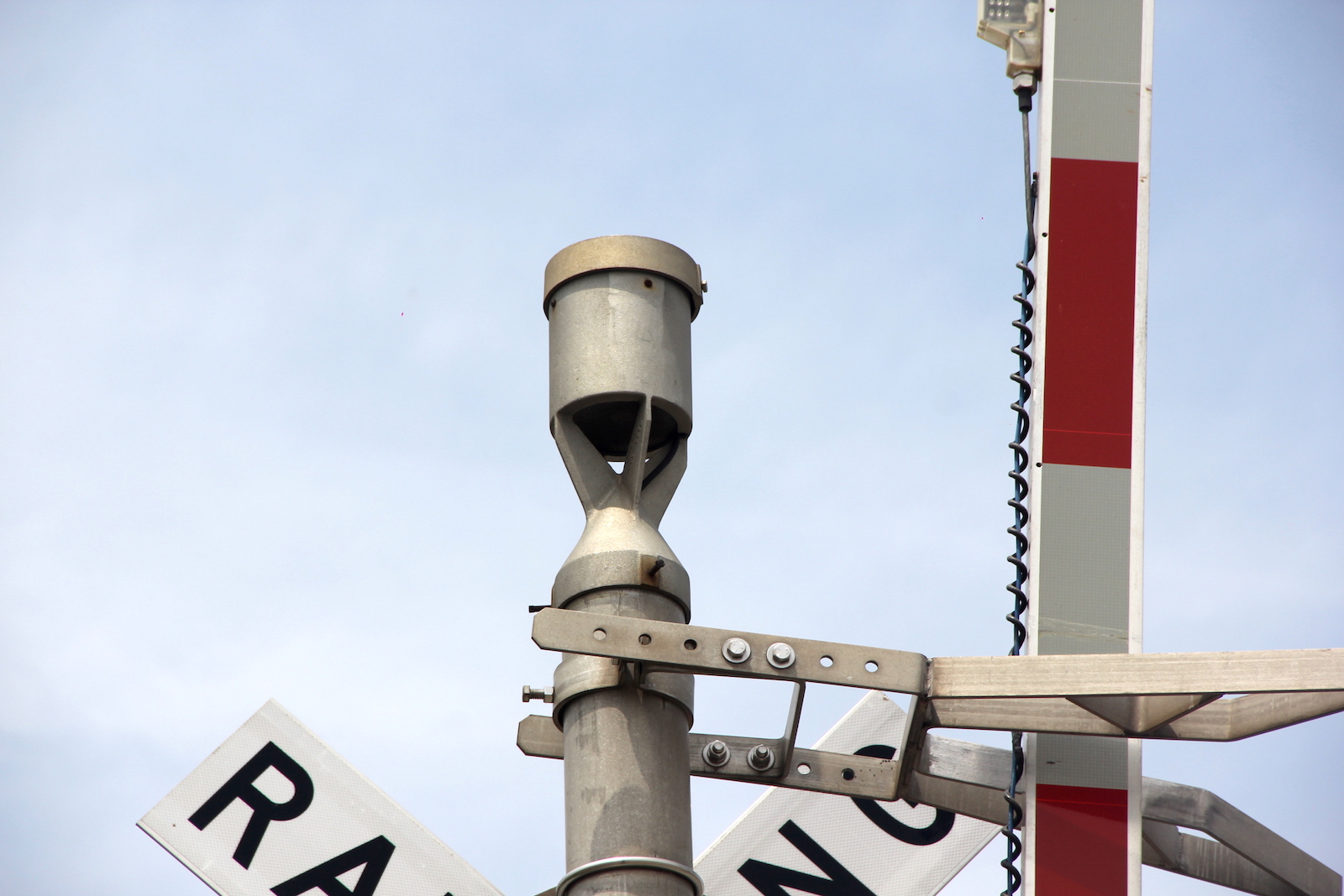

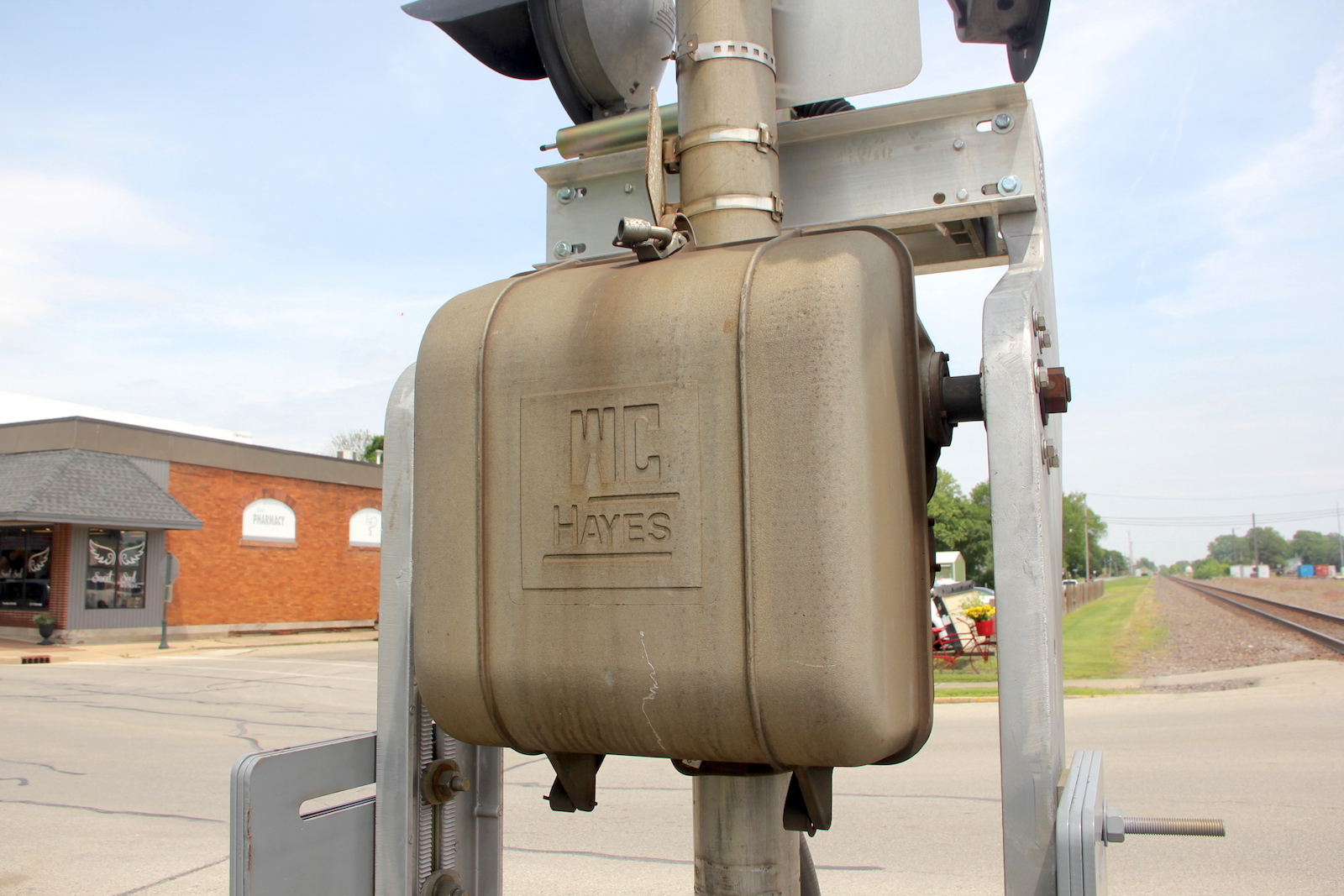

The northern signal. This is owned by UP.
18 19 20
21 22 23 24
25 26 27 28

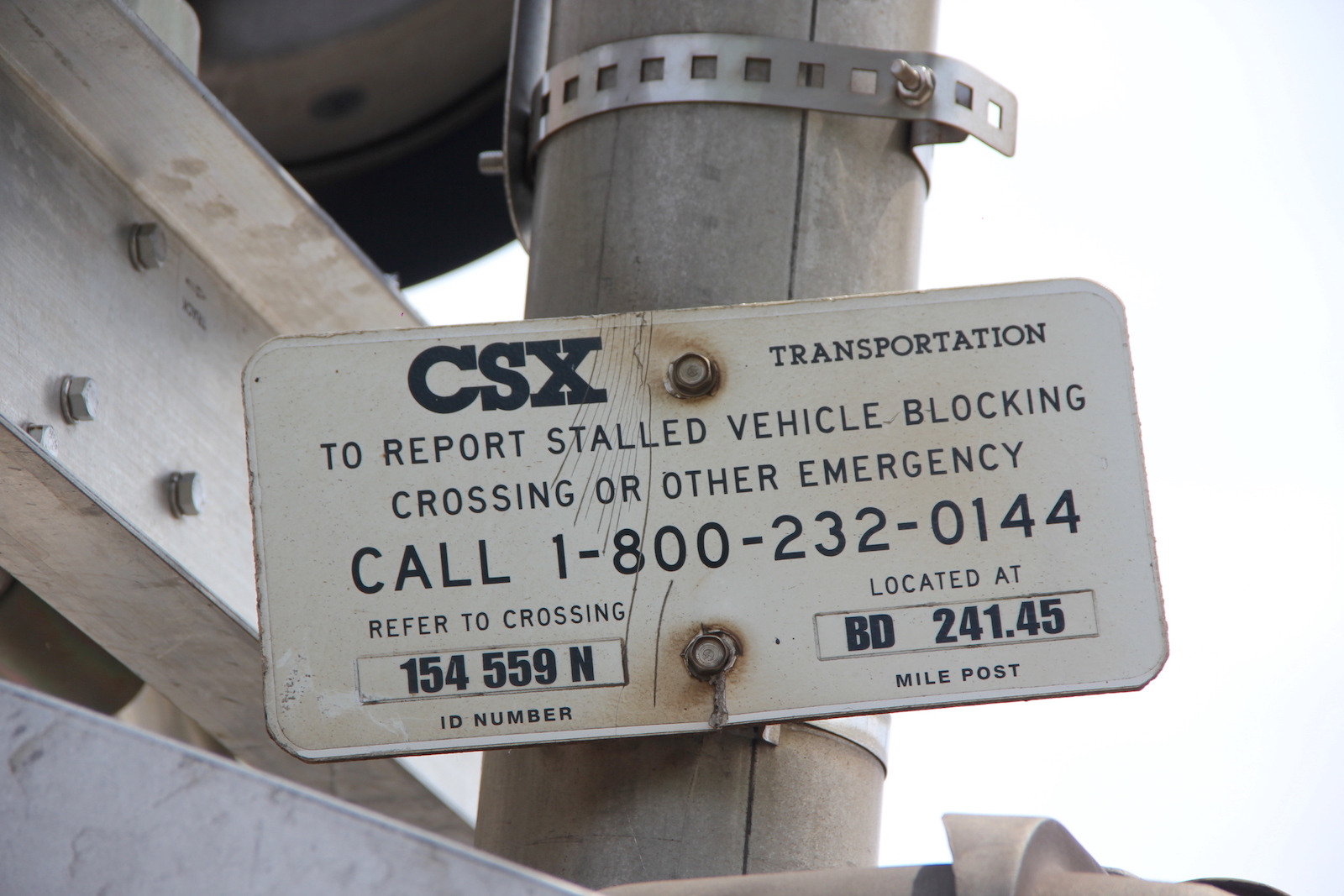

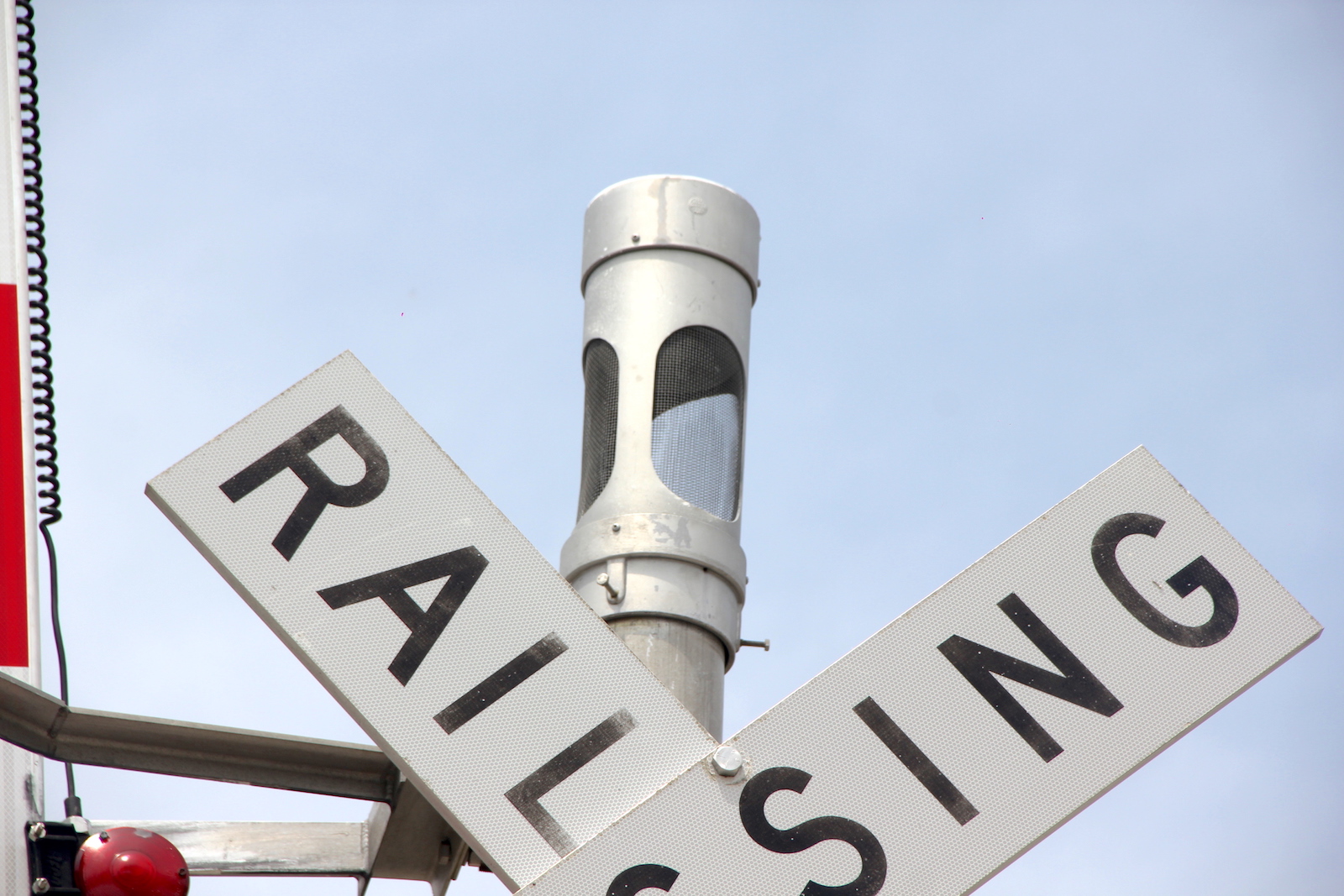

The southern signal. This is owned by DREI, originally installed by CSX in the 1990s.
29 30 31 32

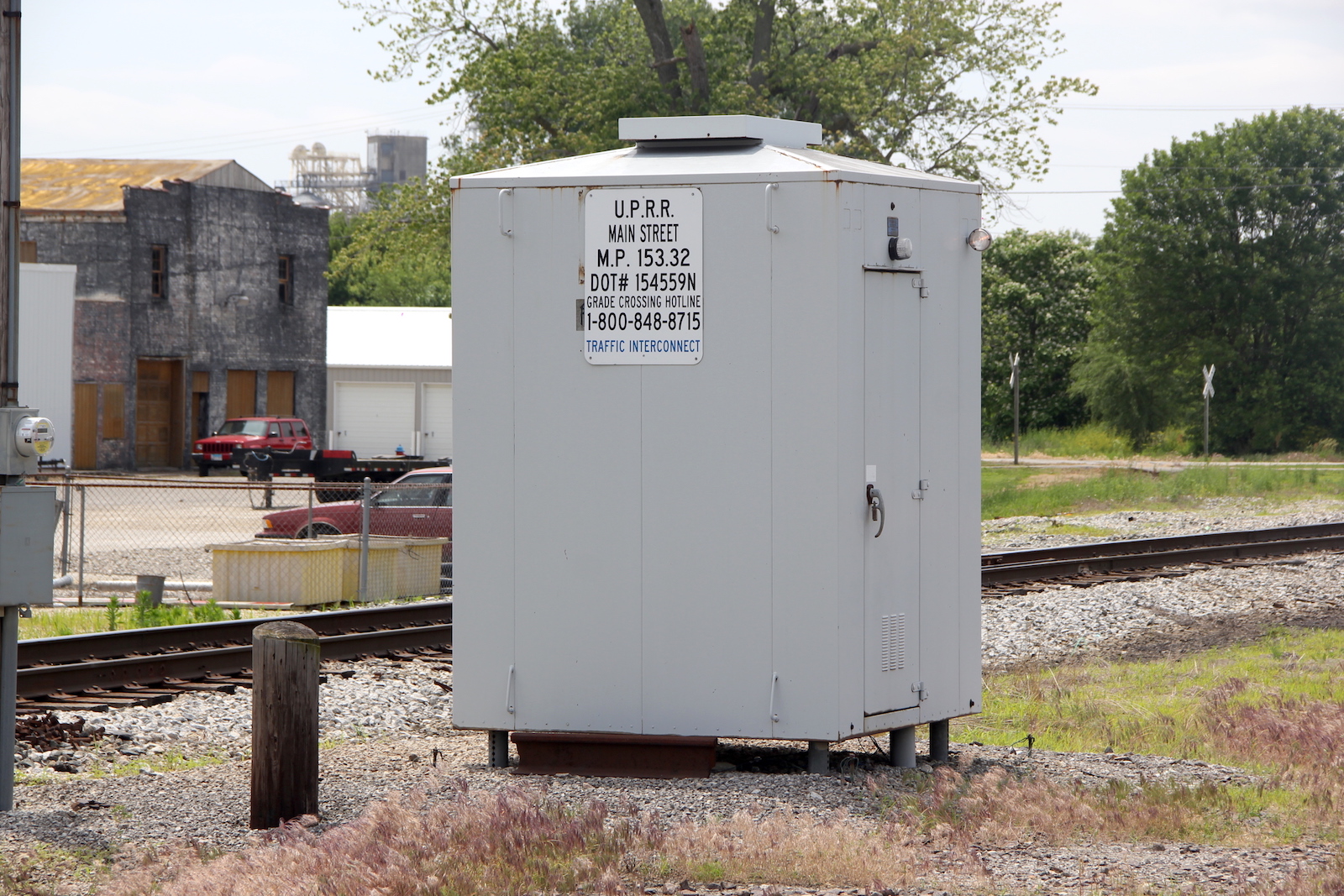

The UP relay bungalow in the southwest quadrant. The UP grade is all concrete. UP track view facing east towards Niles Ave. UP track view facing east towards Washington St. #1.
33 34 35 36

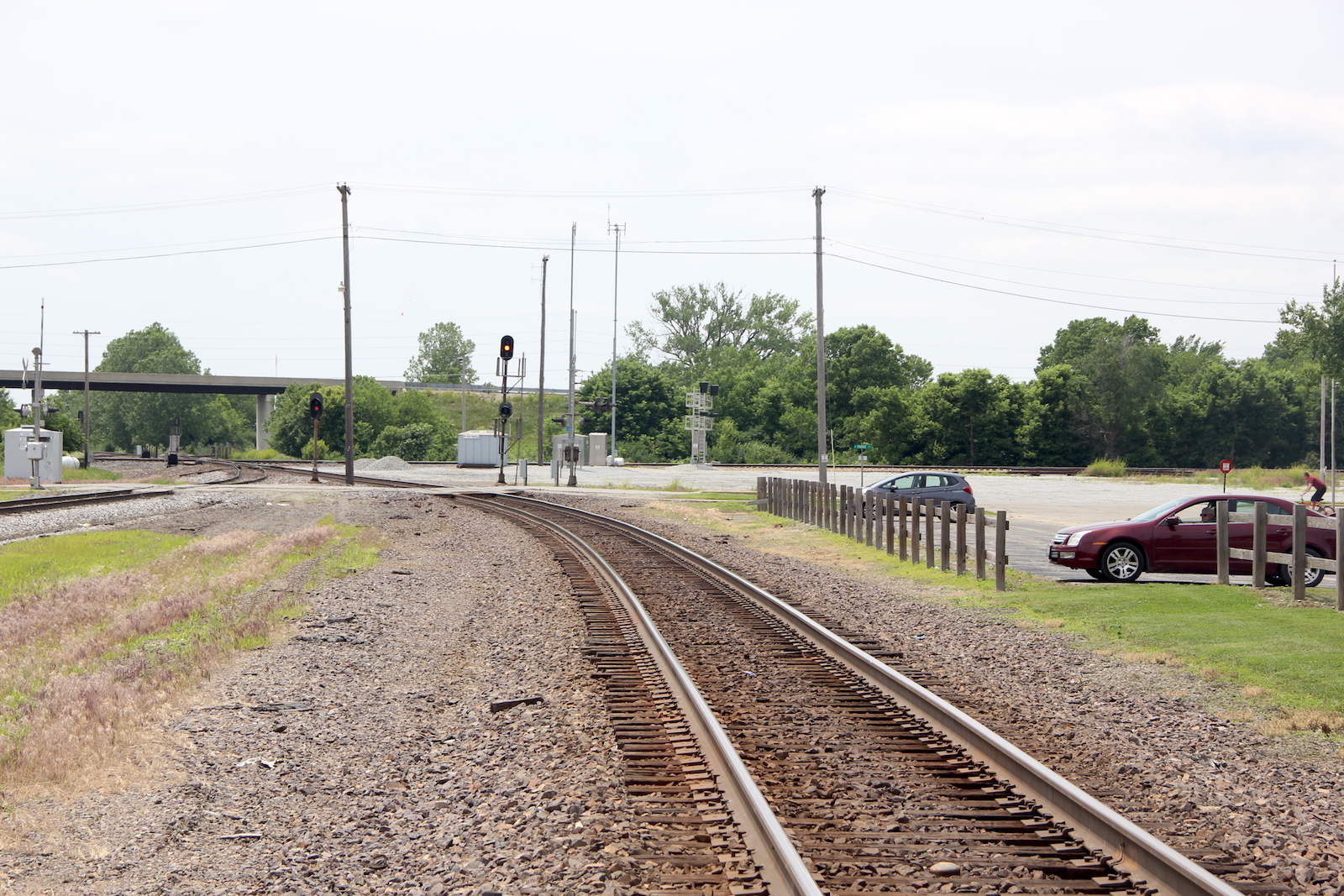

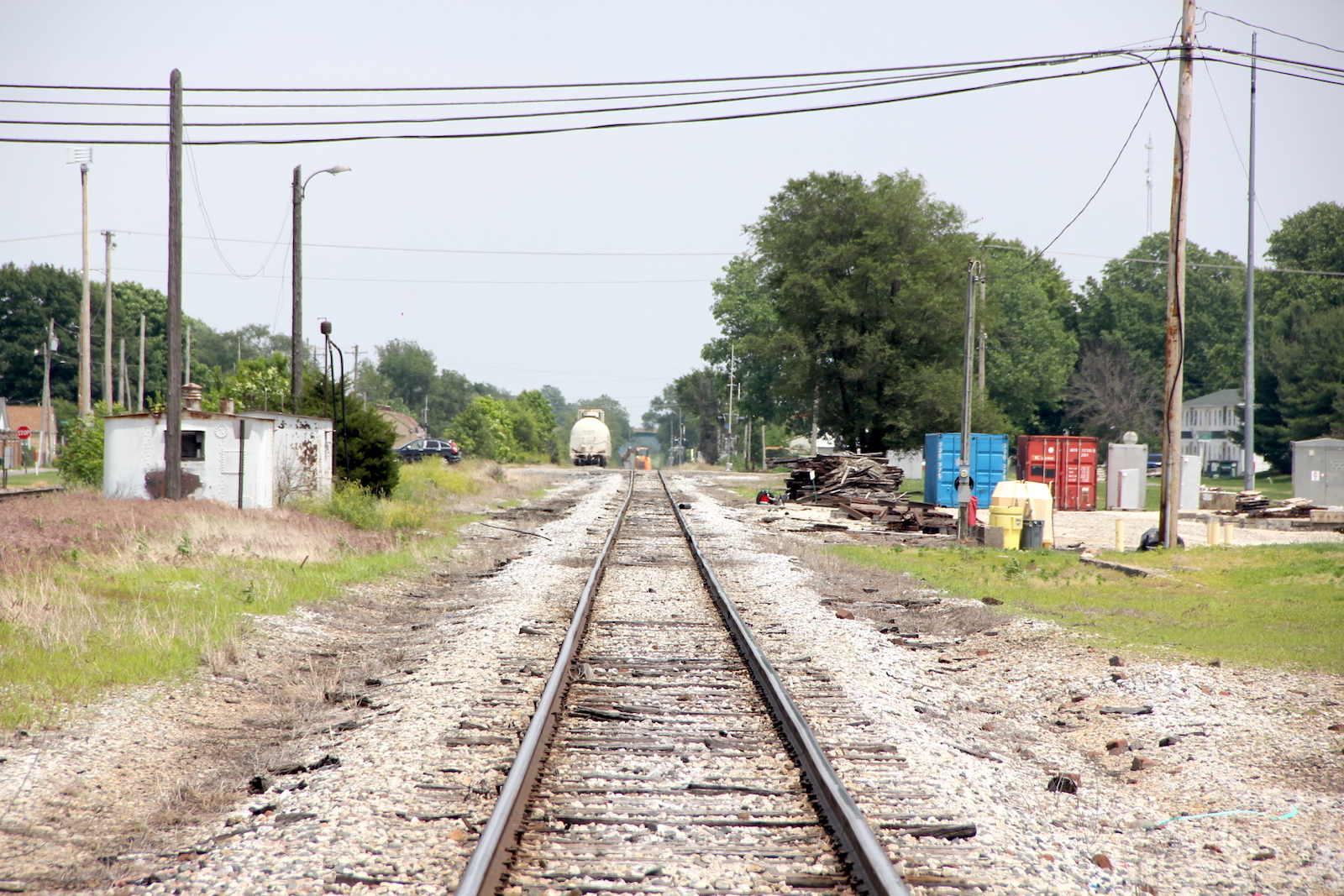

The DREI relay bungalow in the northwest quadrant. The DREI grade is wood and asphalt. DREI track view facing east towards Washington St. #1.
DREI track view facing east towards Niles Ave.
