MP: 240.69
|
MP: 240.69 |
| Created April 2021 |
| Total Accidents:
2 Crossing DOT #: 154553X TOTAL DAILY TRAINS: 20 (ESTIMATED) |
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | WCH Type 2 E-Bell | WCH Mechanical Bell 2nd Gen |

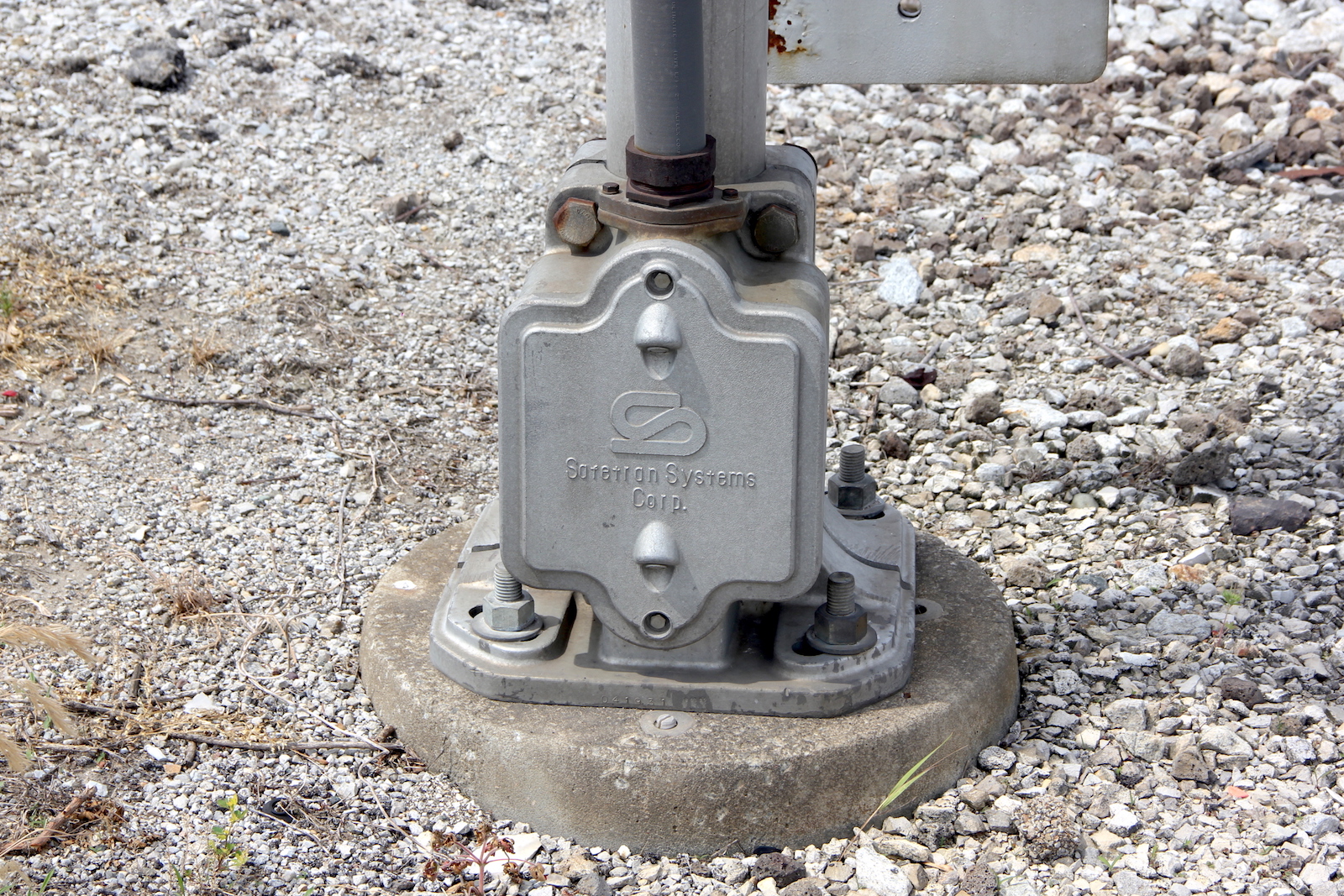

| Base: | WCH 5" Single Sided ^ | Safetran 6" Single Sided ^ |
| Lights: | 6 - 12"x20" WCH w/ Electro-Tech's LEDs | 6 - 12"x24" Hawker Safetran incandescents |
| Junction Boxes: | WRRS | Safetran |
| Gate Lights: | 2 - Alstom Aurora LEDs 1- NEG Clear LED |
3 - 4" RECO incandescents |
| Gate Mechanism: | Siemens Sticker Style 2 w/ Old NEG 2 Way Saver | Safetran 1990s w/ Standard Mount |
| Gate Striping: | Diagonal Striping | Vertical Striping |
1 |
2 |
| Overview of 2 gated signals from different railroads facing south. | Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |

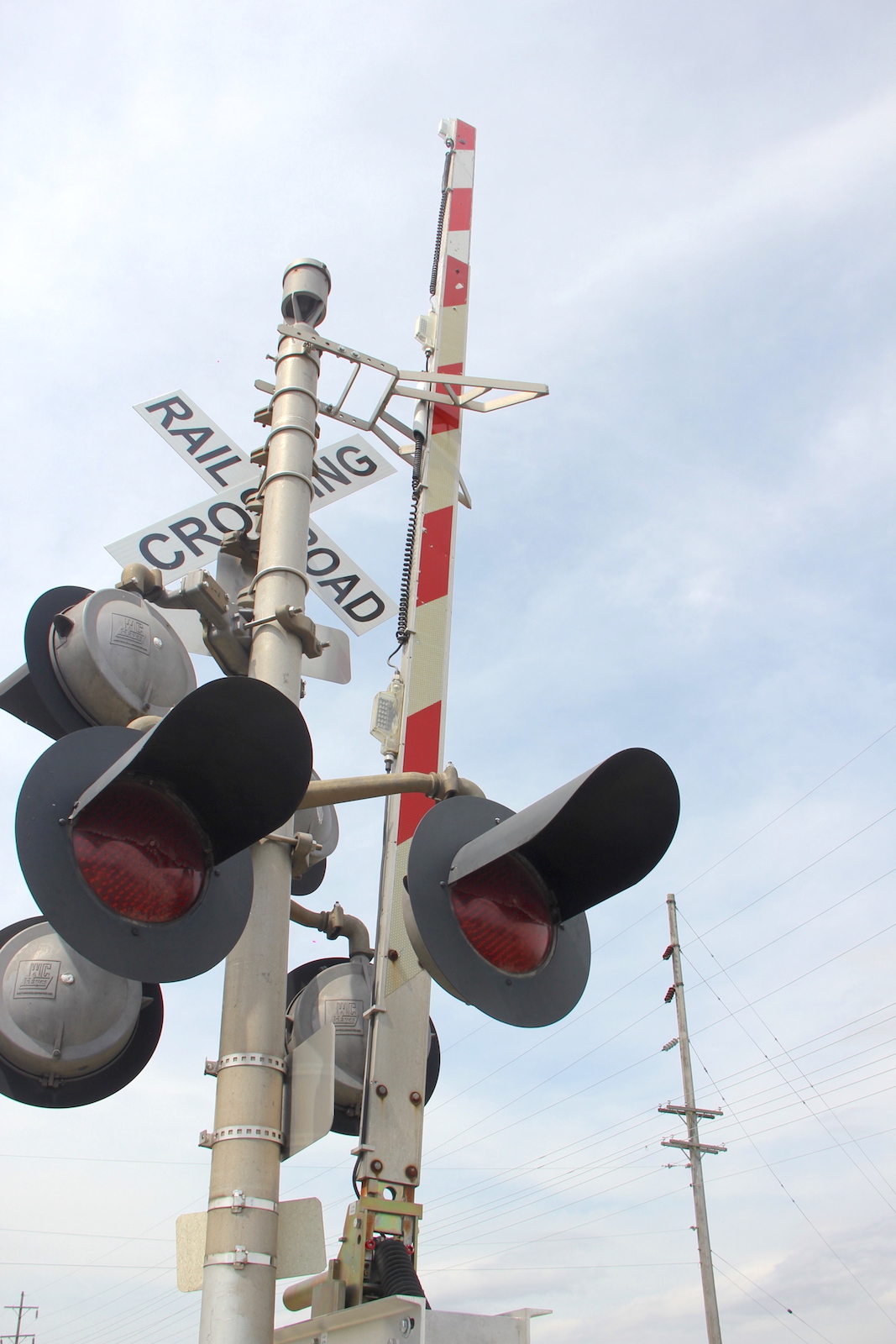

| The northern signal. This is owned by UP. |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |
28 |
| The southern signal. This is owned by DREI, originally installed by CSX. |
29 |
30 |
31 |
32 |
| The UP relay bungalow in the northwest quadrant. | The UP grade is all concrete. | UP track view facing east towards CR 1050 N. | UP track view facing east towards Carico St. |
33 |
34 |
35 |
36 |
| The DREI relay bungalow in the southwest quadrant. | The DREI grade is all concrete. | DREI track view facing west towards Carico St. | DREI track view facing east towards CR 1250 E. #2. |
