MP: 421.34
|
MP: 421.34 |
| Created June 2026 |
| Total Accidents:
27 Crossing DOT #: 522506F TOTAL DAILY TRAINS: 66 (AS OF 2026) |
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | GS Type 3 E-Bell | GS Type 3 E-Bell |
| Base: | Siemens 5" Single Sided ^ | Siemens 5" Single Sided ^ |
| Lights: | 4 - 12"x20" Safetran incandescents | 4 - 12"x20" Safetran incandescents |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 3 - 4" RECO | 3 - 4" RECO |
| Gate Mechanism: | Siemens (Safetran 2000s) w/ NEG 1 Way Saver | Siemens (Safetran 2000s) w/ NEG 1 Way Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
IN1 |
IN2 |
IN3 |
IN4 |
IN5 |
| INDOT pictures from 2001 showing two older gated signals with 8" lights, WCH gate mechansims, and a WCH or WRRS Mechanical Bell. |
IN6 |
IN7 |

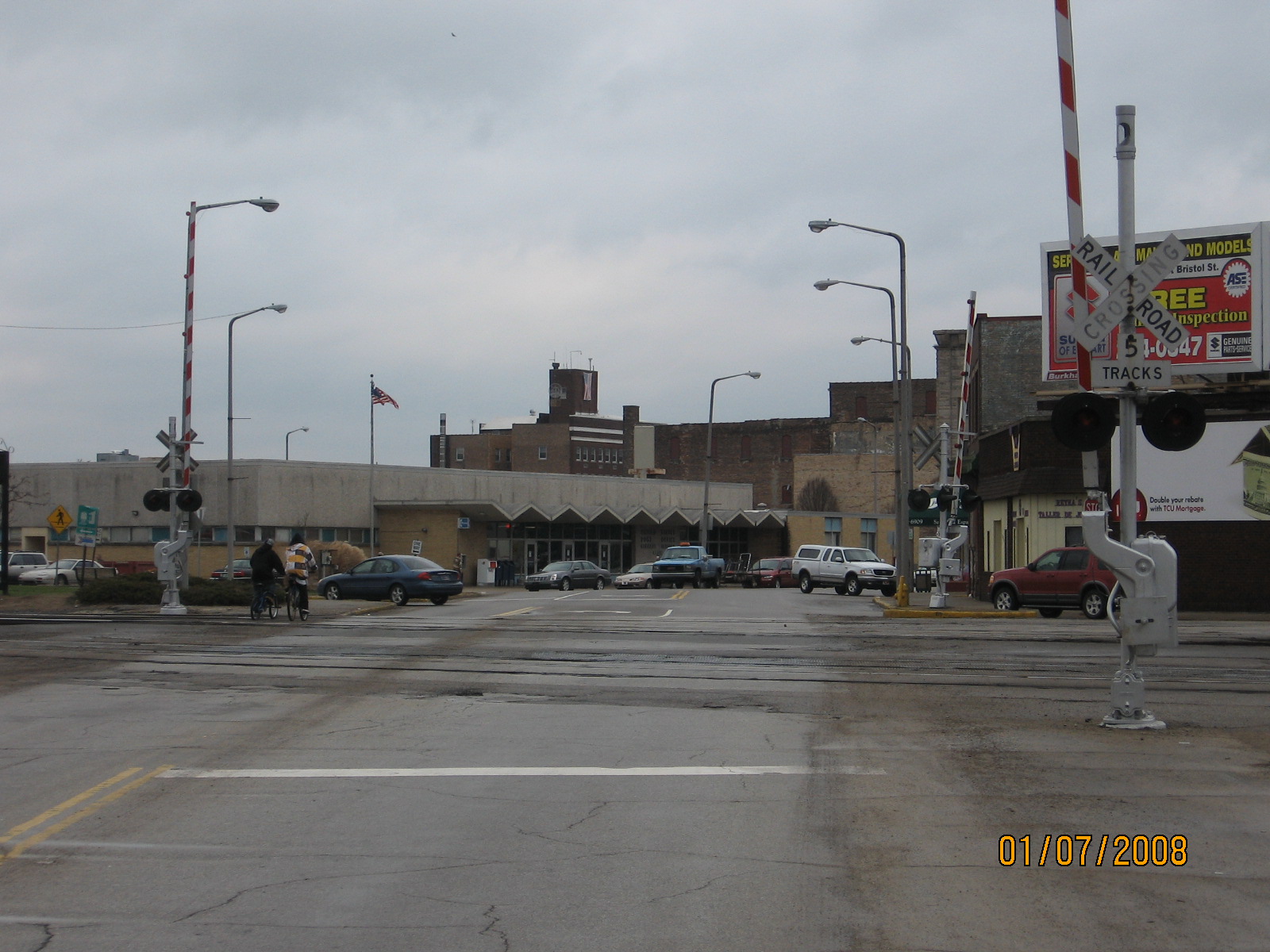

| By 2008, the northern signal's bell was replaced with a GS Type 2, and a GS Type 2 was added to the southern signal. |
IN8 |
IN9 |
| By 2011, not much had changed. |
G1 |
G2 |

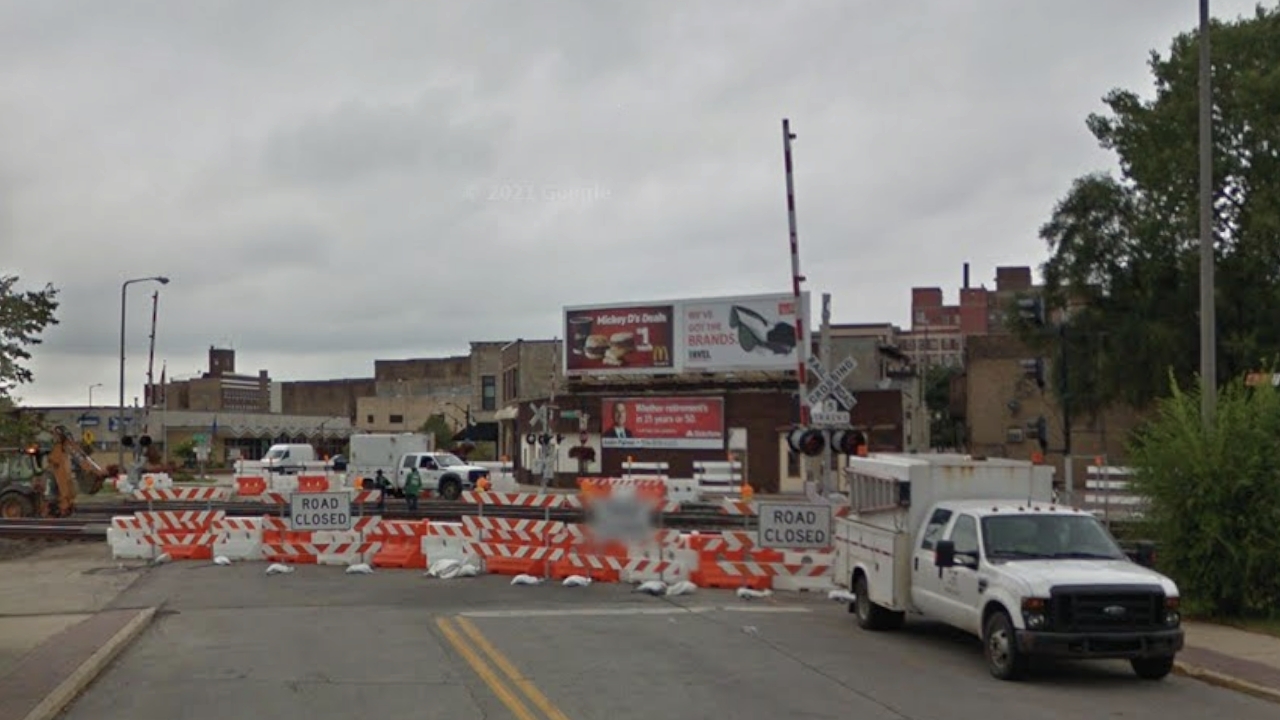

| Between 2013 and 2017, the lights were replaced with 12"x20" incandescents. Shortly after this though, the track layout was completely redone, and both signals were replaced with new Siemens signals. |
1 |
2 |
| Overview of the newer signals facing south. | Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |

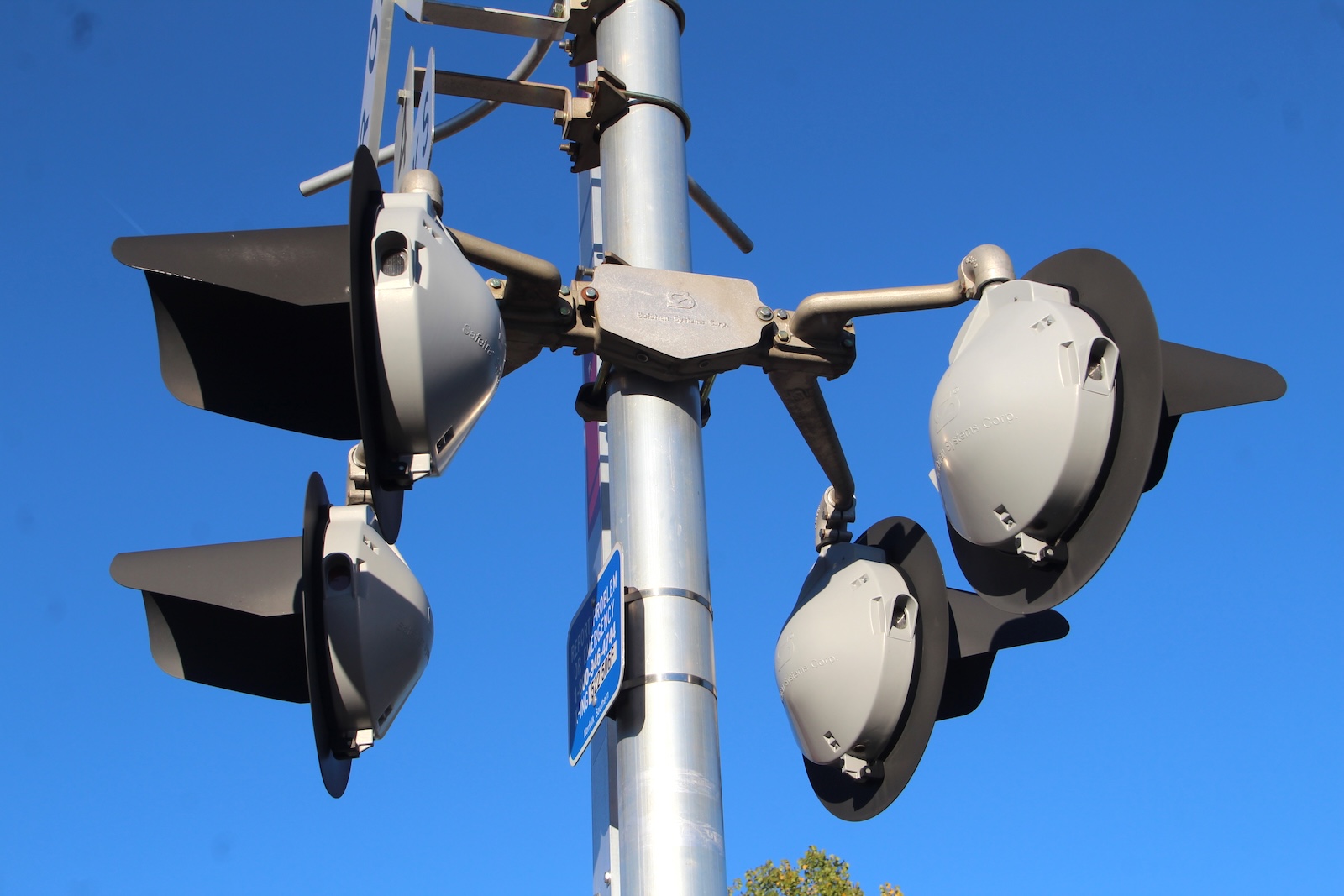

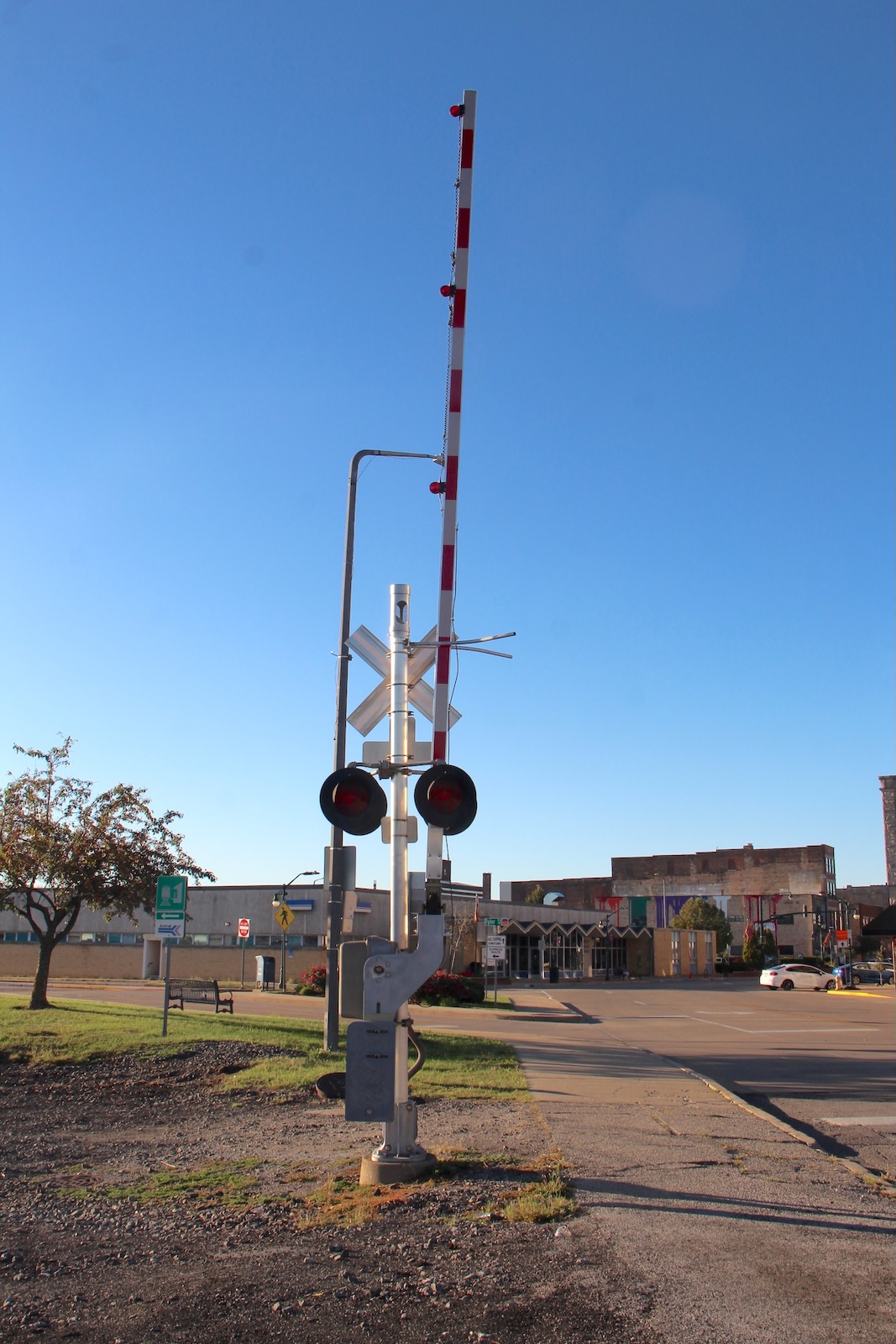

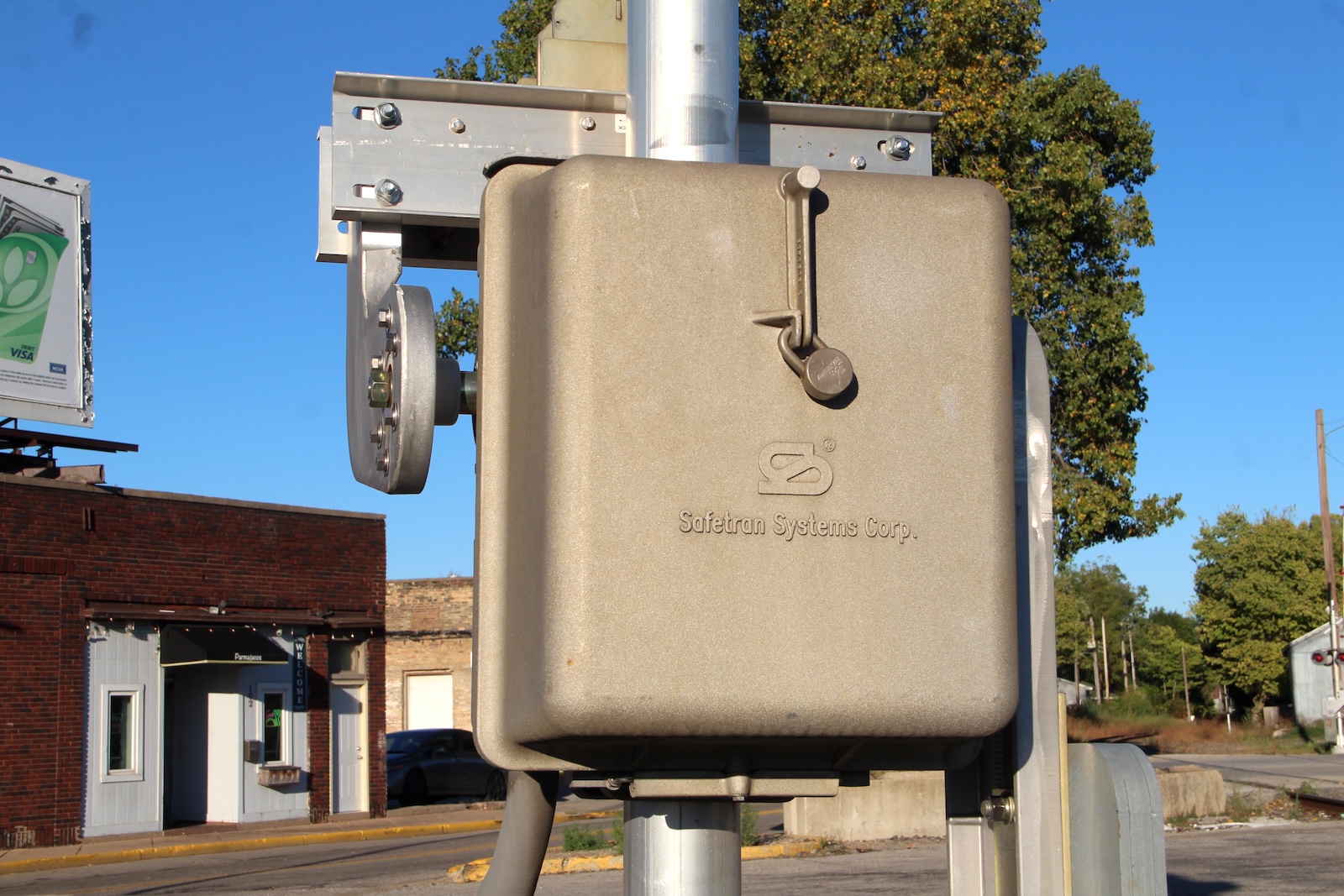

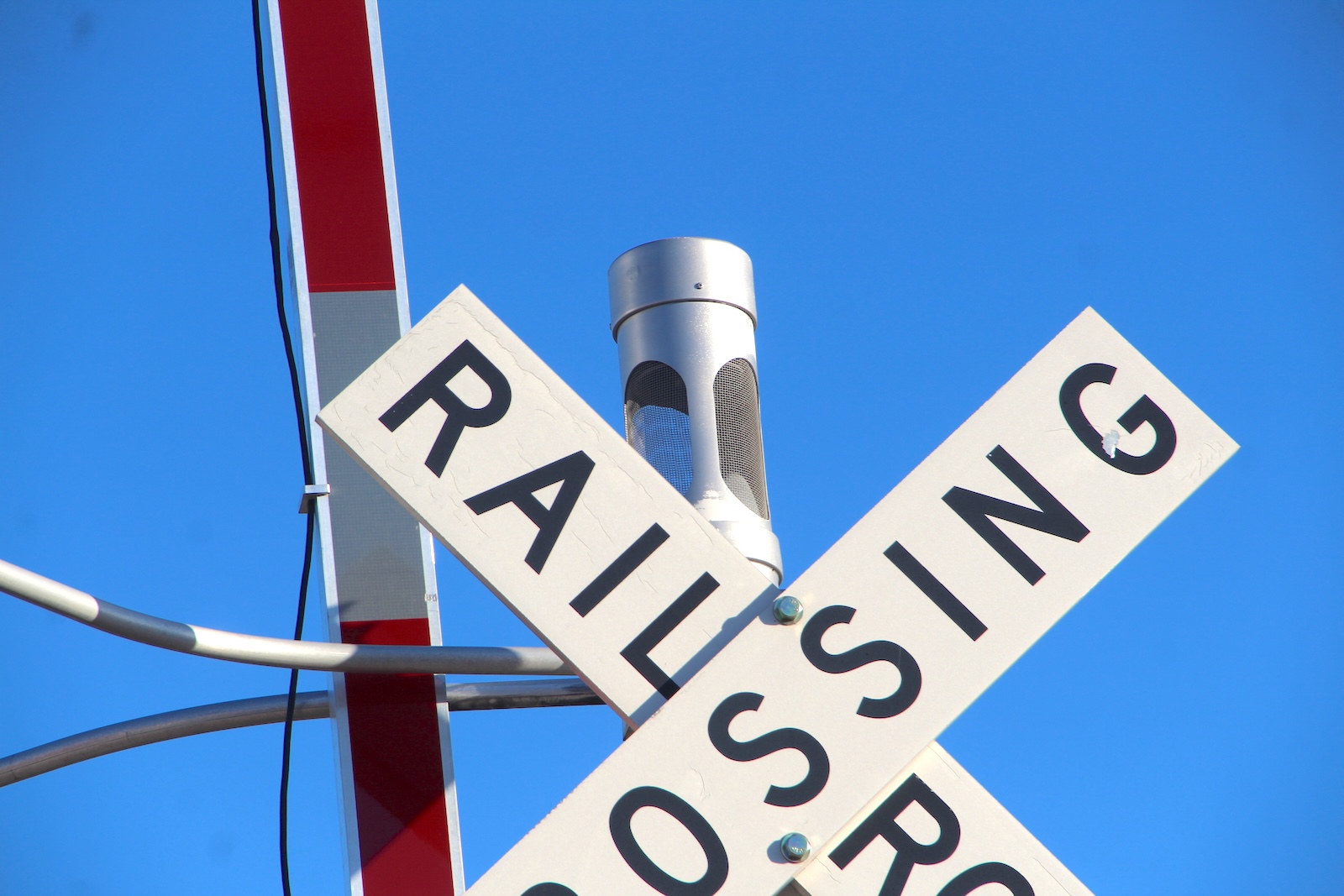

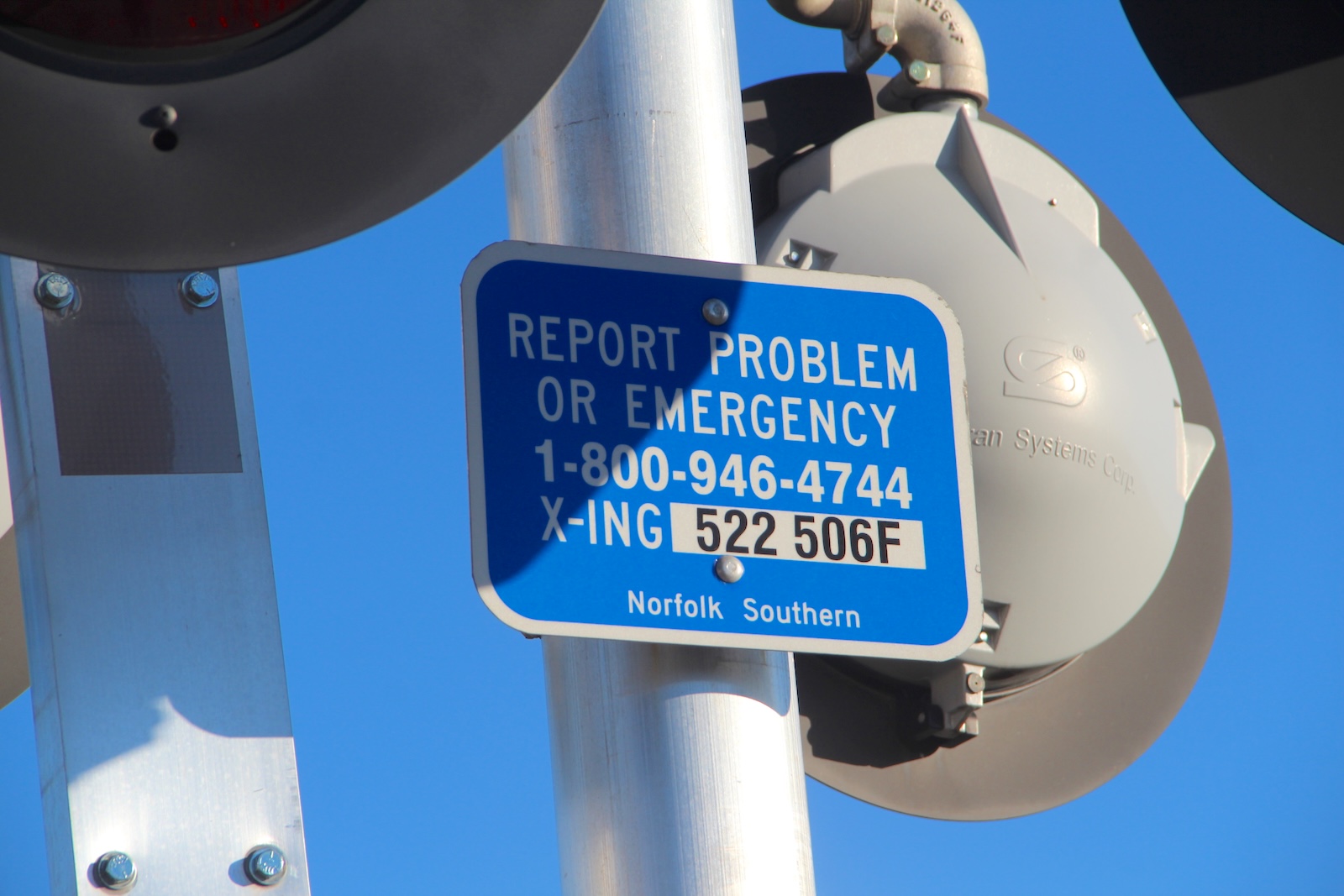

| The northern signal. |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |

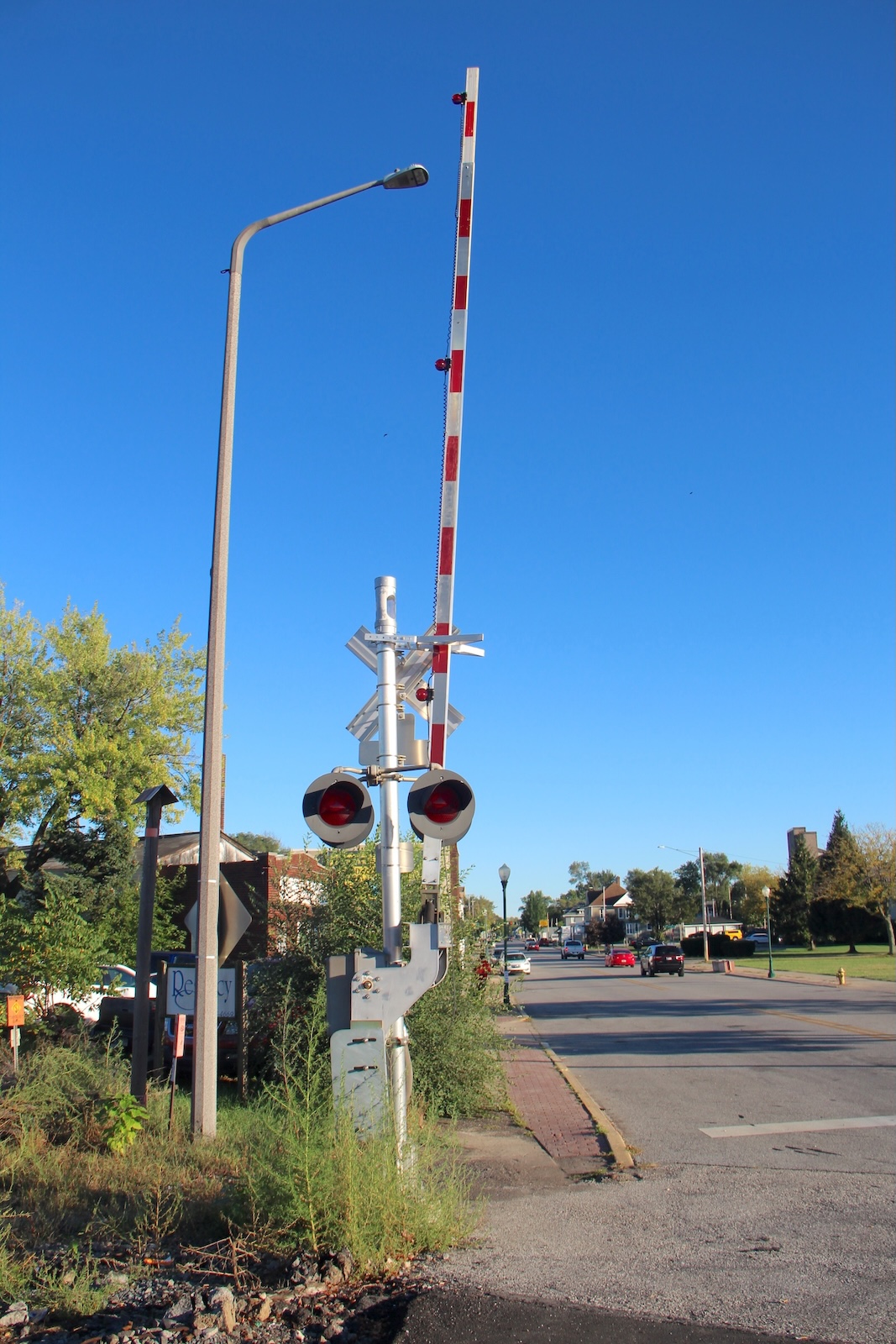

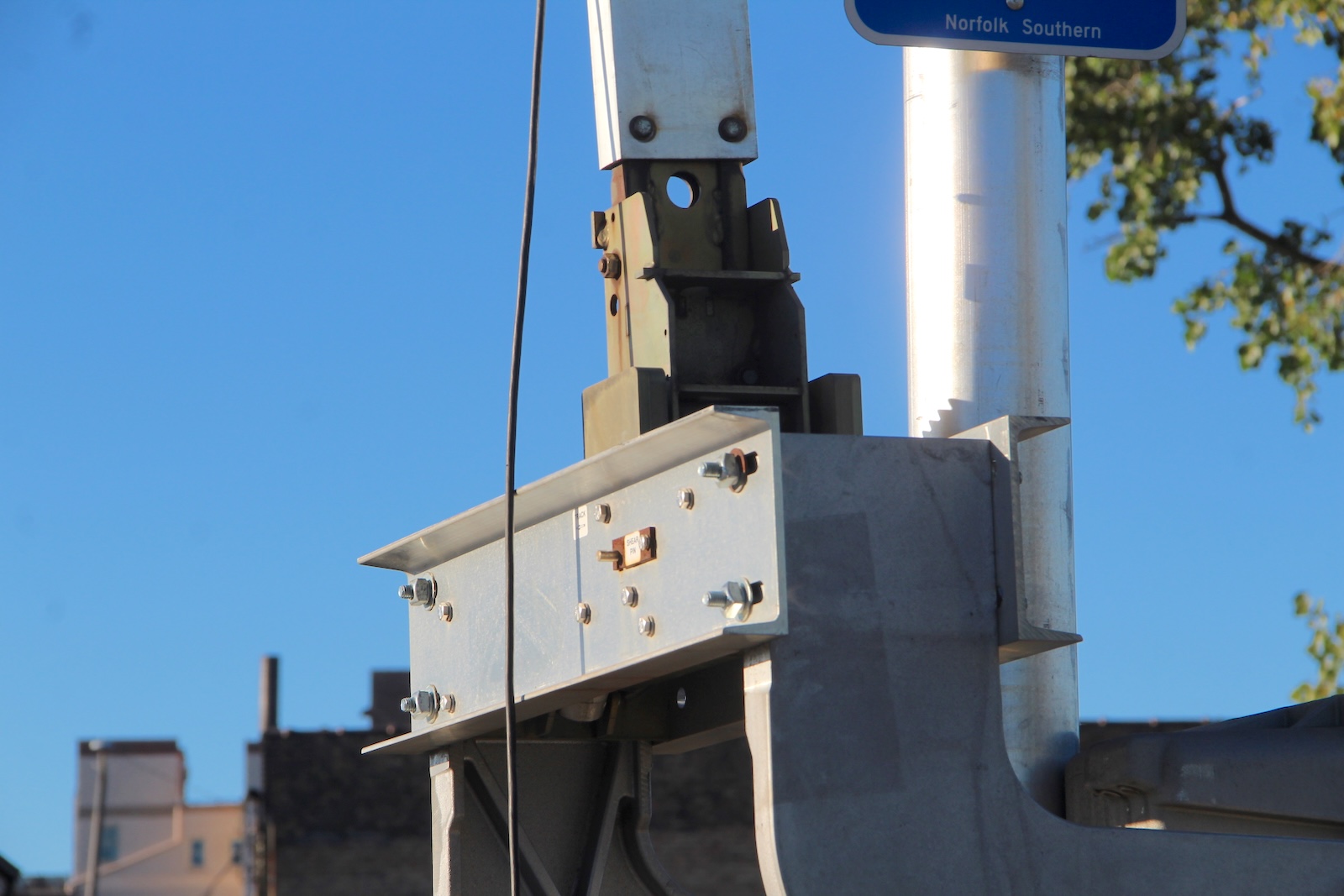

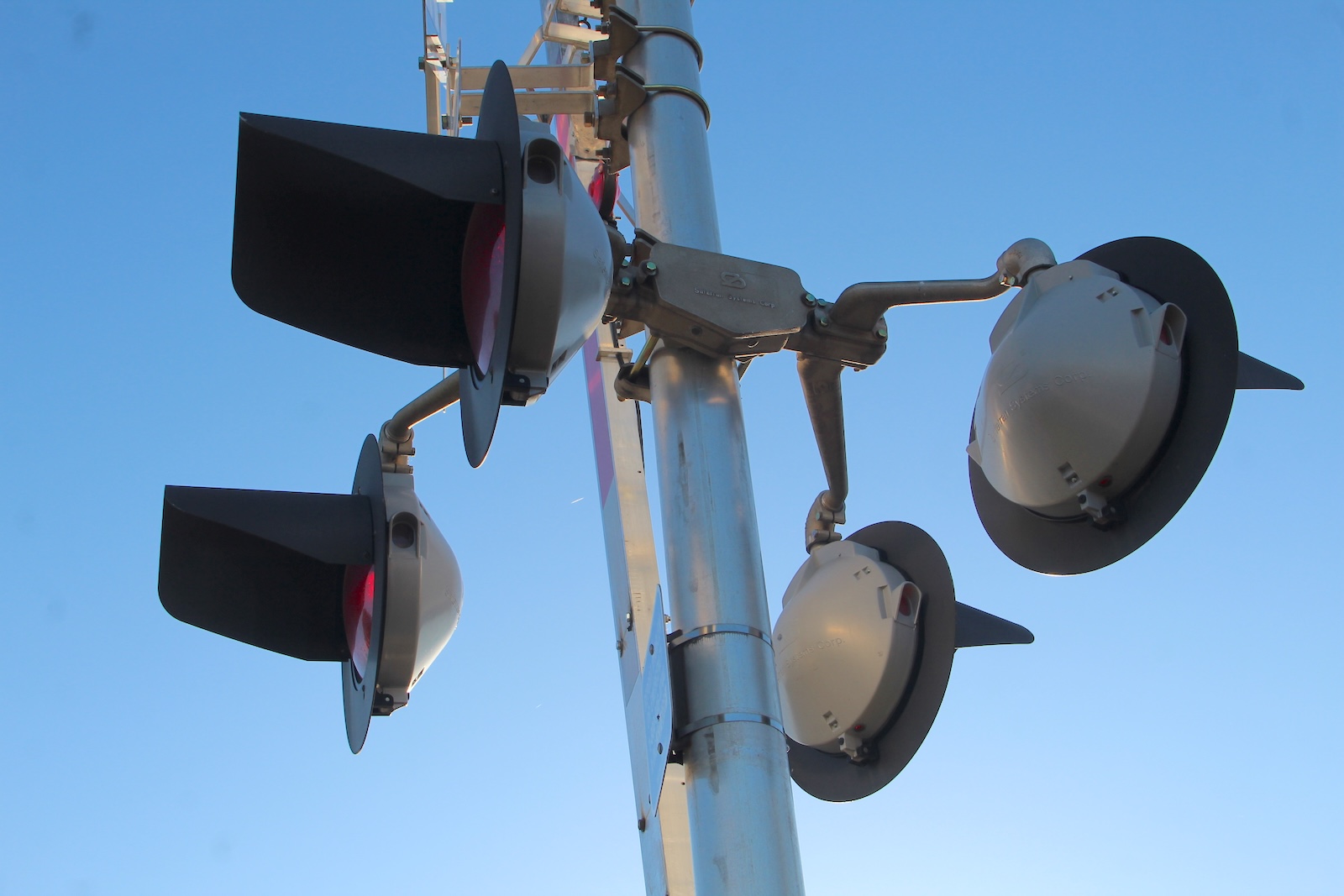

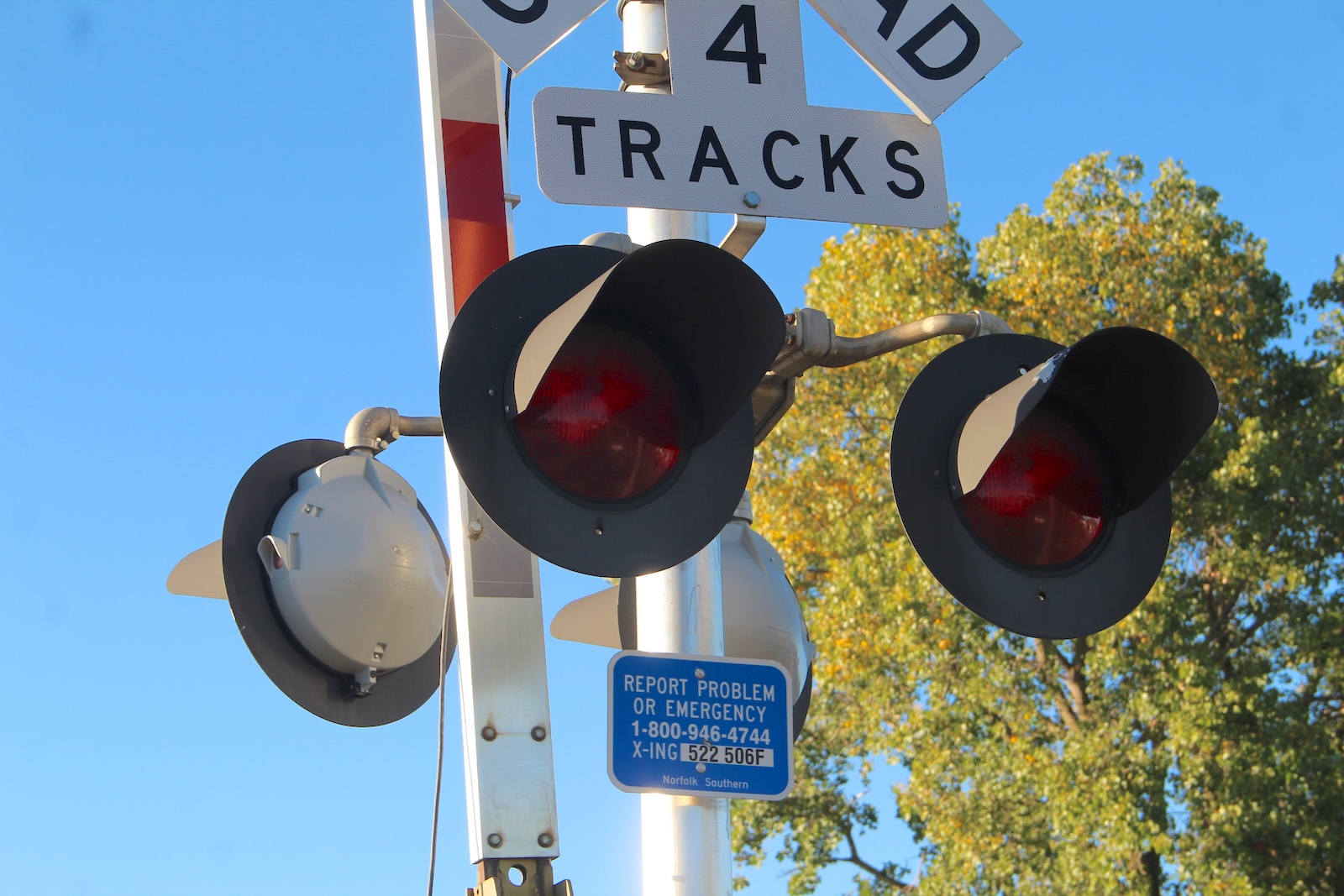

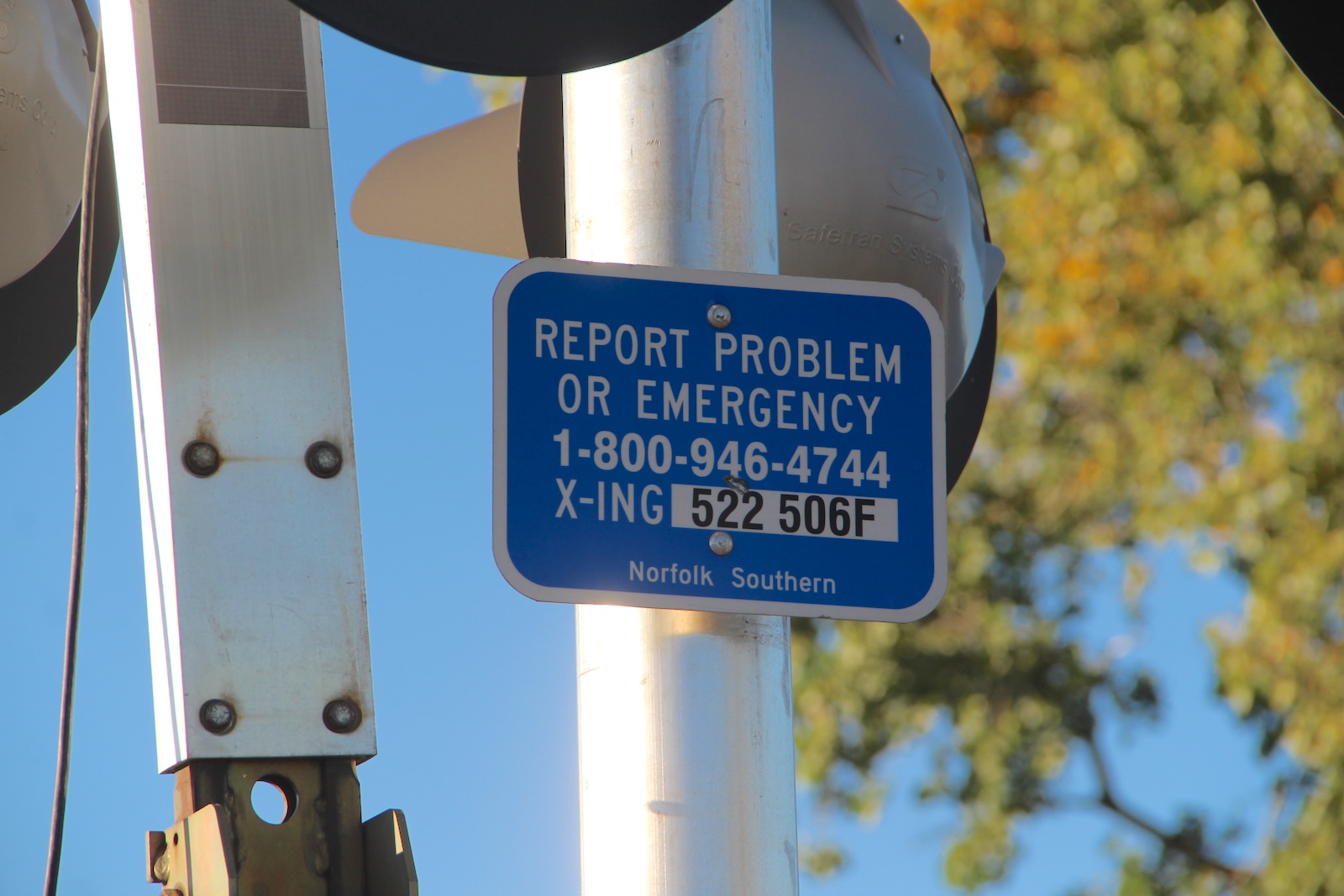

| The southern signal. |
27 |
28 |
29 |
30 |

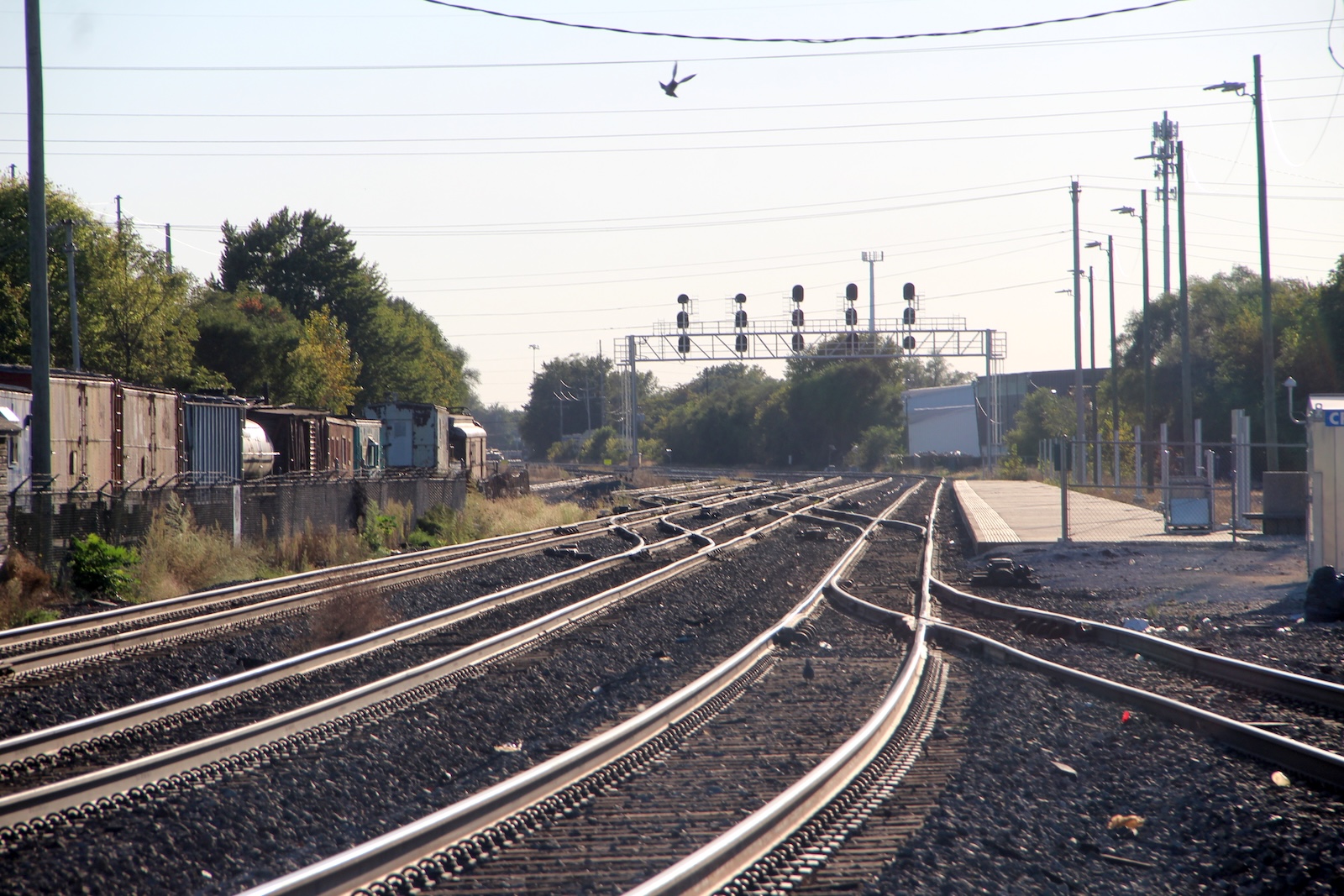

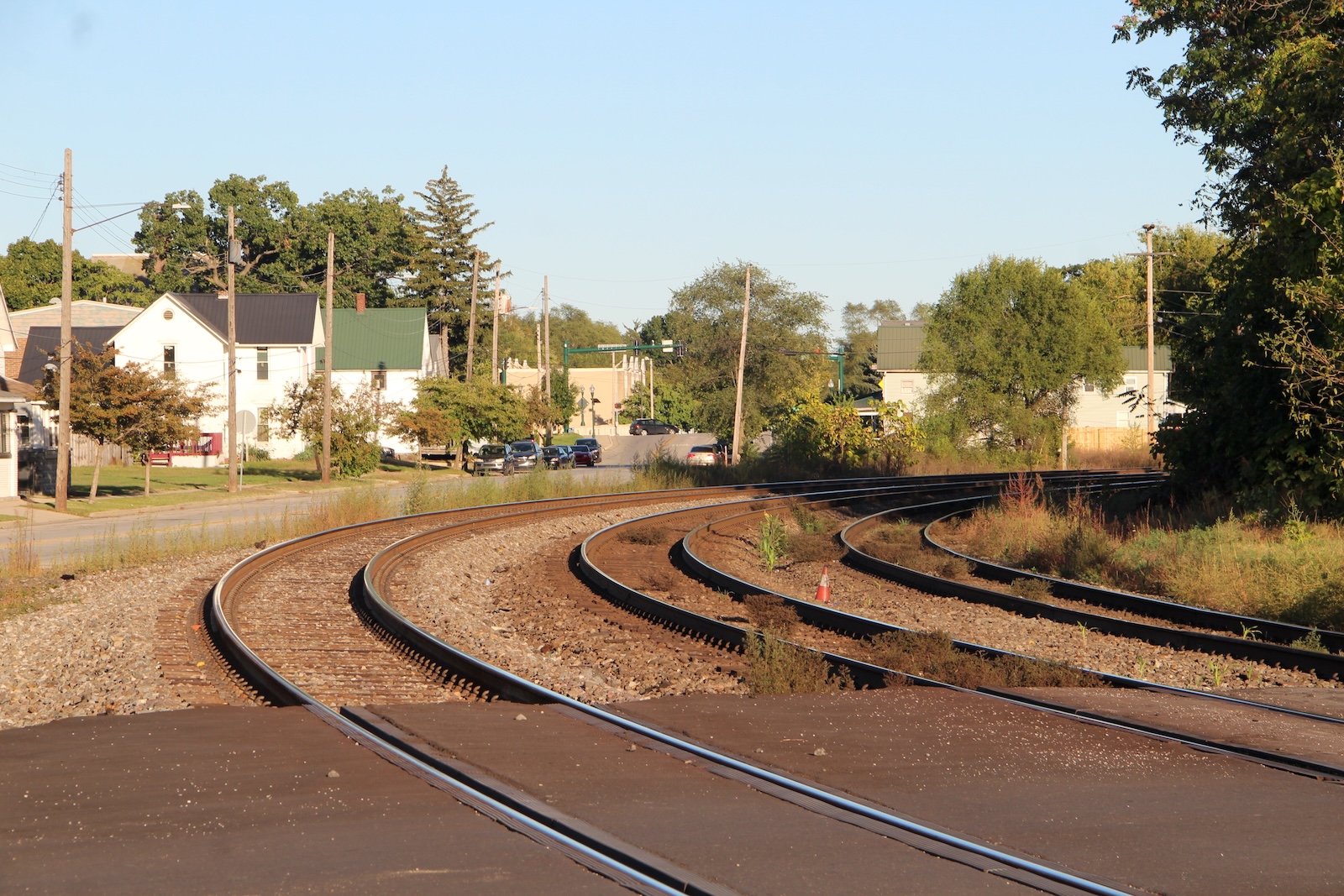

| The relay bungalow in the northwest quadrant. | The grade is rubber and asphalt. | Track view facing west towards County Line Rd. in Osceola. | Track view facing east towards Lusher Ave. #1. |
31 |
32 |
33 |

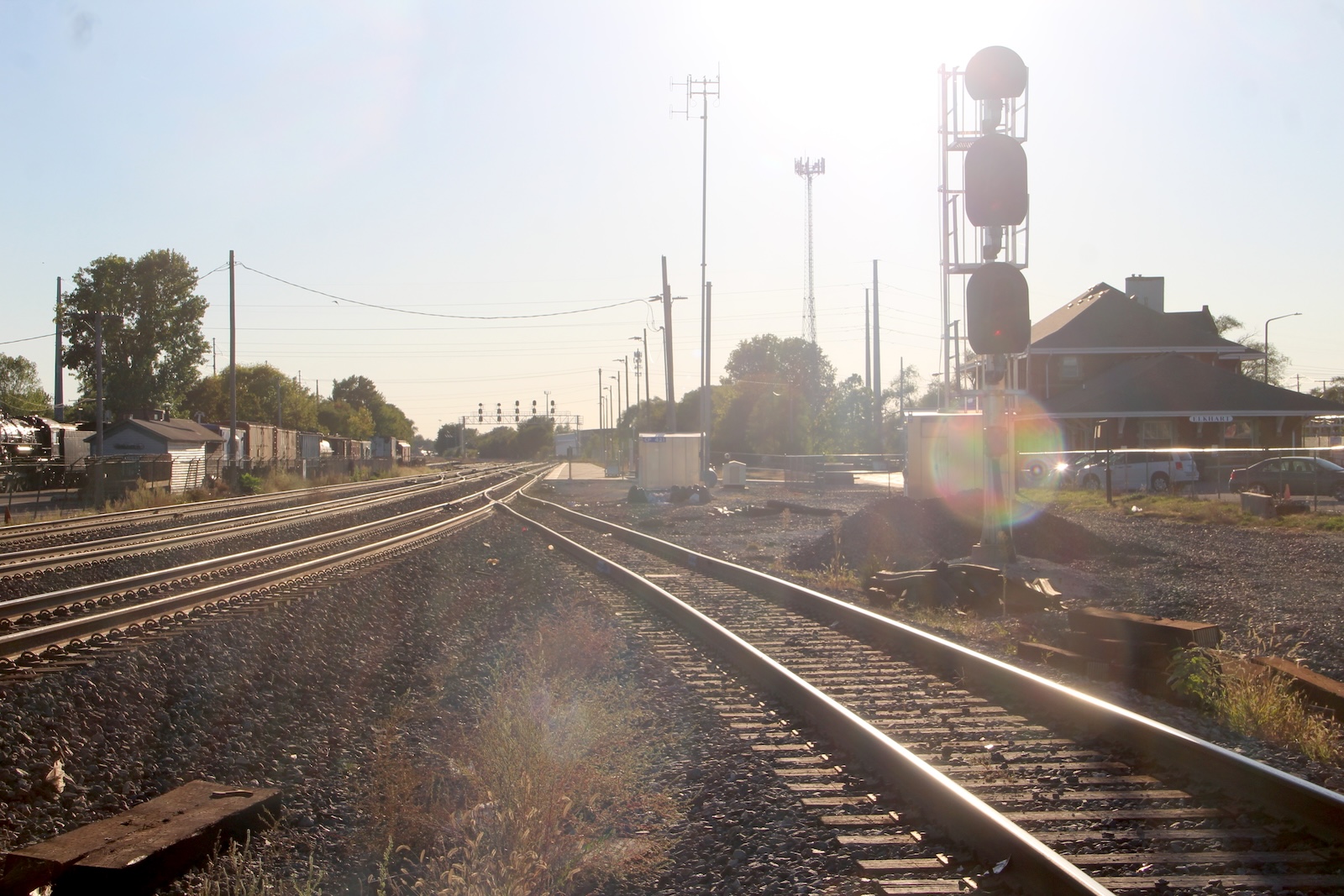

| The Kalamazoo Branch grade is rubber and asphalt. | Track view facing west towards County Line Rd. in Osceola. | Track view facing east at Middlebury St. |
