MP: 411.32
|
MP: 411.32 |
| Created June 2026 |
| Total Accidents:
12 Crossing DOT #: 510033V TOTAL DAILY TRAINS: 56 (AS OF 2026) |
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | GS E-Bell | GS E-Bell |
| Base: | Safetran 5" Single Sided ^ | Safetran 5" Double Sided ^ |
| Lights: | 4 - 12"x20" Safetran w/ GE Uniform Look LEDs | 4 - 12"x20" Safetran w/ GE Uniform Look LEDs |
| Junction Box: | Safetran | Safetran |

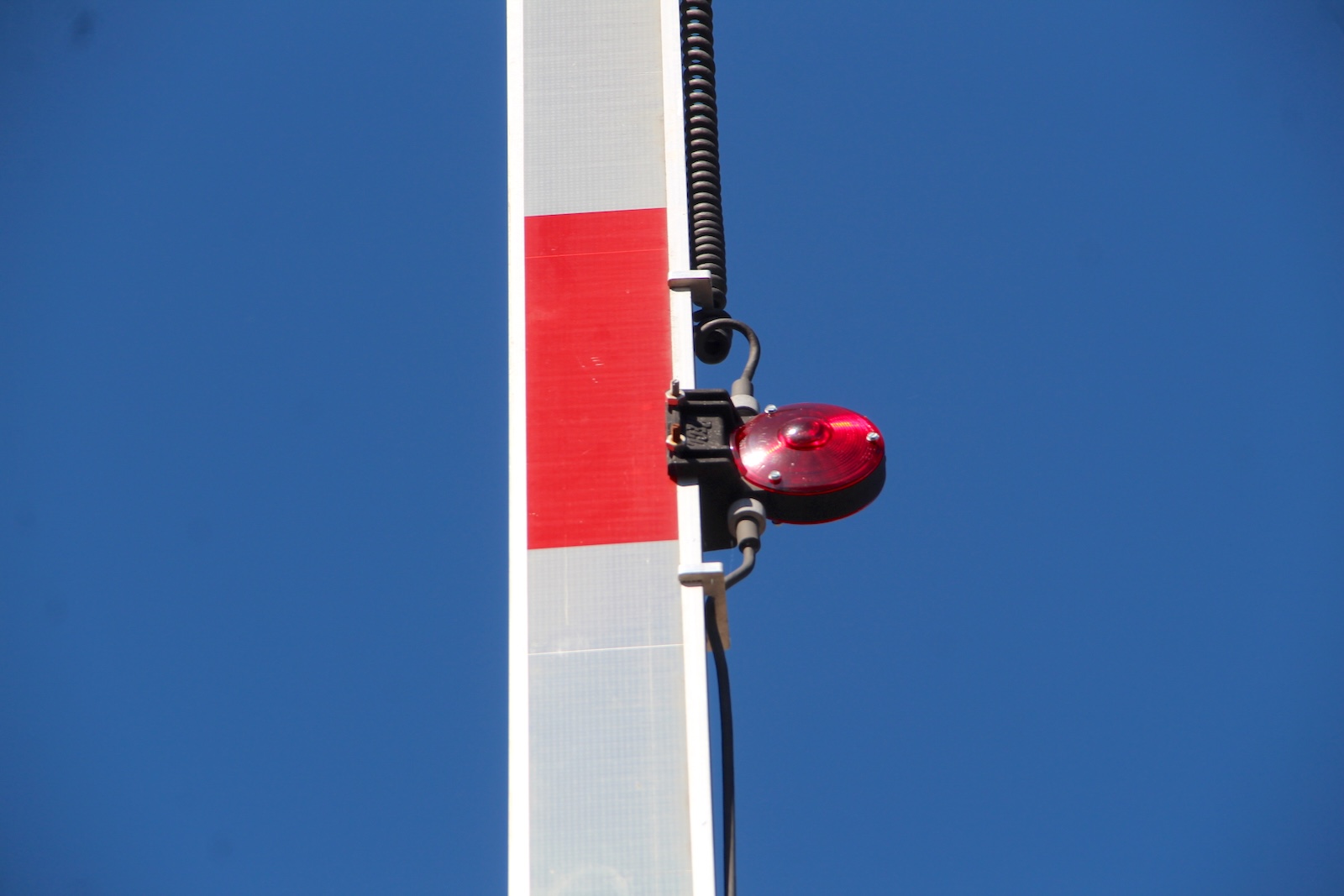

| Gate Lights: | 3 - 4" RECO | 3 - 4" RECO |
| Gate Mechanism: | Safetran 2000s w/ NEG 1 Way Saver | Safetran 2000s w/ NEG 1 Way Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
IN1 |
IN2 |
IN3 |
IN4 |
| INDOT pictures from 2001 showing two classic NYC signals with 8" lights, GRS Type B gate mechanisms, and likely a WRRS Mechanical Bell. There was also a gateless signal with 8" lights off to the side. |
IN5 |
IN6 |
IN7 |
IN8 |

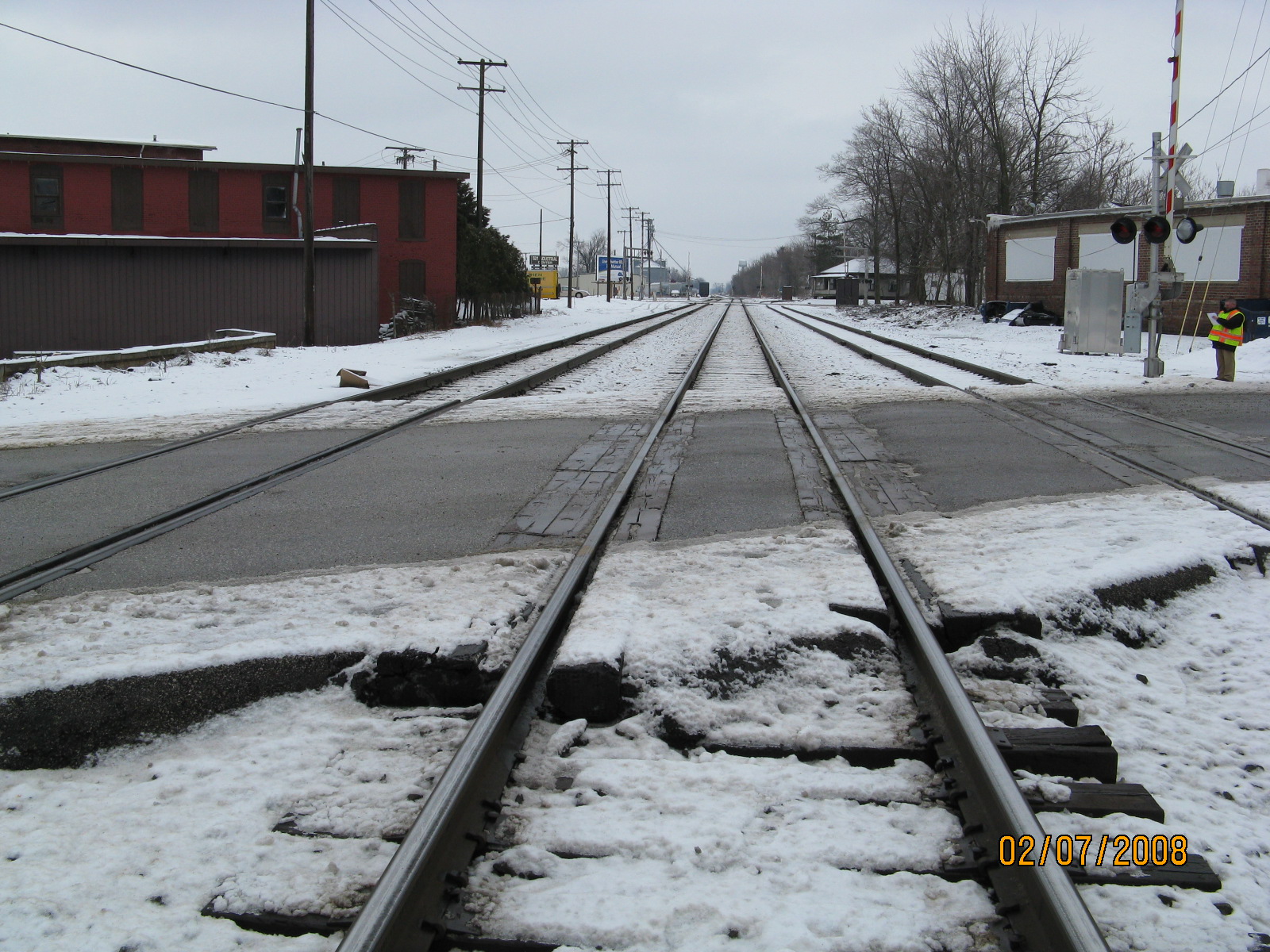

| By 2008, the main signals were replaced with newer Safetran signals, but the gateless signal remained. In 2015, a 4th track was added through the crossing and the road signals were moved, and the gateless signal was removed entirely. |
1 |
2 |

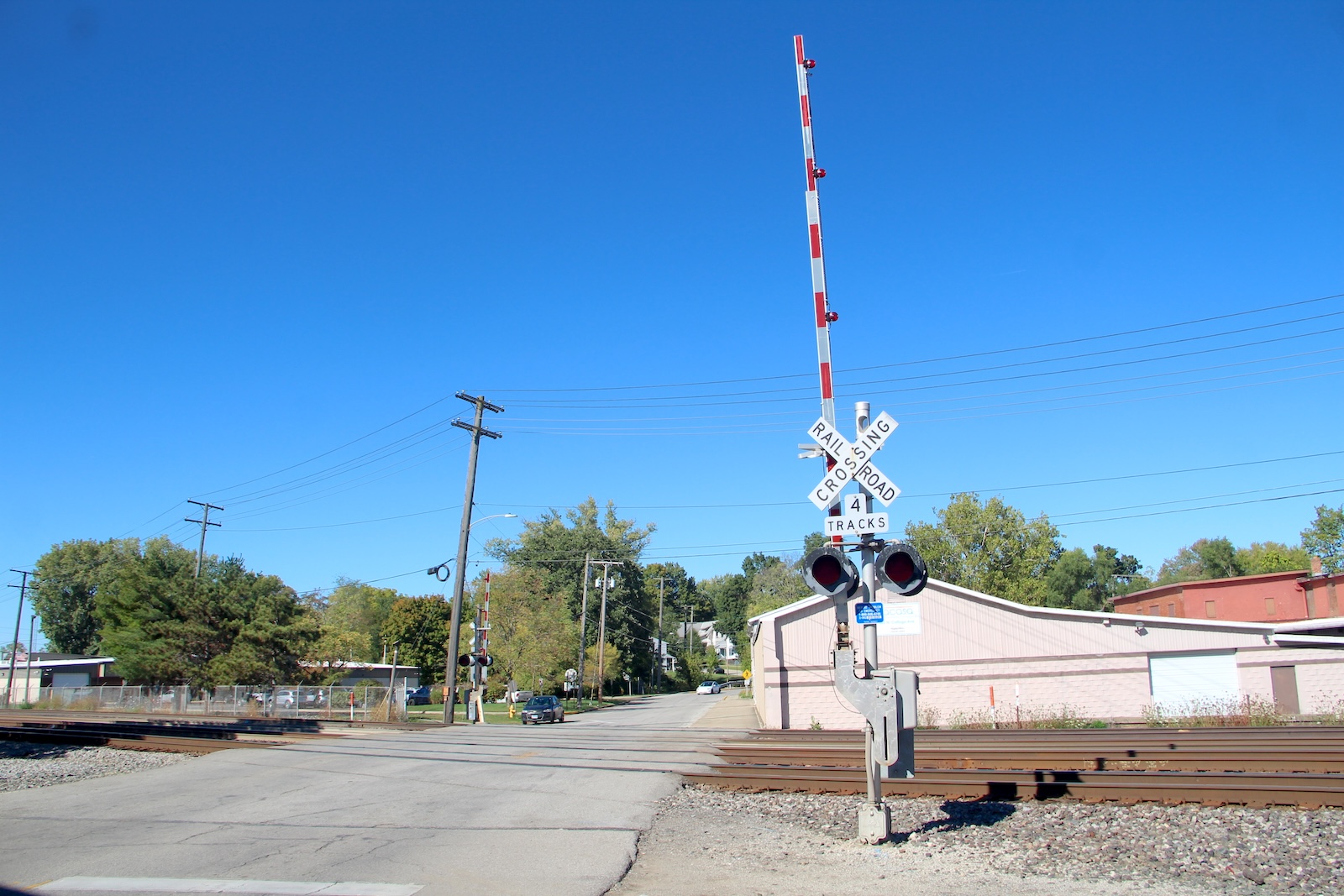

| Overview of 2 gated signals facing south. | Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
| The northern signal. |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
| The southern signal. |
27 |
28 |
29 |
30 |
| The relay bungalow in the southeast quadrant. | The grade is rubber and asphalt. | Track view facing west towards Main St. | Track view facing east at Lincoln Ave. |
