>>>>>>>>>>>>>>> Western Entrance Signal Western Exit Signal Eastern Entrance Signal Eastern Exit Signal
Bells: GS E Bell None Safetran Type 3 E Bell & Safetran M Bell None
Cantilever: Safetran Cantilever None Safetran Cantilever None
Mast Base: Safetran 5" Single Sided ^ Safetran 5" Single Sided < Safetran 5" Single Sided ^ Safetran 5" Single Sided <
Lights: 8 - 12"x20" Safetran w/ Harmon Fading LEDs 2 - 12"x24" Safetran w/ Harmon Fading LEDs 4 - 12"x24" Hawker Safetran w/ Harmon Fading LEDs
4 - 12"x24" Harmon w/ Harmon Fading LEDs
2 - 12"x24" Safetran w/ Harmon Fading LEDs
Junction Boxes: Safetran Safetran 1 Safetran, 1 Harmon Safetran
Gate Lights: 4" RECO 4" RECO 4" RECO 4" RECO
Gate Mechanism: Safetran 2000s w/ GSI Gate Saver Safetran 2000s w/ Standard Mount Safetran 2000s w/ Standard Mount Safetran 2000s w/ Standard Mount
Gate Striping: Vertical and Diagonal Striping Diagonal and Vertical Striping Vertical Striping Vertical Striping

All pictures were taken on March 2, 2019, by Tommy McGowan.
This crossing is located on the CN Matteson Sub.

G1 G2

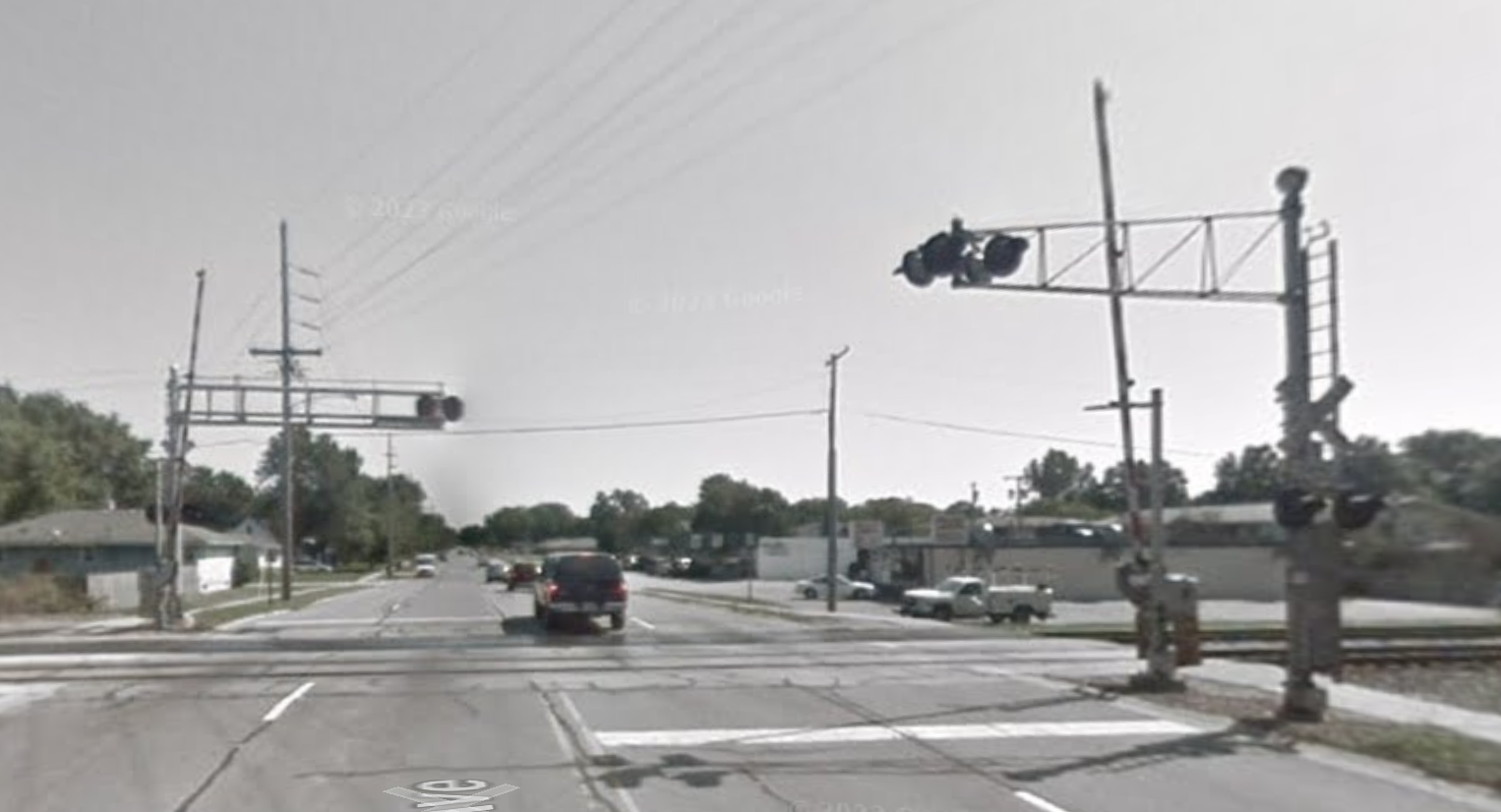

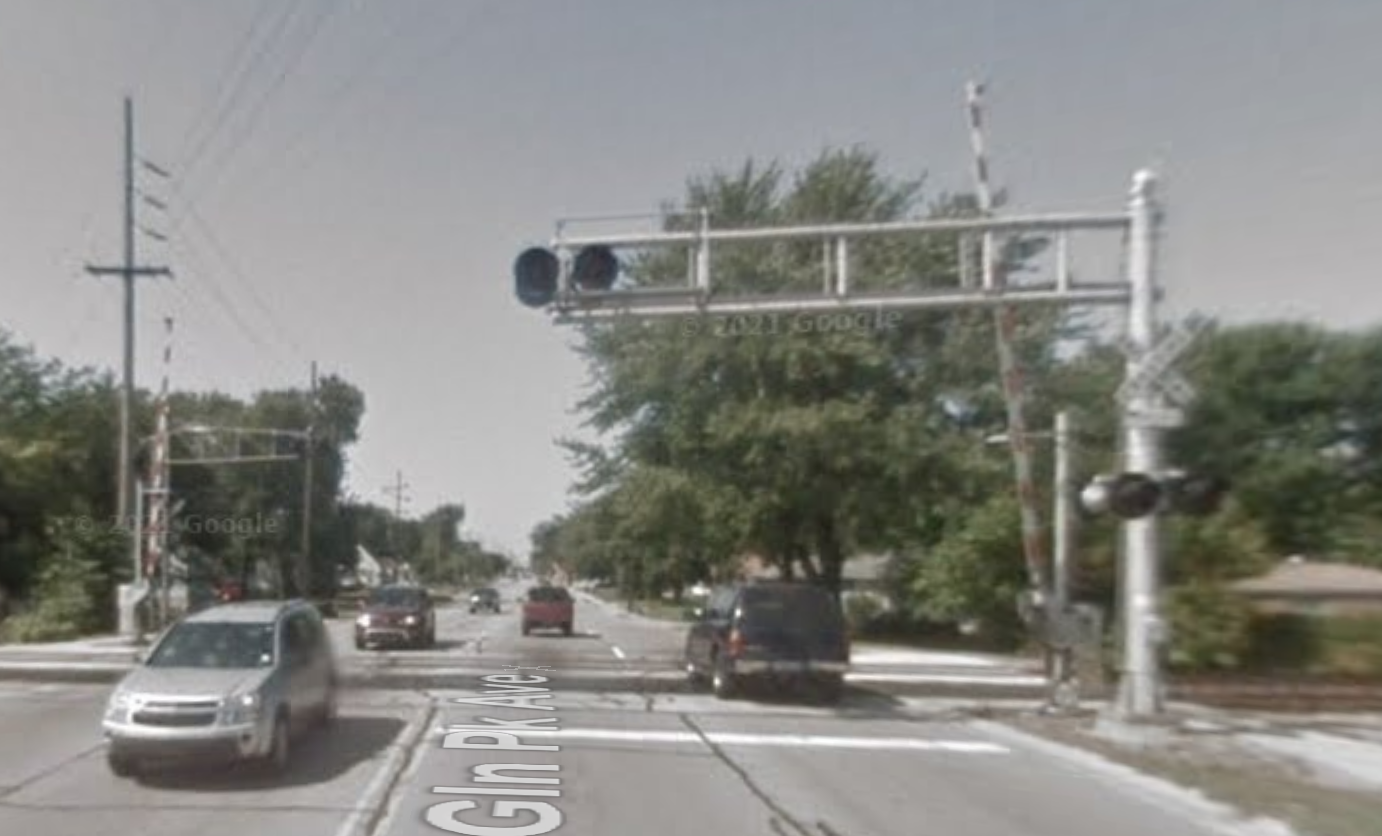

Google Streetview pictures from September 2009 showing an older RACO/Griswold cantilever and a newer Safetran cantilever with 12"x24" lights and each with a respective mechanical bell. In the early 2010s, the RACO/Griswold cantilever and both gate masts were replaced and 2 exit signals were installed, making this a full quad gated crossing.
1 2
Overview of the newer quad gated setup facing east. Overview facing west.
3 4 5
6 7 8
9 10 11
12 13 14 15

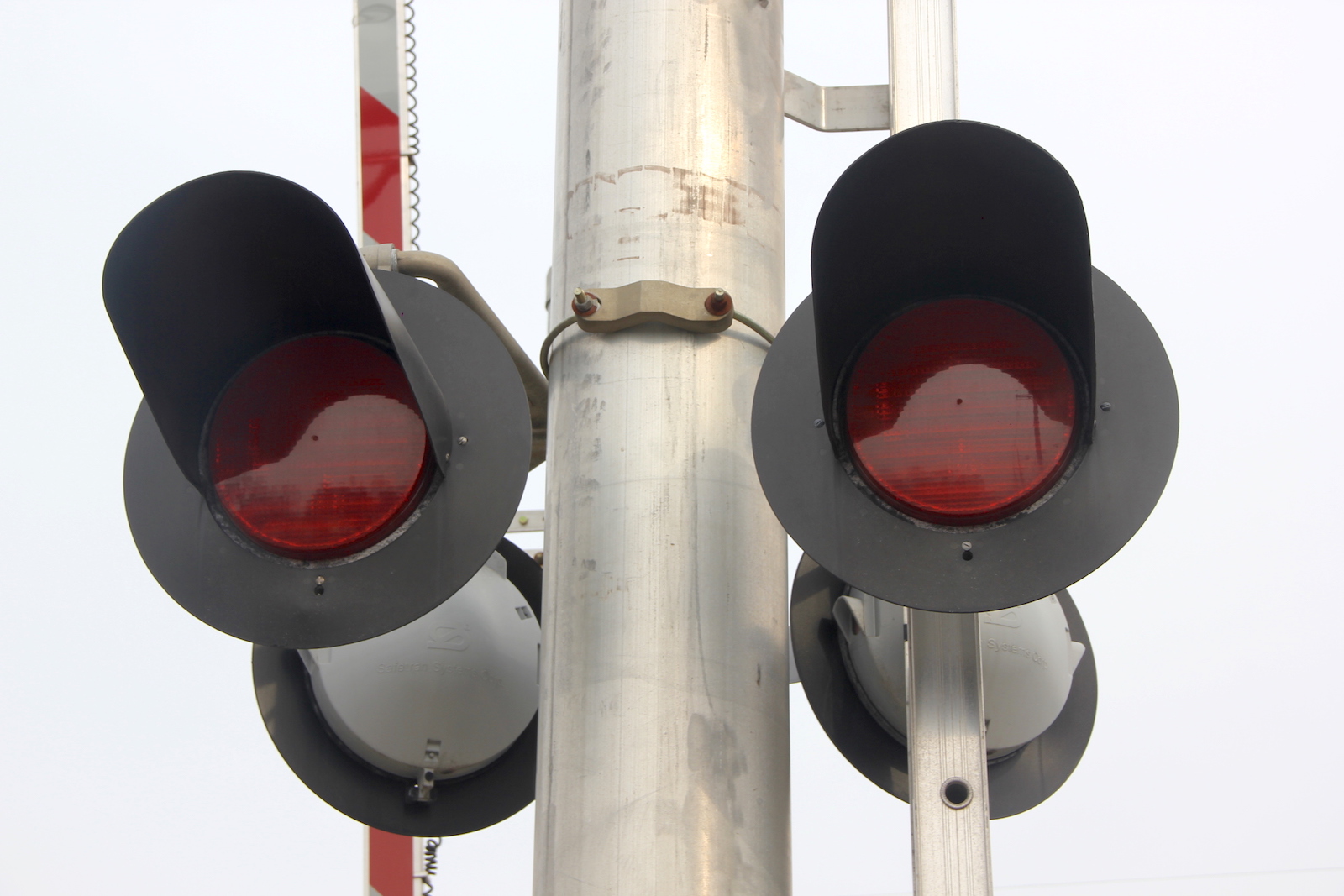

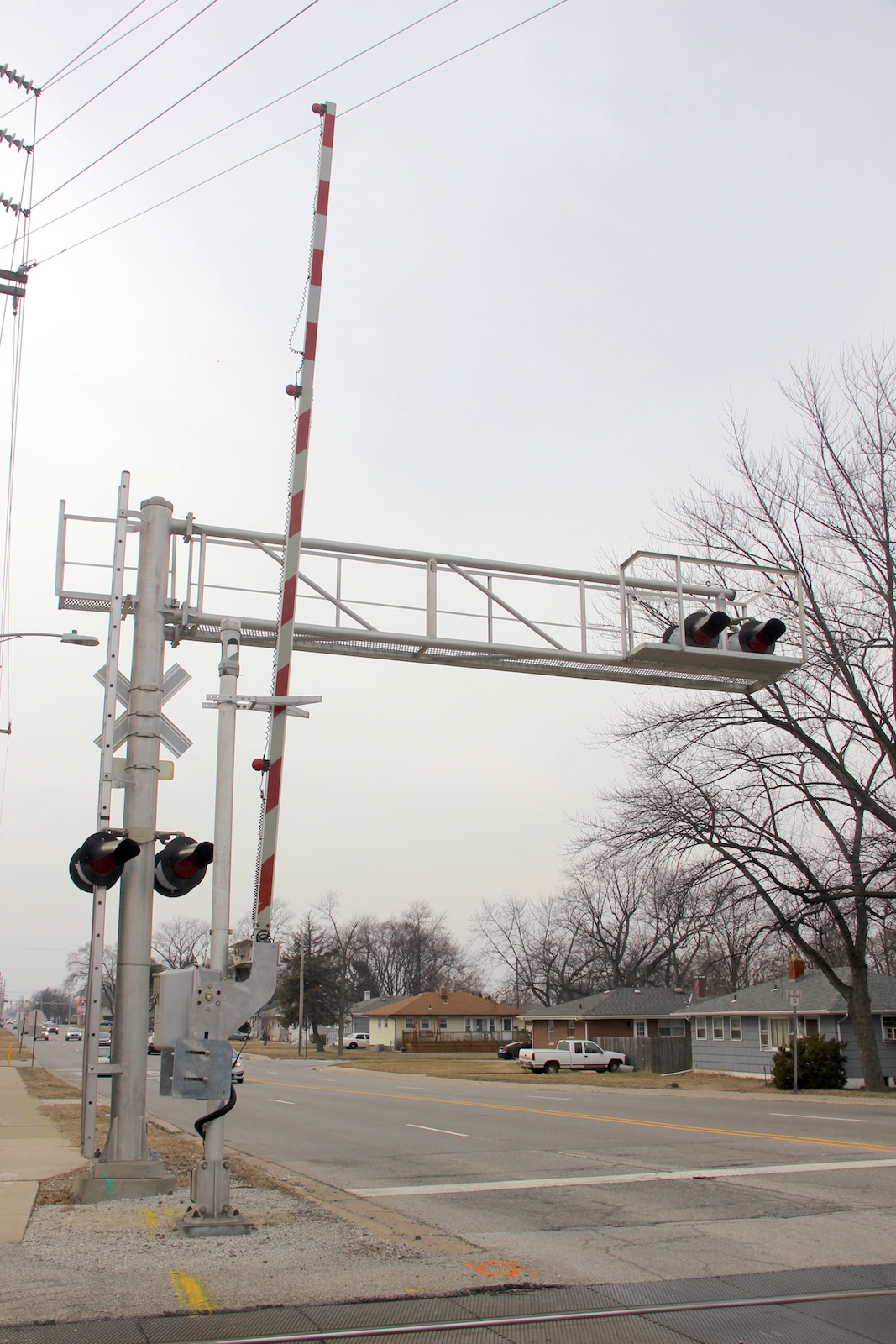

The western entrance signal.
16 17 18
19 20 21
22 23 24 25
26 27 28 29

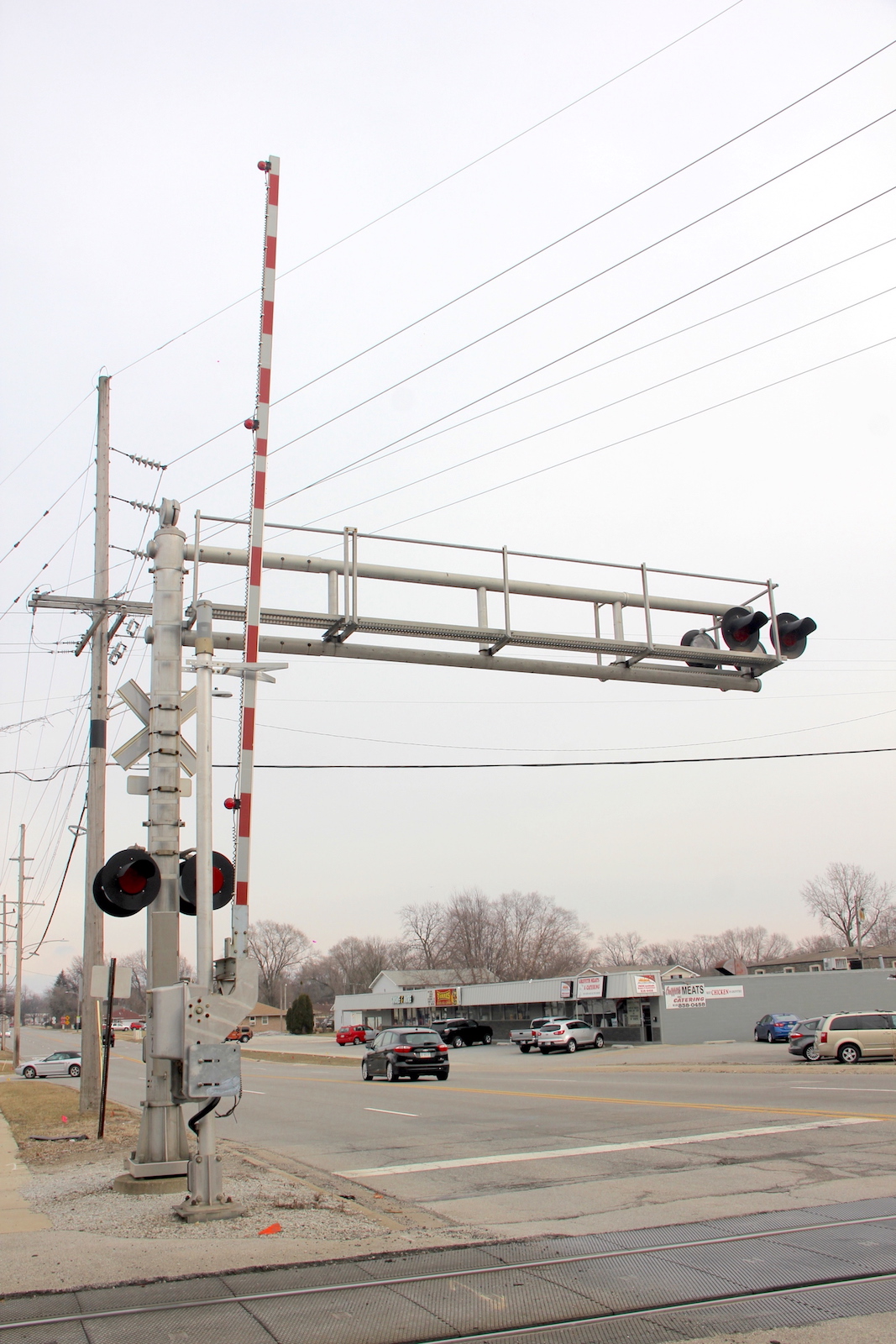

The eastern entrance signal.
30 31 32
33 34 35 36

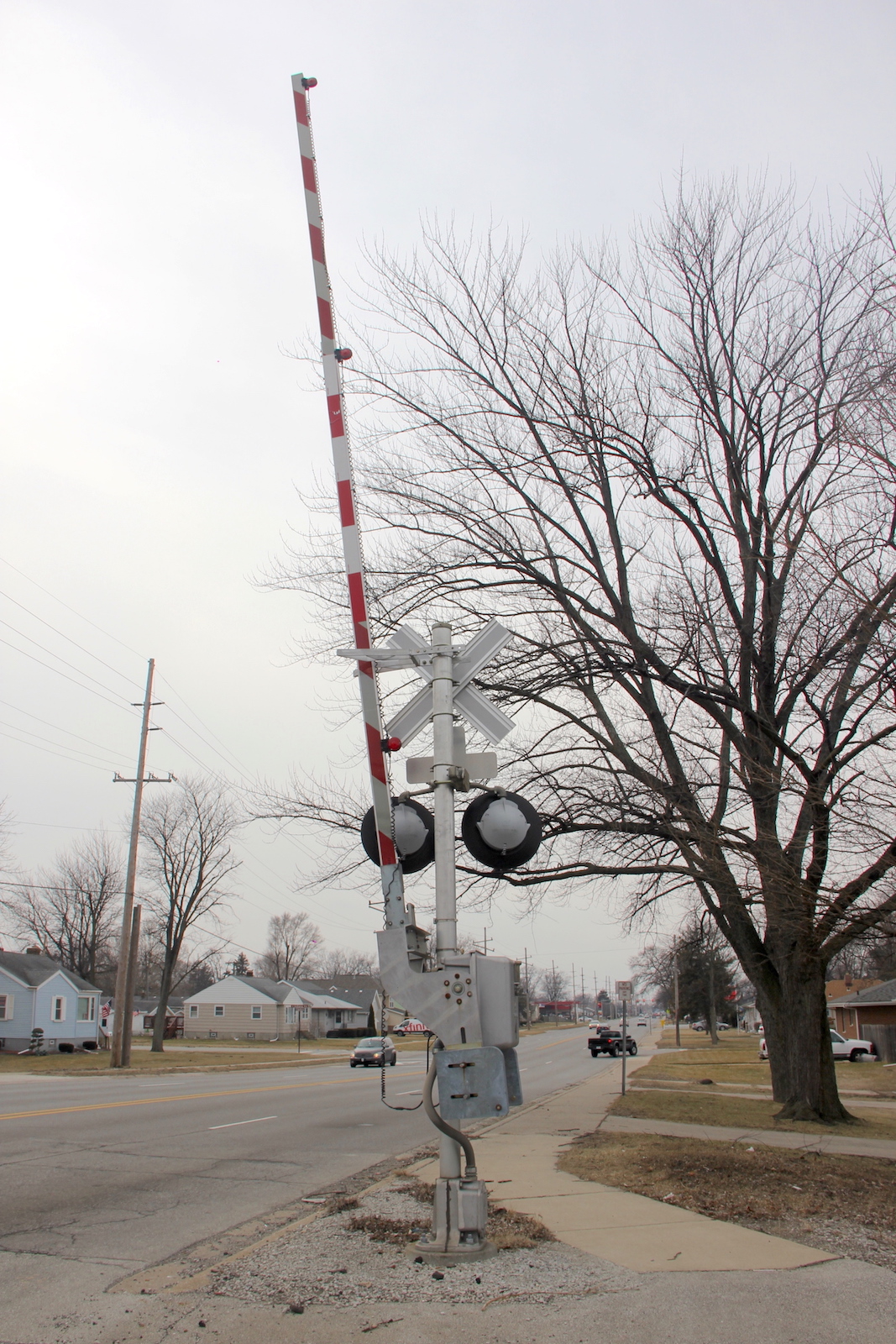

The western exit signal.
37 38 39
40 41 42 43

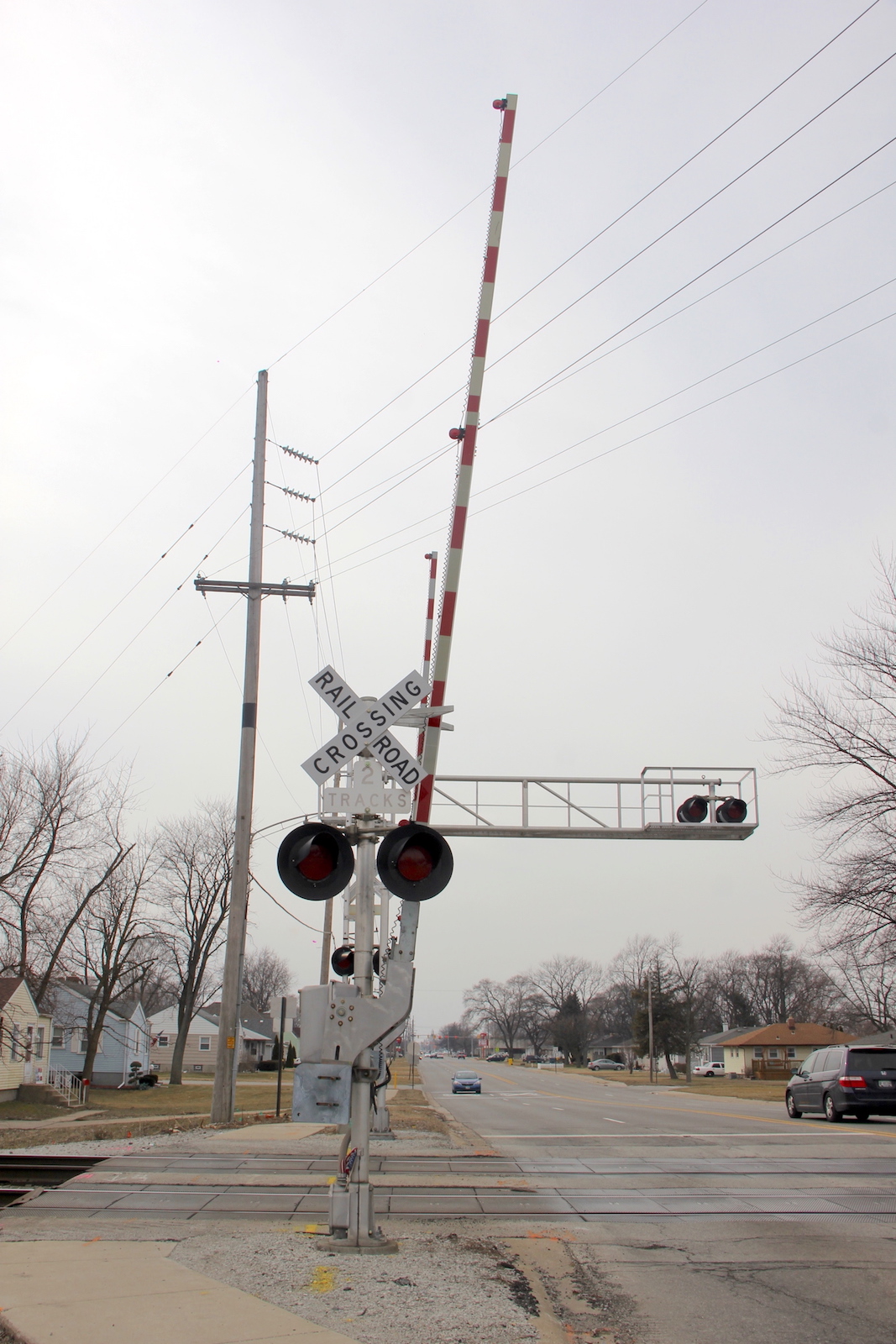

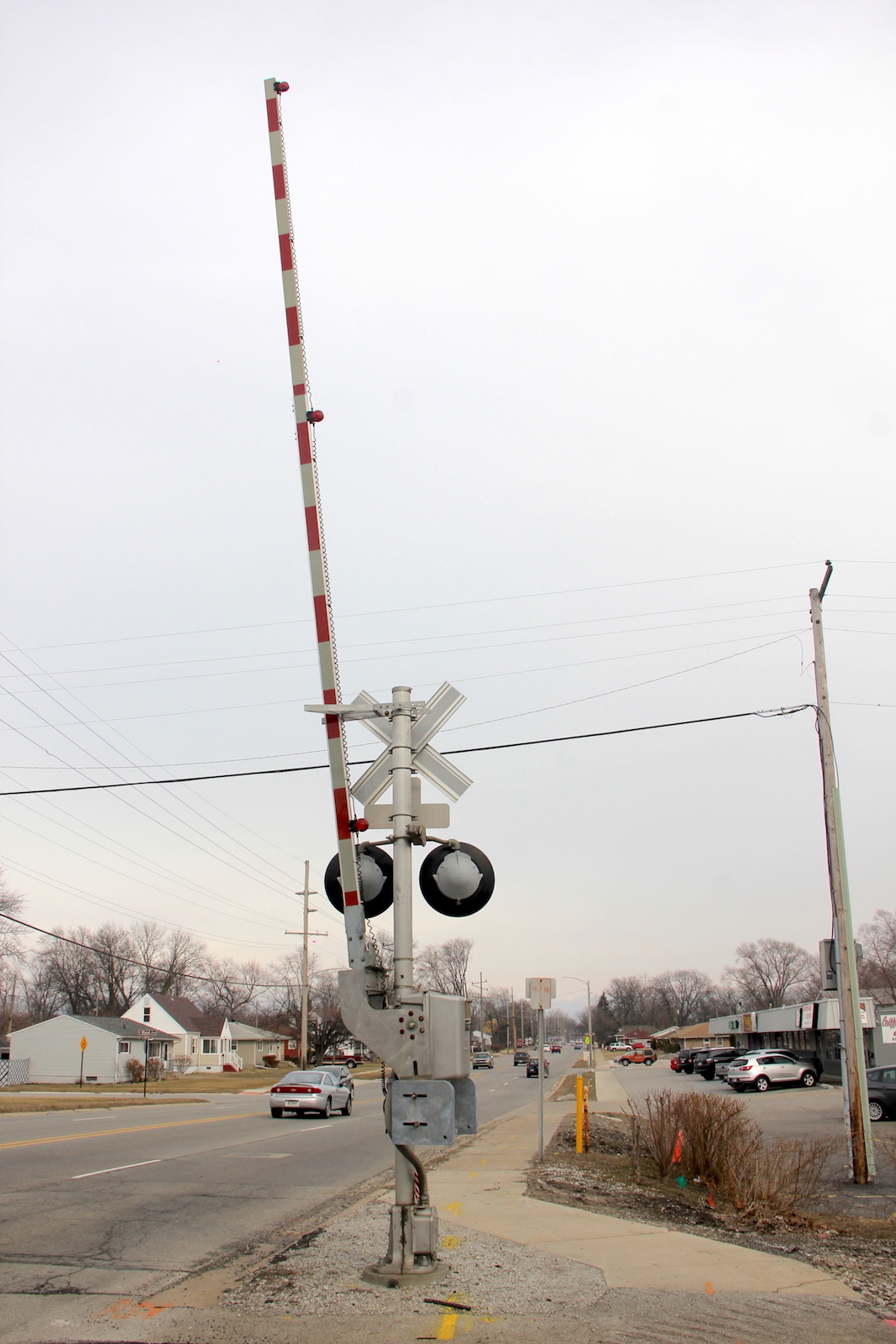

The eastern exit signal.
44 45 46 47
The relay bungalow in the northeast quadrant. The grade is all rubber. Track view facing south towards Elm St. Track view facing north towards 40th Pl.

.
