MP: 507.07
|
MP: 507.07 |
| Created June 2026 |
| Total Accidents:
12 Crossing DOT #: 522929F TOTAL DAILY TRAINS: 63 (AS OF 2026) |
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | None | Siemens E-Bell Low Tone |
| Base: | Safetran 5" Double Sided ^ | Safetran 5" Double Sided ^ |
| Lights: | 4 - 12"x20" Safetran incandescents | 6 - 12"x20" Safetran incandescents |
| Junction Boxes: | Safetran | Safetran |
| Gate Lights: | 3 - 4" RECO | 3 - 4" RECO |
| Gate Mechanism: | Invensys Rail/Siemens w/ NEG 1 Way Saver | Invensys Rail/Siemens w/ NEG 1 Way Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
IN1 |
IN2 |
IN3 |
IN4 |

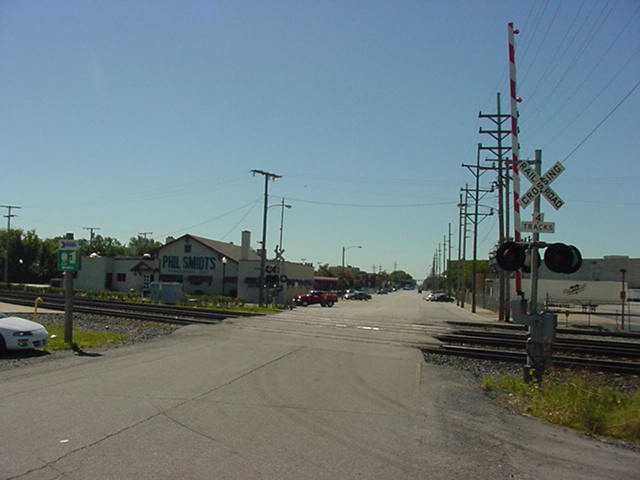

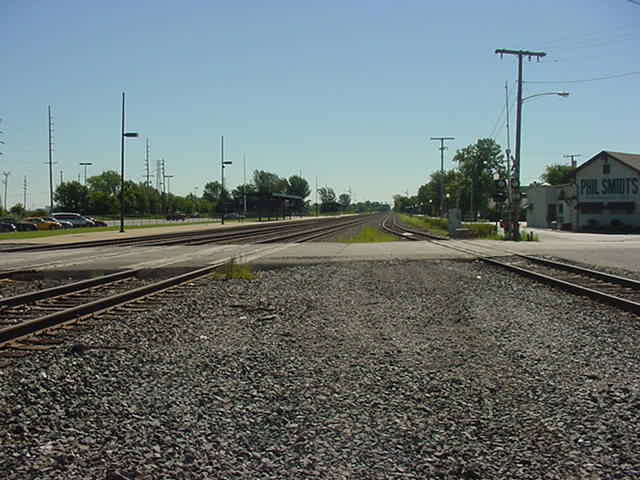

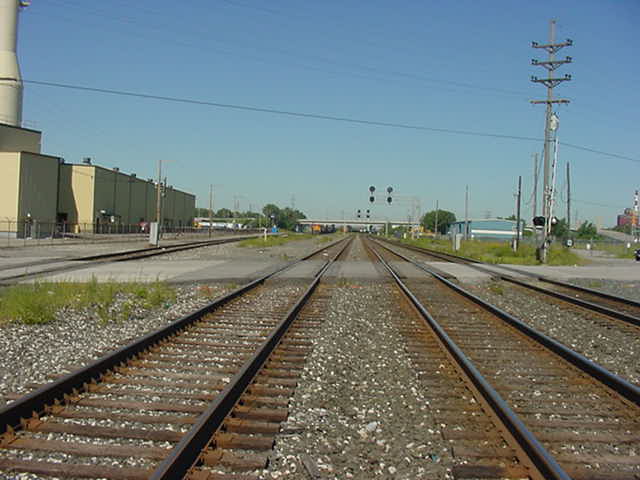

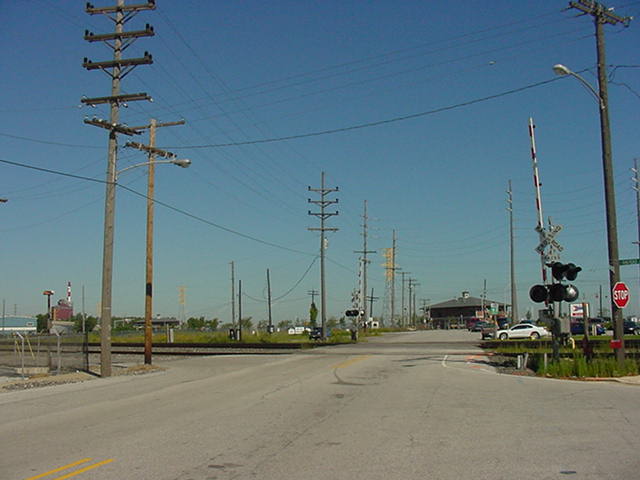

| INDOT pictures from 2001 showing a late Conrail setup. The northern signal had a Safetran gate mechanism and no bell, while the southern signal had a WCH gate mechanism and a Safetran Hybrid Bell. Both signals had 12"x24" Safetran incandescents. |
G1 |
G2 |

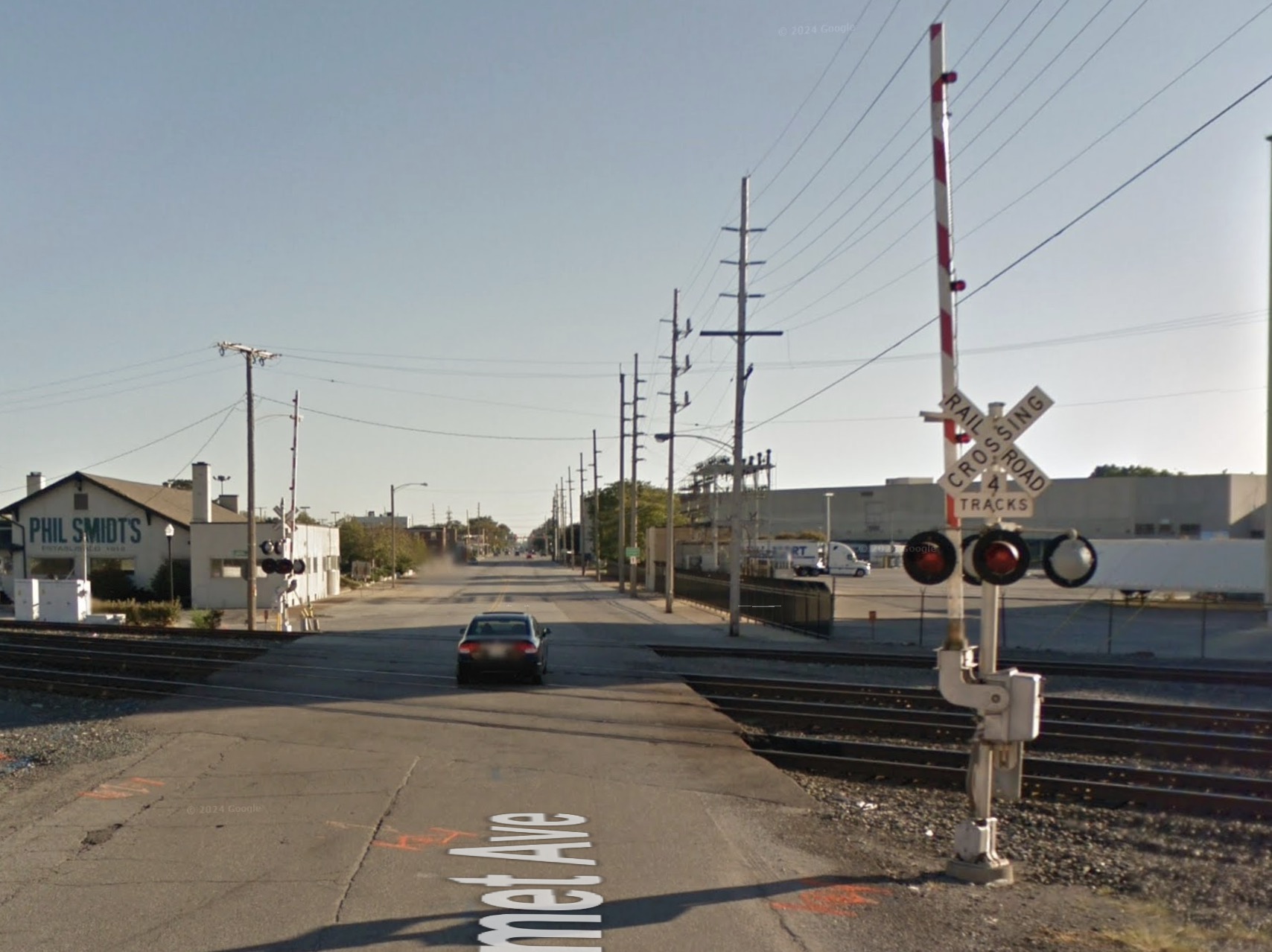

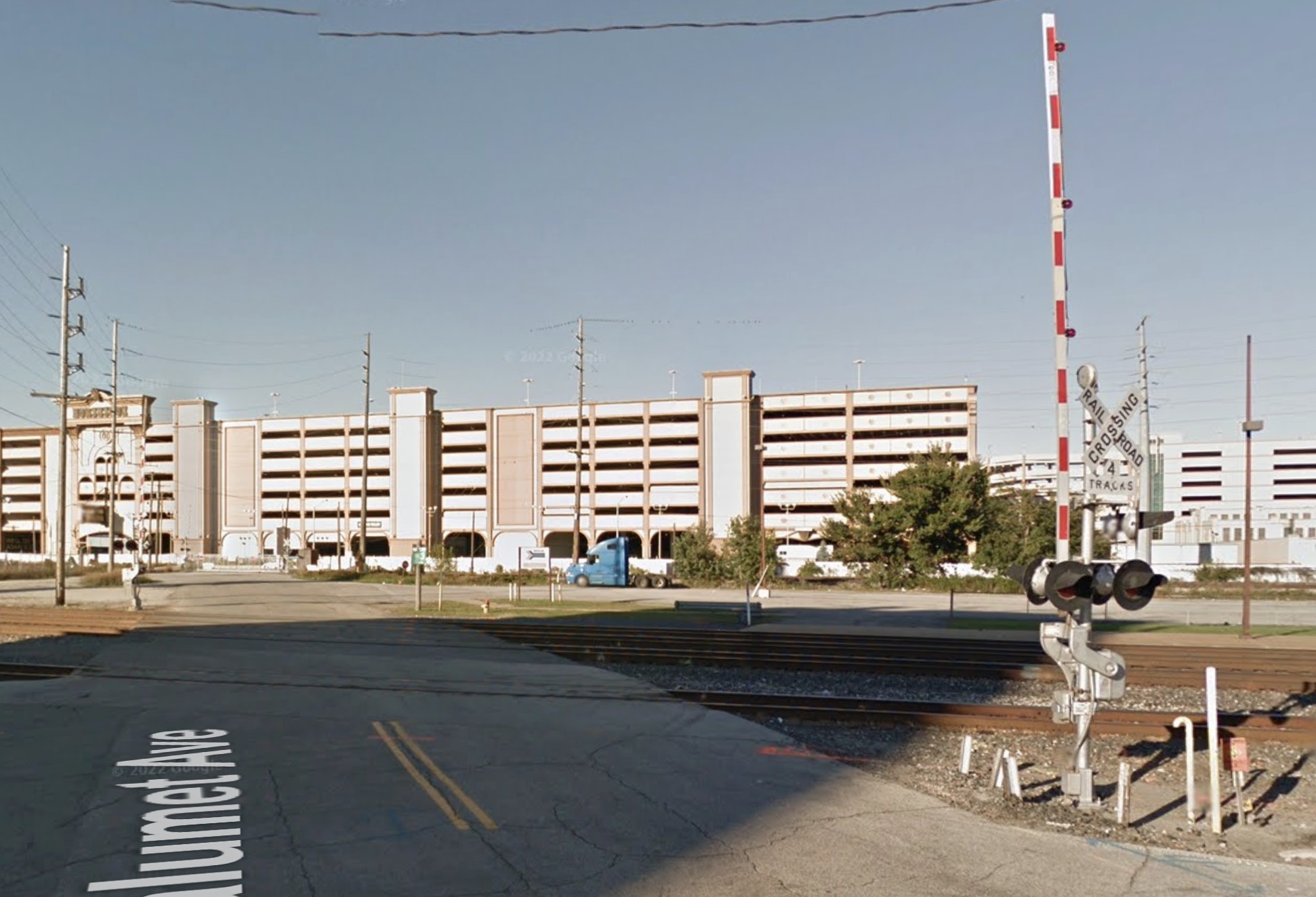

| By 2011, the northern signal had been replaced with a newer Safetran signal with 12"x20" incandescents and a Safetran 2000s gate mechanism. I didn't get a proper video, but you can see the see this setup from 2013 in this video. In 2015, NS did a complete replacement here and replaced both signals with newer Safetran signals and a new relay bungalow. |
1 |
2 |

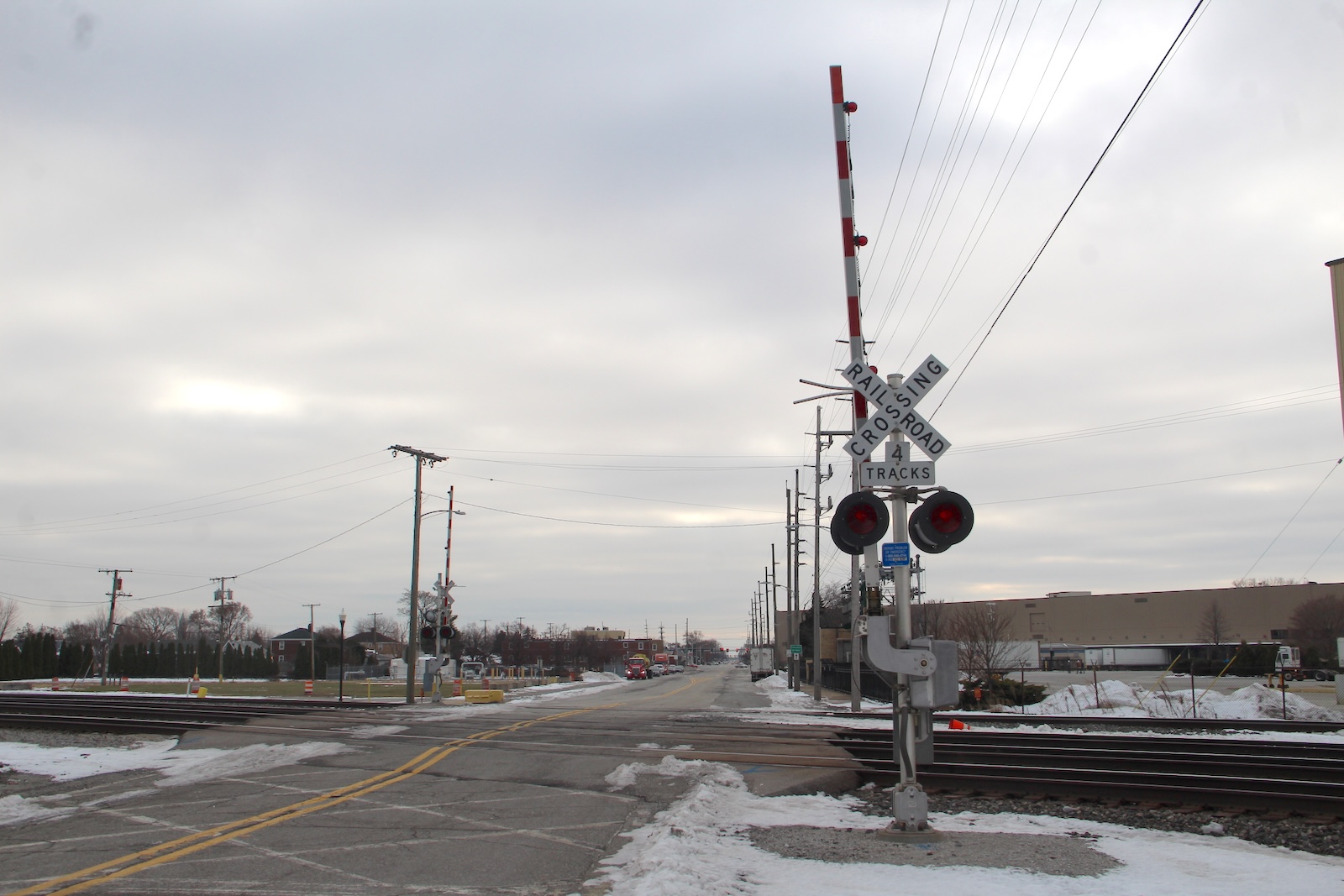

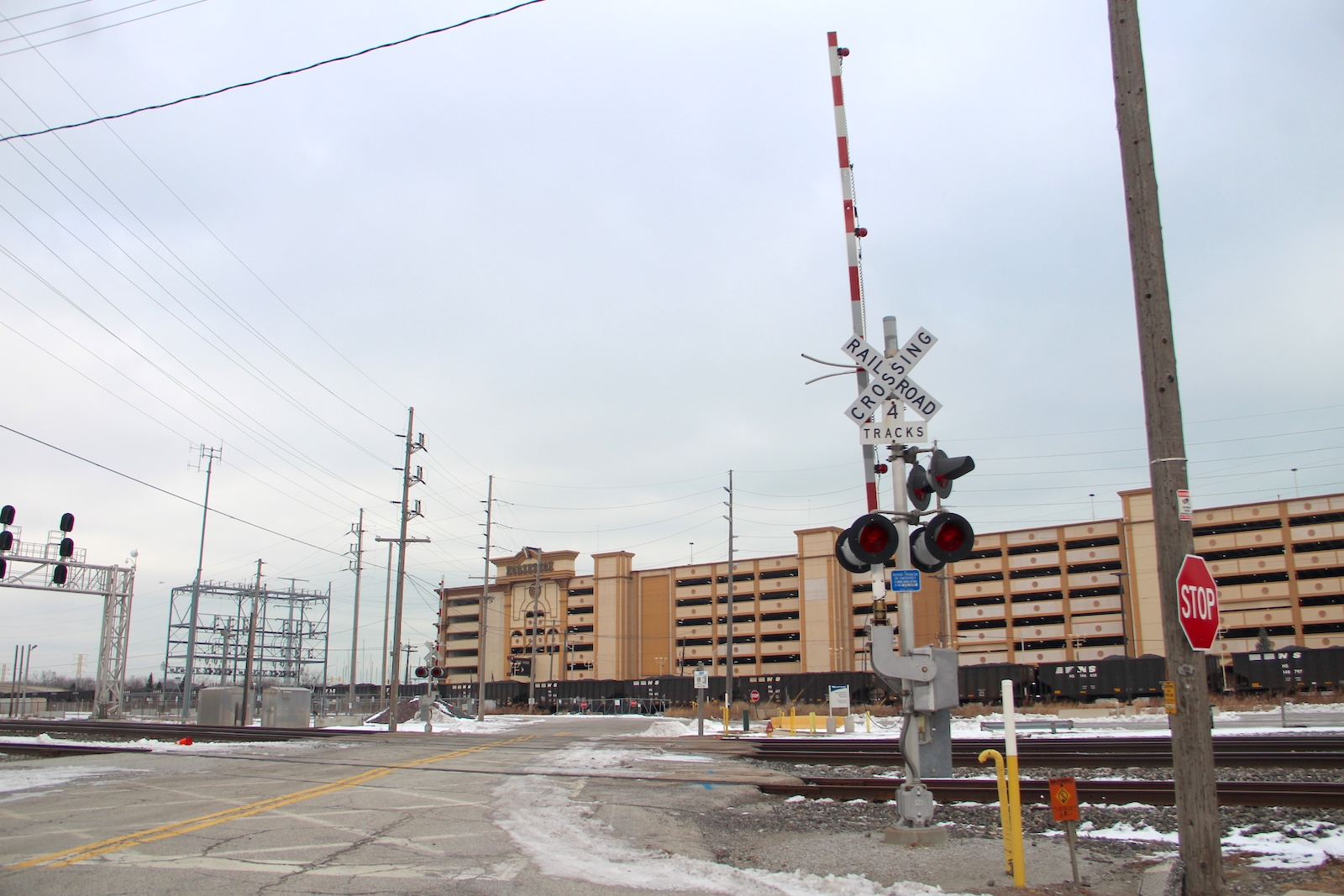

| Overview of the newer signals facing south. | Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |

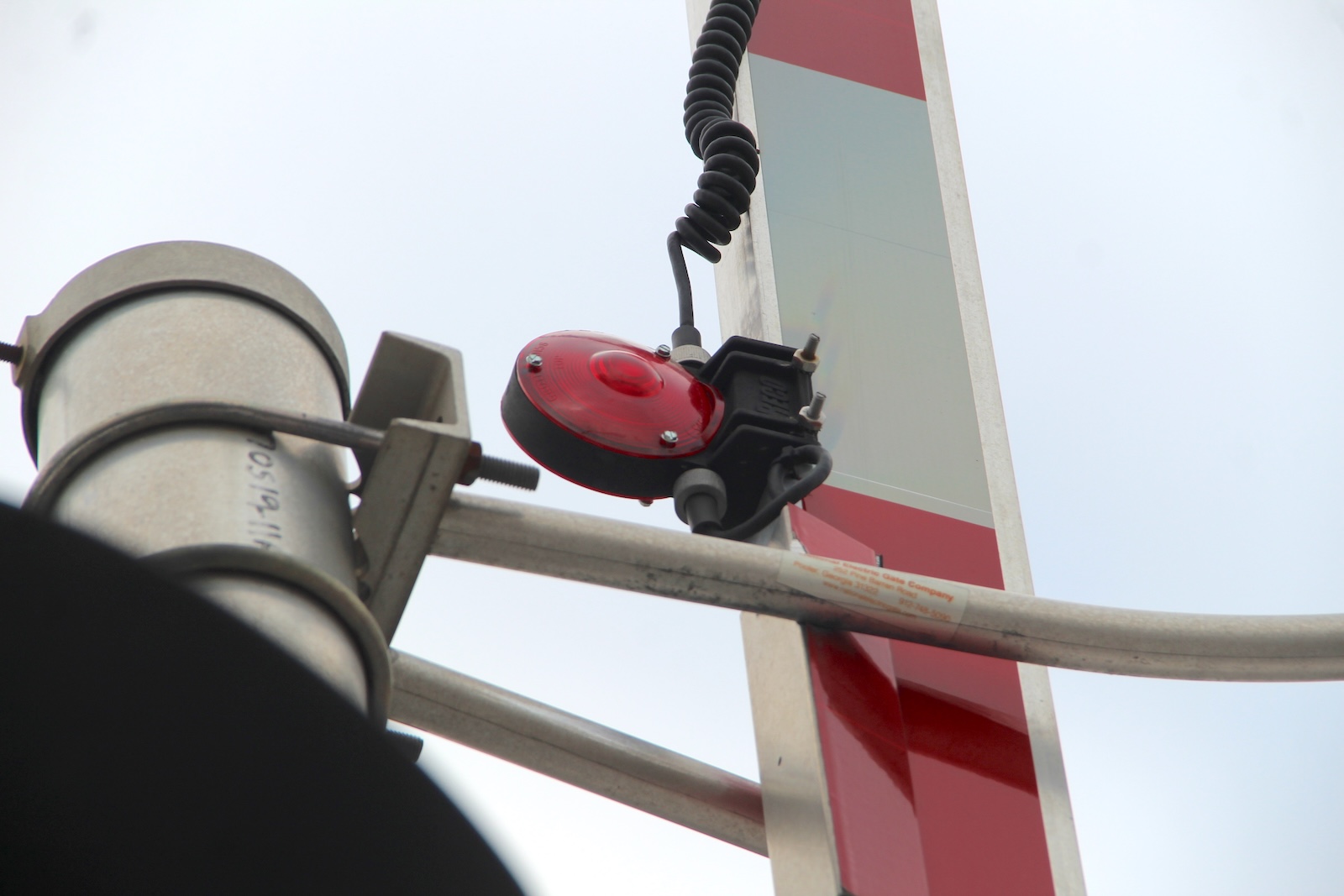

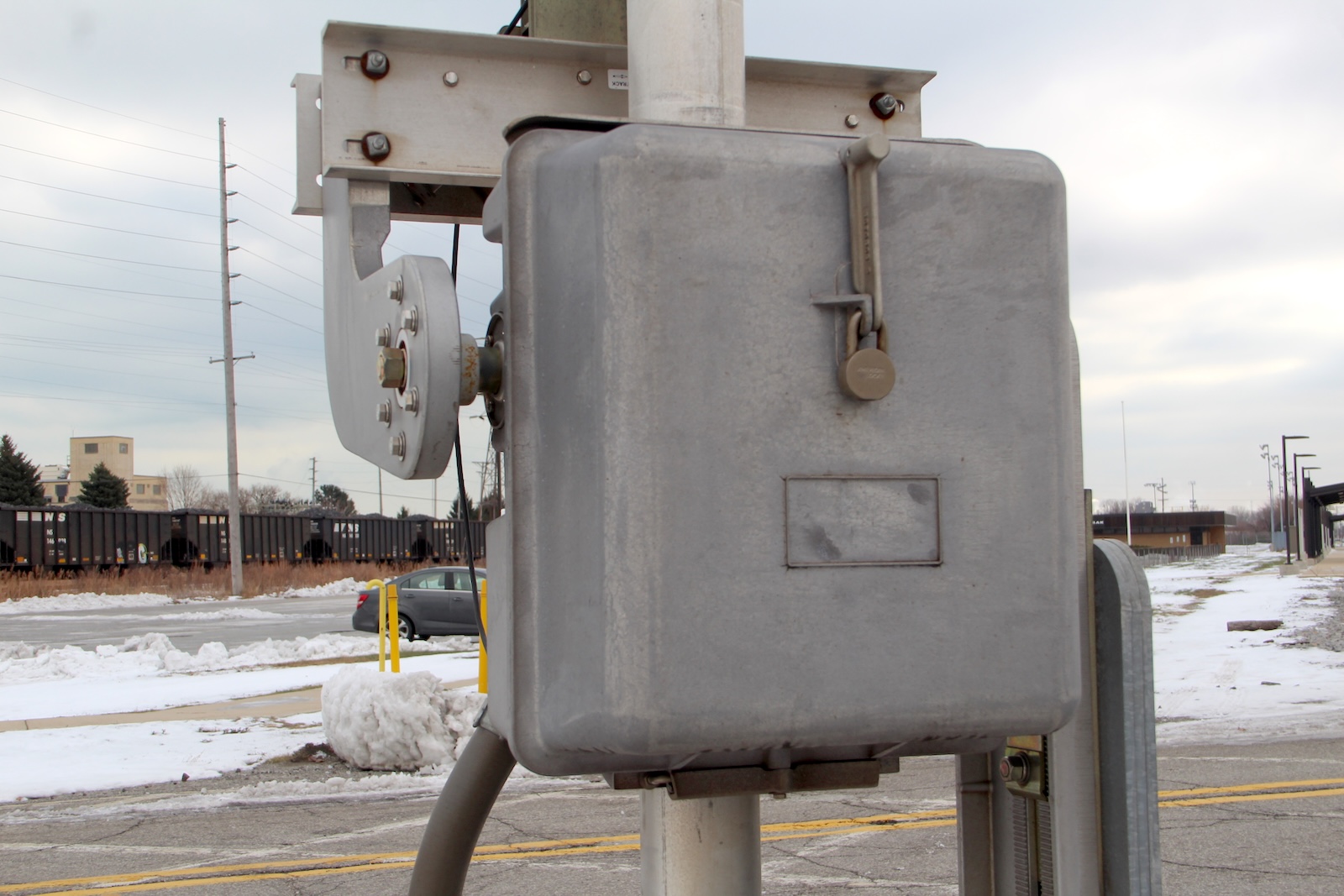

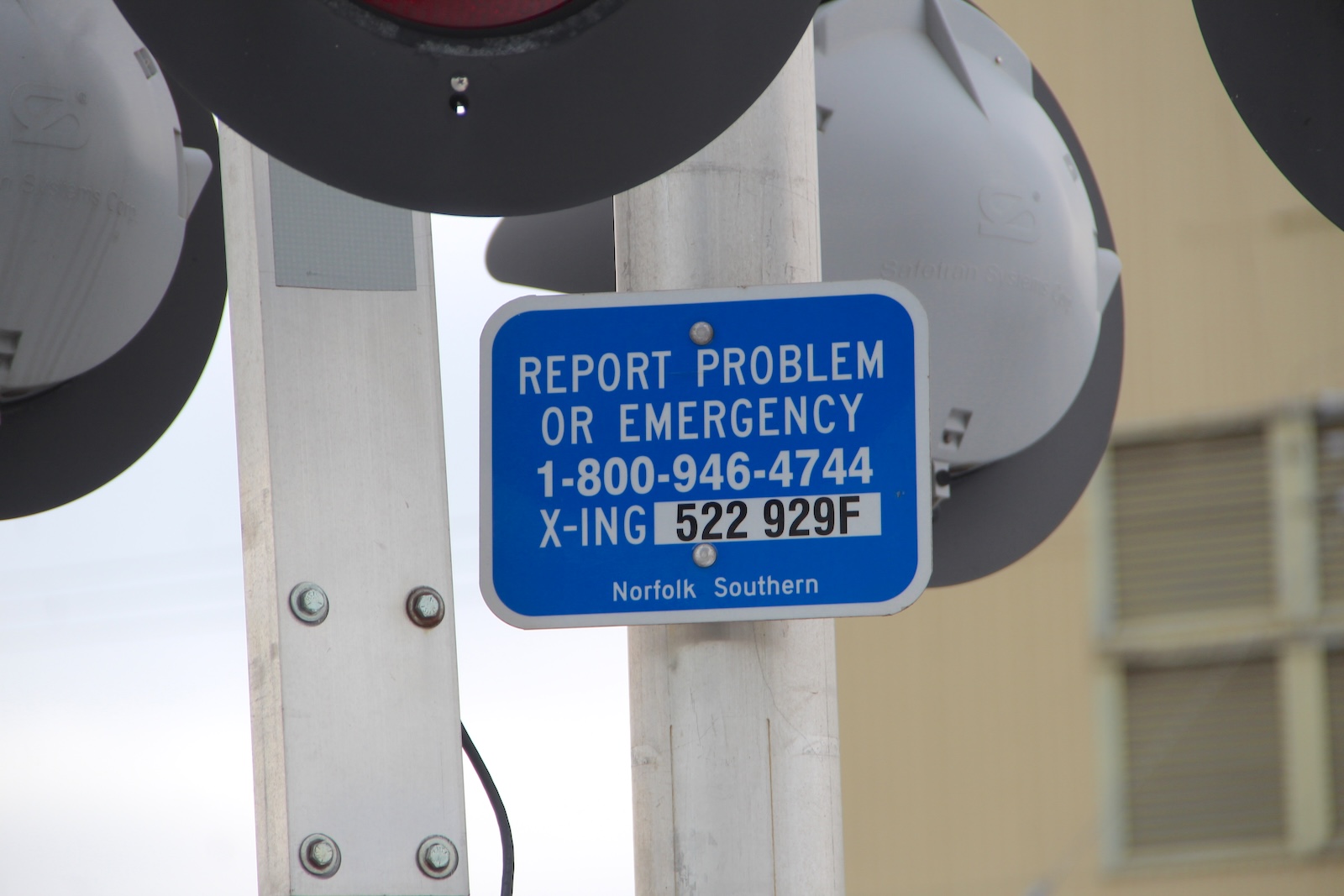

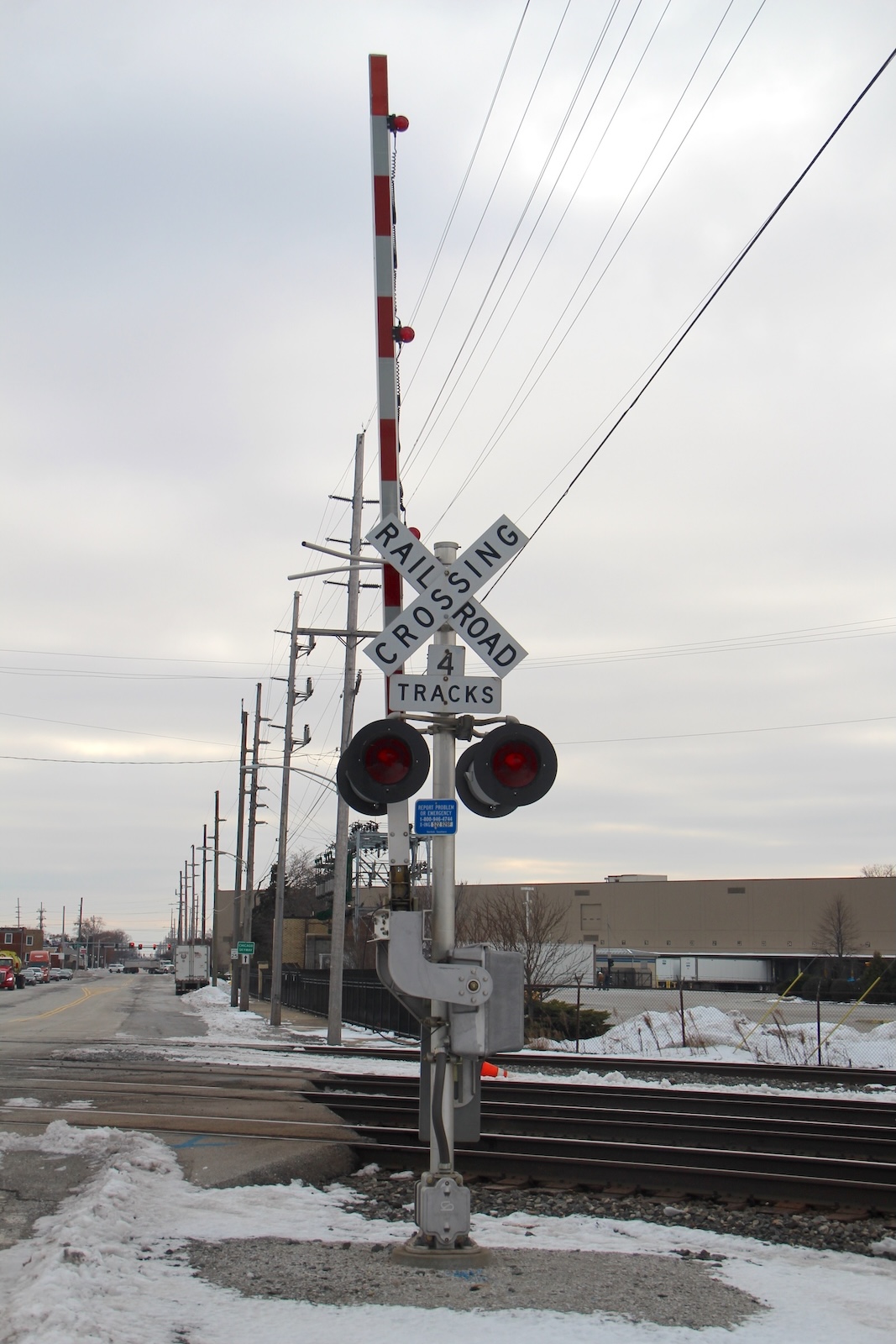

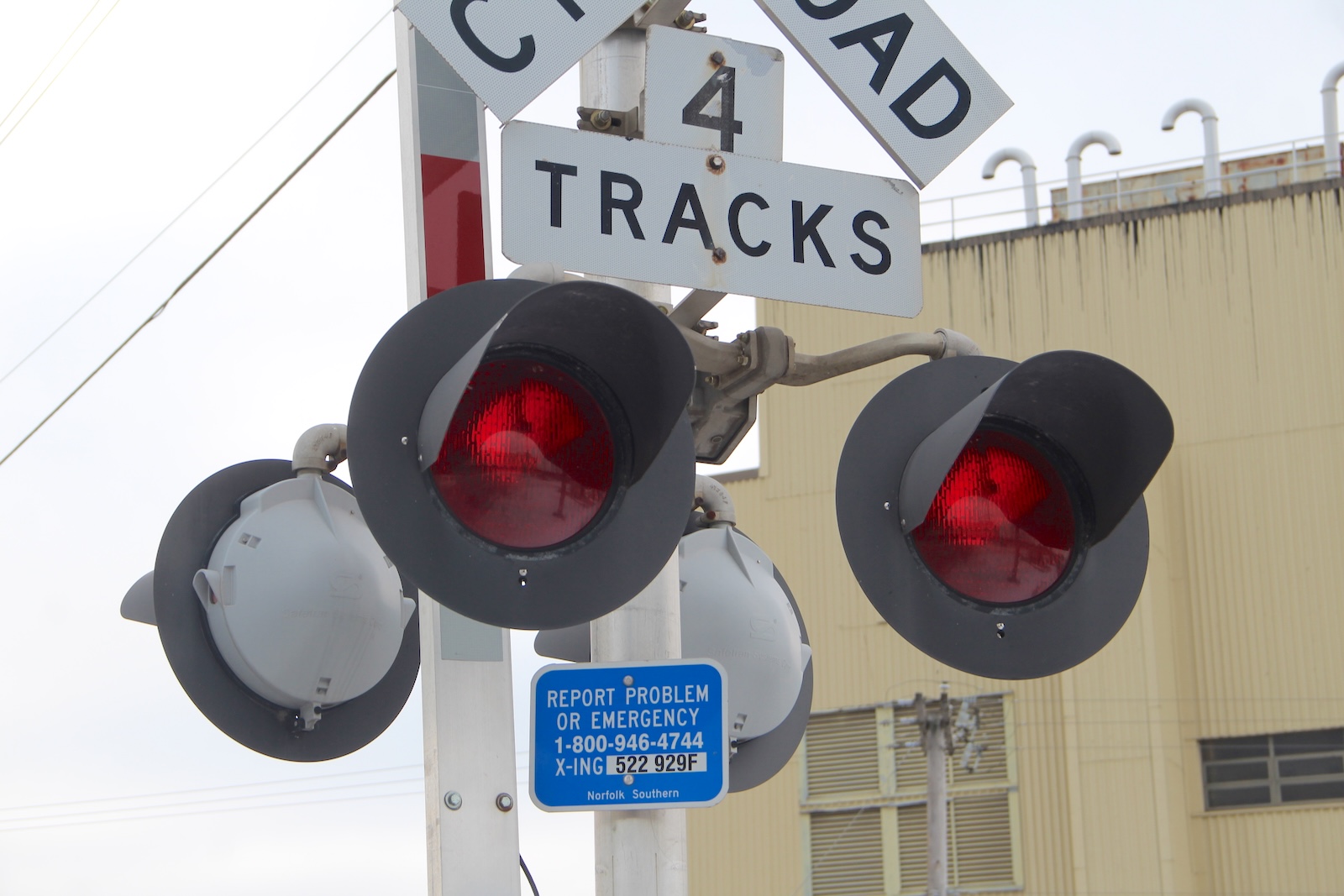

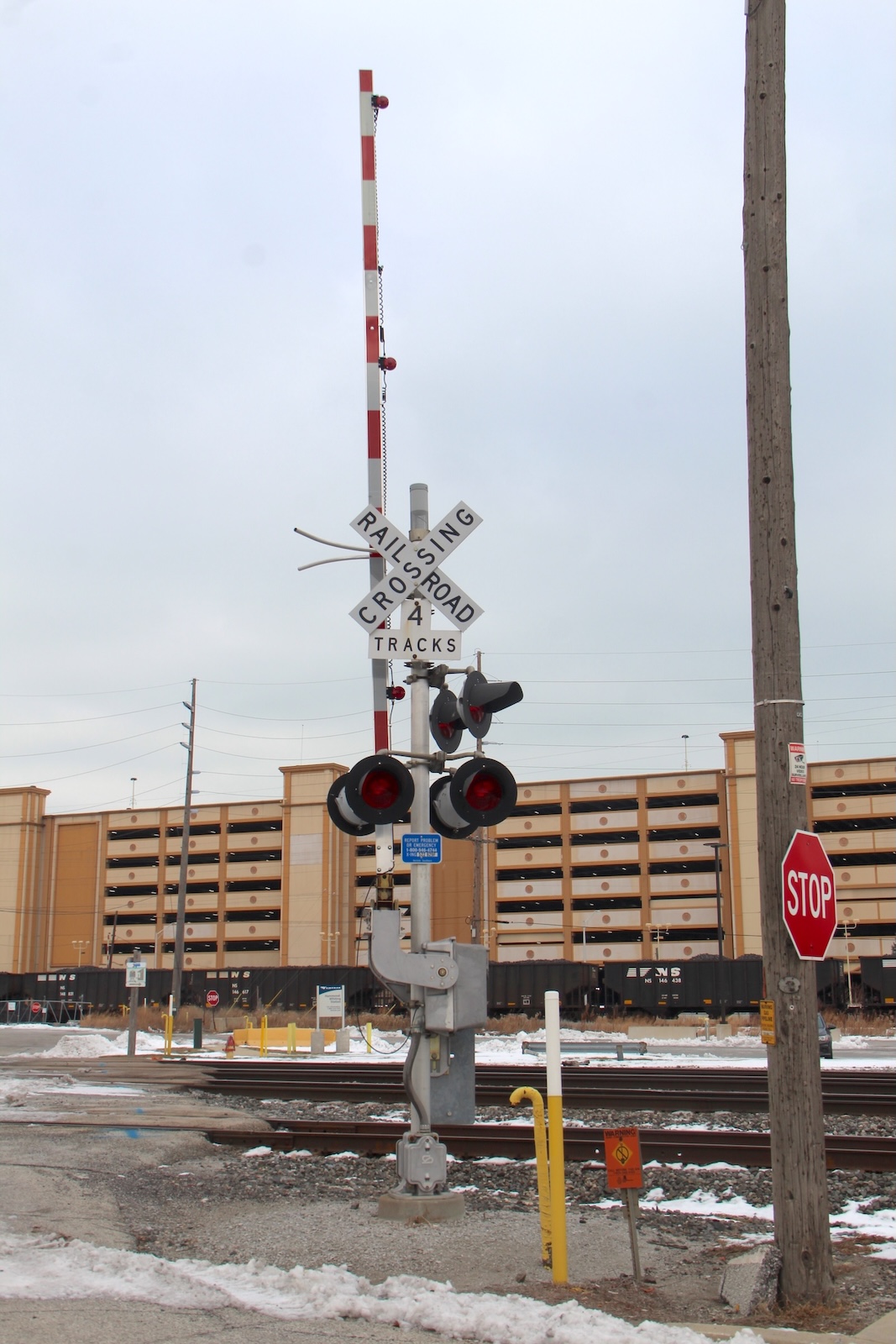

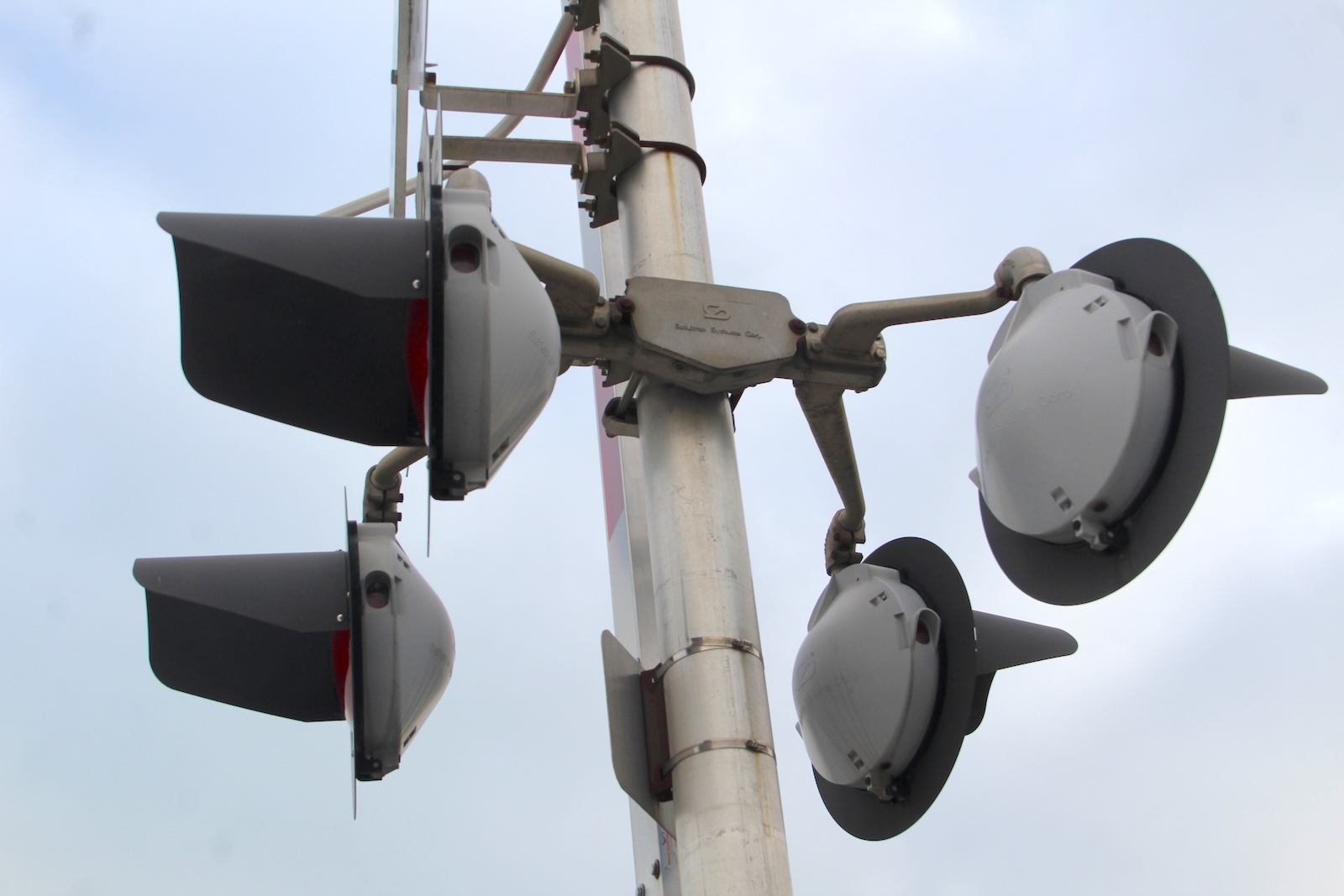

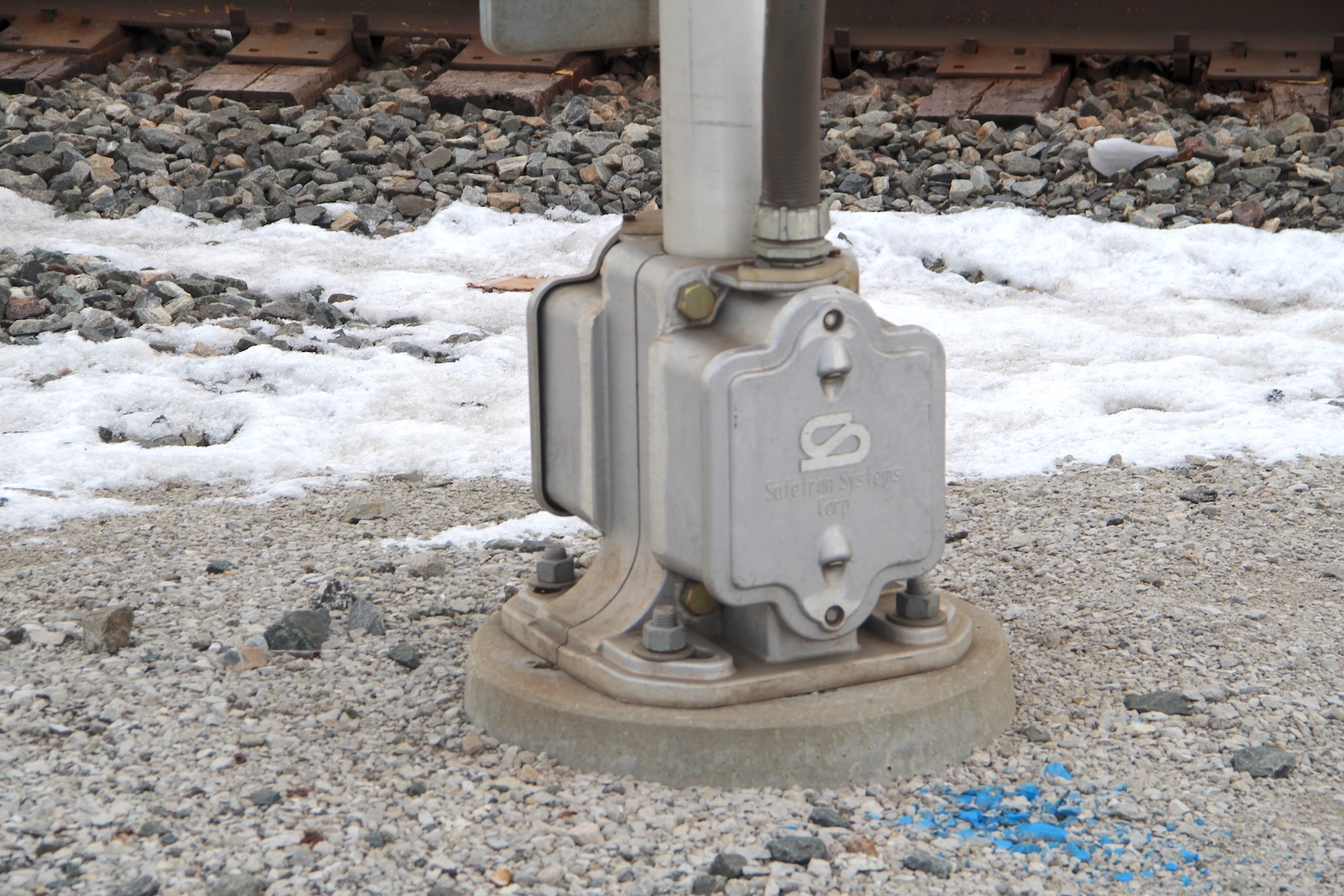

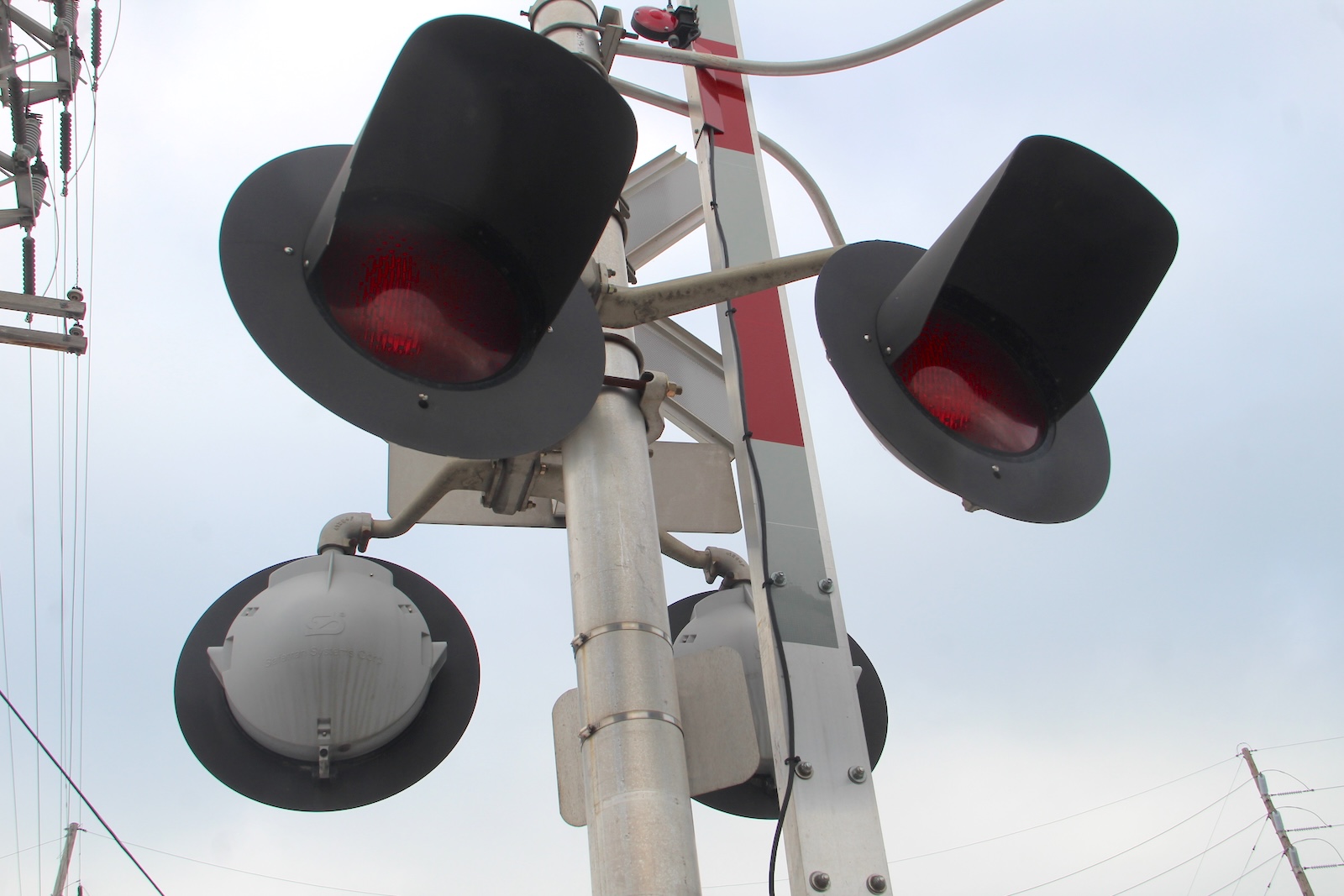

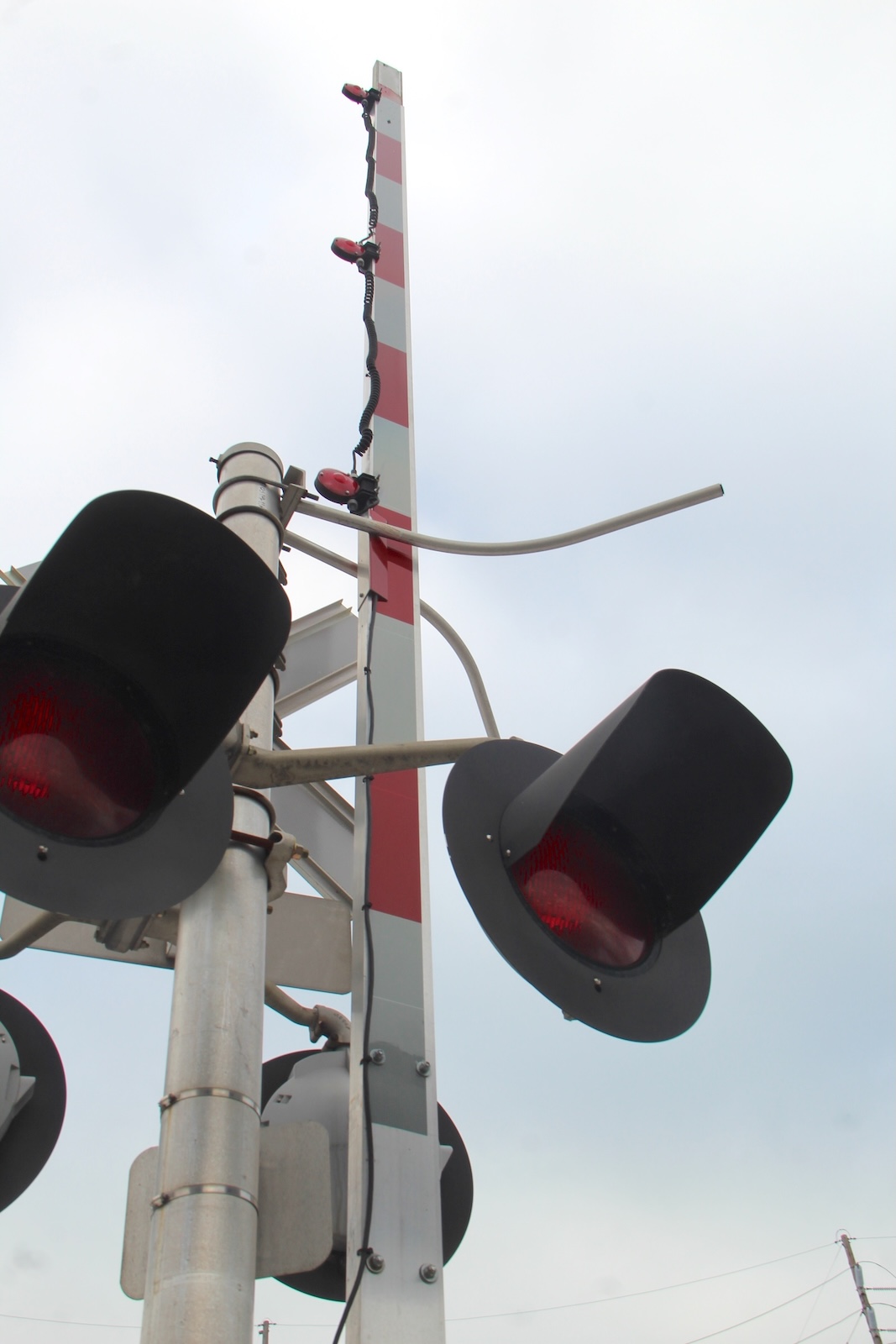

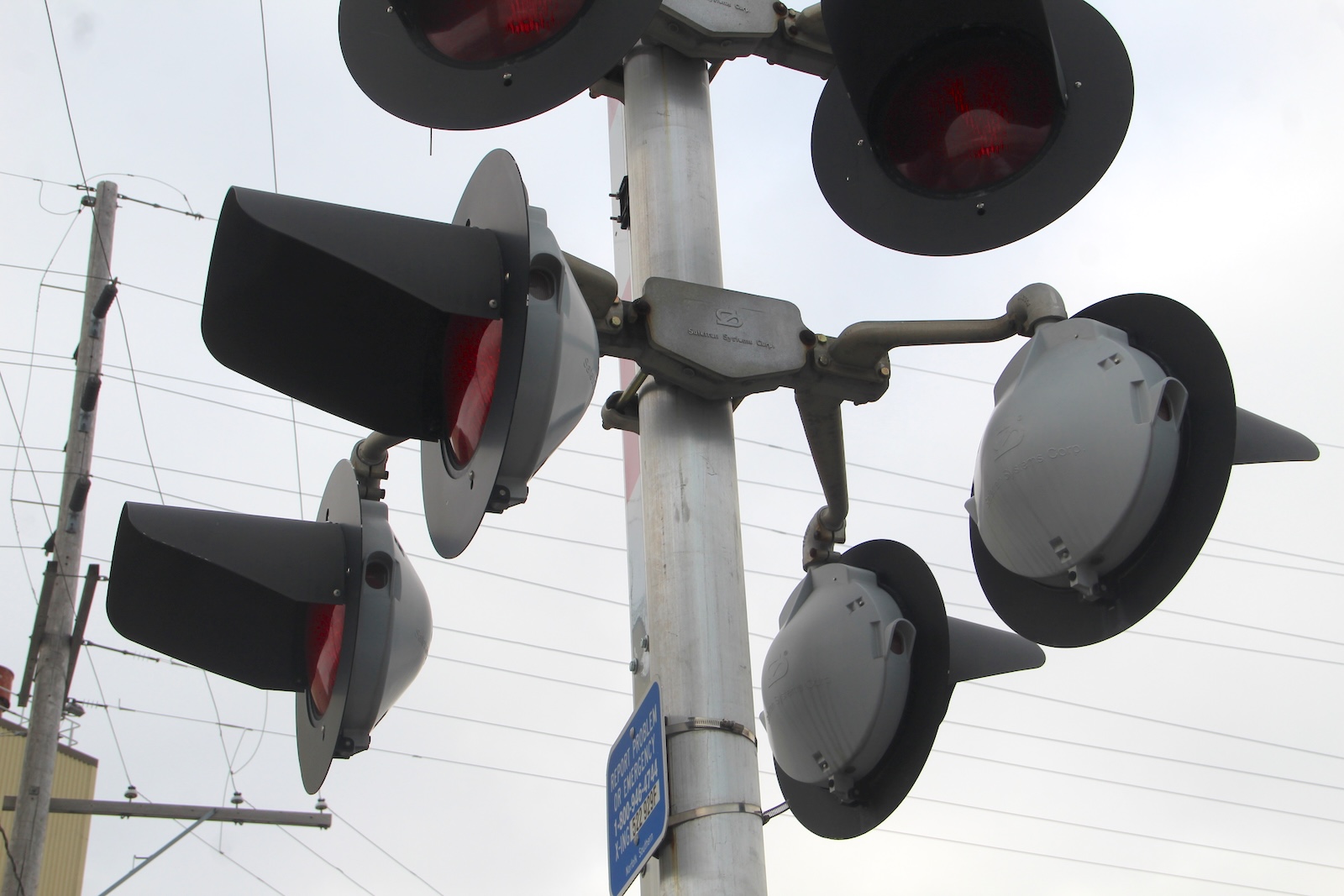

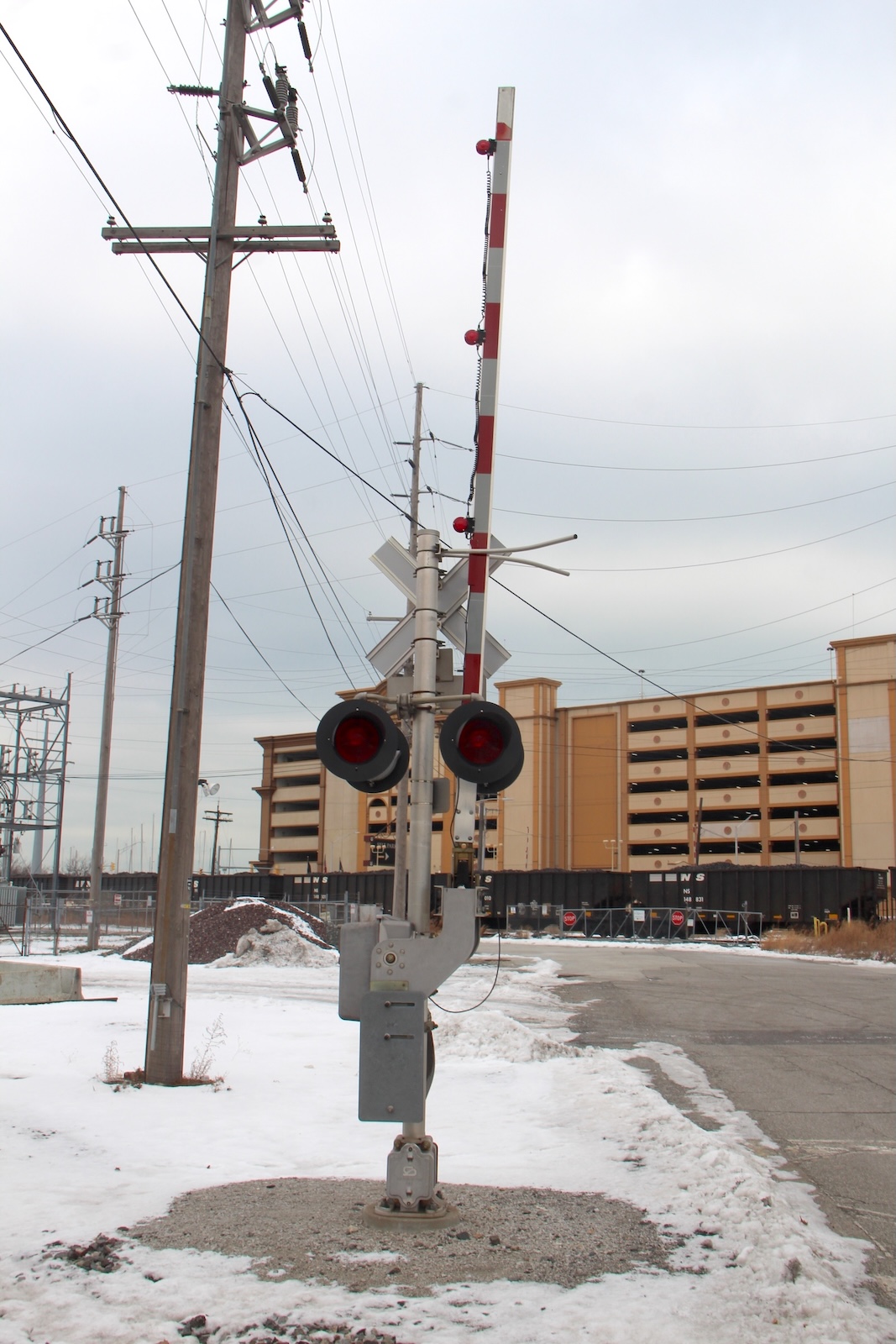

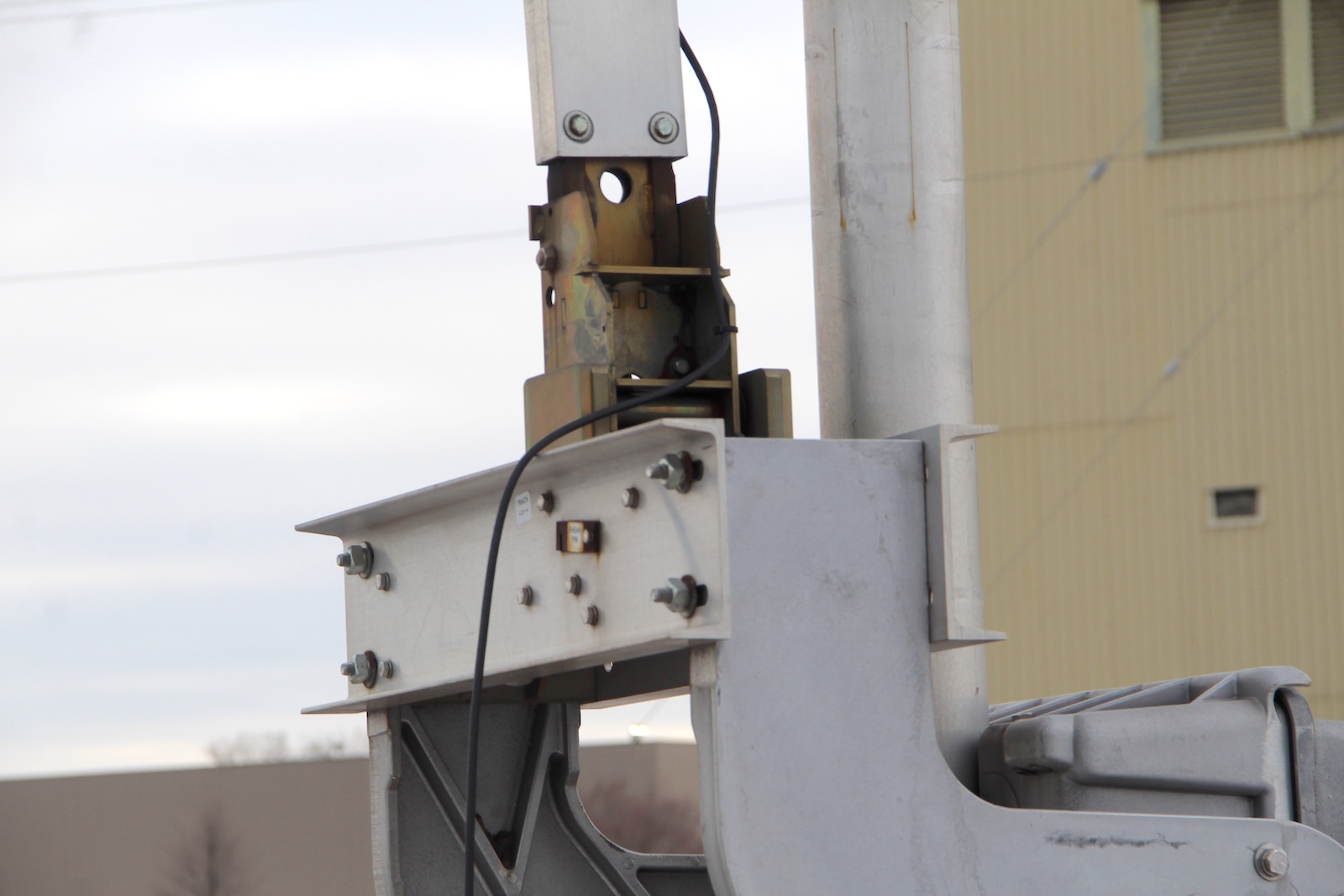

| The northern signal. |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |

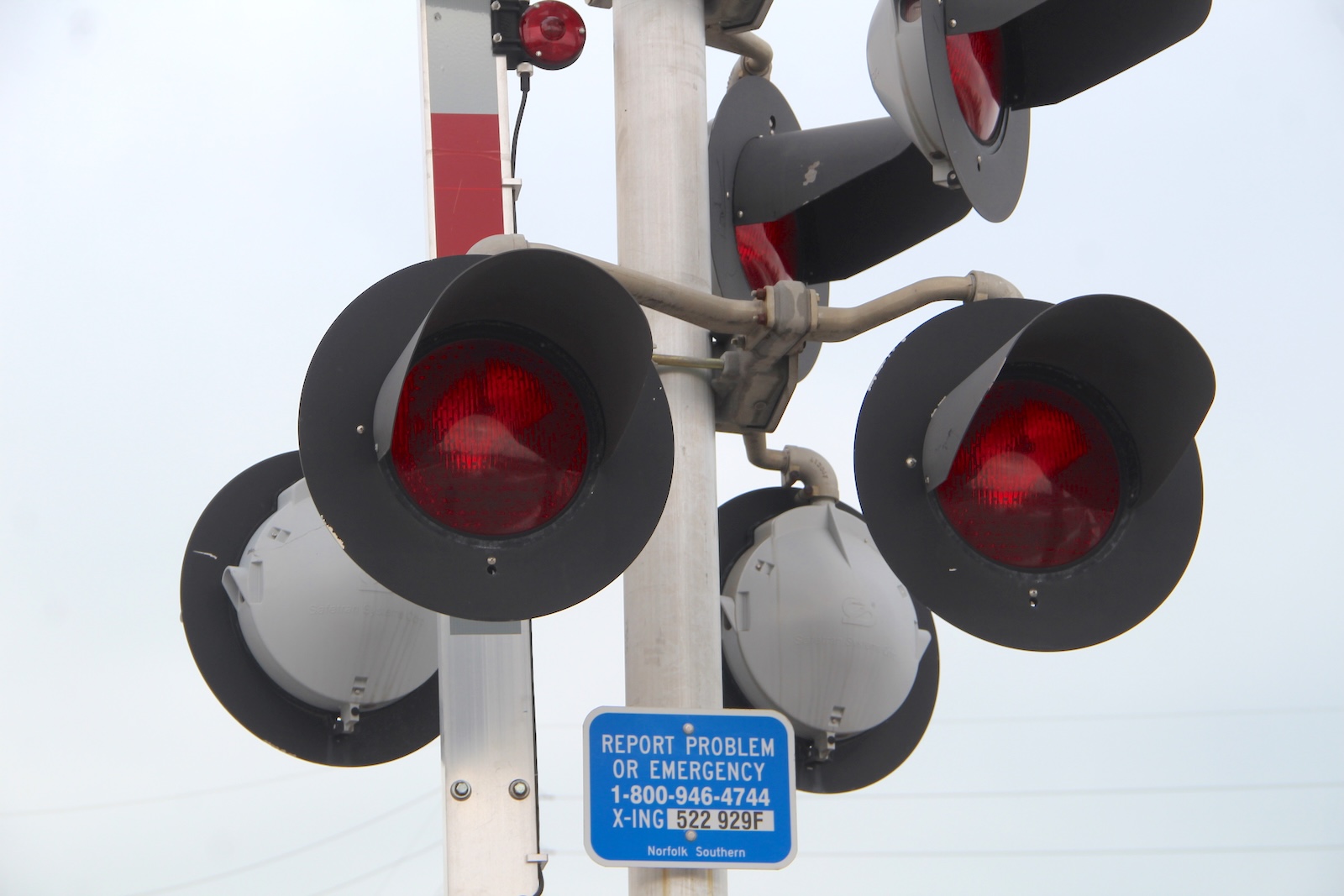

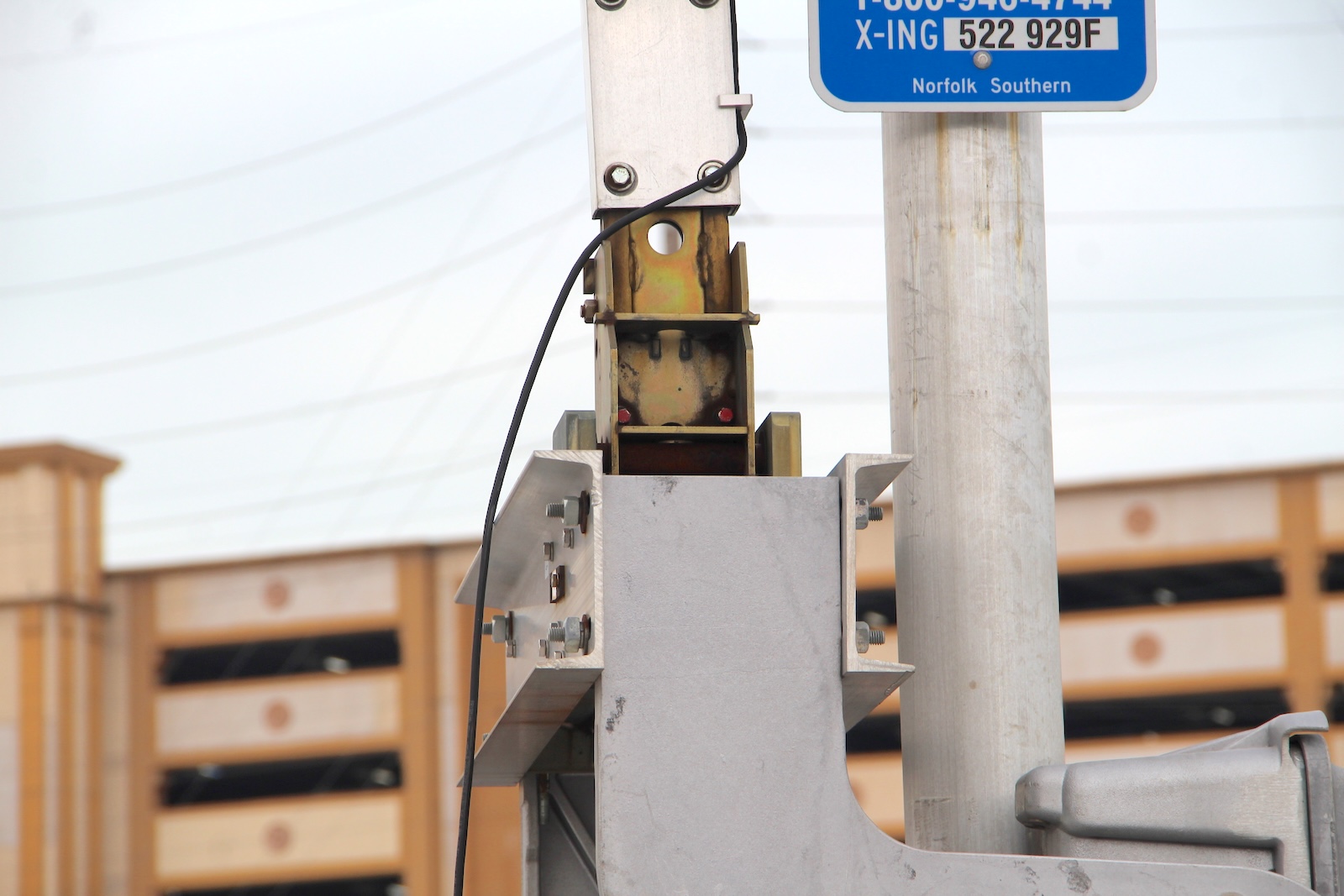

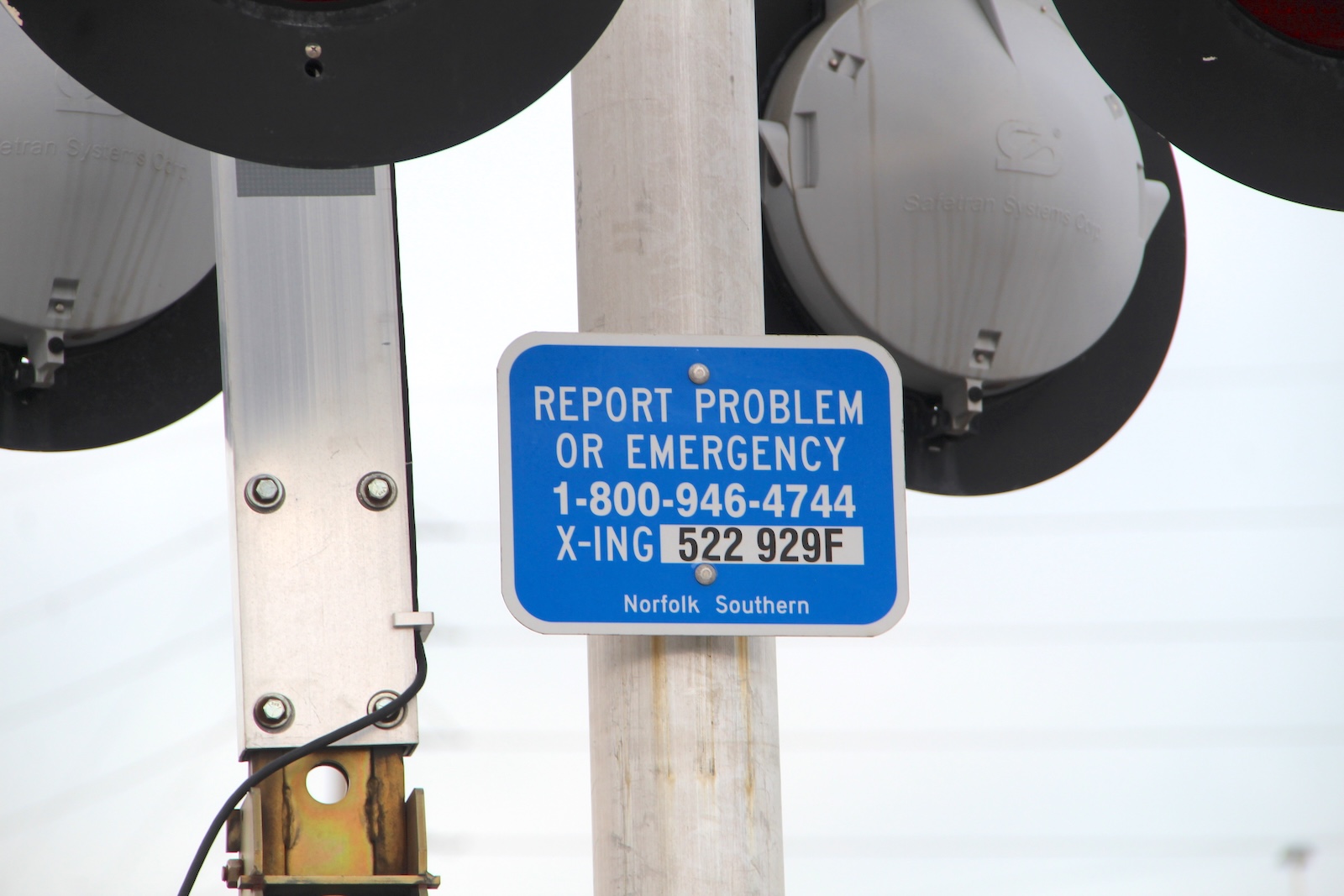

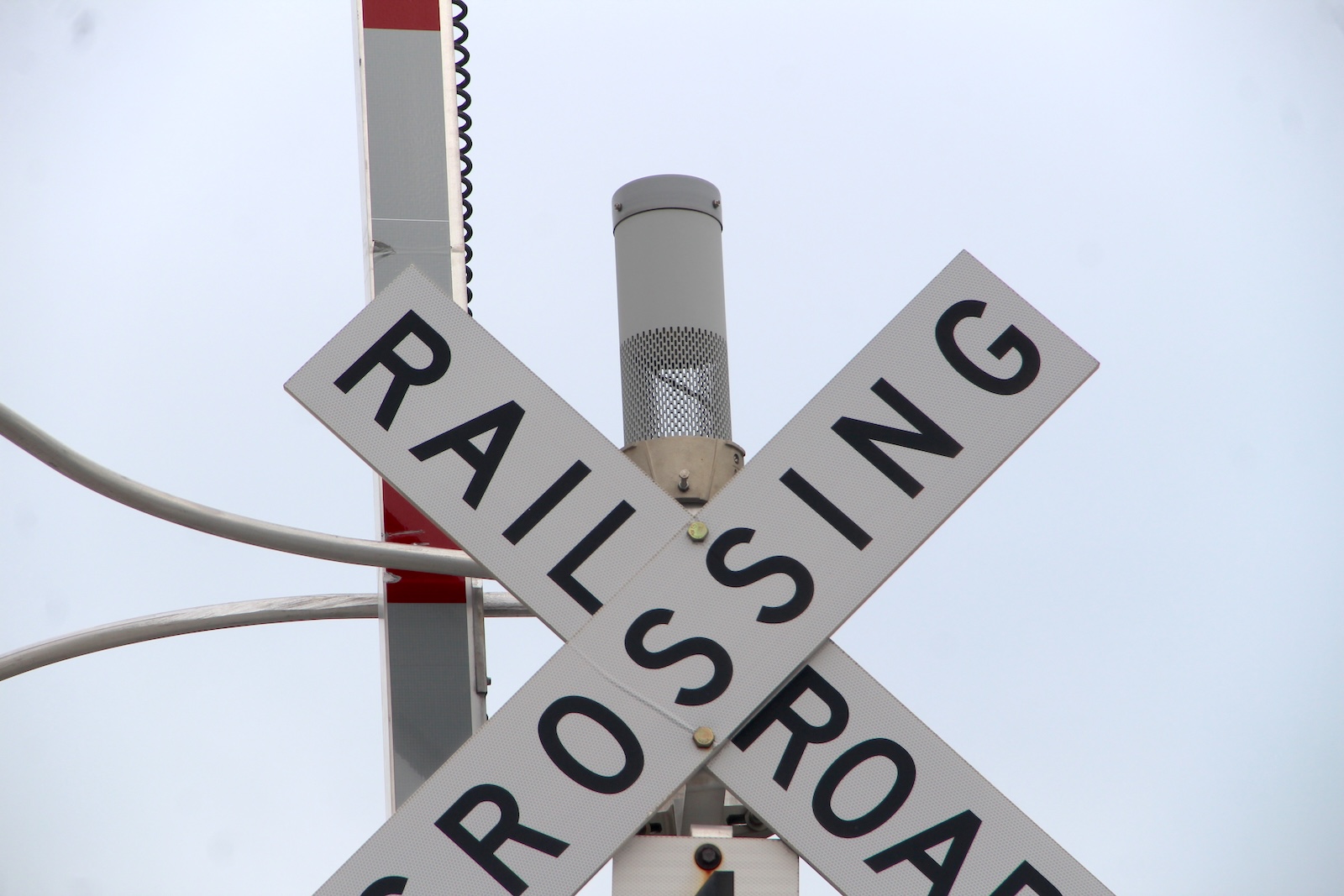

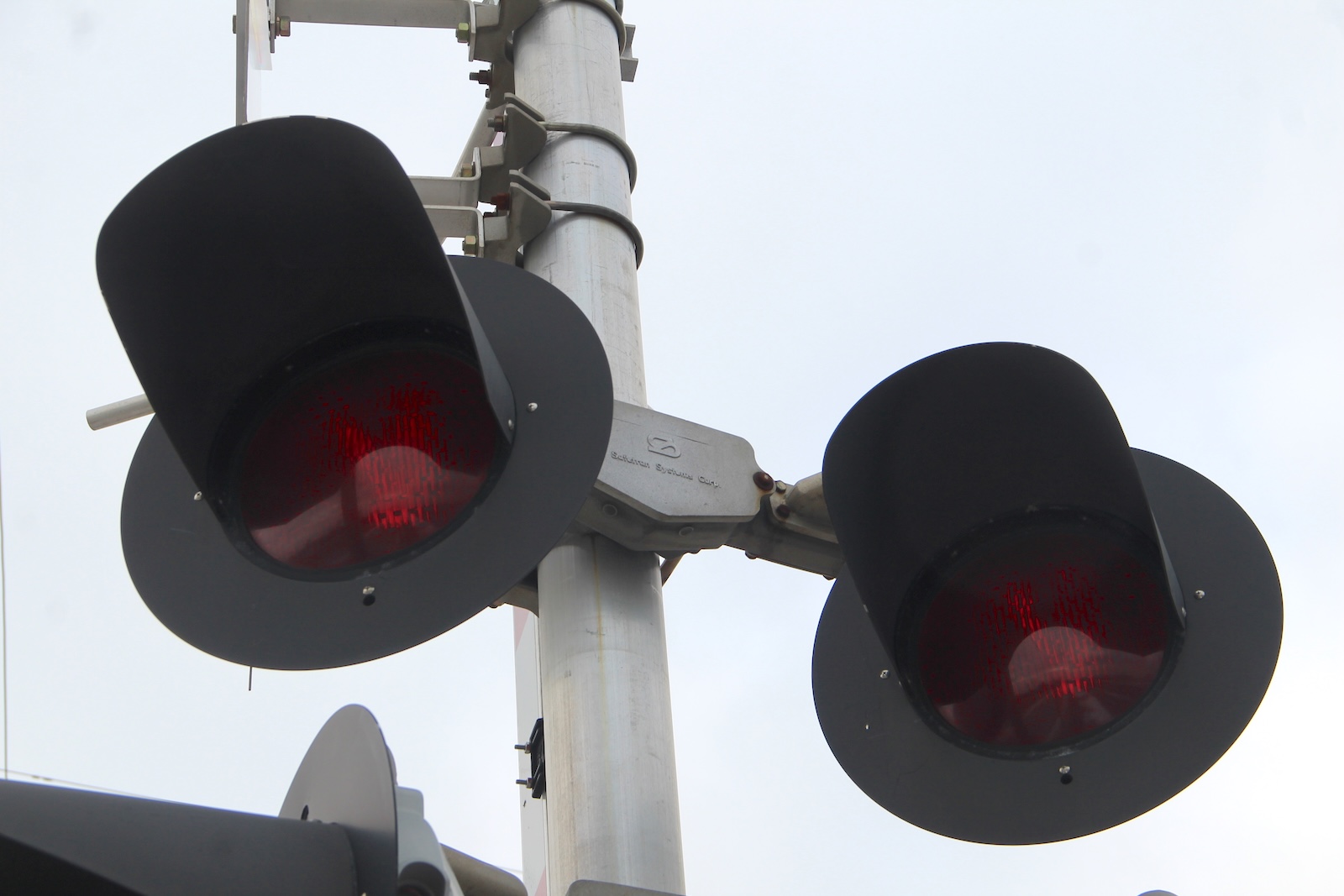

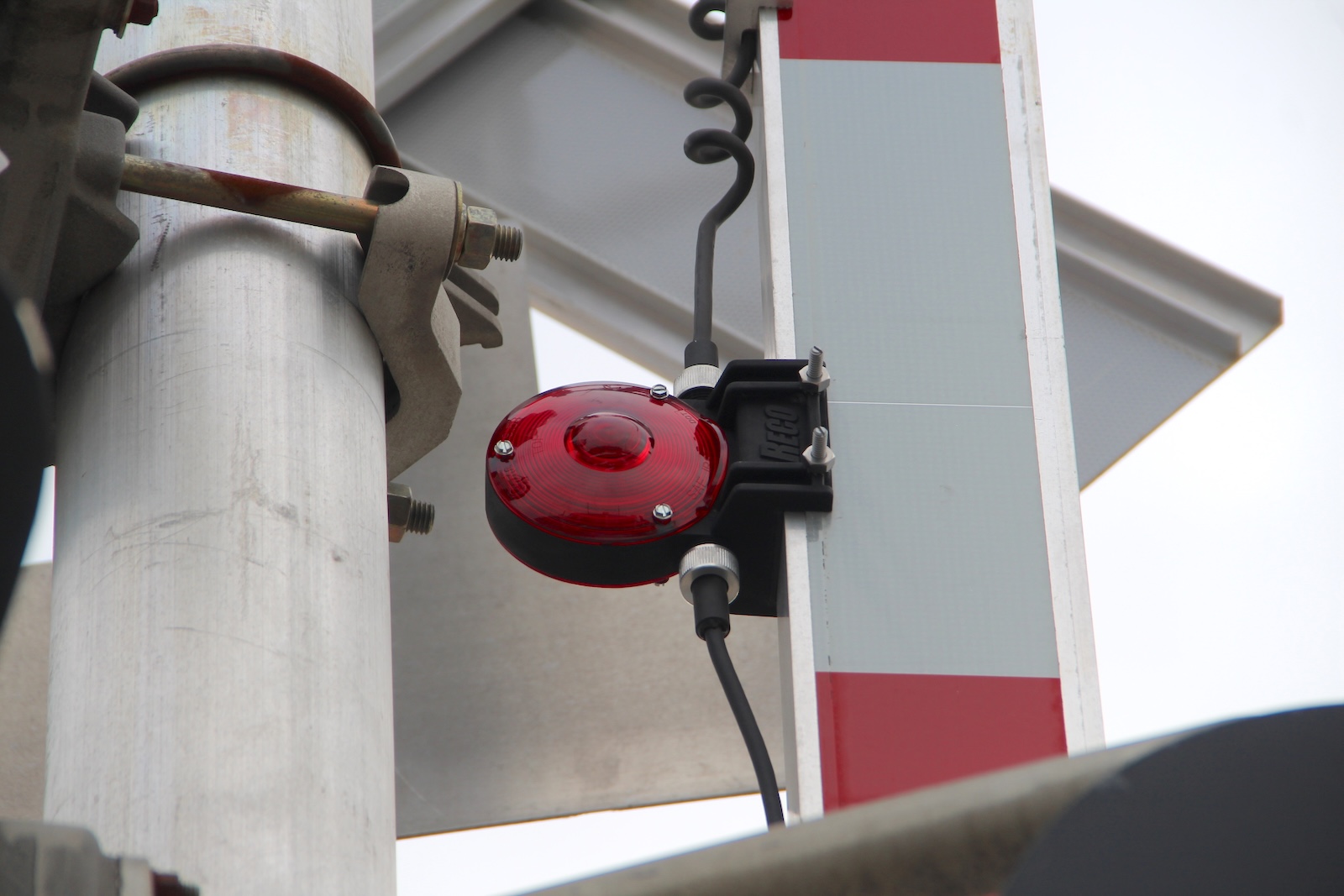

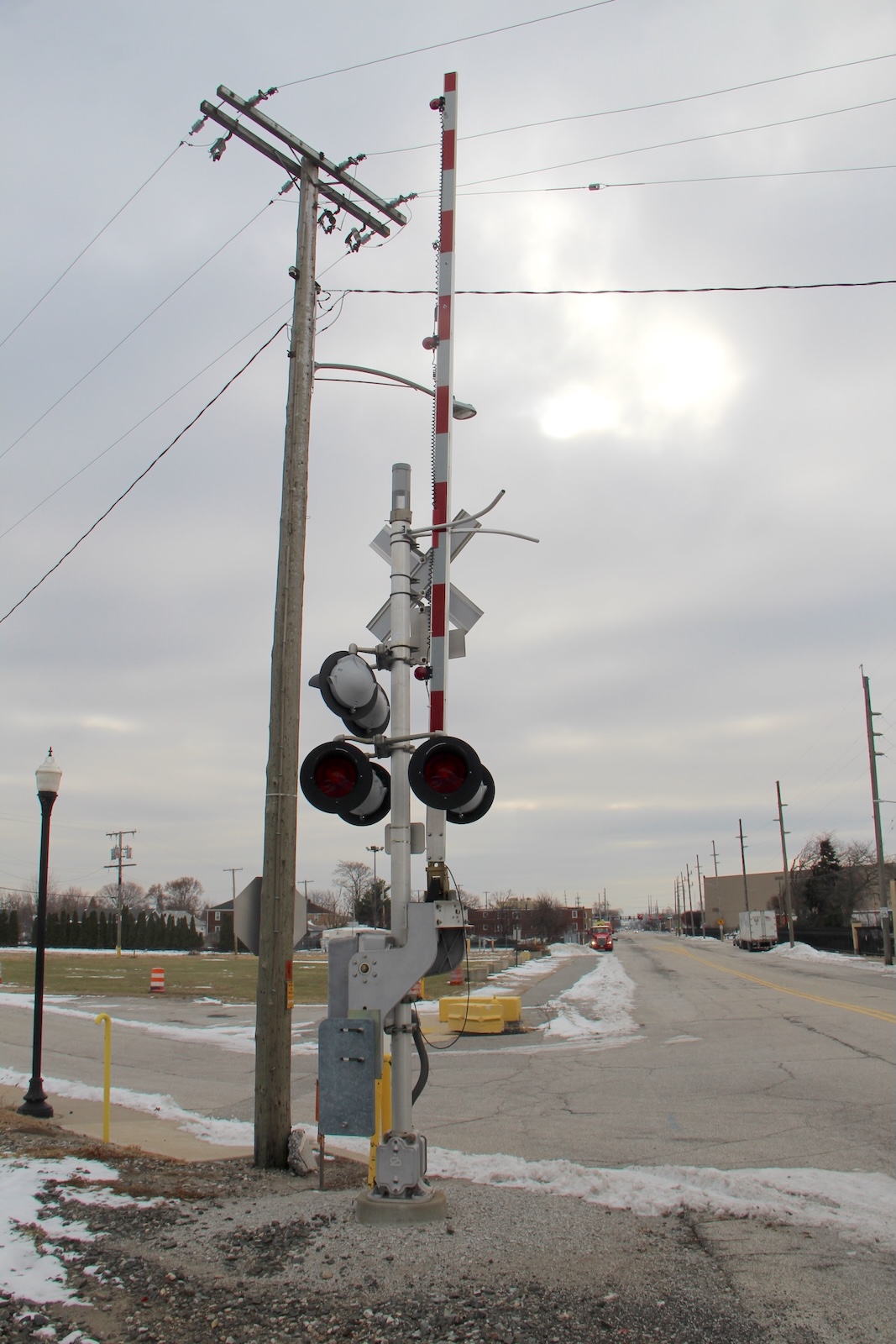

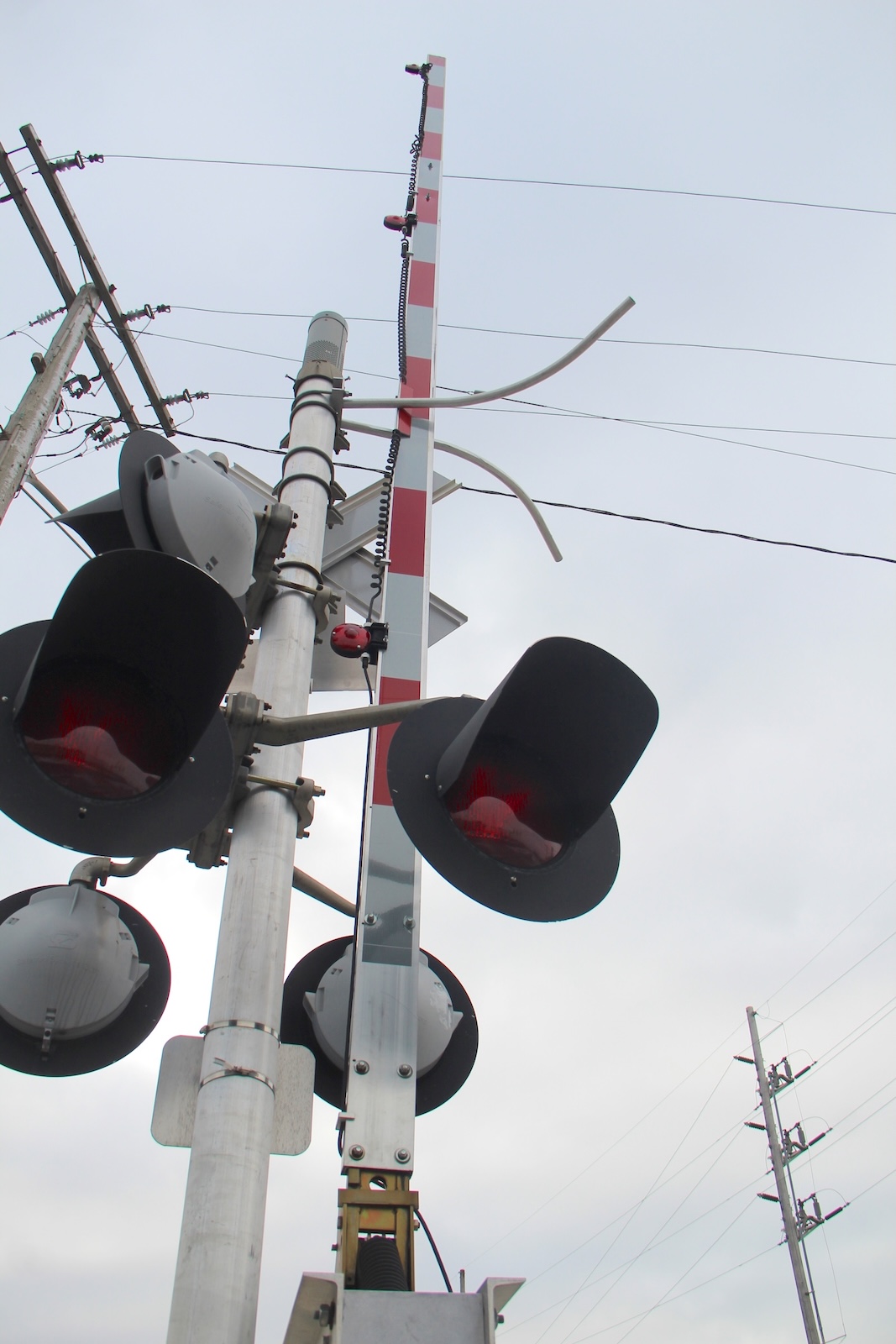

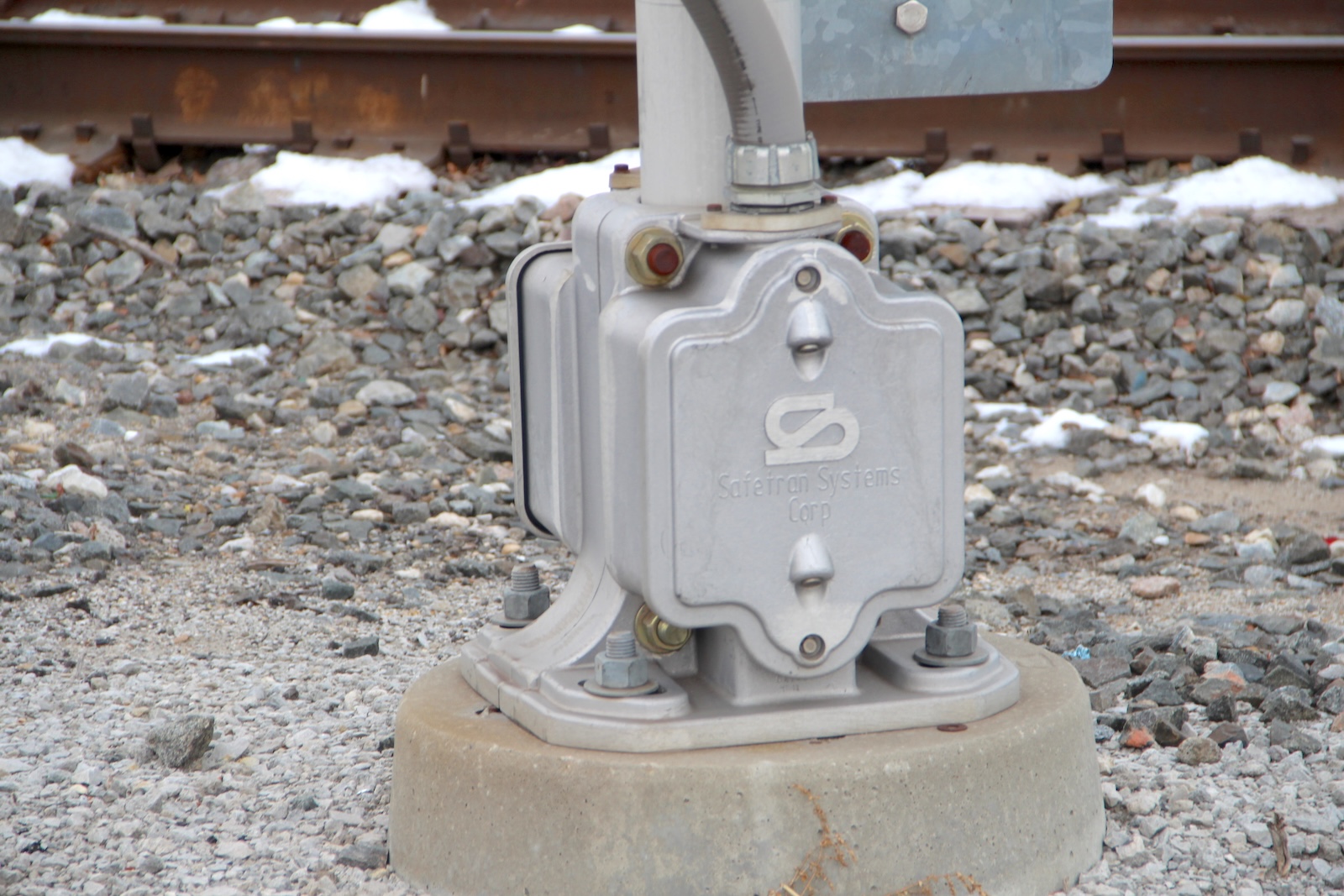

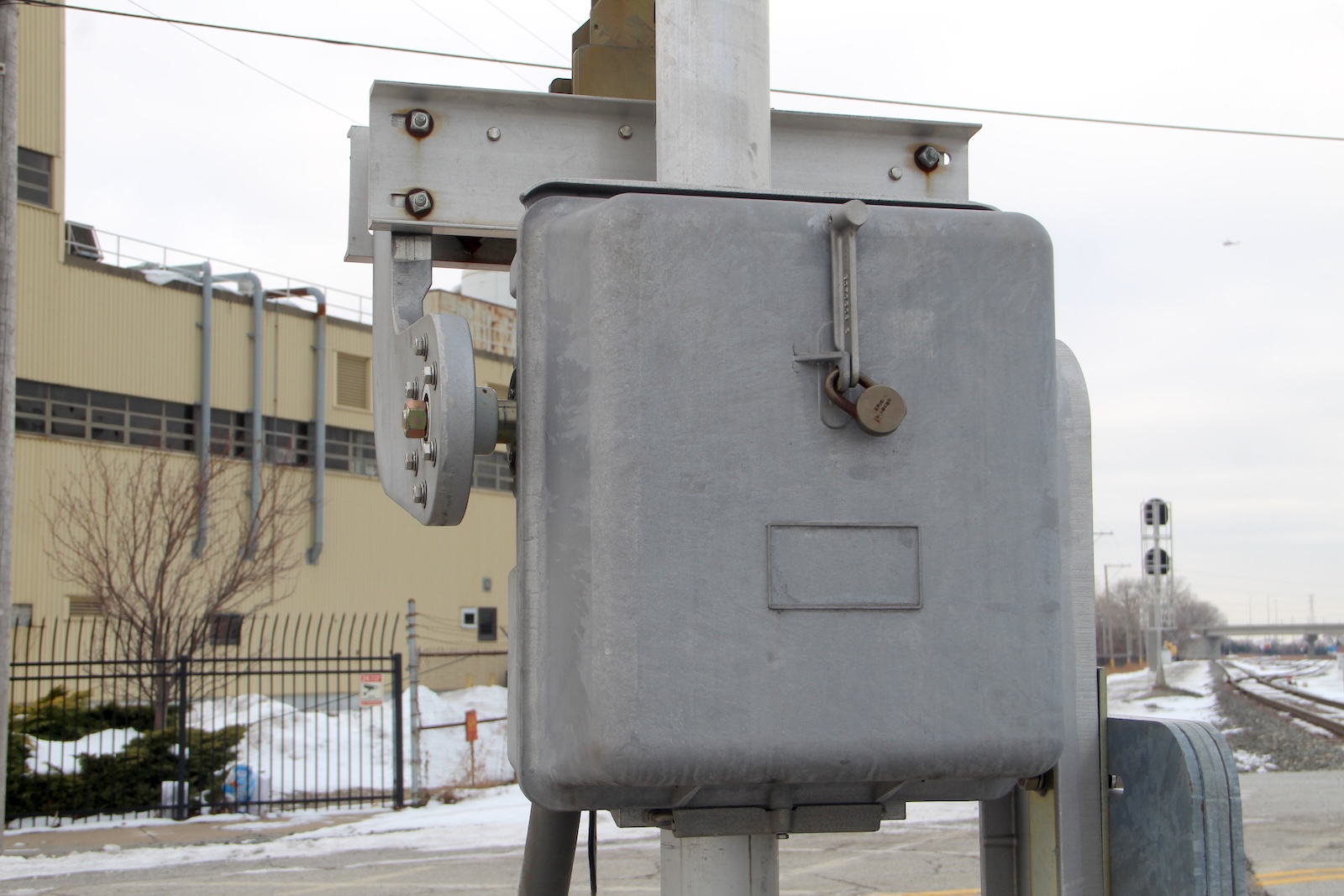

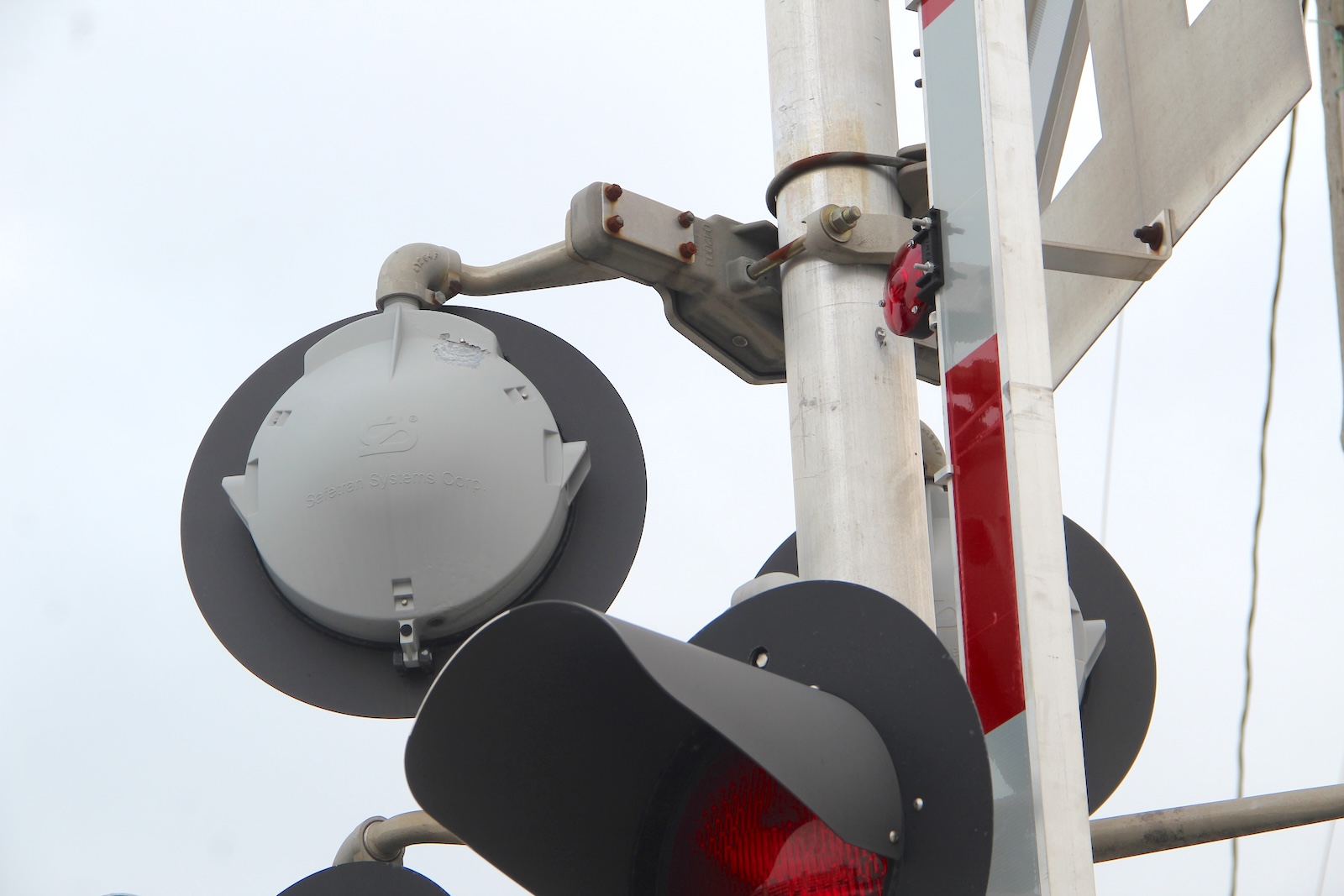

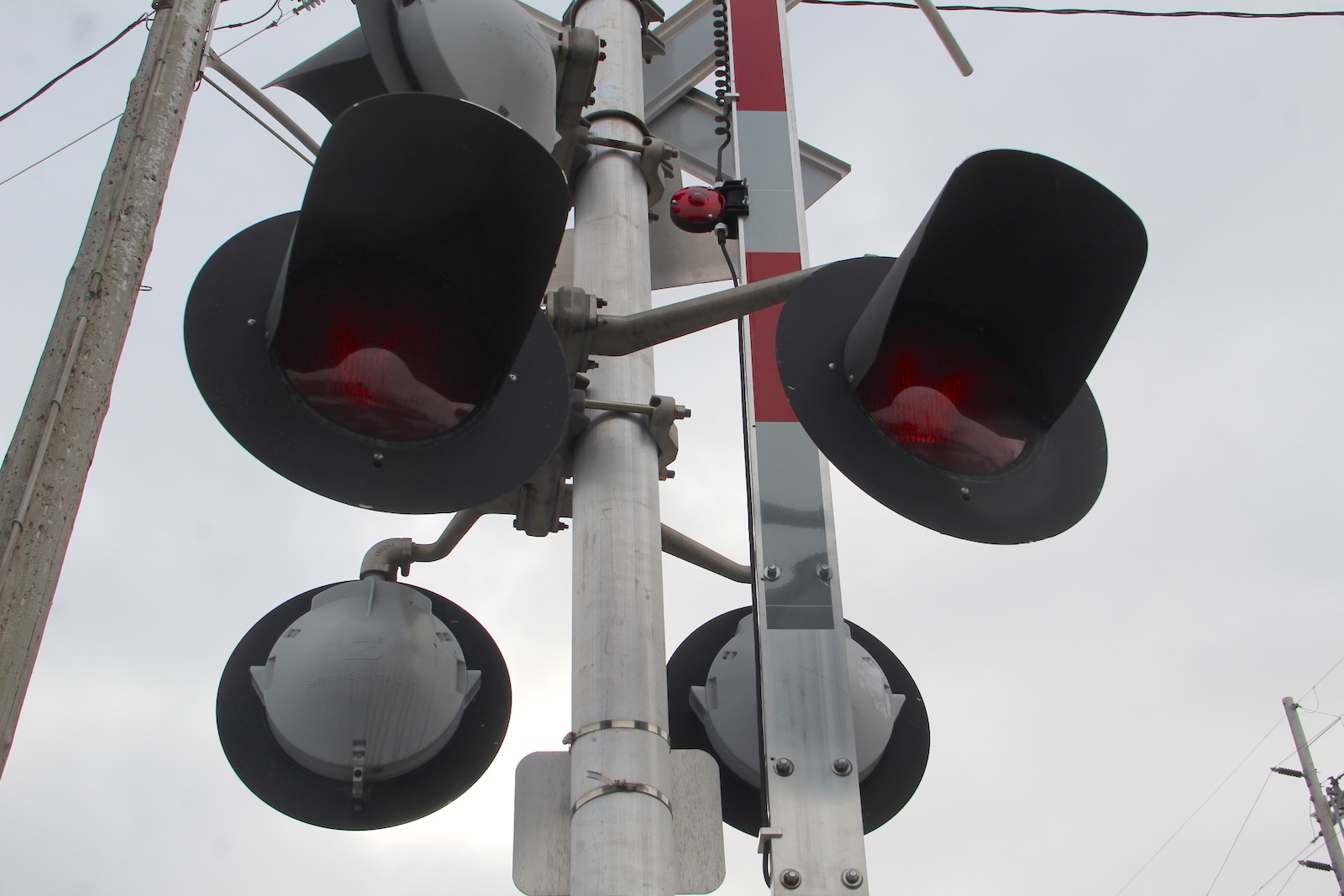

| The southern signal. |
28 |
29 |
30 |
31 |

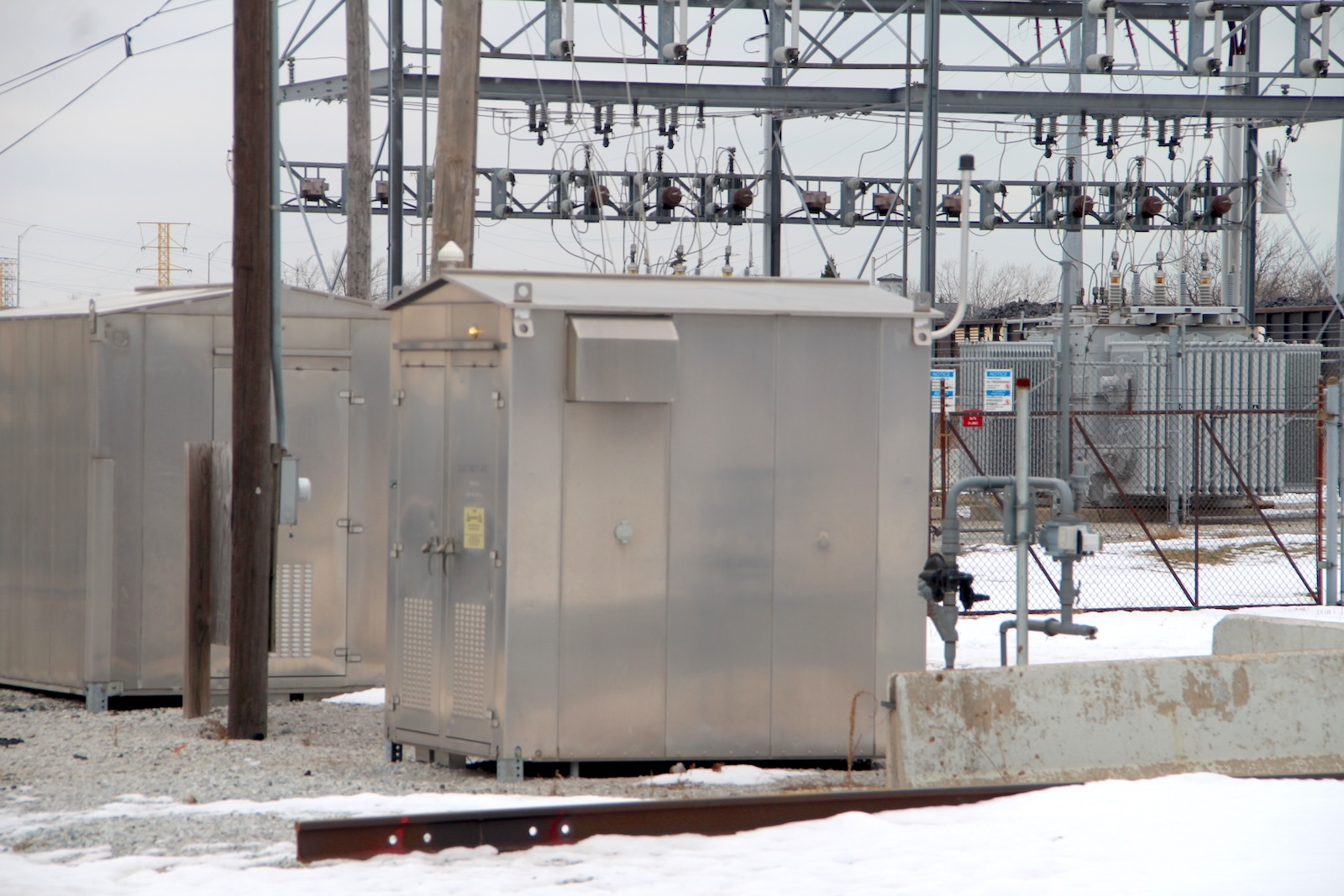

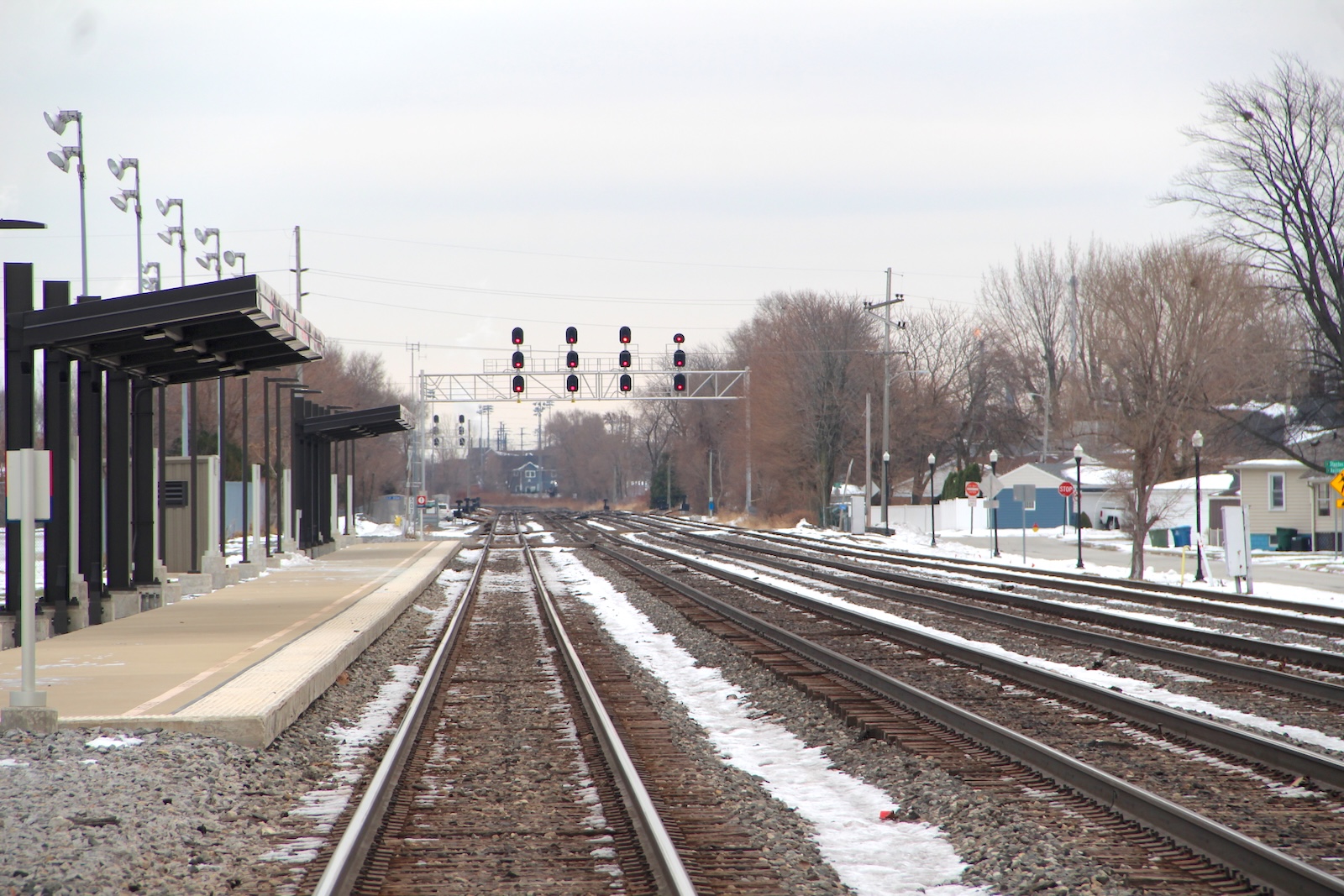

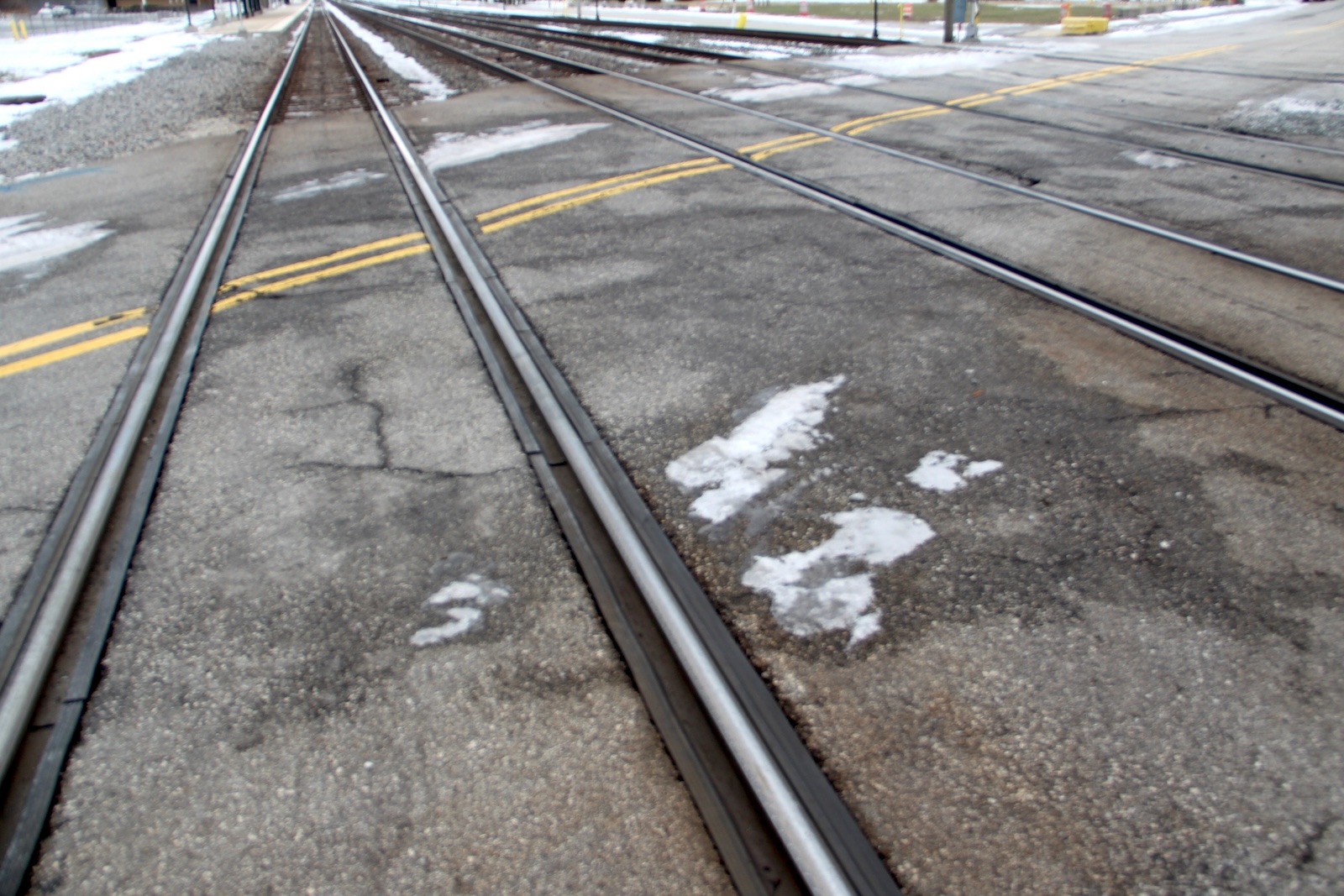

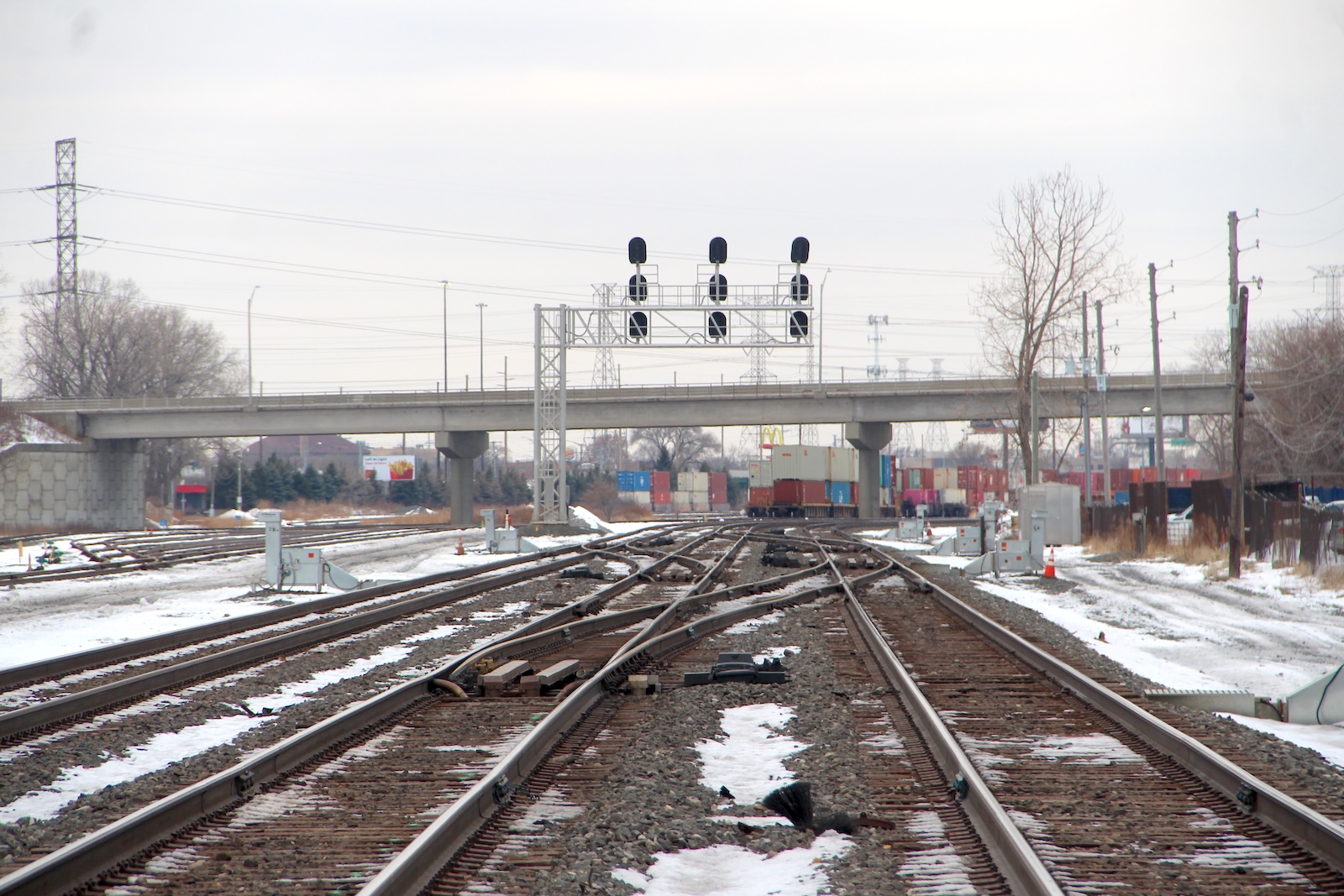

| The relay bungalow in the northwest quadrant. | The grade is rubber and asphalt. | Track view facing west towards Lumber St. in Chicago, IL. | Track view facing east towards Lake Ave. #3. |
32 |

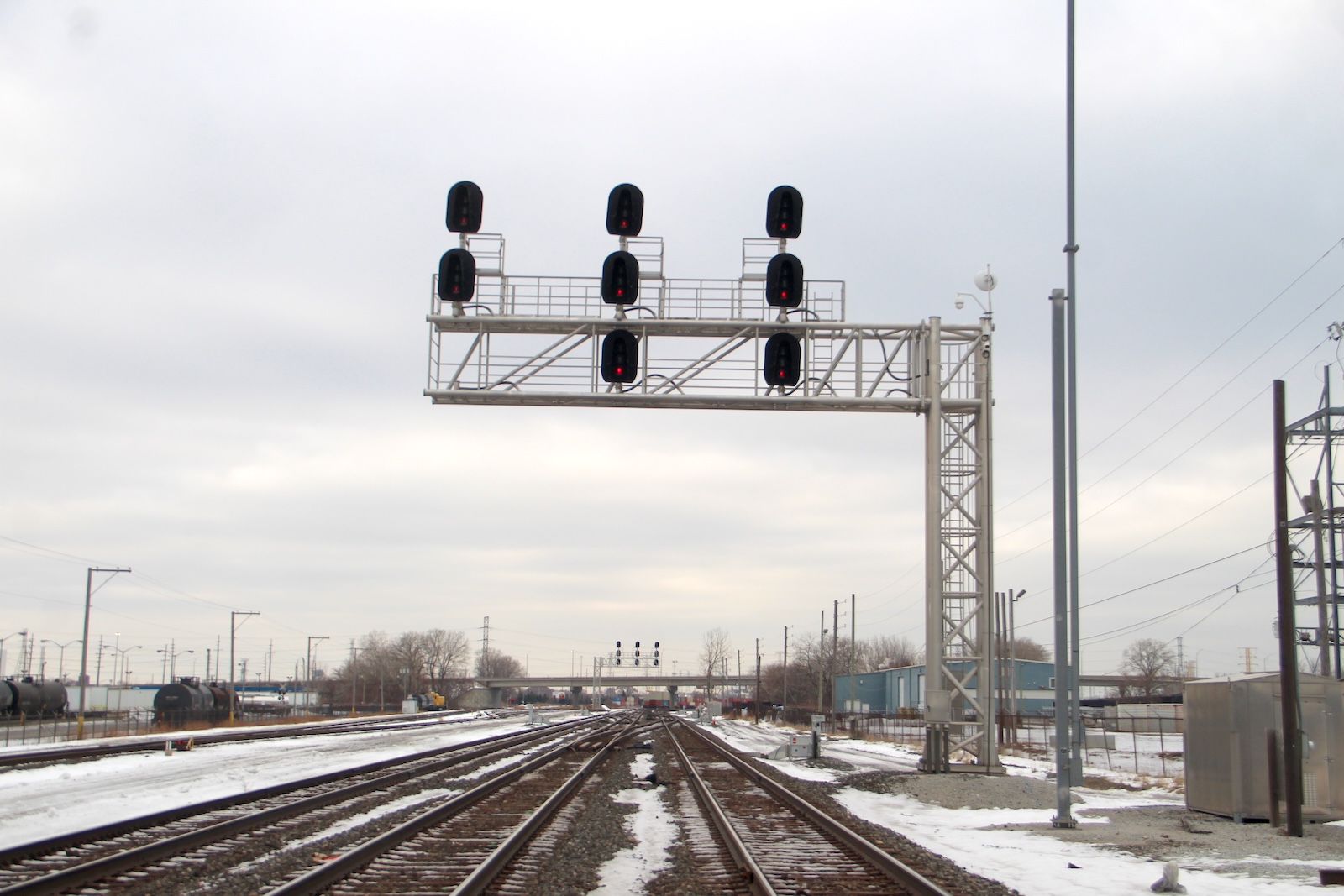

| A newer wayside signal next to the crossing. |
