MP: 17.44

Created November 2021

Total Accidents:   0
Crossing DOT #:  870415H
TOTAL DAILY TRAINS:  18   (AS OF 2019)

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: NEG E-Bell WCH Mechanical Bell 2nd Gen
Base: L&W 5" Single Sided ^ L&W 5" Single Sided ^

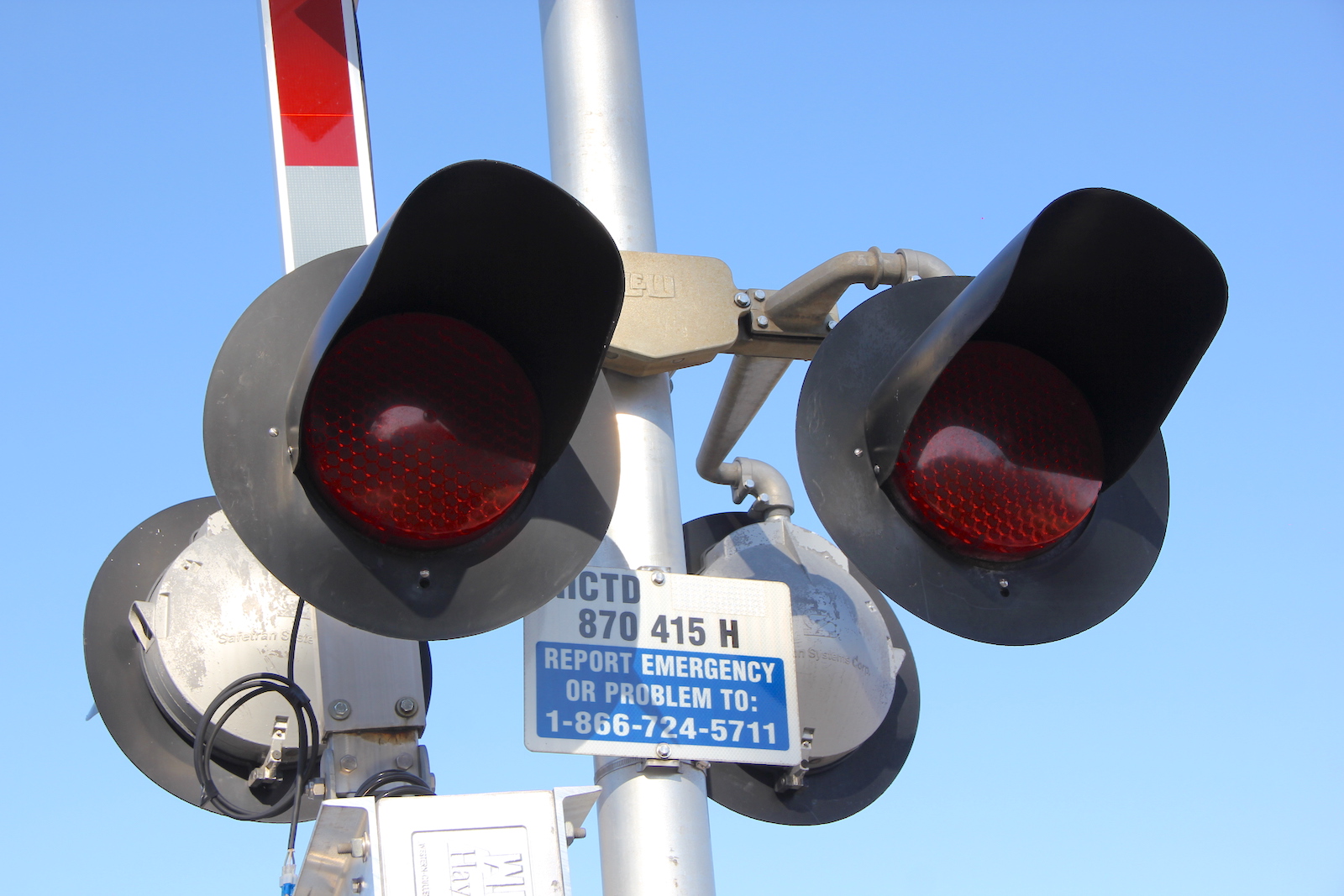

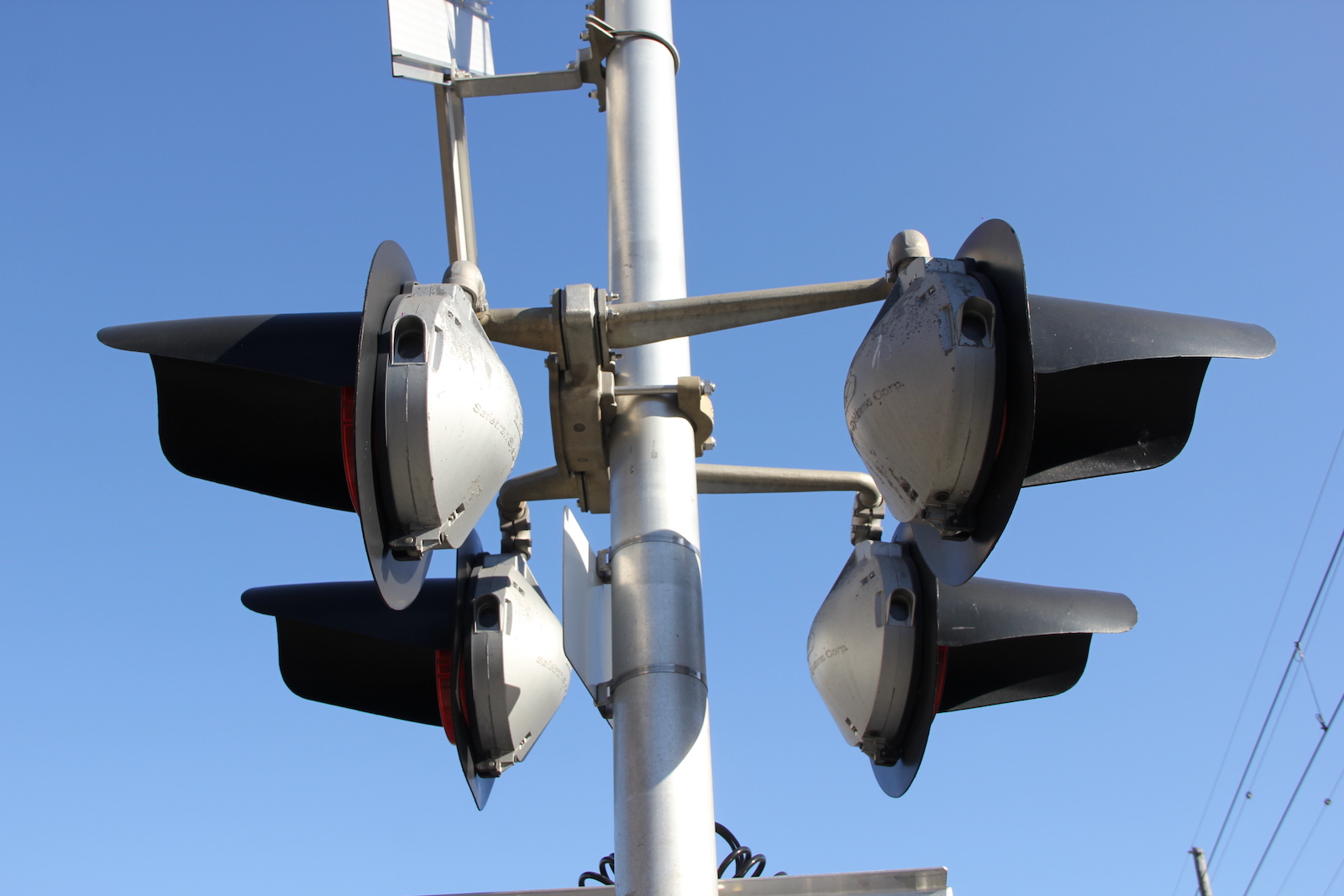

Lights: 4 - 12"x20" Safetran w/ Safetran Fading LEDs 4 - 12"x20" Safetran w/ Safetran Fading LEDs

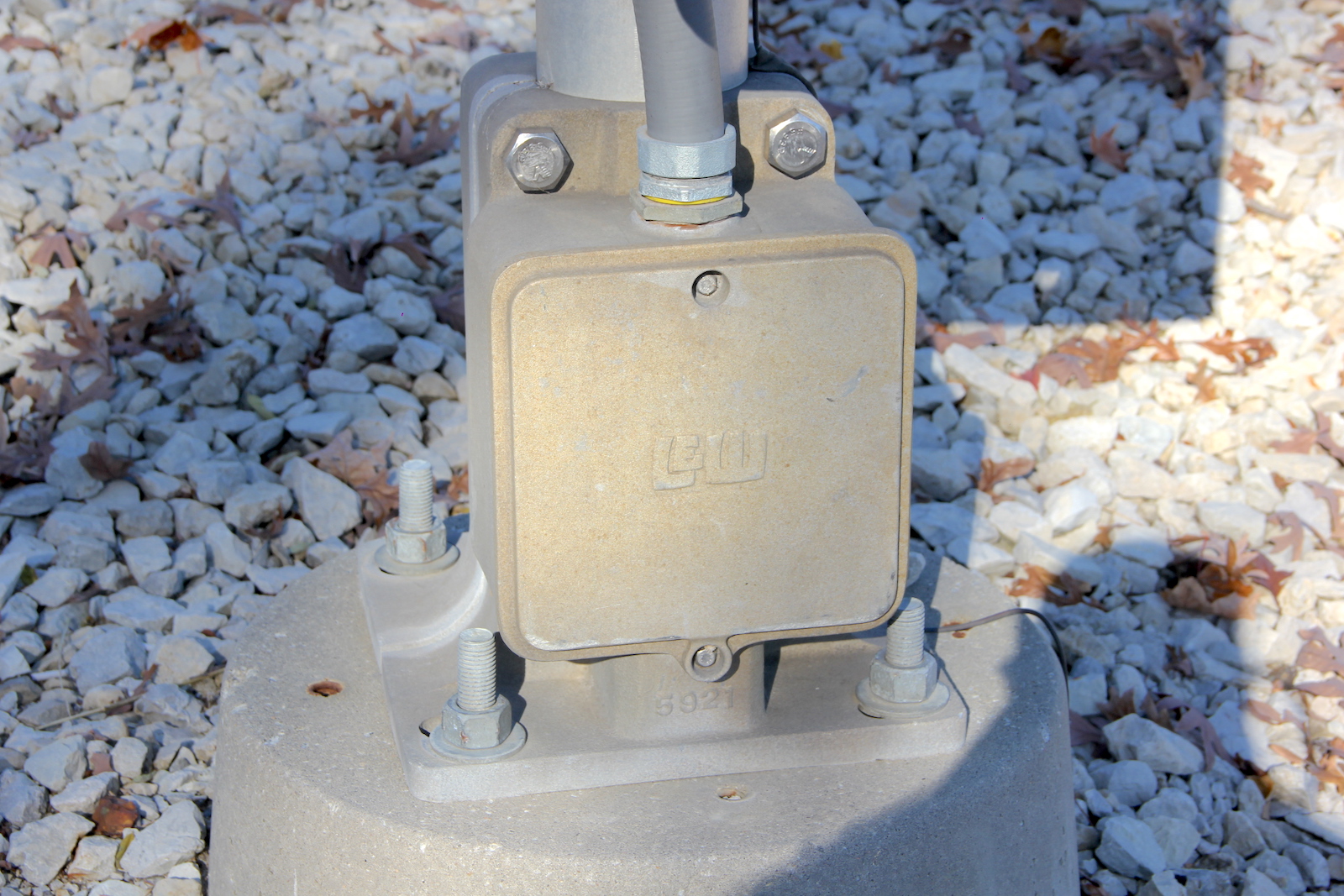

Junction Box: L&W L&W
Gate Lights: 3 - 4" RECO 3 - 4" RECO
Gate Mechanism: WCH Style 4 w/ GSI Gate Saver WCH Style 4 w/ GSI Gate Saver
Gate Striping: Vertical Striping Vertical Striping

All pictures were taken on November 7, 2020, by Tommy McGowan.
This crossing is located on the South Shore Mainline.

1 2

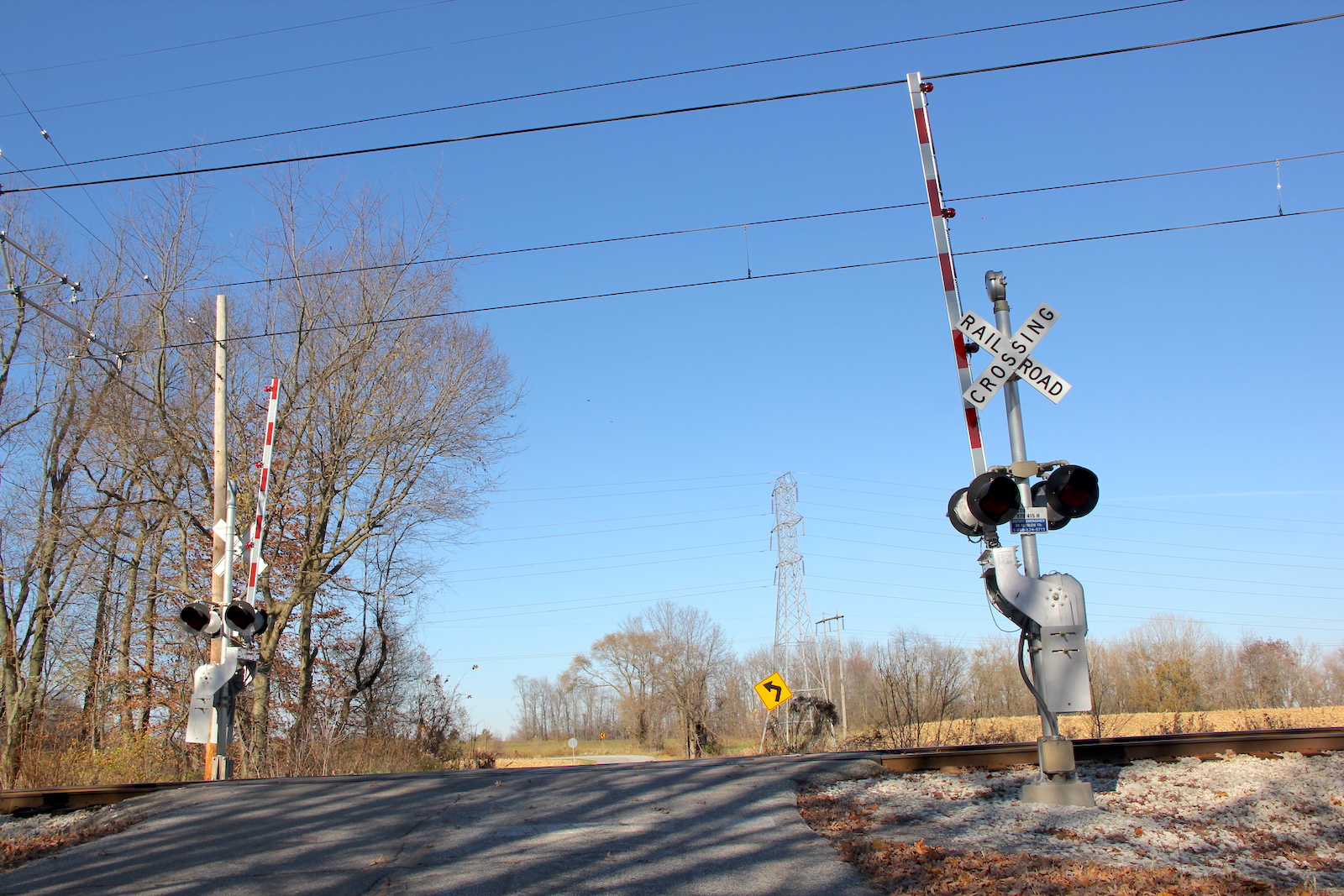

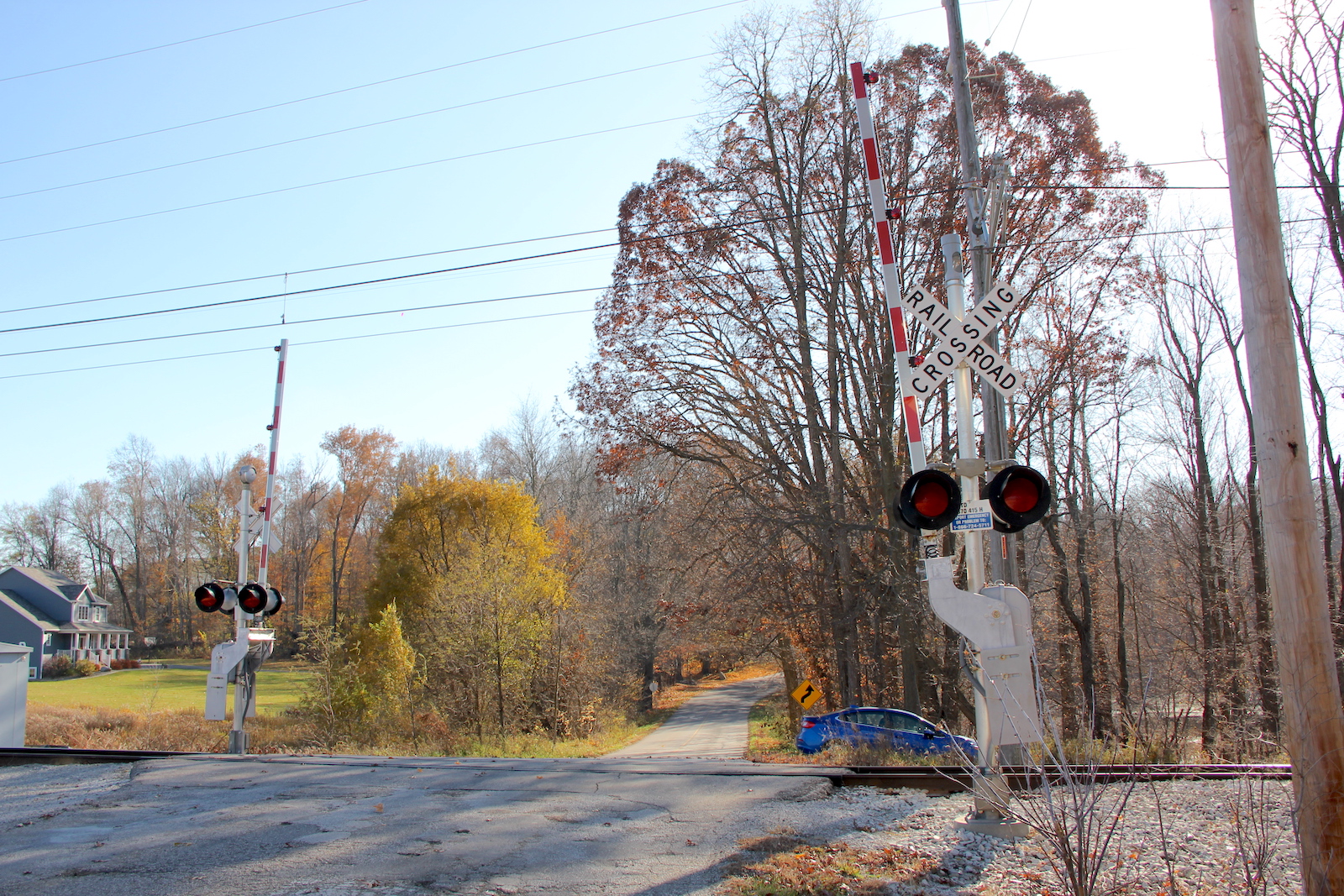

Overview of 2 gated signals facing south. Overview facing north.
3 4 5
6 7 8
9 10 11 12

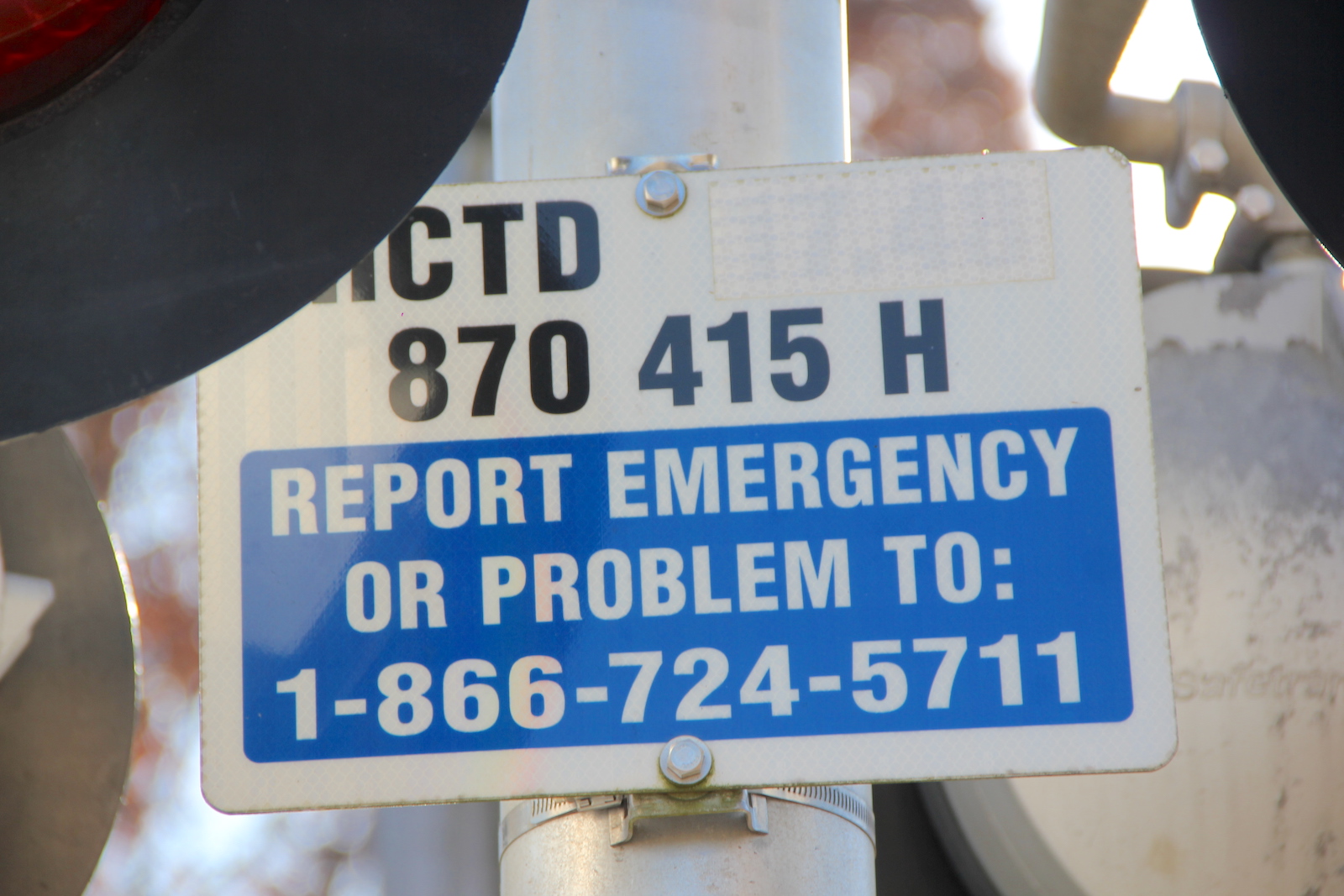

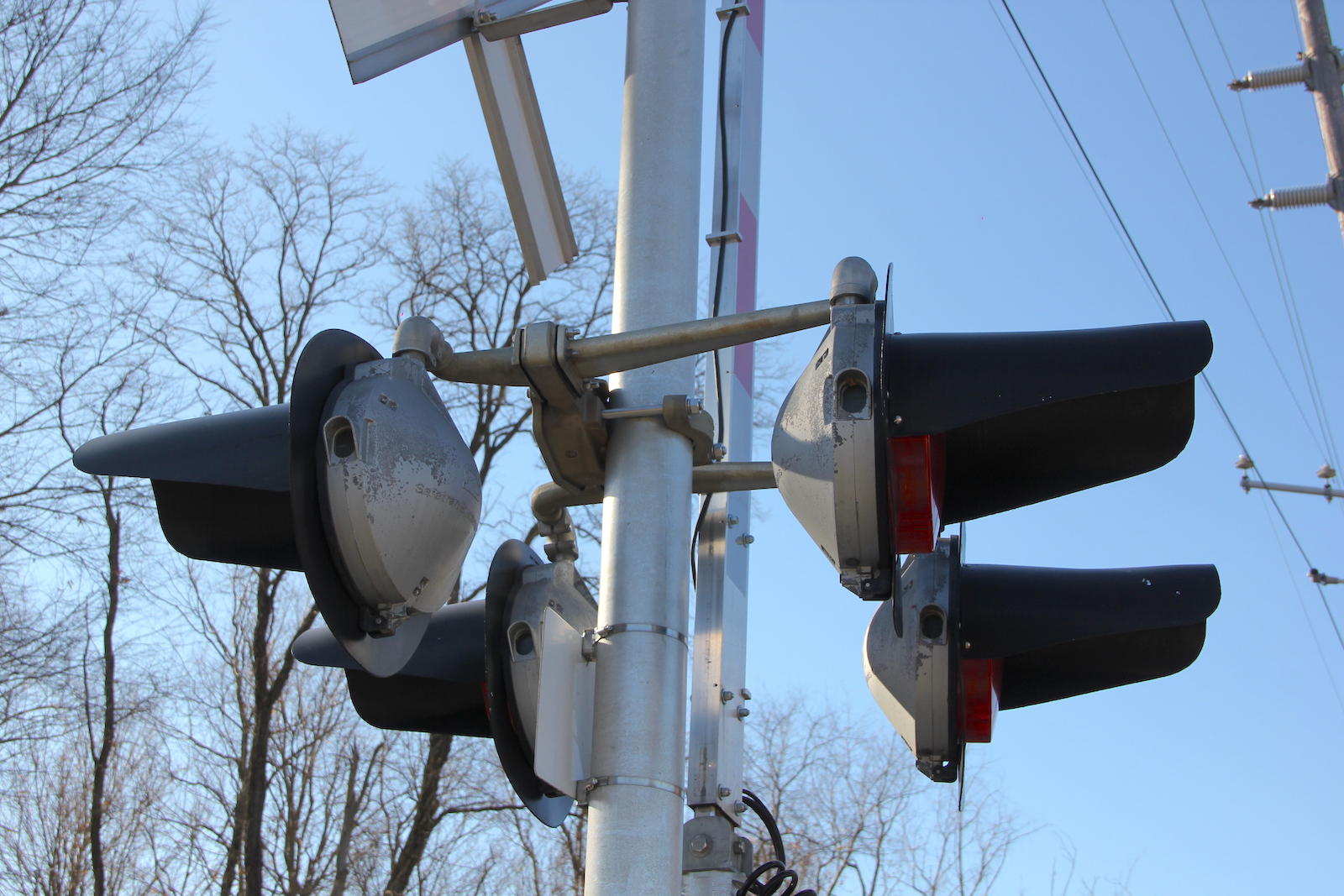

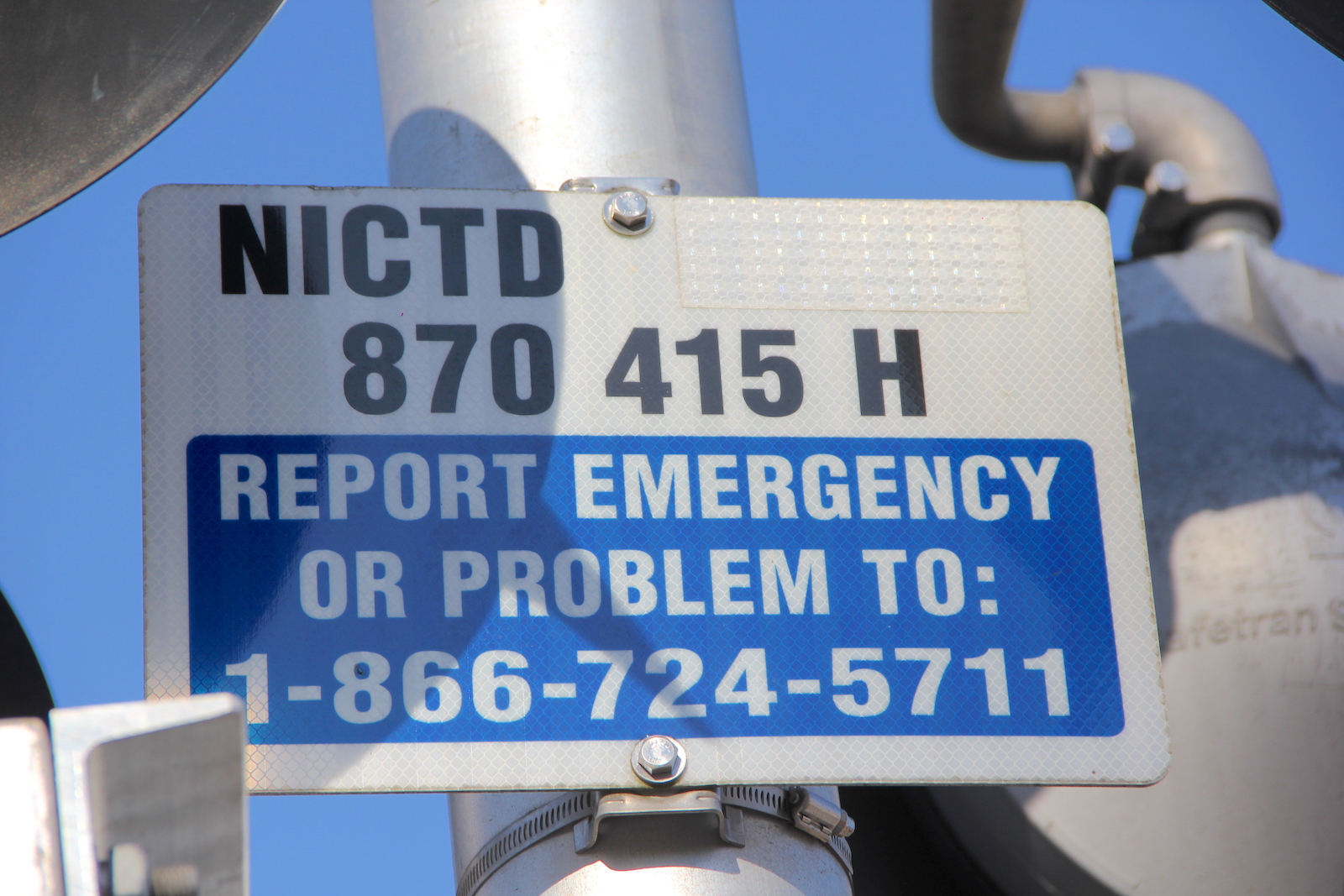

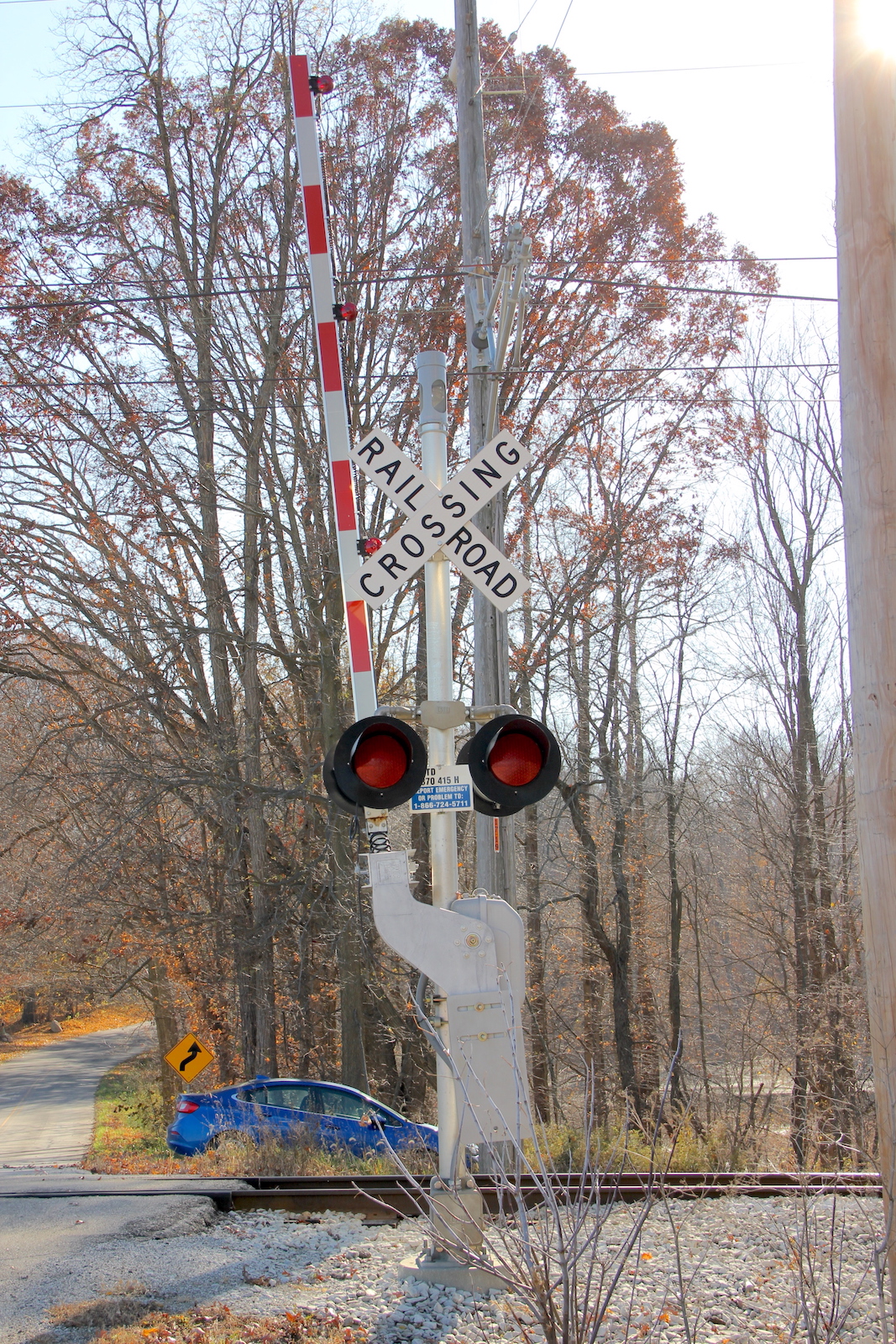

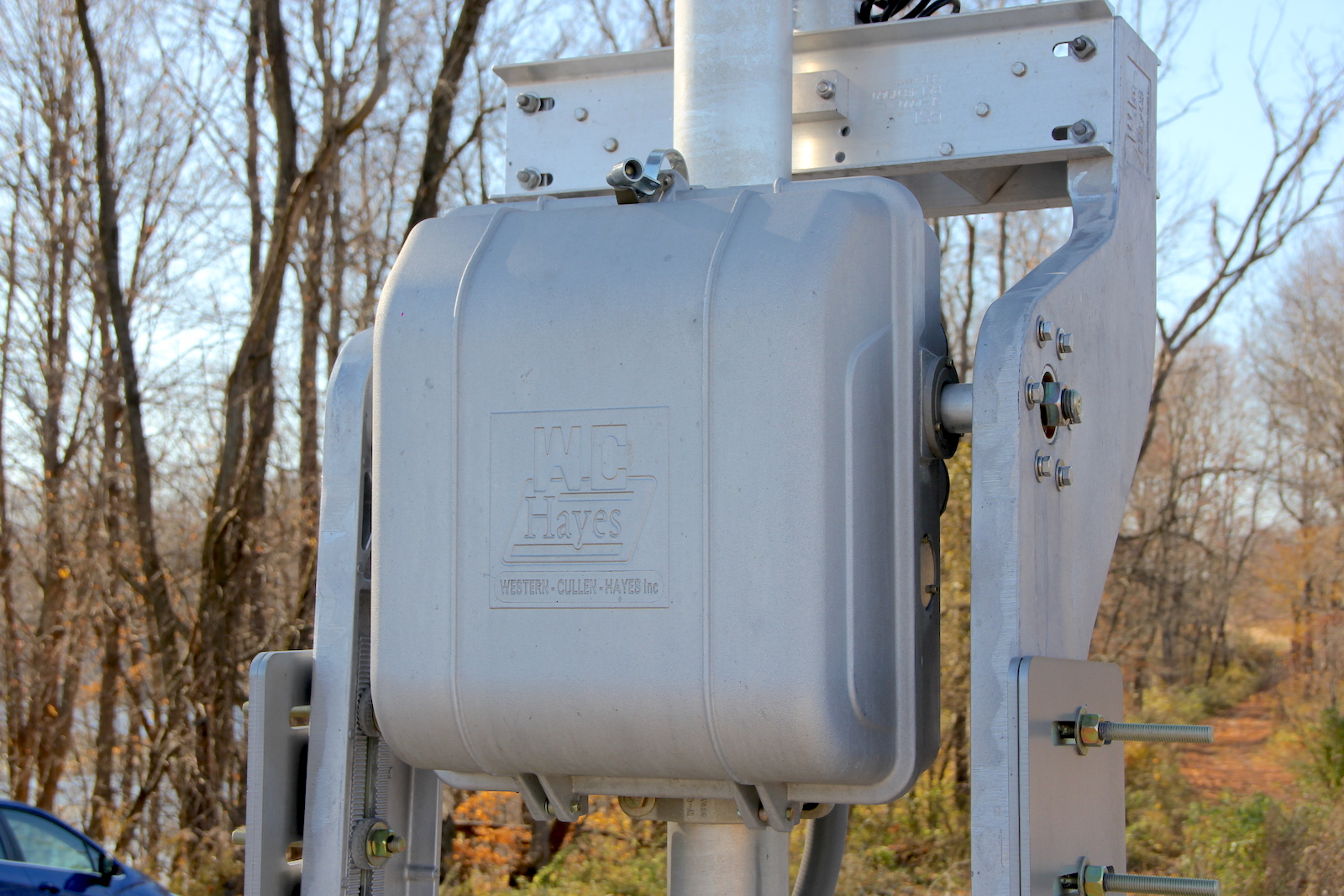

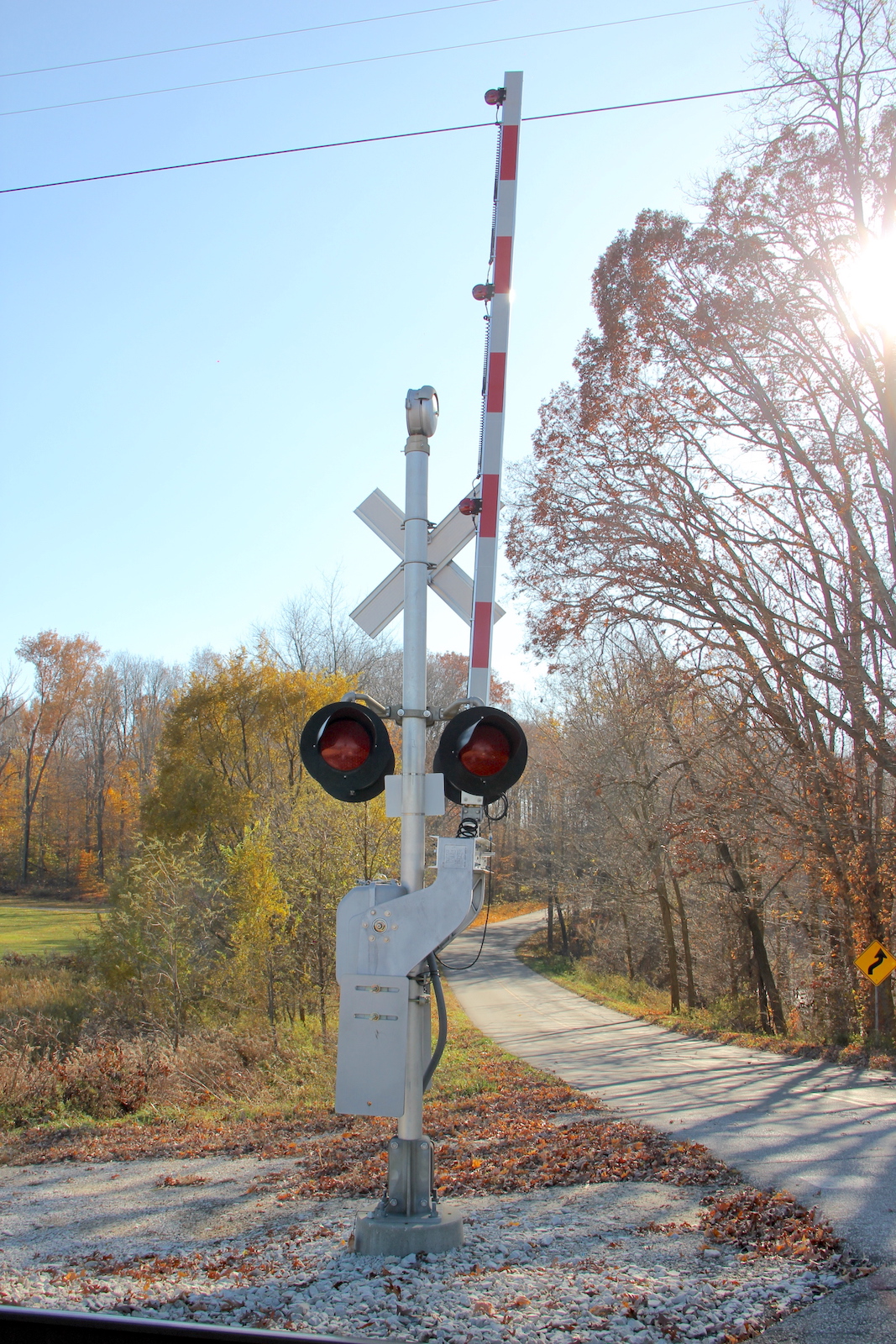

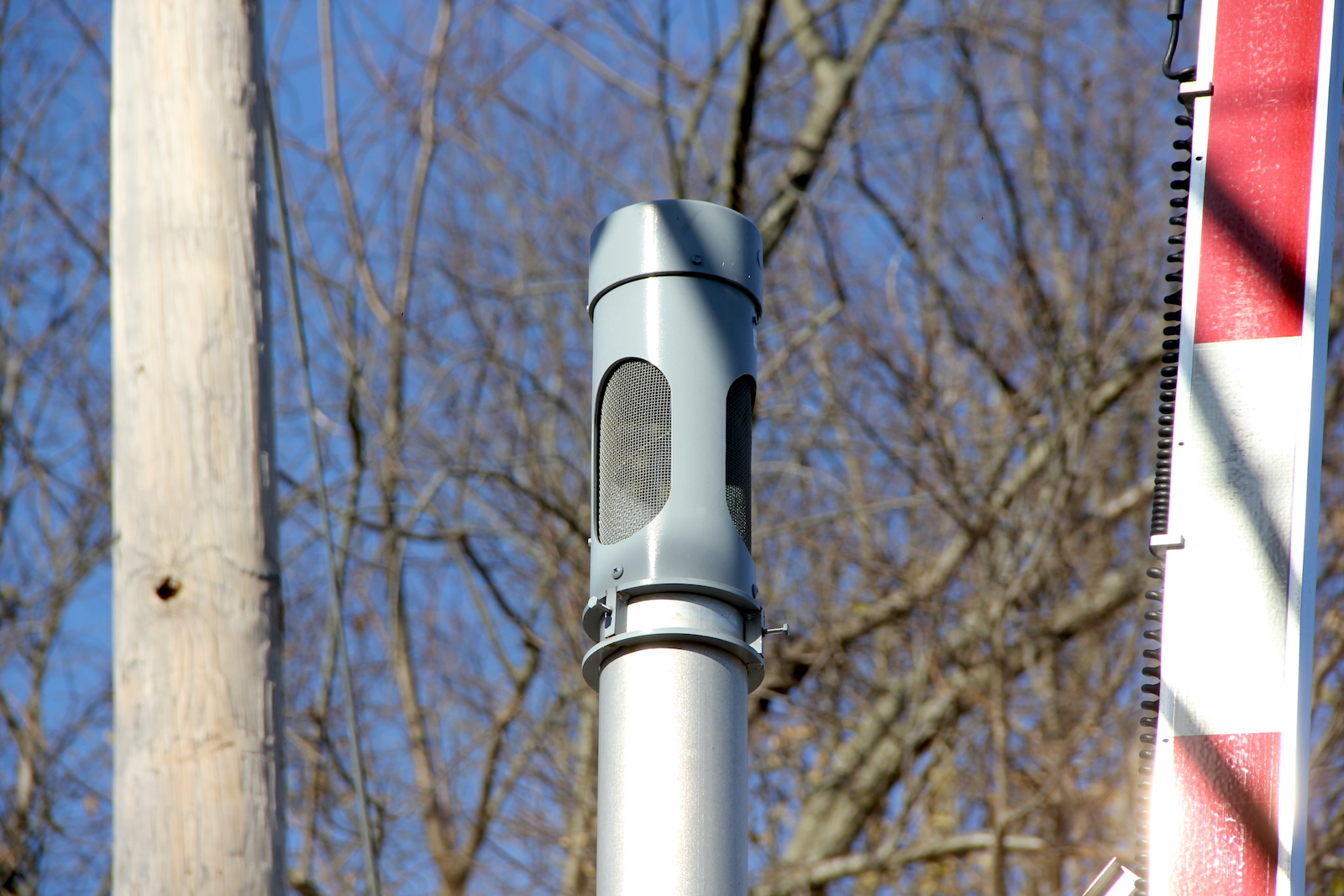

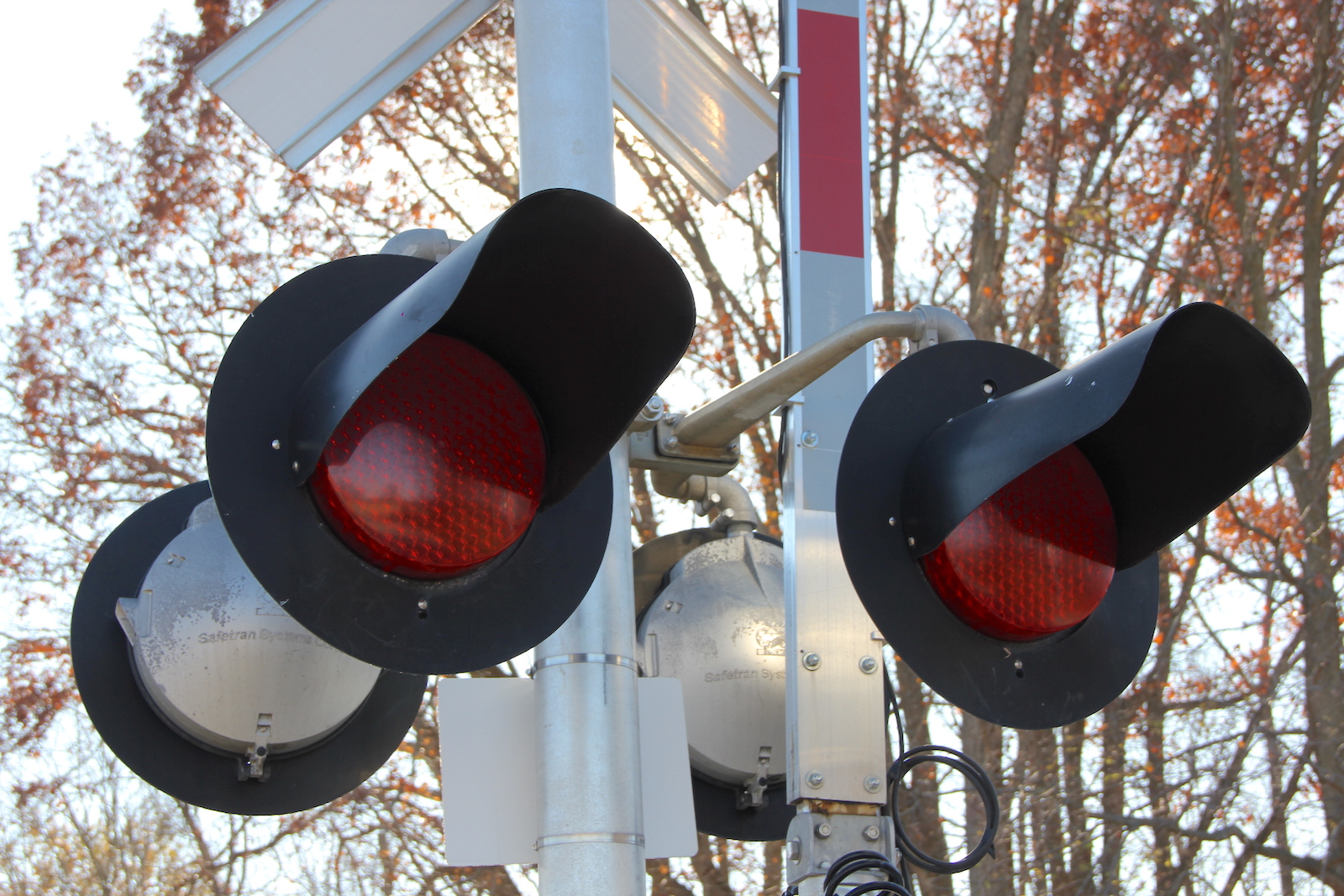

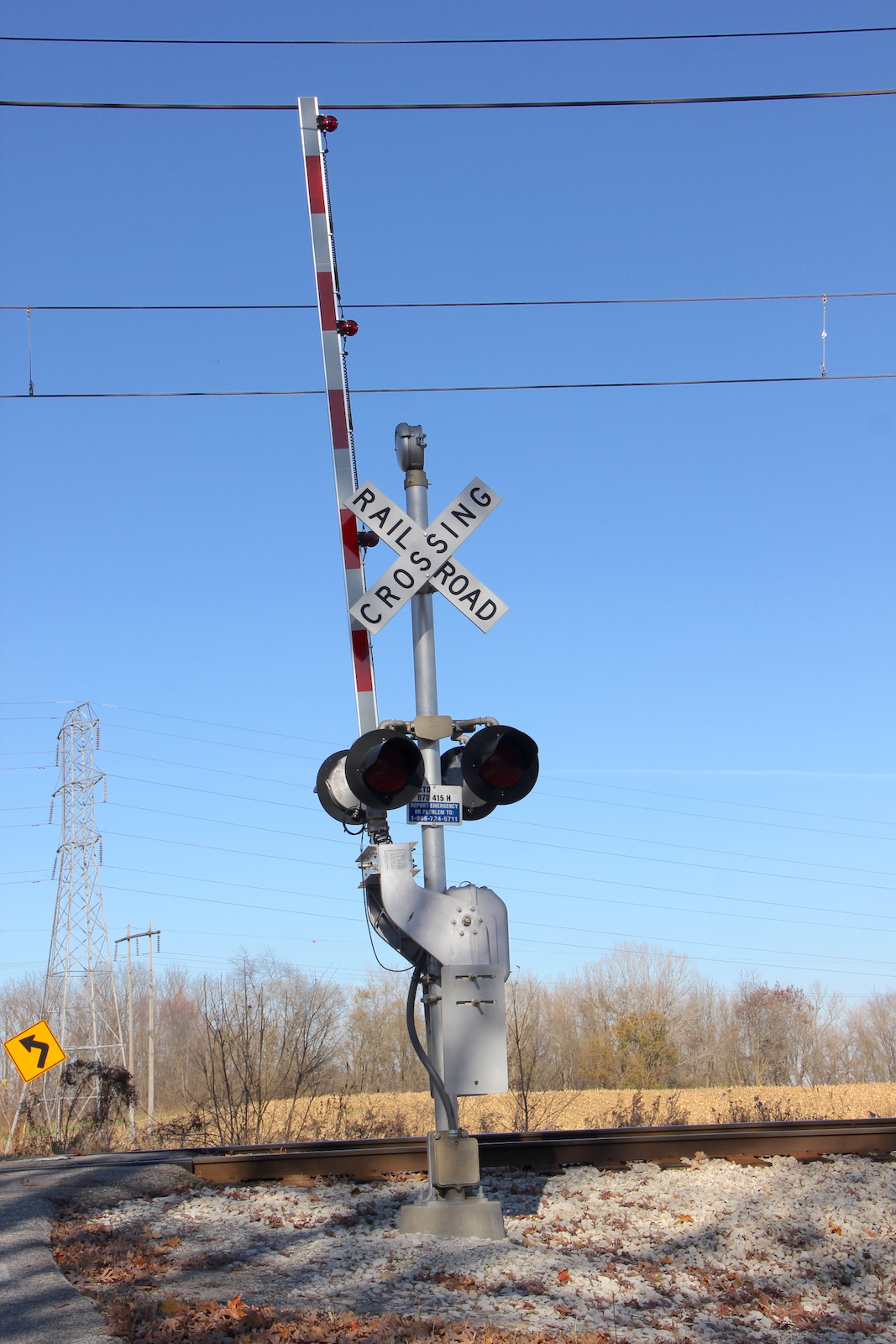

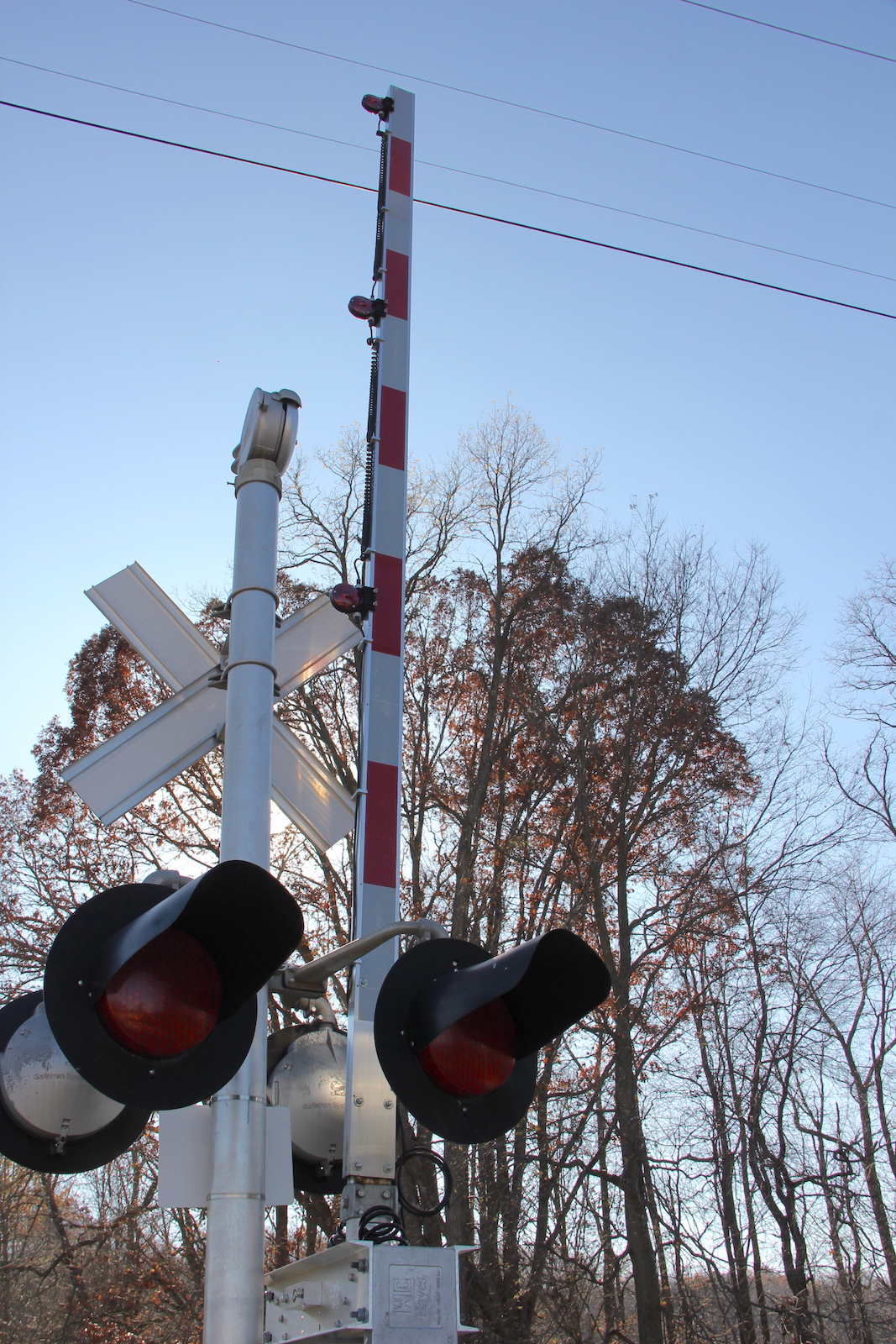

The northern signal.
13 14 15
16 17 18
19 20 21 22

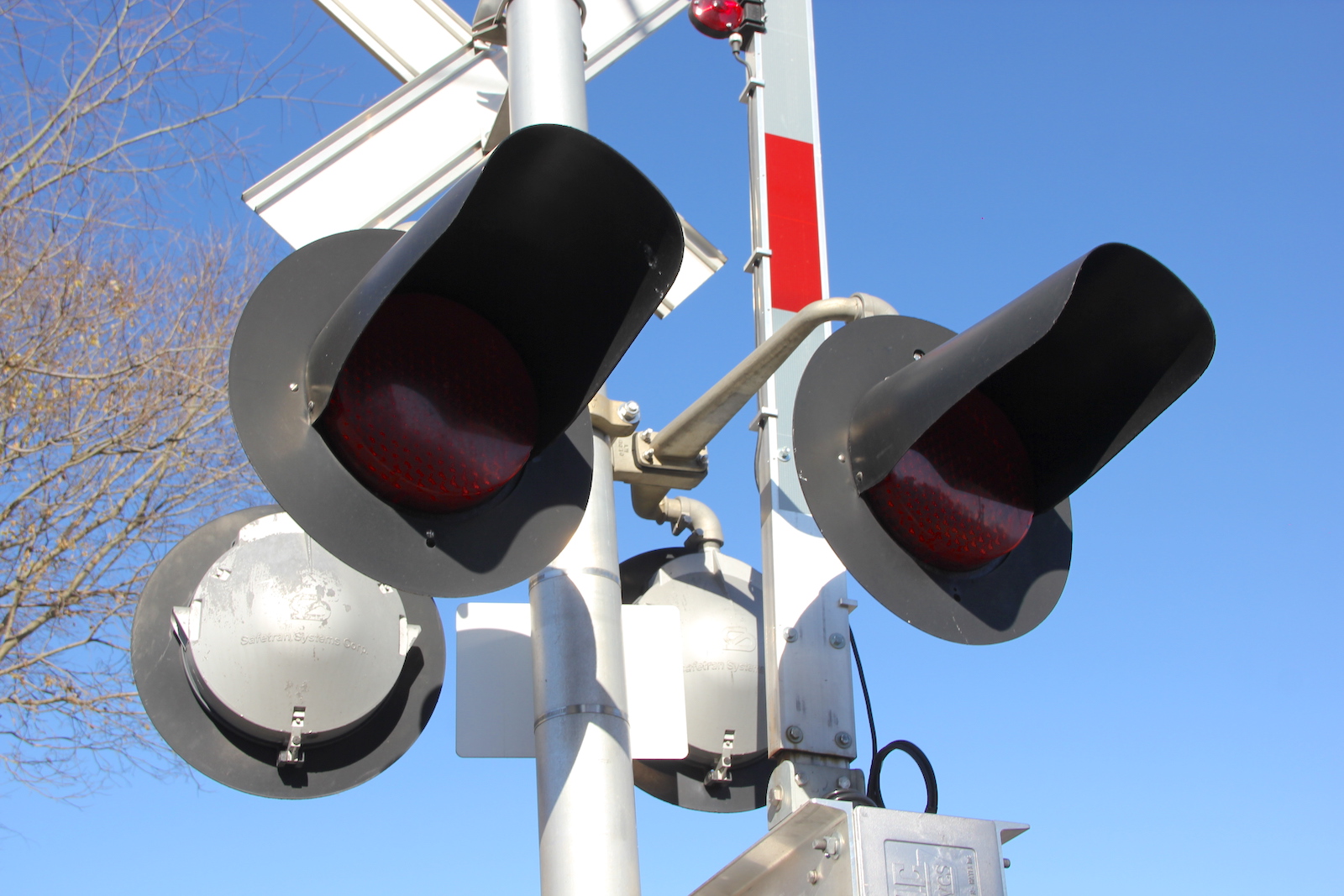

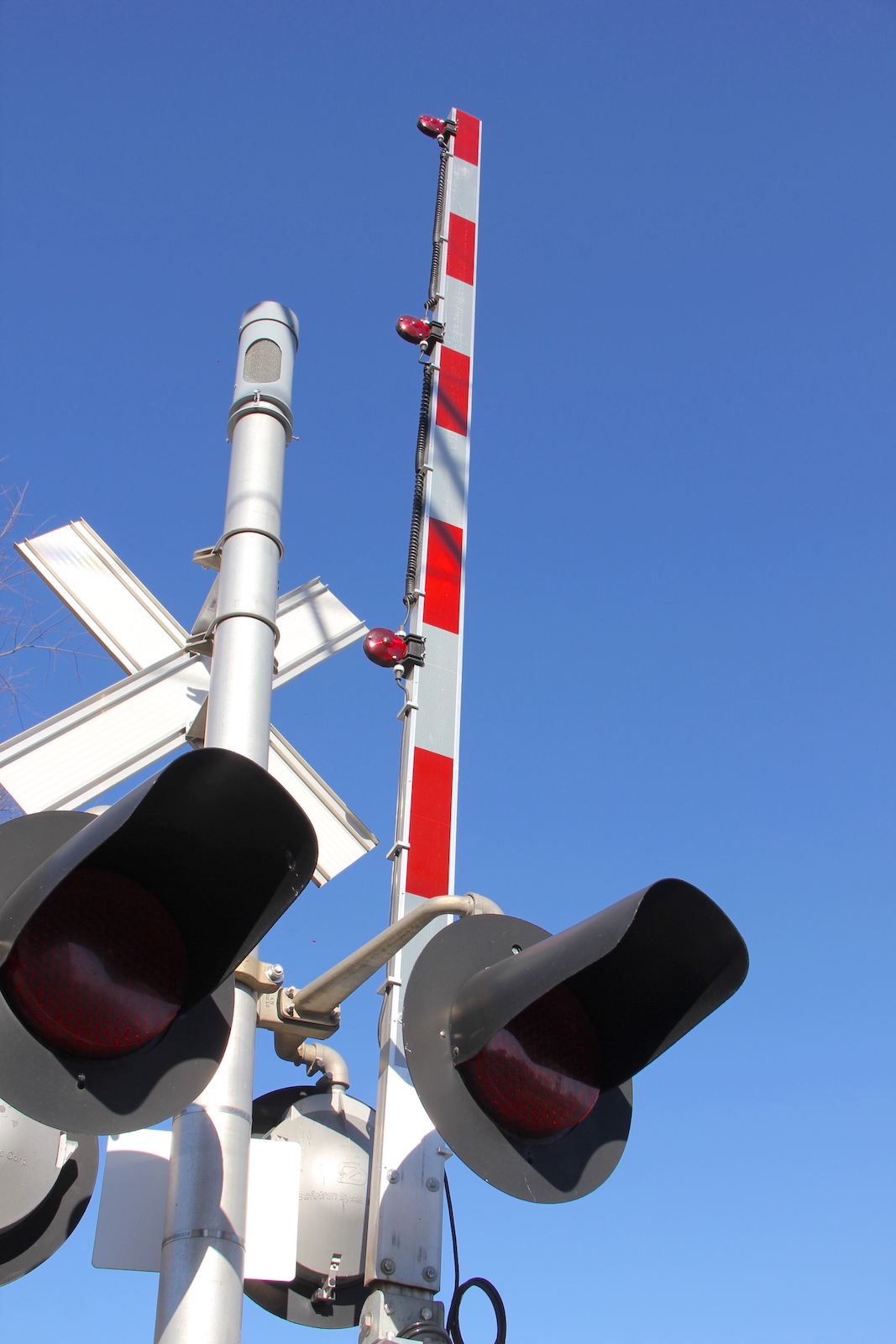

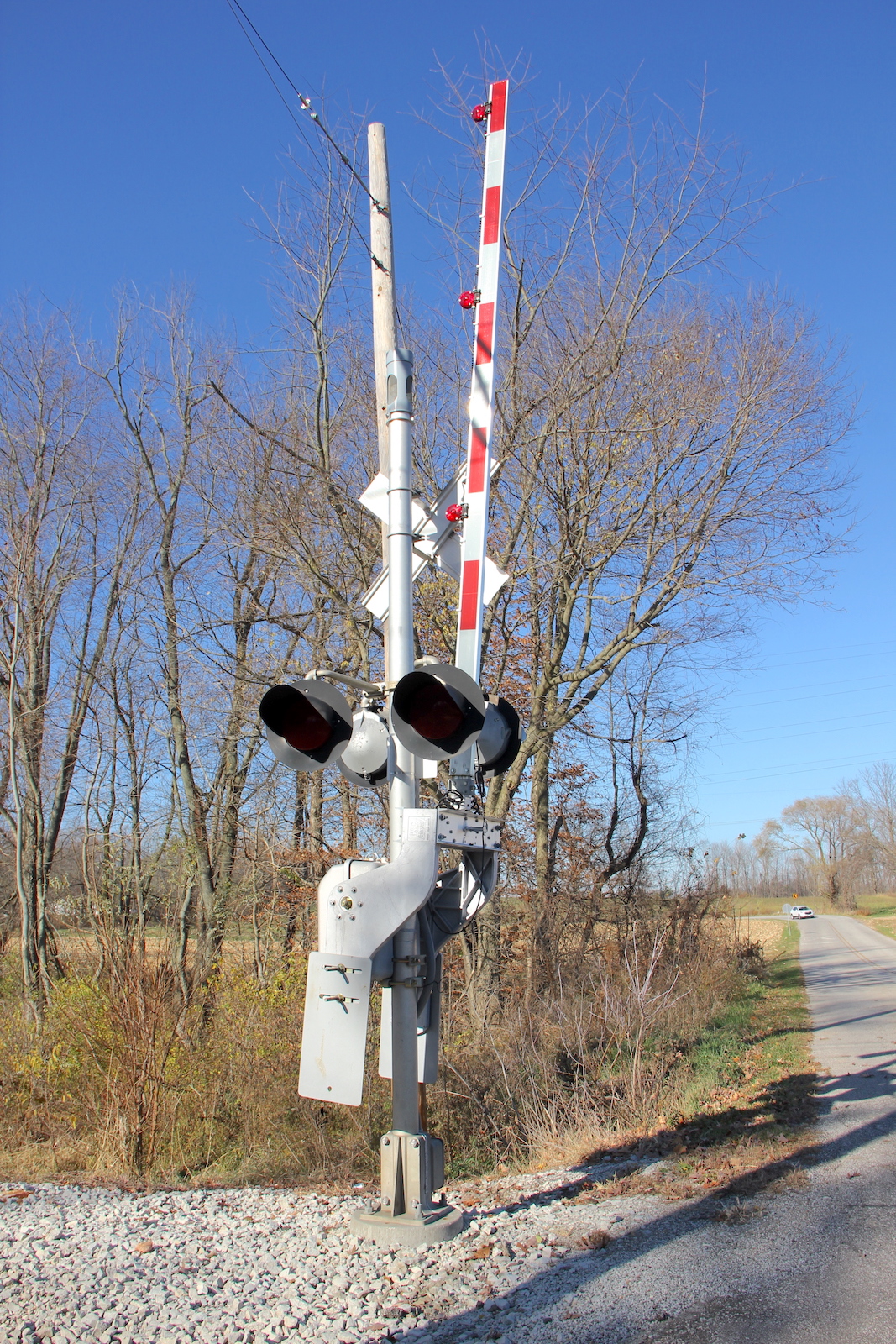

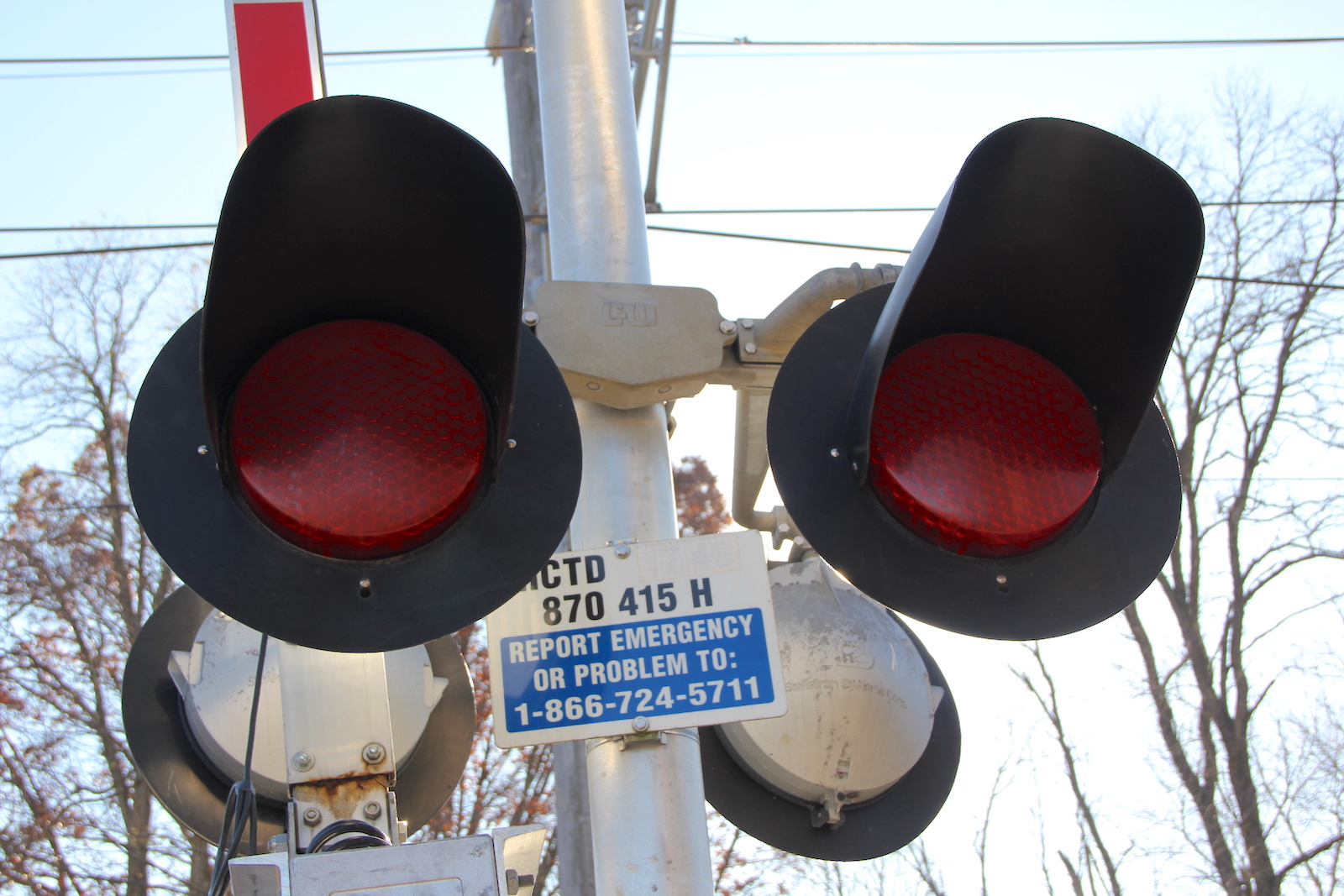

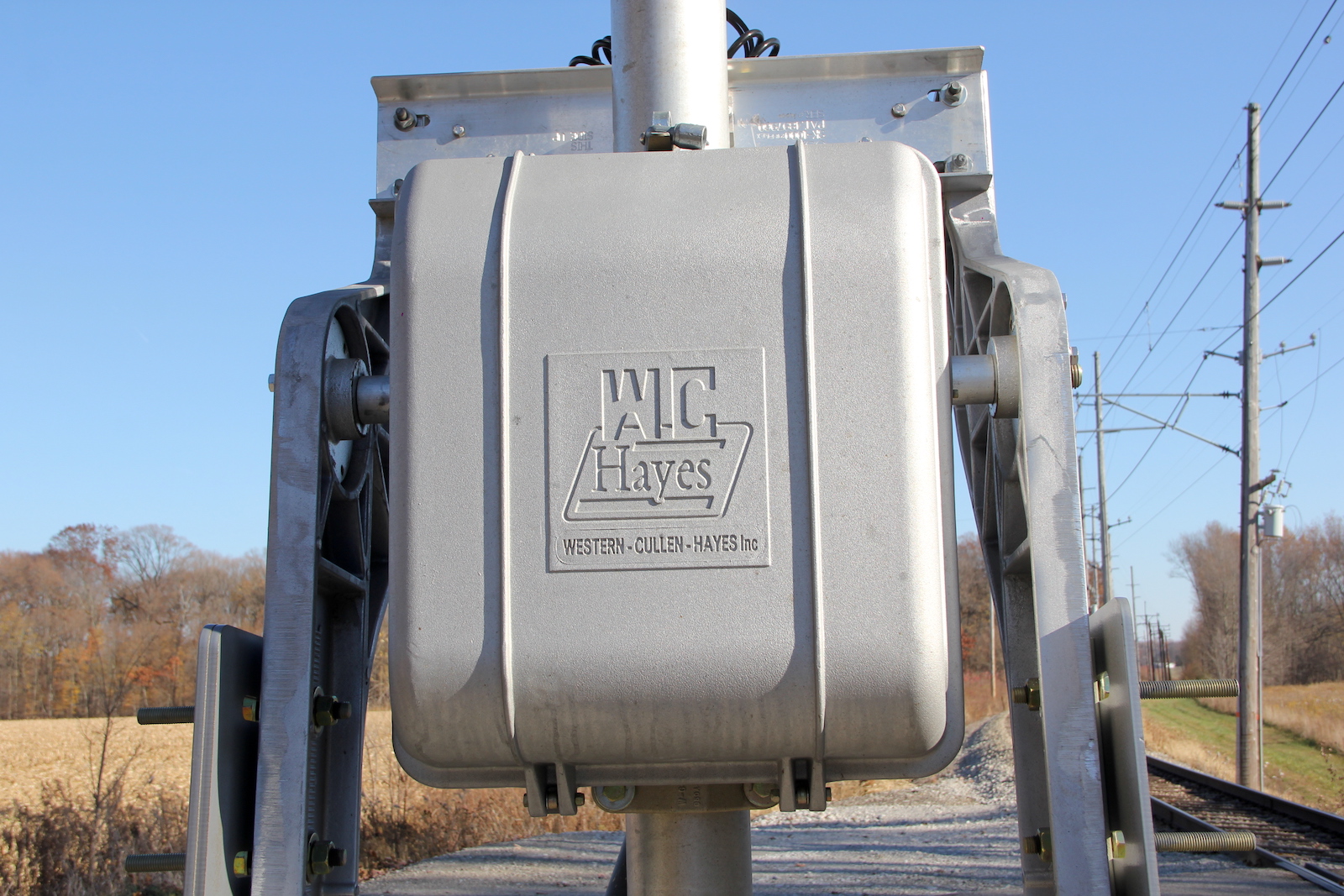

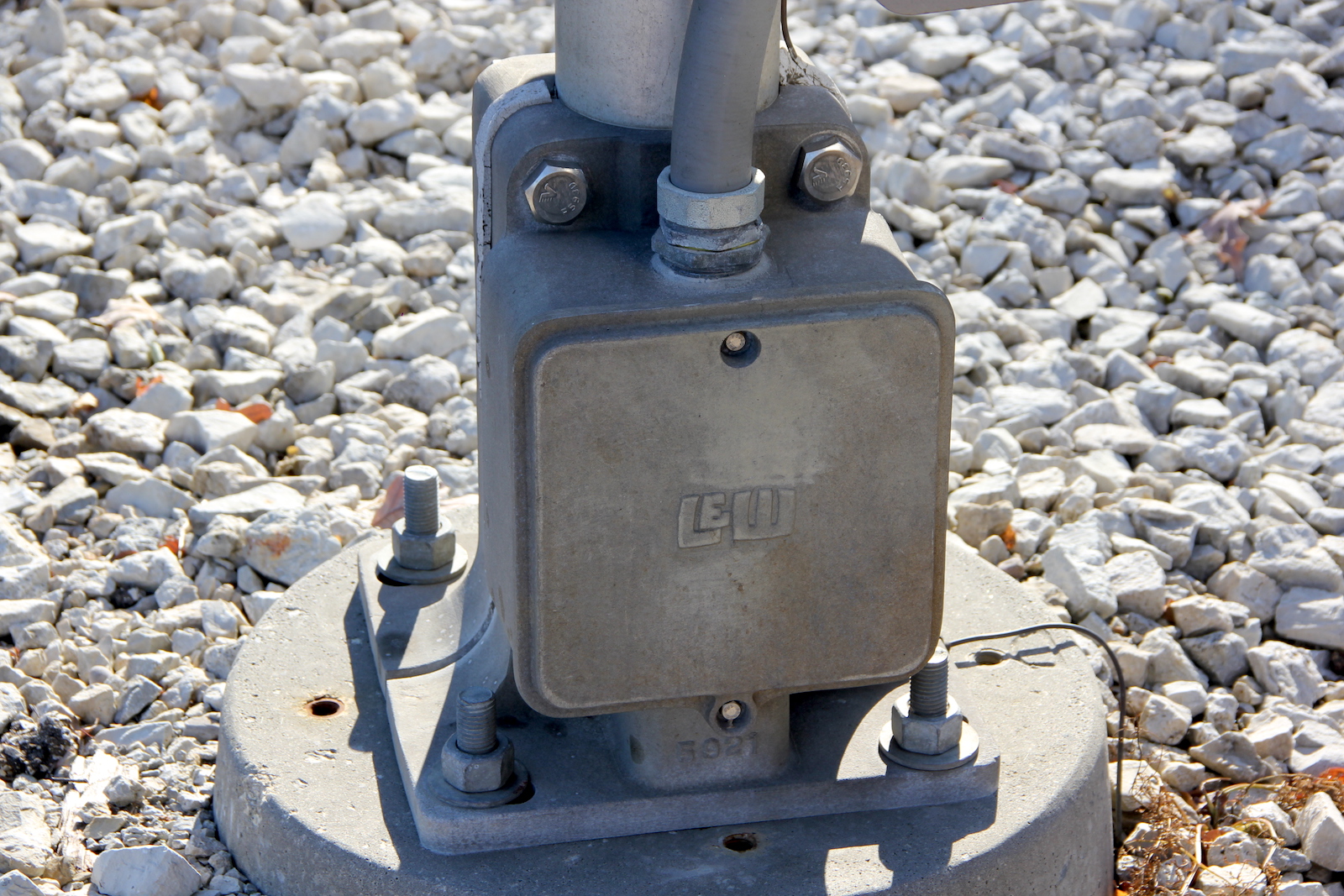

The southern signal.
23 24 25 26

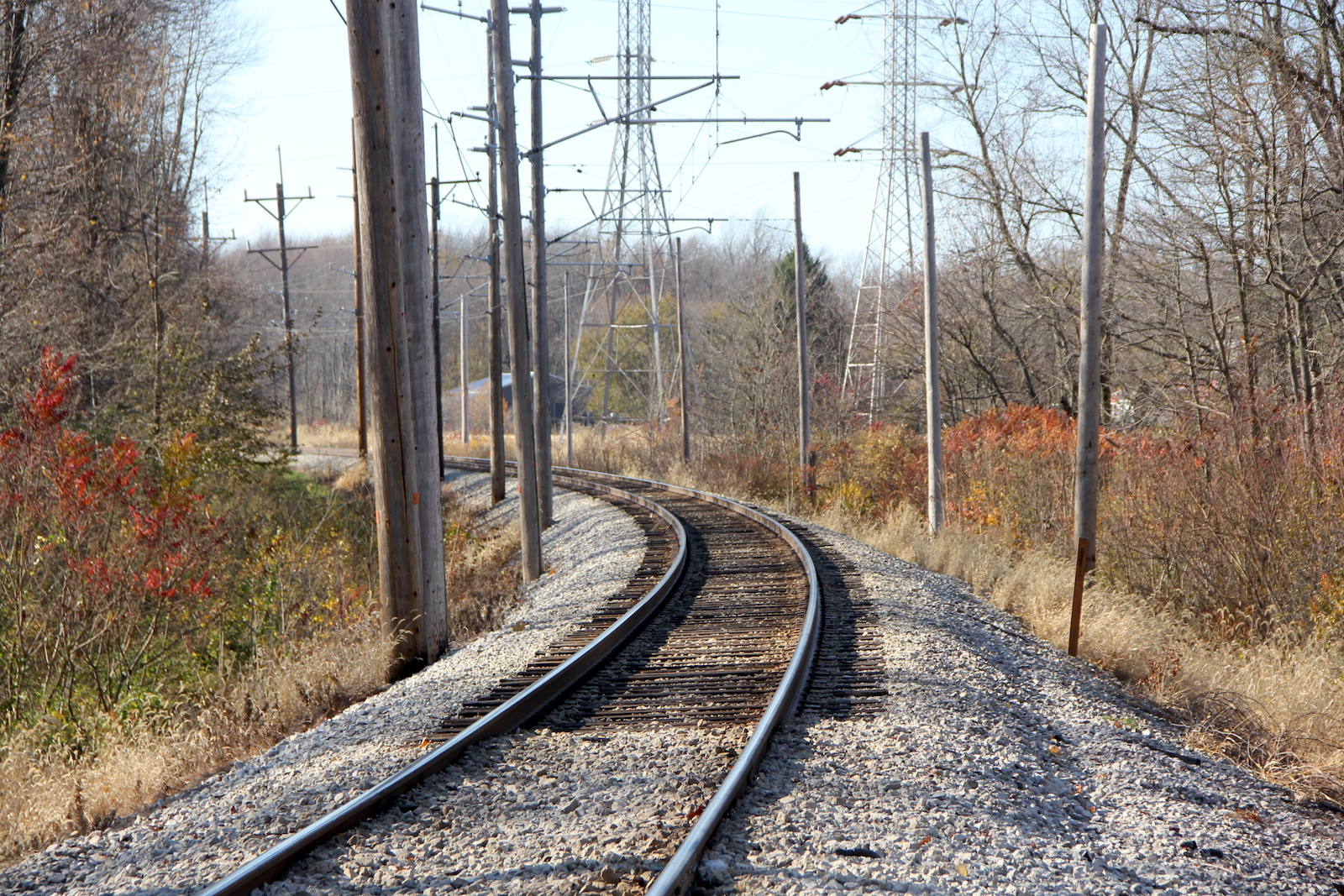

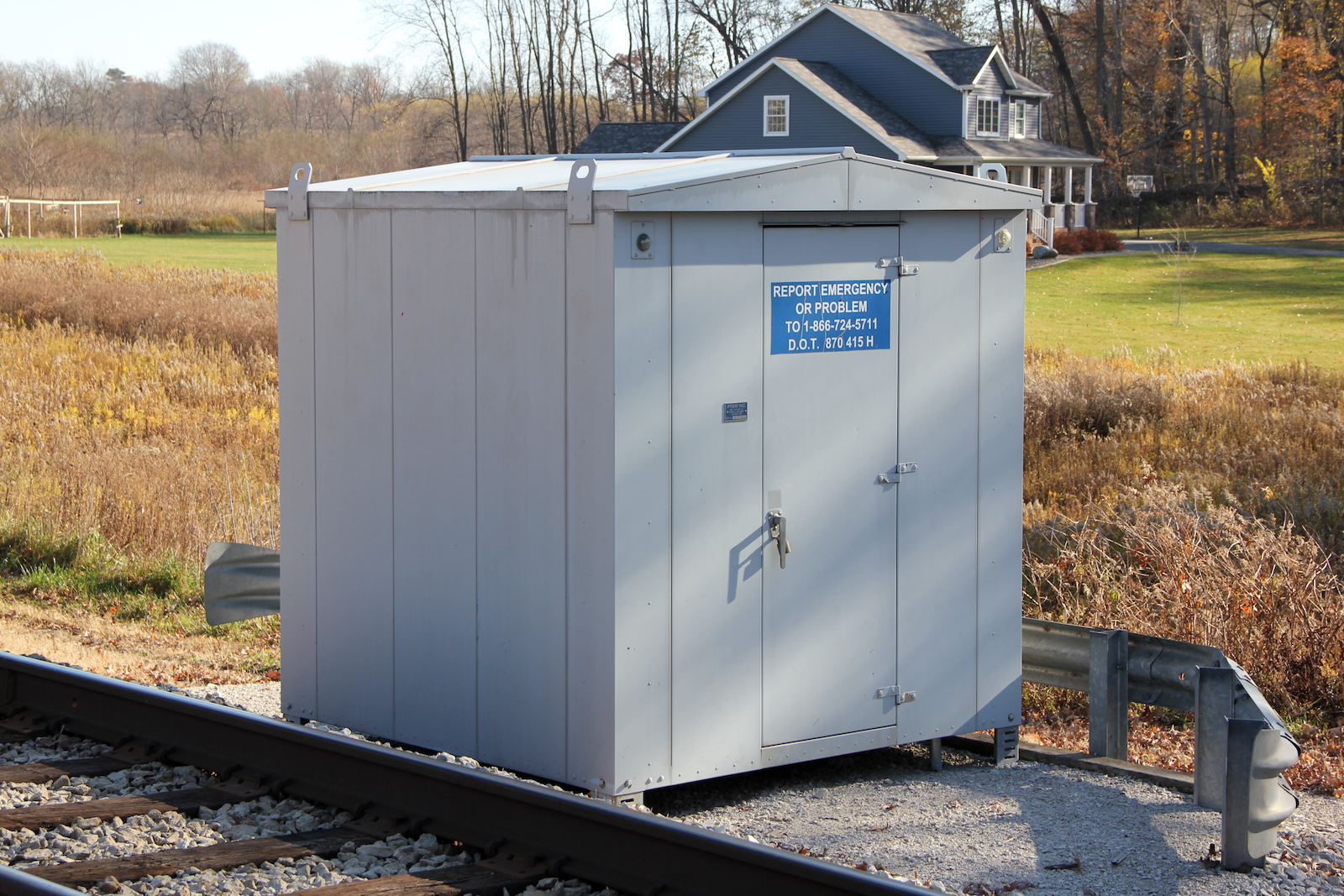

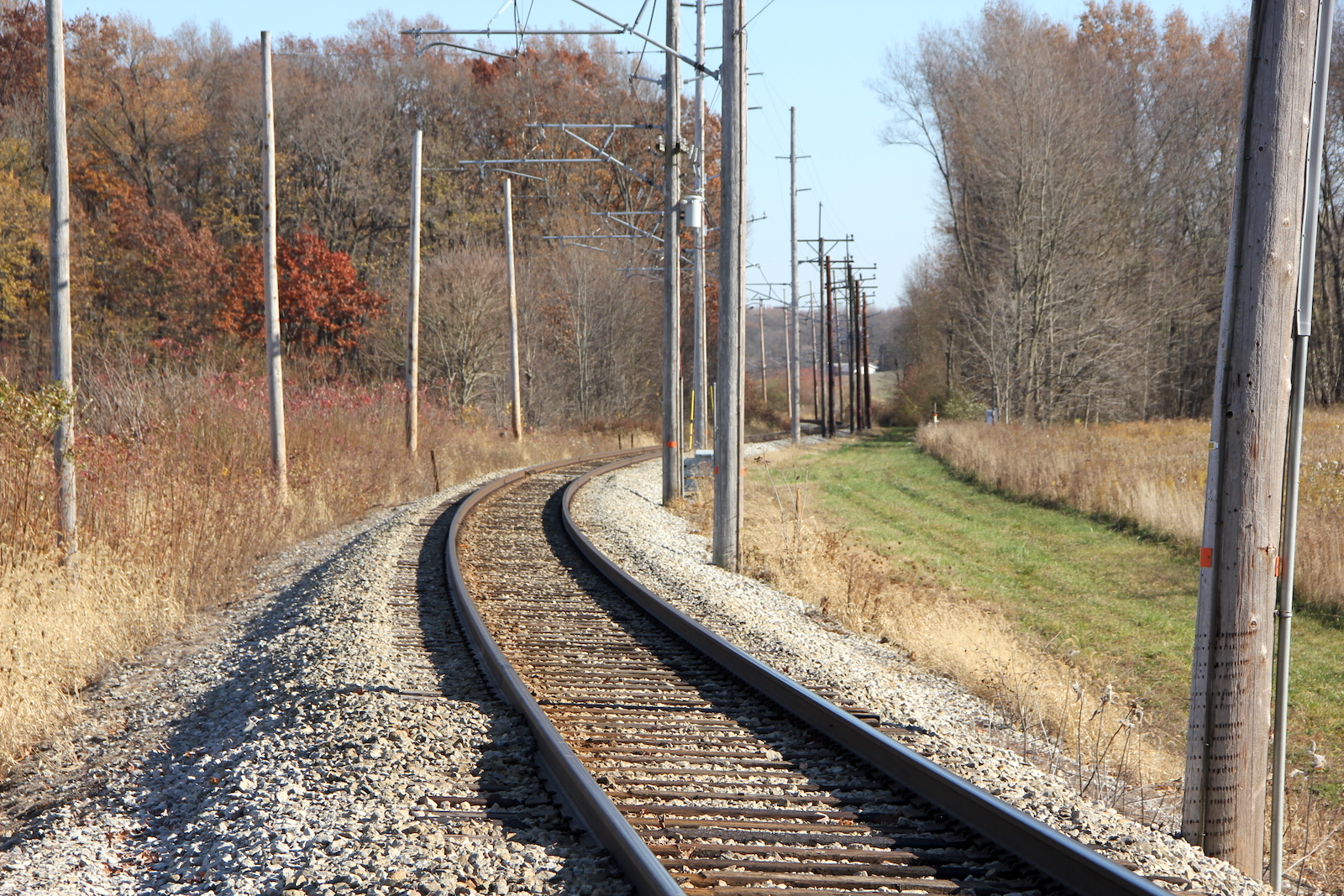

The relay bungalow in the southeast quadrant. The grade is rubber and asphalt. Track view facing west towards Novitiate Rd. Track view facing east towards Cottage Grove Ave.
