MP: 7.30
|
MP: 7.30 |
| Created June 2026 |
| Total Accidents:
1 Crossing DOT #: 870399B TOTAL DAILY TRAINS: 18 (AS OF 2019) |
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | GS E-Bell | NEG E-Bell |
| Base: | L&W 5" Single Sided ^ | L&W 5" Single Sided ^ |
| Lights: | 3 - 12"x24" Hawker Safetran w/ Safetran Fading LEDs | 4 - 12"x20" Safetran w/ Safetran Fading LEDs |

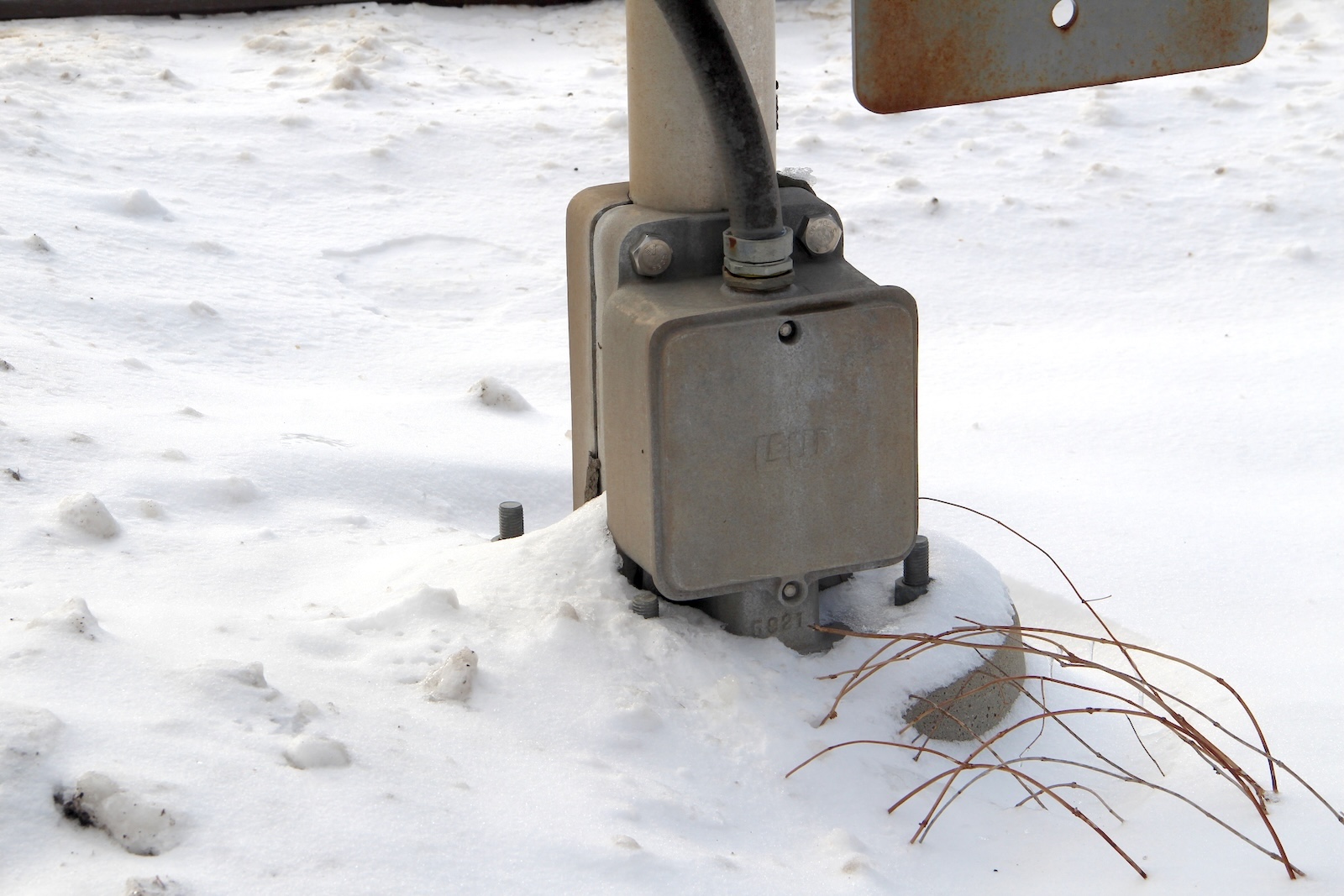

| Junction Box: | L&W | L&W |
| Gate Lights: | 3 - 4" RECO | 3 - 4" RECO |

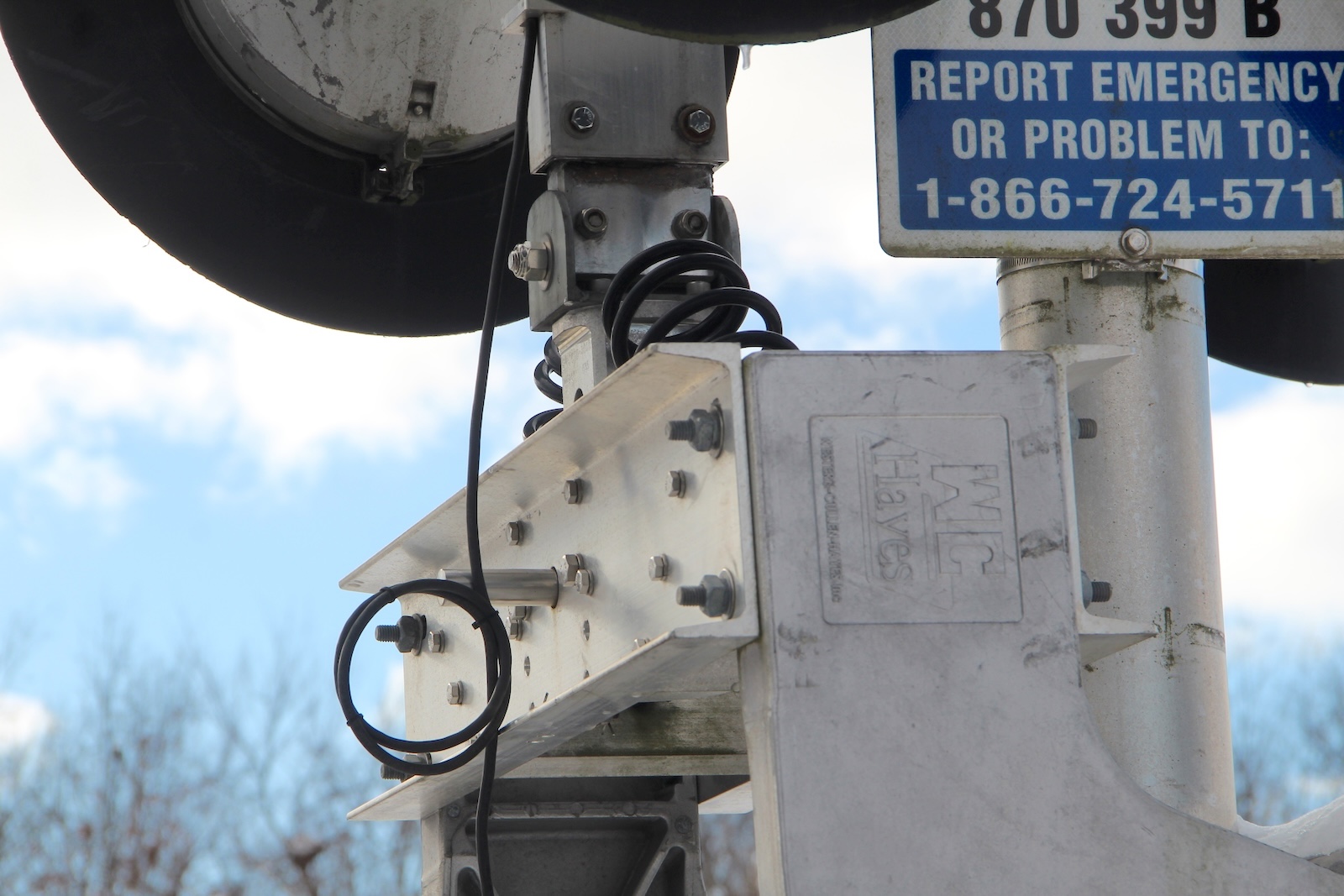

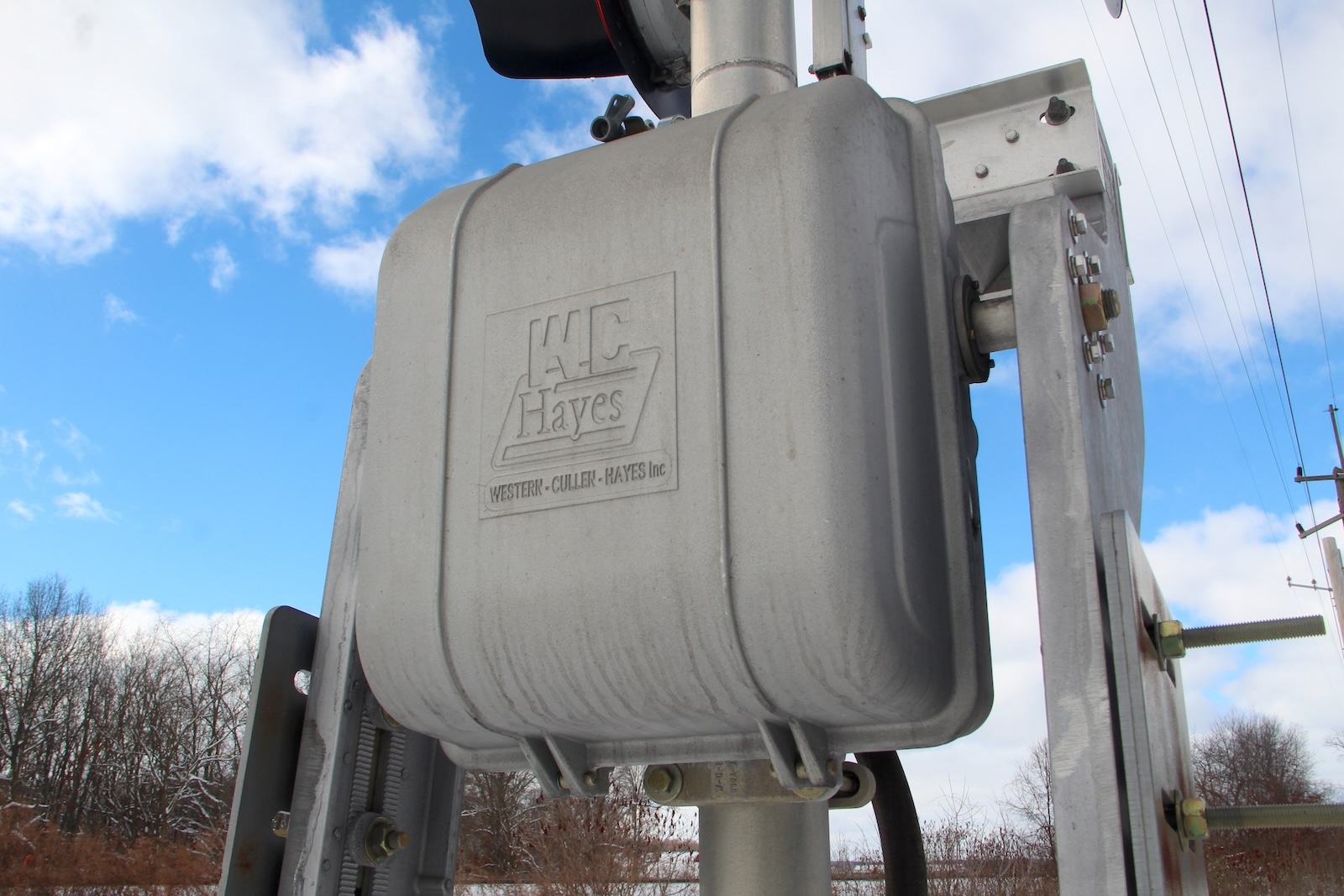

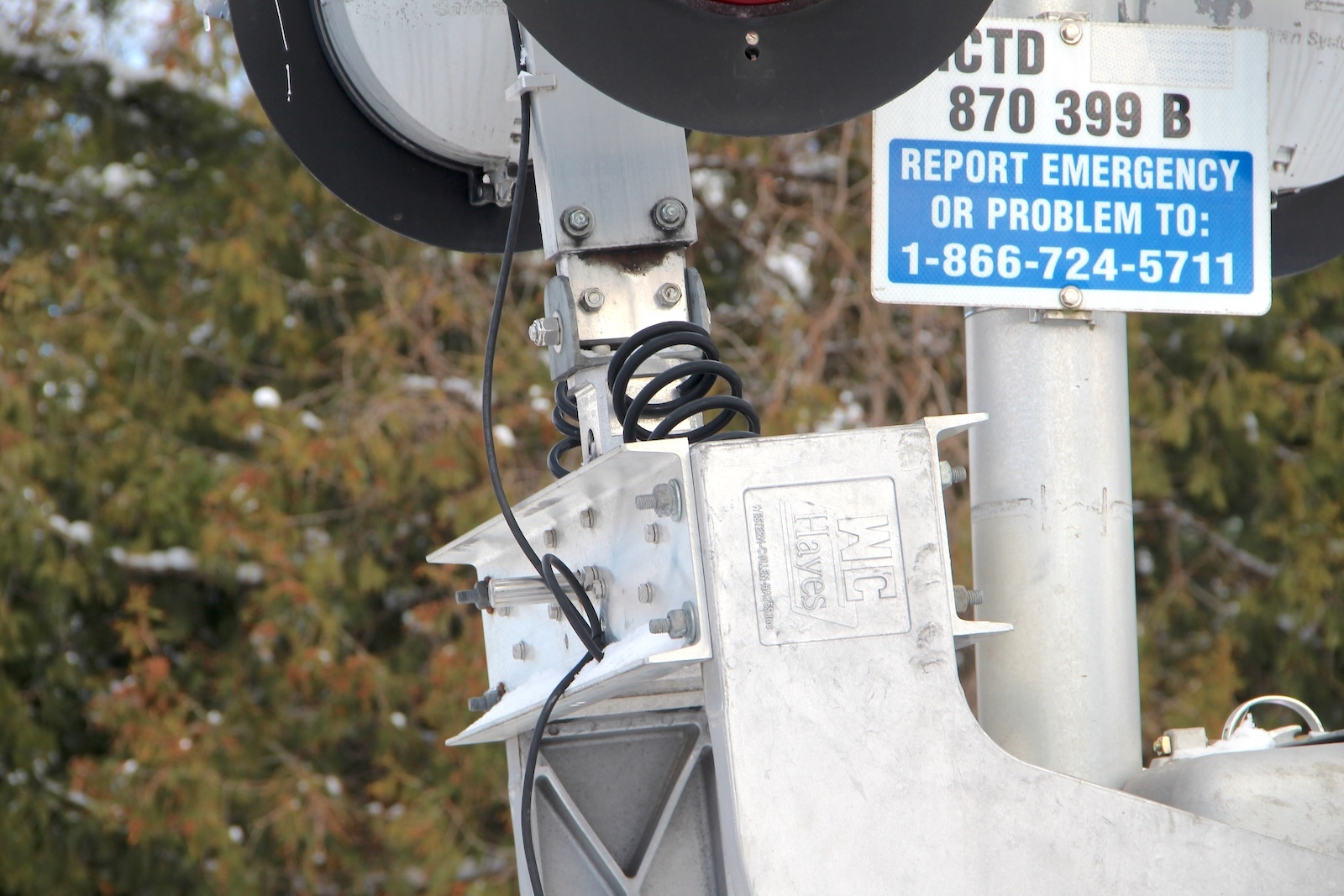

| Gate Mechanism: | WCH Style 4 w/ GSI Gate Saver | WCH Style 4 w/ GSI Gate Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
G1 |
G2 |

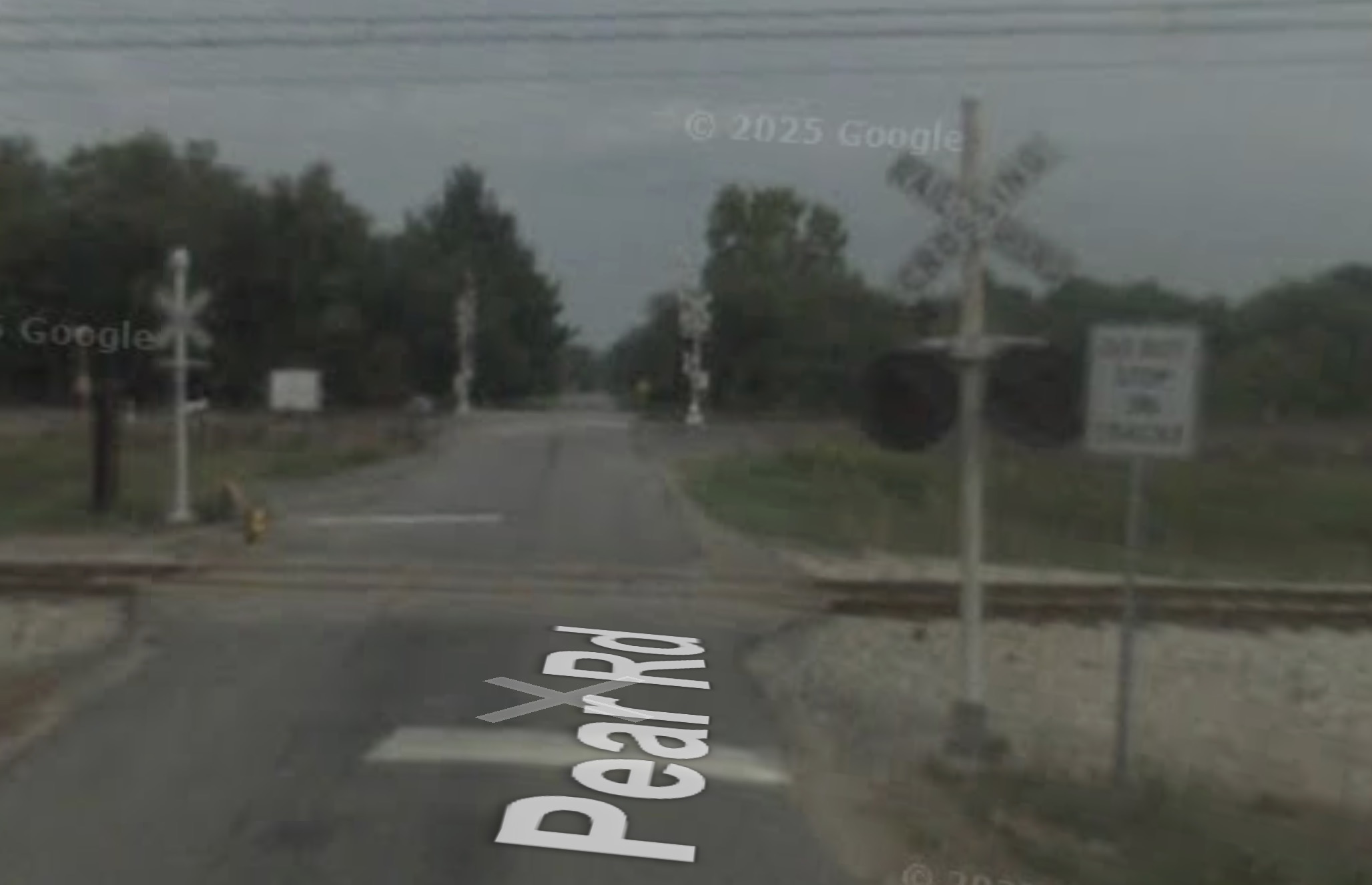

| Streetview images from 2007 showing two older gateless signals with Safetran Fading LEDs and a WRRS? Mechanical Bell. By 2013, both signals were replaced with newer gateless signals with a GS E-Bell and the same LEDs. There are no Streetview images of these signals as gateless signals, but by 2019, WCH gate mechanisms were added, and an NEG E-Bell was added to the southern signal. |
1 |
2 |

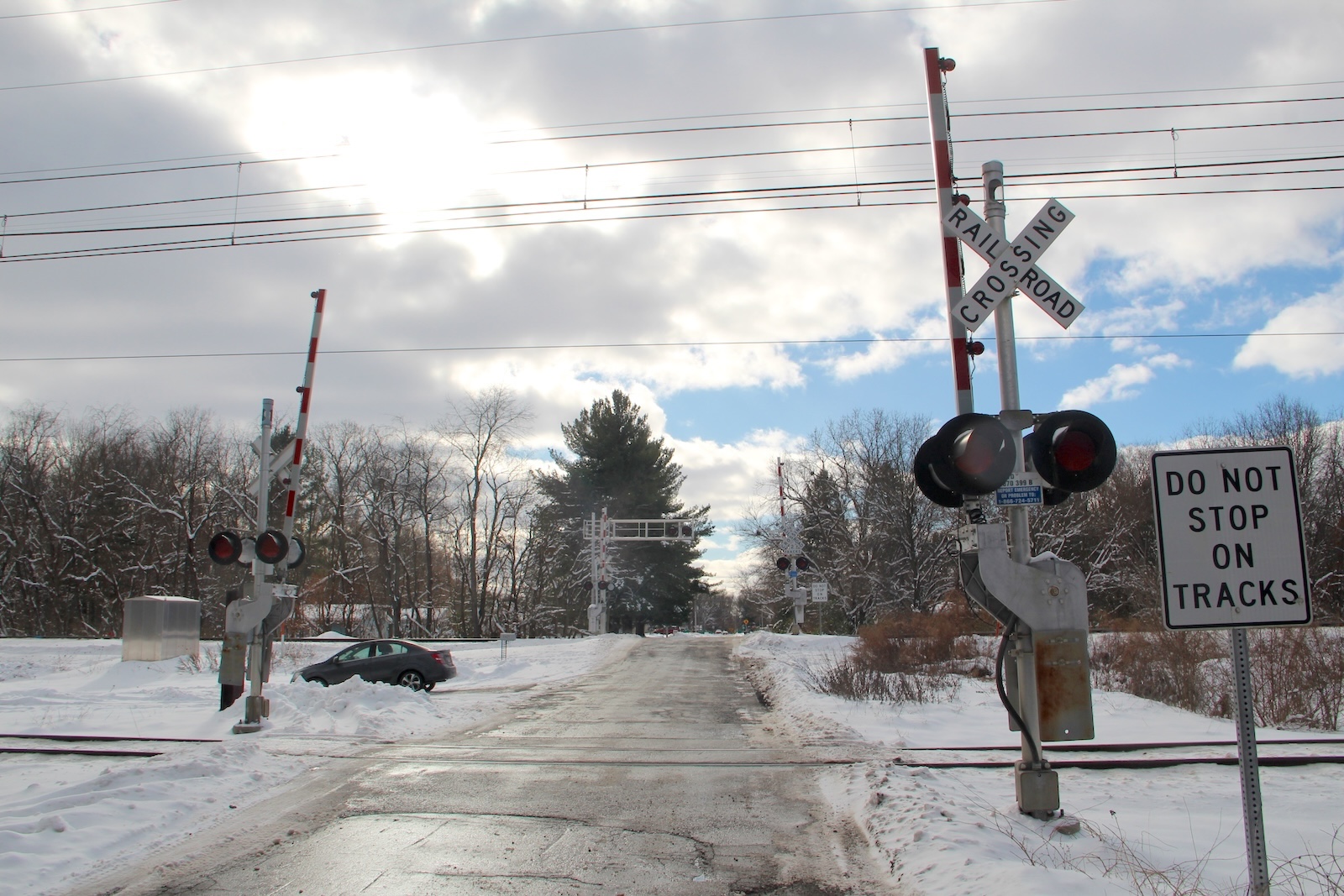

| Overview of the newer signals facing south. | Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |

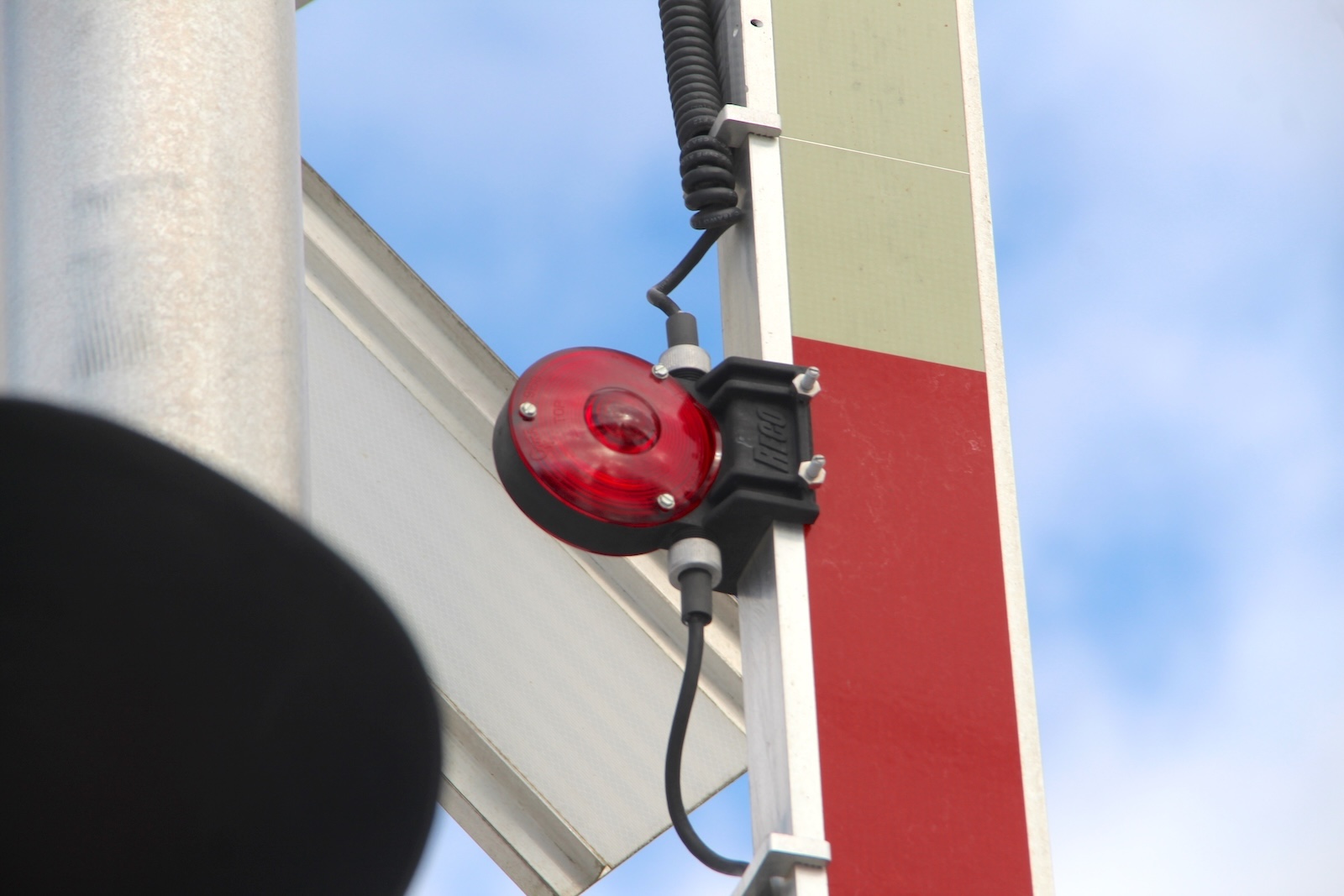

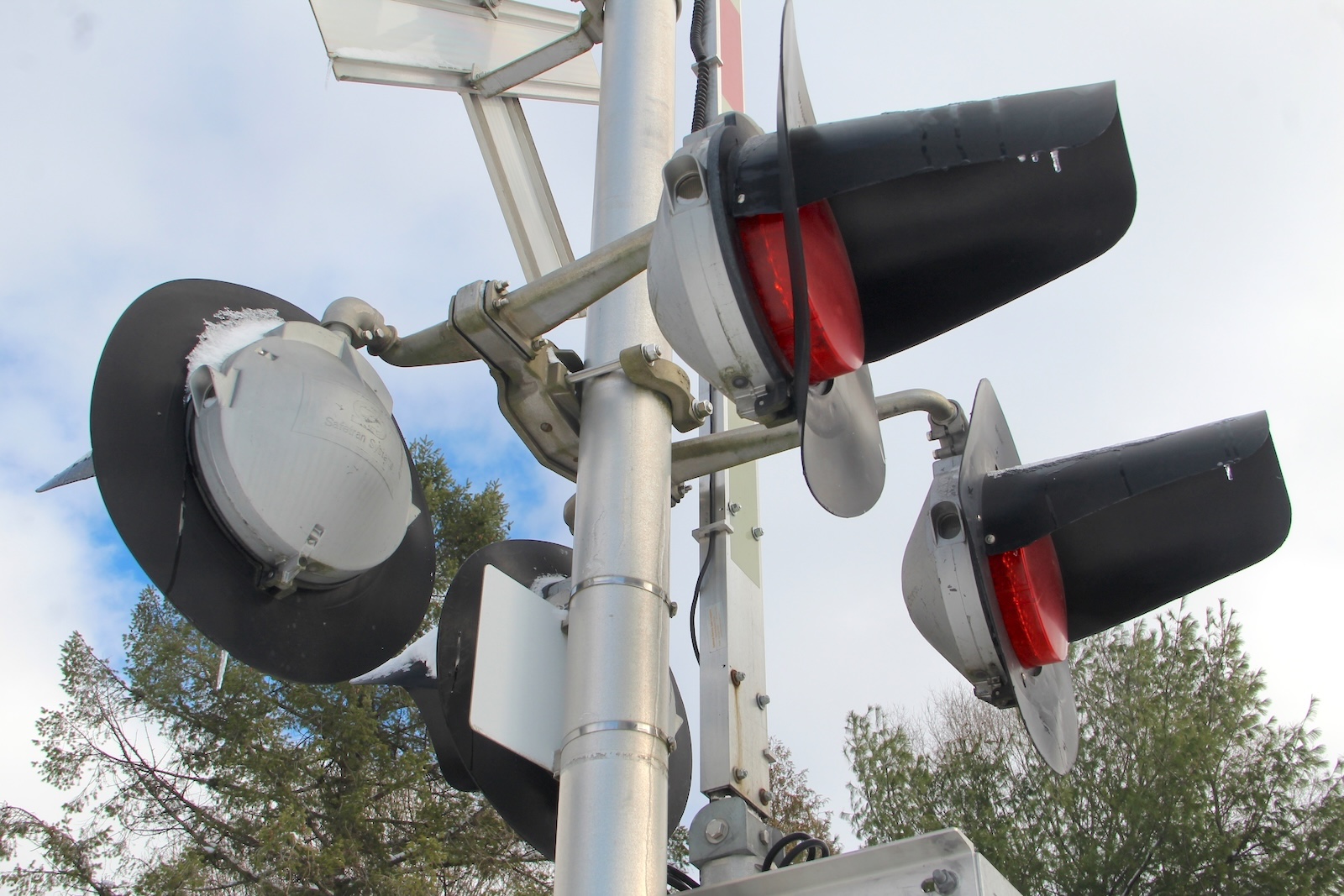

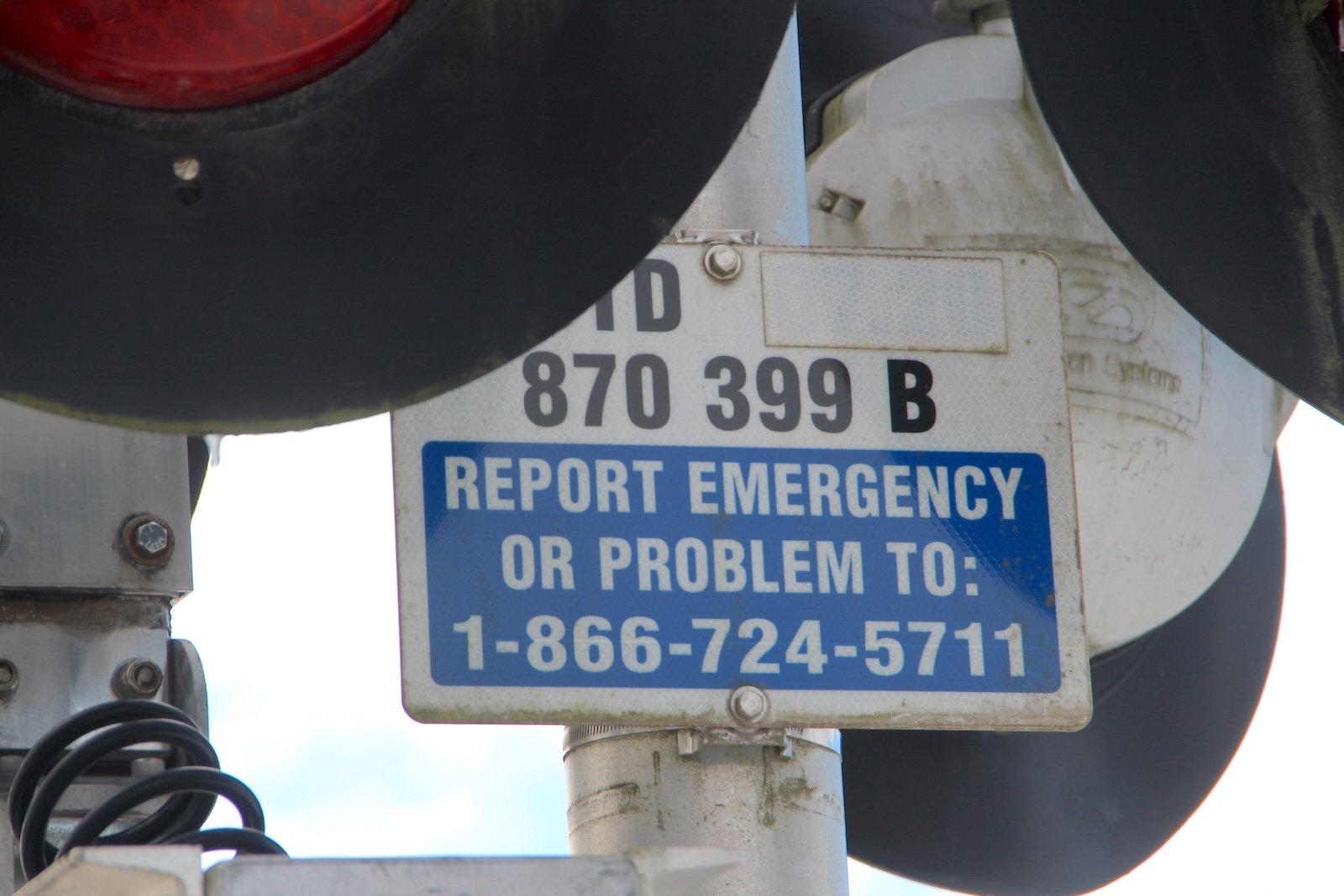

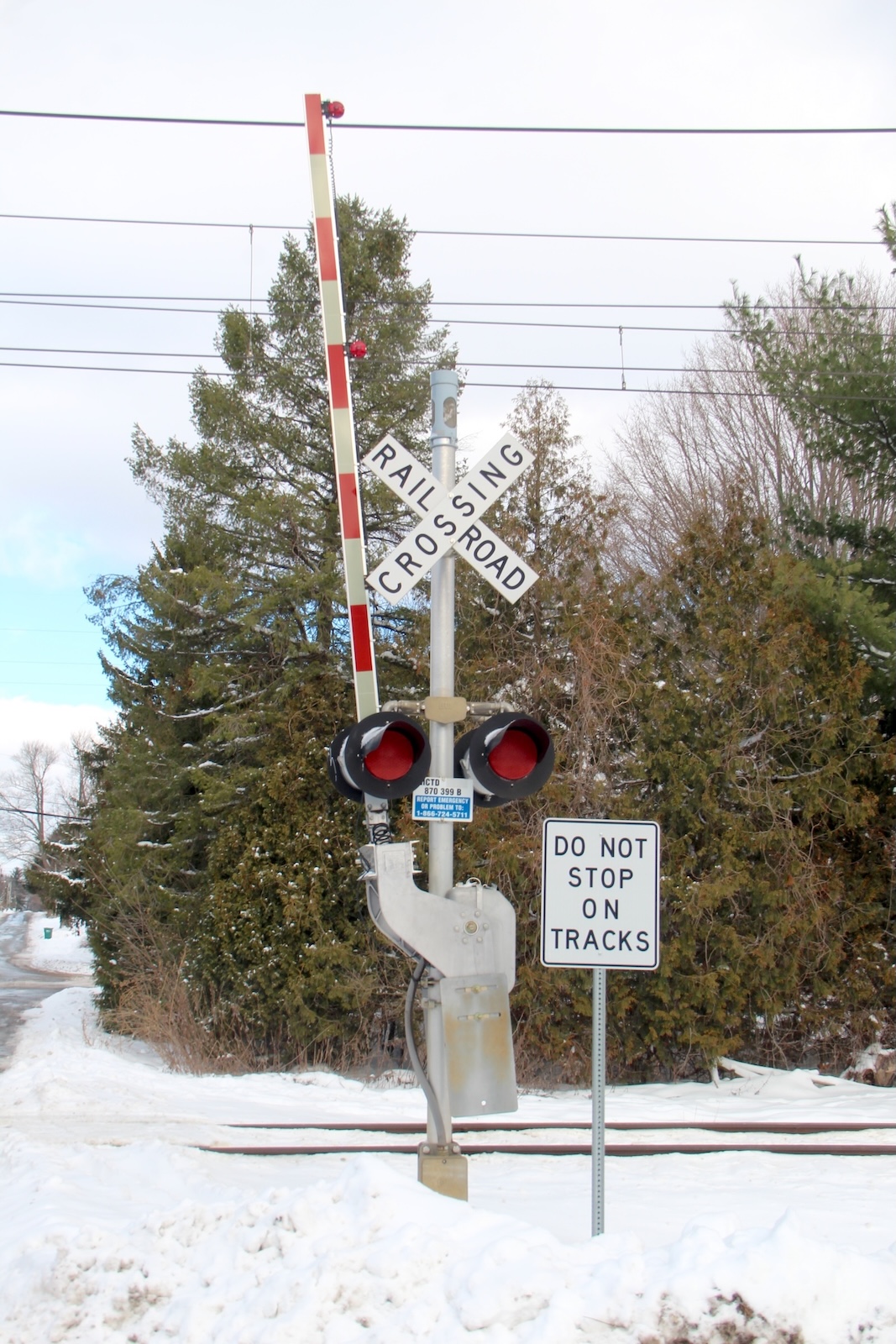

| The northern signal. |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |

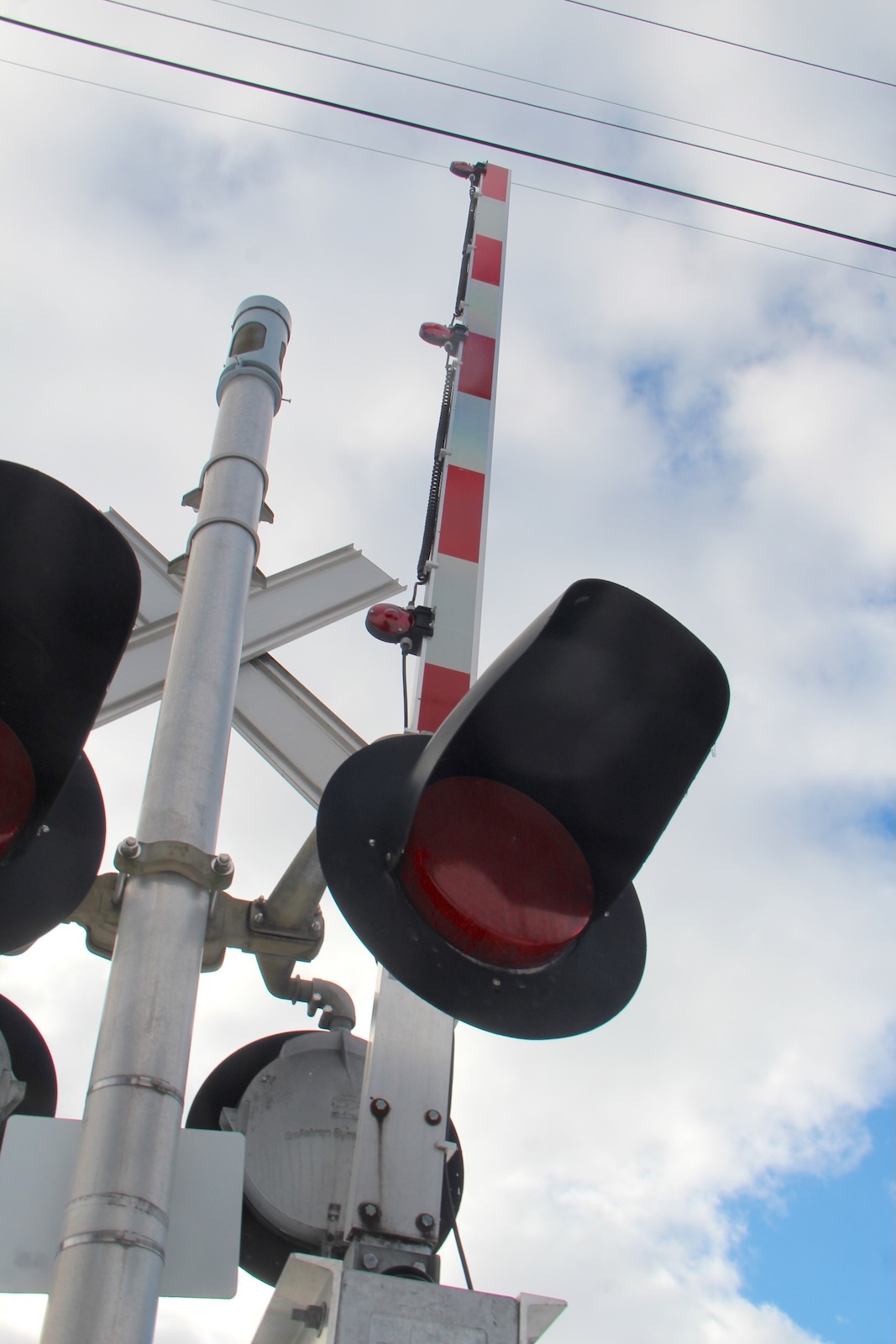

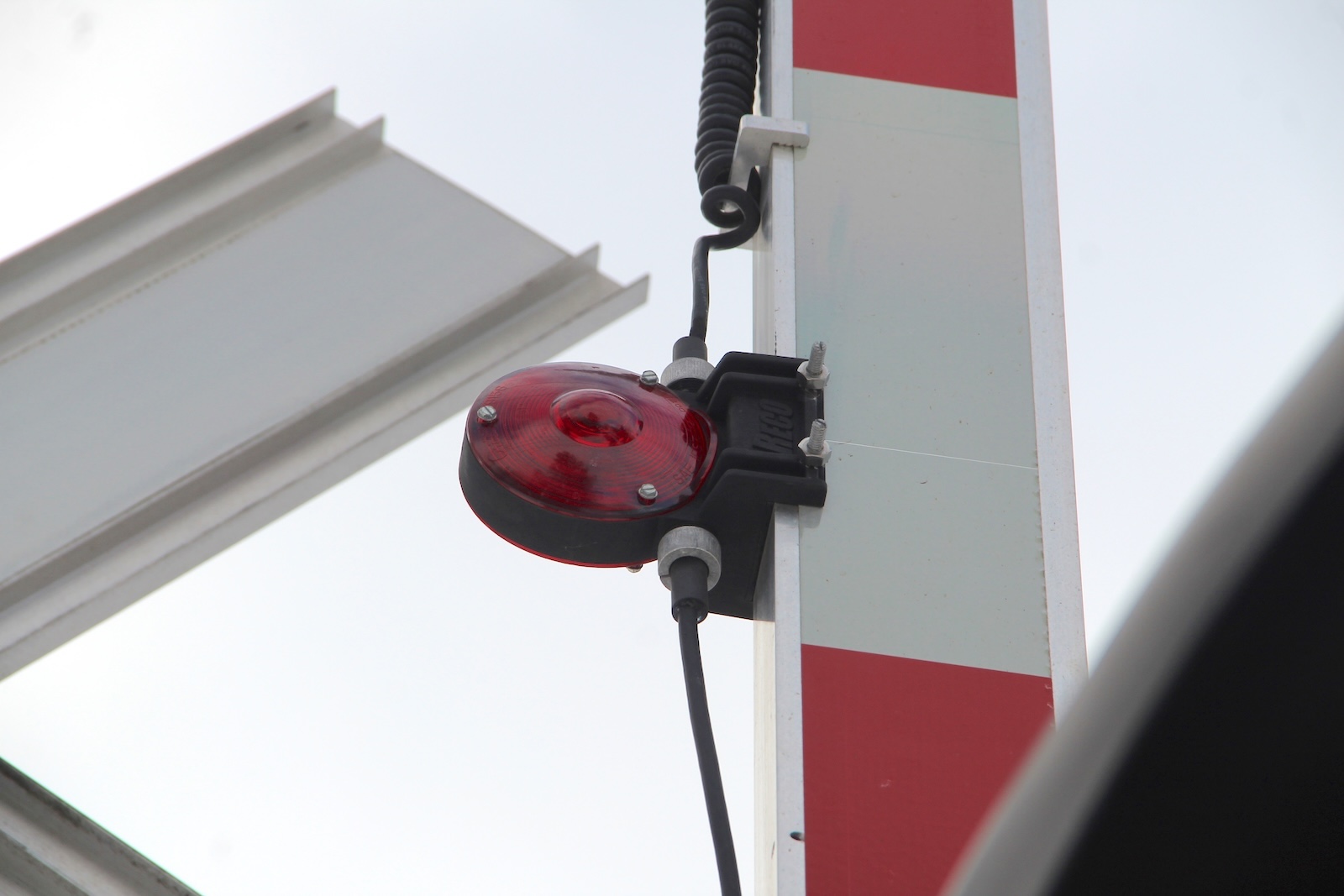

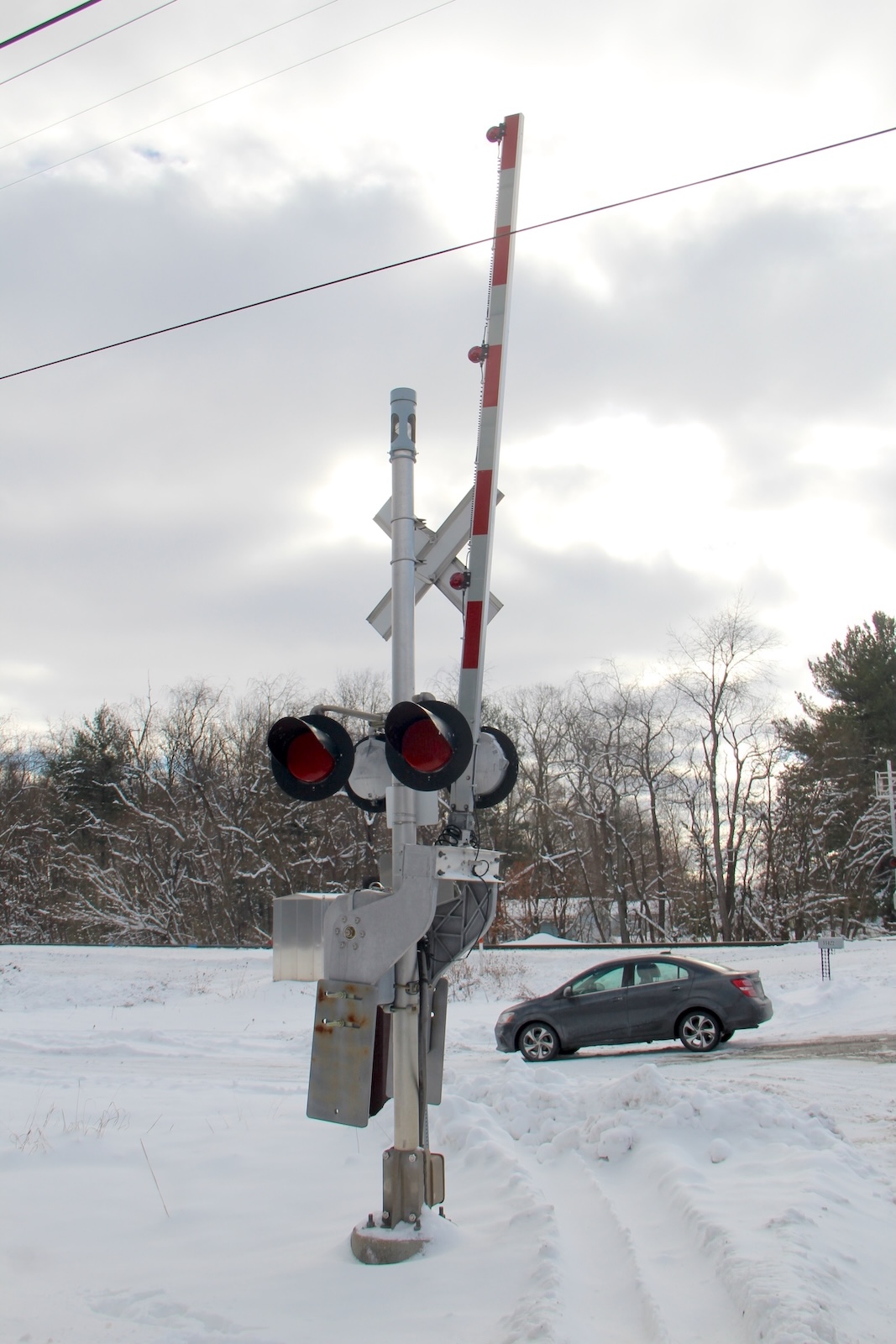

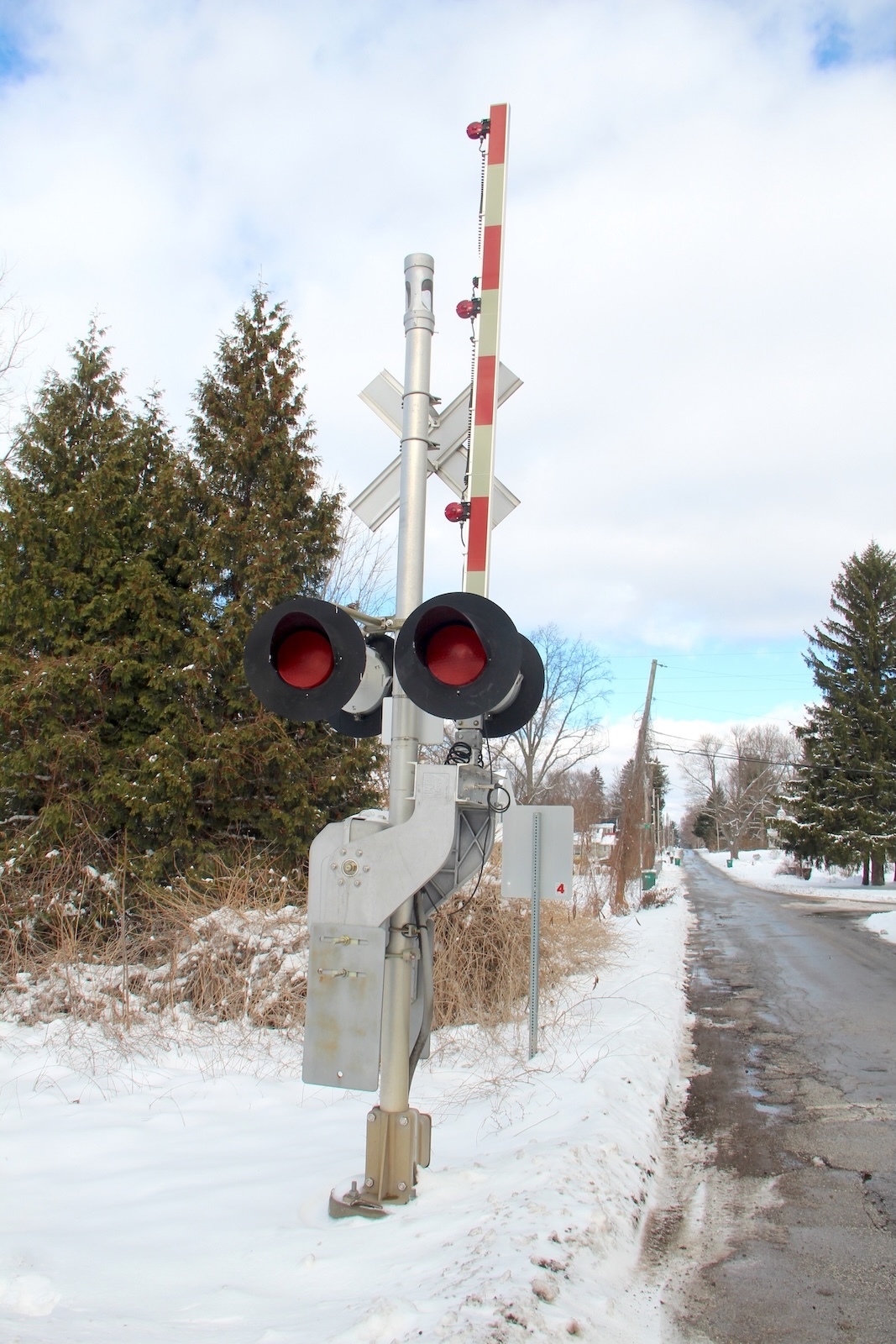

| The southern signal. |
27 |
28 |
29 |
30 |

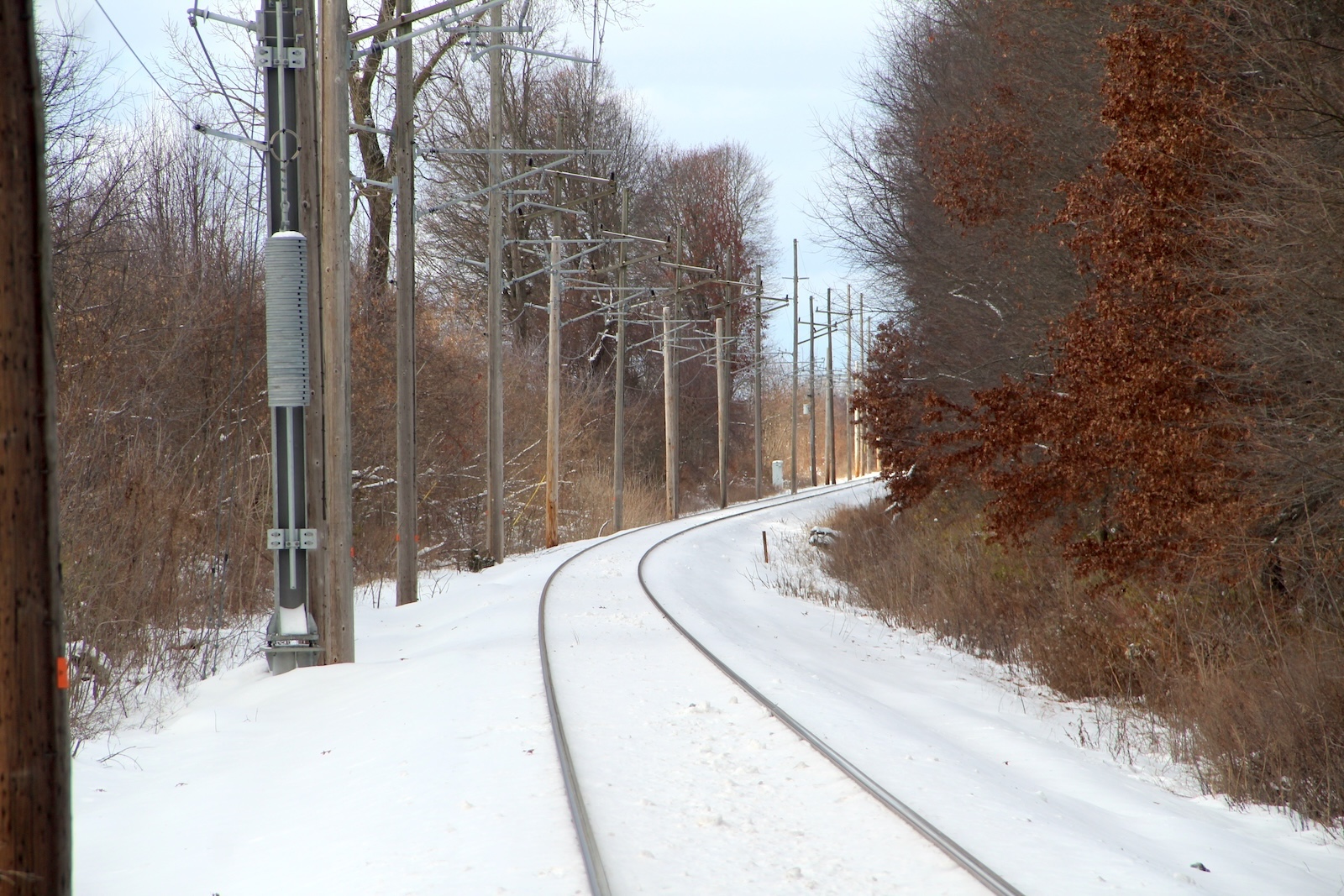

| The relay bungalow in the northeast quadrant. | The grade is rubber and asphalt. | Track view facing west towards Sage Rd. #1. | Track view facing east towards Quince Rd. #1. |
