Total Accidents:
3 Crossing DOT #: 870449C TOTAL DAILY
TRAINS: 44 (AS OF 2018)
>>>>>>>>>>>>>>>
Northern Entrance Signal
Northern Exit Signal
Southern Entrance Signal
Southern Exit Signal
Bell:
Slow WCH Type 2 E-Bell
None
GS Type 2 E-Bell
None
Base:
WCH 5" Double Sided ^
WCH 5" Double Sided ^
WCH 5" Double Sided ^
WCH 5" Double Sided ^
Lights:
4 - 12"x20" Safetran w/ Safetran Fading LEDs
2 - 12"x24" WCH w/ GE Pixelated Look LEDs
8 - 12"x20" Safetran w/ Safetran Fading LEDs
2 - 12"x24" WCH w/ GE Pixelated Look LEDs
Junction Box:
L&W
WCH
L&W
WCH
Gate Lights:
3 - 4" RECO LEDs
3 - 4" NEG LEDs
3 - 4" RECO LEDs
3 - 4" NEG LEDs
Gate Mechanism:
WCH Style 4 w/ GSI Gate Saver
WCH Style 4 w/ GSI Gate Saver
WCH Style 4 w/ GSI Gate Saver
WCH Style 4 w/ GSI Gate Saver
Gate Striping:
Vertical Striping
Vertical Striping
Vertical Striping
Vertical Striping
Pictures 1-22 and the 1st video were taken on December 5, 2015.
Pictures 23-46 were taken on April 6, 2019.
The 2nd video was taken in October 2020 by Kyle B Videography.
Pictures 47-77 and the 3rd video were taken on March 30, 2024.
All pictures and videos were taken by Tommy McGowan unless noted.
This crossing is located on the South Shore mainline.
G1
G2
G3
G4
G5

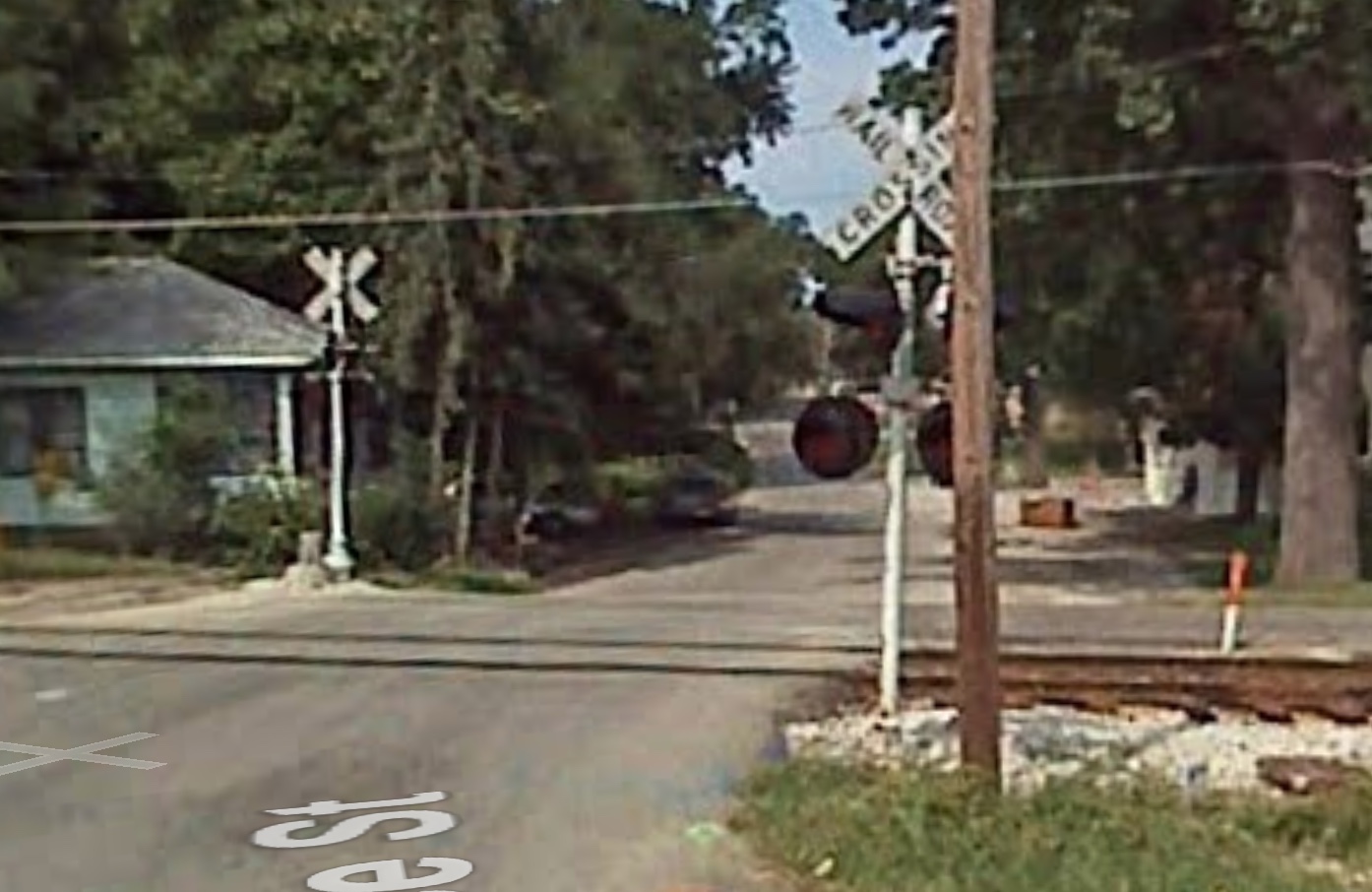

Low quality Streetview images from September 2007 showing two old gateless signals with 12"x20" Safetran Fading LEDs and no bells. As you can see, work had already started on replacing these signals, as new foundations and signal bases were already put in place. Shortly after, brand new gateless signals were installed.
In 2018, gates were added to the existing signals, and an NEG E-Bell was added to the northern signal. Around the same time, the sidelights on the northern signal were removed.
23
24
Overview of the updated signals facing south.
Overview facing north.
25
26
27
28
29
30
31
32
33
34
The updated northern signal.
35
36
37
38
39
40
41
42
43
44
45
46
The updated southern signal.
By 2020, the NEG E-Bell was already replaced with a WCH Type 2 E-Bell. I don't know why it was replaced so soon.
In 2023, the crossing was upgraded to quad gates with 2 new exit signals being installed. The existing signals saw minimal changes.
47
48
Overview of the updated signals facing south.
Overview facing north.
49
50
51
52
The northern signal, now northern entrance signal, had its L&W base replaced. Again, the WCH E Bell was here since 2020.
53
54
55
56
57
58
59
60
61

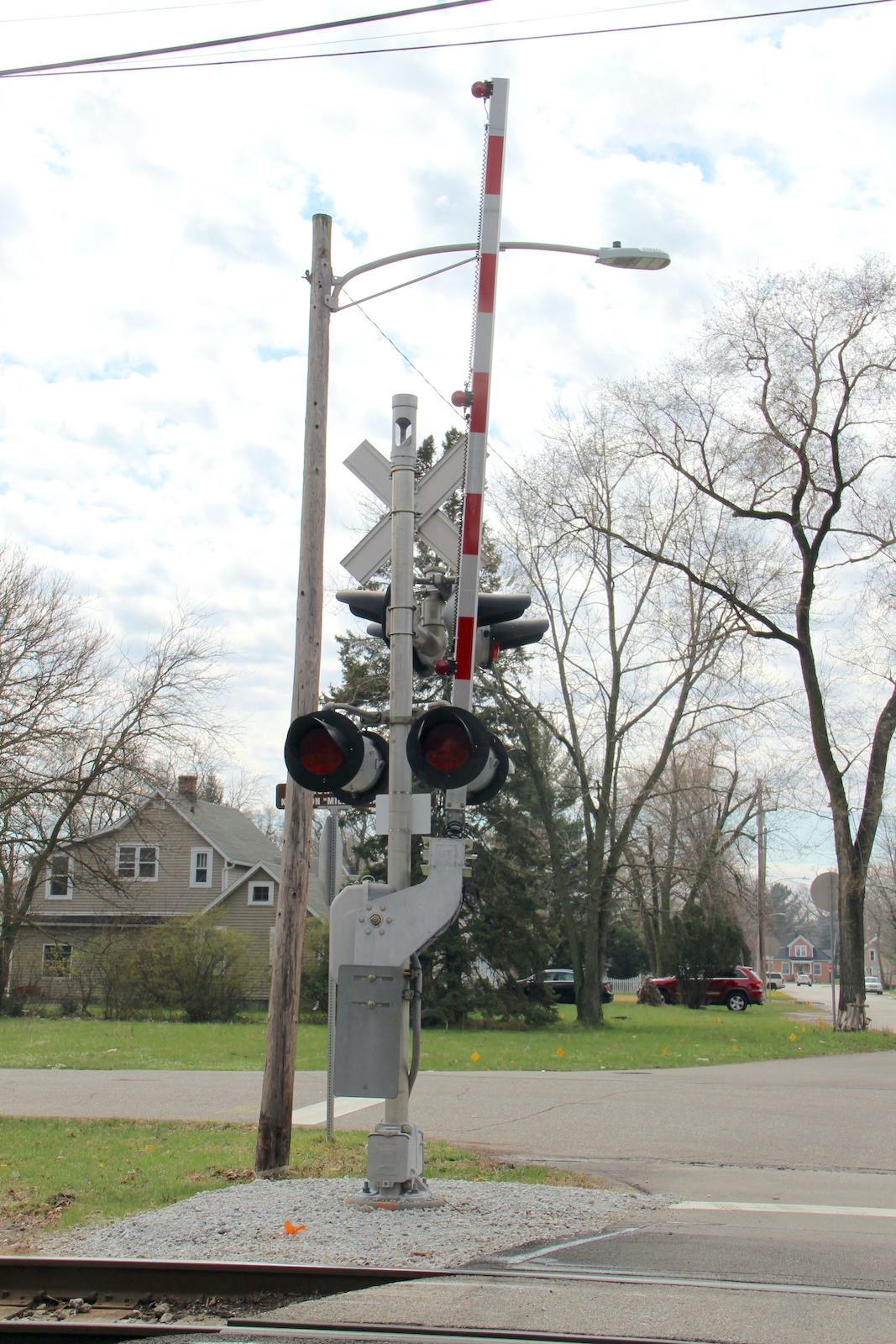

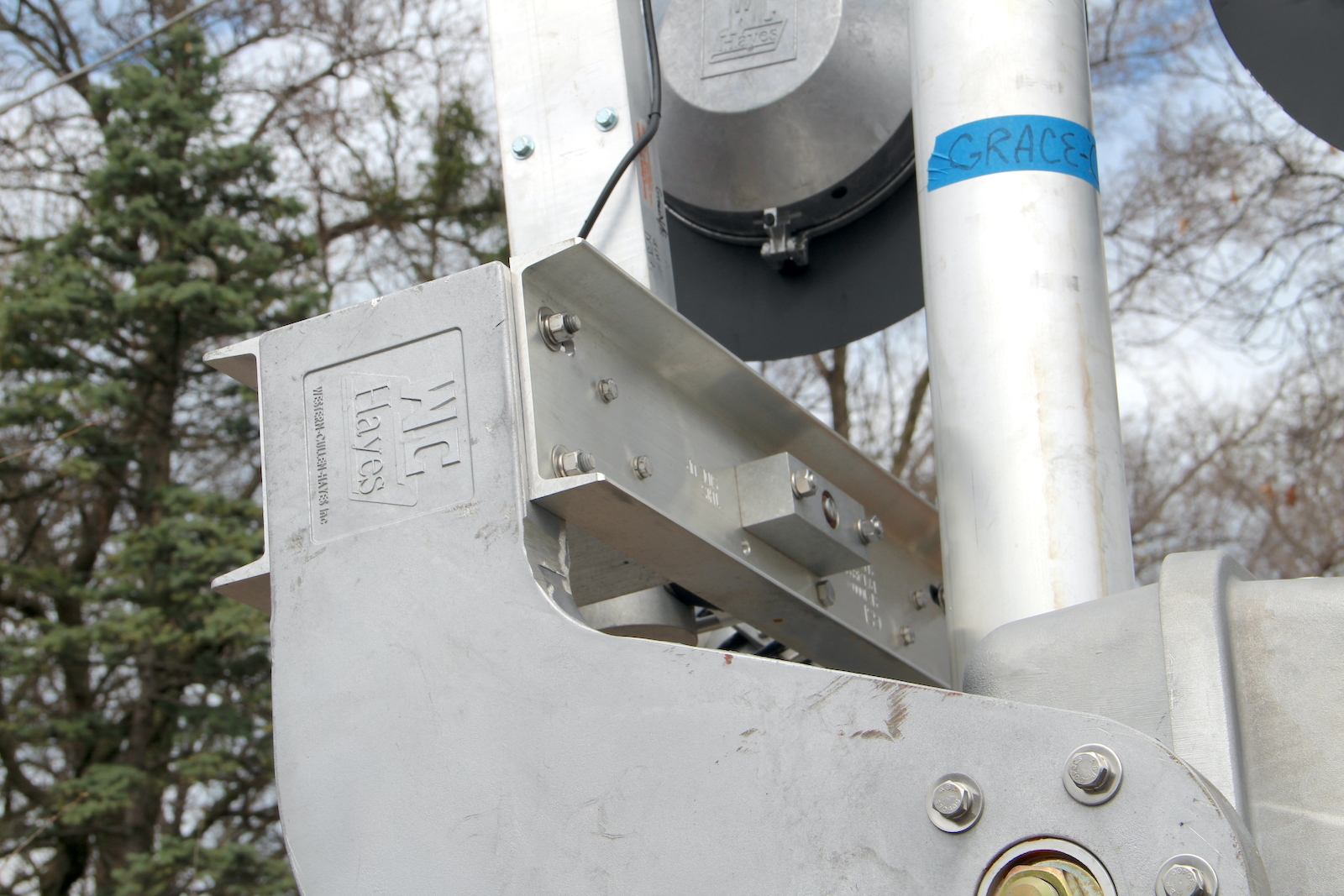

The new northern exit signal.
62
63
64
The southern signal, now southern entrance signal, also had its L&W base replaced.
