MP:  361.99



Created January 2026



Total Accidents:   12
Crossing DOT #:  472589G
TOTAL DAILY TRAINS:   17   (AS OF 2025)



>>>>>>>>>>>>> Northern Signal
 Southern Signal
Bell: GS Type 3 E-Bell
 N/A
Base:
 Siemens 5" Double Sided
 Siemens 5" Double Sided
Cantilever: Siemens
 Siemens
Light Frames: 8 - 12"x20" Safetran w/ GE Uniform Look LEDs
 8 - 12"x20" Safetran w/ GE Uniform Look LEDs
Light Brackets:
 3 - Safetran
 3 - Safetran
Gate Lights: 3 - NEG 4" LEDs
 3 - NEG 4" LEDs
Gate Mechanism: Siemens Imprinted w/ NEG 1 Way Saver
 Siemens Imprinted w/ NEG 1 Way Saver
Gate Striping: Vertical Striping
 Vertical Striping



Page created by: tomasthetrain3

 The video was taken on February 19, 2024, by Nicholas Miles.
Pictures 1-35 were taken on November 24, 2025, by Nicholas Miles.

This crossing is located on the NS Fostoria District.


These signals were installed between 2019 and 2020 replacing a pair of late 2000s NS gated cantilever signals.



IN1

IN2

IN3

IN4
INDOT pictures from 2002 shows an older gateless setup from the N&W era featuring 8 inch Safetran incandescents and no bells.

IN5

IN6

IN7

IN8
In 2008, both signals were replaced with new gated cantilever signals. At the time, these signals had all 12"x20" Safetran incandescents, Safetran gate mechanisms, a Safetran Type 3 E-Bell, and NEG incandescents.

IN9

IN10
In 2014, we see that both gate arms were mostly restriped, with the tip of the gate arms still retaining the diagonal striping.

IN11

IN12
Finally, around 2018, we see that the gate arm on the southern signal was fully restriped and blue DOT tags were added to replace the white ones. Between 2019 and 2020, the road was widened and as a result of it being at the crossing, both signals were replaced with newer ones after only 12 years in service.

1

2

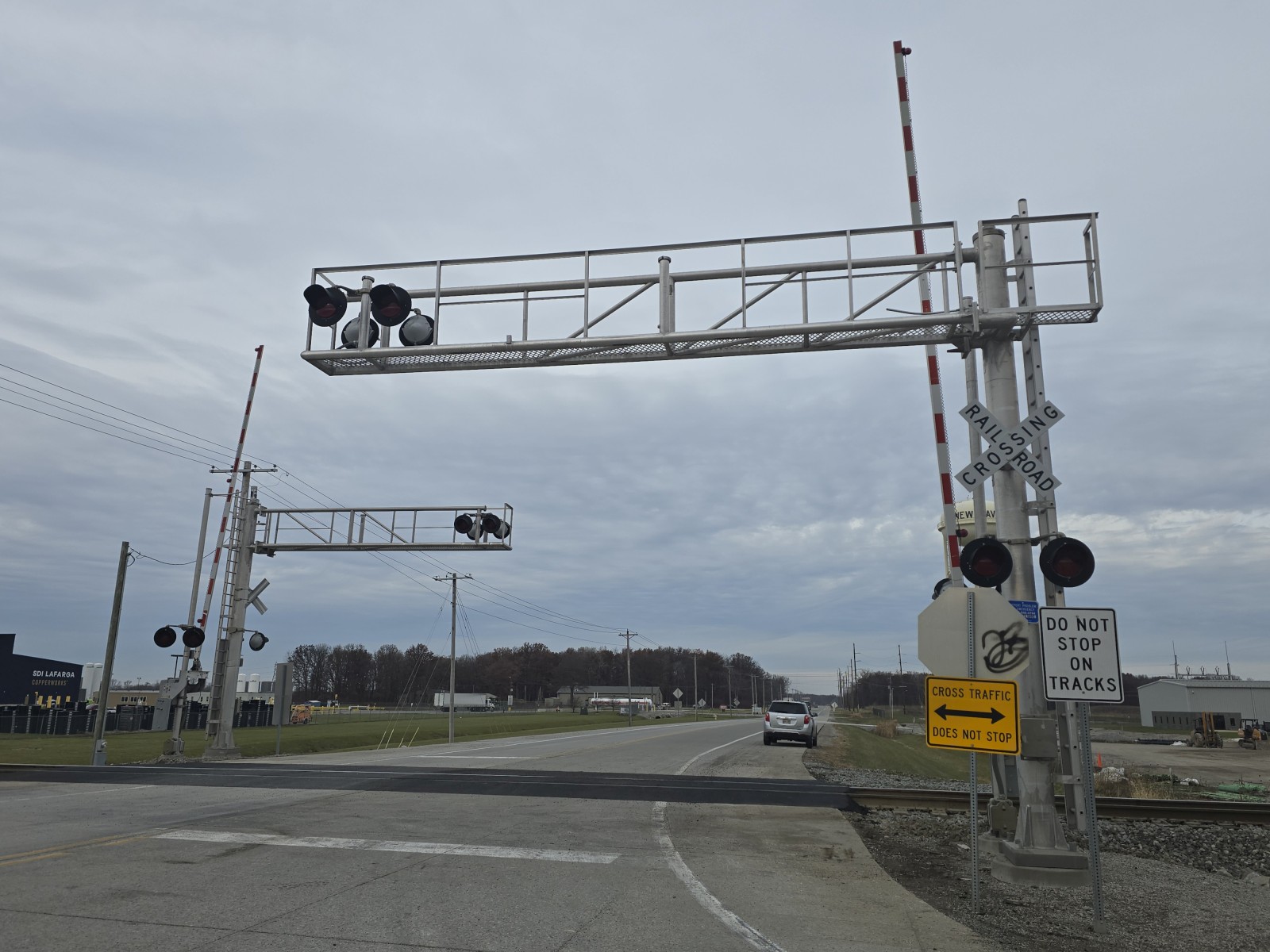

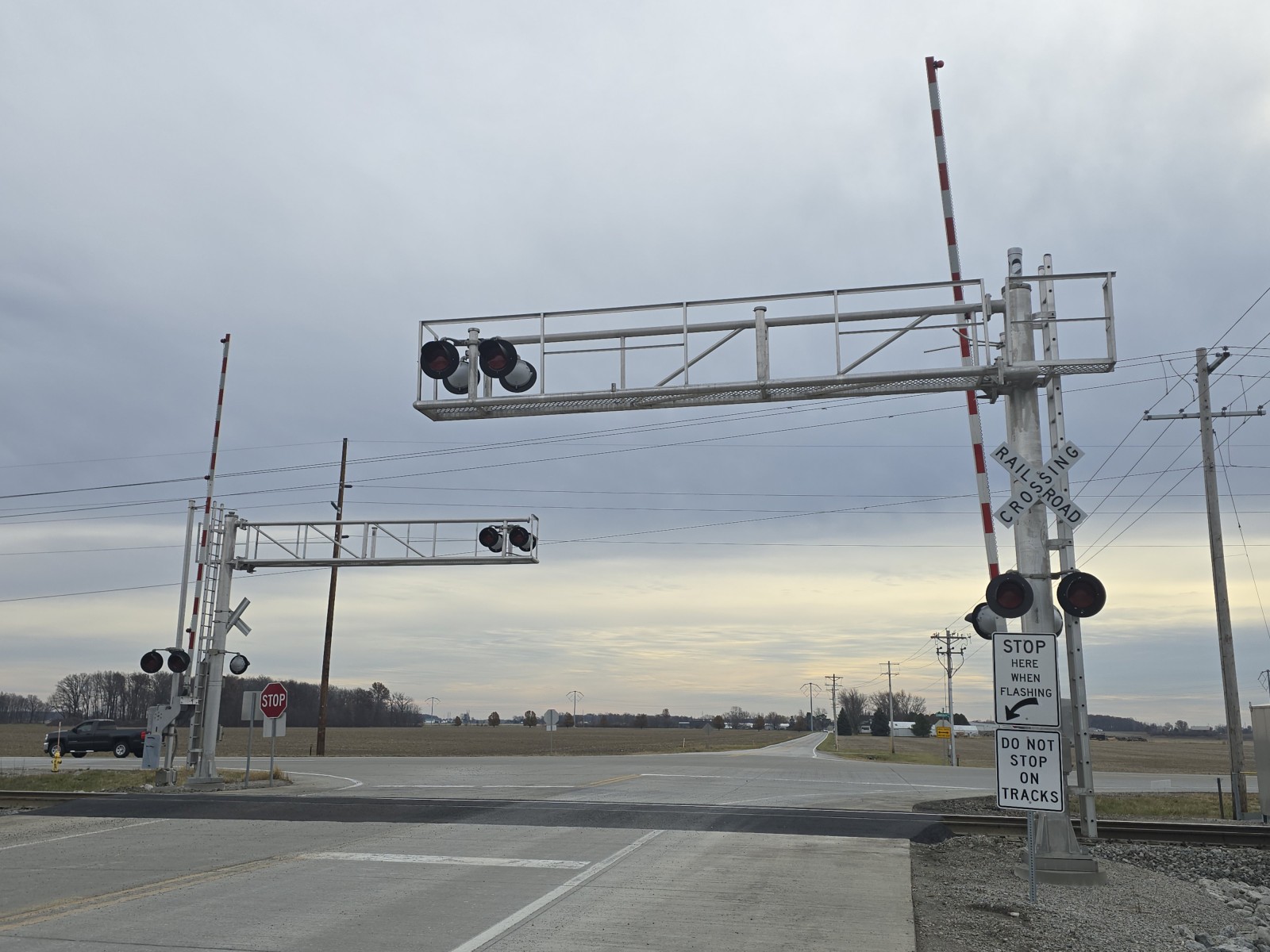

Overview of 2 newer gated cantilever signals facing south.
Overview facing north.

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17
The northern signal. For some strange reason, even though this is a newer install, both signals somehow feature NEG LEDs instead of RECO LEDs. Not sure if they had RECO LEDs when they were installed back in 2020.

18

19

20

21

22

23

24

25

26

27

28

29

30

31
The southern signal.

32

33

34

35
The relay bungalow in the southwest quadrant.
This crossing's grade is made of rubber and asphalt.
 Track view facing east towards Private Crossing.
 Track view facing west towards Doyle Road #2.
