![]() MP: 474.63 |
| Created December 2024 |
| Total Accidents:
5 Crossing DOT #: 522616R TOTAL DAILY TRAINS: 60 (AS OF 2022) |
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | None | None |
| Base: | Safetran 5" Single Sided V | Safetran 5" Single Sided ^ |
| Lights: | 4 - 12"x20" Safetran incandescents | 4 - 12"x20" Safetran incandescents |
| Junction Box: | Safetran | Safetran |

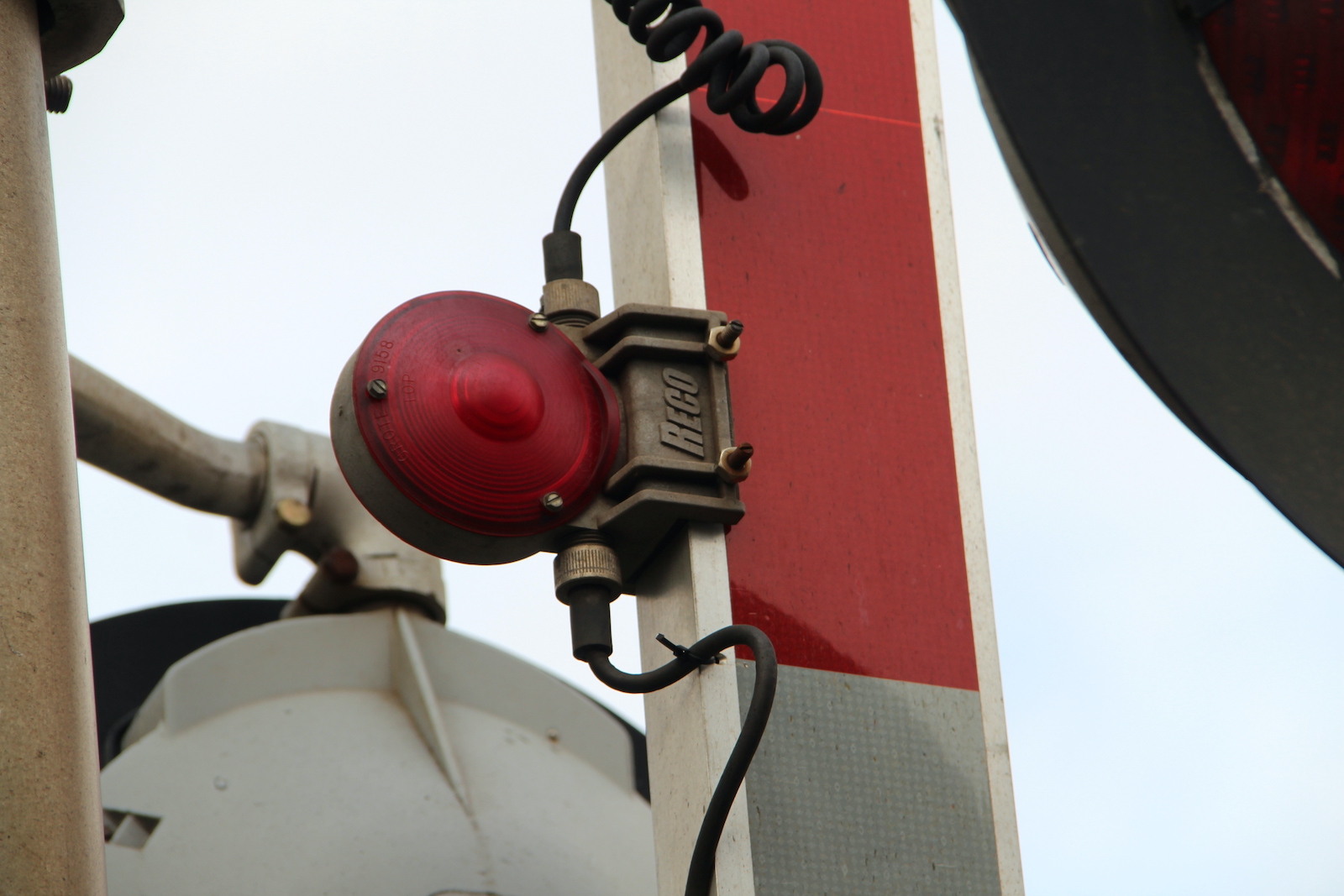

| Gate Lights: | 3 - 4" RECO incandsecents | 3 - 4" RECO incandsecents |
| Gate Mechanism: | Safetran 2000s w/ GSI Gate Saver | WCH Style 3 w/ Standard Mount |
| Gate Striping: | Vertical Striping | Vertical Striping |
| IN1 |
IN2 |
IN3 |
IN4 |
| INDOT pictures from the early 2000s showing two older gated signals with 8" lights and no bells. The northern signal had a WRRS or GRS gate mechanism, and the southern had a WCH gate mechanism. |
| G1 |
G2 |
| By 2007, the northern signal's gate mechanism was replaced with a WCH one, and the lights were replaced with 12"x24" incandescents. Meanwhile, the southern signal got 12"x20" incandescents. By 2013, the northern signal was changed again to have 12"x20" incandescents, plus now a Safetran gate mechanism. |
| 1 |
2 |
| Overview of 2 gated signals facing south. | Overview facing north. |
| 3 |
4 |
5 |
| 6 |
7 |
8 |
9 |
| 10 |
11 |
12 |
13 |

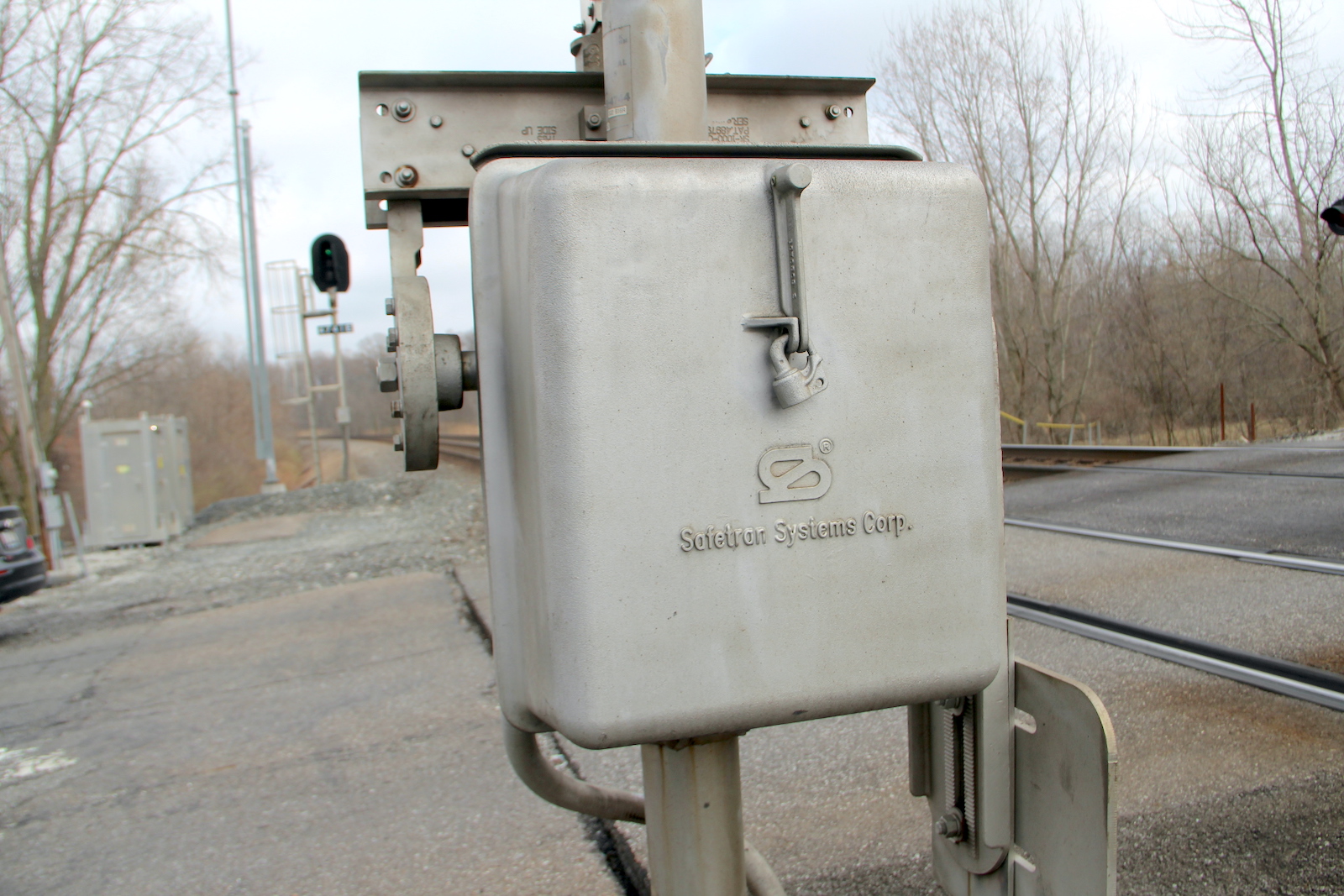

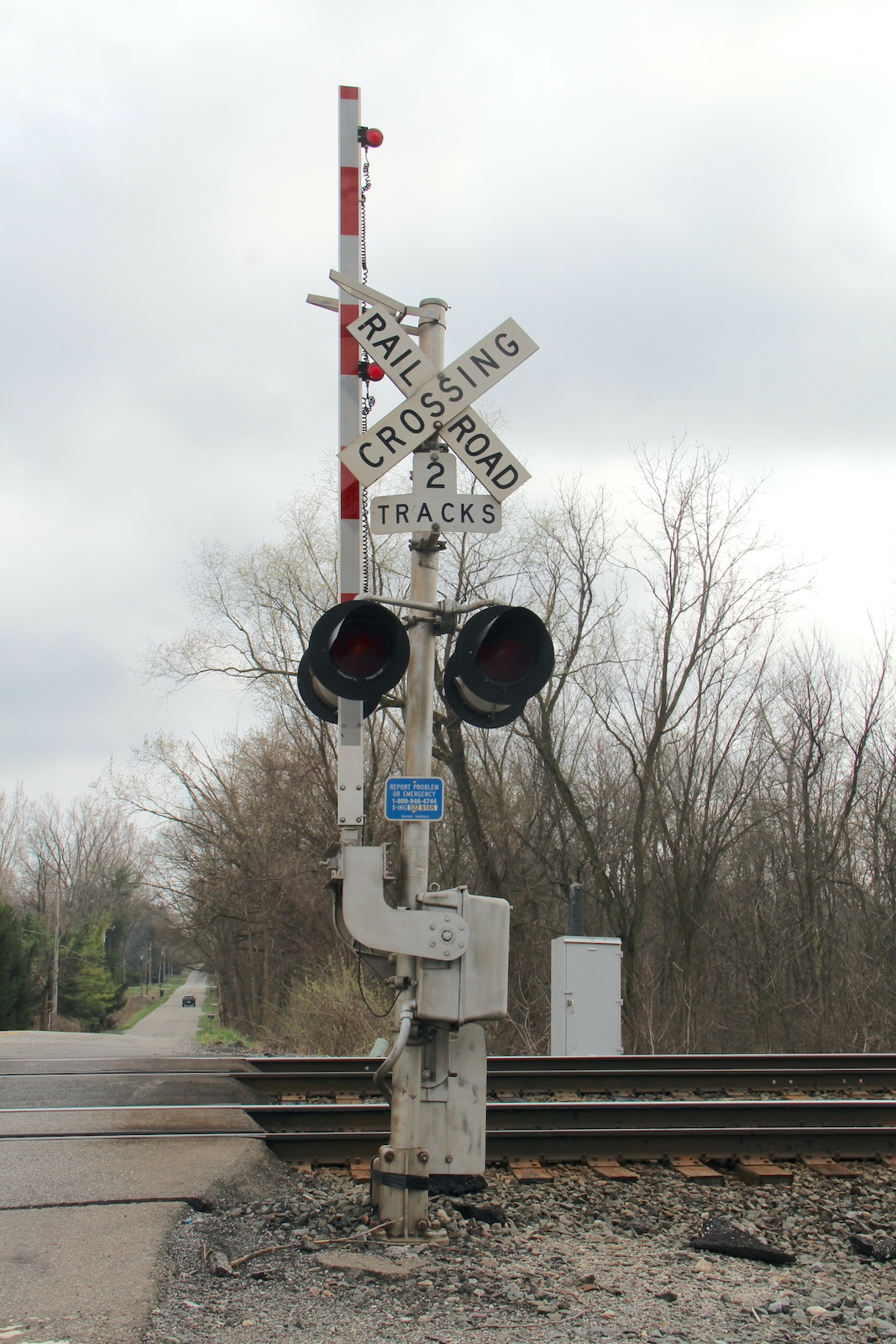

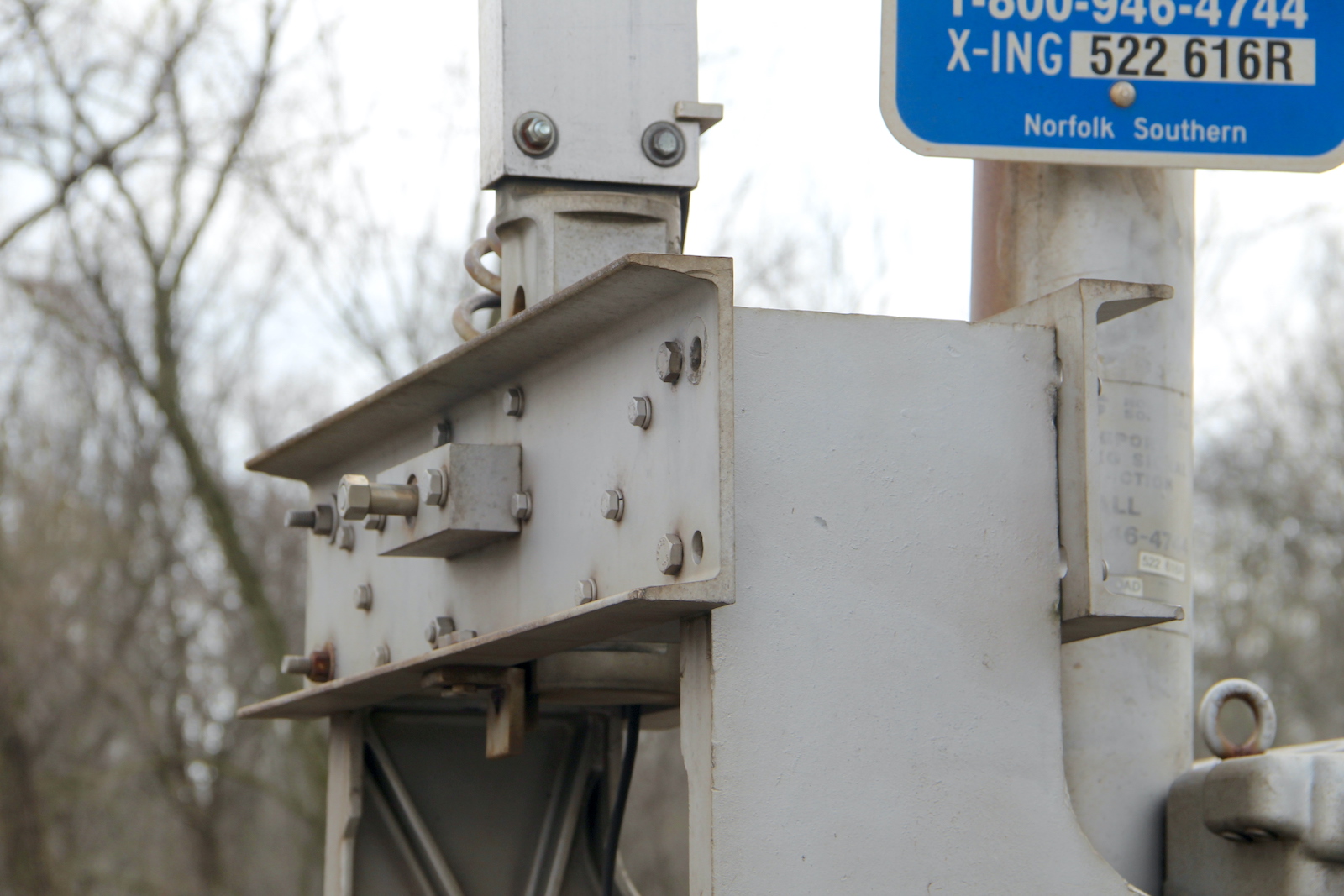

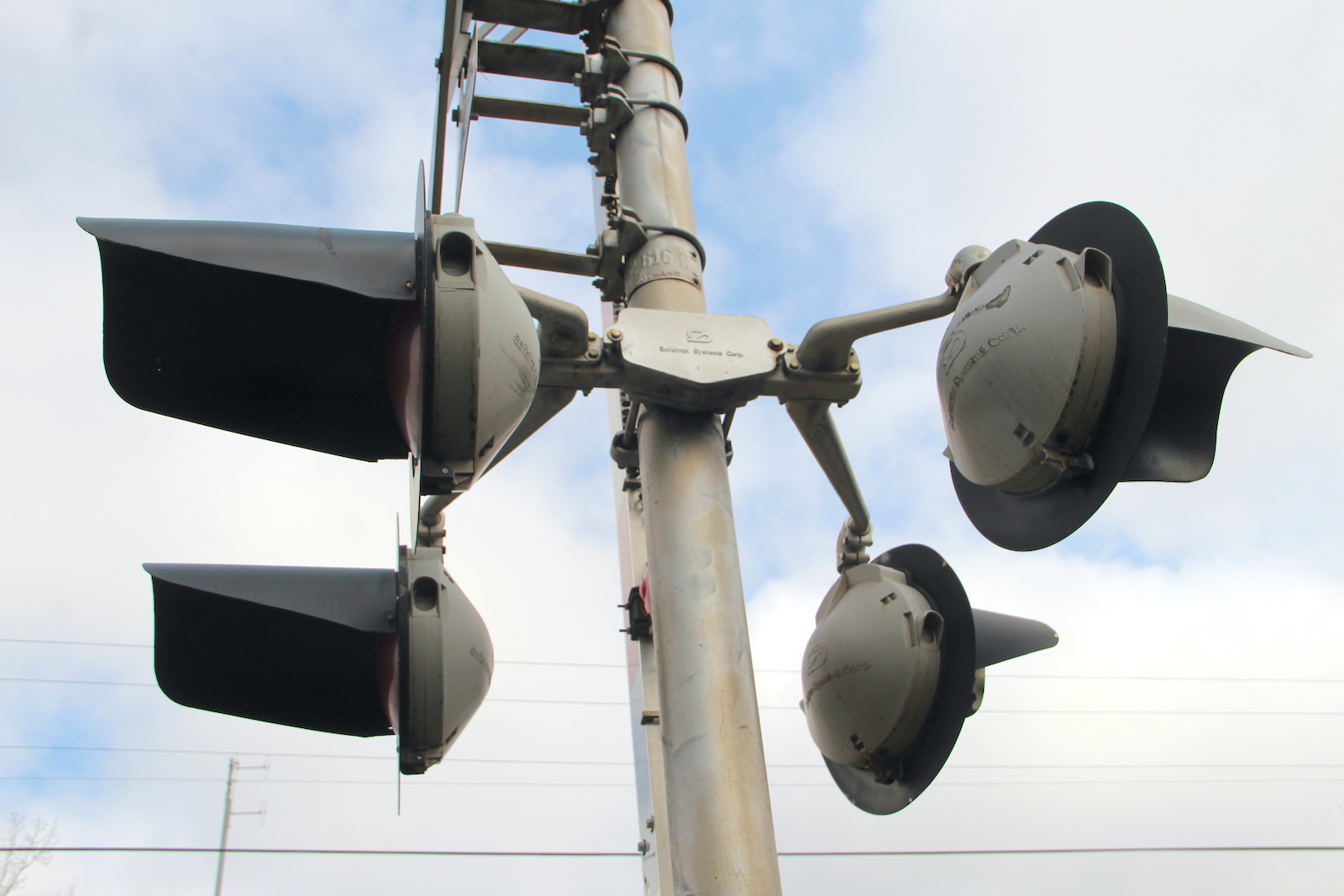

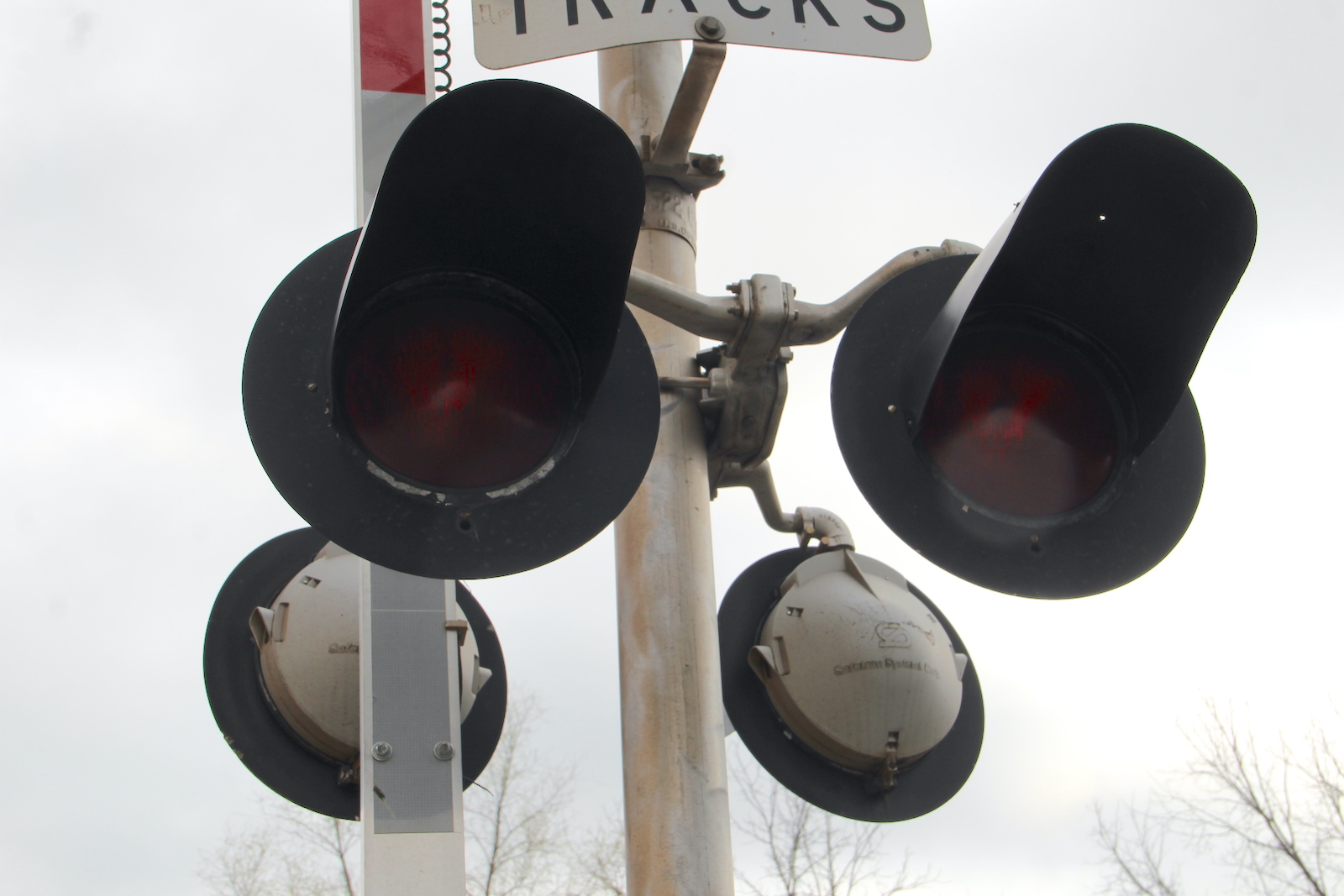

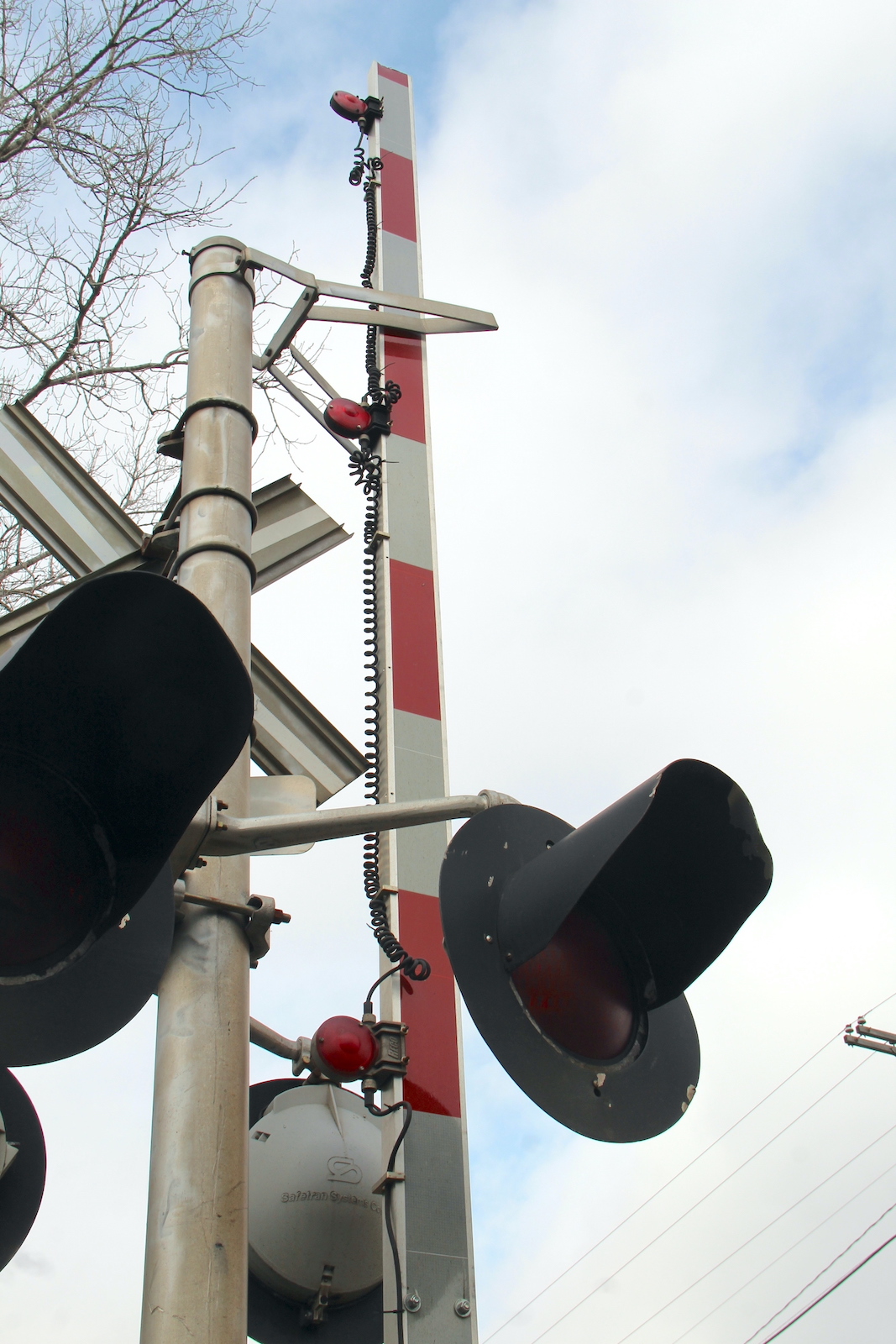

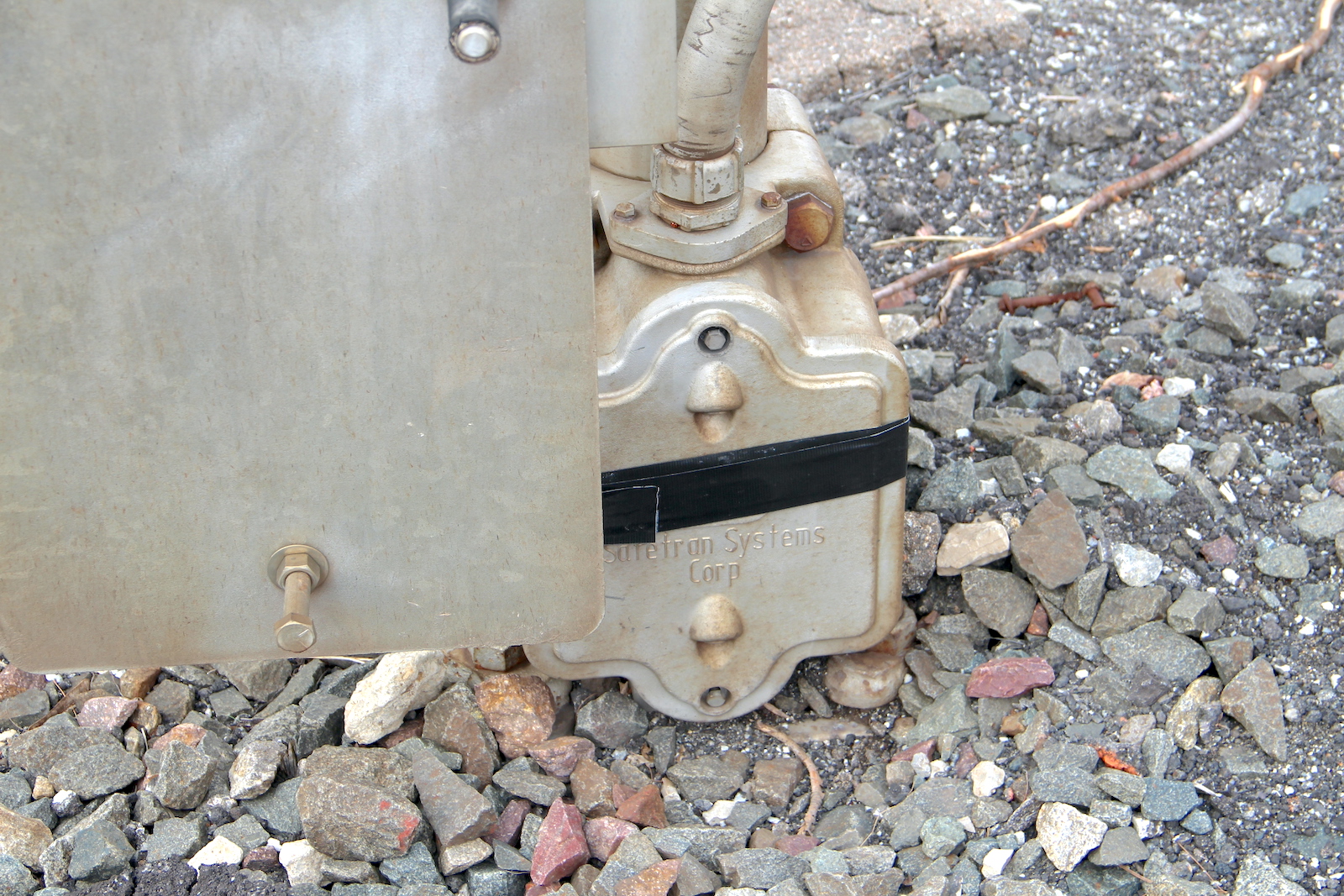

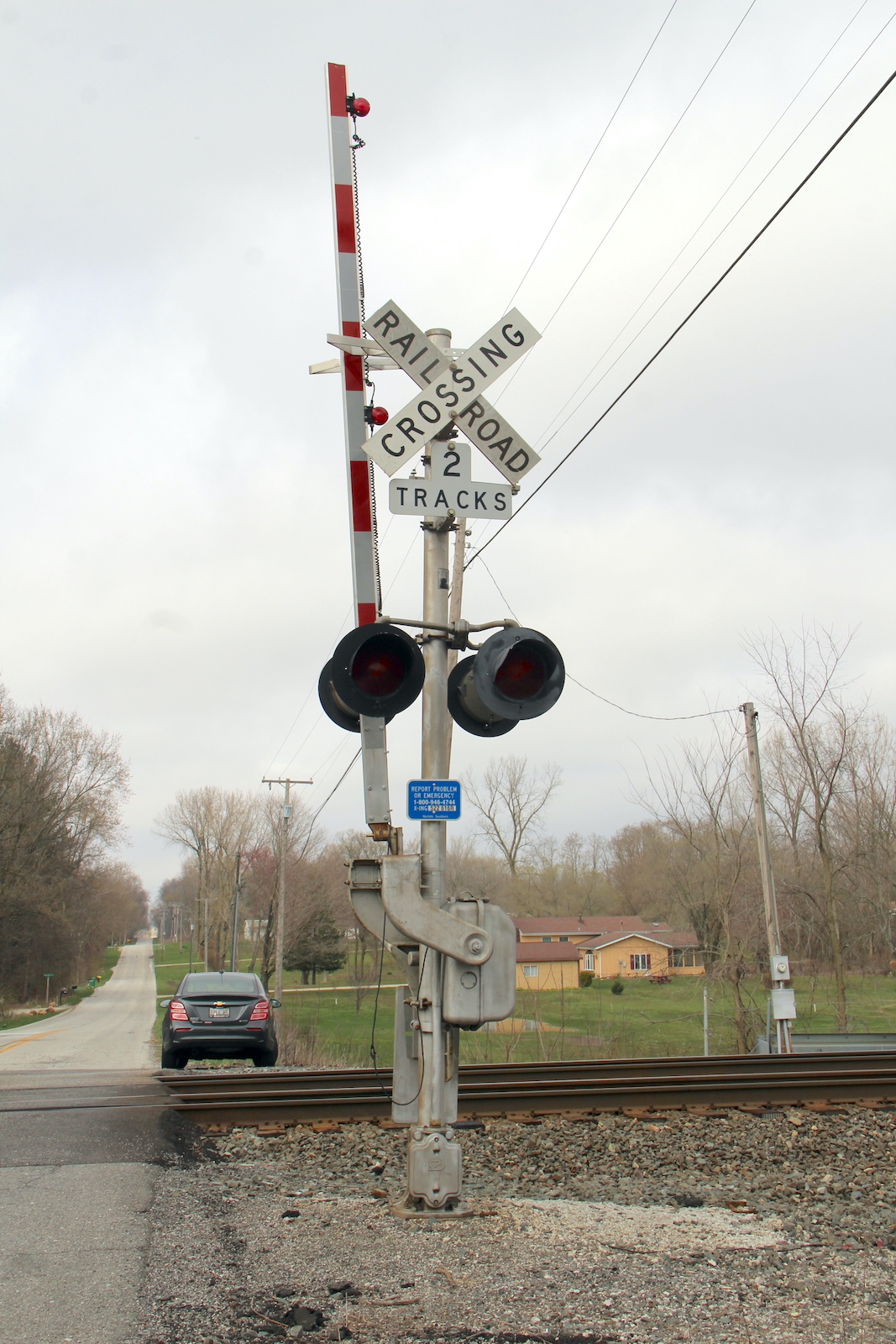

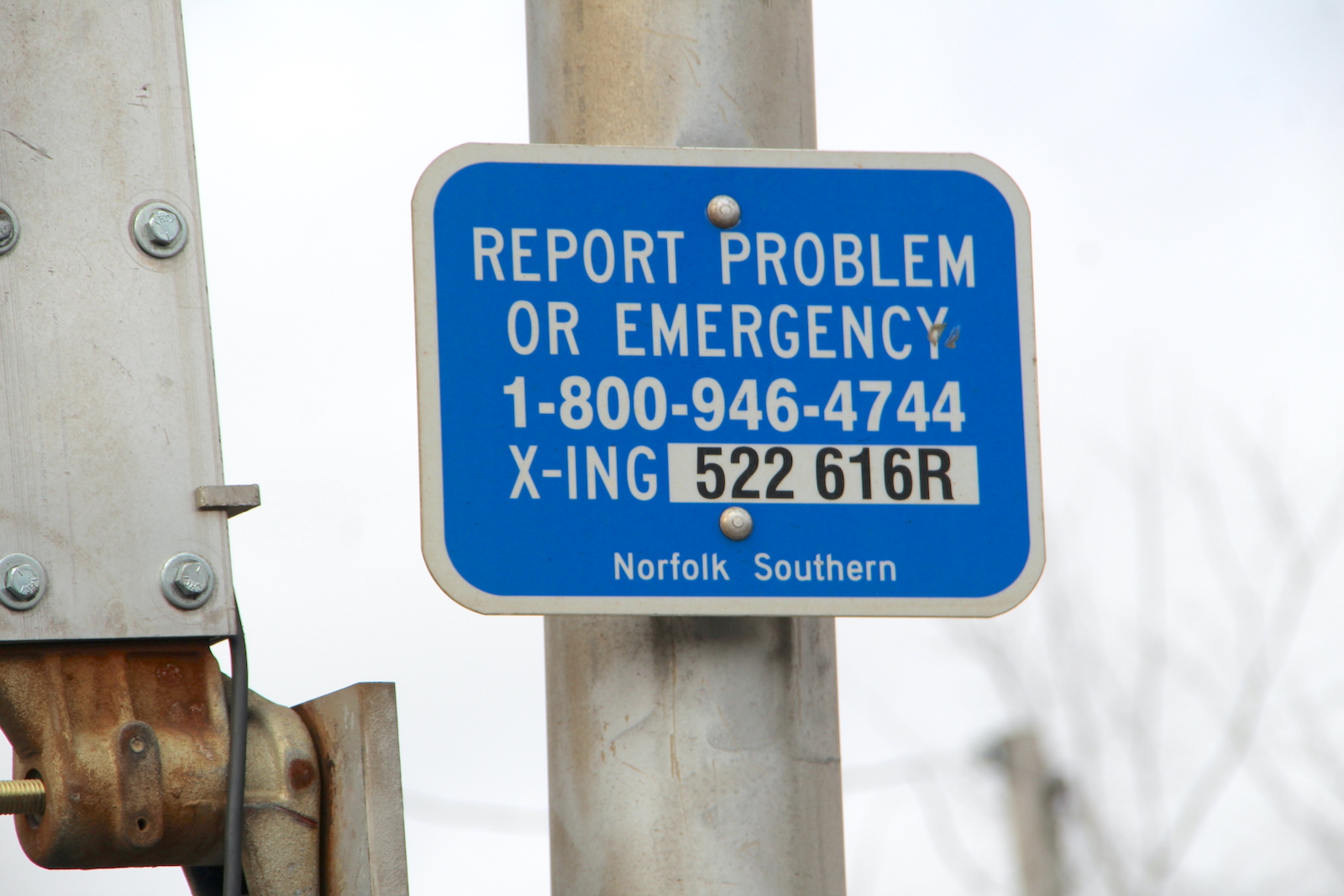

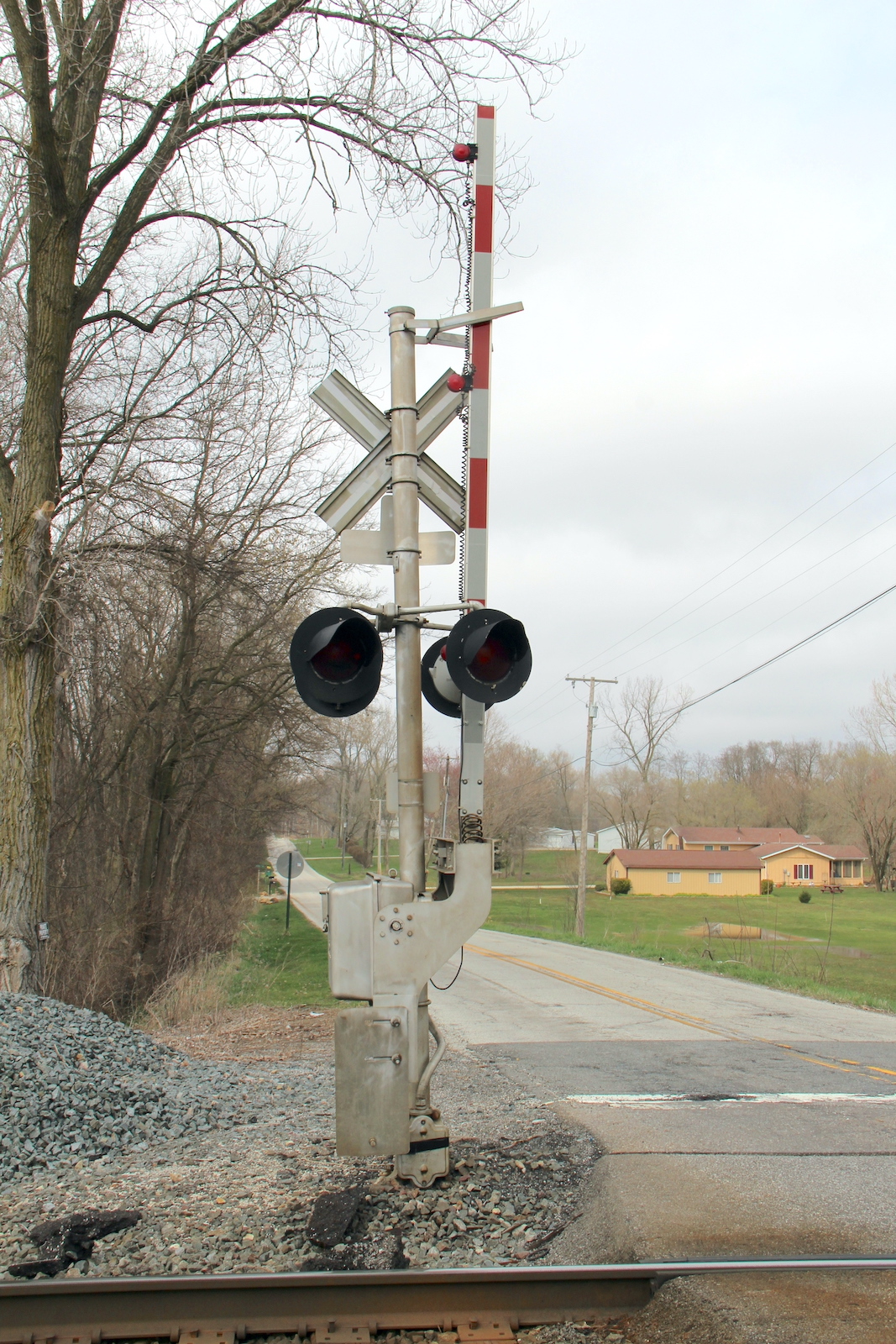

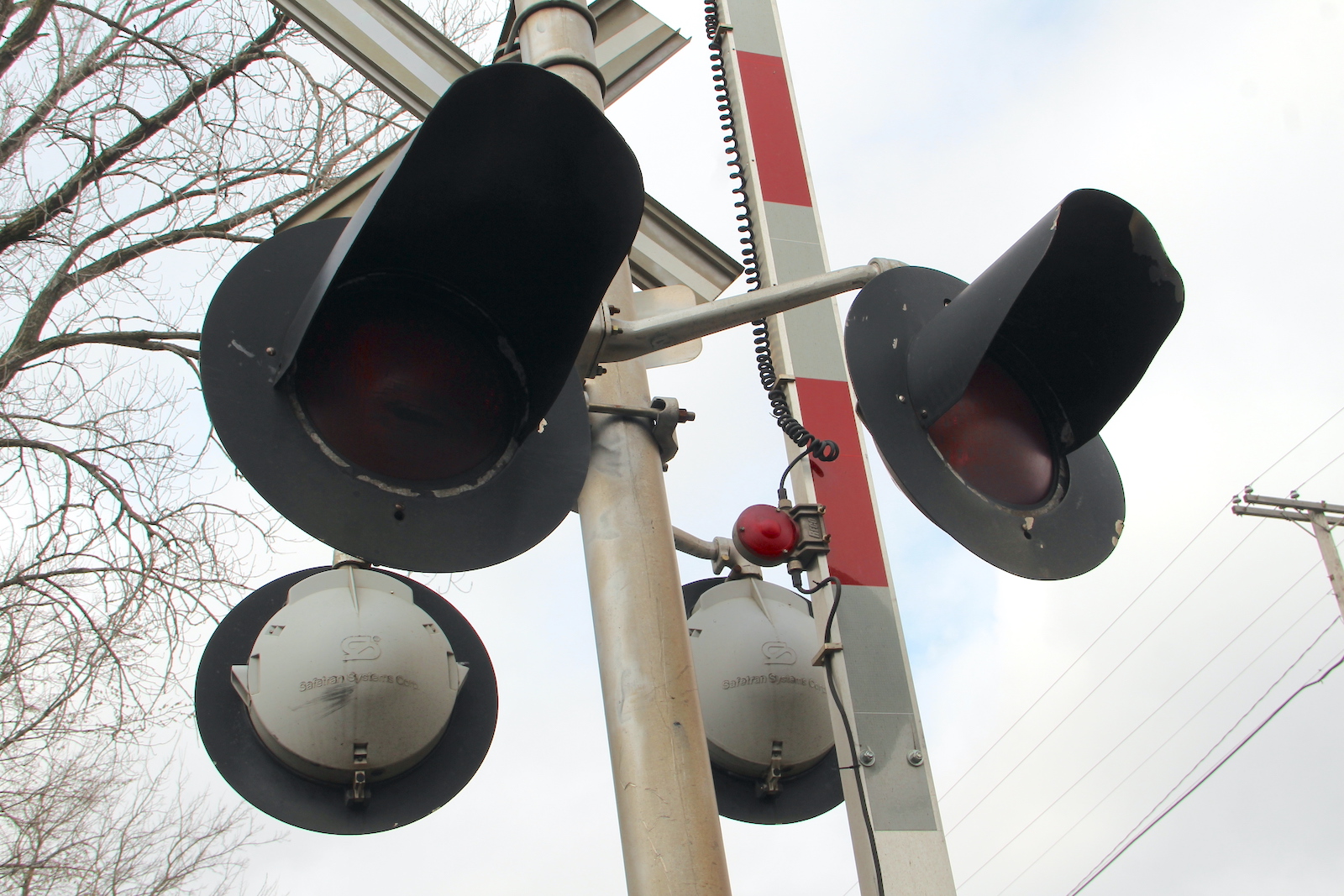

| The northern signal. |
| 14 |
15 |
16 |
| 17 |
18 |
19 |
20 |
| 21 |
22 |
23 |
24 |

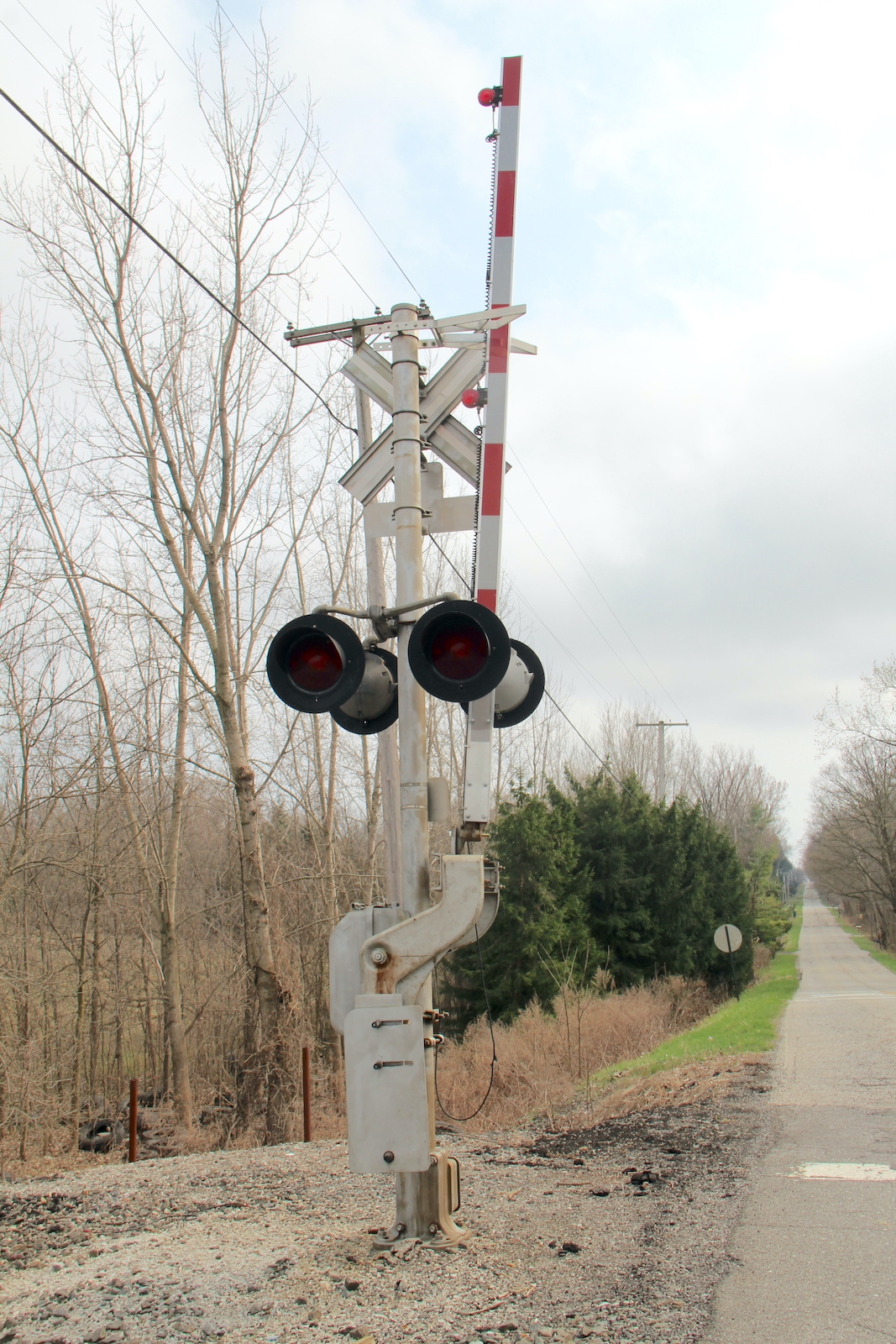

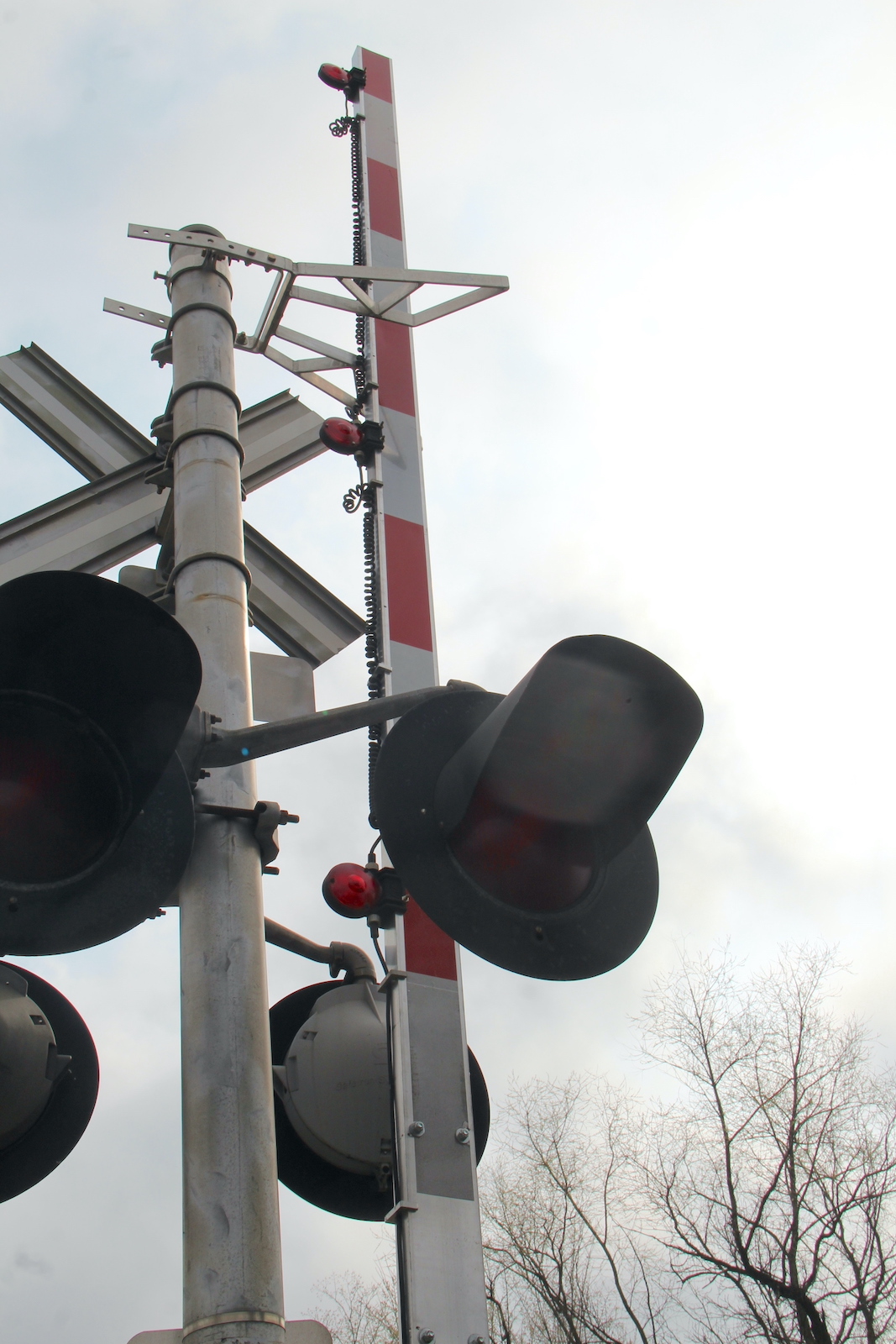

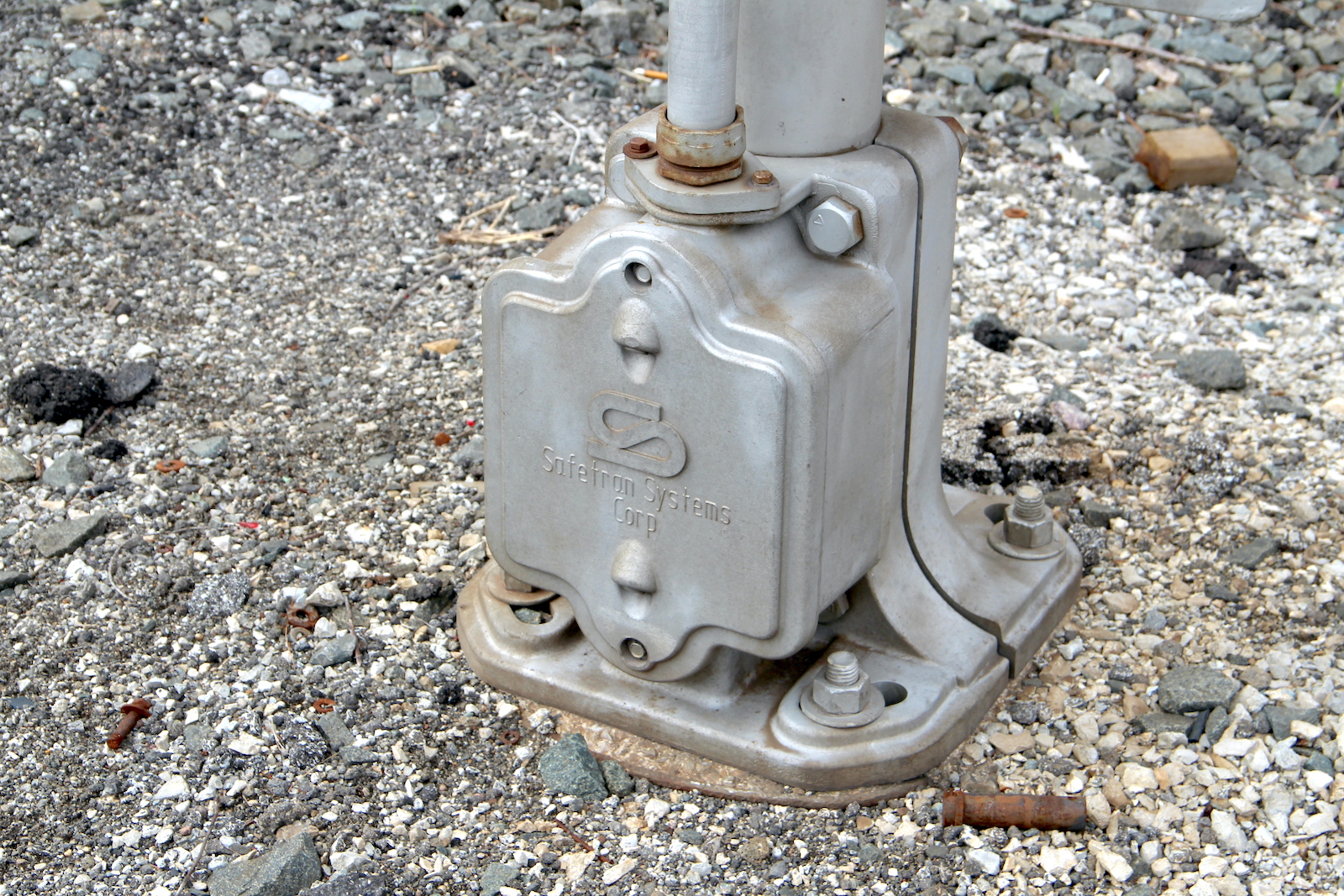

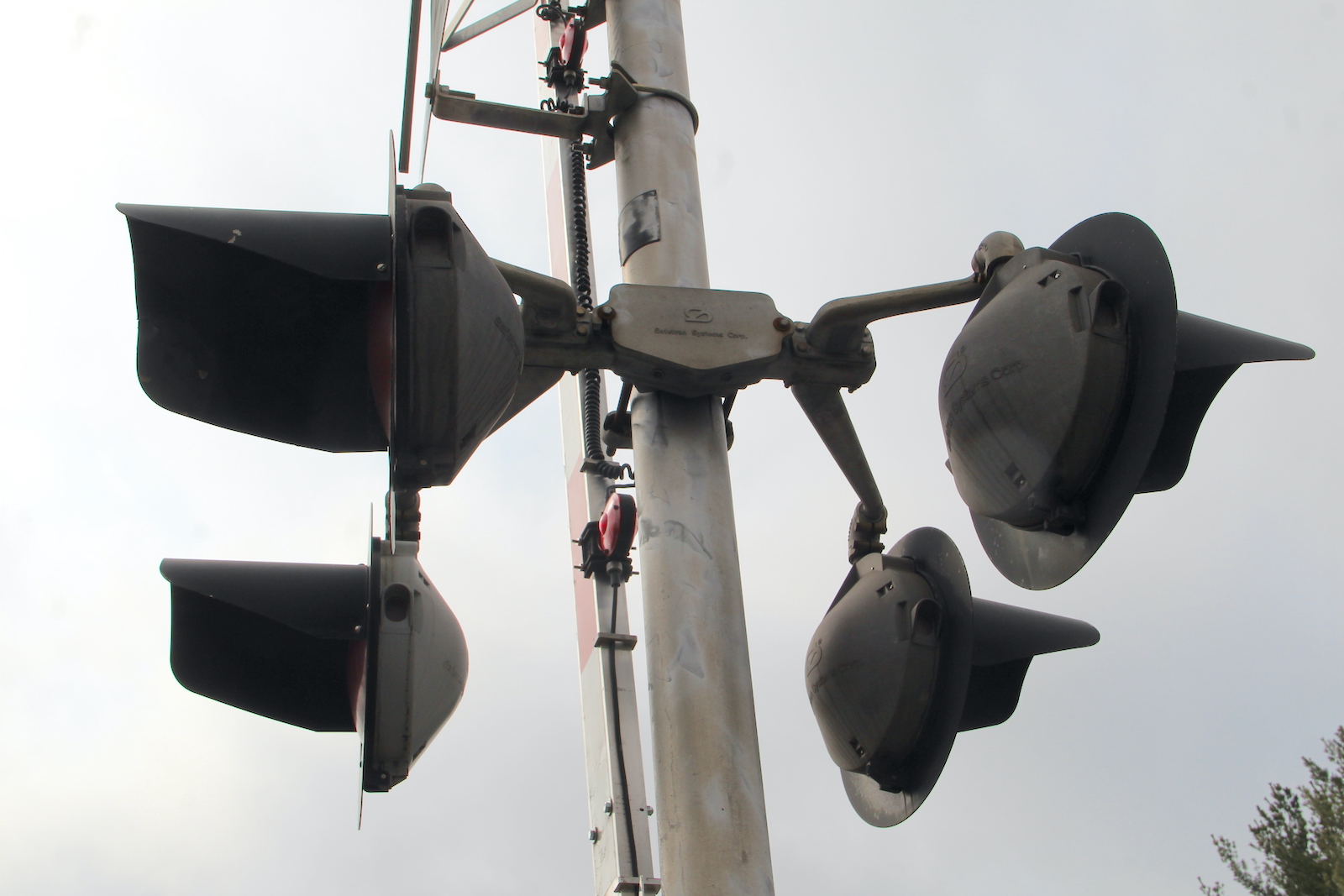

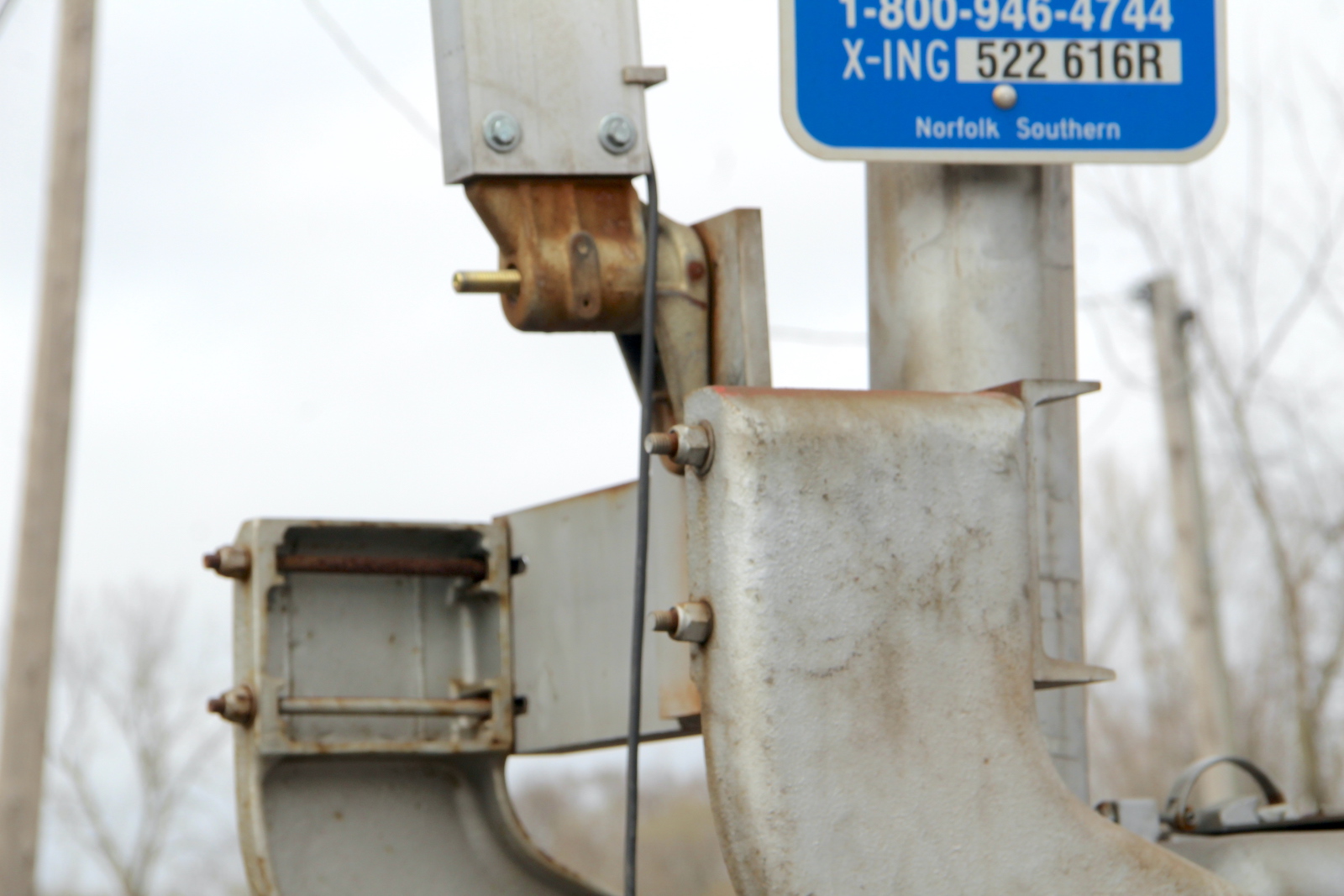

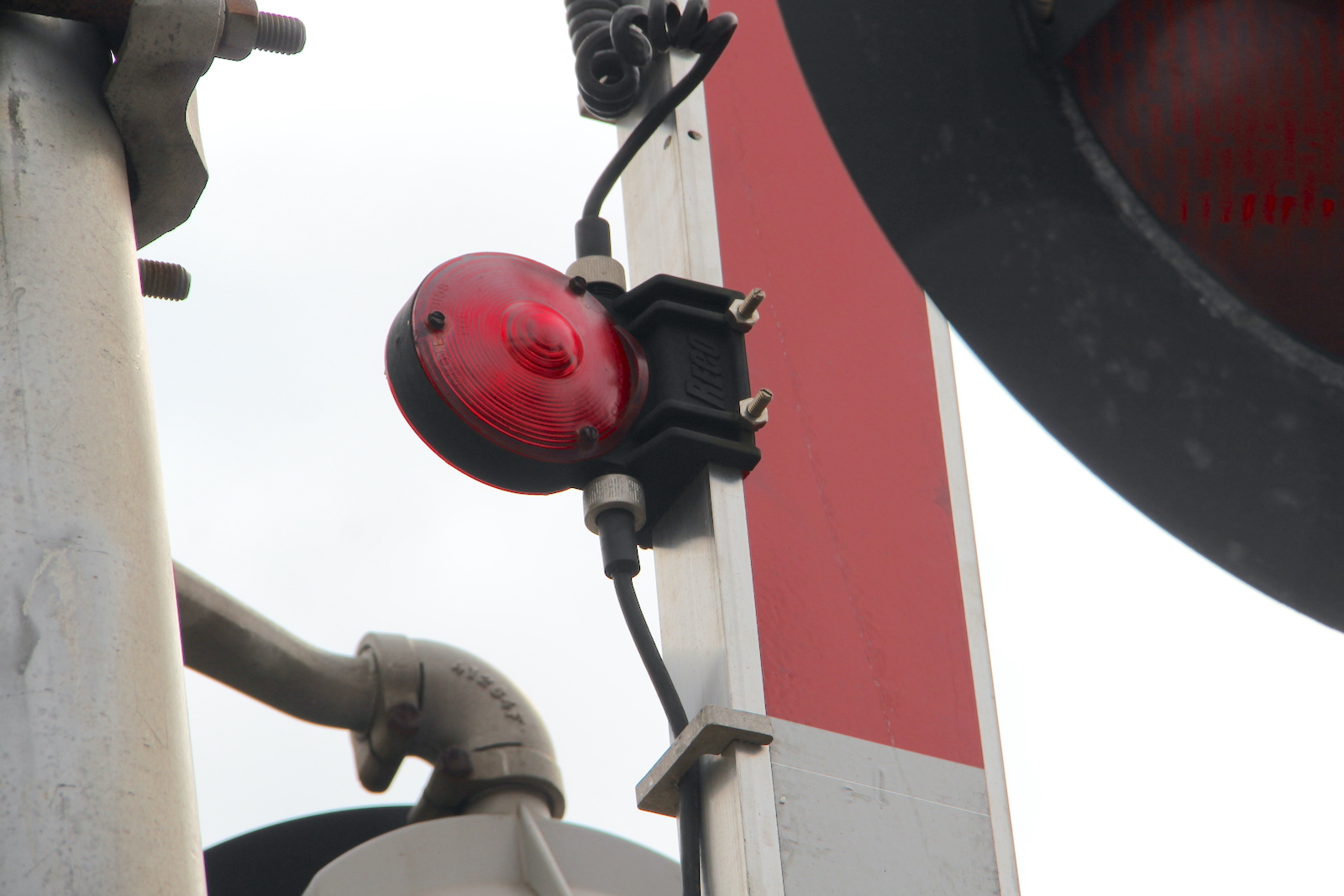

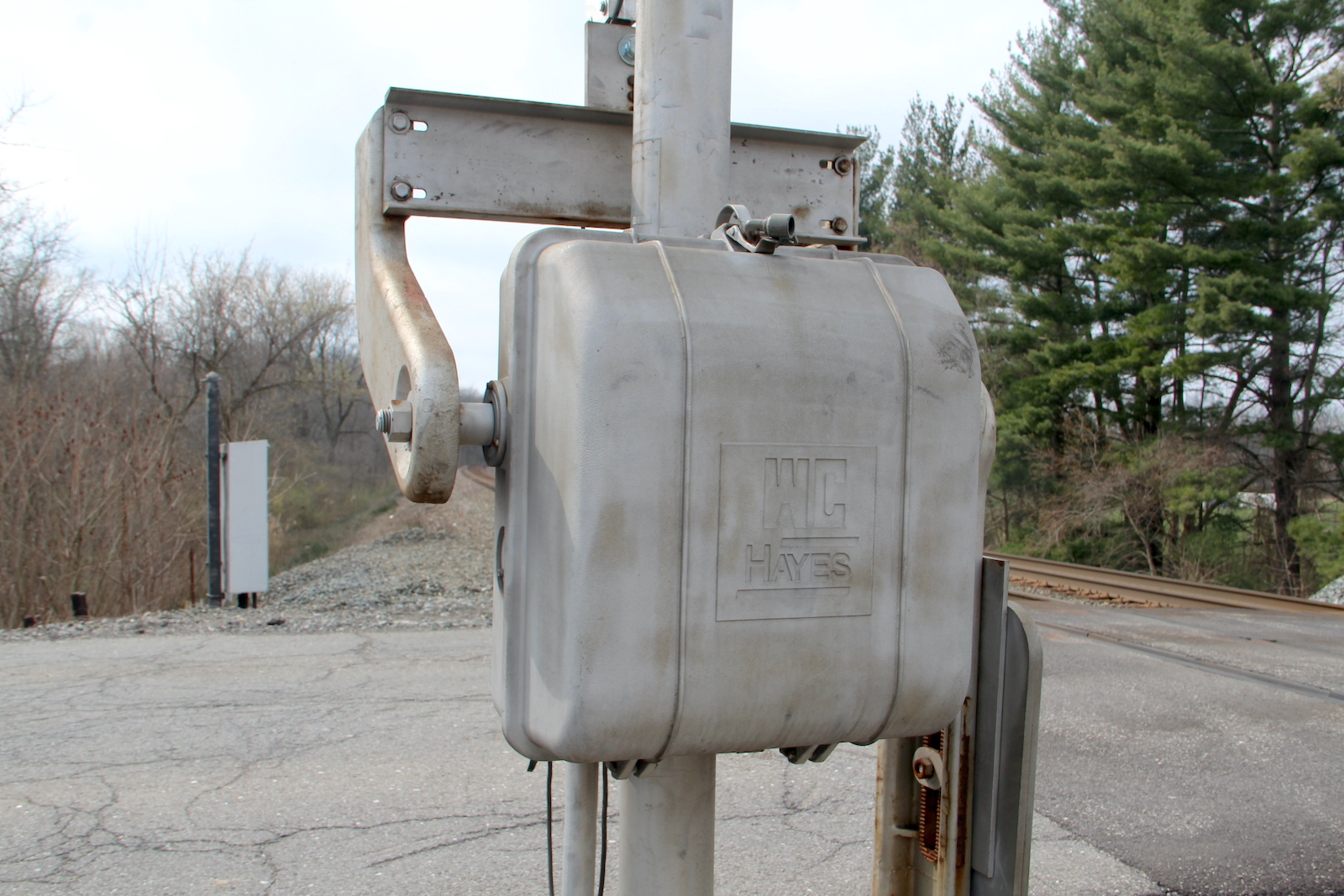

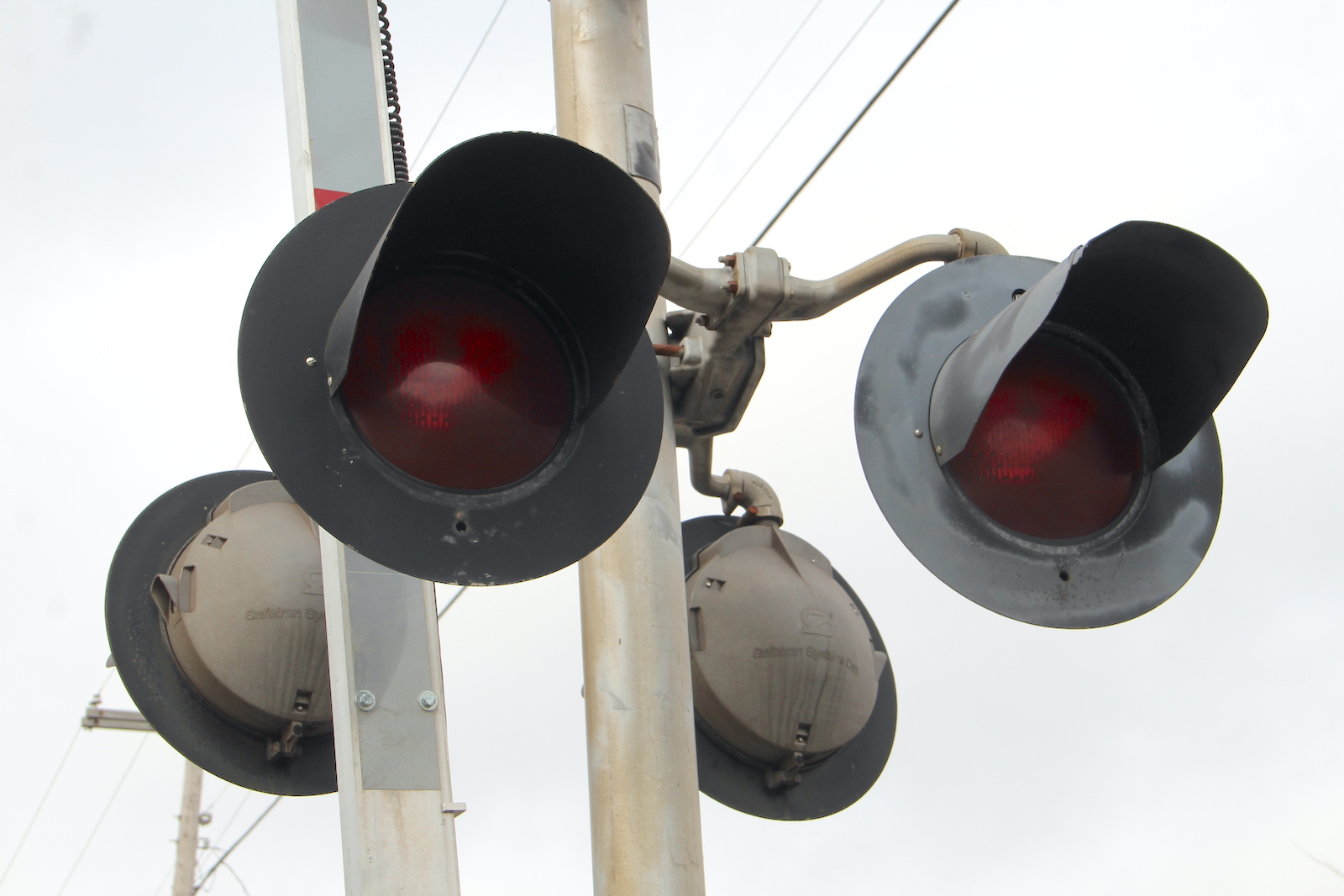

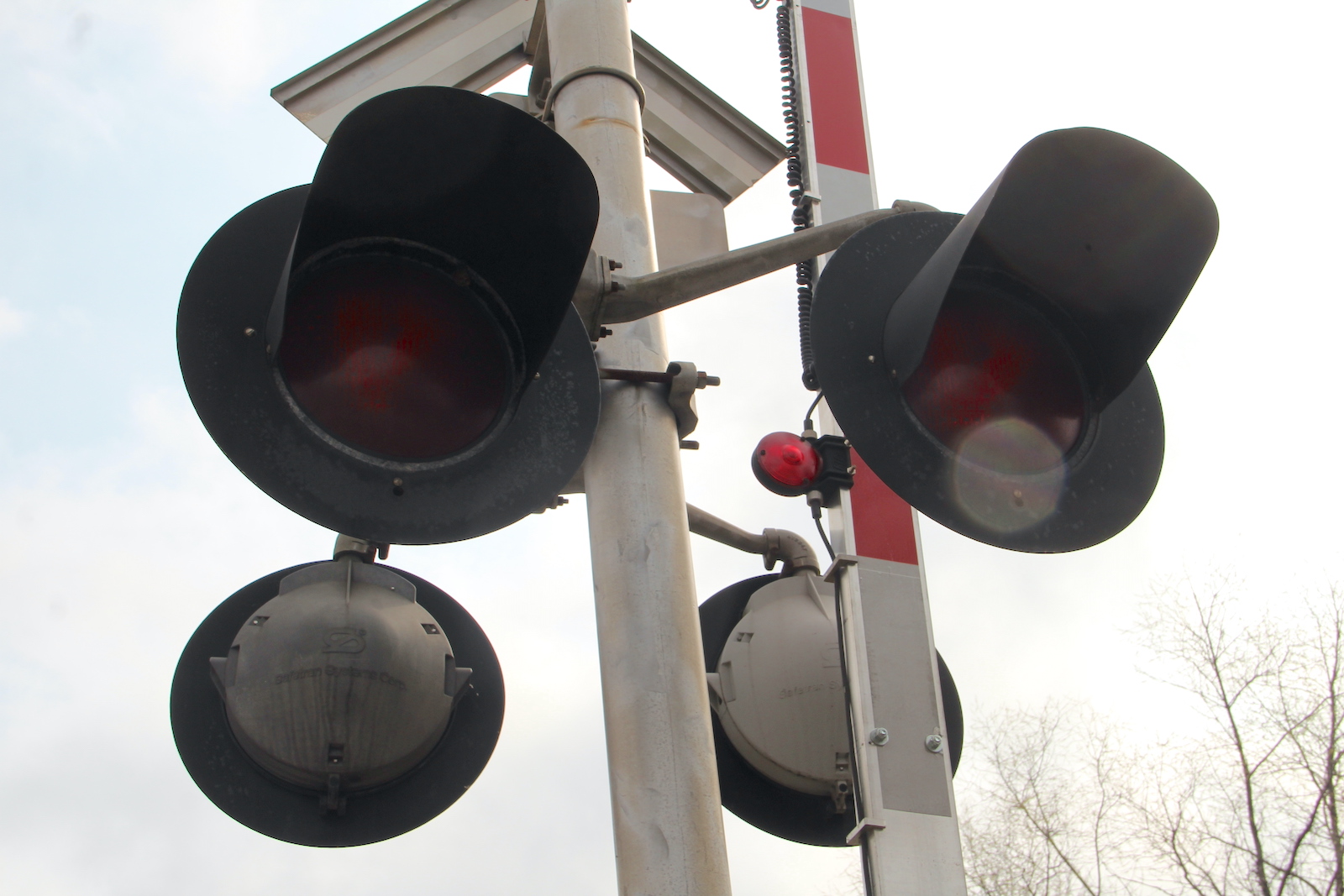

| The southern signal. |
| 25 |
26 |
27 |
28 |

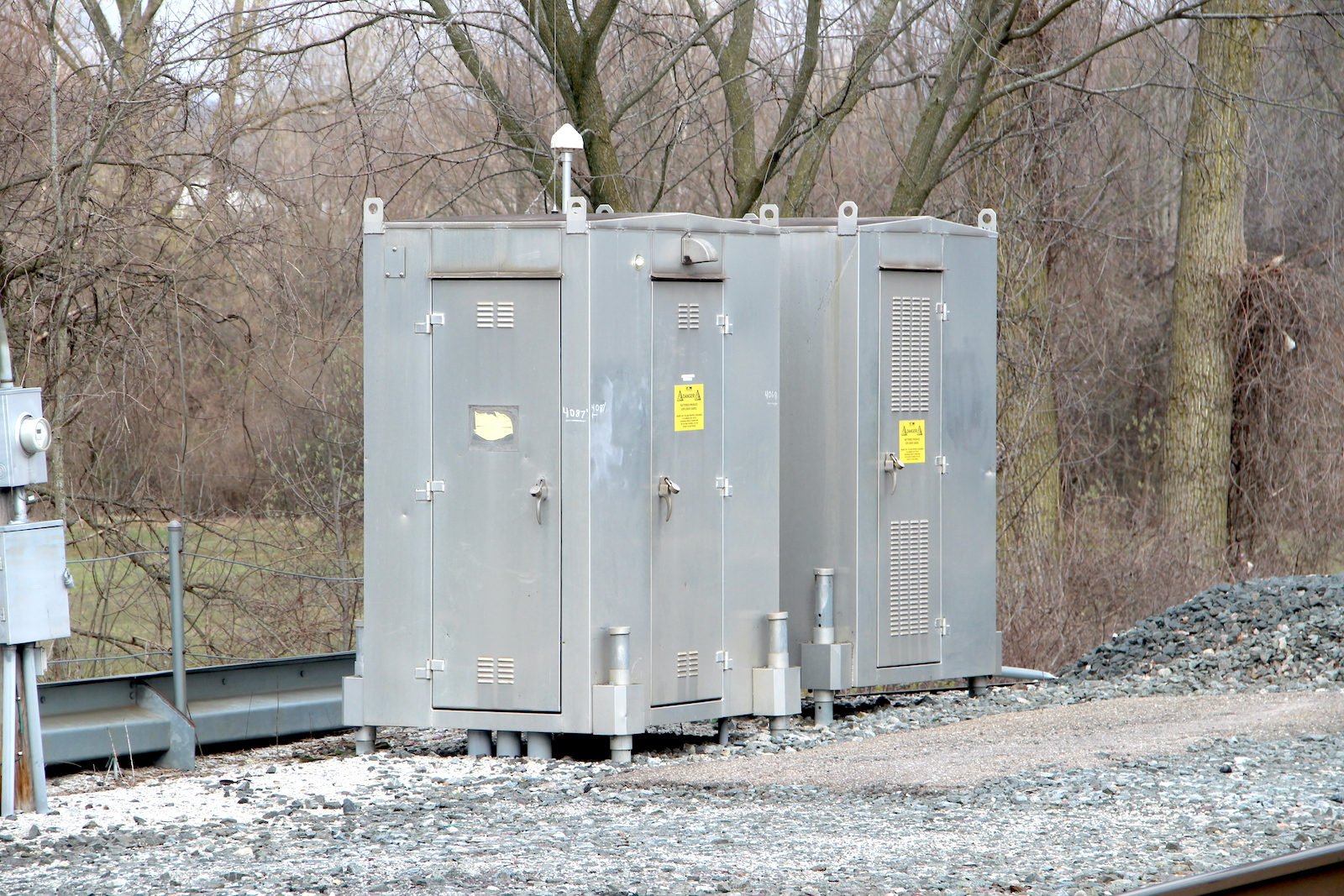

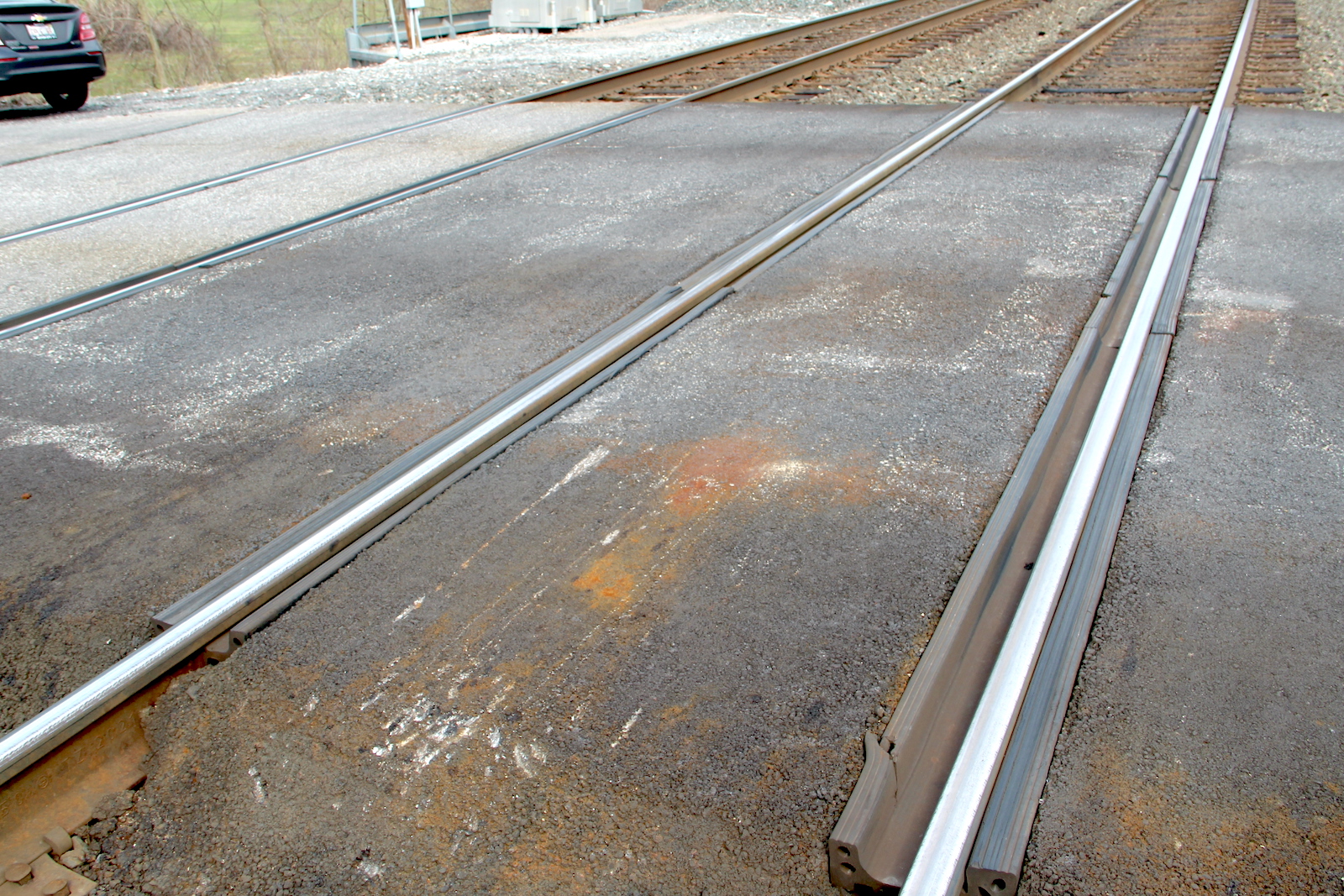

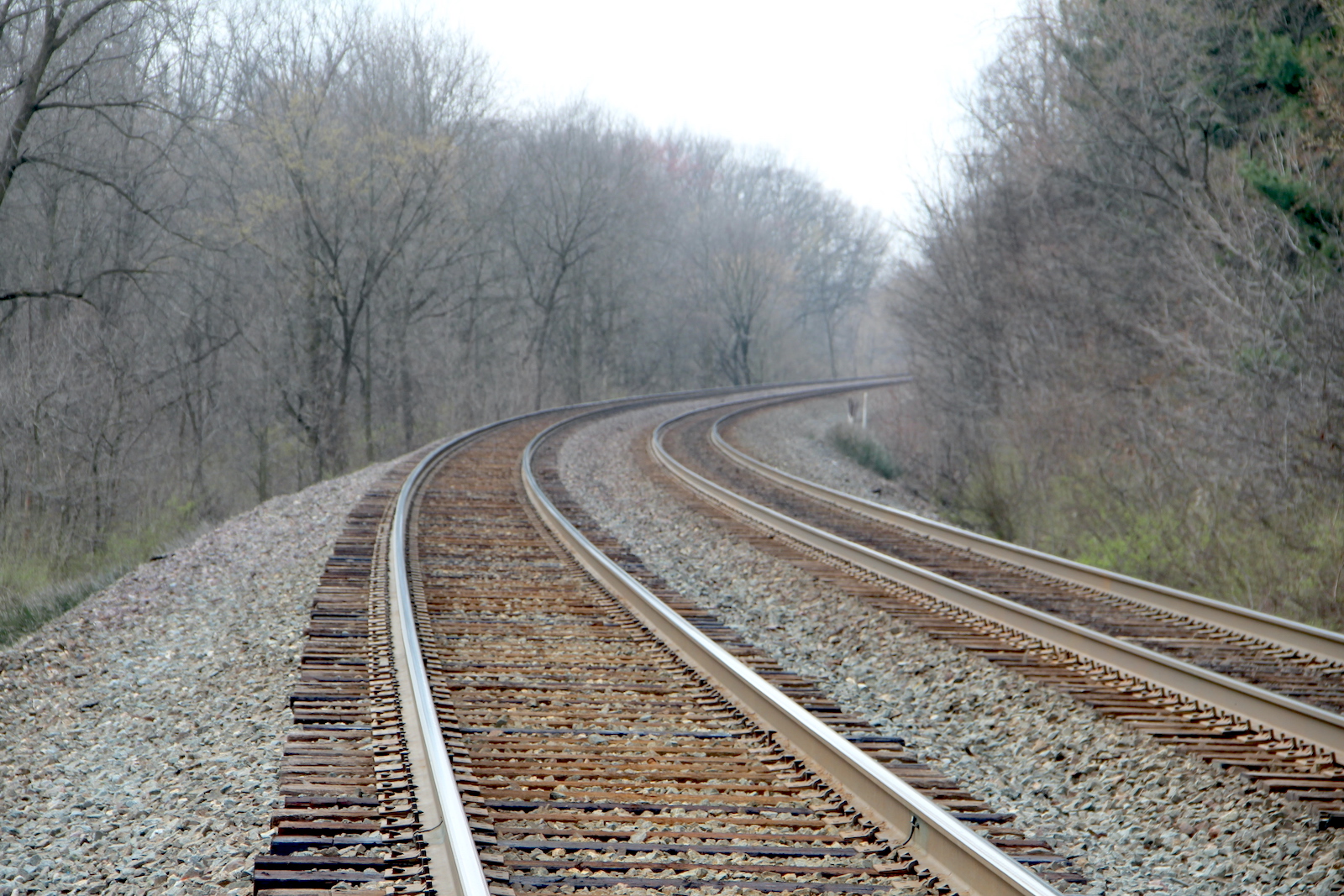

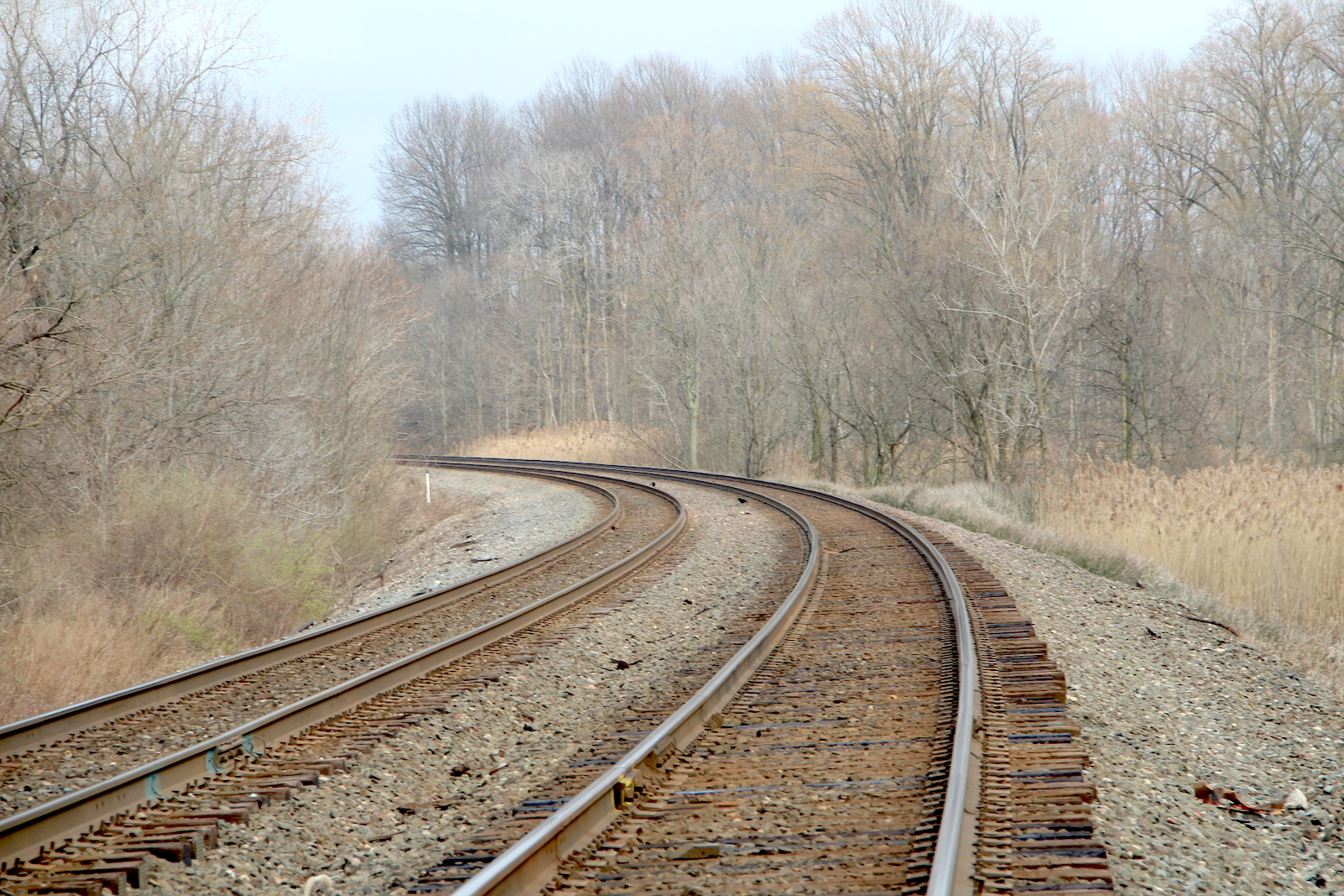

| The relay bungalow in the northeast quadrant. | The grade is rubber and asphalt. | Track view facing west towards N. 650 E. Rd. in Chesterton. | Track view facing east towards Otis Rd. |
| 29 |

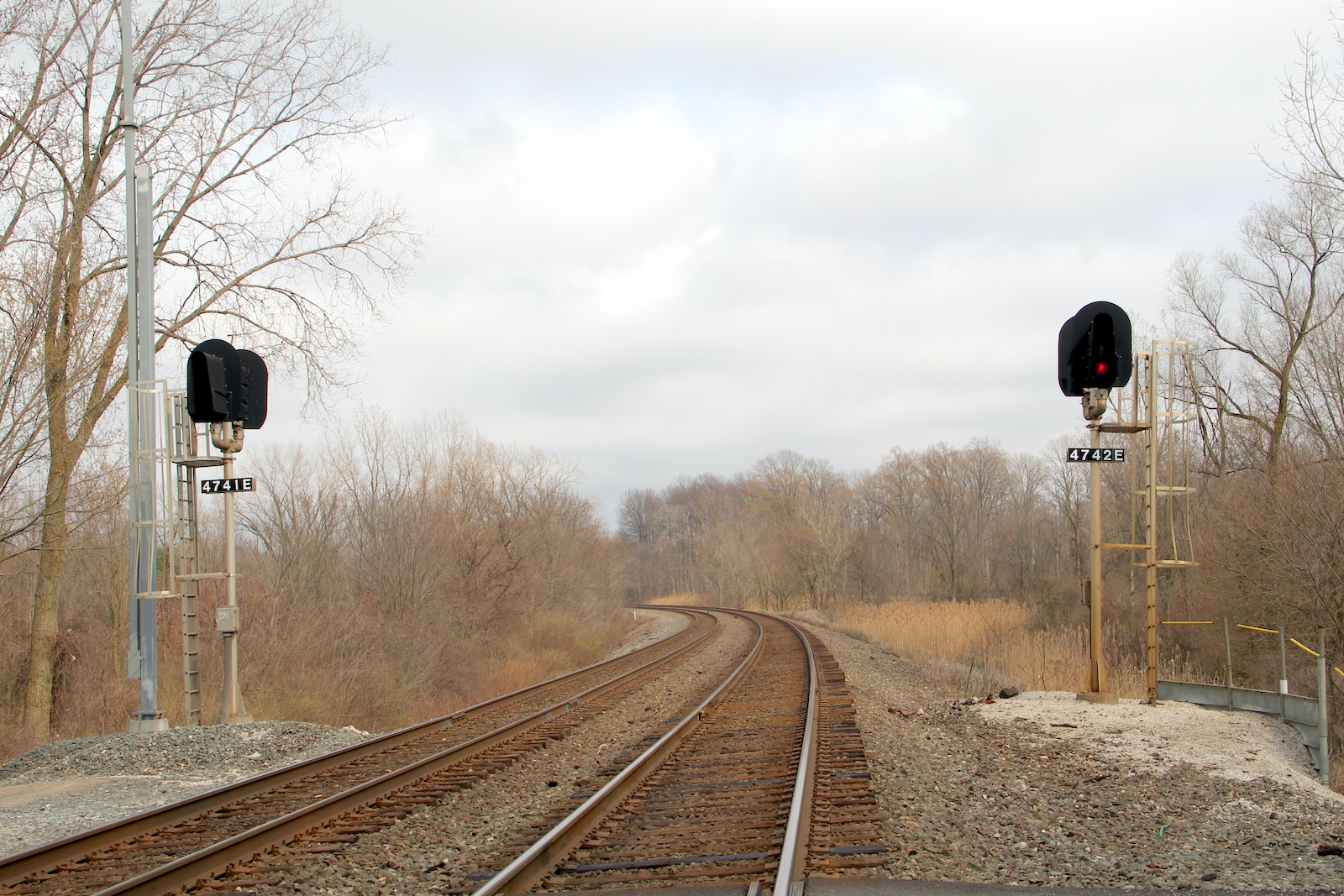

| Newer wayside signals next to the crossing. |
