| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | NEG E-Bell | N/A |

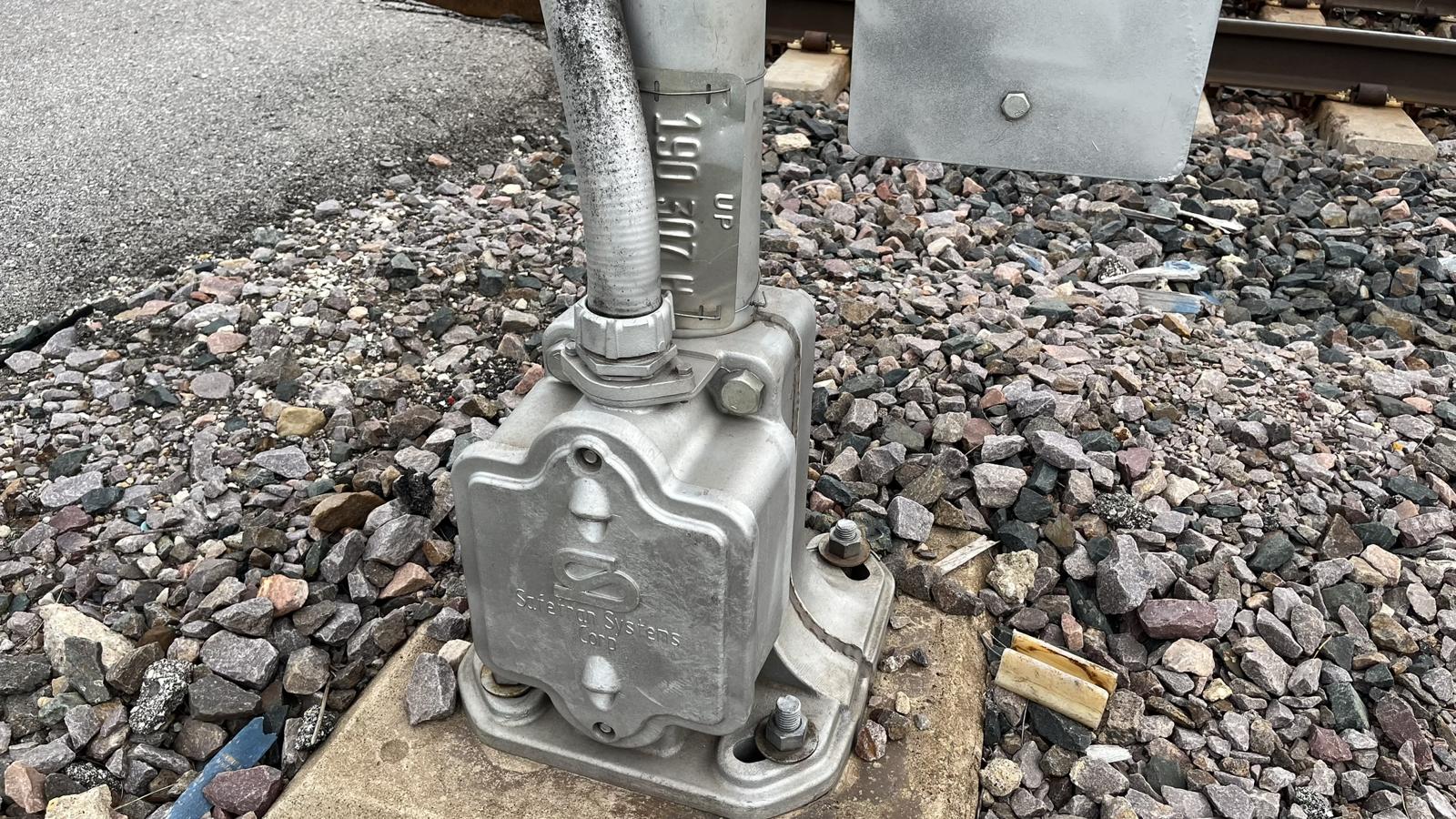

| Base: | Safetran 5" Single Sided | Safetran 5" Single Sided |
| Light Brackets: | 2 - Safetran | Safetran |
| Lights: | 2 - 12"x24" Safetran w/
Electro-Tech LEDs 4 - 12"x24" Safetran w/ WCH/Miller 2nd Gen LEDs |
4 - 12"x24" Safetran w/ WCH/Miller 2nd Gen LEDs |
| Gate Lights: | 3 - NEG Clear LEDs | 3 - NEG Clear LEDs |

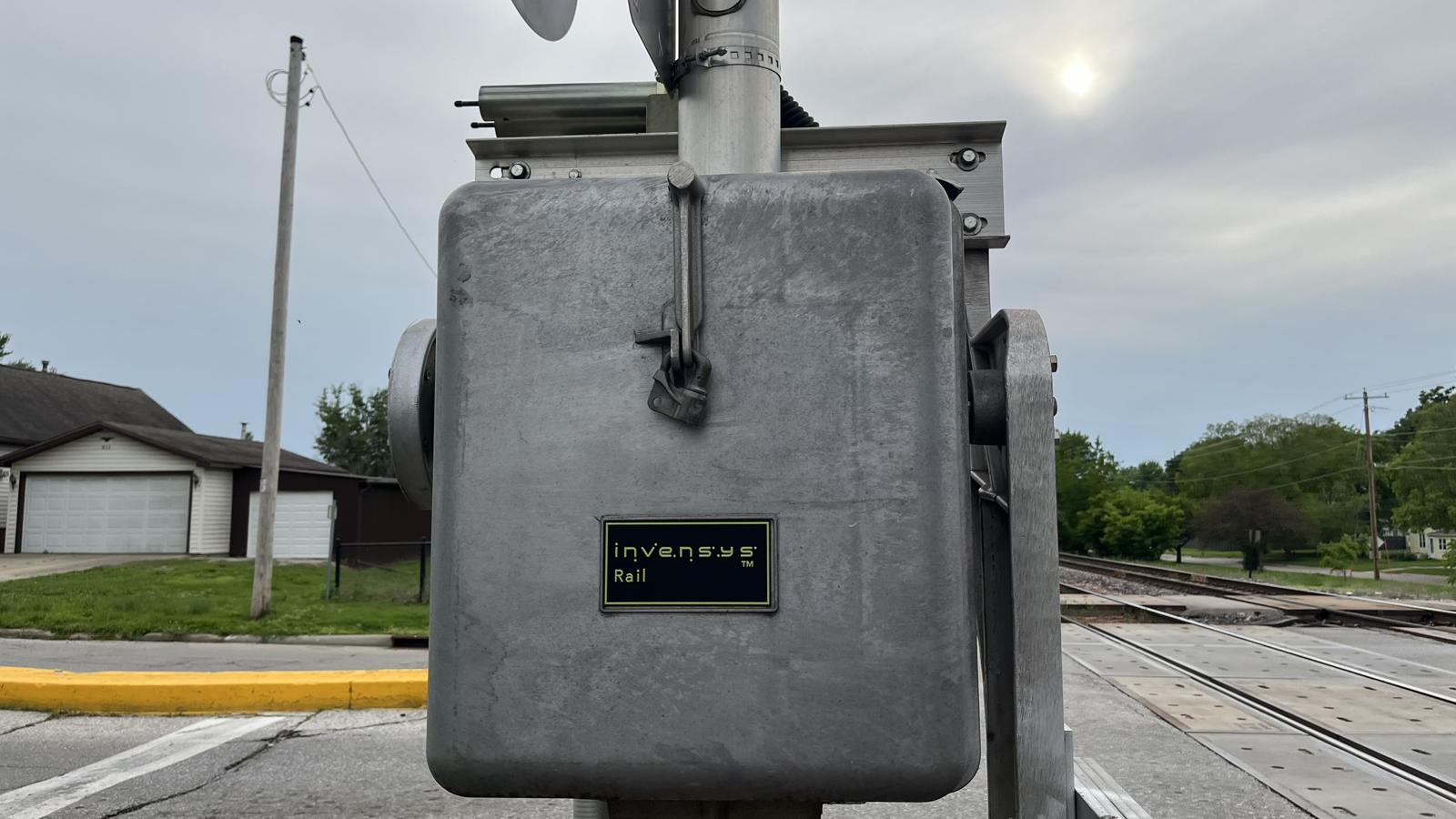

| Gate Mechanism: | Invensys Rail | Invensys Rail |
| Gate Striping: | Vertical Striping | Vertical Striping |
SV1 |

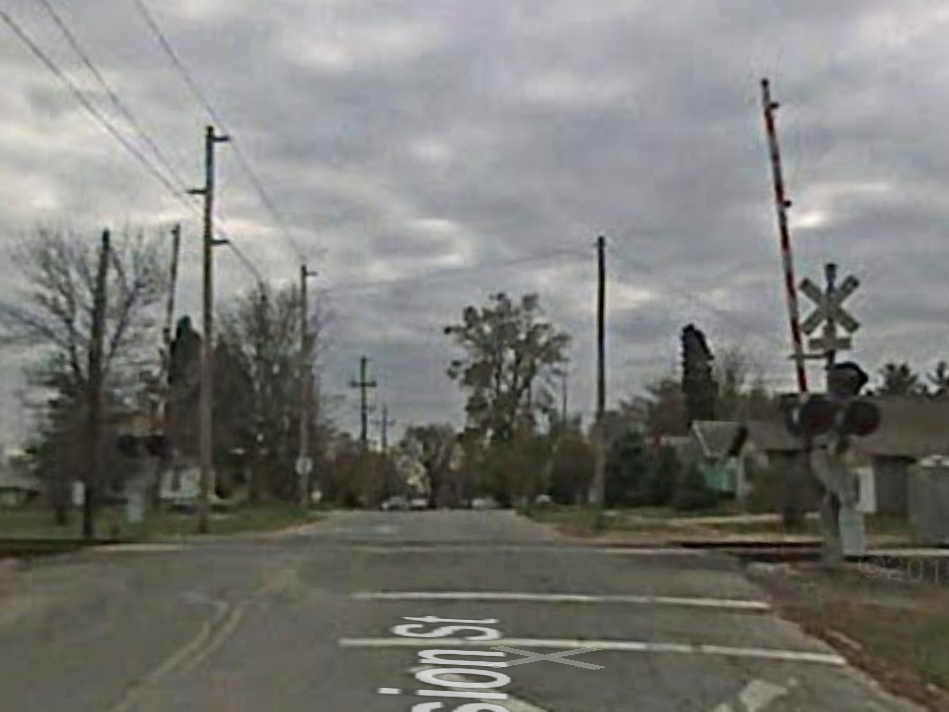

| Street
View from Nov 2007 shows this crossing used to have a CNW install with
a WCH E-Bell before it got replaced by an earlier UP install. |
1 |
2 |
3 |

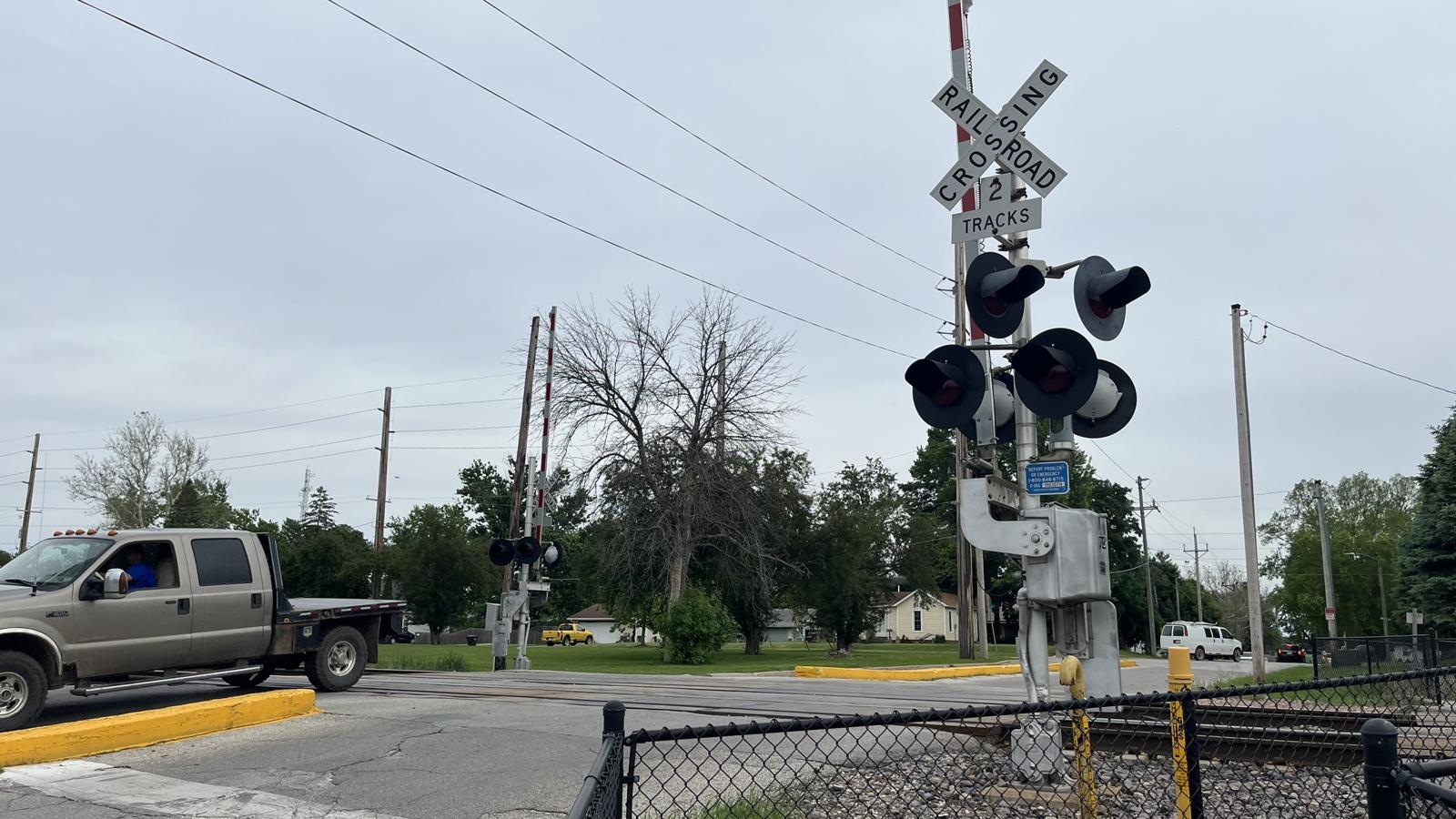

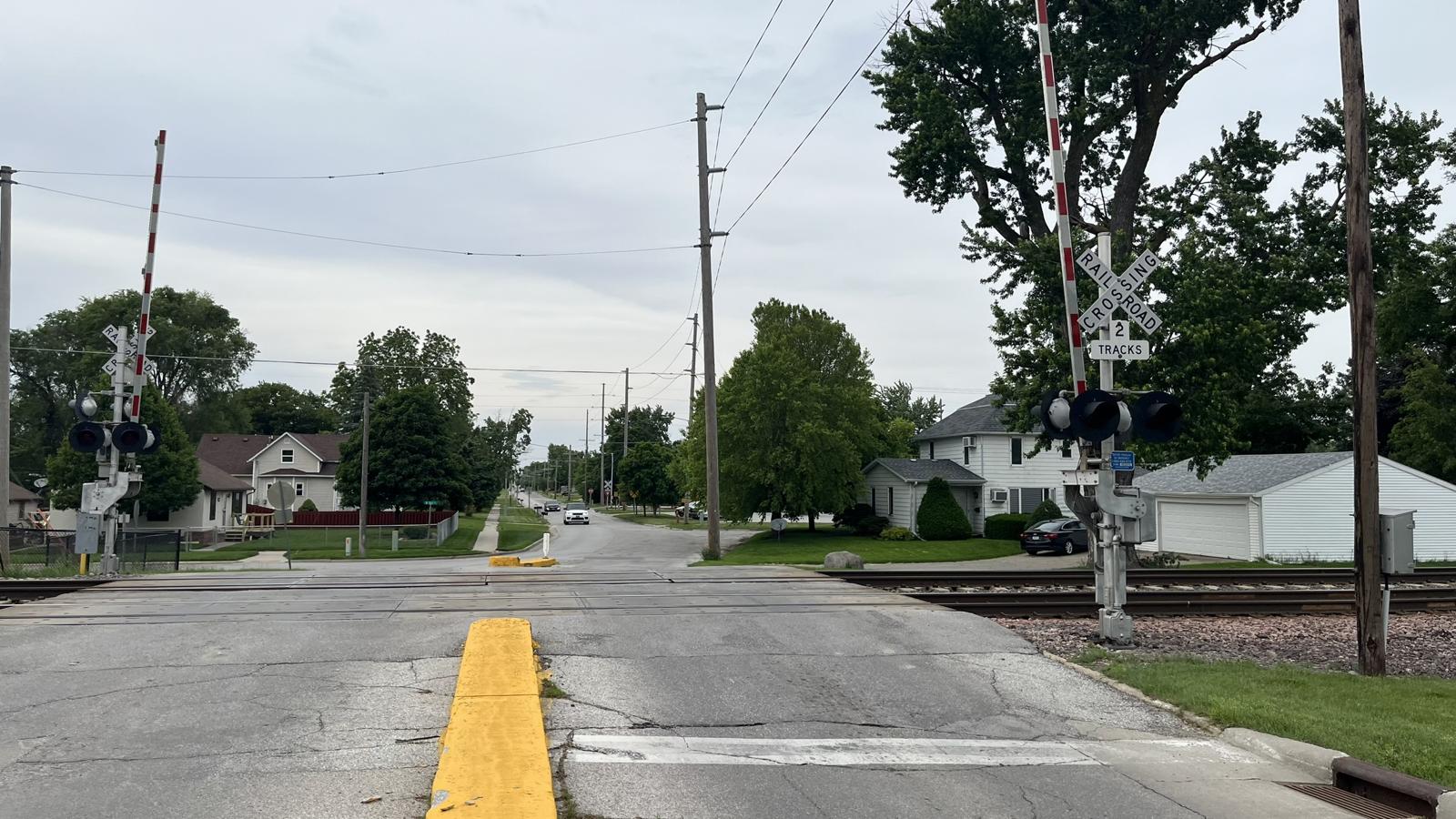

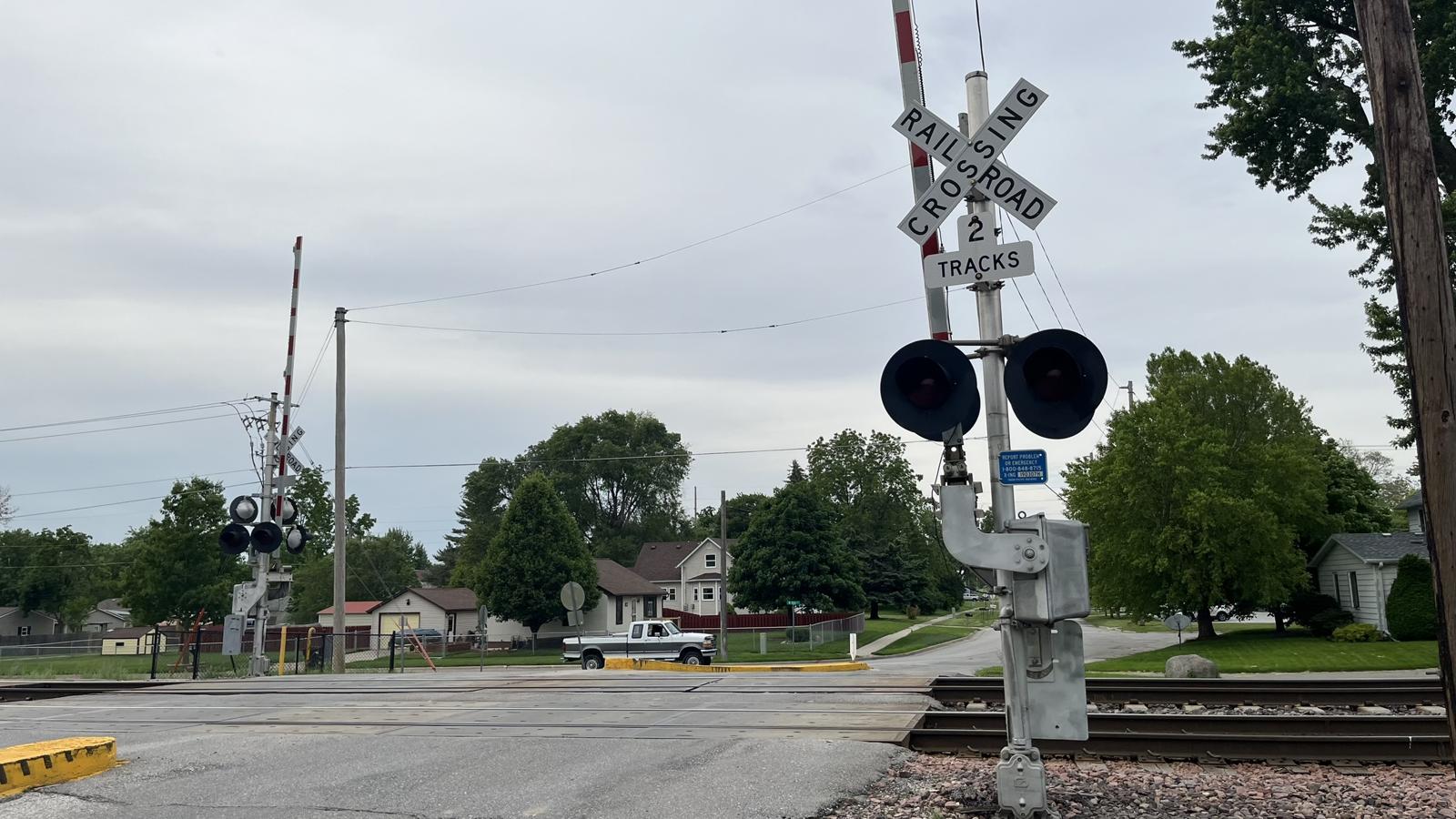

| Overviews facing north. | Overview facing south. | |
4 |
5 |
| The southern advance warning sign. |

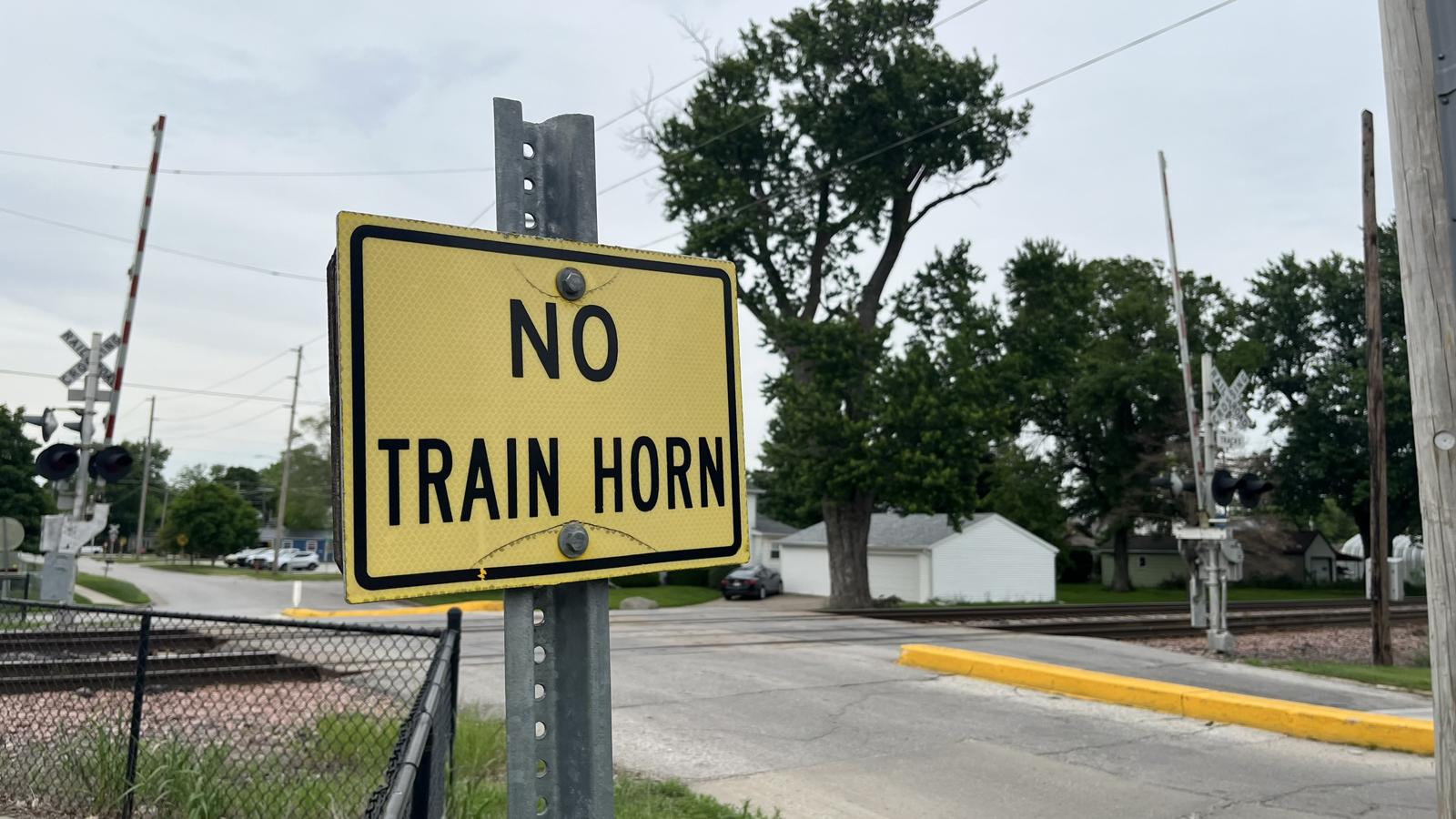

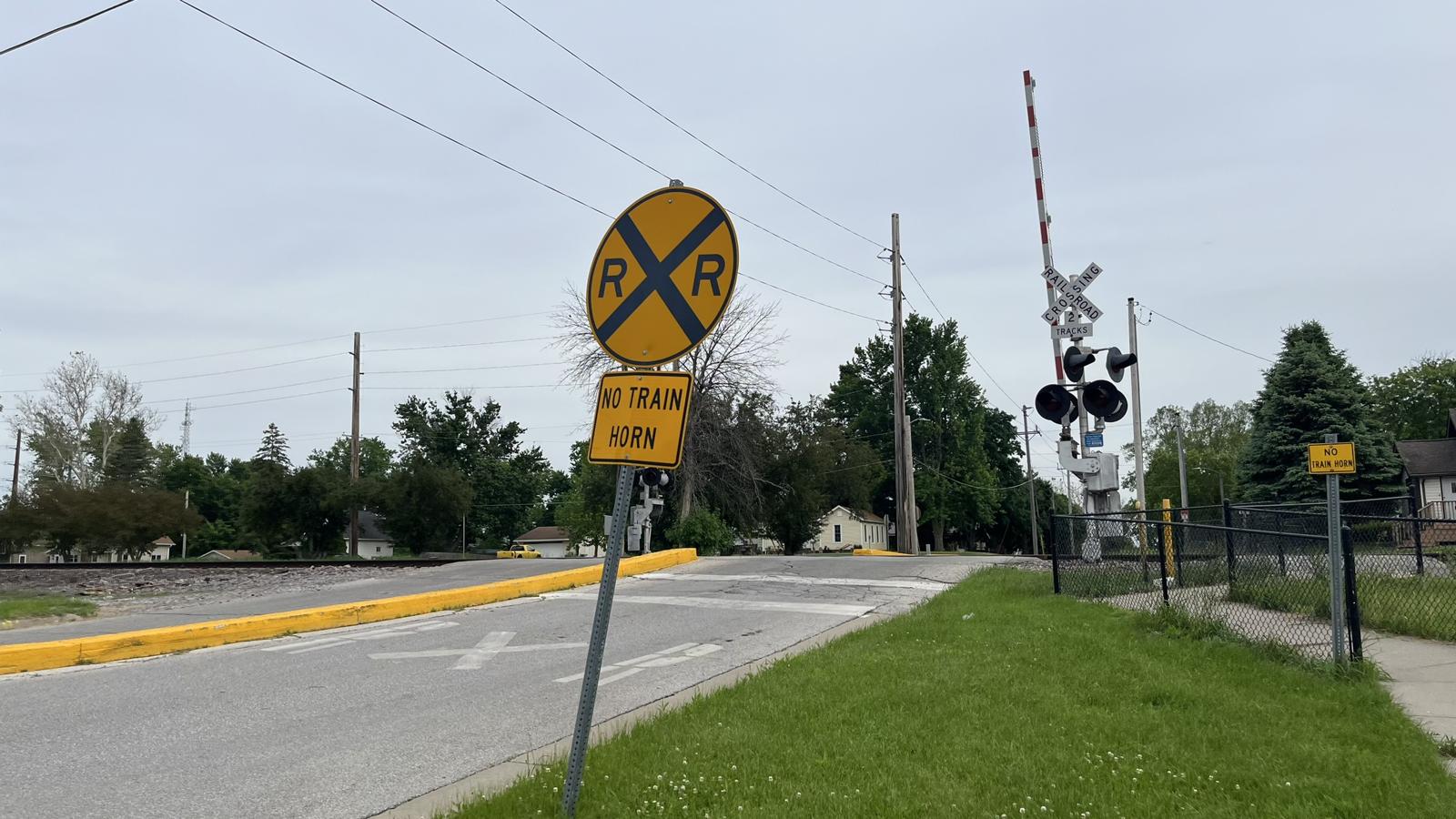

A No Train Horn sign protecting the sidewalk. |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |

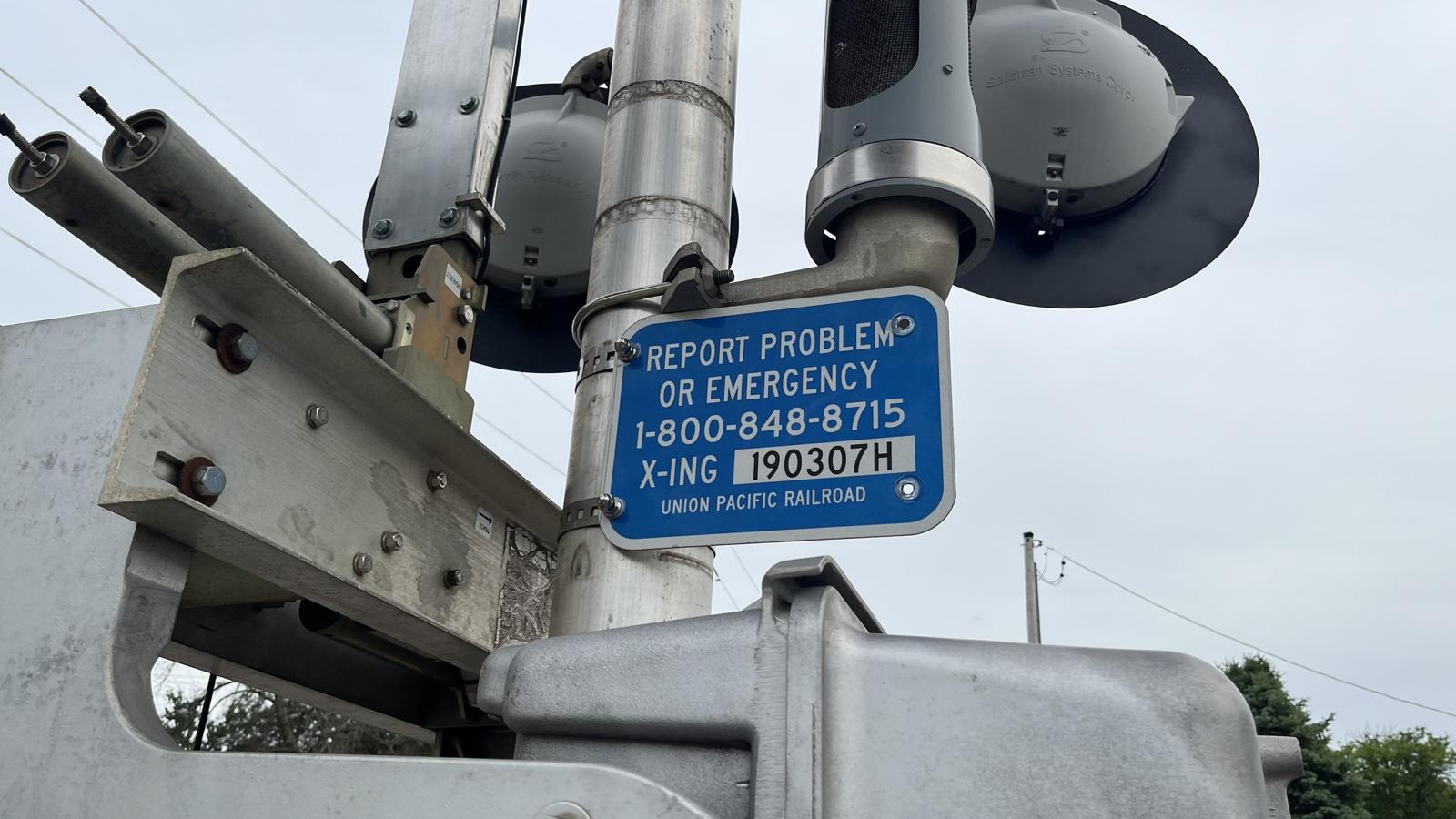

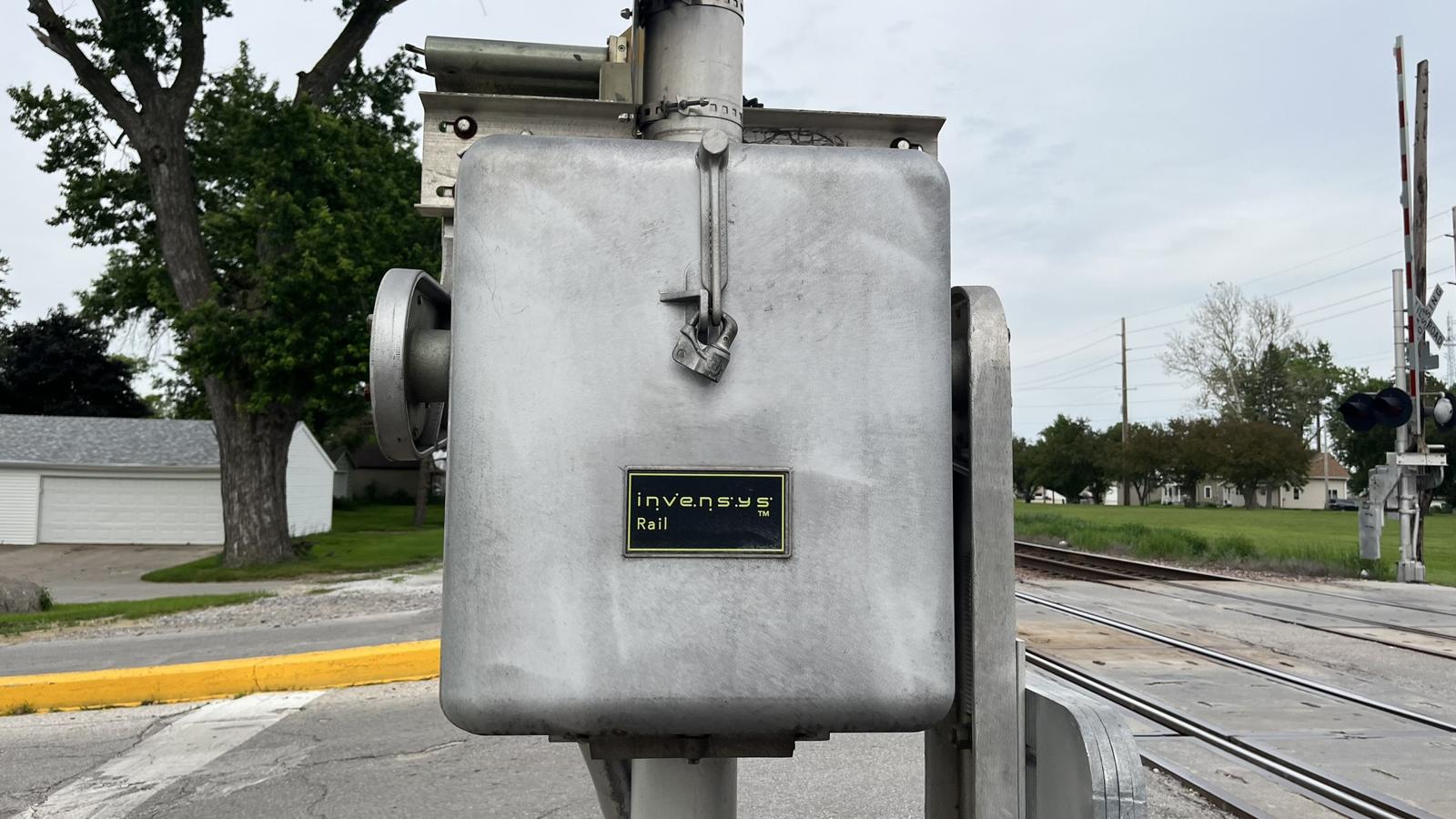

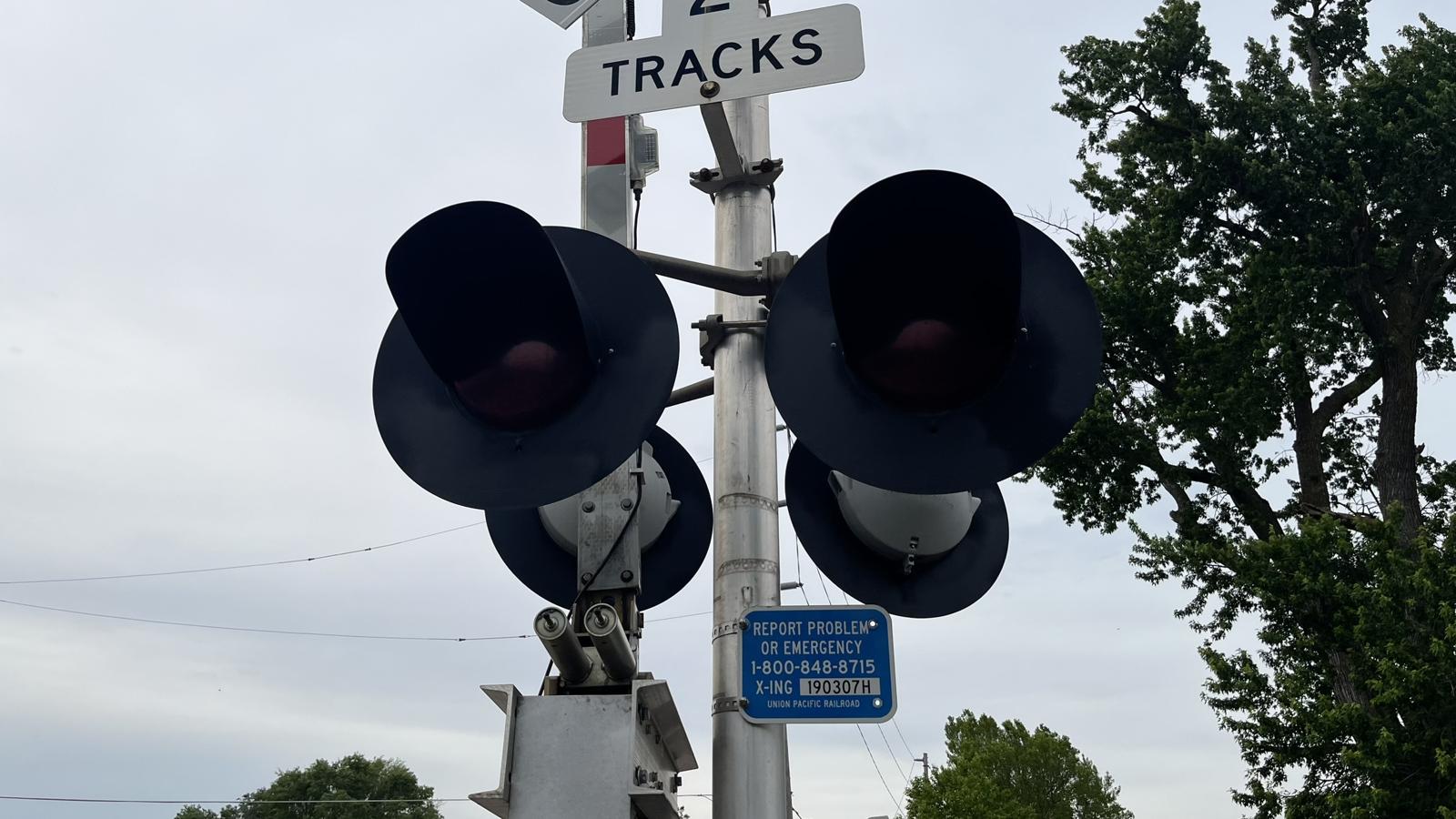

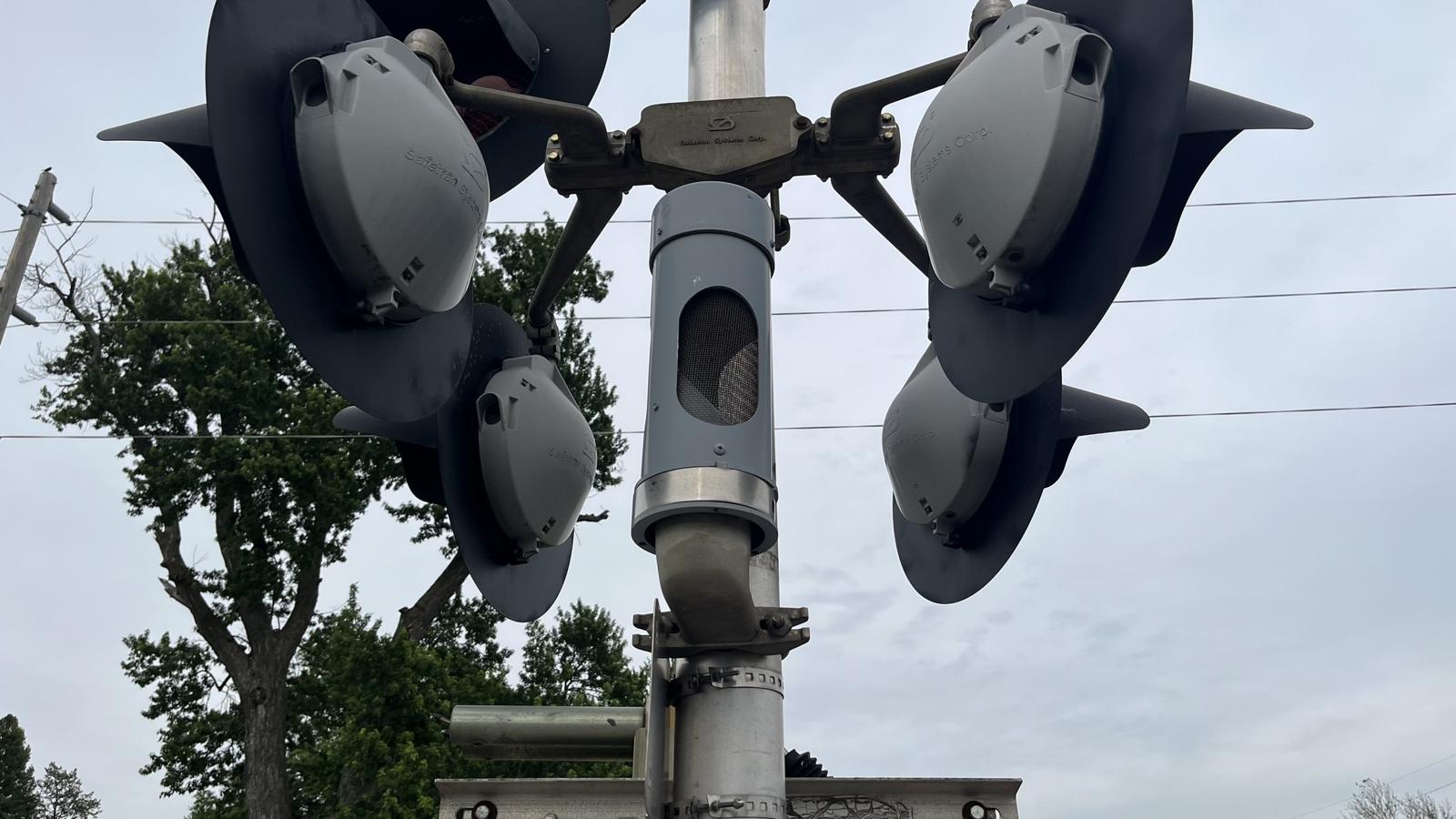

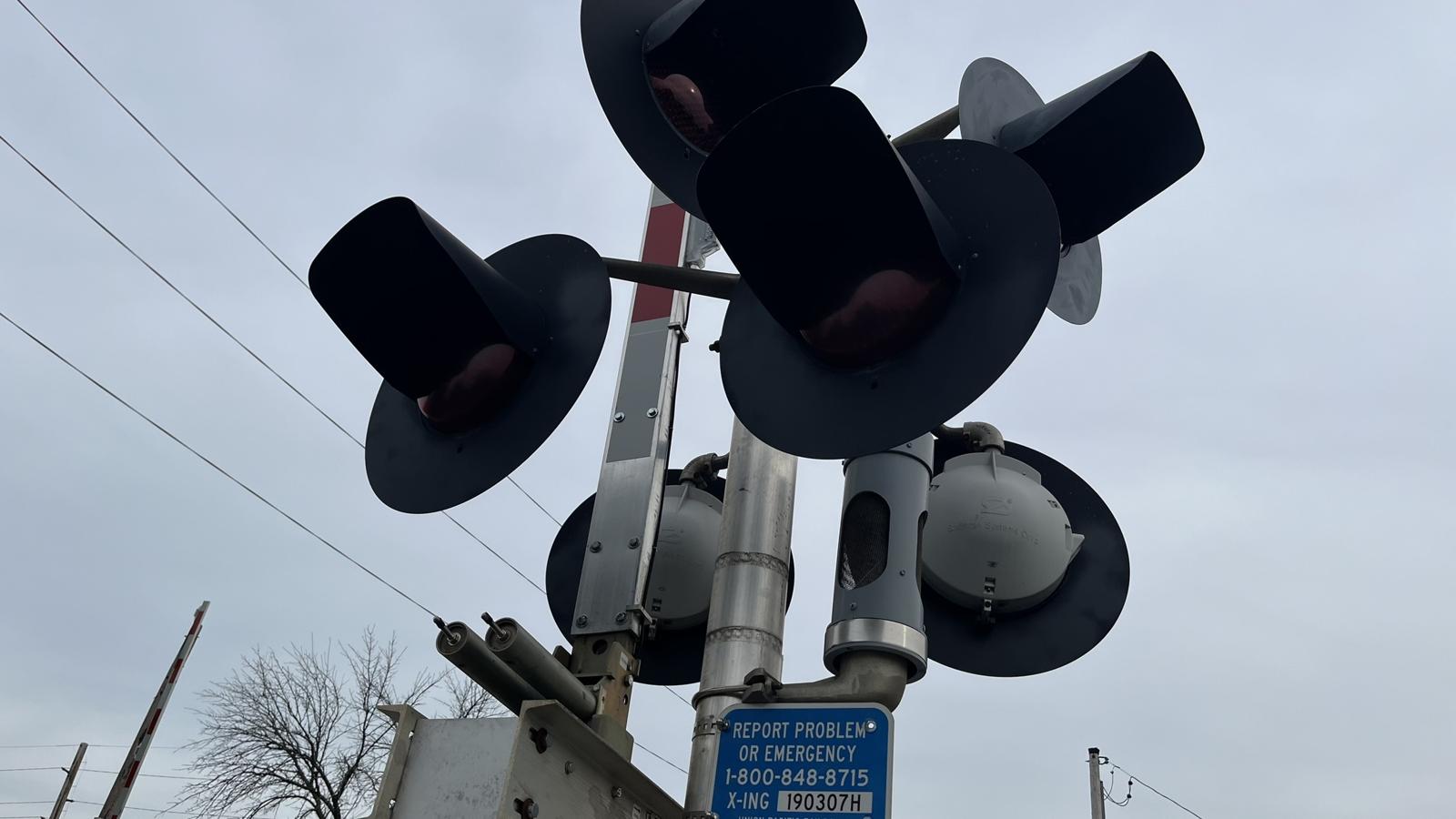

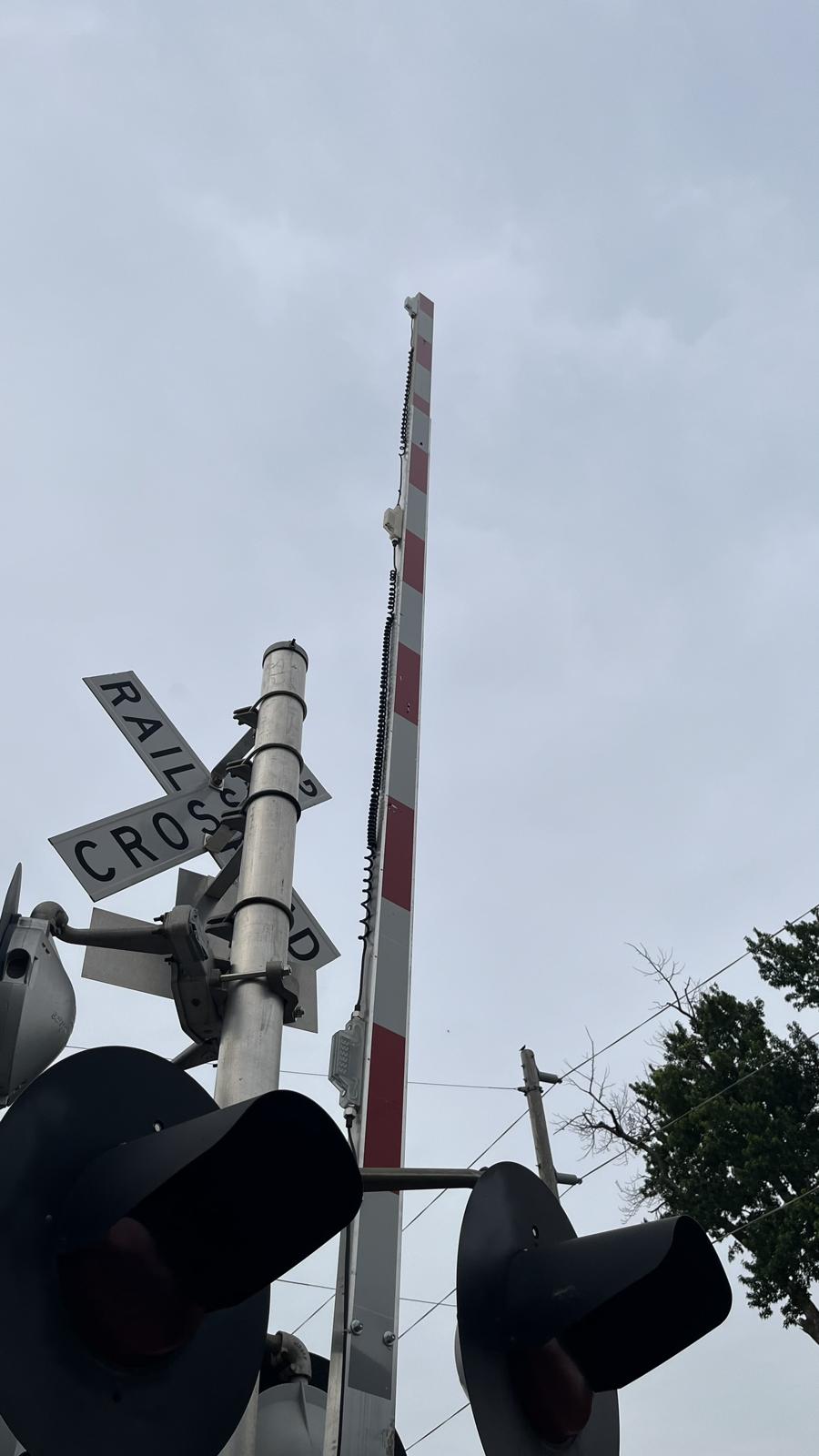

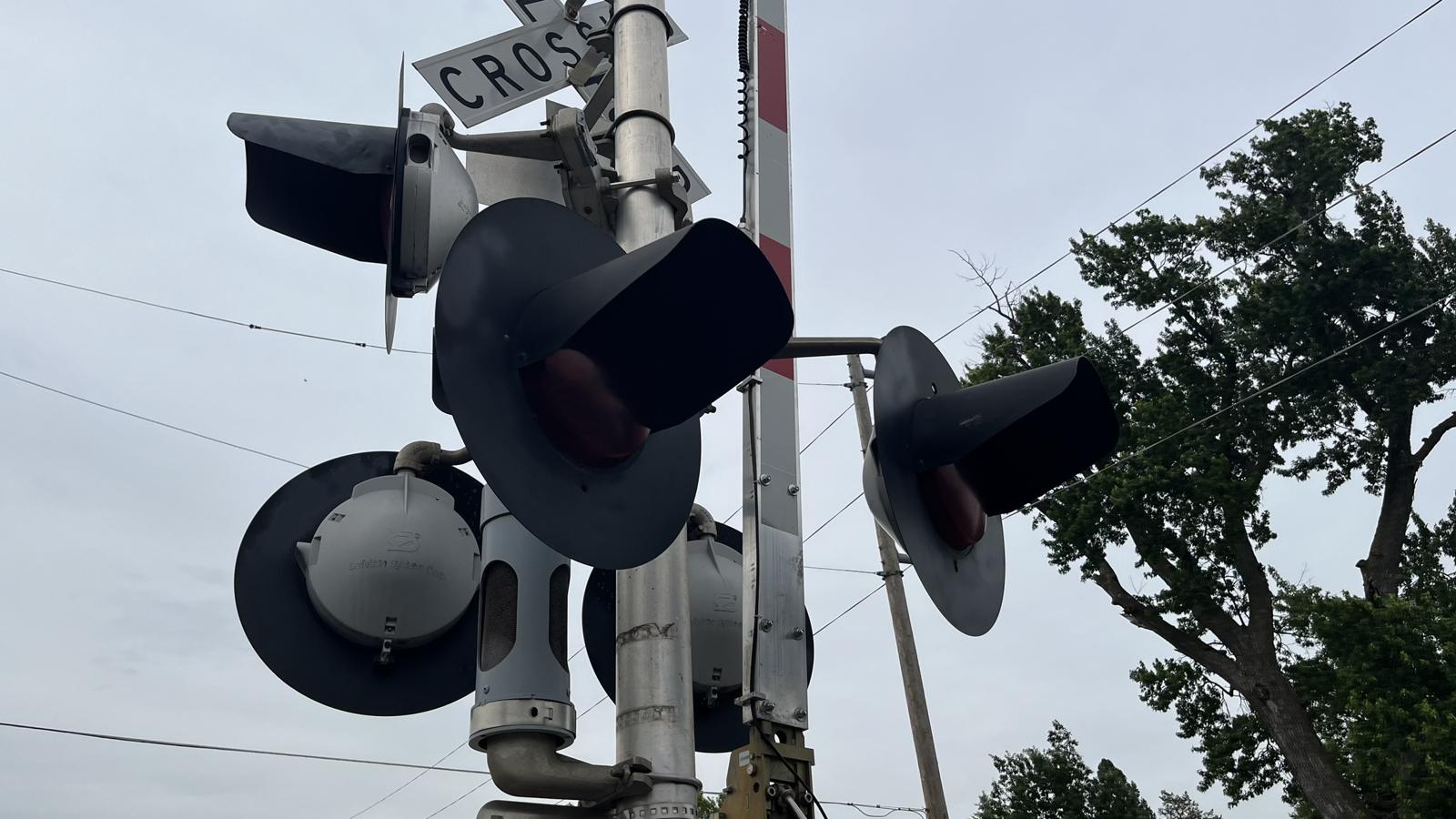

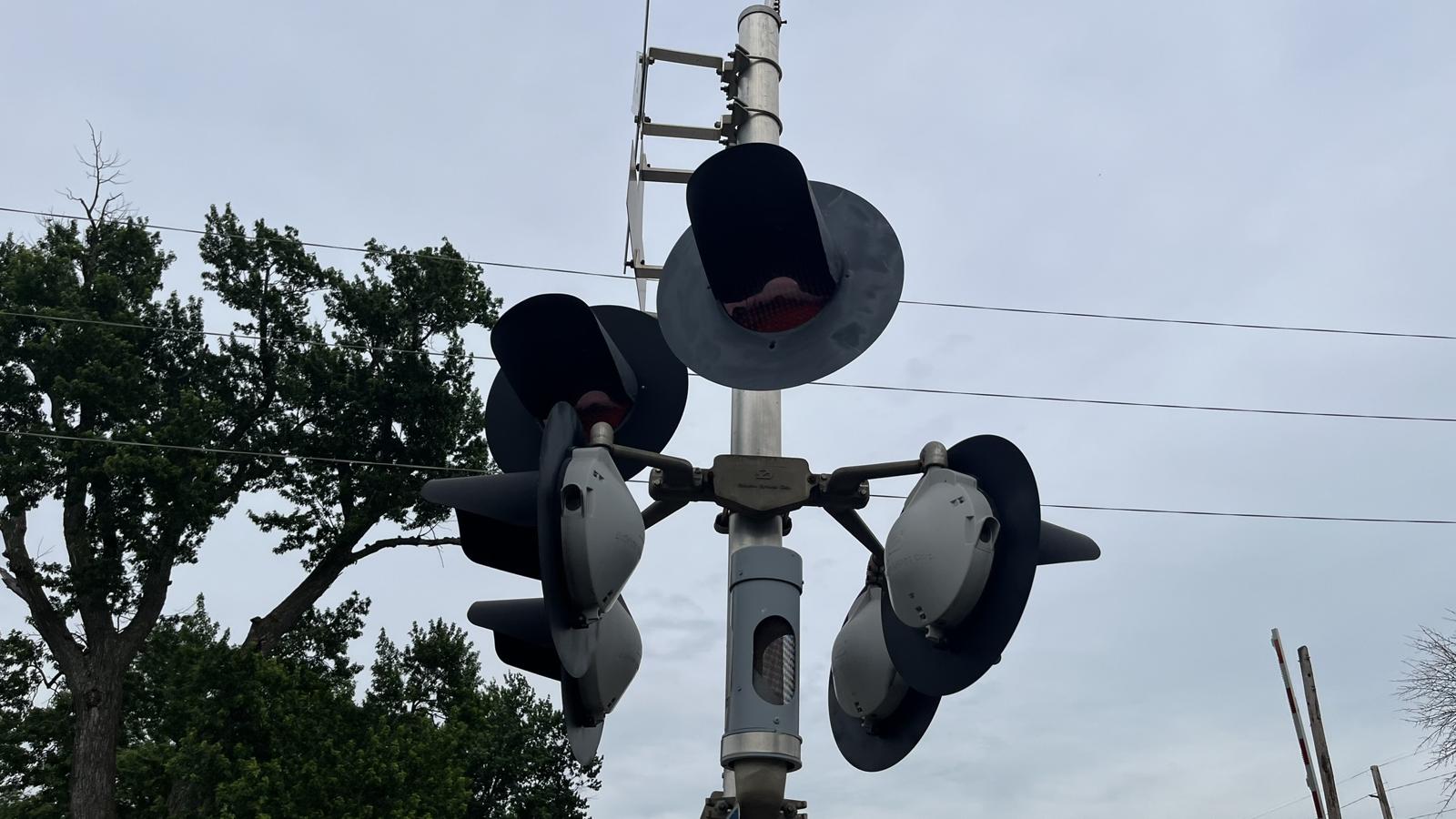

| The northern signal. | ||
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |

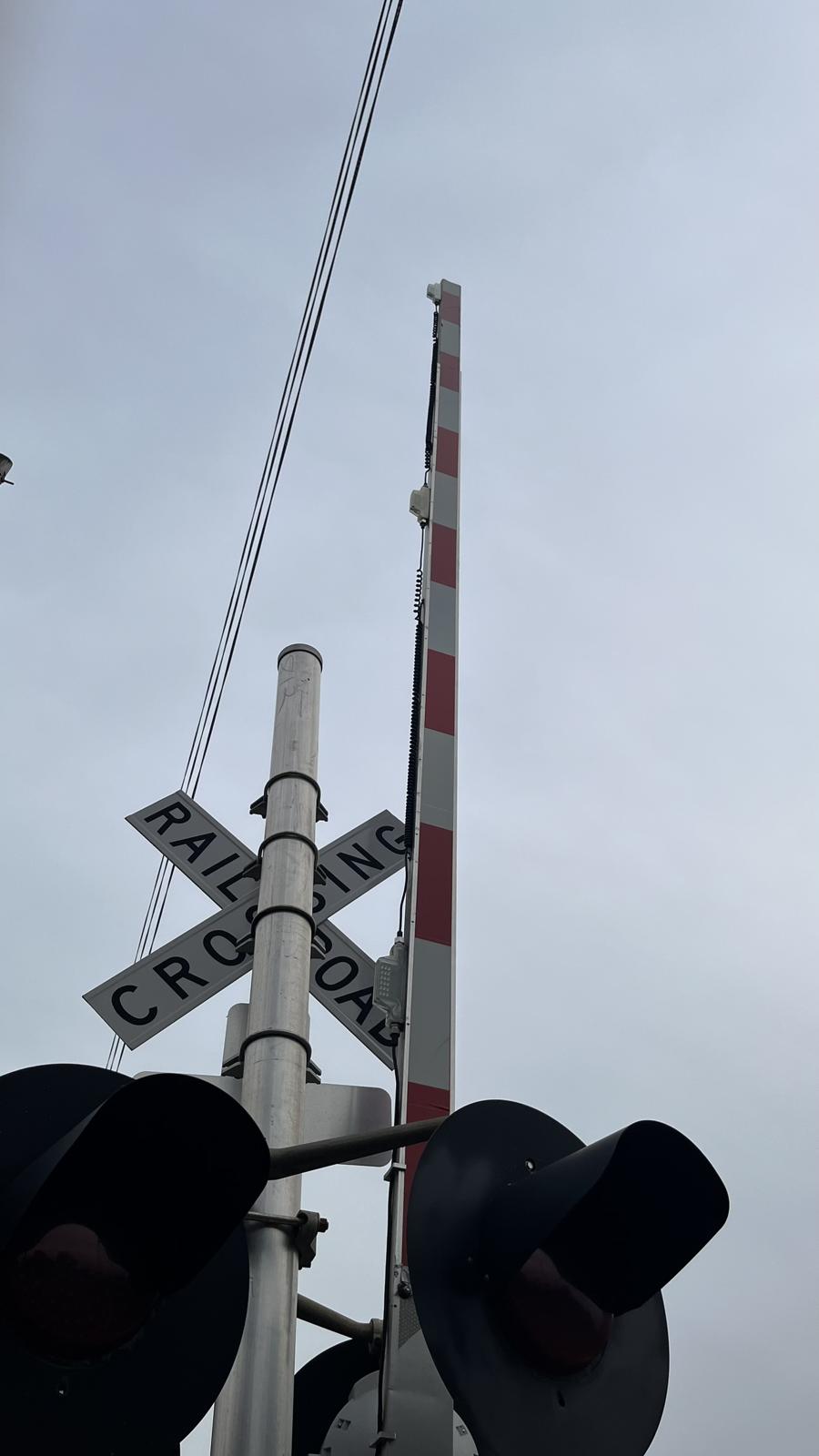

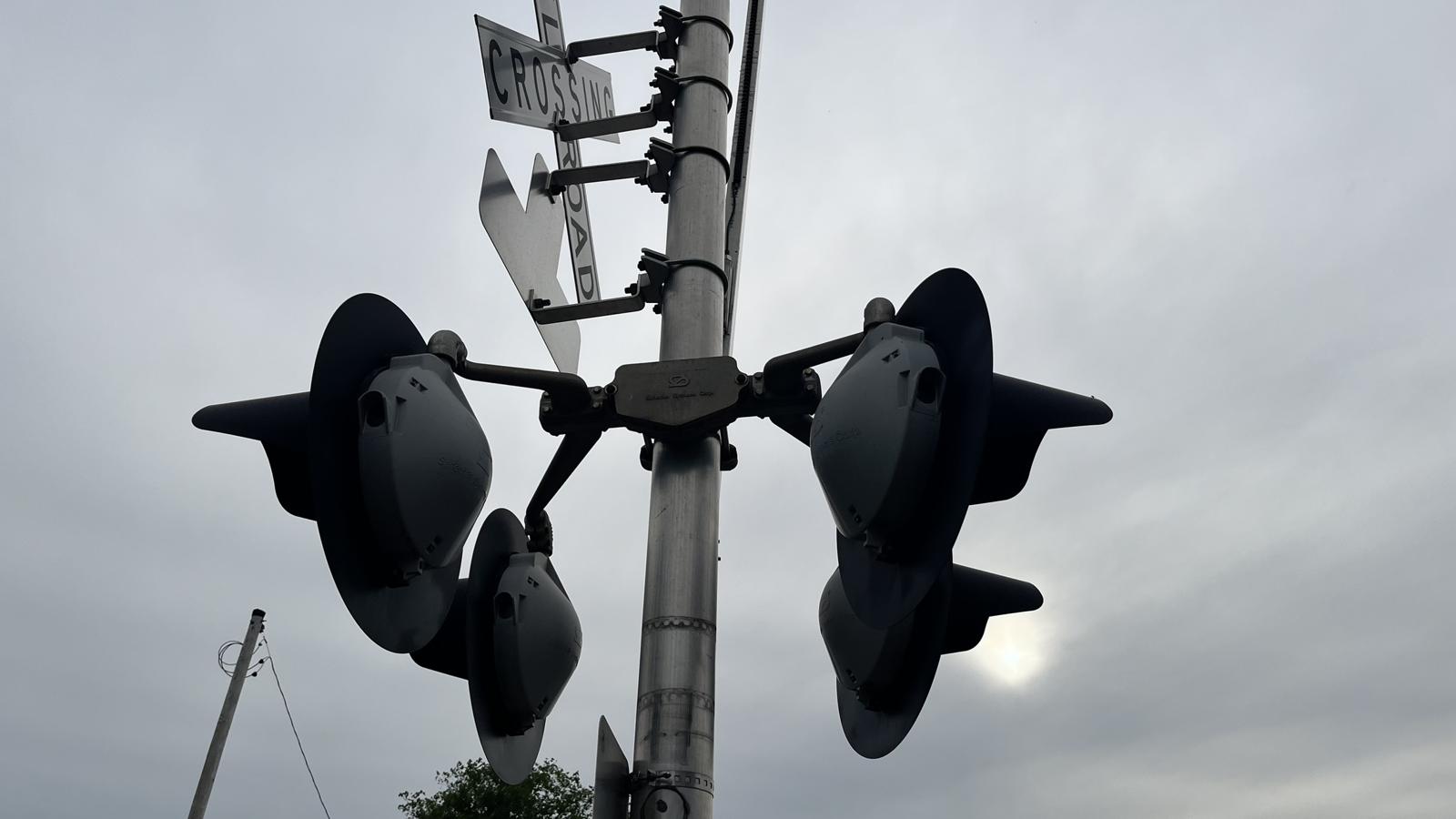

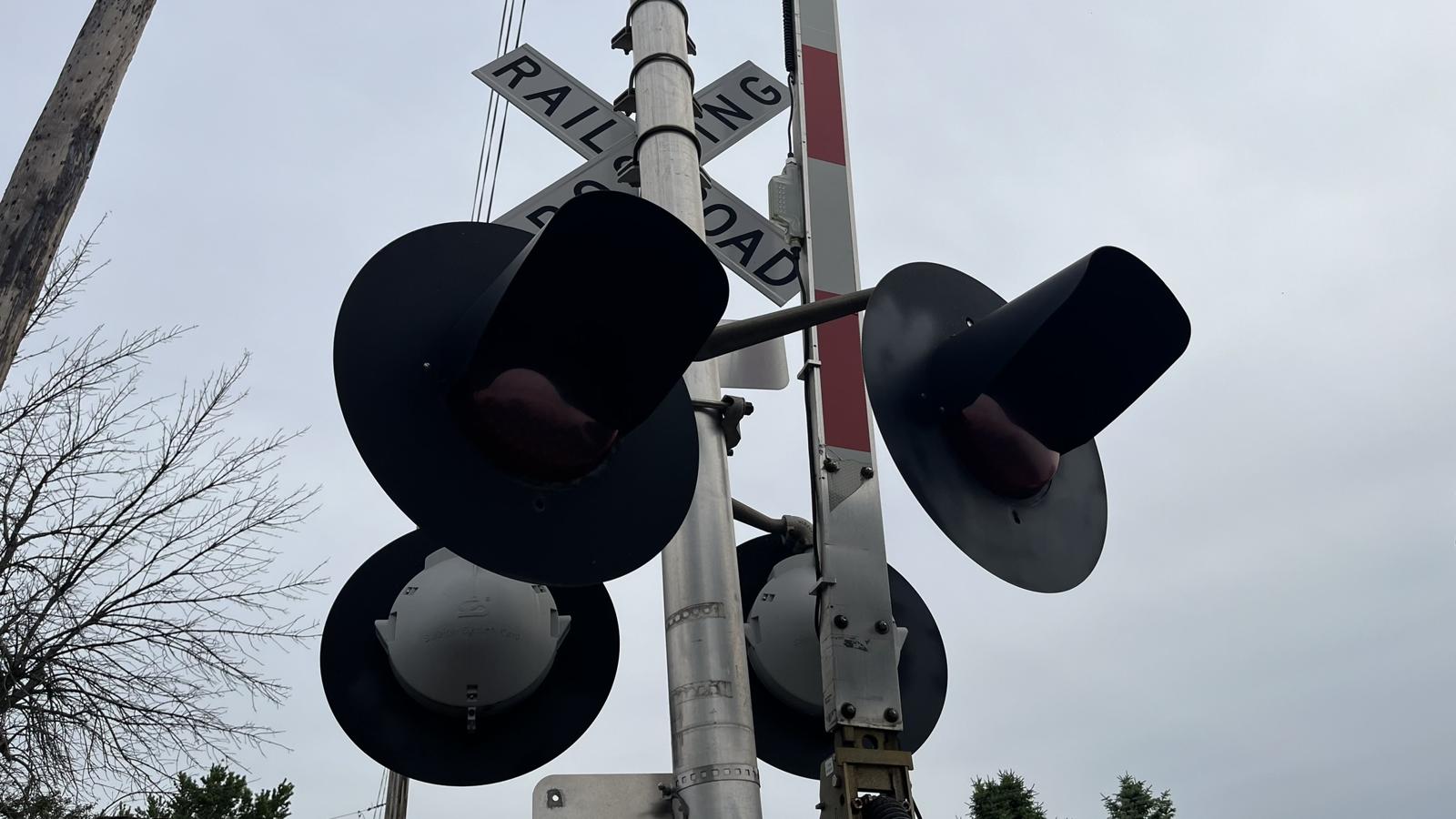

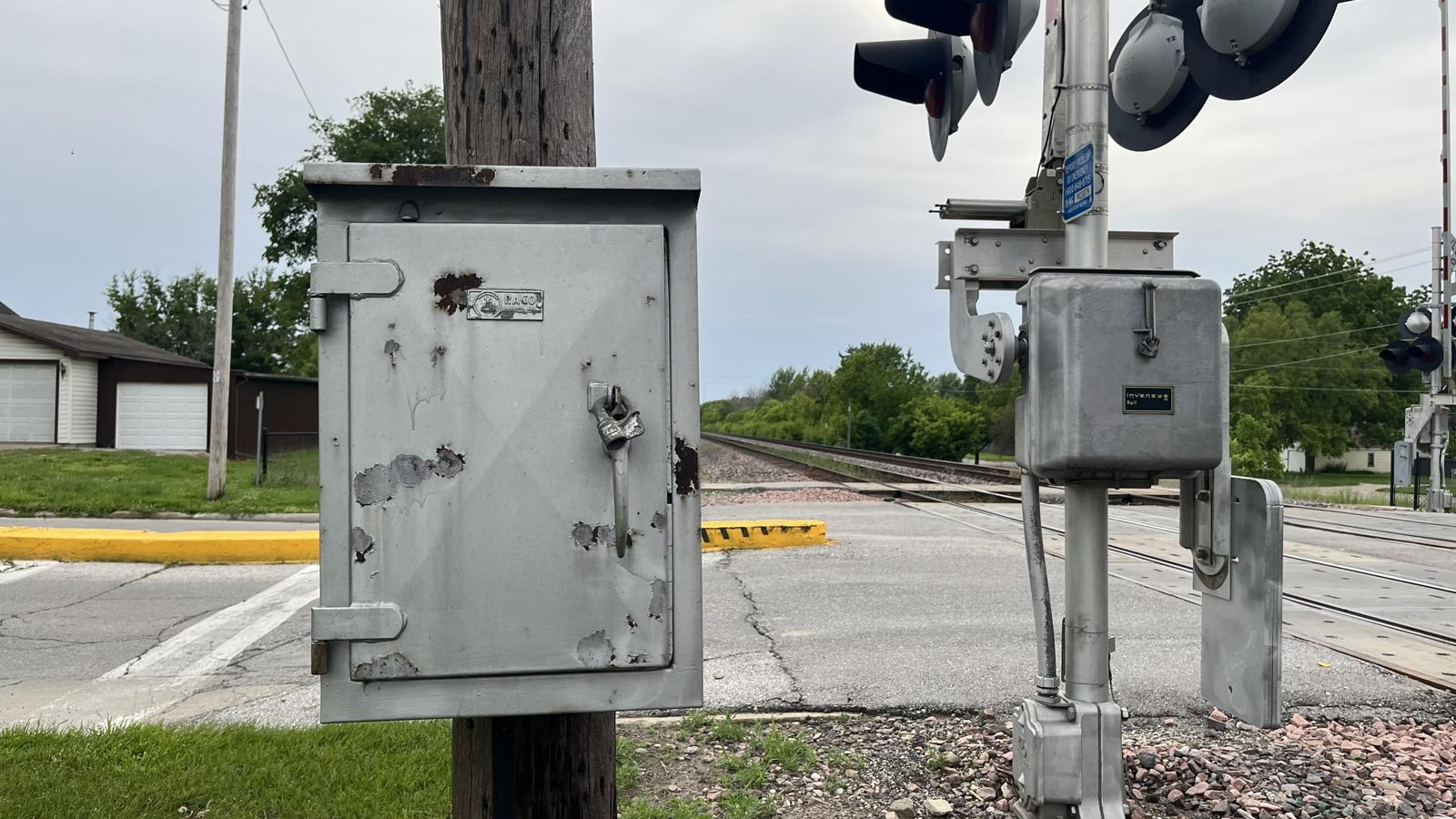

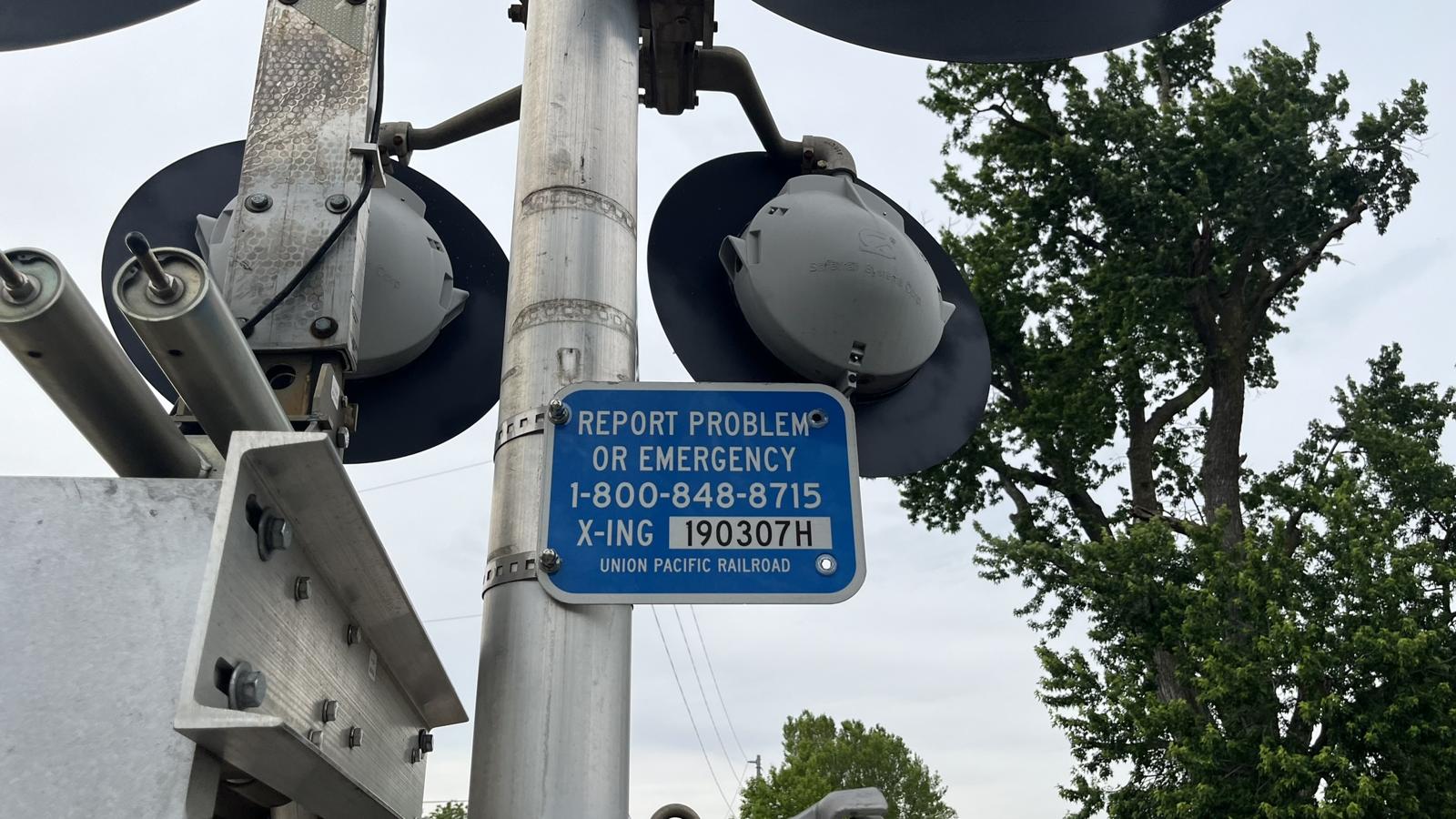

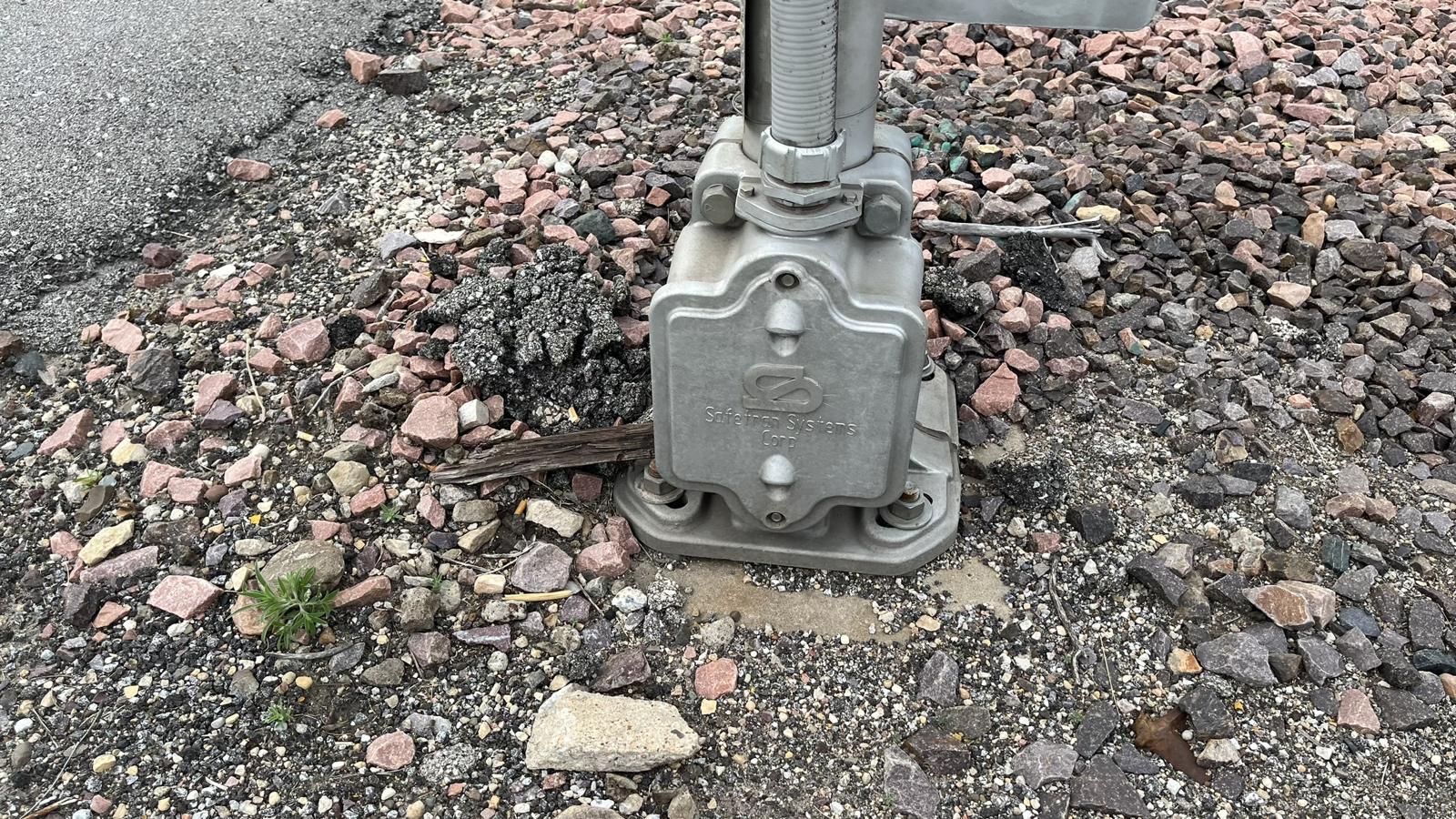

| The southern
signal. There's a RACO box in picture 19! |
||
24 |
25 |
26 |

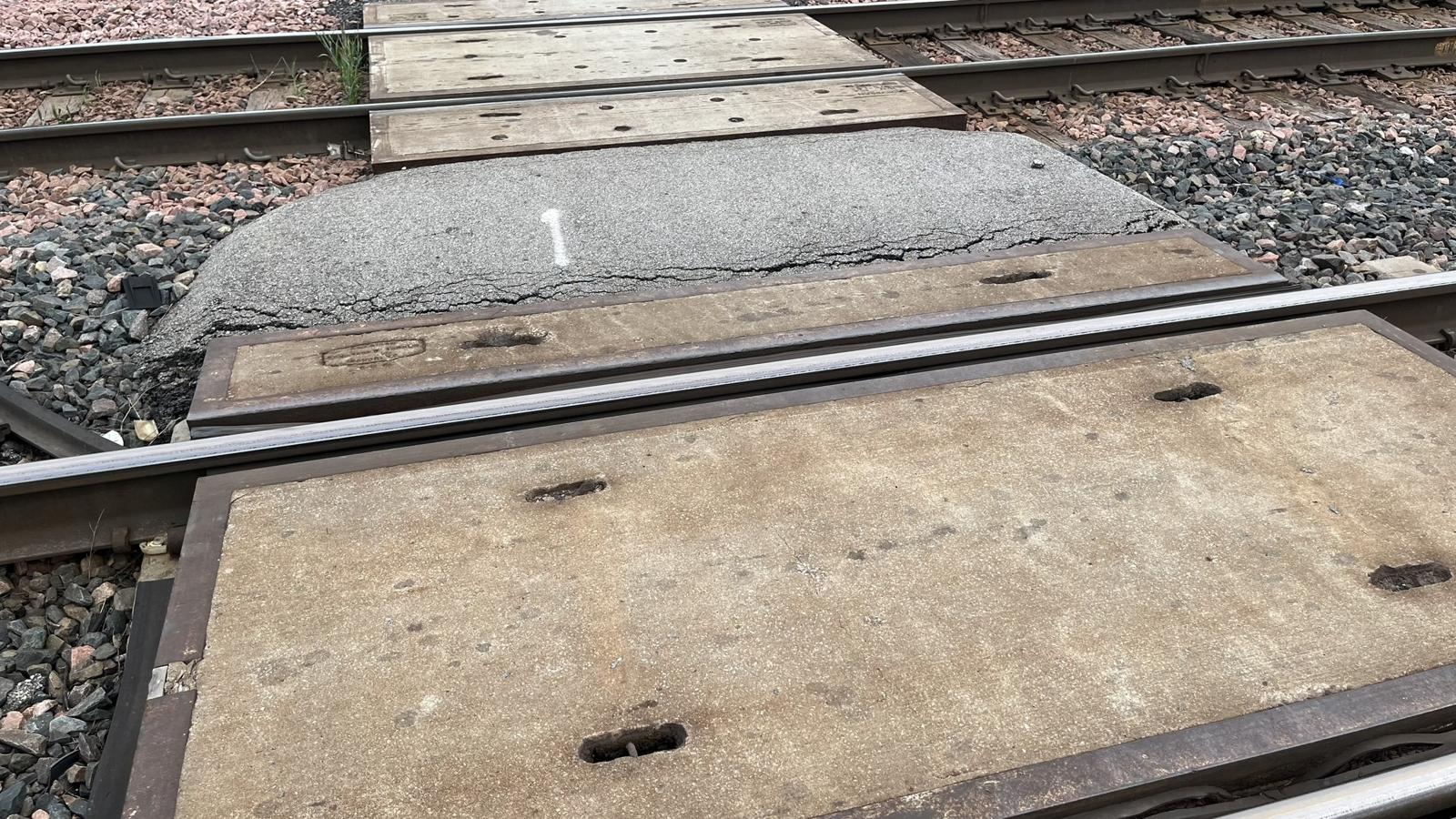

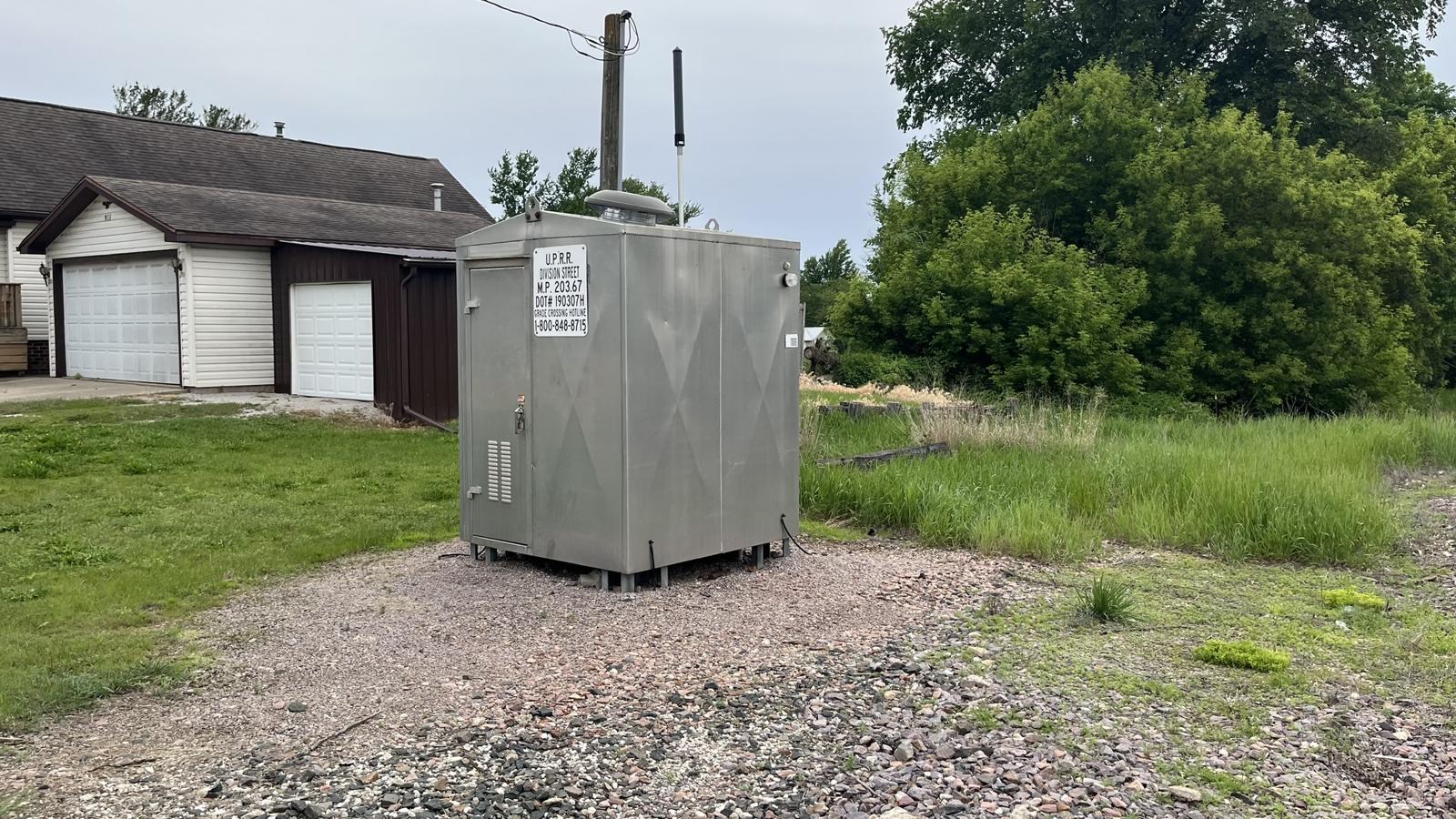

| The relay bungalow in the southwest quadrant. | The grade is all concrete. | |
27 |
28 |
29 |
30 |

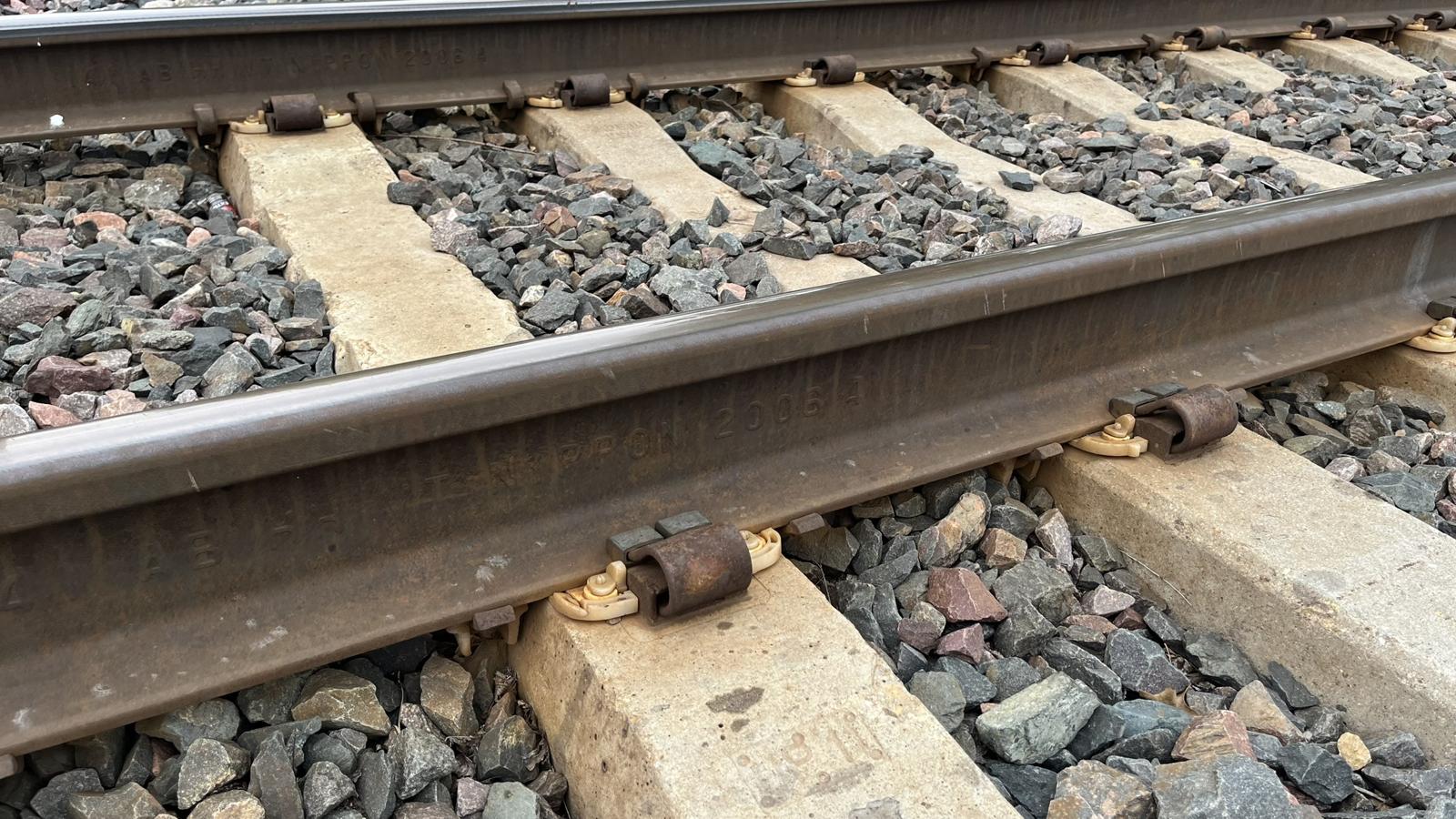

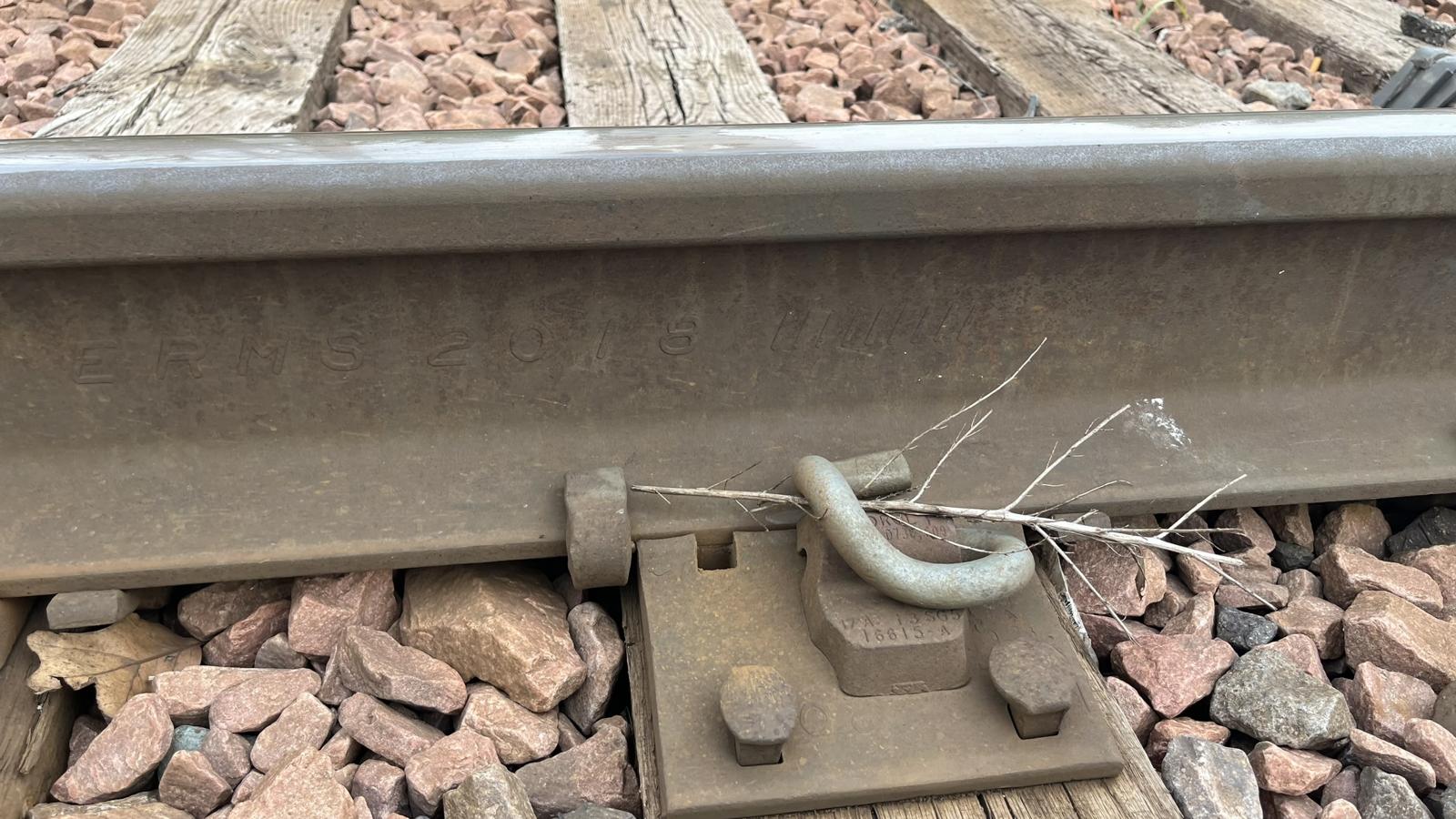

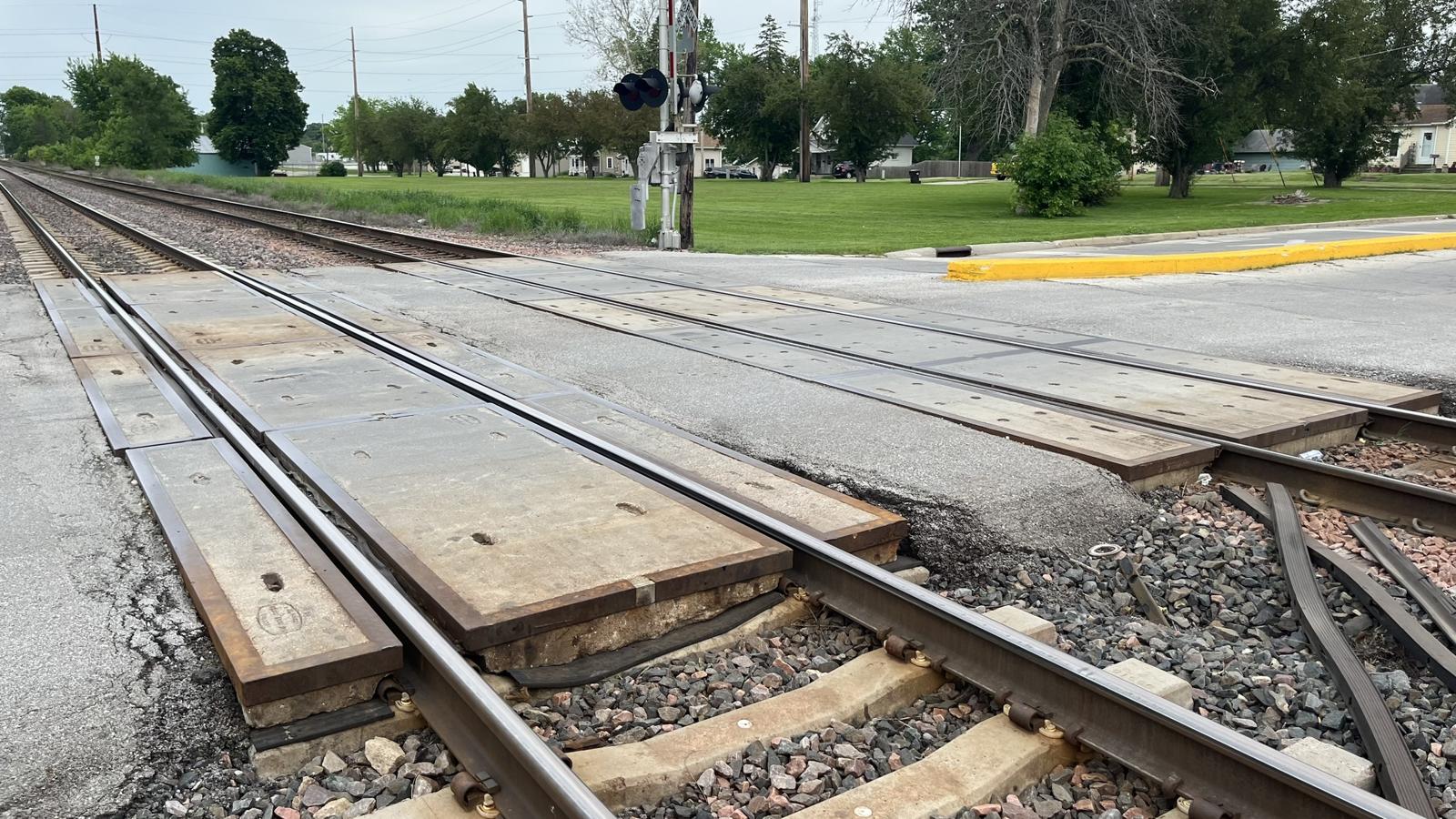

| The track date on main 1 is February 2006. |

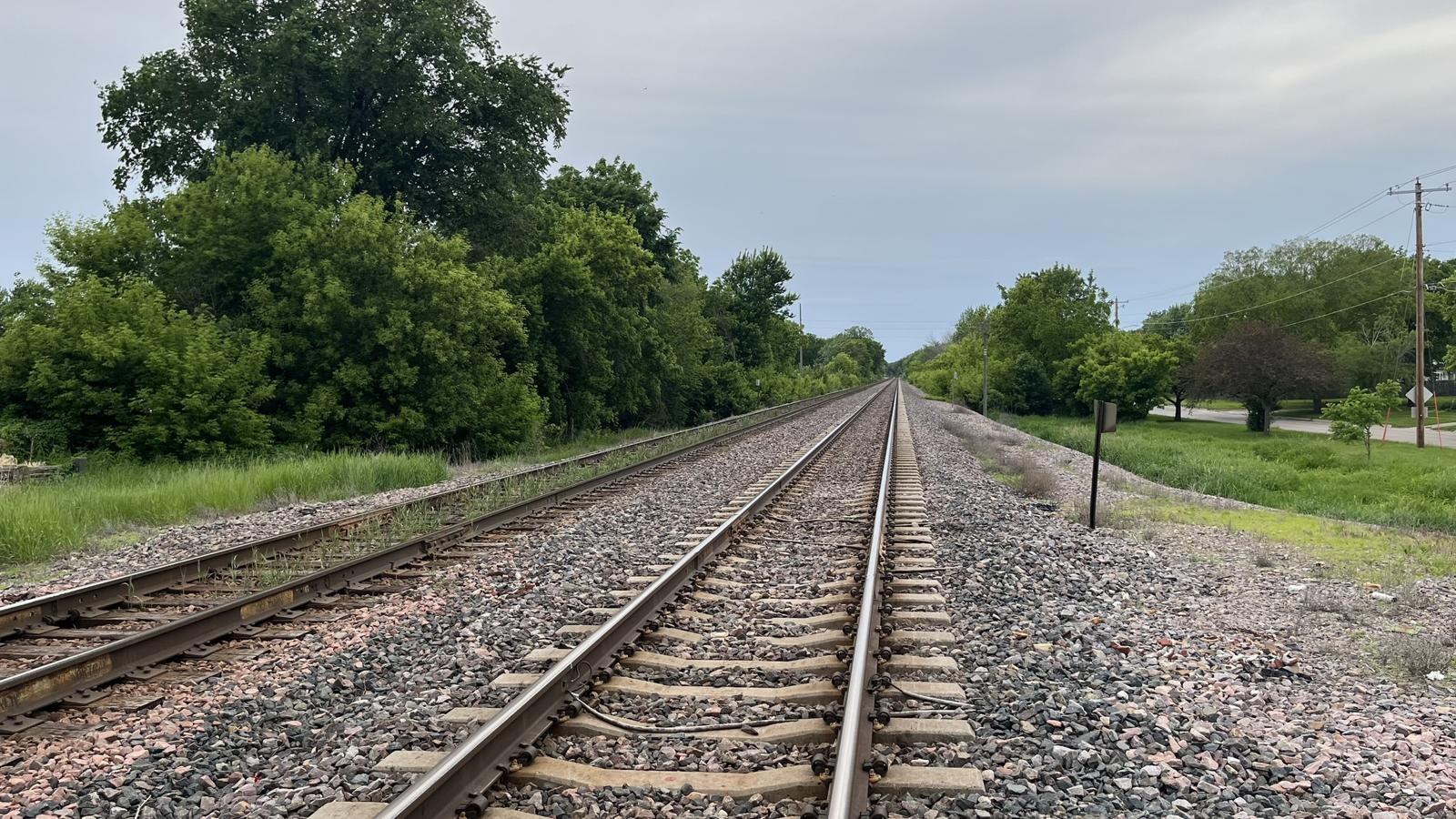

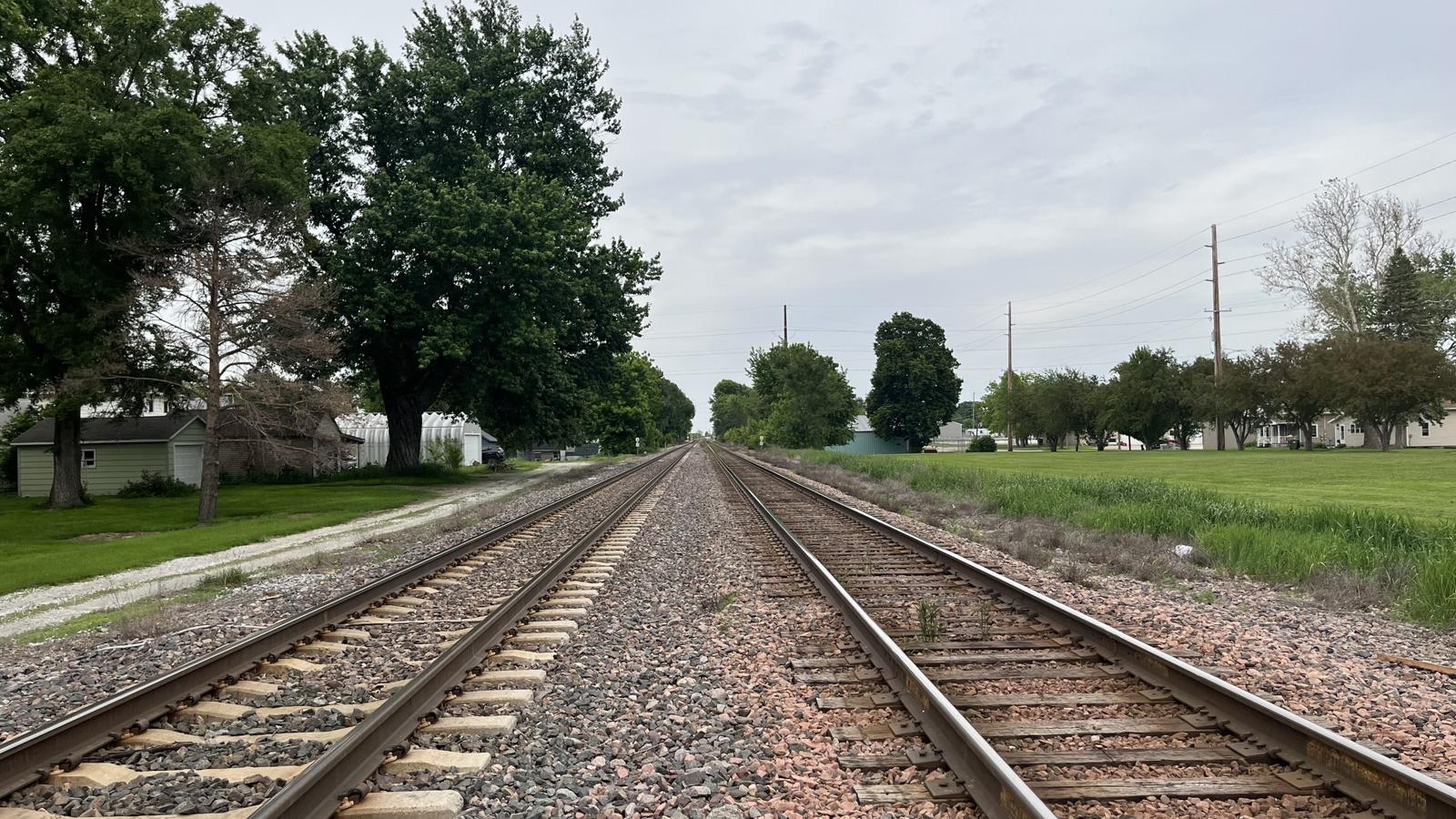

The track date on main 2 is September 2018. | Track view facing east towards Crawford St. #1. | Track view facing west towards Marion St. #1. |
31 |
32 |
33 |
34 |
35 |
36 |
37 |
38 |
39 |
40 |
41 |
42 |
43 |

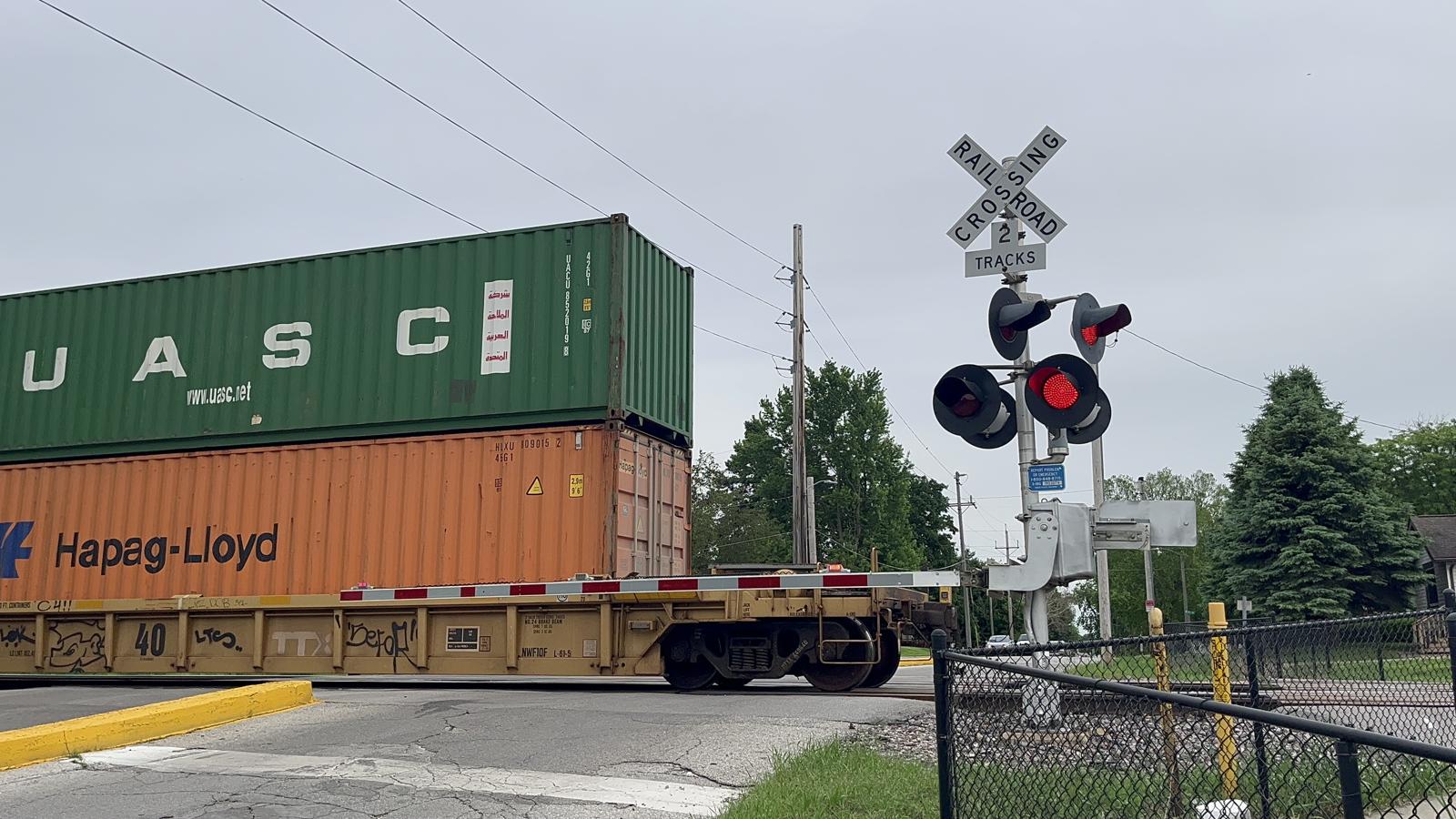

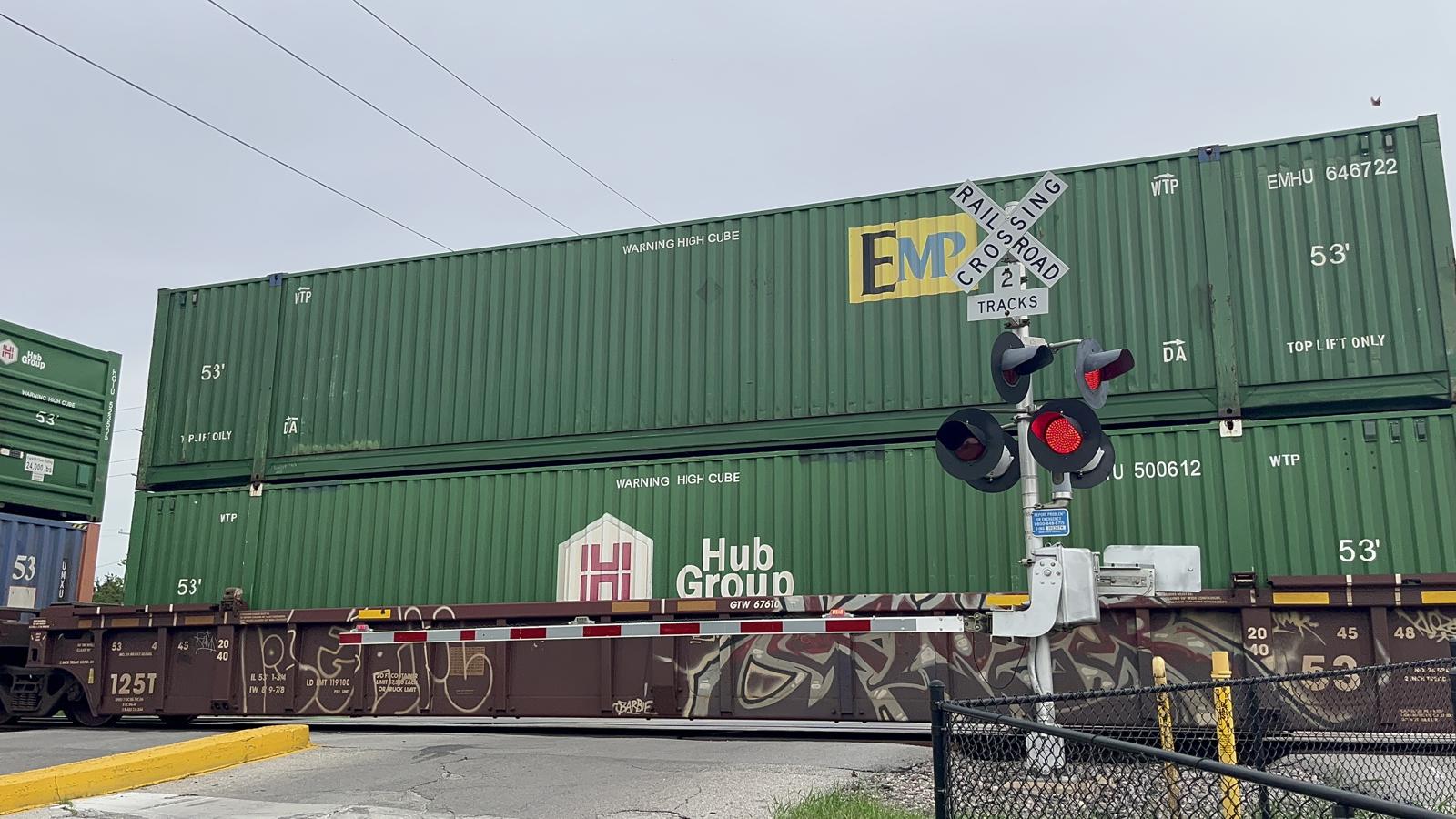

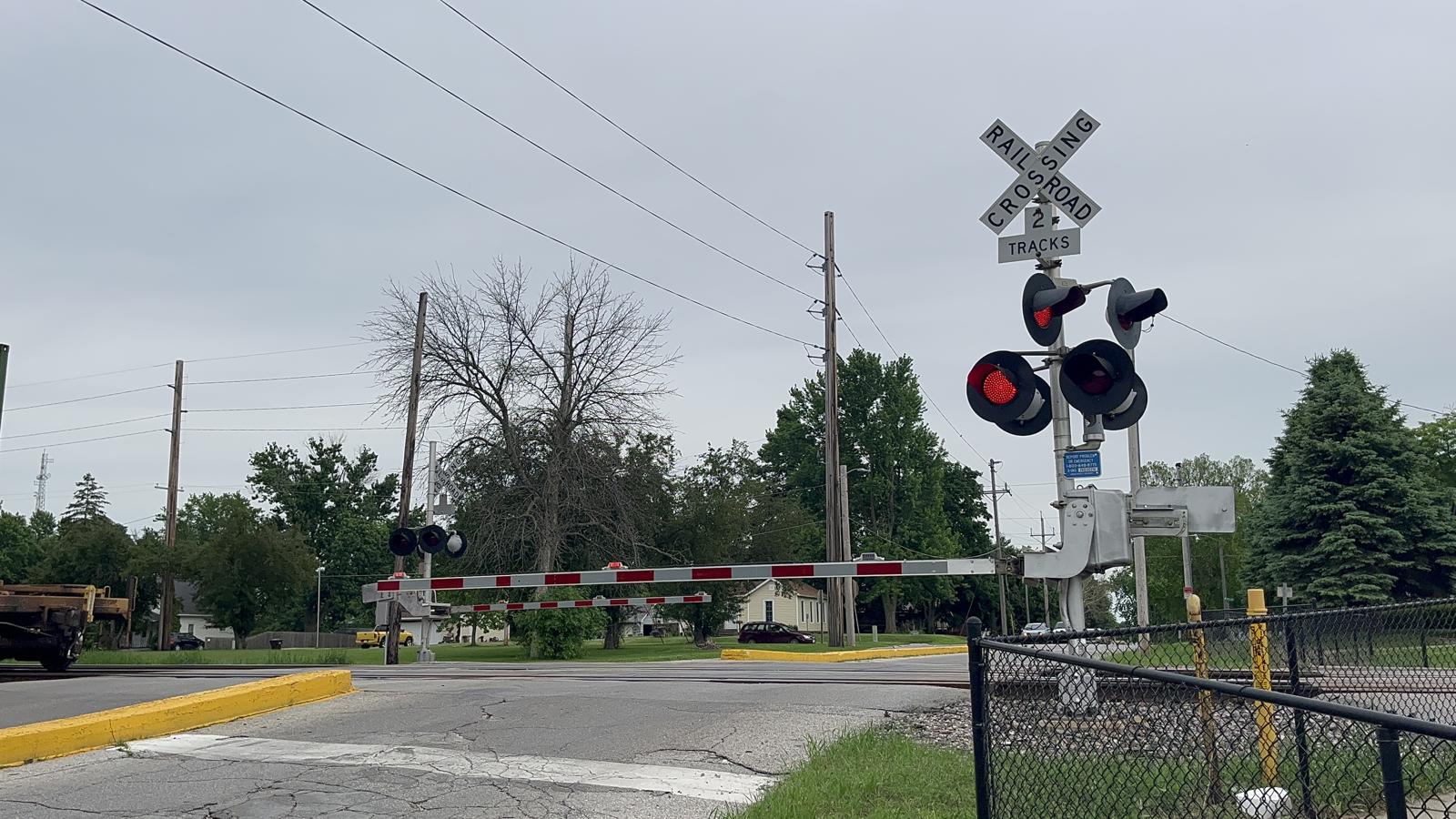

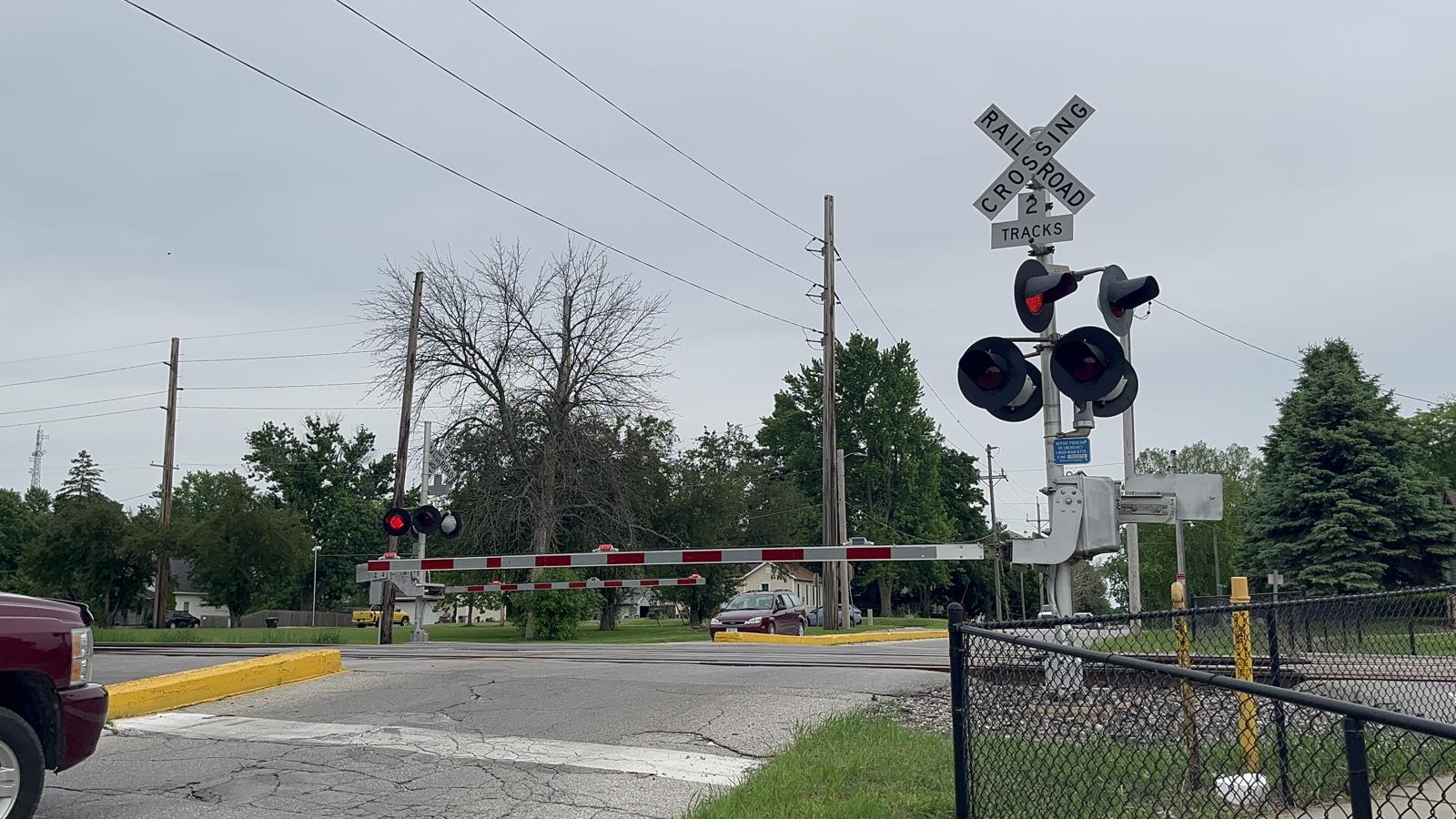

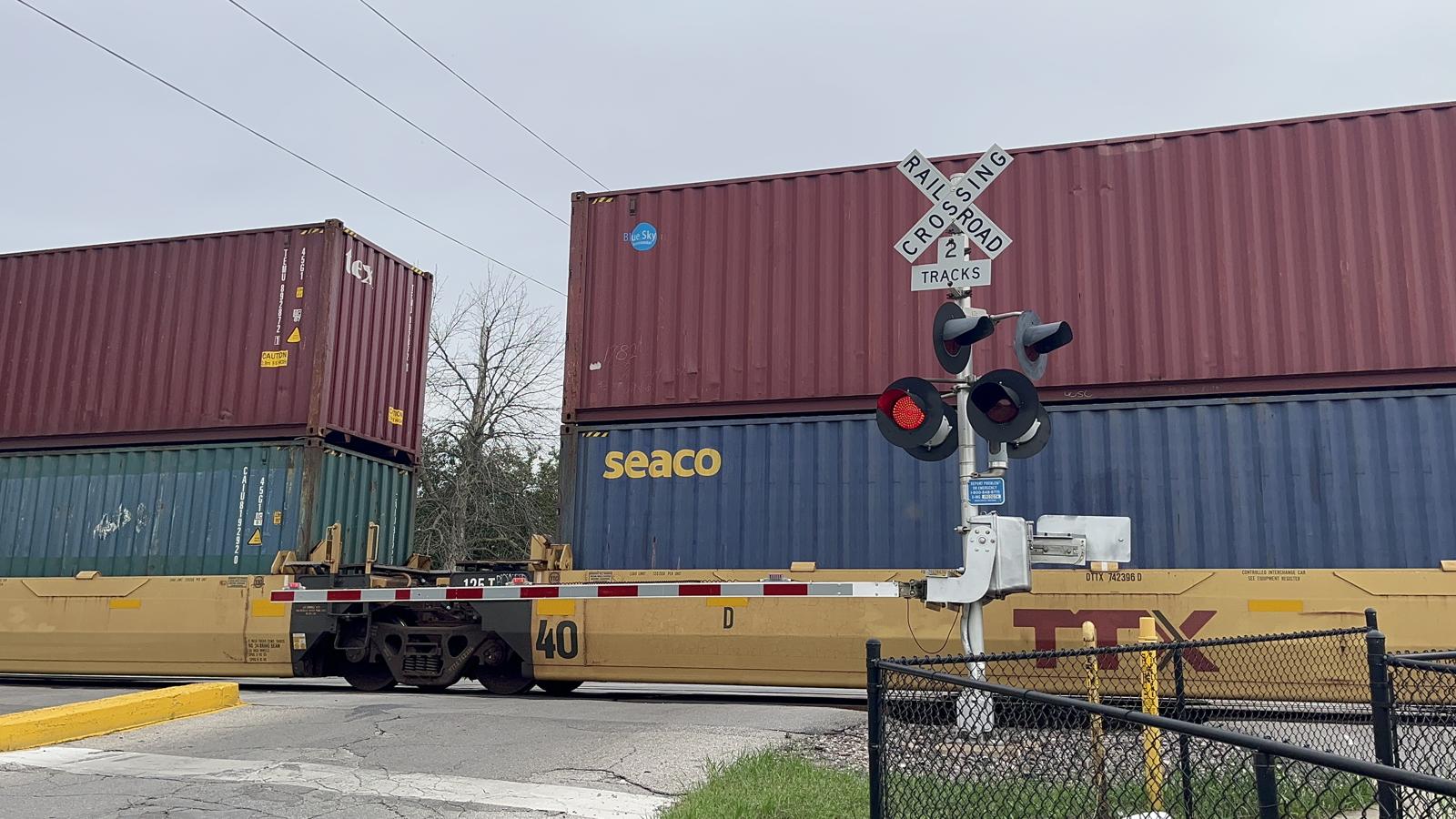

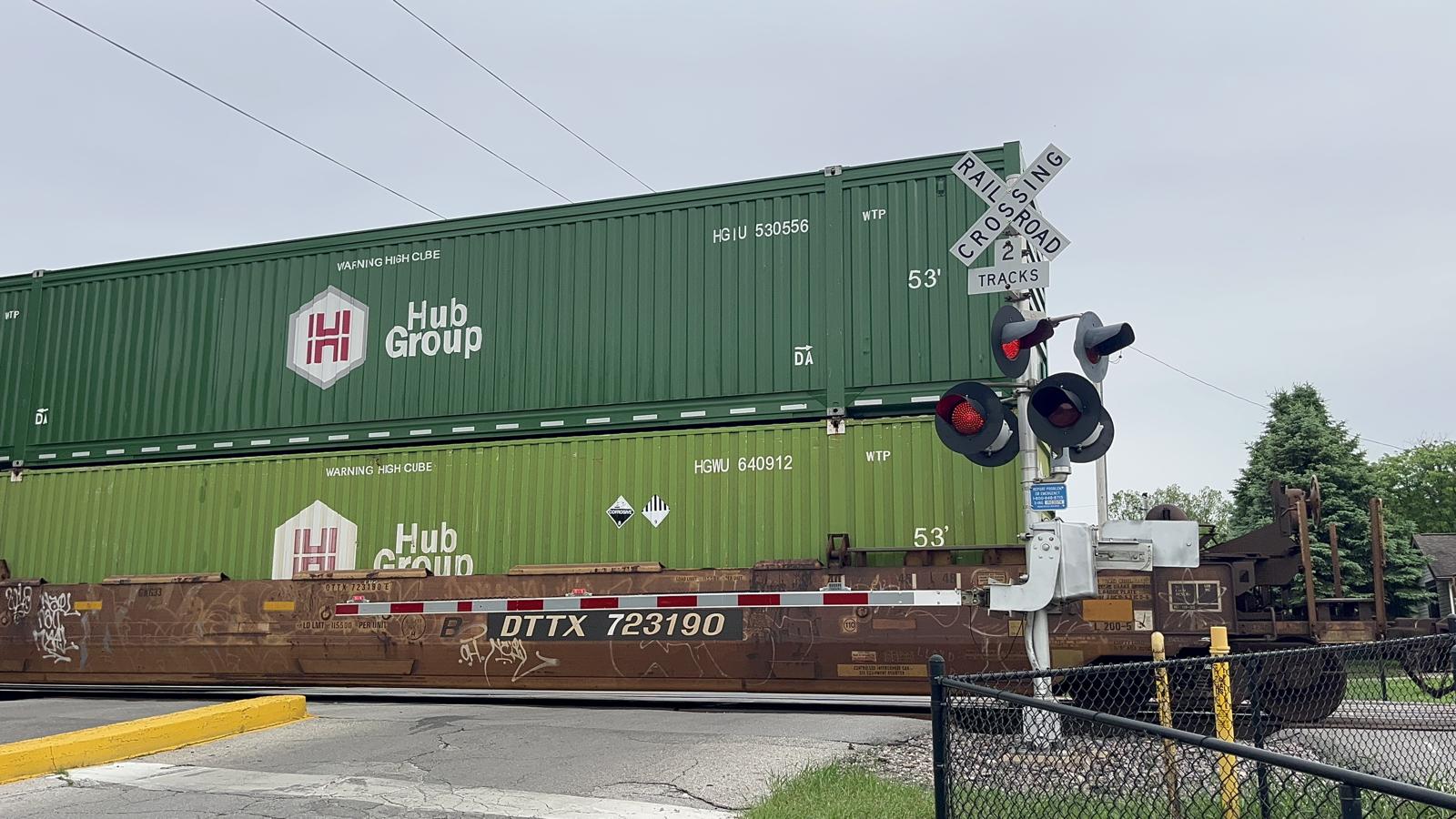

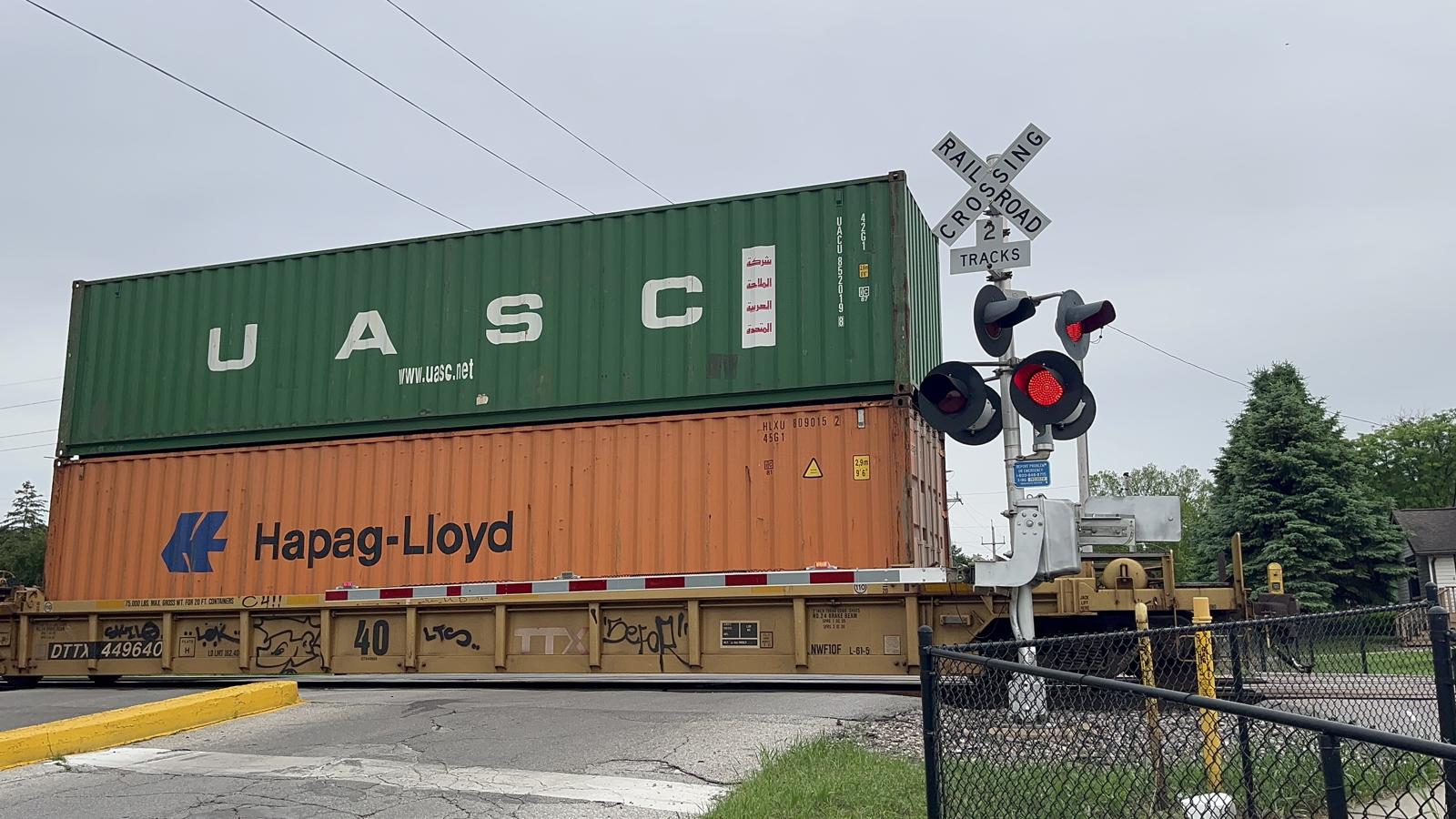

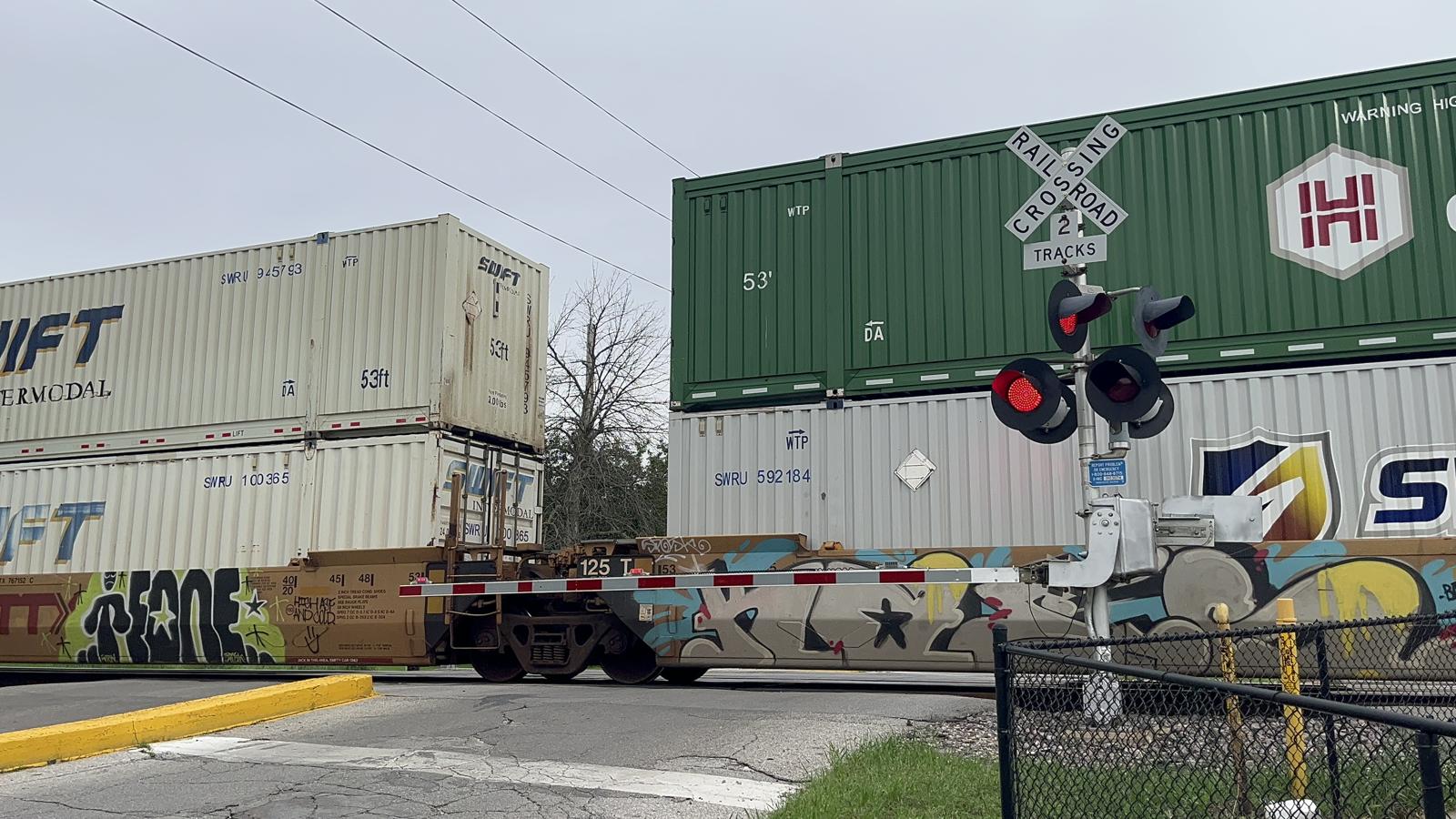

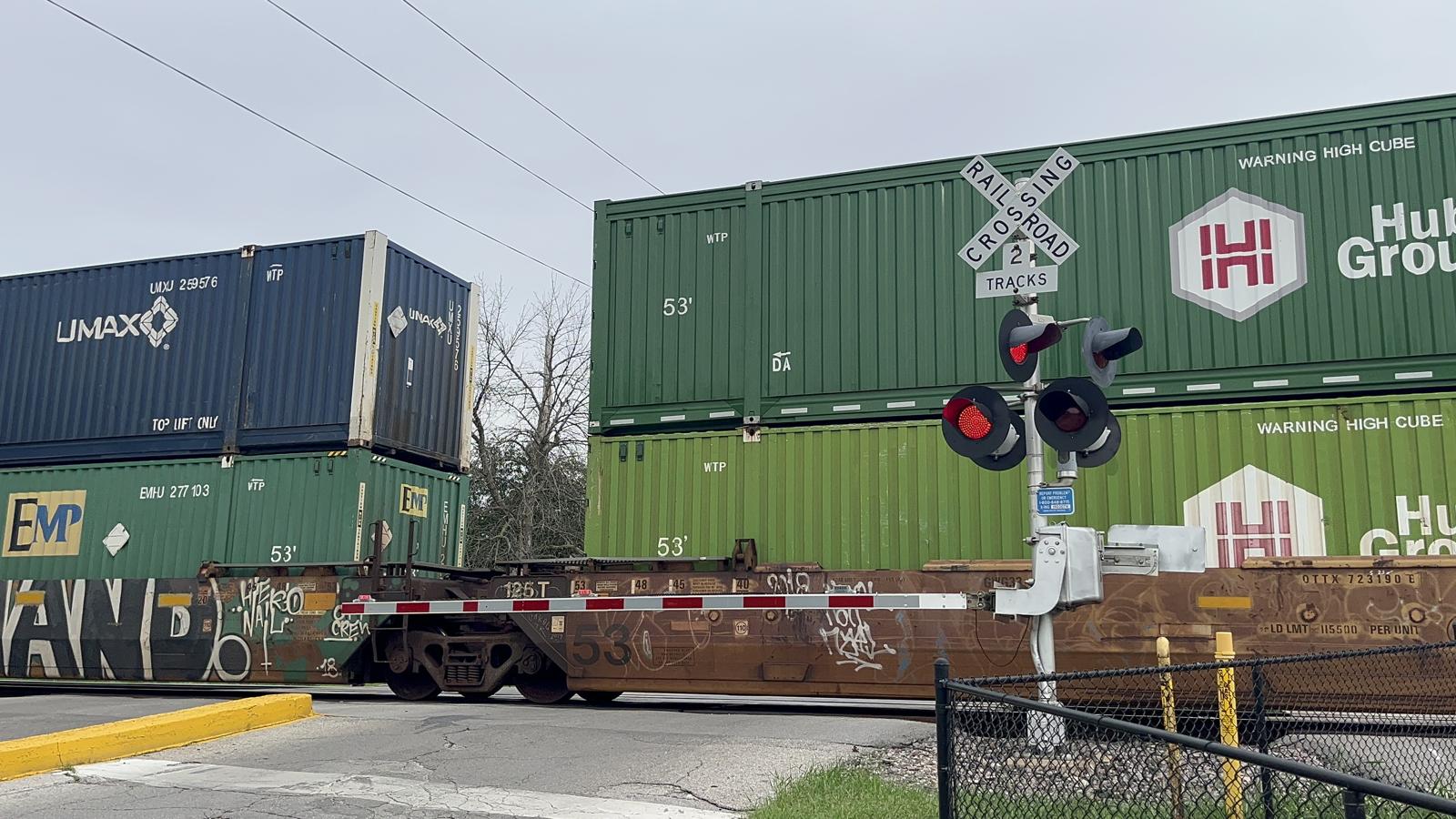

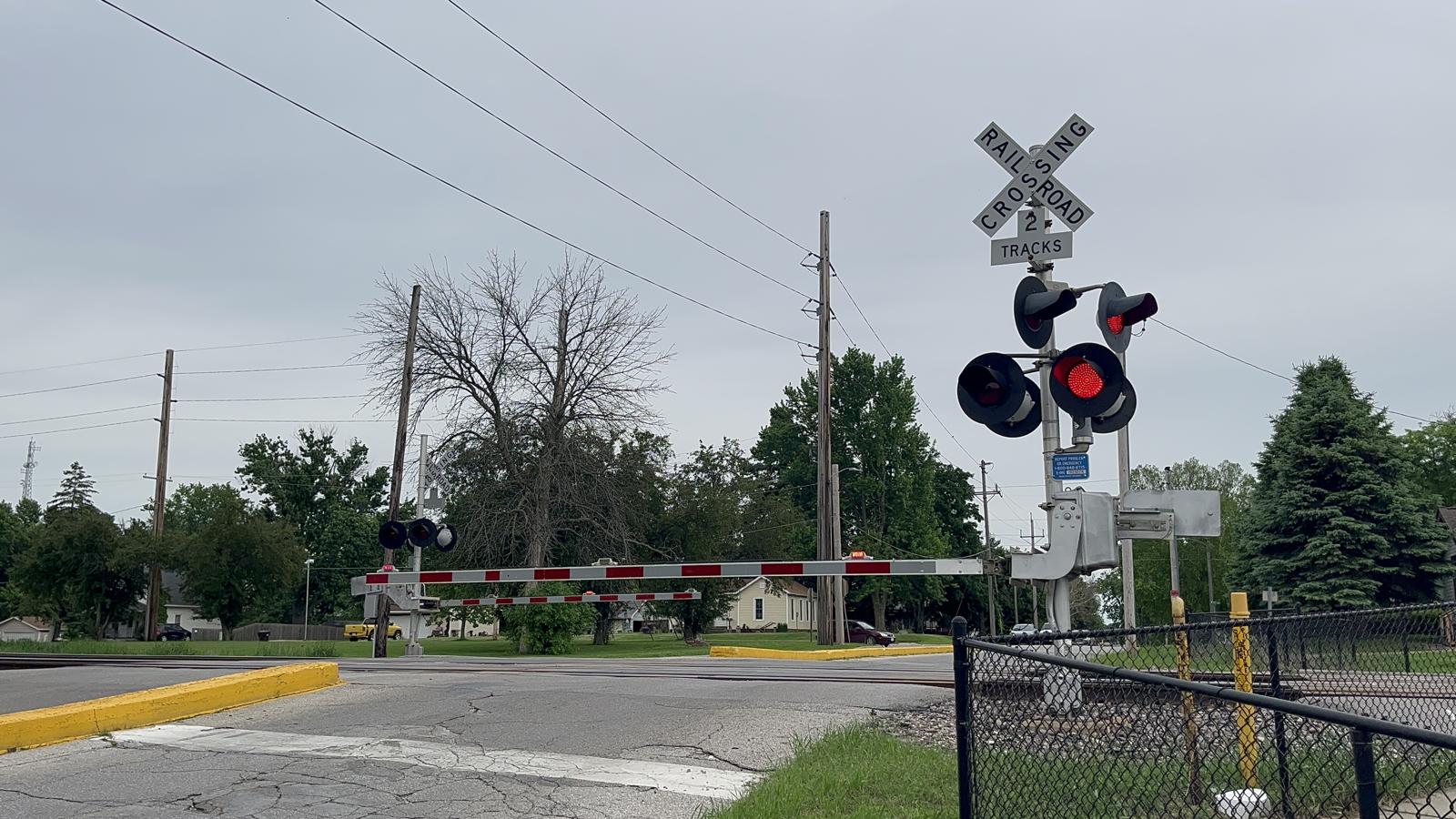

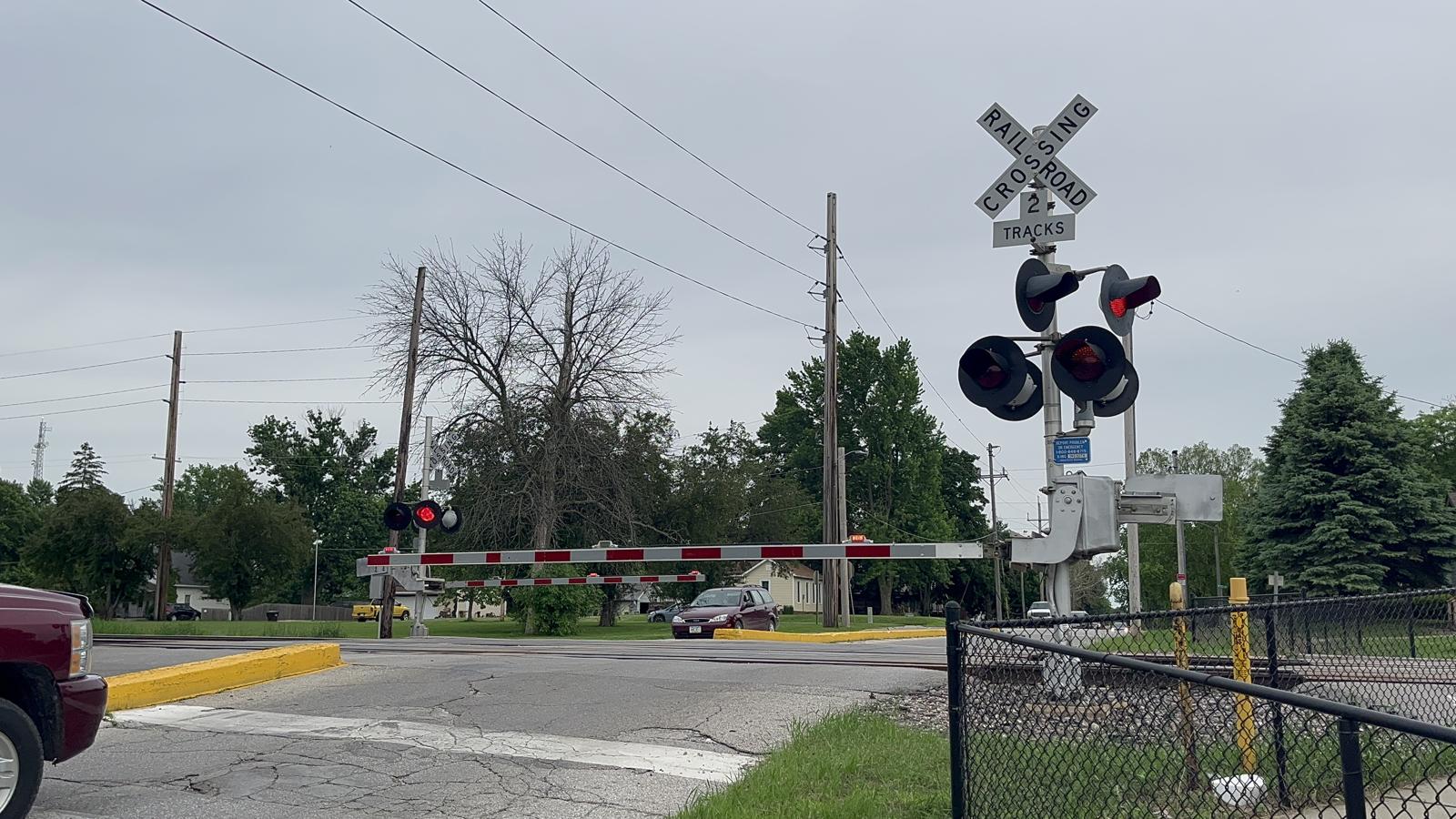

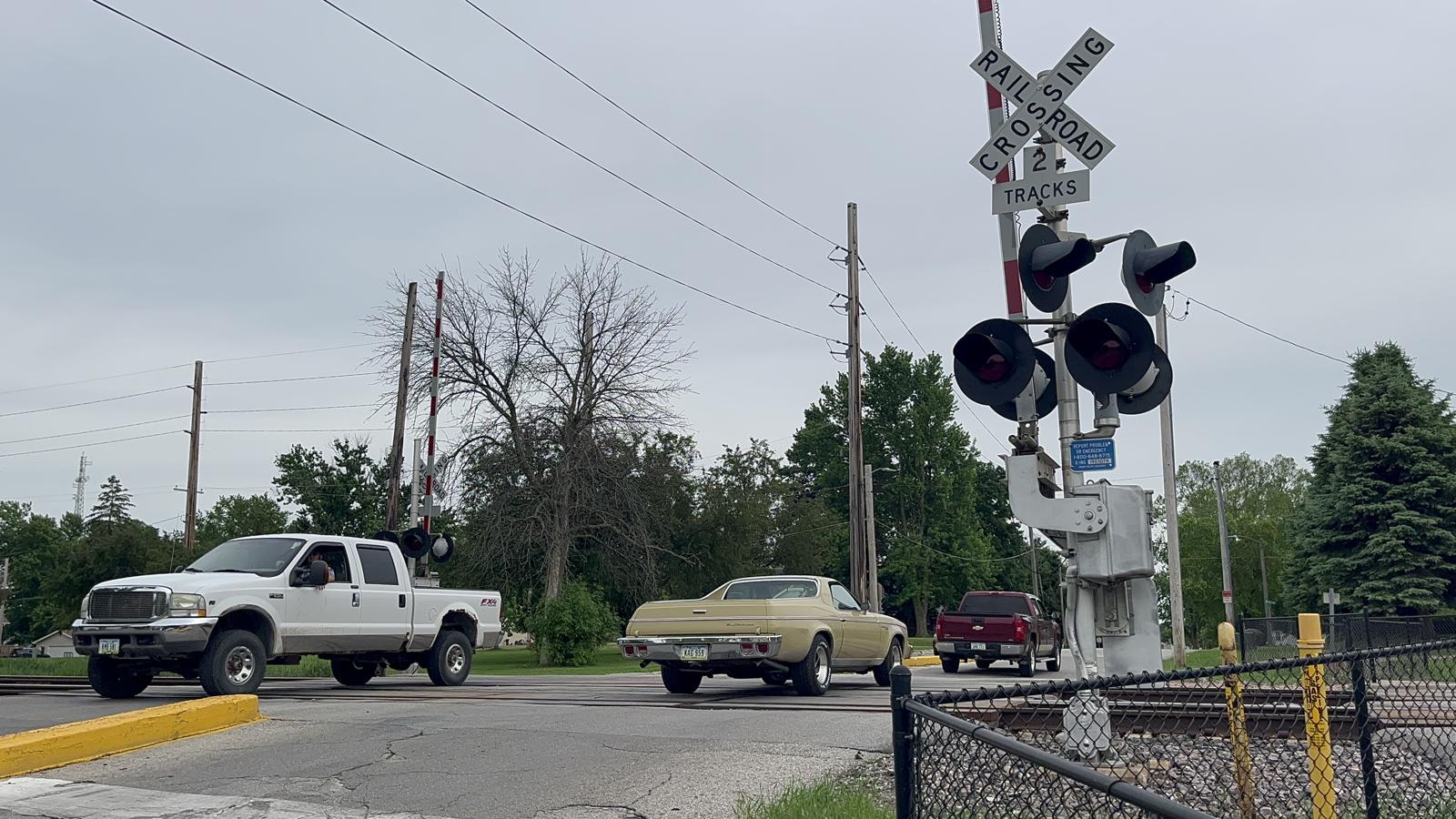

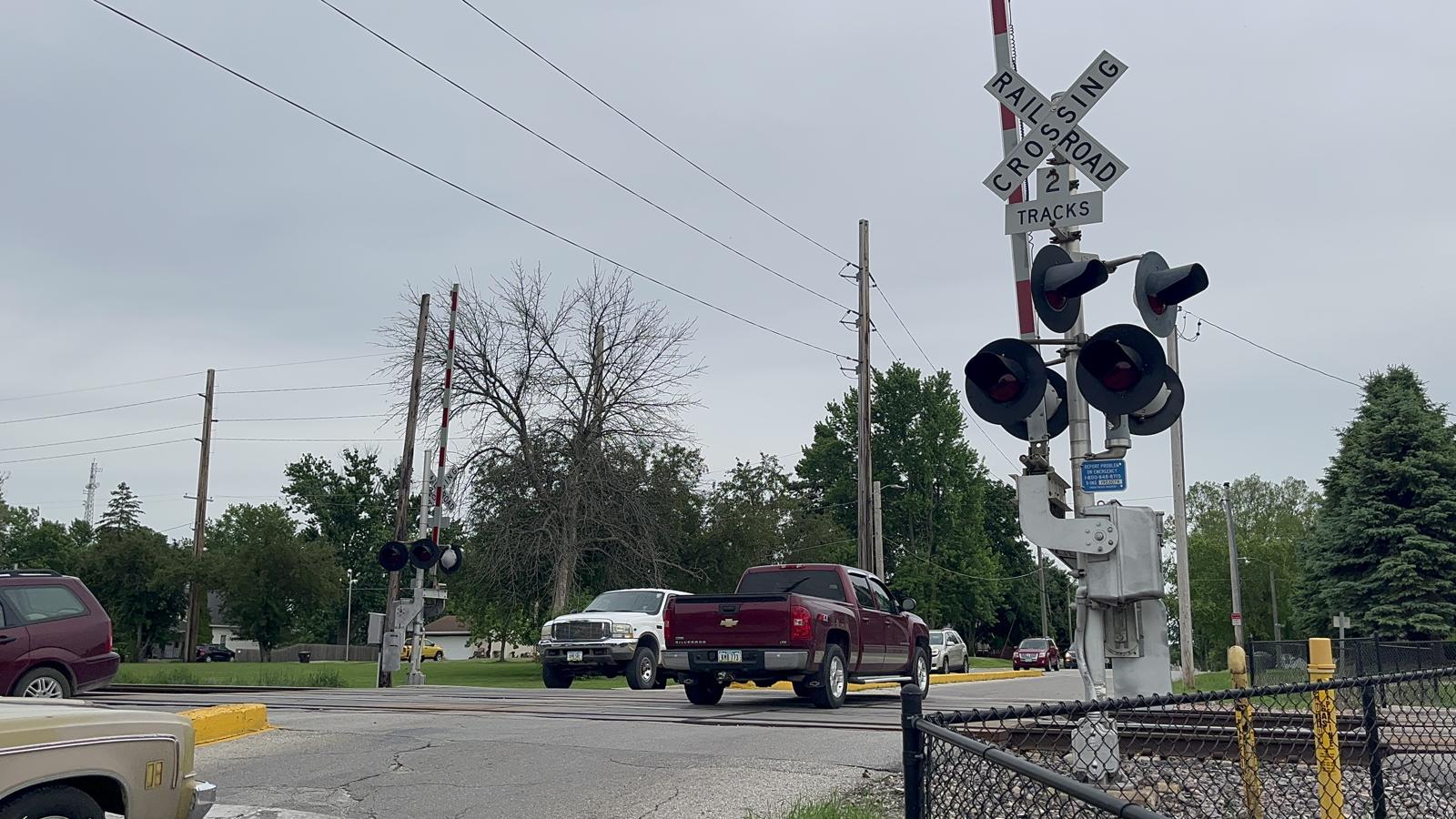

| The crossing in action! | |||
