| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | None | GS Type 2 E Bell |
| Base: | Siemens 5" Single Sided ^ | Safetran 5" Single Sided ^ |
| Lights: | 4 - 12"x24" Safetran w/ GE Uniform Look LEDs | 4 - 12"x24" Safetran w/ Harmon Fading LEDs |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 4" RECO LEDs | 4" RECO |
| Gate Mechanism: | Siemens Imprinted w/ GSI Gate Saver | Siemens Sticker Style 1 w/ GSI Gate Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
G1 |

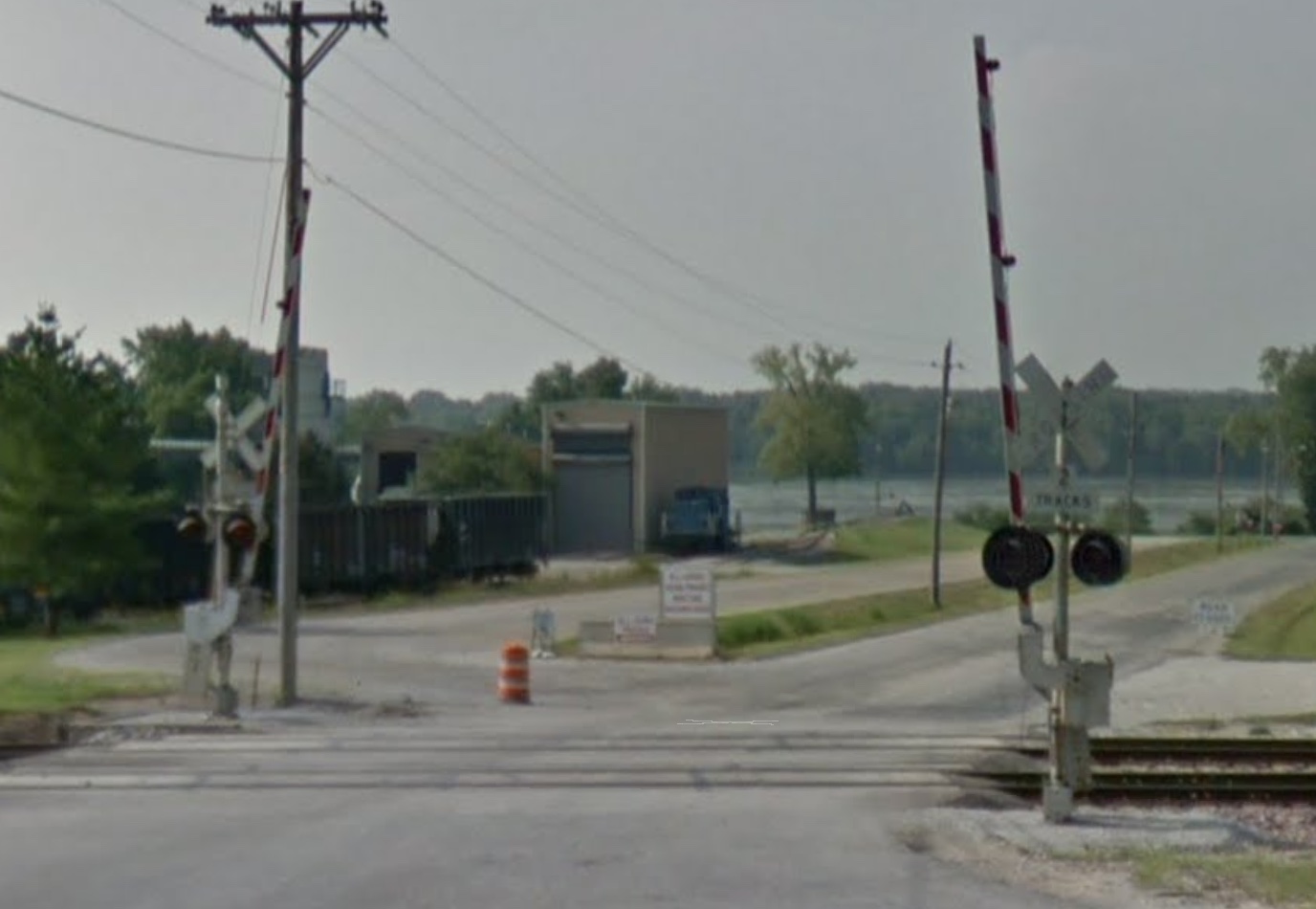

| Streetview image from 2011 showing two older Safetran signals with 12"x24" and 12"x20" incandescents, Safetran gate mechanisms, and a GS E Bell. |
G2 |
| By 2018, both signals were replaced with newer Siemens signals. Initially, they had diagonal striping on the gates, but by 2022, they were restriped. |
1 |
2 |

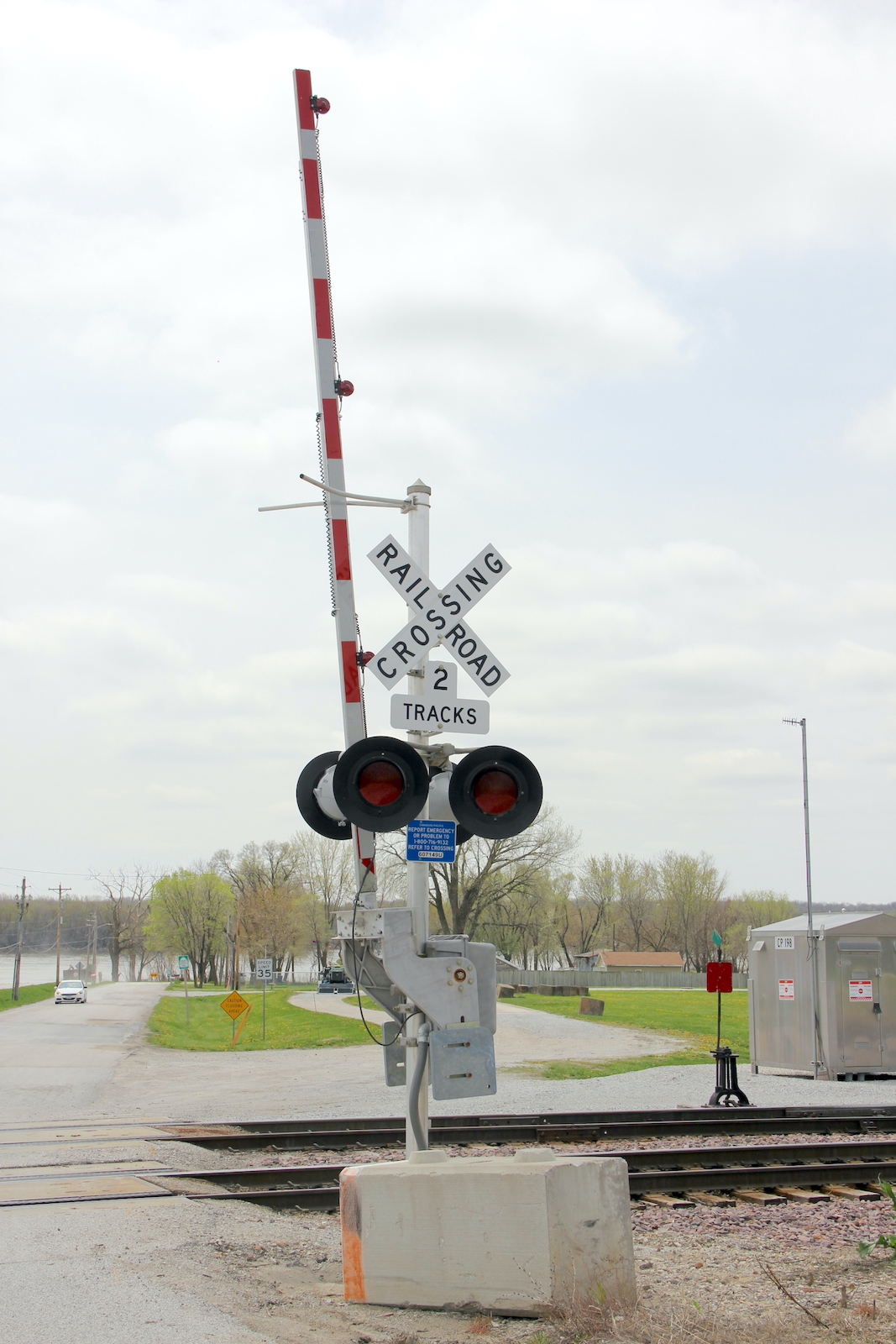

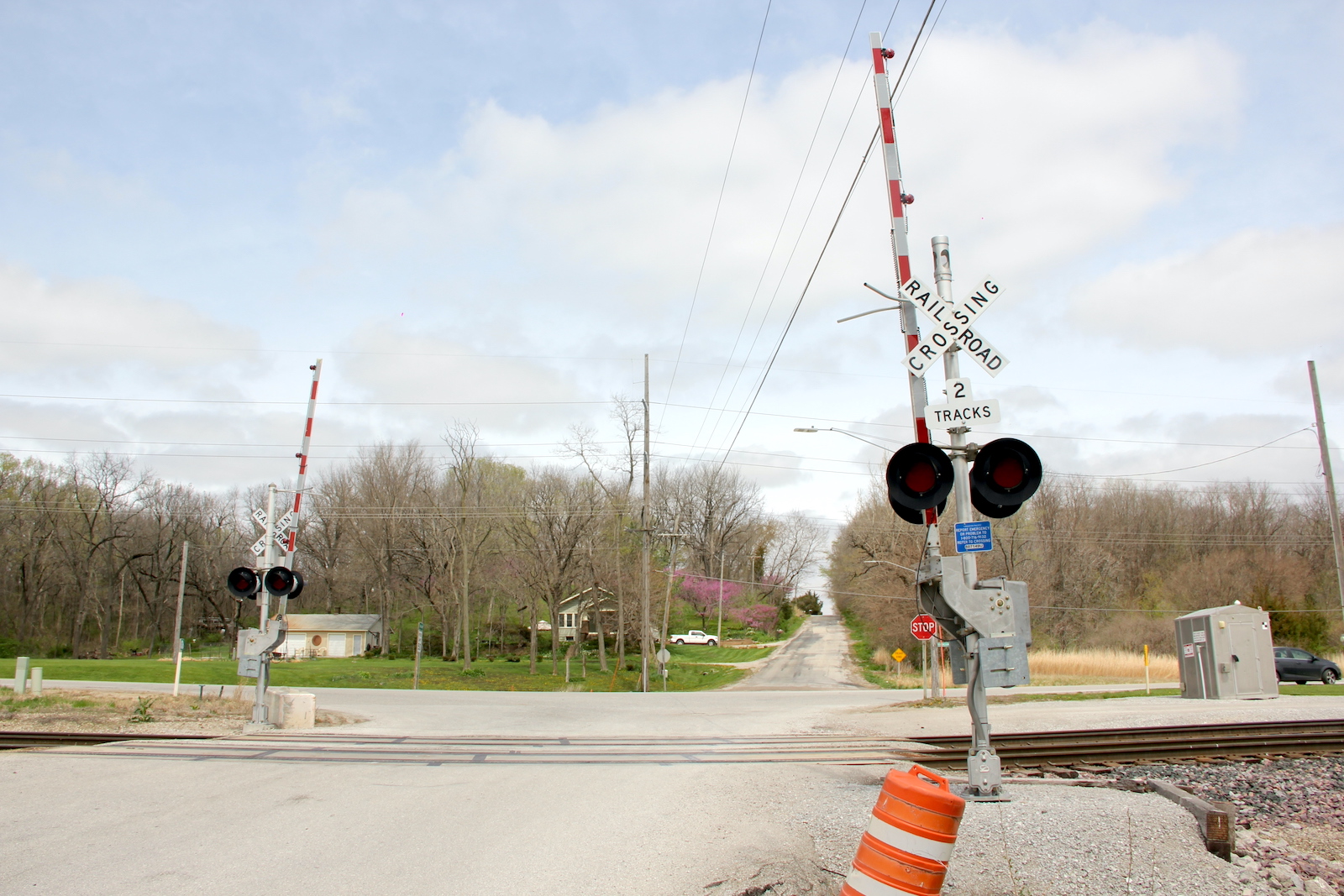

| Overview of the newer signals facing south. | Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |

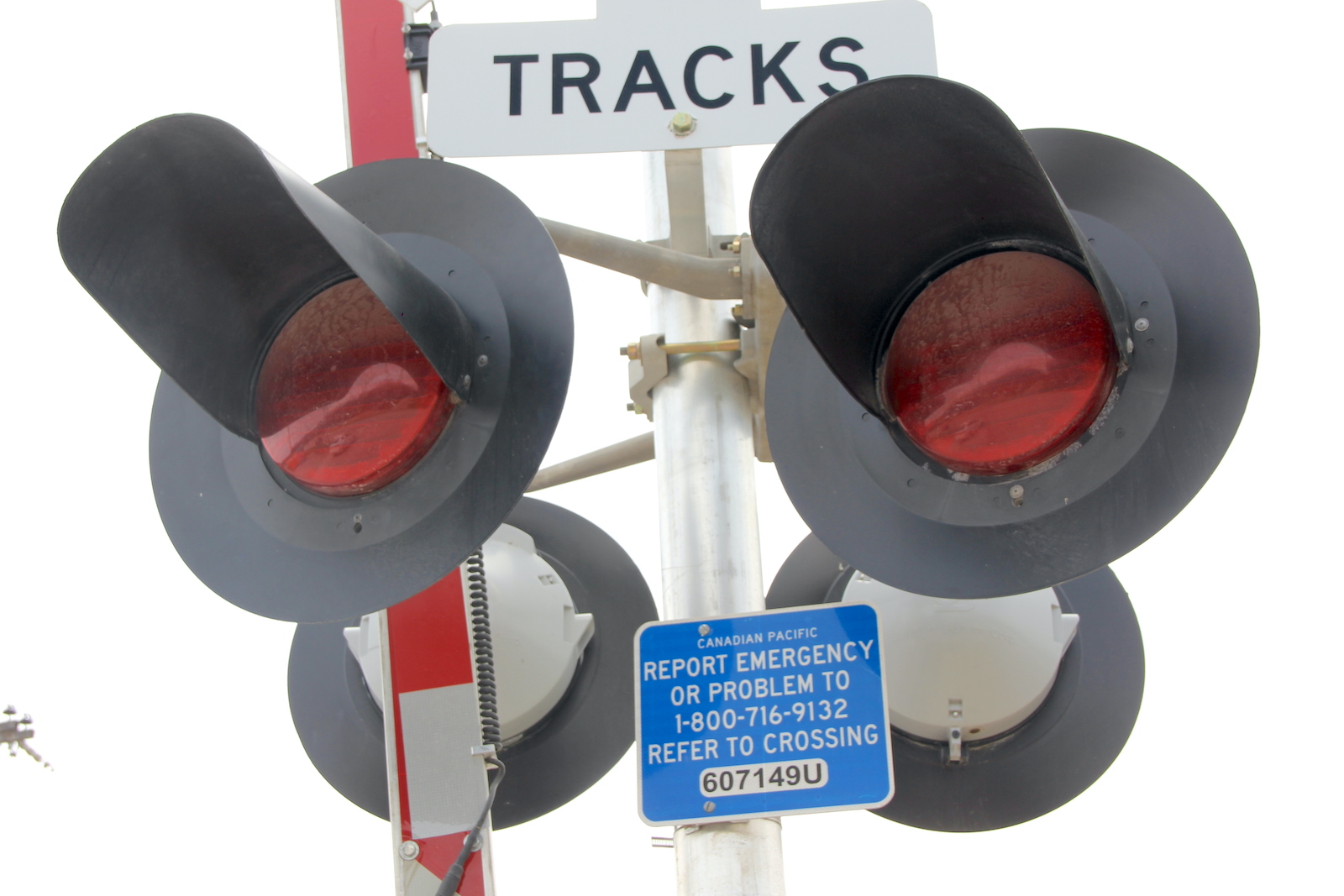

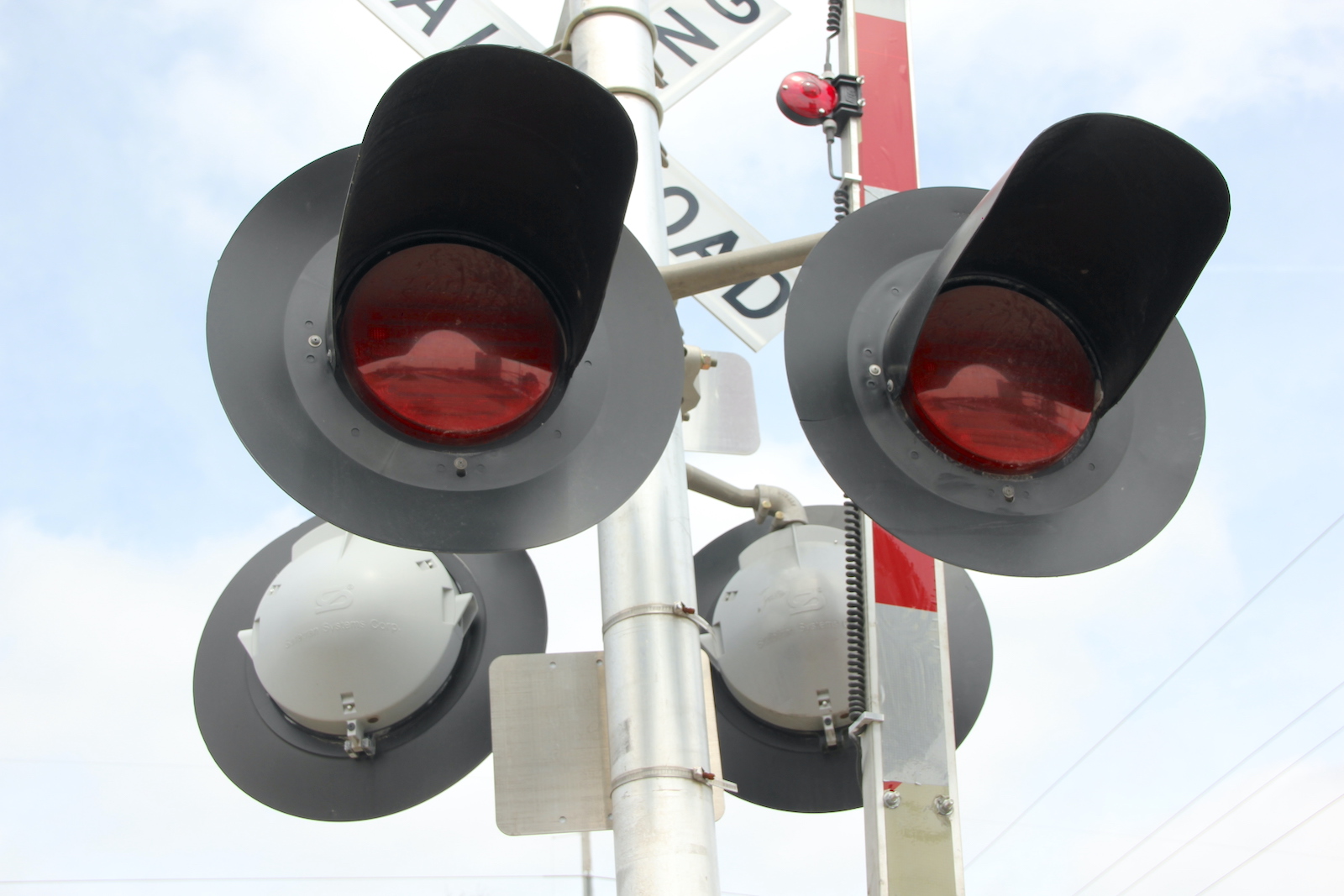

| The northern signal. |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |

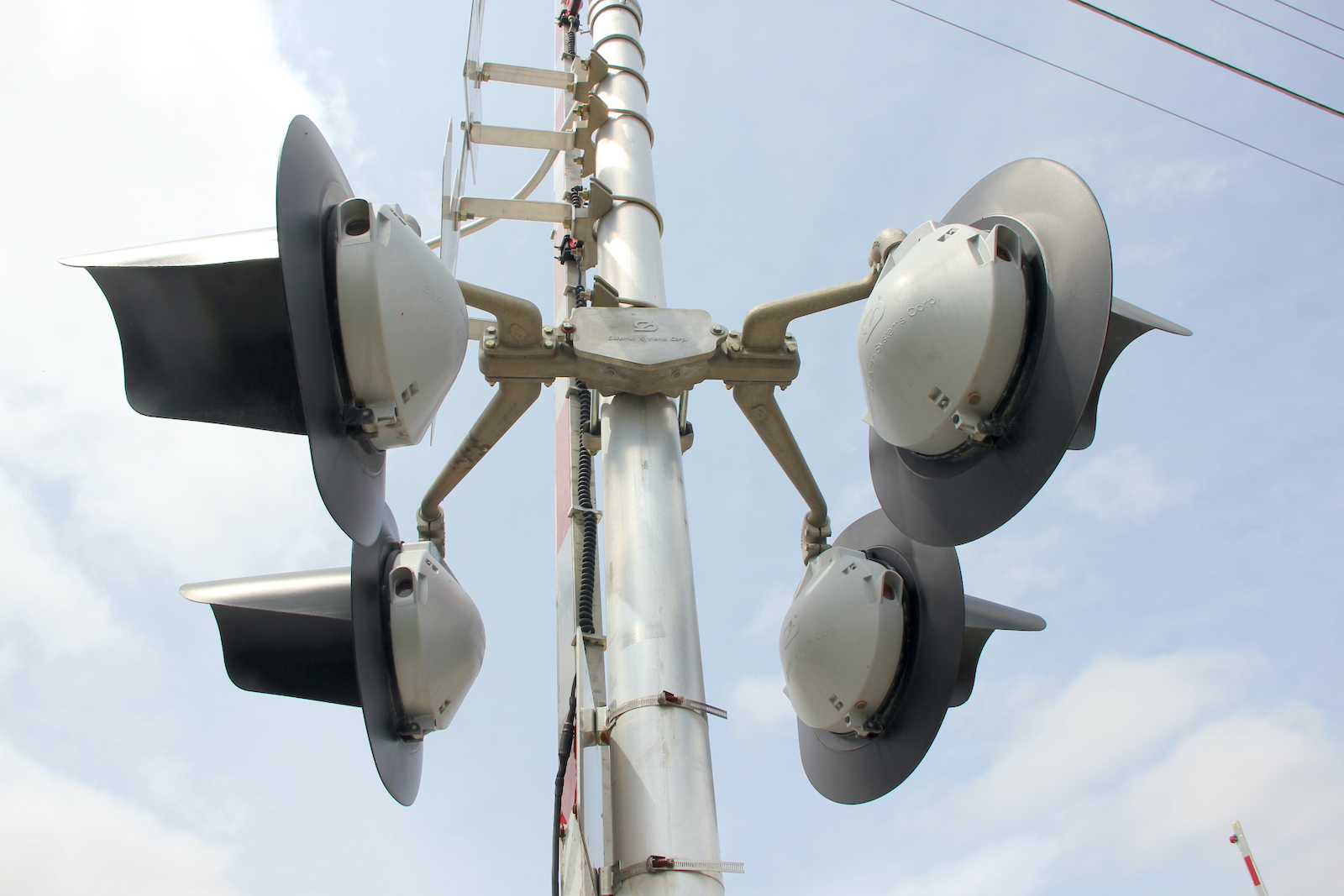

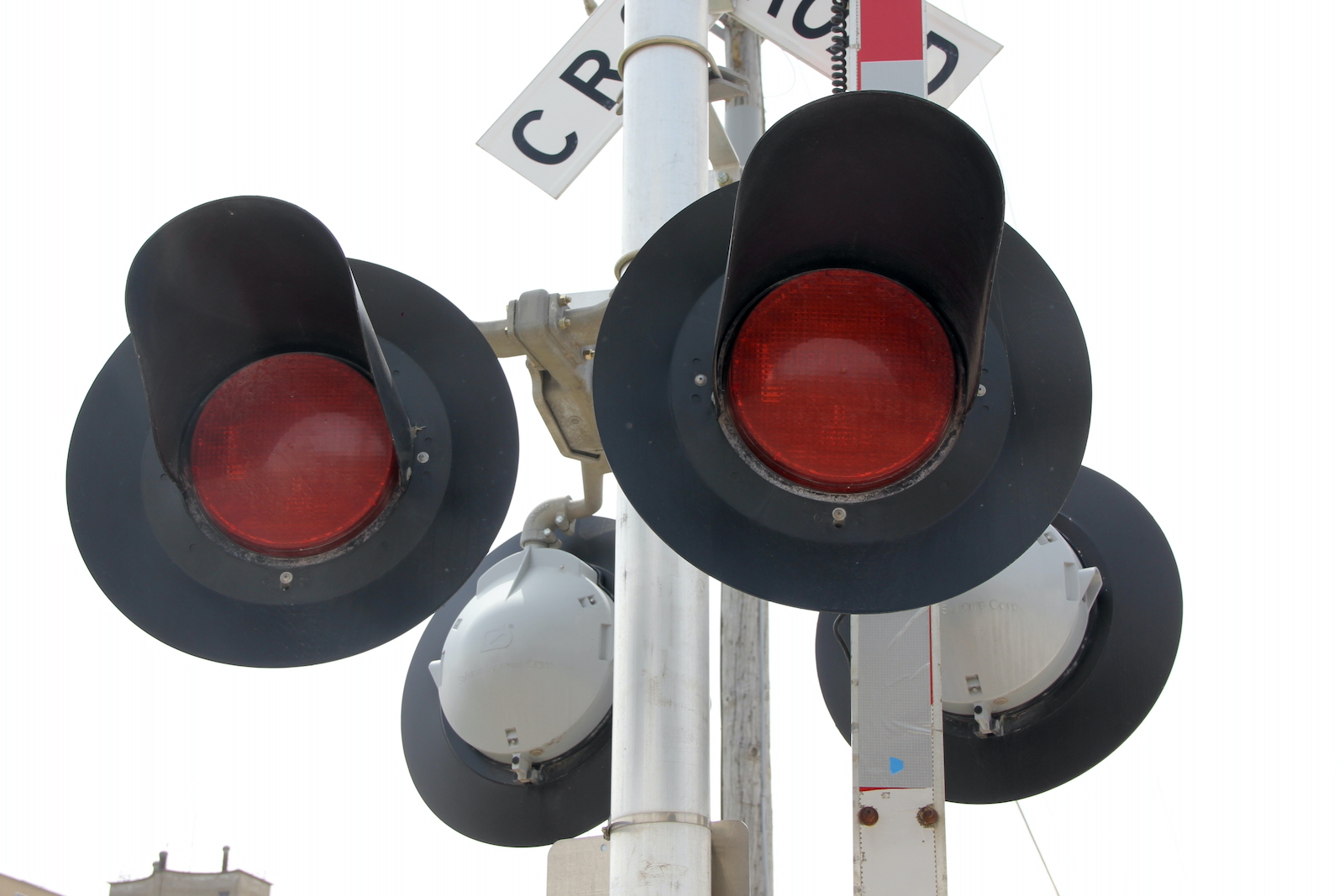

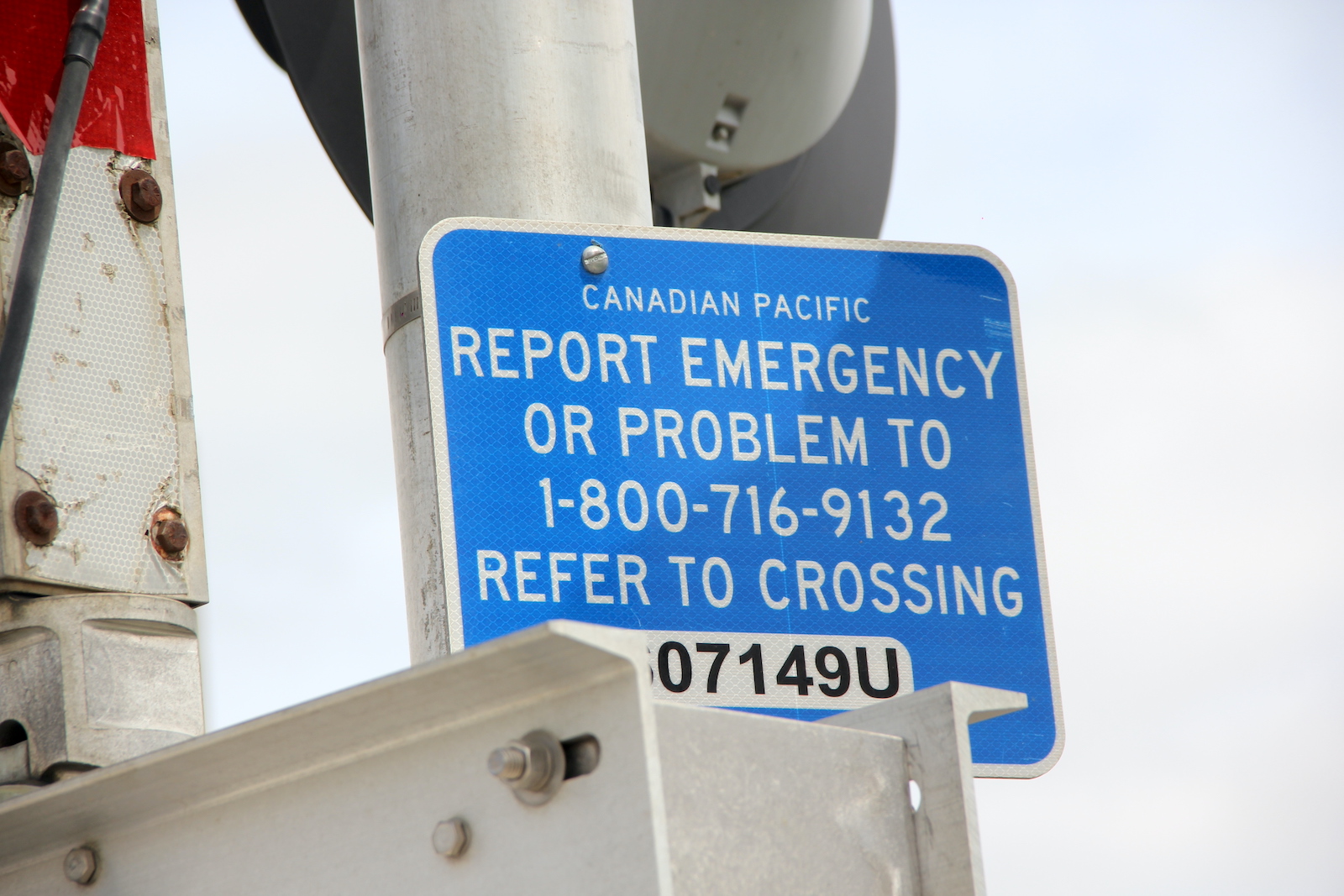

| The southern signal. |
22 |
23 |
24 |
25 |

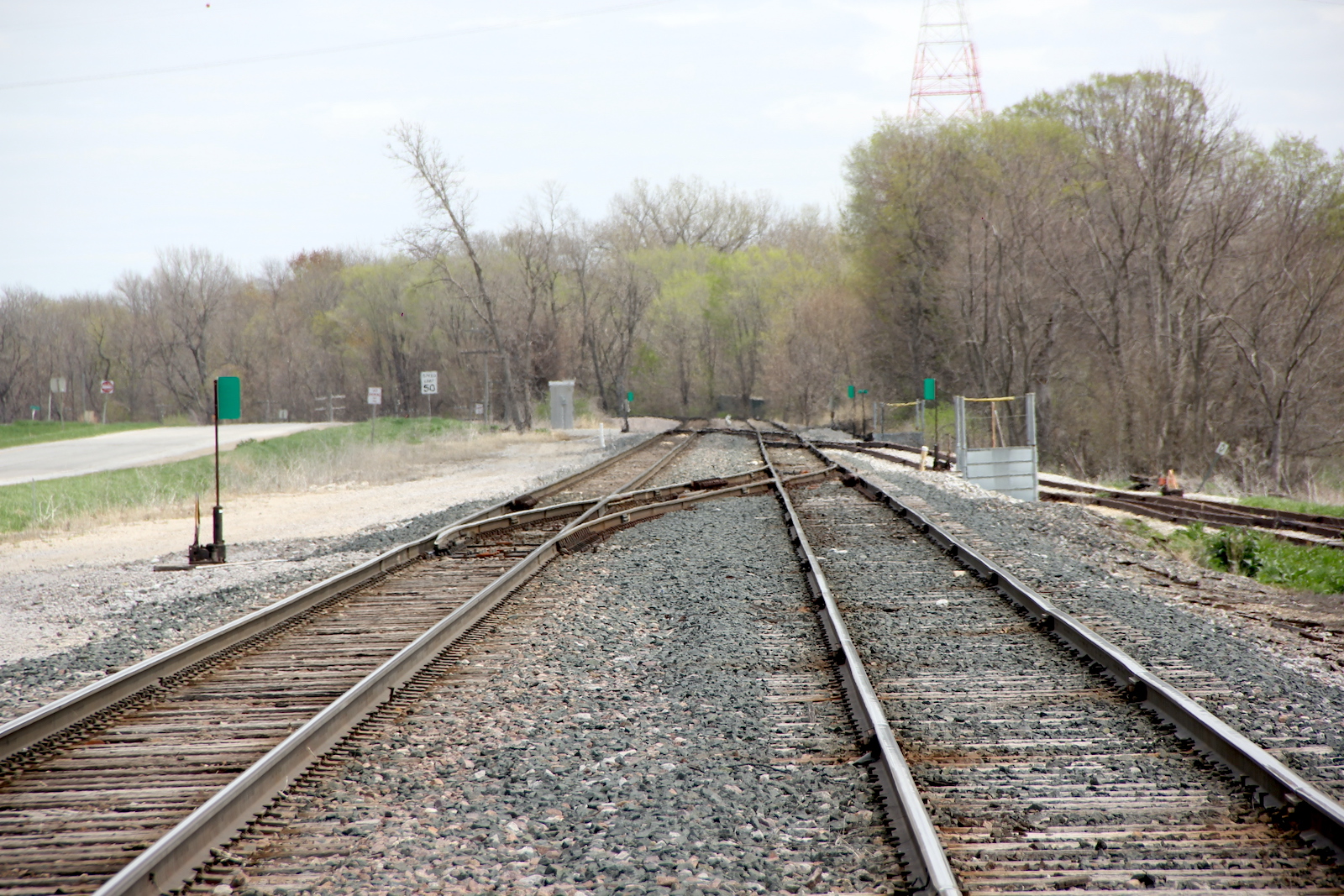

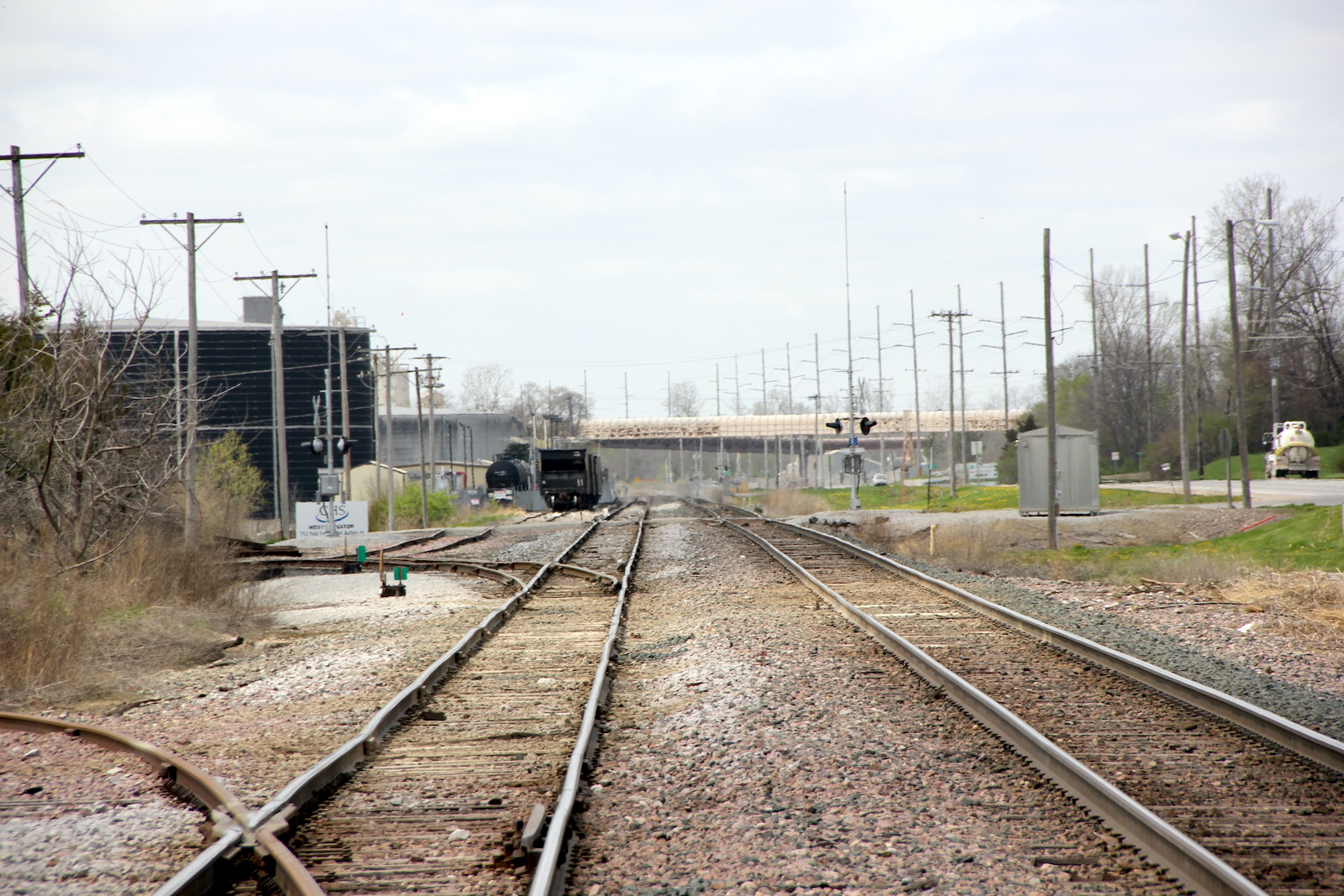

| The relay bungalow in the northeast quadrant. | The grade is all concrete. | Track view facing west at Linwood #2. | Track view facing east towards Wapello Ave. in Davenport. |
26 |
| A newer wayside signal next to the crossing. This is at the start of the yard limits to Nahant Yard. |
