5.29


190371G

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: None WCH Type 2 E Bell
Base: WCH 5" Single Sided ^ Safetran 5" Single Sided ^
Lights: 4 - 12"x24" WCH w/ Electro-Tech's LEDs 4 - 12"x24" WCH w/ Electro-Tech's LEDs
Junction Box: WRRS WRRS
Gate Lights: NEG Clear LEDs NEG Clear LEDs
Gate Mechanism: WCH Style 3.5 w/ Old NEG 2 Way Saver WCH Style 3.5 w/ Old WCH Saver
Gate Striping: Vertical Striping Vertical Striping

All pictures and the 1st video were taken on June 23, 2020.
The 2nd video was taken on May 28, 2021.
All pictures and videos were taken by Tommy McGowan.
This crossing is located on the UP Clinton Sub.

1 2

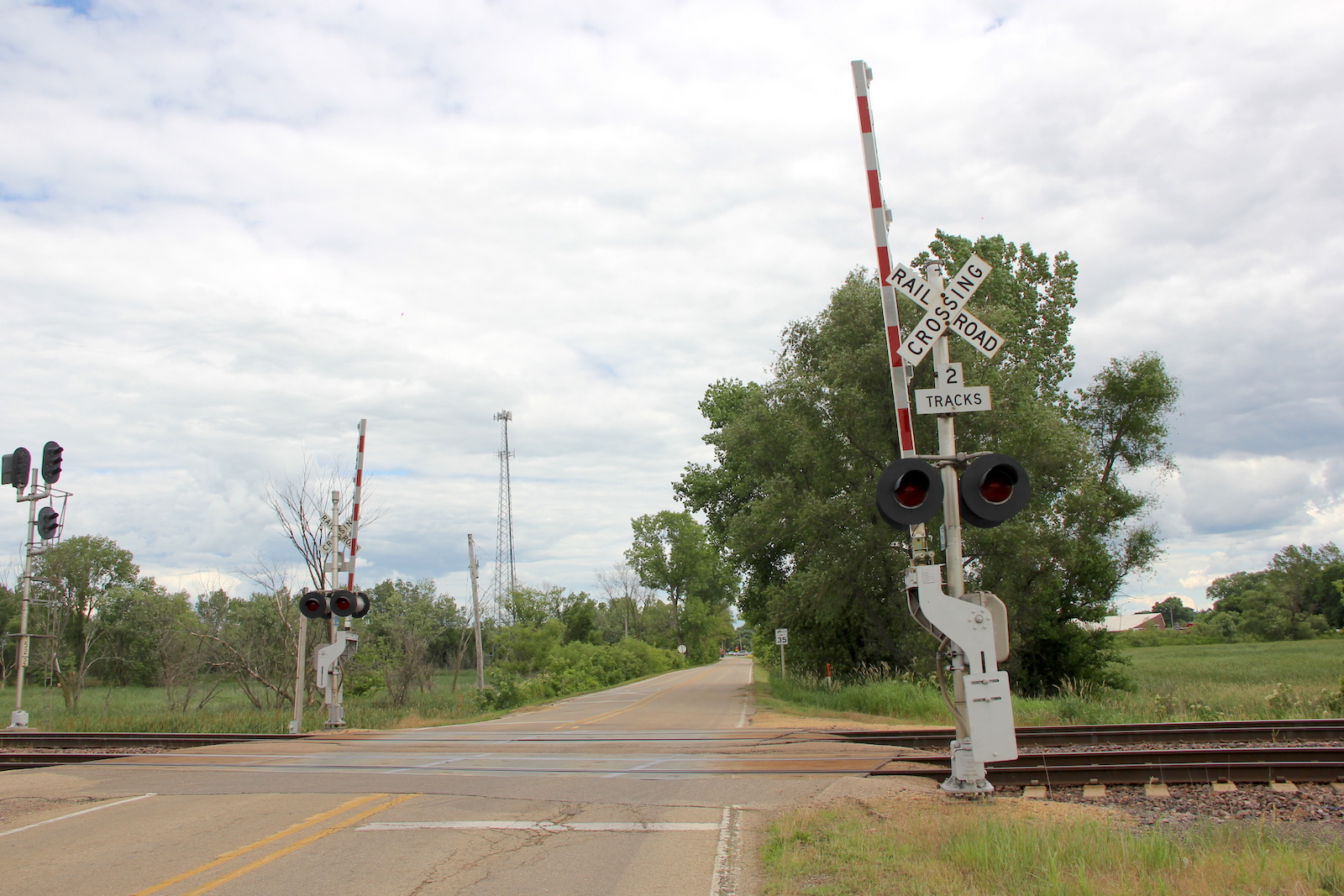

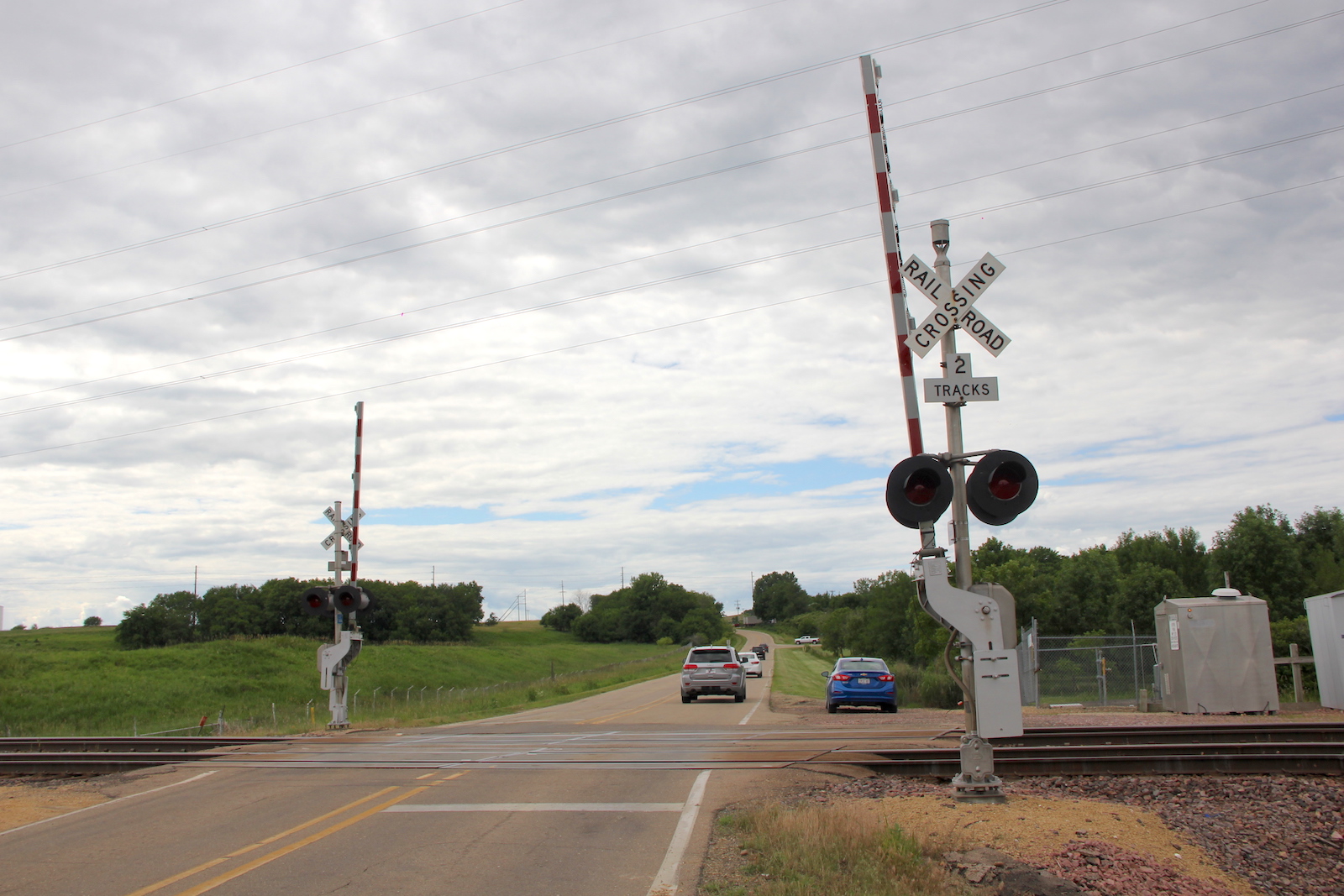

Overview of 2 WCH signals facing south. Overview facing north.
3 4 5
6 7 8
9 10 11

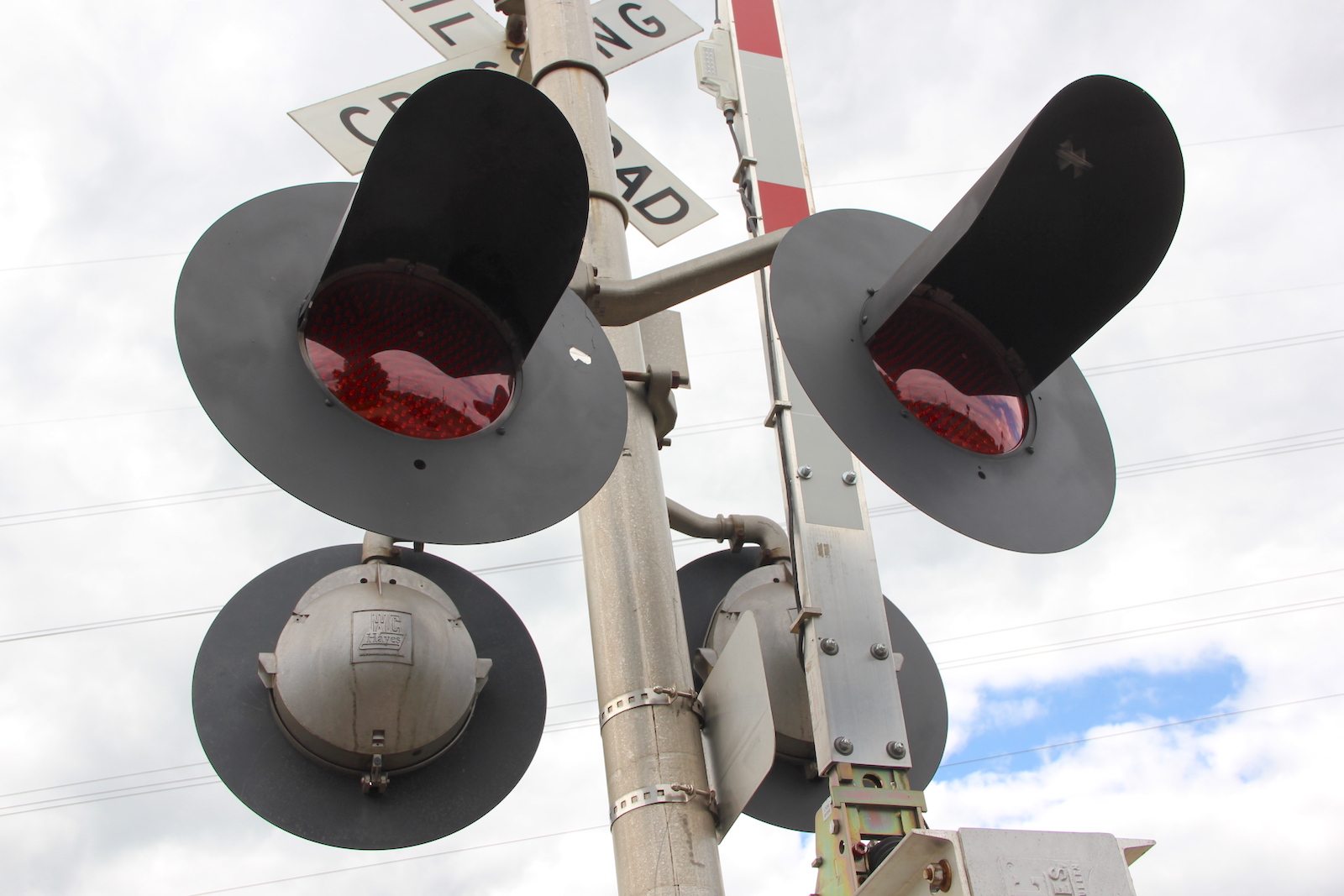

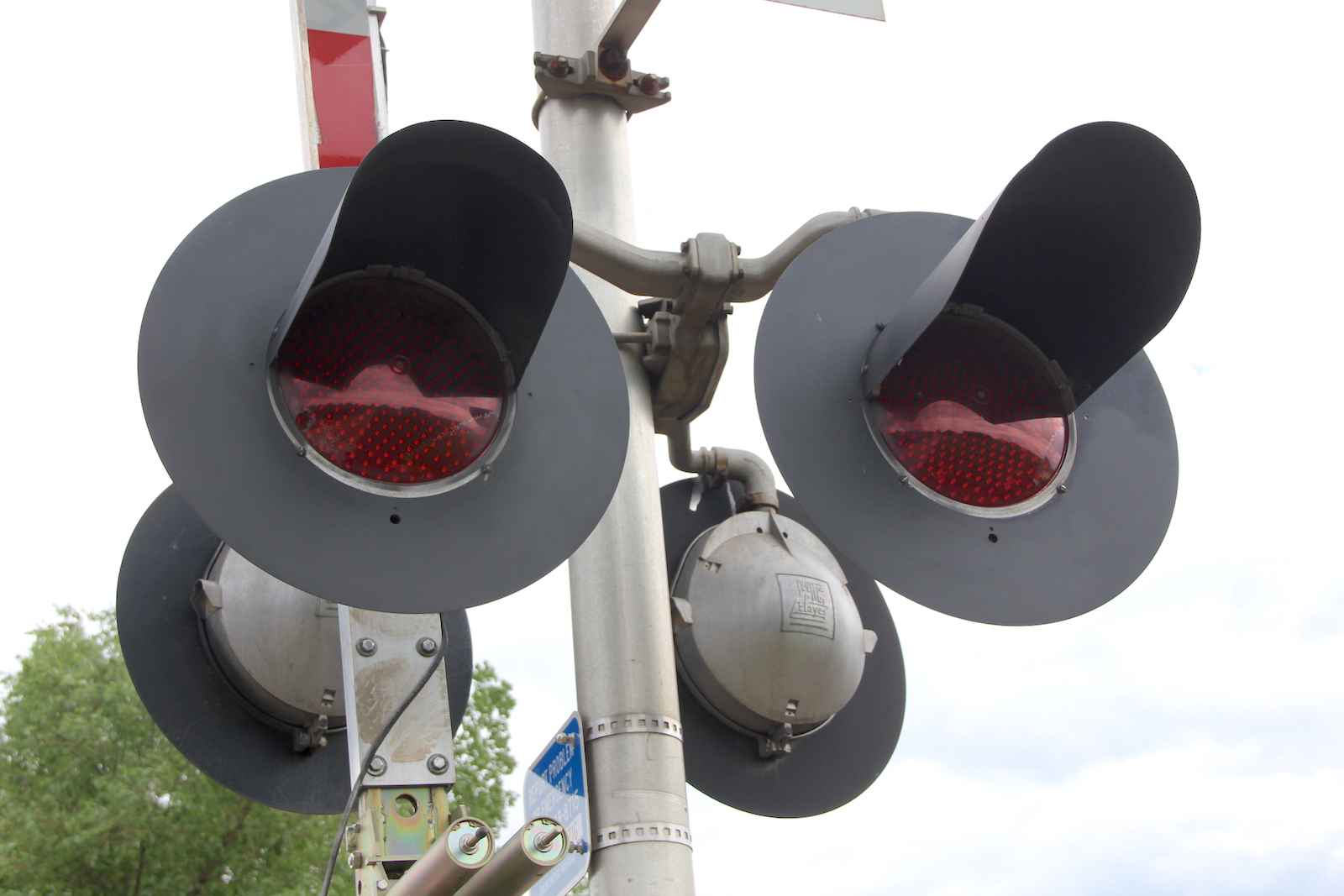

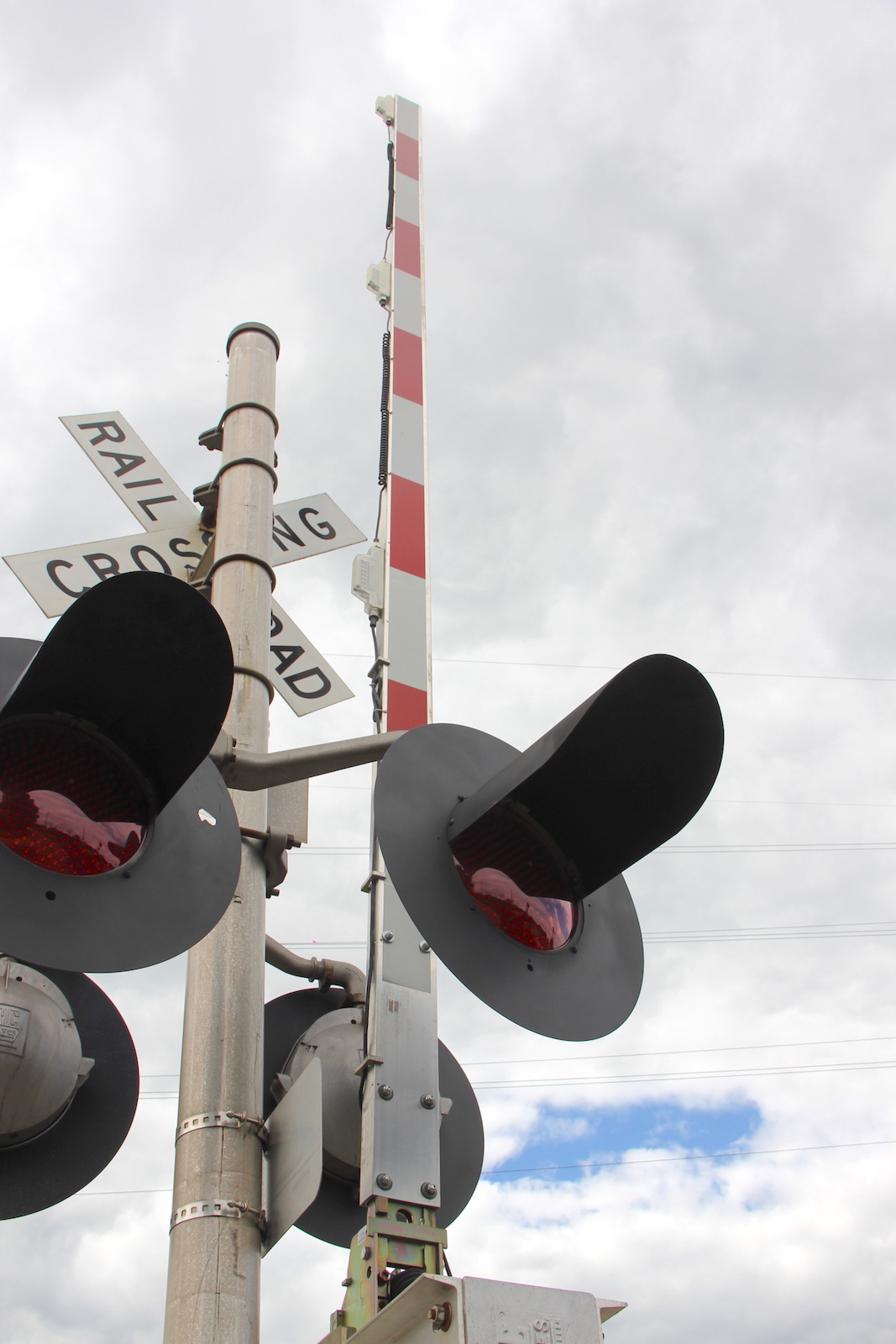

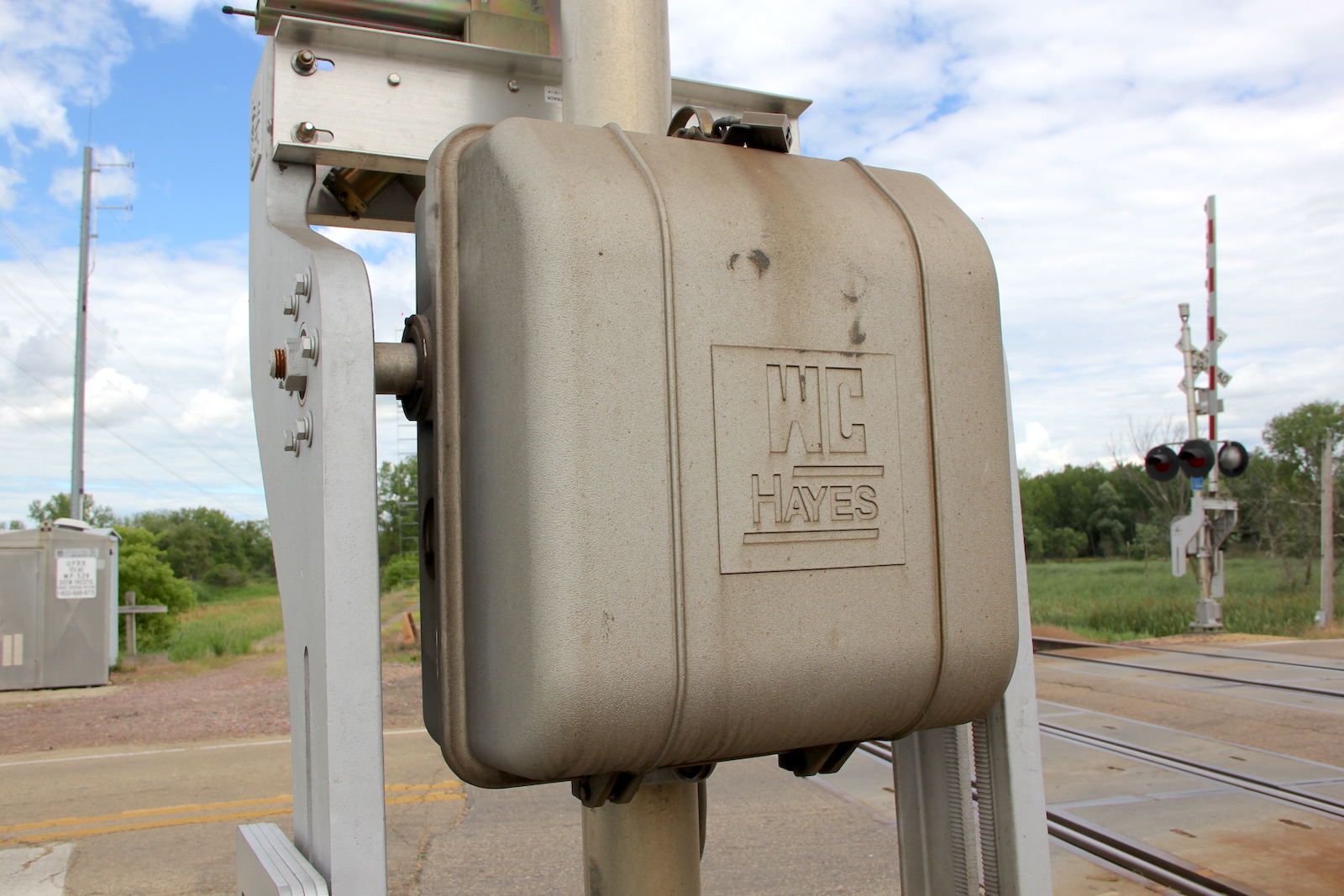

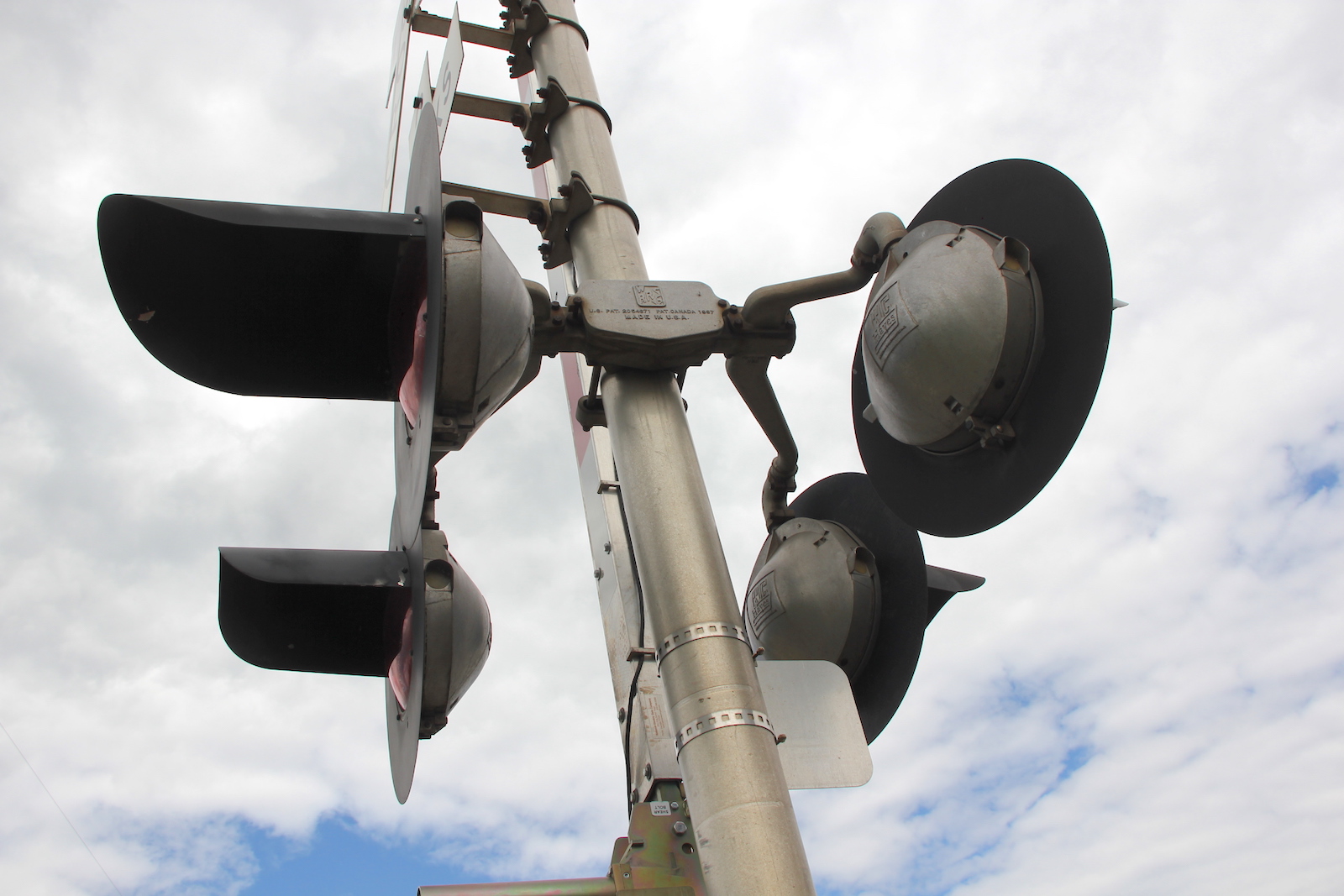

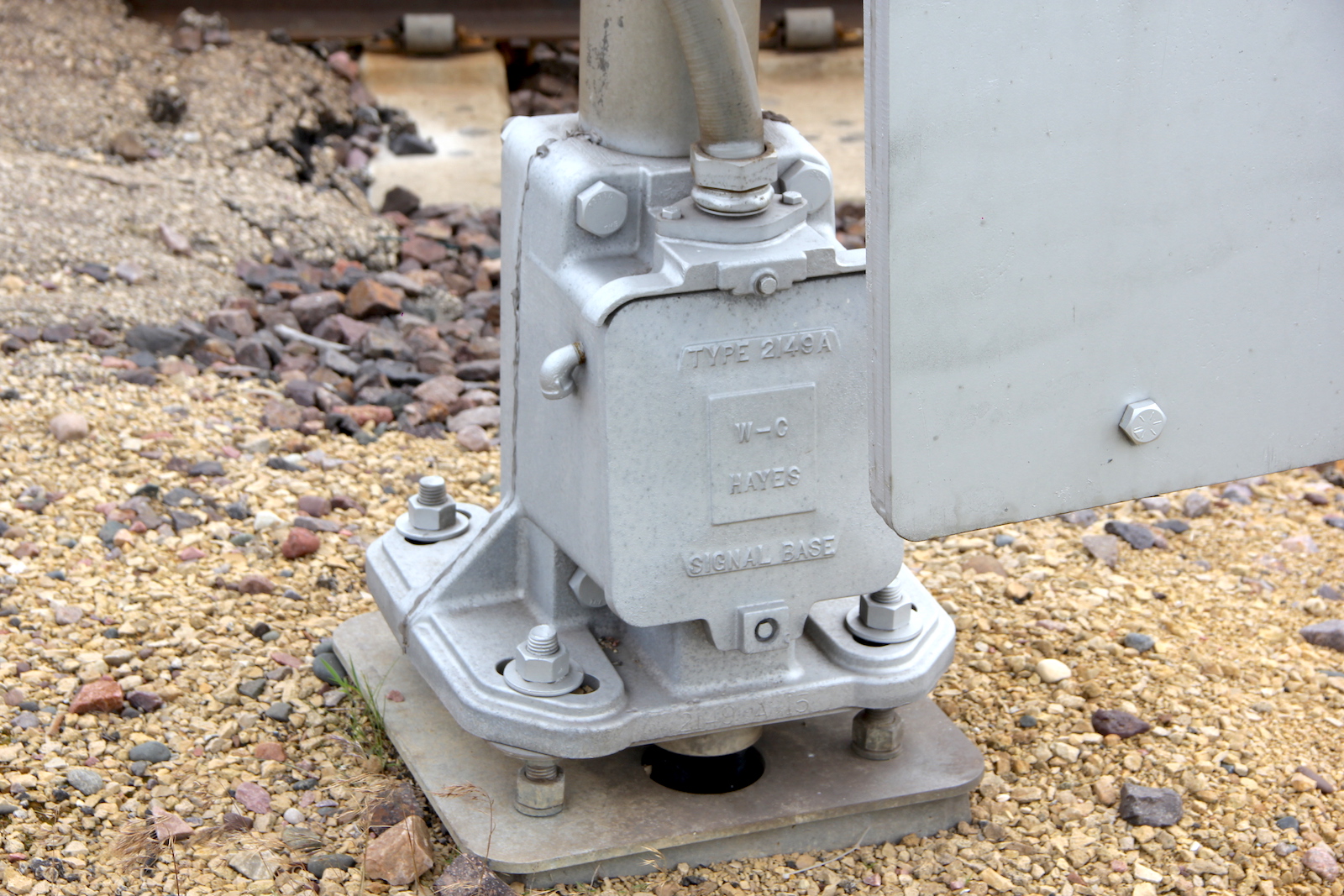

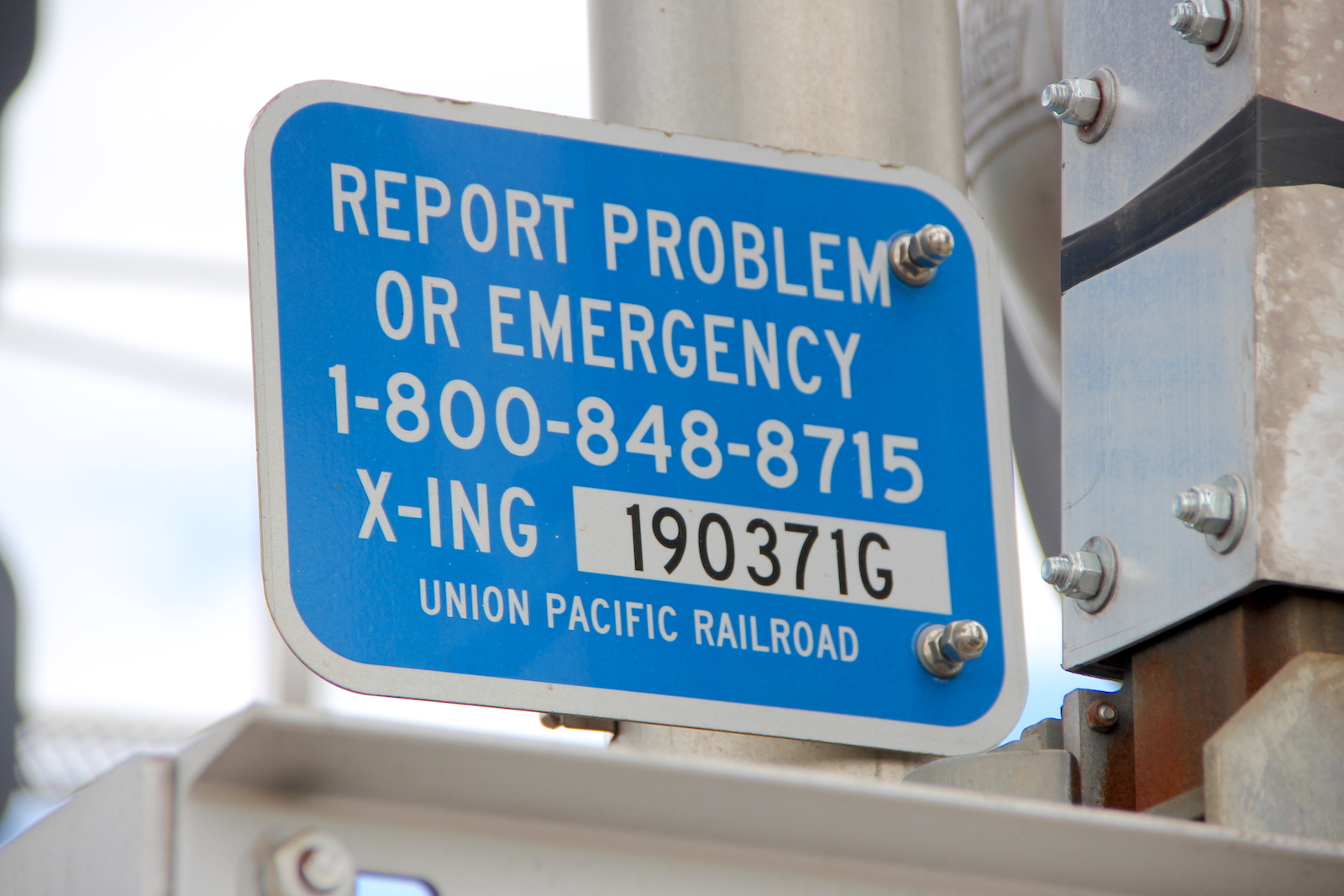

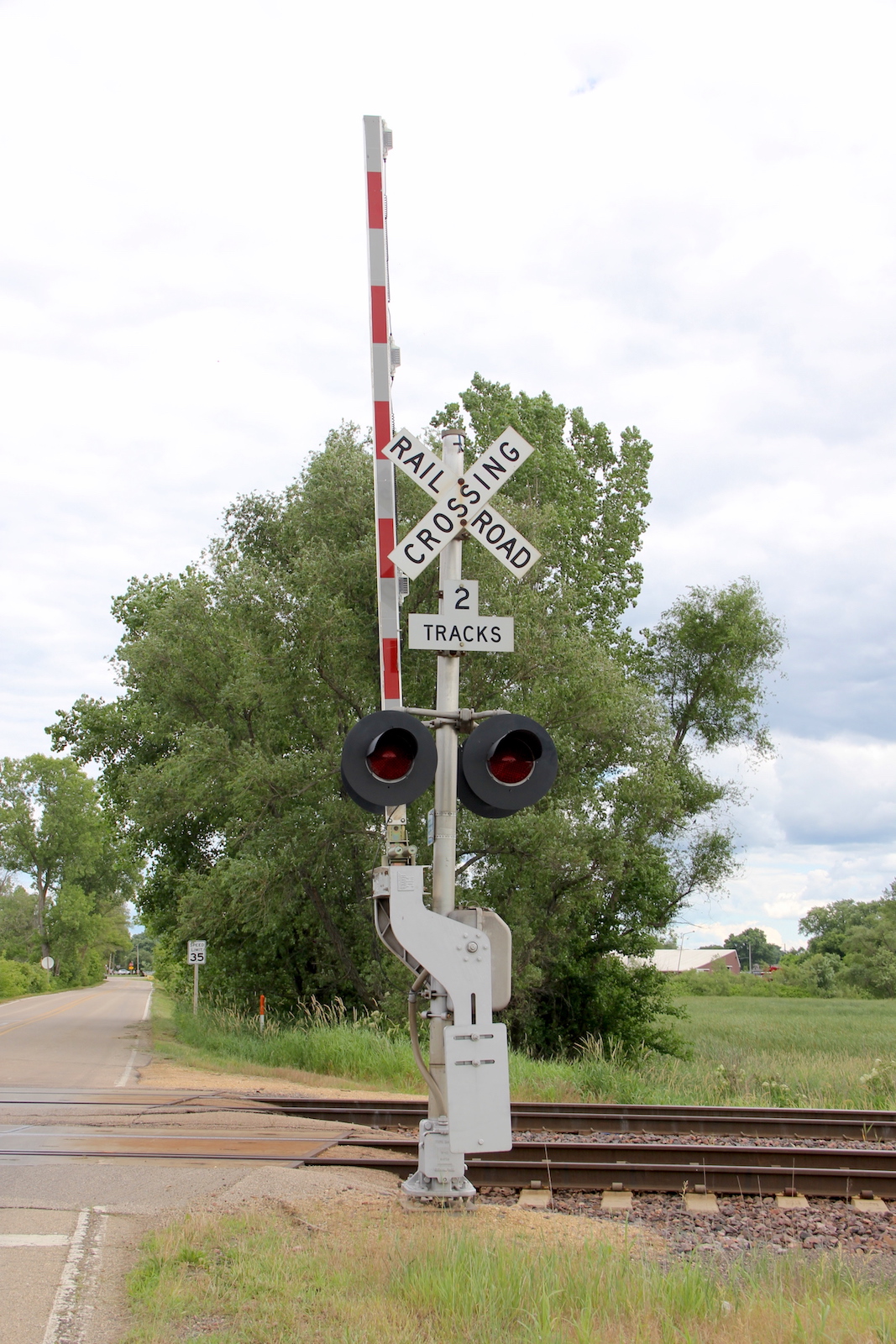

The northern signal.
12 13 14
15 16 17
18 19 20 21

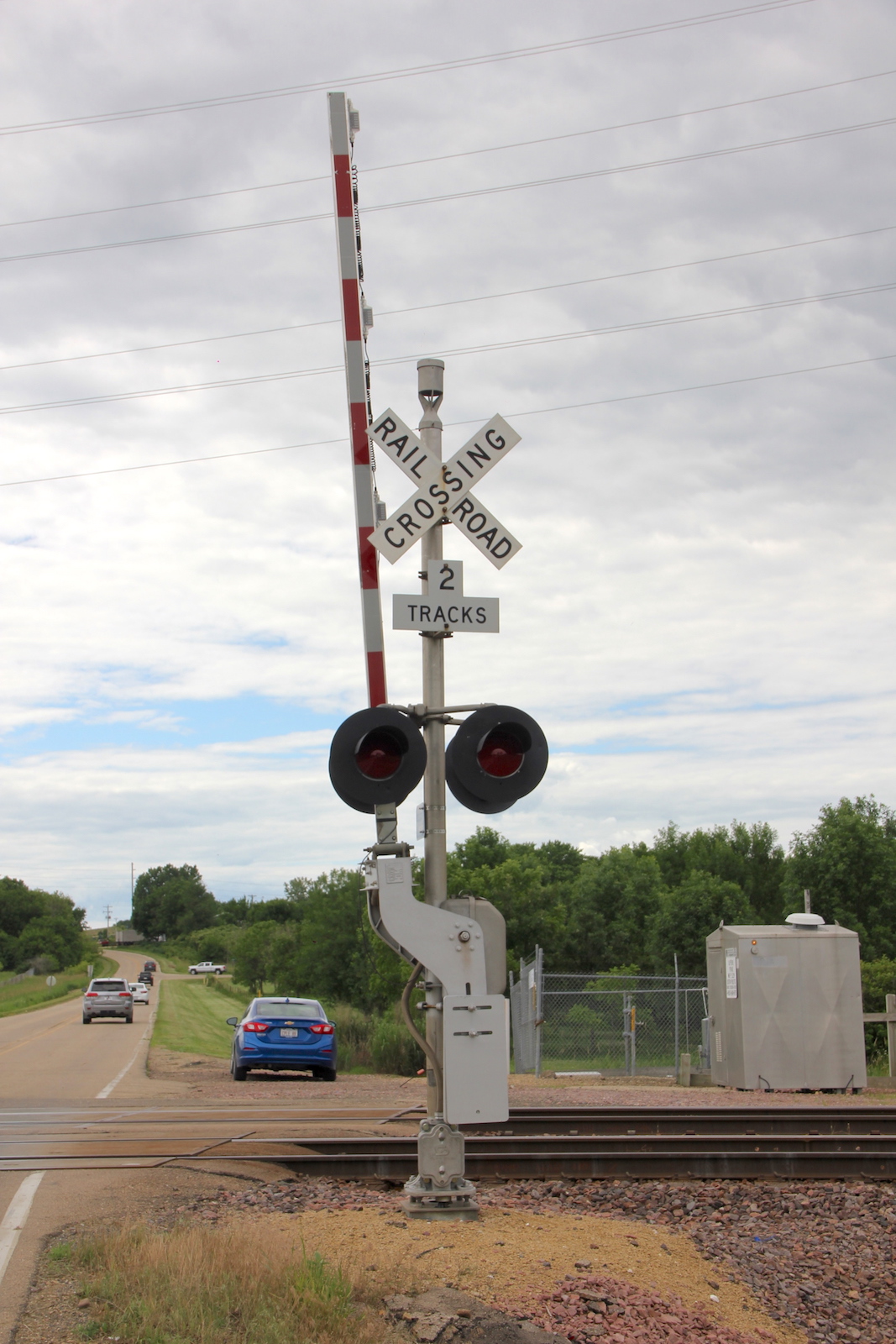

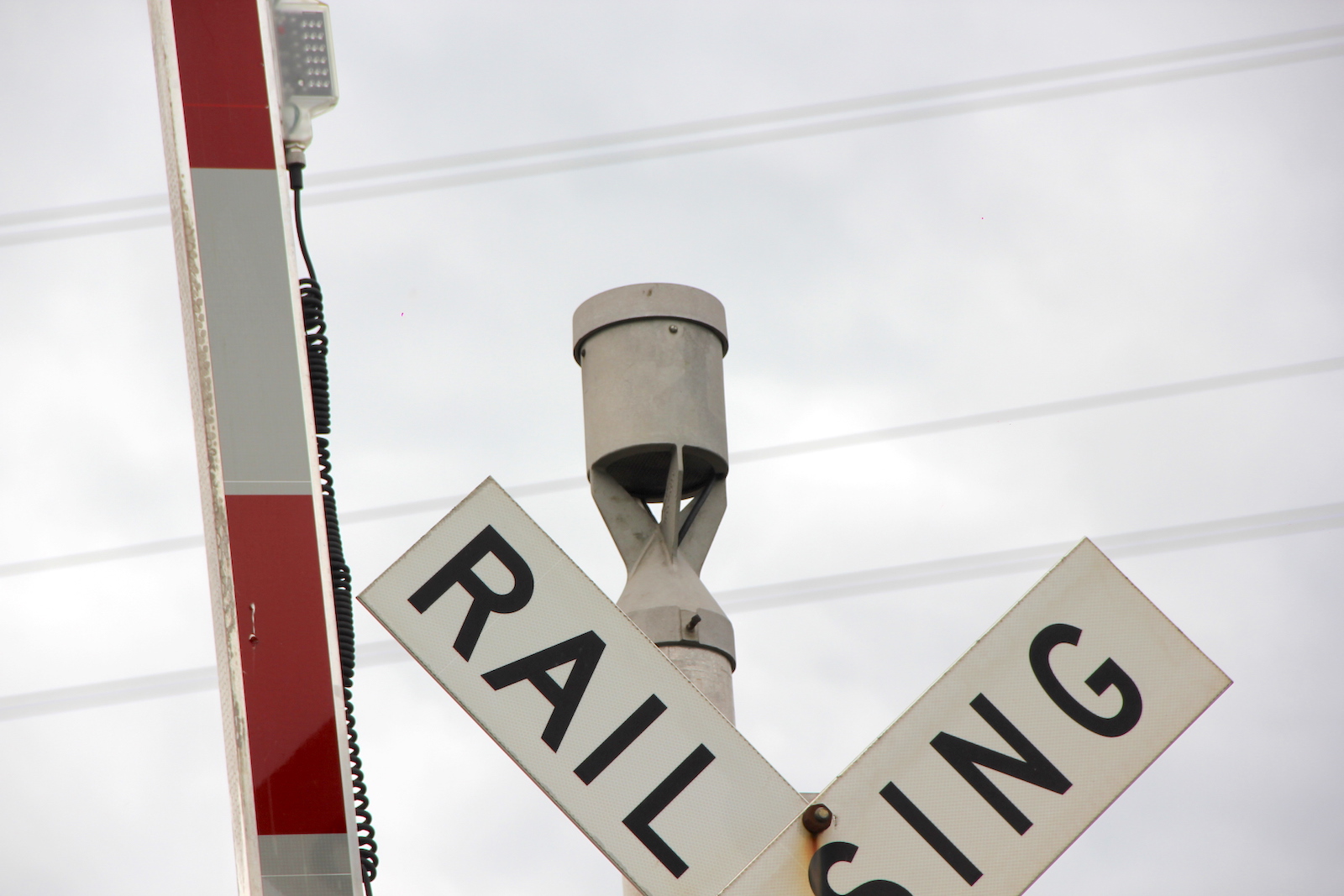

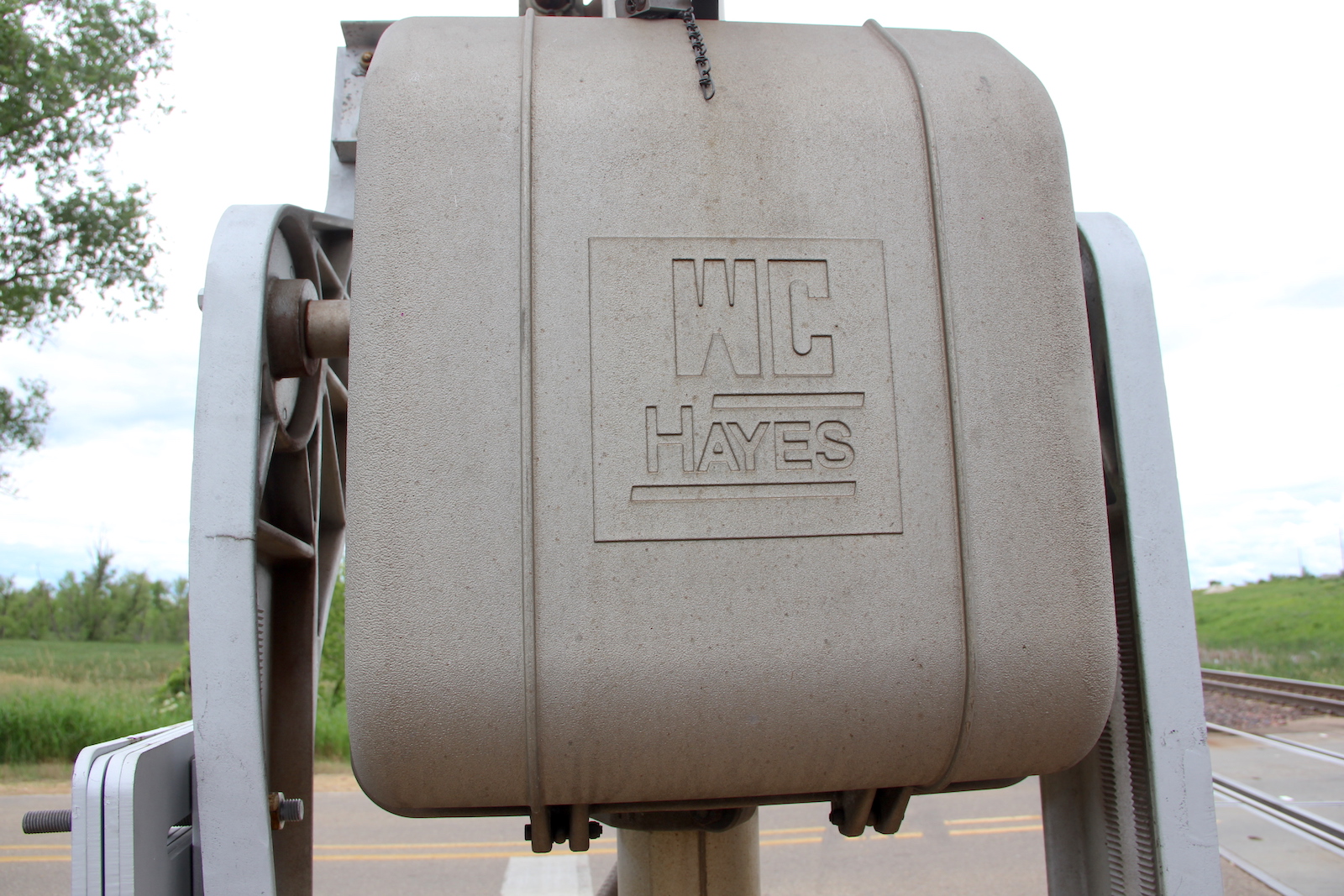

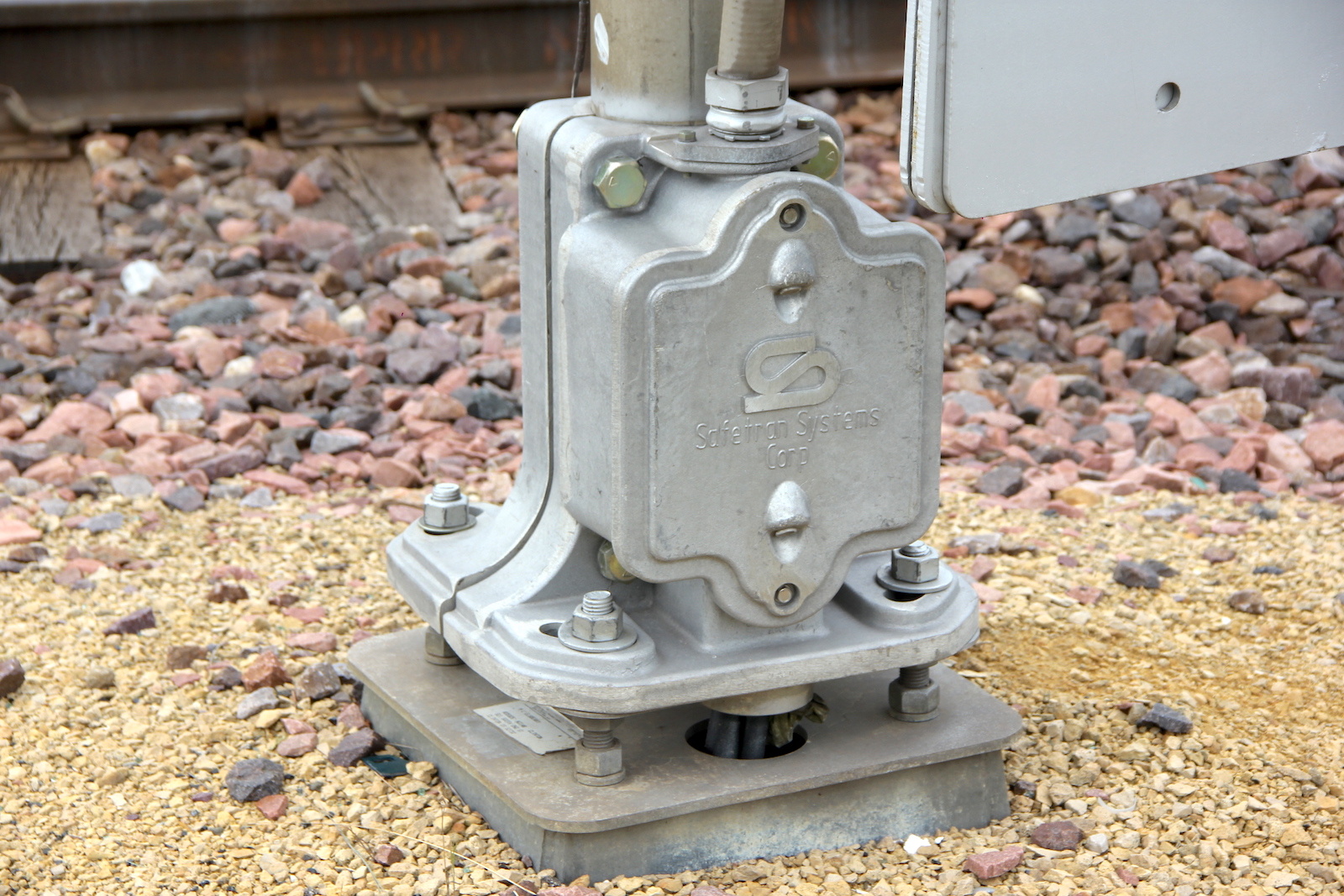

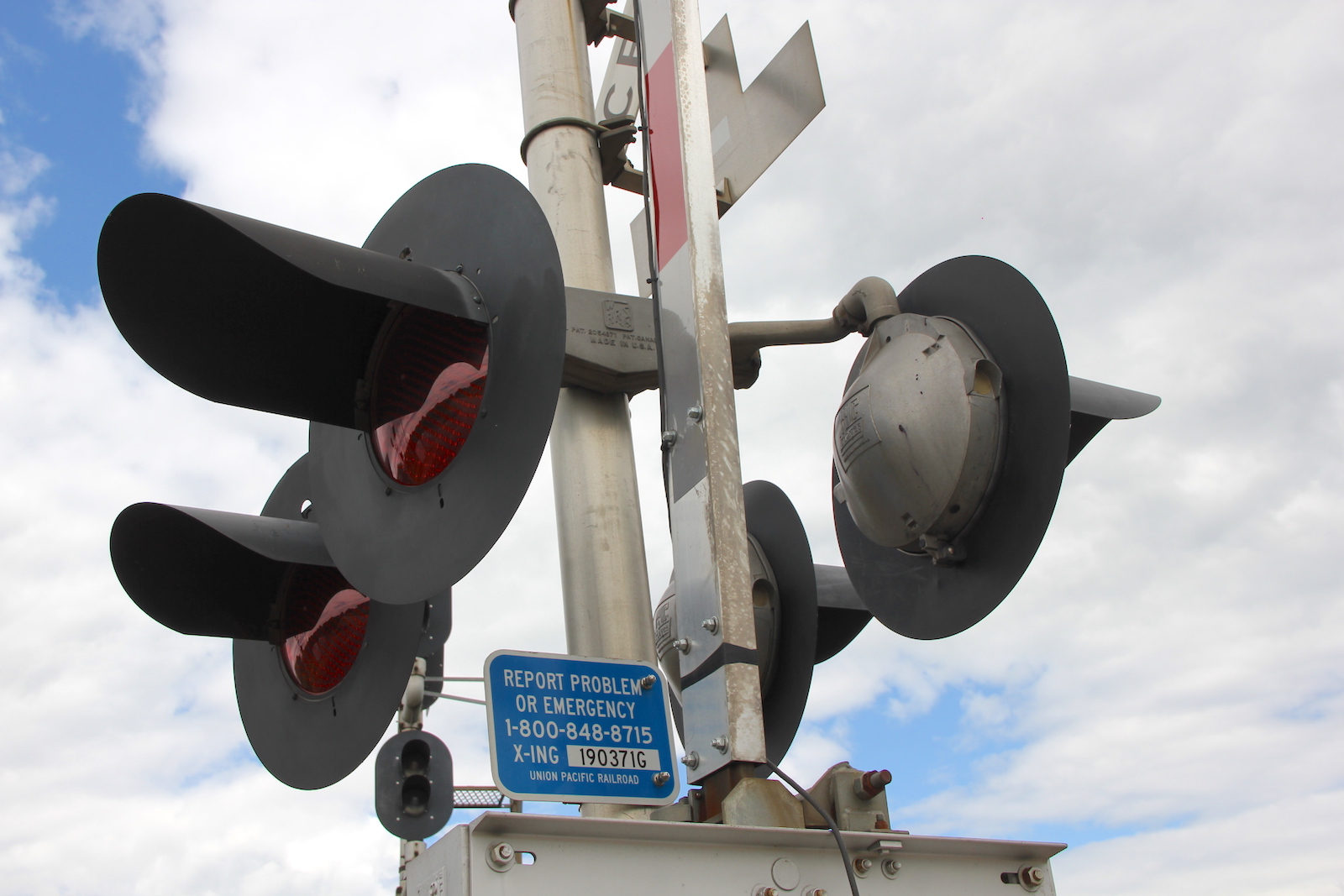

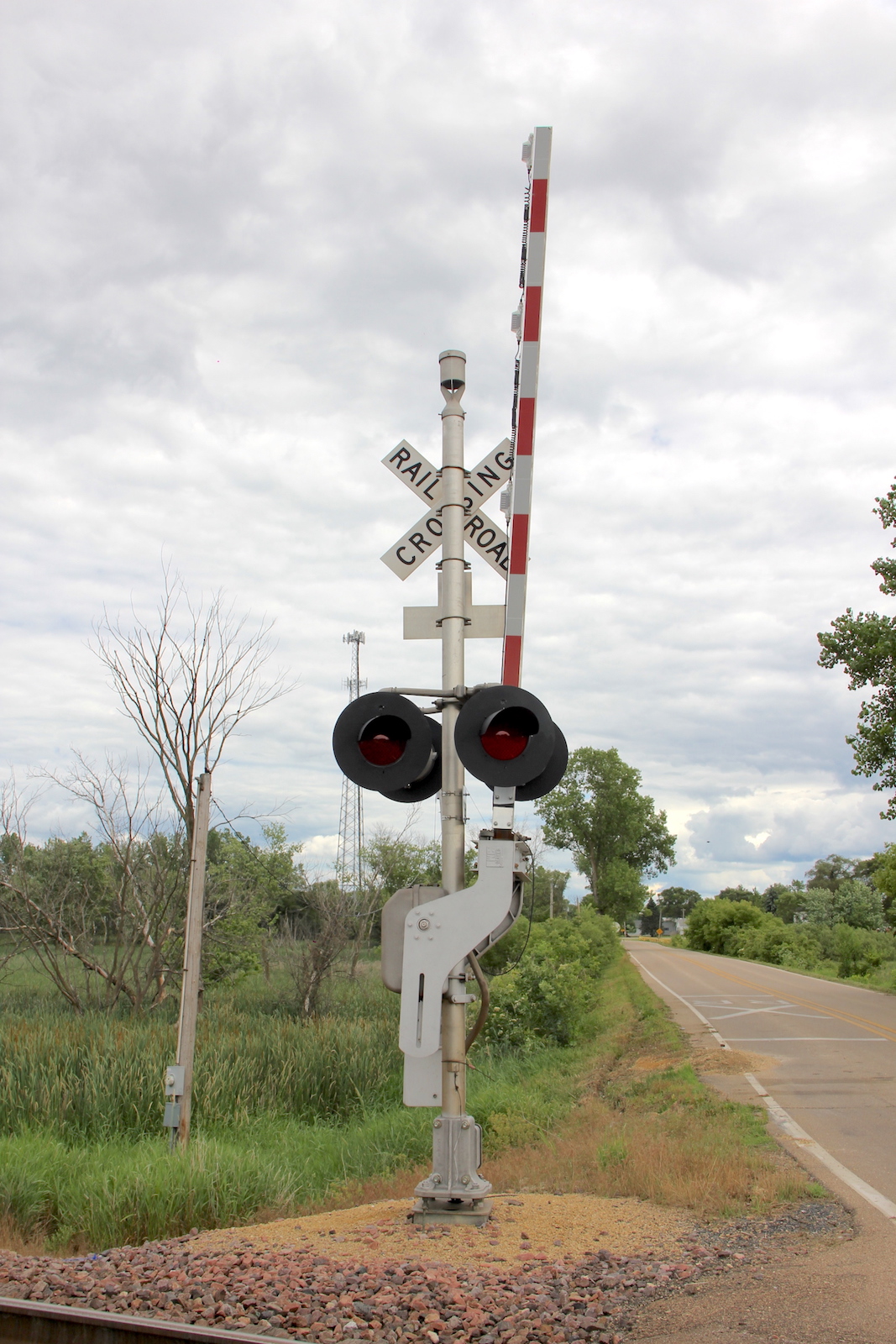

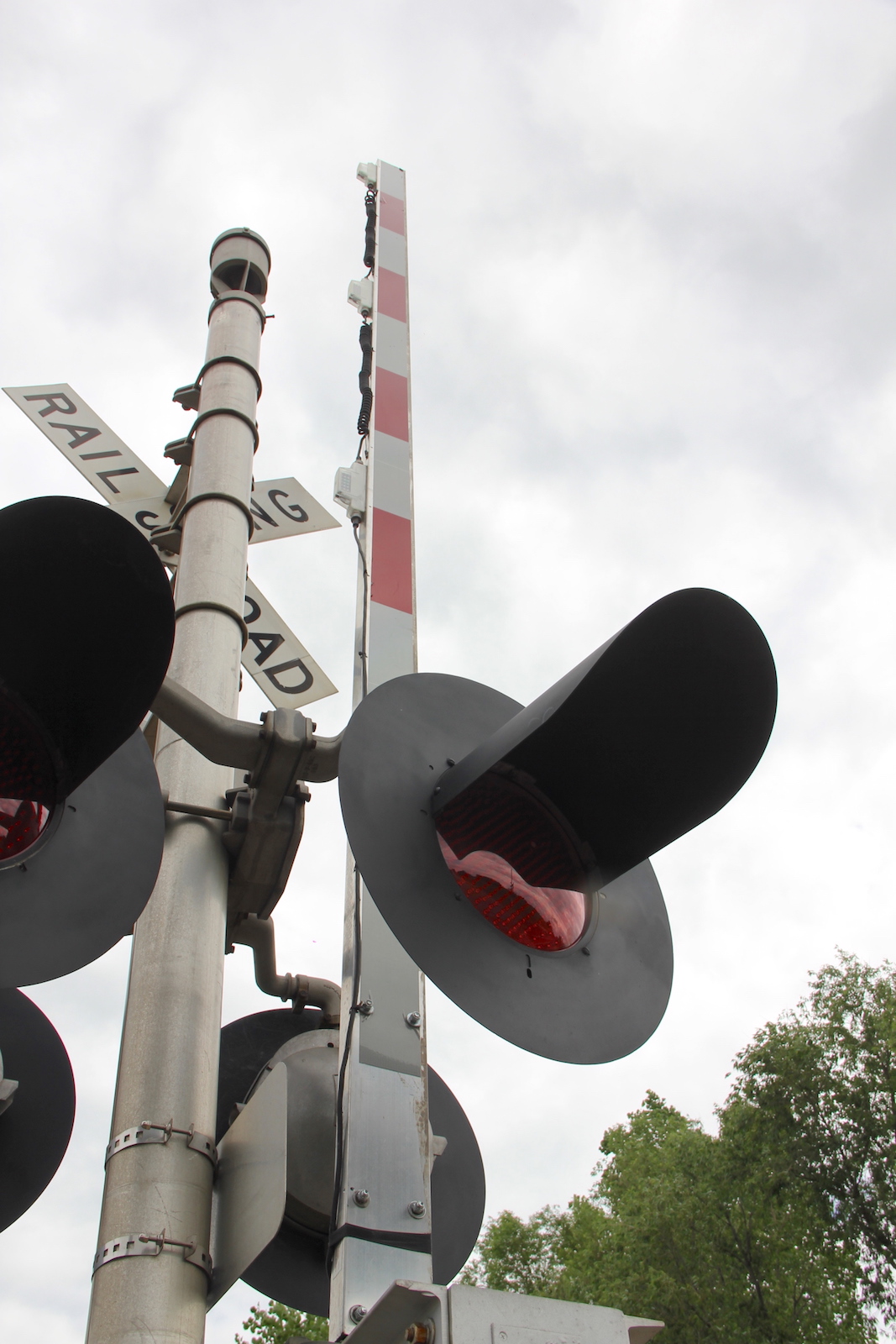

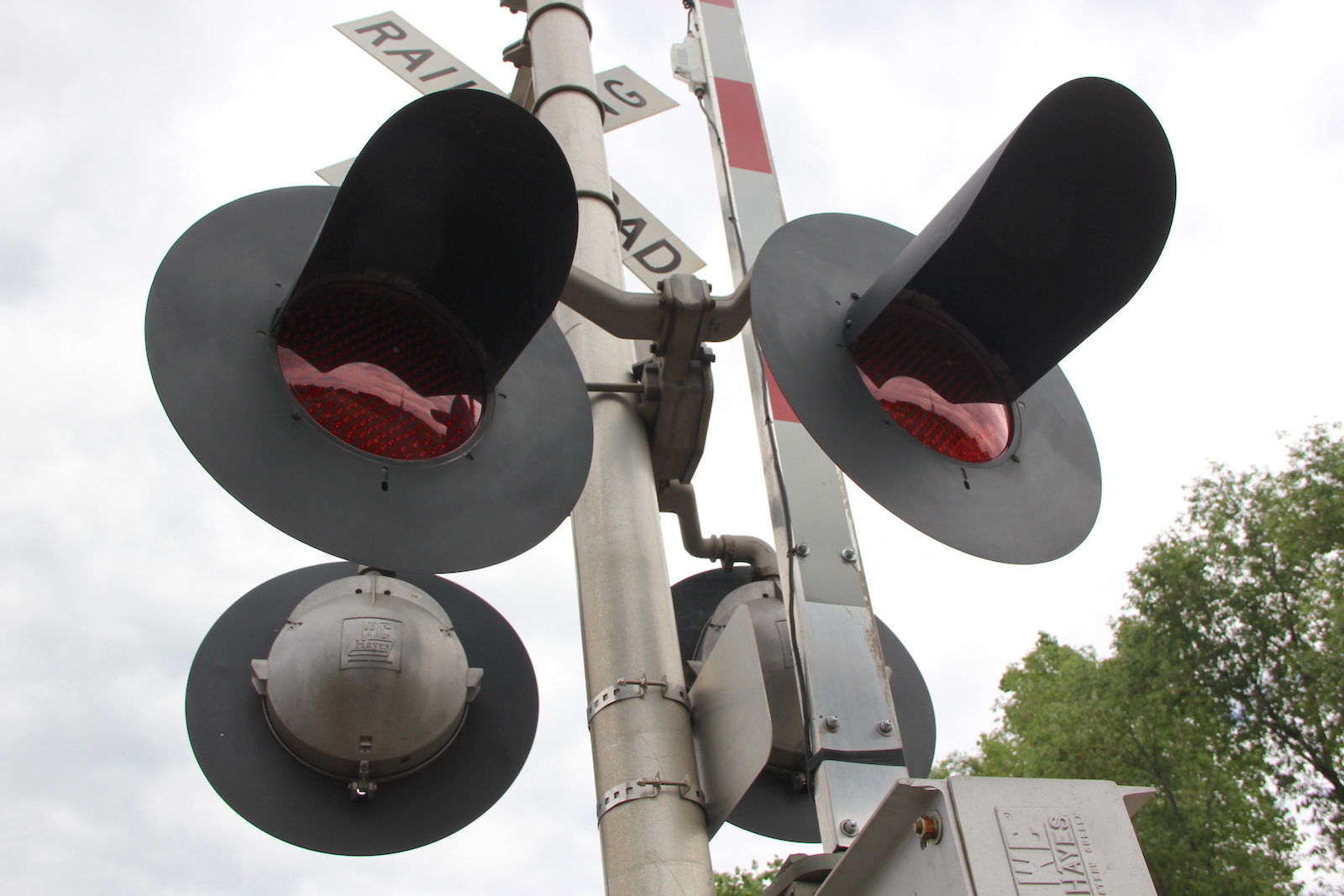

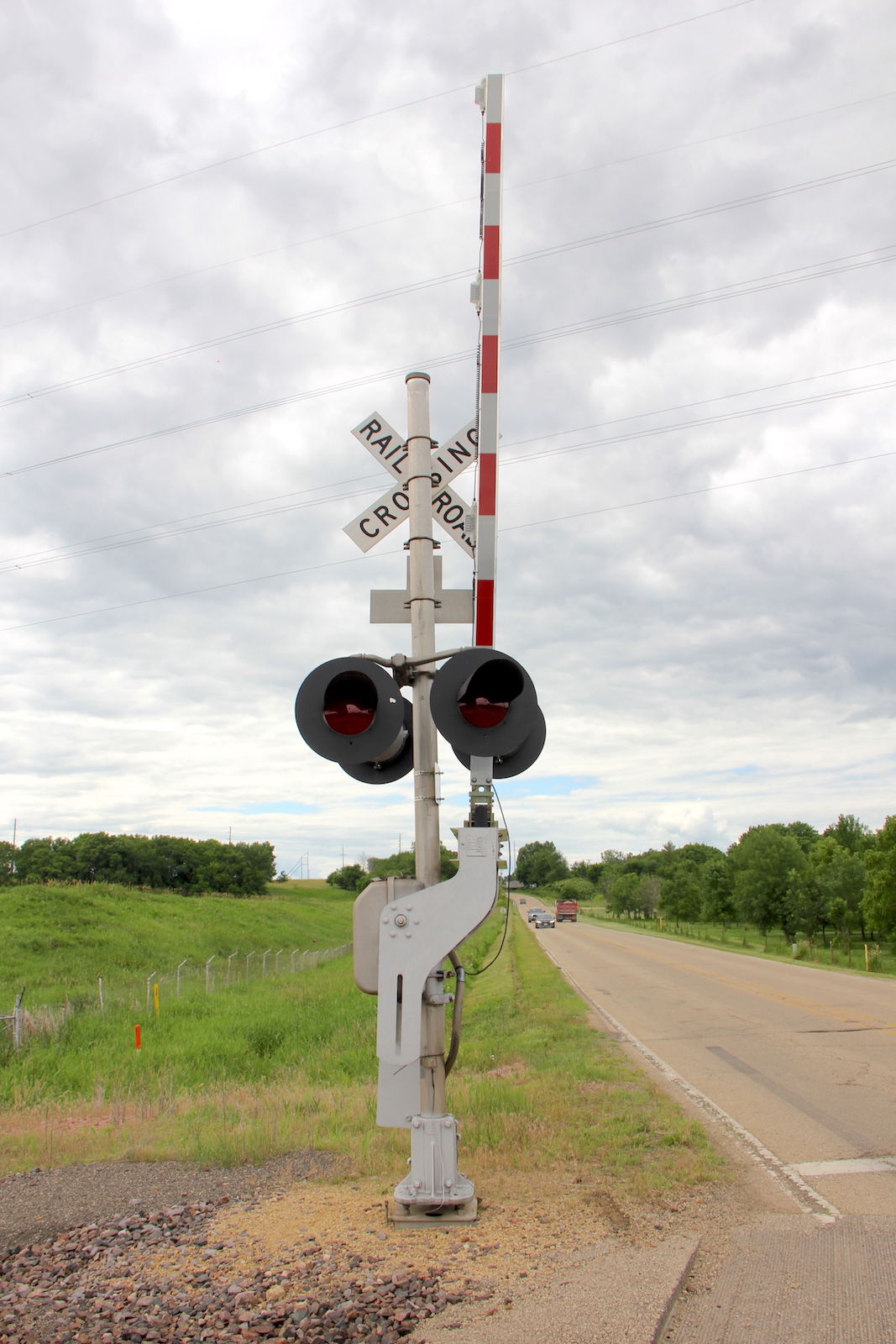

The southern signal.
22 23 24 25

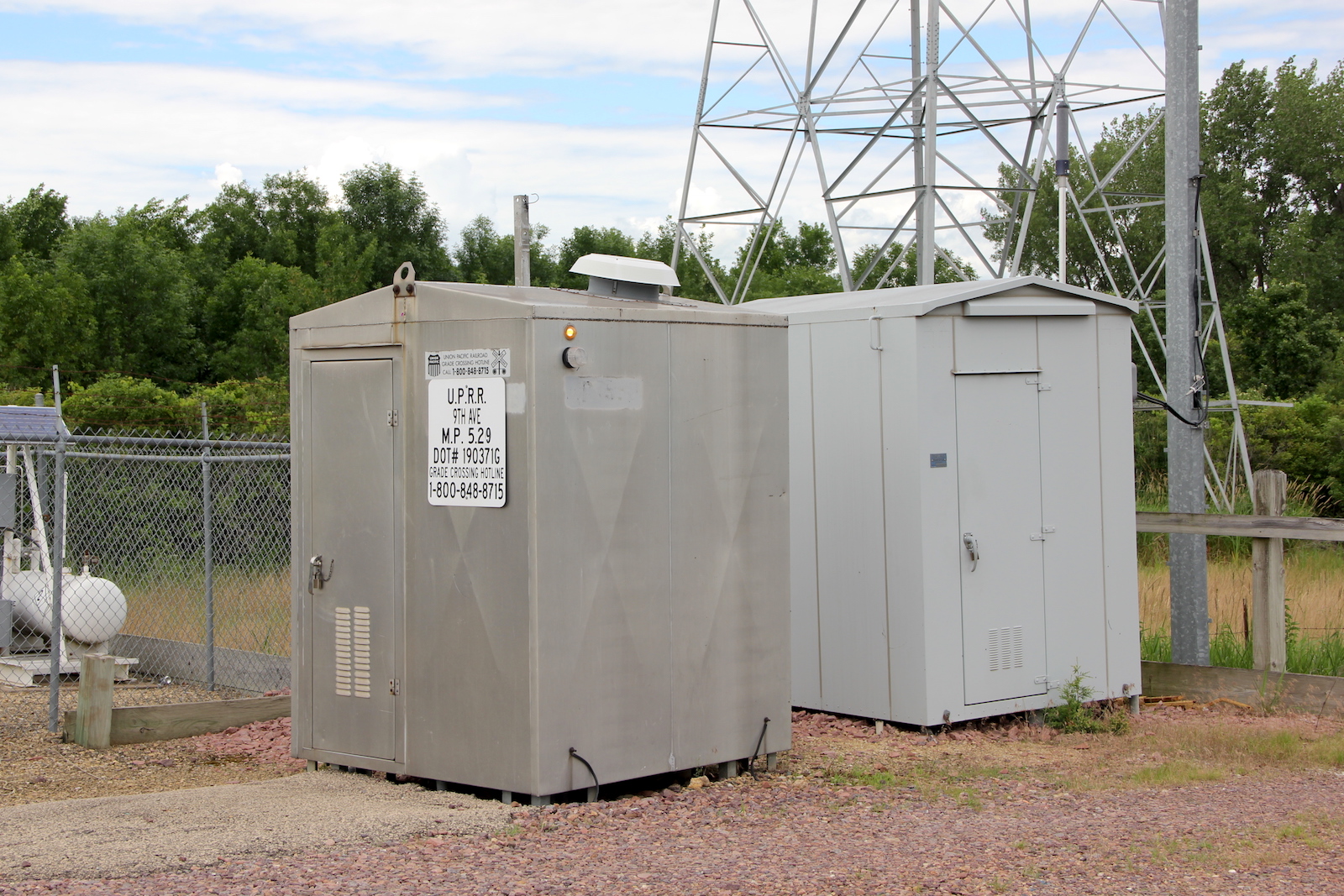

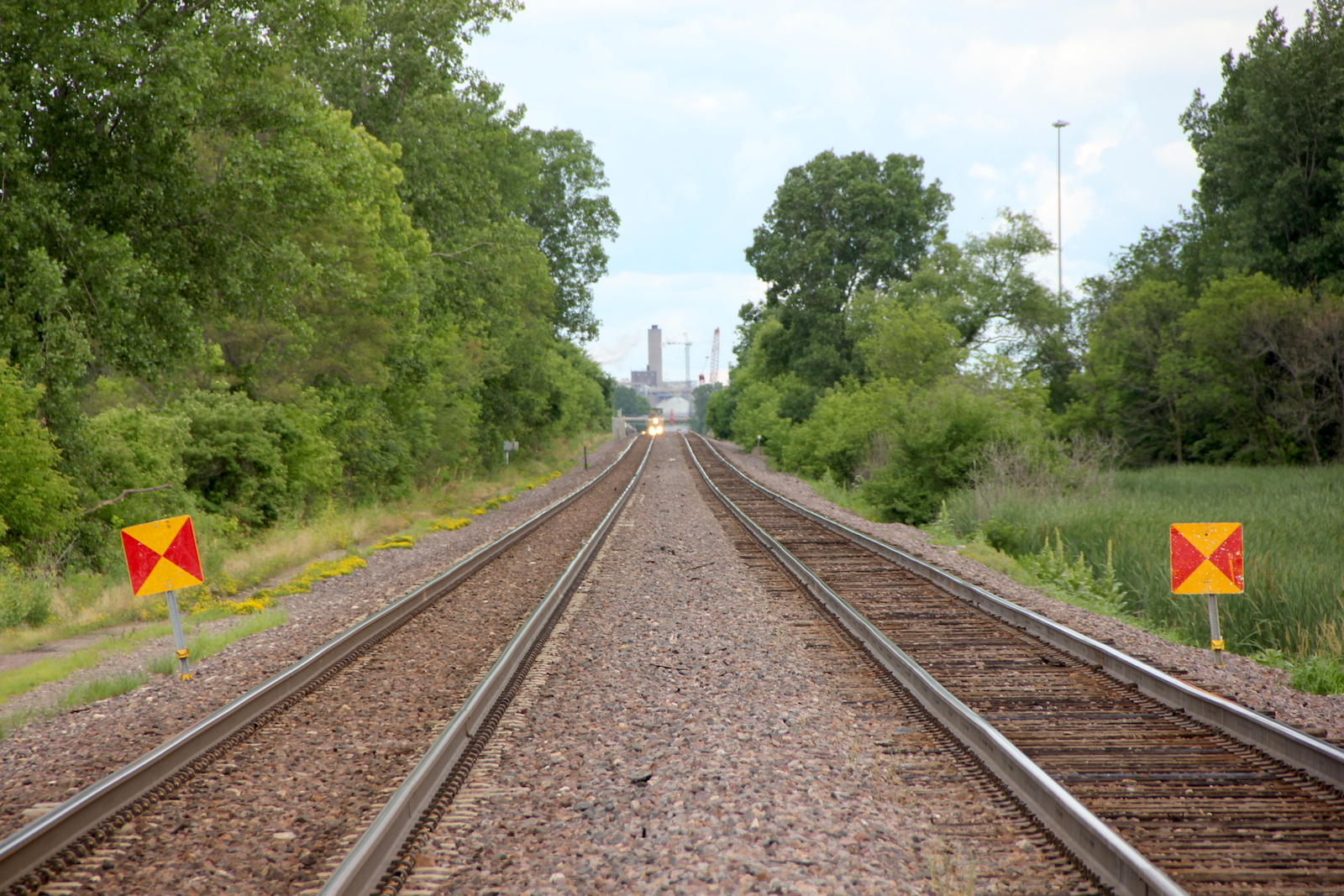

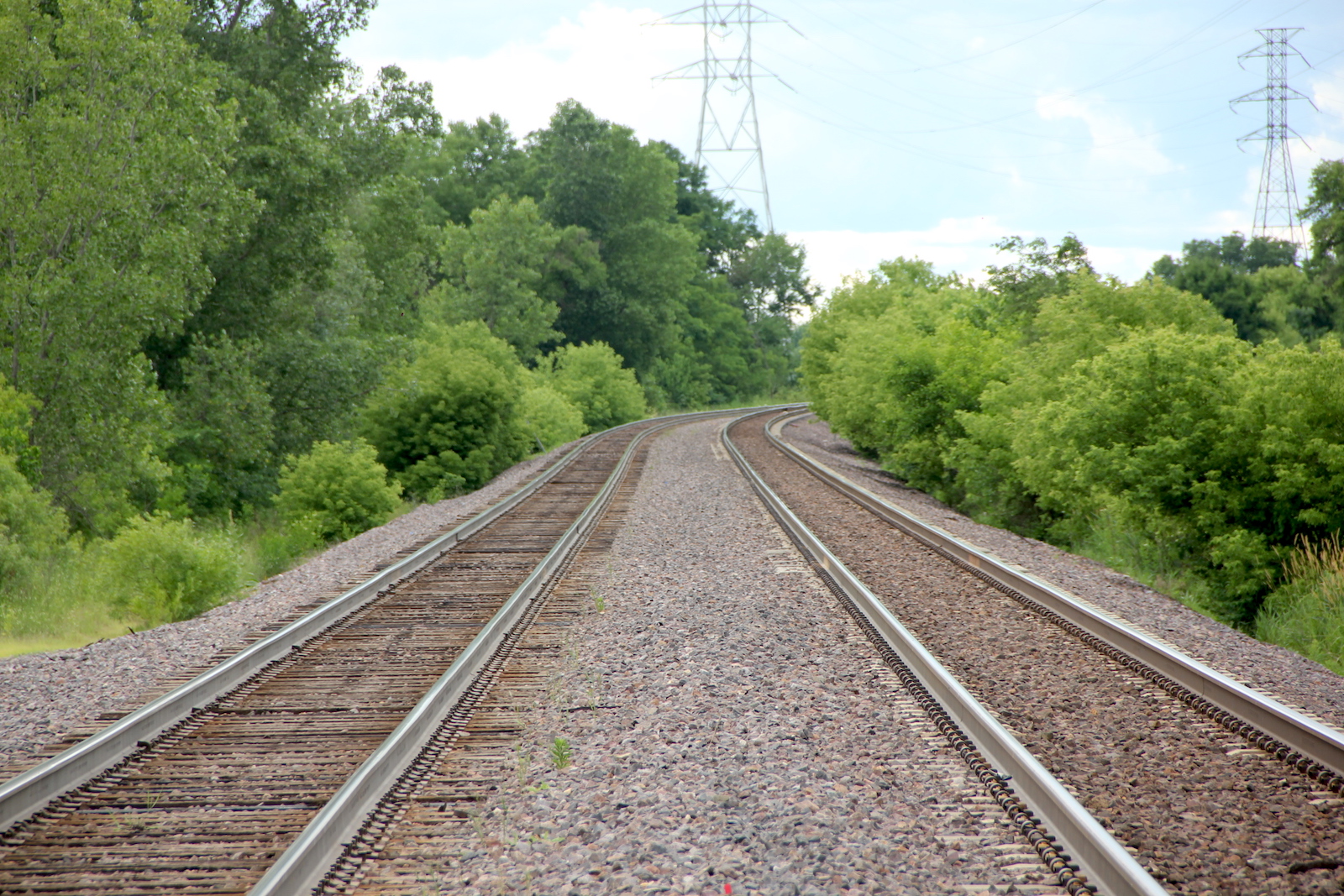

The relay bungalow in the northeast quadrant. The grade is all concrete. Track view facing west towards 54th St. Track view facing east towards 7th Ave.
26 27

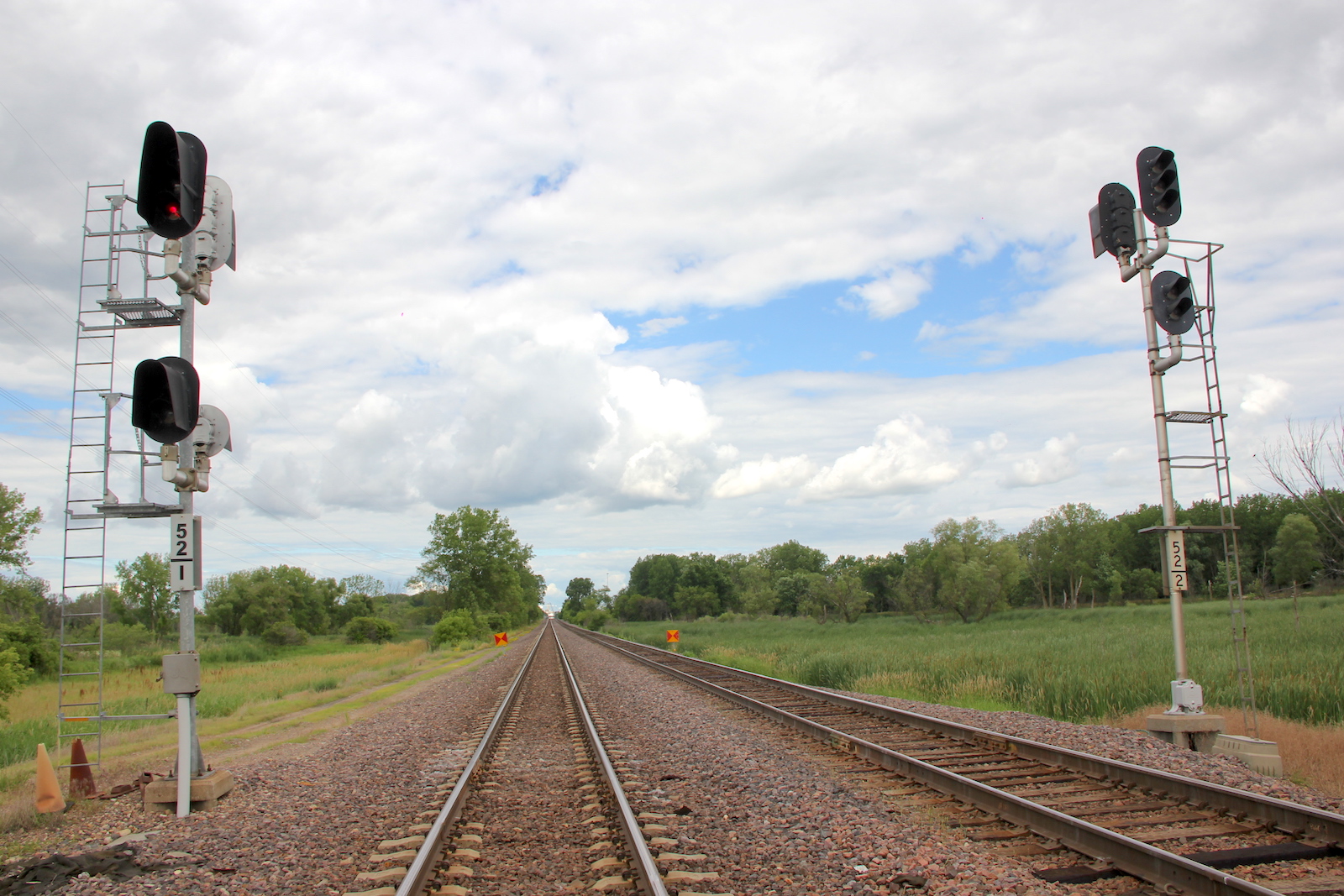

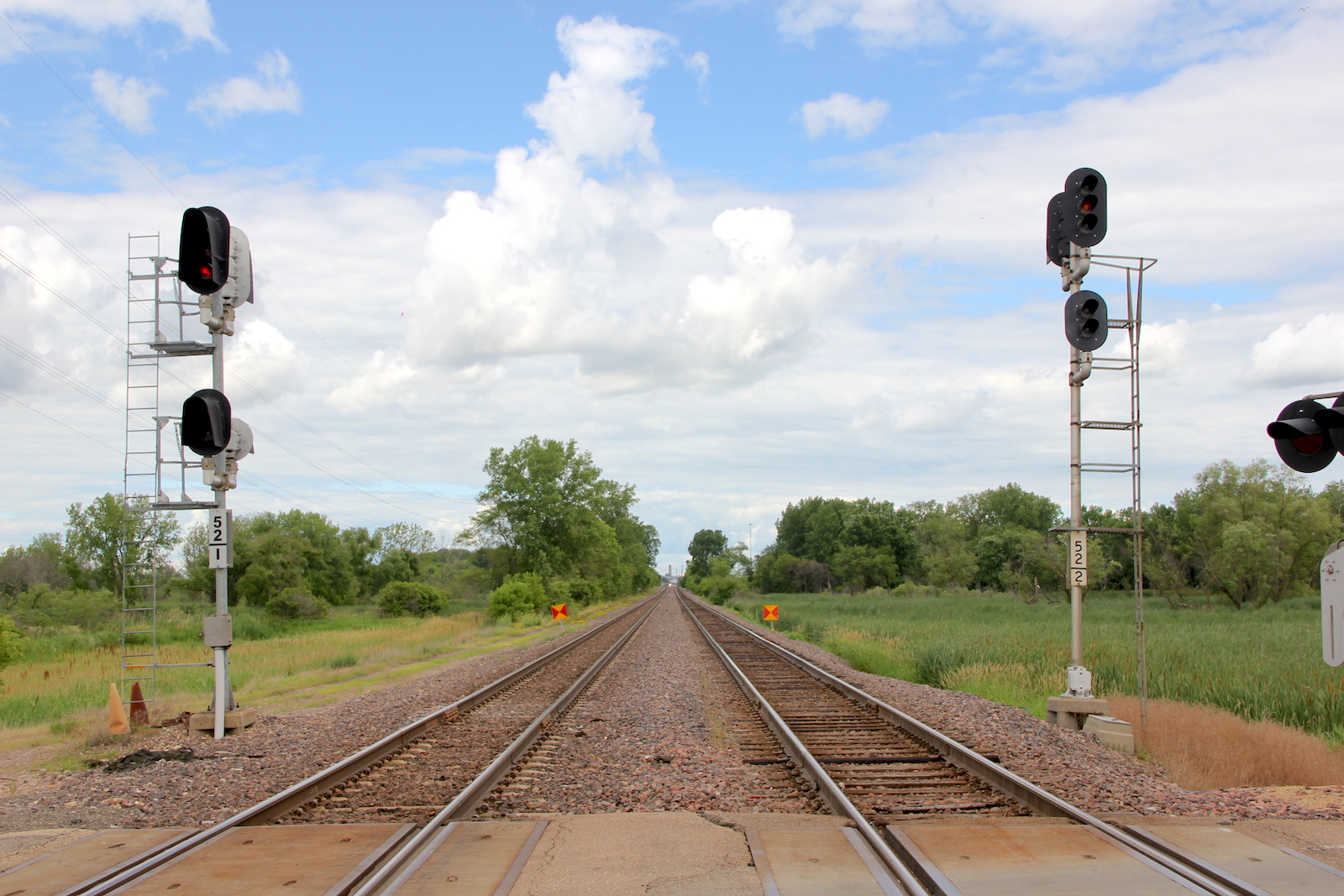

Wayside signals next to the crossing.
