196.40


607146Y

>>>>>>>>>>>>>> Western Signal Eastern Signal
Bell: None GS E Bell
Base: Safetran 5" Single Sided ^ Siemens 5" Single Sided ^
Lights: 4 - 12"x24" Safetran w/ Harmon Fading LEDs 4 - 12"x24" Safetran w/ Harmon Fading LEDs
Junction Box: Safetran Safetran
Gate Lights: 4" RECO 4" RECO
Gate Mechanism: Invensys Rail w/ Standard Mount Invensys Rail w/ Standard Mount
Gate Striping: Vertical Striping Vertical Striping

All pictures and the video were taken on April 4, 2022, by Tommy McGowan.
This crossing is located at the south end of CPKC's Nahant Yard.

G1 G2

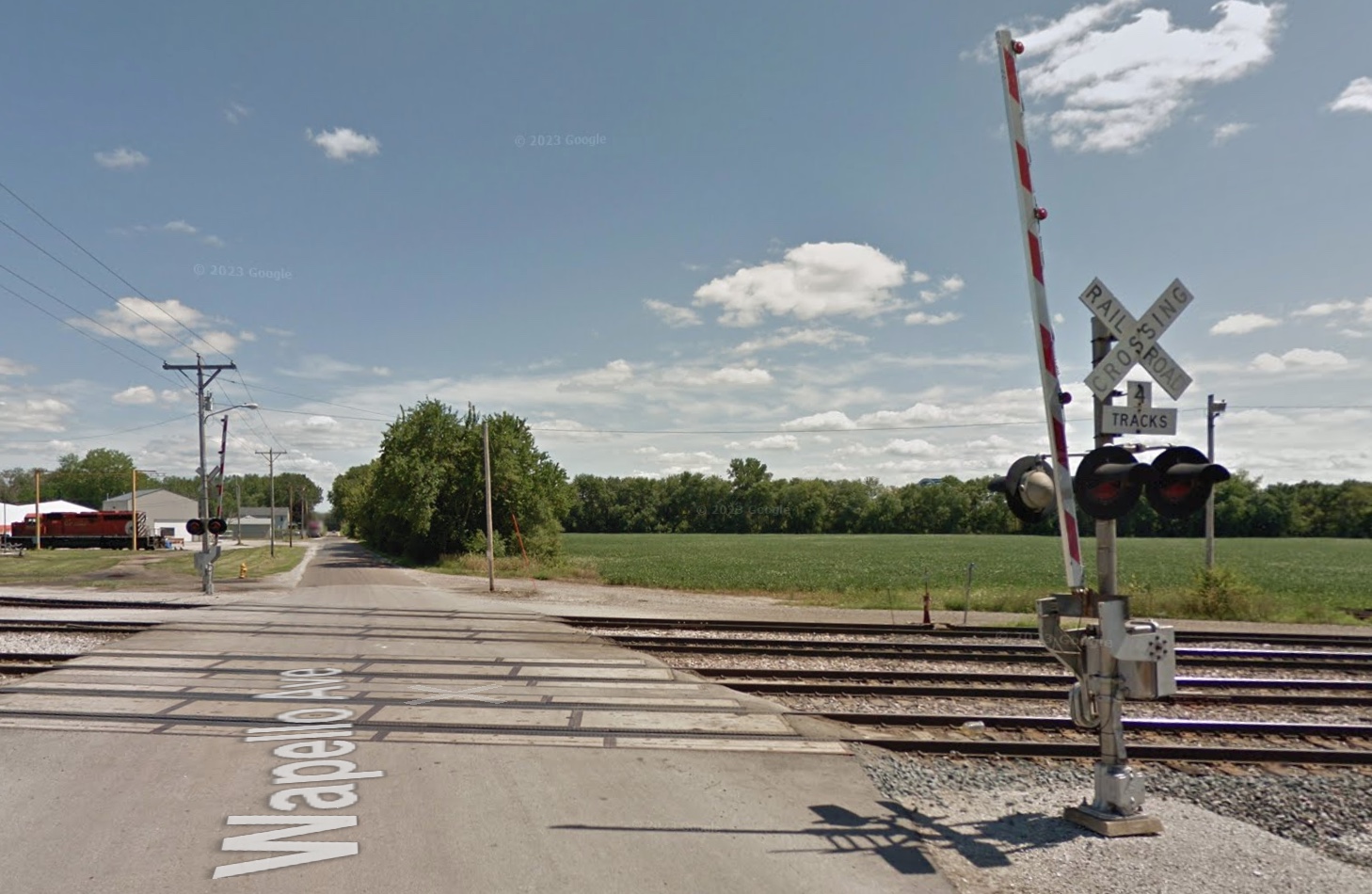

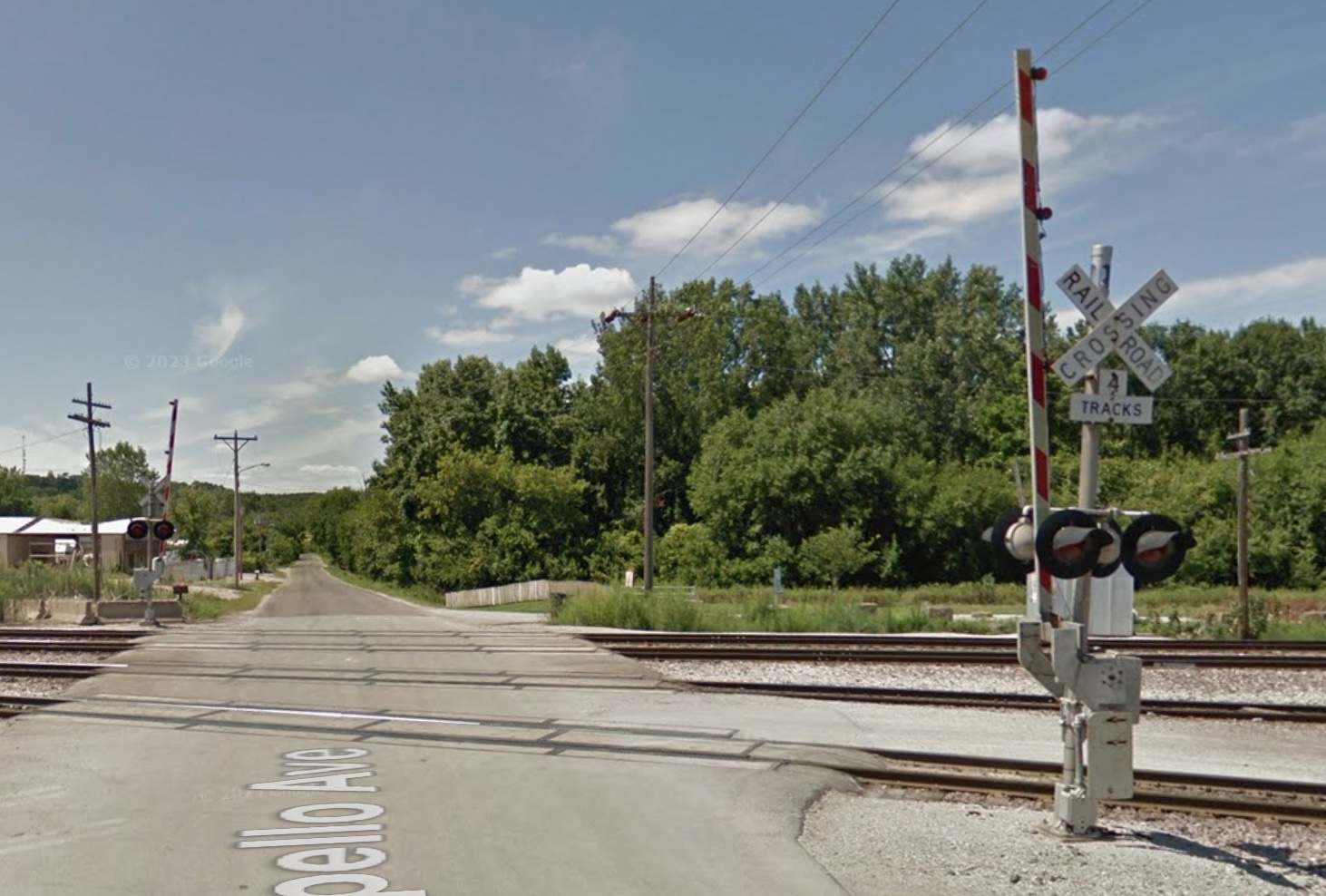

Streetview images from 2011 showing two older Safetran signals with 12"x24" incandescents, Safetran gate mechanisms, and a GS Type 2 E Bell. By 2012, the GS Type 2 was replaced with a WCH M Bell of all things! Not too long after though, both signals were replaced with newer Safetran signals, but the WCH Bell was initially carried over. Around 2020 though, it was replaced with a GS Type 3.
1 2

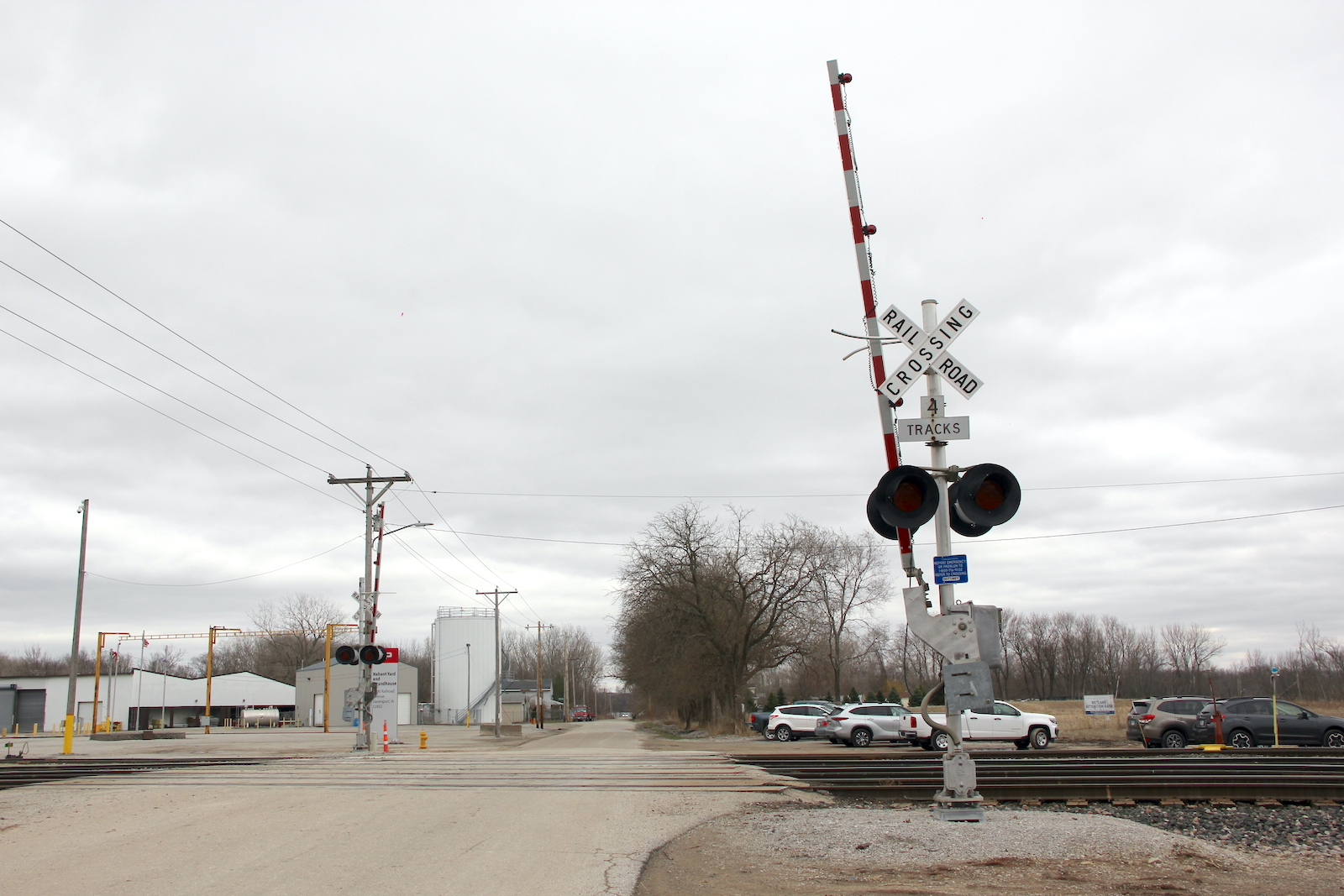

Overview of the newer gated signals facing east. Overview facing west.
3 4 5
6 7 8
9 10 11

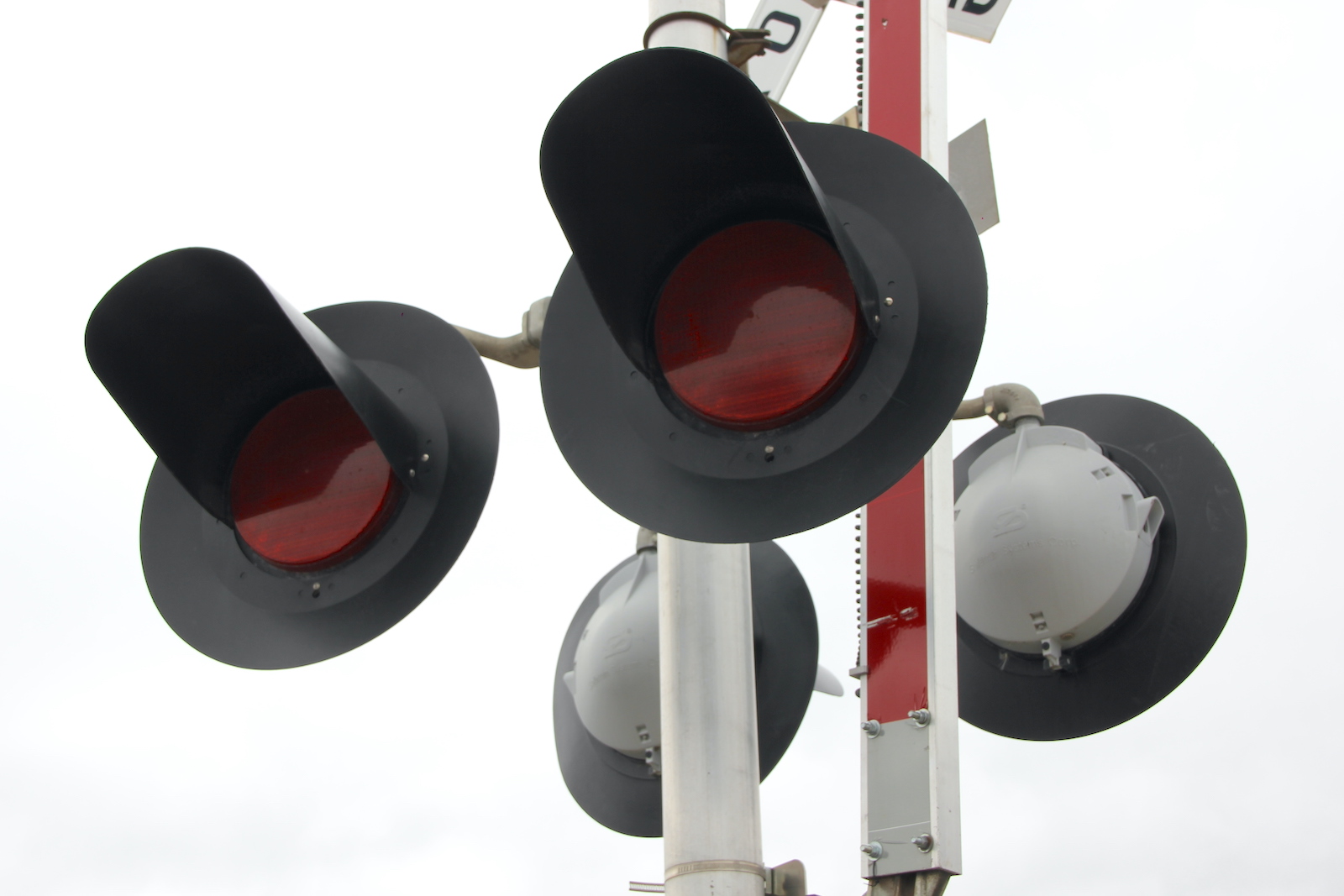

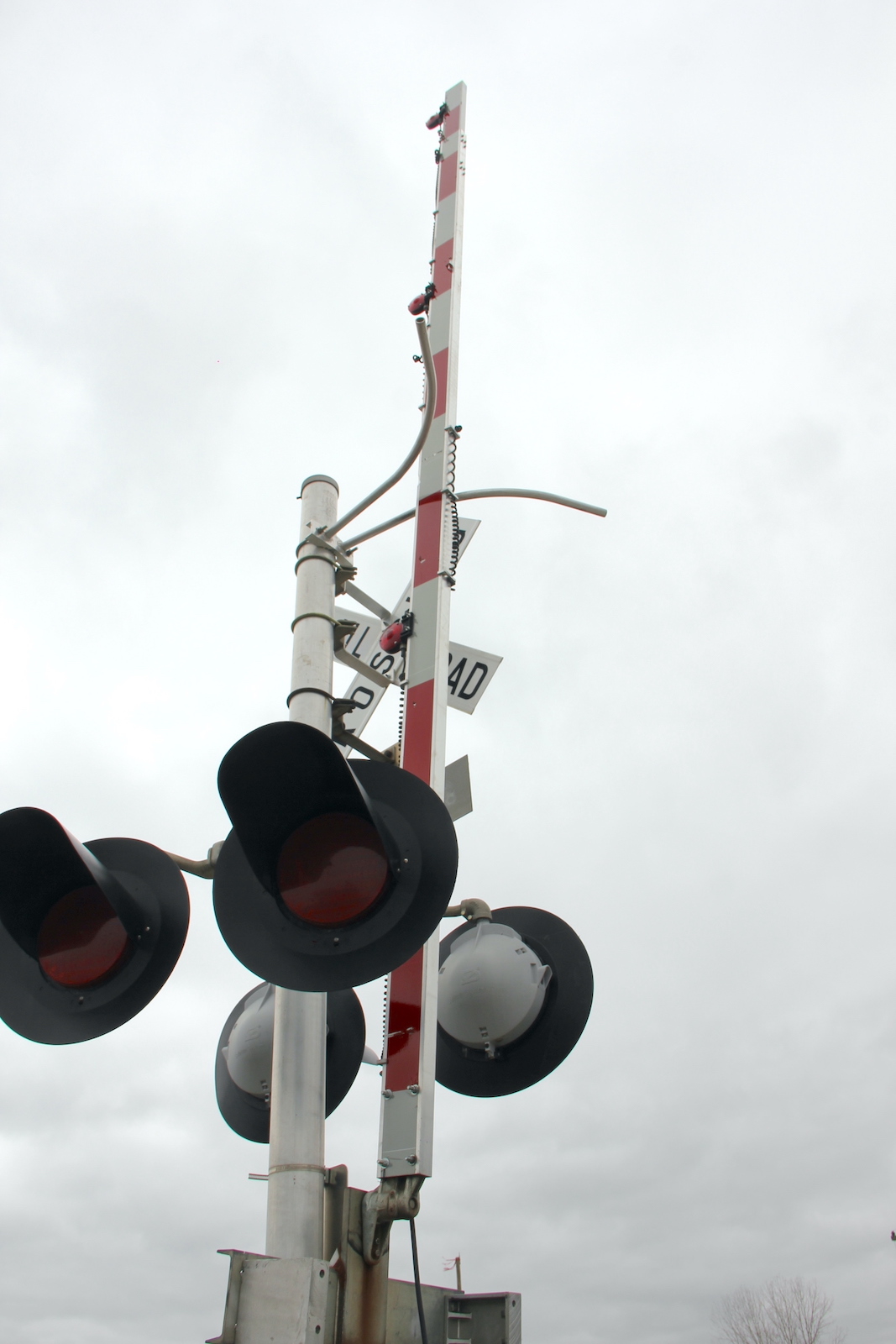

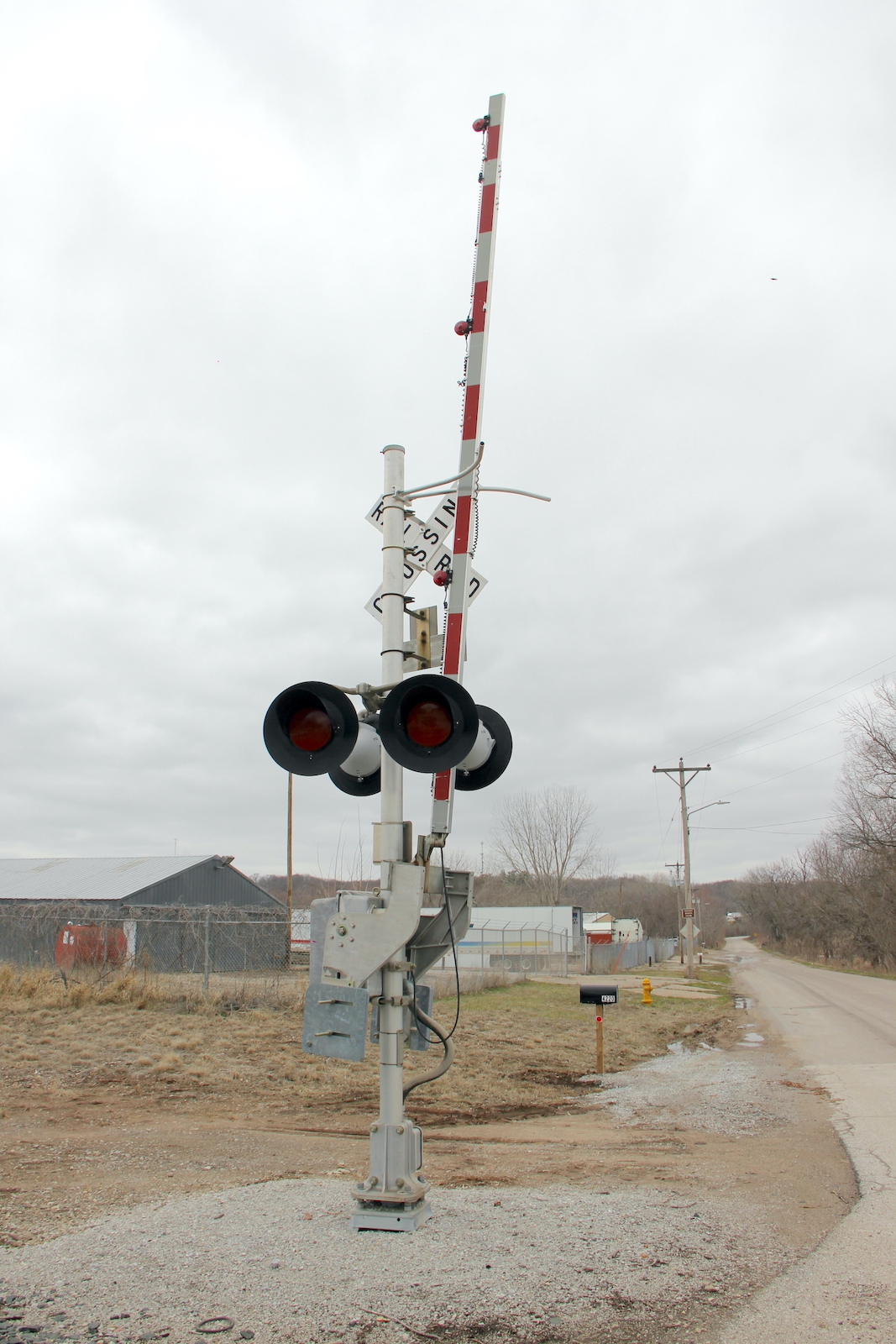

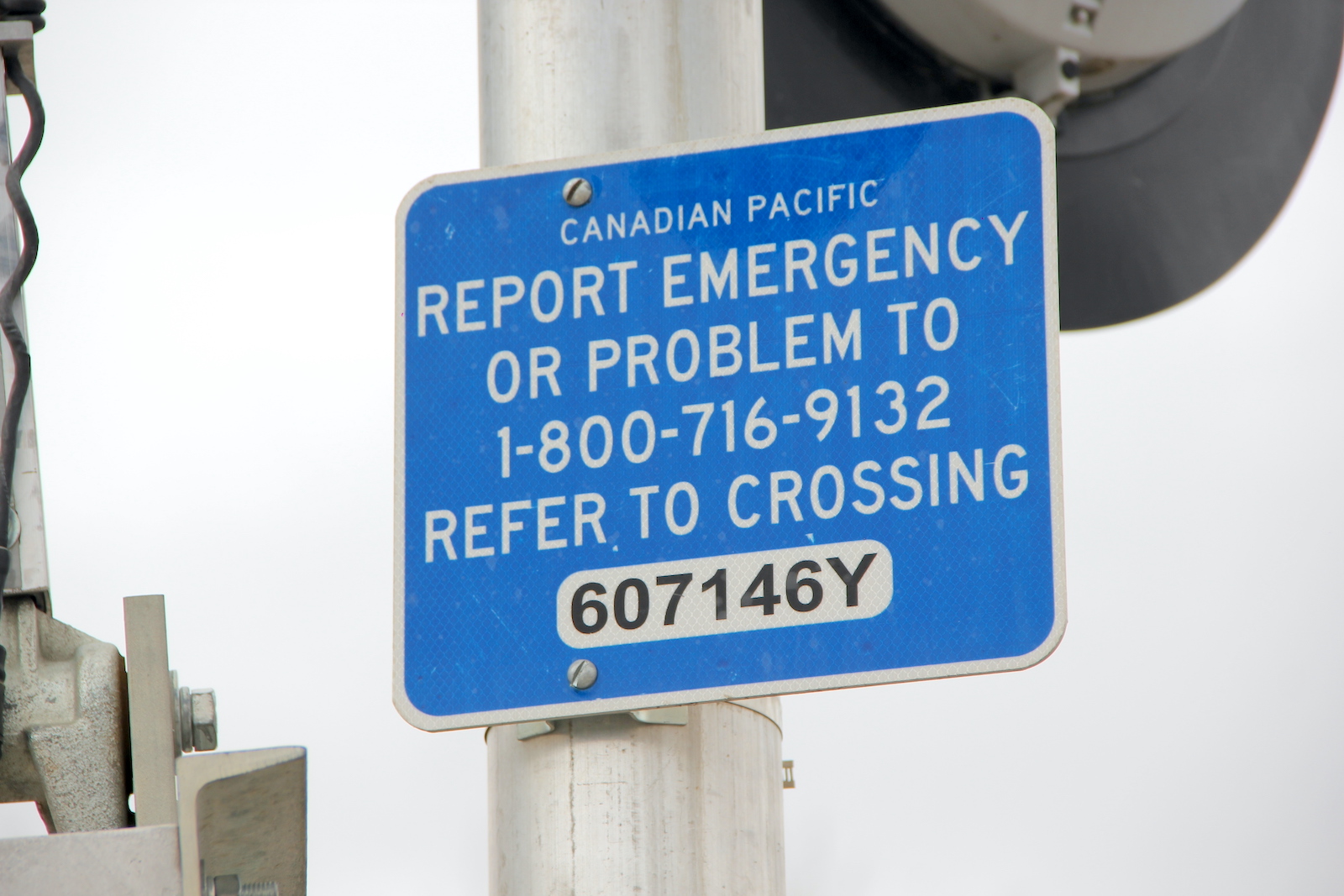

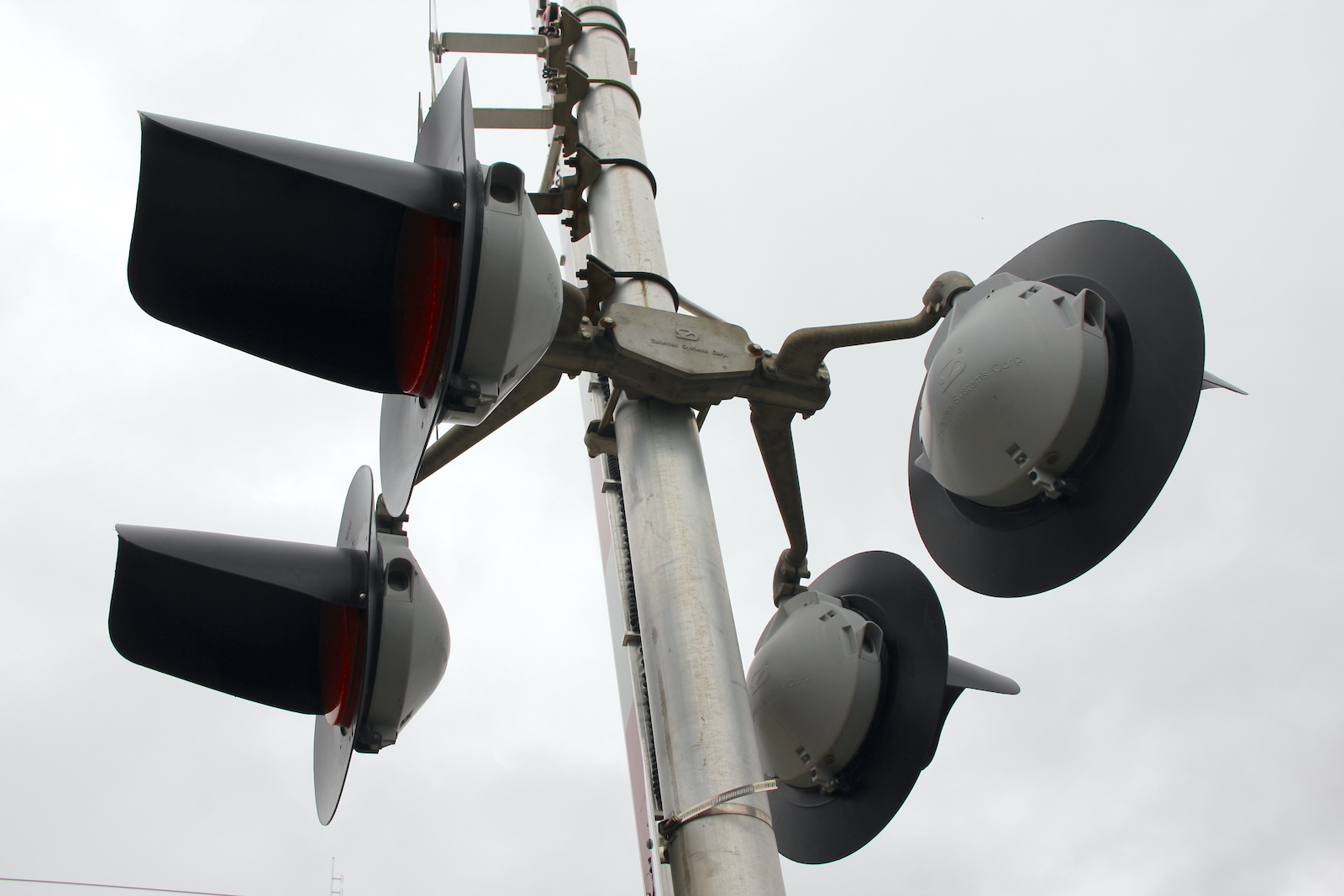

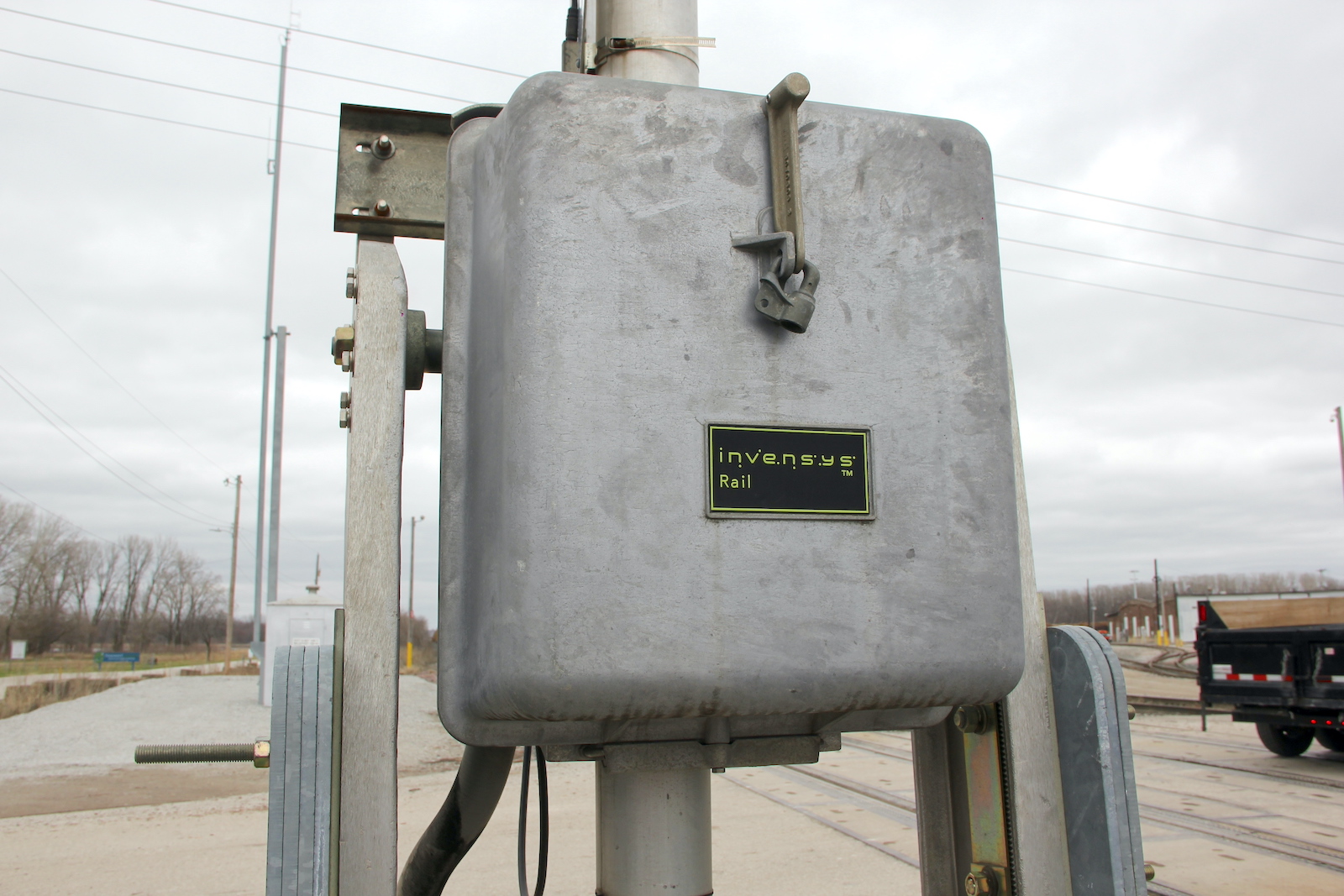

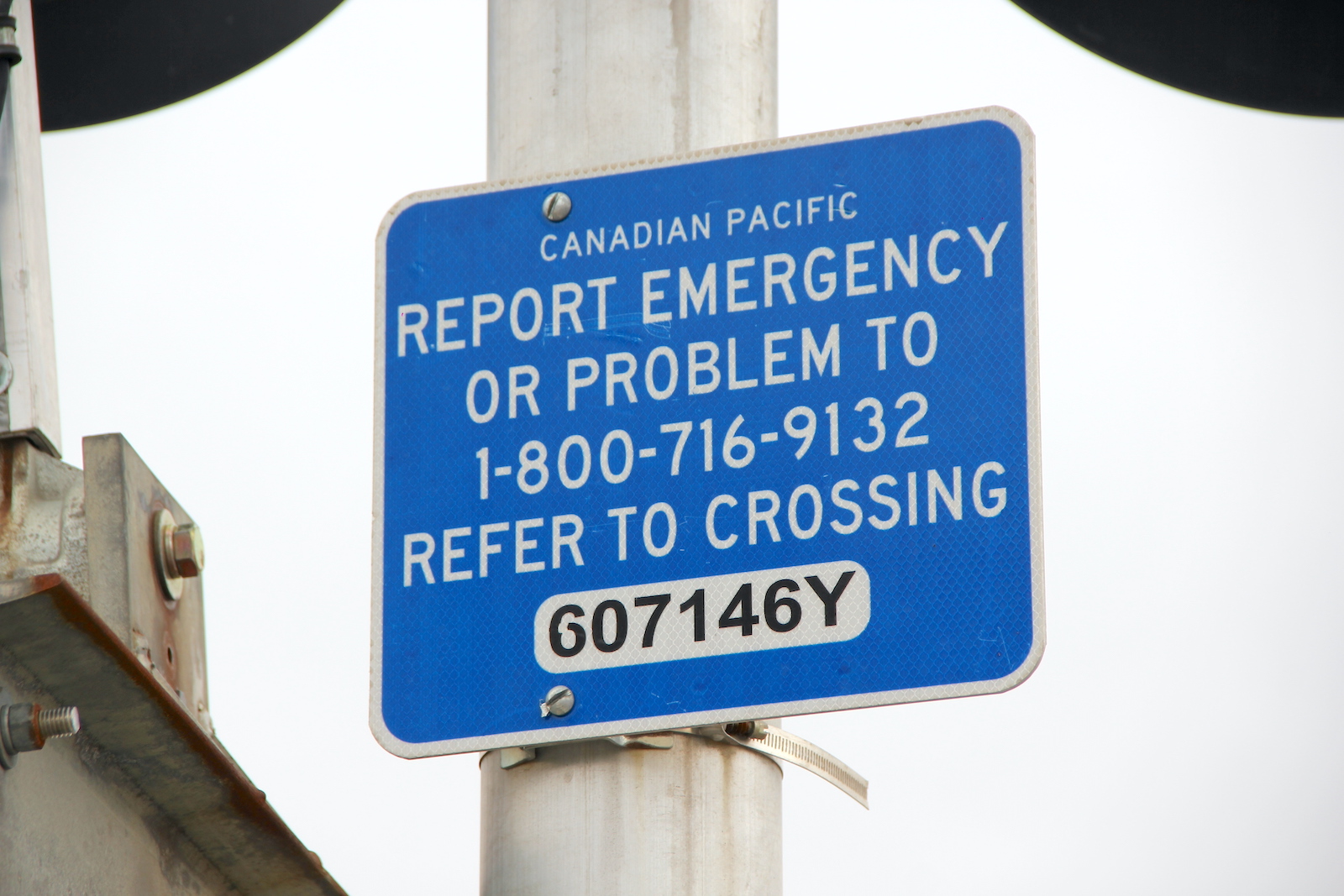

The western signal.
12 13 14
15 16 17
18 19 20 21

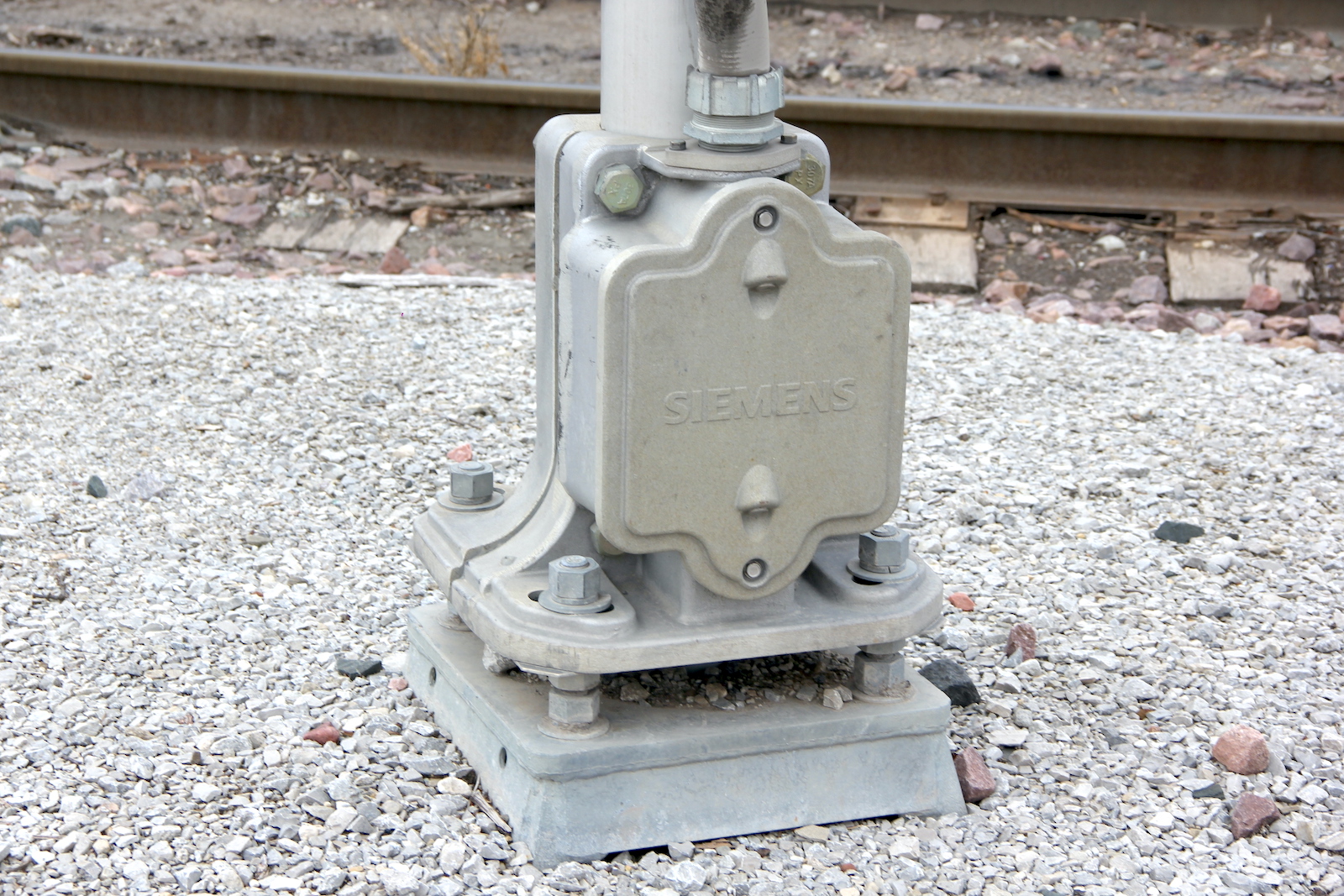

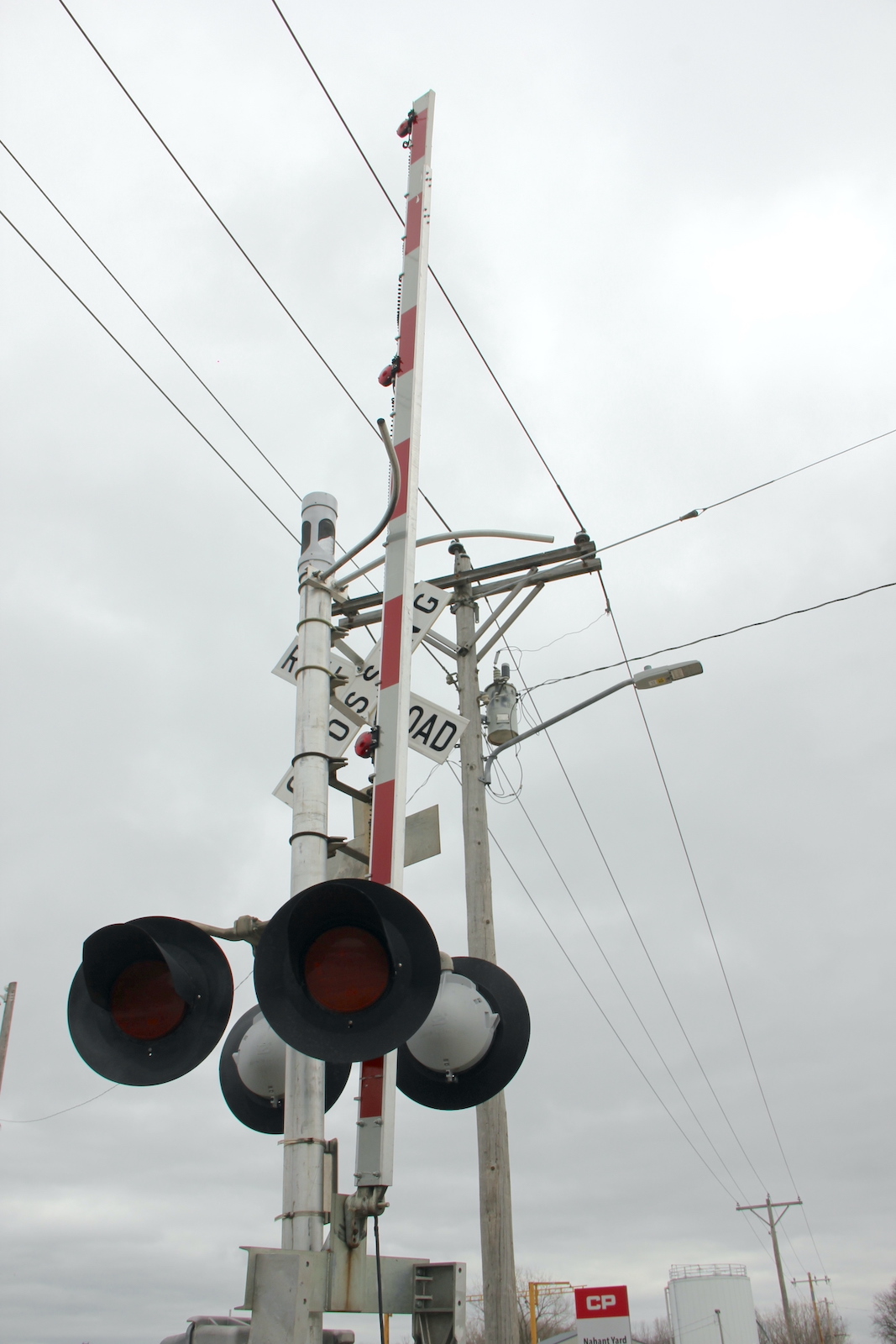

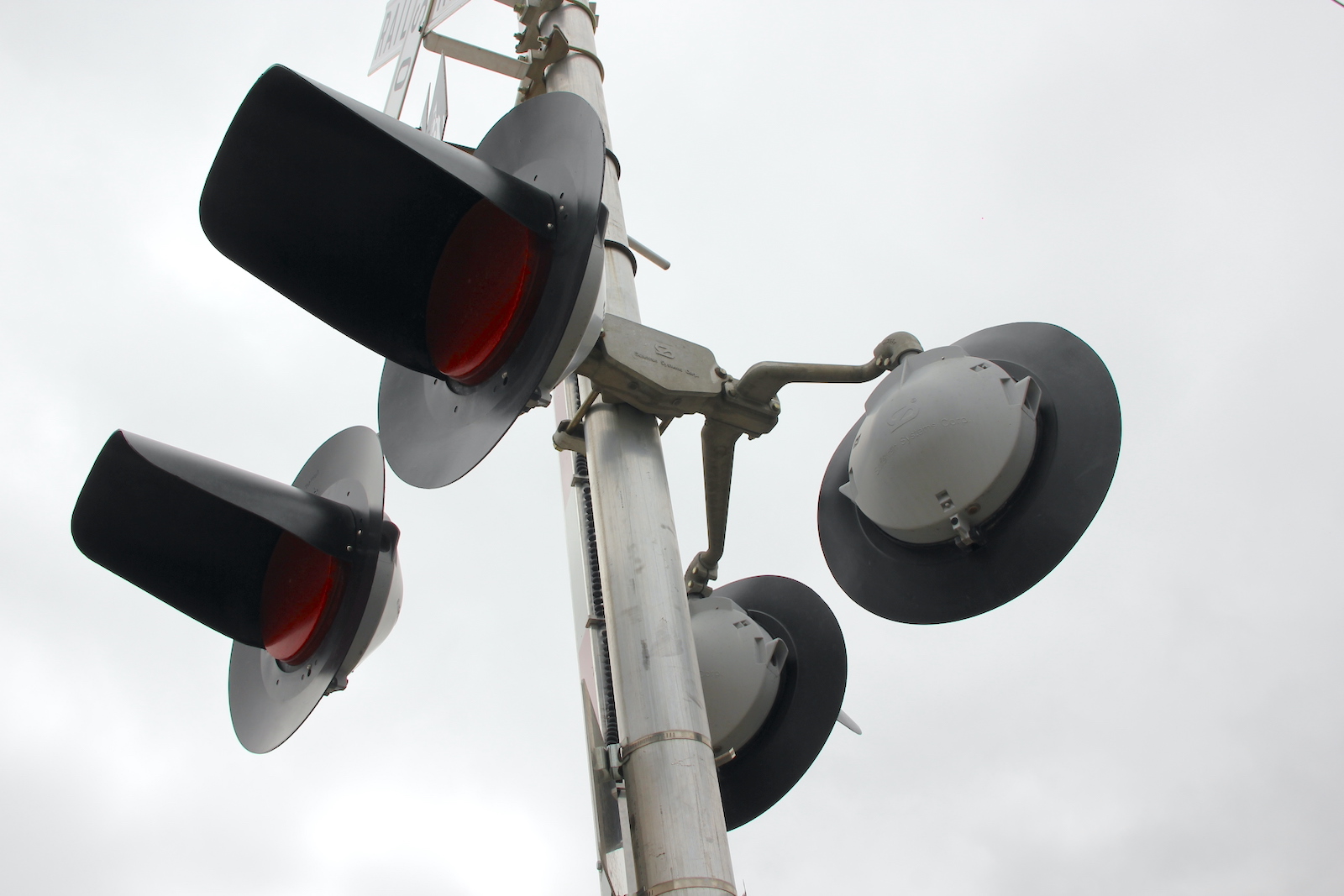

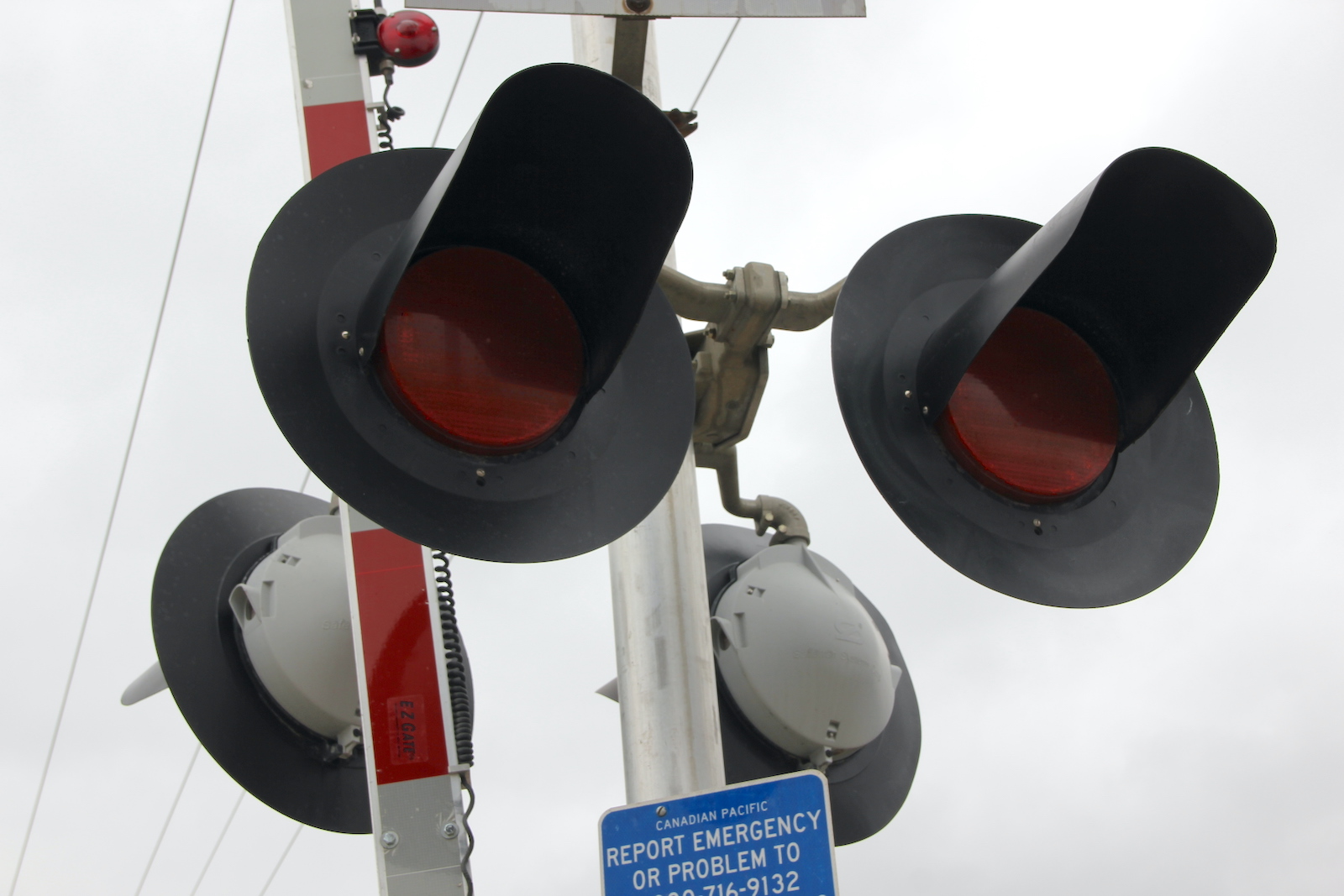

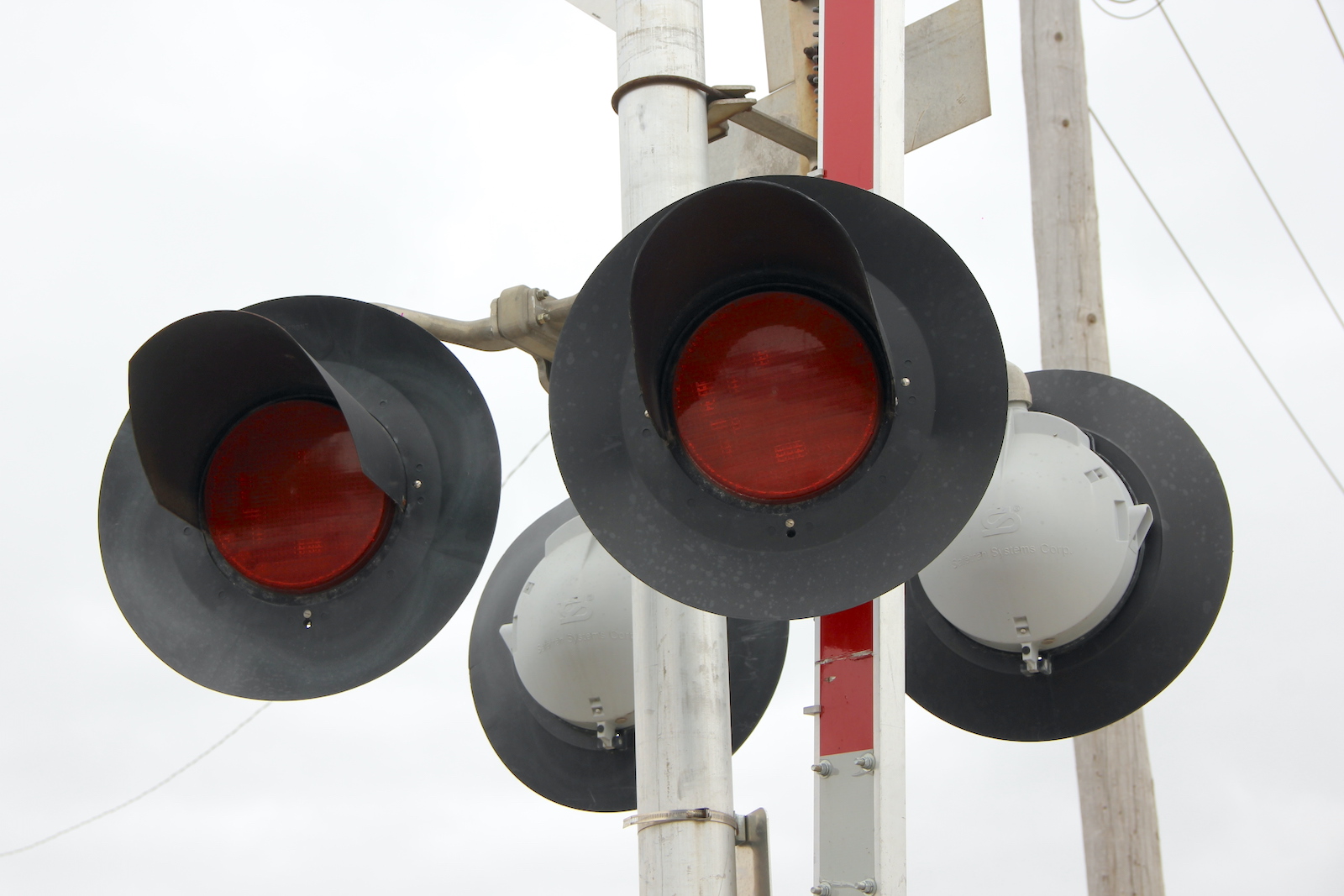

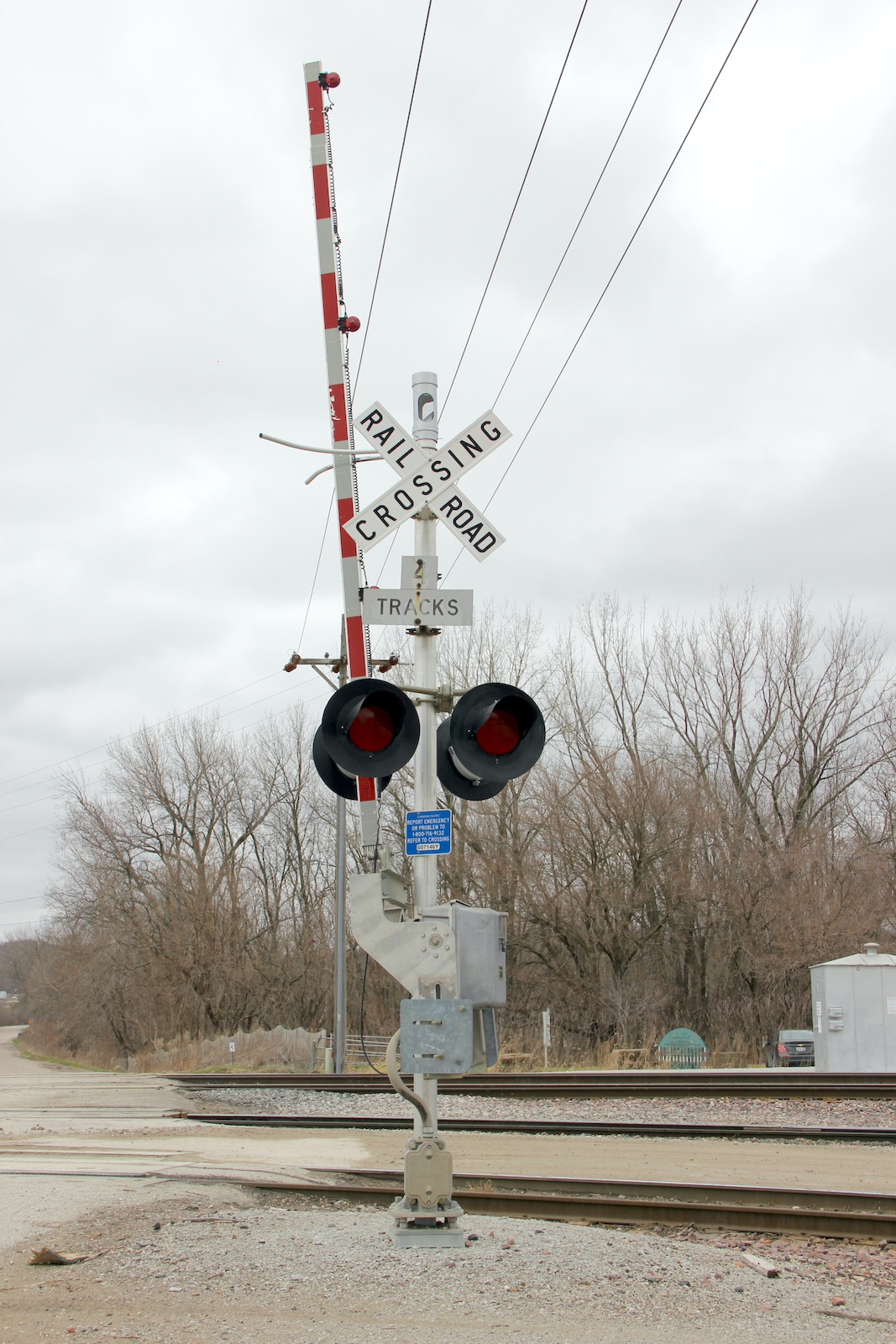

The eastern signal.
22 23 24 25

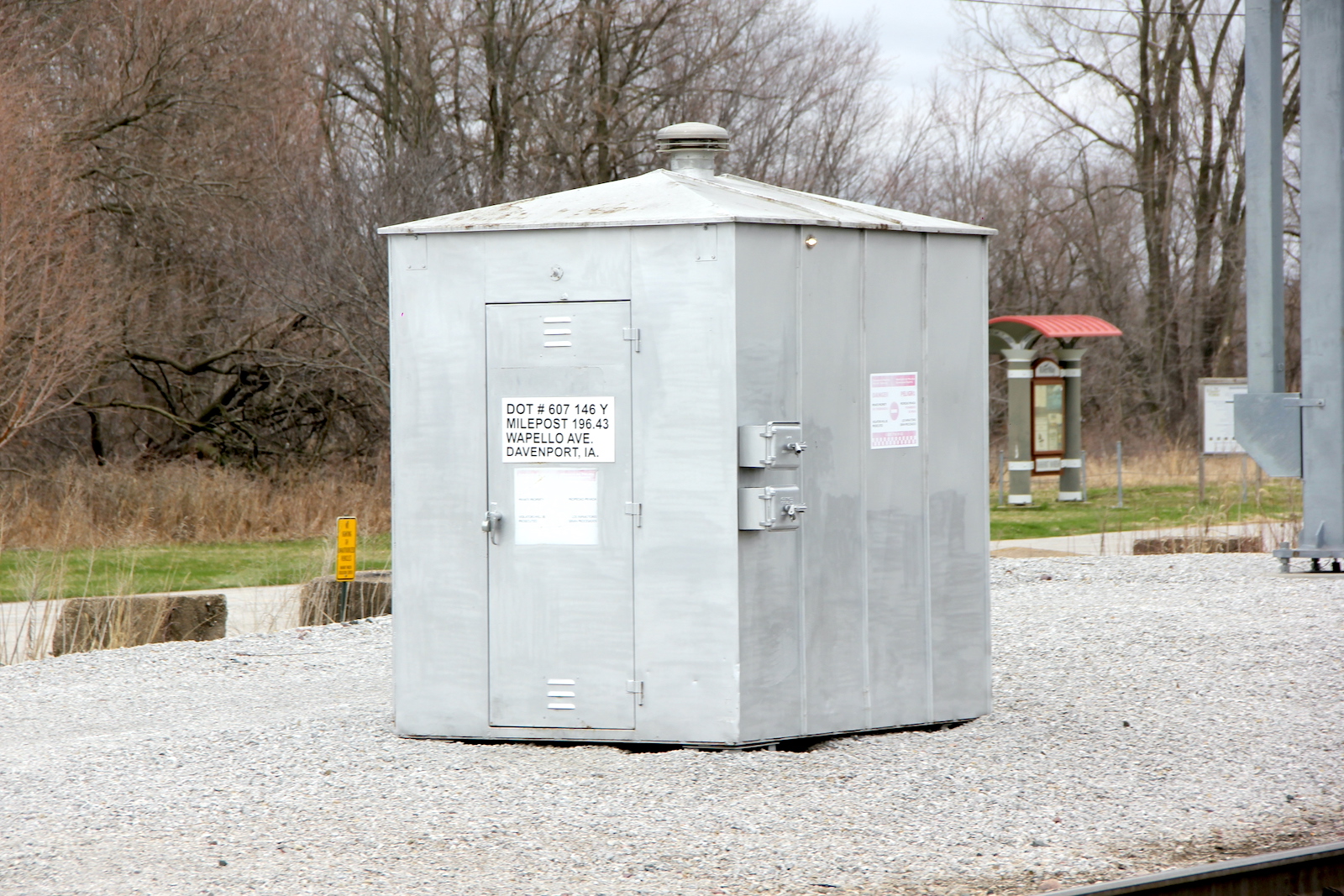

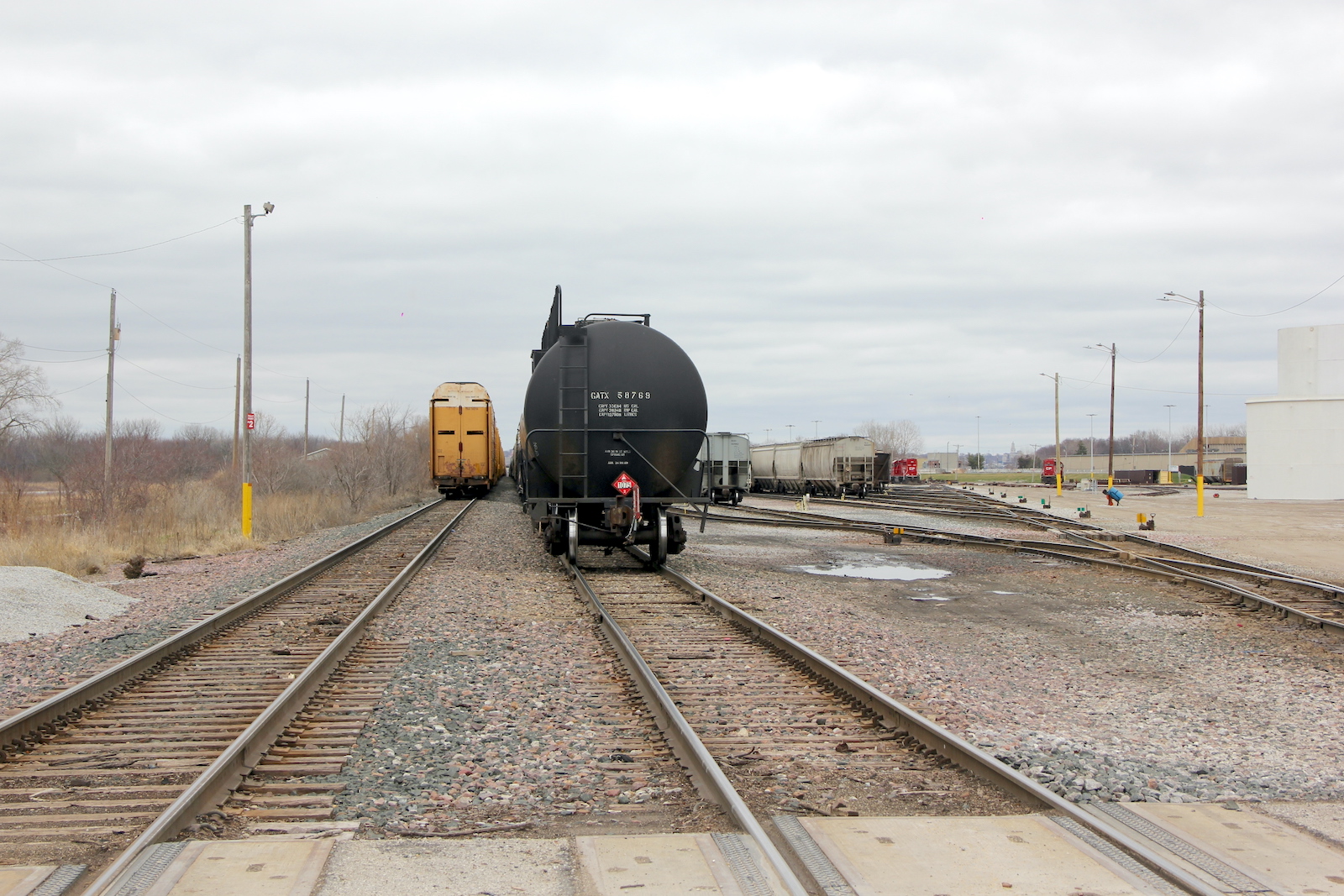

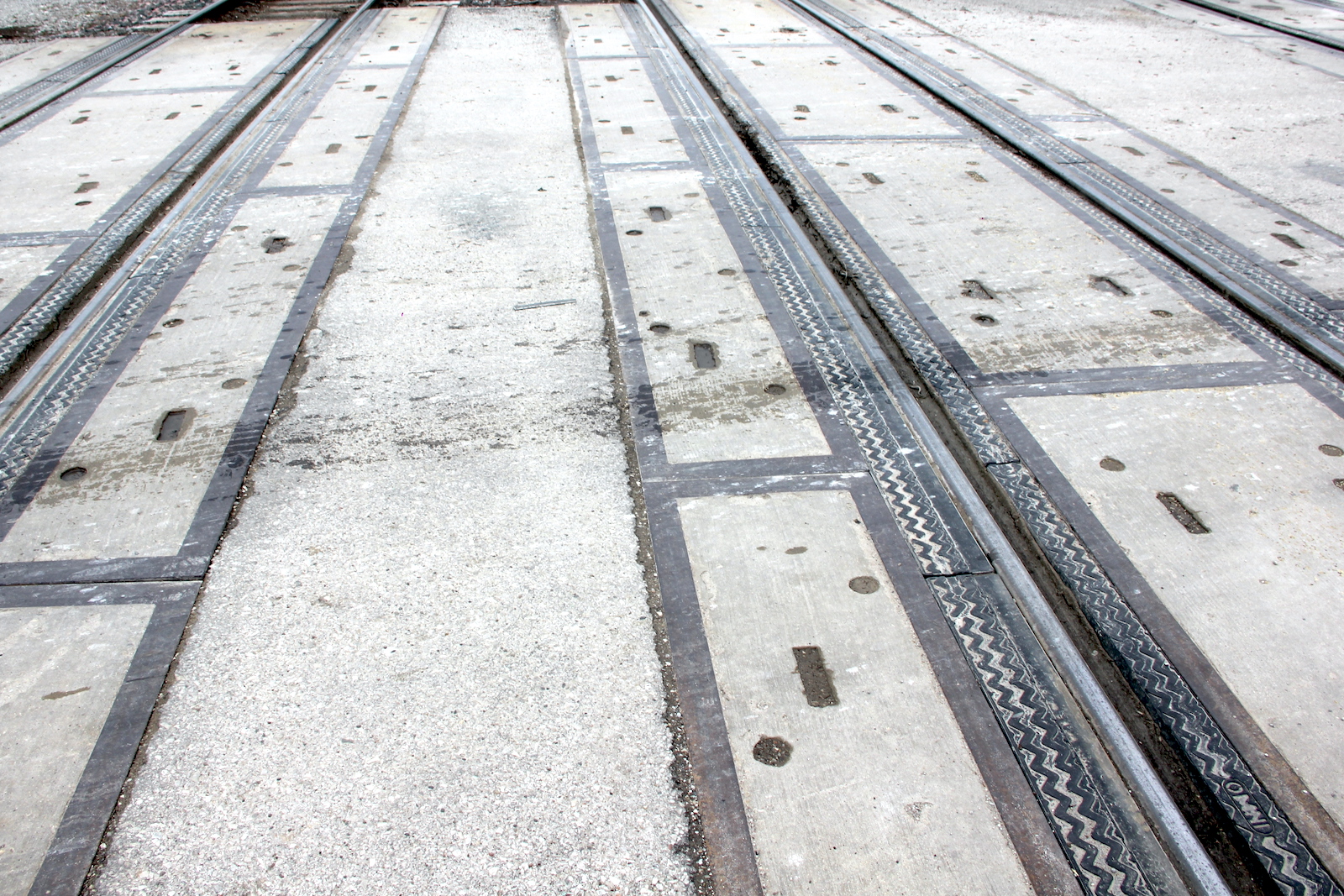

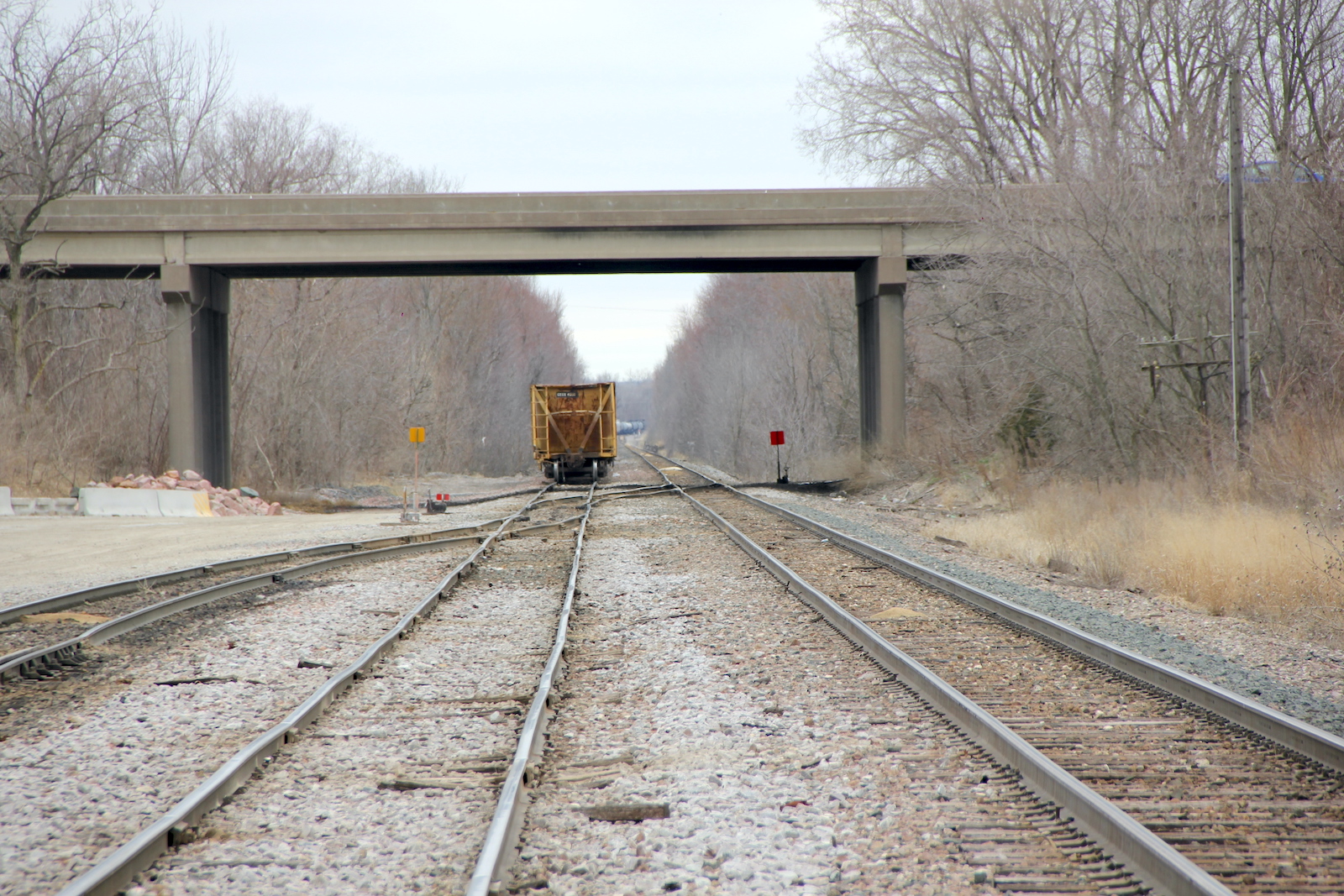

The relay bungalow in the northwest quadrant. The grade is all concrete. Track view facing north towards Concord St. #1. Track view facing south towards Linwood #1 in Buffalo.
