| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | None | GS Type 2 E Bell |
| Base: | WCH 5" Single Sided ^ | WCH 5" Single Sided ^ |
| Lights: | 4 - 12"x20" Hawker Safetran incandescents | 4 - 12"x20" Hawker Safetran incandescents |
| Junction Box: | WRRS | WRRS |
| Gate Lights: | 4" RECO LEDs | 4" RECO LEDs |
| Gate Mechanism: | WCH Style 3 w/ Wishbone Mount | WCH Style 3 w/ Standard Mount |
| Gate Striping: | Vertical Striping | Vertical Striping |
1 |
2
|
| Overview of 2 gated signals facing south. |
Overview facing north. |
3
| 4
| 5
|
6
| 7
| 8
|
9
|
10
|
11
|
| The
northern signal. Both signals retain incandescent main lights,
which is much more common on BNSF in Iowa than in Illinois. |
||
12
| 13
| 14
|
15
| 16
| 17
|
18
| 19
| 20 | 21
|
| The southern signal. |
22
|
23
|
24
|
25
|
| The relay bungalow in the northwest quadrant. |
The grade is all concrete. |

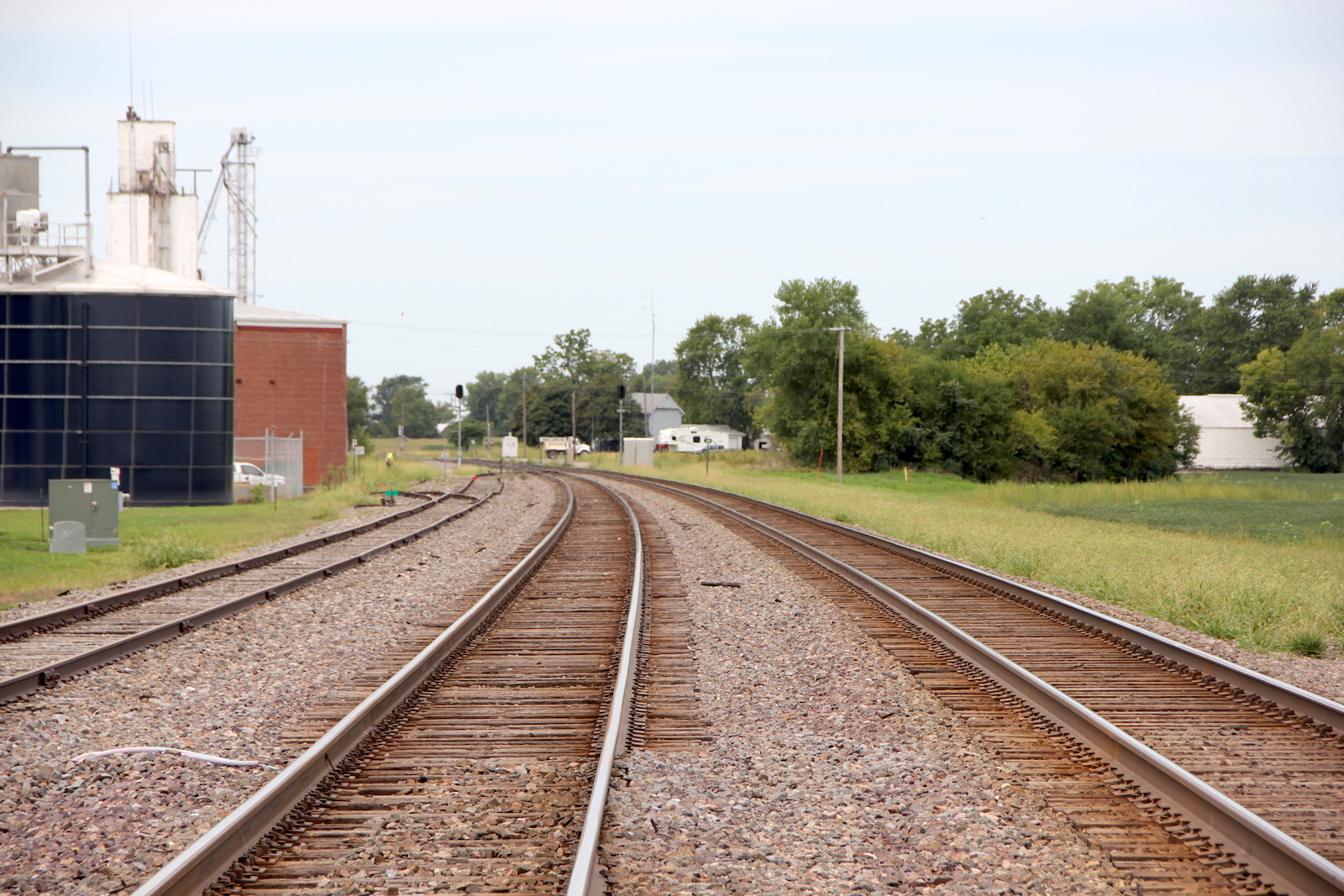

Track view facing west towards Chestnut St. |
Track view facing east towards 145th St. in Danville. |
26
|
| Some broken gate pieces on the south side of the crossing. |
