| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | GS Type 3 E-Bell | N/A |
| Base: | WRRS/WCH 5" Single Sided | WRRS 5" Single Sided |
| Light Brackets: | 1 - Safetran 1 - WRRS |
1 - Safetran 1 - WRRS |
| Lights: | 6 - 12"x20" Safetran w/ Dialight Ball LEDs | 6 - 12"x20" Safetran w/ Dialight Ball LEDs |
| Gate Lights: | 3 - RECO 4" incandescents | 3 - RECO 4" LEDs |
| Gate Mechanism: | Siemens Sticker Style 2 | Siemens Sticker Style 2 |
| Gate Striping: | Vertical Striping | Vertical Striping |
SV1 |

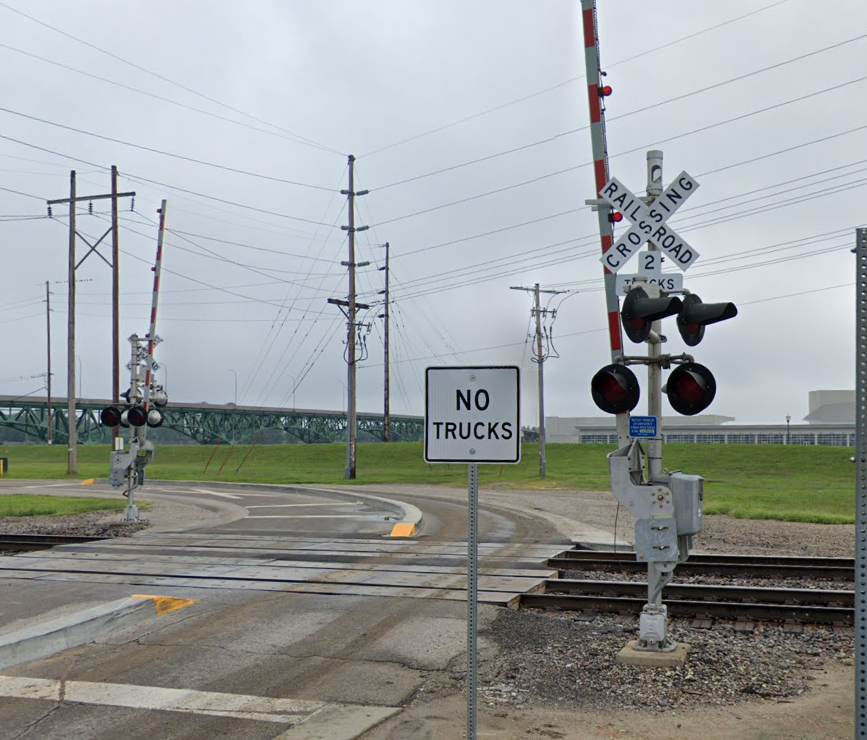

| Street View from August 2019 shows the signals used to have a 90s BN install. Since then the lights have been replaced. |
1 |
2 |

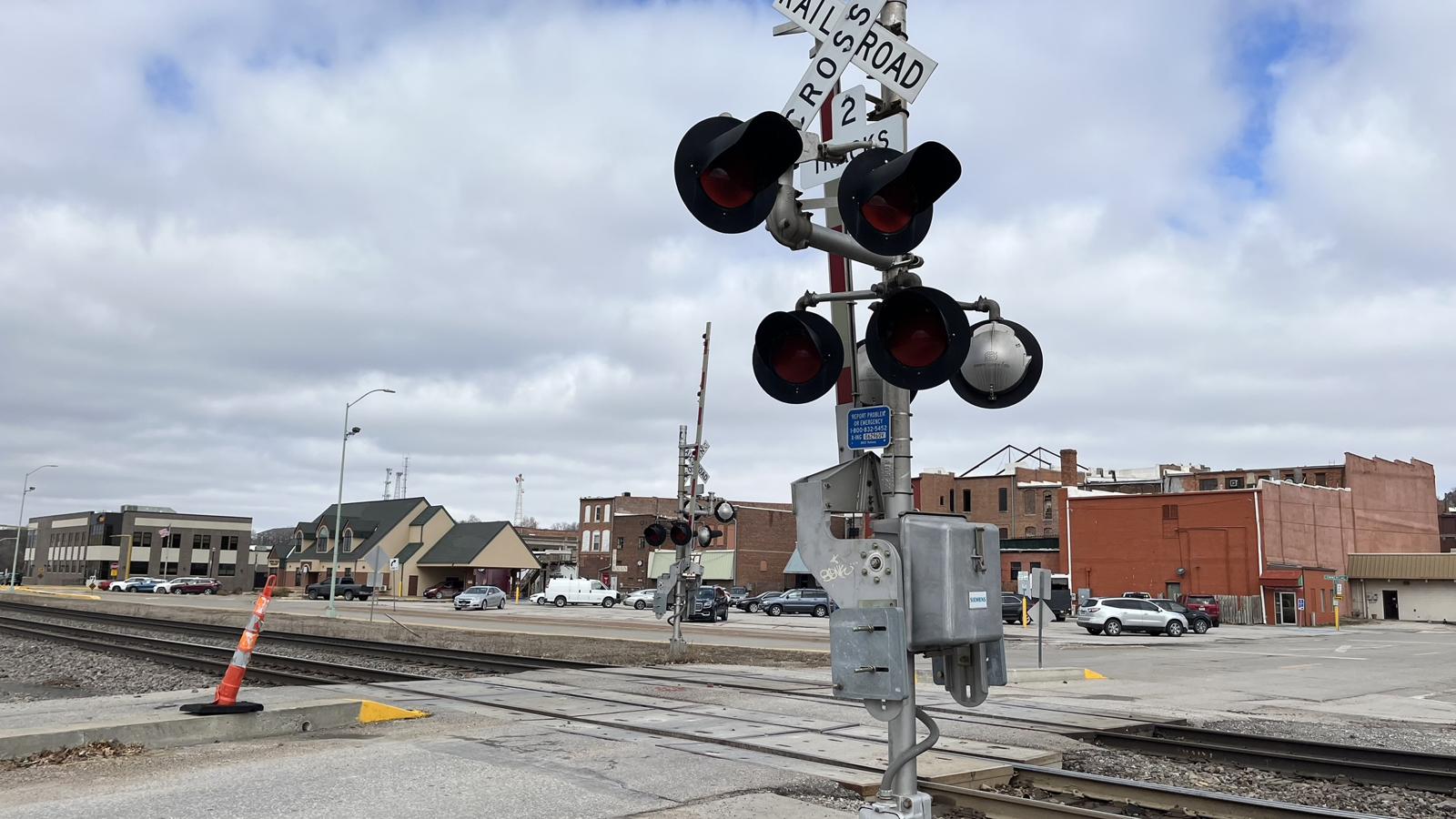

| Overview facing north. | Overview facing south. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |

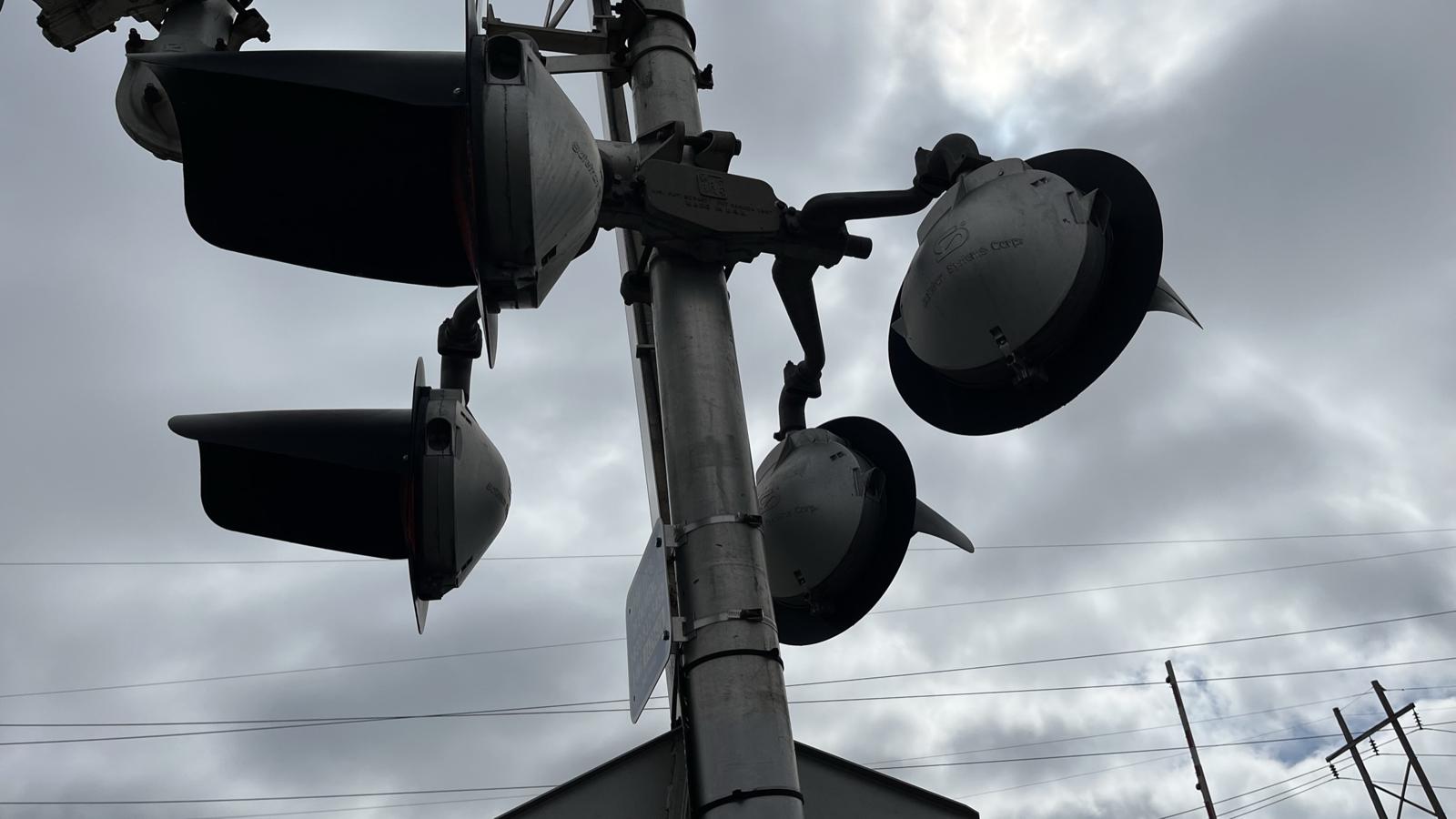

| The northern signal. | |||
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |

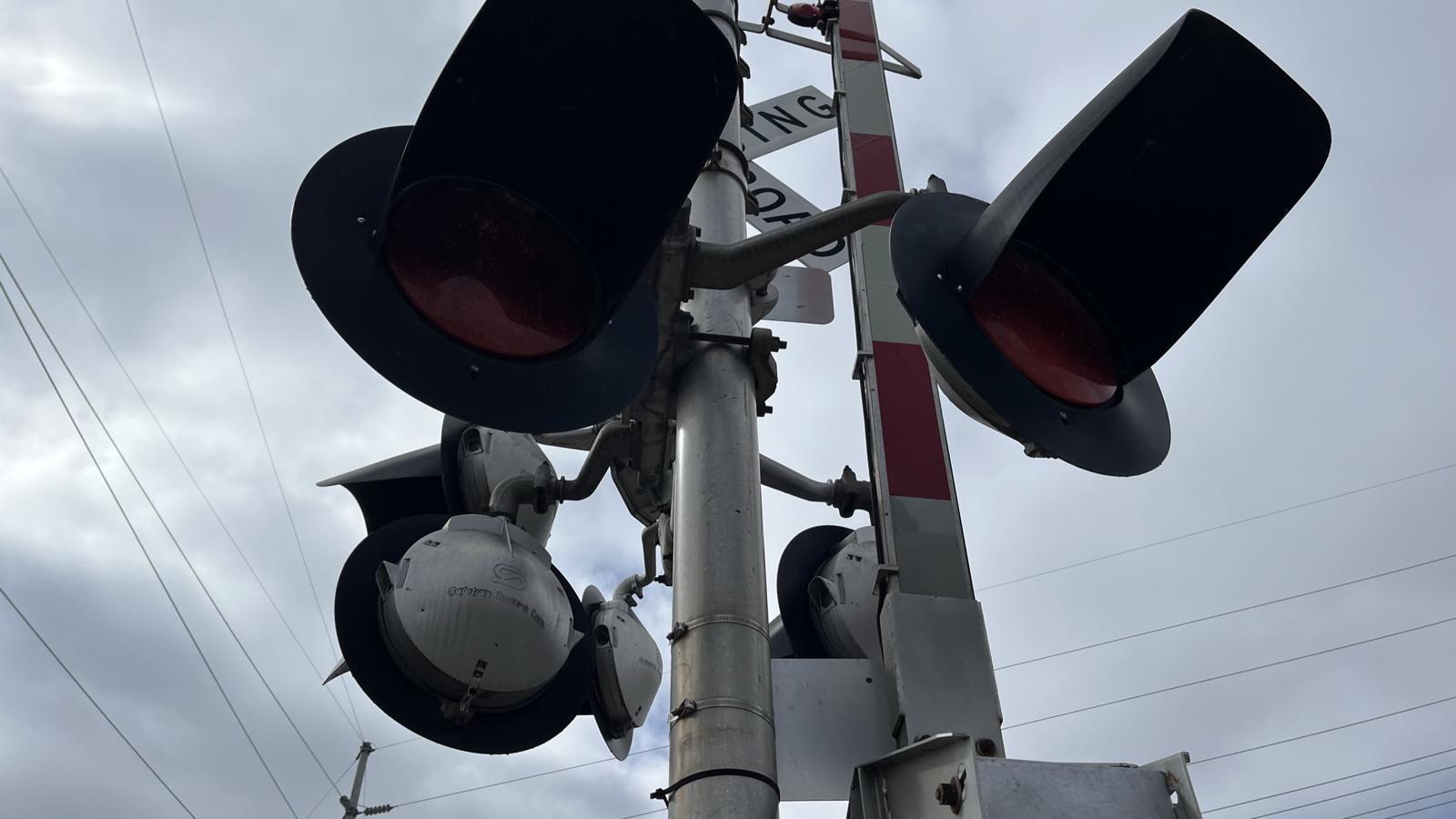

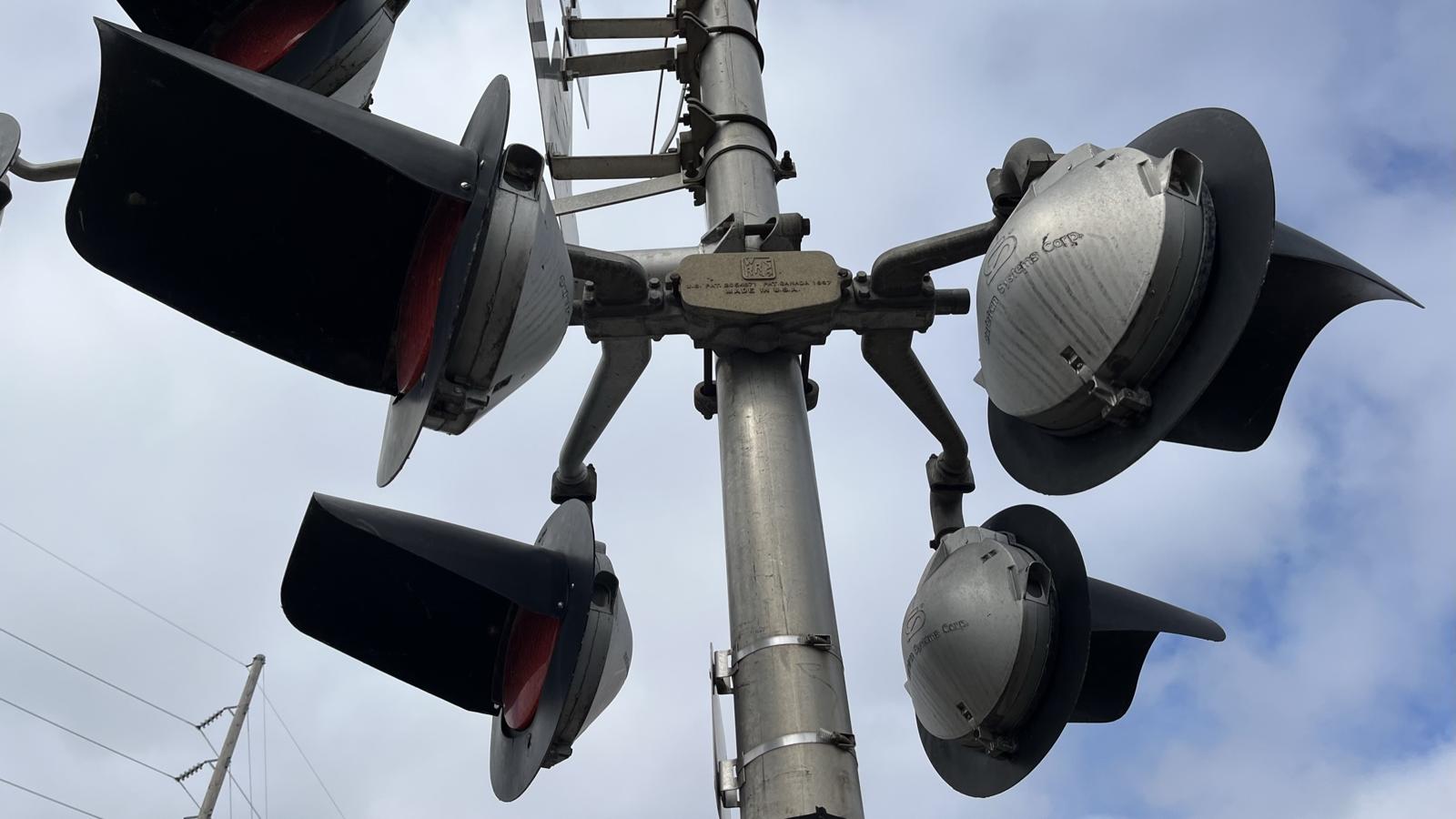

| The southern signal. | |||
20 |
21 |
22 |

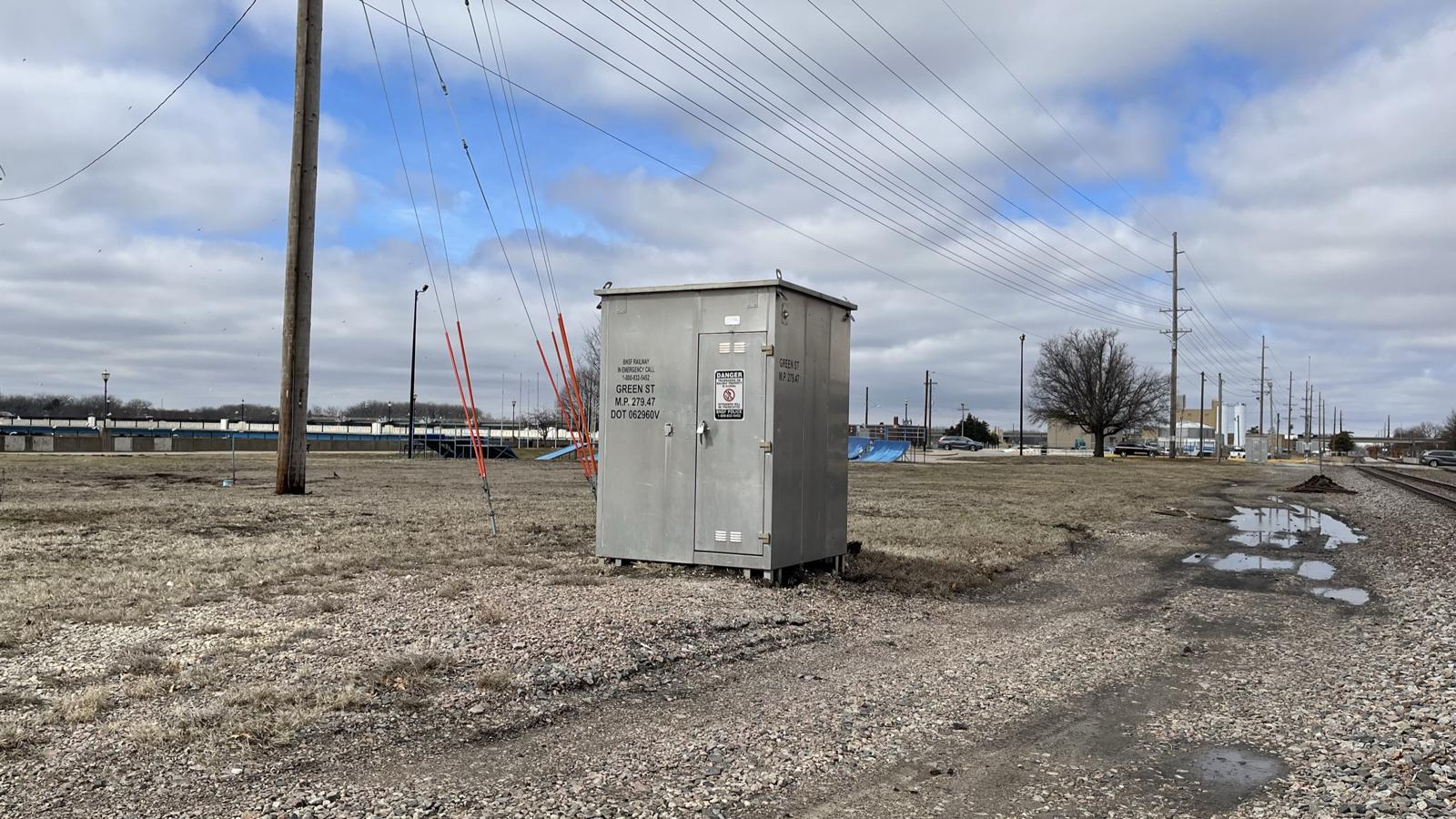

| The relay bungalow in the southwest quadrant. | The grade is all concrete. | Track view facing east towards Vine St. To the west is Market St. |
