| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | GS E-Bell | N/A |

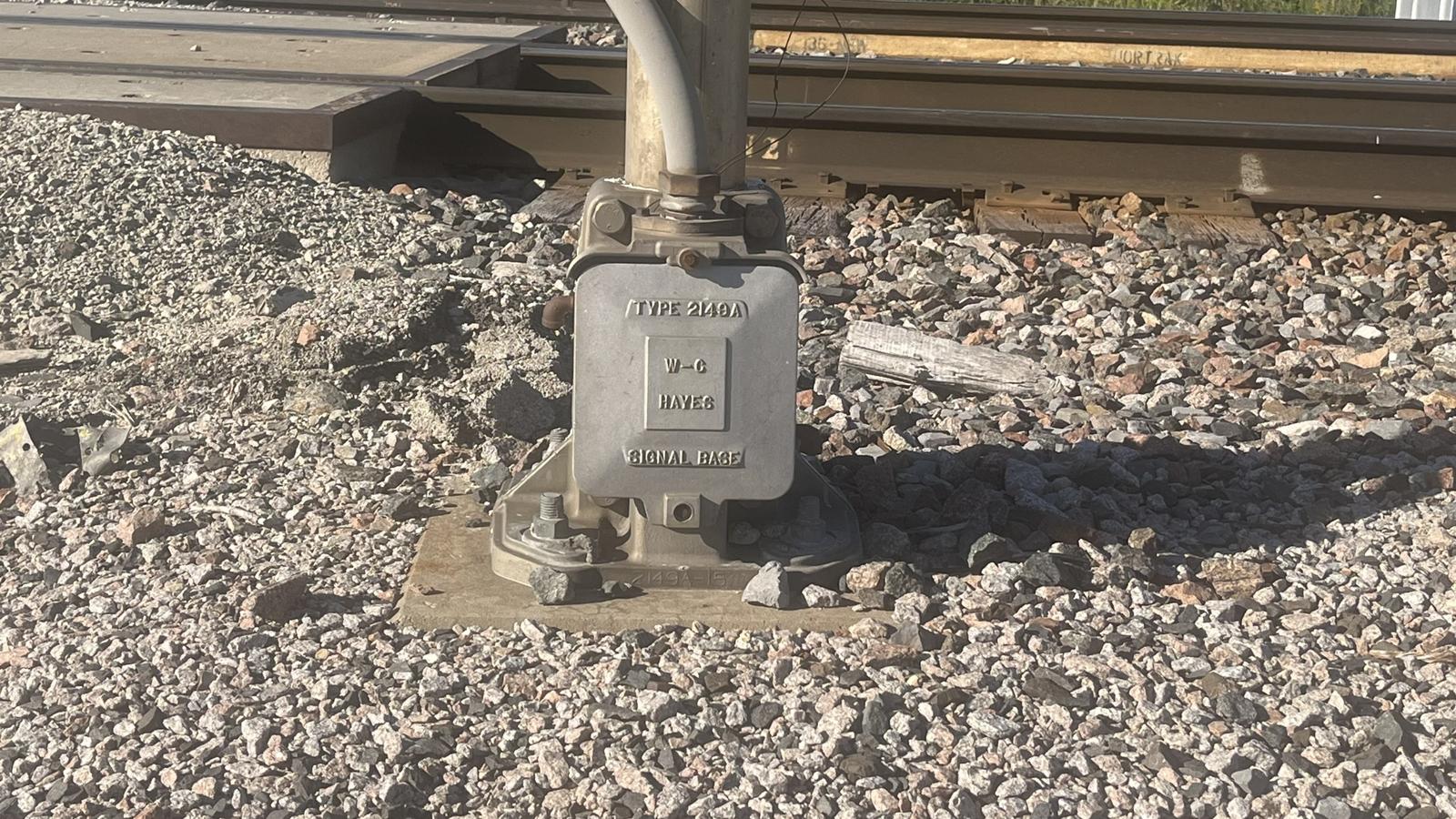

| Base: | WCH 5" Single Sided | WCH 5" Single Sided |
| Light Brackets: | WRRS | WRRS |
| Lights: | 4 - 12"x20" Safetran incandescents | 4 - 12"x20" Safetran incandescents |
| Gate Lights: | 3 - RECO 4" LEDs | 3 - RECO 4" LEDs |

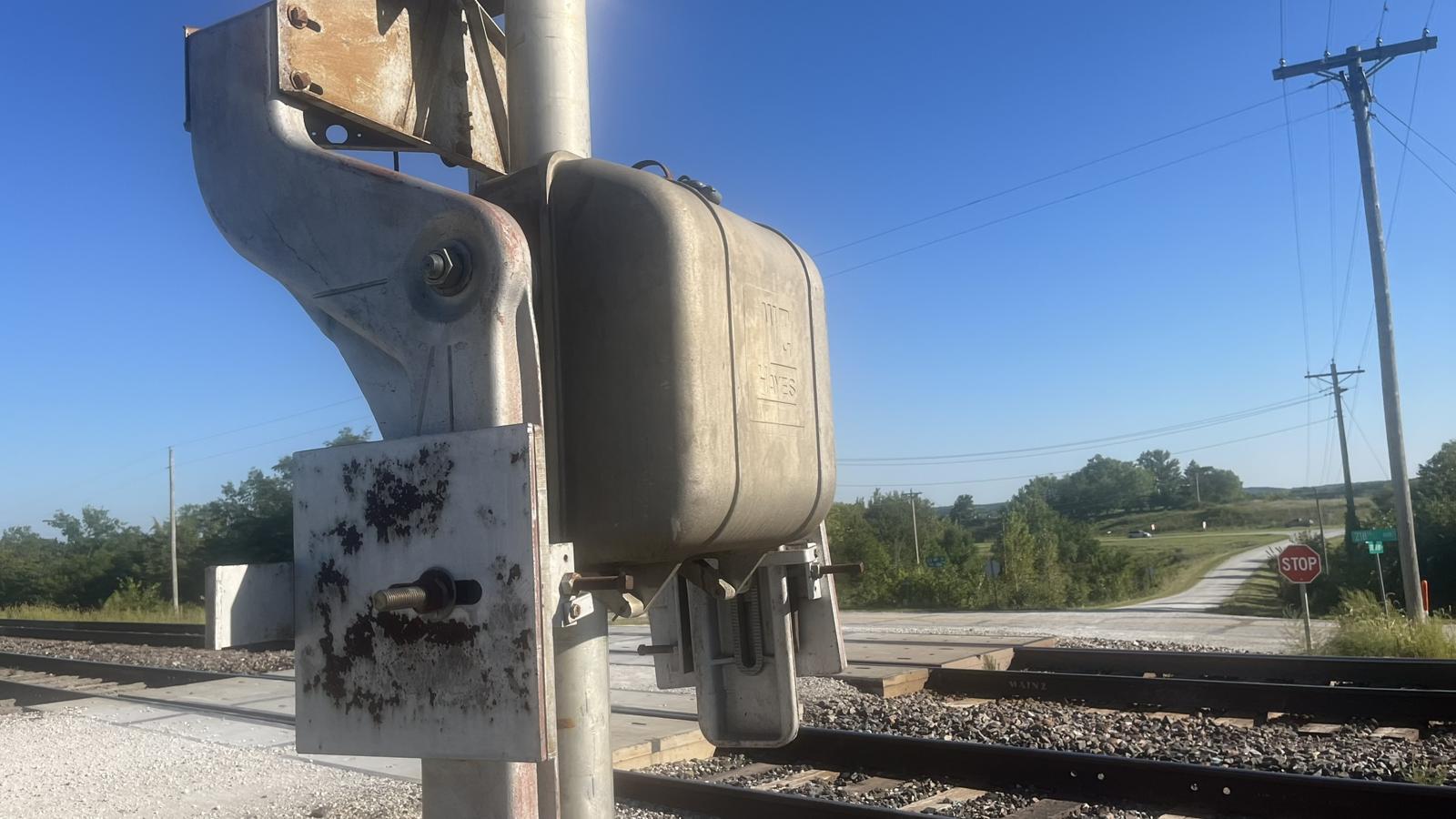

| Gate Mechanism: | WCH Style 3 | WCH Style 3 |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
1 |
2 |

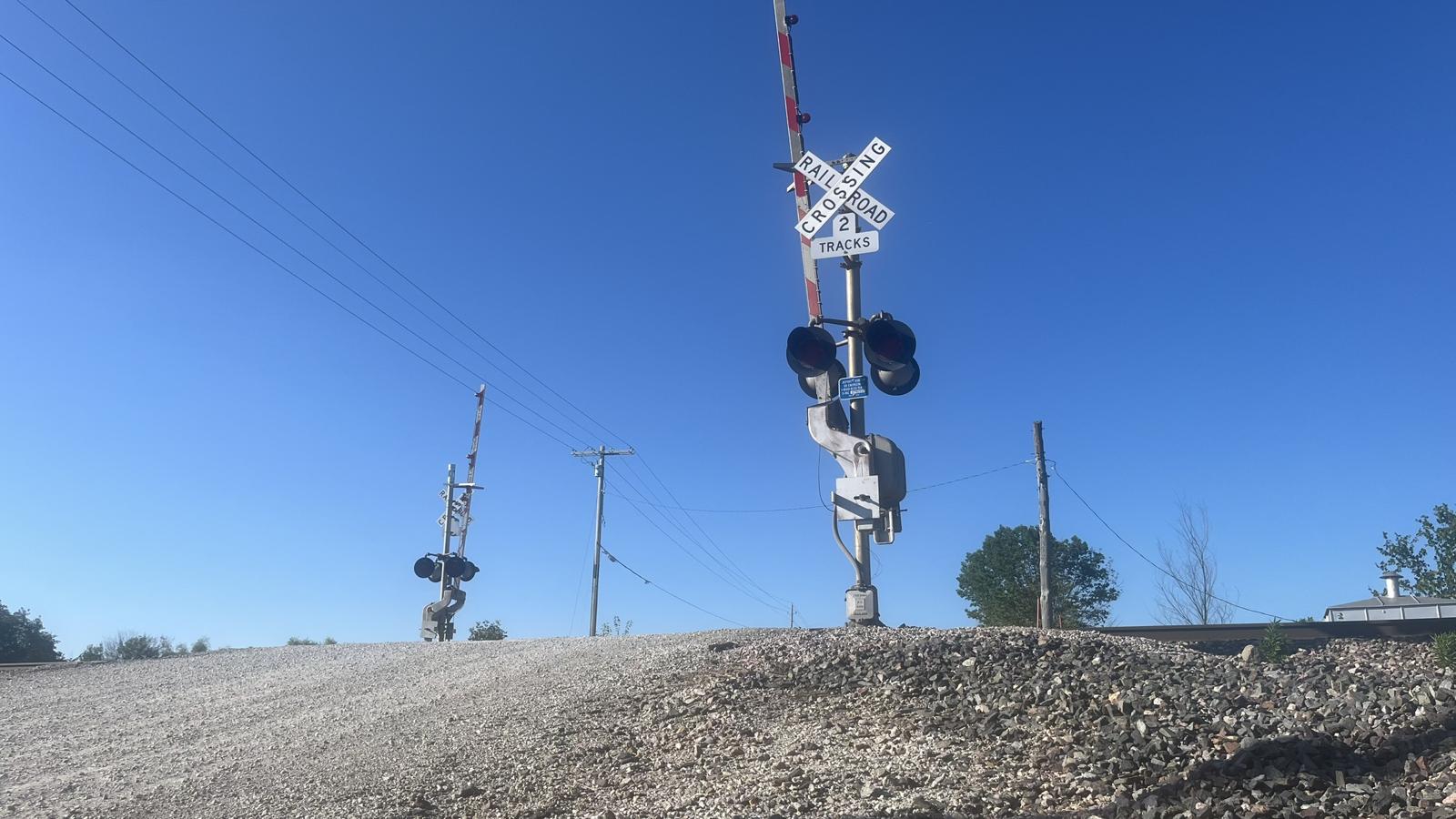

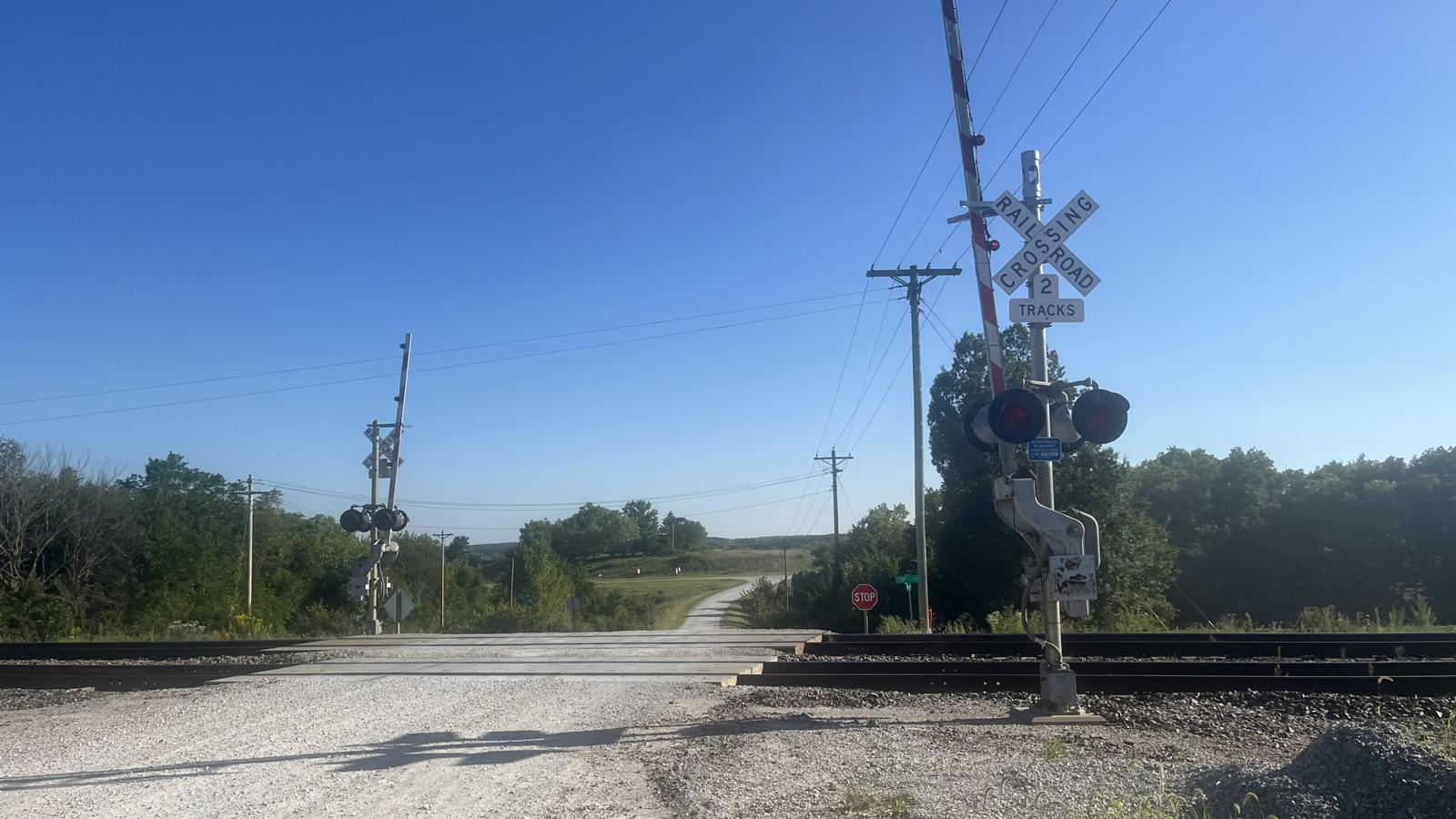

| Overview facing north. | Overview facing south. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
| The northern signal. | |||
11 |
12 |
13 |
14 |
15 |
16 |
17 |
| The southern signal. | |||
18 |
19 |
20 |
21 |

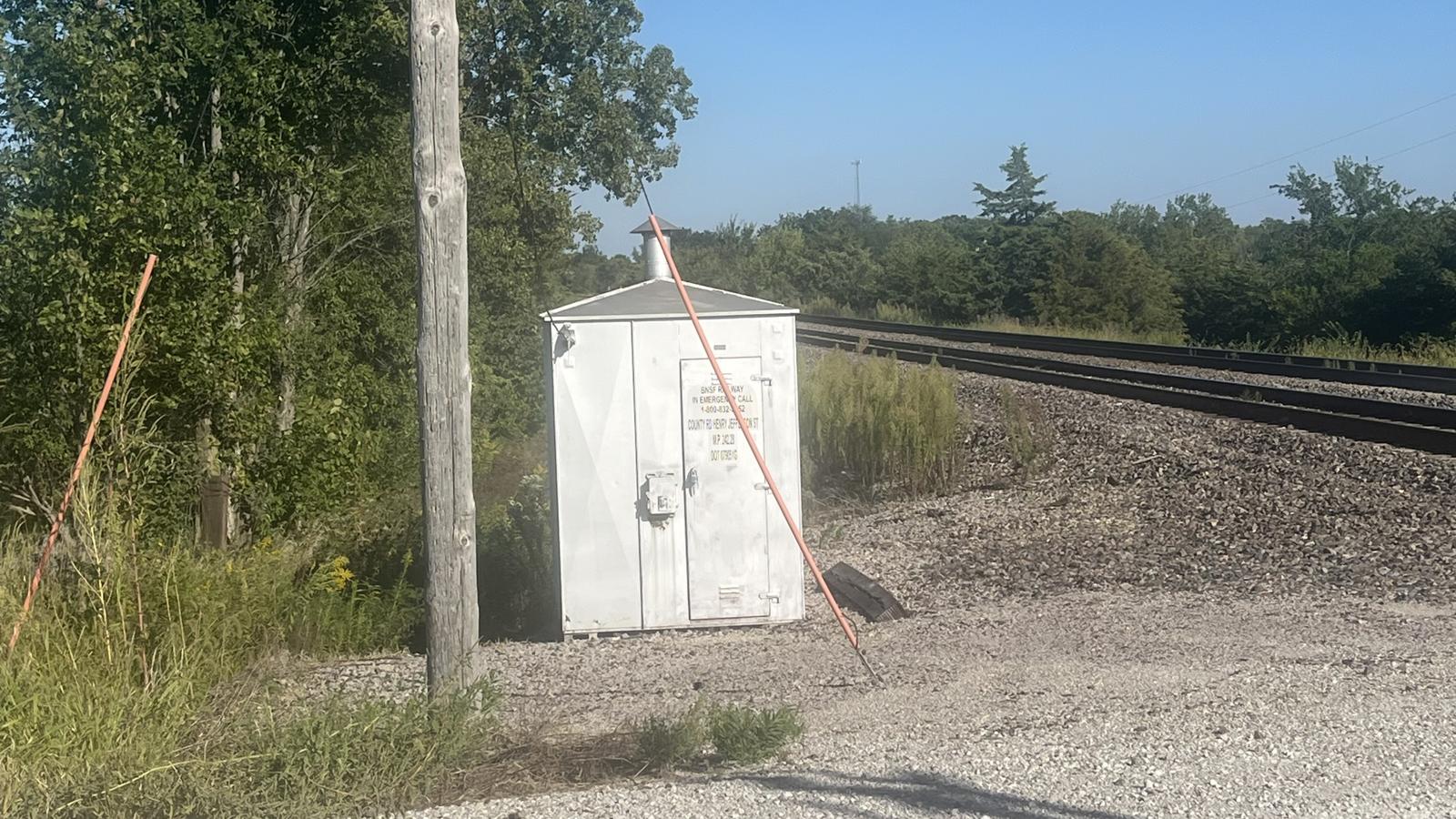

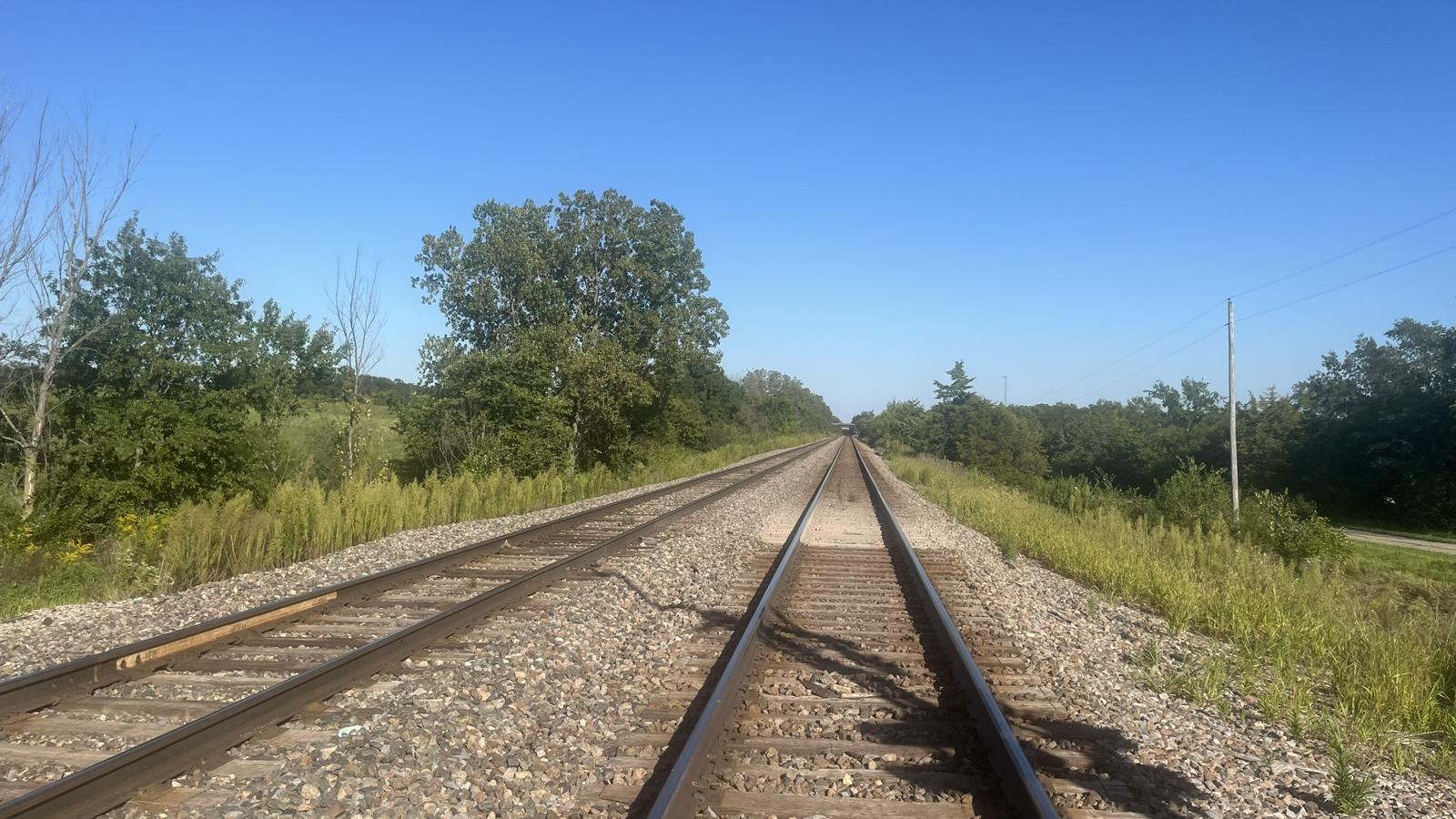

| The relay bungalow in the northeast quadrant. | The grade is all concrete. | Track view facing east towards Carnahan Rd. in Mt. Pleasant. | Track view facing west towards 217th St. in Lockridge. |
