194.93


606805X

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: None WCH Mechanical Bell 3rd Gen
Base: WCH 5" Single Sided ^ WCH 5" Single Sided ^
Lights: 4 - 12"x20" WCH w/ General Signals LEDs 4 - 12"x24" WCH w/ GE Uniform Look LEDs
Junction Box: WRRS WCH
Gate Lights: 4" RECO LEDs 4" RECO LEDs
Gate Mechanism: WRRS Type 3564 w/ Standard Mount WCH Style 4 w/ NEG 1 Way Saver
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-16 were taken on November 19, 2022, by Hopen111.
Pictures 17-43 were taken on November 1, 2023, by Tommy McGowan.
This crossing is located on the IAIS Iowa City Subdivision.
Page created by Hopen111 (using HopenRXRTools 1.0.3).

This crossing is missing a "2 tracks" sign on both signals.

G1 G2
Streetview images from 2021 showing two very nice gated signals with 12"x20" GS LEDs, WRRS gate mechanisms, and a GS Type 2 E Bell. In 2022, the southern signal was replaced with a brand new WCH signal, and in the process, going from an E Bell back to a Mechanical Bell!
1
 2
Overview facing north. Overview facing south.
3 4
5 6 7

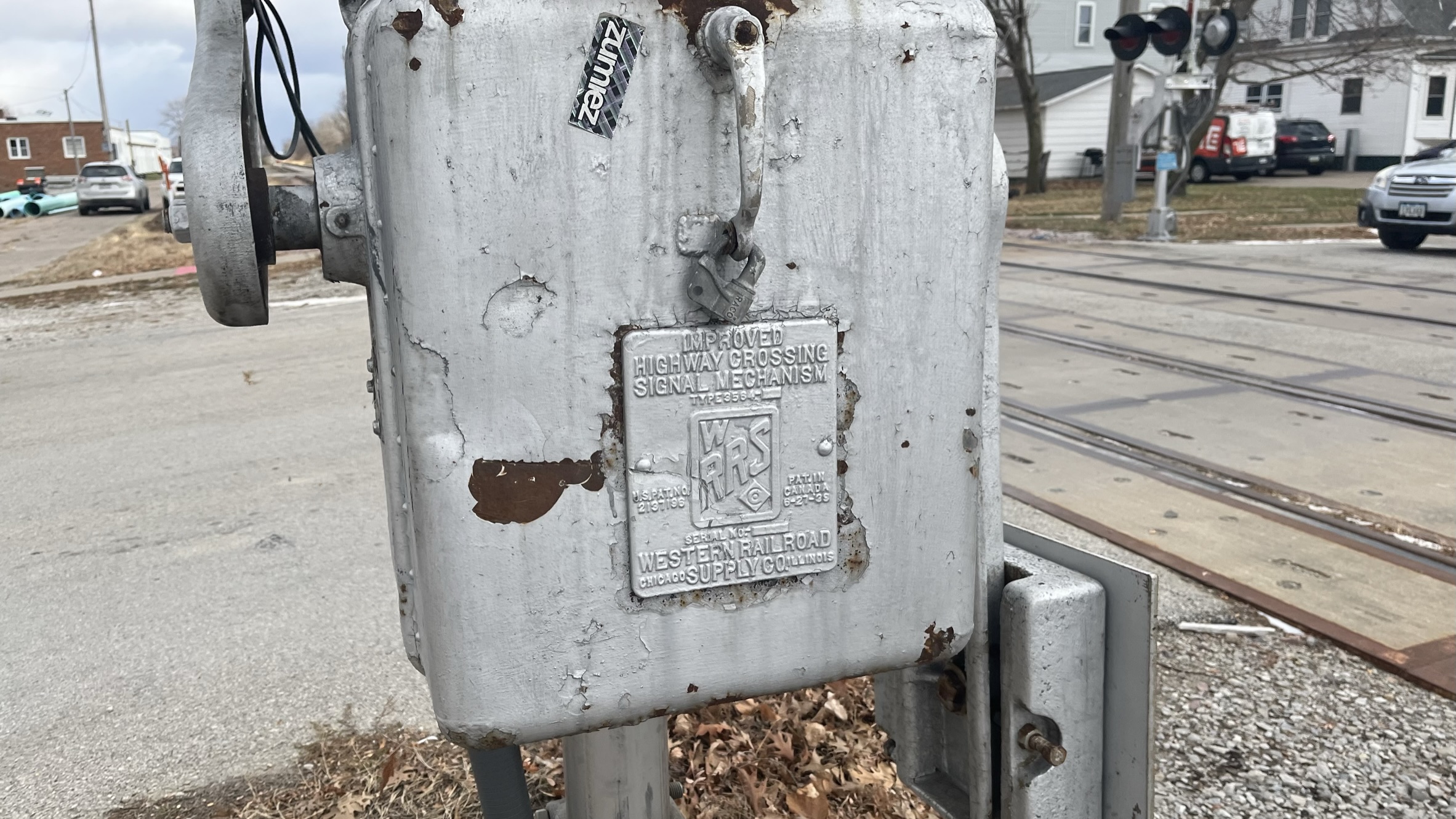

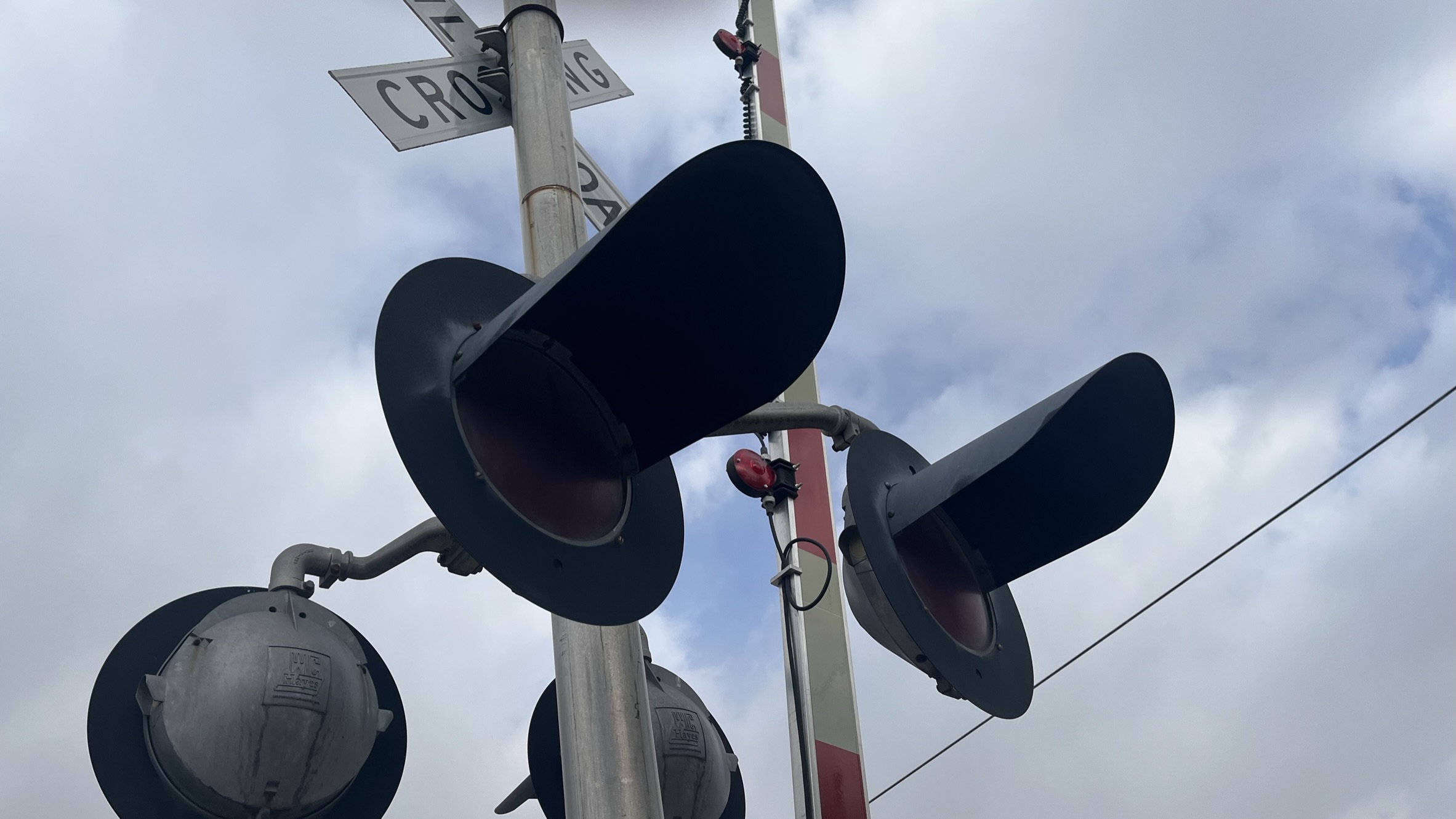

The northern signal.
8 9 10
11 12 13

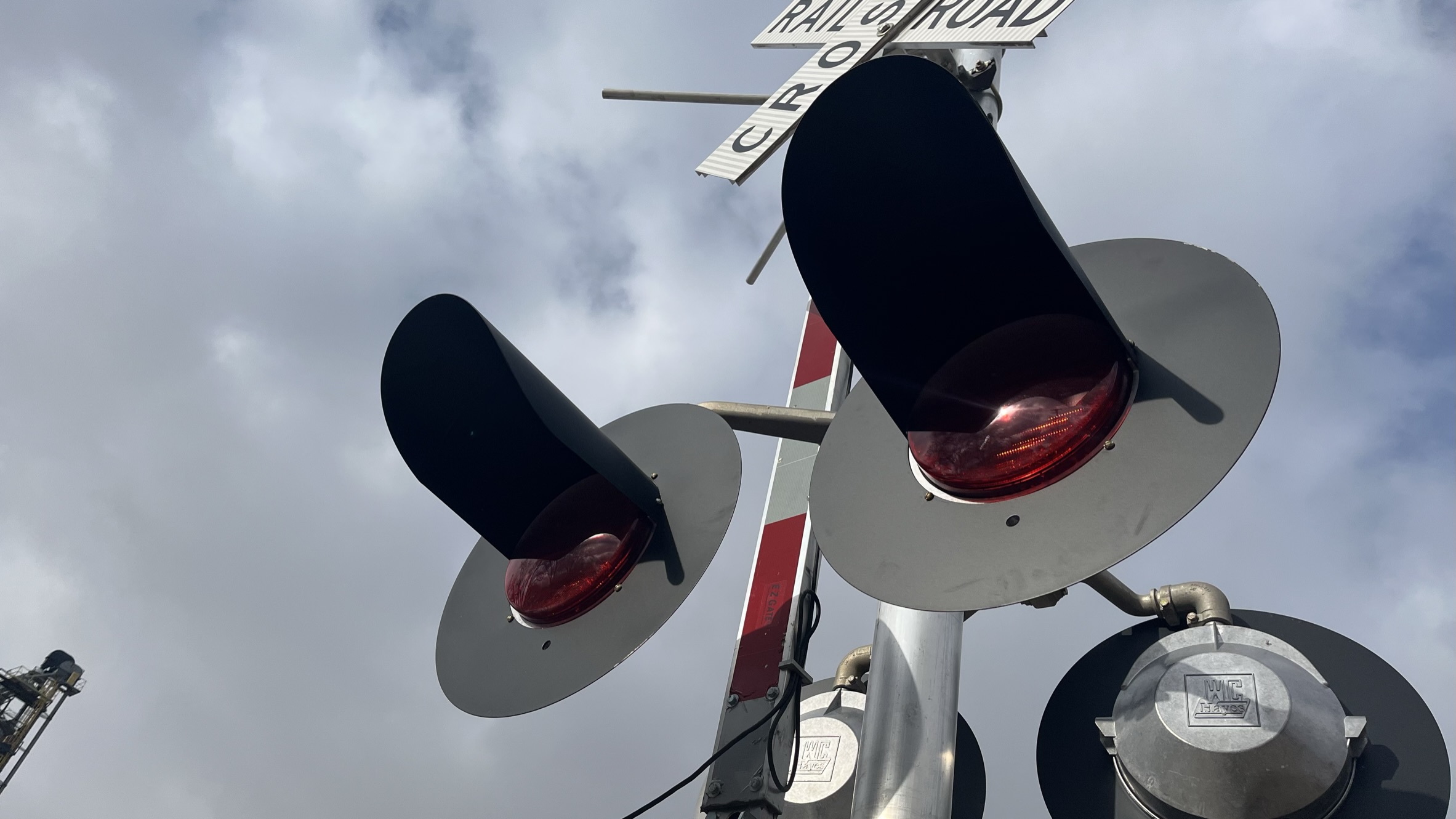

The southern signal.
14 15
 16
The relay case in the southwest quadrant. Track view facing east towards Henry St. Track view facing west towards York Ave.

A return visit by Tommy McGowan in November 2023 shows no major changes have occurred to the crossing!

17 18
Overview facing north. Overview facing south.
19 20 21 22 23
24 25 26 27 28 29

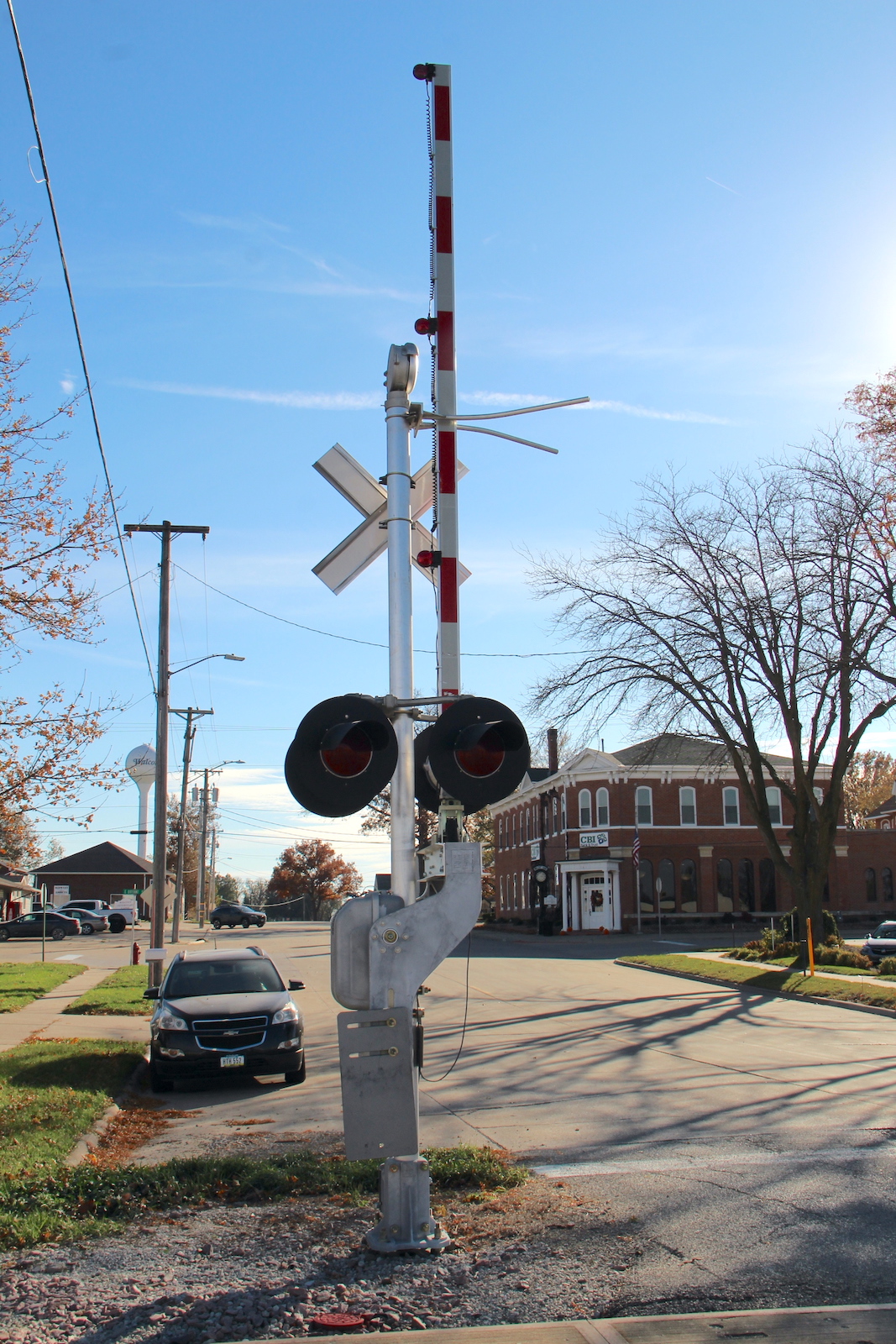

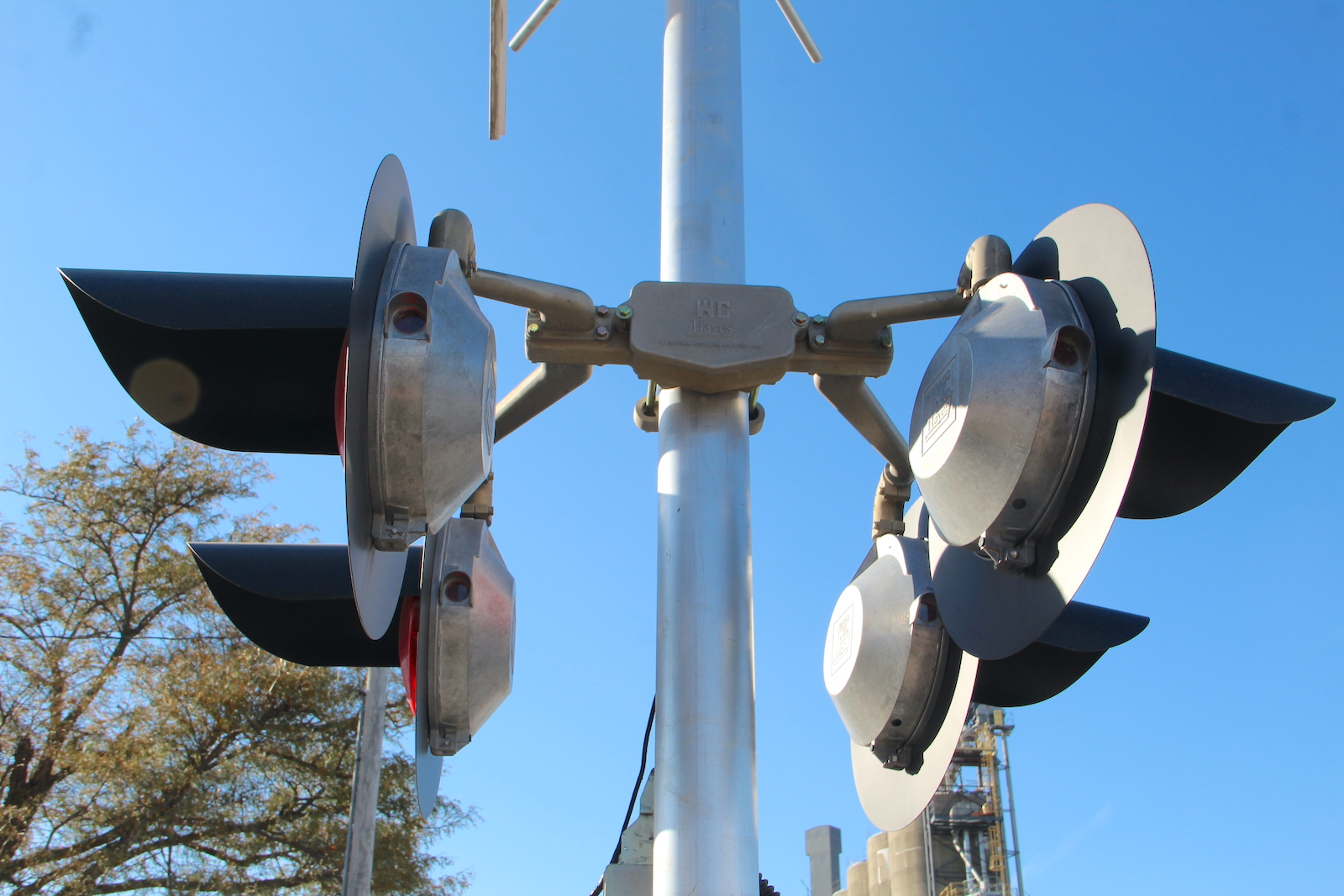

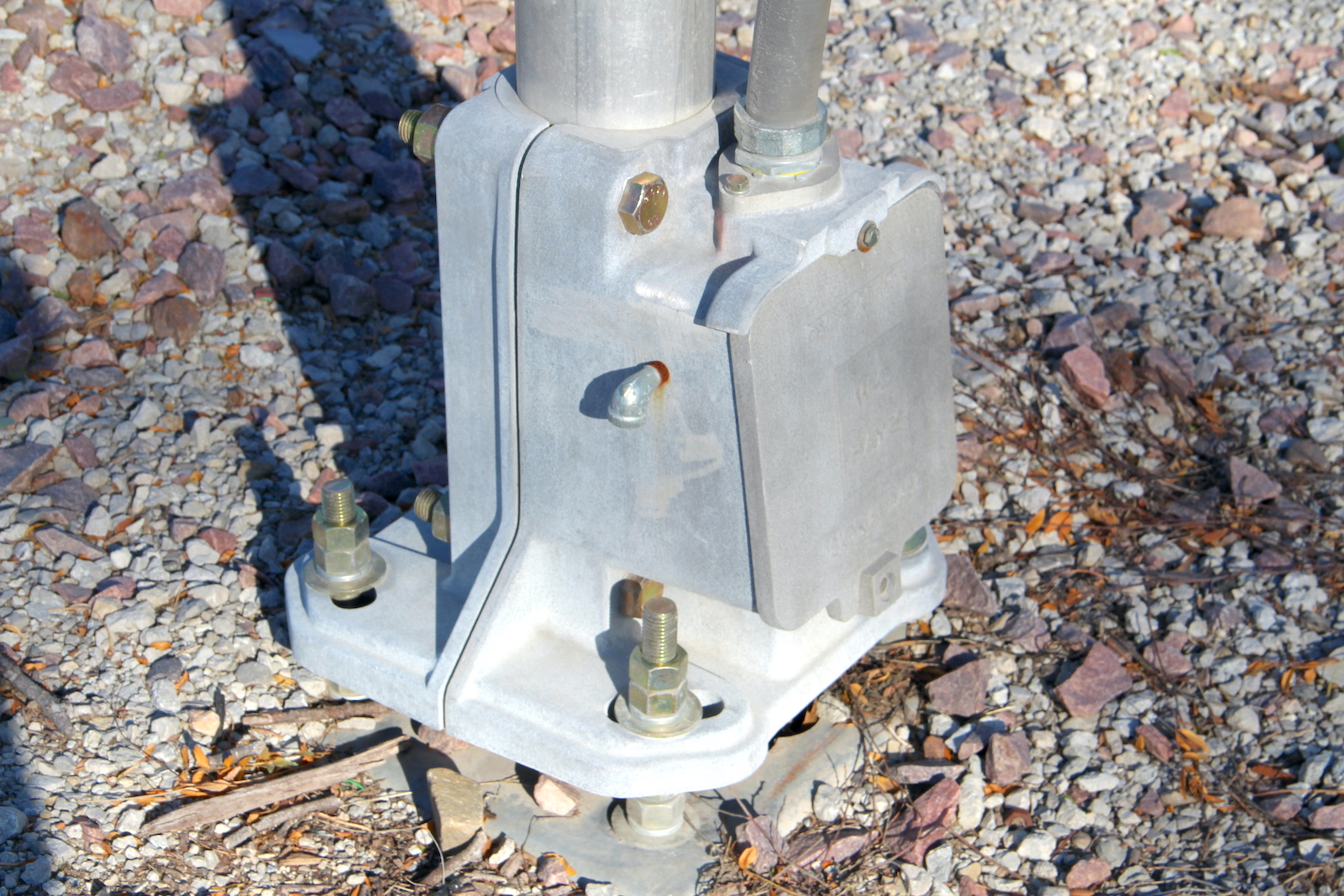

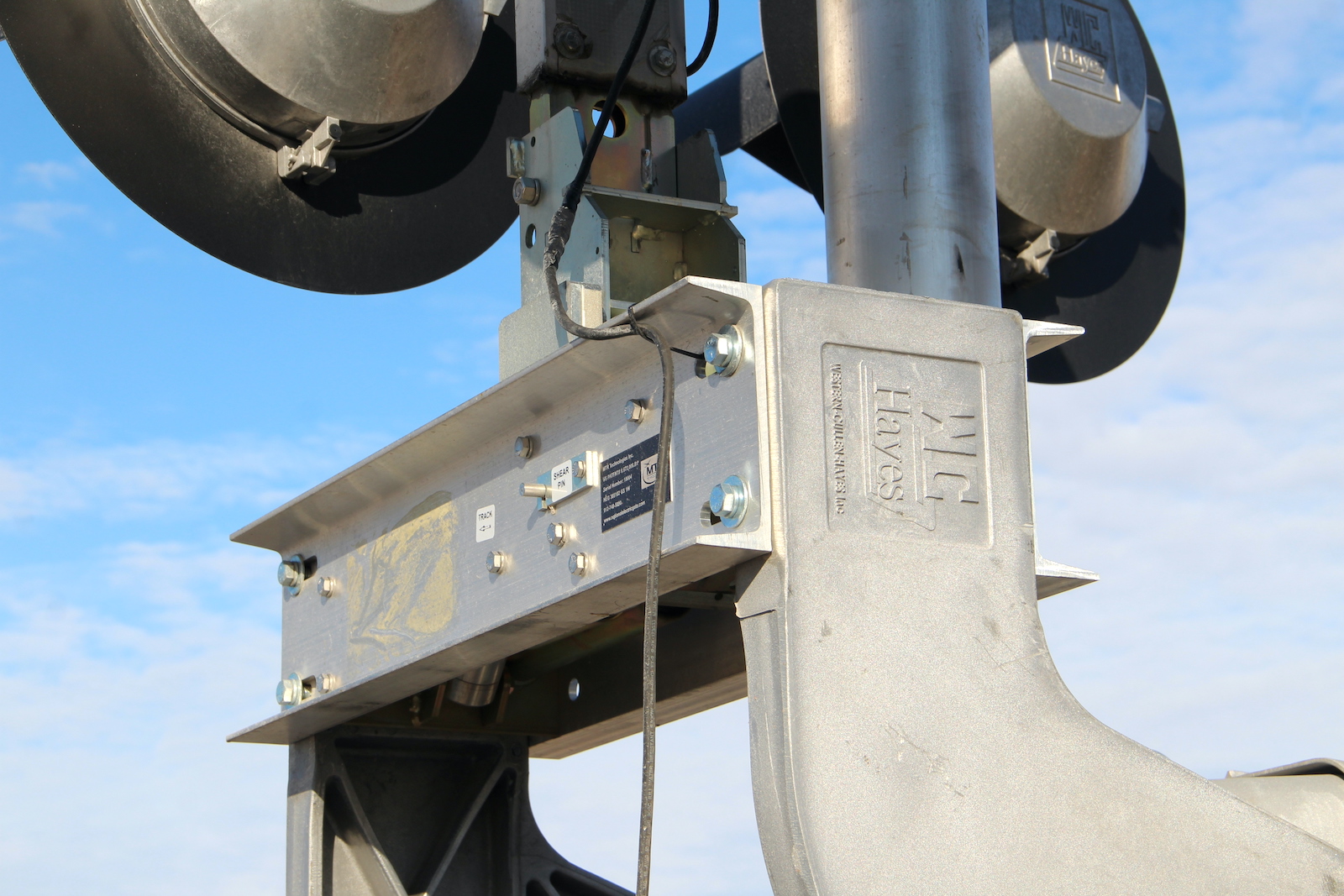

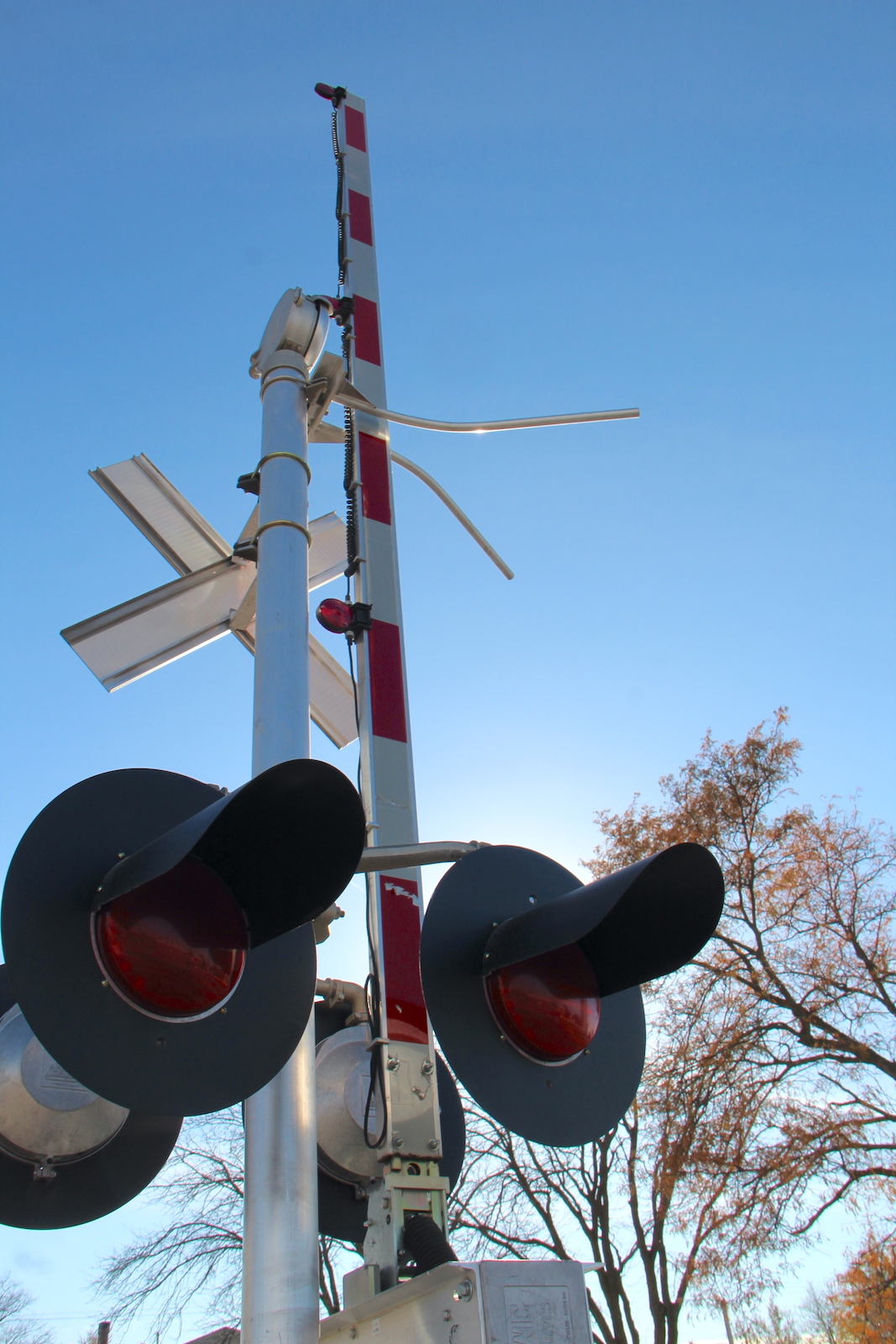

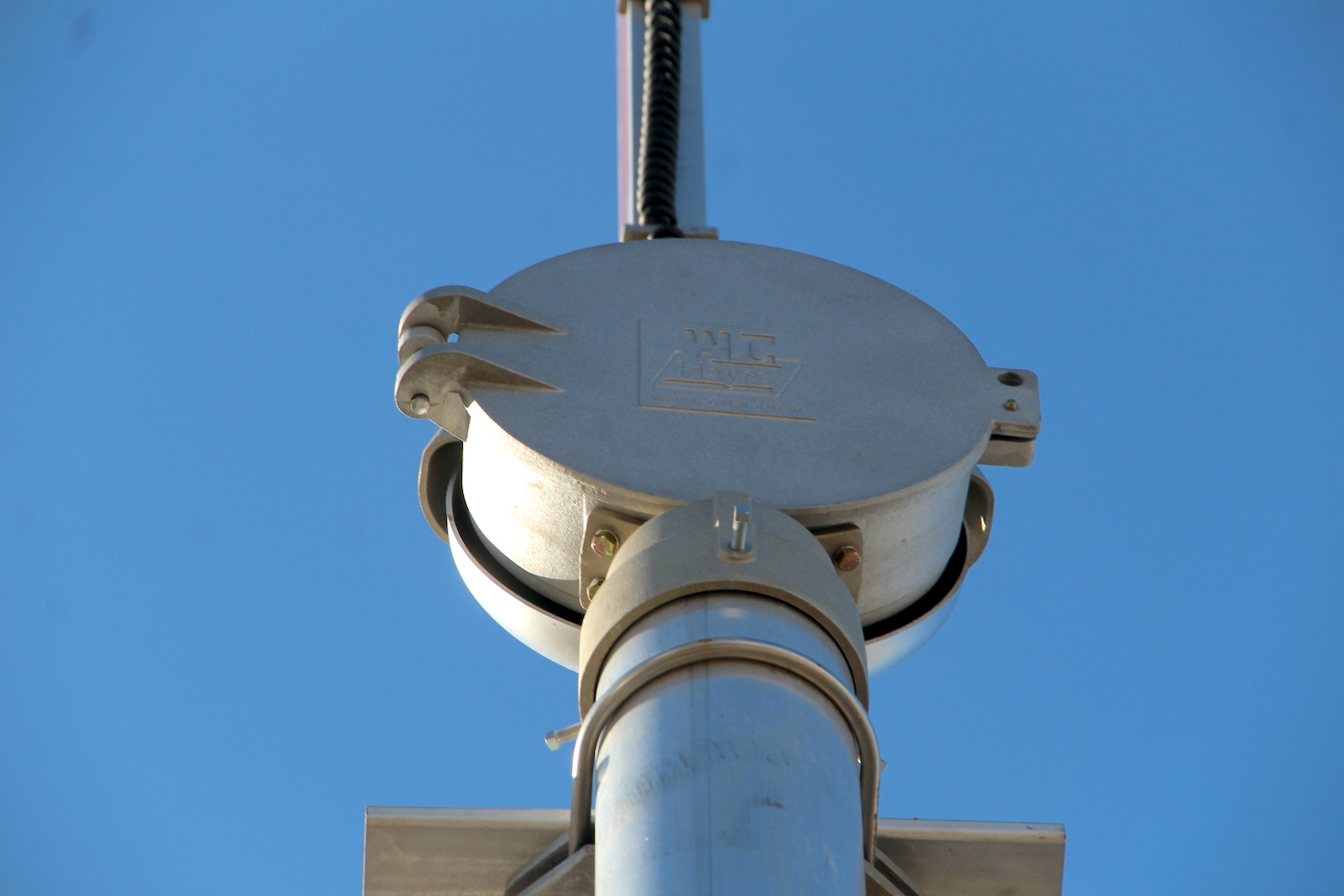

The newer southern signal.
30 31 32 33 34
35 36 37 38 39

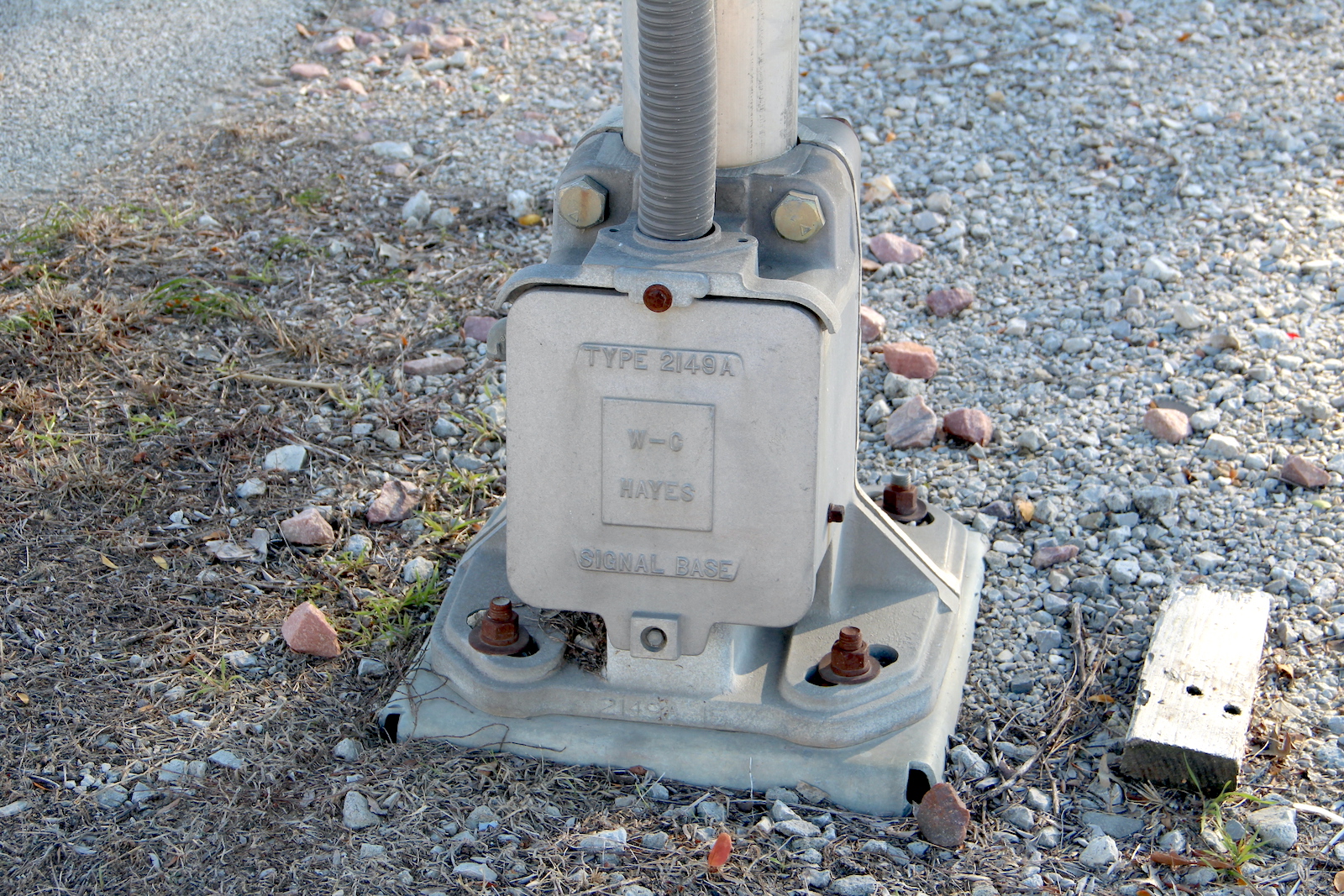

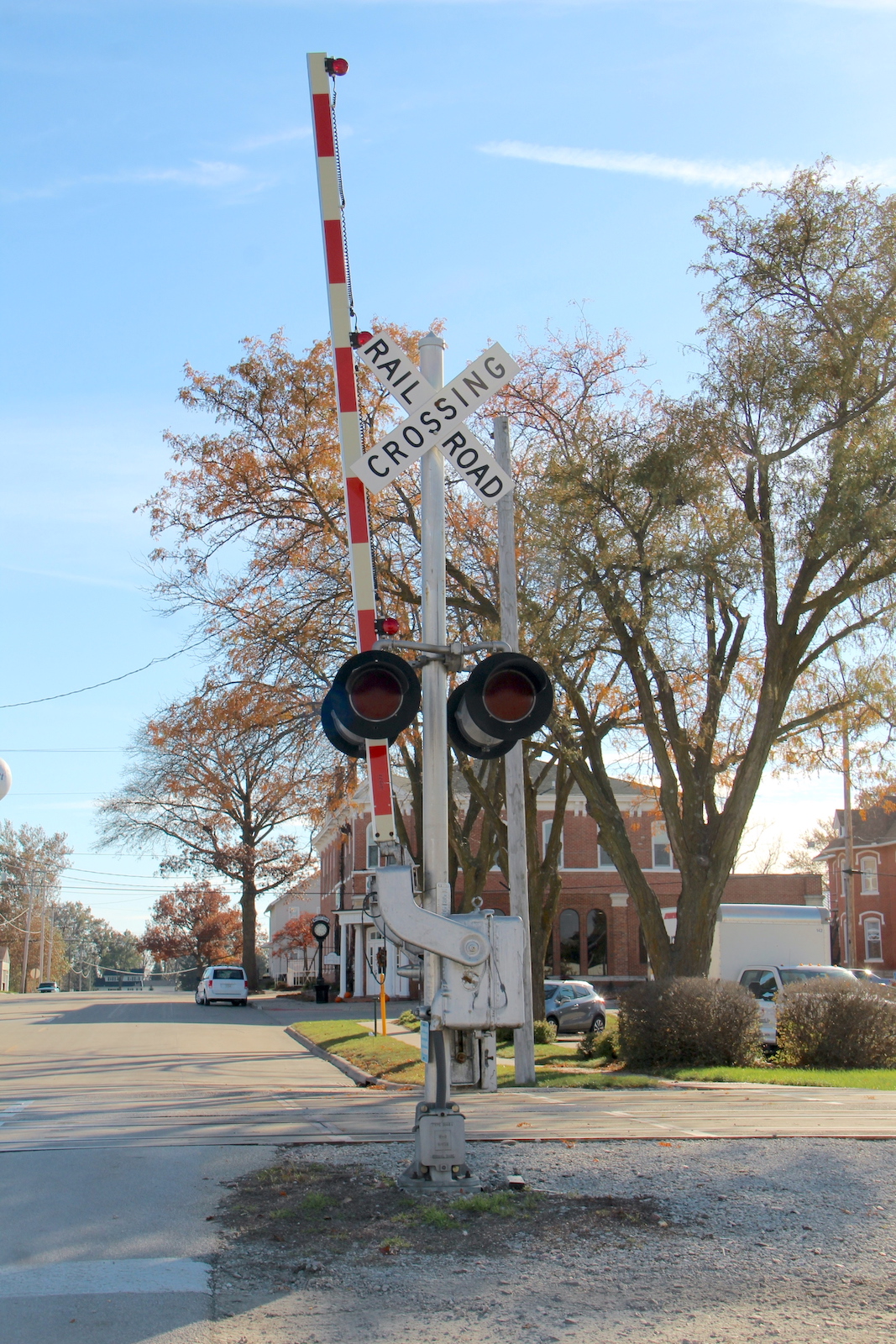

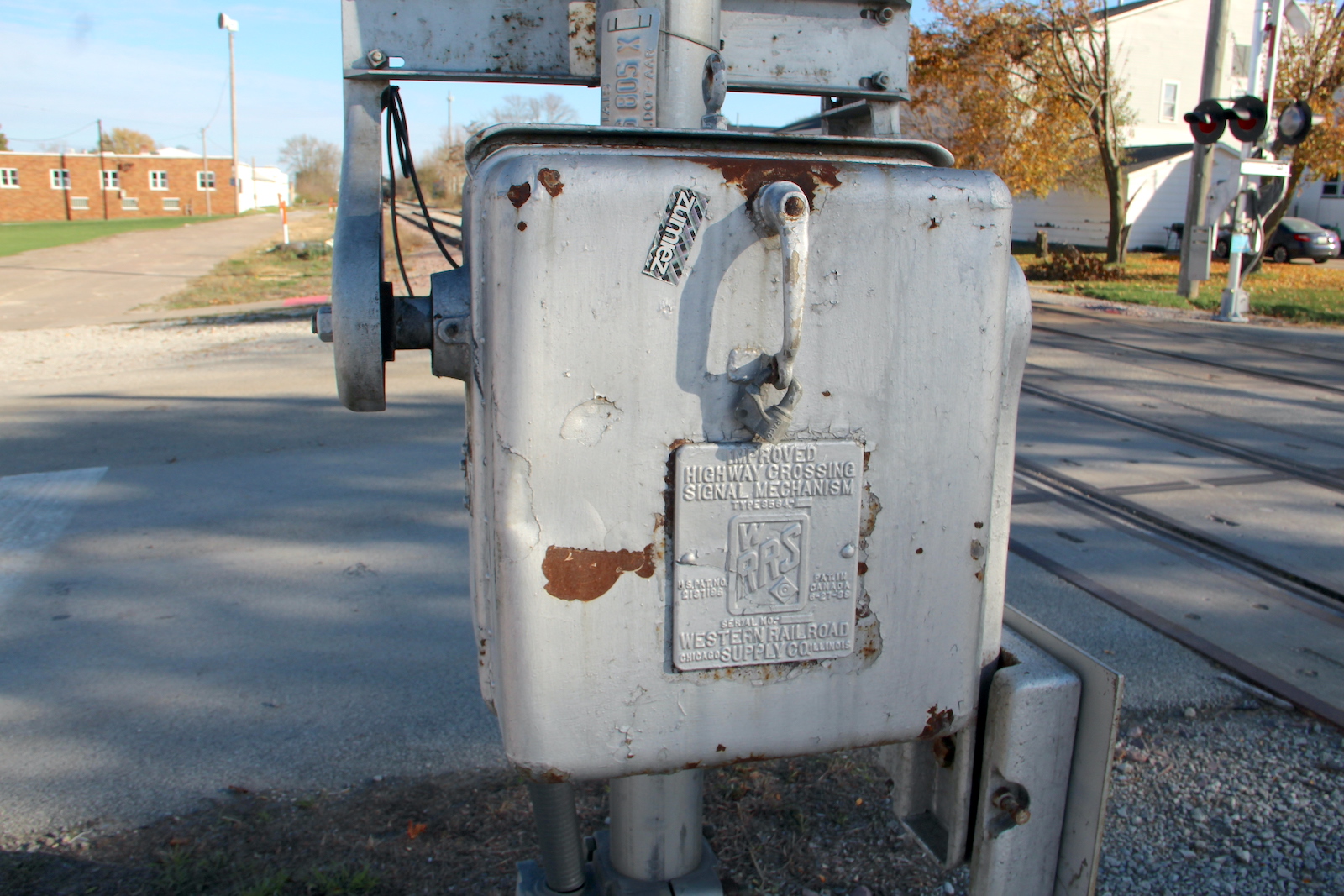

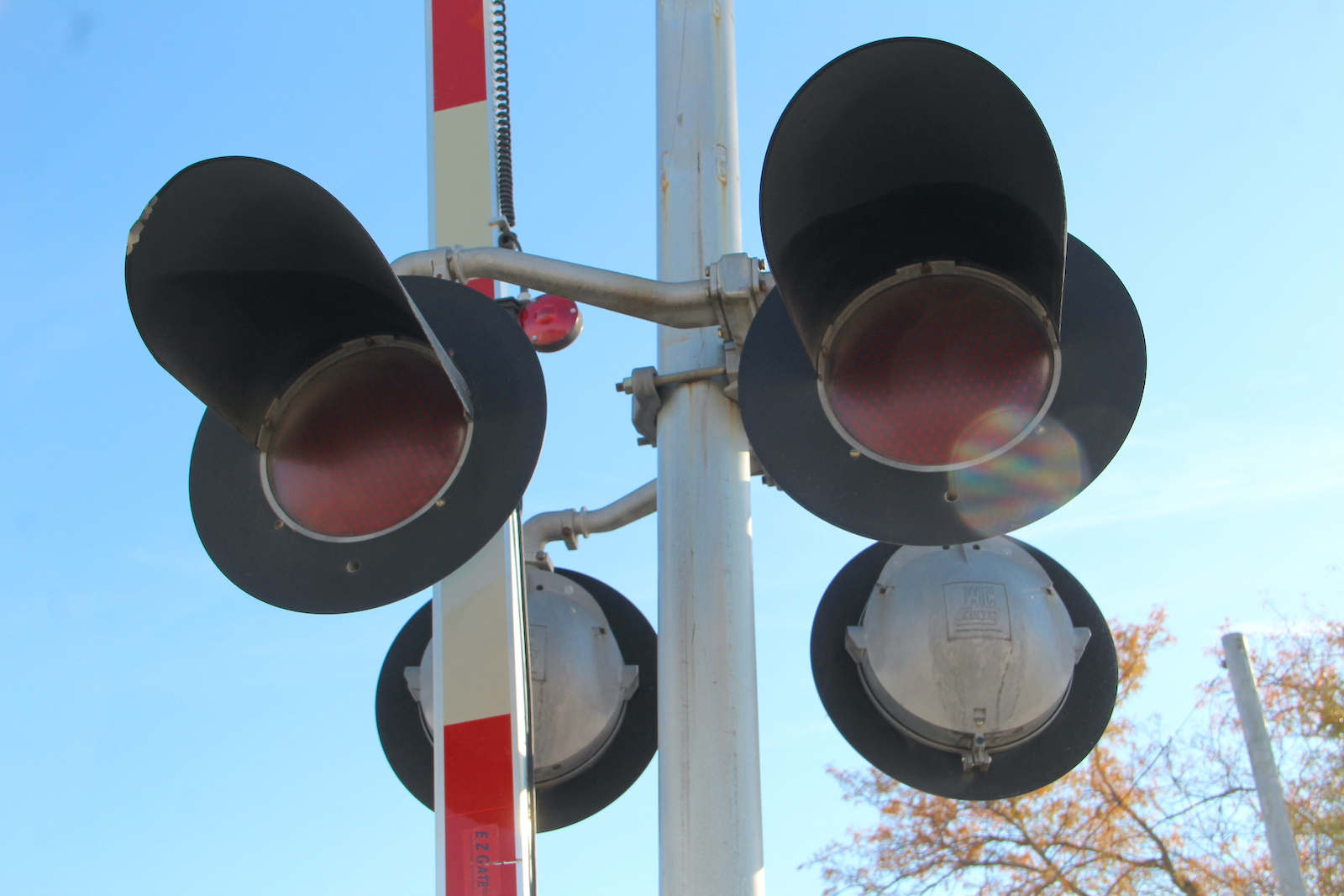

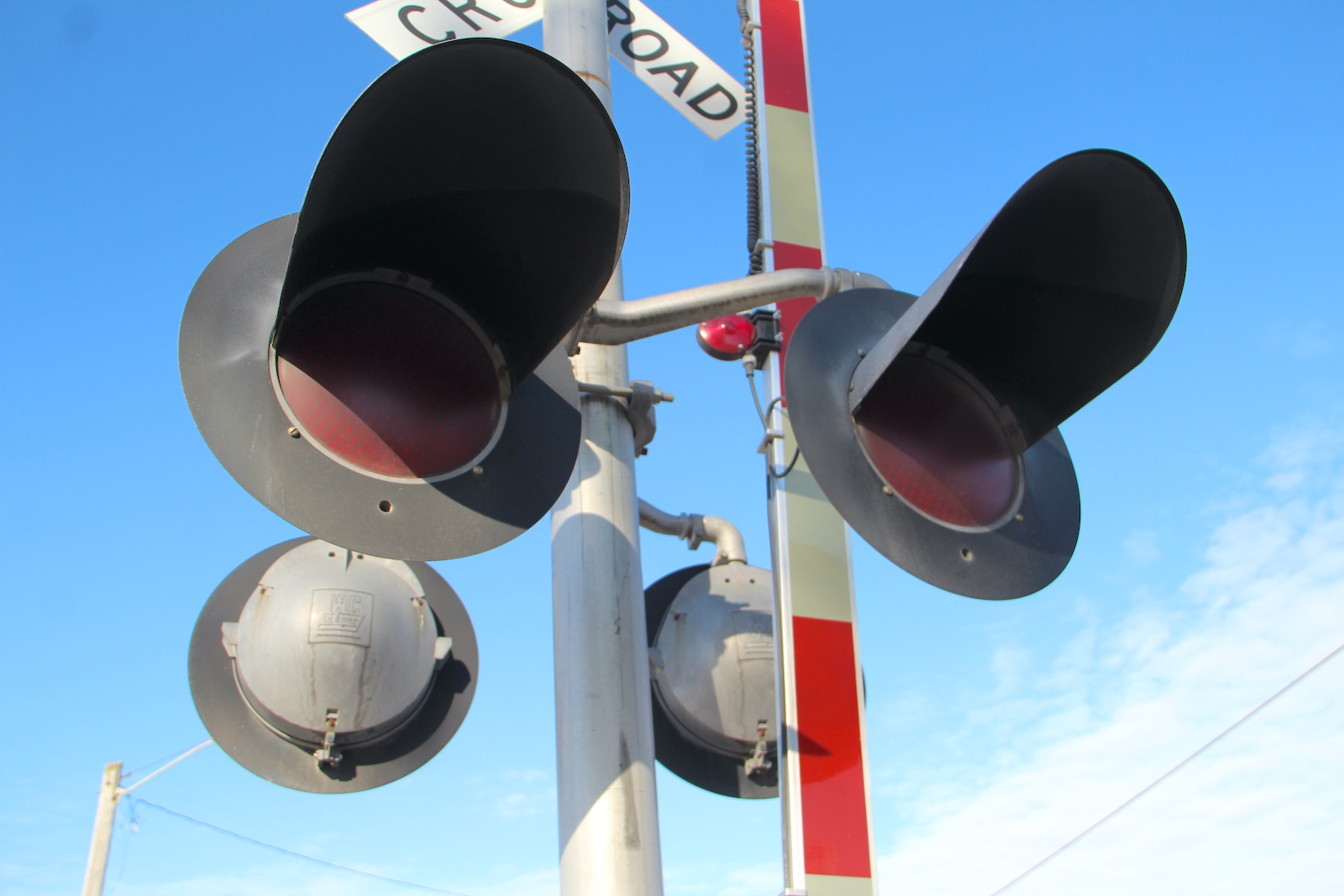

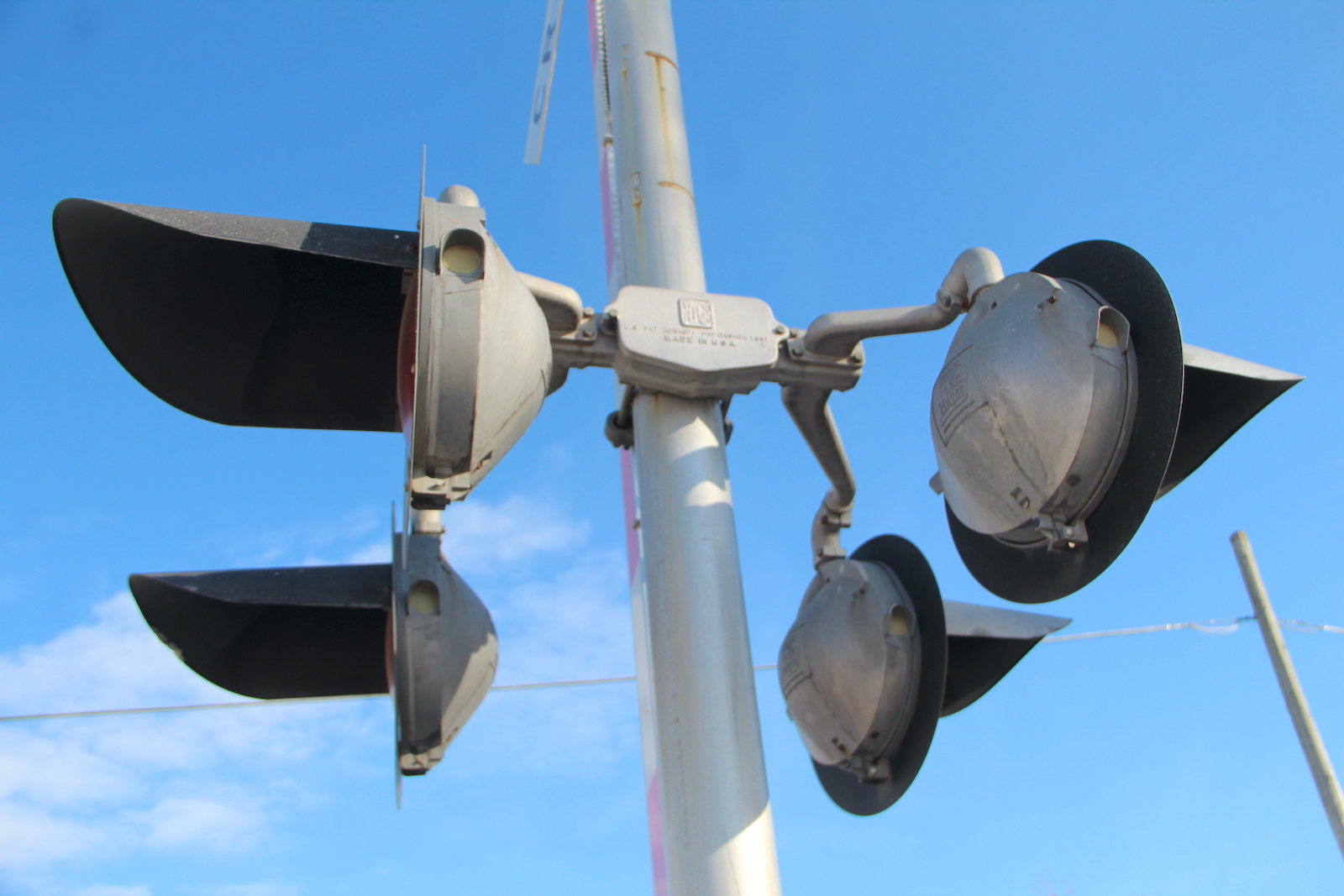

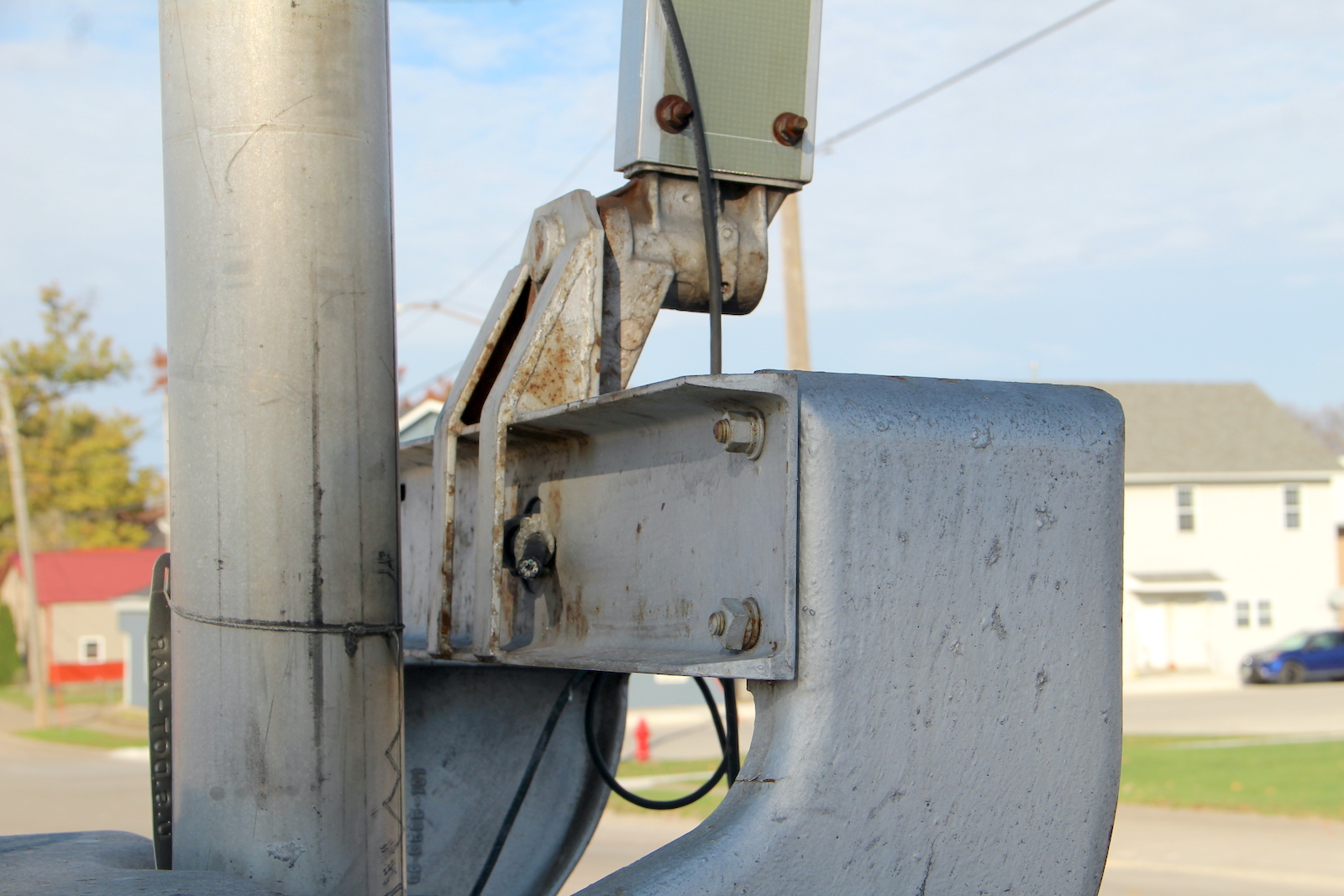

The older northern signal.
40 41 42 43

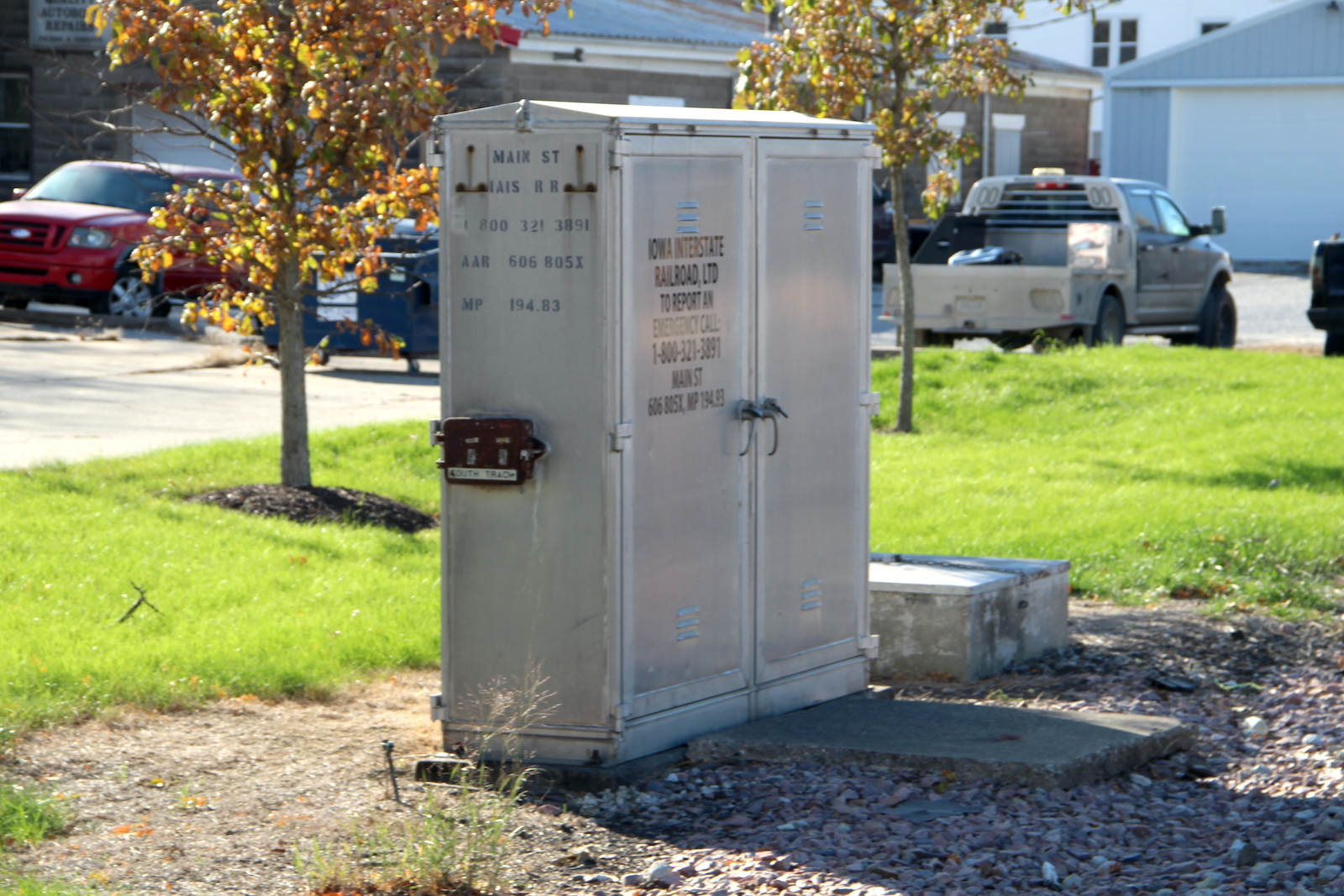

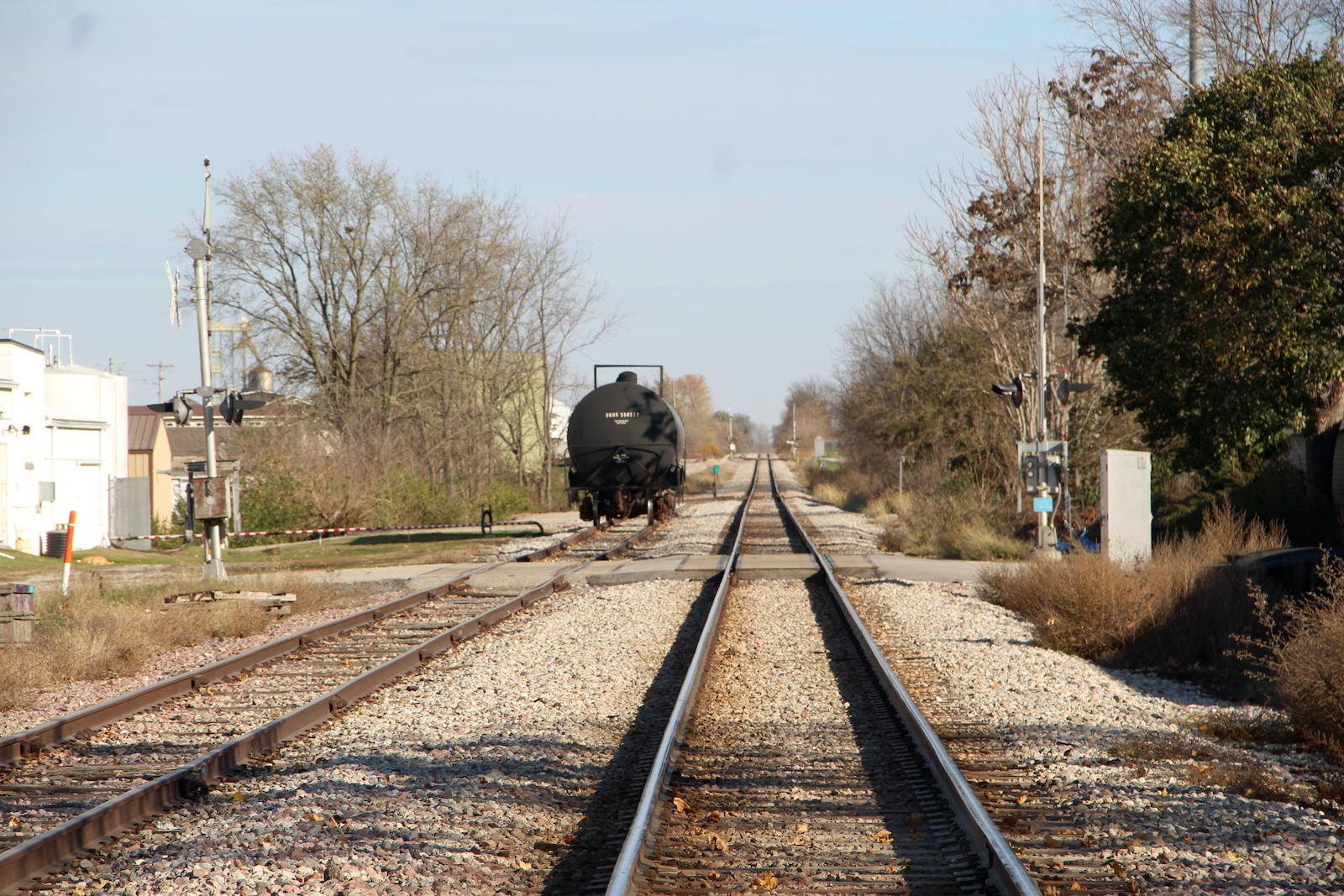

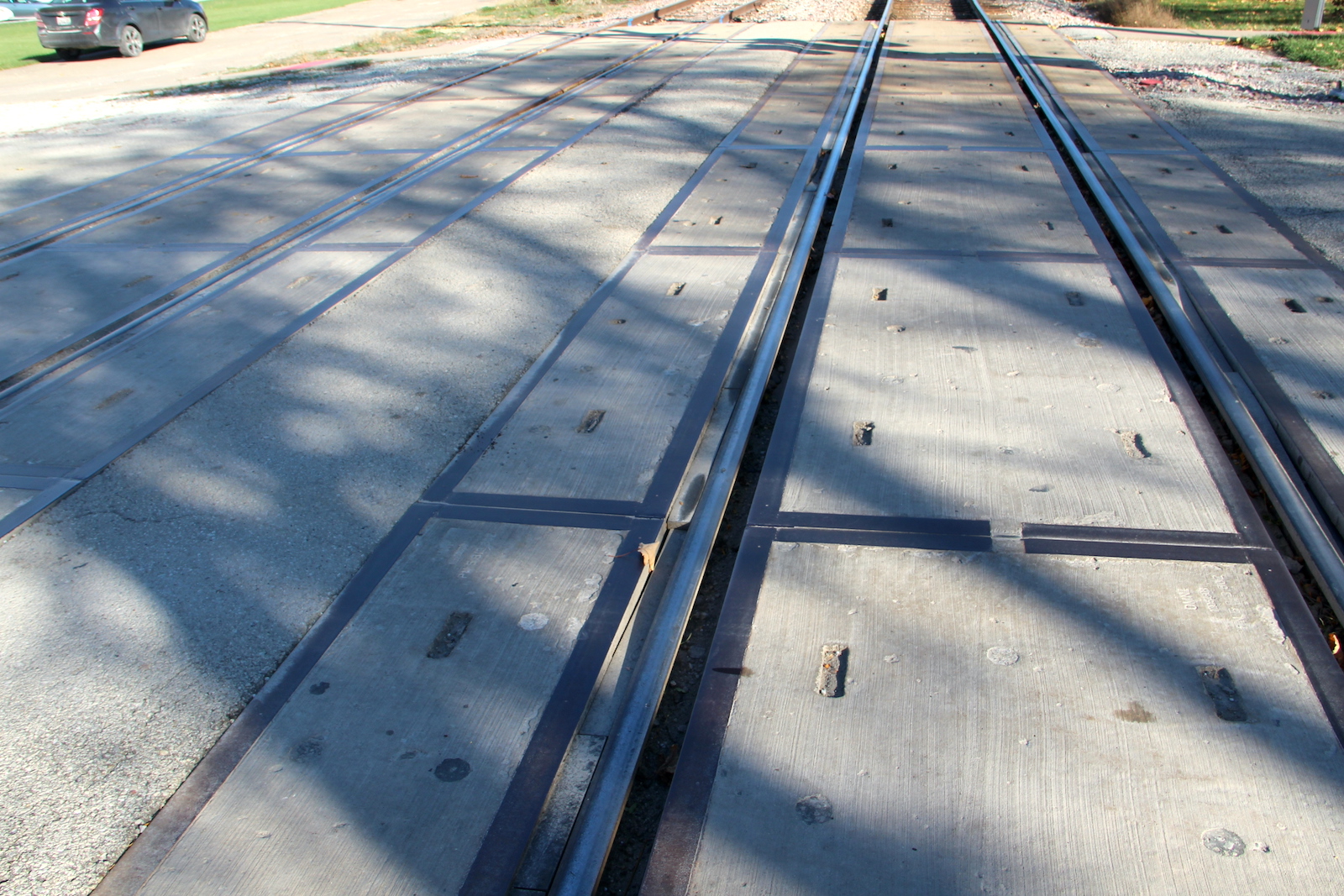

The relay case in the southwest quadrant. The grade is all concrete. Track view facing west towards York Ave. Track view facing east towards Henry St.
