215th St. (Bucyrus, KS)

>>>>>>>>>>>>>>	*Eastern Signal*	*Western Signal*
Bell:	GS E-Bell	GS E-Bell
Base:	WCH 5" Single Sided	WCH 5" Single Sided
Light Brackets:	WRRS	WRRS
Lights:	6 - 12"x20" WCH incandescents	5 - 12"x20" WCH incandescents 1 - 12"x20" Safetran incandescent
Gate Lights:	3 - NEG Clear LEDs	3 - NEG Clear LEDs
Gate Mechanism:	WCH Style 3.5	WCH Style 3.5
Gate Striping:	Vertical Striping	Vertical Striping

Pictures 1-42 were taken on December 7, 2024, by KCMO Railfan.
This crossing is located on the UP Coffeyville Subdivision.
Page created by KCMO Railfan (using HopenRXRTools 1.3.0).

1	2
Overview facing east.	Overview facing west.

The western signal:
3	4	5

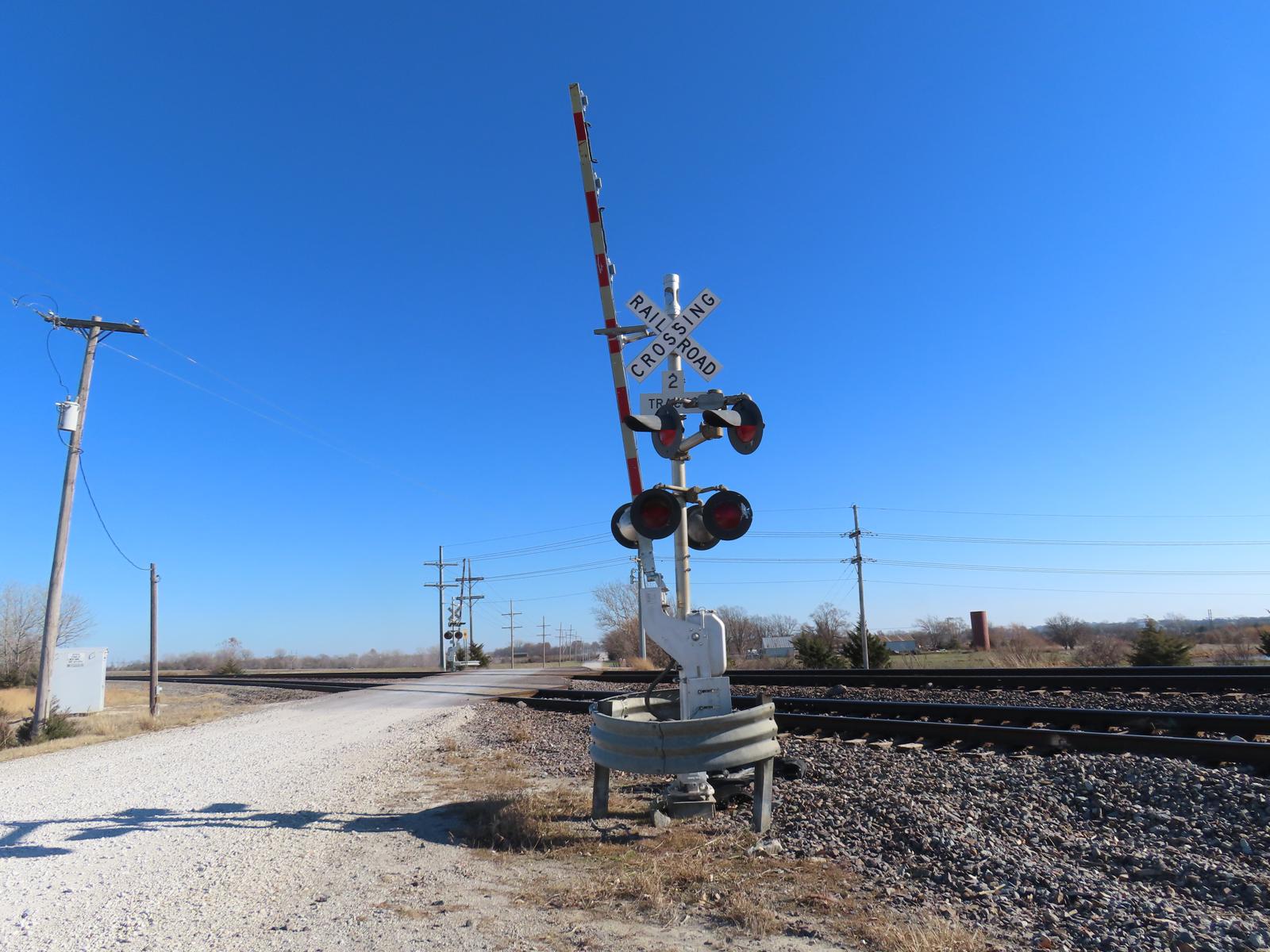

Front view of the western signal.	A look at the front, and side lights on the western signal.	The main lights on the western signal are two pairs of 12x20 incandescent lights! This is a rare site to see on a UP line as most of the crossings on this line have had LED upgrades done in the early 2010s.

6	7	8	9

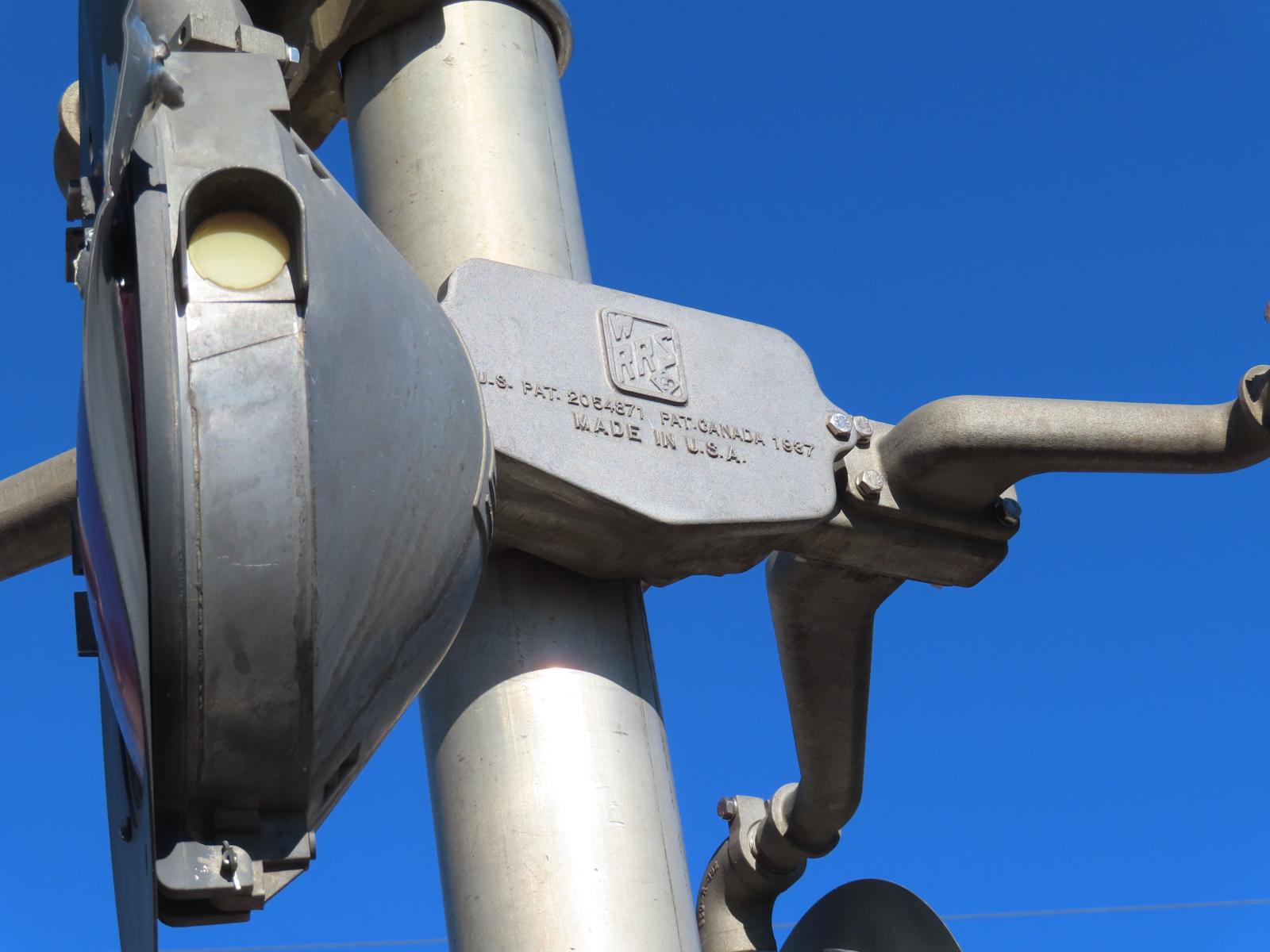

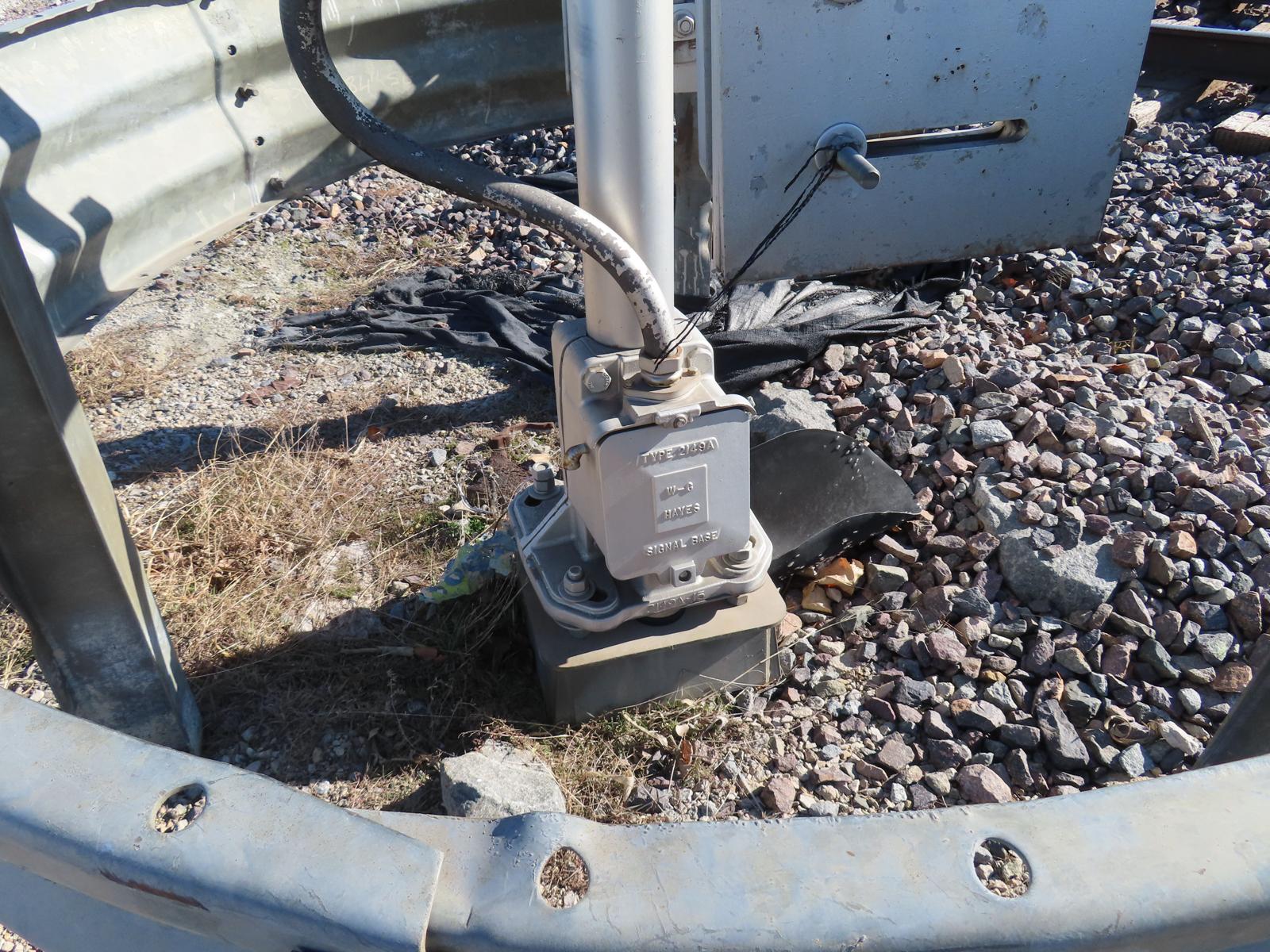

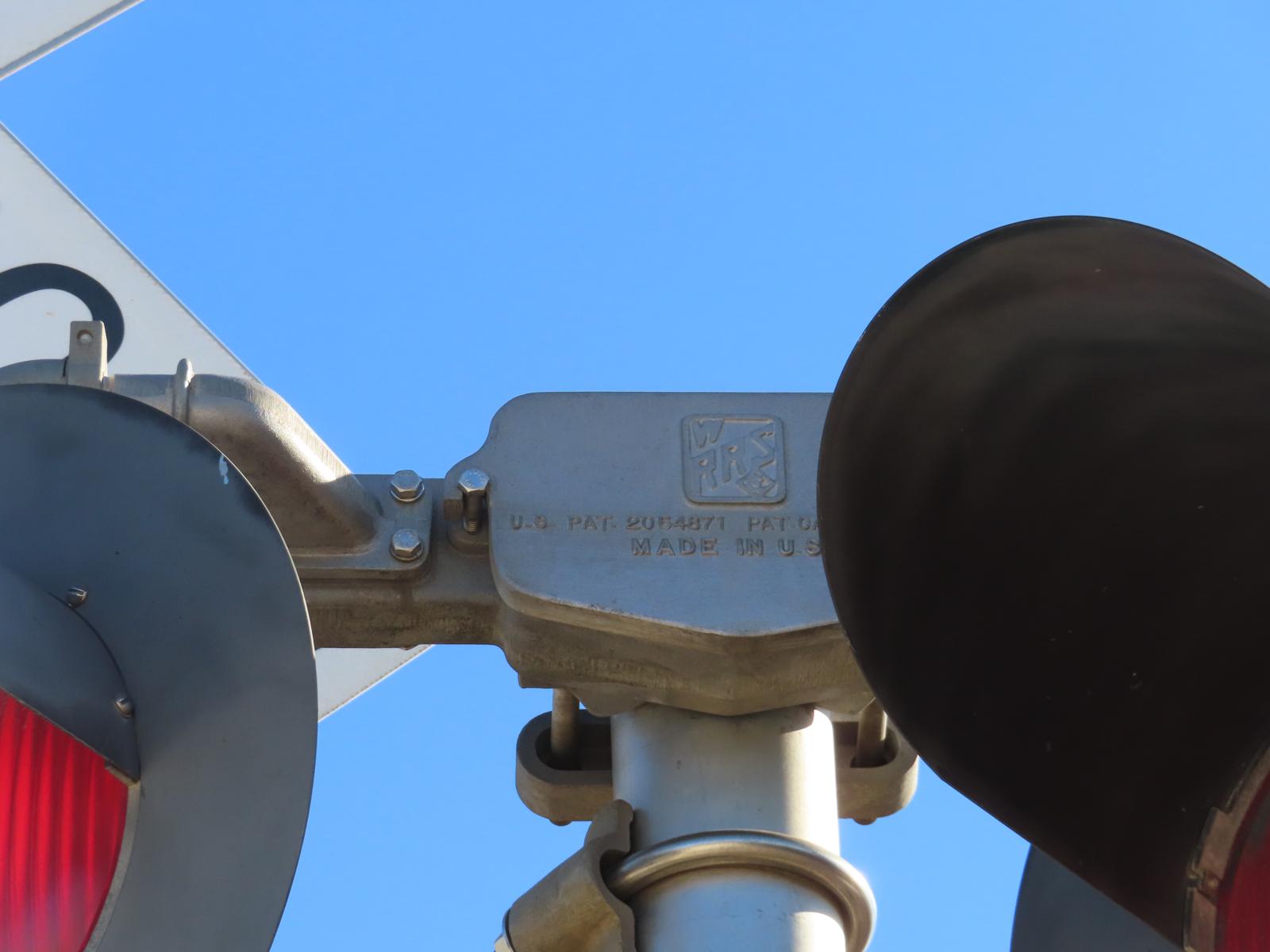

The side lights on the western signal feature another pair of 12x20 incandesent lights These lights are for southbound traffic approaching the crossing on Antioch Rd.	The light bracket for the side lights is from WRRS.	The signal base on the western signal is from WCH.	The light bracket for the main lights on the western signal is also from WRRS.

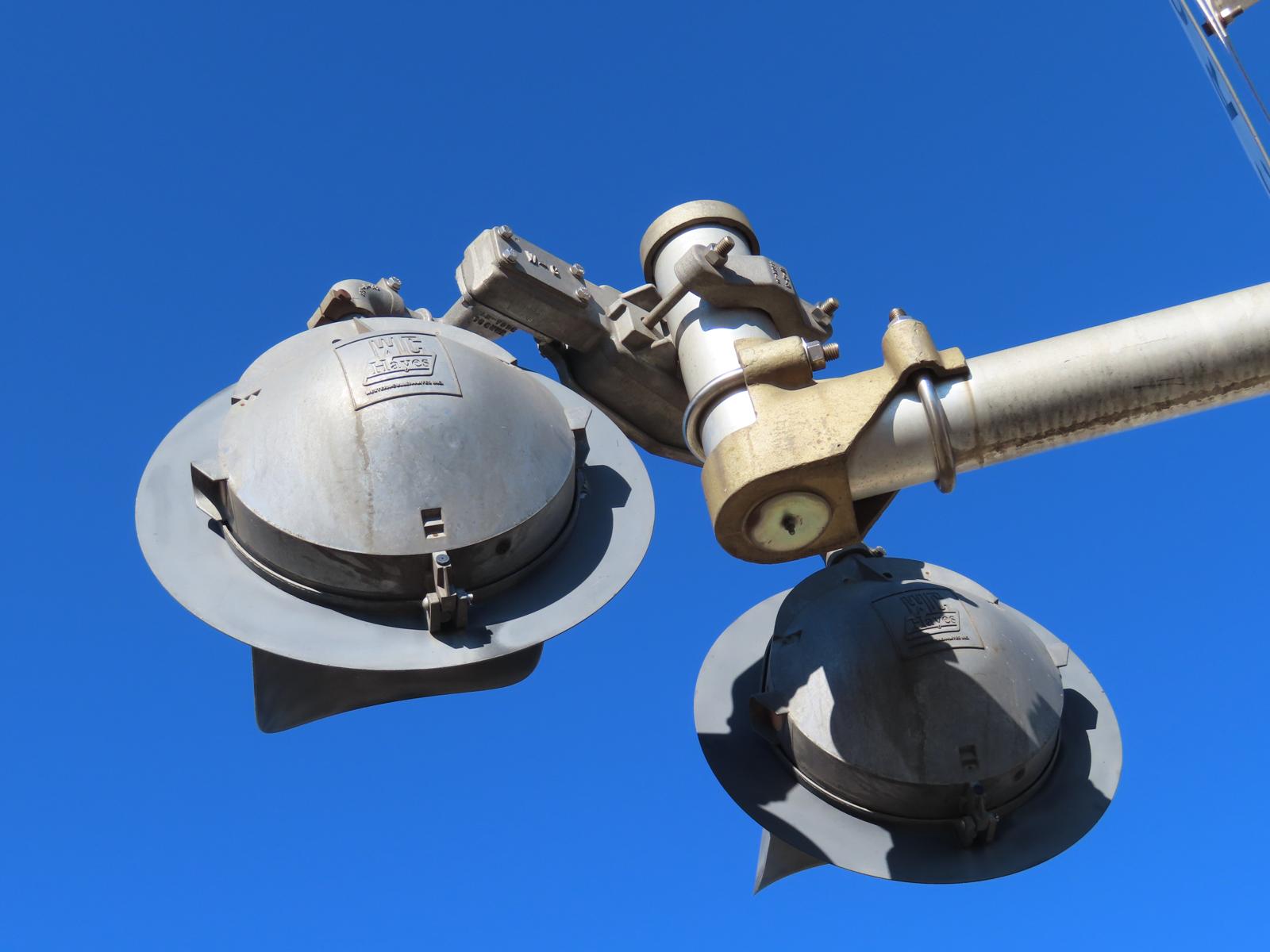

10	11	12	13

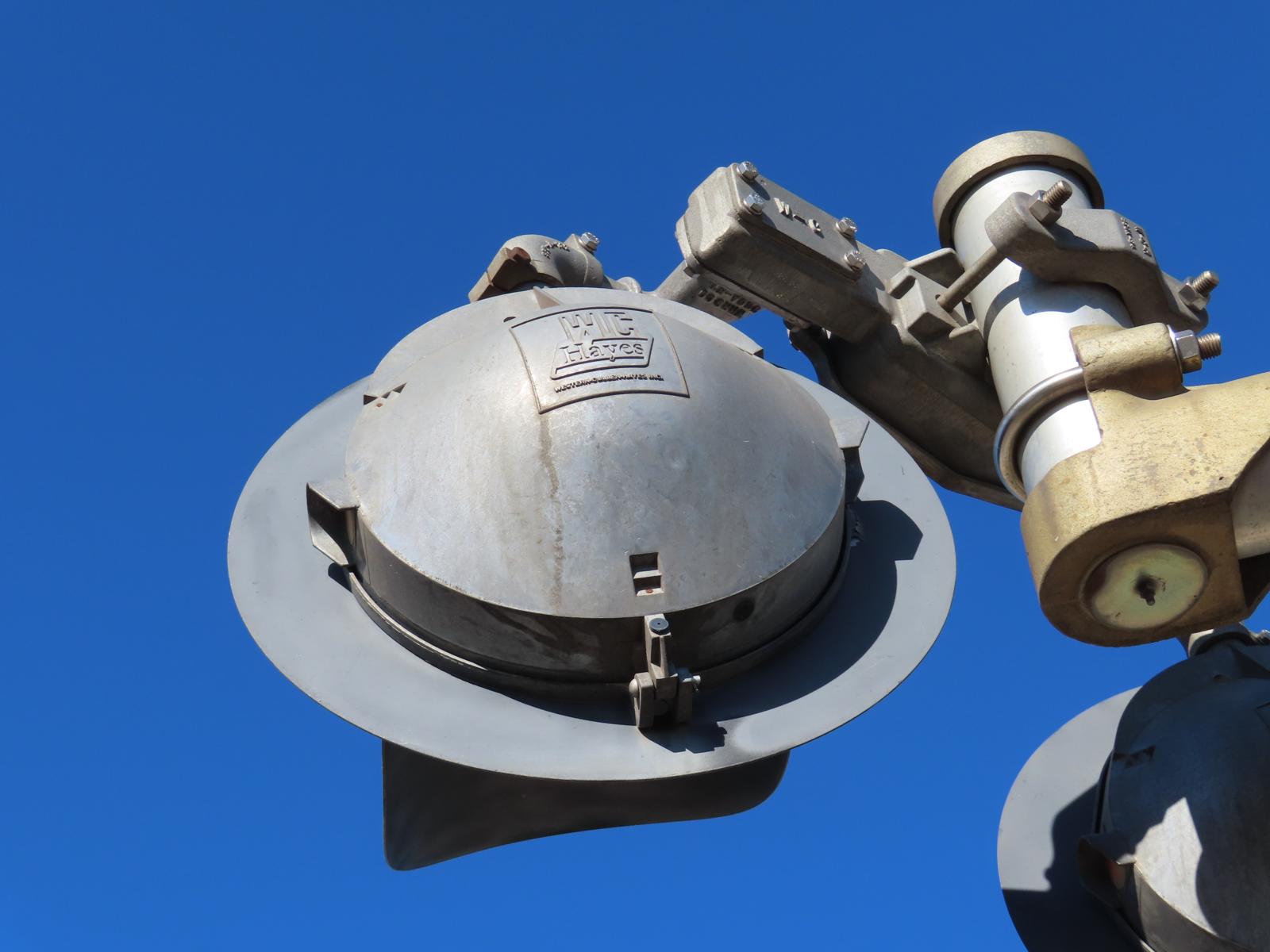

The side lights on the western signal are from WCH.	Close up at one of the WCH lights on one of the side lights on the western signal.	We find that the rear lights are a mixture of WCH, and Safetran 12x20 lights while the front lights features a pair of WCH 12x20s.	Close up at one of the WCH lights on the main pairs of lights on the western signal.

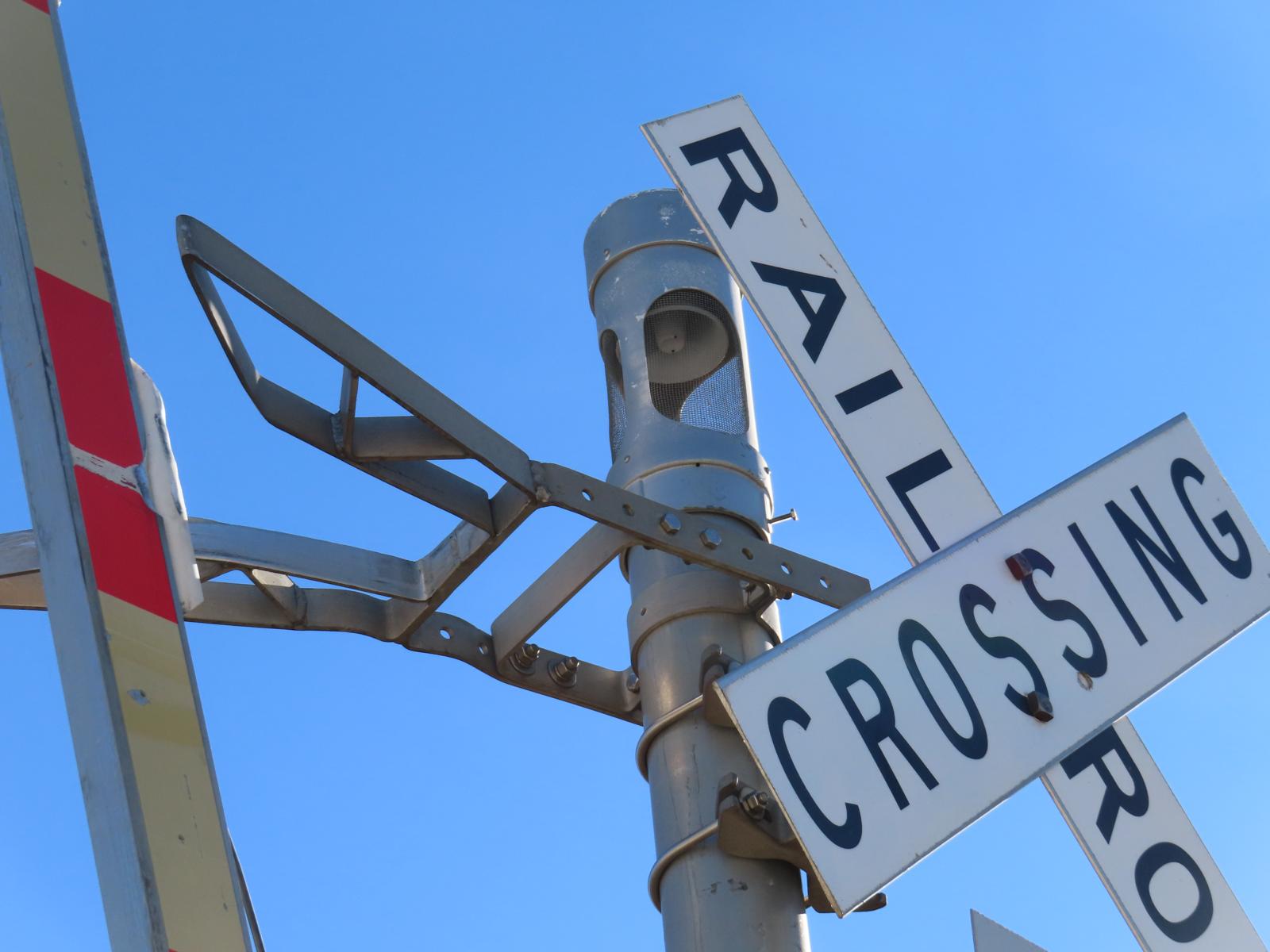

14	15	16	17

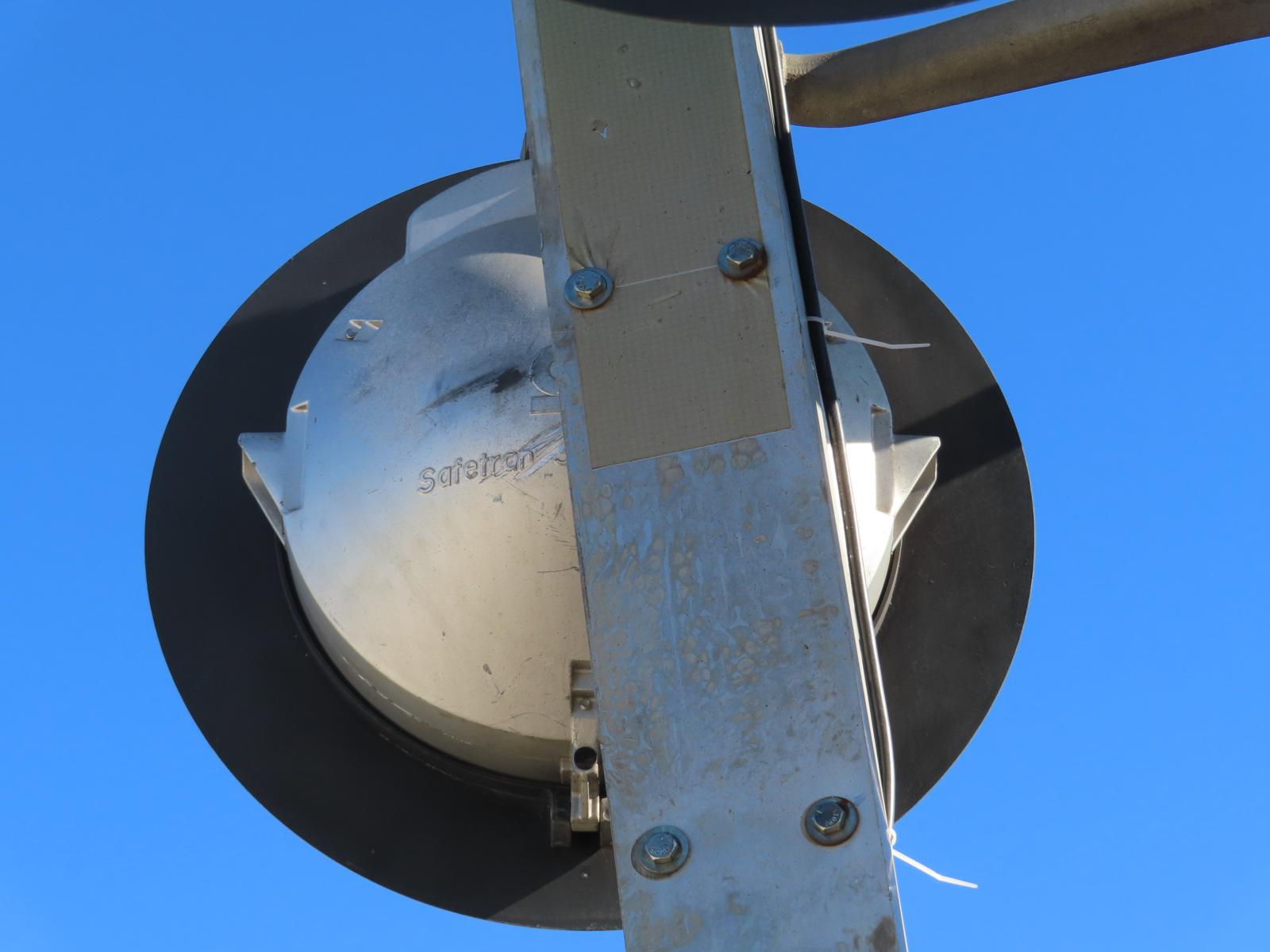

Close up at the Safetran light on the western signal.	For some odd reason, the ENS sign on the western signal is facing to the south instead of towards oncoming traffic on 215th St.	The gate mechanism on the western signal is from WCH.	The bell on the western signal is a GS Electronic Bell of an unknown type. I want to say this one's a type 2.

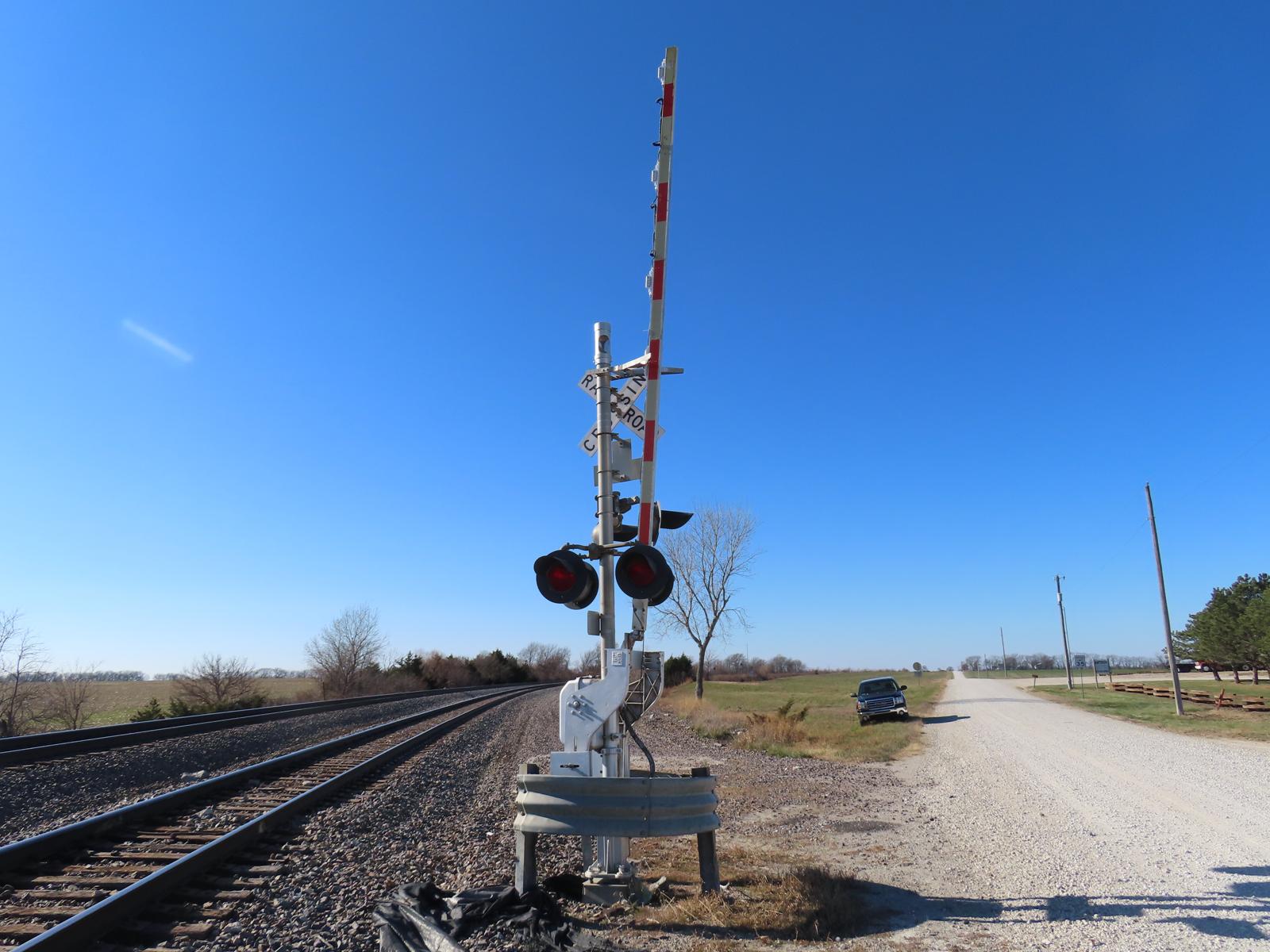

18	19	20	21

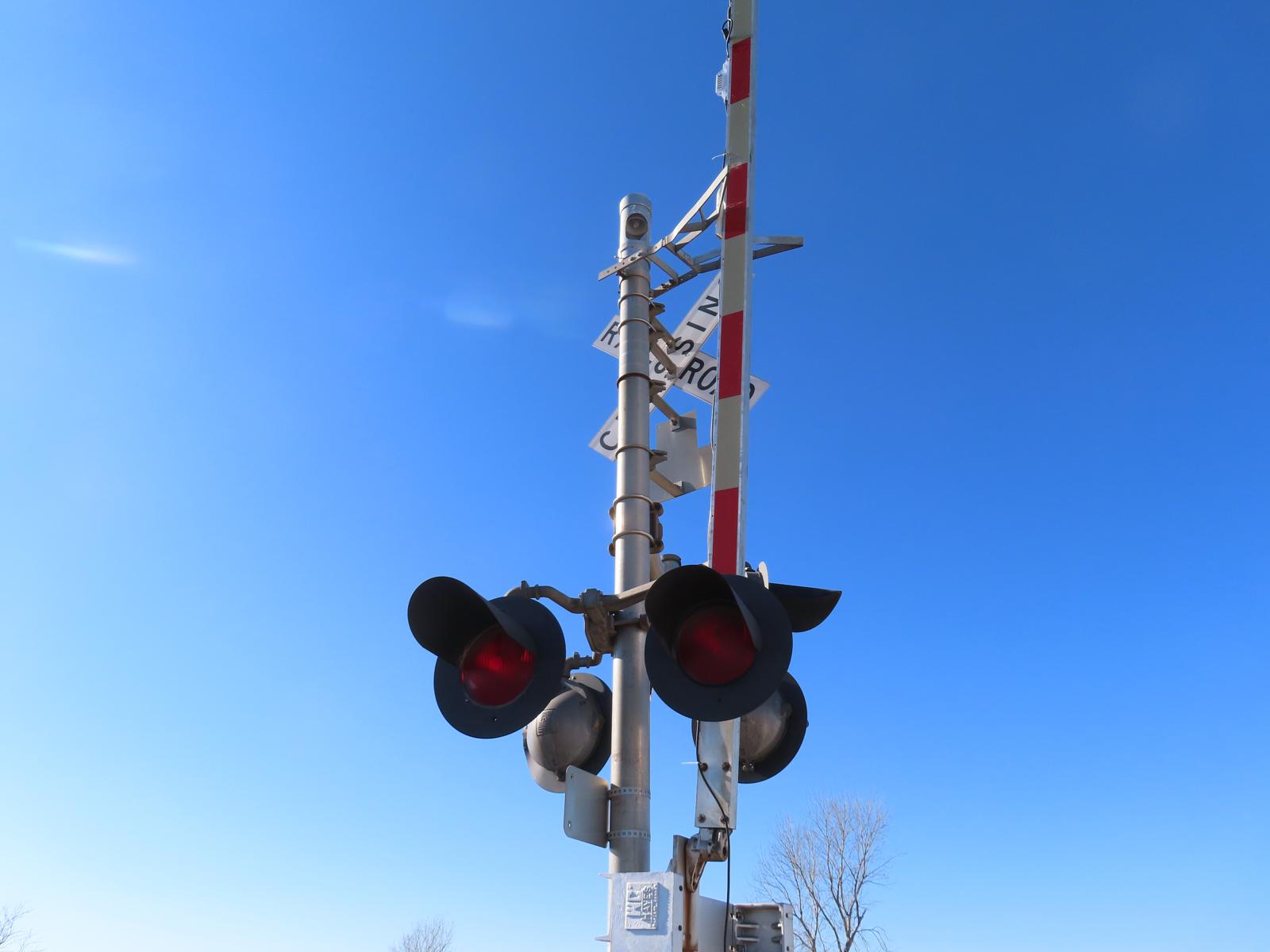

The gate on the western signal features the older vertical striping while the gate lights are from NEG.	Close up at one of the NEG Clear LEDs.	A look at the rear lights on the western signal.	Back view of the western signal.

The eastern signal:
22	23
Front view of the eastern signal which features a similar setup as the western signal.	A look at the front lights on the eastern signal.

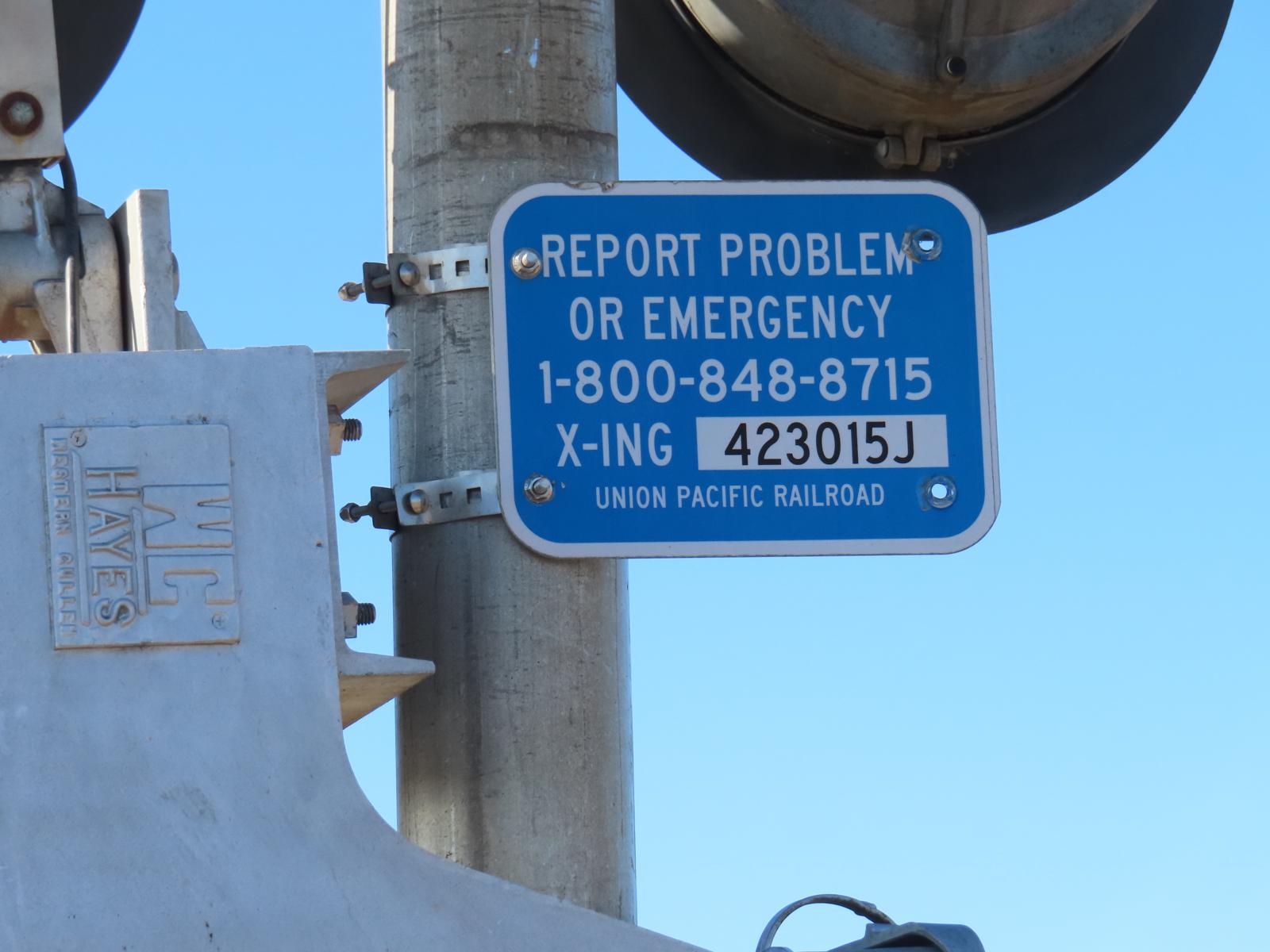

24	25	26
The main lights on the eastern signal feature two pairs of 12x20 incandescent lights which I mentioned earlier is becoming rare to find on the UP anymore!	Thankfully the ENS sign on the eastern signal is in a more normal location.	The signal base on the eastern signal is from WCH.

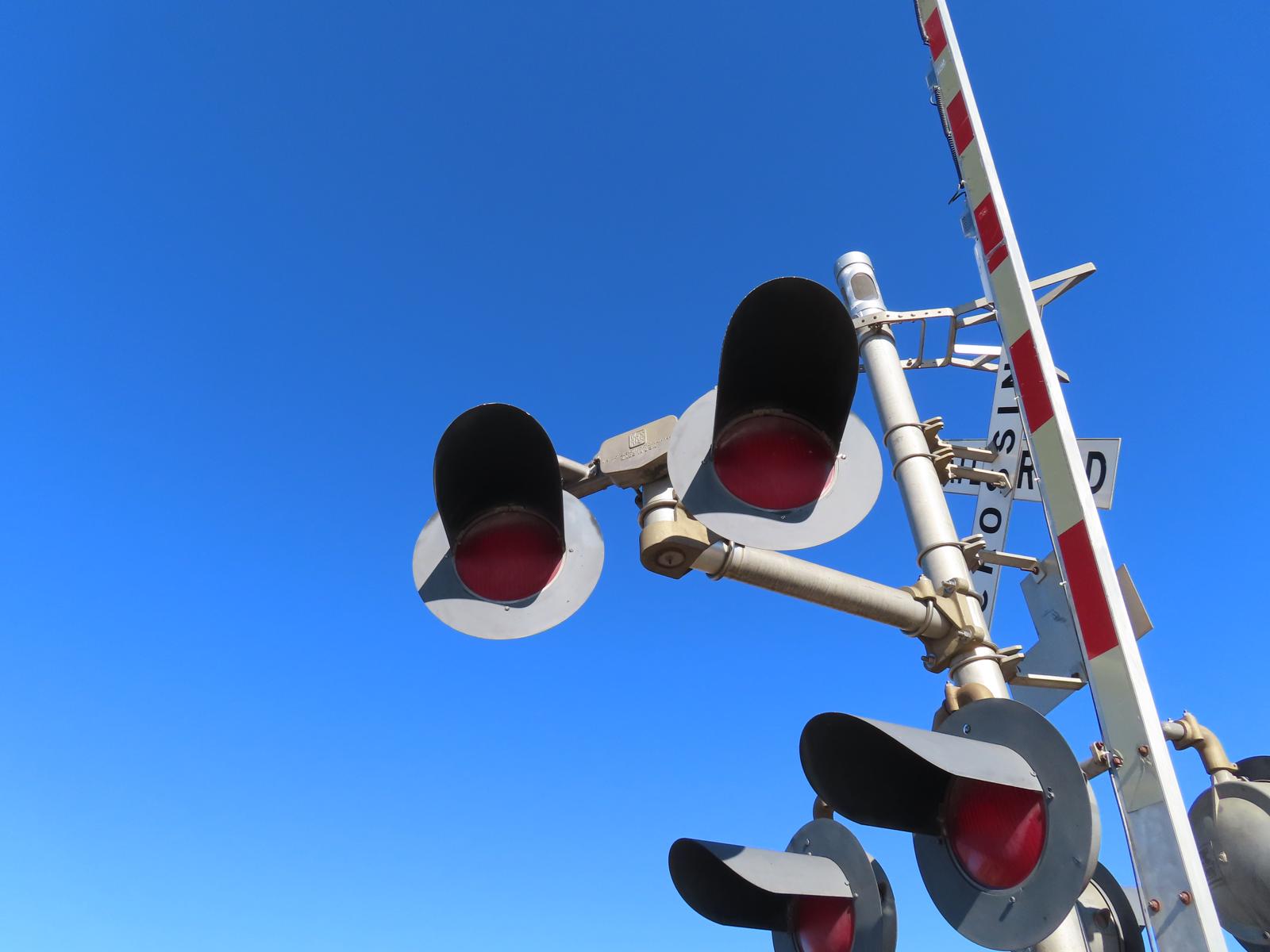

27	28	29	30

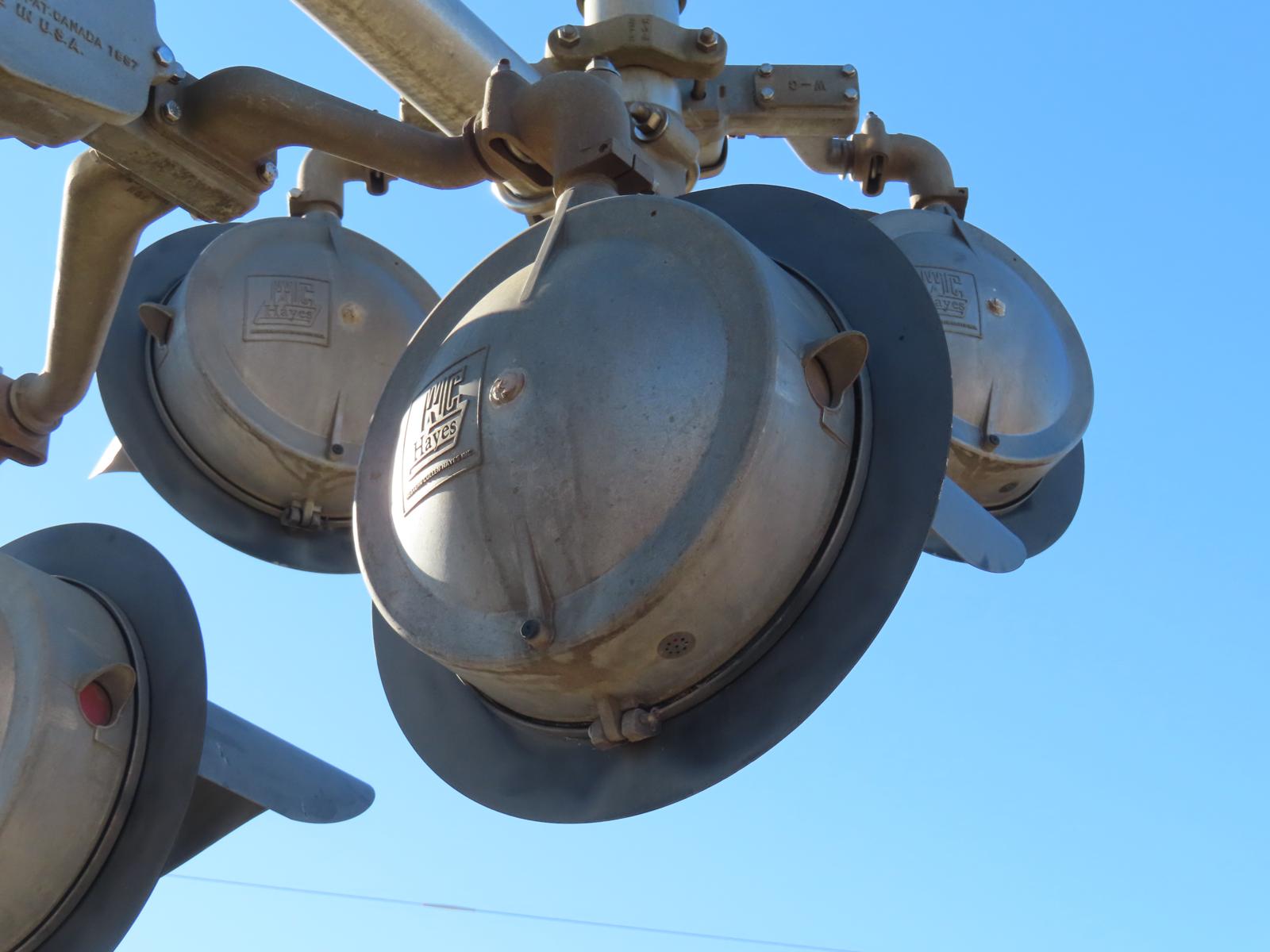

The light bracket for the main lights is from WRRS.	The main lights on the eastern signal are all from WCH.	Close up at one of the WCH lights on one of the main lights on the eastern signal.	A look at the side lights on the eastern signal.

31	32	33	34

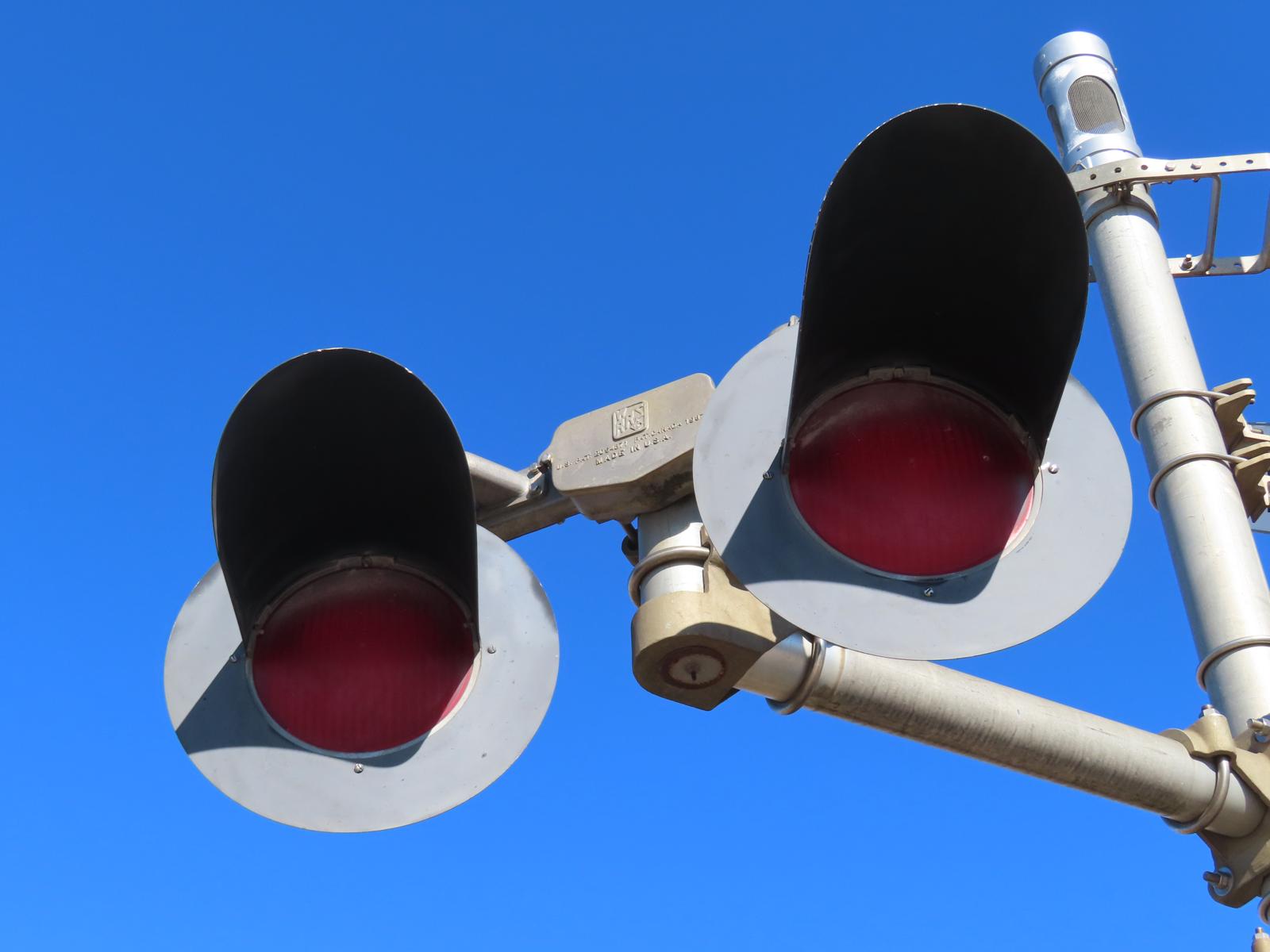

The side lights on the eastern signal feature a pair of 12x20 that thankfully retain their incandescent appearance. These lights are for northbound traffic approaching the crossing on Antioch Rd.	The light bracket for the side lights is from WRRS as well.	The gate mechanism on the eastern signal is from WCH.	The bell on the eastern signal is a GS Electronic Bell. I want to say this one's a type 2 as well.

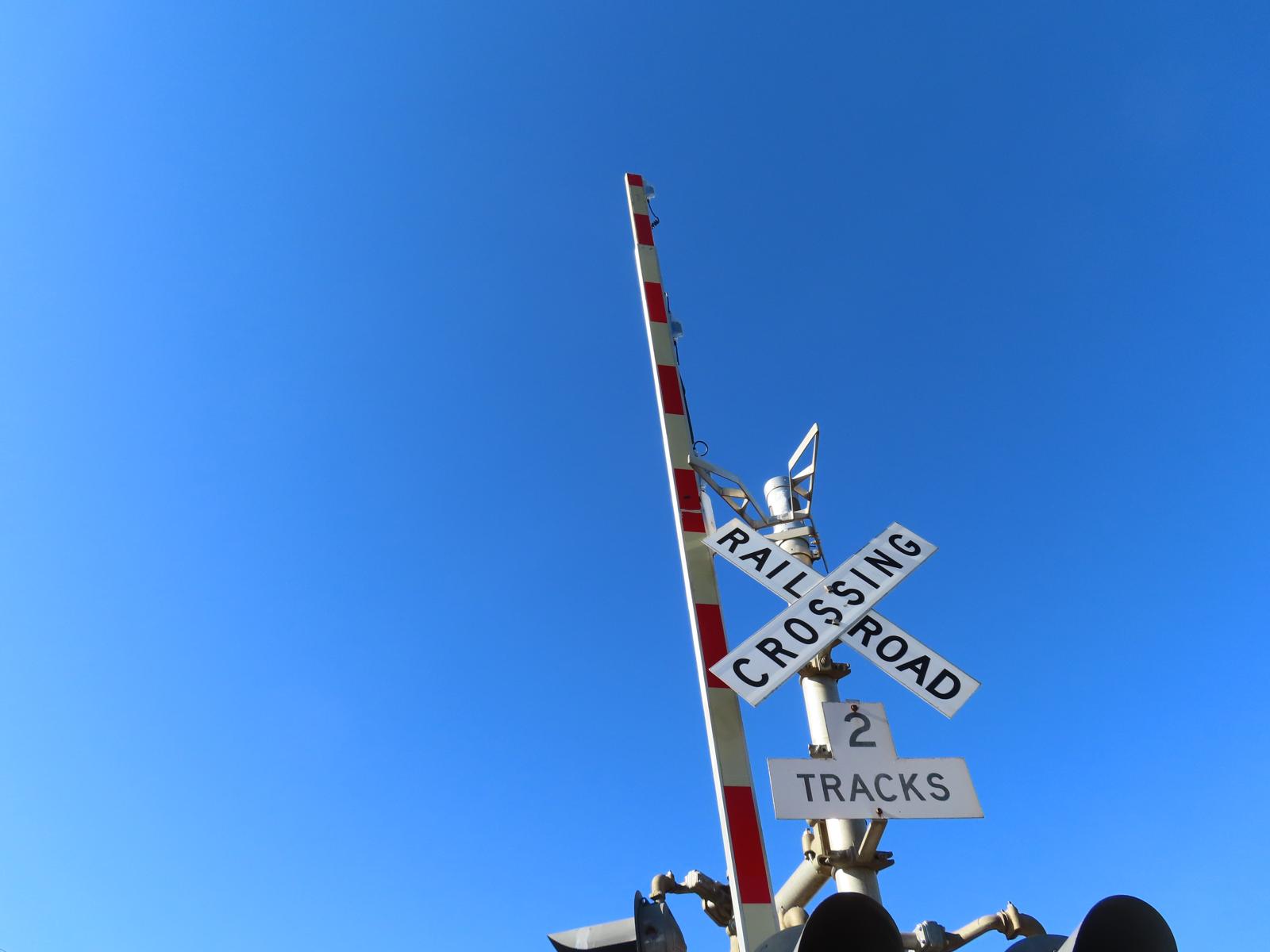

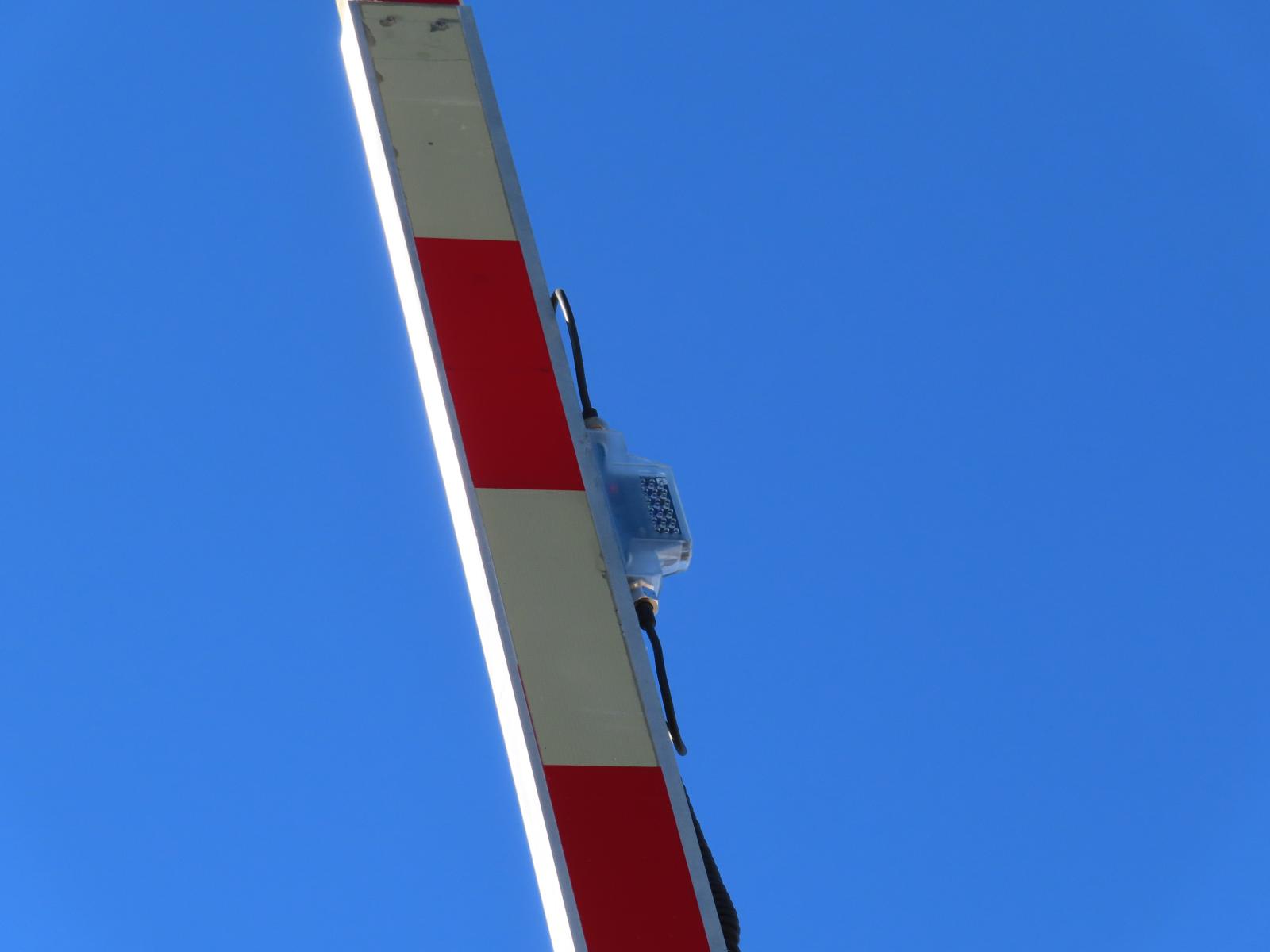

35	36	37	38
The gate on the eastern signal features the older vertical striping while the gate lights are from NEG.	Close up at one of the NEG Clear LEDs.	A look at the rear lights on the eastern signal.	Back view of the eastern signal.

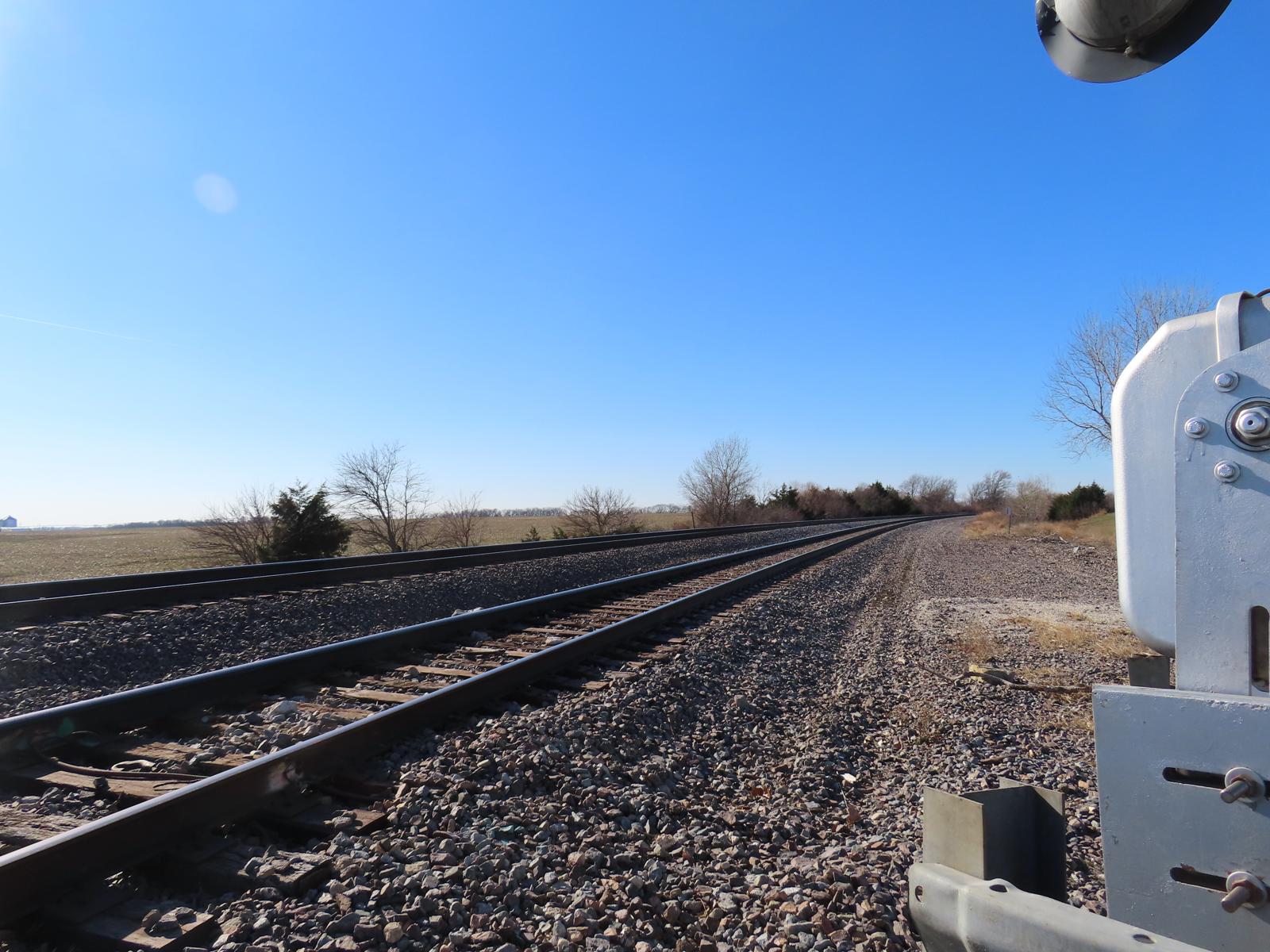

39	40	41	42

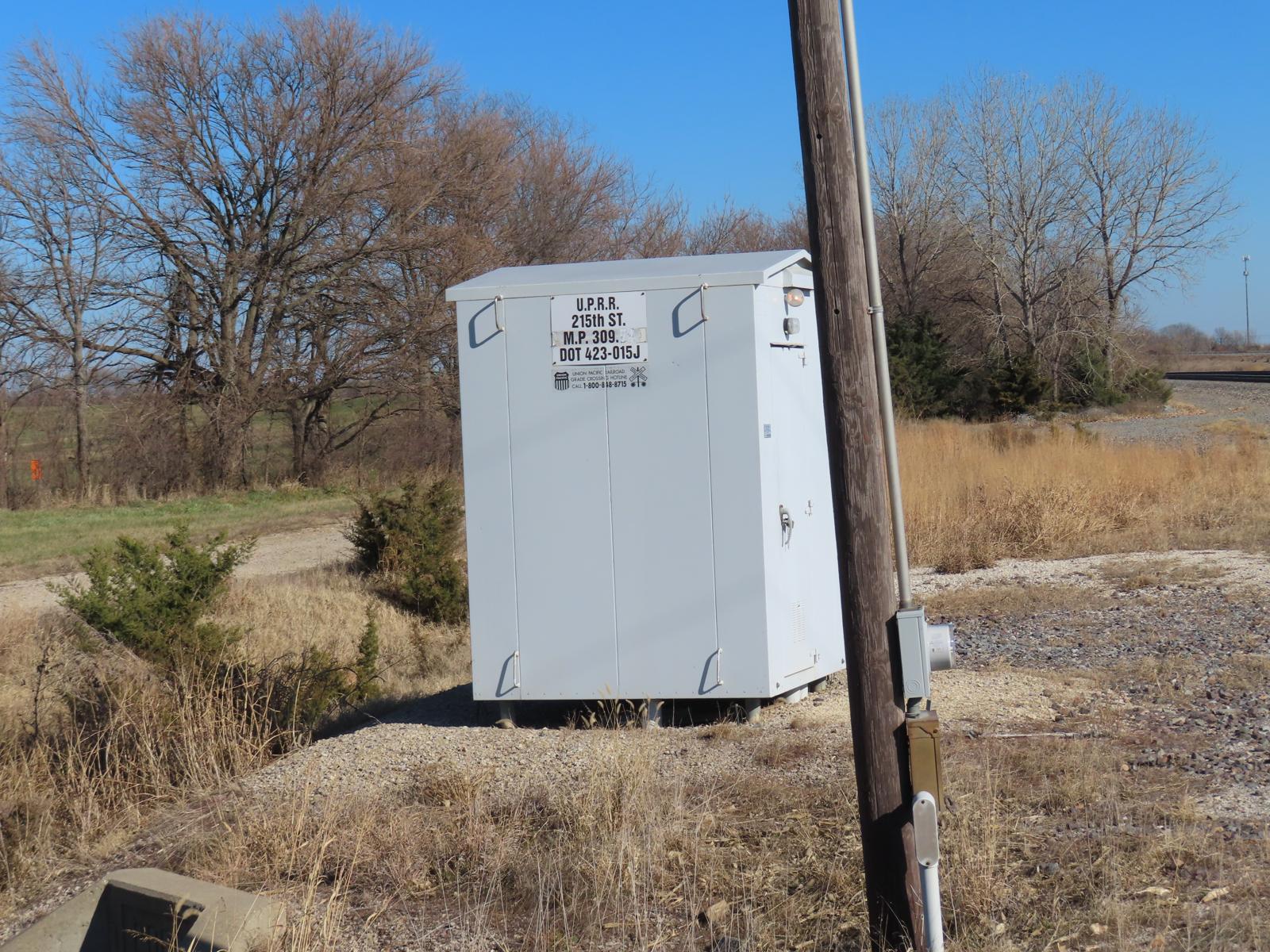

The relay bungalow.	The grade is all concrete.	Track view facing northeast towards 199th St. in Stilwell.	Track view facing southwest towards Switzer Rd.
