| >>>>>>>>>>>>>> | Eastern Signal | Western Signal |
| Bell: | GS E-Bell | GS E-Bell |
| Base: | WCH 5" Single Sided | WCH 5" Single Sided |
| Light Brackets: | WCH | 2 - WCH |
| Lights: | 4 - 12"x24" WCH w/ WCH/Miller 2nd Gen LEDs | 3 - 12"x24" WCH w/ WCH/Miller 2nd Gen
LEDs 2 - 12"x24" WCH w/ WCH/Aurora Clear LEDs 1 - 12"x24" WCH w/ Electro-Tech LEDs |
| Gate Lights: | 3 - Alstom-Aurora LEDs | 3 - Alstom-Aurora LEDs |
| Gate Mechanism: | WCH Style 3.5 | WCH Style 3.5 |
| Gate Striping: | Vertical Striping | Vertical Striping |
SV1 |
SV2 |
SV3 |
SV4 |

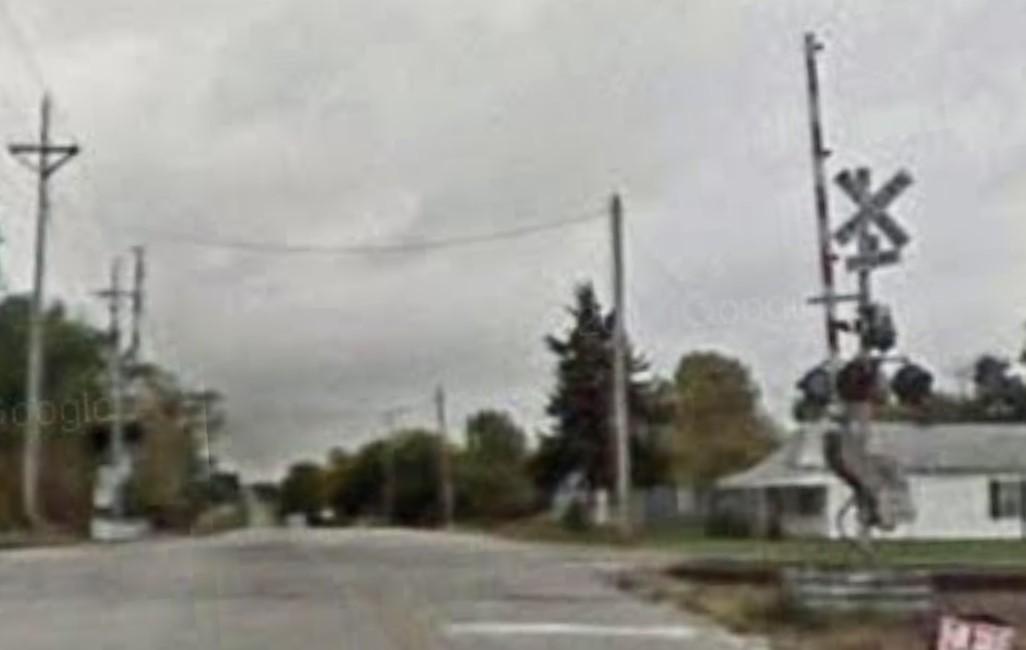

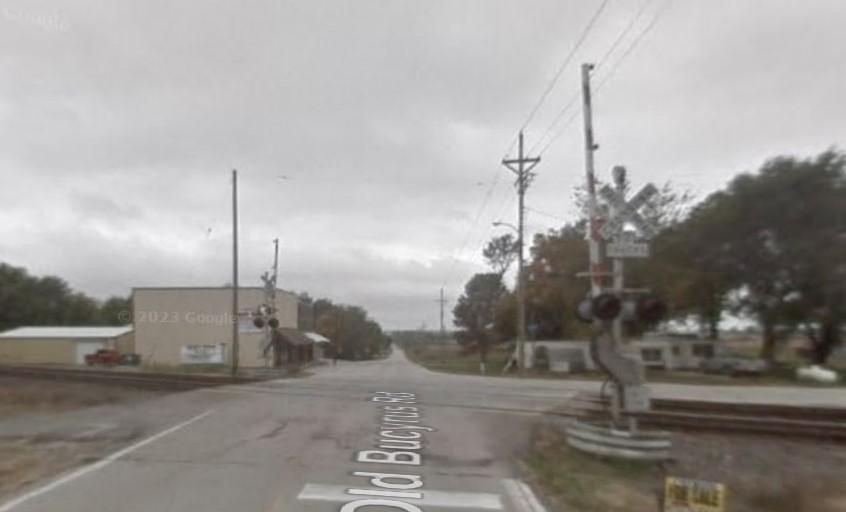

| Older Low Quality Google Maps Streetview imagery from October of 2009 shows the crossing originally having older WCH signals with the eastern signal having a WCH Mechanical Bell while the western signal having a WCH Electronic Bell. A return visit by Google in May of 2015 shows that UP replaced the signals here with newer WCH signals with both signals having WCH Electronic Bells at the time. The western signal also had a full set of WCH 2nd Gen LEDs in the WCH light frames. In a strange move sometime in the late 2010s/early 2020s, UP swapped out two of the WCH 2nd Gen LEDs on the main sets of lights on the western signal with WCH Clear LEDs, while one of the side lights on the same signal had its WCH 2nd Gen LED swapped out with an Electro-Tech LED. Both WCH E-Bells were also swapped out with GS Electronic Bells at the same time as well. | |||
1 |
2 |
| Overview facing east. | Overview facing west. |
| The western signal: | |||
3 |
4 |
5 |
6 |

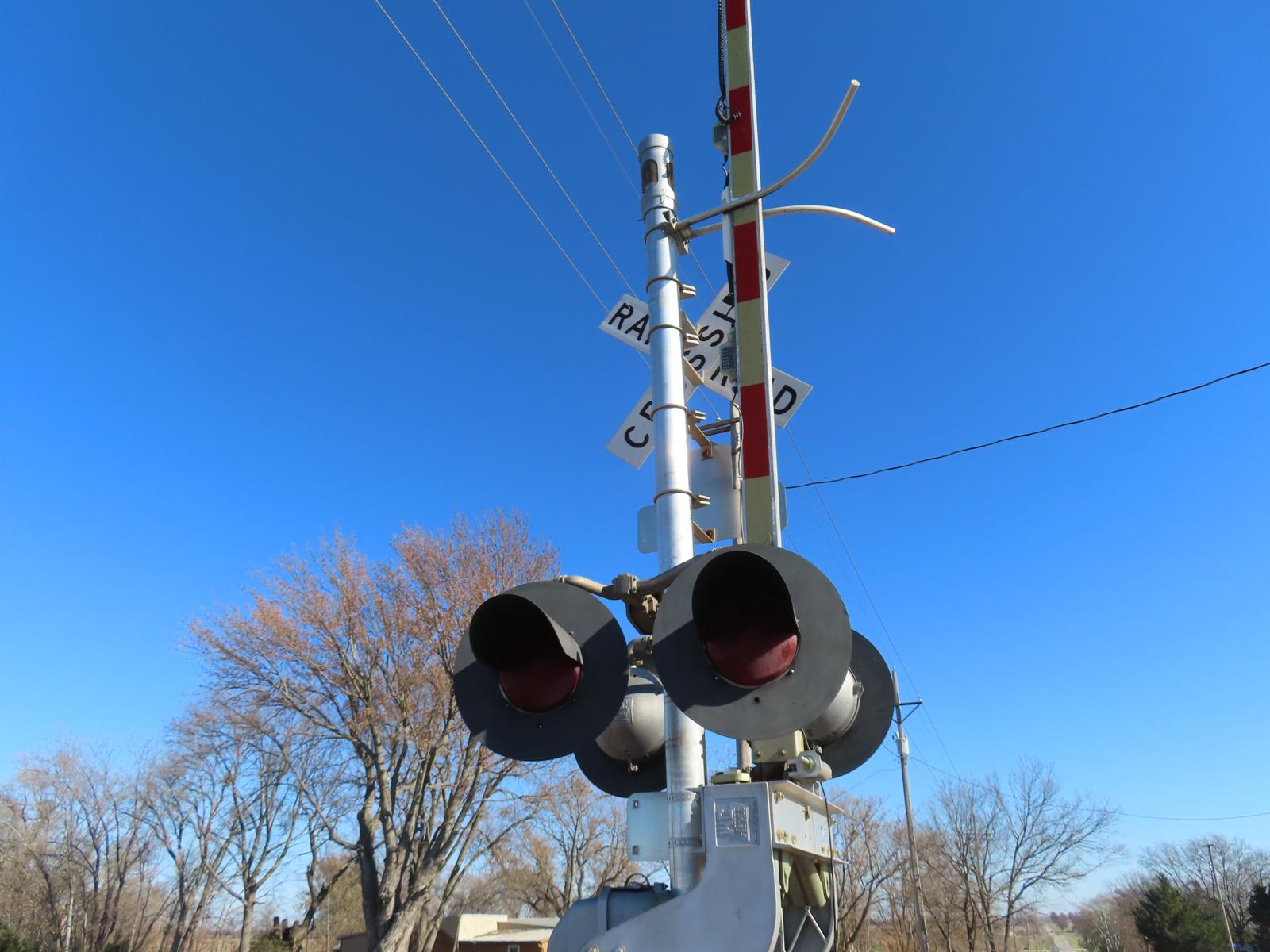

| Front
view of the western signal. |
A look at
the front lights on the western signal. |
We find
that the main pairs of lights on the western signal feature two pairs
of 12x24 lights with the front lights featuring a mixture of WCH 2nd
Gen, and WCH Clear LEDs. |
Close up
at the WCH Clear LED in one of the front lights on the western signal.
This LED was reused from another crossing somewhere on the UP. |
7 |
8 |
9 |
10 |

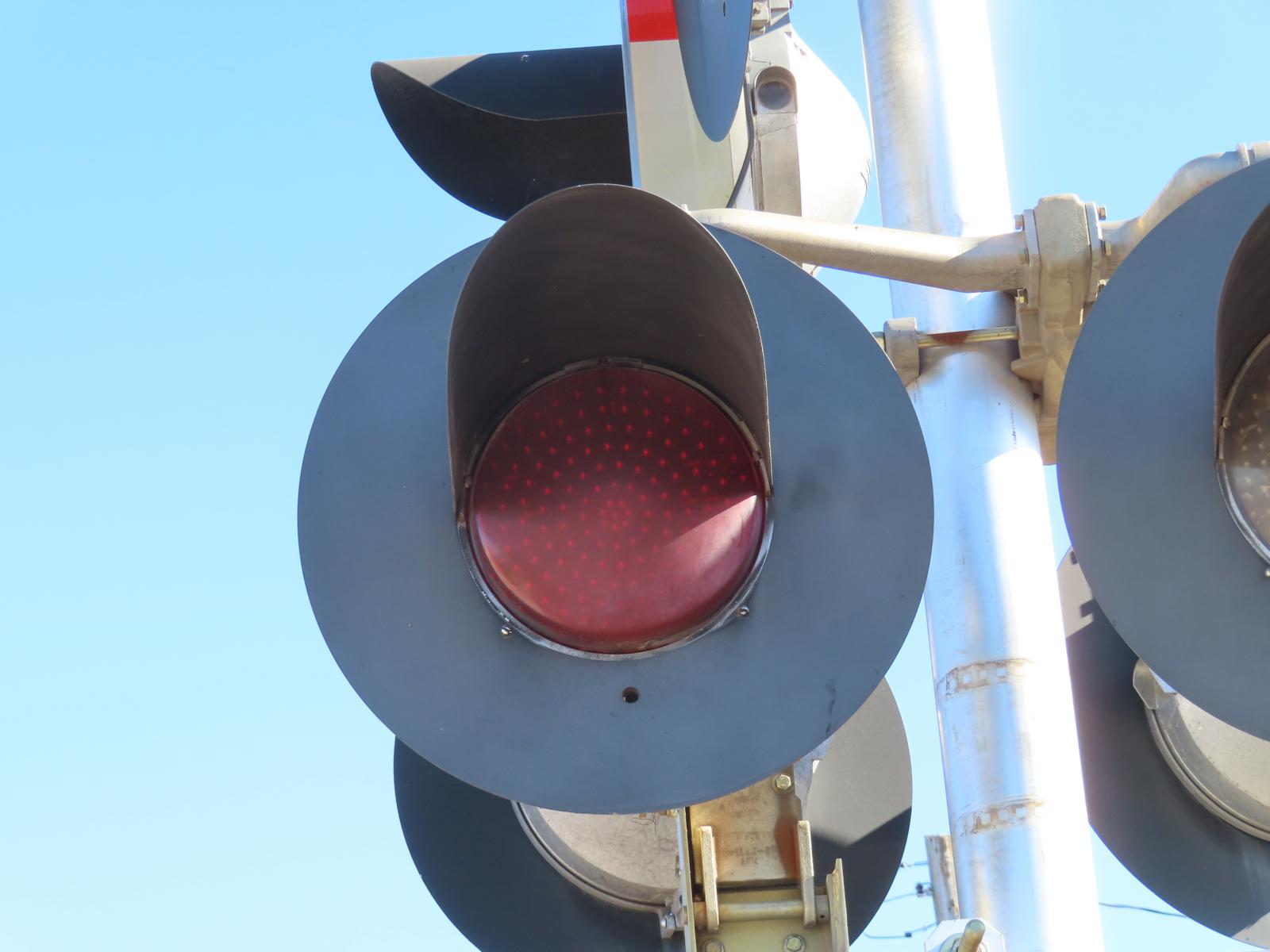

| Close up
at the WCH 2nd Gen LED in one of the front lights on the western signal. |
The side
lights on the western signal featured a pair of 12x24 lights featuring
a mixture of Electro-Tech, and WCH 2nd Gen LEDs. |
Close up
at the Electro-Tech LED in one of the side lights on the western
signal. This light was also reused from another crossing somewhere. |
11 |
12 |
13 |
14 |
| Close up
at the WCH 2nd Gen LED in one of the side lights on the western signal. |

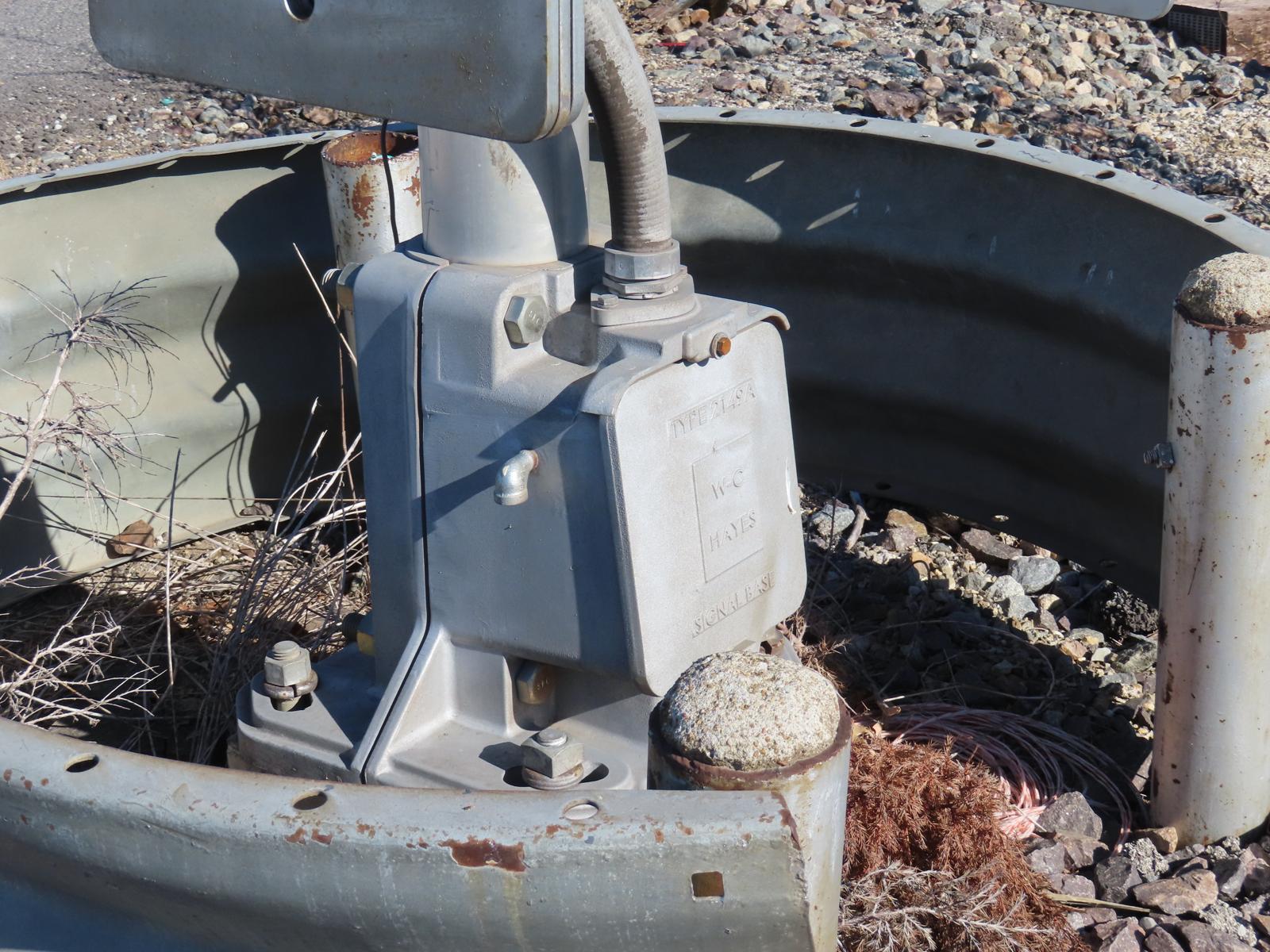

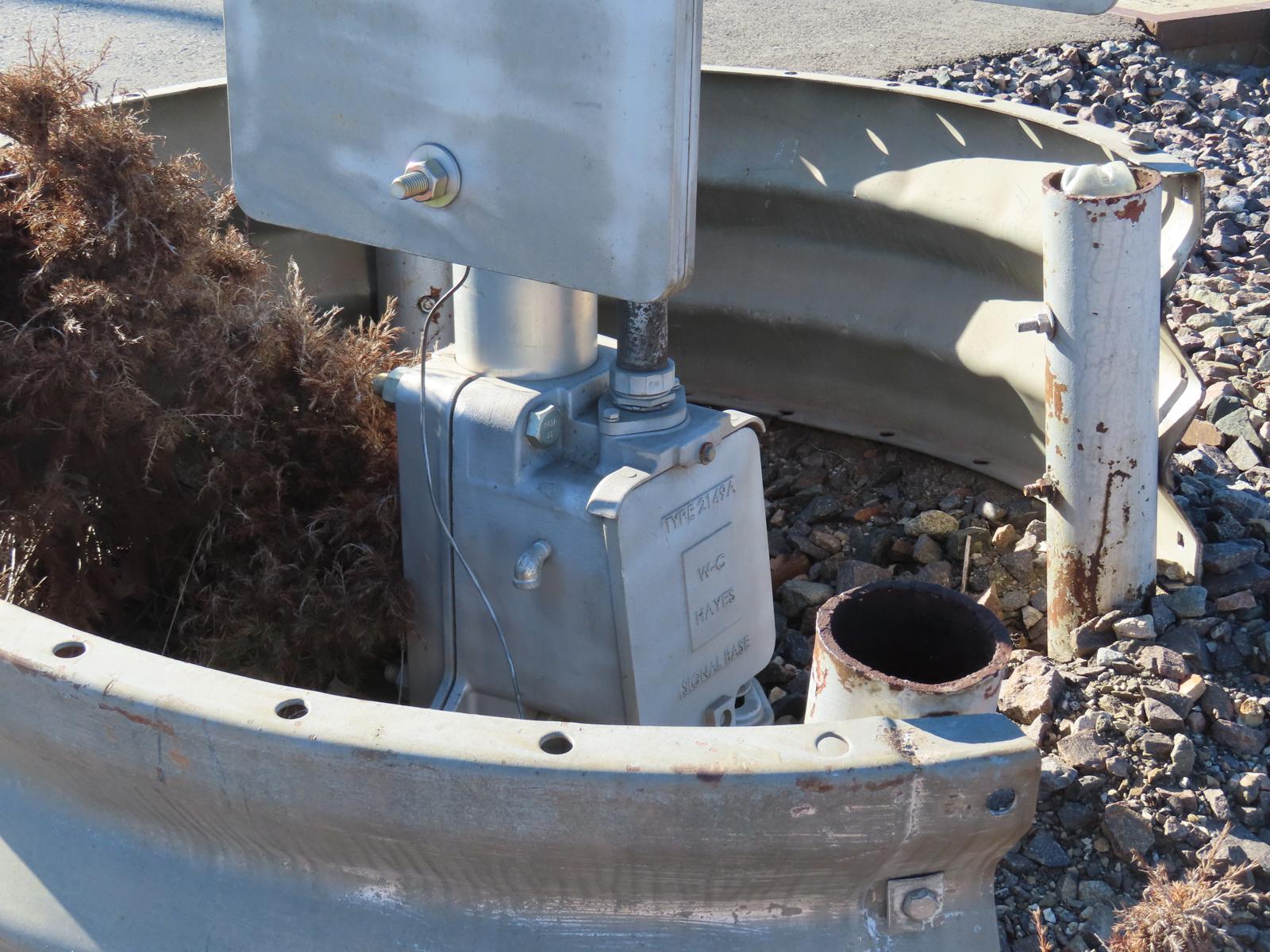

The
signal base on the western signal is from WCH. |

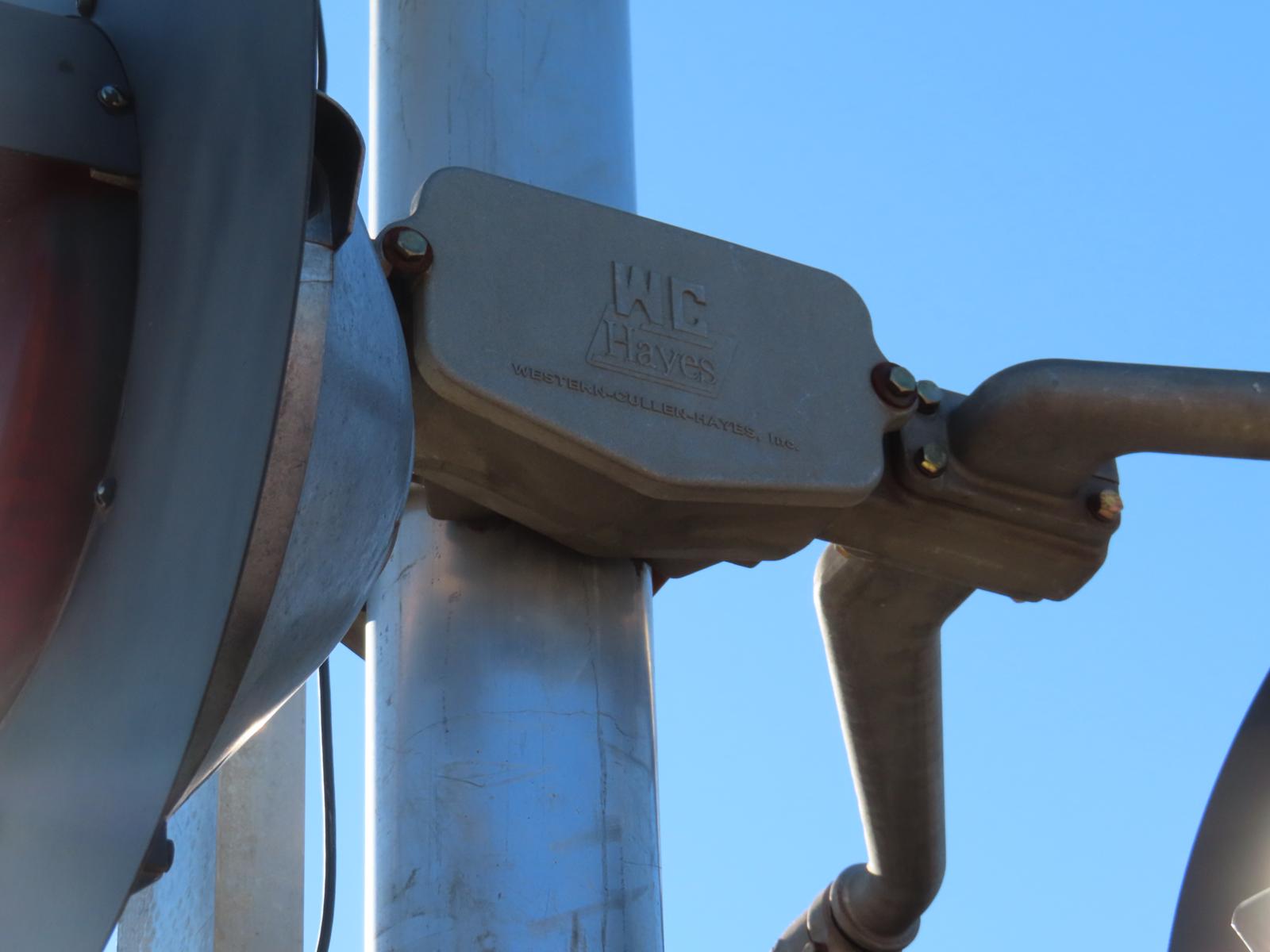

The light
bracket for the main lights is from WCH as well. |
The light
bracket for the side lights is also from WCH. |
15 |
16 |
17 |
18 |

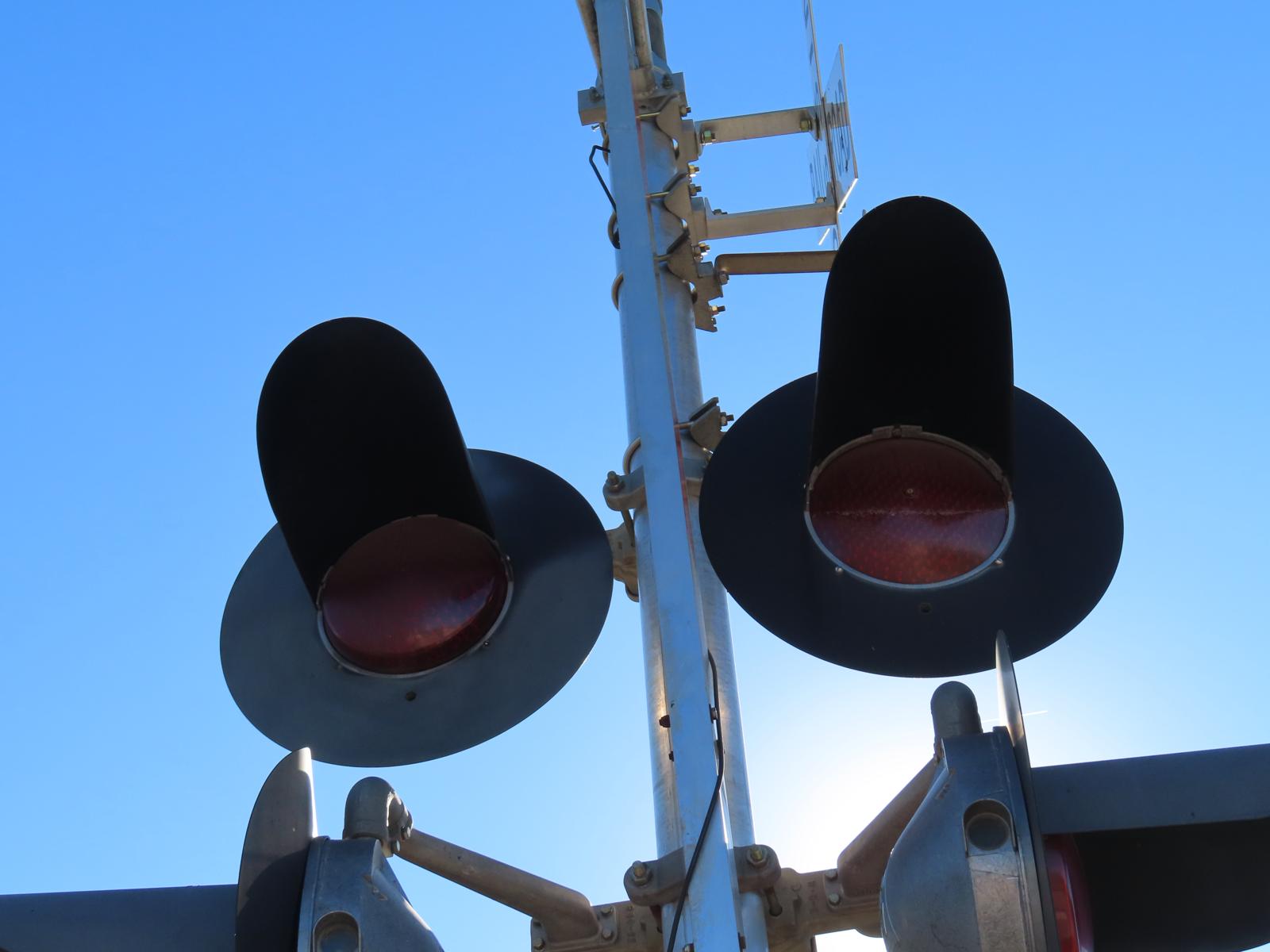

| The main
lights on the western signal are all from WCH. |
Close up
at one of the WCH lights on one of the main lights on the western
signal. |
The side
lights on the western signal come once again from WCH. |
The gate
mechanism on the western signal is from WCH. |
19 |
20 |
21 |
22 |

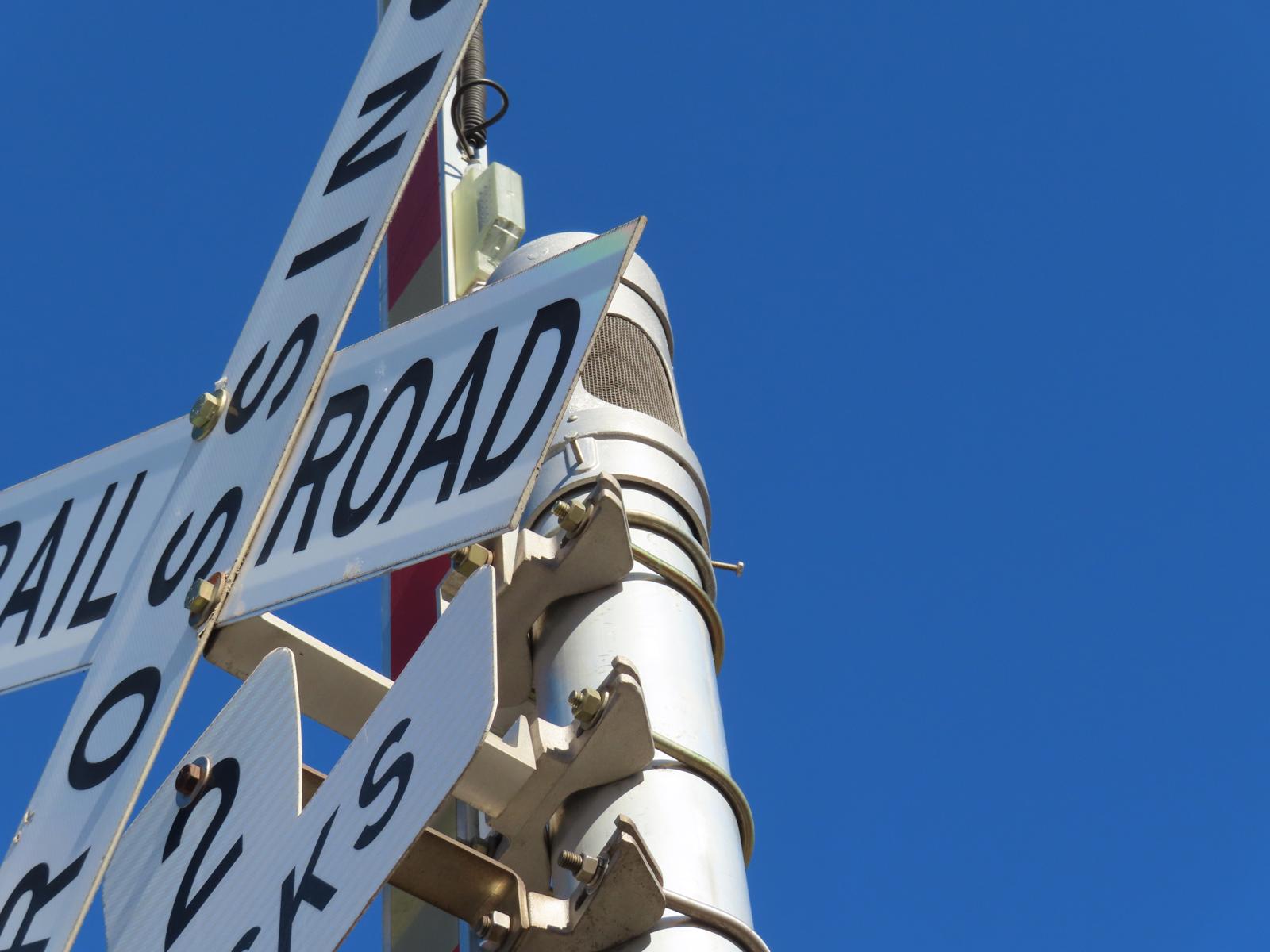

| The bell
on the western signal is a GS Electronic Bell which replaced the
original WCH Electronic Bell here sometime in the late 2010s. I suspect
this one's a type 3. |

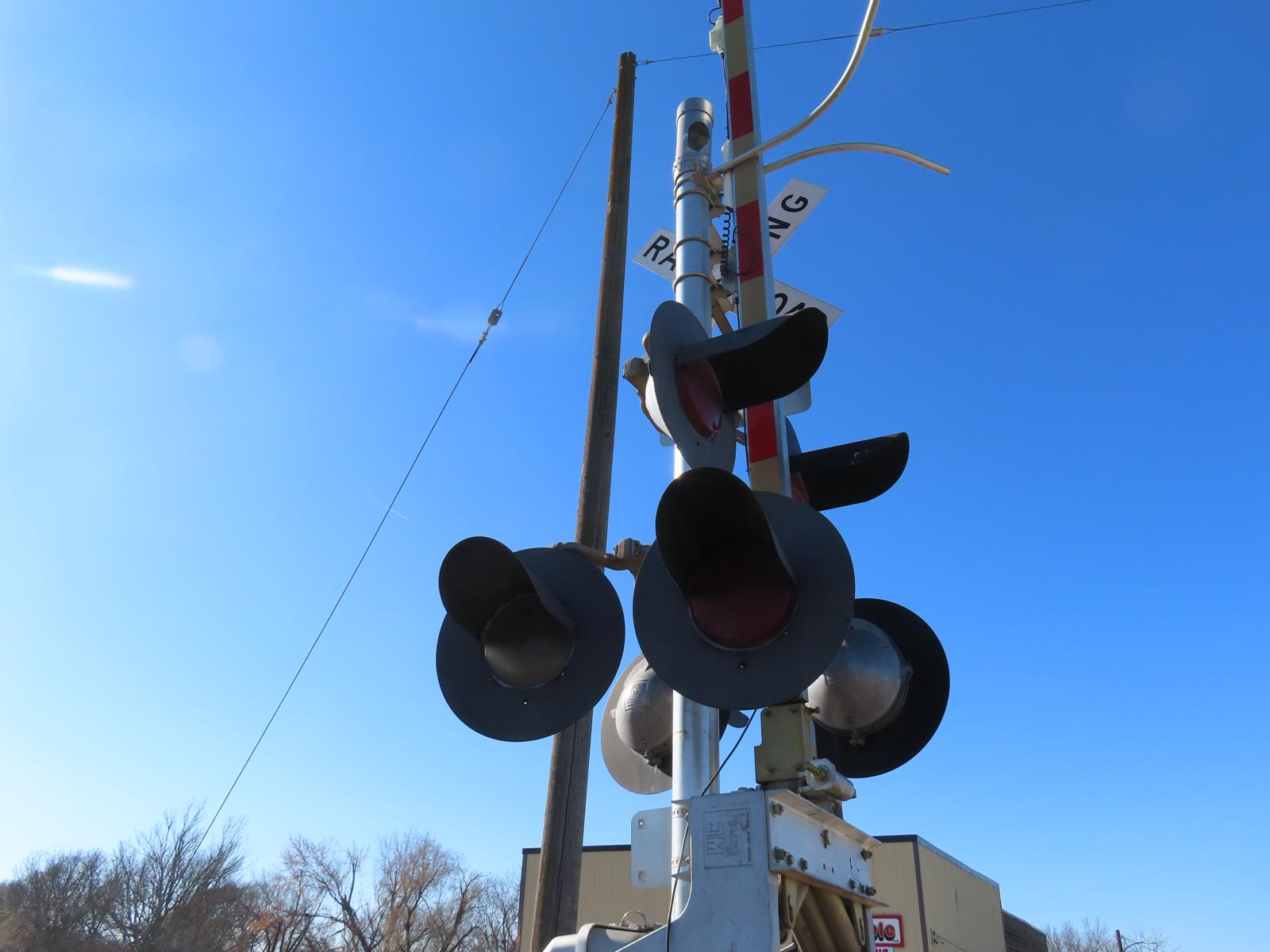

The gate
on the western signal features the older vertical striping while the
gate lights are from Alstom-Aurora. |
Close up
at one of the Alstom-Aurora gate lights. |
A look at
the rear lights on the western signal. |
23 |
24 |
25 |
26 |
| Like the
front lights, the rear lights also feature a mixture of WCH Clear, and
WCH 2nd Gen LEDs. |
Close up
at the WCH Clear LED in one of the rear lights on the western signal. |
Close up
at the WCH 2nd Gen LED in one of the rear lights on the western signal. |
Back view
of the western signal. |
| The eastern signal: | |||
27 |
28 |
29 |
|
| Front
view of the eastern signal. |
A look at the front lights on the eastern signal. Thankfully this signal retains its original LEDs from when the signal was installed! | The eastern signal features two pairs of 12x24 lights with WCH 2nd Gen LEDs
in the light frames. |
|
30 |
31 |
32 |
33 |
| Close up
at one of the WCH 2nd Gen LEDs on the eastern signal. |
The
signal base on the eastern signal is from WCH. |
The light
bracket on the eastern signal is also from WCH. |
34 |
35 |
36 |
37 |
| The
lights on the eastern signal are all from WCH. |
Close up
at one of the WCH lights on the eastern signal. |
The gate
mechanism on the eastern signal is from WCH. Sorry for the sun glare. |

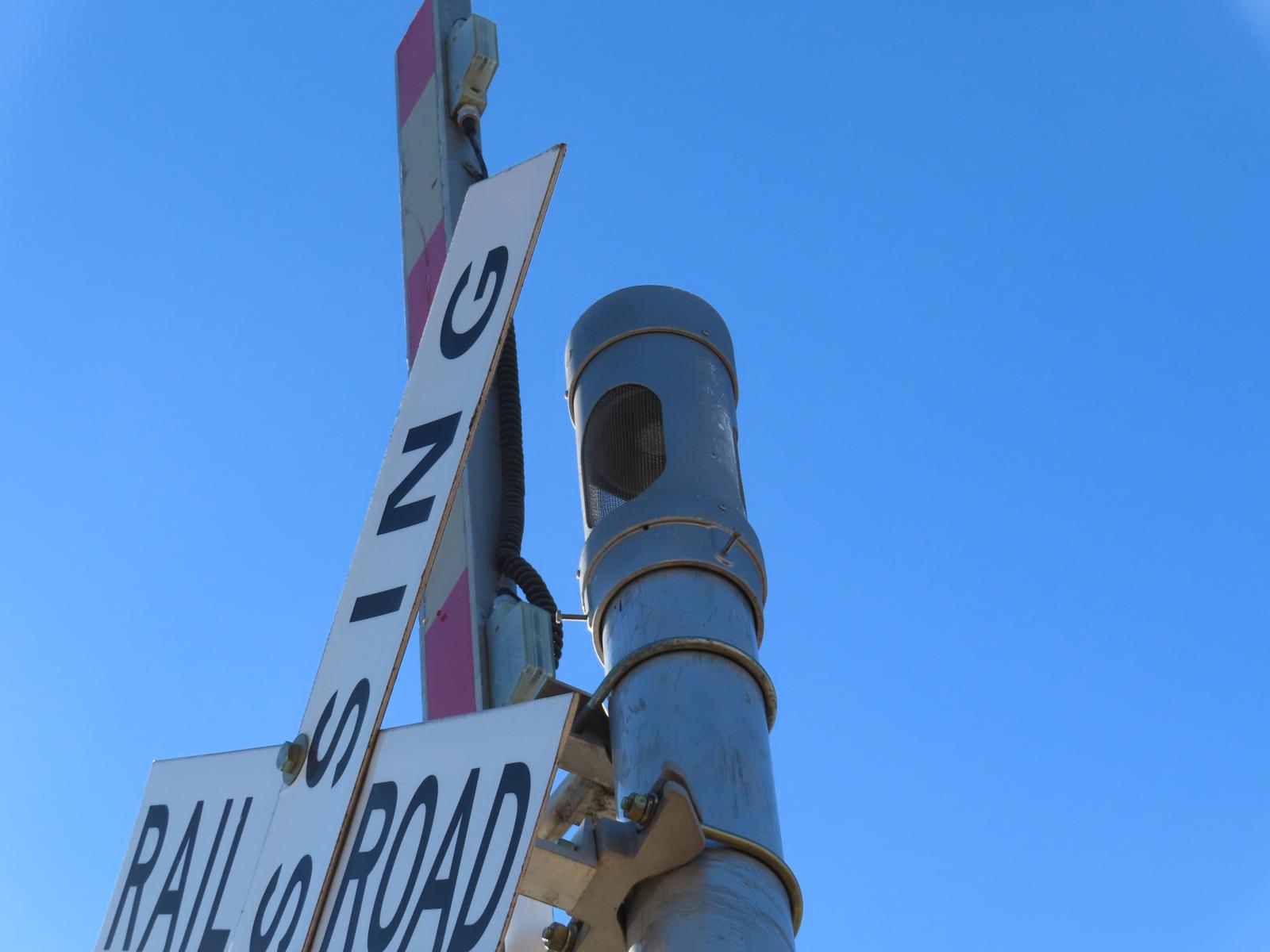

The bell
on the eastern signal is a GS Electronic Bell which was installed
sometime in the late 2010s replacing a WCH Electronic Bell. I also
suspect this one's a Type 3 as well. |
38 |
39 |
40 |
41 |
| The gate
on the eastern signal features the older vertical striping while the
gate lights are from Alstom-Aurora. |
Close up
at one of the Alstom-Aurora LEDs. |
A look at
the rear lights on the eastern signal. |
Back view
of the eastern signal. |
42 |
43 |
44 |
45 |

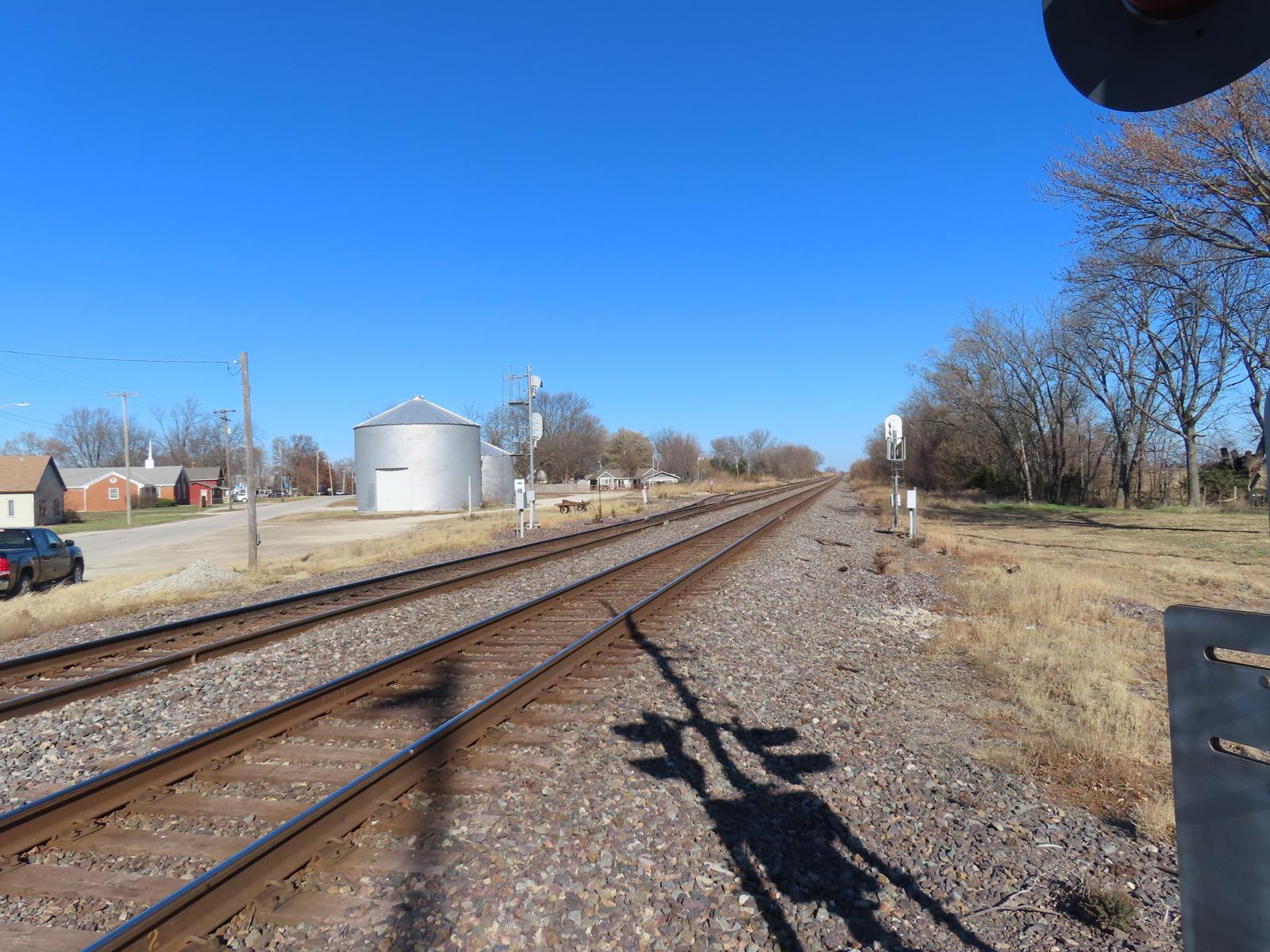

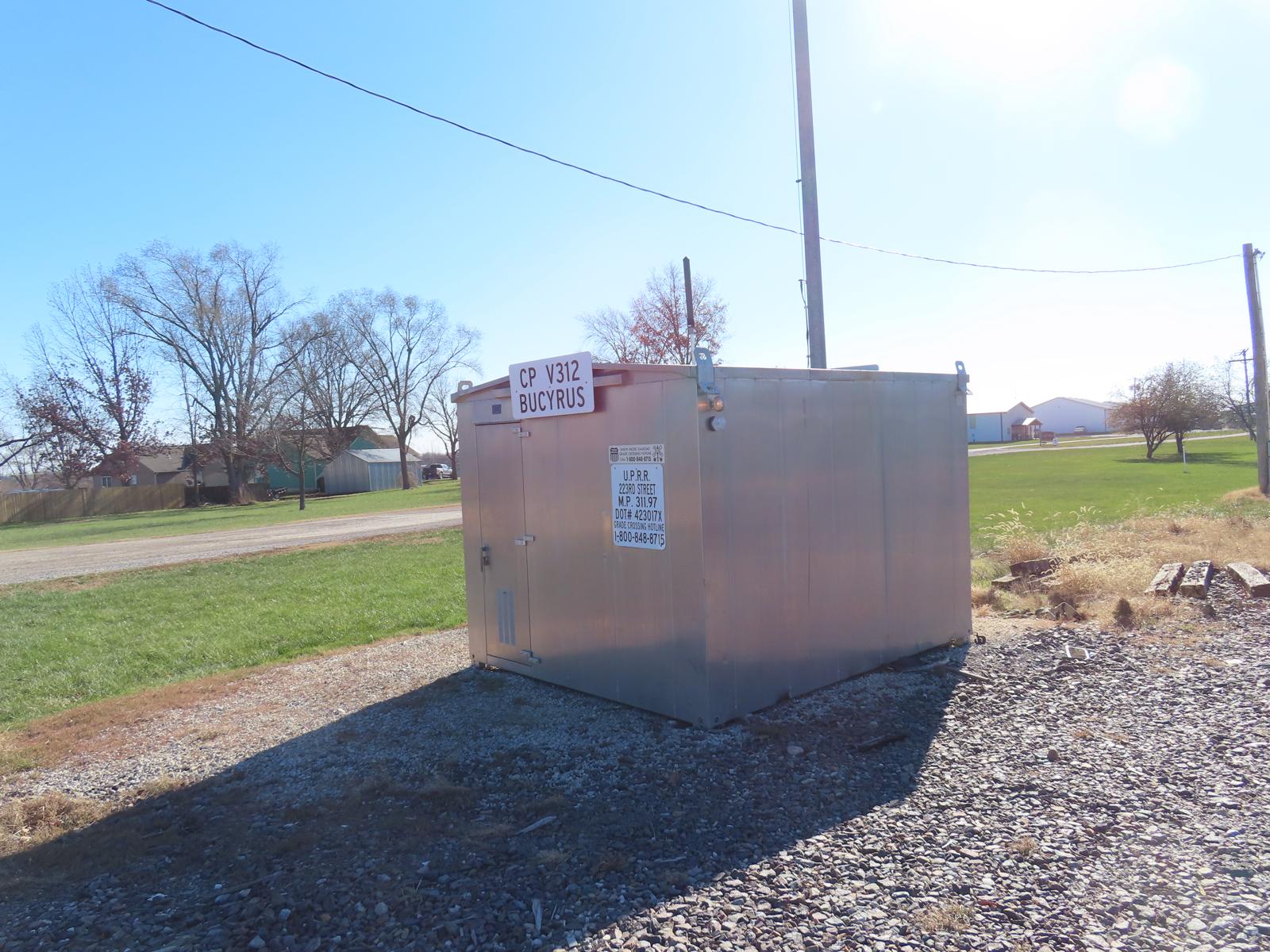

| The relay bungalow. | The grade is all concrete. | Track view facing north towards Switzer Rd. | Track view facing south towards Quivira Rd. |
