| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | NEG E-Bell | WCH E-Bell |
| Cantilever: | Walpar/FS | Walpar/FS |
| Base: | Siemens 5" Single Sided | WRRS 5" Single Sided |
| Light Brackets: | 3 - WRRS 1 - Safetran |
3 - WRRS |
| Lights: | 6 - 12"x20" MI w/ Electro-Tech LEDs 2 - 12"x20" WCH w/ Electro-Tech LEDs 2 - 12"x24" Safetran w/ GE Pixelated Look LEDs |
8 - 12"x20" MI w/ Electro-Tech LEDs |
| Gate Lights: | 3 - NEG Clear LEDs | 3 - NEG Clear LEDs |
| Gate Mechanism: | Siemens Imprinted | WCH Style 3.5 |
| Gate Striping: | Vertical Striping | Vertical Striping |
SV1 |
| Street View from July 2007 shows the crossing when it used to have WCH mechanical bells. |
1 |
2 |
3 |

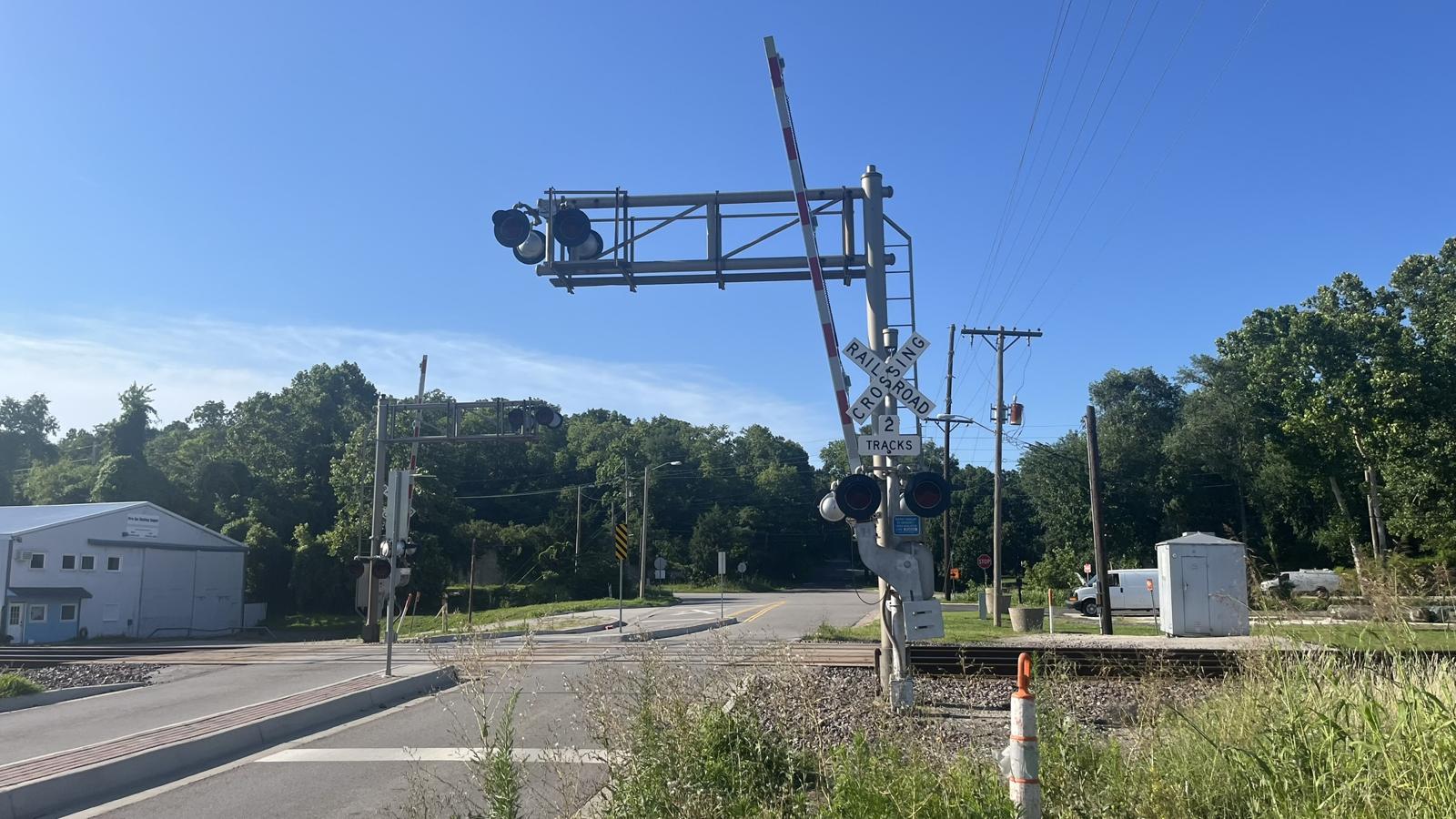

| Overview facing north. | Overview facing south. | The southern advance warning sign. |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |

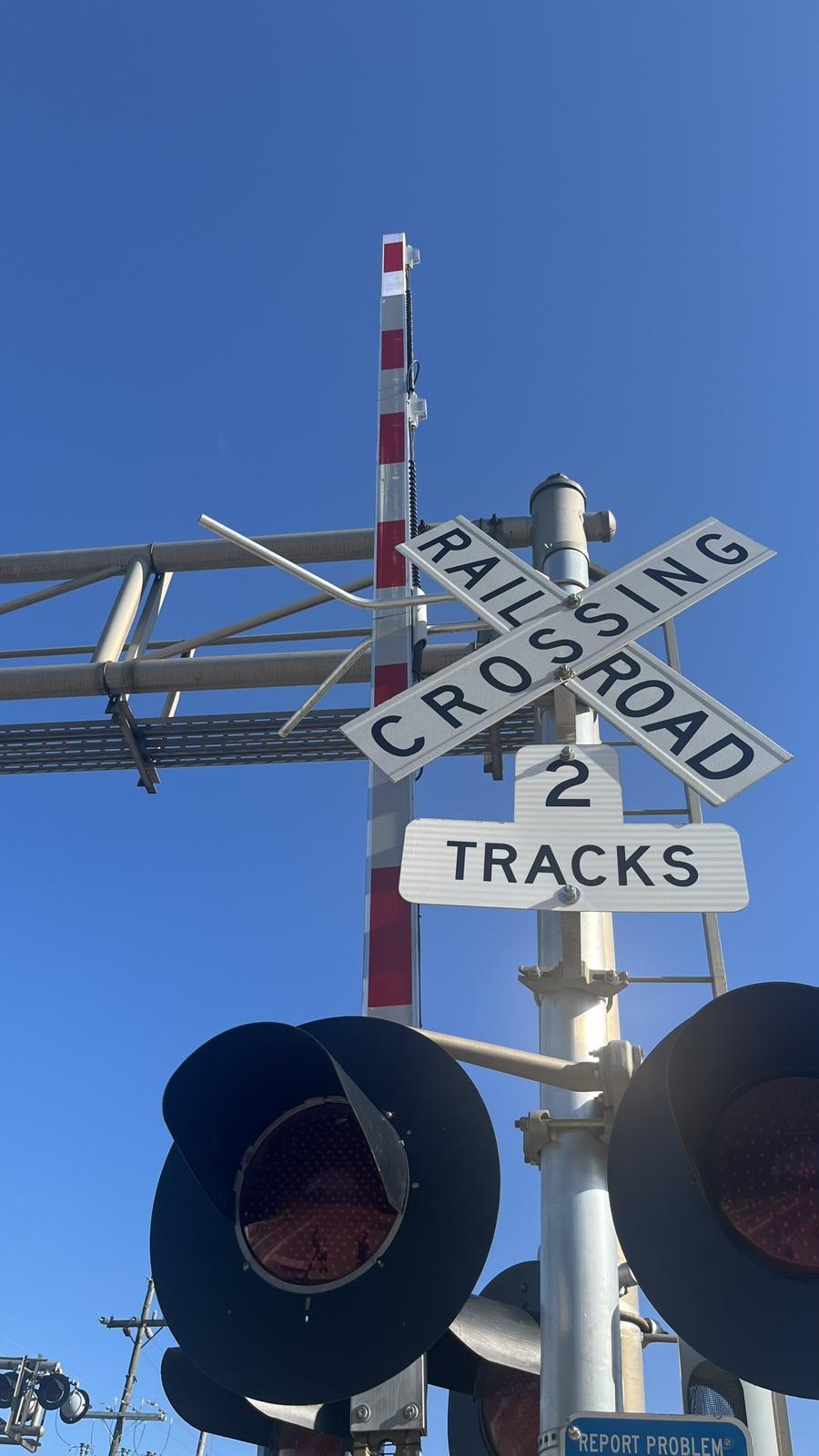

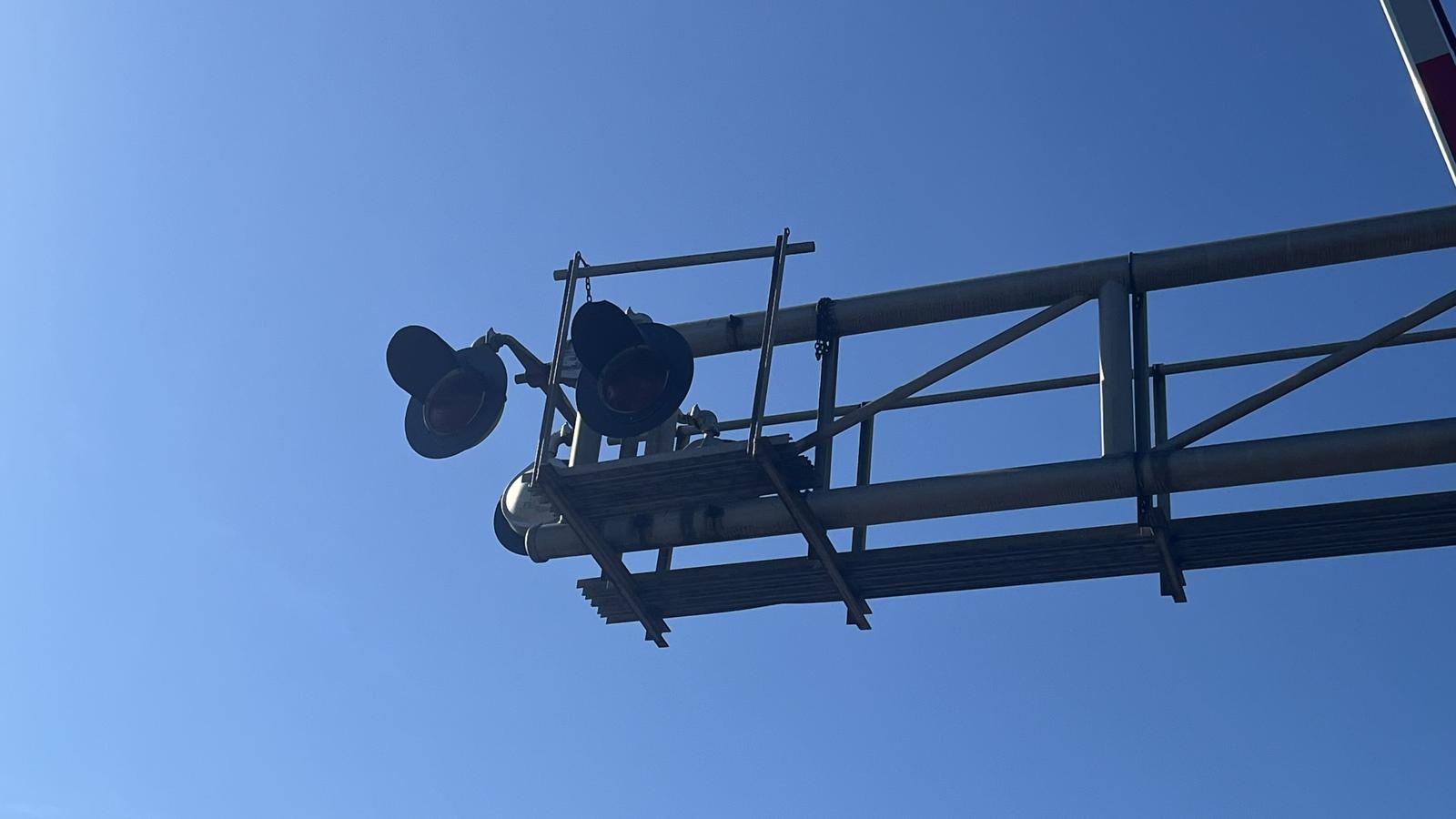

| The northern signal. | |||
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |

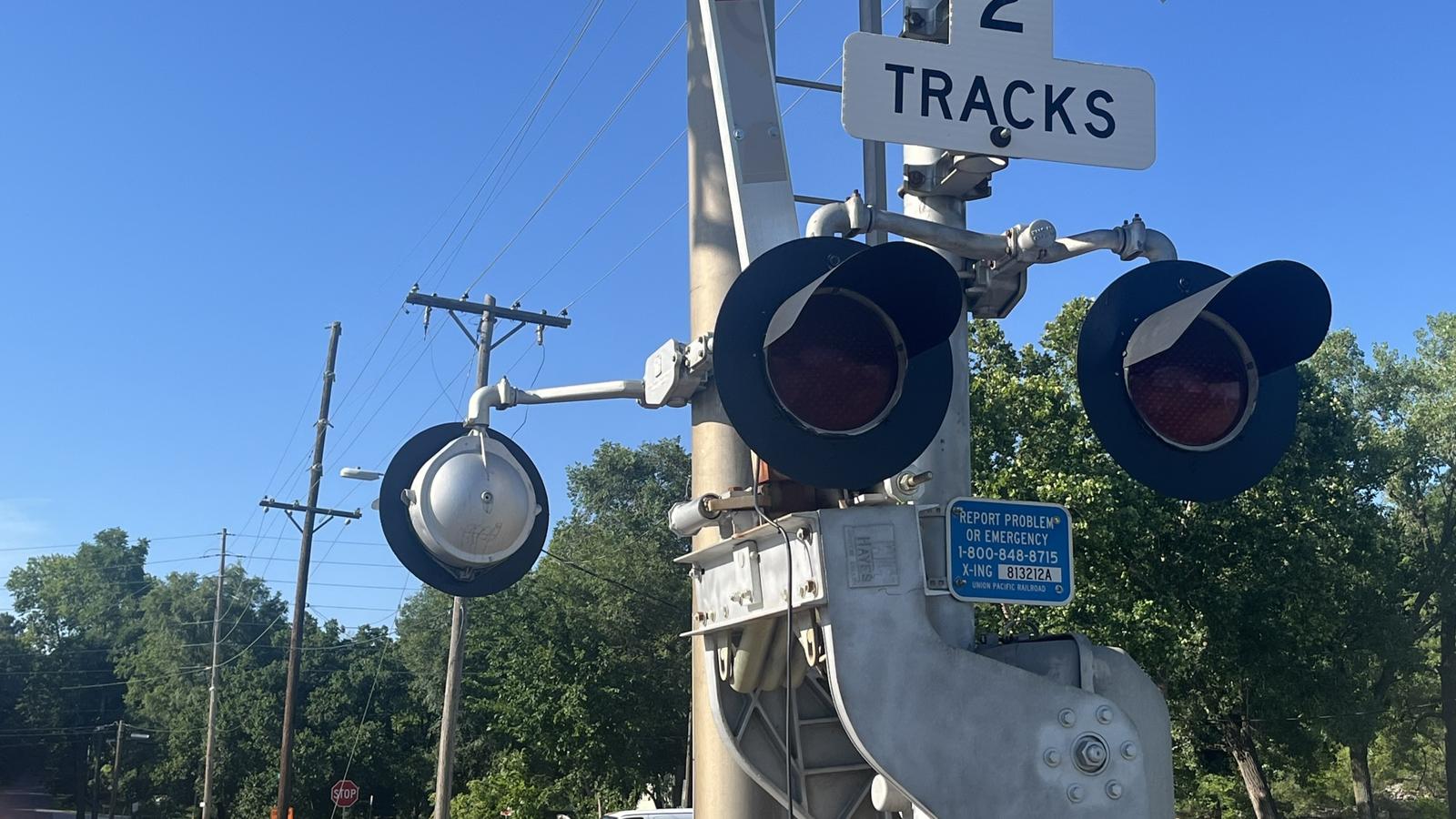

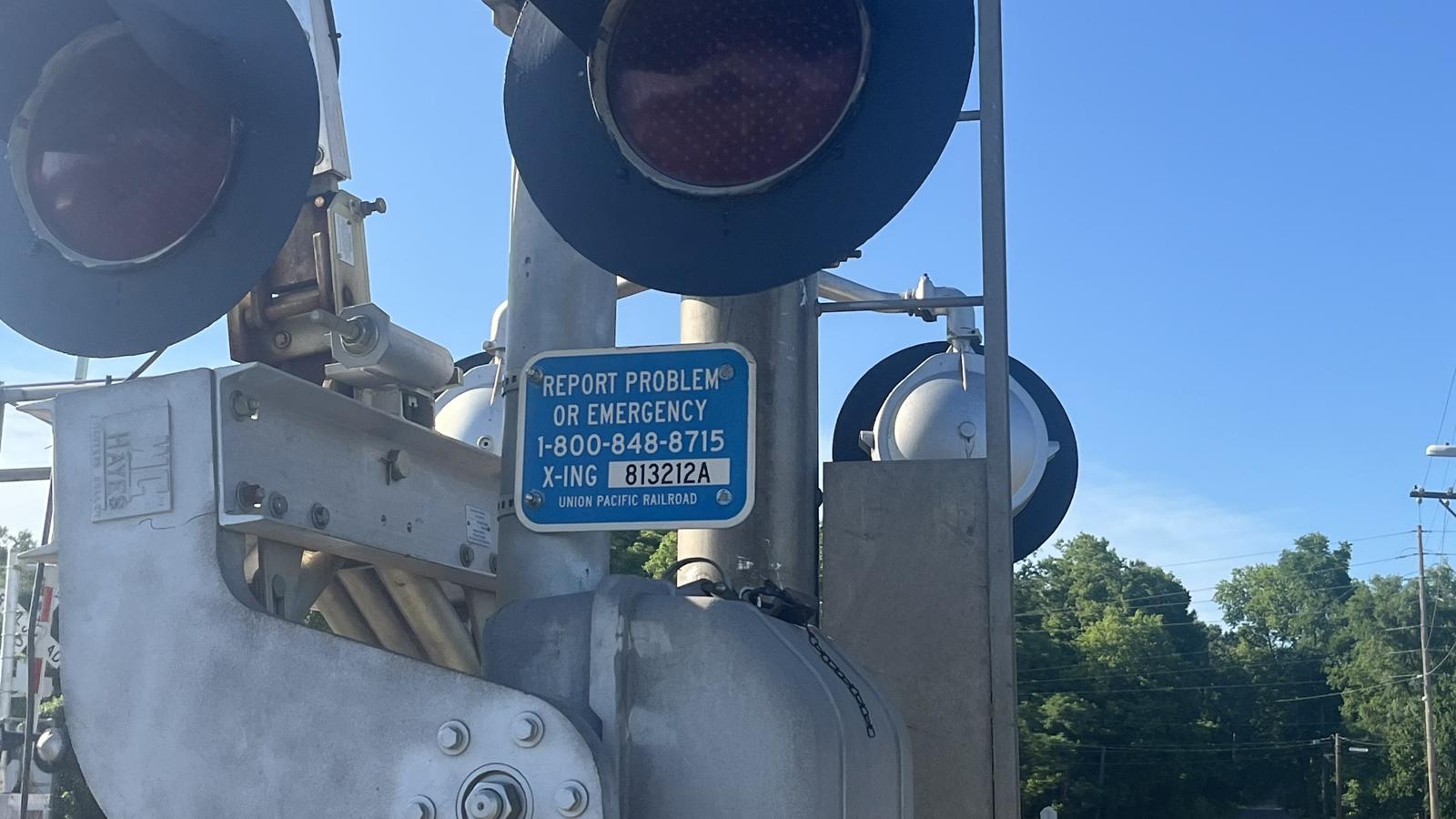

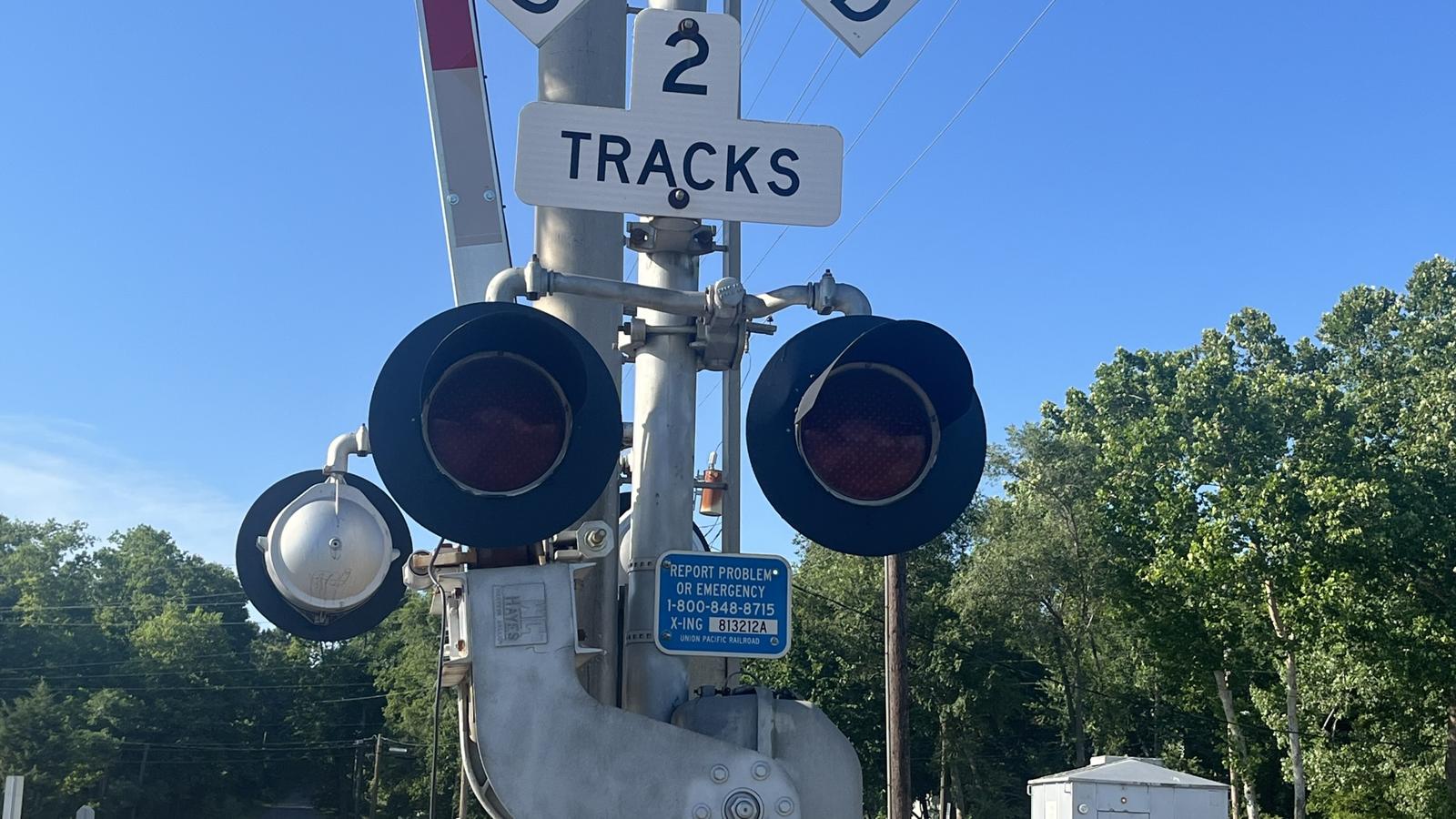

| The southern signal. | |||
25 |
26 |
27 |
28 |

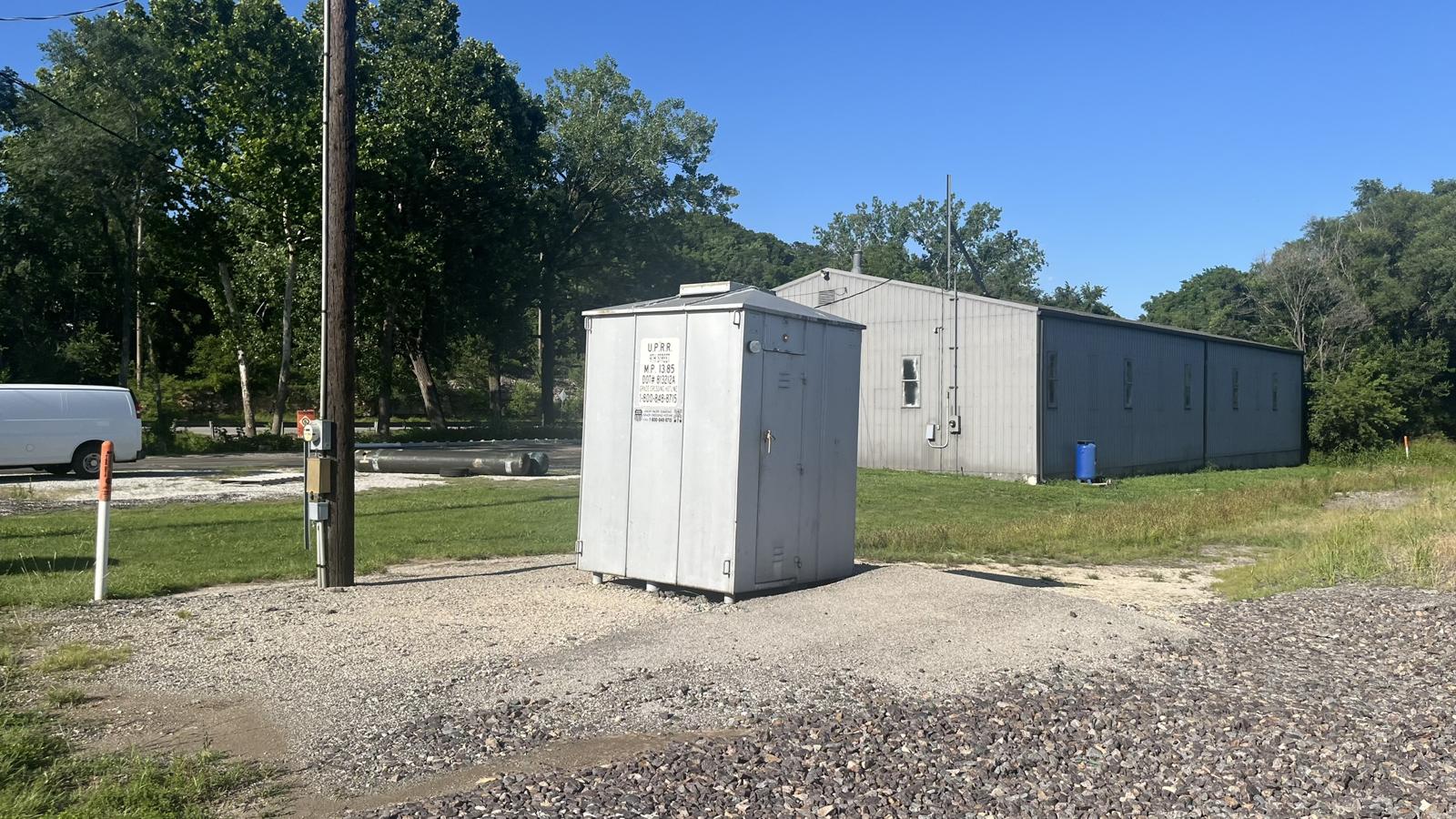

| The relay bungalow in the northeast quadrant. | The grade is all concrete. |
Track view facing east towards 98th St. | Track view facing west towards 4th St. |
