61.02




818566L


>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell:
 NEG E-Bell
 NEG E-Bell
Base:
 Safetran 5" Single Sided
 Safetran 5" Single Sided
Light Brackets:
 1 - WRRS
1 - Safetran
 1 - WRRS
1 - Safetran
Lights:
 4 - 12"x24" Safetran w/ WCH/Miller 2nd Gen LEDs
2 - 12"x24" WCH w/ WCH/Aurora Clear LEDs		 4 - 12"x24" Safetran w/ WCH/Miller 2nd Gen LEDs
2 - 12"x24" WCH w/ WCH/Aurora Clear LEDs
Gate Lights:
 3 - Alstom-Aurora LEDs 3 - Alstom-Aurora LEDs
Gate Mechanism:
 Invensys Rail
 Invensys Rail?
Gate Striping:
 Vertical Striping Vertical Striping


Pictures 1-13 were taken by Bill Steck on October 30, 2008.

Pictures 14-57 were taken by KCMO Railfan on October 13, 2024.

This crossing is located on the UP Kansas Subdivision.



1

2

3

The relay case.
Facing East.
Facing West.

4

5

6

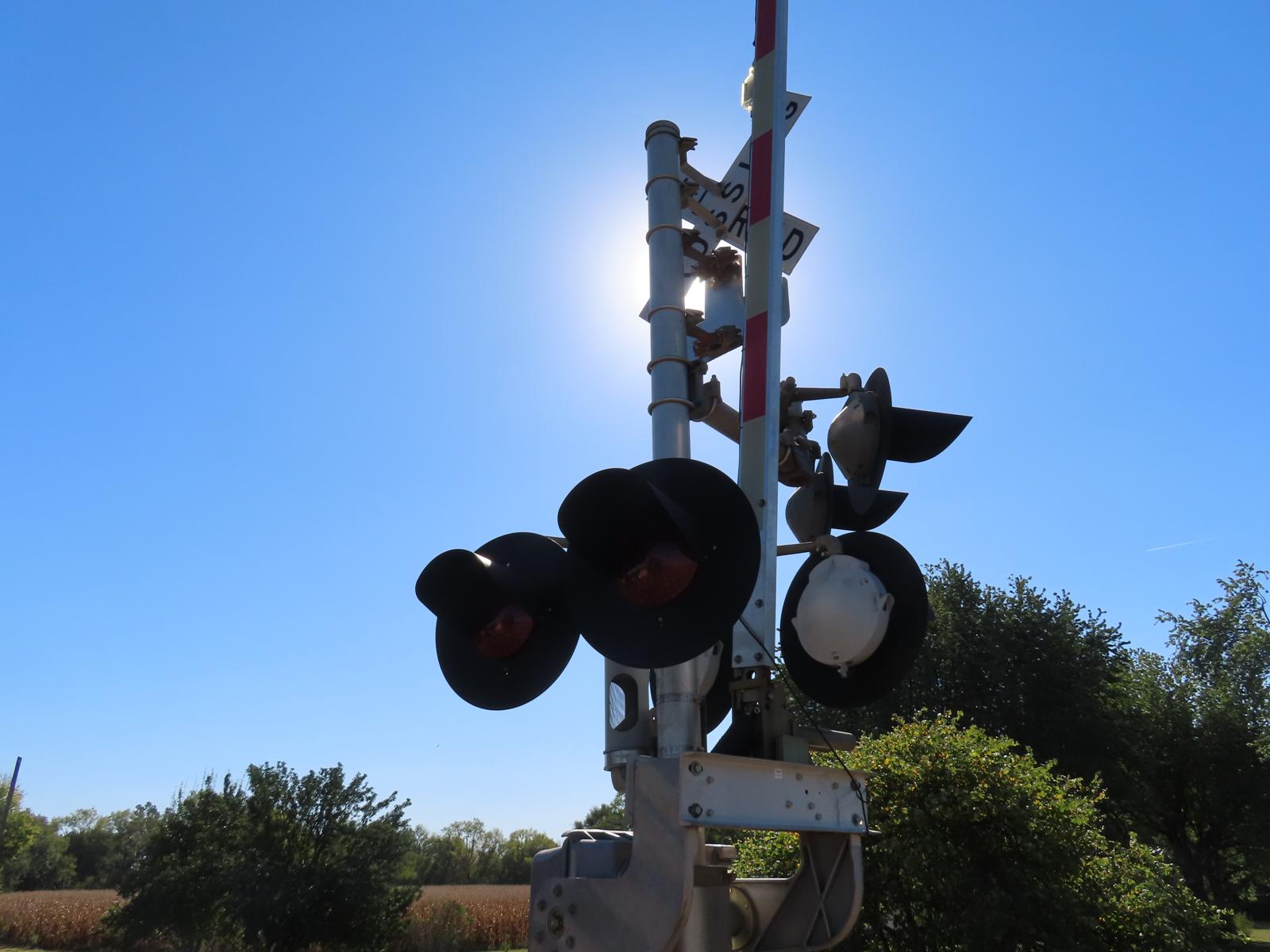

Both bells are WCH mechanical bells.
All lights are from WCH.
The 12"x20" are incandescents, and the side lights are 12"x24" WCH clear LEDs.

7

8

9
Same here too.
Concrete grades are nearby the crossing.
A train approaches from the East.

10

11

12
I don't know about you, but I can't see any LEDs lit...
The right one is lit, although not very bright.



Maybe the left LED was burned out, or it was too dim for the camera to pick up?



13
The gates rise after 2 minutes of activity. Note you can see the left LED lit on this signal.

A return trip on October 13, 2024, by KCMO Railfan shows that the signals here were replaced with Invensys signals.

14
 15

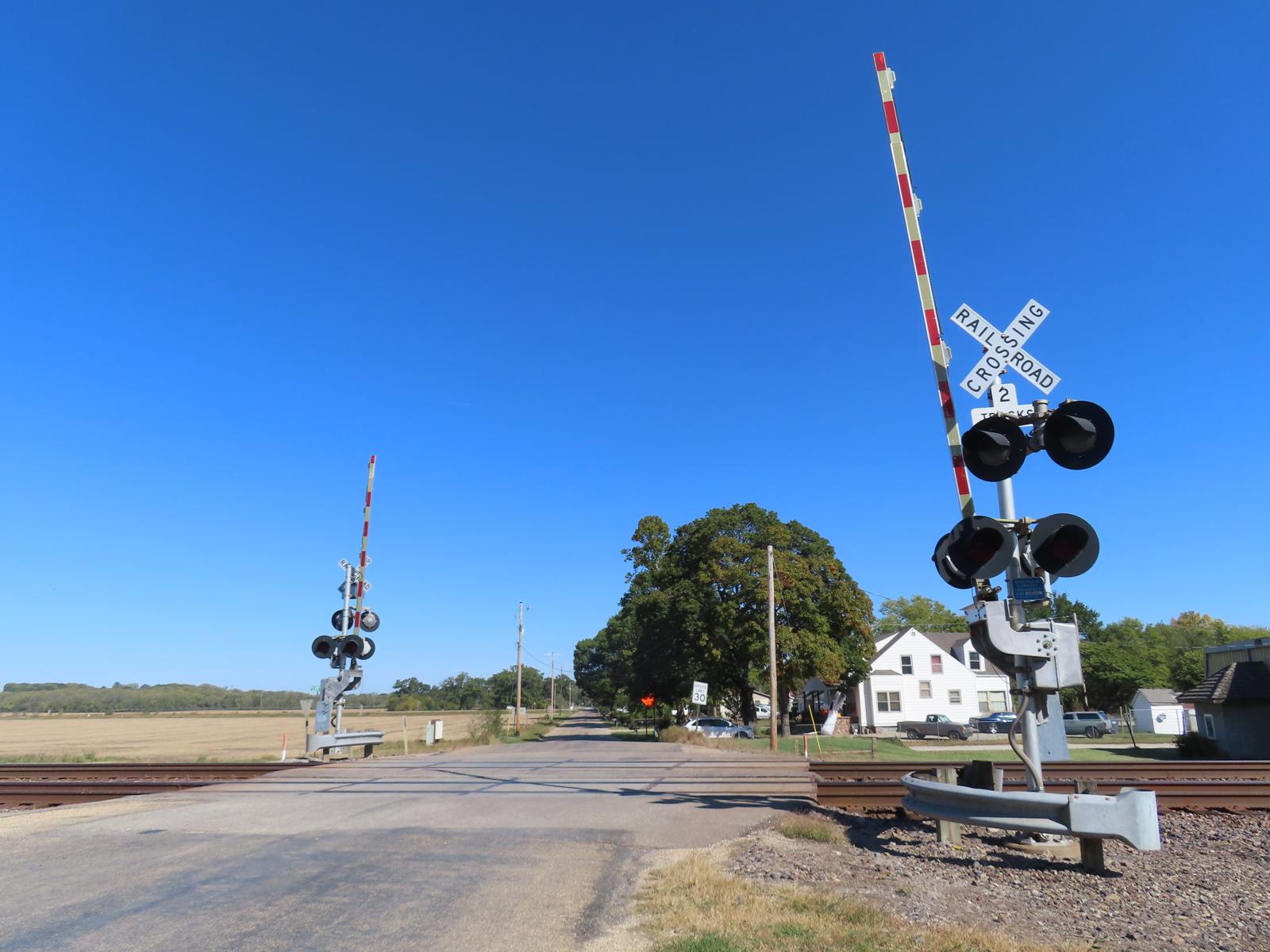

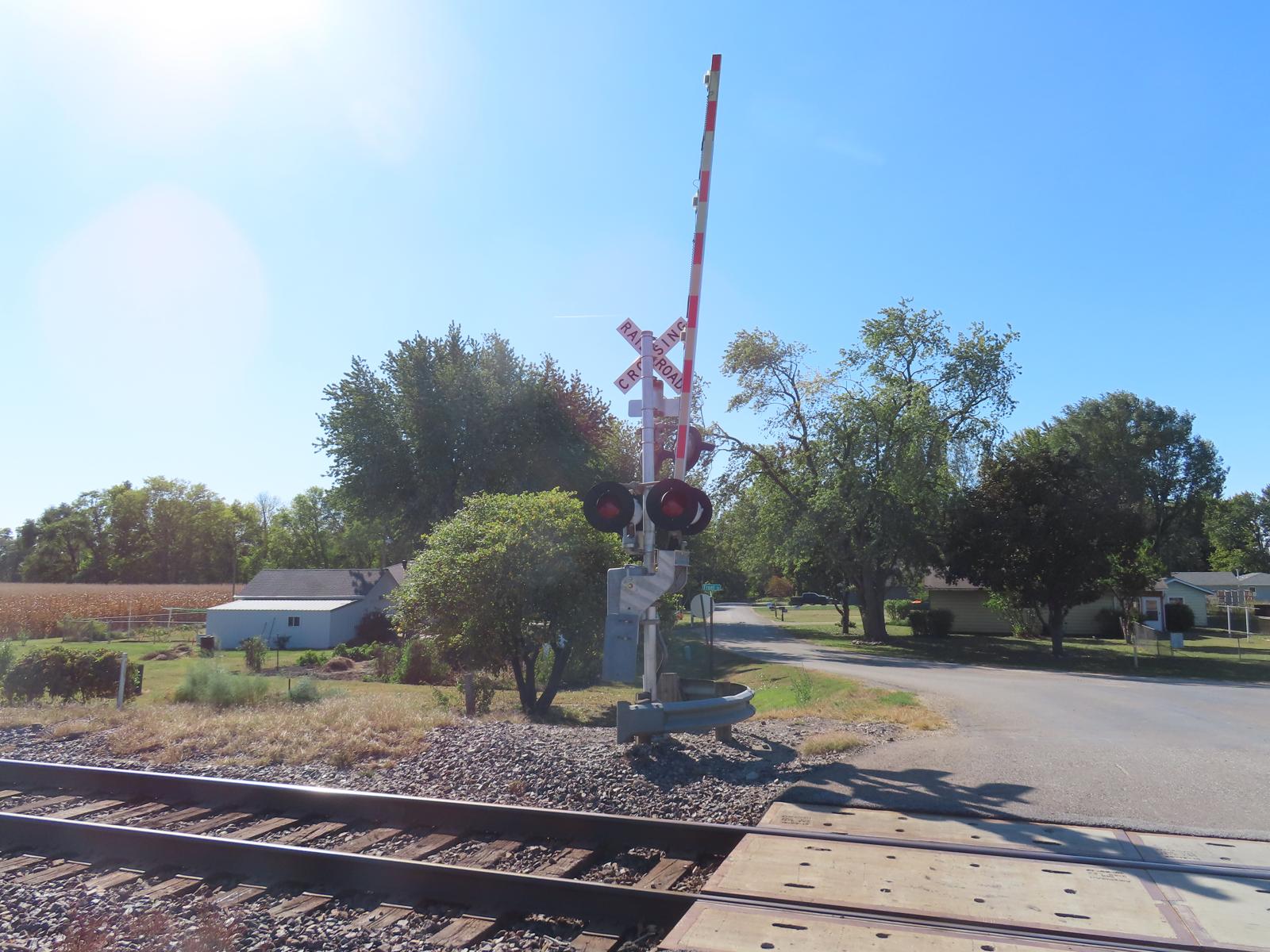

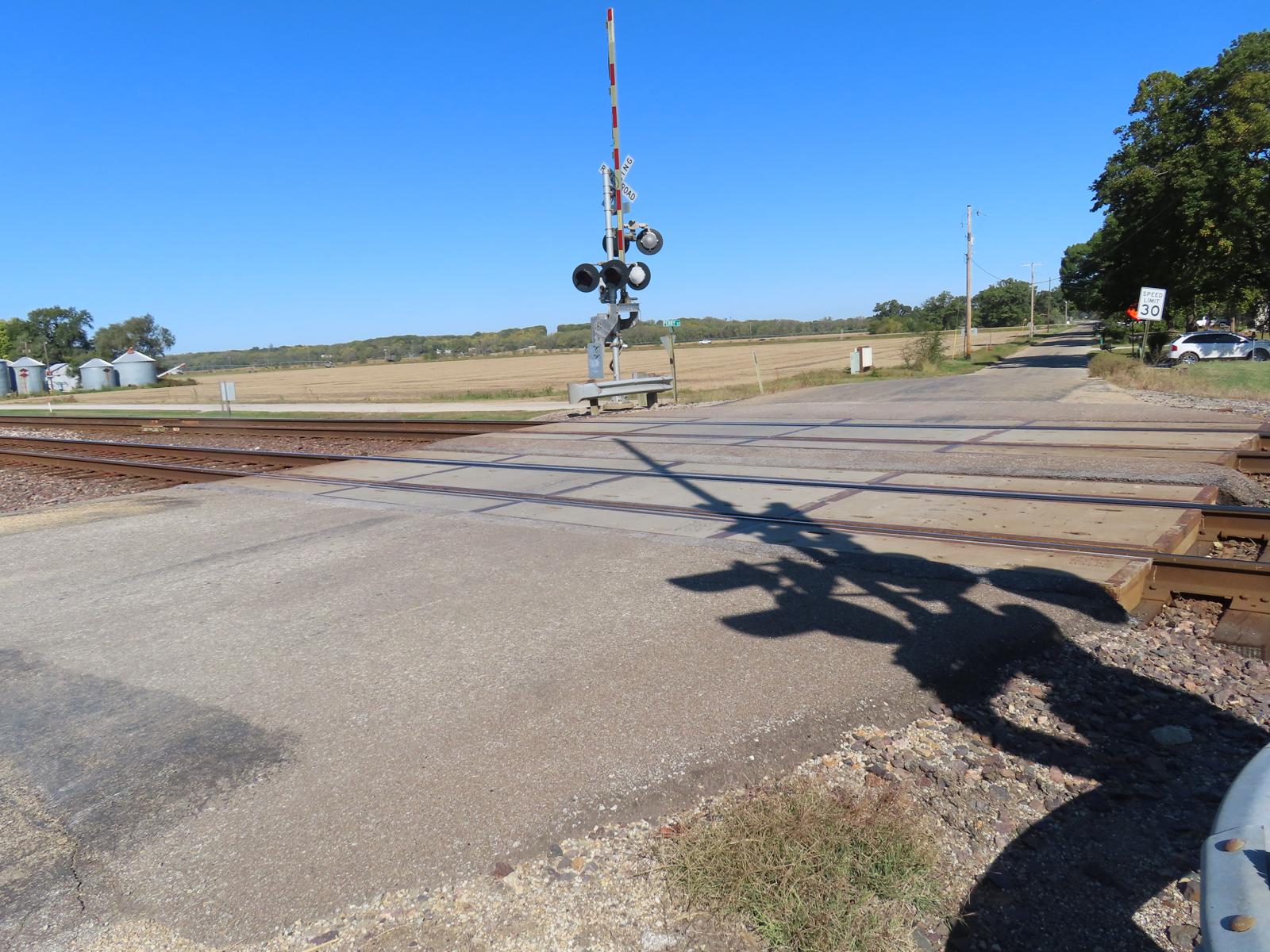

Overview facing north. Overview facing south.
The southern signal:
16 17 18 19

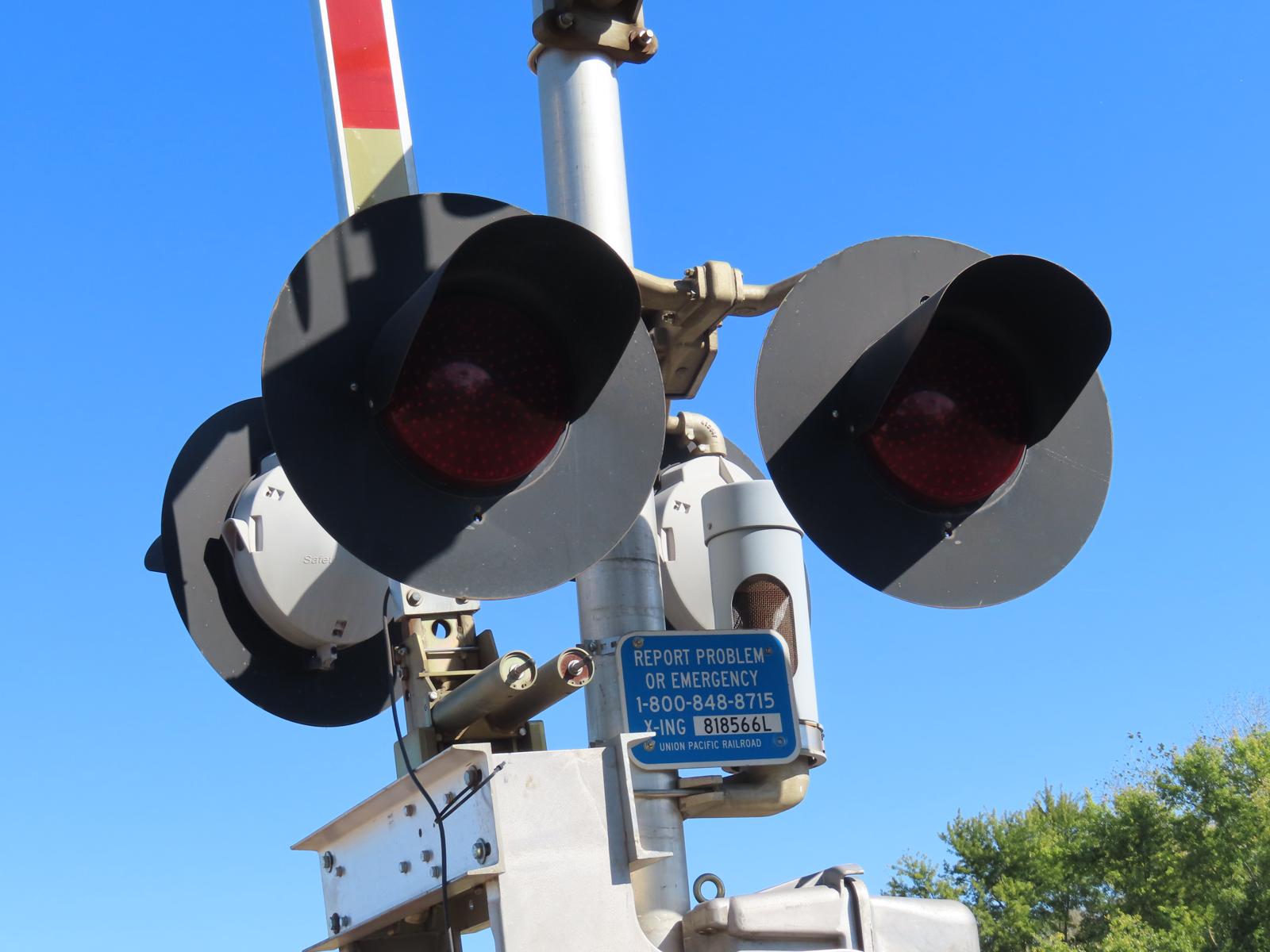

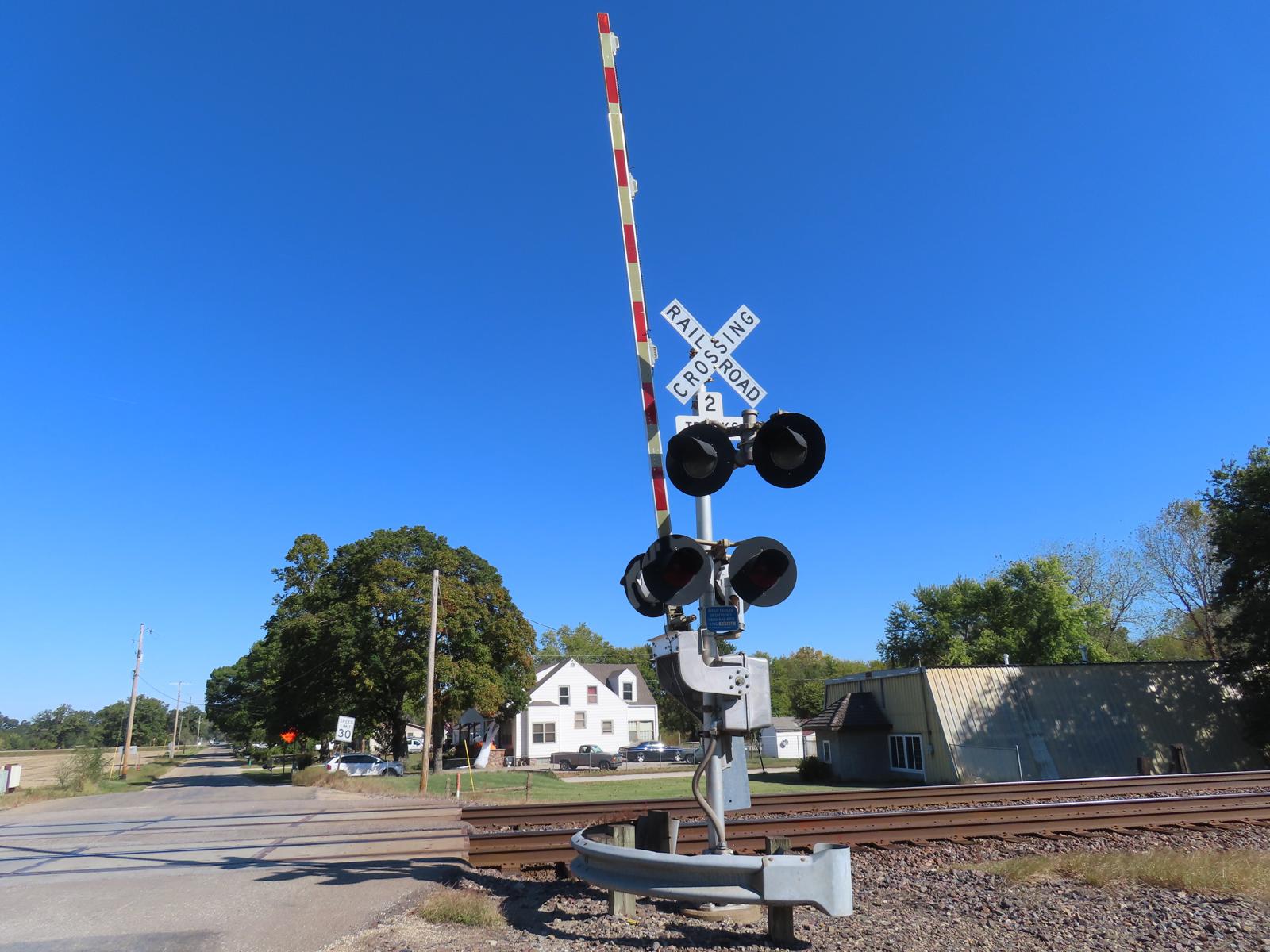

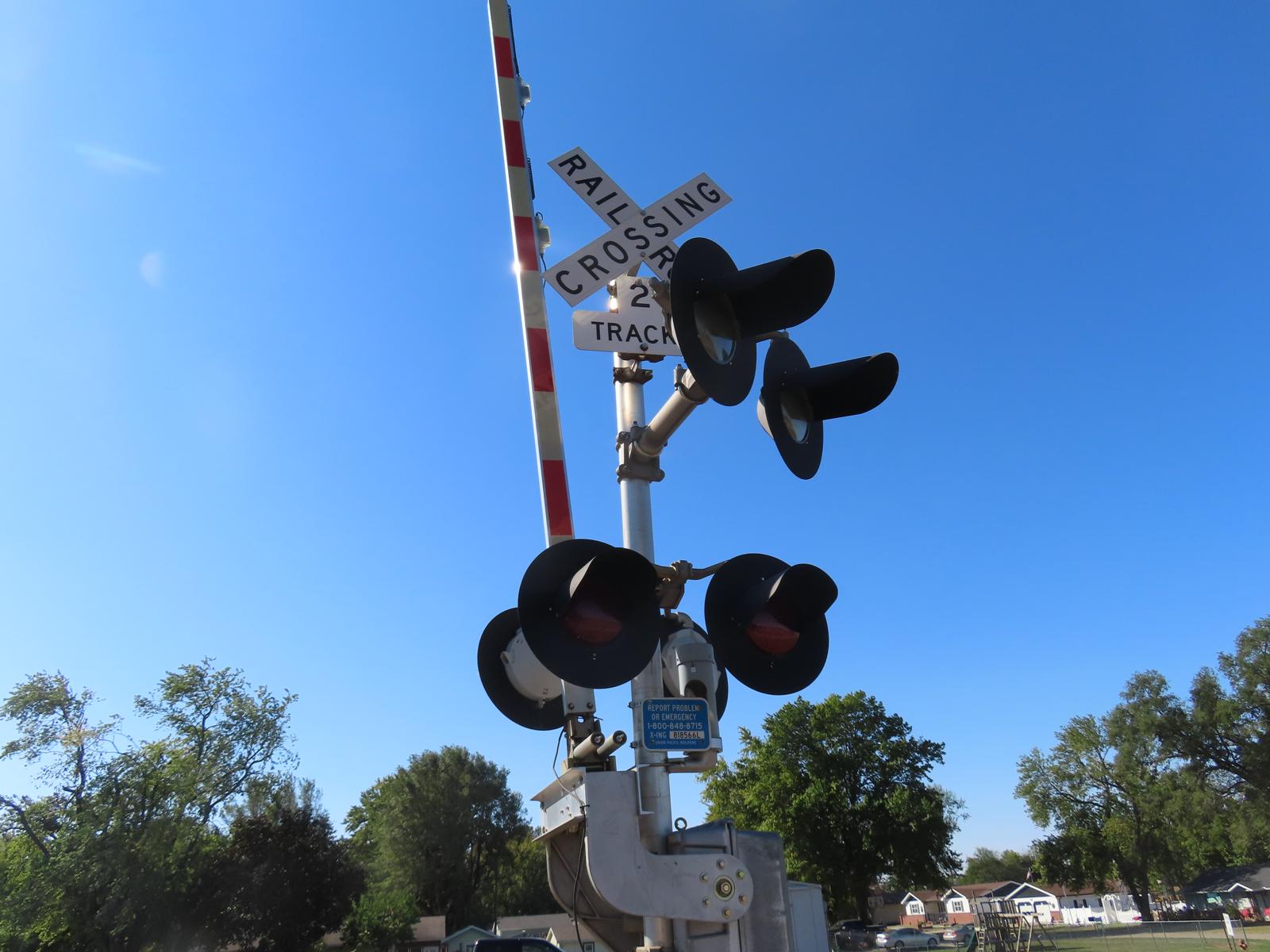

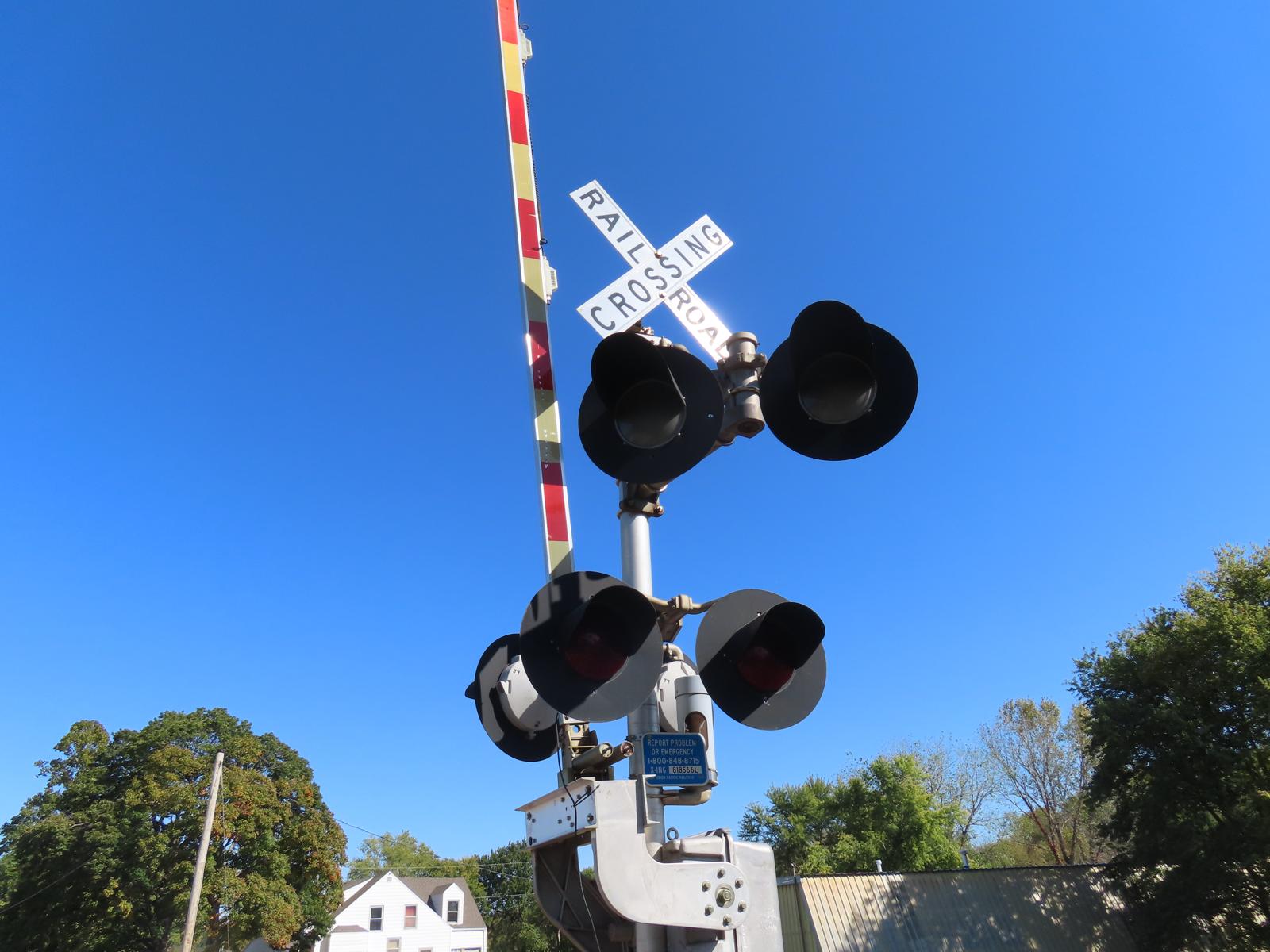

Front view of the southern signal. This signal replaced the older WCH signal seen in picture 6, although UP did reuse parts of the old signal like they did at Township Rd. A look at the front, and side lights on the southern signal.

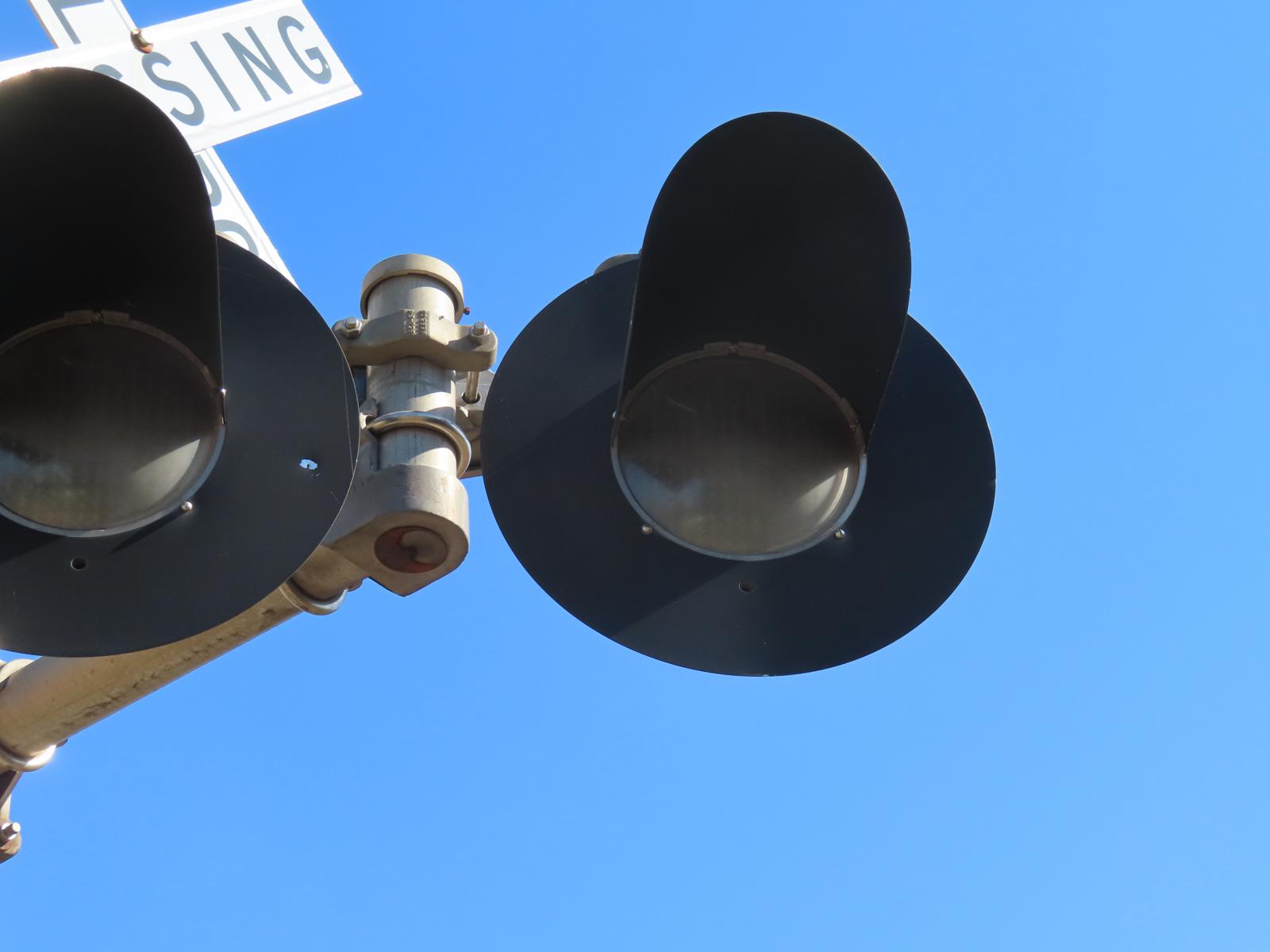

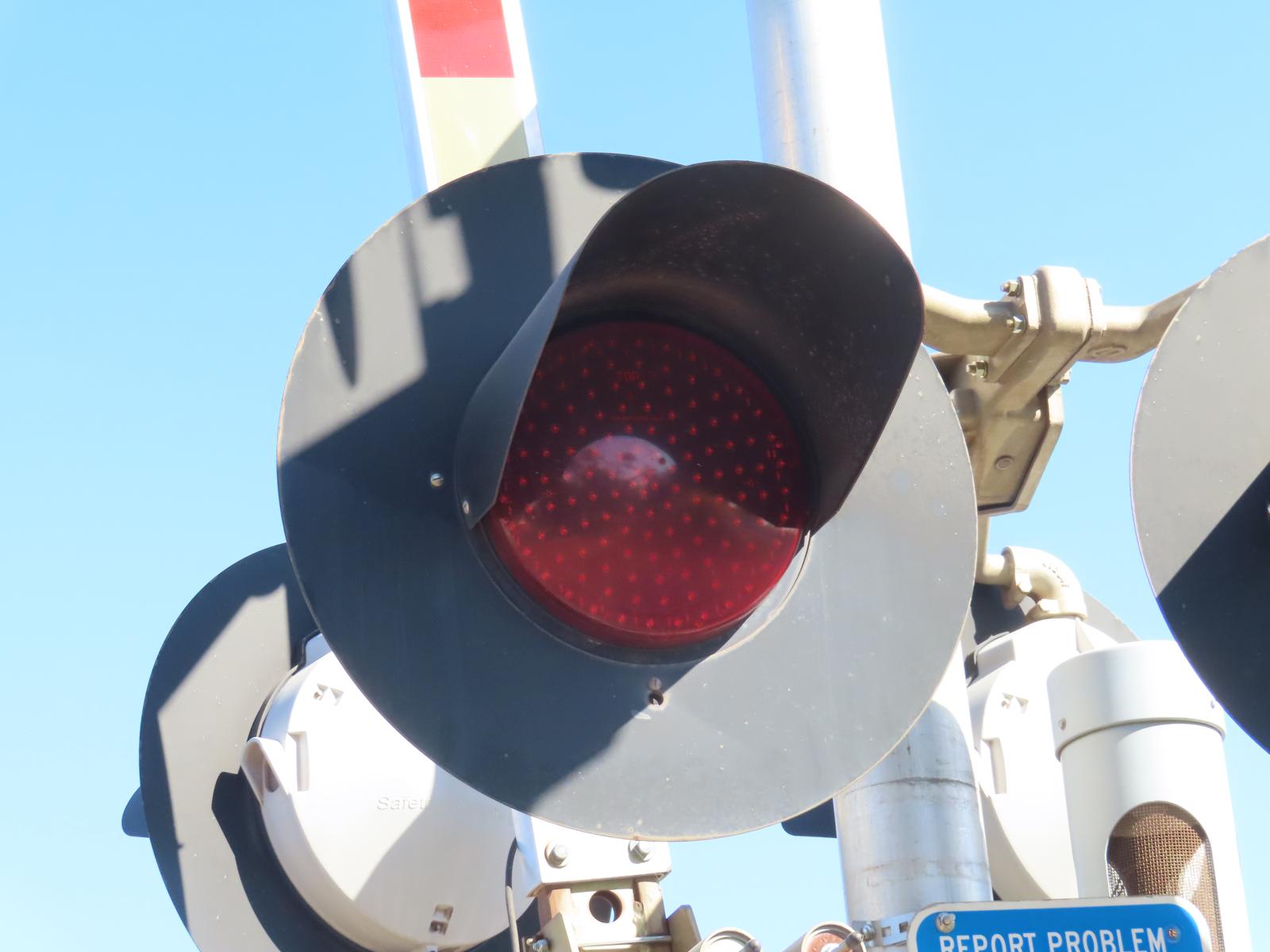

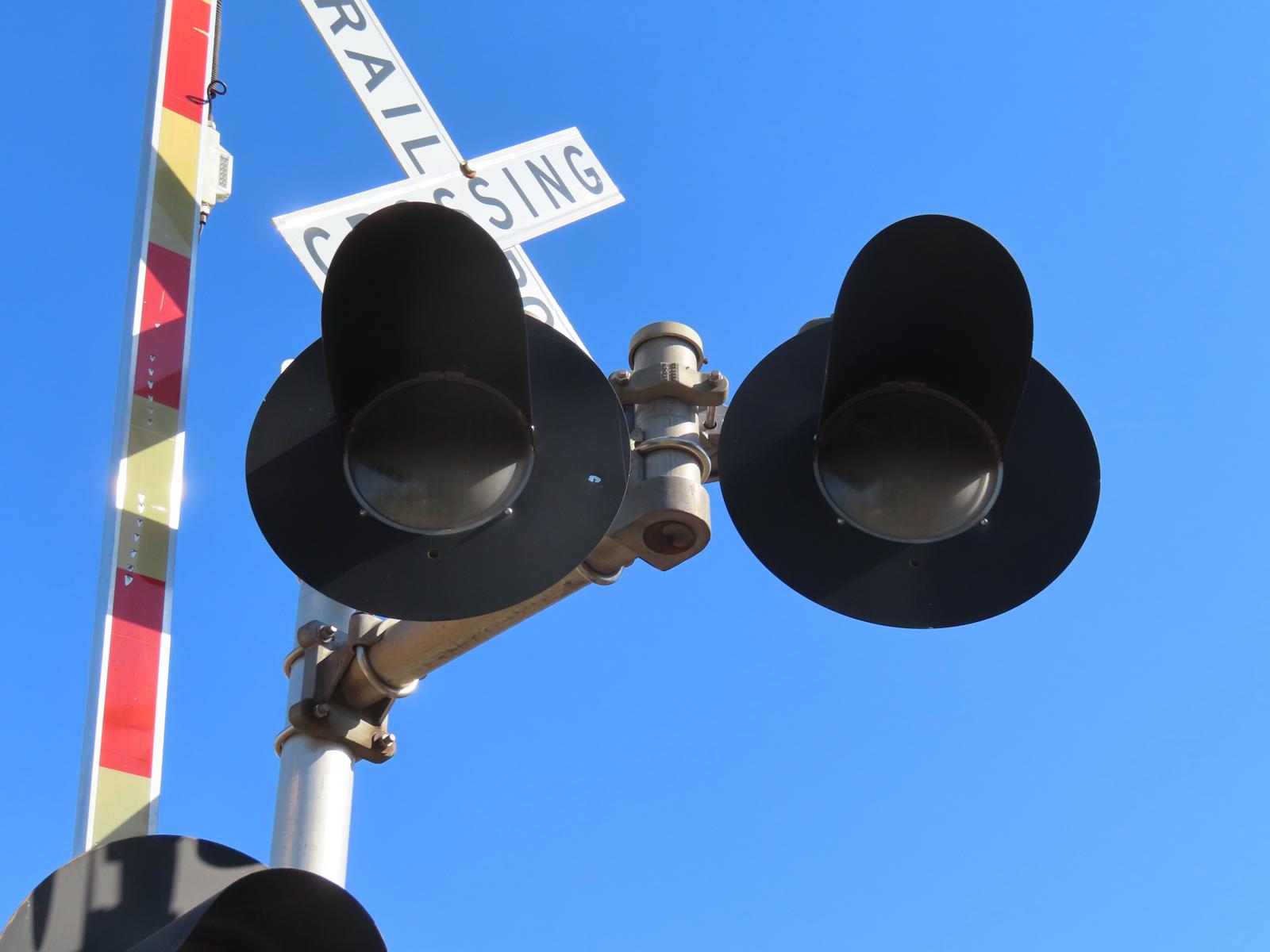

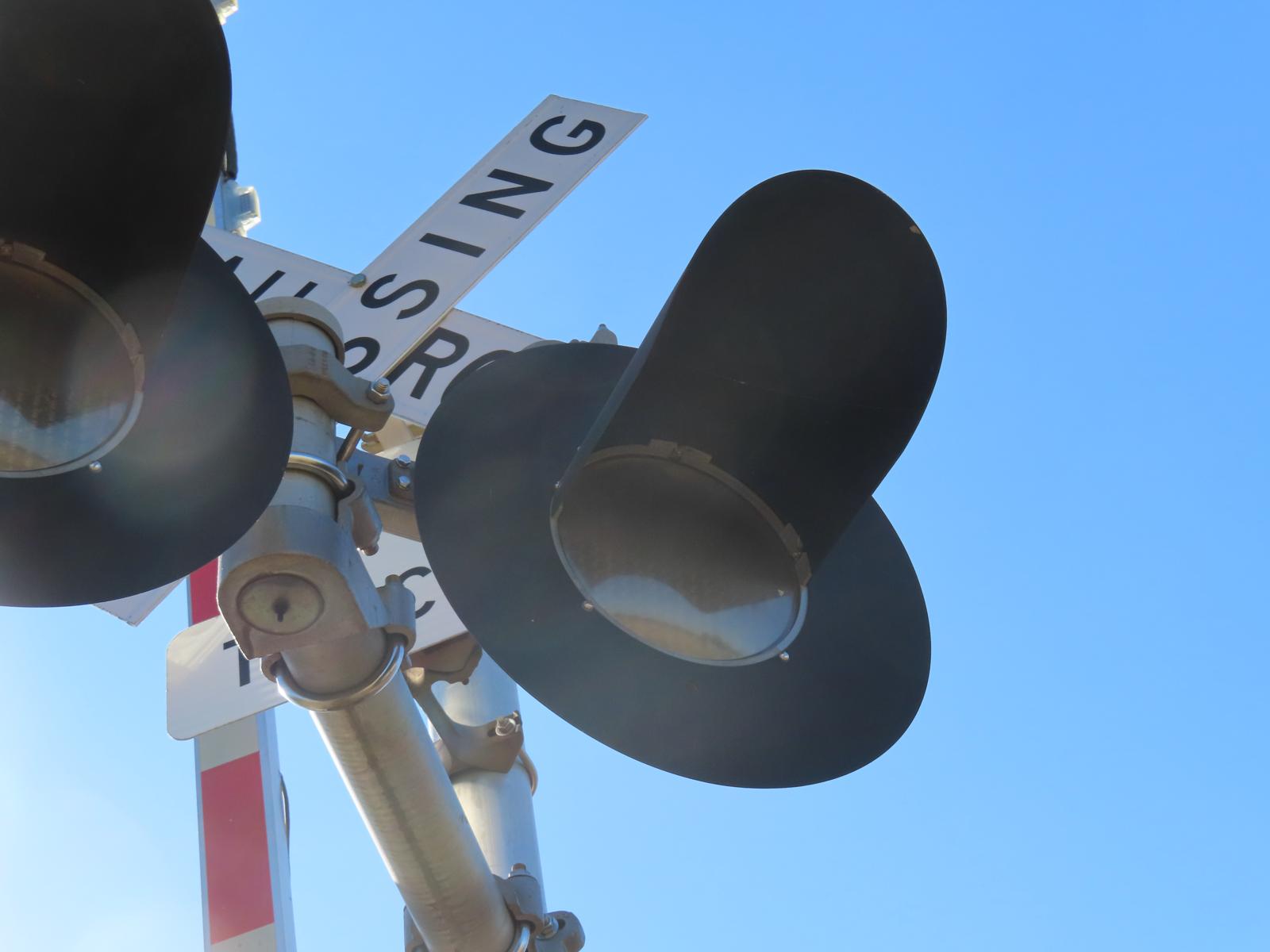

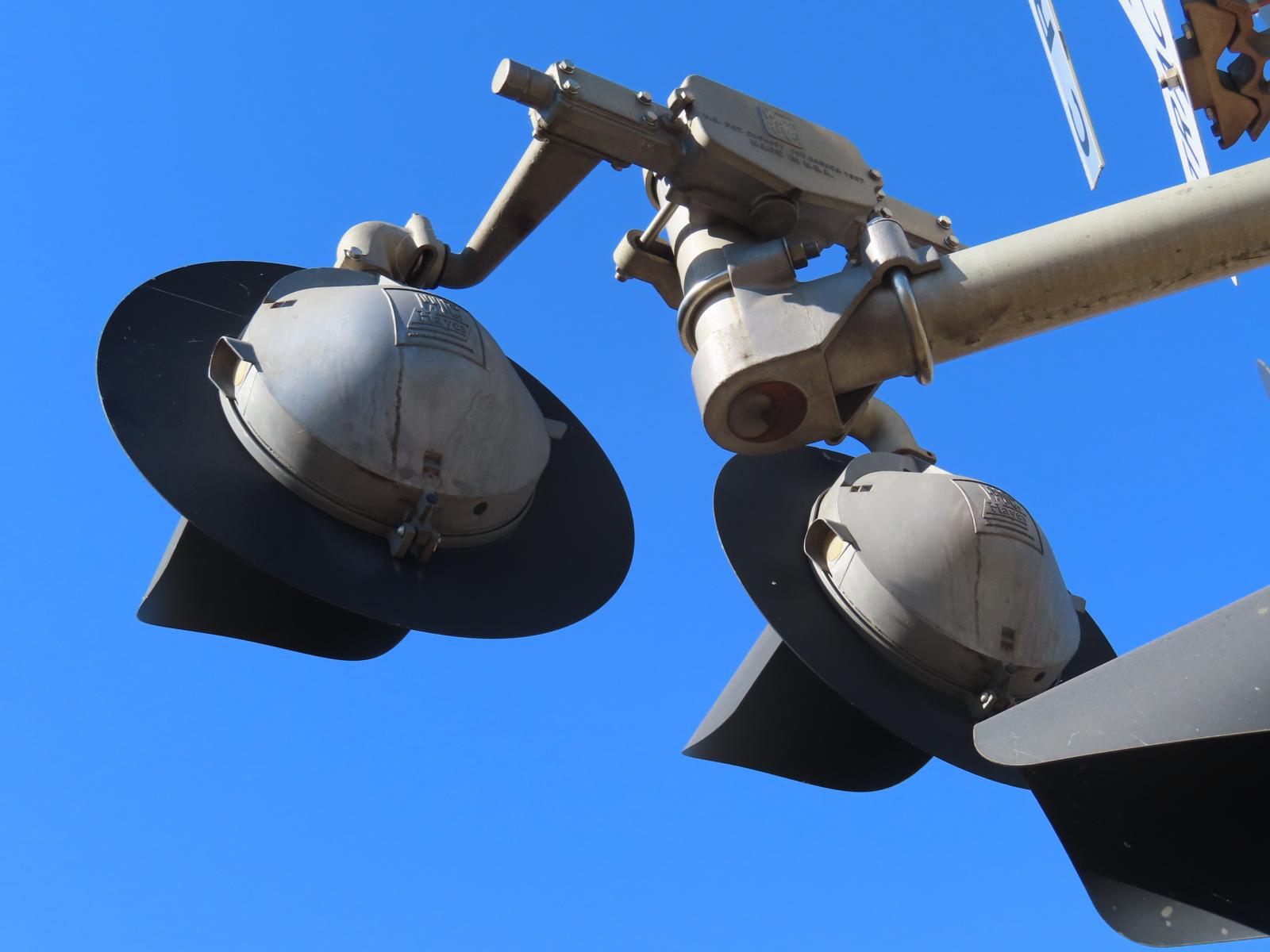

 The main lights on the southern signal are all now 2 pairs of 12x24 lights with WCH 2nd Gen LEDs in the light frames. Close up at one of the WCH 2nd Gen LEDs in one of the main lights on the southern signal.
20 21 22 23

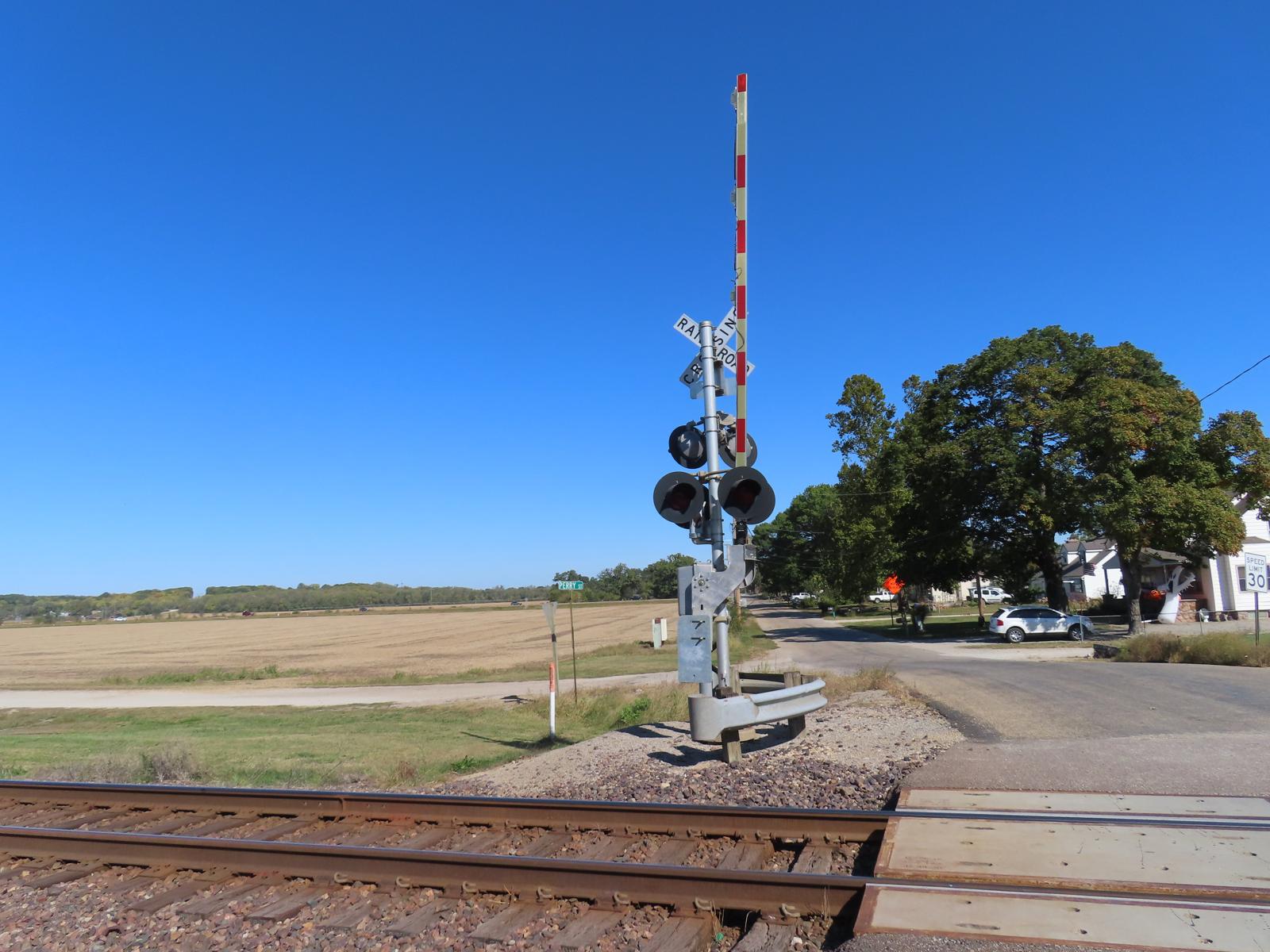

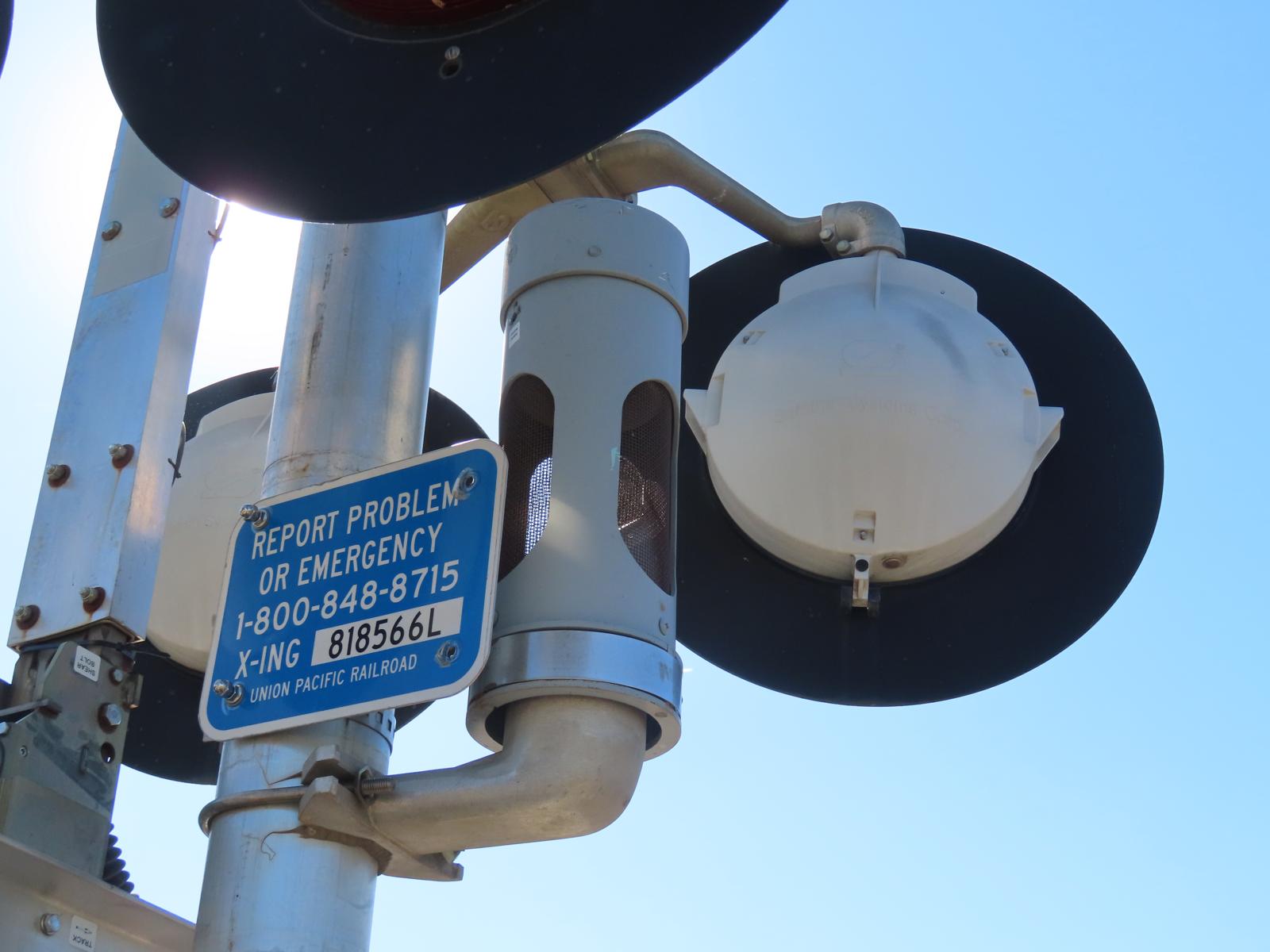

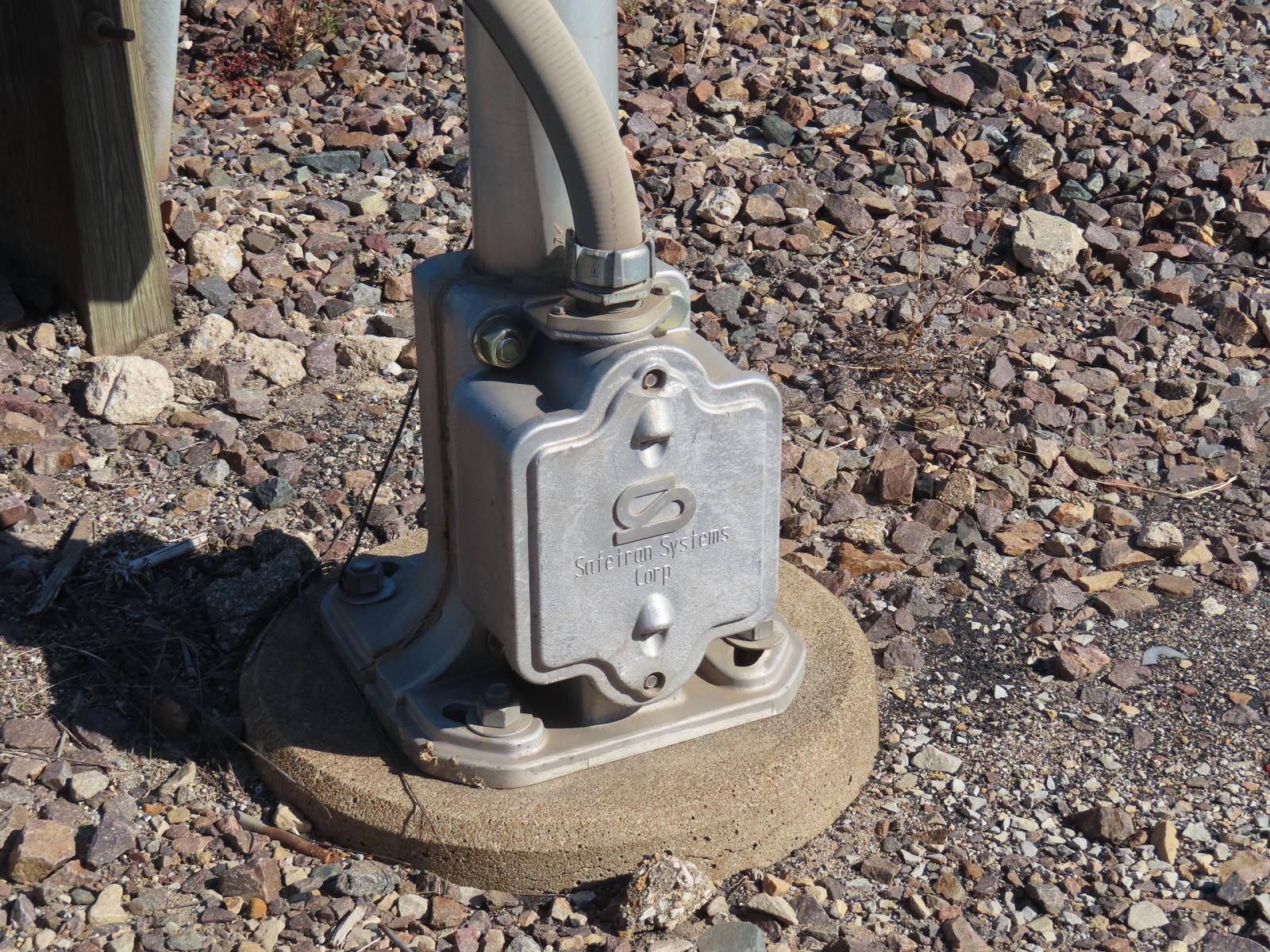

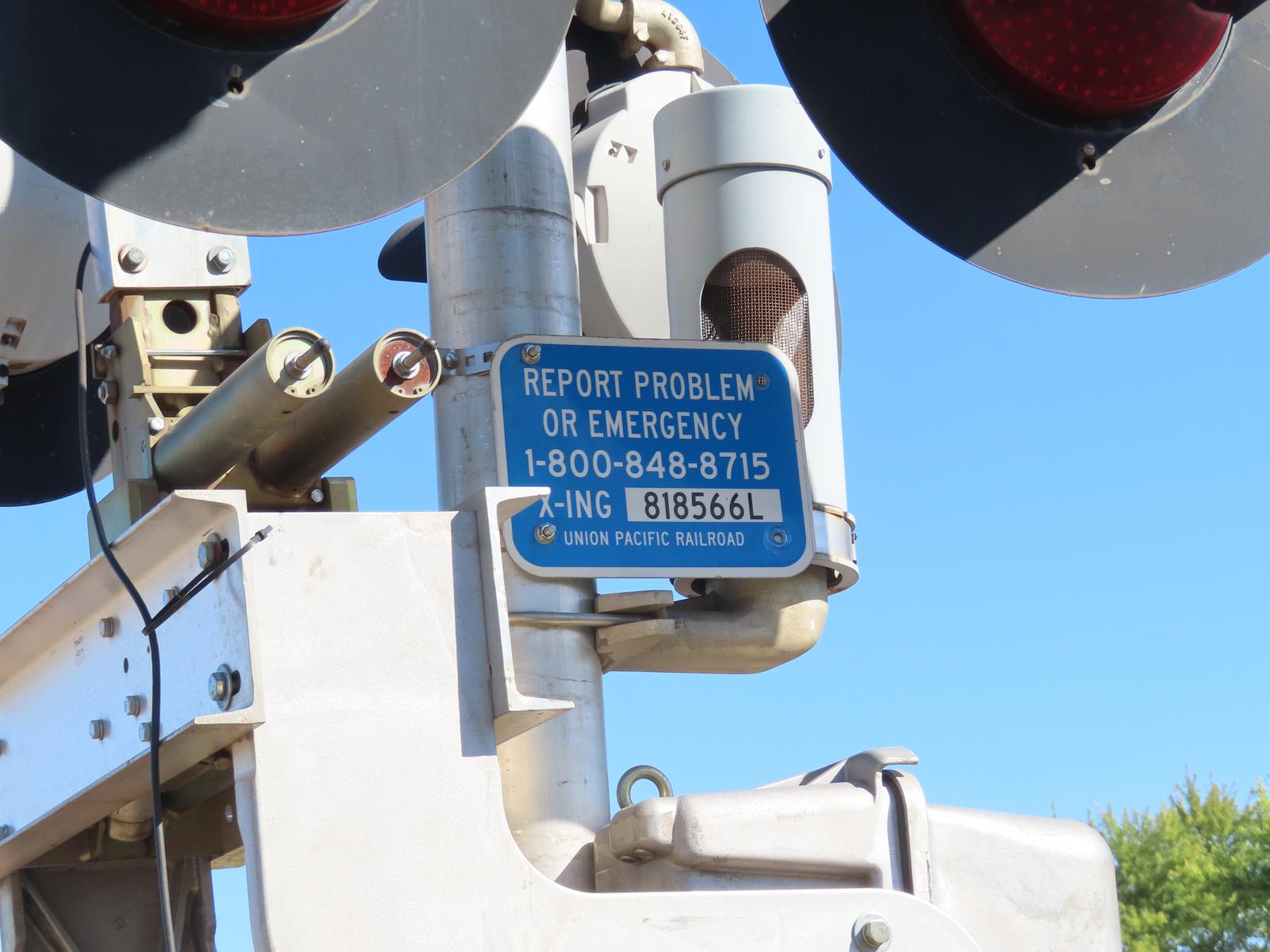

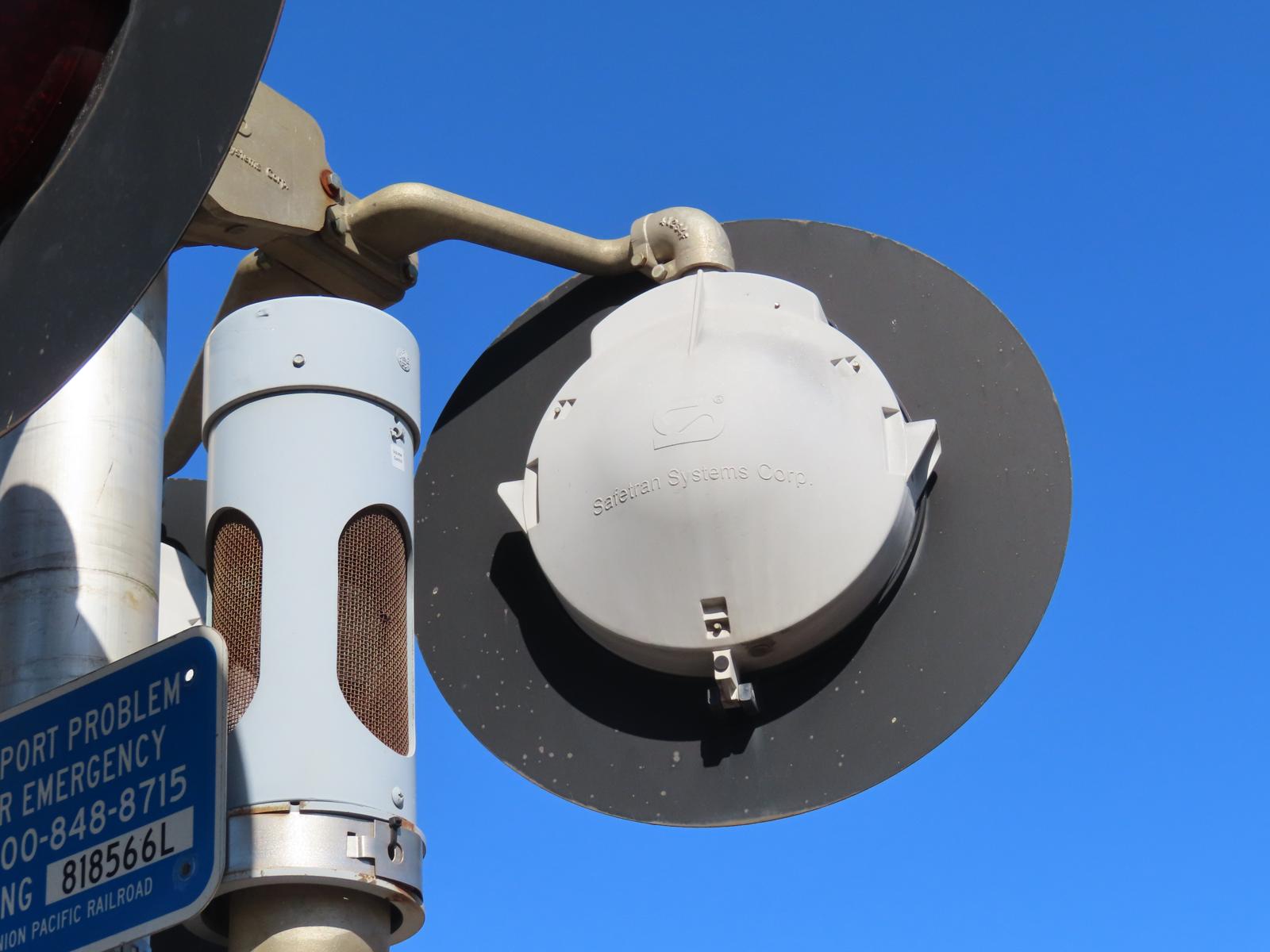

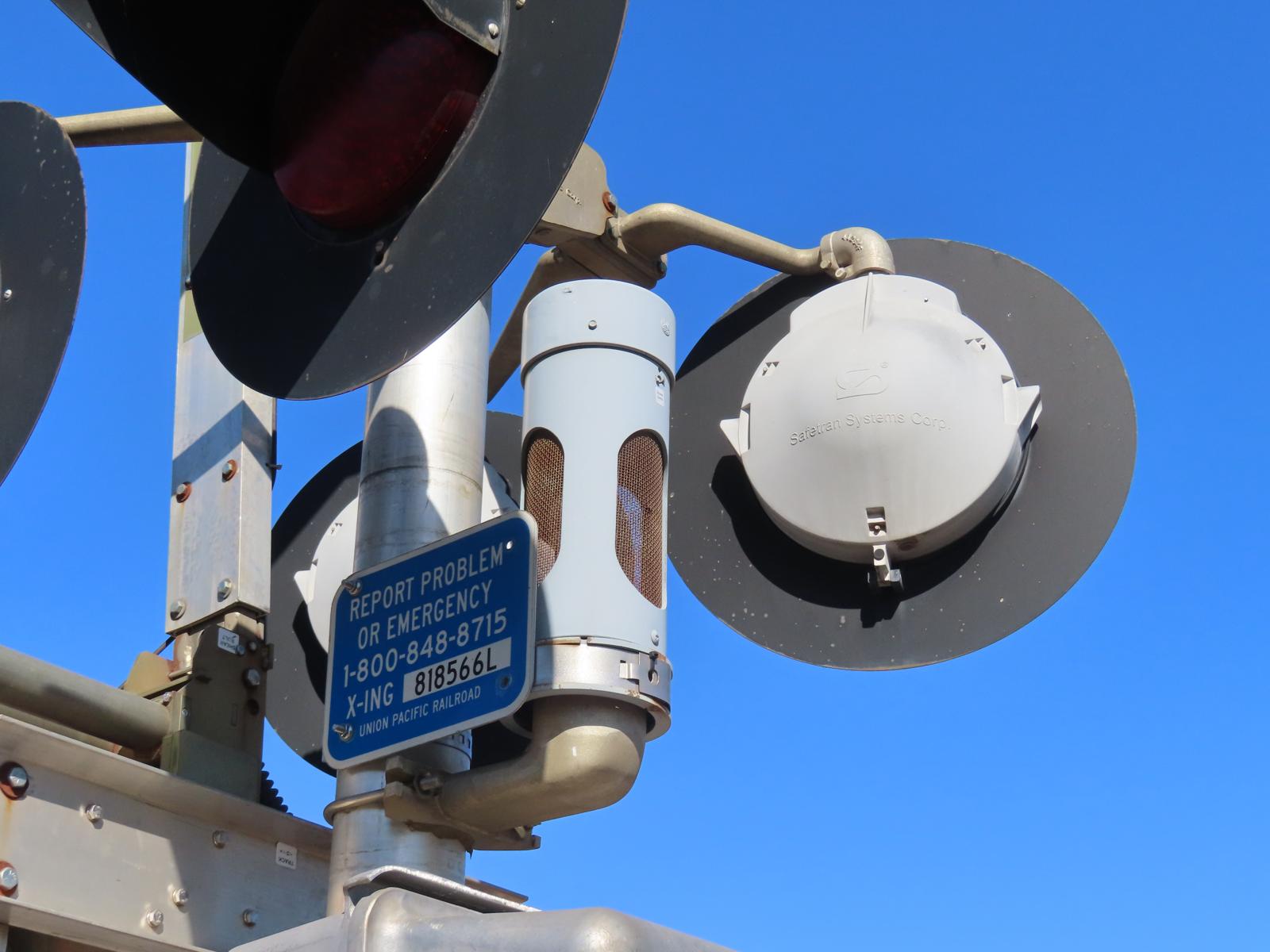

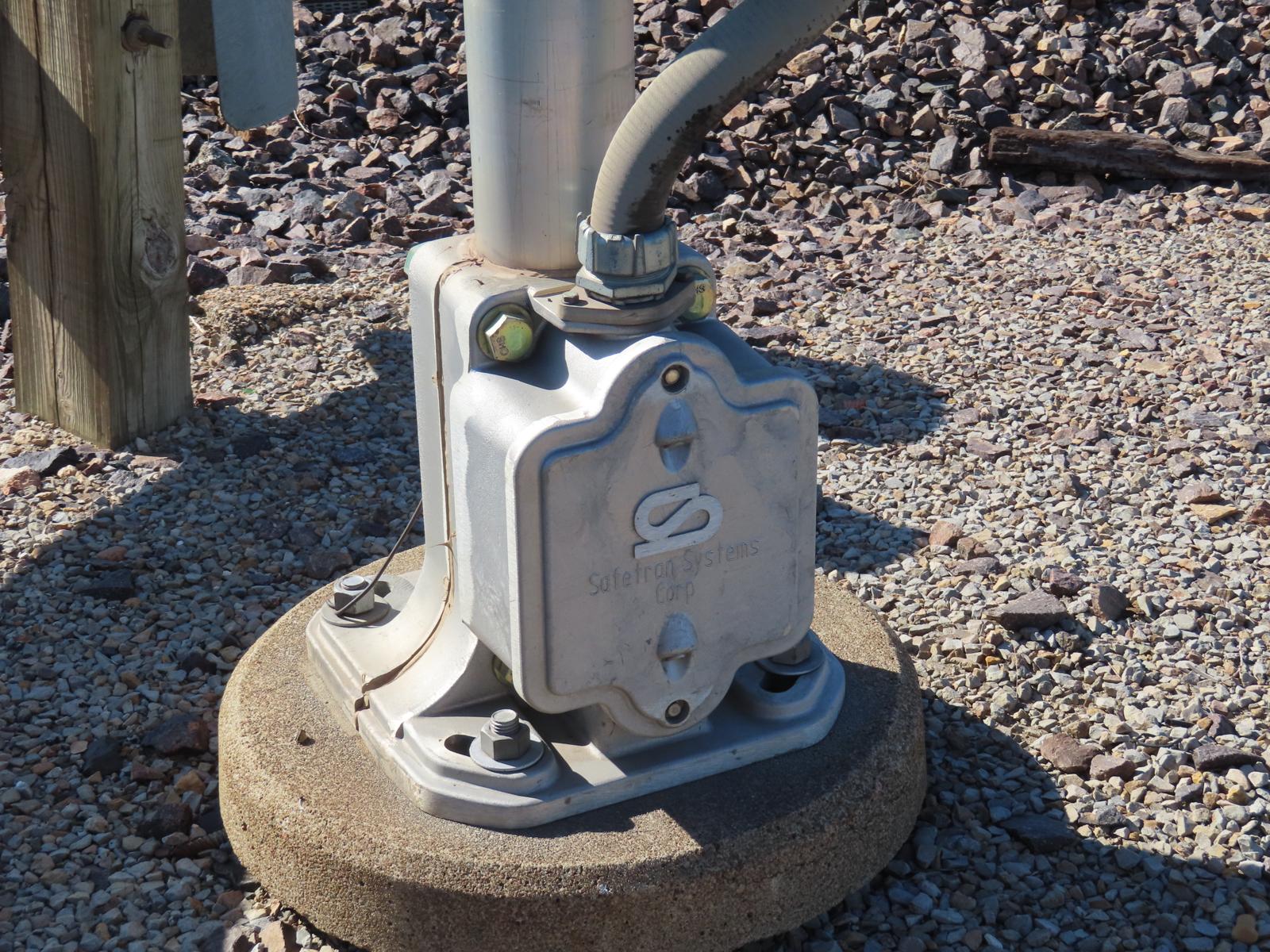

The southern signal received the ENS sign sometime in the mid 2010s. UP repositioned it in late 2023 to be more visible to oncoming traffic. The signal base on the southern signal is from Safetran. The WCH Clear LEDs seen in picture 6 was reused on the current signal as opposed to tossing them out for newer LEDs! Kudos to UP for keeping some parts of the old signals here!
 Close up at one of the WCH Clear LEDs in one of the side lights on the northern signal.
24 25 26 27

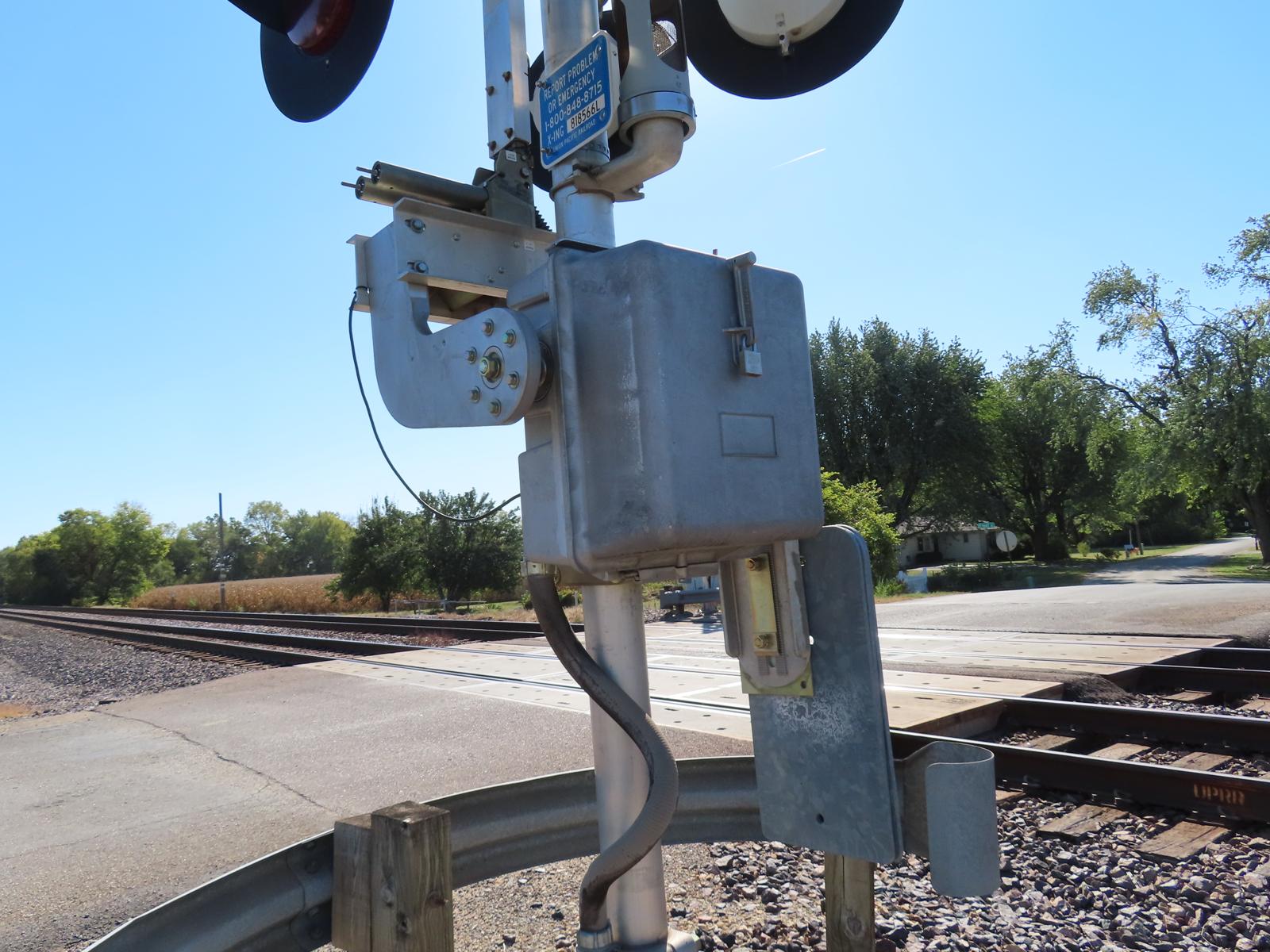

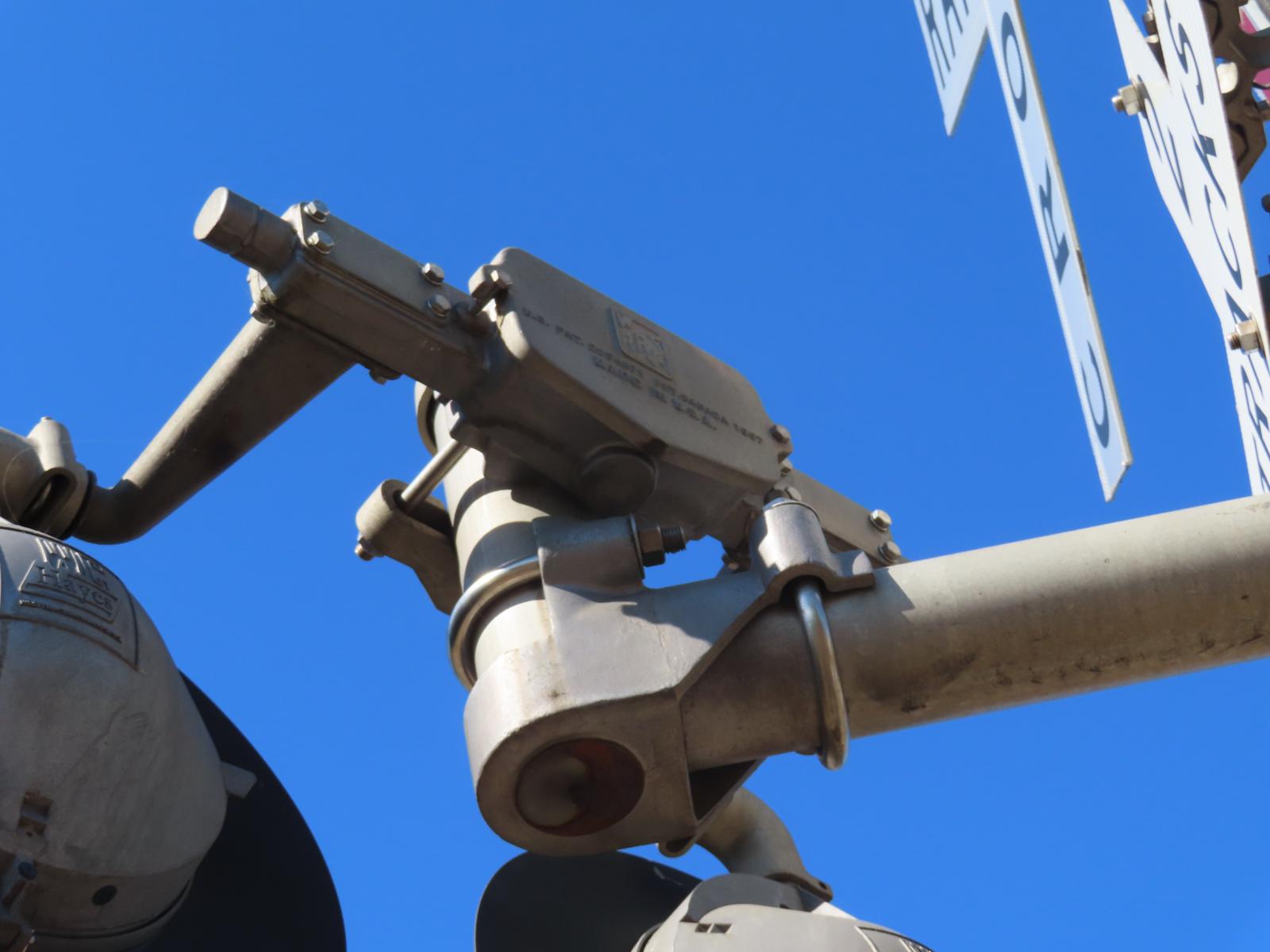

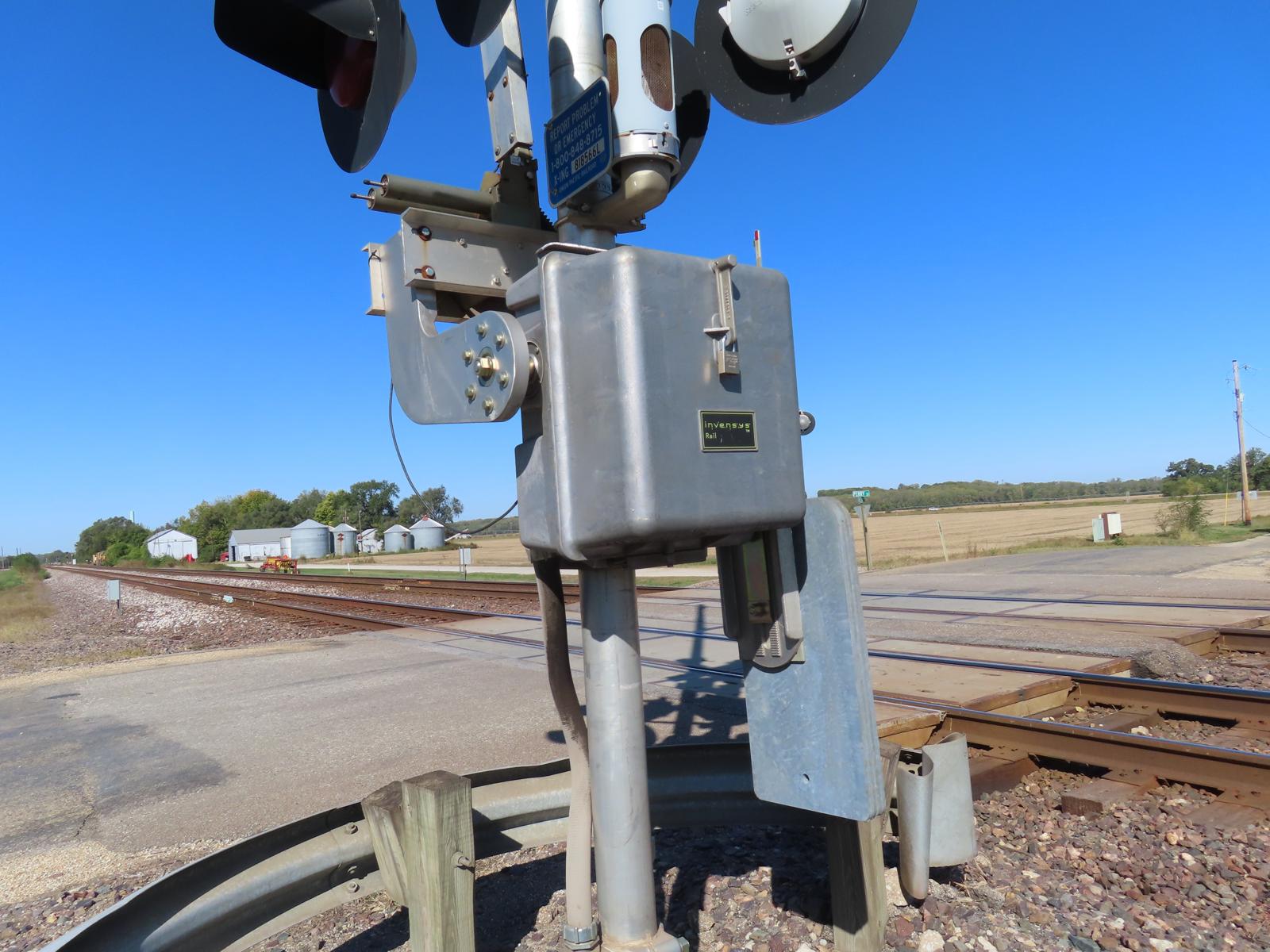

The gate mechanism on the southern signal is now an Invensys gate mechanism. The light bracket on the southern signal is from Safetran. The bell on the southern signal is now an NEG Electronic Bell. The main lights on the southern signal are all now from Safetran.
28 29 30 31

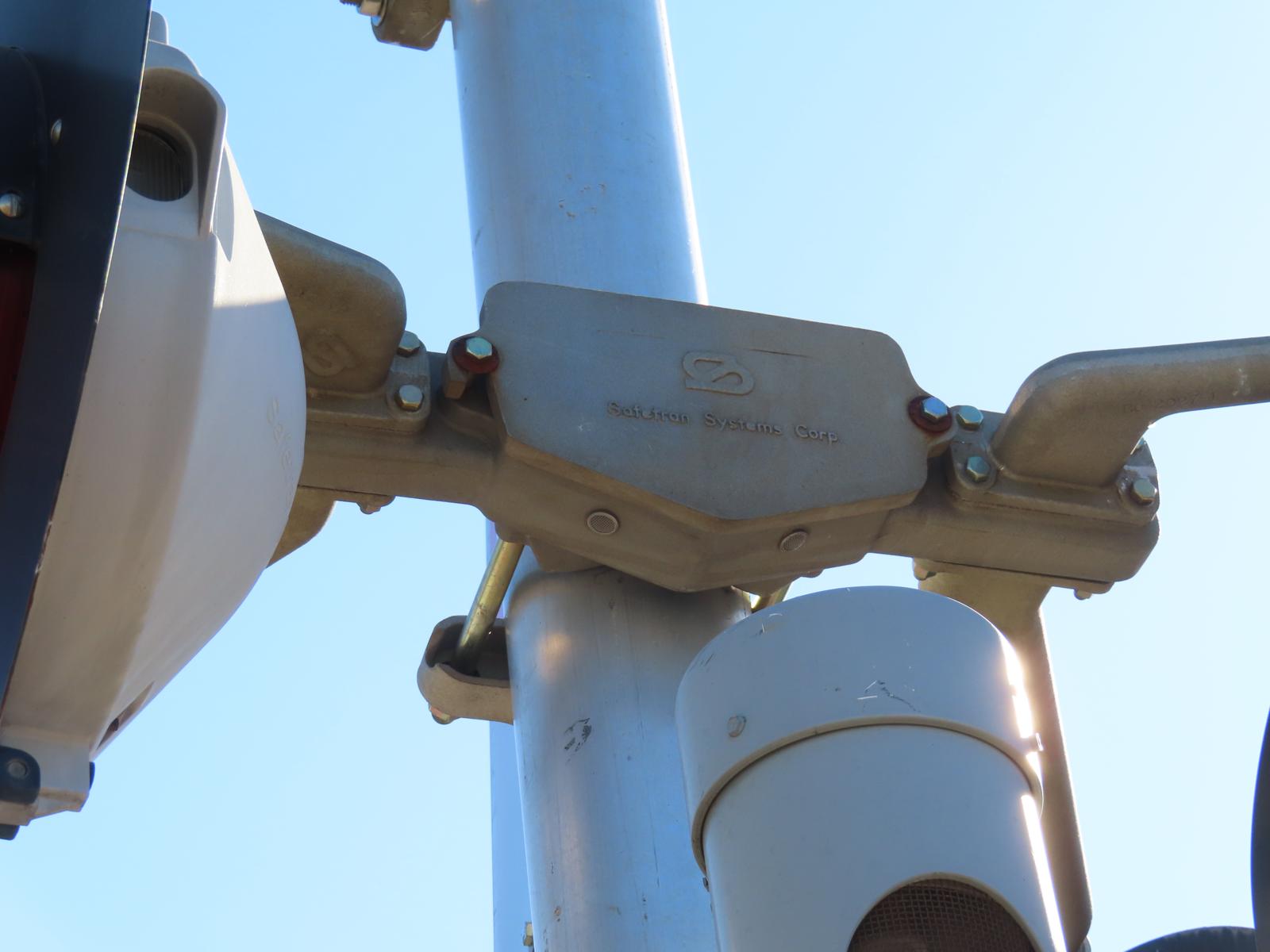

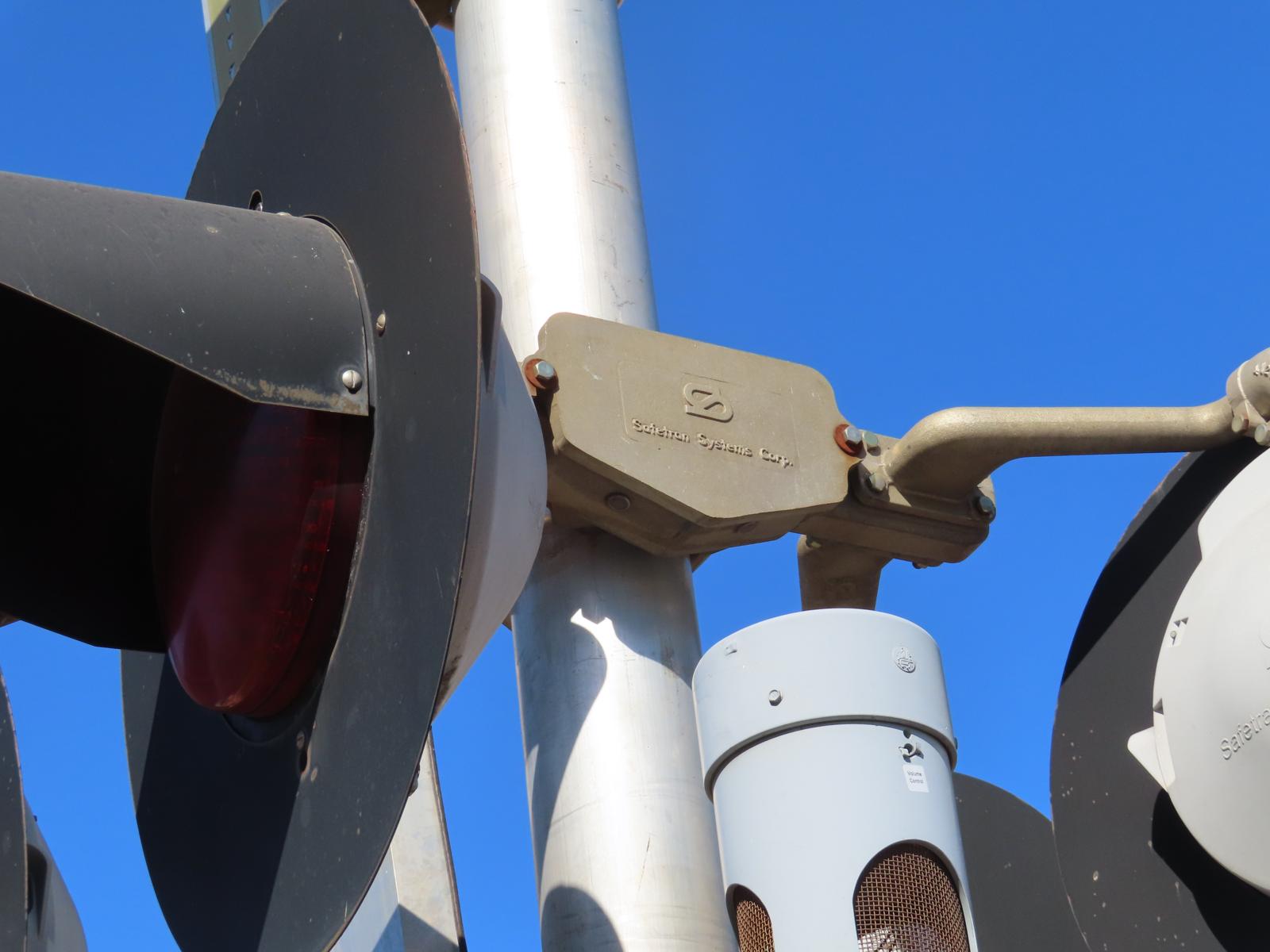

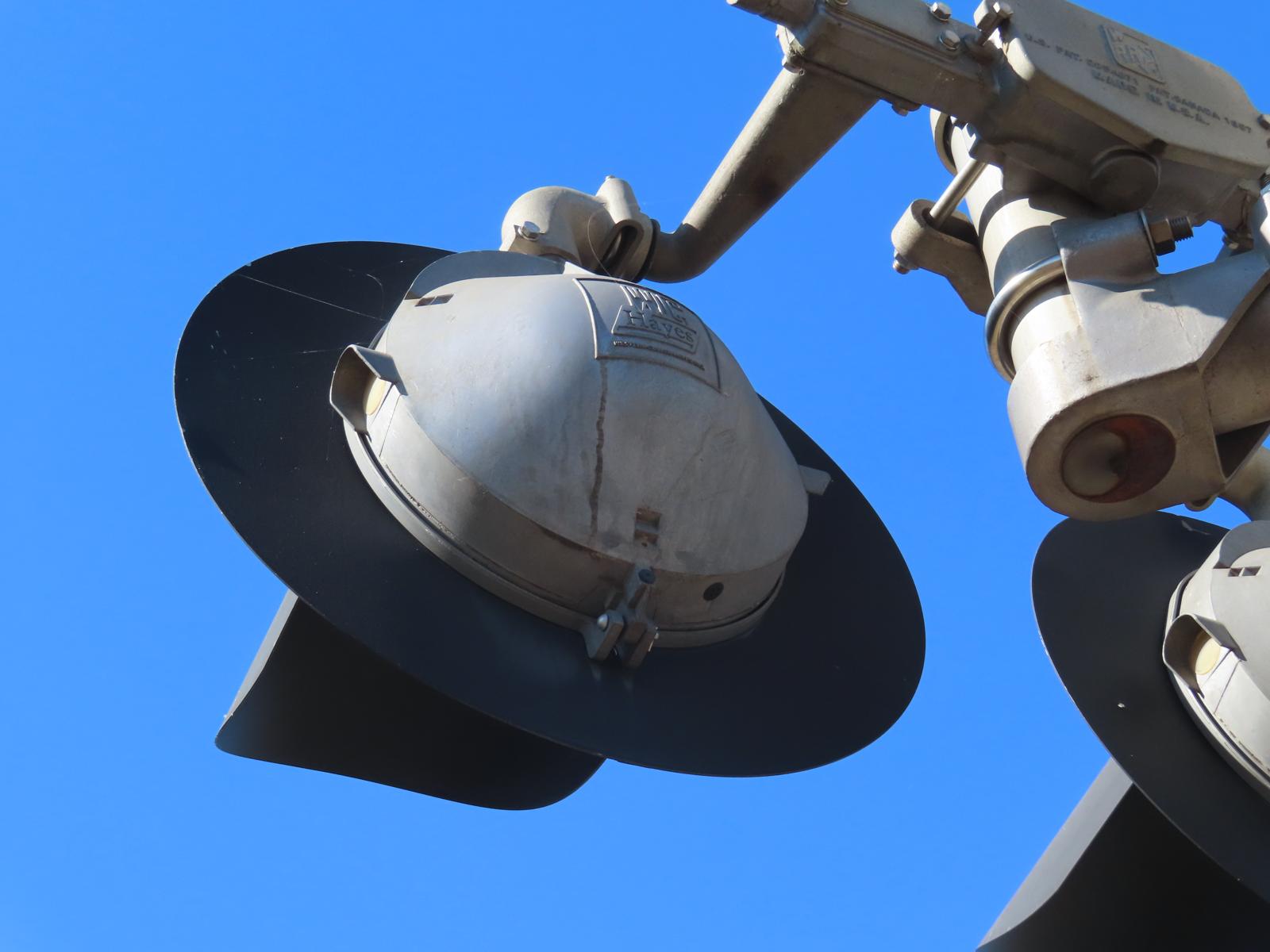

Close up at one of the Safetran lights on the main lights on the northern signal. The light bracket for the side lights is from WRRS. The side lights with the WCH Clear LEDs are from WCH. Close up at one of the WCH lights on one of the side lights on the northern signal.
32 33 34 35

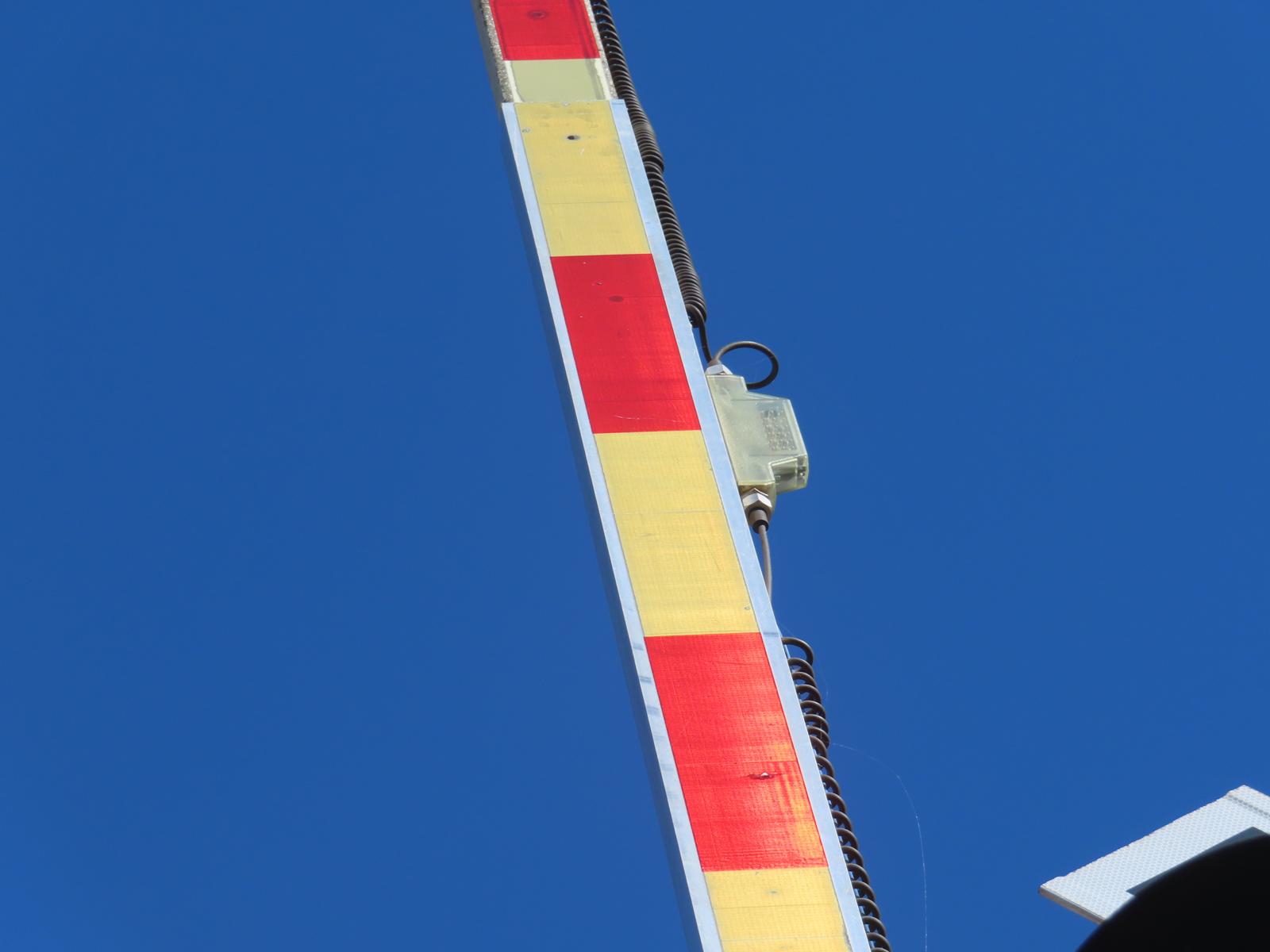

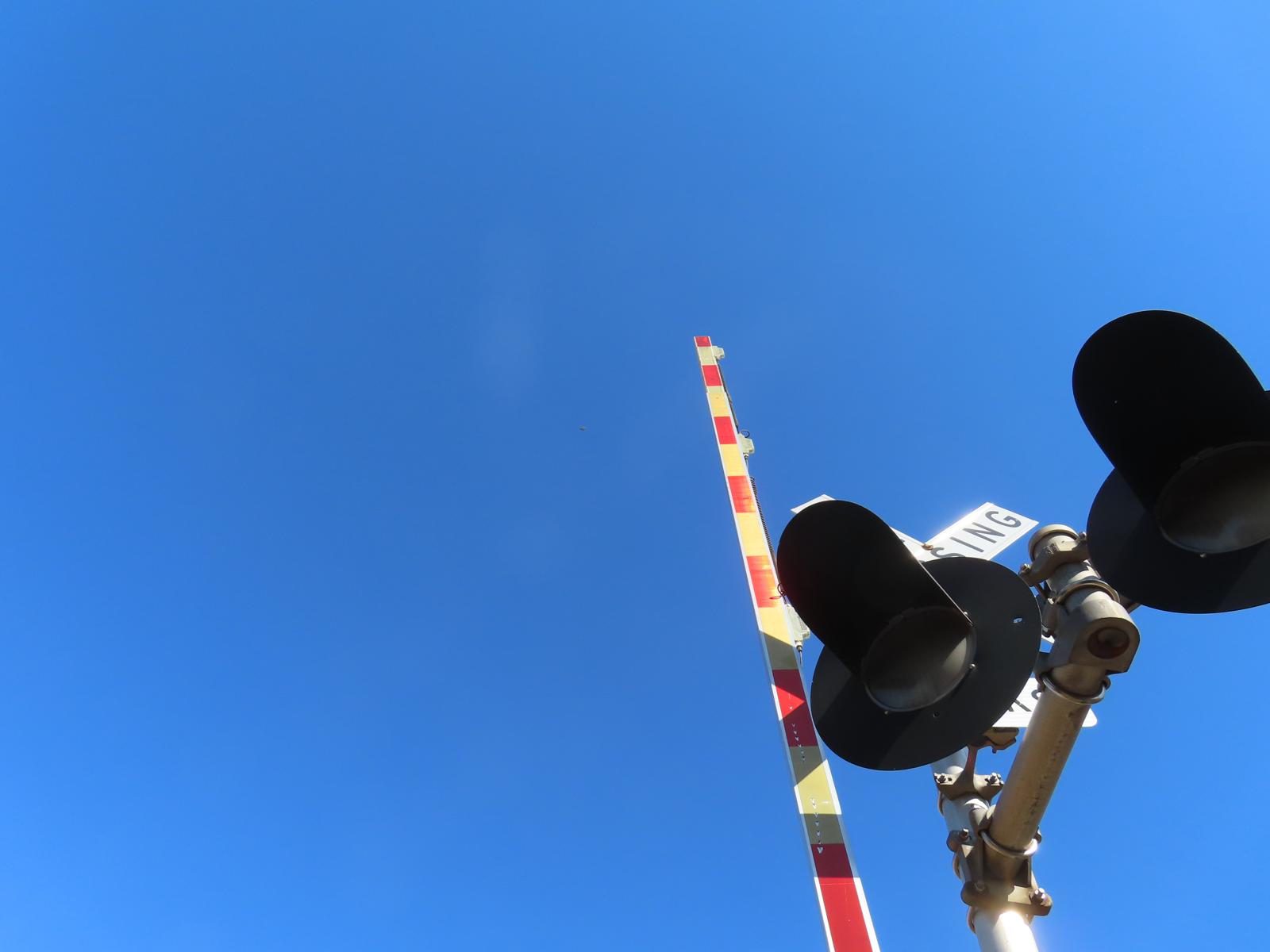

The gate on the southern signal now features the vertical striping while the gate lights are from Alstom-Aurora. The same can be said for the gate on the northern signal as I forgot to get photos of the northern signal's gate. Close up at one of the Alstom-Aurora gate lights.
 A look at the rear lights on the southern signal which feature some more WCH 2nd Gen LEDs in the light frames. Back view of the southern signal.
The northern signal:
36 37 38

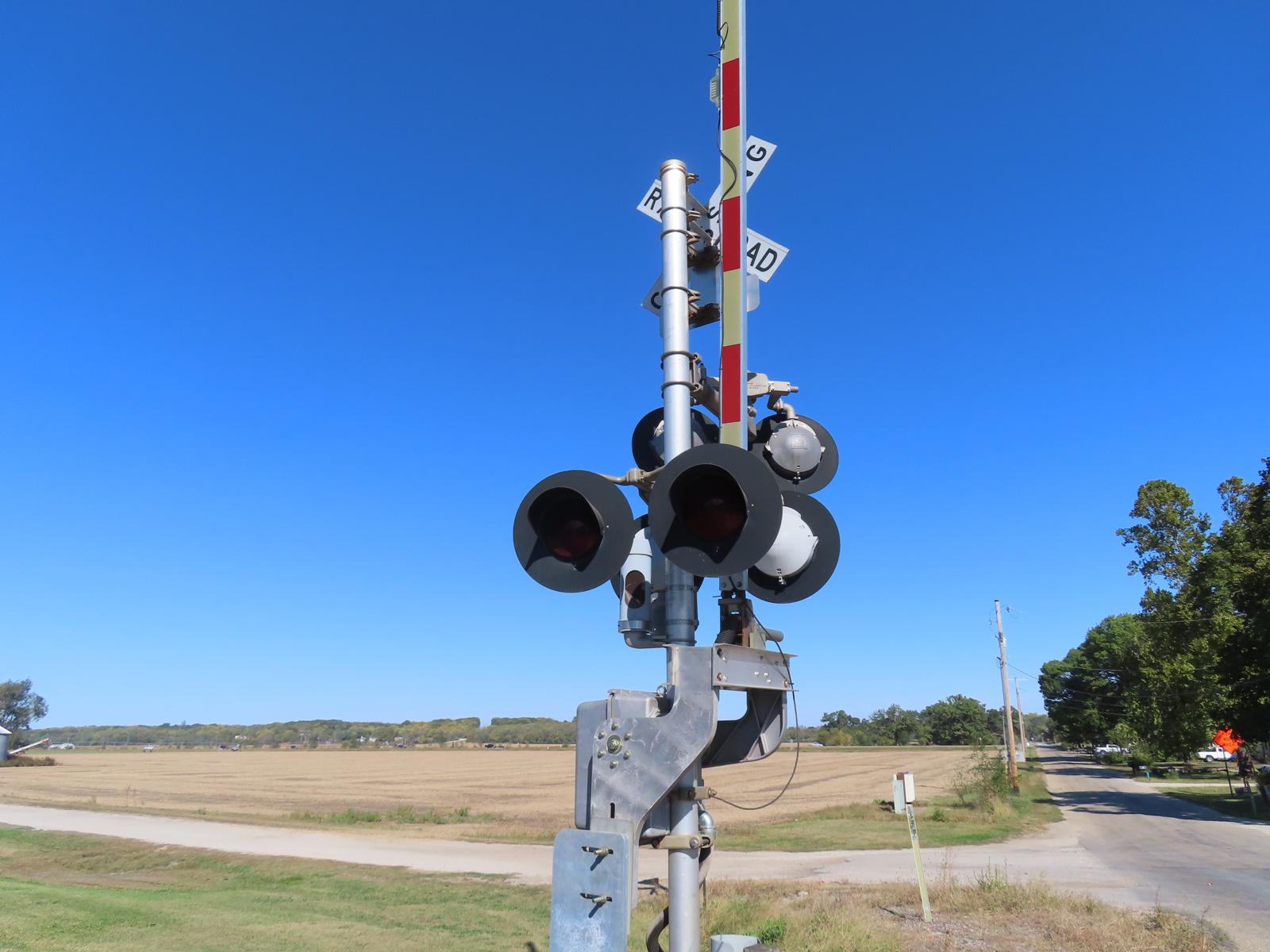

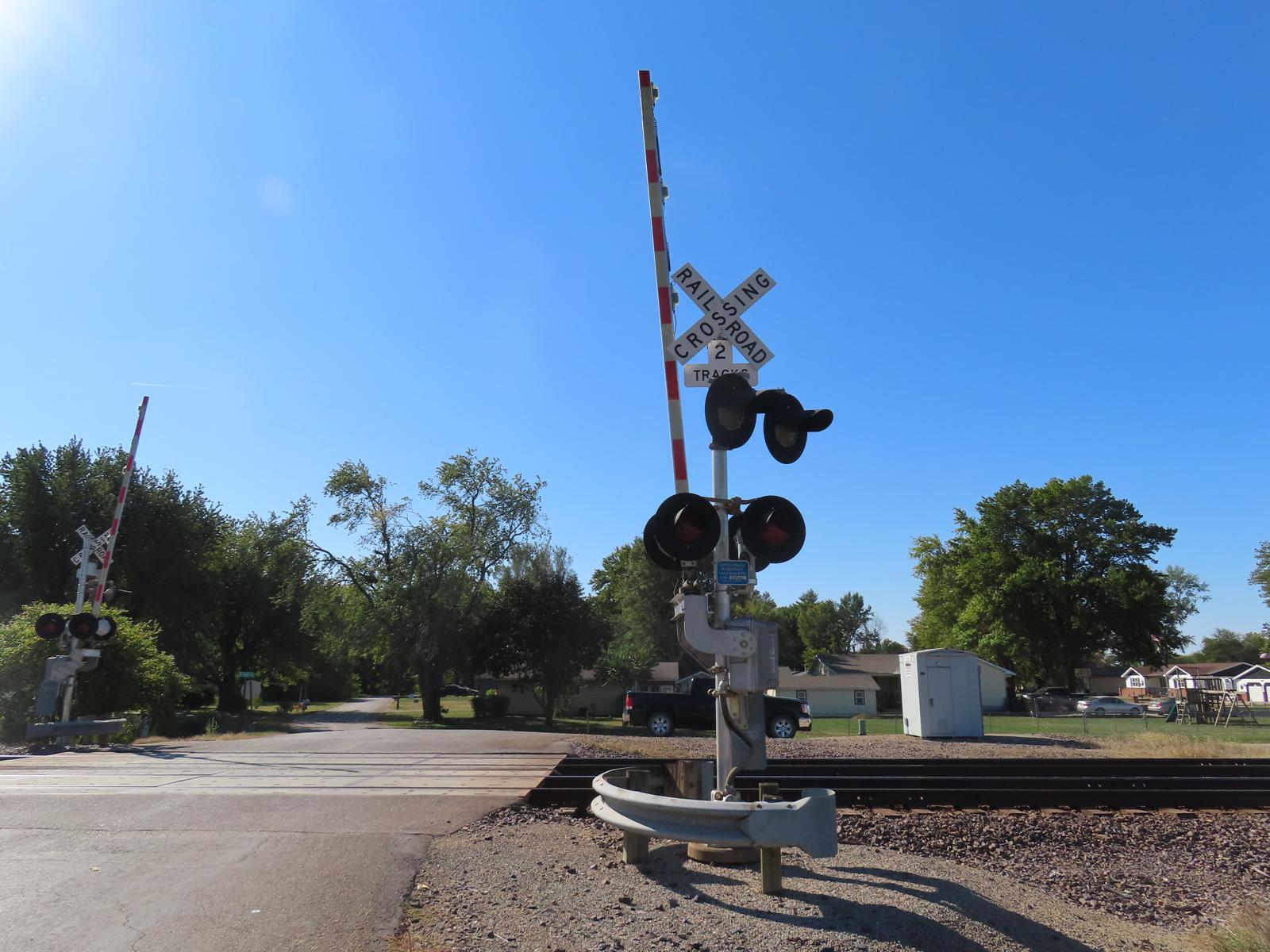

Front view of the northern signal which features the same equipment as the southern signal.
 A look at the front, and side lights on the northern signal.
 The main lights on the northern signal are all now 2 pairs of 12x24 lights with WCH 2nd Gen LEDs in the light frames.
39 40 41

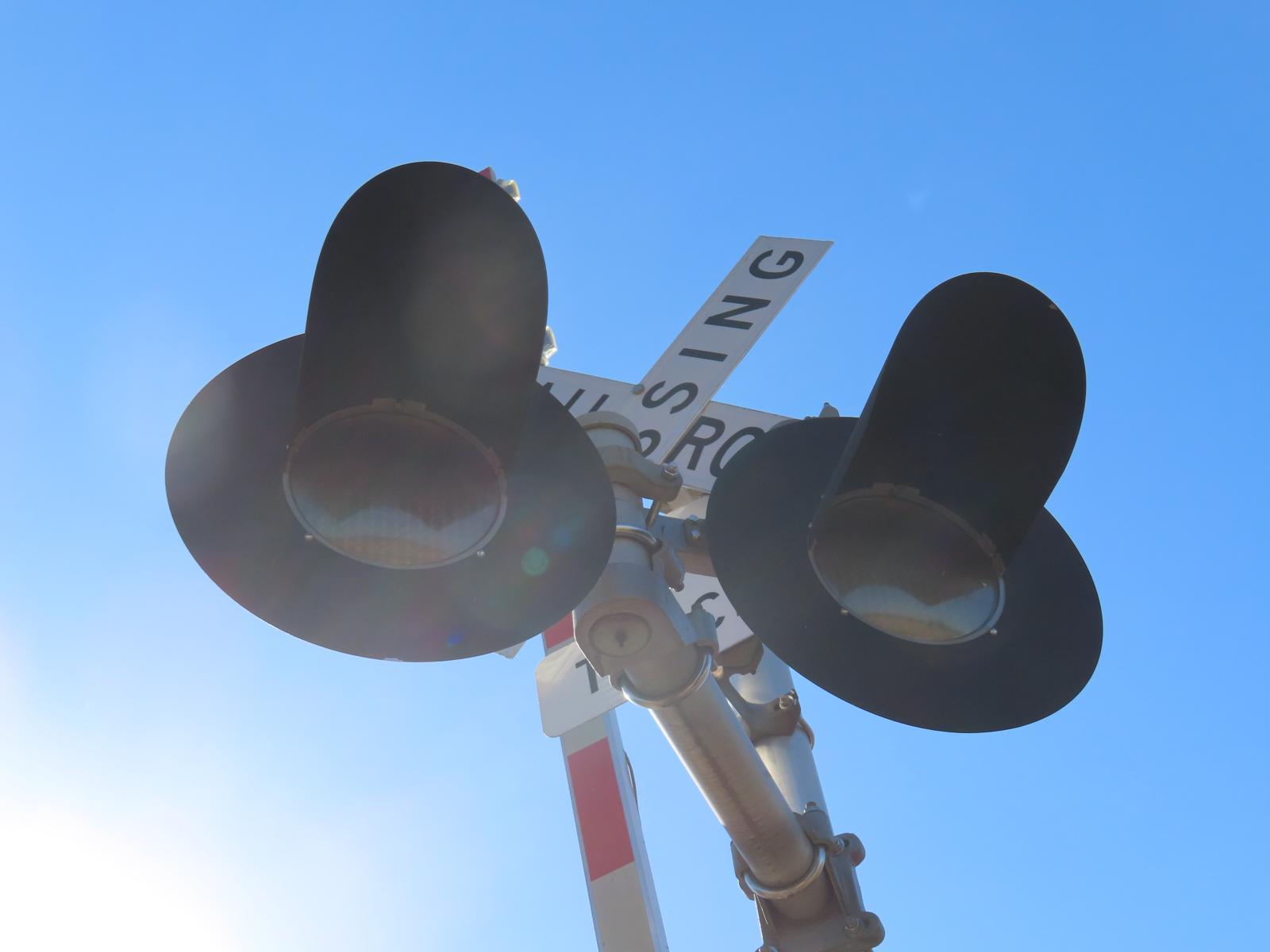

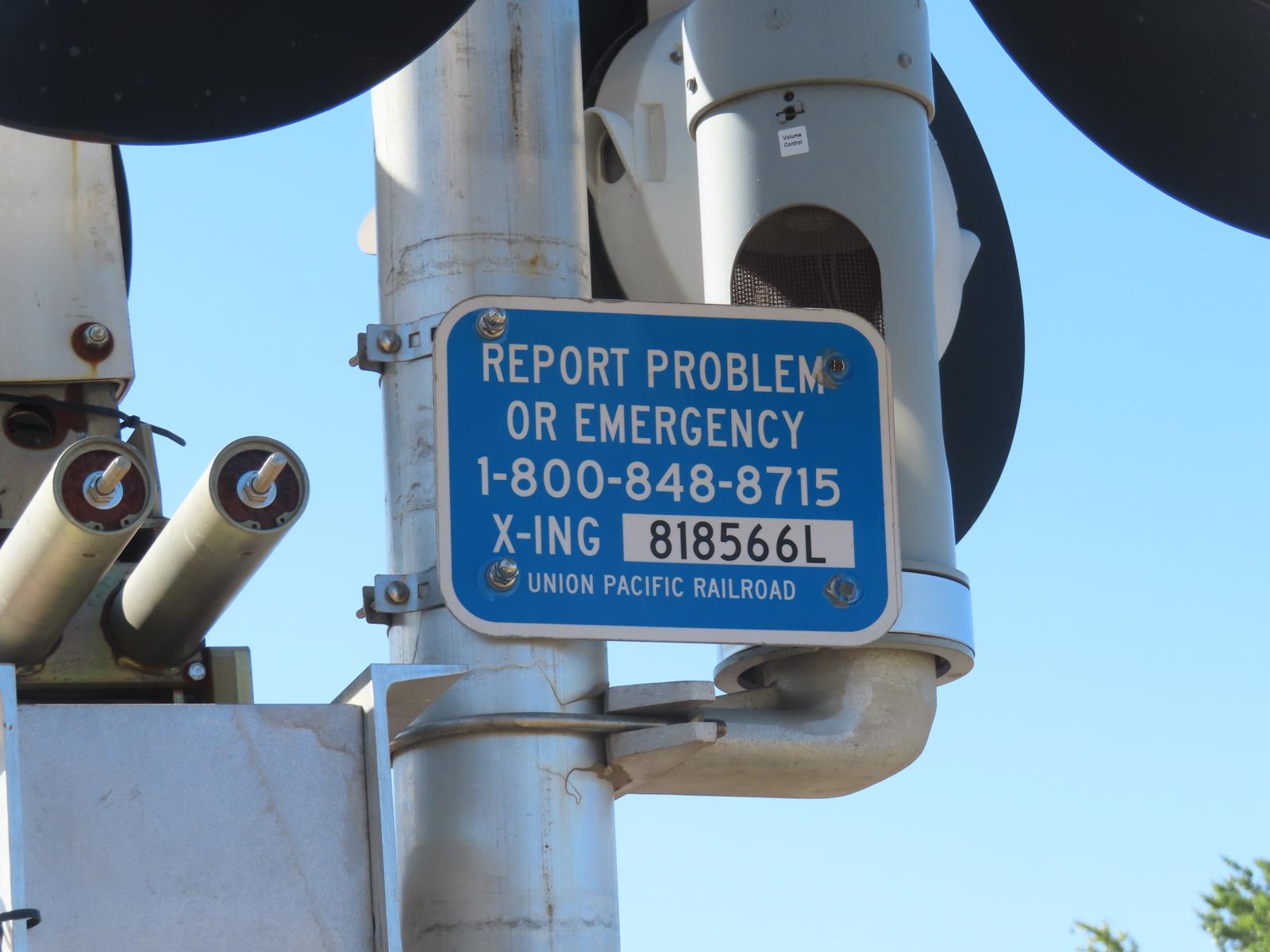

Close up at one of the WCH 2nd Gen LEDs in one of the main lights on the northern signal. The northern signal received the ENS sign sometime in the mid 2010s. UP repositioned it in late 2023 to be more visible to oncoming traffic. The signal base on the northern signal is from Safetran.
42 43 44 45
Like the southern signal, the WCH Clear LEDs that were on the old signal were reused onto the new northern signal! Sorry for the sun glare.
 Close up at one of the WCH Clear LEDs in one of the side lights on the southern signal. The gate mechanism on the northern signal is now an Invensys gate mech as well? Although the sticker on the cover has since gone missing unfortunately.
 The light bracket on the northern signal is from Safetran.
46 47 48 49

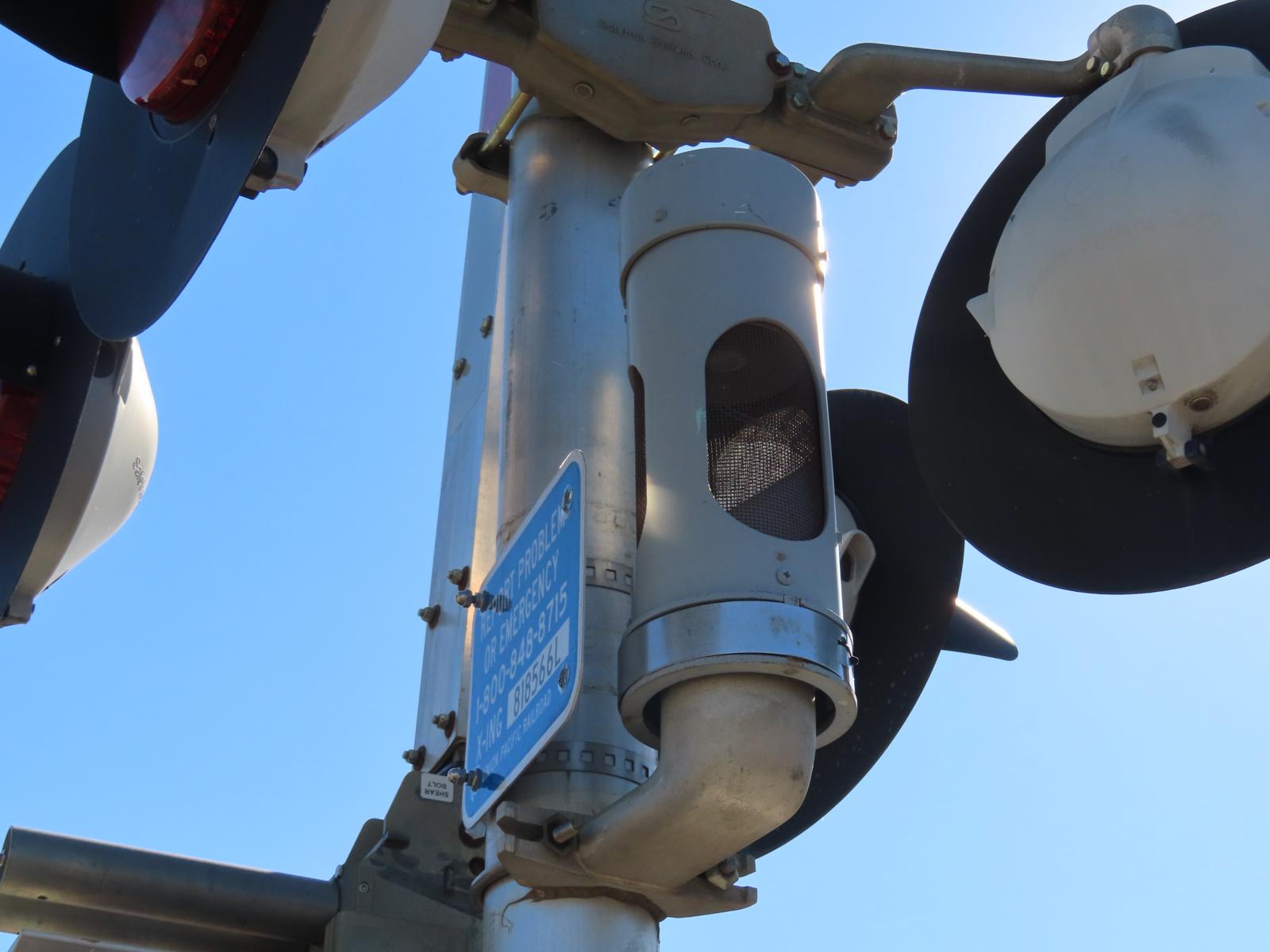

The bell on the northern signal is now an NEG Electronic Bell.

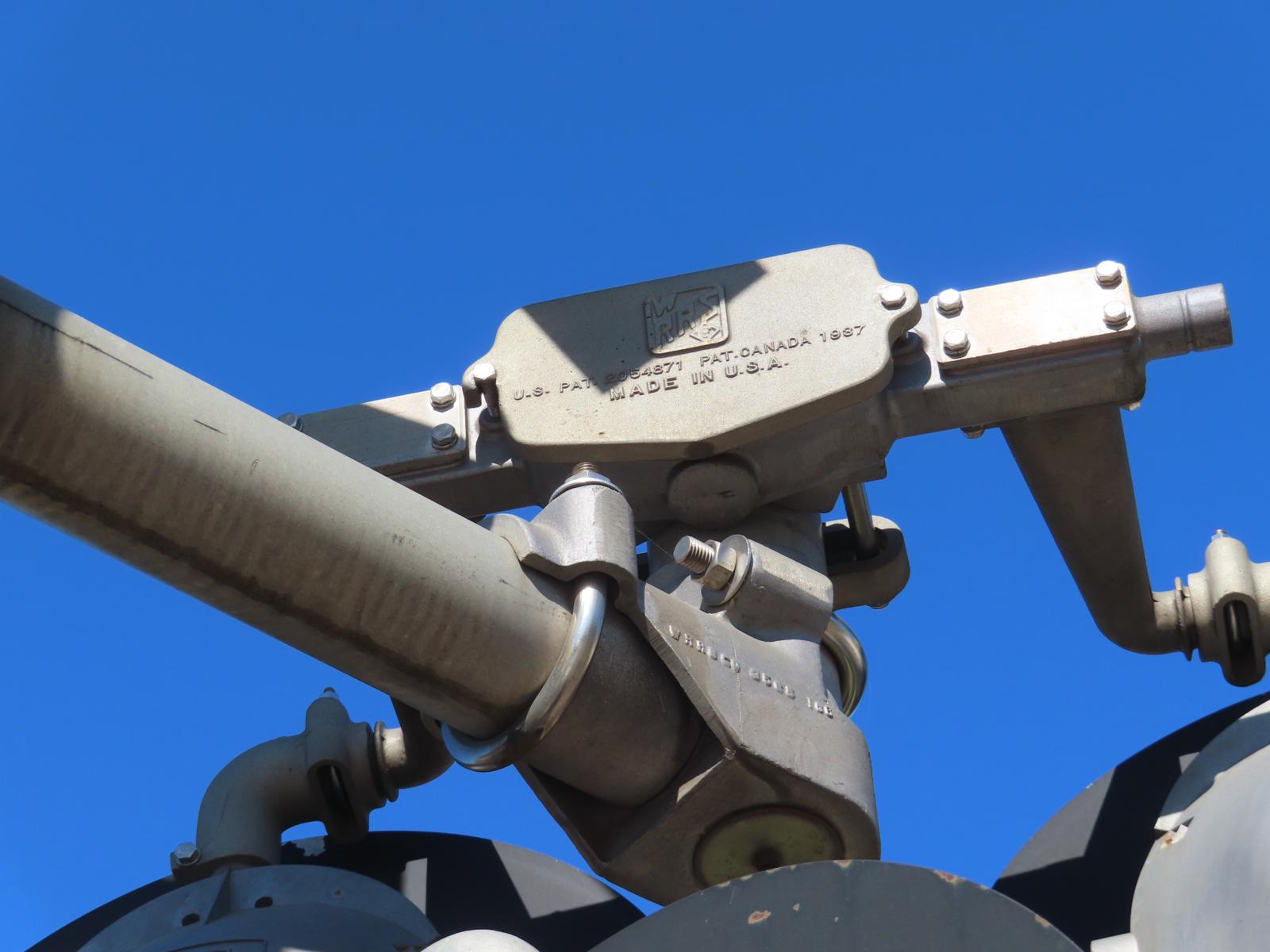

 The main lights on the northern signal are all now from Safetran. Close up at one of the Safetran lights on the main lights on the northern signal. The light bracket for the side lights is from WRRS.
50 51 52 53

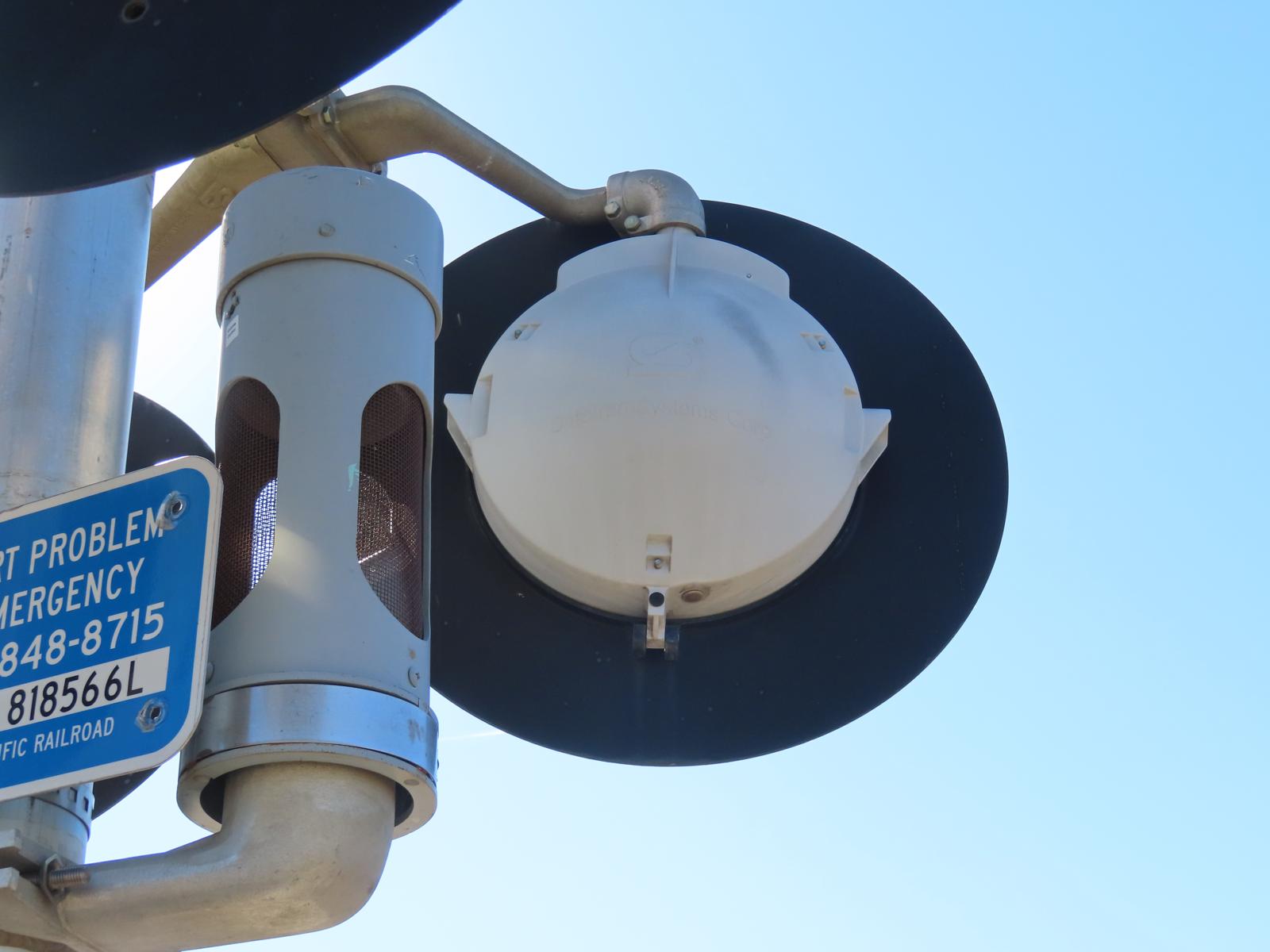

The side lights with the WCH Clear LEDs are from WCH. Close up at one of the WCH lights on one of the side lights on the northern signal. A look at the rear lights on the northern signal which feature some more WCH 2nd Gen LEDs in the light frames. Back view of the northern signal.
54
 55
 56
 57

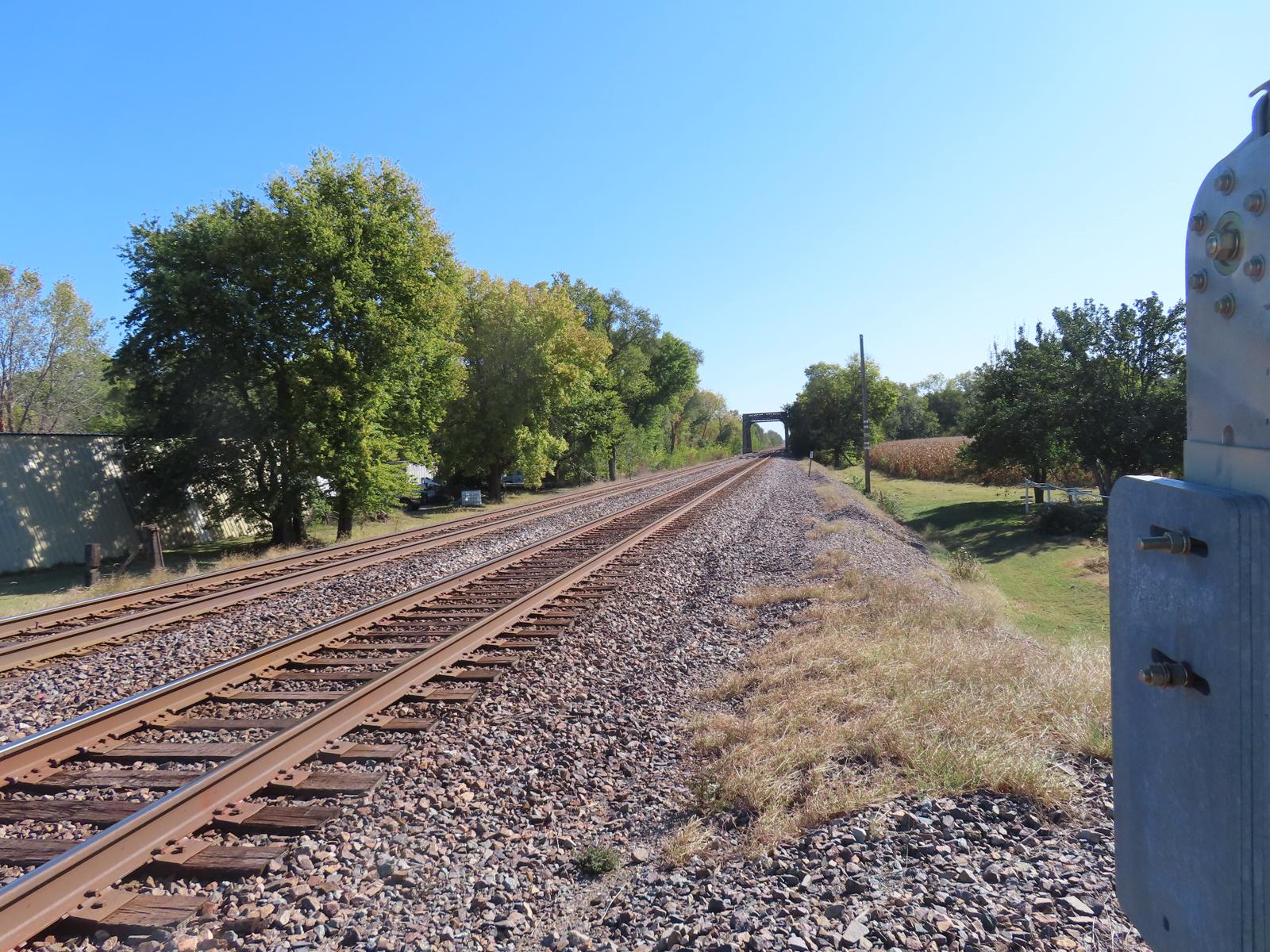

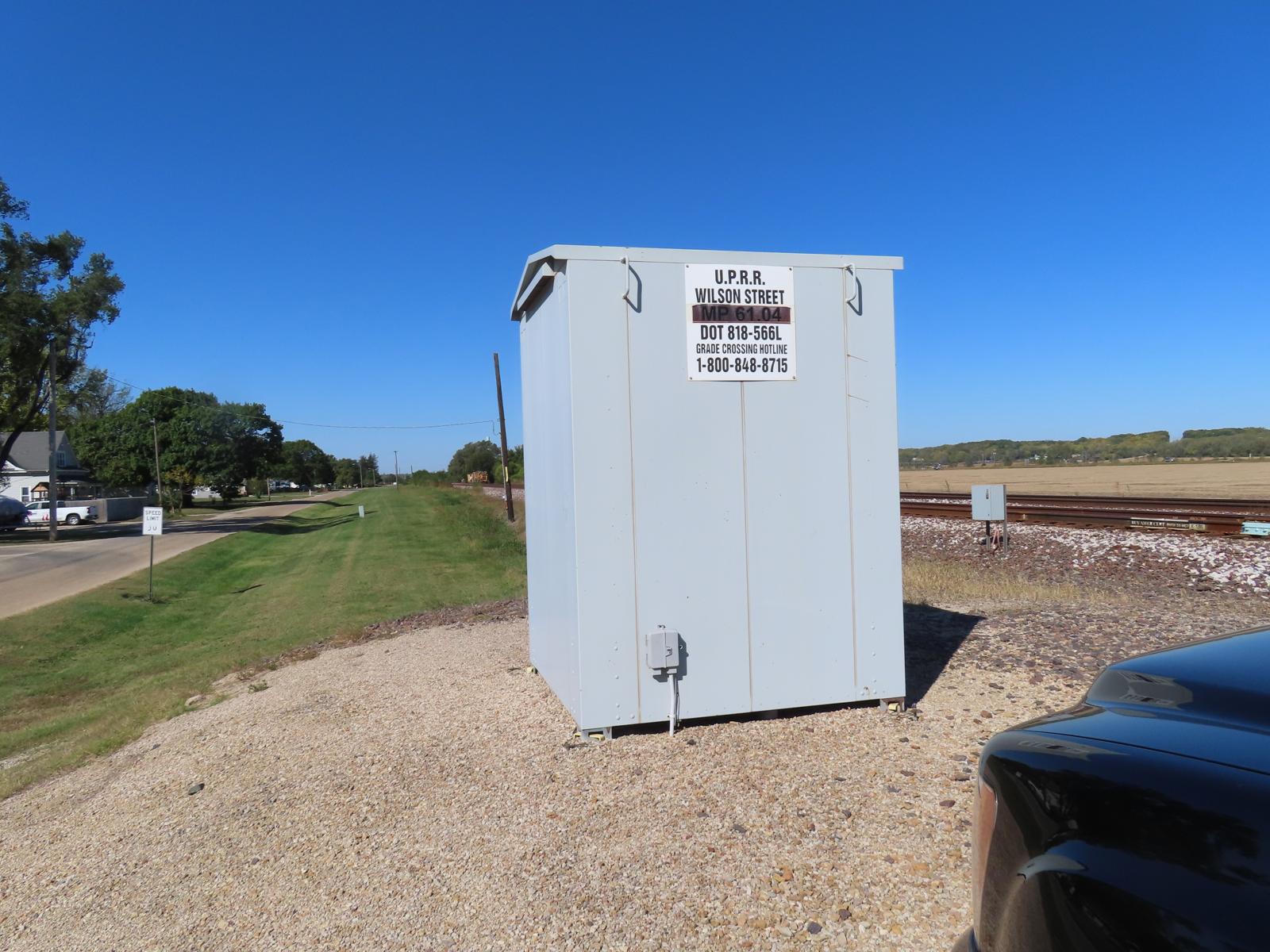

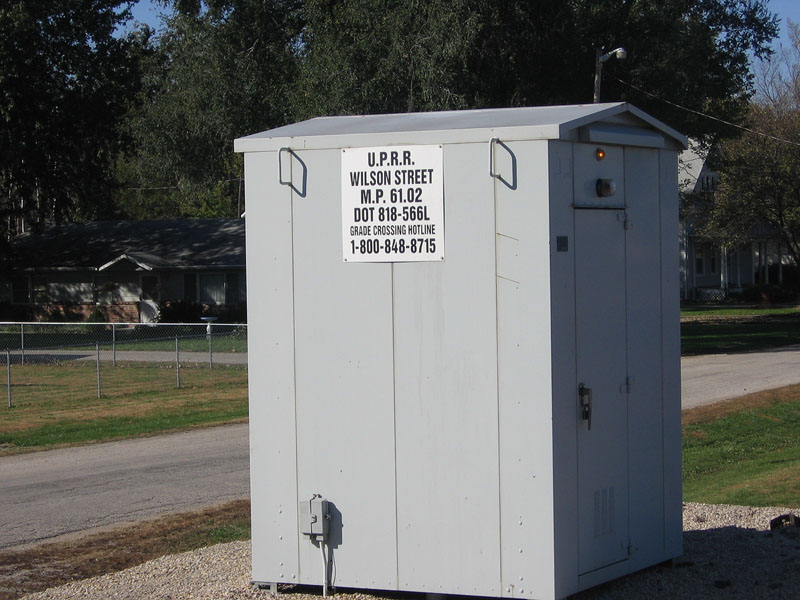

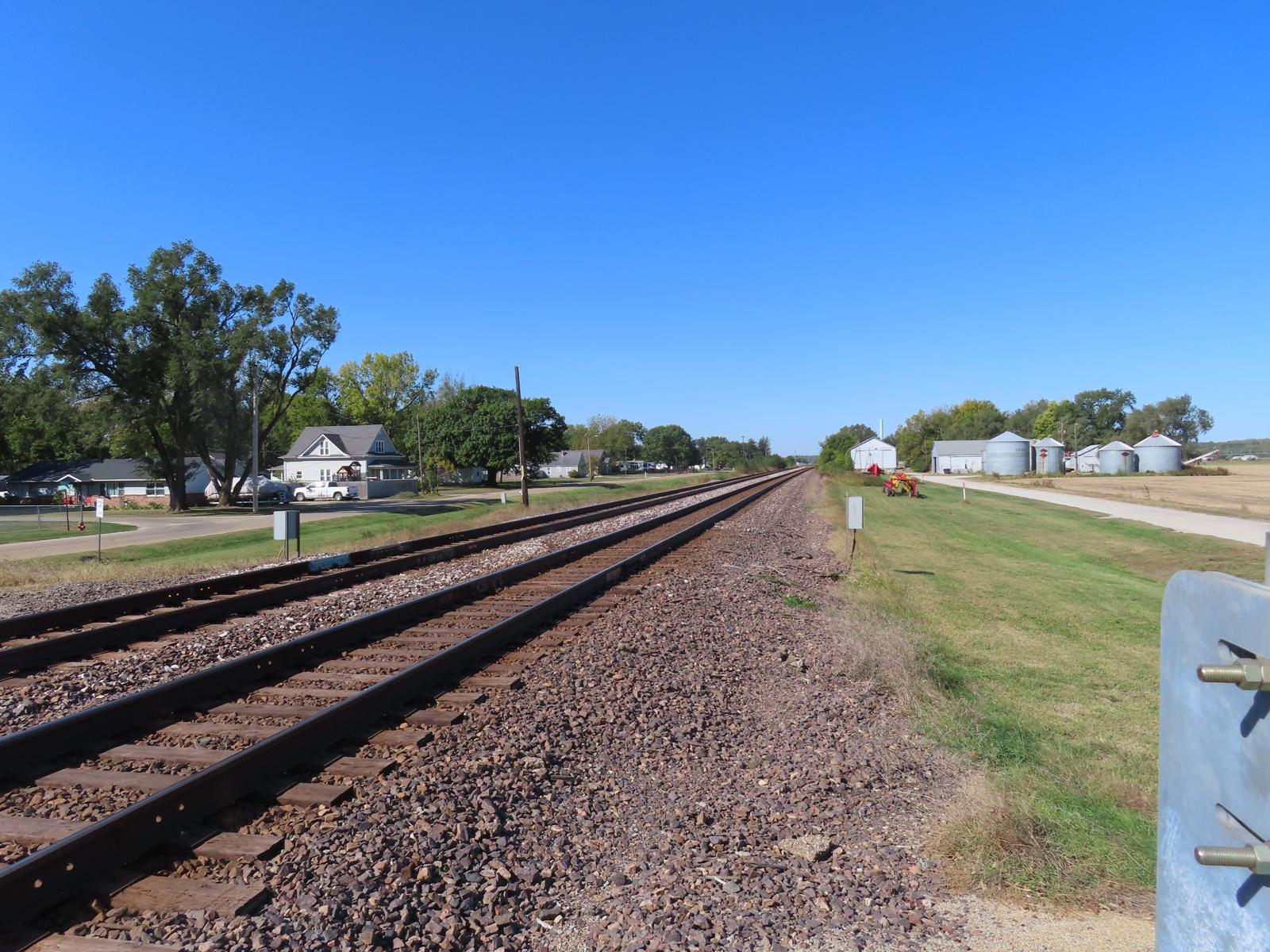

The relay bungalow. The grade is all concrete. Track view facing east towards Clark Rd. Track view facing west towards Township Rd.
