| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |

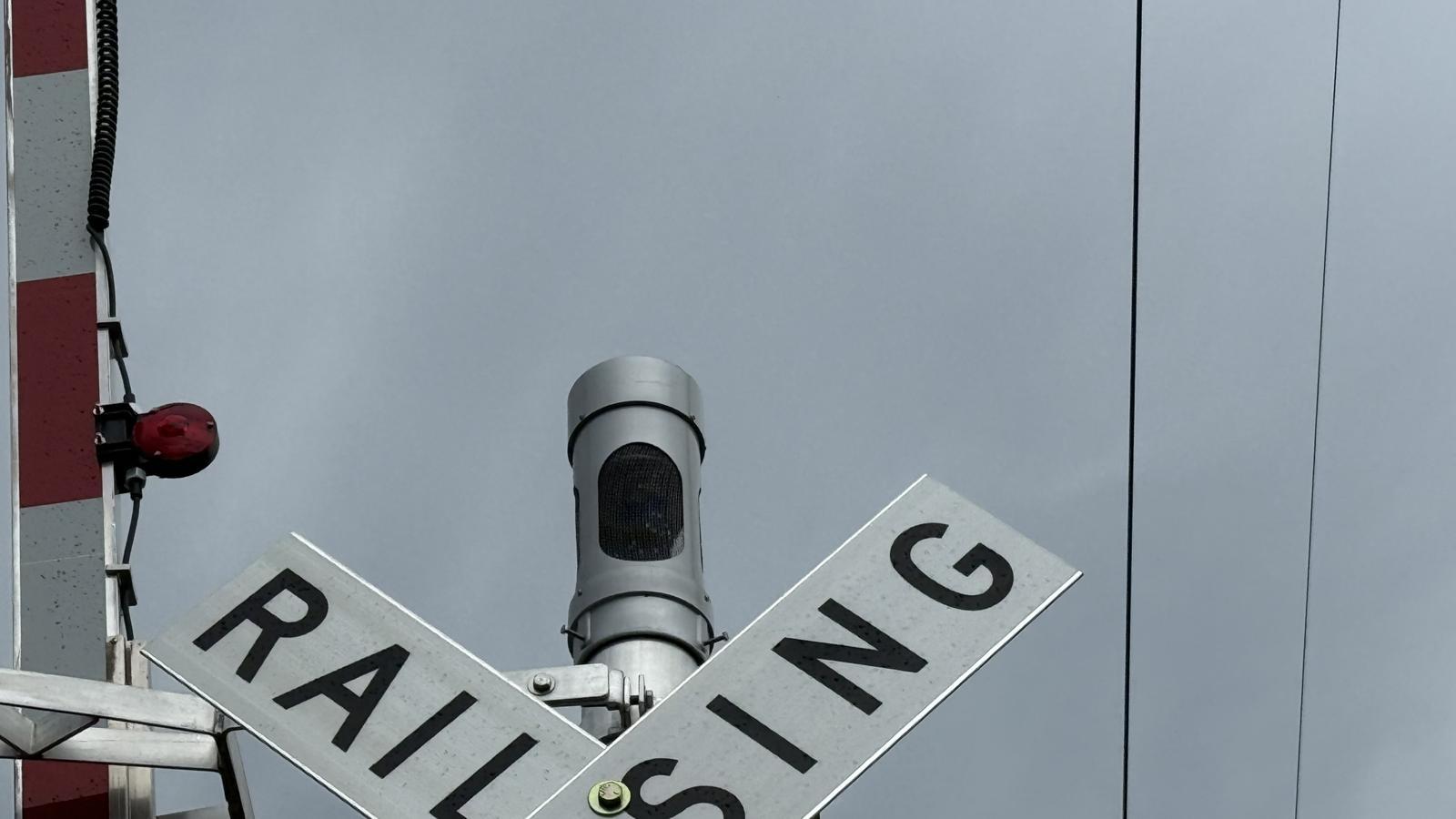

| Bell: | GS Type 3 E-Bell | GS Type 3 E-Bell |
| Base: | Siemens 5" Single Sided | Siemens 5" Single Sided |
| Light Brackets: | Safetran | Safetran |

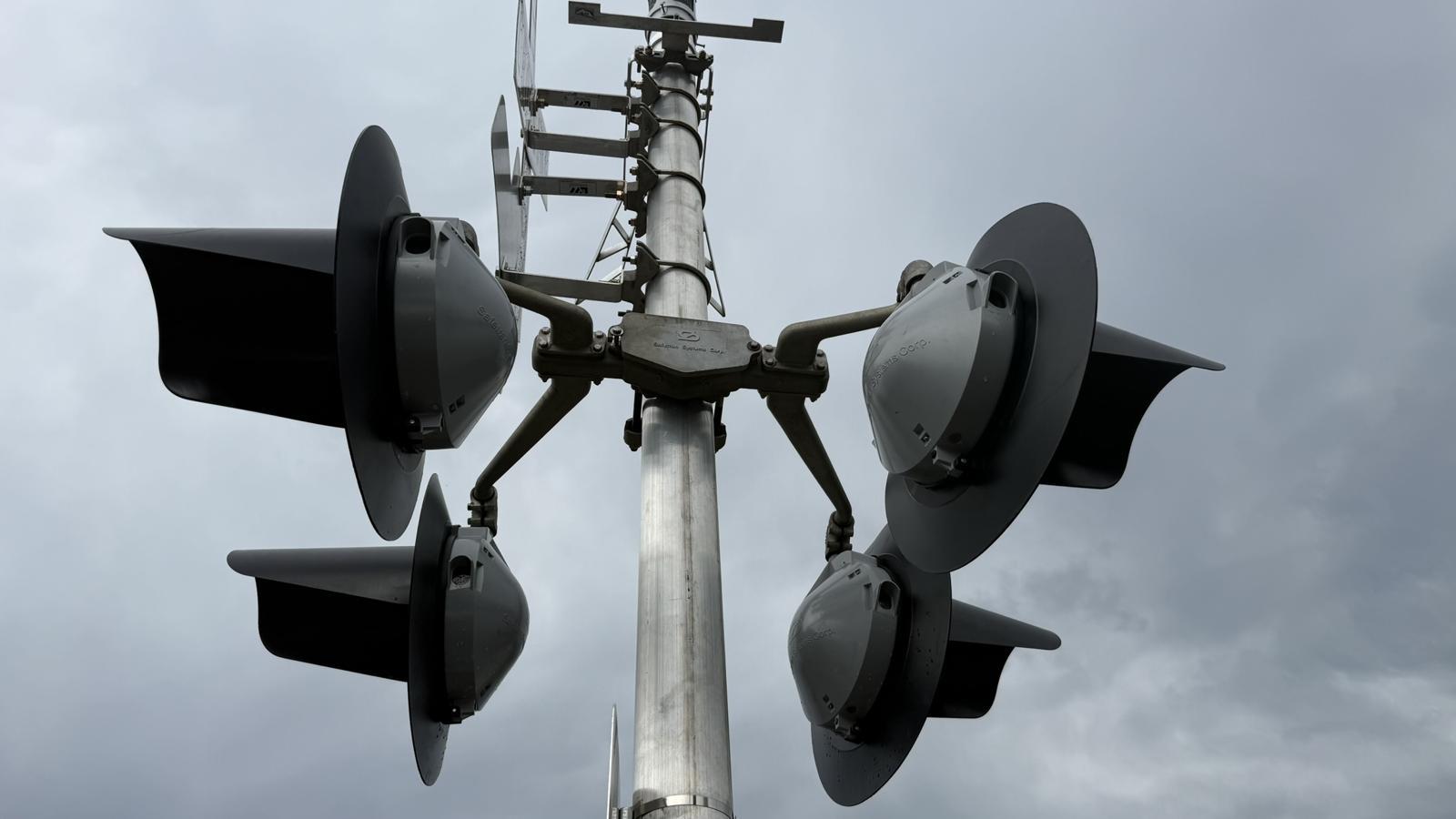

| Lights: | 4 - 12"x24" Safetran w/ Dialight Ball LEDs | 4 - 12"x24" Safetran w/ Dialight Ball LEDs |
| Gate Lights: | 3 - RECO 4" LEDs | 3 - RECO 4" LEDs |
| Gate Mechanism: | Siemens S-80 | Siemens S-80 |
| Gate Striping: | Vertical Striping | Vertical Striping |
Pictures 1-7 were taken on April 19, 2009, by Andrew Fields.
Pictures 8-34 were taken on June 29, 2025, by Hopen111.
This crossing is located on the BNSF Fort Scott Subdivision.
|
1
|
2
|
3
|
||||||
|
The Northbound signal with an inverted 3 tracks sign. |
Facing East.
|
|||||||
|
4
|
5
|
6
|
||||||
|
Facing West. |
The southbound signal with a brand-new
crossbuck and 3-TRACKS sign and a WCH mechanical bell.
|
|||||||
|
7
|
||
|
An overview of the crossing.
|
