| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | GS Type 2 E-Bell | N/A |
| Base: | US&S 5" Single Sided |
US&S 5" Single Sided |
| Light Brackets: | US&S | US&S |
| Lights: | 4 - 12"x24" US&S w/ Dialight
Ball LEDs |
2 - 12"x24" US&S w/ Dialight
Ball LEDs 2 - 12"x24" US&S w/ GS LEDs |
| Gate Lights: | 3 - RECO 4" LEDs | 3 - RECO 4" LEDs |
| Gate Mechanism: | US&S Model 95 Style 1 |
US&S Model 95 Style 1 |
| Gate Striping: | Vertical Striping | Vertical Striping |
1 |
2 |
| Overview facing north. | Overview facing south. |
| The southern signal: | |||
3 |
4 |
5 |
6 |

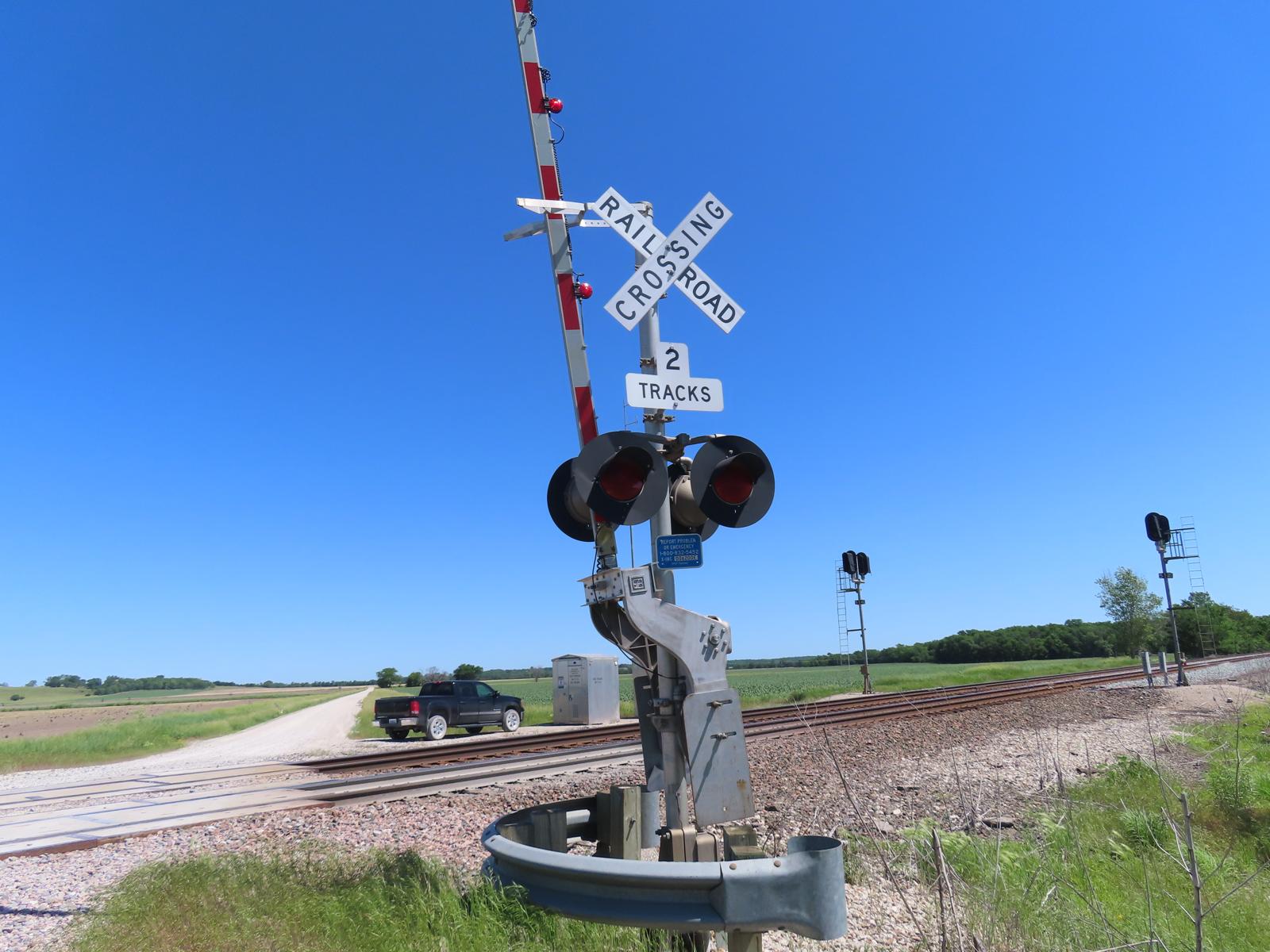

| Front view
of the southern signal. |
The lights
on this signal are from US&S which were installed sometime in the
2000s by BNSF. |
The LEDs on
the front lights of this signal feature Dialight Ball LEDs. |

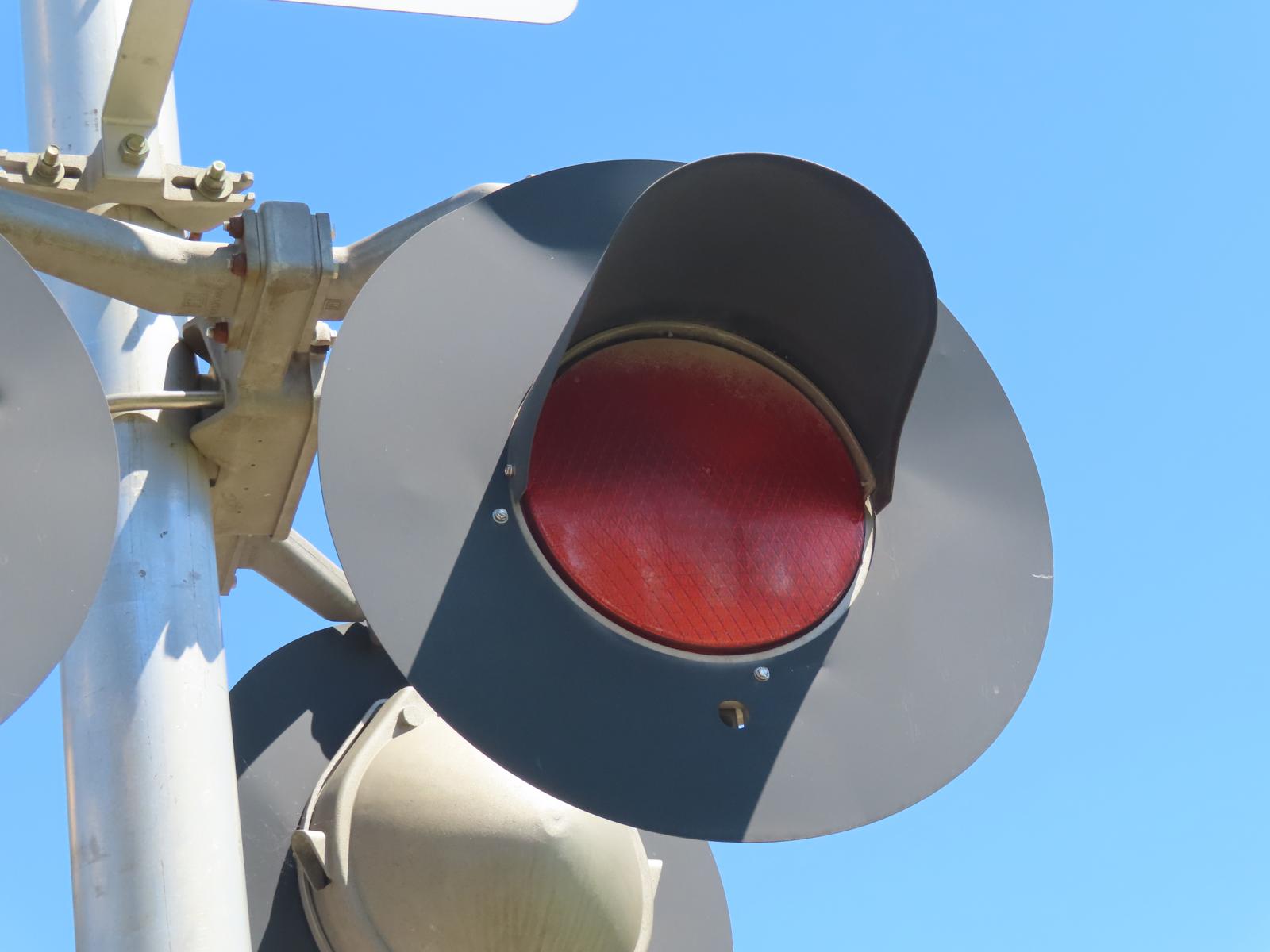

Close up at
one of the Dialight Ball LEDs on this signal. |
7 |
8 |
9 |
10 |

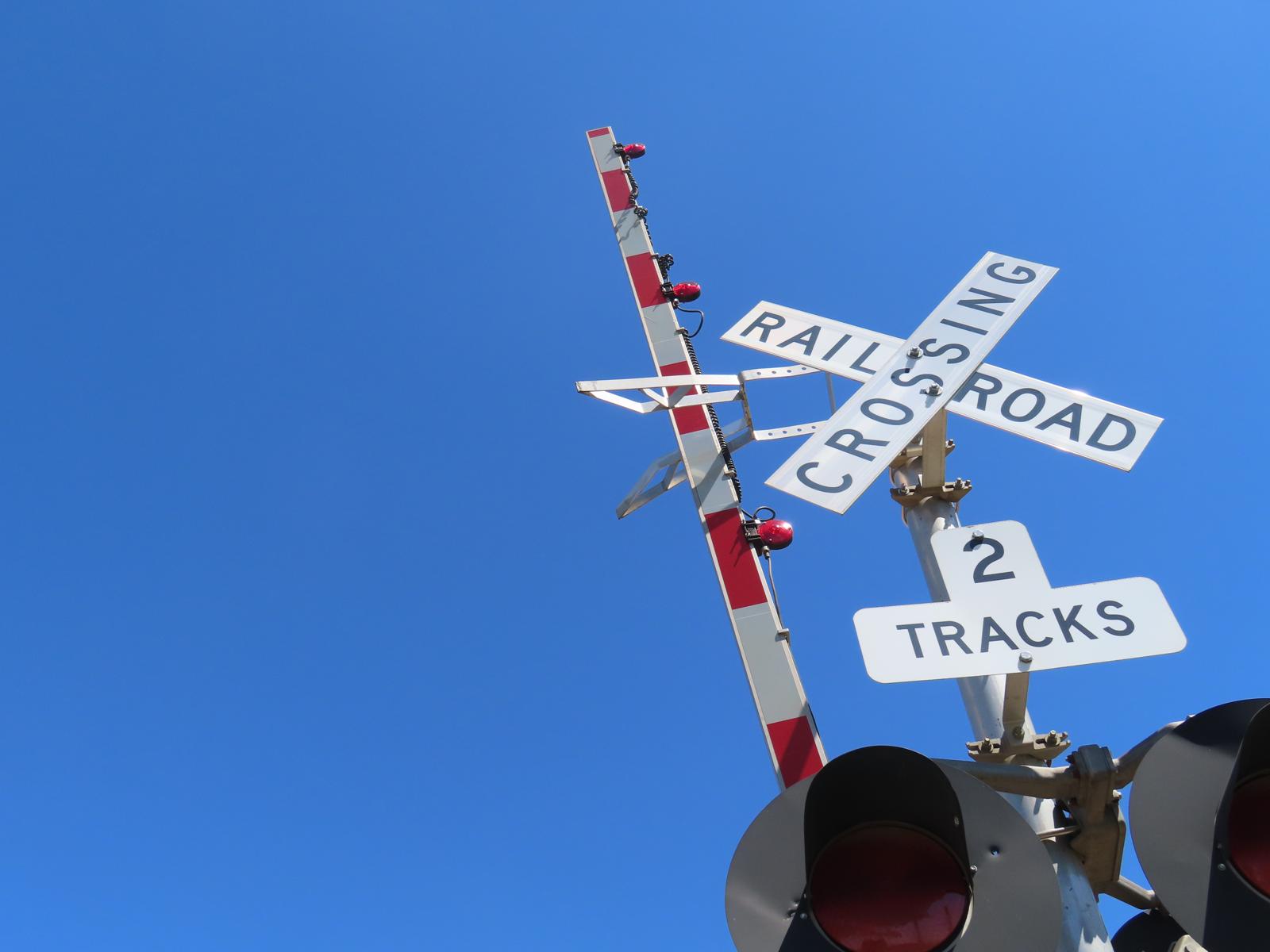

| The striping
on the southern signal's gate features the vertical striping while the
gate lights are from RECO. |

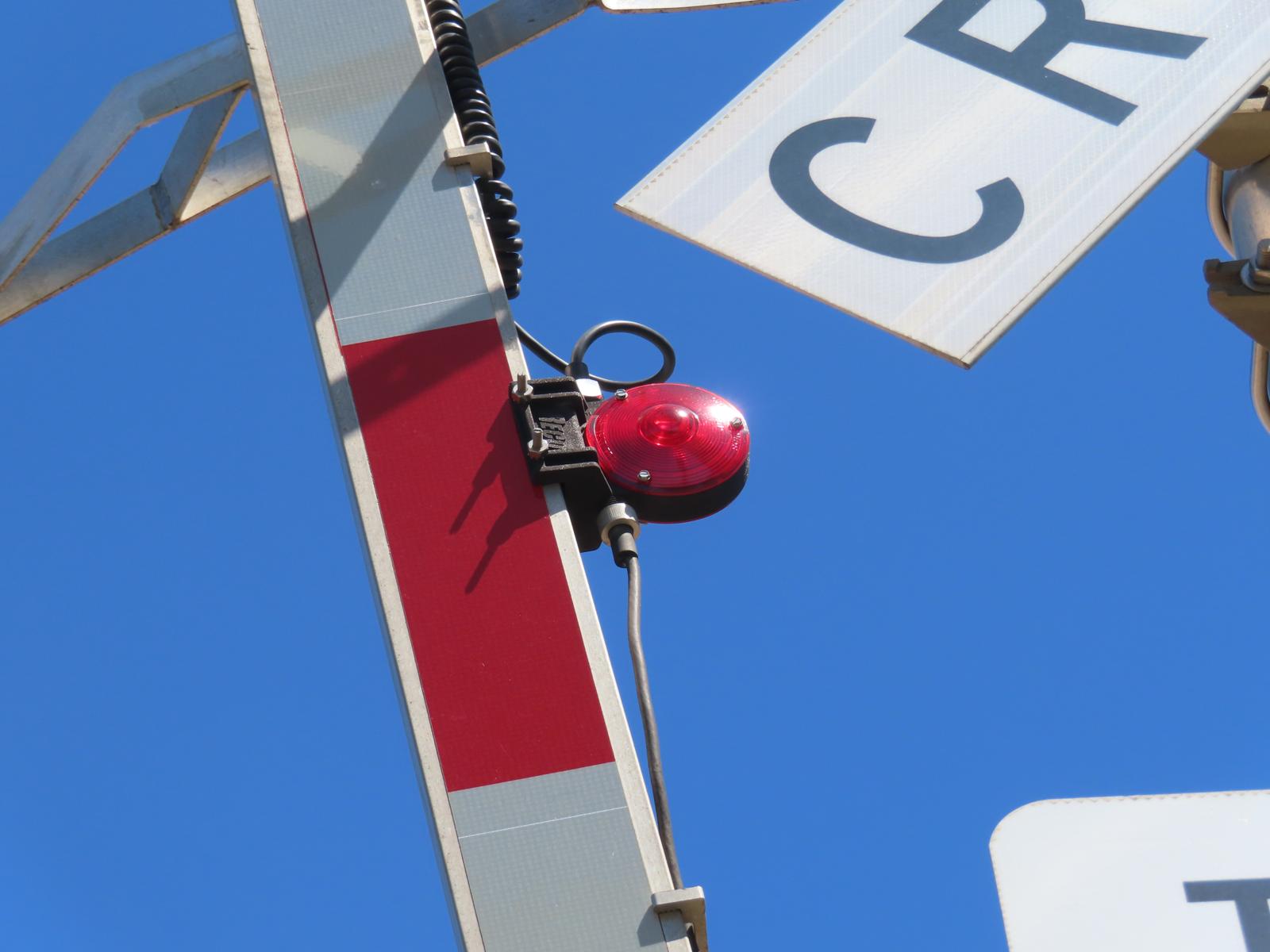

Close up at
one of the RECO gate lights on this signal. The gate lights are also
LED. |
11 |
12 |
13 |
14 |

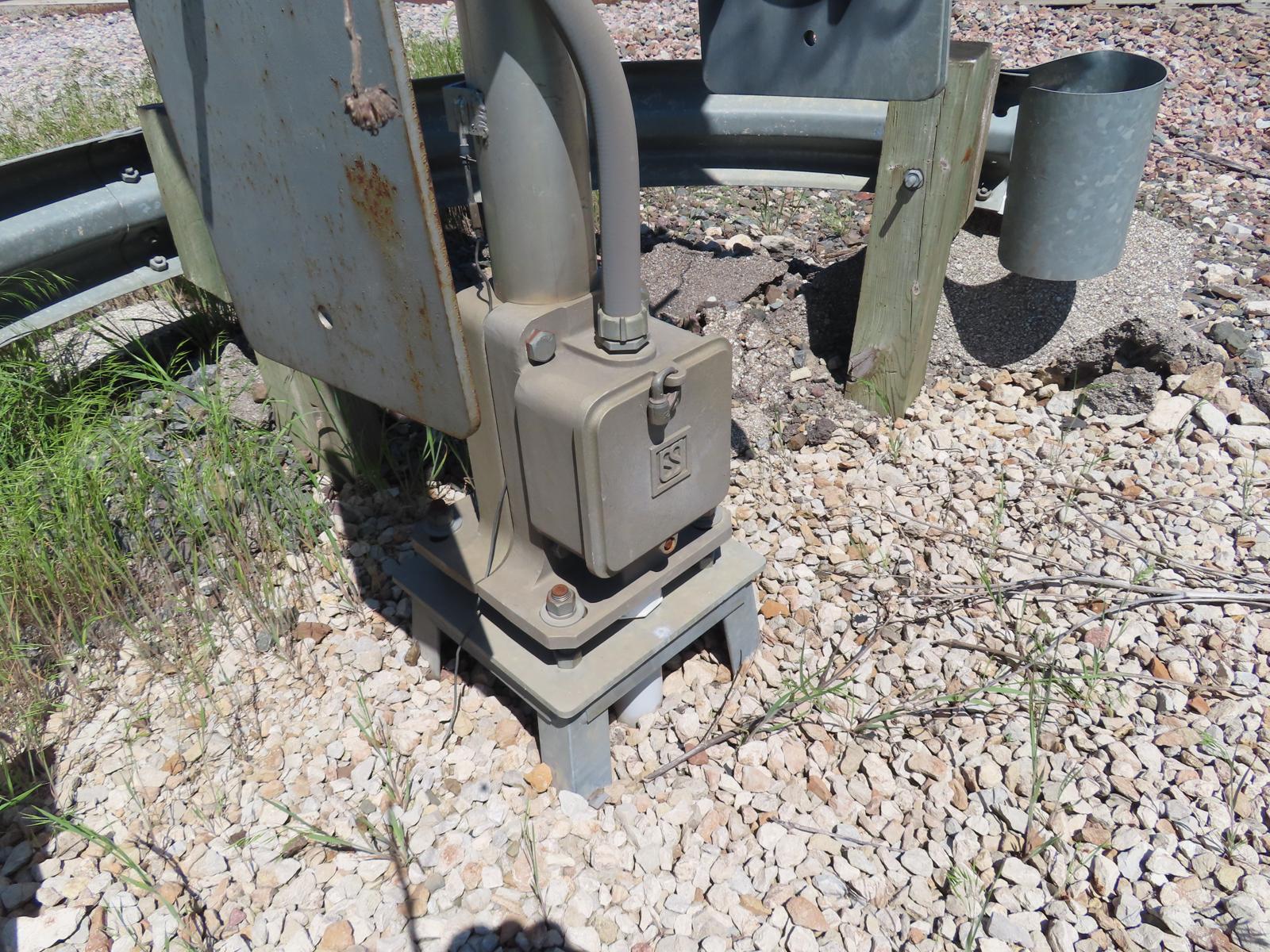

| The signal
base on this signal is from US&S. |
The gate
mechanism on this signal is a US&S Model 95 gate mechanism. |
Back view of
one of the US&S lights on the southern signal. These lights are
12x24. |

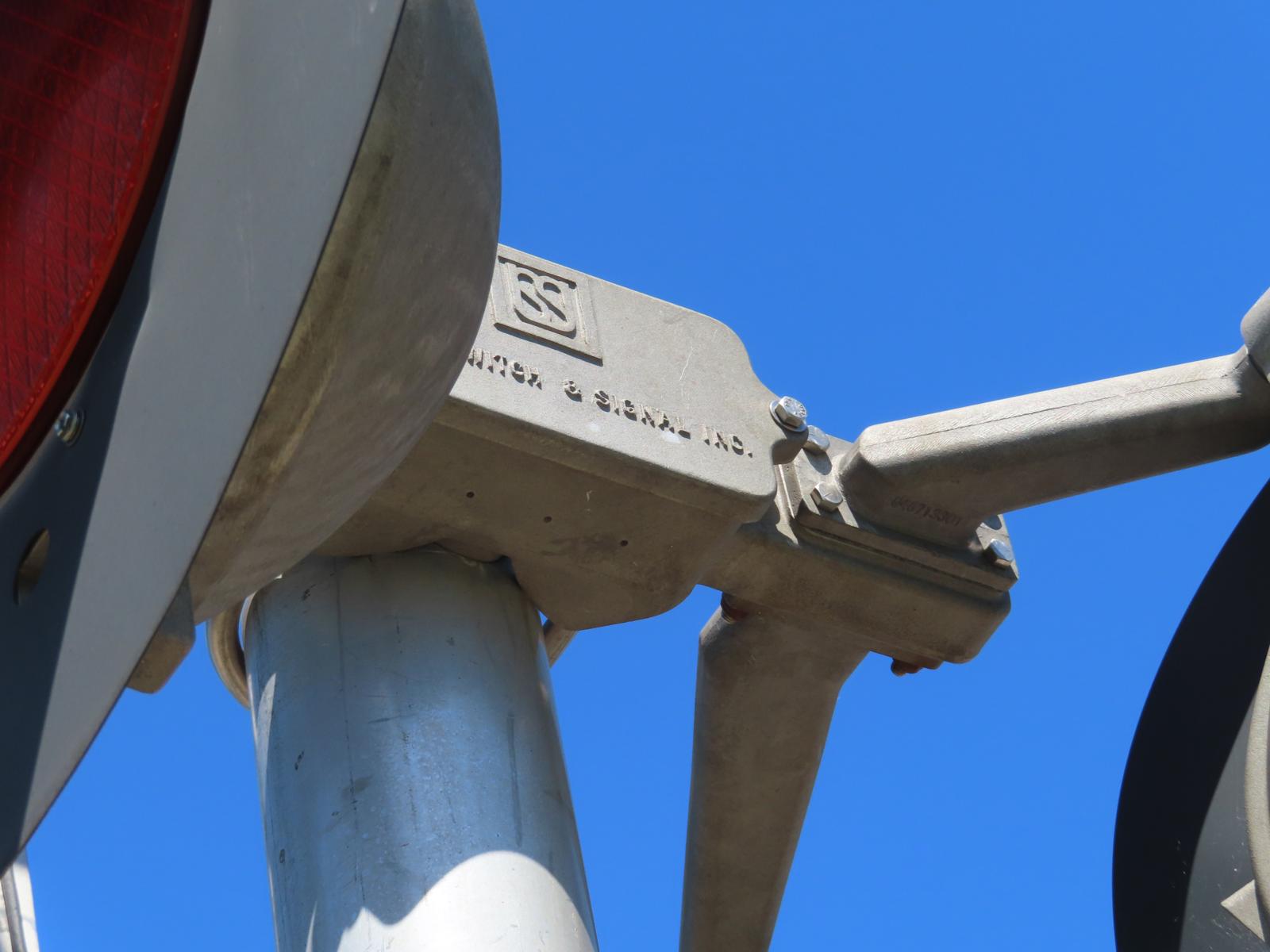

The light
bracket is also from US&S. This is pretty common to find on most
BSNF US&S installs. |
15 |
16 |
17 |
18 |
| The rear
lights are also LED, but they feature a different kind of LED which is
explained in picture 17. The southern signal also lacks a bell of
sorts. |
Rear view of
the southern signal. |

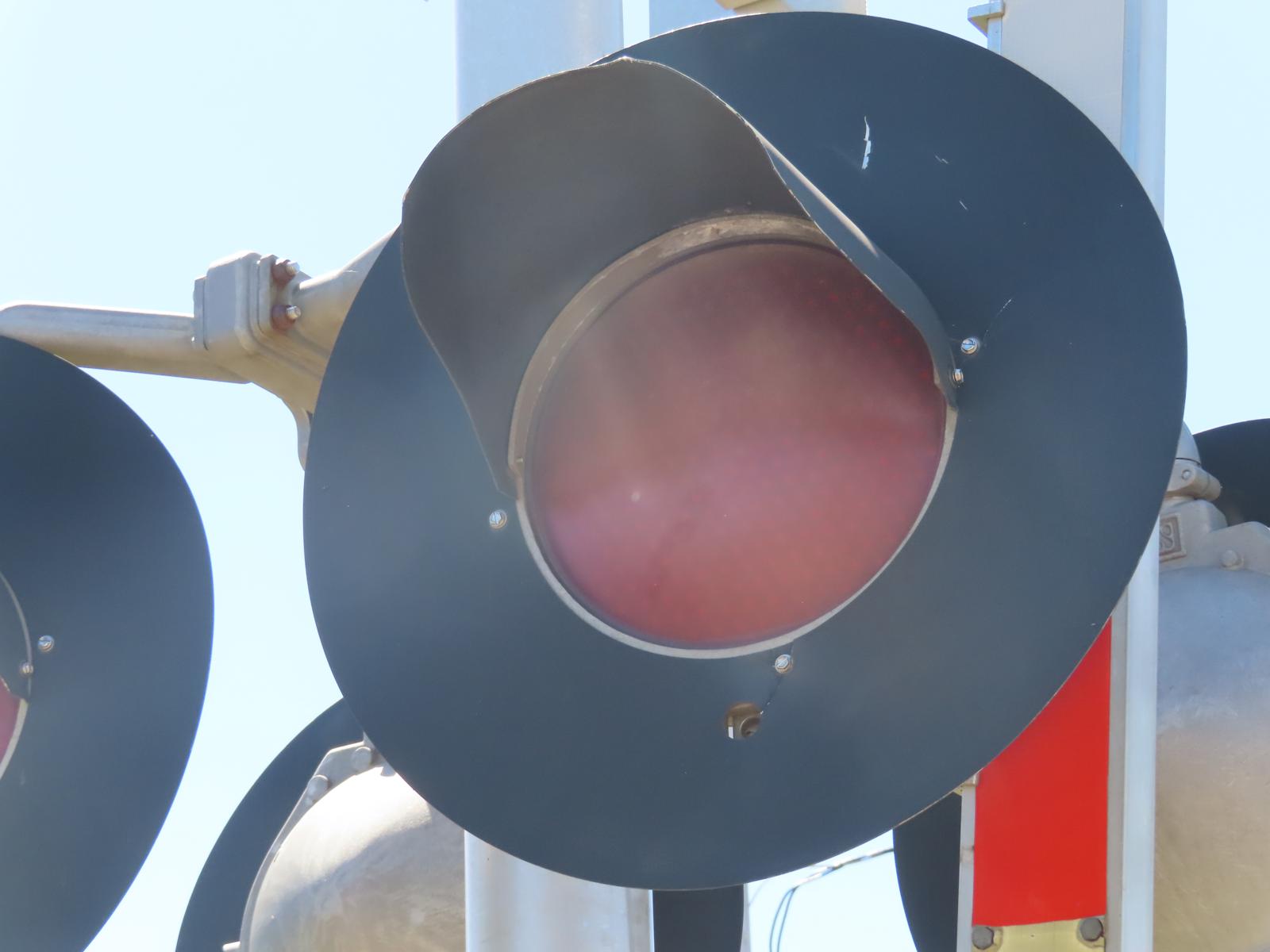

The rear
lights feature GS LEDs which actually caught me of guard as I almost
missed these when I was taking pictures of these signals. I assume the
front lights, and the lights on the northern signal had these LEDs at
one point. |
Close up at
one of the GS LEDs on the southern signal. |
| The northern signal: | |||
19 |
20 |
21 |
|

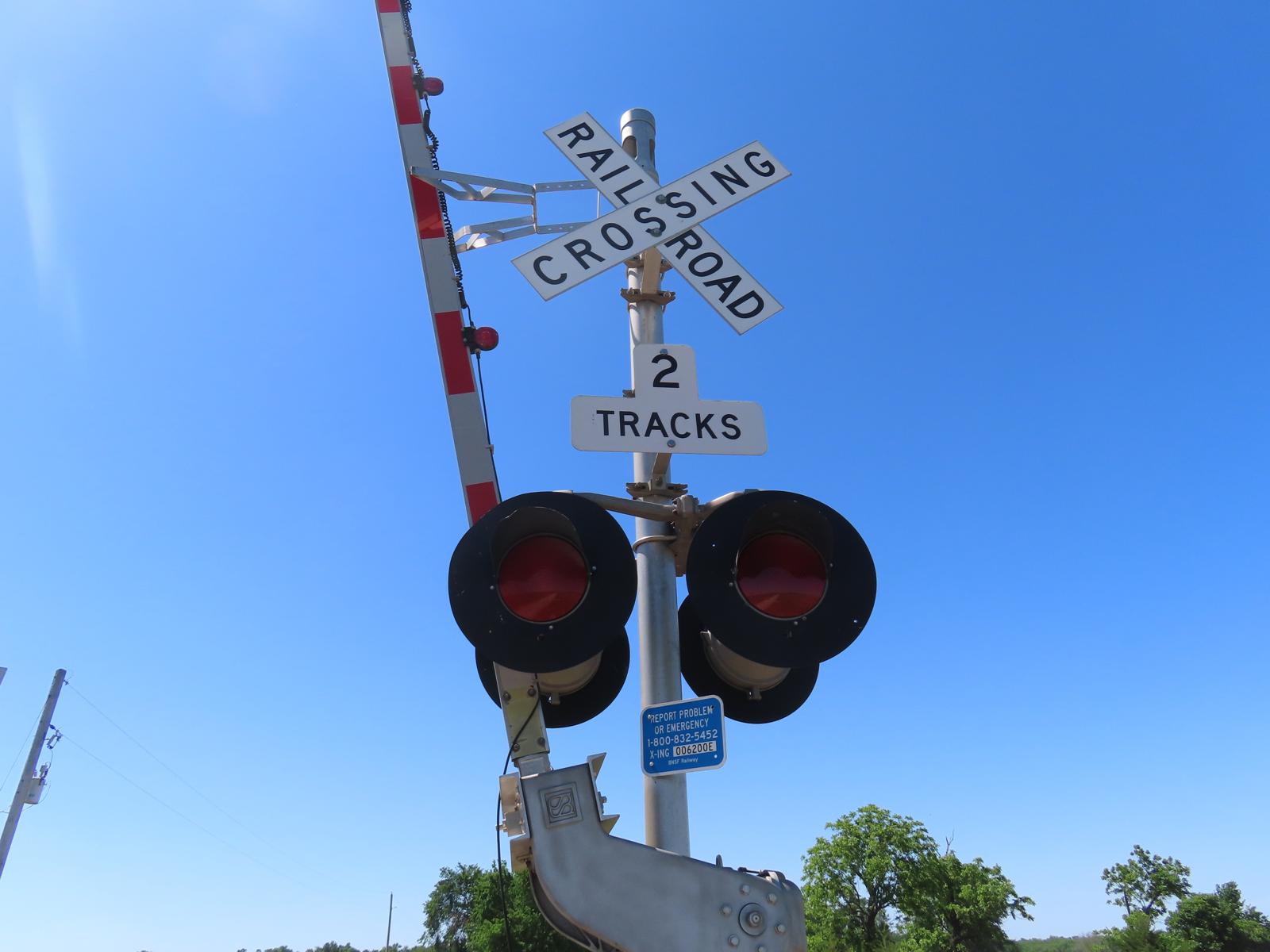

| Front view
of the northern signal. |
The lights
on this signal feature some more US&S 12x24s which feature Dialight
Ball LEDs. |

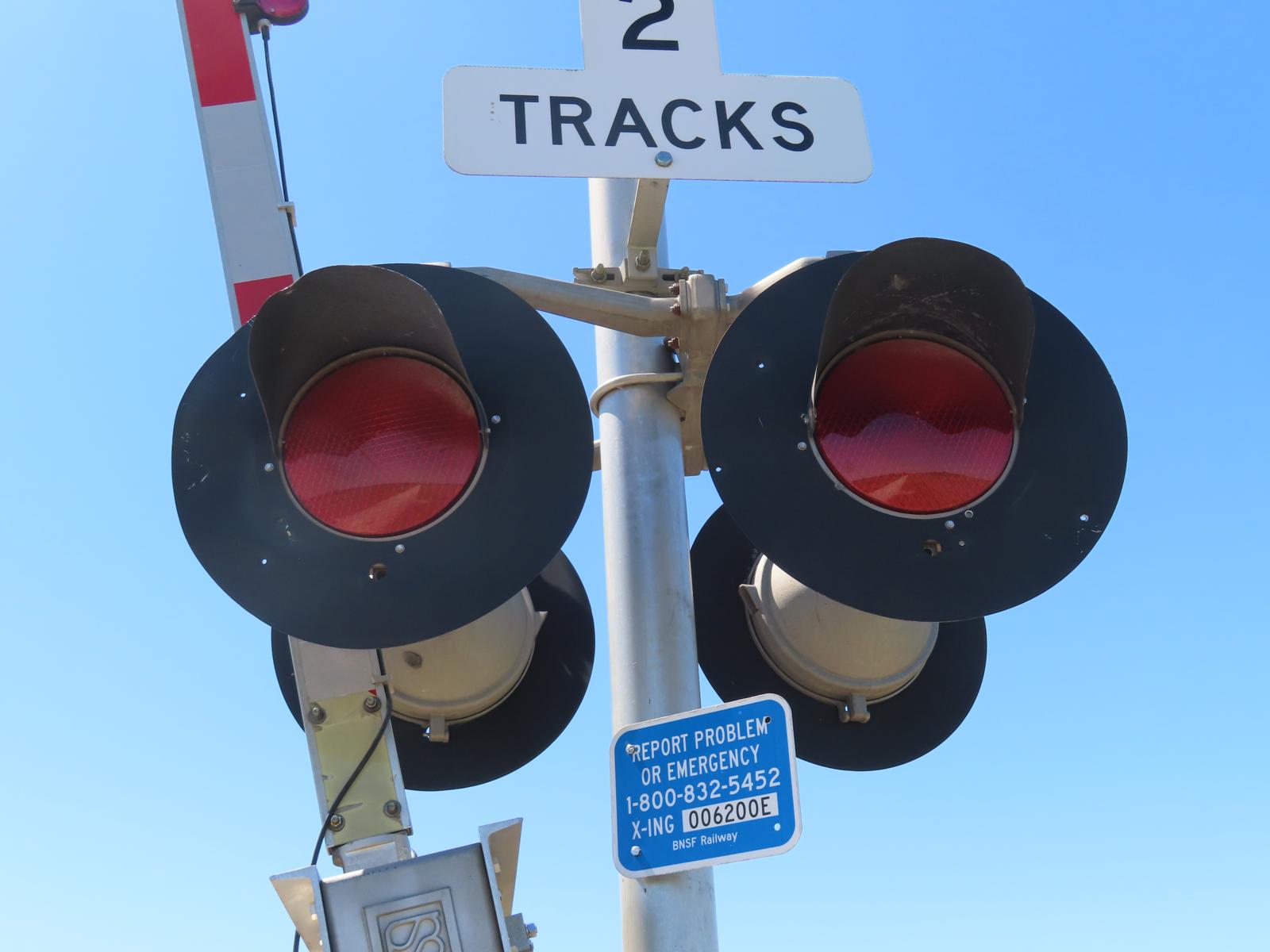

Close up at
the front lights on the northern signal. |
|
22 |
23 |
24 |

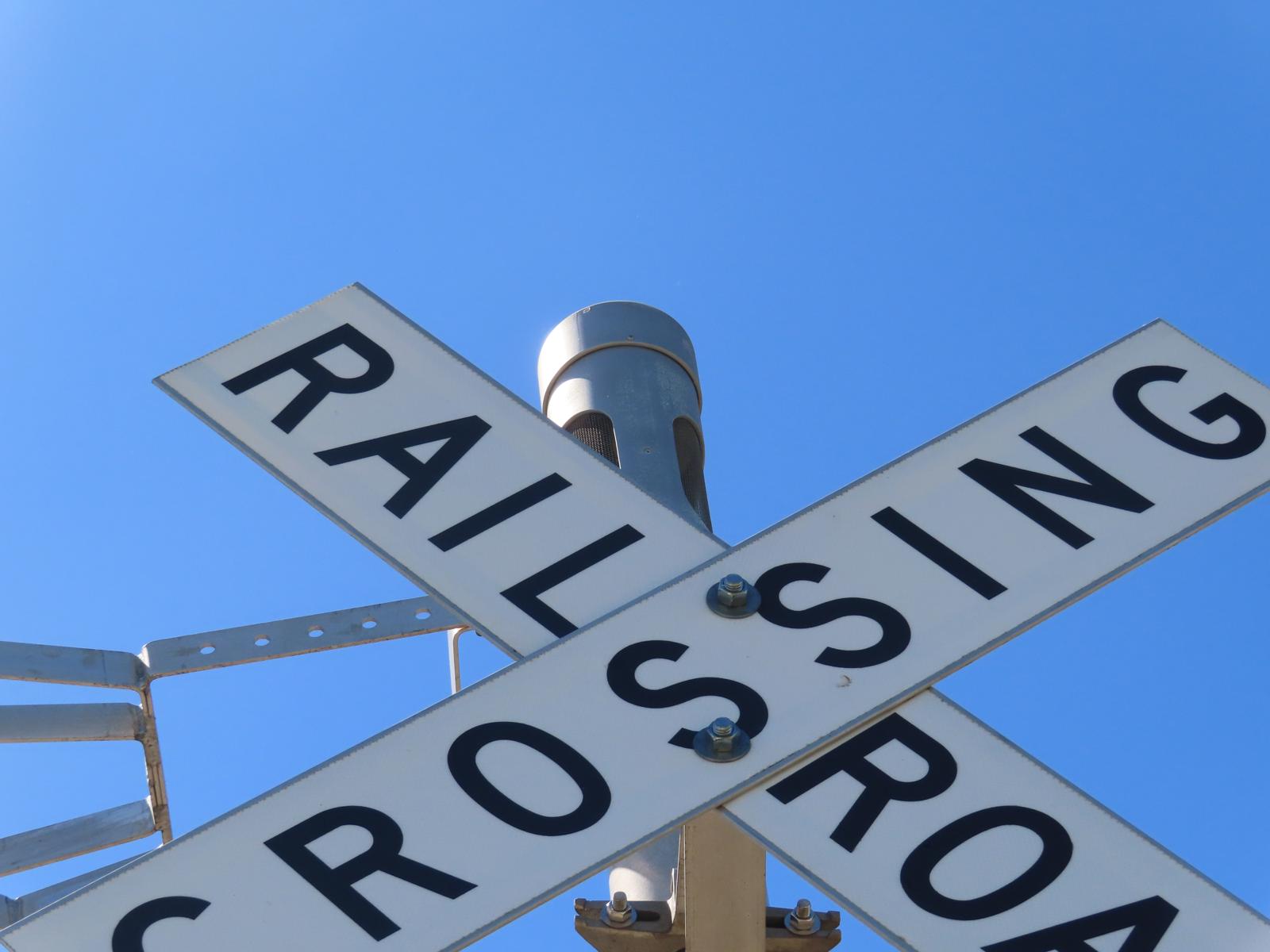

| The lone
bell here is a GS Type 2 E-Bell which rings from startup, until the
gate begin to rise. |
25 |
26 |
27 |
28 |

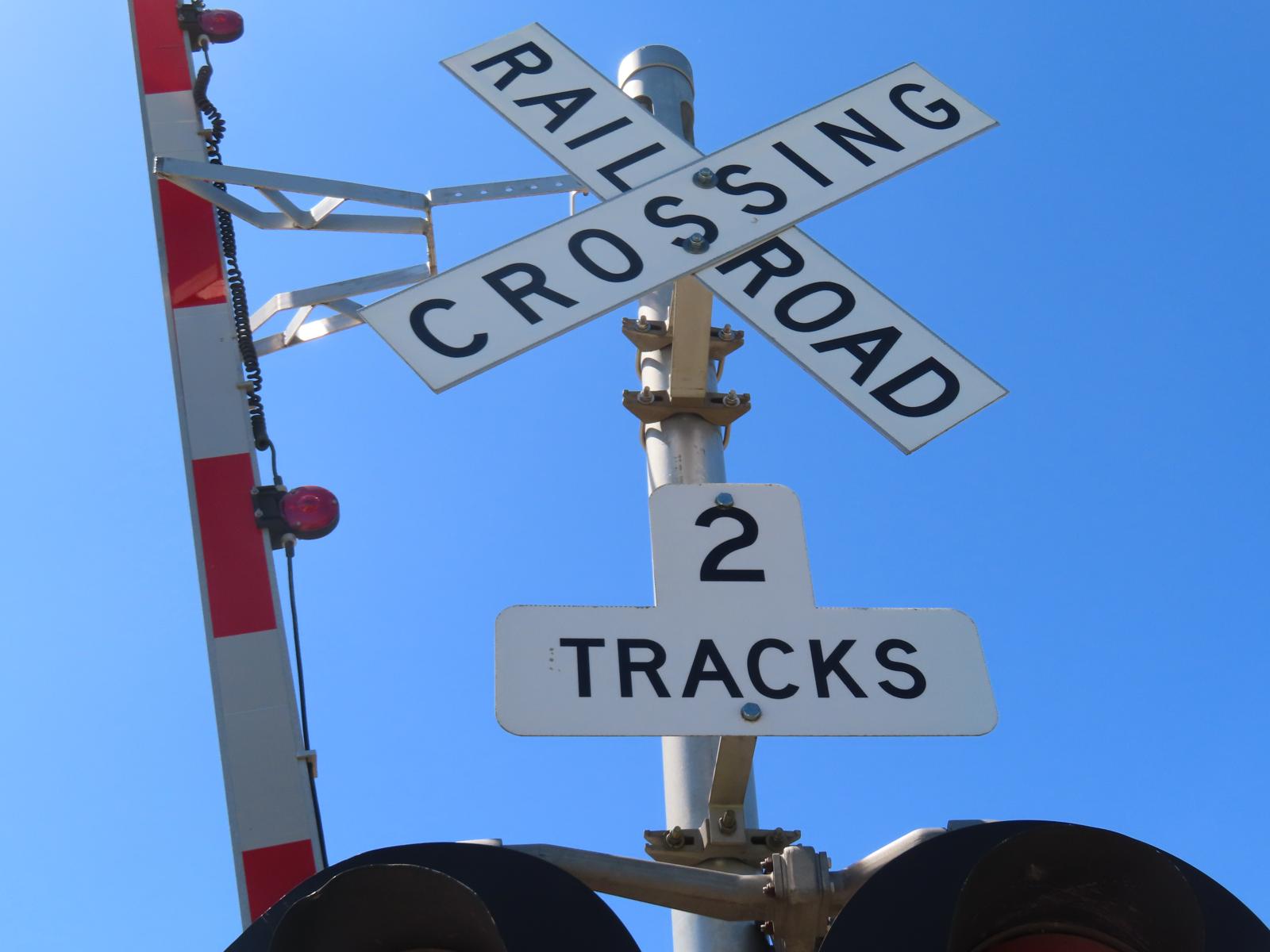

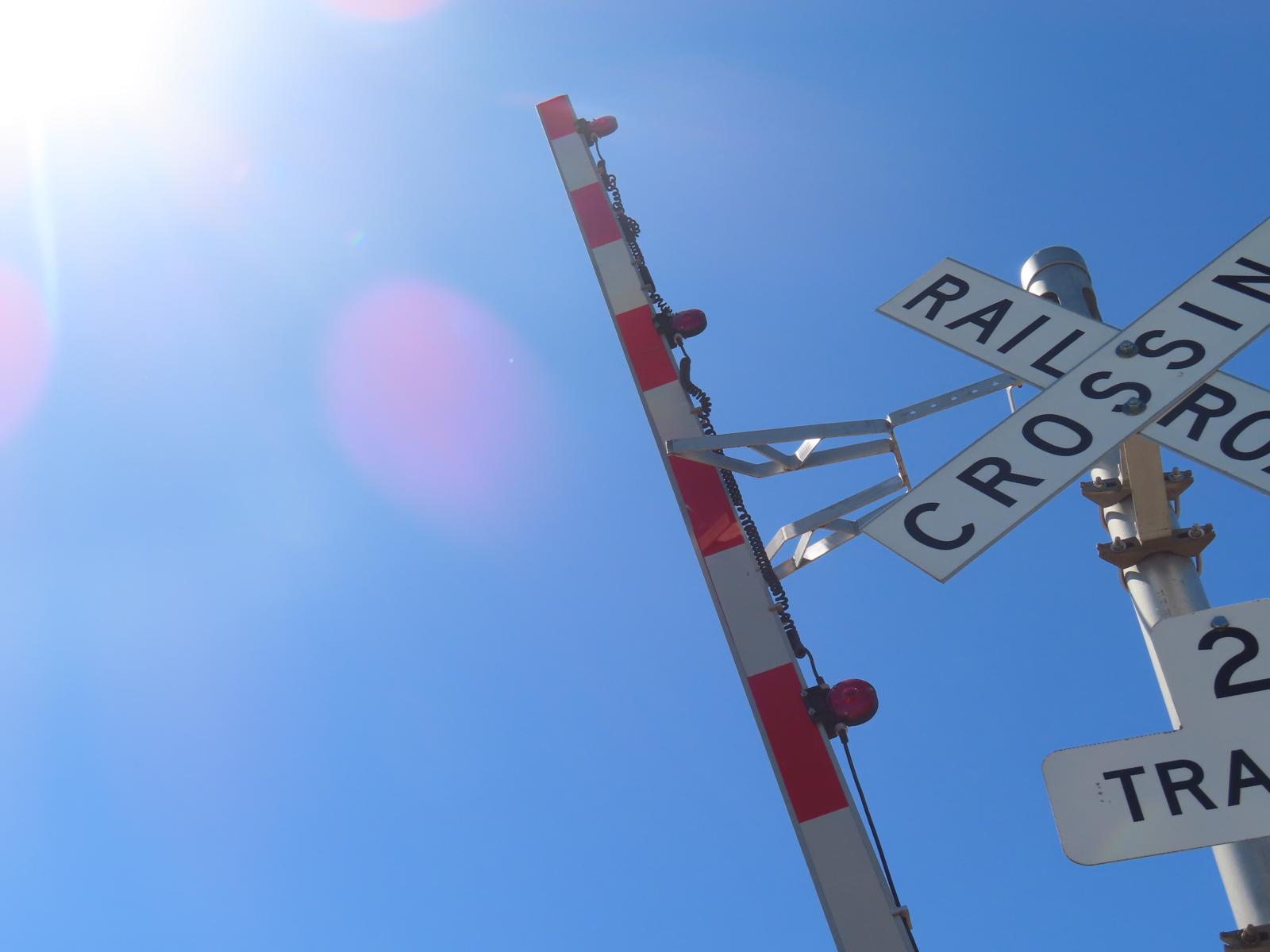

| Some more
RECO gate lights can be found on this signal in which the gates also
feature the vertical striping. |
Close up at
one of the RECO gate lights on the northern signal. These are also LED
as well. |
The base on
this signal is from US&S. |
The northern
signal also features a US&S Model 95 gate mechanism. |
29 |
30 |
31 |
32 |

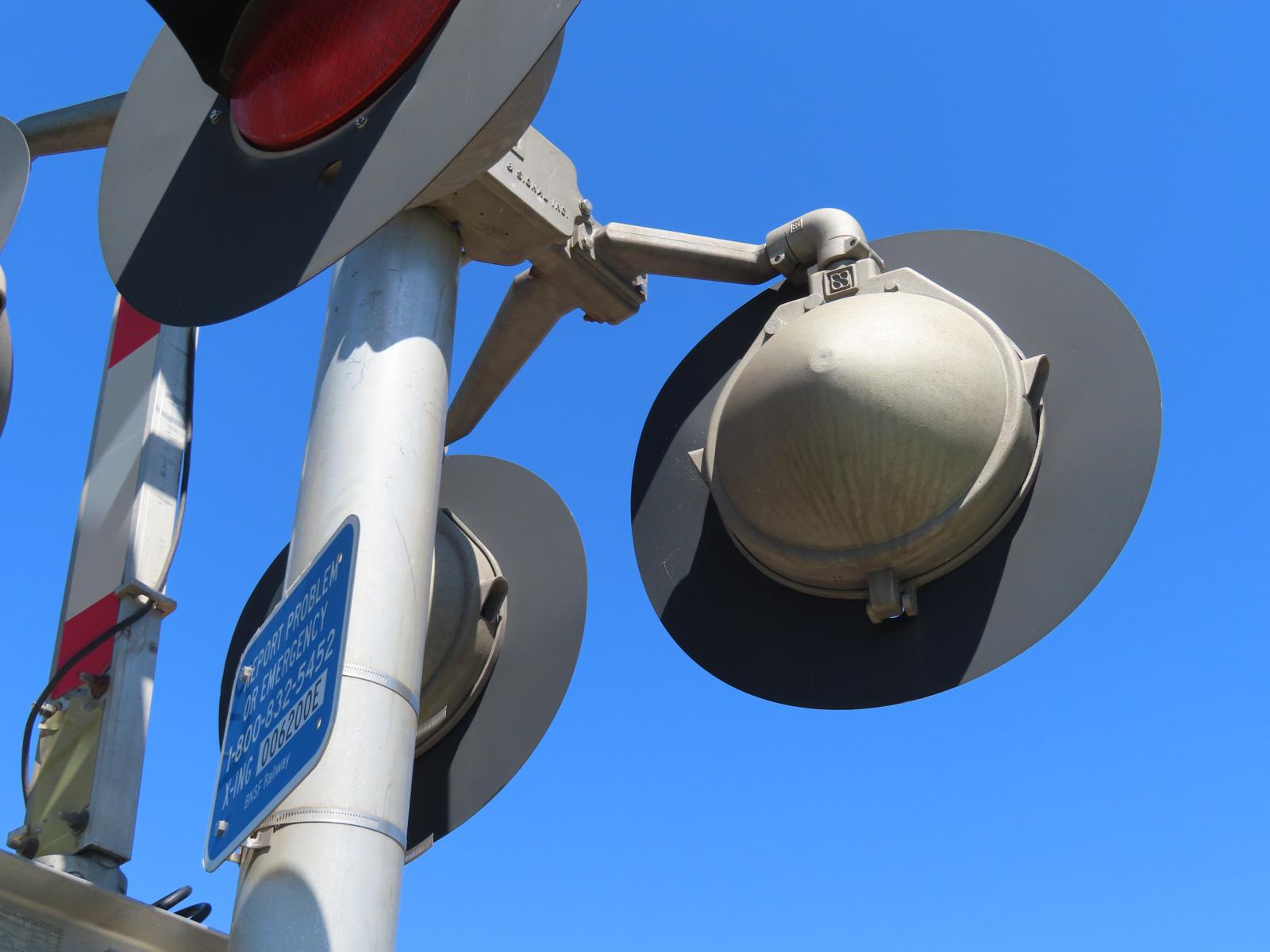

| Back view of
one of the US&S lights on the northern signal. |

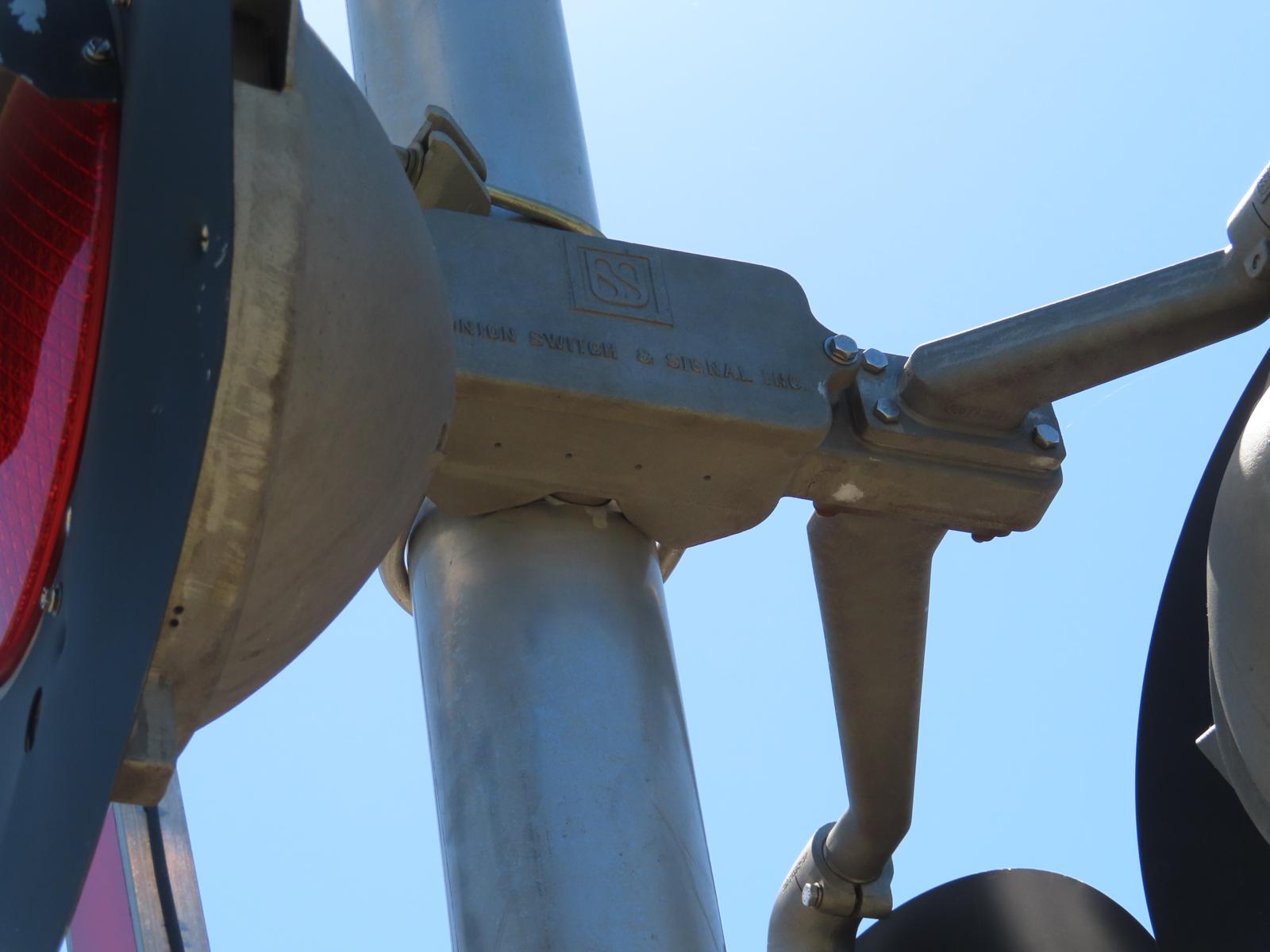

The light
bracket is also from US&S. |
A look at
the rear lights on the northern signal which feature some more Dialight
Ball LEDs. |
Rear view of
the northern signal. |
33 |
34 |
35 |
36 |

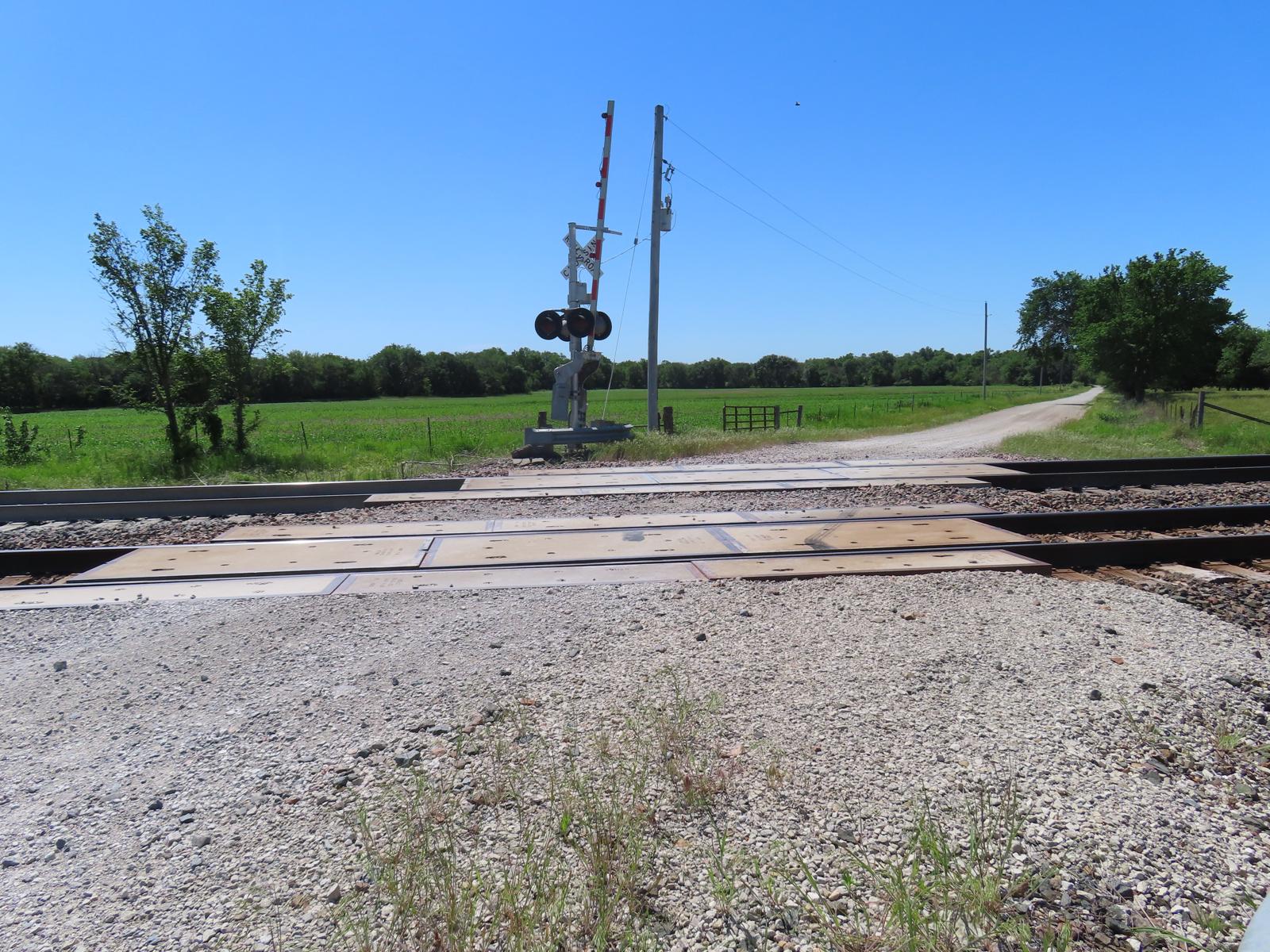

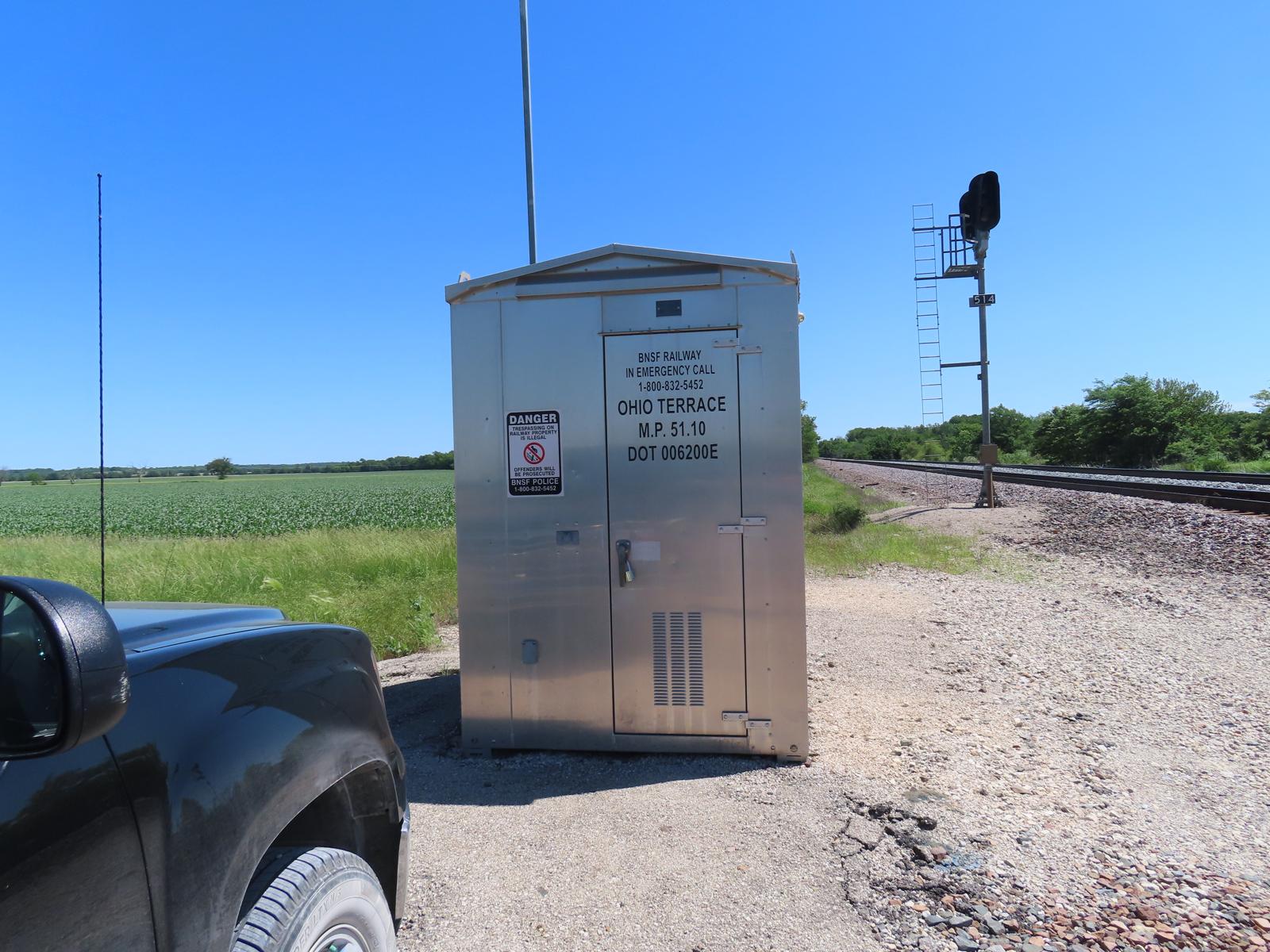

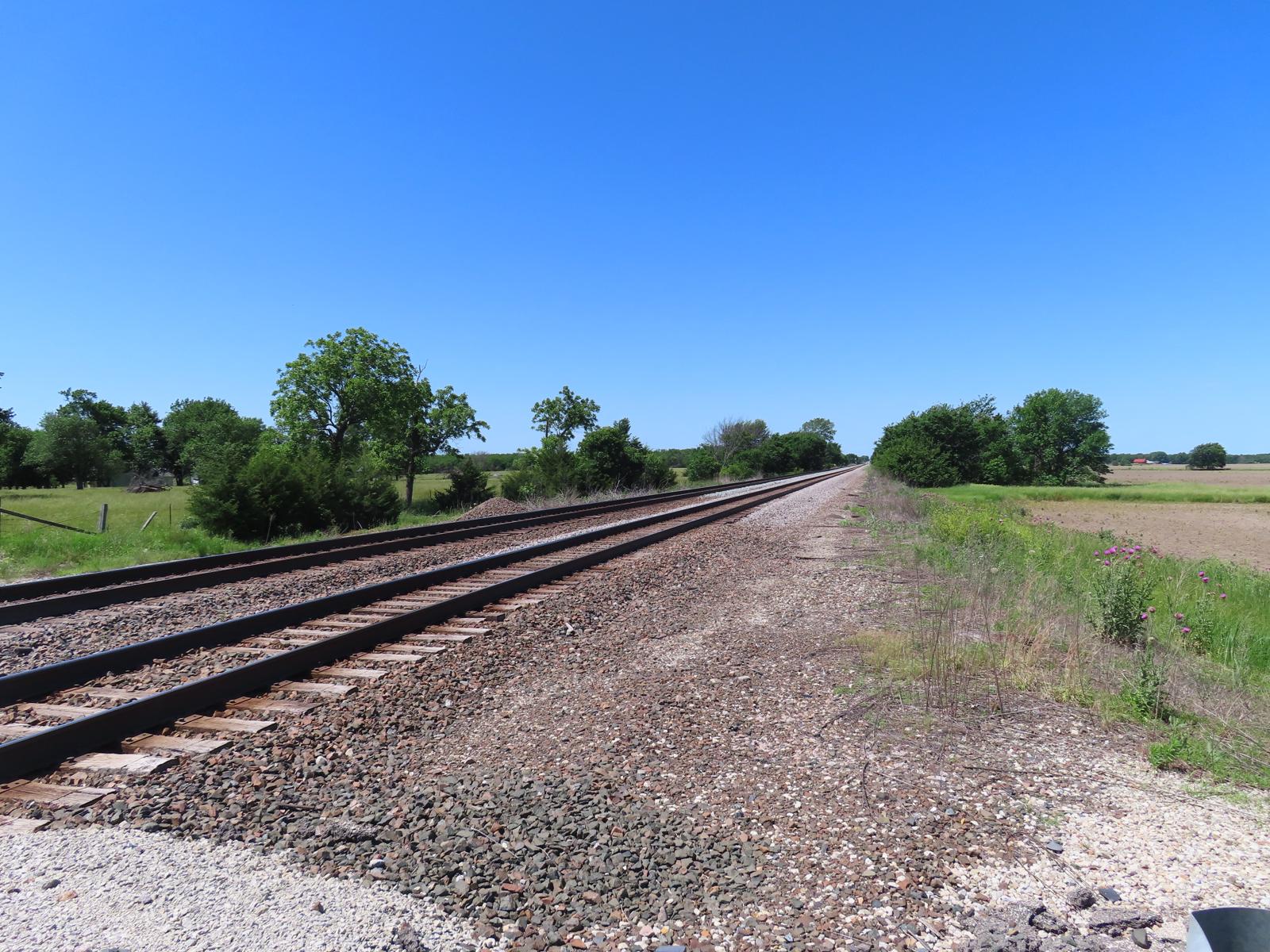

| The relay bungalow. | The grade is all concrete. | Track view facing
east towards Shawnee Rd. in Wellsville. |
Track view facing west towards Riley Rd. |
